MEAN WELL DDRH Series: Ultra-wide Input DC-DC Converter - DDRH-15-24ST
Output voltage: 24V Output current: 0 ~ 0.625A Output power rating: 15W Input voltage: 150 ~ 1500VDC Screw terminal block type Size (mm):122.3X57.3X32 Product Features 1.150 ~ 1500Vdc 10:1 ultra-wide input range (DDRH-15 ~ 60);250 ~ 1500Vdc 6:1 ultra-wide input range (DDRH-120/240). 2, 4KVdc I/O enhanced isolation, no fan design, natural air cooling. 3. Glue filling, dust-proof and moisture-proof (DDRH-15 ~ 60), mounting guide rail: TS-35/7.5 or TS-35/15. 4. Protection type: short circuit/overload/overvoltage/overtemperature/DC input undervoltage/DC input reverse polarity protection. 5, -40 ~ +80 ℃ wide range of operating temperature (>+50 ℃ derating, different models slightly different). 6. Current sharing and parallel connection function, 4 sets can be connected in parallel (DDRH-240 only, up to 960W). 7. It can work at 5000 meters above sea level, with overvoltage level II and DC OK relay contact. 8. Adjustable DC output voltage (+ 20%, only DDRH-60 ~ 240),3-year warranty.
$80.57
-
MEAN WELL DDRH Series: Ultra-wide Input DC-DC Converter - DDRH-15-15ST
Output voltage: 15V Output current: 0 ~ 1A Output power rating: 15W Input voltage: 150 ~ 1500VDC Screw terminal block type Size (mm):122.3X57.3X32 Product Features 1.150 ~ 1500Vdc 10:1 ultra-wide input range (DDRH-15 ~ 60);250 ~ 1500Vdc 6:1 ultra-wide input range (DDRH-120/240). 2, 4KVdc I/O enhanced isolation, no fan design, natural air cooling. 3. Glue filling, dust-proof and moisture-proof (DDRH-15 ~ 60), mounting guide rail: TS-35/7.5 or TS-35/15. 4. Protection type: short circuit/overload/overvoltage/overtemperature/DC input undervoltage/DC input reverse polarity protection. 5, -40 ~ +80 ℃ wide range of operating temperature (>+50 ℃ derating, different models slightly different). 6. Current sharing and parallel connection function, 4 sets can be connected in parallel (DDRH-240 only, up to 960W). 7. It can work at 5000 meters above sea level, with overvoltage level II and DC OK relay contact. 8. Adjustable DC output voltage (+ 20%, only DDRH-60 ~ 240),3-year warranty.
$80.57
-
MEAN WELL DDRH Series: Ultra-wide Input DC-DC Converter - DDRH-15-12ST
Output voltage: 12V Output current: 0 ~ 1.25A Output power rating: 15W Input voltage: 150 ~ 1500VDC Screw terminal block type Size (mm):122.3X57.3X32 Product Features 1.150 ~ 1500Vdc 10:1 ultra-wide input range (DDRH-15 ~ 60);250 ~ 1500Vdc 6:1 ultra-wide input range (DDRH-120/240). 2, 4KVdc I/O enhanced isolation, no fan design, natural air cooling. 3. Glue filling, dust-proof and moisture-proof (DDRH-15 ~ 60), mounting guide rail: TS-35/7.5 or TS-35/15. 4. Protection type: short circuit/overload/overvoltage/overtemperature/DC input undervoltage/DC input reverse polarity protection. 5, -40 ~ +80 ℃ wide range of operating temperature (>+50 ℃ derating, different models slightly different). 6. Current sharing and parallel connection function, 4 sets can be connected in parallel (DDRH-240 only, up to 960W). 7. It can work at 5000 meters above sea level, with overvoltage level II and DC OK relay contact. 8. Adjustable DC output voltage (+ 20%, only DDRH-60 ~ 240),3-year warranty.
$80.57
-
MEAN WELL DDRH Series: Ultra-wide Input DC-DC Converter - DDRH-15-05ST
Output voltage: 5V Output current: 0 ~ 2A Output power rating: 10W Input voltage: 150 ~ 1500VDC Screw terminal block type Size (mm):122.3X57.3X32 Product Features 1.150 ~ 1500Vdc 10:1 ultra-wide input range (DDRH-15 ~ 60);250 ~ 1500Vdc 6:1 ultra-wide input range (DDRH-120/240). 2, 4KVdc I/O enhanced isolation, no fan design, natural air cooling. 3. Glue filling, dust-proof and moisture-proof (DDRH-15 ~ 60), mounting guide rail: TS-35/7.5 or TS-35/15. 4. Protection type: short circuit/overload/overvoltage/overtemperature/DC input undervoltage/DC input reverse polarity protection. 5, -40 ~ +80 ℃ wide range of operating temperature (>+50 ℃ derating, different models slightly different). 6. Current sharing and parallel connection function, 4 sets can be connected in parallel (DDRH-240 only, up to 960W). 7. It can work at 5000 meters above sea level, with overvoltage level II and DC OK relay contact. 8. Adjustable DC output voltage (+ 20%, only DDRH-60 ~ 240),3-year warranty.
$80.57
-
MEAN WELL DDRH Series: Ultra-wide Input DC-DC Converter - DDRH-15-24P
Output voltage: 24V Output current: 0 ~ 0.625A Output power rating: 15W Input voltage: 150 ~ 1500VDC PCB mounting type Size (mm):76.2X50.8X25 Product Features 1.150 ~ 1500Vdc 10:1 ultra-wide input range (DDRH-15 ~ 60);250 ~ 1500Vdc 6:1 ultra-wide input range (DDRH-120/240). 2, 4KVdc I/O enhanced isolation, no fan design, natural air cooling. 3. Glue filling, dust-proof and moisture-proof (DDRH-15 ~ 60), mounting guide rail: TS-35/7.5 or TS-35/15. 4. Protection type: short circuit/overload/overvoltage/overtemperature/DC input undervoltage/DC input reverse polarity protection. 5, -40 ~ +80 ℃ wide range of operating temperature (>+50 ℃ derating, different models slightly different). 6. Current sharing and parallel connection function, 4 sets can be connected in parallel (DDRH-240 only, up to 960W). 7. It can work at 5000 meters above sea level, with overvoltage level II and DC OK relay contact. 8. Adjustable DC output voltage (+ 20%, only DDRH-60 ~ 240),3-year warranty.
$68.14
-
MEAN WELL DDRH Series: Ultra-wide Input DC-DC Converter - DDRH-15-15P
Output voltage: 15V Output current: 0 ~ 1A Output power rating: 15W Input voltage: 150 ~ 1500VDC PCB mounting type Size (mm):76.2X50.8X25 Product Features 1.150 ~ 1500Vdc 10:1 ultra-wide input range (DDRH-15 ~ 60);250 ~ 1500Vdc 6:1 ultra-wide input range (DDRH-120/240). 2, 4KVdc I/O enhanced isolation, no fan design, natural air cooling. 3. Glue filling, dust-proof and moisture-proof (DDRH-15 ~ 60), mounting guide rail: TS-35/7.5 or TS-35/15. 4. Protection type: short circuit/overload/overvoltage/overtemperature/DC input undervoltage/DC input reverse polarity protection. 5, -40 ~ +80 ℃ wide range of operating temperature (>+50 ℃ derating, different models slightly different). 6. Current sharing and parallel connection function, 4 sets can be connected in parallel (DDRH-240 only, up to 960W). 7. It can work at 5000 meters above sea level, with overvoltage level II and DC OK relay contact. 8. Adjustable DC output voltage (+ 20%, only DDRH-60 ~ 240),3-year warranty.
$68.14
-

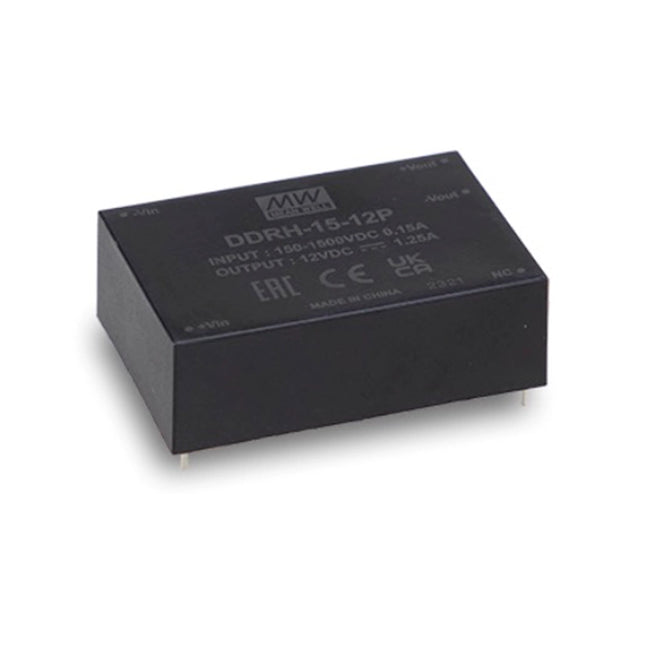

MEAN WELL DDRH Series: Ultra-wide Input DC-DC Converter - DDRH-15-12P
Output voltage: 12V Output current: 0 ~ 1.25A Output power rating: 15W Input voltage: 150 ~ 1500VDC PCB mounting type Size (mm):76.2X50.8X25 Product Features 1.150 ~ 1500Vdc 10:1 ultra-wide input range (DDRH-15 ~ 60);250 ~ 1500Vdc 6:1 ultra-wide input range (DDRH-120/240). 2, 4KVdc I/O enhanced isolation, no fan design, natural air cooling. 3. Glue filling, dust-proof and moisture-proof (DDRH-15 ~ 60), mounting guide rail: TS-35/7.5 or TS-35/15. 4. Protection type: short circuit/overload/overvoltage/overtemperature/DC input undervoltage/DC input reverse polarity protection. 5, -40 ~ +80 ℃ wide range of operating temperature (>+50 ℃ derating, different models slightly different). 6. Current sharing and parallel connection function, 4 sets can be connected in parallel (DDRH-240 only, up to 960W). 7. It can work at 5000 meters above sea level, with overvoltage level II and DC OK relay contact. 8. Adjustable DC output voltage (+ 20%, only DDRH-60 ~ 240),3-year warranty.
$68.14
-
MEAN WELL DDRH Series: Ultra-wide Input DC-DC Converter - DDRH-15-05P
Output voltage: 5V Output current: 0 ~ 2A Output power rating: 10W Input voltage: 150 ~ 1500VDC PCB mounting type Size (mm):76.2X50.8X25 Product Features 1.150 ~ 1500Vdc 10:1 ultra-wide input range (DDRH-15 ~ 60);250 ~ 1500Vdc 6:1 ultra-wide input range (DDRH-120/240). 2, 4KVdc I/O enhanced isolation, no fan design, natural air cooling. 3. Glue filling, dust-proof and moisture-proof (DDRH-15 ~ 60), mounting guide rail: TS-35/7.5 or TS-35/15. 4. Protection type: short circuit/overload/overvoltage/overtemperature/DC input undervoltage/DC input reverse polarity protection. 5, -40 ~ +80 ℃ wide range of operating temperature (>+50 ℃ derating, different models slightly different). 6. Current sharing and parallel connection function, 4 sets can be connected in parallel (DDRH-240 only, up to 960W). 7. It can work at 5000 meters above sea level, with overvoltage level II and DC OK relay contact. 8. Adjustable DC output voltage (+ 20%, only DDRH-60 ~ 240),3-year warranty.
$68.14
