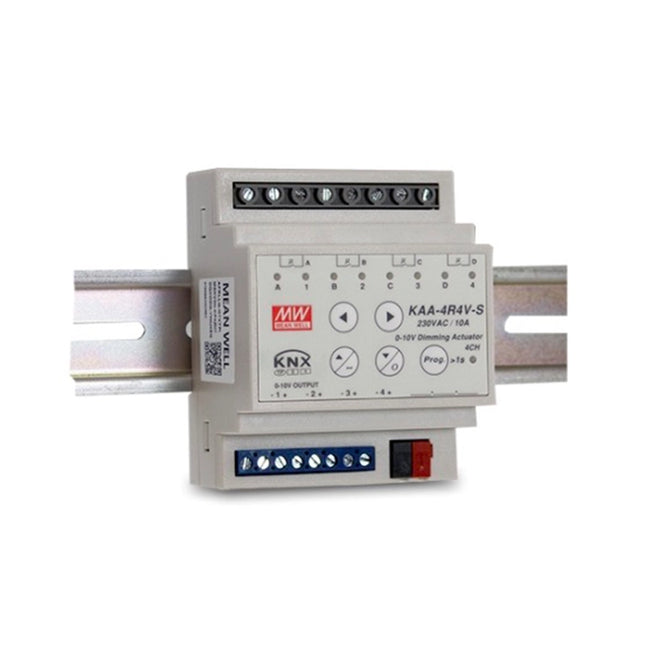

KAA-4R4V-10S — 4-channel KNX actuator and dimmer MEAN WELL KAA-4R4V-10S combines four independent latching relays with four passive 0(1)–10 V current-sinking dimming channels. It is powered from the KNX bus and supports KNX Data Secure, linear or logarithmic dimming, panel operation, timers and scenes. Download MEAN WELL KAA-4R4V-S Datasheet (PDF)Download MEAN WELL KAA-4R4V-S Instruction Manual (PDF)KAA-4R4V-S family: combined catalog pages 29–38, dated 2024-10-16. Use the correct current-rating column for this exact ordering code. Model and control functions Parameter Details Model identity Manufacturer ordering code: KAA-4R4V-10S. Supply method Powered by the EIB/KNX bus; no additional power supply is required. Relay arrangement Four independent latching relays with four dimming-control channels. Select the required switching, dimming or shutter application in ETS. Rated channel selection 10 A per channel. Observe the load-category, total-current and inrush limits below. Configuration and manual operation Configure the application with ETS. Panel buttons provide manual operation and status indication. Time and scene functions are programmable. KNX Data Secure The device certificate attached to the unit is required for the first secure configuration. After commissioning, remove it from the device as recommended and store it securely. Use a compatible application database and specialist KNX commissioning knowledge. Dimming interface Four DC 0(1)–10 V passive current-sinking outputs for compatible LED drivers or electronic ballasts. This is a control interface, not an LED load power supply. Dimming response Linear or logarithmic dimming curves are selectable in ETS. Each channel has a green status LED. Communication functions Central manual enable, switching, absolute dimming and operation status; channel switching/status, relative and absolute dimming, scenes, automatic functions, blocking and staircase-light functions. The communication-object table also provides prewarning and permanent ON; use the application database for the applicable objects and flags. Electrical and switching ratings Parameter Details KNX bus supply 21–31 VDC. Bus current and power Below 14 mA; below 250 mW. Relay output rating 230 VAC, 50 Hz; 10 A ohmic load per relay. Each relay is independent and potential-free. Capacitive load 220 µF; the catalog identifies a Notified Body test report. Maximum inrush current 400 A for a maximum 200 µs, or 80 A for a maximum 20 ms. Load categories EN 60947-4-1: AC1 (cos φ = 0.8) 10 A; AC5a (cos φ = 0.45) 8 A; AC5b 10 A. Maximum total current 40 A for the actuator; the per-channel rating does not override this aggregate limit. Service life Mechanical: more than 10⁶ cycles. Electrical endurance EN 60669-1 section 19.1: 4 × 10⁴ cycles; fluorescent lamp (AX), section 19.2: 10⁴ cycles. The specified electrical tests have a Notified Body test report. Shutter outputs Two paired shutter outputs. Dimming output limit Four passive 0–10 V control outputs, maximum 50 mA sinking current per output. Dimming cable length Up to 100 m at full control load with 1.5 mm² cable. Control-device quantity Up to 500 drivers per dimming-control channel only when each driver sources 0.1 mA. Actual allowable quantity also depends on the installation, including total cable length. This is separate from relay switching capacity. Load and driver selection Parameter Details Maximum load per channel Resistive load: 2300 W; incandescent lamps: 2300 W; 230 V halogen lamps: 2300 W; halogen electronic transformers: 1300 W; fluorescent lamps without compensation: 2000 W; parallel-compensated fluorescent lamps: 1200 W; maximum 15 electronic transformers; shutter motor: 600 W. LED-driver quantity The following catalog values are maximum numbers of MEAN WELL LED power supplies per relay channel at 230 V. Respect the exact driver series, load, inrush and total-current limits; these are not counts for mixed-driver combinations. Driver-count table, part 1 APC-8: 22; APC-12: 11; APC-16: 18; APC-25: 11; APC-35: 11; APC-8E: 22; APC-12E: 18; APC-16E: 15; APV-8: 22; APV-12: 11; APV-16: 18; APV-25: 11; APV-35: 11; APV-8E: 22; APV-12E: 18. Driver-count table, part 2 APV-16E: 15; LCM-25: 25; LCM-40: 25; LCM-60: 25; LCM-25DA: 25; LCM-40DA: 25; LCM-60DA: 25; LPC-20: 11; LPC-35: 9; LPC-60: 8; LPC-100: 7; LPC-150: 5; LPF-16: 18; LPF-25: 16; LPF-40: 16. Driver-count table, part 3 LPF-60: 9; LPF-90: 7; LPF-16D: 18; LPF-25D: 16; LPF-40D: 16; LPF-60D: 9; LPF-90D: 7; LPH-18: 16; LPHC-18: 16; LPV-20: 11; LPV-35: 9; LPV-60: 8; LPV-100: 7; LPV-150: 8; NPF-40: 10. Driver-count table, part 4 NPF-60: 10; NPF-90: 8; NPF-120: 8; NPF-40D: 10; NPF-60D: 10; NPF-90D: 8; NPF-120D: 8; PCD-16B: 80; PCD-25B: 53; PCD-40B: 45; PCD-60B: 26; PLC-30: 23; PLC-45: 23; PLC-60: 23; PLC-100: 13. Driver-count table, part 5 PLD-16B: 40; PLD-25: 32; PLD-40B: 32; PLD-60B: 32; PLM-12: 53; PLM-25: 53; PLM-40: 53; PLN-20: 23; PLN-30: 23; PLN-45: 23; PLN-60: 23; PLN-100: 13; PLP-30: 32; PLP-45: 27; PLP-60: 23. Driver-count table, part 6 PWM-40: 10; PWM-60: 10; PWM-90: 8; PWM-120: 8; HLN-40H: 10; HLN-60H: 9; HLN-80H: 7; HLP-40H: 7; HLP-60H: 9; HLP-80H: 7; CEN-60: 22; CEN-75: 22; CEN-100: 22; CLG-60: 23; CLG-100: 13. Driver-count table, part 7 CLG-150: 8; ELG-75: 10; ELG-100: 8; ELG-150: 8; ELG-75-C: 10; ELG-100-C: 13; ELG-150-C: 8; HBG-100: 8; HBG-160: 8; HBG-240: 7; HBG-60: 18; HLG-40H: 16; HLG-60H: 9; HLG-80H: 7; HLG-100H: 8. Driver-count table, part 8 HLG-120H: 8; HLG-150H: 8; HLG-185H: 8; HLG-240H: 5; HLG-320H: 6; HLG-600H: 3; HLG-60H-C: 8; HLG-80H-C: 8; HLG-120H-C: 10; HLG-185H-C: 9; HLG-240H-C: 7; HLG-320H-C: 6; HSG-70: 9; HVG-65: 20; HVG-100: 8. Driver-count table, part 9 HVG-150: 8; HVG-240: 5; HVG-320: 4; HVGC-65: 20; HVGC-100: 8; HVGC-150: 8; HVGC-240: 5; HVGC-320: 4. Environment, mounting and wiring Parameter Details Operating conditions −30°C to +45°C, climatic class 3K5; 10–95% RH, non-condensing. Storage temperature −35°C to +70°C. Protection classification Class II according to EN 61140; overvoltage category III and pollution degree 2 according to EN 60664-1; IP20 according to EN 60529. Dimensions 72 × 90 × 57 mm (W × H × D); 4 modular units wide, case KAA. General mechanical tolerance ±1 mm. DIN rail 35 mm mounting rail according to EN 60715; TS35/7.5 or TS35/15 as drawn. Screw-terminal wire 0.5–4.0 mm² solid core or 0.5–2.5 mm² finely stranded wire. KNX bus terminal 0.8 mm-diameter solid-core wire. Connect the marked KNX+ and KNX− terminals; the drawing uses red for + and black for −. Load wiring Switch the supply line through the selected relay contact and connect the load neutral as shown. Apply the load’s protective-earth requirements separately. For shutter motors, use the paired direction outputs and the motor manufacturer’s wiring instructions. Unit mass 247 g per unit; packing reference: 48 pieces / 12.53 kg / 1.02 CUFT. Standards and reliability Parameter Details Safety model KAA-4R4V-10S Safety standards BS EN/EN 50491-3; BS EN/EN 60669-1, -2-1 and -2-5; EAC TP TC 004. The catalog identifies a Notified Body test report for the marked tests. EMC emissions and immunity BS EN/EN 50491-5-1, -5-2 and -5-3; BS EN/EN 50090-2-2; BS EN/EN 60669-2-1 and -2-5; BS EN/EN 63044-5-1, -5-2 and -5-3; EAC TP TC 020. Withstand voltage Between switching and SELV control circuits: 3.5 kVAC. MTBF reference 686,900 hours minimum per Telcordia SR-332; 302,300 hours minimum per MIL-HDBK-217F at 25°C. Calculated reliability references, not guaranteed service life. Specification conditions Unless otherwise stated, parameters are measured at 230 VAC input, rated load and 25°C ambient temperature. Manufacturer warranty reference The catalog states a 3-year manufacturer warranty, subject to its applicable terms. Manufacturer installation instructions Parameter Details Terminal torque discrepancy The current catalogue states 0.8 Nm, while the instruction manual recommends 5 kgf-cm (4.4 lb-in) at the screw terminals. These values differ. Confirm the instructions for the supplied hardware revision with MEAN WELL before tightening. KNX terminal and cable layout Use 0.6-0.8 mm solid-wire diameter at the KNX bus terminal and strip 5 mm. The manual lists 350 m maximum from the bus supply to the furthest device, 700 m between devices and 1000 m total bus-line segments; the stated maximum 256 devices remains subject to actual system power and topology. Secure commissioning For KNX Data Secure, use ETS5 version 5.5.0 or later, the device-specific FDSK from its label and the required project security configuration. The manual also allows unsecured operation when deliberately configured; secure capability alone does not mean the installed system is operating securely. Relay and dimming terminal preparation The manual specifies 0.5-4.0 mm2 solid or 0.5-2.5 mm2 stranded conductors (12-26 AWG), stripped 6.5 mm, for the relay and dimming screw terminals, with a 3 mm slotted screwdriver. Confirm the applicable terminal torque separately. Passive dimming interface The DC 0(1)-10 V dimming outputs are passive. Use the appropriate wiring diagram for a compatible 1-10 V or 0-10 V LED driver. A non-dimmable driver can use relay switching only; a shutter motor requires its separate relay wiring arrangement.

Read more less

KAA-4R4VS — 4-channel KNX actuator and dimmer MEAN WELL KAA-4R4VS combines four independent latching relays with four passive 0(1)–10 V current-sinking dimming channels. It is powered from the KNX bus and supports KNX Data Secure, linear or logarithmic dimming, panel operation, timers and scenes. This is the 16 A-per-channel version identified as available by request in the manufacturer’s model encoding. Download MEAN WELL KAA-4R4V-S Datasheet (PDF)Download MEAN WELL KAA-4R4V-S Instruction Manual (PDF)KAA-4R4V-S family: combined catalog pages 29–38, dated 2024-10-16. The 16 A ordering option is identified on page 29; detailed tables headed 10S must not be used as its electrical specification. Model and control functions Parameter Details Model identity Manufacturer ordering code: KAA-4R4V-S. Supply method Powered by the EIB/KNX bus; no additional power supply is required. Relay arrangement Four independent latching relays with four dimming-control channels. Select the required switching, dimming or shutter application in ETS. Rated channel selection 16 A per channel. The 16 A version is specified by request; confirm the exact supplied hardware and its complete electrical ratings before installation. Configuration and manual operation Configure the application with ETS. Panel buttons provide manual operation and status indication. Time and scene functions are programmable. KNX Data Secure The device certificate attached to the unit is required for the first secure configuration. After commissioning, remove it from the device as recommended and store it securely. Use a compatible application database and specialist KNX commissioning knowledge. Dimming interface Four DC 0(1)–10 V passive current-sinking outputs for compatible LED drivers or electronic ballasts. This is a control interface, not an LED load power supply. Dimming response Linear or logarithmic dimming curves are selectable in ETS. Each channel has a green status LED. Communication functions Central manual enable, switching, absolute dimming and operation status; channel switching/status, relative and absolute dimming, scenes, automatic functions, blocking and staircase-light functions. The communication-object table also provides prewarning and permanent ON; use the application database for the applicable objects and flags. Selection and installation boundaries Parameter Details Confirmed 16 A switching load The dedicated KAA-4R4V-S manual specifies 230 VAC and up to 3680 W ohmic load per channel for the 16 A model. Relay and dimming outputs can operate independently as configured. Detailed ratings The catalog’s detailed electrical table is headed KAA-4R4V-10S. Its 10 A load limits, total current, inrush ratings, 50 mA output limit, cable-length allowance and unit mass are not presented as specifications for this 16 A version. Obtain the model-specific electrical and installation data before final selection. Mechanical format The family description specifies a compact 4-unit, 72 mm-wide module for a 35 mm mounting rail. Confirm the supplied 16 A version against the family mechanical drawing and the manufacturer’s installation instructions. Wiring principle Use the KNX+ and KNX− bus terminals with the correct polarity. For compatible 1–10 V drivers, the illustrated relay switches the AC line and the marked dimming +/− terminals connect to DIM+/DIM−. A compatible 0–10 V application may dim through the control terminals; non-dimmable loads use relay switching. Shutter application A motor direction application uses paired relay contacts; follow the motor manufacturer’s installation and interlocking instructions. Compatibility check Driver-count and load tables headed KAA-4R4V-10S apply to the 10 A version. Confirm the allowed driver quantity and inrush current for the supplied 16 A version; do not substitute the 10 A table. Unit mass The catalog does not provide a separately identified unit mass for the 16 A version. Manufacturer warranty reference The family catalog states a 3-year manufacturer warranty, subject to its applicable terms. Manufacturer installation instructions Parameter Details Terminal torque discrepancy The current catalogue states 0.8 Nm, while the instruction manual recommends 5 kgf-cm (4.4 lb-in) at the screw terminals. These values differ. Confirm the instructions for the supplied hardware revision with MEAN WELL before tightening. KNX terminal and cable layout Use 0.6-0.8 mm solid-wire diameter at the KNX bus terminal and strip 5 mm. The manual lists 350 m maximum from the bus supply to the furthest device, 700 m between devices and 1000 m total bus-line segments; the stated maximum 256 devices remains subject to actual system power and topology. Secure commissioning For KNX Data Secure, use ETS5 version 5.5.0 or later, the device-specific FDSK from its label and the required project security configuration. The manual also allows unsecured operation when deliberately configured; secure capability alone does not mean the installed system is operating securely. Relay and dimming terminal preparation The manual specifies 0.5-4.0 mm2 solid or 0.5-2.5 mm2 stranded conductors (12-26 AWG), stripped 6.5 mm, for the relay and dimming screw terminals, with a 3 mm slotted screwdriver. Confirm the applicable terminal torque separately. Passive dimming interface The DC 0(1)-10 V dimming outputs are passive. Use the appropriate wiring diagram for a compatible 1-10 V or 0-10 V LED driver. A non-dimmable driver can use relay switching only; a shutter motor requires its separate relay wiring arrangement.

Read more less

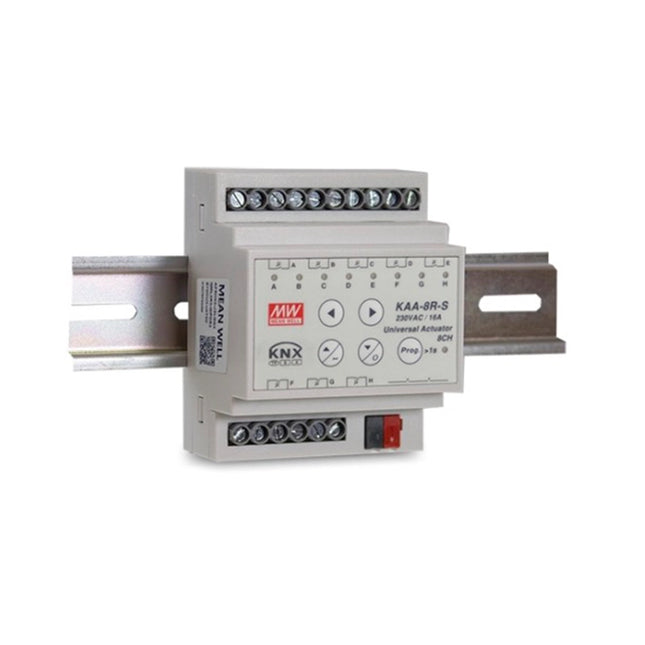

KAA-8R-10-S — 8-channel KNX switching actuator MEAN WELL KAA-8R-10-S provides eight independent latching relay outputs for switching loads, or four shutter-control pairs. It is powered from the KNX bus and supports KNX Data Secure, panel operation, timers and scenes. Download MEAN WELL KAA-8R-S Datasheet (PDF)Download MEAN WELL KAA-8R and KAA-8R-S Instruction Manual (PDF)KAA-8R-S family: combined catalog pages 21–28, dated 2024-10-16. Use the correct current-rating column for this exact ordering code. Model and control functions Parameter Details Model identity Manufacturer ordering code: KAA-8R-10S. Supply method Powered by the EIB/KNX bus; no additional power supply is required. Relay arrangement Eight independent, potential-free latching relays; up to four shutter outputs. Rated channel selection 10 A per channel. Observe the load-category, total-current and inrush limits below. Configuration and manual operation Configure the application with ETS. Panel buttons provide manual operation and status indication. Time and scene functions are programmable. KNX Data Secure The device certificate attached to the unit is required for the first secure configuration. After commissioning, remove it from the device as recommended and store it securely. Use a compatible application database and specialist KNX commissioning knowledge. Electrical and switching ratings Parameter Details KNX bus supply 21–31 VDC. Bus current and power Below 10 mA; below 180 mW. Relay output rating 230 VAC, 50 Hz; 10 A ohmic load per relay. Each relay is independent and potential-free. Capacitive load 220 µF; the catalog identifies a Notified Body test report. Maximum inrush current 400 A for a maximum 200 µs, or 80 A for a maximum 20 ms. Load categories EN 60947-4-1: AC1 (cos φ = 0.8) 10 A; AC3 (cos φ = 0.45) 5 A; AC5a (cos φ = 0.45) 8 A; AC5b 10 A. Maximum total current 56 A for the actuator; the per-channel rating does not override this aggregate limit. Service life Mechanical: more than 10⁶ cycles. Electrical endurance EN 60669-1 section 19.1: 4 × 10⁴ cycles; fluorescent lamp (AX), section 19.2: 10⁴ cycles. The specified electrical tests have a Notified Body test report. Load and driver selection Parameter Details Maximum load per channel Resistive load or heater: 2300 W; incandescent lamps: 2300 W; 230 V halogen lamps: 2300 W; halogen electronic transformers: 1300 W; fluorescent lamps without compensation: 2000 W; parallel-compensated fluorescent lamps: 1200 W; maximum 15 electronic transformers; shutter motor: 600 W. LED-driver quantity The following catalog values are maximum numbers of MEAN WELL LED power supplies per relay channel at 230 V. Respect the exact driver series, load, inrush and total-current limits; these are not counts for mixed-driver combinations. Driver-count table, part 1 APC-8: 22; APC-12: 11; APC-16: 18; APC-25: 11; APC-35: 11; APC-8E: 22; APC-12E: 18; APC-16E: 15; APV-8: 22; APV-12: 11; APV-16: 18; APV-25: 11; APV-35: 11; APV-8E: 22; APV-12E: 18. Driver-count table, part 2 APV-16E: 15; LCM-25: 25; LCM-40: 25; LCM-60: 25; LCM-25DA: 25; LCM-40DA: 25; LCM-60DA: 25; LPC-20: 11; LPC-35: 9; LPC-60: 8; LPC-100: 7; LPC-150: 5; LPF-16: 18; LPF-25: 16; LPF-40: 16. Driver-count table, part 3 LPF-60: 9; LPF-90: 7; LPF-16D: 18; LPF-25D: 16; LPF-40D: 16; LPF-60D: 9; LPF-90D: 7; LPH-18: 16; LPHC-18: 16; LPV-20: 11; LPV-35: 9; LPV-60: 8; LPV-100: 7; LPV-150: 8; NPF-40: 10. Driver-count table, part 4 NPF-60: 10; NPF-90: 8; NPF-120: 8; NPF-40D: 10; NPF-60D: 10; NPF-90D: 8; NPF-120D: 8; PCD-16B: 80; PCD-25B: 53; PCD-40B: 45; PCD-60B: 26; PLC-30: 23; PLC-45: 23; PLC-60: 23; PLC-100: 13. Driver-count table, part 5 PLD-16B: 40; PLD-25: 32; PLD-40B: 32; PLD-60B: 32; PLM-12: 53; PLM-25: 53; PLM-40: 53; PLN-20: 23; PLN-30: 23; PLN-45: 23; PLN-60: 23; PLN-100: 13; PLP-30: 32; PLP-45: 27; PLP-60: 23. Driver-count table, part 6 PWM-40: 10; PWM-60: 10; PWM-90: 8; PWM-120: 8; HLN-40H: 10; HLN-60H: 9; HLN-80H: 7; HLP-40H: 7; HLP-60H: 9; HLP-80H: 7; CEN-60: 22; CEN-75: 22; CEN-100: 22; CLG-60: 23; CLG-100: 13. Driver-count table, part 7 CLG-150: 8; ELG-75: 10; ELG-100: 8; ELG-150: 8; ELG-75-C: 10; ELG-100-C: 13; ELG-150-C: 8; HBG-100: 8; HBG-160: 8; HBG-240: 7; HBG-60: 18; HLG-40H: 16; HLG-60H: 9; HLG-80H: 7; HLG-100H: 8. Driver-count table, part 8 HLG-120H: 8; HLG-150H: 8; HLG-185H: 8; HLG-240H: 5; HLG-320H: 6; HLG-600H: 3; HLG-60H-C: 8; HLG-80H-C: 8; HLG-120H-C: 10; HLG-185H-C: 9; HLG-240H-C: 7; HLG-320H-C: 6; HSG-70: 9; HVG-65: 20; HVG-100: 8. Driver-count table, part 9 HVG-150: 8; HVG-240: 5; HVG-320: 4; HVGC-65: 20; HVGC-100: 8; HVGC-150: 8; HVGC-240: 5; HVGC-320: 4. Environment, mounting and wiring Parameter Details Operating conditions −30°C to +45°C, climatic class 3K5; 10–95% RH, non-condensing. Storage temperature −35°C to +70°C. Protection classification Class II according to EN 61140; overvoltage category III and pollution degree 2 according to EN 60664-1; IP20 according to EN 60529. Dimensions 72 × 90 × 57 mm (W × H × D); 4 modular units wide, case KAA. General mechanical tolerance ±1 mm. DIN rail 35 mm mounting rail according to EN 60715; TS35/7.5 or TS35/15 as drawn. Screw-terminal wire 0.5–4.0 mm² solid core or 0.5–2.5 mm² finely stranded wire. KNX bus terminal 0.8 mm-diameter solid-core wire. Connect the marked KNX+ and KNX− terminals; the drawing uses red for + and black for −. Load wiring Switch the supply line through the selected relay contact and connect the load neutral as shown. Apply the load’s protective-earth requirements separately. For shutter motors, use the paired direction outputs and the motor manufacturer’s wiring instructions. Unit mass 312 g per unit; packing reference: 48 pieces / 16 kg / 1.02 CUFT. Standards and reliability Parameter Details Safety model KAA-8R-10S Safety standards BS EN/EN 50491-3; BS EN/EN 60669-1, -2-1 and -2-5; EAC TP TC 004. The catalog identifies a Notified Body test report for the marked tests. EMC emissions and immunity BS EN/EN 50491-5-1, -5-2 and -5-3; BS EN/EN 50090-2-2; BS EN/EN 60669-2-1 and -2-5; BS EN/EN 63044-5-1, -5-2 and -5-3; EAC TP TC 020. Withstand voltage Between switching and SELV control circuits: 3.5 kVAC. MTBF reference 597,800 hours minimum per Telcordia SR-332; 447,900 hours minimum per MIL-HDBK-217F at 25°C. Calculated reliability references, not guaranteed service life. Specification conditions Unless otherwise stated, parameters are measured at 230 VAC input, rated load and 25°C ambient temperature. Manufacturer warranty reference The catalog states a 3-year manufacturer warranty, subject to its applicable terms. Manufacturer installation instructions Parameter Details Terminal torque discrepancy The current catalogue states 0.8 Nm, while the instruction manual recommends 5 kgf-cm (4.4 lb-in) at the screw terminals. These values differ. Confirm the instructions for the supplied hardware revision with MEAN WELL before tightening. KNX terminal and cable layout Use 0.6-0.8 mm solid-wire diameter at the KNX bus terminal and strip 5 mm. The manual lists 350 m maximum from the bus supply to the furthest device, 700 m between devices and 1000 m total bus-line segments; the stated maximum 256 devices remains subject to actual system power and topology. Secure commissioning For KNX Data Secure, use ETS5 version 5.5.0 or later, the device-specific FDSK from its label and the required project security configuration. The manual also allows unsecured operation when deliberately configured; secure capability alone does not mean the installed system is operating securely. Relay-terminal preparation The manual specifies 0.5-4.0 mm2 solid or 0.5-2.5 mm2 stranded conductors (12-26 AWG) for the relay terminals, stripped 8 mm, with a 4 mm slotted screwdriver. Confirm the applicable terminal torque separately. Shutter and switch configuration Configure the appropriate paired channels for shutter or blind motors. Follow the motor wiring instructions and its load limits; the actuator can also be configured for switching outputs or mixed use, rather than treating every output as an interchangeable motor direction.

Read more less

KAA-8R-16S — 8-channel KNX switching actuator MEAN WELL KAA-8R-16S provides eight independent latching relay outputs for switching loads, or four shutter-control pairs. It is powered from the KNX bus and supports KNX Data Secure, panel operation, timers and scenes. Download MEAN WELL KAA-8R-S Datasheet (PDF)Download MEAN WELL KAA-8R and KAA-8R-S Instruction Manual (PDF)KAA-8R-S family: combined catalog pages 21–28, dated 2024-10-16. Use the correct current-rating column for this exact ordering code. Model and control functions Parameter Details Model identity Manufacturer ordering code: KAA-8R-16S. Supply method Powered by the EIB/KNX bus; no additional power supply is required. Relay arrangement Eight independent, potential-free latching relays; up to four shutter outputs. Rated channel selection 16 A per channel. Observe the load-category, total-current and inrush limits below. Configuration and manual operation Configure the application with ETS. Panel buttons provide manual operation and status indication. Time and scene functions are programmable. KNX Data Secure The device certificate attached to the unit is required for the first secure configuration. After commissioning, remove it from the device as recommended and store it securely. Use a compatible application database and specialist KNX commissioning knowledge. Electrical and switching ratings Parameter Details KNX bus supply 21–31 VDC. Bus current and power Below 10 mA; below 180 mW. Relay output rating 230 VAC, 50 Hz; 16 A ohmic load per relay. Each relay is independent and potential-free. Capacitive load 220 µF; the catalog identifies a Notified Body test report. Maximum inrush current 800 A for a maximum 200 µs, or 165 A for a maximum 20 ms. Load categories EN 60947-4-1: AC1 (cos φ = 0.8) 16 A; AC3 (cos φ = 0.45) 8 A; AC5a (cos φ = 0.45) 8 A; AC5b 16 A. Maximum total current 80 A for the actuator; the per-channel rating does not override this aggregate limit. Service life Mechanical: more than 10⁶ cycles. Electrical endurance EN 60669-1 section 19.1: 10⁴ cycles; fluorescent lamp (AX), section 19.2: 10⁴ cycles. The specified electrical tests have a Notified Body test report. Load and driver selection Parameter Details Maximum load per channel Resistive load or heater: 3680 W; incandescent lamps: 2300 W; 230 V halogen lamps: 2300 W; halogen electronic transformers: 1300 W; fluorescent lamps without compensation: 2000 W; parallel-compensated fluorescent lamps: 1200 W; maximum 15 electronic transformers; shutter motor: 600 W. LED-driver quantity The following catalog values are maximum numbers of MEAN WELL LED power supplies per relay channel at 230 V. Respect the exact driver series, load, inrush and total-current limits; these are not counts for mixed-driver combinations. Driver-count table, part 1 APC-8: 22; APC-12: 11; APC-16: 18; APC-25: 11; APC-35: 11; APC-8E: 22; APC-12E: 18; APC-16E: 15; APV-8: 22; APV-12: 11; APV-16: 18; APV-25: 11; APV-35: 11; APV-8E: 22; APV-12E: 18. Driver-count table, part 2 APV-16E: 15; LCM-25: 25; LCM-40: 25; LCM-60: 25; LCM-25DA: 25; LCM-40DA: 25; LCM-60DA: 25; LPC-20: 11; LPC-35: 9; LPC-60: 8; LPC-100: 7; LPC-150: 13; LPF-16: 18; LPF-25: 16; LPF-40: 16. Driver-count table, part 3 LPF-60: 9; LPF-90: 7; LPF-16D: 18; LPF-25D: 16; LPF-40D: 16; LPF-60D: 9; LPF-90D: 7; LPH-18: 16; LPHC-18: 16; LPV-20: 11; LPV-35: 9; LPV-60: 8; LPV-100: 7; LPV-150: 8; NPF-40: 10. Driver-count table, part 4 NPF-60: 10; NPF-90: 8; NPF-120: 8; NPF-40D: 10; NPF-60D: 10; NPF-90D: 8; NPF-120D: 8; PCD-16B: 80; PCD-25B: 53; PCD-40B: 45; PCD-60B: 26; PLC-30: 23; PLC-45: 23; PLC-60: 23; PLC-100: 13. Driver-count table, part 5 PLD-16B: 40; PLD-25: 32; PLD-40B: 32; PLD-60B: 32; PLM-12: 53; PLM-25: 53; PLM-40: 53; PLN-20: 23; PLN-30: 23; PLN-45: 23; PLN-60: 23; PLN-100: 13; PLP-30: 32; PLP-45: 27; PLP-60: 23. Driver-count table, part 6 PWM-40: 10; PWM-60: 10; PWM-90: 8; PWM-120: 8; HLN-40H: 10; HLN-60H: 9; HLN-80H: 7; HLP-40H: 7; HLP-60H: 9; HLP-80H: 7; CEN-60: 22; CEN-75: 22; CEN-100: 22; CLG-60: 23; CLG-100: 13. Driver-count table, part 7 CLG-150: 8; ELG-75: 10; ELG-100: 8; ELG-150: 8; ELG-75-C: 10; ELG-100-C: 13; ELG-150-C: 8; HBG-100: 8; HBG-160: 8; HBG-240: 7; HBG-60: 18; HLG-40H: 16; HLG-60H: 9; HLG-80H: 7; HLG-100H: 8. Driver-count table, part 8 HLG-120H: 8; HLG-150H: 8; HLG-185H: 8; HLG-240H: 7; HLG-320H: 7; HLG-600H: 4; HLG-60H-C: 8; HLG-80H-C: 8; HLG-120H-C: 10; HLG-185H-C: 9; HLG-240H-C: 7; HLG-320H-C: 7; HSG-70: 9; HVG-65: 20; HVG-100: 8. Driver-count table, part 9 HVG-150: 8; HVG-240: 5; HVG-320: 4; HVGC-65: 20; HVGC-100: 8; HVGC-150: 8; HVGC-240: 5; HVGC-320: 4. Environment, mounting and wiring Parameter Details Operating conditions −30°C to +45°C, climatic class 3K5; 10–95% RH, non-condensing. Storage temperature −35°C to +70°C. Protection classification Class II according to EN 61140; overvoltage category III and pollution degree 2 according to EN 60664-1; IP20 according to EN 60529. Dimensions 72 × 90 × 57 mm (W × H × D); 4 modular units wide, case KAA. General mechanical tolerance ±1 mm. DIN rail 35 mm mounting rail according to EN 60715; TS35/7.5 or TS35/15 as drawn. Screw-terminal wire 0.5–4.0 mm² solid core or 0.5–2.5 mm² finely stranded wire. KNX bus terminal 0.8 mm-diameter solid-core wire. Connect the marked KNX+ and KNX− terminals; the drawing uses red for + and black for −. Load wiring Switch the supply line through the selected relay contact and connect the load neutral as shown. Apply the load’s protective-earth requirements separately. For shutter motors, use the paired direction outputs and the motor manufacturer’s wiring instructions. Unit mass 312 g per unit; packing reference: 48 pieces / 16 kg / 1.02 CUFT. Standards and reliability Parameter Details Safety model KAA-8R-S Safety standards BS EN/EN 50491-3; BS EN/EN 60669-1, -2-1 and -2-5; EAC TP TC 004. The catalog identifies a Notified Body test report for the marked tests. EMC emissions and immunity BS EN/EN 50491-5-1, -5-2 and -5-3; BS EN/EN 50090-2-2; BS EN/EN 60669-2-1 and -2-5; BS EN/EN 63044-5-1, -5-2 and -5-3; EAC TP TC 020. Withstand voltage Between switching and SELV control circuits: 3.5 kVAC. MTBF reference 597,800 hours minimum per Telcordia SR-332; 447,900 hours minimum per MIL-HDBK-217F at 25°C. Calculated reliability references, not guaranteed service life. Specification conditions Unless otherwise stated, parameters are measured at 230 VAC input, rated load and 25°C ambient temperature. Manufacturer warranty reference The catalog states a 3-year manufacturer warranty, subject to its applicable terms. Manufacturer installation instructions Parameter Details Terminal torque discrepancy The current catalogue states 0.8 Nm, while the instruction manual recommends 5 kgf-cm (4.4 lb-in) at the screw terminals. These values differ. Confirm the instructions for the supplied hardware revision with MEAN WELL before tightening. KNX terminal and cable layout Use 0.6-0.8 mm solid-wire diameter at the KNX bus terminal and strip 5 mm. The manual lists 350 m maximum from the bus supply to the furthest device, 700 m between devices and 1000 m total bus-line segments; the stated maximum 256 devices remains subject to actual system power and topology. Secure commissioning For KNX Data Secure, use ETS5 version 5.5.0 or later, the device-specific FDSK from its label and the required project security configuration. The manual also allows unsecured operation when deliberately configured; secure capability alone does not mean the installed system is operating securely. Relay-terminal preparation The manual specifies 0.5-4.0 mm2 solid or 0.5-2.5 mm2 stranded conductors (12-26 AWG) for the relay terminals, stripped 8 mm, with a 4 mm slotted screwdriver. Confirm the applicable terminal torque separately. Shutter and switch configuration Configure the appropriate paired channels for shutter or blind motors. Follow the motor wiring instructions and its load limits; the actuator can also be configured for switching outputs or mixed use, rather than treating every output as an interchangeable motor direction.

Read more less

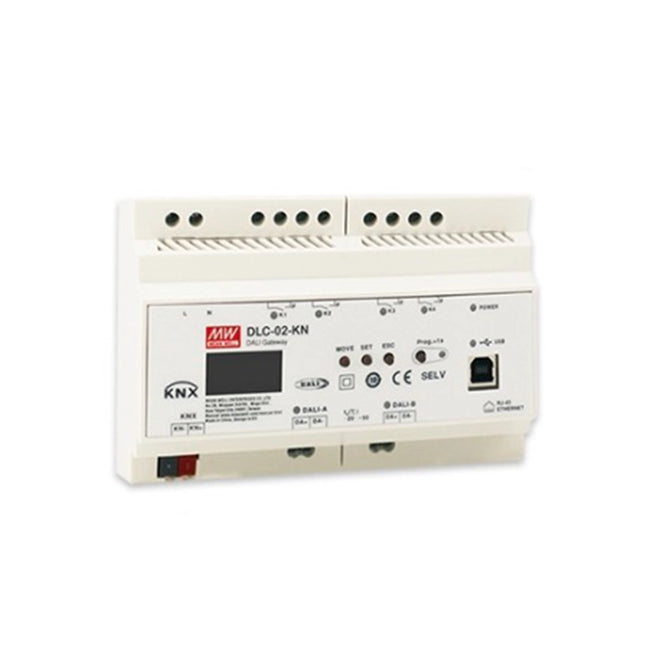

DLC-02-KN — KNX to DALI-2 gateway MEAN WELL DLC-02-KN links a KNX installation to two independently powered DALI lighting buses. It supports two groups of up to 64 control gears and provides four relay outputs, an OLED display and ETS-based commissioning. Download MEAN WELL DLC-02-KN Datasheet (PDF)Download MEAN WELL DLC-02-KN User Manual (PDF)DLC-02-KN gateway: combined catalog pages 14–20. Product-sheet date: 2024-10-16. Bus-current and relay-contact ratings are separate limits. Electrical ratings and protection Parameter Details Input range 100–305 VAC, 47–63 Hz, or 140–430 VDC; Class II construction. The catalog does not specify a DC polarity assignment for L/N; confirm the manufacturer’s DC connection instructions before DC use. DALI bus power Two built-in 16 V bus power supplies. Guaranteed supply current: 240 mA per bus; maximum supply current: 250 mA per bus. Total rated output power: 7.68 W. AC current 0.5 A typical at 115 VAC; 0.25 A typical at 230 VAC. Setup and rise time 250 ms setup and 50 ms rise at 115 VAC and 230 VAC. Inrush current Cold start: 45 A typical at 230 VAC. Short-circuit protection 0.7 s short-circuit delay to shutdown; 5 s restart period and 0.7 s retry time. Relay outputs Four independent relay channels. Each contact is rated 10 A at 125 VAC or 5 A at 250 VAC. Do not extend the relay voltage rating to the controller’s 305 VAC input limit. Control functions and connections Parameter Details DALI channels Two independent DALI channels, each supporting up to 64 control gears. Each channel provides 16 groups and 16 scenes. Supported control gear DT1 emergency lighting (part 202), DT5 DC-voltage converter (part 206), DT6 LED control gear (part 207), DT7 relay (part 208), and DT8 color control (part 209). Configuration Configure the gateway with its ETS5 or ETS6 application database and DCA. KNX switch/dim telegrams are translated to DALI commands, and DALI status is sent back to KNX. Sequences and timers 16 sequences with up to 32 steps each; 16 timers with up to 6 operations each. Sequence repetition is 1–255 cycles or continuous. Clock retention Built-in battery retains the real-time clock during loss of AC power; synchronize the clock as described in the configuration procedure. Local controls OLED display and three front buttons: MOVE, SET and ESC. Two bus-voltage LEDs, four relay LEDs and one power LED show operating status. USB One USB slave connector, type B. DALI input-device limitation The dedicated gateway manual explicitly states that DLC-02-KN does not support DALI input devices; its connected DALI devices are control gears. Input controls belong on the KNX side. KNX bus connection Connect the marked KNX+ and KNX− bus terminals; the drawing uses red for KNX+ and black for KNX−. A suitable KNX interface is required for ETS commissioning. Standby switching The gateway can work with a separate KNX actuator to disconnect AC power from DALI control gear when all relevant channels are off. The actuator and power switching must be designed for the actual loads. Mounting and environment Parameter Details Dimensions and enclosure 144 × 90 × 58.3 mm (L × W × H); ABS-V0 enclosure, 8 modular units wide. DIN-rail mounting 35 mm rail, TS35/7.5 or TS35/15 according to the mechanical drawing. Operating temperature and derating −25°C to +45°C. The vertical-mounting curve shows 100% load through +45°C and stops there; no higher-temperature full-load operation is specified. Input/load curve The static characteristic shows 100% load from 100 to 305 VAC at 60 Hz. Operating humidity 5–93% RH, non-condensing; climatic reference EN 50090-2-2. Storage conditions −25°C to +70°C; 10–95% RH, non-condensing. Altitude Operation up to 2,000 m (6,500 ft). Vibration 5–150 Hz, 2G, 12-minute cycle along each X, Y and Z axis; EN 50090-2-2. Terminal wiring Follow the marked L/N supply, K1–K4 relay contacts and separate bus A / bus B DALI terminals. Use the exact model’s diagram; the KNX and Ethernet interfaces are not interchangeable. Screw-terminal installation The product sheet specifies 1.0–2.5 mm² solid or finely stranded wire and a 2.5 × 0.4 to 3.5 × 0.6 mm slotted screwdriver. Confirm conductor acceptance for the supplied terminal revision; see the installation instructions below for the catalog/manual tightening-torque difference. Unit mass 430 g per unit; packing reference: 30 pieces / 13.9 kg / 1.30 CUFT. Standards and reliability Parameter Details Safety standards BS EN/EN 63044-1 and BS EN/EN 63044-3. DALI compliance DALI-2 control interface; the series specification explicitly lists BS EN/EN 62386-103. Use the manufacturer’s current DALI certification and supported-device documentation when commissioning. EMC emissions BS EN/EN 63044-5-2 and -5-3 (BS EN/EN 50491-5-2/-3). EMC immunity BS EN/EN 63044-5-2 and -5-3 (BS EN/EN 50491-5-2/-3). MTBF reference 562,400 hours minimum per Telcordia SR-332; 167,200 hours minimum per MIL-HDBK-217F at 25°C. These are calculated reliability references, not guaranteed service life. Specification conditions Unless stated otherwise, catalog parameters are measured at 230 VAC and 25°C ambient temperature. Manufacturer warranty reference The catalog states a 5-year manufacturer warranty, subject to its applicable terms. Manufacturer installation instructions Parameter Details Installation and servicing Installation and fault diagnosis must be performed by a qualified technician. Do not open the case yourself or install the unit in high moisture, high ambient temperature or direct sunlight. Mounting orientation Mount on TS35/7.5 or TS35/15 DIN rail with the DALI terminals facing downward so that cooling is not obstructed. Engage the top edge, slide down and press the bottom into place, then check that the unit is locked. Terminal torque discrepancy The current catalogue states 0.8 Nm, while the supplementary manual recommends 5 kgf-cm (4.4 lb-in) for the screw terminals. These values differ. Confirm the installation instructions applicable to the supplied hardware revision with MEAN WELL before tightening. DALI cable design The manual permits up to 64 electronic control gears per DALI bus and a maximum 300 m cable length when using 1.5 mm2 conductors. Device addressing and the available bus-current budget must both be respected. KNX and DALI commissioning Use ETS with the DLC-02-KN DCA application; an ETS licence is required to enable the DCA page. Actual DALI commissioning requires an online device connection, scanning and pairing the electronic control gears, and downloading the DALI configuration. This gateway does not support DALI input devices. Separate terminal preparation The manual specifies 7-8 mm stripping for AC, relay and DALI screw terminals and 5 mm for the KNX bus terminal. The KNX solid-wire figure is 0.6-0.8 mm diameter, not an area in mm2. Verify conductor acceptance for the supplied terminal revision. KNX bus layout For the KNX side, the manual lists a maximum 350 m from the bus power supply to the furthest device, 700 m between two devices and 1000 m total bus-line segments, with a maximum 256 bus devices subject to system design. These are not DALI cable limits.

Read more less

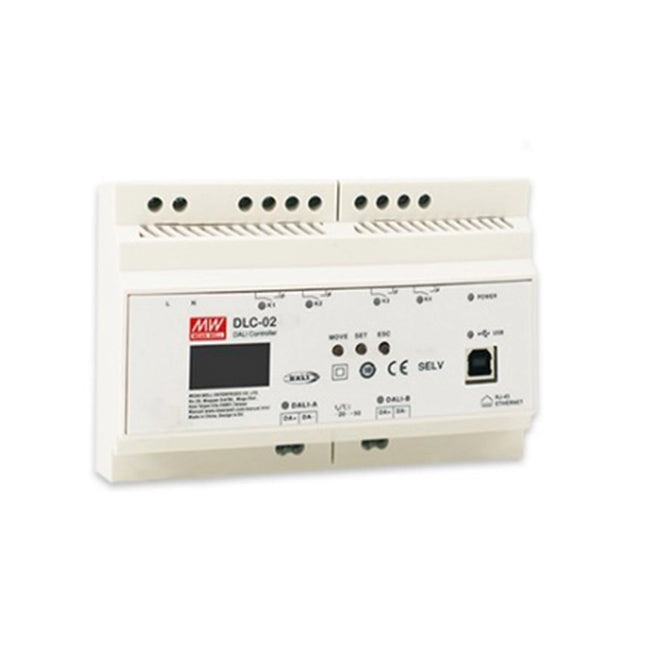

DLC-02 — DALI-2 lighting controller MEAN WELL DLC-02 controls two independently powered DALI lighting buses, with up to 64 control gears per channel and supported DALI-2 input devices. Four relay outputs, local controls, USB and Ethernet support lighting-system integration. Download MEAN WELL DLC-02 Datasheet (PDF)Download MEAN WELL DLC-02 Installation Manual (PDF)DLC-02 controller: combined catalog pages 7–13. Product-sheet date: 2024-10-16. Bus-current and relay-contact ratings are separate limits. Electrical ratings and protection Parameter Details Input range 100–305 VAC, 47–63 Hz, or 140–430 VDC; Class II construction. The catalog does not specify a DC polarity assignment for L/N; confirm the manufacturer’s DC connection instructions before DC use. DALI bus power Two built-in 16 V bus power supplies. Guaranteed supply current: 240 mA per bus; maximum supply current: 250 mA per bus. Total rated output power: 7.68 W. AC current 0.5 A typical at 115 VAC; 0.25 A typical at 230 VAC. Setup and rise time 250 ms setup and 50 ms rise at 115 VAC and 230 VAC. Inrush current Cold start: 45 A typical at 230 VAC. Short-circuit protection 0.7 s short-circuit delay to shutdown; 5 s restart period and 0.7 s retry time. Relay outputs Four independent relay channels. Each contact is rated 10 A at 125 VAC or 5 A at 250 VAC. Do not extend the relay voltage rating to the controller’s 305 VAC input limit. Control functions and connections Parameter Details DALI channels Two independent DALI channels, each supporting up to 64 control gears. Each channel provides 16 groups and 16 scenes. Supported control gear DT6 LED control gear (part 207) and DT8 color control (part 209), including tunable white, RGBW and xy color. Configuration Scan, address, group and configure the connected devices with MEAN WELL DLC-02 software. Ethernet control uses Modbus TCP/IP through the RJ45 connector. Sequences and timers The 2024-10-16 product sheet lists up to 255 timer events and 8 sequences with up to 16 steps each. The linked manual for firmware above version 3.0 lists 16 sequences of 16 steps. Confirm the supported capacity for the installed firmware; input-device events can trigger configured lighting effects. Clock retention Built-in battery retains the real-time clock during loss of AC power; synchronize the clock as described in the configuration procedure. Local controls OLED display and three front buttons: MOVE, SET and ESC. Two bus-voltage LEDs, four relay LEDs and one power LED show operating status. USB One USB slave connector, type B. DALI input devices Up to 12 input devices per channel, subject to the total bus-current budget. Supported input-device types include push buttons (part 301), absolute inputs/sliders (part 302), occupancy sensors (part 303) and light sensors (part 304). Bus-current design Use the 240 mA guaranteed current per channel as the operating budget. The catalog’s 12-device illustration instead calculates from the 250 mA maximum supply current; do not treat that maximum illustration as an unconditional guaranteed-current allowance. Mounting and environment Parameter Details Dimensions and enclosure 144 × 90 × 58.3 mm (L × W × H); ABS-V0 enclosure, 8 modular units wide. DIN-rail mounting 35 mm rail, TS35/7.5 or TS35/15 according to the mechanical drawing. Operating temperature and derating −25°C to +45°C. The vertical-mounting curve shows 100% load through +45°C and stops there; no higher-temperature full-load operation is specified. Input/load curve The static characteristic shows 100% load from 100 to 305 VAC at 60 Hz. Operating humidity 5–93% RH, non-condensing; climatic reference EN 50090-2-2. Storage conditions −25°C to +70°C; 10–95% RH, non-condensing. Altitude Operation up to 2,000 m (6,500 ft). Vibration 5–150 Hz, 2G, 12-minute cycle along each X, Y and Z axis; EN 50090-2-2. Terminal wiring Follow the marked L/N supply, K1–K4 relay contacts and separate bus A / bus B DALI terminals. Use the exact model’s diagram; the KNX and Ethernet interfaces are not interchangeable. Screw-terminal installation The product sheet specifies 1.0–2.5 mm² solid or finely stranded wire and a 2.5 × 0.4 to 3.5 × 0.6 mm slotted screwdriver. Confirm conductor acceptance for the supplied terminal revision; see the installation instructions below for the catalog/manual tightening-torque difference. Unit mass 430 g per unit; packing reference: 30 pieces / 13.9 kg / 1.30 CUFT. Standards and reliability Parameter Details Safety standards BS EN/EN 61347-1 and BS EN/EN 61347-2-11. DALI compliance DALI-2 control interface; the series specification explicitly lists BS EN/EN 62386-103. Use the manufacturer’s current DALI certification and supported-device documentation when commissioning. EMC emissions BS EN/EN 55015; harmonic current Class A. EMC immunity BS EN/EN 61547. MTBF reference 618,900 hours minimum per Telcordia SR-332; 190,100 hours minimum per MIL-HDBK-217F at 25°C. These are calculated reliability references, not guaranteed service life. Specification conditions Unless stated otherwise, catalog parameters are measured at 230 VAC and 25°C ambient temperature. Manufacturer warranty reference The catalog states a 5-year manufacturer warranty, subject to its applicable terms. Manufacturer installation instructions Parameter Details Installation and servicing Installation and fault diagnosis must be performed by a qualified technician. Do not open the case yourself or install the unit in high moisture, high ambient temperature or direct sunlight. Mounting orientation Mount on TS35/7.5 or TS35/15 DIN rail with the DALI terminals facing downward so that cooling is not obstructed. Engage the top edge, slide down and press the bottom into place, then check that the unit is locked. Terminal torque discrepancy The current catalogue states 0.8 Nm, while the supplementary manual recommends 5 kgf-cm (4.4 lb-in) for the screw terminals. These values differ. Confirm the installation instructions applicable to the supplied hardware revision with MEAN WELL before tightening. DALI cable design The manual permits up to 64 electronic control gears per DALI bus and a maximum 300 m cable length when using 1.5 mm2 conductors. Device addressing and the available bus-current budget must both be respected. Manual and firmware scope The March 2025 Version 4 installation manual states applicability to firmware above version 3.0. Match the PC software, firmware and configuration instructions to the supplied device before commissioning. Conductor preparation The manual specifies 7-8 mm stripping for AC, relay and DALI screw terminals and a 3 mm slotted screwdriver. Select conductors suitable for the actual terminal revision and load. Configuration reset Resetting the DLC-02 connection password to its factory default also clears the device parameters. Preserve the required configuration before resetting and recommission afterward.

Read more less

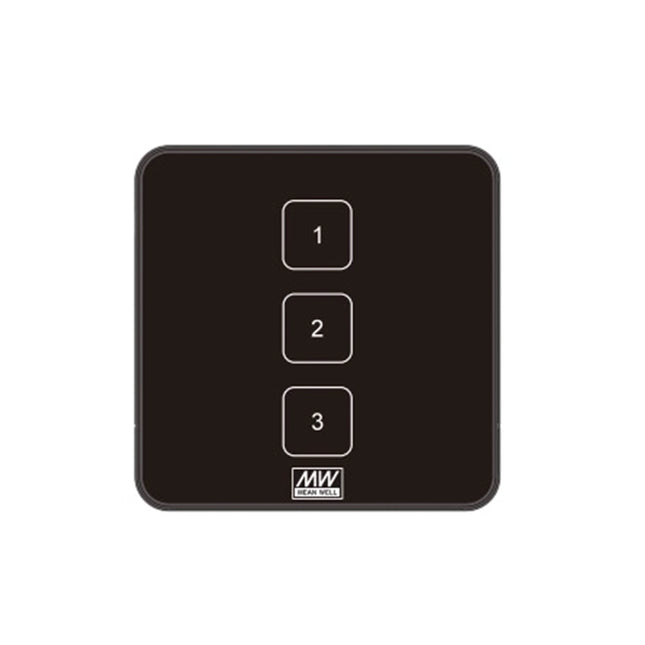

DTP-203-E — 3-button DALI-2 touch panel MEAN WELL DTP-203-E is a 3-button, DALI bus-powered touch panel for lighting scenes and group control. Its tempered-glass front, sliding cover and configurable backlight suit indoor room-control applications. Button events are assigned through the DALI control system. Download MEAN WELL DTP-2XX Datasheet (PDF)Download MEAN WELL DTP-2XX Installation Manual (PDF)DTP-2XX series: combined catalog pages 1–6, dated 2025-06-27. Select the correct U or E panel dimensions and matching wall-box mounting arrangement. Bus and control functions Parameter Details Input supply DALI bus: 9.5–22.5 VDC according to IEC 62386. This is a bus-powered control input device, not an AC mains switch or an LED load power supply. Current consumption Typical consumption below 4 mA at 16 V; inrush current below 10 mA. Start-up time 300 ms. Protocol and buttons DALI-2; 3 touch buttons. Standards listed: IEC 62386-101, -103, -301 and -332. Button events Short click, double click and long press. Assign scene or group actions with the DLC-02 software and the connected lighting controller; actual light functions depend on the controller and compatible control gear. Lighting-system functions Suitable systems can use the panel for on/off, brightness, color temperature, color and scheduled lighting. The panel sends control events; it does not itself supply the lights. Backlight and sound Three backlight levels: high brightness, low brightness and off. Touch sound can be enabled or disabled. Rear switches SW51: buzzer ON (default) or OFF. SW52: high backlight (default), low backlight or OFF. SW53: BL backlight mode (default) or FB feedback mode in accordance with IEC 62386-332. Power-cycle the device after changing SW53 mode selection. DALI bus budget With DLC-02, the catalog allows up to 12 input devices per DALI channel, depending on connected drivers and input-device consumption. Calculate the complete bus load against the supply’s guaranteed current; the listed maximum device counts are not an unconditional simultaneous-load guarantee. Installation and physical data Parameter Details Bus connection Connect the two rear DALI terminals to the DALI bus. The system needs a suitable DALI bus power supply, either separate or built into the controller. Do not connect AC mains to the panel’s DALI terminals. Connection wire 0.5–1.5 mm², AWG 20–16. Dimensions 86 × 86 × 26.5 mm (L × W × H). Mounting drawing E format: 60 mm horizontal mounting-center dimension; 48 × 48 mm rear body. Use the exact slot and wall-box drawing; general tolerance ±1 mm. Housing Tempered-glass touch front; black ABS+PC housing and sliding cover. Unit mass 130 g per unit. Packing reference: 48 pieces / 7.2 kg / 2.33 CUFT. Custom symbols Custom laser-etched symbols are available by request, within a 16.5 × 16.5 mm symbol area. Confirm the artwork and supply configuration; custom marking is not implied by this standard model code. Environment and compliance Parameter Details Operating temperature −20°C to +50°C. Operating humidity 10–93% RH; reference EN 50090-2-2. Storage conditions −25°C to +70°C; 10–95% RH. Safety standards BS EN/EN 61347-1 and BS EN/EN 61347-2-11. Withstand voltage DALI port to case: 1.5 kVAC. EMC emissions BS EN/EN 55015. The FCC mark on the series cover is limited to U versions. EMC immunity BS EN/EN 61547. Other compliance notes DALI-2 certified. The catalog describes RCM as voluntary. Manufacturer warranty reference The catalog states a 5-year manufacturer warranty, subject to its applicable terms. Manufacturer installation instructions Parameter Details Safe installation Have the touch panel installed and commissioned by qualified personnel with power disconnected. Avoid high humidity, high ambient temperature and direct sunlight, and provide adequate ventilation. DALI terminal preparation The DTP manual specifies push-in DALI terminals for 0.5-1.5 mm2 conductors (20-16 AWG), stripped 8-9 mm. Connect the DALI signal cable to the rear DA terminals while the panel is unpowered. Wall-box mounting Remove the glass and back covers by sliding the glass upward, connect the DALI cable, fix the back cover to the electrical box, then snap the glass cover onto the back cover and slide it down to secure it. Use the mounting dimensions for the specific U or E panel. Backlight and feedback selection After changing the SW53 backlight/feedback selection, power the panel on again for the change to take effect. DALI input-device capacity depends on the controller and the available bus-current budget; the manual system example does not override these limits.

Read more less

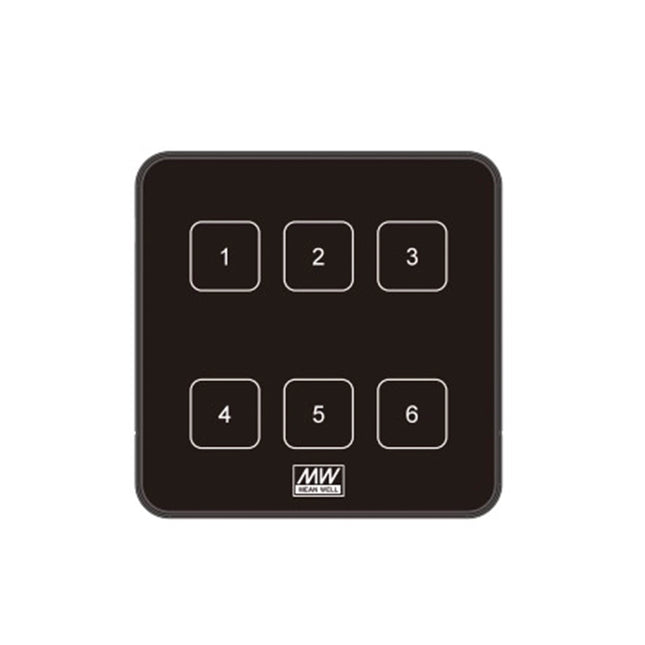

DTP-206-E — 6-button DALI-2 touch panel MEAN WELL DTP-206-E is a 6-button, DALI bus-powered touch panel for lighting scenes and group control. Its tempered-glass front, sliding cover and configurable backlight suit indoor room-control applications. Button events are assigned through the DALI control system. Download MEAN WELL DTP-2XX Datasheet (PDF)Download MEAN WELL DTP-2XX Installation Manual (PDF)DTP-2XX series: combined catalog pages 1–6, dated 2025-06-27. Select the correct U or E panel dimensions and matching wall-box mounting arrangement. Bus and control functions Parameter Details Input supply DALI bus: 9.5–22.5 VDC according to IEC 62386. This is a bus-powered control input device, not an AC mains switch or an LED load power supply. Current consumption Typical consumption below 4 mA at 16 V; inrush current below 10 mA. Start-up time 300 ms. Protocol and buttons DALI-2; 6 touch buttons. Standards listed: IEC 62386-101, -103, -301 and -332. Button events Short click, double click and long press. Assign scene or group actions with the DLC-02 software and the connected lighting controller; actual light functions depend on the controller and compatible control gear. Lighting-system functions Suitable systems can use the panel for on/off, brightness, color temperature, color and scheduled lighting. The panel sends control events; it does not itself supply the lights. Backlight and sound Three backlight levels: high brightness, low brightness and off. Touch sound can be enabled or disabled. Rear switches SW51: buzzer ON (default) or OFF. SW52: high backlight (default), low backlight or OFF. SW53: BL backlight mode (default) or FB feedback mode in accordance with IEC 62386-332. Power-cycle the device after changing SW53 mode selection. DALI bus budget With DLC-02, the catalog allows up to 12 input devices per DALI channel, depending on connected drivers and input-device consumption. Calculate the complete bus load against the supply’s guaranteed current; the listed maximum device counts are not an unconditional simultaneous-load guarantee. Installation and physical data Parameter Details Bus connection Connect the two rear DALI terminals to the DALI bus. The system needs a suitable DALI bus power supply, either separate or built into the controller. Do not connect AC mains to the panel’s DALI terminals. Connection wire 0.5–1.5 mm², AWG 20–16. Dimensions 86 × 86 × 26.5 mm (L × W × H). Mounting drawing E format: 60 mm horizontal mounting-center dimension; 48 × 48 mm rear body. Use the exact slot and wall-box drawing; general tolerance ±1 mm. Housing Tempered-glass touch front; black ABS+PC housing and sliding cover. Unit mass 130 g per unit. Packing reference: 48 pieces / 7.4 kg / 2.33 CUFT. Custom symbols Custom laser-etched symbols are available by request, within a 16.5 × 16.5 mm symbol area. Confirm the artwork and supply configuration; custom marking is not implied by this standard model code. Environment and compliance Parameter Details Operating temperature −20°C to +50°C. Operating humidity 10–93% RH; reference EN 50090-2-2. Storage conditions −25°C to +70°C; 10–95% RH. Safety standards BS EN/EN 61347-1 and BS EN/EN 61347-2-11. Withstand voltage DALI port to case: 1.5 kVAC. EMC emissions BS EN/EN 55015. The FCC mark on the series cover is limited to U versions. EMC immunity BS EN/EN 61547. Other compliance notes DALI-2 certified. The catalog describes RCM as voluntary. Manufacturer warranty reference The catalog states a 5-year manufacturer warranty, subject to its applicable terms. Manufacturer installation instructions Parameter Details Safe installation Have the touch panel installed and commissioned by qualified personnel with power disconnected. Avoid high humidity, high ambient temperature and direct sunlight, and provide adequate ventilation. DALI terminal preparation The DTP manual specifies push-in DALI terminals for 0.5-1.5 mm2 conductors (20-16 AWG), stripped 8-9 mm. Connect the DALI signal cable to the rear DA terminals while the panel is unpowered. Wall-box mounting Remove the glass and back covers by sliding the glass upward, connect the DALI cable, fix the back cover to the electrical box, then snap the glass cover onto the back cover and slide it down to secure it. Use the mounting dimensions for the specific U or E panel. Backlight and feedback selection After changing the SW53 backlight/feedback selection, power the panel on again for the change to take effect. DALI input-device capacity depends on the controller and the available bus-current budget; the manual system example does not override these limits.

Read more less

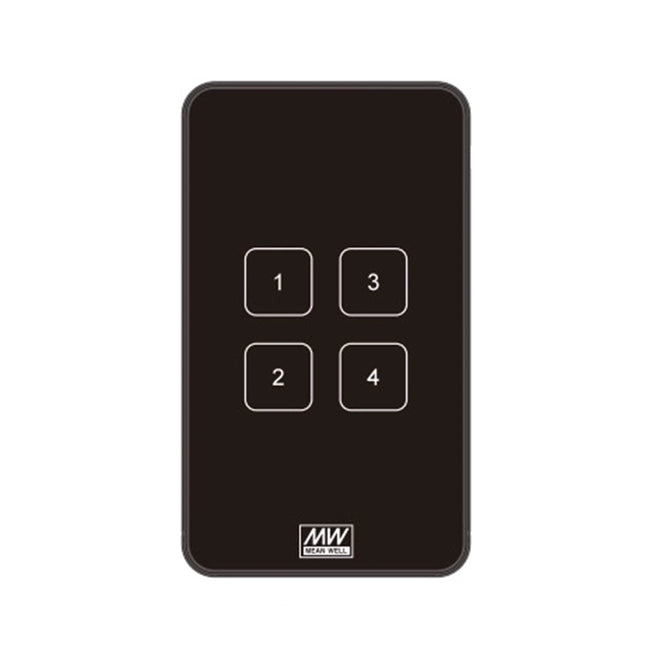

DTP-204-U — 4-button DALI-2 touch panel MEAN WELL DTP-204-U is a 4-button, DALI bus-powered touch panel for lighting scenes and group control. Its tempered-glass front, sliding cover and configurable backlight suit indoor room-control applications. Button events are assigned through the DALI control system. Download MEAN WELL DTP-2XX Datasheet (PDF)Download MEAN WELL DTP-2XX Installation Manual (PDF)DTP-2XX series: combined catalog pages 1–6, dated 2025-06-27. Select the correct U or E panel dimensions and matching wall-box mounting arrangement. Bus and control functions Parameter Details Input supply DALI bus: 9.5–22.5 VDC according to IEC 62386. This is a bus-powered control input device, not an AC mains switch or an LED load power supply. Current consumption Typical consumption below 4 mA at 16 V; inrush current below 10 mA. Start-up time 300 ms. Protocol and buttons DALI-2; 4 touch buttons. Standards listed: IEC 62386-101, -103, -301 and -332. Button events Short click, double click and long press. Assign scene or group actions with the DLC-02 software and the connected lighting controller; actual light functions depend on the controller and compatible control gear. Lighting-system functions Suitable systems can use the panel for on/off, brightness, color temperature, color and scheduled lighting. The panel sends control events; it does not itself supply the lights. Backlight and sound Three backlight levels: high brightness, low brightness and off. Touch sound can be enabled or disabled. Rear switches SW51: buzzer ON (default) or OFF. SW52: high backlight (default), low backlight or OFF. SW53: BL backlight mode (default) or FB feedback mode in accordance with IEC 62386-332. Power-cycle the device after changing SW53 mode selection. DALI bus budget With DLC-02, the catalog allows up to 12 input devices per DALI channel, depending on connected drivers and input-device consumption. Calculate the complete bus load against the supply’s guaranteed current; the listed maximum device counts are not an unconditional simultaneous-load guarantee. Installation and physical data Parameter Details Bus connection Connect the two rear DALI terminals to the DALI bus. The system needs a suitable DALI bus power supply, either separate or built into the controller. Do not connect AC mains to the panel’s DALI terminals. Connection wire 0.5–1.5 mm², AWG 20–16. Dimensions 120 × 70 × 26.5 mm (L × W × H). Mounting drawing U format: 83.5 mm vertical mounting-center dimension; 48 × 48 mm rear body. Use the exact slot and wall-box drawing; general tolerance ±1 mm. Housing Tempered-glass touch front; black ABS+PC housing and sliding cover. Unit mass 140 g per unit. Packing reference: 48 pieces / 7.7 kg / 2.33 CUFT. Custom symbols Custom laser-etched symbols are available by request, within a 16.5 × 16.5 mm symbol area. Confirm the artwork and supply configuration; custom marking is not implied by this standard model code. Environment and compliance Parameter Details Operating temperature −20°C to +50°C. Operating humidity 10–93% RH; reference EN 50090-2-2. Storage conditions −25°C to +70°C; 10–95% RH. Safety standards BS EN/EN 61347-1 and BS EN/EN 61347-2-11. Withstand voltage DALI port to case: 1.5 kVAC. EMC emissions BS EN/EN 55015; FCC Part 15 Class B for the U version. EMC immunity BS EN/EN 61547. Other compliance notes DALI-2 certified. The catalog describes RCM as voluntary. Manufacturer warranty reference The catalog states a 5-year manufacturer warranty, subject to its applicable terms. Manufacturer installation instructions Parameter Details Safe installation Have the touch panel installed and commissioned by qualified personnel with power disconnected. Avoid high humidity, high ambient temperature and direct sunlight, and provide adequate ventilation. DALI terminal preparation The DTP manual specifies push-in DALI terminals for 0.5-1.5 mm2 conductors (20-16 AWG), stripped 8-9 mm. Connect the DALI signal cable to the rear DA terminals while the panel is unpowered. Wall-box mounting Remove the glass and back covers by sliding the glass upward, connect the DALI cable, fix the back cover to the electrical box, then snap the glass cover onto the back cover and slide it down to secure it. Use the mounting dimensions for the specific U or E panel. Backlight and feedback selection After changing the SW53 backlight/feedback selection, power the panel on again for the change to take effect. DALI input-device capacity depends on the controller and the available bus-current budget; the manual system example does not override these limits.

Read more less

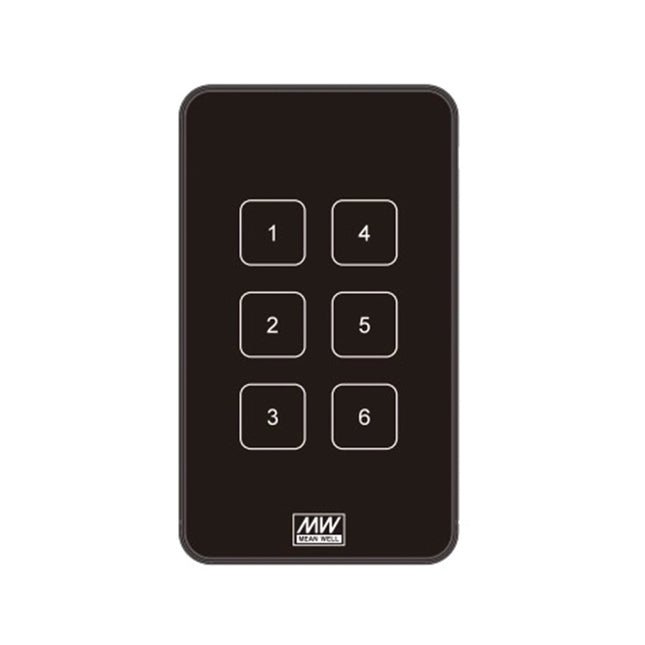

DTP-206-U — 6-button DALI-2 touch panel MEAN WELL DTP-206-U is a 6-button, DALI bus-powered touch panel for lighting scenes and group control. Its tempered-glass front, sliding cover and configurable backlight suit indoor room-control applications. Button events are assigned through the DALI control system. Download MEAN WELL DTP-2XX Datasheet (PDF)Download MEAN WELL DTP-2XX Installation Manual (PDF)DTP-2XX series: combined catalog pages 1–6, dated 2025-06-27. Select the correct U or E panel dimensions and matching wall-box mounting arrangement. Bus and control functions Parameter Details Input supply DALI bus: 9.5–22.5 VDC according to IEC 62386. This is a bus-powered control input device, not an AC mains switch or an LED load power supply. Current consumption Typical consumption below 4 mA at 16 V; inrush current below 10 mA. Start-up time 300 ms. Protocol and buttons DALI-2; 6 touch buttons. Standards listed: IEC 62386-101, -103, -301 and -332. Button events Short click, double click and long press. Assign scene or group actions with the DLC-02 software and the connected lighting controller; actual light functions depend on the controller and compatible control gear. Lighting-system functions Suitable systems can use the panel for on/off, brightness, color temperature, color and scheduled lighting. The panel sends control events; it does not itself supply the lights. Backlight and sound Three backlight levels: high brightness, low brightness and off. Touch sound can be enabled or disabled. Rear switches SW51: buzzer ON (default) or OFF. SW52: high backlight (default), low backlight or OFF. SW53: BL backlight mode (default) or FB feedback mode in accordance with IEC 62386-332. Power-cycle the device after changing SW53 mode selection. DALI bus budget With DLC-02, the catalog allows up to 12 input devices per DALI channel, depending on connected drivers and input-device consumption. Calculate the complete bus load against the supply’s guaranteed current; the listed maximum device counts are not an unconditional simultaneous-load guarantee. Installation and physical data Parameter Details Bus connection Connect the two rear DALI terminals to the DALI bus. The system needs a suitable DALI bus power supply, either separate or built into the controller. Do not connect AC mains to the panel’s DALI terminals. Connection wire 0.5–1.5 mm², AWG 20–16. Dimensions 120 × 70 × 26.5 mm (L × W × H). Mounting drawing U format: 83.5 mm vertical mounting-center dimension; 48 × 48 mm rear body. Use the exact slot and wall-box drawing; general tolerance ±1 mm. Housing Tempered-glass touch front; black ABS+PC housing and sliding cover. Unit mass 140 g per unit. Packing reference: 48 pieces / 7.8 kg / 2.33 CUFT. Custom symbols Custom laser-etched symbols are available by request, within a 16.5 × 16.5 mm symbol area. Confirm the artwork and supply configuration; custom marking is not implied by this standard model code. Environment and compliance Parameter Details Operating temperature −20°C to +50°C. Operating humidity 10–93% RH; reference EN 50090-2-2. Storage conditions −25°C to +70°C; 10–95% RH. Safety standards BS EN/EN 61347-1 and BS EN/EN 61347-2-11. Withstand voltage DALI port to case: 1.5 kVAC. EMC emissions BS EN/EN 55015; FCC Part 15 Class B for the U version. EMC immunity BS EN/EN 61547. Other compliance notes DALI-2 certified. The catalog describes RCM as voluntary. Manufacturer warranty reference The catalog states a 5-year manufacturer warranty, subject to its applicable terms. Manufacturer installation instructions Parameter Details Safe installation Have the touch panel installed and commissioned by qualified personnel with power disconnected. Avoid high humidity, high ambient temperature and direct sunlight, and provide adequate ventilation. DALI terminal preparation The DTP manual specifies push-in DALI terminals for 0.5-1.5 mm2 conductors (20-16 AWG), stripped 8-9 mm. Connect the DALI signal cable to the rear DA terminals while the panel is unpowered. Wall-box mounting Remove the glass and back covers by sliding the glass upward, connect the DALI cable, fix the back cover to the electrical box, then snap the glass cover onto the back cover and slide it down to secure it. Use the mounting dimensions for the specific U or E panel. Backlight and feedback selection After changing the SW53 backlight/feedback selection, power the panel on again for the change to take effect. DALI input-device capacity depends on the controller and the available bus-current budget; the manual system example does not override these limits.

Read more less
