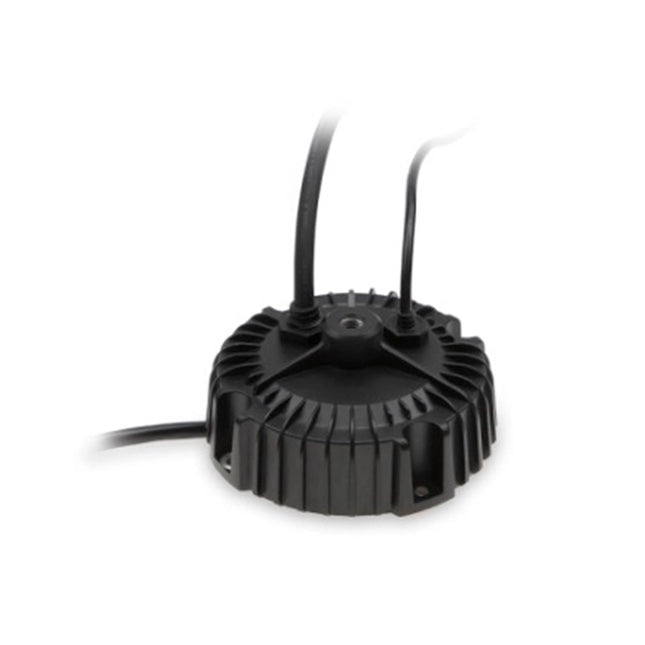

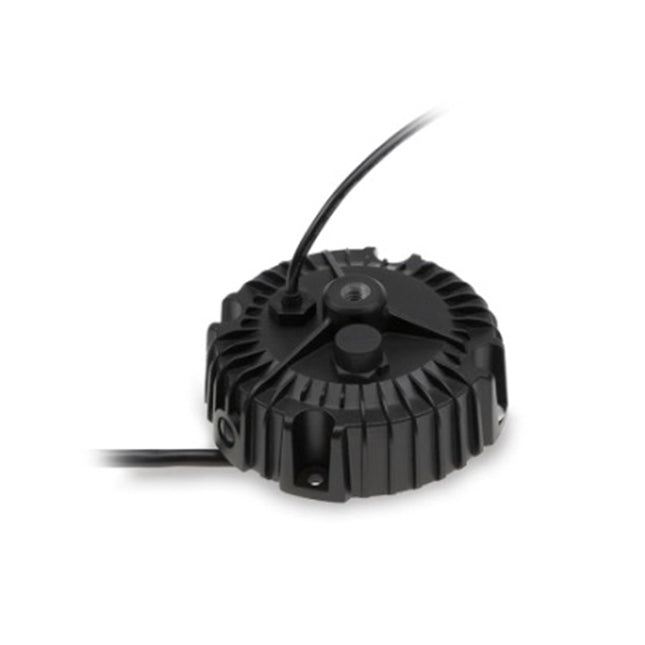

XBG-100-AB-C constant-power LED driver
MEAN WELL XBG-100-AB-C is a 100 W AC/DC constant-power LED driver for bay, stage and spot lighting. Its default output current is 2100 mA, with a 27–56 V constant-current operating region. The metal round housing is IP67-rated and cooled by free-air convection. Select the LED load within the combined voltage, current, power and temperature limits. Built-in potentiometer adjusts the output operating point. AB adds isolated 3-in-1 dimming with dim-to-off: 0–10 VDC, 10 V PWM or resistance.
Download MEAN WELL XBG-100 Datasheet (PDF)Catalog pages 50–57; series revision 2026-02-09.
Download MEAN WELL LED Installation ManualOutput and model selection
Parameter
Model-specific information
Complete model
XBG-100-AB-C
Series and option codes
XBG-100; AB function: Built-in potentiometer adjusts the output operating point. AB adds isolated 3-in-1 dimming with dim-to-off: 0–10 VDC, 10 V PWM or resistance. C specifies an AC input connector; the matching AC cable is optional and separately charged.
Default output current
2100 mA.
Rated output power
100 W; observe voltage, current and power limits simultaneously.
Constant-current region
27–56 V.
Full-power current range
1750–2780 mA. The series headline describes full-power operation across approximately 70–100% of the current setting; use the model-specific I–V envelope to select a valid load.
Output-current adjustment
875–2780 mA via the built-in potentiometer.
Open-circuit voltage
60 V maximum.
Current ripple / tolerance
3.0% maximum ripple at rated current; current tolerance ±5%.
High-performance I–V envelope
The plotted boundary points are: 875 mA / 56 V; 1750 mA / 56 V; 2780 mA / 36 V; 2780 mA / 27 V; 1750 mA / 27 V. These linked operating points define an envelope, not independently combinable maxima.
Setup time
500 ms at 230 VAC; 1200 ms at 115 VAC. Measured at first cold start; repeated switching can increase the setup time.
Input and electrical loading
Parameter
Model-specific information
Input voltage / frequency
90–305 VAC; 127–431 VDC; 47–63 Hz. Apply the input and temperature loading limits.
Active power factor correction
Built-in active PFC. Typical full-load power factor: ≥0.97 at 115 VAC; ≥0.95 at 230 VAC; ≥0.92 at 277 VAC.
Total harmonic distortion
Less than 10% at load ≥50% for 115/230 VAC, and load ≥75% for 277 VAC.
Typical efficiency
92% at the specified catalog test conditions.
Typical AC input current
1.1 A / 115 VAC; 0.5 A / 230 VAC; 0.42 A / 277 VAC.
Typical cold-start inrush
50 A at 230 VAC; pulse width 400 µs at 50% Ipeak, per NEMA 410.
16 A circuit breaker loading
At 230 VAC: maximum 8 units on type B or 14 units on type C.
Leakage current
Less than 0.75 mA at 277 VAC.
Input/load characteristic
At 60 Hz, the plotted limit rises from 80% load at 90 VAC to 100% at 100 VAC, then remains at 100% through 305 VAC.
Mains switching
Use behind a mains switch without permanent connection to the mains, as required by the catalog ErP installation note.
Standby consumption
Less than 0.5 W for this AB option.
Protection behavior
Parameter
Model-specific information
Short circuit
Hiccup mode or constant-current limiting; automatically recovers after the fault is removed.
Over-power protection
105–150%; hiccup mode, automatically recovers after the fault is removed.
Overvoltage
61–78 V; shuts down the output. Re-power on after correcting the fault to recover.
Overtemperature
Shuts down the output; re-power on after correcting the overtemperature condition to recover.
Isolated 3-in-1 dimming
Parameter
Model-specific information
Interface
Apply the control signal between DIM+ (purple) and DIM− (pink). Do not connect DIM− to Vo−.
Analog / PWM / resistance
Use 0–10 VDC, or a 10 V PWM signal at 100 Hz–3 kHz, or resistance. Typical dimming source current is 100 µA.
Low-level and off behavior
Minimum dimming level is approximately 8%; output current is undefined between 0% and 8%. About 0 VDC, 0 Ω or a 10 V PWM signal at 0% duty cycle can reduce output to 0%.
Synchronized resistance control
For N synchronized drivers, the curve runs in 10 kΩ/N steps up to 100 kΩ/N at full output. Match controller and driver quantities to the catalog circuit.
LED connection
Connect directly to LEDs; use with additional downstream drivers is not suitable.
Environment, cooling and derating
Parameter
Model-specific information
Cooling and case temperature
Fanless free-air convection. Tcase −40 to +85°C; maximum case temperature +85°C at the marked tc point. Case temperature is not ambient temperature.
Horizontal installation limits
At 100 VAC, full load extends to +50°C ambient; at 230 VAC, to approximately +55°C. The horizontal case-temperature curve stays at full load through +85°C. The −40 to below −30°C region is marked for 230 VAC input only. Observe both ambient and case limits.
Working humidity
20–95% RH, non-condensing.
Storage conditions
−40 to +80°C; 10–95% RH, non-condensing.
Temperature coefficient
±0.03%/°C over 0–60°C.
Vibration
10–500 Hz, 5G; 12 minutes per cycle, 72 minutes on each of X, Y and Z axes.
Altitude derating
For this fanless model above 2000 m (6500 ft), reduce the permitted ambient temperature by 3.5°C per additional 1000 m.
Reference performance curves
PF, THD and efficiency plots use Tcase 65°C. THD and efficiency examples use a 1750 mA setting; they are not guaranteed values at every operating point.
Dimensions, wiring and installation
Parameter
Model-specific information
Housing / dimensions
Round metal IP67 housing; with a fitted protective-earth connection. Ø130 × 56 mm (D × H), as listed in the specification table; the mechanical drawing separately gives Ø126.6 × 56 mm. Confirm the mechanical fit against the actual drawing before installation.
Mechanical drawing
Case No. 280; dimensions in mm, tolerance ±1 mm. Drawing diameter Ø126.6 mm and height 56 mm. Four Ø6 mm mounting holes on a 113 × 113 mm span.
AC input connector
CHOGORI 22003515-01. Pin 1 = AC/L; pin 2 = AC/N; pin 3 = PE (protective earth). Follow the connector-face orientation in the drawing.
Center thread
M10 × P1.5-18h as labeled in the mechanical drawing; do not interpret the suffix as a screw insertion-depth instruction.
DC output cable
200 ±20 mm; SJOW 17 AWG × 2 conductors, with the drawing also marking 05RN-F 1.0 mm². +V = red; −V = black.
Temperature measurement
Use the marked tc point at the 20 / 14.5 mm offsets in the drawing. The Ta reference is illustrated at 150 mm and 45° from the housing.
Unit mass
800 g: catalog PACKING reference per unit, 0.8 kg × 1000. Not a measured shipping weight.
Suspension and transport
Inspect for cracks if packaging is damaged; do not drop or bump the driver. Tighten all screws, including the suspension screw, with spring washers. Limit the complete luminaire, including the driver, to 10 kg. Protect against shock during packing and transport. The hanger, chain and high-bay illustrations are installation examples, not included accessory order codes.
Optional AC cable
Order separately: F61-XBG-AC-CABLE-100 = 100 cm; F61-XBG-AC-CABLE-200 = 200 cm; F61-XBG-AC-CABLE-300 = 300 cm. These are optional, separately charged cables; confirm availability rather than treating catalog stock notes as store inventory.
Cable matching
This model drawing shows CHOGORI 22003211-01 and H05RN-F 3 × 0.75 mm². Other XBG pages show a different construction under the same F61 cable codes; confirm the supplied connector and cable for this exact driver before ordering.
Control cable
UL 2517, 22 AWG × 2 conductors, 350 ±20 mm. DIM+ = purple; DIM− = pink.
Installation manual requirements
Parameter
Model-specific information
Installation safety
Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself.
Ventilation and mounting
Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements.
System wiring and protection
Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system.
Environmental and load limits
Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person.
Connection seals and support
If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications.
Protective-earth installation
Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram.
Weather protection
This IP67 model with an output adjustment device must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion.
Dimming isolation
This model’s catalog explicitly specifies an isolated 3-in-1 dimming circuit. Follow its analog DIM interface; do not substitute the HBG nonisolated-interface instruction.
Control-circuit installation
The catalog control conductors are 22 AWG, smaller than 18 AWG. The installation manual requires connection only to a SELV controller or network for such standalone dimming conductors; contact MEAN WELL before using FELV control. Verify compatibility with this exact analog or digital interface.
AC connector installation
Follow the catalog connector pin table: pin 1 is AC/L, pin 2 is AC/N and pin 3 is protective earth. The optional AC input cable is separately charged. Confirm the matching connector and supplied cable specification before ordering or installation; the XBG model pages depict different cable constructions under the same optional order codes.
Standards and catalog conditions
Parameter
Model-specific information
Safety standards
UL 8750 Type HL; CSA C22.2 No. 250.13-12; ENEC BS EN/EN 61347-1, 61347-2-13 independent and 62384; IS 15885 (Part 2/Sec 13); GB/T 19510.1 and GB/T 19510.213; IP67; EAC TP TC 004, as listed in the catalog. Products supplied from the Americas may lack PSE/CCC/BIS/KC logos; verify the required regional marks for the actual unit.
Type HL installation condition
For this AB option, use a built-in installation or fill the Io adjustment hole with potting compound to meet the catalog Type HL application condition for Class I, Division 2. Final luminaire suitability must be assessed.
Output safety designation
SELV is shown in the series catalog; maintain the specified wiring and final equipment protection.
Withstand voltage
Input–output: 3.75 kVAC; input–earth: 2 kVAC; output–earth: 1.5 kVAC.
Isolation resistance
100 MΩ at 500 VDC, 25°C and 70% RH, for input–output, input–earth and output–earth.
EMC emission
Conducted and radiated: BS EN/EN 55015 (CISPR 15), GB/T 17743. Harmonics: BS EN/EN 61000-3-2 and GB 17625.1, Class C at load ≥50%. Voltage flicker: BS EN/EN 61000-3-3.
EMC immunity
BS EN/EN 61547. Tests to BS EN/EN 61000-4-2: level 3, 8 kV air / level 2, 4 kV contact; -4-3 radiated level 3; -4-4 EFT level 3; -4-5 surge 4 kV line–line / 6 kV line–earth; -4-6 conducted level 3; -4-8 magnetic field level 4; -4-11 dips >95% for 0.5 periods and 30% for 25 periods, interruptions >95% for 250 periods.
Final equipment EMC
This driver is a component of final equipment; the complete luminaire installation must be requalified for EMC because wiring and installation affect compliance.
MTBF
2871.3 thousand hours minimum, Telcordia SR-332 (Bellcore); 188.8 thousand hours minimum, MIL-HDBK-217F at 25°C.
Service life and warranty
The specification lists 50,000 hours minimum; its typical-life note states more than 50,000 hours with the tc point at about 75°C or below. The catalog states a 5-year warranty, subject to the manufacturer’s warranty terms.
Lifetime reference curve
Approximately 100,000 hours at Tcase ≤65°C, 70,000 at 70°C, 50,000 at 75°C and 35,000 at 80°C. Approximately 25,000 hours at 85°C. These are readings of the reference curve, not an extension of the warranty or a guarantee at every operating point.
Measurement conditions
Unless otherwise specified: 230 VAC input, rated output current and 25°C ambient. Typical values and example curves retain their stated test conditions.
Circuit operating frequencies
Block diagram: PFC oscillator 45–50 kHz; PWM oscillator 60–130 kHz.
