HLG Series: Constant Current & Constant Voltage (C.C. + C.V.) LED Driver

•

  View options

  MEAN WELL HLG-320H series: Constant Voltage + Constant Current LED Driver - HLG-320H-48AB

  HLG-320H-48AB LED Driver HLG-320H-48AB is a MEAN WELL HLG-320H metal-case, Class I LED driver with 48 V DC rated output, 6.7 A rated current and 321.6 W rated power. It provides constant-voltage and constant-current operation with a 24–48 V constant-current region. Internal current adjustment and 3-in-1 external dimming. IP65 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-320H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 81–90. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-320H-48AB; Internal current adjustment and 3-in-1 external dimming Rated output 48 V DC; 6.7 A; 321.6 W Constant-current region 24–48 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 250 mVp-p Voltage tolerance ±1%, including set-up, line and load regulation Line / load regulation ±0.5% / ±0.5% Current adjustment 3.35–6.7 A by the internal potentiometer; do not exceed the rated output envelope. Voltage adjustment This AB version provides internal Io adjustment; the catalog voltage-adjustment range applies to A/C versions. Efficiency 95% typical at 230 VAC; 95% typical at 277 VAC Setup / rise time 2500 ms / 80 ms at 115 VAC; 600 ms / 80 ms at 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 3.5 / 1.65 / 1.45 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.94 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1010 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 100–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 53.5–60 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 1–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 10 kΩ/N to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 10–100% of rated current. This interface does not itself provide dim-to-off; the catalog illustrates a separate switch/relay in the AC supply for complete turn-off. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: at 110 VAC, 100% load through +50°C; at 230 VAC, 100% through +60°C. Both curves reach 60% at +70°C. The plotted ambient range starts at −40°C. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 112.6 mm from the drawing’s right-side inner reference and 45 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 80°C Temperature coefficient ±0.03%/°C (0–50°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 1702.2 K hours, Telcordia SR-332 (Bellcore); 157.2 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 8750 (Type HL); CSA C22.2 No. 250.0-08; BS EN/EN/AS/NZS 61347-1 and 61347-2-13, independent type; GB 19510.1 and GB 19510.213; EAC TP TC 004; J61347-1 and J61347-2-13. Type HL compliance of A/AB versions requires built-in installation consideration in the final equipment. EMC emissions BS EN/EN 55015; BS EN/EN 55032 (CISPR 32), Class B; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. ErP installation condition For the stated EU ErP compliance, install the LED power supply after a switch; do not leave it permanently connected to the mains supply. Mechanical details and connection Dimensions / case 252 × 90 × 43.8 mm (L × W × H); case 202A. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP65 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 1.88 kg per unit; 8 units / 16 kg / 0.92 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cable SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm²; 300 ±20 mm. Vo+ red; Vo− black. Dimming cable UL2517 20 AWG × 2C; 300 ±20 mm; DIM+ purple, DIM− pink. Optional accessories and ordering Optional output connectors Separately specified catalog connector options: M12-04 (M12 female, 4 pins, 5 A per pin, suitable for 10 A maximum), M12-05 (M12 female, 5 pins, 5 A per pin, suitable for 10 A maximum), and M15-02 (M15 female, 2 pins, 12 A per pin, suitable for 12 A maximum). Confirm the mating configuration, polarity, sealing and current rating. A connector does not increase the driver rating; options below the required output current cannot carry this model at full rating. Optional cable joiners CJ04-1 for 14–16 AWG; CJ04-2 for 18–22 AWG. Both are 66 mm long × Ø25 mm and allow up to four wires joined by solder or clamp with suitable tools. Sold separately for user assembly. Verify that the actual cable gauge and sealing arrangement match; a 17 AWG cable is not within either listed wire range. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $226.71

  View options

•

  View options

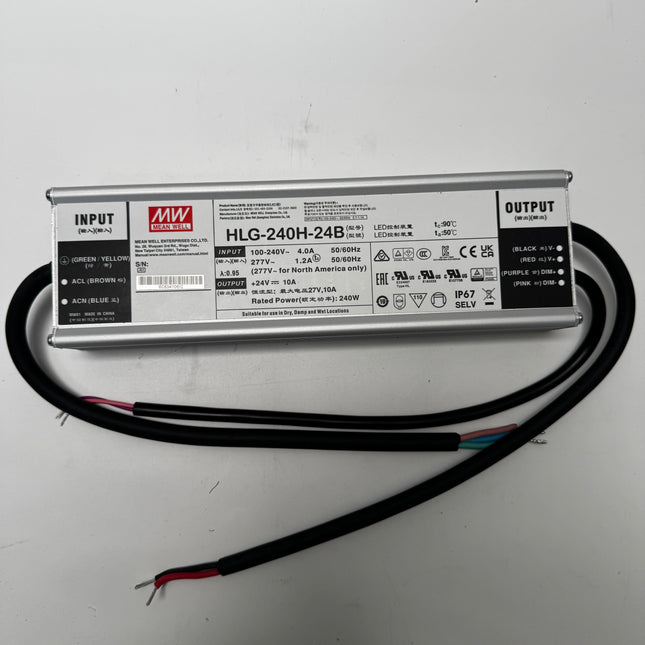

  MEAN WELL HLG-240H series: Constant Voltage + Constant Current LED Driver - HLG-240H-24B

  HLG-240H-24B LED Driver HLG-240H-24B is a MEAN WELL HLG-240H metal-case, Class I LED driver with 24 V DC rated output, 10 A rated current and 240 W rated power. It provides constant-voltage and constant-current operation with a 12–24 V constant-current region. 3-in-1 external dimming. IP67 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-240H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 71–80. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-240H-24B; 3-in-1 external dimming Rated output 24 V DC; 10 A; 240 W Constant-current region 12–24 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 150 mVp-p Voltage tolerance ±1%, including set-up, line and load regulation Line / load regulation ±0.5% / ±0.5% Internal adjustment No user-accessible internal voltage/current adjustment is specified for this option. Efficiency 92.5% typical Setup / rise time 1000 ms / 80 ms at 115 VAC; 500 ms / 80 ms at 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 4 / 2 / 1.2 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 at 115 / 230 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 75 A; 570 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 2 / 4 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 100–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 27–34 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; automatic recovery after temperature falls. Control and option-specific functions Dimming methods 1–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 10 kΩ/N to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 10–100% of rated current. This interface does not itself provide dim-to-off; the catalog illustrates a separate switch/relay in the AC supply for complete turn-off. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: at 100 VAC, 100% load through +50°C; at 230 VAC, 100% through +60°C. Both curves reach 60% at +70°C. The plotted ambient range starts at −40°C. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 110.1 mm from the drawing’s right-side inner reference and 34 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 80°C Temperature coefficient ±0.03%/°C (0–50°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 2015.1 K hours, Telcordia SR-332 (Bellcore); 176.4 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 1012; CAN/CSA C22.2 No. 107.1-01; UL 8750 (Type HL); CSA C22.2 No. 250.0-08; BS EN/EN/AS/NZS 61347-1 and 61347-2-13, independent type; GB 19510.1 and GB 19510.213; IEC/UL/BS EN/EN 62368-1; J61347-1 and J61347-2-13; KC 61347-1 and 61347-2-13; EAC TP TC 004. Models shipped to the Americas may carry only UL, CE and UKCA logos; confirm regional marking before ordering. EMC emissions BS EN/EN 55015; BS EN/EN 55032 (CISPR 32), Class B; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1; KN 15 and KN 61547; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KN 15 and KN 61547. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. ErP installation condition For the stated EU ErP compliance, install the LED power supply after a switch; do not leave it permanently connected to the mains supply. Mechanical details and connection Dimensions / case 244.2 × 68 × 38.8 mm (L × W × H); case 994C. Mounting Four mounting holes, Ø4.2 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP67 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 1.3 kg per unit, expressly listed for Blank/A/B types; 12 units / 16.6 kg / 0.84 cu ft. AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cable SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm²; 300 ±20 mm. Vo+ red; Vo− black. Dimming cable UL2517 20 AWG × 2C; 300 ±20 mm; DIM+ purple, DIM− pink. Optional accessories and ordering Optional output connectors Separately specified catalog connector options: M12-04 (M12 female, 4 pins, 5 A per pin, suitable for 10 A maximum), M12-05 (M12 female, 5 pins, 5 A per pin, suitable for 10 A maximum), and M15-02 (M15 female, 2 pins, 12 A per pin, suitable for 12 A maximum). Confirm the mating configuration, polarity, sealing and current rating. A connector does not increase the driver rating; options below the required output current cannot carry this model at full rating. Optional cable joiners CJ04-1 for 14–16 AWG; CJ04-2 for 18–22 AWG. Both are 66 mm long × Ø25 mm and allow up to four wires joined by solder or clamp with suitable tools. Sold separately for user assembly. Verify that the actual cable gauge and sealing arrangement match; a 17 AWG cable is not within either listed wire range. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $163.14

  View options

•

  View options

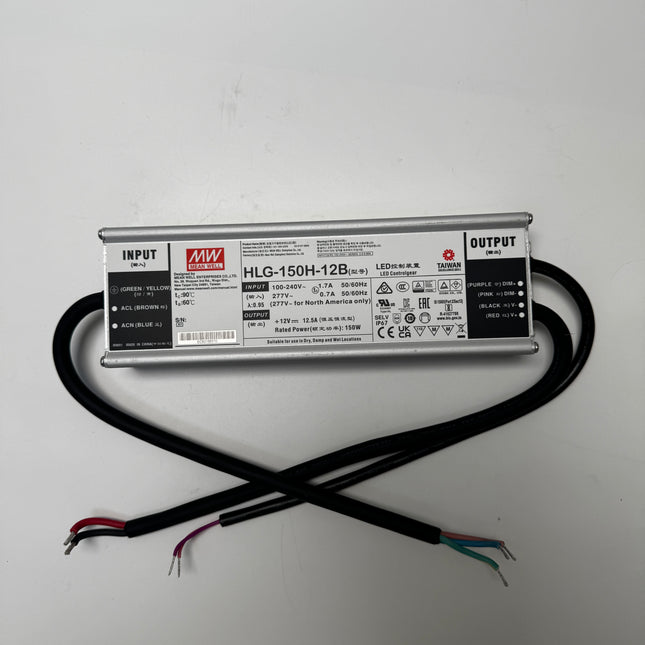

  MEAN WELL HLG-150H series: Constant Voltage/Constant Current LED Driver - HLG-150H-12B

  HLG-150H-12B LED driver MEAN WELL HLG-150H-12B is a constant voltage/constant current led driver with 12 V nominal output, 12.5 A rated current and 150 W rated power. Its IP67 metal housing uses fanless convection cooling and active PFC. 3-in-1 dimming by 1–10 VDC, 10 V PWM or resistance. Intended LED applications include street, architectural, bay and flood lighting, subject to the operating and installation limits below. Download MEAN WELL HLG-150H Datasheet (PDF)Download MEAN WELL LED Installation Manual HLG catalog, PDF pages 51–60. Use the exact output and function suffix when selecting the driver. Output and input specifications Rated output 12 VDC; 12.5 A; 150 W. Constant-current region: 6–12 V. Operate within the output envelope and input/temperature derating limits. Output adjustment No built-in output voltage/current potentiometer adjustment is specified for this function code. Ripple and regulation Ripple/noise: 150 mVp-p maximum; voltage tolerance ±2.5%; line regulation ±0.5%; load regulation ±2%. Ripple test: 20 MHz bandwidth, 12-inch twisted pair, parallel 0.1 µF and 47 µF capacitors. Tolerance includes setup, line and load regulation. Efficiency and test conditions Typical efficiency: 91.5%. Unless otherwise stated, specifications are measured at 230 VAC, rated current and 25°C ambient. Input range and frequency 90–305 VAC / 127–431 VDC; 47–63 Hz. Active PFC and harmonics Power factor ≥0.98 / 0.95 / 0.92 at 115 / 230 / 277 VAC, full load. Total harmonic distortion <20% at loads ≥60% at 115 and 230 VAC; 75% at 277 VAC. Built-in active PFC; block-diagram switching frequency: 100 kHz. AC current and startup Typical input current: 1.7 / 0.75 / 0.7 A at 115 / 230 / 277 VAC. Setup / rise time: 1000 / 200 ms at 115 VAC; 500 / 200 ms at 230 VAC; hold-up: 16 ms at both 115 and 230 VAC. Startup values apply to the first cold start; repeated on/off cycling can increase startup time. Inrush, breaker and leakage Cold-start inrush at 230 VAC: 65 A; 425 µs; pulse width at 50% of peak per NEMA 410. Maximum units on a 16 A breaker, B-type / C-type: 4 / 7. Leakage current <0.75 mA at 277 VAC. Model and control configuration Ordering code and function HLG-150H series; 12 V output; B function: 3-in-1 dimming by 1–10 VDC, 10 V PWM or resistance. Enclosure and output mode IP67 metal housing; Class I design with protective earth; SELV output. Constant-current operation can drive LEDs directly; constant-voltage applications commonly use a downstream DC/DC driver. Apply the direct-LED restriction for 3-in-1 control below. 3-in-1 dimming Use 1–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or resistance between DIM+ and DIM−. Typical dimming-source current: 100 µA. Resistance for N drivers: 10–100 kΩ/N for the plotted 10–100% current range. Do not connect DIM− to output −V. Direct LED connection is recommended; this control is unsuitable with additional downstream drivers. Dimming range and complete shutoff The control plots show 10–100% output current. To obtain 0% light output, use an external mains switch or relay as shown in the datasheet. Do not assume dim-to-off from a zero-valued analog signal. Protection and operating limits Overcurrent and short circuit Overcurrent: 95–108% of rated output; constant-current limiting with automatic recovery after removal of the fault. Short circuit: constant-current limiting with automatic recovery. Overvoltage and overtemperature Overvoltage threshold: 14–17 V. Overvoltage shuts down the output and recovers automatically or after re-power. Overtemperature shuts down the output and recovers automatically after cooling; at light or no load, AC re-power is required. Cooling and thermal limits Fanless free-air convection; horizontal mounting. Working case temperature Tc: −40 to +90°C, subject to derating. The ambient curve permits full load from −40 to +60°C, decreasing to 60% at +70°C. Tc is case temperature, not ambient temperature; apply both case and ambient limits. Low-line and altitude derating The 60 Hz static curve shows approximately 80% load at 90 VAC and 100% from 100 to 305 VAC. Above 2,000 m, reduce permitted ambient temperature by 3.5°C per additional 1,000 m for this fanless product. Environment Operating humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5G, 12 min/cycle, 72 min along each X, Y and Z axis. Life, warranty and reliability Typical service life exceeds 62,000 hours at Tc ≤80°C. Higher case temperature reduces life; keep within the permitted Tc limit even where the life graph extends beyond it. Seven-year warranty under stated installation and operating conditions. MTBF: 2176.1K / 166.4K hours, respectively Telcordia SR-332 and MIL-HDBK-217F at 25°C. Performance curves PF, THD and efficiency plots use a representative HLG-150H-48 output at Tc = 80°C. They show dependence on input and loading; use the exact HLG-150H-12B output ratings and typical efficiency above. Install behind a mains switch for the stated ErP lighting application compliance. Safety and system requirements Safety standards UL 8750 Type HL; CSA C22.2 No. 250.0-08; BS EN/EN 61347-1 and 61347-2-13 for independent control gear. AS/NZS 61347.1 and 61347.2.13. GB/T 19510.1 and 19510.213. J61347-1 and J61347-2-13. KC 61347-1 and 61347-2-13. EAC TP TC 004. BIS IS 15885 (Part 2/Sec 13) applies to this output/function combination. Units shipped to the Americas may show only UL/CE/UKCA logos; confirm applicable markings for the supplied configuration. Insulation tests Withstand voltage: input–output 3.75 kVAC, input–FG 2 kVAC, output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C, 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥60% load; BS EN/EN 61000-3-3; EAC TP TC 020. BS EN/EN 55032 Class B. GB/T 17743 and GB 17625.1. KS C 9815. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547 light-industry level; surge: 4 kV line-to-earth, 2 kV line-to-line; EAC TP TC 020. BS EN/EN 55024. KS C 9547. Requalify EMC in the complete end equipment. Type HL application Type HL concerns luminaires in Class I, Division 2 hazardous locations. This designation does not mean the driver is explosion-proof. Follow the end-equipment installation requirements. Dimensions, wiring and weight Dimensions and mounting 228 × 68 × 38.8 mm (L × W × H); case 954D. Four Ø4.2 mm mounting slots; vertical centre spacing 34.2 mm. The 204 mm drawing dimension is a case-body dimension, not a mounting-hole span. Tc measurement point: 102 mm from the main case right edge and 34 mm from its bottom edge; use the source mechanical drawing. Input and earth leads AC/L brown; AC/N blue; FG/protective earth green/yellow. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; lead length 300 ±20 mm. Maintain reliable protective-earth continuity. Output leads Vo+ red; Vo− black; SJOW 14 AWG × 2C; lead length 300 ±20 mm. Dimming leads DIM+ purple; DIM− pink; UL 2517 20 AWG × 2C; 300 ±20 mm. Keep DIM− separate from output −V. Packing reference 1.15 kg per unit (1150 g), catalogue packing reference, not a measured net or shipping weight. Carton reference: 12 pcs / 14.8 kg / 0.8 CUFT. Optional accessories Optional output connectors M12-04: 4 pins, 5 A per pin, 10 A maximum total; M12-05: 5 pins, 5 A per pin, 10 A maximum total; M15-02: 2 pins, 12 A per pin, 12 A maximum total. Suitable waterproof output connections depend on correct selection and assembly for the dry, damp, wet or outdoor application. This 12 V model is rated 12.5 A, exceeding both connector families’ total-current limits; do not use them for its full rated output. Optional cable joints CJ04-1: 14–16 AWG; CJ04-2: 18–22 AWG. Up to four wires by soldering or clamping; joint length 66 mm, diameter 25 mm. Sold separately for customer assembly. The 14 AWG output is within the CJ04-1 wire-size range; other electrical and sealing requirements still need confirmation. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $123.21

  View options

•

  View options

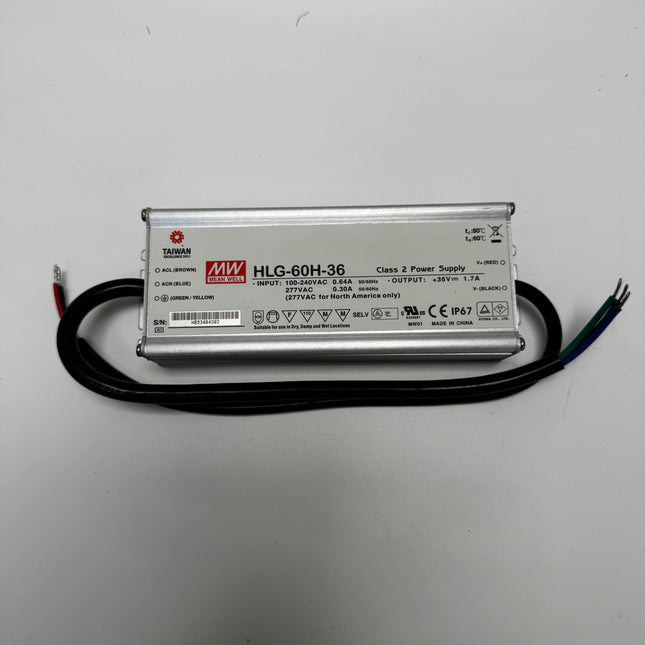

  MEAN WELL HLG-60H series: Constant Voltage/Constant Current LED Driver - HLG-60H-36

  HLG-60H-36 LED driver MEAN WELL HLG-60H-36 is a constant voltage/constant current led driver with 36 V nominal output, 1.7 A rated current and 61.2 W rated power. Its IP67 metal housing uses fanless convection cooling and active PFC. Fixed output; standard function. Intended LED applications include street, architectural, bay and flood lighting, subject to the operating and installation limits below. Download MEAN WELL HLG-60H Datasheet (PDF)Download MEAN WELL LED Installation Manual HLG catalog, PDF pages 11–20. Use the exact output and function suffix when selecting the driver. Output and input specifications Rated output 36 VDC; 1.7 A; 61.2 W. Constant-current region: 21.6–36 V. Operate within the output envelope and input/temperature derating limits. Output adjustment No built-in output voltage/current potentiometer adjustment is specified for this function code. Ripple and regulation Ripple/noise: 200 mVp-p maximum; voltage tolerance ±1%; line regulation ±0.5%; load regulation ±0.5%. Ripple test: 20 MHz bandwidth, 12-inch twisted pair, parallel 0.1 µF and 47 µF capacitors. Tolerance includes setup, line and load regulation. Efficiency and test conditions Typical efficiency: 90%. Unless otherwise stated, specifications are measured at 230 VAC, rated current and 25°C ambient. Input range and frequency 90–305 VAC / 127–431 VDC; 47–63 Hz. Active PFC and harmonics Power factor ≥0.98 / 0.95 / 0.92 at 115 / 230 / 277 VAC, full load. Total harmonic distortion <20% at loads ≥60% at 115 and 230 VAC; 75% at 277 VAC. Built-in active PFC; block-diagram switching frequency: 100 kHz. AC current and startup Typical input current: 0.64 / 0.32 / 0.3 A at 115 / 230 / 277 VAC. Setup / rise time: 500 / 80 ms at both 115 and 230 VAC; hold-up: 16 ms at both 115 and 230 VAC. Startup values apply to the first cold start; repeated on/off cycling can increase startup time. Inrush, breaker and leakage Cold-start inrush at 230 VAC: 55 A; 265 µs; pulse width at 50% of peak per NEMA 410. Maximum units on a 16 A breaker, B-type / C-type: 9 / 16. Leakage current <0.75 mA at 277 VAC. Model and control configuration Ordering code and function HLG-60H series; 36 V output; blank suffix: Fixed output; standard function. Enclosure and output mode IP67 metal housing; Class I design with protective earth; SELV output. Class 2 power unit. Constant-current operation can drive LEDs directly; constant-voltage applications commonly use a downstream DC/DC driver. Apply the direct-LED restriction for 3-in-1 control below. Protection and operating limits Overcurrent and short circuit Overcurrent: 95–108% of rated output; constant-current limiting with automatic recovery after removal of the fault. Short circuit: hiccup mode with automatic recovery. Overvoltage and overtemperature Overvoltage threshold: 41–49 V. Both overvoltage and overtemperature shut down the output; re-power to recover. Cooling and thermal limits Fanless free-air convection; horizontal mounting. Working case temperature Tc: −40 to +80°C, subject to derating. The ambient curve permits full load from −40 to +60°C, decreasing to 60% at +70°C. Operation from −40 to −25°C is shown at 230 VAC only. Tc is case temperature, not ambient temperature; apply both case and ambient limits. Low-line and altitude derating The 60 Hz static curve shows approximately 80% load at 90 VAC and 100% from 100 to 305 VAC. Above 2,000 m, reduce permitted ambient temperature by 3.5°C per additional 1,000 m for this fanless product. Environment Operating humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5G, 12 min/cycle, 72 min along each X, Y and Z axis. Life, warranty and reliability Typical service life exceeds 62,000 hours at Tc ≤70°C. Higher case temperature reduces life; keep within the permitted Tc limit even where the life graph extends beyond it. Seven-year warranty under stated installation and operating conditions. MTBF: 3396.9K / 345.8K hours, respectively Telcordia SR-332 and MIL-HDBK-217F at 25°C. Performance curves PF, THD and efficiency plots use a representative HLG-60H-48 output at Tc = 70°C. They show dependence on input and loading; use the exact HLG-60H-36 output ratings and typical efficiency above. Install behind a mains switch for the stated ErP lighting application compliance. Safety and system requirements Safety standards UL 8750 Type HL; CSA C22.2 No. 250.0-08; BS EN/EN 61347-1 and 61347-2-13 for independent control gear. AS/NZS 61347.1 and 61347.2.13. GB/T 19510.1 and 19510.213. J61347-1 and J61347-2-13. KC 61347-1 and 61347-2-13. EAC TP TC 004. BS EN/EN 60335-1 is a design reference available by request, not an unconditional listed approval. Units shipped to the Americas may show only UL/CE/UKCA logos; confirm applicable markings for the supplied configuration. Insulation tests Withstand voltage: input–output 3.75 kVAC, input–FG 2 kVAC, output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C, 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥60% load; BS EN/EN 61000-3-3; EAC TP TC 020. GB/T 17743 and GB 17625.1. KS C 9815. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547 light-industry level; surge: 4 kV line-to-earth, 2 kV line-to-line; EAC TP TC 020. KS C 9547. Requalify EMC in the complete end equipment. Type HL application Type HL concerns luminaires in Class I, Division 2 hazardous locations. This designation does not mean the driver is explosion-proof. Follow the end-equipment installation requirements. Dimensions, wiring and weight Dimensions and mounting 171 × 61.5 × 36.8 mm (L × W × H); case 957B. Four Ø4.2 mm mounting slots; vertical centre spacing 32 mm. The 147.2 mm drawing dimension is a case-body dimension, not a mounting-hole span. Tc measurement point: 73.6 mm from the main case right edge and 30.75 mm from its bottom edge; use the source mechanical drawing. Input and earth leads AC/L brown; AC/N blue; FG/protective earth green/yellow. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; lead length 300 ±20 mm. Maintain reliable protective-earth continuity. Output leads Vo+ red; Vo− black; SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm²; lead length 300 ±20 mm. Packing reference 0.73 kg per unit (730 g), catalogue packing reference, not a measured net or shipping weight. Carton reference: 20 pcs / 15.6 kg / 0.9 CUFT. Optional accessories Optional output connectors M12-04: 4 pins, 5 A per pin, 10 A maximum total; M12-05: 5 pins, 5 A per pin, 10 A maximum total; M15-02: 2 pins, 12 A per pin, 12 A maximum total. Suitable waterproof output connections depend on correct selection and assembly for the dry, damp, wet or outdoor application. Confirm current, wire and environmental ratings before selection. Optional cable joints CJ04-1: 14–16 AWG; CJ04-2: 18–22 AWG. Up to four wires by soldering or clamping; joint length 66 mm, diameter 25 mm. Sold separately for customer assembly. The standard 17 AWG output is outside both listed wire-size ranges; do not assume direct compatibility. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $78.86

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-54AB

  HLG-600H-54AB LED Driver HLG-600H-54AB is a MEAN WELL HLG-600H metal-case, Class I LED driver with 54 V DC rated output, 11.2 A rated current and 604.8 W rated power. It provides constant-voltage and constant-current operation with a 27–54 V constant-current region. Internal voltage/current adjustment and 3-in-1 external dimming. IP65 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-54AB; Internal voltage/current adjustment and 3-in-1 external dimming Rated output 54 V DC; 11.2 A; 604.8 W Constant-current region 27–54 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 350 mVp-p Voltage tolerance ±1%, including set-up, line and load regulation Line / load regulation ±0.5% / ±0.5% Current adjustment 5.6–11.2 A by the internal potentiometer; do not exceed the rated output envelope. Voltage adjustment 45.9–56.7 V by the internal potentiometer. Efficiency 96% typical at 230 VAC; 96% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 59–63 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. Type HL compliance of A/AB versions requires built-in installation consideration in the final equipment. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP65 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $472.65

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-48AB

  HLG-600H-48AB LED Driver HLG-600H-48AB is a MEAN WELL HLG-600H metal-case, Class I LED driver with 48 V DC rated output, 12.5 A rated current and 600 W rated power. It provides constant-voltage and constant-current operation with a 24–48 V constant-current region. Internal voltage/current adjustment and 3-in-1 external dimming. IP65 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-48AB; Internal voltage/current adjustment and 3-in-1 external dimming Rated output 48 V DC; 12.5 A; 600 W Constant-current region 24–48 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 250 mVp-p Voltage tolerance ±1%, including set-up, line and load regulation Line / load regulation ±0.5% / ±0.5% Current adjustment 6.2–12.5 A by the internal potentiometer; do not exceed the rated output envelope. Voltage adjustment 40.8–50.4 V by the internal potentiometer. Efficiency 96% typical at 230 VAC; 96% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 52.5–56.5 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. Type HL compliance of A/AB versions requires built-in installation consideration in the final equipment. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP65 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $472.65

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-42AB

  HLG-600H-42AB LED Driver HLG-600H-42AB is a MEAN WELL HLG-600H metal-case, Class I LED driver with 42 V DC rated output, 14.3 A rated current and 600.6 W rated power. It provides constant-voltage and constant-current operation with a 21–42 V constant-current region. Internal voltage/current adjustment and 3-in-1 external dimming. IP65 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-42AB; Internal voltage/current adjustment and 3-in-1 external dimming Rated output 42 V DC; 14.3 A; 600.6 W Constant-current region 21–42 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 250 mVp-p Voltage tolerance ±1%, including set-up, line and load regulation Line / load regulation ±0.5% / ±0.5% Current adjustment 7.1–14.3 A by the internal potentiometer; do not exceed the rated output envelope. Voltage adjustment 35.7–44.1 V by the internal potentiometer. Efficiency 96% typical at 230 VAC; 96% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 46–50 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. Type HL compliance of A/AB versions requires built-in installation consideration in the final equipment. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP65 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $472.65

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-36AB

  HLG-600H-36AB LED Driver HLG-600H-36AB is a MEAN WELL HLG-600H metal-case, Class I LED driver with 36 V DC rated output, 16.7 A rated current and 601.2 W rated power. It provides constant-voltage and constant-current operation with a 18–36 V constant-current region. Internal voltage/current adjustment and 3-in-1 external dimming. IP65 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-36AB; Internal voltage/current adjustment and 3-in-1 external dimming Rated output 36 V DC; 16.7 A; 601.2 W Constant-current region 18–36 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 250 mVp-p Voltage tolerance ±1%, including set-up, line and load regulation Line / load regulation ±0.5% / ±0.5% Current adjustment 8.3–16.7 A by the internal potentiometer; do not exceed the rated output envelope. Voltage adjustment 30.6–37.8 V by the internal potentiometer. Efficiency 95.5% typical at 230 VAC; 95.5% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 39.5–43.5 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. Type HL compliance of A/AB versions requires built-in installation consideration in the final equipment. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP65 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $472.65

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-30AB

  HLG-600H-30AB LED Driver HLG-600H-30AB is a MEAN WELL HLG-600H metal-case, Class I LED driver with 30 V DC rated output, 20 A rated current and 600 W rated power. It provides constant-voltage and constant-current operation with a 15–30 V constant-current region. Internal voltage/current adjustment and 3-in-1 external dimming. IP65 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-30AB; Internal voltage/current adjustment and 3-in-1 external dimming Rated output 30 V DC; 20 A; 600 W Constant-current region 15–30 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 200 mVp-p Voltage tolerance ±1%, including set-up, line and load regulation Line / load regulation ±0.5% / ±0.5% Current adjustment 10–20 A by the internal potentiometer; do not exceed the rated output envelope. Voltage adjustment 25.5–31.5 V by the internal potentiometer. Efficiency 95% typical at 230 VAC; 95% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 32.5–36.5 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. Type HL compliance of A/AB versions requires built-in installation consideration in the final equipment. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP65 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $472.65

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-24AB

  HLG-600H-24AB LED Driver HLG-600H-24AB is a MEAN WELL HLG-600H metal-case, Class I LED driver with 24 V DC rated output, 25 A rated current and 600 W rated power. It provides constant-voltage and constant-current operation with a 12–24 V constant-current region. Internal voltage/current adjustment and 3-in-1 external dimming. IP65 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-24AB; Internal voltage/current adjustment and 3-in-1 external dimming Rated output 24 V DC; 25 A; 600 W Constant-current region 12–24 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 150 mVp-p Voltage tolerance ±1%, including set-up, line and load regulation Line / load regulation ±0.5% / ±0.5% Current adjustment 12.5–25 A by the internal potentiometer; do not exceed the rated output envelope. Voltage adjustment 20.4–25.2 V by the internal potentiometer. Efficiency 95% typical at 230 VAC; 95% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 26–30 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. Type HL compliance of A/AB versions requires built-in installation consideration in the final equipment. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP65 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $472.65

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-20AB

  HLG-600H-20AB LED Driver HLG-600H-20AB is a MEAN WELL HLG-600H metal-case, Class I LED driver with 20 V DC rated output, 28 A rated current and 560 W rated power. It provides constant-voltage and constant-current operation with a 10–20 V constant-current region. Internal voltage/current adjustment and 3-in-1 external dimming. IP65 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-20AB; Internal voltage/current adjustment and 3-in-1 external dimming Rated output 20 V DC; 28 A; 560 W Constant-current region 10–20 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 150 mVp-p Voltage tolerance ±1.5%, including set-up, line and load regulation Line / load regulation ±0.5% / ±1% Current adjustment 14–28 A by the internal potentiometer; do not exceed the rated output envelope. Voltage adjustment 17–21 V by the internal potentiometer. Efficiency 94.5% typical at 230 VAC; 94.5% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 22–26 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. Type HL compliance of A/AB versions requires built-in installation consideration in the final equipment. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP65 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $472.65

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-15AB

  HLG-600H-15AB LED Driver HLG-600H-15AB is a MEAN WELL HLG-600H metal-case, Class I LED driver with 15 V DC rated output, 36 A rated current and 540 W rated power. It provides constant-voltage and constant-current operation with a 7.5–15 V constant-current region. Internal voltage/current adjustment and 3-in-1 external dimming. IP65 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-15AB; Internal voltage/current adjustment and 3-in-1 external dimming Rated output 15 V DC; 36 A; 540 W Constant-current region 7.5–15 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 150 mVp-p Voltage tolerance ±2%, including set-up, line and load regulation Line / load regulation ±0.5% / ±1.5% Current adjustment 18–36 A by the internal potentiometer; do not exceed the rated output envelope. Voltage adjustment 12.7–15.8 V by the internal potentiometer. Efficiency 93.5% typical at 230 VAC; 93.5% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 16.5–20.5 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. Type HL compliance of A/AB versions requires built-in installation consideration in the final equipment. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP65 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $472.65

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-12AB

  HLG-600H-12AB LED Driver HLG-600H-12AB is a MEAN WELL HLG-600H metal-case, Class I LED driver with 12 V DC rated output, 40 A rated current and 480 W rated power. It provides constant-voltage and constant-current operation with a 6–12 V constant-current region. Internal voltage/current adjustment and 3-in-1 external dimming. IP65 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-12AB; Internal voltage/current adjustment and 3-in-1 external dimming Rated output 12 V DC; 40 A; 480 W Constant-current region 6–12 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 150 mVp-p Voltage tolerance ±3%, including set-up, line and load regulation Line / load regulation ±0.5% / ±2% Current adjustment 20–40 A by the internal potentiometer; do not exceed the rated output envelope. Voltage adjustment 10.2–12.6 V by the internal potentiometer. Efficiency 92% typical at 230 VAC; 92.5% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 13–16 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. Type HL compliance of A/AB versions requires built-in installation consideration in the final equipment. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP65 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $472.65

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-54B

  HLG-600H-54B LED Driver HLG-600H-54B is a MEAN WELL HLG-600H metal-case, Class I LED driver with 54 V DC rated output, 11.2 A rated current and 604.8 W rated power. It provides constant-voltage and constant-current operation with a 27–54 V constant-current region. 3-in-1 external dimming. IP67 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-54B; 3-in-1 external dimming Rated output 54 V DC; 11.2 A; 604.8 W Constant-current region 27–54 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 350 mVp-p Voltage tolerance ±1%, including set-up, line and load regulation Line / load regulation ±0.5% / ±0.5% Internal adjustment No user-accessible internal voltage/current adjustment is specified for this option. Efficiency 96% typical at 230 VAC; 96% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 59–63 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; AS/NZS 60950.1 by CB; KC 61347-1 and 61347-2-13; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP67 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $465.75

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-48B

  HLG-600H-48B LED Driver HLG-600H-48B is a MEAN WELL HLG-600H metal-case, Class I LED driver with 48 V DC rated output, 12.5 A rated current and 600 W rated power. It provides constant-voltage and constant-current operation with a 24–48 V constant-current region. 3-in-1 external dimming. IP67 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-48B; 3-in-1 external dimming Rated output 48 V DC; 12.5 A; 600 W Constant-current region 24–48 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 250 mVp-p Voltage tolerance ±1%, including set-up, line and load regulation Line / load regulation ±0.5% / ±0.5% Internal adjustment No user-accessible internal voltage/current adjustment is specified for this option. Efficiency 96% typical at 230 VAC; 96% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 52.5–56.5 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; AS/NZS 60950.1 by CB; KC 61347-1 and 61347-2-13; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP67 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $465.75

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-42B

  HLG-600H-42B LED Driver HLG-600H-42B is a MEAN WELL HLG-600H metal-case, Class I LED driver with 42 V DC rated output, 14.3 A rated current and 600.6 W rated power. It provides constant-voltage and constant-current operation with a 21–42 V constant-current region. 3-in-1 external dimming. IP67 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-42B; 3-in-1 external dimming Rated output 42 V DC; 14.3 A; 600.6 W Constant-current region 21–42 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 250 mVp-p Voltage tolerance ±1%, including set-up, line and load regulation Line / load regulation ±0.5% / ±0.5% Internal adjustment No user-accessible internal voltage/current adjustment is specified for this option. Efficiency 96% typical at 230 VAC; 96% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 46–50 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; AS/NZS 60950.1 by CB; KC 61347-1 and 61347-2-13; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP67 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $465.75

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-36B

  HLG-600H-36B LED Driver HLG-600H-36B is a MEAN WELL HLG-600H metal-case, Class I LED driver with 36 V DC rated output, 16.7 A rated current and 601.2 W rated power. It provides constant-voltage and constant-current operation with a 18–36 V constant-current region. 3-in-1 external dimming. IP67 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-36B; 3-in-1 external dimming Rated output 36 V DC; 16.7 A; 601.2 W Constant-current region 18–36 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 250 mVp-p Voltage tolerance ±1%, including set-up, line and load regulation Line / load regulation ±0.5% / ±0.5% Internal adjustment No user-accessible internal voltage/current adjustment is specified for this option. Efficiency 95.5% typical at 230 VAC; 95.5% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 39.5–43.5 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; AS/NZS 60950.1 by CB; KC 61347-1 and 61347-2-13; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP67 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $465.75

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-30B

  HLG-600H-30B LED Driver HLG-600H-30B is a MEAN WELL HLG-600H metal-case, Class I LED driver with 30 V DC rated output, 20 A rated current and 600 W rated power. It provides constant-voltage and constant-current operation with a 15–30 V constant-current region. 3-in-1 external dimming. IP67 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-30B; 3-in-1 external dimming Rated output 30 V DC; 20 A; 600 W Constant-current region 15–30 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 200 mVp-p Voltage tolerance ±1%, including set-up, line and load regulation Line / load regulation ±0.5% / ±0.5% Internal adjustment No user-accessible internal voltage/current adjustment is specified for this option. Efficiency 95% typical at 230 VAC; 95% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 32.5–36.5 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; AS/NZS 60950.1 by CB; KC 61347-1 and 61347-2-13; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP67 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $465.75

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-24B

  HLG-600H-24B LED Driver HLG-600H-24B is a MEAN WELL HLG-600H metal-case, Class I LED driver with 24 V DC rated output, 25 A rated current and 600 W rated power. It provides constant-voltage and constant-current operation with a 12–24 V constant-current region. 3-in-1 external dimming. IP67 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-24B; 3-in-1 external dimming Rated output 24 V DC; 25 A; 600 W Constant-current region 12–24 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 150 mVp-p Voltage tolerance ±1%, including set-up, line and load regulation Line / load regulation ±0.5% / ±0.5% Internal adjustment No user-accessible internal voltage/current adjustment is specified for this option. Efficiency 95% typical at 230 VAC; 95% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 26–30 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; AS/NZS 60950.1 by CB; KC 61347-1 and 61347-2-13; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP67 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $465.75

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-20B

  HLG-600H-20B LED Driver HLG-600H-20B is a MEAN WELL HLG-600H metal-case, Class I LED driver with 20 V DC rated output, 28 A rated current and 560 W rated power. It provides constant-voltage and constant-current operation with a 10–20 V constant-current region. 3-in-1 external dimming. IP67 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-20B; 3-in-1 external dimming Rated output 20 V DC; 28 A; 560 W Constant-current region 10–20 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 150 mVp-p Voltage tolerance ±1.5%, including set-up, line and load regulation Line / load regulation ±0.5% / ±1% Internal adjustment No user-accessible internal voltage/current adjustment is specified for this option. Efficiency 94.5% typical at 230 VAC; 94.5% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 22–26 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; AS/NZS 60950.1 by CB; KC 61347-1 and 61347-2-13; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP67 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $465.75

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-15B

  HLG-600H-15B LED Driver HLG-600H-15B is a MEAN WELL HLG-600H metal-case, Class I LED driver with 15 V DC rated output, 36 A rated current and 540 W rated power. It provides constant-voltage and constant-current operation with a 7.5–15 V constant-current region. 3-in-1 external dimming. IP67 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-15B; 3-in-1 external dimming Rated output 15 V DC; 36 A; 540 W Constant-current region 7.5–15 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 150 mVp-p Voltage tolerance ±2%, including set-up, line and load regulation Line / load regulation ±0.5% / ±1.5% Internal adjustment No user-accessible internal voltage/current adjustment is specified for this option. Efficiency 93.5% typical at 230 VAC; 93.5% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 16.5–20.5 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; AS/NZS 60950.1 by CB; KC 61347-1 and 61347-2-13; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP67 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $465.75

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-12B

  HLG-600H-12B LED Driver HLG-600H-12B is a MEAN WELL HLG-600H metal-case, Class I LED driver with 12 V DC rated output, 40 A rated current and 480 W rated power. It provides constant-voltage and constant-current operation with a 6–12 V constant-current region. 3-in-1 external dimming. IP67 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-12B; 3-in-1 external dimming Rated output 12 V DC; 40 A; 480 W Constant-current region 6–12 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 150 mVp-p Voltage tolerance ±3%, including set-up, line and load regulation Line / load regulation ±0.5% / ±2% Internal adjustment No user-accessible internal voltage/current adjustment is specified for this option. Efficiency 92% typical at 230 VAC; 92.5% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 13–16 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Dimming methods 0–10 V DC, 10 V PWM at 100 Hz–3 kHz, or an external resistance across DIM+ and DIM−. The control adjusts the constant-current level. Control source current 100 μA typical from the dimming interface. Resistance and parallel control 0 to 100 kΩ/N for N drivers in synchronized dimming; use the catalog connection diagram. Dimming range Approximately 6–100% current with dim-to-off. The range 0 < Iout < 6% is undefined. The catalog shows off at approximately 0 V, 0 Ω or 0% PWM duty; verify the controller and load together. Dimming wiring DIM+ = purple; DIM− = pink. Do not connect DIM− to Vo−. Dimming load connection Direct connection to LEDs is suggested; this dimming function is not suitable for an additional driver stage. Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; AS/NZS 60950.1 by CB; KC 61347-1 and 61347-2-13; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP67 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Dimming cable UL2517 18 AWG × 2C; 350 ±20 mm; DIM+ purple, DIM− pink. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring. Dimming isolation The installation manual lists this HLG family’s dimming circuit as not isolated from the secondary circuit. Follow the specified DIM wiring and controller requirements.

  Read more less

  $465.75

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-54A

  HLG-600H-54A LED Driver HLG-600H-54A is a MEAN WELL HLG-600H metal-case, Class I LED driver with 54 V DC rated output, 11.2 A rated current and 604.8 W rated power. It provides constant-voltage and constant-current operation with a 27–54 V constant-current region. Internal potentiometer adjustment. IP65 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-54A; Internal potentiometer adjustment Rated output 54 V DC; 11.2 A; 604.8 W Constant-current region 27–54 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 350 mVp-p Voltage tolerance ±1%, including set-up, line and load regulation Line / load regulation ±0.5% / ±0.5% Current adjustment 5.6–11.2 A by the internal potentiometer; do not exceed the rated output envelope. Voltage adjustment 45.9–56.7 V by the internal potentiometer. Efficiency 96% typical at 230 VAC; 96% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 59–63 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; AS/NZS 60950.1 by CB; KC 61347-1 and 61347-2-13; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. Type HL compliance of A/AB versions requires built-in installation consideration in the final equipment. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP65 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion.

  Read more less

  $451.46

  View options

•

  View options

  MEAN WELL HLG-600H series: Constant Voltage + Constant Current LED Driver - HLG-600H-48A

  HLG-600H-48A LED Driver HLG-600H-48A is a MEAN WELL HLG-600H metal-case, Class I LED driver with 48 V DC rated output, 12.5 A rated current and 600 W rated power. It provides constant-voltage and constant-current operation with a 24–48 V constant-current region. Internal potentiometer adjustment. IP65 enclosure; observe the connection-sealing, installation and derating conditions below. Download MEAN WELL HLG-600H Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog reference: PDF pages 105–112. Select this exact model and option when checking drawings and operating curves. Output and operating performance Model and option HLG-600H-48A; Internal potentiometer adjustment Rated output 48 V DC; 12.5 A; 600 W Constant-current region 24–48 V. Keep the LED operating voltage within this region for direct constant-current operation; stay within the rated and derated current/power envelope. Output mode Constant voltage + constant current. Actual CV/CC transition depends on the LED load. The operation diagram also illustrates CV supply of an external DC/DC stage; the dimming restrictions below apply to dimmable versions. Ripple and noise (max.) 250 mVp-p Voltage tolerance ±1%, including set-up, line and load regulation Line / load regulation ±0.5% / ±0.5% Current adjustment 6.2–12.5 A by the internal potentiometer; do not exceed the rated output envelope. Voltage adjustment 40.8–50.4 V by the internal potentiometer. Efficiency 96% typical at 230 VAC; 96% typical at 277 VAC Setup / rise time 500 ms / 80 ms at both 115 and 230 VAC. Catalog timing is measured at the first cold start; repeated ON/OFF operation may increase setup time. Hold-up time 15 ms at 115 and 230 VAC Input and protection Input voltage / frequency 90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input/load and temperature derating curves together. AC input current (typ.) 7 / 3.3 / 2.9 A at 115 / 230 / 277 VAC Power factor (typ.) ≥0.98 / 0.95 / 0.93 at 115 / 230 / 277 VAC, full load Total harmonic distortion <20% at ≥50% load at 115/230 VAC and ≥75% load at 277 VAC. Inrush current (typ.) Cold start at 230 VAC: 70 A; 1000 μs width at 50% of peak; measured per NEMA 410. Circuit-breaker loading Catalog reference: 1 / 2 units on B-type / C-type 16 A breakers at 230 VAC. Confirm breaker characteristics and the actual installation; these are configuration-dependent catalog values. Leakage current <0.75 mA at 277 VAC Input/load derating At 60 Hz: 90 VAC: 80% load; 115–305 VAC: 100% load. Between plotted endpoints, follow the catalog curve; this does not authorize overload. Over-current protection 95–108% of rated output; constant-current limiting, with automatic recovery after the fault is removed. Short-circuit protection Constant-current limiting; automatic recovery after the fault is removed. Over-voltage protection 52.5–56.5 V; Output shuts down; re-power to recover. Over-temperature protection Output shuts down; re-power to recover. Control and option-specific functions Remote ON/OFF Available on all versions: ON with RC+ high (>2–5 V) or open; OFF with RC+ low (0–0.5 V) or shorted to RC−. Use the catalog circuit and signal reference. Auxiliary standby supply 5 V / 0.5 A; ±5% voltage tolerance; 100 mVp-p ripple maximum. Standby power consumption is <0.5 W at remote OFF. Remote / auxiliary leads RC+ brown; RC−/GND black; +5VSB yellow. UL2517 22 AWG × 3C; 300 ±20 mm. Thermal and environmental limits Cooling / ambient derating Fanless free-air convection. Horizontal mounting: 100% load through +55°C, then derate to 60% at +70°C. The plotted ambient range starts at −40°C. The catalog gives a typical +55°C maximum ambient at rated constant current. Case temperature Working case temperature Tc = −40 to +90°C; +90°C maximum. Use the Tc point in the mechanical drawing. Ambient temperature and Tc are separate limits. Case-temperature measuring point 126.6 mm from the drawing’s right-side inner reference and 47 mm above the lower edge; verify the indicated Tc symbol and reference edges in the exact option drawing. Working / storage humidity Working: 20–95% RH, non-condensing; storage: 10–95% RH. Storage temperature −40 to 85°C Temperature coefficient ±0.03%/°C (0–55°C) Vibration 10–500 Hz, 5 G; 12-minute cycle; 72 minutes along each X, Y and Z axis. Altitude Above 2000 m, reduce permissible ambient temperature by 3.5°C per 1000 m for this fanless driver. Life and reliability Typical life expectancy >62,000 hours at Tc ≤75°C under the catalog conditions. MTBF: 913.4 K hours, Telcordia SR-332 (Bellcore); 76.9 K hours, MIL-HDBK-217F at 25°C. Life and MTBF are different statistical/operating measures. Manufacturer warranty The catalog states a 7-year warranty; the manufacturer’s warranty statement and applicable operating conditions govern. Safety and compliance Construction Metal housing; Class I protective-earth connection; SELV output as described by the series catalog. Follow model-specific safety and installation qualifications. Safety standards and option limits Catalog safety approvals/references for this configuration: UL 60950-1; UL 8750 (Type HL); CSA C22.2 No. 250.13-12; ENEC, BS EN/EN 61347-1 and 61347-2-13, independent type; BS EN/EN 62384; J61347-1 and J61347-2-13; EAC TP TC 004; AS/NZS 60950.1 by CB; KC 61347-1 and 61347-2-13; GB 19510.1 and GB 19510.213 apply to the optional CCC configuration; confirm the ordered approval configuration. Type HL compliance of A/AB versions requires built-in installation consideration in the final equipment. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2, Class C at ≥50% load; BS EN/EN 61000-3-3; GB 17743 and GB 17625.1 only for the optional CCC configuration; KS C 9815; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; BS EN/EN 55024; surge immunity 4 kV line-to-earth / 2 kV line-to-line; EAC TP TC 020. KS C 9815 and KS C 9547. EMC testing used a 360 × 360 × 1 mm metal plate. Withstand voltage Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, between input–output, input–FG and output–FG. Mechanical details and connection Dimensions / case 280 × 144 × 48.5 mm (L × W × H); case 228. Mounting Four mounting holes, Ø4.5 mm. Use the exact drawing for hole pitch, the Tc location and clearances; follow the horizontal-mounting thermal curves. Enclosure rating IP65 for the specified cable version; rating does not replace sealed field connections or installation requirements. Unit weight / packing 3.9 kg per unit; 4 units / 16.6 kg / 0.9 cu ft AC cable SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm²; 300 ±20 mm. AC/L brown; AC/N blue; FG green/yellow. DC output cables Two SJTW 14 AWG × 2C output cables; 300 ±20 mm. Vo+ red; Vo− black. The pairs share the driver’s total rated current and power; the rating is not per cable. Measurement and installation conditions Electrical test conditions Unless otherwise stated: 230 VAC input, rated output current and 25°C ambient. Ripple/noise uses a 20 MHz bandwidth measurement with a 12-inch twisted pair terminated by 0.1 μF and 47 μF capacitors. Performance-curve conditions Power-factor, THD and efficiency plots use Tc = 80°C; the THD/efficiency plots are for the 48 V model. Example-model curves do not replace the efficiency and operating limits listed for this exact SKU. LED compatibility Select an LED load compatible with the voltage/current window, startup behavior, thermal limits and the selected control option. Consult the catalog and manufacturer for configurations outside the illustrated operating regions. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or protective-earth terminal to PE according to this Class I model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion.

  Read more less

  $451.46

  View options
