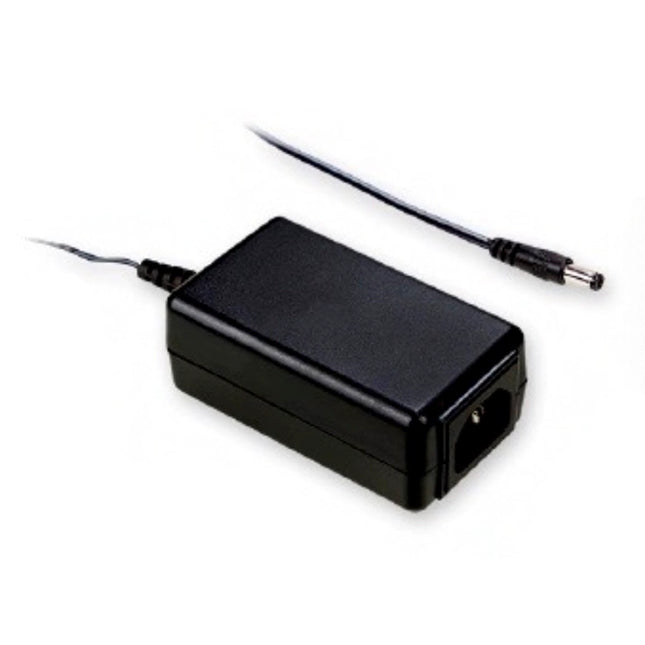

MEAN WELL SGAS15B24-P1J provides 24 V at up to 0.625 A, with a catalogue-rated output of 15 W. This Class II industrial desktop AC/DC adapter has an IEC320-C8 two-pole AC inlet and a centre-positive P1J output. Select the load within the current, power and temperature limits.
Product Datasheet
Download MEAN WELL SGAS15B Datasheet (PDF)
The SGAS15B section is on PDF pages 30, 31, 32, 33, 34. Refer to the complete mechanical drawings and notes when planning installation.
Model and Output
Complete model
SGAS15B24-P1J.
Series and format
SGAS15B single-output industrial desktop AC/DC power adapter.
Model code
SGAS is the adapter series; 15 is the power family; B denotes the IEC320-C8 two-pole AC inlet; 24 denotes 24 V output; P1J specifies the standard centre-positive output plug.
DC output voltage
24 VDC.
Rated output current
0.625 A.
Output current range
0–0.625 A.
Catalogue-rated output power
15 W, subject to temperature derating.
Ripple and noise, maximum
100 mVp-p.
Voltage tolerance
±2.0%.
Line regulation
±0.5%.
Load regulation
±2.0%.
Efficiency, typical
86%.
Keep the load within the stated output voltage, rated current and rated power limits simultaneously.
Input and Energy
Input voltage
90–264 VAC or 135–370 VDC.
Frequency
47–63 Hz.
Input connection
IEC320-C8 two-pole AC inlet; Class II, without FG.
AC current
0.4 A at 100 VAC.
Cold-start inrush, maximum
30 A at 115 VAC; 50 A at 230 VAC.
Set-up / rise time
3000 / 50 ms at full load.
Leakage current, maximum
0.25 mA at 240 VAC.
No-load consumption
<0.075 W.
Energy efficiency
Level VI. USA EISA2007/DoE, EU ErP and CoC Version 5.
Select a suitable mains lead for the C8 inlet and local supply; confirm mains-lead inclusion with the order.
Protection
Short circuit / overload
105–250% of rated output power; hiccup mode, automatically recovering after the abnormal load is removed.
Overvoltage
>120% of rated output voltage; diode clamping.
Derating and Environment
Working temperature
−20 to +70°C, subject to the load curve.
Temperature-load curve
100% load from −20 to 40°C. The plotted reference levels are 80% at 50°C, 65% at 60°C and 50% at 70°C; follow the complete curve between these points.
Static input curve, 60 Hz
100% load from 90 to 264 VAC; temperature derating still applies.
Working humidity
20–90% RH, non-condensing.
Storage
−20 to +85°C; 10–95% RH, non-condensing.
Temperature coefficient
±0.03%/°C over 0–40°C.
Vibration
10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis.
Mechanical Details and Connection
Body dimensions, L × W × H
80 × 39 × 27.7 mm.
Case
Fully enclosed 94V-0 flame-retardant plastic enclosure.
Output cable
UL2468, 24 AWG; 1800 +150/−0 mm.
Standard P1J output
Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative.
Catalogue single-unit weight
130 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight.
Packing
72 pieces / 11 kg per carton.
Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Follow the supplied product marking and installation instructions.
Optional DC Plugs and Quick Adapters
Ordering and inclusion
Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; they are options, not additional included plugs or outputs.
Tuning-fork styles
OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters: 7.5 A maximum.
Barrel styles
P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed.
Locking styles
P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom cable options without a listed quick adapter.
Mini-pin styles
P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters: 5 A maximum.
Centre-pin styles
OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters: 7.5 A maximum.
Confirm the complete mating dimensions, voltage, polarity and load current. An accessory current rating does not increase this adapter’s 0.625 A output rating.
Optional DIN Connectors and Lead Ends
R6B
Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum.
R7B
Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum.
R7BF
Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed.
Stripped and tinned leads
Custom termination: lead 1 (white) +Vo, lead 2 (black) −Vo; standard L = 25 mm and L1 = 10 mm, with other lengths by request. No quick adapter is listed.
Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector.
Safety and Isolation
Listed safety standards
UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1.
Input class
Class II, without FG.
Limited power source
The series lists LPS compliance.
Withstand voltage
Input to output: 3 kVAC.
Insulation resistance
Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH.
Safety and EMC suitability must be confirmed for the completed equipment and installation.
EMC
Conducted and radiated emissions
BS EN/EN55032 (CISPR32), FCC Part 15 / CISPR22 and CAN ICES-3(B)/NMB-3(B): Class B.
Harmonic current and flicker
BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3.
ESD
BS EN/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact.
Radiated RF
BS EN/EN61000-4-3: Level 2, 3 V/m.
EFT / burst
BS EN/EN61000-4-4: Level 2, 1 kV.
Surge
BS EN/EN61000-4-5: Level 3, 1 kV L–N.
Conducted RF
BS EN/EN61000-4-6: Level 2, 3 V.
Magnetic field
BS EN/EN61000-4-8: Level 1, 1 A/m.
Dips and interruptions
BS EN/EN61000-4-11: >95% dip for 0.5 periods, 30% dip for 25 periods and >95% interruption for 250 periods.
The adapter is treated as a component of the final system; reconfirm applicable EMC performance in the end equipment.
Reliability, Applications and Measurement Conditions
Service life
3 years at 100% load, 40°C and 12 operating hours per day.
MTBF, minimum
507 thousand hours, MIL-HDBK-217F at 25°C.
Manufacturer warranty
The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms.
Other voltage options
7.5 V, 18 V and 48 V versions are available by request; specify the required configuration and confirm availability before ordering.
Listed applications include consumer electronics, telecommunications, office equipment and industrial equipment. Select the load and connection for this complete model.
Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is measured at the plug terminal at 50% load.
Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation.
Line regulation is measured from low to high input at rated load. Load regulation is measured from 0% to 100% rated load.
