ELG Series: Constant Current & Constant Voltage (C.C. + C.V.) LED Driver

•

  View options

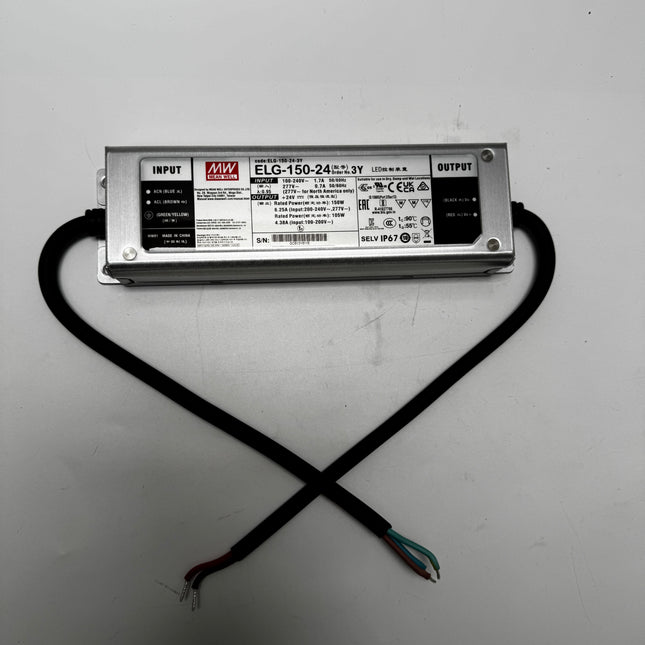

  MEAN WELL ELG-150 series: Constant Voltage/Constant Current LED Driver - ELG-150-24

  ELG-150-24 LED driver MEAN WELL ELG-150-24 is a constant voltage/constant current led driver with 24 V nominal output, 6.25 A rated current and 150 W output at 200–305 VAC. Its rated output at 100–180 VAC is 105 W. The IP67 metal enclosure uses fanless convection cooling and active PFC. This configuration provides fixed constant-voltage and constant-current output; standard function. Intended applications include street lighting, architectural lighting, bay lighting and floodlighting. Download MEAN WELL ELG-150 Datasheet (PDF)Download MEAN WELL LED Installation Manual ELG / ELG-C / ELGC catalog, PDF pages 23–33. Use the exact output and function suffix when selecting the driver. Output and input specifications Rated output 24 VDC; 6.25 A; 150 W at 200–305 VAC. At 100–180 VAC, the rated output power is 105 W. Constant-current region 12–24 V; operate within the permitted voltage/current envelope and input/temperature derating limits. Voltage and current setting No built-in voltage/current potentiometer adjustment is specified for this function code. Use the control function described below where fitted. Ripple and regulation 200 mVp-p maximum ripple/noise; voltage tolerance ±3%; line regulation ±0.5%; load regulation ±1%. Ripple measurement: 20 MHz bandwidth, 12-inch twisted pair, parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes setup tolerance, line and load regulation. Measurement conditions Unless otherwise stated, specifications are measured at 230 VAC, rated current and 25°C ambient. Typical efficiency for this output model: 89%. Input and frequency 100–305 VAC / 142–431 VDC; 47–63 Hz. Active PFC and harmonics Built-in active PFC; power factor ≥0.97 / 0.95 / 0.92 at 115 / 230 / 277 VAC, full load. Total harmonic distortion <20% at loads ≥50% at 115 VAC; 60% at 230 VAC; 75% at 277 VAC. Input current and startup Typical AC current: 1.7 A / 0.9 A / 0.7 A at 115 / 230 / 277 VAC. Typical setup / rise time: 1600 ms / 80 ms at 115 VAC; 500 ms / 100 ms at 230 VAC. Typical hold-up time: 10 ms at both 115 VAC and 230 VAC. Inrush and leakage Cold-start inrush: 65 A; 550 µs, at 230 VAC; pulse width measured at 50% of peak, per NEMA 410. Maximum units on a 16 A breaker: B-type / C-type = 3 / 6. Leakage current <0.75 mA at 277 VAC. No-load power <0.5 W. Model and control configuration Exact ordering code ELG-150 identifies the series; 24 identifies the nominal output voltage. Blank function suffix: Fixed constant-voltage and constant-current output; standard function. Protection rating IP67 metal housing with functional grounding. Standard two-wire AC input; connect the metal case to protective earth as required by the installation manual. LED driving arrangement Constant-current operation can drive LEDs directly. Constant-voltage applications generally use an additional DC/DC driver; apply the specific direct-LED requirement below when using 3-in-1 dimming. Protection and operating limits Overcurrent and short circuit Overcurrent: 95–108% of rated output, constant-current limiting, automatic recovery after removal of the fault. Short circuit: hiccup mode with automatic recovery. Overvoltage and temperature protection Overvoltage threshold: 28–34 V. Overvoltage and overtemperature shut down the output; re-power to recover. Case temperature and cooling Fanless free-air convection; mount horizontally. Working case temperature Tc: −40 to +90°C, subject to derating. Cold operation from −40 to -25°C is shown at 230 VAC only. Tc is case temperature, not ambient temperature. Ambient derating The ambient curve allows 100% load up to 55°C, falling to 60% at 70°C. The constant-current operating region is rated to a maximum ambient temperature of 55°C. Maintain the case-temperature limit and apply both input and ambient derating. Input derating At 100–180 VAC, use the exact low-input power rating above; the family static curve shows approximately 70% load in this region and rises to 100% by 200 VAC, remaining there through 305 VAC. The plotted input is 60 Hz. Humidity, storage and coefficient Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5G, 12 min/cycle, 72 min along each X, Y and Z axis. Service life and reliability Typical life exceeds 50,000 hours at Tc ≤80°C; higher case temperature reduces life, as shown by the lifetime curve. Five-year warranty under the stated installation and operating conditions. MTBF: 2661.6K / 313.7K hours, respectively Telcordia SR-332 and MIL-HDBK-217F at 25°C. Performance-curve conditions PF plots use constant-current operation. THD and efficiency curves are representative of ELG-150-54 at Tc = 80°C. Curves illustrate load/input dependence; the exact output rating and typical efficiency for this SKU remain those listed above. Lighting-system integration Install behind a mains switch for the stated ErP lighting-application compliance. Safety and system requirements Safety standards and output UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and 61347-2-13 for independent control gear; BS EN/EN 62384; EAC TP TC 004; GB/T 19510.1 and 19510.213; KC 61347-1 and 61347-2-13. The series table also lists IEC 61347-1 / 61347-2-13 and AS/NZS 61347.1 / 61347.2.13. BIS IS 15885 (Part 2/Sec 13) is listed for this output/function combination. SELV. Insulation tests Withstand voltage: input–output 3.75 kVAC, input–FG 2 kVAC, output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C, 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥60% load; BS EN/EN 61000-3-3; GB/T 17743 and GB 17625.1; KC KN15. EAC TP TC 020 is listed in the emissions table. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547 light-industry level. Surge immunity: 6 kV line-to-earth, 4 kV line-to-line. KC KN61547. Requalify EMC in the complete end equipment. Type HL application Type HL is for use in luminaires in Class I, Division 2 hazardous locations. Follow the end-equipment requirements for the intended installation. Altitude derating For this fanless product, reduce permitted ambient temperature by 3.5°C per 1,000 m above 2,000 m. Dimensions, wiring and weight Dimensions and mounting 219 × 63 × 35.5 mm (L × W × H); case 237A. Four Ø4.5 mm mounting holes; mounting centres 208 × 45.8 mm. Drawing tolerance ±1 mm. Tc measuring point: 105 × 20 mm from the indicated right/bottom reference edges; use the linked mechanical drawing for placement. Input leads AC/L brown; AC/N blue; SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm². Cable length 300 ±20 mm. Provide reliable metal-case grounding. Output leads Vo+ red; Vo− black; SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm². Cable length 300 ±20 mm. Packing reference 0.95 kg per unit (950 g), catalogue packing reference, not a measured net or shipping weight. Carton reference: 16 pcs / 16.0 kg / 0.77 CUFT. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation This version has a two-wire AC input. The catalog still requires the case to be connected to PE for complete EMC performance and safe use; follow the case-grounding instructions and consult MEAN WELL for the input-wiring option with PE. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $89.70

  View options

•

  View options

  MEAN WELL ELGC-300 series: programmable timer LED driver - ELGC-300-H-D2

  MEAN WELL ELGC-300-H-D2 MEAN WELL ELGC-300-H-D2 is an IP67 constant-power LED driver with a 5600 mA default current and a 29–58 V constant-current operating region. The specification rates output at 301 W on 200–305 VAC and 256 W on 100–180 VAC. Built-in smart timer dimming and programmable function, by request. Select the load within the model’s I–V envelope, not by combining independent voltage and current maxima. Download MEAN WELL ELGC-300 Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 120–130; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and constant-power envelope Default output current 5600 mA. This is the factory default, not a statement that the entire current range is available at every output voltage. Rated output power 301 W at 200–305 VAC; 256 W at 100–180 VAC. The family is marketed as 300 W; use the detailed 301/256 W table and operating envelope for selection. Constant-current region 29–58 V. The usable voltage/current combination must remain inside the applicable I–V plot. Full-power current range 5200–8000 mA at the high-input full-power envelope. The series describes full power over the 65–100% operating region. Current adjustment envelope 2600–8000 mA at 200–305 VAC; 2600–6800 mA at 100–180 VAC. Adjustment access and control method depend on this exact suffix. Maximum open-circuit voltage 62 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5%. Exact function Built-in smart timer dimming and programmable function, by request. IP rating IP67. Installation, sealing and any adjustment-access weather restrictions remain applicable; do not immerse the unit. 230 VAC I–V boundary The illustrated operating polygon is bounded by (2600 mA, 58 V), (5200 mA, 58 V), (8000 mA, 37.7 V), (8000 mA, 29 V), (5200 mA, 29 V). Remain within the shaded region and the rated-power limit. 115 VAC I–V boundary The low-line red boundary uses (2600 mA, 58 V), (4420 mA, 58 V), (6800 mA, 37.7 V), (6800 mA, 29 V), (5200 mA, 29 V). Remain within the reduced envelope; the plotted corner coordinates are catalog values. Order configuration This option is listed by request. Confirm the exact modified/programmed configuration and compatible controls with MEAN WELL. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. Low-input output derating applies. Setup time 500 ms at 115 VAC and 230 VAC. Efficiency 92.5% typical for the H current range. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <10% at load ≥50% on 115/230 VAC and ≥75% on 277 VAC. AC input current 3 A at 115 VAC; 1.6 A at 230 VAC; 1.3 A at 277 VAC; typical. Inrush current Cold start: 45 A typical at 230 VAC; 1200 μs pulse width measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Internal switching frequencies PFC oscillator: 45 kHz; PWM oscillator: 100 kHz. These are internal converter frequencies. Protection Protection functions The cover lists OCP, SCP, OVP and OTP. Apply the detailed recovery conditions below. Short-circuit protection Constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 61–78 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection When Tcase exceeds the 85°C ±5°C threshold, output power derates automatically by up to 6% per °C. This is a case-temperature protection condition, not permission to exceed the rated +85°C case limit. Control and dimming Smart timer scope Adaptive proportional current dimming for up to 14 consecutive operating hours. The following D01/D02/D03 profiles are catalog examples, not a guarantee of the profile supplied with this SKU. Confirm the required profile and programming procedure with MEAN WELL. Timer profile examples Elapsed time from power-on: D01 residential: 0–6 h 100%, 6–7 h 70%, 7–11 h 50%, 11–14 h 70%. D02 street: 0–1 h 50%, 1–3 h 80%, 3–8 h 100%, 8–11 h 60%, 11–14 h 80%. D03 tunnel: 0–1.5 h 70%, 1.5–11 h 100%, 11–14 h 70%. These are elapsed-time table values. Programming connection Purple PROG+ and pink PROG− are dedicated programming connections. Confirm compatible programming equipment and the requested profile with MEAN WELL; D2 is not the DALI-2 suffix. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection in the recommended horizontal mounting direction. The ambient curve is 100% through +40°C and ends there; the Tcase curve is 100% through +85°C. The −40 to −30°C cold region is marked 230 VAC input only. Respect both ambient and case limits; do not infer a higher-temperature operating region from the protection response. Input/load derating At 60 Hz: 85% load from 100 to 180 VAC, increasing to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact 256/301 W limits and corresponding I–V envelopes. Performance-plot conditions PF is plotted in constant-current operation at Tcase 75°C. THD and efficiency plots use ELGC-300-L at Tcase 75°C; the model-specific efficiency table remains applicable. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 70°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 1637.5 K hours minimum, Telcordia SR-332 (Bellcore); 170.1 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing; case 266A; 246 × 77 × 39.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1450 g, converted from the catalog’s 1.45 kg single-unit weight. Packing: 9 pcs / 14 kg / 0.76 CUFT. Mounting Recommended horizontal installation. Four Ø4.5 mm fixing holes; centre spacing 235 × 53.8 mm. Use the exact drawing for the mounting structure and clearances. Case-temperature measuring point The marked tc point is dimensioned 86 mm from the right-hand case reference and 36 mm above the lower case reference. AC input wiring Three-wire input: brown AC/L, blue AC/N, green/yellow FG/PE. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm², 300 ±20 mm. DC output wiring Red Vo+; black Vo−. SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm², 300 ±20 mm. Control wiring Purple PROG+; pink PROG−. UL2517 20 AWG × 2C; drawing length 300 ±20 mm. Use the connections only for this suffix’s specified interface. Safety and installation conditions Safety standards UL8750 Type HL; CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1 and 61347-2-13 independent controlgear; BS EN/EN62384; EAC TP TC004; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. AS/NZS61347 and AS/NZS60598 are design references. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to complete-system suitability. Regional certification conditions RCM is voluntary; the catalog states Non-IC independent LED controlgear is unsuitable for residential installations. Products sourced from the Americas may not carry ENEC/BIS/CCC/KC logos; confirm required marks with MEAN WELL. SELV marking The cover explicitly includes SELV for the H type. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; KN15. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted green/yellow PE/FG conductor to protective earth according to this model’s wiring diagram.

  Read more less

  $201.58

  View options

•

  View options

  MEAN WELL ELGC-300 series: programmable timer LED driver - ELGC-300-M-D2

  MEAN WELL ELGC-300-M-D2 MEAN WELL ELGC-300-M-D2 is an IP67 constant-power LED driver with a 2800 mA default current and a 58–116 V constant-current operating region. The specification rates output at 301 W on 200–305 VAC and 256 W on 100–180 VAC. Built-in smart timer dimming and programmable function, by request. Select the load within the model’s I–V envelope, not by combining independent voltage and current maxima. Download MEAN WELL ELGC-300 Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 120–130; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and constant-power envelope Default output current 2800 mA. This is the factory default, not a statement that the entire current range is available at every output voltage. Rated output power 301 W at 200–305 VAC; 256 W at 100–180 VAC. The family is marketed as 300 W; use the detailed 301/256 W table and operating envelope for selection. Constant-current region 58–116 V. The usable voltage/current combination must remain inside the applicable I–V plot. Full-power current range 2600–4000 mA at the high-input full-power envelope. The series describes full power over the 65–100% operating region. Current adjustment envelope 1300–4000 mA at 200–305 VAC; 1300–3400 mA at 100–180 VAC. Adjustment access and control method depend on this exact suffix. Maximum open-circuit voltage 120 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5%. Exact function Built-in smart timer dimming and programmable function, by request. IP rating IP67. Installation, sealing and any adjustment-access weather restrictions remain applicable; do not immerse the unit. 230 VAC I–V boundary The illustrated operating polygon is bounded by (1300 mA, 116 V), (2600 mA, 116 V), (4000 mA, 75.4 V), (4000 mA, 58 V), (2600 mA, 58 V). Remain within the shaded region and the rated-power limit. 115 VAC I–V boundary The low-line red boundary uses (1300 mA, 116 V), (2210 mA, 116 V), (3400 mA, 75.4 V), (3400 mA, 58 V), (2600 mA, 58 V). Remain within the reduced envelope; the plotted corner coordinates are catalog values. Order configuration This option is listed by request. Confirm the exact modified/programmed configuration and compatible controls with MEAN WELL. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. Low-input output derating applies. Setup time 500 ms at 115 VAC and 230 VAC. Efficiency 93.5% typical for the M current range. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <10% at load ≥50% on 115/230 VAC and ≥75% on 277 VAC. AC input current 3 A at 115 VAC; 1.6 A at 230 VAC; 1.3 A at 277 VAC; typical. Inrush current Cold start: 45 A typical at 230 VAC; 1200 μs pulse width measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Internal switching frequencies PFC oscillator: 45 kHz; PWM oscillator: 100 kHz. These are internal converter frequencies. Protection Protection functions The cover lists OCP, SCP, OVP and OTP. Apply the detailed recovery conditions below. Short-circuit protection Constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 121–145 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection When Tcase exceeds the 85°C ±5°C threshold, output power derates automatically by up to 6% per °C. This is a case-temperature protection condition, not permission to exceed the rated +85°C case limit. Control and dimming Smart timer scope Adaptive proportional current dimming for up to 14 consecutive operating hours. The following D01/D02/D03 profiles are catalog examples, not a guarantee of the profile supplied with this SKU. Confirm the required profile and programming procedure with MEAN WELL. Timer profile examples Elapsed time from power-on: D01 residential: 0–6 h 100%, 6–7 h 70%, 7–11 h 50%, 11–14 h 70%. D02 street: 0–1 h 50%, 1–3 h 80%, 3–8 h 100%, 8–11 h 60%, 11–14 h 80%. D03 tunnel: 0–1.5 h 70%, 1.5–11 h 100%, 11–14 h 70%. These are elapsed-time table values. Programming connection Purple PROG+ and pink PROG− are dedicated programming connections. Confirm compatible programming equipment and the requested profile with MEAN WELL; D2 is not the DALI-2 suffix. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection in the recommended horizontal mounting direction. The ambient curve is 100% through +40°C and ends there; the Tcase curve is 100% through +85°C. The −40 to −30°C cold region is marked 230 VAC input only. Respect both ambient and case limits; do not infer a higher-temperature operating region from the protection response. Input/load derating At 60 Hz: 85% load from 100 to 180 VAC, increasing to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact 256/301 W limits and corresponding I–V envelopes. Performance-plot conditions PF is plotted in constant-current operation at Tcase 75°C. THD and efficiency plots use ELGC-300-L at Tcase 75°C; the model-specific efficiency table remains applicable. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 70°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 1637.5 K hours minimum, Telcordia SR-332 (Bellcore); 170.1 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing; case 266A; 246 × 77 × 39.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1450 g, converted from the catalog’s 1.45 kg single-unit weight. Packing: 9 pcs / 14 kg / 0.76 CUFT. Mounting Recommended horizontal installation. Four Ø4.5 mm fixing holes; centre spacing 235 × 53.8 mm. Use the exact drawing for the mounting structure and clearances. Case-temperature measuring point The marked tc point is dimensioned 86 mm from the right-hand case reference and 36 mm above the lower case reference. AC input wiring Three-wire input: brown AC/L, blue AC/N, green/yellow FG/PE. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm², 300 ±20 mm. DC output wiring Red Vo+; black Vo−. SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm², 300 ±20 mm. Control wiring Purple PROG+; pink PROG−. UL2517 20 AWG × 2C; drawing length 300 ±20 mm. Use the connections only for this suffix’s specified interface. Safety and installation conditions Safety standards UL8750 Type HL; CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1 and 61347-2-13 independent controlgear; BS EN/EN62384; EAC TP TC004; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. AS/NZS61347 and AS/NZS60598 are design references. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to complete-system suitability. Regional certification conditions RCM is voluntary; the catalog states Non-IC independent LED controlgear is unsuitable for residential installations. Products sourced from the Americas may not carry ENEC/BIS/CCC/KC logos; confirm required marks with MEAN WELL. SELV marking The cover explicitly includes SELV for the M type. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; KN15. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted green/yellow PE/FG conductor to protective earth according to this model’s wiring diagram.

  Read more less

  $201.58

  View options

•

  View options

  MEAN WELL ELGC-300 series: programmable timer LED driver - ELGC-300-L-D2

  MEAN WELL ELGC-300-L-D2 MEAN WELL ELGC-300-L-D2 is an IP67 constant-power LED driver with a 1400 mA default current and a 116–232 V constant-current operating region. The specification rates output at 301 W on 200–305 VAC and 256 W on 100–180 VAC. Built-in smart timer dimming and programmable function, by request. Select the load within the model’s I–V envelope, not by combining independent voltage and current maxima. Download MEAN WELL ELGC-300 Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 120–130; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and constant-power envelope Default output current 1400 mA. This is the factory default, not a statement that the entire current range is available at every output voltage. Rated output power 301 W at 200–305 VAC; 256 W at 100–180 VAC. The family is marketed as 300 W; use the detailed 301/256 W table and operating envelope for selection. Constant-current region 116–232 V. The usable voltage/current combination must remain inside the applicable I–V plot. Full-power current range 1300–2000 mA at the high-input full-power envelope. The series describes full power over the 65–100% operating region. Current adjustment envelope 650–2000 mA at 200–305 VAC; 650–1700 mA at 100–180 VAC. Adjustment access and control method depend on this exact suffix. Maximum open-circuit voltage 240 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5%. Exact function Built-in smart timer dimming and programmable function, by request. IP rating IP67. Installation, sealing and any adjustment-access weather restrictions remain applicable; do not immerse the unit. 230 VAC I–V boundary The illustrated operating polygon is bounded by (650 mA, 232 V), (1300 mA, 232 V), (2000 mA, 150.8 V), (2000 mA, 116 V), (1300 mA, 116 V). Remain within the shaded region and the rated-power limit. 115 VAC I–V boundary The low-line red boundary uses (650 mA, 232 V), (1105 mA, 232 V), (1700 mA, 150.8 V), (1700 mA, 116 V), (1300 mA, 116 V). Remain within the reduced envelope; the plotted corner coordinates are catalog values. Order configuration This option is listed by request. Confirm the exact modified/programmed configuration and compatible controls with MEAN WELL. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. Low-input output derating applies. Setup time 500 ms at 115 VAC and 230 VAC. Efficiency 94.5% typical for the L current range. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <10% at load ≥50% on 115/230 VAC and ≥75% on 277 VAC. AC input current 3 A at 115 VAC; 1.6 A at 230 VAC; 1.3 A at 277 VAC; typical. Inrush current Cold start: 45 A typical at 230 VAC; 1200 μs pulse width measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Internal switching frequencies PFC oscillator: 45 kHz; PWM oscillator: 100 kHz. These are internal converter frequencies. Protection Protection functions The cover lists OCP, SCP, OVP and OTP. Apply the detailed recovery conditions below. Short-circuit protection Constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 241–275 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection When Tcase exceeds the 85°C ±5°C threshold, output power derates automatically by up to 6% per °C. This is a case-temperature protection condition, not permission to exceed the rated +85°C case limit. Control and dimming Smart timer scope Adaptive proportional current dimming for up to 14 consecutive operating hours. The following D01/D02/D03 profiles are catalog examples, not a guarantee of the profile supplied with this SKU. Confirm the required profile and programming procedure with MEAN WELL. Timer profile examples Elapsed time from power-on: D01 residential: 0–6 h 100%, 6–7 h 70%, 7–11 h 50%, 11–14 h 70%. D02 street: 0–1 h 50%, 1–3 h 80%, 3–8 h 100%, 8–11 h 60%, 11–14 h 80%. D03 tunnel: 0–1.5 h 70%, 1.5–11 h 100%, 11–14 h 70%. These are elapsed-time table values. Programming connection Purple PROG+ and pink PROG− are dedicated programming connections. Confirm compatible programming equipment and the requested profile with MEAN WELL; D2 is not the DALI-2 suffix. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection in the recommended horizontal mounting direction. The ambient curve is 100% through +40°C and ends there; the Tcase curve is 100% through +85°C. The −40 to −30°C cold region is marked 230 VAC input only. Respect both ambient and case limits; do not infer a higher-temperature operating region from the protection response. Input/load derating At 60 Hz: 85% load from 100 to 180 VAC, increasing to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact 256/301 W limits and corresponding I–V envelopes. Performance-plot conditions PF is plotted in constant-current operation at Tcase 75°C. THD and efficiency plots use ELGC-300-L at Tcase 75°C; the model-specific efficiency table remains applicable. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 70°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 1637.5 K hours minimum, Telcordia SR-332 (Bellcore); 170.1 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing; case 266A; 246 × 77 × 39.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1450 g, converted from the catalog’s 1.45 kg single-unit weight. Packing: 9 pcs / 14 kg / 0.76 CUFT. Mounting Recommended horizontal installation. Four Ø4.5 mm fixing holes; centre spacing 235 × 53.8 mm. Use the exact drawing for the mounting structure and clearances. Case-temperature measuring point The marked tc point is dimensioned 86 mm from the right-hand case reference and 36 mm above the lower case reference. AC input wiring Three-wire input: brown AC/L, blue AC/N, green/yellow FG/PE. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm², 300 ±20 mm. DC output wiring Red Vo+; black Vo−. SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm², 300 ±20 mm. Control wiring Purple PROG+; pink PROG−. UL2517 20 AWG × 2C; drawing length 300 ±20 mm. Use the connections only for this suffix’s specified interface. Safety and installation conditions Safety standards UL8750 Type HL; CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1 and 61347-2-13 independent controlgear; BS EN/EN62384; EAC TP TC004; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. AS/NZS61347 and AS/NZS60598 are design references. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to complete-system suitability. Regional certification conditions RCM is voluntary; the catalog states Non-IC independent LED controlgear is unsuitable for residential installations. Products sourced from the Americas may not carry ENEC/BIS/CCC/KC logos; confirm required marks with MEAN WELL. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; KN15. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted green/yellow PE/FG conductor to protective earth according to this model’s wiring diagram.

  Read more less

  $201.58

  View options

•

  View options

  MEAN WELL ELGC-300 series: DALI-2 constant-power LED driver - ELGC-300-H-ADA

  MEAN WELL ELGC-300-H-ADA MEAN WELL ELGC-300-H-ADA is an IP67 constant-power LED driver with a 5600 mA default current and a 29–58 V constant-current operating region. The specification rates output at 301 W on 200–305 VAC and 256 W on 100–180 VAC. DALI-2 control with output current adjustable through the built-in Io potentiometer. Select the load within the model’s I–V envelope, not by combining independent voltage and current maxima. Download MEAN WELL ELGC-300 Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 120–130; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and constant-power envelope Default output current 5600 mA. This is the factory default, not a statement that the entire current range is available at every output voltage. Rated output power 301 W at 200–305 VAC; 256 W at 100–180 VAC. The family is marketed as 300 W; use the detailed 301/256 W table and operating envelope for selection. Constant-current region 29–58 V. The usable voltage/current combination must remain inside the applicable I–V plot. Full-power current range 5200–8000 mA at the high-input full-power envelope. The series describes full power over the 65–100% operating region. Current adjustment envelope 2600–8000 mA at 200–305 VAC; 2600–6800 mA at 100–180 VAC. Adjustment access and control method depend on this exact suffix. Maximum open-circuit voltage 62 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5%. Exact function DALI-2 control with output current adjustable through the built-in Io potentiometer. IP rating IP67. Installation, sealing and any adjustment-access weather restrictions remain applicable; do not immerse the unit. 230 VAC I–V boundary The illustrated operating polygon is bounded by (2600 mA, 58 V), (5200 mA, 58 V), (8000 mA, 37.7 V), (8000 mA, 29 V), (5200 mA, 29 V). Remain within the shaded region and the rated-power limit. 115 VAC I–V boundary The low-line red boundary uses (2600 mA, 58 V), (4420 mA, 58 V), (6800 mA, 37.7 V), (6800 mA, 29 V), (5200 mA, 29 V). Remain within the reduced envelope; the plotted corner coordinates are catalog values. Built-in adjustment The underside Io potentiometer selects the operating current within the applicable envelope. Do not exceed the LED module current rating or the driver’s total-power limit. Catalog option status Listed as a standard/in-stock option in the catalog; this is not a live inventory statement. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. Low-input output derating applies. Setup time 500 ms at 115 VAC and 230 VAC. The DALI power-on timing requires a controller supporting DALI power-on operation; otherwise the catalog states setup exceeds 0.5 second. Efficiency 92.5% typical for the H current range. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <10% at load ≥50% on 115/230 VAC and ≥75% on 277 VAC. AC input current 3 A at 115 VAC; 1.6 A at 230 VAC; 1.3 A at 277 VAC; typical. Inrush current Cold start: 45 A typical at 230 VAC; 1200 μs pulse width measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Internal switching frequencies PFC oscillator: 45 kHz; PWM oscillator: 100 kHz. These are internal converter frequencies. Standby consumption <0.5 W when dimming is OFF, as specified for AB/ADA. Protection Protection functions The cover lists OCP, SCP, OVP and OTP. Apply the detailed recovery conditions below. Short-circuit protection Constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 61–78 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection When Tcase exceeds the 85°C ±5°C threshold, output power derates automatically by up to 6% per °C. This is a case-temperature protection condition, not permission to exceed the rated +85°C case limit. Control and dimming DALI-2 interface Primary-side interface: apply the DALI signal between DA+ and DA−. Supports 16 groups and 64 addresses; the first output step is fixed at 8%. DALI standards IEC62386-101, IEC62386-102 and IEC62386-207 are listed for ADA type. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection in the recommended horizontal mounting direction. The ambient curve is 100% through +40°C and ends there; the Tcase curve is 100% through +85°C. The −40 to −30°C cold region is marked 230 VAC input only. Respect both ambient and case limits; do not infer a higher-temperature operating region from the protection response. Input/load derating At 60 Hz: 85% load from 100 to 180 VAC, increasing to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact 256/301 W limits and corresponding I–V envelopes. Performance-plot conditions PF is plotted in constant-current operation at Tcase 75°C. THD and efficiency plots use ELGC-300-L at Tcase 75°C; the model-specific efficiency table remains applicable. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 70°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 1637.5 K hours minimum, Telcordia SR-332 (Bellcore); 170.1 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing; case 266A; 246 × 77 × 39.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1450 g, converted from the catalog’s 1.45 kg single-unit weight. Packing: 9 pcs / 14 kg / 0.76 CUFT. Mounting Recommended horizontal installation. Four Ø4.5 mm fixing holes; centre spacing 235 × 53.8 mm. Use the exact drawing for the mounting structure and clearances. Case-temperature measuring point The marked tc point is dimensioned 86 mm from the right-hand case reference and 36 mm above the lower case reference. AC input wiring Three-wire input: brown AC/L, blue AC/N, green/yellow FG/PE. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm², 300 ±20 mm. DC output wiring Red Vo+; black Vo−. SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm², 300 ±20 mm. Control wiring Purple DA+; pink DA−. UL2517 20 AWG × 2C; drawing length 300 ±20 mm. Use the connections only for this suffix’s specified interface. Adjustment access The underside potentiometer access is shown 60.5 mm from the right outer edge and 15.8 mm from the bottom edge. Preserve the access cover and required weather protection. Safety and installation conditions Safety standards UL8750 Type HL; CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1 and 61347-2-13 independent controlgear; BS EN/EN62384; EAC TP TC004; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. AS/NZS61347 and AS/NZS60598 are design references. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to complete-system suitability. A/AB/ADA require built-in use for the Type HL application. Regional certification conditions RCM is voluntary; the catalog states Non-IC independent LED controlgear is unsuitable for residential installations. Products sourced from the Americas may not carry ENEC/BIS/CCC/KC logos; confirm required marks with MEAN WELL. SELV marking The cover explicitly includes SELV for the H type. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; KN15. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted green/yellow PE/FG conductor to protective earth according to this model’s wiring diagram. Weather protection This IP67 adjustable model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring.

  Read more less

  $201.58

  View options

•

  View options

  MEAN WELL ELGC-300 series: DALI-2 constant-power LED driver - ELGC-300-M-ADA

  MEAN WELL ELGC-300-M-ADA MEAN WELL ELGC-300-M-ADA is an IP67 constant-power LED driver with a 2800 mA default current and a 58–116 V constant-current operating region. The specification rates output at 301 W on 200–305 VAC and 256 W on 100–180 VAC. DALI-2 control with output current adjustable through the built-in Io potentiometer. Select the load within the model’s I–V envelope, not by combining independent voltage and current maxima. Download MEAN WELL ELGC-300 Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 120–130; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and constant-power envelope Default output current 2800 mA. This is the factory default, not a statement that the entire current range is available at every output voltage. Rated output power 301 W at 200–305 VAC; 256 W at 100–180 VAC. The family is marketed as 300 W; use the detailed 301/256 W table and operating envelope for selection. Constant-current region 58–116 V. The usable voltage/current combination must remain inside the applicable I–V plot. Full-power current range 2600–4000 mA at the high-input full-power envelope. The series describes full power over the 65–100% operating region. Current adjustment envelope 1300–4000 mA at 200–305 VAC; 1300–3400 mA at 100–180 VAC. Adjustment access and control method depend on this exact suffix. Maximum open-circuit voltage 120 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5%. Exact function DALI-2 control with output current adjustable through the built-in Io potentiometer. IP rating IP67. Installation, sealing and any adjustment-access weather restrictions remain applicable; do not immerse the unit. 230 VAC I–V boundary The illustrated operating polygon is bounded by (1300 mA, 116 V), (2600 mA, 116 V), (4000 mA, 75.4 V), (4000 mA, 58 V), (2600 mA, 58 V). Remain within the shaded region and the rated-power limit. 115 VAC I–V boundary The low-line red boundary uses (1300 mA, 116 V), (2210 mA, 116 V), (3400 mA, 75.4 V), (3400 mA, 58 V), (2600 mA, 58 V). Remain within the reduced envelope; the plotted corner coordinates are catalog values. Built-in adjustment The underside Io potentiometer selects the operating current within the applicable envelope. Do not exceed the LED module current rating or the driver’s total-power limit. Catalog option status Listed as a standard/in-stock option in the catalog; this is not a live inventory statement. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. Low-input output derating applies. Setup time 500 ms at 115 VAC and 230 VAC. The DALI power-on timing requires a controller supporting DALI power-on operation; otherwise the catalog states setup exceeds 0.5 second. Efficiency 93.5% typical for the M current range. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <10% at load ≥50% on 115/230 VAC and ≥75% on 277 VAC. AC input current 3 A at 115 VAC; 1.6 A at 230 VAC; 1.3 A at 277 VAC; typical. Inrush current Cold start: 45 A typical at 230 VAC; 1200 μs pulse width measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Internal switching frequencies PFC oscillator: 45 kHz; PWM oscillator: 100 kHz. These are internal converter frequencies. Standby consumption <0.5 W when dimming is OFF, as specified for AB/ADA. Protection Protection functions The cover lists OCP, SCP, OVP and OTP. Apply the detailed recovery conditions below. Short-circuit protection Constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 121–145 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection When Tcase exceeds the 85°C ±5°C threshold, output power derates automatically by up to 6% per °C. This is a case-temperature protection condition, not permission to exceed the rated +85°C case limit. Control and dimming DALI-2 interface Primary-side interface: apply the DALI signal between DA+ and DA−. Supports 16 groups and 64 addresses; the first output step is fixed at 8%. DALI standards IEC62386-101, IEC62386-102 and IEC62386-207 are listed for ADA type. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection in the recommended horizontal mounting direction. The ambient curve is 100% through +40°C and ends there; the Tcase curve is 100% through +85°C. The −40 to −30°C cold region is marked 230 VAC input only. Respect both ambient and case limits; do not infer a higher-temperature operating region from the protection response. Input/load derating At 60 Hz: 85% load from 100 to 180 VAC, increasing to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact 256/301 W limits and corresponding I–V envelopes. Performance-plot conditions PF is plotted in constant-current operation at Tcase 75°C. THD and efficiency plots use ELGC-300-L at Tcase 75°C; the model-specific efficiency table remains applicable. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 70°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 1637.5 K hours minimum, Telcordia SR-332 (Bellcore); 170.1 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing; case 266A; 246 × 77 × 39.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1450 g, converted from the catalog’s 1.45 kg single-unit weight. Packing: 9 pcs / 14 kg / 0.76 CUFT. Mounting Recommended horizontal installation. Four Ø4.5 mm fixing holes; centre spacing 235 × 53.8 mm. Use the exact drawing for the mounting structure and clearances. Case-temperature measuring point The marked tc point is dimensioned 86 mm from the right-hand case reference and 36 mm above the lower case reference. AC input wiring Three-wire input: brown AC/L, blue AC/N, green/yellow FG/PE. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm², 300 ±20 mm. DC output wiring Red Vo+; black Vo−. SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm², 300 ±20 mm. Control wiring Purple DA+; pink DA−. UL2517 20 AWG × 2C; drawing length 300 ±20 mm. Use the connections only for this suffix’s specified interface. Adjustment access The underside potentiometer access is shown 60.5 mm from the right outer edge and 15.8 mm from the bottom edge. Preserve the access cover and required weather protection. Safety and installation conditions Safety standards UL8750 Type HL; CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1 and 61347-2-13 independent controlgear; BS EN/EN62384; EAC TP TC004; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. AS/NZS61347 and AS/NZS60598 are design references. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to complete-system suitability. A/AB/ADA require built-in use for the Type HL application. Regional certification conditions RCM is voluntary; the catalog states Non-IC independent LED controlgear is unsuitable for residential installations. Products sourced from the Americas may not carry ENEC/BIS/CCC/KC logos; confirm required marks with MEAN WELL. SELV marking The cover explicitly includes SELV for the M type. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; KN15. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted green/yellow PE/FG conductor to protective earth according to this model’s wiring diagram. Weather protection This IP67 adjustable model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring.

  Read more less

  $201.58

  View options

•

  View options

  MEAN WELL ELGC-300 series: DALI-2 constant-power LED driver - ELGC-300-L-ADA

  MEAN WELL ELGC-300-L-ADA MEAN WELL ELGC-300-L-ADA is an IP67 constant-power LED driver with a 1400 mA default current and a 116–232 V constant-current operating region. The specification rates output at 301 W on 200–305 VAC and 256 W on 100–180 VAC. DALI-2 control with output current adjustable through the built-in Io potentiometer. Select the load within the model’s I–V envelope, not by combining independent voltage and current maxima. Download MEAN WELL ELGC-300 Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 120–130; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and constant-power envelope Default output current 1400 mA. This is the factory default, not a statement that the entire current range is available at every output voltage. Rated output power 301 W at 200–305 VAC; 256 W at 100–180 VAC. The family is marketed as 300 W; use the detailed 301/256 W table and operating envelope for selection. Constant-current region 116–232 V. The usable voltage/current combination must remain inside the applicable I–V plot. Full-power current range 1300–2000 mA at the high-input full-power envelope. The series describes full power over the 65–100% operating region. Current adjustment envelope 650–2000 mA at 200–305 VAC; 650–1700 mA at 100–180 VAC. Adjustment access and control method depend on this exact suffix. Maximum open-circuit voltage 240 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5%. Exact function DALI-2 control with output current adjustable through the built-in Io potentiometer. IP rating IP67. Installation, sealing and any adjustment-access weather restrictions remain applicable; do not immerse the unit. 230 VAC I–V boundary The illustrated operating polygon is bounded by (650 mA, 232 V), (1300 mA, 232 V), (2000 mA, 150.8 V), (2000 mA, 116 V), (1300 mA, 116 V). Remain within the shaded region and the rated-power limit. 115 VAC I–V boundary The low-line red boundary uses (650 mA, 232 V), (1105 mA, 232 V), (1700 mA, 150.8 V), (1700 mA, 116 V), (1300 mA, 116 V). Remain within the reduced envelope; the plotted corner coordinates are catalog values. Built-in adjustment The underside Io potentiometer selects the operating current within the applicable envelope. Do not exceed the LED module current rating or the driver’s total-power limit. Catalog option status Listed as a standard/in-stock option in the catalog; this is not a live inventory statement. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. Low-input output derating applies. Setup time 500 ms at 115 VAC and 230 VAC. The DALI power-on timing requires a controller supporting DALI power-on operation; otherwise the catalog states setup exceeds 0.5 second. Efficiency 94.5% typical for the L current range. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <10% at load ≥50% on 115/230 VAC and ≥75% on 277 VAC. AC input current 3 A at 115 VAC; 1.6 A at 230 VAC; 1.3 A at 277 VAC; typical. Inrush current Cold start: 45 A typical at 230 VAC; 1200 μs pulse width measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Internal switching frequencies PFC oscillator: 45 kHz; PWM oscillator: 100 kHz. These are internal converter frequencies. Standby consumption <0.5 W when dimming is OFF, as specified for AB/ADA. Protection Protection functions The cover lists OCP, SCP, OVP and OTP. Apply the detailed recovery conditions below. Short-circuit protection Constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 241–275 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection When Tcase exceeds the 85°C ±5°C threshold, output power derates automatically by up to 6% per °C. This is a case-temperature protection condition, not permission to exceed the rated +85°C case limit. Control and dimming DALI-2 interface Primary-side interface: apply the DALI signal between DA+ and DA−. Supports 16 groups and 64 addresses; the first output step is fixed at 8%. DALI standards IEC62386-101, IEC62386-102 and IEC62386-207 are listed for ADA type. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection in the recommended horizontal mounting direction. The ambient curve is 100% through +40°C and ends there; the Tcase curve is 100% through +85°C. The −40 to −30°C cold region is marked 230 VAC input only. Respect both ambient and case limits; do not infer a higher-temperature operating region from the protection response. Input/load derating At 60 Hz: 85% load from 100 to 180 VAC, increasing to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact 256/301 W limits and corresponding I–V envelopes. Performance-plot conditions PF is plotted in constant-current operation at Tcase 75°C. THD and efficiency plots use ELGC-300-L at Tcase 75°C; the model-specific efficiency table remains applicable. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 70°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 1637.5 K hours minimum, Telcordia SR-332 (Bellcore); 170.1 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing; case 266A; 246 × 77 × 39.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1450 g, converted from the catalog’s 1.45 kg single-unit weight. Packing: 9 pcs / 14 kg / 0.76 CUFT. Mounting Recommended horizontal installation. Four Ø4.5 mm fixing holes; centre spacing 235 × 53.8 mm. Use the exact drawing for the mounting structure and clearances. Case-temperature measuring point The marked tc point is dimensioned 86 mm from the right-hand case reference and 36 mm above the lower case reference. AC input wiring Three-wire input: brown AC/L, blue AC/N, green/yellow FG/PE. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm², 300 ±20 mm. DC output wiring Red Vo+; black Vo−. SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm², 300 ±20 mm. Control wiring Purple DA+; pink DA−. UL2517 20 AWG × 2C; drawing length 300 ±20 mm. Use the connections only for this suffix’s specified interface. Adjustment access The underside potentiometer access is shown 60.5 mm from the right outer edge and 15.8 mm from the bottom edge. Preserve the access cover and required weather protection. Safety and installation conditions Safety standards UL8750 Type HL; CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1 and 61347-2-13 independent controlgear; BS EN/EN62384; EAC TP TC004; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. AS/NZS61347 and AS/NZS60598 are design references. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to complete-system suitability. A/AB/ADA require built-in use for the Type HL application. Regional certification conditions RCM is voluntary; the catalog states Non-IC independent LED controlgear is unsuitable for residential installations. Products sourced from the Americas may not carry ENEC/BIS/CCC/KC logos; confirm required marks with MEAN WELL. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; KN15. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted green/yellow PE/FG conductor to protective earth according to this model’s wiring diagram. Weather protection This IP67 adjustable model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring.

  Read more less

  $201.58

  View options

•

  View options

  MEAN WELL ELGC-300 series: 3-in-1 constant-power LED driver - ELGC-300-H-AB

  MEAN WELL ELGC-300-H-AB MEAN WELL ELGC-300-H-AB is an IP67 constant-power LED driver with a 5600 mA default current and a 29–58 V constant-current operating region. The specification rates output at 301 W on 200–305 VAC and 256 W on 100–180 VAC. Output constant power adjustable via the built-in Io potentiometer plus 3-in-1 dimming (0–10 VDC, 10 V PWM or resistance). Select the load within the model’s I–V envelope, not by combining independent voltage and current maxima. Download MEAN WELL ELGC-300 Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 120–130; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and constant-power envelope Default output current 5600 mA. This is the factory default, not a statement that the entire current range is available at every output voltage. Rated output power 301 W at 200–305 VAC; 256 W at 100–180 VAC. The family is marketed as 300 W; use the detailed 301/256 W table and operating envelope for selection. Constant-current region 29–58 V. The usable voltage/current combination must remain inside the applicable I–V plot. Full-power current range 5200–8000 mA at the high-input full-power envelope. The series describes full power over the 65–100% operating region. Current adjustment envelope 2600–8000 mA at 200–305 VAC; 2600–6800 mA at 100–180 VAC. Adjustment access and control method depend on this exact suffix. Maximum open-circuit voltage 62 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5%. Exact function Output constant power adjustable via the built-in Io potentiometer plus 3-in-1 dimming (0–10 VDC, 10 V PWM or resistance). IP rating IP67. Installation, sealing and any adjustment-access weather restrictions remain applicable; do not immerse the unit. 230 VAC I–V boundary The illustrated operating polygon is bounded by (2600 mA, 58 V), (5200 mA, 58 V), (8000 mA, 37.7 V), (8000 mA, 29 V), (5200 mA, 29 V). Remain within the shaded region and the rated-power limit. 115 VAC I–V boundary The low-line red boundary uses (2600 mA, 58 V), (4420 mA, 58 V), (6800 mA, 37.7 V), (6800 mA, 29 V), (5200 mA, 29 V). Remain within the reduced envelope; the plotted corner coordinates are catalog values. Built-in adjustment The underside Io potentiometer selects the operating current within the applicable envelope. Do not exceed the LED module current rating or the driver’s total-power limit. Catalog option status Listed as a standard/in-stock option in the catalog; this is not a live inventory statement. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. Low-input output derating applies. Setup time 500 ms at 115 VAC and 230 VAC. Efficiency 92.5% typical for the H current range. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <10% at load ≥50% on 115/230 VAC and ≥75% on 277 VAC. AC input current 3 A at 115 VAC; 1.6 A at 230 VAC; 1.3 A at 277 VAC; typical. Inrush current Cold start: 45 A typical at 230 VAC; 1200 μs pulse width measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Internal switching frequencies PFC oscillator: 45 kHz; PWM oscillator: 100 kHz. These are internal converter frequencies. Standby consumption <0.5 W when dimming is OFF, as specified for AB/ADA. Protection Protection functions The cover lists OCP, SCP, OVP and OTP. Apply the detailed recovery conditions below. Short-circuit protection Constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 61–78 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection When Tcase exceeds the 85°C ±5°C threshold, output power derates automatically by up to 6% per °C. This is a case-temperature protection condition, not permission to exceed the rated +85°C case limit. Control and dimming 3-in-1 dimming Apply one method between DIM+ and DIM−: 0–10 VDC; an external 10 V PWM signal at 100 Hz–3 kHz; or resistance. Dimming-source current from the driver is 100 μA typical. Dimming range and OFF Minimum dimming level is about 8%; output current is undefined for 0% < Iout < 8%. Output can fall to 0% at approximately 0 VDC, 0 Ω, or 0% duty of a 10 V PWM signal. This is not a continuously defined 0–8% operating region. Control characteristic The plotted range uses 1–10 VDC or 10–100% PWM duty for approximately 10–100% output current. Resistance uses 10 kΩ/N to 100 kΩ/N for 10–100%, where N is the number of drivers in synchronized operation. Dimming wiring boundary Do not connect DIM− to Vo−. Direct LED connection is suggested; this dimming arrangement is not suitable for use with additional drivers. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection in the recommended horizontal mounting direction. The ambient curve is 100% through +40°C and ends there; the Tcase curve is 100% through +85°C. The −40 to −30°C cold region is marked 230 VAC input only. Respect both ambient and case limits; do not infer a higher-temperature operating region from the protection response. Input/load derating At 60 Hz: 85% load from 100 to 180 VAC, increasing to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact 256/301 W limits and corresponding I–V envelopes. Performance-plot conditions PF is plotted in constant-current operation at Tcase 75°C. THD and efficiency plots use ELGC-300-L at Tcase 75°C; the model-specific efficiency table remains applicable. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 70°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 1637.5 K hours minimum, Telcordia SR-332 (Bellcore); 170.1 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing; case 266A; 246 × 77 × 39.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1450 g, converted from the catalog’s 1.45 kg single-unit weight. Packing: 9 pcs / 14 kg / 0.76 CUFT. Mounting Recommended horizontal installation. Four Ø4.5 mm fixing holes; centre spacing 235 × 53.8 mm. Use the exact drawing for the mounting structure and clearances. Case-temperature measuring point The marked tc point is dimensioned 86 mm from the right-hand case reference and 36 mm above the lower case reference. AC input wiring Three-wire input: brown AC/L, blue AC/N, green/yellow FG/PE. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm², 300 ±20 mm. DC output wiring Red Vo+; black Vo−. SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm², 300 ±20 mm. Control wiring Purple DIM+; pink DIM−. UL2517 20 AWG × 2C; drawing length 300 ±20 mm. Use the connections only for this suffix’s specified interface. Adjustment access The underside potentiometer access is shown 60.5 mm from the right outer edge and 15.8 mm from the bottom edge. Preserve the access cover and required weather protection. Safety and installation conditions Safety standards UL8750 Type HL; CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1 and 61347-2-13 independent controlgear; BS EN/EN62384; EAC TP TC004; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. AS/NZS61347 and AS/NZS60598 are design references. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to complete-system suitability. A/AB/ADA require built-in use for the Type HL application. Regional certification conditions RCM is voluntary; the catalog states Non-IC independent LED controlgear is unsuitable for residential installations. Products sourced from the Americas may not carry ENEC/BIS/CCC/KC logos; confirm required marks with MEAN WELL. SELV marking The cover explicitly includes SELV for the H type. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; KN15. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted green/yellow PE/FG conductor to protective earth according to this model’s wiring diagram. Weather protection This IP67 adjustable model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring.

  Read more less

  $196.65

  View options

•

  View options

  MEAN WELL ELGC-300 series: 3-in-1 constant-power LED driver - ELGC-300-M-AB

  MEAN WELL ELGC-300-M-AB MEAN WELL ELGC-300-M-AB is an IP67 constant-power LED driver with a 2800 mA default current and a 58–116 V constant-current operating region. The specification rates output at 301 W on 200–305 VAC and 256 W on 100–180 VAC. Output constant power adjustable via the built-in Io potentiometer plus 3-in-1 dimming (0–10 VDC, 10 V PWM or resistance). Select the load within the model’s I–V envelope, not by combining independent voltage and current maxima. Download MEAN WELL ELGC-300 Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 120–130; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and constant-power envelope Default output current 2800 mA. This is the factory default, not a statement that the entire current range is available at every output voltage. Rated output power 301 W at 200–305 VAC; 256 W at 100–180 VAC. The family is marketed as 300 W; use the detailed 301/256 W table and operating envelope for selection. Constant-current region 58–116 V. The usable voltage/current combination must remain inside the applicable I–V plot. Full-power current range 2600–4000 mA at the high-input full-power envelope. The series describes full power over the 65–100% operating region. Current adjustment envelope 1300–4000 mA at 200–305 VAC; 1300–3400 mA at 100–180 VAC. Adjustment access and control method depend on this exact suffix. Maximum open-circuit voltage 120 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5%. Exact function Output constant power adjustable via the built-in Io potentiometer plus 3-in-1 dimming (0–10 VDC, 10 V PWM or resistance). IP rating IP67. Installation, sealing and any adjustment-access weather restrictions remain applicable; do not immerse the unit. 230 VAC I–V boundary The illustrated operating polygon is bounded by (1300 mA, 116 V), (2600 mA, 116 V), (4000 mA, 75.4 V), (4000 mA, 58 V), (2600 mA, 58 V). Remain within the shaded region and the rated-power limit. 115 VAC I–V boundary The low-line red boundary uses (1300 mA, 116 V), (2210 mA, 116 V), (3400 mA, 75.4 V), (3400 mA, 58 V), (2600 mA, 58 V). Remain within the reduced envelope; the plotted corner coordinates are catalog values. Built-in adjustment The underside Io potentiometer selects the operating current within the applicable envelope. Do not exceed the LED module current rating or the driver’s total-power limit. Catalog option status Listed as a standard/in-stock option in the catalog; this is not a live inventory statement. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. Low-input output derating applies. Setup time 500 ms at 115 VAC and 230 VAC. Efficiency 93.5% typical for the M current range. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <10% at load ≥50% on 115/230 VAC and ≥75% on 277 VAC. AC input current 3 A at 115 VAC; 1.6 A at 230 VAC; 1.3 A at 277 VAC; typical. Inrush current Cold start: 45 A typical at 230 VAC; 1200 μs pulse width measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Internal switching frequencies PFC oscillator: 45 kHz; PWM oscillator: 100 kHz. These are internal converter frequencies. Standby consumption <0.5 W when dimming is OFF, as specified for AB/ADA. Protection Protection functions The cover lists OCP, SCP, OVP and OTP. Apply the detailed recovery conditions below. Short-circuit protection Constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 121–145 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection When Tcase exceeds the 85°C ±5°C threshold, output power derates automatically by up to 6% per °C. This is a case-temperature protection condition, not permission to exceed the rated +85°C case limit. Control and dimming 3-in-1 dimming Apply one method between DIM+ and DIM−: 0–10 VDC; an external 10 V PWM signal at 100 Hz–3 kHz; or resistance. Dimming-source current from the driver is 100 μA typical. Dimming range and OFF Minimum dimming level is about 8%; output current is undefined for 0% < Iout < 8%. Output can fall to 0% at approximately 0 VDC, 0 Ω, or 0% duty of a 10 V PWM signal. This is not a continuously defined 0–8% operating region. Control characteristic The plotted range uses 1–10 VDC or 10–100% PWM duty for approximately 10–100% output current. Resistance uses 10 kΩ/N to 100 kΩ/N for 10–100%, where N is the number of drivers in synchronized operation. Dimming wiring boundary Do not connect DIM− to Vo−. Direct LED connection is suggested; this dimming arrangement is not suitable for use with additional drivers. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection in the recommended horizontal mounting direction. The ambient curve is 100% through +40°C and ends there; the Tcase curve is 100% through +85°C. The −40 to −30°C cold region is marked 230 VAC input only. Respect both ambient and case limits; do not infer a higher-temperature operating region from the protection response. Input/load derating At 60 Hz: 85% load from 100 to 180 VAC, increasing to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact 256/301 W limits and corresponding I–V envelopes. Performance-plot conditions PF is plotted in constant-current operation at Tcase 75°C. THD and efficiency plots use ELGC-300-L at Tcase 75°C; the model-specific efficiency table remains applicable. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 70°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 1637.5 K hours minimum, Telcordia SR-332 (Bellcore); 170.1 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing; case 266A; 246 × 77 × 39.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1450 g, converted from the catalog’s 1.45 kg single-unit weight. Packing: 9 pcs / 14 kg / 0.76 CUFT. Mounting Recommended horizontal installation. Four Ø4.5 mm fixing holes; centre spacing 235 × 53.8 mm. Use the exact drawing for the mounting structure and clearances. Case-temperature measuring point The marked tc point is dimensioned 86 mm from the right-hand case reference and 36 mm above the lower case reference. AC input wiring Three-wire input: brown AC/L, blue AC/N, green/yellow FG/PE. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm², 300 ±20 mm. DC output wiring Red Vo+; black Vo−. SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm², 300 ±20 mm. Control wiring Purple DIM+; pink DIM−. UL2517 20 AWG × 2C; drawing length 300 ±20 mm. Use the connections only for this suffix’s specified interface. Adjustment access The underside potentiometer access is shown 60.5 mm from the right outer edge and 15.8 mm from the bottom edge. Preserve the access cover and required weather protection. Safety and installation conditions Safety standards UL8750 Type HL; CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1 and 61347-2-13 independent controlgear; BS EN/EN62384; EAC TP TC004; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. AS/NZS61347 and AS/NZS60598 are design references. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to complete-system suitability. A/AB/ADA require built-in use for the Type HL application. Regional certification conditions RCM is voluntary; the catalog states Non-IC independent LED controlgear is unsuitable for residential installations. Products sourced from the Americas may not carry ENEC/BIS/CCC/KC logos; confirm required marks with MEAN WELL. SELV marking The cover explicitly includes SELV for the M type. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; KN15. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted green/yellow PE/FG conductor to protective earth according to this model’s wiring diagram. Weather protection This IP67 adjustable model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring.

  Read more less

  $196.65

  View options

•

  View options

  MEAN WELL ELGC-300 series: 3-in-1 constant-power LED driver - ELGC-300-L-AB

  MEAN WELL ELGC-300-L-AB MEAN WELL ELGC-300-L-AB is an IP67 constant-power LED driver with a 1400 mA default current and a 116–232 V constant-current operating region. The specification rates output at 301 W on 200–305 VAC and 256 W on 100–180 VAC. Output constant power adjustable via the built-in Io potentiometer plus 3-in-1 dimming (0–10 VDC, 10 V PWM or resistance). Select the load within the model’s I–V envelope, not by combining independent voltage and current maxima. Download MEAN WELL ELGC-300 Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 120–130; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and constant-power envelope Default output current 1400 mA. This is the factory default, not a statement that the entire current range is available at every output voltage. Rated output power 301 W at 200–305 VAC; 256 W at 100–180 VAC. The family is marketed as 300 W; use the detailed 301/256 W table and operating envelope for selection. Constant-current region 116–232 V. The usable voltage/current combination must remain inside the applicable I–V plot. Full-power current range 1300–2000 mA at the high-input full-power envelope. The series describes full power over the 65–100% operating region. Current adjustment envelope 650–2000 mA at 200–305 VAC; 650–1700 mA at 100–180 VAC. Adjustment access and control method depend on this exact suffix. Maximum open-circuit voltage 240 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5%. Exact function Output constant power adjustable via the built-in Io potentiometer plus 3-in-1 dimming (0–10 VDC, 10 V PWM or resistance). IP rating IP67. Installation, sealing and any adjustment-access weather restrictions remain applicable; do not immerse the unit. 230 VAC I–V boundary The illustrated operating polygon is bounded by (650 mA, 232 V), (1300 mA, 232 V), (2000 mA, 150.8 V), (2000 mA, 116 V), (1300 mA, 116 V). Remain within the shaded region and the rated-power limit. 115 VAC I–V boundary The low-line red boundary uses (650 mA, 232 V), (1105 mA, 232 V), (1700 mA, 150.8 V), (1700 mA, 116 V), (1300 mA, 116 V). Remain within the reduced envelope; the plotted corner coordinates are catalog values. Built-in adjustment The underside Io potentiometer selects the operating current within the applicable envelope. Do not exceed the LED module current rating or the driver’s total-power limit. Catalog option status Listed as a standard/in-stock option in the catalog; this is not a live inventory statement. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. Low-input output derating applies. Setup time 500 ms at 115 VAC and 230 VAC. Efficiency 94.5% typical for the L current range. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <10% at load ≥50% on 115/230 VAC and ≥75% on 277 VAC. AC input current 3 A at 115 VAC; 1.6 A at 230 VAC; 1.3 A at 277 VAC; typical. Inrush current Cold start: 45 A typical at 230 VAC; 1200 μs pulse width measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Internal switching frequencies PFC oscillator: 45 kHz; PWM oscillator: 100 kHz. These are internal converter frequencies. Standby consumption <0.5 W when dimming is OFF, as specified for AB/ADA. Protection Protection functions The cover lists OCP, SCP, OVP and OTP. Apply the detailed recovery conditions below. Short-circuit protection Constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 241–275 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection When Tcase exceeds the 85°C ±5°C threshold, output power derates automatically by up to 6% per °C. This is a case-temperature protection condition, not permission to exceed the rated +85°C case limit. Control and dimming 3-in-1 dimming Apply one method between DIM+ and DIM−: 0–10 VDC; an external 10 V PWM signal at 100 Hz–3 kHz; or resistance. Dimming-source current from the driver is 100 μA typical. Dimming range and OFF Minimum dimming level is about 8%; output current is undefined for 0% < Iout < 8%. Output can fall to 0% at approximately 0 VDC, 0 Ω, or 0% duty of a 10 V PWM signal. This is not a continuously defined 0–8% operating region. Control characteristic The plotted range uses 1–10 VDC or 10–100% PWM duty for approximately 10–100% output current. Resistance uses 10 kΩ/N to 100 kΩ/N for 10–100%, where N is the number of drivers in synchronized operation. Dimming wiring boundary Do not connect DIM− to Vo−. Direct LED connection is suggested; this dimming arrangement is not suitable for use with additional drivers. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection in the recommended horizontal mounting direction. The ambient curve is 100% through +40°C and ends there; the Tcase curve is 100% through +85°C. The −40 to −30°C cold region is marked 230 VAC input only. Respect both ambient and case limits; do not infer a higher-temperature operating region from the protection response. Input/load derating At 60 Hz: 85% load from 100 to 180 VAC, increasing to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact 256/301 W limits and corresponding I–V envelopes. Performance-plot conditions PF is plotted in constant-current operation at Tcase 75°C. THD and efficiency plots use ELGC-300-L at Tcase 75°C; the model-specific efficiency table remains applicable. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 70°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 1637.5 K hours minimum, Telcordia SR-332 (Bellcore); 170.1 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing; case 266A; 246 × 77 × 39.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1450 g, converted from the catalog’s 1.45 kg single-unit weight. Packing: 9 pcs / 14 kg / 0.76 CUFT. Mounting Recommended horizontal installation. Four Ø4.5 mm fixing holes; centre spacing 235 × 53.8 mm. Use the exact drawing for the mounting structure and clearances. Case-temperature measuring point The marked tc point is dimensioned 86 mm from the right-hand case reference and 36 mm above the lower case reference. AC input wiring Three-wire input: brown AC/L, blue AC/N, green/yellow FG/PE. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm², 300 ±20 mm. DC output wiring Red Vo+; black Vo−. SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm², 300 ±20 mm. Control wiring Purple DIM+; pink DIM−. UL2517 20 AWG × 2C; drawing length 300 ±20 mm. Use the connections only for this suffix’s specified interface. Adjustment access The underside potentiometer access is shown 60.5 mm from the right outer edge and 15.8 mm from the bottom edge. Preserve the access cover and required weather protection. Safety and installation conditions Safety standards UL8750 Type HL; CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1 and 61347-2-13 independent controlgear; BS EN/EN62384; EAC TP TC004; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. AS/NZS61347 and AS/NZS60598 are design references. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to complete-system suitability. A/AB/ADA require built-in use for the Type HL application. Regional certification conditions RCM is voluntary; the catalog states Non-IC independent LED controlgear is unsuitable for residential installations. Products sourced from the Americas may not carry ENEC/BIS/CCC/KC logos; confirm required marks with MEAN WELL. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; KN15. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted green/yellow PE/FG conductor to protective earth according to this model’s wiring diagram. Weather protection This IP67 adjustable model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Controller installation Verify the compatibility and capacity of the controller or network for this exact interface. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this model’s control wiring.

  Read more less

  $196.65

  View options

•

  View options

  MEAN WELL ELGC-300 series: adjustable constant-power LED driver - ELGC-300-H-A

  MEAN WELL ELGC-300-H-A MEAN WELL ELGC-300-H-A is an IP67 constant-power LED driver with a 5600 mA default current and a 29–58 V constant-current operating region. The specification rates output at 301 W on 200–305 VAC and 256 W on 100–180 VAC. Output constant power adjustable via the built-in Io potentiometer. Select the load within the model’s I–V envelope, not by combining independent voltage and current maxima. Download MEAN WELL ELGC-300 Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 120–130; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and constant-power envelope Default output current 5600 mA. This is the factory default, not a statement that the entire current range is available at every output voltage. Rated output power 301 W at 200–305 VAC; 256 W at 100–180 VAC. The family is marketed as 300 W; use the detailed 301/256 W table and operating envelope for selection. Constant-current region 29–58 V. The usable voltage/current combination must remain inside the applicable I–V plot. Full-power current range 5200–8000 mA at the high-input full-power envelope. The series describes full power over the 65–100% operating region. Current adjustment envelope 2600–8000 mA at 200–305 VAC; 2600–6800 mA at 100–180 VAC. Adjustment access and control method depend on this exact suffix. Maximum open-circuit voltage 62 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5%. Exact function Output constant power adjustable via the built-in Io potentiometer. IP rating IP67. Installation, sealing and any adjustment-access weather restrictions remain applicable; do not immerse the unit. 230 VAC I–V boundary The illustrated operating polygon is bounded by (2600 mA, 58 V), (5200 mA, 58 V), (8000 mA, 37.7 V), (8000 mA, 29 V), (5200 mA, 29 V). Remain within the shaded region and the rated-power limit. 115 VAC I–V boundary The low-line red boundary uses (2600 mA, 58 V), (4420 mA, 58 V), (6800 mA, 37.7 V), (6800 mA, 29 V), (5200 mA, 29 V). Remain within the reduced envelope; the plotted corner coordinates are catalog values. Built-in adjustment The underside Io potentiometer selects the operating current within the applicable envelope. Do not exceed the LED module current rating or the driver’s total-power limit. Catalog option status Listed as a standard/in-stock option in the catalog; this is not a live inventory statement. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. Low-input output derating applies. Setup time 500 ms at 115 VAC and 230 VAC. Efficiency 92.5% typical for the H current range. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <10% at load ≥50% on 115/230 VAC and ≥75% on 277 VAC. AC input current 3 A at 115 VAC; 1.6 A at 230 VAC; 1.3 A at 277 VAC; typical. Inrush current Cold start: 45 A typical at 230 VAC; 1200 μs pulse width measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Internal switching frequencies PFC oscillator: 45 kHz; PWM oscillator: 100 kHz. These are internal converter frequencies. Protection Protection functions The cover lists OCP, SCP, OVP and OTP. Apply the detailed recovery conditions below. Short-circuit protection Constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 61–78 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection When Tcase exceeds the 85°C ±5°C threshold, output power derates automatically by up to 6% per °C. This is a case-temperature protection condition, not permission to exceed the rated +85°C case limit. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection in the recommended horizontal mounting direction. The ambient curve is 100% through +40°C and ends there; the Tcase curve is 100% through +85°C. The −40 to −30°C cold region is marked 230 VAC input only. Respect both ambient and case limits; do not infer a higher-temperature operating region from the protection response. Input/load derating At 60 Hz: 85% load from 100 to 180 VAC, increasing to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact 256/301 W limits and corresponding I–V envelopes. Performance-plot conditions PF is plotted in constant-current operation at Tcase 75°C. THD and efficiency plots use ELGC-300-L at Tcase 75°C; the model-specific efficiency table remains applicable. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 70°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 1637.5 K hours minimum, Telcordia SR-332 (Bellcore); 170.1 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing; case 266A; 246 × 77 × 39.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1450 g, converted from the catalog’s 1.45 kg single-unit weight. Packing: 9 pcs / 14 kg / 0.76 CUFT. Mounting Recommended horizontal installation. Four Ø4.5 mm fixing holes; centre spacing 235 × 53.8 mm. Use the exact drawing for the mounting structure and clearances. Case-temperature measuring point The marked tc point is dimensioned 86 mm from the right-hand case reference and 36 mm above the lower case reference. AC input wiring Three-wire input: brown AC/L, blue AC/N, green/yellow FG/PE. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm², 300 ±20 mm. DC output wiring Red Vo+; black Vo−. SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm², 300 ±20 mm. Adjustment access The underside potentiometer access is shown 60.5 mm from the right outer edge and 15.8 mm from the bottom edge. Preserve the access cover and required weather protection. Safety and installation conditions Safety standards UL8750 Type HL; CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1 and 61347-2-13 independent controlgear; BS EN/EN62384; EAC TP TC004; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. AS/NZS61347 and AS/NZS60598 are design references. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to complete-system suitability. A/AB/ADA require built-in use for the Type HL application. Regional certification conditions RCM is voluntary; the catalog states Non-IC independent LED controlgear is unsuitable for residential installations. Products sourced from the Americas may not carry ENEC/BIS/CCC/KC logos; confirm required marks with MEAN WELL. SELV marking The cover explicitly includes SELV for the H type. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; KN15. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted green/yellow PE/FG conductor to protective earth according to this model’s wiring diagram. Weather protection This IP67 adjustable model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion.

  Read more less

  $180.88

  View options

•

  View options

  MEAN WELL ELGC-300 series: adjustable constant-power LED driver - ELGC-300-M-A

  MEAN WELL ELGC-300-M-A MEAN WELL ELGC-300-M-A is an IP67 constant-power LED driver with a 2800 mA default current and a 58–116 V constant-current operating region. The specification rates output at 301 W on 200–305 VAC and 256 W on 100–180 VAC. Output constant power adjustable via the built-in Io potentiometer. Select the load within the model’s I–V envelope, not by combining independent voltage and current maxima. Download MEAN WELL ELGC-300 Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 120–130; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and constant-power envelope Default output current 2800 mA. This is the factory default, not a statement that the entire current range is available at every output voltage. Rated output power 301 W at 200–305 VAC; 256 W at 100–180 VAC. The family is marketed as 300 W; use the detailed 301/256 W table and operating envelope for selection. Constant-current region 58–116 V. The usable voltage/current combination must remain inside the applicable I–V plot. Full-power current range 2600–4000 mA at the high-input full-power envelope. The series describes full power over the 65–100% operating region. Current adjustment envelope 1300–4000 mA at 200–305 VAC; 1300–3400 mA at 100–180 VAC. Adjustment access and control method depend on this exact suffix. Maximum open-circuit voltage 120 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5%. Exact function Output constant power adjustable via the built-in Io potentiometer. IP rating IP67. Installation, sealing and any adjustment-access weather restrictions remain applicable; do not immerse the unit. 230 VAC I–V boundary The illustrated operating polygon is bounded by (1300 mA, 116 V), (2600 mA, 116 V), (4000 mA, 75.4 V), (4000 mA, 58 V), (2600 mA, 58 V). Remain within the shaded region and the rated-power limit. 115 VAC I–V boundary The low-line red boundary uses (1300 mA, 116 V), (2210 mA, 116 V), (3400 mA, 75.4 V), (3400 mA, 58 V), (2600 mA, 58 V). Remain within the reduced envelope; the plotted corner coordinates are catalog values. Built-in adjustment The underside Io potentiometer selects the operating current within the applicable envelope. Do not exceed the LED module current rating or the driver’s total-power limit. Catalog option status Listed as a standard/in-stock option in the catalog; this is not a live inventory statement. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. Low-input output derating applies. Setup time 500 ms at 115 VAC and 230 VAC. Efficiency 93.5% typical for the M current range. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <10% at load ≥50% on 115/230 VAC and ≥75% on 277 VAC. AC input current 3 A at 115 VAC; 1.6 A at 230 VAC; 1.3 A at 277 VAC; typical. Inrush current Cold start: 45 A typical at 230 VAC; 1200 μs pulse width measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Internal switching frequencies PFC oscillator: 45 kHz; PWM oscillator: 100 kHz. These are internal converter frequencies. Protection Protection functions The cover lists OCP, SCP, OVP and OTP. Apply the detailed recovery conditions below. Short-circuit protection Constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 121–145 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection When Tcase exceeds the 85°C ±5°C threshold, output power derates automatically by up to 6% per °C. This is a case-temperature protection condition, not permission to exceed the rated +85°C case limit. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection in the recommended horizontal mounting direction. The ambient curve is 100% through +40°C and ends there; the Tcase curve is 100% through +85°C. The −40 to −30°C cold region is marked 230 VAC input only. Respect both ambient and case limits; do not infer a higher-temperature operating region from the protection response. Input/load derating At 60 Hz: 85% load from 100 to 180 VAC, increasing to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact 256/301 W limits and corresponding I–V envelopes. Performance-plot conditions PF is plotted in constant-current operation at Tcase 75°C. THD and efficiency plots use ELGC-300-L at Tcase 75°C; the model-specific efficiency table remains applicable. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 70°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 1637.5 K hours minimum, Telcordia SR-332 (Bellcore); 170.1 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing; case 266A; 246 × 77 × 39.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1450 g, converted from the catalog’s 1.45 kg single-unit weight. Packing: 9 pcs / 14 kg / 0.76 CUFT. Mounting Recommended horizontal installation. Four Ø4.5 mm fixing holes; centre spacing 235 × 53.8 mm. Use the exact drawing for the mounting structure and clearances. Case-temperature measuring point The marked tc point is dimensioned 86 mm from the right-hand case reference and 36 mm above the lower case reference. AC input wiring Three-wire input: brown AC/L, blue AC/N, green/yellow FG/PE. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm², 300 ±20 mm. DC output wiring Red Vo+; black Vo−. SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm², 300 ±20 mm. Adjustment access The underside potentiometer access is shown 60.5 mm from the right outer edge and 15.8 mm from the bottom edge. Preserve the access cover and required weather protection. Safety and installation conditions Safety standards UL8750 Type HL; CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1 and 61347-2-13 independent controlgear; BS EN/EN62384; EAC TP TC004; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. AS/NZS61347 and AS/NZS60598 are design references. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to complete-system suitability. A/AB/ADA require built-in use for the Type HL application. Regional certification conditions RCM is voluntary; the catalog states Non-IC independent LED controlgear is unsuitable for residential installations. Products sourced from the Americas may not carry ENEC/BIS/CCC/KC logos; confirm required marks with MEAN WELL. SELV marking The cover explicitly includes SELV for the M type. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; KN15. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted green/yellow PE/FG conductor to protective earth according to this model’s wiring diagram. Weather protection This IP67 adjustable model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion.

  Read more less

  $180.88

  View options

•

  View options

  MEAN WELL ELGC-300 series: adjustable constant-power LED driver - ELGC-300-L-A

  MEAN WELL ELGC-300-L-A MEAN WELL ELGC-300-L-A is an IP67 constant-power LED driver with a 1400 mA default current and a 116–232 V constant-current operating region. The specification rates output at 301 W on 200–305 VAC and 256 W on 100–180 VAC. Output constant power adjustable via the built-in Io potentiometer. Select the load within the model’s I–V envelope, not by combining independent voltage and current maxima. Download MEAN WELL ELGC-300 Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 120–130; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and constant-power envelope Default output current 1400 mA. This is the factory default, not a statement that the entire current range is available at every output voltage. Rated output power 301 W at 200–305 VAC; 256 W at 100–180 VAC. The family is marketed as 300 W; use the detailed 301/256 W table and operating envelope for selection. Constant-current region 116–232 V. The usable voltage/current combination must remain inside the applicable I–V plot. Full-power current range 1300–2000 mA at the high-input full-power envelope. The series describes full power over the 65–100% operating region. Current adjustment envelope 650–2000 mA at 200–305 VAC; 650–1700 mA at 100–180 VAC. Adjustment access and control method depend on this exact suffix. Maximum open-circuit voltage 240 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5%. Exact function Output constant power adjustable via the built-in Io potentiometer. IP rating IP67. Installation, sealing and any adjustment-access weather restrictions remain applicable; do not immerse the unit. 230 VAC I–V boundary The illustrated operating polygon is bounded by (650 mA, 232 V), (1300 mA, 232 V), (2000 mA, 150.8 V), (2000 mA, 116 V), (1300 mA, 116 V). Remain within the shaded region and the rated-power limit. 115 VAC I–V boundary The low-line red boundary uses (650 mA, 232 V), (1105 mA, 232 V), (1700 mA, 150.8 V), (1700 mA, 116 V), (1300 mA, 116 V). Remain within the reduced envelope; the plotted corner coordinates are catalog values. Built-in adjustment The underside Io potentiometer selects the operating current within the applicable envelope. Do not exceed the LED module current rating or the driver’s total-power limit. Catalog option status Listed as a standard/in-stock option in the catalog; this is not a live inventory statement. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. Low-input output derating applies. Setup time 500 ms at 115 VAC and 230 VAC. Efficiency 94.5% typical for the L current range. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <10% at load ≥50% on 115/230 VAC and ≥75% on 277 VAC. AC input current 3 A at 115 VAC; 1.6 A at 230 VAC; 1.3 A at 277 VAC; typical. Inrush current Cold start: 45 A typical at 230 VAC; 1200 μs pulse width measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Internal switching frequencies PFC oscillator: 45 kHz; PWM oscillator: 100 kHz. These are internal converter frequencies. Protection Protection functions The cover lists OCP, SCP, OVP and OTP. Apply the detailed recovery conditions below. Short-circuit protection Constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 241–275 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection When Tcase exceeds the 85°C ±5°C threshold, output power derates automatically by up to 6% per °C. This is a case-temperature protection condition, not permission to exceed the rated +85°C case limit. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection in the recommended horizontal mounting direction. The ambient curve is 100% through +40°C and ends there; the Tcase curve is 100% through +85°C. The −40 to −30°C cold region is marked 230 VAC input only. Respect both ambient and case limits; do not infer a higher-temperature operating region from the protection response. Input/load derating At 60 Hz: 85% load from 100 to 180 VAC, increasing to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact 256/301 W limits and corresponding I–V envelopes. Performance-plot conditions PF is plotted in constant-current operation at Tcase 75°C. THD and efficiency plots use ELGC-300-L at Tcase 75°C; the model-specific efficiency table remains applicable. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 70°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 1637.5 K hours minimum, Telcordia SR-332 (Bellcore); 170.1 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing; case 266A; 246 × 77 × 39.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1450 g, converted from the catalog’s 1.45 kg single-unit weight. Packing: 9 pcs / 14 kg / 0.76 CUFT. Mounting Recommended horizontal installation. Four Ø4.5 mm fixing holes; centre spacing 235 × 53.8 mm. Use the exact drawing for the mounting structure and clearances. Case-temperature measuring point The marked tc point is dimensioned 86 mm from the right-hand case reference and 36 mm above the lower case reference. AC input wiring Three-wire input: brown AC/L, blue AC/N, green/yellow FG/PE. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm², 300 ±20 mm. DC output wiring Red Vo+; black Vo−. SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm², 300 ±20 mm. Adjustment access The underside potentiometer access is shown 60.5 mm from the right outer edge and 15.8 mm from the bottom edge. Preserve the access cover and required weather protection. Safety and installation conditions Safety standards UL8750 Type HL; CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1 and 61347-2-13 independent controlgear; BS EN/EN62384; EAC TP TC004; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. AS/NZS61347 and AS/NZS60598 are design references. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to complete-system suitability. A/AB/ADA require built-in use for the Type HL application. Regional certification conditions RCM is voluntary; the catalog states Non-IC independent LED controlgear is unsuitable for residential installations. Products sourced from the Americas may not carry ENEC/BIS/CCC/KC logos; confirm required marks with MEAN WELL. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; KN15. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted green/yellow PE/FG conductor to protective earth according to this model’s wiring diagram. Weather protection This IP67 adjustable model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion.

  Read more less

  $180.88

  View options

•

  View options

  MEAN WELL ELGC-300 series: constant-power LED driver - ELGC-300-H

  MEAN WELL ELGC-300-H MEAN WELL ELGC-300-H is an IP67 constant-power LED driver with a 5600 mA default current and a 29–58 V constant-current operating region. The specification rates output at 301 W on 200–305 VAC and 256 W on 100–180 VAC. Blank type available by modification, by request; confirm the delivered configuration with MEAN WELL. Select the load within the model’s I–V envelope, not by combining independent voltage and current maxima. Download MEAN WELL ELGC-300 Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 120–130; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and constant-power envelope Default output current 5600 mA. This is the factory default, not a statement that the entire current range is available at every output voltage. Rated output power 301 W at 200–305 VAC; 256 W at 100–180 VAC. The family is marketed as 300 W; use the detailed 301/256 W table and operating envelope for selection. Constant-current region 29–58 V. The usable voltage/current combination must remain inside the applicable I–V plot. Full-power current range 5200–8000 mA at the high-input full-power envelope. The series describes full power over the 65–100% operating region. Current adjustment envelope 2600–8000 mA at 200–305 VAC; 2600–6800 mA at 100–180 VAC. Adjustment access and control method depend on this exact suffix. Maximum open-circuit voltage 62 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5%. Exact function Blank type available by modification, by request; confirm the delivered configuration with MEAN WELL. IP rating IP67. Installation, sealing and any adjustment-access weather restrictions remain applicable; do not immerse the unit. 230 VAC I–V boundary The illustrated operating polygon is bounded by (2600 mA, 58 V), (5200 mA, 58 V), (8000 mA, 37.7 V), (8000 mA, 29 V), (5200 mA, 29 V). Remain within the shaded region and the rated-power limit. 115 VAC I–V boundary The low-line red boundary uses (2600 mA, 58 V), (4420 mA, 58 V), (6800 mA, 37.7 V), (6800 mA, 29 V), (5200 mA, 29 V). Remain within the reduced envelope; the plotted corner coordinates are catalog values. Order configuration This option is listed by request. Confirm the exact modified/programmed configuration and compatible controls with MEAN WELL. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. Low-input output derating applies. Setup time 500 ms at 115 VAC and 230 VAC. Efficiency 92.5% typical for the H current range. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <10% at load ≥50% on 115/230 VAC and ≥75% on 277 VAC. AC input current 3 A at 115 VAC; 1.6 A at 230 VAC; 1.3 A at 277 VAC; typical. Inrush current Cold start: 45 A typical at 230 VAC; 1200 μs pulse width measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Internal switching frequencies PFC oscillator: 45 kHz; PWM oscillator: 100 kHz. These are internal converter frequencies. Protection Protection functions The cover lists OCP, SCP, OVP and OTP. Apply the detailed recovery conditions below. Short-circuit protection Constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 61–78 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection When Tcase exceeds the 85°C ±5°C threshold, output power derates automatically by up to 6% per °C. This is a case-temperature protection condition, not permission to exceed the rated +85°C case limit. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection in the recommended horizontal mounting direction. The ambient curve is 100% through +40°C and ends there; the Tcase curve is 100% through +85°C. The −40 to −30°C cold region is marked 230 VAC input only. Respect both ambient and case limits; do not infer a higher-temperature operating region from the protection response. Input/load derating At 60 Hz: 85% load from 100 to 180 VAC, increasing to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact 256/301 W limits and corresponding I–V envelopes. Performance-plot conditions PF is plotted in constant-current operation at Tcase 75°C. THD and efficiency plots use ELGC-300-L at Tcase 75°C; the model-specific efficiency table remains applicable. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 70°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 1637.5 K hours minimum, Telcordia SR-332 (Bellcore); 170.1 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing; case 266A; 246 × 77 × 39.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1450 g, converted from the catalog’s 1.45 kg single-unit weight. Packing: 9 pcs / 14 kg / 0.76 CUFT. Mounting Recommended horizontal installation. Four Ø4.5 mm fixing holes; centre spacing 235 × 53.8 mm. Use the exact drawing for the mounting structure and clearances. Case-temperature measuring point The marked tc point is dimensioned 86 mm from the right-hand case reference and 36 mm above the lower case reference. AC input wiring Three-wire input: brown AC/L, blue AC/N, green/yellow FG/PE. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm², 300 ±20 mm. DC output wiring Red Vo+; black Vo−. SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm², 300 ±20 mm. Modified blank configuration The catalog lists the blank variant by modification; confirm its delivered wiring and mechanical details. No built-in potentiometer or external dimming interface is assumed for this suffix. Safety and installation conditions Safety standards UL8750 Type HL; CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1 and 61347-2-13 independent controlgear; BS EN/EN62384; EAC TP TC004; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. AS/NZS61347 and AS/NZS60598 are design references. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to complete-system suitability. Regional certification conditions RCM is voluntary; the catalog states Non-IC independent LED controlgear is unsuitable for residential installations. Products sourced from the Americas may not carry ENEC/BIS/CCC/KC logos; confirm required marks with MEAN WELL. SELV marking The cover explicitly includes SELV for the H type. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; KN15. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted green/yellow PE/FG conductor to protective earth according to this model’s wiring diagram.

  Read more less

  $180.88

  View options

•

  View options

  MEAN WELL ELGC-300 series: constant-power LED driver - ELGC-300-M

  MEAN WELL ELGC-300-M MEAN WELL ELGC-300-M is an IP67 constant-power LED driver with a 2800 mA default current and a 58–116 V constant-current operating region. The specification rates output at 301 W on 200–305 VAC and 256 W on 100–180 VAC. Blank type available by modification, by request; confirm the delivered configuration with MEAN WELL. Select the load within the model’s I–V envelope, not by combining independent voltage and current maxima. Download MEAN WELL ELGC-300 Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 120–130; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and constant-power envelope Default output current 2800 mA. This is the factory default, not a statement that the entire current range is available at every output voltage. Rated output power 301 W at 200–305 VAC; 256 W at 100–180 VAC. The family is marketed as 300 W; use the detailed 301/256 W table and operating envelope for selection. Constant-current region 58–116 V. The usable voltage/current combination must remain inside the applicable I–V plot. Full-power current range 2600–4000 mA at the high-input full-power envelope. The series describes full power over the 65–100% operating region. Current adjustment envelope 1300–4000 mA at 200–305 VAC; 1300–3400 mA at 100–180 VAC. Adjustment access and control method depend on this exact suffix. Maximum open-circuit voltage 120 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5%. Exact function Blank type available by modification, by request; confirm the delivered configuration with MEAN WELL. IP rating IP67. Installation, sealing and any adjustment-access weather restrictions remain applicable; do not immerse the unit. 230 VAC I–V boundary The illustrated operating polygon is bounded by (1300 mA, 116 V), (2600 mA, 116 V), (4000 mA, 75.4 V), (4000 mA, 58 V), (2600 mA, 58 V). Remain within the shaded region and the rated-power limit. 115 VAC I–V boundary The low-line red boundary uses (1300 mA, 116 V), (2210 mA, 116 V), (3400 mA, 75.4 V), (3400 mA, 58 V), (2600 mA, 58 V). Remain within the reduced envelope; the plotted corner coordinates are catalog values. Order configuration This option is listed by request. Confirm the exact modified/programmed configuration and compatible controls with MEAN WELL. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. Low-input output derating applies. Setup time 500 ms at 115 VAC and 230 VAC. Efficiency 93.5% typical for the M current range. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <10% at load ≥50% on 115/230 VAC and ≥75% on 277 VAC. AC input current 3 A at 115 VAC; 1.6 A at 230 VAC; 1.3 A at 277 VAC; typical. Inrush current Cold start: 45 A typical at 230 VAC; 1200 μs pulse width measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Internal switching frequencies PFC oscillator: 45 kHz; PWM oscillator: 100 kHz. These are internal converter frequencies. Protection Protection functions The cover lists OCP, SCP, OVP and OTP. Apply the detailed recovery conditions below. Short-circuit protection Constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 121–145 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection When Tcase exceeds the 85°C ±5°C threshold, output power derates automatically by up to 6% per °C. This is a case-temperature protection condition, not permission to exceed the rated +85°C case limit. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection in the recommended horizontal mounting direction. The ambient curve is 100% through +40°C and ends there; the Tcase curve is 100% through +85°C. The −40 to −30°C cold region is marked 230 VAC input only. Respect both ambient and case limits; do not infer a higher-temperature operating region from the protection response. Input/load derating At 60 Hz: 85% load from 100 to 180 VAC, increasing to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact 256/301 W limits and corresponding I–V envelopes. Performance-plot conditions PF is plotted in constant-current operation at Tcase 75°C. THD and efficiency plots use ELGC-300-L at Tcase 75°C; the model-specific efficiency table remains applicable. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 70°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 1637.5 K hours minimum, Telcordia SR-332 (Bellcore); 170.1 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing; case 266A; 246 × 77 × 39.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1450 g, converted from the catalog’s 1.45 kg single-unit weight. Packing: 9 pcs / 14 kg / 0.76 CUFT. Mounting Recommended horizontal installation. Four Ø4.5 mm fixing holes; centre spacing 235 × 53.8 mm. Use the exact drawing for the mounting structure and clearances. Case-temperature measuring point The marked tc point is dimensioned 86 mm from the right-hand case reference and 36 mm above the lower case reference. AC input wiring Three-wire input: brown AC/L, blue AC/N, green/yellow FG/PE. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm², 300 ±20 mm. DC output wiring Red Vo+; black Vo−. SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm², 300 ±20 mm. Modified blank configuration The catalog lists the blank variant by modification; confirm its delivered wiring and mechanical details. No built-in potentiometer or external dimming interface is assumed for this suffix. Safety and installation conditions Safety standards UL8750 Type HL; CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1 and 61347-2-13 independent controlgear; BS EN/EN62384; EAC TP TC004; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. AS/NZS61347 and AS/NZS60598 are design references. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to complete-system suitability. Regional certification conditions RCM is voluntary; the catalog states Non-IC independent LED controlgear is unsuitable for residential installations. Products sourced from the Americas may not carry ENEC/BIS/CCC/KC logos; confirm required marks with MEAN WELL. SELV marking The cover explicitly includes SELV for the M type. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; KN15. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted green/yellow PE/FG conductor to protective earth according to this model’s wiring diagram.

  Read more less

  $180.88

  View options

•

  View options

  MEAN WELL ELGC-300 series: constant-power LED driver - ELGC-300-L

  MEAN WELL ELGC-300-L MEAN WELL ELGC-300-L is an IP67 constant-power LED driver with a 1400 mA default current and a 116–232 V constant-current operating region. The specification rates output at 301 W on 200–305 VAC and 256 W on 100–180 VAC. Blank type available by modification, by request; confirm the delivered configuration with MEAN WELL. Select the load within the model’s I–V envelope, not by combining independent voltage and current maxima. Download MEAN WELL ELGC-300 Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 120–130; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and constant-power envelope Default output current 1400 mA. This is the factory default, not a statement that the entire current range is available at every output voltage. Rated output power 301 W at 200–305 VAC; 256 W at 100–180 VAC. The family is marketed as 300 W; use the detailed 301/256 W table and operating envelope for selection. Constant-current region 116–232 V. The usable voltage/current combination must remain inside the applicable I–V plot. Full-power current range 1300–2000 mA at the high-input full-power envelope. The series describes full power over the 65–100% operating region. Current adjustment envelope 650–2000 mA at 200–305 VAC; 650–1700 mA at 100–180 VAC. Adjustment access and control method depend on this exact suffix. Maximum open-circuit voltage 240 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5%. Exact function Blank type available by modification, by request; confirm the delivered configuration with MEAN WELL. IP rating IP67. Installation, sealing and any adjustment-access weather restrictions remain applicable; do not immerse the unit. 230 VAC I–V boundary The illustrated operating polygon is bounded by (650 mA, 232 V), (1300 mA, 232 V), (2000 mA, 150.8 V), (2000 mA, 116 V), (1300 mA, 116 V). Remain within the shaded region and the rated-power limit. 115 VAC I–V boundary The low-line red boundary uses (650 mA, 232 V), (1105 mA, 232 V), (1700 mA, 150.8 V), (1700 mA, 116 V), (1300 mA, 116 V). Remain within the reduced envelope; the plotted corner coordinates are catalog values. Order configuration This option is listed by request. Confirm the exact modified/programmed configuration and compatible controls with MEAN WELL. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. Low-input output derating applies. Setup time 500 ms at 115 VAC and 230 VAC. Efficiency 94.5% typical for the L current range. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <10% at load ≥50% on 115/230 VAC and ≥75% on 277 VAC. AC input current 3 A at 115 VAC; 1.6 A at 230 VAC; 1.3 A at 277 VAC; typical. Inrush current Cold start: 45 A typical at 230 VAC; 1200 μs pulse width measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Internal switching frequencies PFC oscillator: 45 kHz; PWM oscillator: 100 kHz. These are internal converter frequencies. Protection Protection functions The cover lists OCP, SCP, OVP and OTP. Apply the detailed recovery conditions below. Short-circuit protection Constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 241–275 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection When Tcase exceeds the 85°C ±5°C threshold, output power derates automatically by up to 6% per °C. This is a case-temperature protection condition, not permission to exceed the rated +85°C case limit. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection in the recommended horizontal mounting direction. The ambient curve is 100% through +40°C and ends there; the Tcase curve is 100% through +85°C. The −40 to −30°C cold region is marked 230 VAC input only. Respect both ambient and case limits; do not infer a higher-temperature operating region from the protection response. Input/load derating At 60 Hz: 85% load from 100 to 180 VAC, increasing to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact 256/301 W limits and corresponding I–V envelopes. Performance-plot conditions PF is plotted in constant-current operation at Tcase 75°C. THD and efficiency plots use ELGC-300-L at Tcase 75°C; the model-specific efficiency table remains applicable. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 70°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 1637.5 K hours minimum, Telcordia SR-332 (Bellcore); 170.1 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing; case 266A; 246 × 77 × 39.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1450 g, converted from the catalog’s 1.45 kg single-unit weight. Packing: 9 pcs / 14 kg / 0.76 CUFT. Mounting Recommended horizontal installation. Four Ø4.5 mm fixing holes; centre spacing 235 × 53.8 mm. Use the exact drawing for the mounting structure and clearances. Case-temperature measuring point The marked tc point is dimensioned 86 mm from the right-hand case reference and 36 mm above the lower case reference. AC input wiring Three-wire input: brown AC/L, blue AC/N, green/yellow FG/PE. SJOW 17 AWG × 3C / H05RN-F 3 × 1.0 mm², 300 ±20 mm. DC output wiring Red Vo+; black Vo−. SJOW 17 AWG × 2C / H05RN-F 2 × 1.0 mm², 300 ±20 mm. Modified blank configuration The catalog lists the blank variant by modification; confirm its delivered wiring and mechanical details. No built-in potentiometer or external dimming interface is assumed for this suffix. Safety and installation conditions Safety standards UL8750 Type HL; CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1 and 61347-2-13 independent controlgear; BS EN/EN62384; EAC TP TC004; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. AS/NZS61347 and AS/NZS60598 are design references. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to complete-system suitability. Regional certification conditions RCM is voluntary; the catalog states Non-IC independent LED controlgear is unsuitable for residential installations. Products sourced from the Americas may not carry ENEC/BIS/CCC/KC logos; confirm required marks with MEAN WELL. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; KN15. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted green/yellow PE/FG conductor to protective earth according to this model’s wiring diagram.

  Read more less

  $180.88

  View options

•

  View options

  MEAN WELL ELG-240-C series: programmable timer LED driver - ELG-240-C2100D2-3Y

  MEAN WELL ELG-240-C2100D2-3Y MEAN WELL ELG-240-C2100D2-3Y is a 2100 mA constant-current LED driver with a 57–115 V operating region and IP67 metal housing. Rated output is 241.5 W at 200–305 VAC, reduced to 180.6 W at 100–180 VAC. Built-in smart timer dimming and programmable function; PROG terminals are programming connections. Match the LED string to the voltage window and input-dependent power limit. Download MEAN WELL ELG-240-C Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 109–119; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and model selection Rated output current 2100 mA. Rated output power 241.5 W at 200–305 VAC; 180.6 W at 100–180 VAC. Use the static input-derating curve between these ranges. Constant-current region 57–115 V. The highest usable output voltage depends on the LED/system configuration. Respect the rated power at the actual input voltage; contact MEAN WELL if compatibility is uncertain. Maximum open-circuit voltage 120 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5.0%. Exact function Built-in smart timer dimming and programmable function; PROG terminals are programming connections. IP rating IP67. Follow the model-specific weather protection and connection-sealing requirements below; the rating does not permit immersion. Catalog option status Listed as a standard/in-stock option in the catalog. Actual availability must be checked separately. Input and performance Input supply 100–305 VAC or 142–431 VDC; 47–63 Hz for AC. Low-input output derating applies. Setup time 800 ms at 115 VAC; 500 ms at 230 VAC. Measured at first cold start; repeated ON/OFF switching may increase setup time. Efficiency 93% typical for this current rating. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <20% at load ≥50% on 115 VAC, ≥50% on 230 VAC, and ≥75% on 277 VAC. AC input current 2.2 A at 115 VAC; 1.5 A at 230 VAC; 1.2 A at 277 VAC; typical. Inrush current Cold start: 75 A typical at 230 VAC; pulse width 450 μs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Low-load consumption No-load power consumption <0.5 W for this suffix. Internal switching frequencies PFC oscillator: 50–120 kHz; PWM oscillator: 60–130 kHz. These are internal converter frequencies. Protection Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 128–156 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection Shuts down output voltage; re-power to recover. Control and dimming Smart timer scope Adaptive proportional current dimming for up to 14 consecutive operating hours. The following D01/D02/D03 profiles are catalog examples, not a guarantee of the profile supplied with this SKU. Confirm the required profile and programming procedure with MEAN WELL. Timer profile examples Elapsed time from power-on: D01 residential: 0–6 h 100%, 6–7 h 70%, 7–11 h 50%, 11–14 h 70%. D02 street: 0–1 h 50%, 1–3 h 80%, 3–8 h 100%, 8–11 h 60%, 11–14 h 80%. D03 tunnel: 0–1.5 h 70%, 1.5–11 h 100%, 11–14 h 70%. These are elapsed-time table values. Programming connection Use the dedicated PROG+ and PROG− connections with the manufacturer’s compatible programming arrangement. D2 denotes smart-timer programming; it is not the DALI-2 interface. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection, in the recommended horizontal mounting direction. The ambient curve is 100% through +50°C; extension from +50°C to +60°C is marked 230 VAC input only, with the curve ending at +60°C. No post-limit thermal slope is specified. The Tcase curve is 100% through +85°C and ends there. The −40 to −25°C cold region is marked 230 VAC input only. Ambient and case limits must both be respected. Input/load derating At 60 Hz: 75% load from 100 to 180 VAC; rising to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact wattage ratings as well. Performance-plot conditions PF plot: Tcase 75°C. THD and efficiency plots use the 700 mA model at Tcase 75°C; those illustrative curves do not replace this model’s tabulated typical efficiency. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 80°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 2730.9 K hours minimum, Telcordia SR-332 (Bellcore); 235 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing with functional ground; case 262A; 244 × 71 × 37.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1220 g, converted from the catalog single-unit packing weight; carton quantity and mass: 12 pcs / 15.2 kg / 0.72 CUFT. Mounting Recommended horizontal installation on the mounting surface. Four Ø4.5 mm fixing holes; hole-centre spacing 233 × 53.8 mm. Use the exact mechanical drawing for clearances and mounting details. Case-temperature measuring point The marked tc point is dimensioned 79 mm from the drawing’s right-hand case reference and 32 mm above the lower case reference. Measure this point rather than ambient air. AC input wiring Three-wire -3Y input: brown AC/L, blue AC/N, green/yellow PE/FG. SJOW 17 AWG × 3C / H05RN-F 1.0 mm²; 300 ±20 mm. DC output wiring Brown Vo+; blue Vo−. SJOW 17 AWG × 2C / H05RN-F 1.0 mm²; 300 ±20 mm. Keep input and output leads correctly identified. Control wiring Purple PROG+; pink PROG−; drawing length 300 ±20 mm. SJOW 17 AWG × 2C / H05RN-F 1.0 mm². Safety and installation conditions Safety standards UL8750 Type HL and CSA C22.2 No.250.13-12; BS EN/EN/AS/NZS61347-1 and 61347-2-13 for independent controlgear; BS EN/EN62384; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to end-product suitability and certification. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; EAC TP TC020; KC KN15 and KN61547. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547, light-industry level; EAC TP TC020; KC KN15 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation This 3Y version has a three-wire input with a green/yellow PE/FG conductor. Connect it to protective earth and connect the case to PE as specified for complete EMC performance and safe use.

  Read more less

  $135.54

  View options

•

  View options

  MEAN WELL ELG-240-C series: programmable timer LED driver - ELG-240-C1750D2-3Y

  MEAN WELL ELG-240-C1750D2-3Y MEAN WELL ELG-240-C1750D2-3Y is a 1750 mA constant-current LED driver with a 69–137 V operating region and IP67 metal housing. Rated output is 239.75 W at 200–305 VAC, reduced to 178.5 W at 100–180 VAC. Built-in smart timer dimming and programmable function; PROG terminals are programming connections. Match the LED string to the voltage window and input-dependent power limit. Download MEAN WELL ELG-240-C Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 109–119; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and model selection Rated output current 1750 mA. Rated output power 239.75 W at 200–305 VAC; 178.5 W at 100–180 VAC. Use the static input-derating curve between these ranges. Constant-current region 69–137 V. The highest usable output voltage depends on the LED/system configuration. Respect the rated power at the actual input voltage; contact MEAN WELL if compatibility is uncertain. Maximum open-circuit voltage 144 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5.0%. Exact function Built-in smart timer dimming and programmable function; PROG terminals are programming connections. IP rating IP67. Follow the model-specific weather protection and connection-sealing requirements below; the rating does not permit immersion. Catalog option status Listed as a standard/in-stock option in the catalog. Actual availability must be checked separately. Input and performance Input supply 100–305 VAC or 142–431 VDC; 47–63 Hz for AC. Low-input output derating applies. Setup time 800 ms at 115 VAC; 500 ms at 230 VAC. Measured at first cold start; repeated ON/OFF switching may increase setup time. Efficiency 93% typical for this current rating. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <20% at load ≥50% on 115 VAC, ≥50% on 230 VAC, and ≥75% on 277 VAC. AC input current 2.2 A at 115 VAC; 1.5 A at 230 VAC; 1.2 A at 277 VAC; typical. Inrush current Cold start: 75 A typical at 230 VAC; pulse width 450 μs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Low-load consumption No-load power consumption <0.5 W for this suffix. Internal switching frequencies PFC oscillator: 50–120 kHz; PWM oscillator: 60–130 kHz. These are internal converter frequencies. Protection Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 153–175 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection Shuts down output voltage; re-power to recover. Control and dimming Smart timer scope Adaptive proportional current dimming for up to 14 consecutive operating hours. The following D01/D02/D03 profiles are catalog examples, not a guarantee of the profile supplied with this SKU. Confirm the required profile and programming procedure with MEAN WELL. Timer profile examples Elapsed time from power-on: D01 residential: 0–6 h 100%, 6–7 h 70%, 7–11 h 50%, 11–14 h 70%. D02 street: 0–1 h 50%, 1–3 h 80%, 3–8 h 100%, 8–11 h 60%, 11–14 h 80%. D03 tunnel: 0–1.5 h 70%, 1.5–11 h 100%, 11–14 h 70%. These are elapsed-time table values. Programming connection Use the dedicated PROG+ and PROG− connections with the manufacturer’s compatible programming arrangement. D2 denotes smart-timer programming; it is not the DALI-2 interface. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection, in the recommended horizontal mounting direction. The ambient curve is 100% through +50°C; extension from +50°C to +60°C is marked 230 VAC input only, with the curve ending at +60°C. No post-limit thermal slope is specified. The Tcase curve is 100% through +85°C and ends there. The −40 to −25°C cold region is marked 230 VAC input only. Ambient and case limits must both be respected. Input/load derating At 60 Hz: 75% load from 100 to 180 VAC; rising to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact wattage ratings as well. Performance-plot conditions PF plot: Tcase 75°C. THD and efficiency plots use the 700 mA model at Tcase 75°C; those illustrative curves do not replace this model’s tabulated typical efficiency. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 80°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 2730.9 K hours minimum, Telcordia SR-332 (Bellcore); 235 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing with functional ground; case 262A; 244 × 71 × 37.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1220 g, converted from the catalog single-unit packing weight; carton quantity and mass: 12 pcs / 15.2 kg / 0.72 CUFT. Mounting Recommended horizontal installation on the mounting surface. Four Ø4.5 mm fixing holes; hole-centre spacing 233 × 53.8 mm. Use the exact mechanical drawing for clearances and mounting details. Case-temperature measuring point The marked tc point is dimensioned 79 mm from the drawing’s right-hand case reference and 32 mm above the lower case reference. Measure this point rather than ambient air. AC input wiring Three-wire -3Y input: brown AC/L, blue AC/N, green/yellow PE/FG. SJOW 17 AWG × 3C / H05RN-F 1.0 mm²; 300 ±20 mm. DC output wiring Brown Vo+; blue Vo−. SJOW 17 AWG × 2C / H05RN-F 1.0 mm²; 300 ±20 mm. Keep input and output leads correctly identified. Control wiring Purple PROG+; pink PROG−; drawing length 300 ±20 mm. SJOW 17 AWG × 2C / H05RN-F 1.0 mm². Safety and installation conditions Safety standards UL8750 Type HL and CSA C22.2 No.250.13-12; BS EN/EN/AS/NZS61347-1 and 61347-2-13 for independent controlgear; BS EN/EN62384; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to end-product suitability and certification. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; EAC TP TC020; KC KN15 and KN61547. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547, light-industry level; EAC TP TC020; KC KN15 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation This 3Y version has a three-wire input with a green/yellow PE/FG conductor. Connect it to protective earth and connect the case to PE as specified for complete EMC performance and safe use.

  Read more less

  $135.54

  View options

•

  View options

  MEAN WELL ELG-240-C series: programmable timer LED driver - ELG-240-C1400D2-3Y

  MEAN WELL ELG-240-C1400D2-3Y MEAN WELL ELG-240-C1400D2-3Y is a 1400 mA constant-current LED driver with a 86–171 V operating region and IP67 metal housing. Rated output is 239.4 W at 200–305 VAC, reduced to 179.2 W at 100–180 VAC. Built-in smart timer dimming and programmable function; PROG terminals are programming connections. Match the LED string to the voltage window and input-dependent power limit. Download MEAN WELL ELG-240-C Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 109–119; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and model selection Rated output current 1400 mA. Rated output power 239.4 W at 200–305 VAC; 179.2 W at 100–180 VAC. Use the static input-derating curve between these ranges. Constant-current region 86–171 V. The highest usable output voltage depends on the LED/system configuration. Respect the rated power at the actual input voltage; contact MEAN WELL if compatibility is uncertain. Maximum open-circuit voltage 180 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5.0%. Exact function Built-in smart timer dimming and programmable function; PROG terminals are programming connections. IP rating IP67. Follow the model-specific weather protection and connection-sealing requirements below; the rating does not permit immersion. Catalog option status Listed as a standard/in-stock option in the catalog. Actual availability must be checked separately. Input and performance Input supply 100–305 VAC or 142–431 VDC; 47–63 Hz for AC. Low-input output derating applies. Setup time 800 ms at 115 VAC; 500 ms at 230 VAC. Measured at first cold start; repeated ON/OFF switching may increase setup time. Efficiency 93% typical for this current rating. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <20% at load ≥50% on 115 VAC, ≥50% on 230 VAC, and ≥75% on 277 VAC. AC input current 2.2 A at 115 VAC; 1.5 A at 230 VAC; 1.2 A at 277 VAC; typical. Inrush current Cold start: 75 A typical at 230 VAC; pulse width 450 μs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Low-load consumption No-load power consumption <0.5 W for this suffix. Internal switching frequencies PFC oscillator: 50–120 kHz; PWM oscillator: 60–130 kHz. These are internal converter frequencies. Protection Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 192–216 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection Shuts down output voltage; re-power to recover. Control and dimming Smart timer scope Adaptive proportional current dimming for up to 14 consecutive operating hours. The following D01/D02/D03 profiles are catalog examples, not a guarantee of the profile supplied with this SKU. Confirm the required profile and programming procedure with MEAN WELL. Timer profile examples Elapsed time from power-on: D01 residential: 0–6 h 100%, 6–7 h 70%, 7–11 h 50%, 11–14 h 70%. D02 street: 0–1 h 50%, 1–3 h 80%, 3–8 h 100%, 8–11 h 60%, 11–14 h 80%. D03 tunnel: 0–1.5 h 70%, 1.5–11 h 100%, 11–14 h 70%. These are elapsed-time table values. Programming connection Use the dedicated PROG+ and PROG− connections with the manufacturer’s compatible programming arrangement. D2 denotes smart-timer programming; it is not the DALI-2 interface. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection, in the recommended horizontal mounting direction. The ambient curve is 100% through +50°C; extension from +50°C to +60°C is marked 230 VAC input only, with the curve ending at +60°C. No post-limit thermal slope is specified. The Tcase curve is 100% through +85°C and ends there. The −40 to −25°C cold region is marked 230 VAC input only. Ambient and case limits must both be respected. Input/load derating At 60 Hz: 75% load from 100 to 180 VAC; rising to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact wattage ratings as well. Performance-plot conditions PF plot: Tcase 75°C. THD and efficiency plots use the 700 mA model at Tcase 75°C; those illustrative curves do not replace this model’s tabulated typical efficiency. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 80°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 2730.9 K hours minimum, Telcordia SR-332 (Bellcore); 235 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing with functional ground; case 262A; 244 × 71 × 37.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1220 g, converted from the catalog single-unit packing weight; carton quantity and mass: 12 pcs / 15.2 kg / 0.72 CUFT. Mounting Recommended horizontal installation on the mounting surface. Four Ø4.5 mm fixing holes; hole-centre spacing 233 × 53.8 mm. Use the exact mechanical drawing for clearances and mounting details. Case-temperature measuring point The marked tc point is dimensioned 79 mm from the drawing’s right-hand case reference and 32 mm above the lower case reference. Measure this point rather than ambient air. AC input wiring Three-wire -3Y input: brown AC/L, blue AC/N, green/yellow PE/FG. SJOW 17 AWG × 3C / H05RN-F 1.0 mm²; 300 ±20 mm. DC output wiring Brown Vo+; blue Vo−. SJOW 17 AWG × 2C / H05RN-F 1.0 mm²; 300 ±20 mm. Keep input and output leads correctly identified. Control wiring Purple PROG+; pink PROG−; drawing length 300 ±20 mm. SJOW 17 AWG × 2C / H05RN-F 1.0 mm². Safety and installation conditions Safety standards UL8750 Type HL and CSA C22.2 No.250.13-12; BS EN/EN/AS/NZS61347-1 and 61347-2-13 for independent controlgear; BS EN/EN62384; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to end-product suitability and certification. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; EAC TP TC020; KC KN15 and KN61547. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547, light-industry level; EAC TP TC020; KC KN15 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation This 3Y version has a three-wire input with a green/yellow PE/FG conductor. Connect it to protective earth and connect the case to PE as specified for complete EMC performance and safe use.

  Read more less

  $135.54

  View options

•

  View options

  MEAN WELL ELG-240-C series: programmable timer LED driver - ELG-240-C1050D2-3Y

  MEAN WELL ELG-240-C1050D2-3Y MEAN WELL ELG-240-C1050D2-3Y is a 1050 mA constant-current LED driver with a 114–228 V operating region and IP67 metal housing. Rated output is 239.4 W at 200–305 VAC, reduced to 179.55 W at 100–180 VAC. Built-in smart timer dimming and programmable function; PROG terminals are programming connections. Match the LED string to the voltage window and input-dependent power limit. Download MEAN WELL ELG-240-C Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 109–119; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and model selection Rated output current 1050 mA. Rated output power 239.4 W at 200–305 VAC; 179.55 W at 100–180 VAC. Use the static input-derating curve between these ranges. Constant-current region 114–228 V. The highest usable output voltage depends on the LED/system configuration. Respect the rated power at the actual input voltage; contact MEAN WELL if compatibility is uncertain. Maximum open-circuit voltage 239 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5.0%. Exact function Built-in smart timer dimming and programmable function; PROG terminals are programming connections. IP rating IP67. Follow the model-specific weather protection and connection-sealing requirements below; the rating does not permit immersion. Catalog option status Listed as a standard/in-stock option in the catalog. Actual availability must be checked separately. Input and performance Input supply 100–305 VAC or 142–431 VDC; 47–63 Hz for AC. Low-input output derating applies. Setup time 800 ms at 115 VAC; 500 ms at 230 VAC. Measured at first cold start; repeated ON/OFF switching may increase setup time. Efficiency 93% typical for this current rating. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <20% at load ≥50% on 115 VAC, ≥50% on 230 VAC, and ≥75% on 277 VAC. AC input current 2.2 A at 115 VAC; 1.5 A at 230 VAC; 1.2 A at 277 VAC; typical. Inrush current Cold start: 75 A typical at 230 VAC; pulse width 450 μs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Low-load consumption No-load power consumption <0.5 W for this suffix. Internal switching frequencies PFC oscillator: 50–120 kHz; PWM oscillator: 60–130 kHz. These are internal converter frequencies. Protection Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 250–290 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection Shuts down output voltage; re-power to recover. Control and dimming Smart timer scope Adaptive proportional current dimming for up to 14 consecutive operating hours. The following D01/D02/D03 profiles are catalog examples, not a guarantee of the profile supplied with this SKU. Confirm the required profile and programming procedure with MEAN WELL. Timer profile examples Elapsed time from power-on: D01 residential: 0–6 h 100%, 6–7 h 70%, 7–11 h 50%, 11–14 h 70%. D02 street: 0–1 h 50%, 1–3 h 80%, 3–8 h 100%, 8–11 h 60%, 11–14 h 80%. D03 tunnel: 0–1.5 h 70%, 1.5–11 h 100%, 11–14 h 70%. These are elapsed-time table values. Programming connection Use the dedicated PROG+ and PROG− connections with the manufacturer’s compatible programming arrangement. D2 denotes smart-timer programming; it is not the DALI-2 interface. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection, in the recommended horizontal mounting direction. The ambient curve is 100% through +50°C; extension from +50°C to +60°C is marked 230 VAC input only, with the curve ending at +60°C. No post-limit thermal slope is specified. The Tcase curve is 100% through +85°C and ends there. The −40 to −25°C cold region is marked 230 VAC input only. Ambient and case limits must both be respected. Input/load derating At 60 Hz: 75% load from 100 to 180 VAC; rising to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact wattage ratings as well. Performance-plot conditions PF plot: Tcase 75°C. THD and efficiency plots use the 700 mA model at Tcase 75°C; those illustrative curves do not replace this model’s tabulated typical efficiency. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 80°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 2730.9 K hours minimum, Telcordia SR-332 (Bellcore); 235 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing with functional ground; case 262A; 244 × 71 × 37.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1220 g, converted from the catalog single-unit packing weight; carton quantity and mass: 12 pcs / 15.2 kg / 0.72 CUFT. Mounting Recommended horizontal installation on the mounting surface. Four Ø4.5 mm fixing holes; hole-centre spacing 233 × 53.8 mm. Use the exact mechanical drawing for clearances and mounting details. Case-temperature measuring point The marked tc point is dimensioned 79 mm from the drawing’s right-hand case reference and 32 mm above the lower case reference. Measure this point rather than ambient air. AC input wiring Three-wire -3Y input: brown AC/L, blue AC/N, green/yellow PE/FG. SJOW 17 AWG × 3C / H05RN-F 1.0 mm²; 300 ±20 mm. DC output wiring Brown Vo+; blue Vo−. SJOW 17 AWG × 2C / H05RN-F 1.0 mm²; 300 ±20 mm. Keep input and output leads correctly identified. Control wiring Purple PROG+; pink PROG−; drawing length 300 ±20 mm. SJOW 17 AWG × 2C / H05RN-F 1.0 mm². Safety and installation conditions Safety standards UL8750 Type HL and CSA C22.2 No.250.13-12; BS EN/EN/AS/NZS61347-1 and 61347-2-13 for independent controlgear; BS EN/EN62384; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to end-product suitability and certification. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; EAC TP TC020; KC KN15 and KN61547. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547, light-industry level; EAC TP TC020; KC KN15 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation This 3Y version has a three-wire input with a green/yellow PE/FG conductor. Connect it to protective earth and connect the case to PE as specified for complete EMC performance and safe use.

  Read more less

  $135.54

  View options

•

  View options

  MEAN WELL ELG-240-C series: programmable timer LED driver - ELG-240-C700D2-3Y

  MEAN WELL ELG-240-C700D2-3Y MEAN WELL ELG-240-C700D2-3Y is a 700 mA constant-current LED driver with a 172–343 V operating region and IP67 metal housing. Rated output is 240.1 W at 200–305 VAC, reduced to 179.9 W at 100–180 VAC. Built-in smart timer dimming and programmable function; PROG terminals are programming connections. Match the LED string to the voltage window and input-dependent power limit. Download MEAN WELL ELG-240-C Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 109–119; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and model selection Rated output current 700 mA. Rated output power 240.1 W at 200–305 VAC; 179.9 W at 100–180 VAC. Use the static input-derating curve between these ranges. Constant-current region 172–343 V. The highest usable output voltage depends on the LED/system configuration. Respect the rated power at the actual input voltage; contact MEAN WELL if compatibility is uncertain. Maximum open-circuit voltage 360 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5.0%. Exact function Built-in smart timer dimming and programmable function; PROG terminals are programming connections. IP rating IP67. Follow the model-specific weather protection and connection-sealing requirements below; the rating does not permit immersion. Catalog option status Listed as a standard/in-stock option in the catalog. Actual availability must be checked separately. Input and performance Input supply 100–305 VAC or 142–431 VDC; 47–63 Hz for AC. Low-input output derating applies. Setup time 800 ms at 115 VAC; 500 ms at 230 VAC. Measured at first cold start; repeated ON/OFF switching may increase setup time. Efficiency 93% typical for this current rating. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <20% at load ≥50% on 115 VAC, ≥50% on 230 VAC, and ≥75% on 277 VAC. AC input current 2.2 A at 115 VAC; 1.5 A at 230 VAC; 1.2 A at 277 VAC; typical. Inrush current Cold start: 75 A typical at 230 VAC; pulse width 450 μs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Low-load consumption No-load power consumption <0.5 W for this suffix. Internal switching frequencies PFC oscillator: 50–120 kHz; PWM oscillator: 60–130 kHz. These are internal converter frequencies. Protection Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 380–435 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection Shuts down output voltage; re-power to recover. Control and dimming Smart timer scope Adaptive proportional current dimming for up to 14 consecutive operating hours. The following D01/D02/D03 profiles are catalog examples, not a guarantee of the profile supplied with this SKU. Confirm the required profile and programming procedure with MEAN WELL. Timer profile examples Elapsed time from power-on: D01 residential: 0–6 h 100%, 6–7 h 70%, 7–11 h 50%, 11–14 h 70%. D02 street: 0–1 h 50%, 1–3 h 80%, 3–8 h 100%, 8–11 h 60%, 11–14 h 80%. D03 tunnel: 0–1.5 h 70%, 1.5–11 h 100%, 11–14 h 70%. These are elapsed-time table values. Programming connection Use the dedicated PROG+ and PROG− connections with the manufacturer’s compatible programming arrangement. D2 denotes smart-timer programming; it is not the DALI-2 interface. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection, in the recommended horizontal mounting direction. The ambient curve is 100% through +50°C; extension from +50°C to +60°C is marked 230 VAC input only, with the curve ending at +60°C. No post-limit thermal slope is specified. The Tcase curve is 100% through +85°C and ends there. The −40 to −25°C cold region is marked 230 VAC input only. Ambient and case limits must both be respected. Input/load derating At 60 Hz: 75% load from 100 to 180 VAC; rising to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact wattage ratings as well. Performance-plot conditions PF plot: Tcase 75°C. THD and efficiency plots use the 700 mA model at Tcase 75°C; those illustrative curves do not replace this model’s tabulated typical efficiency. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 80°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 2730.9 K hours minimum, Telcordia SR-332 (Bellcore); 235 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing with functional ground; case 262A; 244 × 71 × 37.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1220 g, converted from the catalog single-unit packing weight; carton quantity and mass: 12 pcs / 15.2 kg / 0.72 CUFT. Mounting Recommended horizontal installation on the mounting surface. Four Ø4.5 mm fixing holes; hole-centre spacing 233 × 53.8 mm. Use the exact mechanical drawing for clearances and mounting details. Case-temperature measuring point The marked tc point is dimensioned 79 mm from the drawing’s right-hand case reference and 32 mm above the lower case reference. Measure this point rather than ambient air. AC input wiring Three-wire -3Y input: brown AC/L, blue AC/N, green/yellow PE/FG. SJOW 17 AWG × 3C / H05RN-F 1.0 mm²; 300 ±20 mm. DC output wiring Brown Vo+; blue Vo−. SJOW 17 AWG × 2C / H05RN-F 1.0 mm²; 300 ±20 mm. Keep input and output leads correctly identified. Control wiring Purple PROG+; pink PROG−; drawing length 300 ±20 mm. SJOW 17 AWG × 2C / H05RN-F 1.0 mm². Safety and installation conditions Safety standards UL8750 Type HL and CSA C22.2 No.250.13-12; BS EN/EN/AS/NZS61347-1 and 61347-2-13 for independent controlgear; BS EN/EN62384; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to end-product suitability and certification. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; EAC TP TC020; KC KN15 and KN61547. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547, light-industry level; EAC TP TC020; KC KN15 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation This 3Y version has a three-wire input with a green/yellow PE/FG conductor. Connect it to protective earth and connect the case to PE as specified for complete EMC performance and safe use.

  Read more less

  $135.54

  View options

•

  View options

  MEAN WELL ELG-240-C series: smart-timer constant-current LED driver - ELG-240-C2100DX-3Y

  MEAN WELL ELG-240-C2100DX-3Y MEAN WELL ELG-240-C2100DX-3Y is a 2100 mA constant-current LED driver with a 57–115 V operating region and IP67 metal housing. Rated output is 241.5 W at 200–305 VAC, reduced to 180.6 W at 100–180 VAC. Built-in smart timer dimming configured by user request. Match the LED string to the voltage window and input-dependent power limit. Download MEAN WELL ELG-240-C Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 109–119; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and model selection Rated output current 2100 mA. Rated output power 241.5 W at 200–305 VAC; 180.6 W at 100–180 VAC. Use the static input-derating curve between these ranges. Constant-current region 57–115 V. The highest usable output voltage depends on the LED/system configuration. Respect the rated power at the actual input voltage; contact MEAN WELL if compatibility is uncertain. Maximum open-circuit voltage 120 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5.0%. Exact function Built-in smart timer dimming configured by user request. IP rating IP67. Follow the model-specific weather protection and connection-sealing requirements below; the rating does not permit immersion. Order configuration The DX timer profile is supplied by user request; confirm the required configuration. The catalog’s standard-option wording is not a live stock guarantee. Input and performance Input supply 100–305 VAC or 142–431 VDC; 47–63 Hz for AC. Low-input output derating applies. Setup time 800 ms at 115 VAC; 500 ms at 230 VAC. Measured at first cold start; repeated ON/OFF switching may increase setup time. Efficiency 93% typical for this current rating. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <20% at load ≥50% on 115 VAC, ≥50% on 230 VAC, and ≥75% on 277 VAC. AC input current 2.2 A at 115 VAC; 1.5 A at 230 VAC; 1.2 A at 277 VAC; typical. Inrush current Cold start: 75 A typical at 230 VAC; pulse width 450 μs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Low-load consumption No-load power consumption <0.5 W for this suffix. Internal switching frequencies PFC oscillator: 50–120 kHz; PWM oscillator: 60–130 kHz. These are internal converter frequencies. Protection Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 128–156 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection Shuts down output voltage; re-power to recover. Control and dimming Smart timer scope Adaptive proportional current dimming for up to 14 consecutive operating hours. The following D01/D02/D03 profiles are catalog examples, not a guarantee of the profile supplied with this SKU. Confirm the required profile and programming procedure with MEAN WELL. Timer profile examples Elapsed time from power-on: D01 residential: 0–6 h 100%, 6–7 h 70%, 7–11 h 50%, 11–14 h 70%. D02 street: 0–1 h 50%, 1–3 h 80%, 3–8 h 100%, 8–11 h 60%, 11–14 h 80%. D03 tunnel: 0–1.5 h 70%, 1.5–11 h 100%, 11–14 h 70%. These are elapsed-time table values. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection, in the recommended horizontal mounting direction. The ambient curve is 100% through +50°C; extension from +50°C to +60°C is marked 230 VAC input only, with the curve ending at +60°C. No post-limit thermal slope is specified. The Tcase curve is 100% through +85°C and ends there. The −40 to −25°C cold region is marked 230 VAC input only. Ambient and case limits must both be respected. Input/load derating At 60 Hz: 75% load from 100 to 180 VAC; rising to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact wattage ratings as well. Performance-plot conditions PF plot: Tcase 75°C. THD and efficiency plots use the 700 mA model at Tcase 75°C; those illustrative curves do not replace this model’s tabulated typical efficiency. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 80°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 2730.9 K hours minimum, Telcordia SR-332 (Bellcore); 235 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing with functional ground; case 262A; 244 × 71 × 37.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1220 g, converted from the catalog single-unit packing weight; carton quantity and mass: 12 pcs / 15.2 kg / 0.72 CUFT. Mounting Recommended horizontal installation on the mounting surface. Four Ø4.5 mm fixing holes; hole-centre spacing 233 × 53.8 mm. Use the exact mechanical drawing for clearances and mounting details. Case-temperature measuring point The marked tc point is dimensioned 79 mm from the drawing’s right-hand case reference and 32 mm above the lower case reference. Measure this point rather than ambient air. AC input wiring Three-wire -3Y input: brown AC/L, blue AC/N, green/yellow PE/FG. SJOW 17 AWG × 3C / H05RN-F 1.0 mm²; 300 ±20 mm. DC output wiring Brown Vo+; blue Vo−. SJOW 17 AWG × 2C / H05RN-F 1.0 mm²; 300 ±20 mm. Keep input and output leads correctly identified. Safety and installation conditions Safety standards UL8750 Type HL and CSA C22.2 No.250.13-12; BS EN/EN/AS/NZS61347-1 and 61347-2-13 for independent controlgear; BS EN/EN62384; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to end-product suitability and certification. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; EAC TP TC020; KC KN15 and KN61547. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547, light-industry level; EAC TP TC020; KC KN15 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation This 3Y version has a three-wire input with a green/yellow PE/FG conductor. Connect it to protective earth and connect the case to PE as specified for complete EMC performance and safe use.

  Read more less

  $135.54

  View options

•

  View options

  MEAN WELL ELG-240-C series: smart-timer constant-current LED driver - ELG-240-C1750DX-3Y

  MEAN WELL ELG-240-C1750DX-3Y MEAN WELL ELG-240-C1750DX-3Y is a 1750 mA constant-current LED driver with a 69–137 V operating region and IP67 metal housing. Rated output is 239.75 W at 200–305 VAC, reduced to 178.5 W at 100–180 VAC. Built-in smart timer dimming configured by user request. Match the LED string to the voltage window and input-dependent power limit. Download MEAN WELL ELG-240-C Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 109–119; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and model selection Rated output current 1750 mA. Rated output power 239.75 W at 200–305 VAC; 178.5 W at 100–180 VAC. Use the static input-derating curve between these ranges. Constant-current region 69–137 V. The highest usable output voltage depends on the LED/system configuration. Respect the rated power at the actual input voltage; contact MEAN WELL if compatibility is uncertain. Maximum open-circuit voltage 144 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5.0%. Exact function Built-in smart timer dimming configured by user request. IP rating IP67. Follow the model-specific weather protection and connection-sealing requirements below; the rating does not permit immersion. Order configuration The DX timer profile is supplied by user request; confirm the required configuration. The catalog’s standard-option wording is not a live stock guarantee. Input and performance Input supply 100–305 VAC or 142–431 VDC; 47–63 Hz for AC. Low-input output derating applies. Setup time 800 ms at 115 VAC; 500 ms at 230 VAC. Measured at first cold start; repeated ON/OFF switching may increase setup time. Efficiency 93% typical for this current rating. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <20% at load ≥50% on 115 VAC, ≥50% on 230 VAC, and ≥75% on 277 VAC. AC input current 2.2 A at 115 VAC; 1.5 A at 230 VAC; 1.2 A at 277 VAC; typical. Inrush current Cold start: 75 A typical at 230 VAC; pulse width 450 μs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Low-load consumption No-load power consumption <0.5 W for this suffix. Internal switching frequencies PFC oscillator: 50–120 kHz; PWM oscillator: 60–130 kHz. These are internal converter frequencies. Protection Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 153–175 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection Shuts down output voltage; re-power to recover. Control and dimming Smart timer scope Adaptive proportional current dimming for up to 14 consecutive operating hours. The following D01/D02/D03 profiles are catalog examples, not a guarantee of the profile supplied with this SKU. Confirm the required profile and programming procedure with MEAN WELL. Timer profile examples Elapsed time from power-on: D01 residential: 0–6 h 100%, 6–7 h 70%, 7–11 h 50%, 11–14 h 70%. D02 street: 0–1 h 50%, 1–3 h 80%, 3–8 h 100%, 8–11 h 60%, 11–14 h 80%. D03 tunnel: 0–1.5 h 70%, 1.5–11 h 100%, 11–14 h 70%. These are elapsed-time table values. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection, in the recommended horizontal mounting direction. The ambient curve is 100% through +50°C; extension from +50°C to +60°C is marked 230 VAC input only, with the curve ending at +60°C. No post-limit thermal slope is specified. The Tcase curve is 100% through +85°C and ends there. The −40 to −25°C cold region is marked 230 VAC input only. Ambient and case limits must both be respected. Input/load derating At 60 Hz: 75% load from 100 to 180 VAC; rising to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact wattage ratings as well. Performance-plot conditions PF plot: Tcase 75°C. THD and efficiency plots use the 700 mA model at Tcase 75°C; those illustrative curves do not replace this model’s tabulated typical efficiency. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 80°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 2730.9 K hours minimum, Telcordia SR-332 (Bellcore); 235 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing with functional ground; case 262A; 244 × 71 × 37.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1220 g, converted from the catalog single-unit packing weight; carton quantity and mass: 12 pcs / 15.2 kg / 0.72 CUFT. Mounting Recommended horizontal installation on the mounting surface. Four Ø4.5 mm fixing holes; hole-centre spacing 233 × 53.8 mm. Use the exact mechanical drawing for clearances and mounting details. Case-temperature measuring point The marked tc point is dimensioned 79 mm from the drawing’s right-hand case reference and 32 mm above the lower case reference. Measure this point rather than ambient air. AC input wiring Three-wire -3Y input: brown AC/L, blue AC/N, green/yellow PE/FG. SJOW 17 AWG × 3C / H05RN-F 1.0 mm²; 300 ±20 mm. DC output wiring Brown Vo+; blue Vo−. SJOW 17 AWG × 2C / H05RN-F 1.0 mm²; 300 ±20 mm. Keep input and output leads correctly identified. Safety and installation conditions Safety standards UL8750 Type HL and CSA C22.2 No.250.13-12; BS EN/EN/AS/NZS61347-1 and 61347-2-13 for independent controlgear; BS EN/EN62384; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to end-product suitability and certification. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; EAC TP TC020; KC KN15 and KN61547. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547, light-industry level; EAC TP TC020; KC KN15 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation This 3Y version has a three-wire input with a green/yellow PE/FG conductor. Connect it to protective earth and connect the case to PE as specified for complete EMC performance and safe use.

  Read more less

  $135.54

  View options

•

  View options

  MEAN WELL ELG-240-C series: smart-timer constant-current LED driver - ELG-240-C1400DX-3Y

  MEAN WELL ELG-240-C1400DX-3Y MEAN WELL ELG-240-C1400DX-3Y is a 1400 mA constant-current LED driver with a 86–171 V operating region and IP67 metal housing. Rated output is 239.4 W at 200–305 VAC, reduced to 179.2 W at 100–180 VAC. Built-in smart timer dimming configured by user request. Match the LED string to the voltage window and input-dependent power limit. Download MEAN WELL ELG-240-C Datasheet (PDF)Download MEAN WELL LED Installation ManualCatalog pages 109–119; specification revision 2026-02-04. Use the exact model and suffix when selecting wiring and operating conditions. Output and model selection Rated output current 1400 mA. Rated output power 239.4 W at 200–305 VAC; 179.2 W at 100–180 VAC. Use the static input-derating curve between these ranges. Constant-current region 86–171 V. The highest usable output voltage depends on the LED/system configuration. Respect the rated power at the actual input voltage; contact MEAN WELL if compatibility is uncertain. Maximum open-circuit voltage 180 V. Current ripple and tolerance Ripple: 5.0% maximum at rated current. Current tolerance: ±5.0%. Exact function Built-in smart timer dimming configured by user request. IP rating IP67. Follow the model-specific weather protection and connection-sealing requirements below; the rating does not permit immersion. Order configuration The DX timer profile is supplied by user request; confirm the required configuration. The catalog’s standard-option wording is not a live stock guarantee. Input and performance Input supply 100–305 VAC or 142–431 VDC; 47–63 Hz for AC. Low-input output derating applies. Setup time 800 ms at 115 VAC; 500 ms at 230 VAC. Measured at first cold start; repeated ON/OFF switching may increase setup time. Efficiency 93% typical for this current rating. Power factor Built-in active PFC; PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC, at full load. Total harmonic distortion THD <20% at load ≥50% on 115 VAC, ≥50% on 230 VAC, and ≥75% on 277 VAC. AC input current 2.2 A at 115 VAC; 1.5 A at 230 VAC; 1.2 A at 277 VAC; typical. Inrush current Cold start: 75 A typical at 230 VAC; pulse width 450 μs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum on a 16 A breaker at 230 VAC: 2 units on type B; 4 units on type C. Check the actual breaker and installation conditions. Leakage current <0.75 mA at 277 VAC. Low-load consumption No-load power consumption <0.5 W for this suffix. Internal switching frequencies PFC oscillator: 50–120 kHz; PWM oscillator: 60–130 kHz. These are internal converter frequencies. Protection Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 192–216 V; shuts down output voltage, with re-powering required for recovery. Overtemperature protection Shuts down output voltage; re-power to recover. Control and dimming Smart timer scope Adaptive proportional current dimming for up to 14 consecutive operating hours. The following D01/D02/D03 profiles are catalog examples, not a guarantee of the profile supplied with this SKU. Confirm the required profile and programming procedure with MEAN WELL. Timer profile examples Elapsed time from power-on: D01 residential: 0–6 h 100%, 6–7 h 70%, 7–11 h 50%, 11–14 h 70%. D02 street: 0–1 h 50%, 1–3 h 80%, 3–8 h 100%, 8–11 h 60%, 11–14 h 80%. D03 tunnel: 0–1.5 h 70%, 1.5–11 h 100%, 11–14 h 70%. These are elapsed-time table values. Temperature and reliability Case temperature Tcase −40 to +85°C; maximum case temperature +85°C. This is a case limit, not an ambient-temperature rating. Use the marked tc measuring point and the applicable load curve. Cooling and load curves Fanless free-air convection, in the recommended horizontal mounting direction. The ambient curve is 100% through +50°C; extension from +50°C to +60°C is marked 230 VAC input only, with the curve ending at +60°C. No post-limit thermal slope is specified. The Tcase curve is 100% through +85°C and ends there. The −40 to −25°C cold region is marked 230 VAC input only. Ambient and case limits must both be respected. Input/load derating At 60 Hz: 75% load from 100 to 180 VAC; rising to 100% at 200 VAC, then 100% through 305 VAC. Apply the exact wattage ratings as well. Performance-plot conditions PF plot: Tcase 75°C. THD and efficiency plots use the 700 mA model at Tcase 75°C; those illustrative curves do not replace this model’s tabulated typical efficiency. Humidity and storage Operating: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. Altitude derating For this fanless design, reduce the permissible ambient temperature by 3.5°C per 1000 m above 2000 m. Life and warranty Typical life expectancy exceeds 50,000 hours when the tc point is about 80°C or below, under the catalog conditions. Manufacturer catalog warranty: 5 years, subject to MEAN WELL’s warranty statement. MTBF 2730.9 K hours minimum, Telcordia SR-332 (Bellcore); 235 K hours minimum, MIL-HDBK-217F at 25°C. Mechanical details and wiring Housing and dimensions Metal housing with functional ground; case 262A; 244 × 71 × 37.5 mm (L × W × H). Mechanical drawing tolerance: ±1 mm. Single-unit weight 1220 g, converted from the catalog single-unit packing weight; carton quantity and mass: 12 pcs / 15.2 kg / 0.72 CUFT. Mounting Recommended horizontal installation on the mounting surface. Four Ø4.5 mm fixing holes; hole-centre spacing 233 × 53.8 mm. Use the exact mechanical drawing for clearances and mounting details. Case-temperature measuring point The marked tc point is dimensioned 79 mm from the drawing’s right-hand case reference and 32 mm above the lower case reference. Measure this point rather than ambient air. AC input wiring Three-wire -3Y input: brown AC/L, blue AC/N, green/yellow PE/FG. SJOW 17 AWG × 3C / H05RN-F 1.0 mm²; 300 ±20 mm. DC output wiring Brown Vo+; blue Vo−. SJOW 17 AWG × 2C / H05RN-F 1.0 mm²; 300 ±20 mm. Keep input and output leads correctly identified. Safety and installation conditions Safety standards UL8750 Type HL and CSA C22.2 No.250.13-12; BS EN/EN/AS/NZS61347-1 and 61347-2-13 for independent controlgear; BS EN/EN62384; GB/T19510.1 and GB/T19510.213; KC61347-1 and KC61347-2-13. Type HL application Type HL is specified for lighting equipment in Class I, Division 2 hazardous (classified) locations, subject to end-product suitability and certification. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2.0 kVAC; output–FG: 1.5 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH for input–output, input–FG and output–FG. EMC emissions BS EN/EN55015; BS EN/EN61000-3-2 Class C at load ≥50%; BS EN/EN61000-3-3; GB/T17743; GB17625.1; EAC TP TC020; KC KN15 and KN61547. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547, light-industry level; EAC TP TC020; KC KN15 and KN61547. Surge immunity Line–earth: 6 kV; line–line: 4 kV. Apply the installation and grounding requirements; this does not certify the complete luminaire. ErP installation Use behind a switch; do not permanently connect this driver to the mains, as stated by the catalog’s ErP note. Specification conditions Unless separately stated: 230 VAC input, rated current and 25°C ambient temperature. Verify the finished installation’s EMC performance again. Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation This 3Y version has a three-wire input with a green/yellow PE/FG conductor. Connect it to protective earth and connect the case to PE as specified for complete EMC performance and safe use.

  Read more less

  $135.54

  View options

Show more products
