  MEAN WELL GC220 series: Two-stage Battery Charger - GC220A24-AD1

  MEAN WELL GC220A24-AD1 is a two-stage battery charger with a typical 27.2 V charging output, 8 A continuous output current and a catalogue-rated 217.6 W output. This 24 V battery-voltage-code model uses the Anderson (AD1) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC220 Datasheet (PDF) The GC220 section is on PDF pages 13, 14, 15. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC220A24-AD1 Series and voltage code GC220: single-output battery charger. A24 identifies the 24 V battery-voltage code; the typical charger output is 27.2 V. Selected connector code AD1; optional configuration with Anderson (AD1). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 27.2 V DC. Continuous output current (typical) 8 A. Rated output power 217.6 W. Recommended battery capacity 40–125 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 90–264 VAC or 127–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.90 at 230 VAC and >0.98 at 115 VAC, full load. Efficiency (typical) 92.5%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 4 A at 115 VAC; 2 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 120 A at 230 VAC; leakage maximum 1.5 mA at 240 VAC; no-load consumption <1 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, re-power to recover. Overtemperature 95±10°C, sensed by TSW1; power-transistor heatsink. Output shuts down; it recovers automatically after the temperature falls. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 60°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 50°C: 100%; 60°C: 80%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 90 VAC: 90%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 1557.3 thousand hours, Telcordia SR-332 (Bellcore); minimum 170.2 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 210 × 85 × 46 mm (L × W × H); case 961A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector AD1: Anderson (AD1); optional model configuration. Output cable SJTW 14AWG × 2C; 1000±50 mm Housing and contacts Anderson 1327FP red housing (+V), 1327G6FP black housing (−V), and 261G2 contacts rated 45 A, or equivalent. Connector rating scope The 45 A figure is a contact-component rating; this charger's continuous output remains 8 A. Unit mass reference 1200 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. These references identify the fitted output-connector construction. Loose contacts, mating housings and additional leads are not stated as included. GC220 AD1 is the optional connector configuration selected by this complete order code. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. UL1012 applies to AD1 versions only. Listed approvals UL / TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is an independent unit; the final complete equipment must still be checked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $159.69

  View options

•

  View options

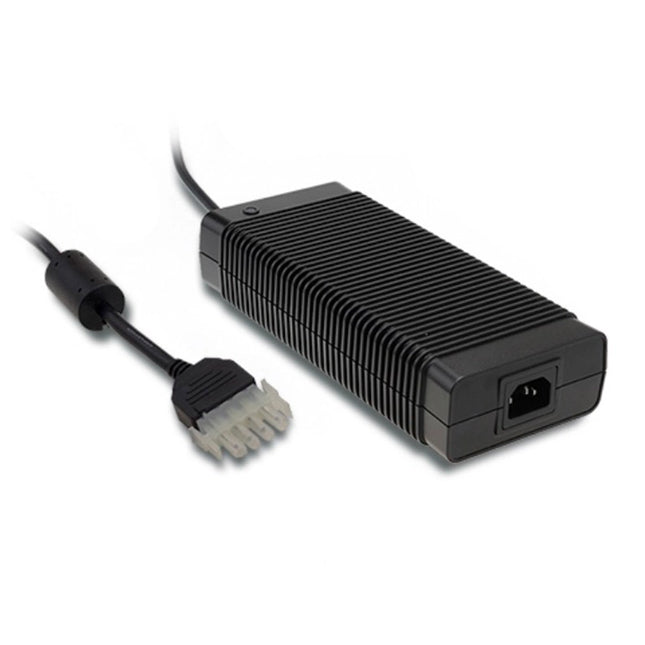

  MEAN WELL GC330 series: Two-Stage Battery Charger - GC330A48-C4P

  The MEAN WELL GC330A48-C4P is a fanless, two-stage battery charger with a typical charging voltage of 54.4 V, 4.8 A typical continuous output current and 6 A typical peak output current. Its 48 V battery-class designation is distinct from the actual charging voltage. Select the battery and charging conditions together; peak current and the published power range are temperature-dependent charging capabilities. Product Datasheet Download MEAN WELL GC330 Datasheet (PDF) The GC330 section is on PDF pages 16, 17, 18. Refer to the complete mechanical drawings and notes when planning installation. Output and Battery Selection Complete order number GC330A48-C4P Safety model GC330A48 Typical DC charging voltage 54.4 V Typical continuous output current 4.8 A Typical peak output current 6 A Catalogue output power range 261.1–326.4 W Suggested battery capacity 20–65 Ah Typical efficiency 93.5% The 48 V battery class does not mean that the charger supplies exactly 48 V. Verify that the 54.4 V charging level, charging-current limits and two-stage profile match the complete battery pack and its protection requirements. The catalogue identifies lead-acid flooded, gel and AGM batteries, and lithium-ion batteries described as lithium iron and lithium manganese. Suitability depends on the particular battery specification; consult the battery supplier and MEAN WELL if charging settings need modification. Peak current is tested at 25°C and changes with ambient and internal component temperature; lower temperature permits higher charging current. The catalogue states that maximum charging current is within 85–110% of rated output current. Check the battery manufacturer’s maximum permissible charging current. The 261.1–326.4 W range is not a promise of 326.4 W continuous output under all conditions. Charging Sequence and Indicator Stage 1 is constant-current fast charging while battery voltage rises. Stage 2 is constant-voltage charging, with current falling as the battery charges. The catalogue calls the latter stage float charging. Red identifies fast charging; the curve also shows red through the initial transition into constant voltage, followed by green at the low-current end of that stage. Do not interpret green as a universal state-of-charge measurement for every battery chemistry. Input and Power Consumption Input voltage 90–264 VAC or 127–370 VDC Input frequency 47–63 Hz Typical AC input current 4 A at 115 VAC; 2 A at 230 VAC Active power factor correction PF >0.95 at 230 VAC; >0.98 at 115 VAC, at full load Maximum inrush current 120 A at 230 VAC Maximum leakage current 1.5 mA at 240 VAC No-load power consumption Less than 1 W This Class I charger uses a three-pole IEC320-C14 inlet with a protective-earth connection. The DC negative output is connected to AC frame ground as shown in the plug drawing; do not treat the output as floating. Protection Short circuit Hiccup mode; automatic recovery after the fault is removed Overvoltage 105–135% of rated output voltage; output shuts down and requires re-powering to recover Overtemperature 100°C ±10°C at internal sensor RTH2; output shuts down and requires re-powering to recover The internal overtemperature threshold is not an allowable ambient operating temperature. Apply the ambient and input derating curves independently of protection thresholds. Temperature and Input Derating Working temperature −30 to +60°C, subject to the horizontal-installation derating curve Horizontal thermal curve 100% load from −30 to +40°C; reduce linearly to 50% at +60°C AC input curve at 60 Hz 80% load at 90 VAC, rising to 100% at 110 VAC; 100% from 110 to 264 VAC Cooling is by free-air convection without a fan. Keep the enclosure exposed to adequate airflow and apply both low-line and temperature limits when they overlap. The AC input curve does not establish an equivalent DC-input derating curve. For fanless operation above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m. This adjustment does not establish an unrestricted maximum operating altitude. Connections and Mating Parts Standard C4P charger-side plug AMP 1-480702-0 equivalent; male, four positions Mating customer-side plug AMP 1-480703-0 equivalent; female, not supplied with the charger Output pin assignment Pins 1 and 2: +V; pins 3 and 4: −V. −V is connected to AC FG. DC cable UL2464, 16 AWG × 4 conductors; nominal 1000 mm length Use the four-pin orientation shown in the mechanical drawing when selecting and wiring the mating assembly. The printed AMP references identify the charger connector and its matching customer connector; they do not establish compatibility with other DC plug families. Confirm the supplied cable drawing for dimensional tolerances. Mechanical and Environmental Data Body dimensions 220 × 95 × 46 mm (L × W × H) Enclosure and case drawing Fully enclosed plastic case; GS280A Catalogue unit weight 1.25 kg (1250 g), catalogue packing reference per unit; not a measured net or shipping weight Working humidity 20–90% RH, non-condensing Storage conditions −40 to +85°C; 10–95% RH Temperature coefficient ±0.03%/°C over 0–40°C Vibration 10–500 Hz, 2 G, 10 minutes per cycle; 60 minutes along each X, Y and Z axis The top indicator and cable exit positions are shown on PDF page 17. Follow the complete drawing for connector orientation and cable-end clearances. Safety, EMC and Reliability The specification lists UL 62368-1, TUV BS EN/EN 62368-1 and EAC TP TC 004 approvals. Input–output dielectric withstand is 3 kVAC. Input–output insulation resistance is 100 MΩ at 500 VDC, 25°C and 70% RH. Emissions: BS EN/EN 55032 Class B, BS EN/EN 61000-3-2 and -3-3, FCC Part 15 / CISPR22 Class B, CAN ICES-3(B)/NMB-3(B), and EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11 for light-industry applications, and EAC TP TC 020. The charger is considered an independent unit, but compliance of the final equipment must be reconfirmed. Calculated MTBF: 1624.8 thousand hours using Telcordia SR-332, or 209.5 thousand hours using MIL-HDBK-217F at 25°C. These are reliability estimates rather than a service-life guarantee. The manufacturer’s catalogue lists a two-year warranty. Unless otherwise stated, specifications are measured at 230 VAC, rated load and 25°C. Battery-specific selection and the complete catalogue notes remain applicable.

  Read more less

  $290.29

  View options

•

  View options

  MEAN WELL GC330 series: Two-Stage Battery Charger - GC330A36-C4P

  The MEAN WELL GC330A36-C4P is a fanless, two-stage battery charger with a typical charging voltage of 40.8 V, 6.4 A typical continuous output current and 8 A typical peak output current. Its 36 V battery-class designation is distinct from the actual charging voltage. Select the battery and charging conditions together; peak current and the published power range are temperature-dependent charging capabilities. Product Datasheet Download MEAN WELL GC330 Datasheet (PDF) The GC330 section is on PDF pages 16, 17, 18. Refer to the complete mechanical drawings and notes when planning installation. Output and Battery Selection Complete order number GC330A36-C4P Safety model GC330A36 Typical DC charging voltage 40.8 V Typical continuous output current 6.4 A Typical peak output current 8 A Catalogue output power range 261.1–326.4 W Suggested battery capacity 20–65 Ah Typical efficiency 93.5% The 36 V battery class does not mean that the charger supplies exactly 36 V. Verify that the 40.8 V charging level, charging-current limits and two-stage profile match the complete battery pack and its protection requirements. The catalogue identifies lead-acid flooded, gel and AGM batteries, and lithium-ion batteries described as lithium iron and lithium manganese. Suitability depends on the particular battery specification; consult the battery supplier and MEAN WELL if charging settings need modification. Peak current is tested at 25°C and changes with ambient and internal component temperature; lower temperature permits higher charging current. The catalogue states that maximum charging current is within 85–110% of rated output current. Check the battery manufacturer’s maximum permissible charging current. The 261.1–326.4 W range is not a promise of 326.4 W continuous output under all conditions. Charging Sequence and Indicator Stage 1 is constant-current fast charging while battery voltage rises. Stage 2 is constant-voltage charging, with current falling as the battery charges. The catalogue calls the latter stage float charging. Red identifies fast charging; the curve also shows red through the initial transition into constant voltage, followed by green at the low-current end of that stage. Do not interpret green as a universal state-of-charge measurement for every battery chemistry. Input and Power Consumption Input voltage 90–264 VAC or 127–370 VDC Input frequency 47–63 Hz Typical AC input current 4 A at 115 VAC; 2 A at 230 VAC Active power factor correction PF >0.95 at 230 VAC; >0.98 at 115 VAC, at full load Maximum inrush current 120 A at 230 VAC Maximum leakage current 1.5 mA at 240 VAC No-load power consumption Less than 1 W This Class I charger uses a three-pole IEC320-C14 inlet with a protective-earth connection. The DC negative output is connected to AC frame ground as shown in the plug drawing; do not treat the output as floating. Protection Short circuit Hiccup mode; automatic recovery after the fault is removed Overvoltage 105–135% of rated output voltage; output shuts down and requires re-powering to recover Overtemperature 100°C ±10°C at internal sensor RTH2; output shuts down and requires re-powering to recover The internal overtemperature threshold is not an allowable ambient operating temperature. Apply the ambient and input derating curves independently of protection thresholds. Temperature and Input Derating Working temperature −30 to +60°C, subject to the horizontal-installation derating curve Horizontal thermal curve 100% load from −30 to +40°C; reduce linearly to 50% at +60°C AC input curve at 60 Hz 80% load at 90 VAC, rising to 100% at 110 VAC; 100% from 110 to 264 VAC Cooling is by free-air convection without a fan. Keep the enclosure exposed to adequate airflow and apply both low-line and temperature limits when they overlap. The AC input curve does not establish an equivalent DC-input derating curve. For fanless operation above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m. This adjustment does not establish an unrestricted maximum operating altitude. Connections and Mating Parts Standard C4P charger-side plug AMP 1-480702-0 equivalent; male, four positions Mating customer-side plug AMP 1-480703-0 equivalent; female, not supplied with the charger Output pin assignment Pins 1 and 2: +V; pins 3 and 4: −V. −V is connected to AC FG. DC cable UL2464, 16 AWG × 4 conductors; nominal 1000 mm length Use the four-pin orientation shown in the mechanical drawing when selecting and wiring the mating assembly. The printed AMP references identify the charger connector and its matching customer connector; they do not establish compatibility with other DC plug families. Confirm the supplied cable drawing for dimensional tolerances. Mechanical and Environmental Data Body dimensions 220 × 95 × 46 mm (L × W × H) Enclosure and case drawing Fully enclosed plastic case; GS280A Catalogue unit weight 1.25 kg (1250 g), catalogue packing reference per unit; not a measured net or shipping weight Working humidity 20–90% RH, non-condensing Storage conditions −40 to +85°C; 10–95% RH Temperature coefficient ±0.03%/°C over 0–40°C Vibration 10–500 Hz, 2 G, 10 minutes per cycle; 60 minutes along each X, Y and Z axis The top indicator and cable exit positions are shown on PDF page 17. Follow the complete drawing for connector orientation and cable-end clearances. Safety, EMC and Reliability The specification lists UL 62368-1, TUV BS EN/EN 62368-1 and EAC TP TC 004 approvals. Input–output dielectric withstand is 3 kVAC. Input–output insulation resistance is 100 MΩ at 500 VDC, 25°C and 70% RH. Emissions: BS EN/EN 55032 Class B, BS EN/EN 61000-3-2 and -3-3, FCC Part 15 / CISPR22 Class B, CAN ICES-3(B)/NMB-3(B), and EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11 for light-industry applications, and EAC TP TC 020. The charger is considered an independent unit, but compliance of the final equipment must be reconfirmed. Calculated MTBF: 1624.8 thousand hours using Telcordia SR-332, or 209.5 thousand hours using MIL-HDBK-217F at 25°C. These are reliability estimates rather than a service-life guarantee. The manufacturer’s catalogue lists a two-year warranty. Unless otherwise stated, specifications are measured at 230 VAC, rated load and 25°C. Battery-specific selection and the complete catalogue notes remain applicable.

  Read more less

  $290.29

  View options

•

  View options

  MEAN WELL GC220 series: Two-stage Battery Charger - GC220A48-AD1

  MEAN WELL GC220A48-AD1 is a two-stage battery charger with a typical 54.4 V charging output, 4 A continuous output current and a catalogue-rated 217.6 W output. This 48 V battery-voltage-code model uses the Anderson (AD1) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC220 Datasheet (PDF) The GC220 section is on PDF pages 13, 14, 15. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC220A48-AD1 Series and voltage code GC220: single-output battery charger. A48 identifies the 48 V battery-voltage code; the typical charger output is 54.4 V. Selected connector code AD1; optional configuration with Anderson (AD1). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 54.4 V DC. Continuous output current (typical) 4 A. Rated output power 217.6 W. Recommended battery capacity 20–65 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 90–264 VAC or 127–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.90 at 230 VAC and >0.98 at 115 VAC, full load. Efficiency (typical) 93%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 4 A at 115 VAC; 2 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 120 A at 230 VAC; leakage maximum 1.5 mA at 240 VAC; no-load consumption <1 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, re-power to recover. Overtemperature 95±10°C, sensed by TSW1; power-transistor heatsink. Output shuts down; it recovers automatically after the temperature falls. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 60°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 50°C: 100%; 60°C: 80%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 90 VAC: 90%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 1557.3 thousand hours, Telcordia SR-332 (Bellcore); minimum 170.2 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 210 × 85 × 46 mm (L × W × H); case 961A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector AD1: Anderson (AD1); optional model configuration. Output cable SJTW 14AWG × 2C; 1000±50 mm Housing and contacts Anderson 1327FP red housing (+V), 1327G6FP black housing (−V), and 261G2 contacts rated 45 A, or equivalent. Connector rating scope The 45 A figure is a contact-component rating; this charger's continuous output remains 4 A. Unit mass reference 1200 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. These references identify the fitted output-connector construction. Loose contacts, mating housings and additional leads are not stated as included. GC220 AD1 is the optional connector configuration selected by this complete order code. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. UL1012 applies to AD1 versions only. Listed approvals UL / TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is an independent unit; the final complete equipment must still be checked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $159.69

  View options

•

  View options

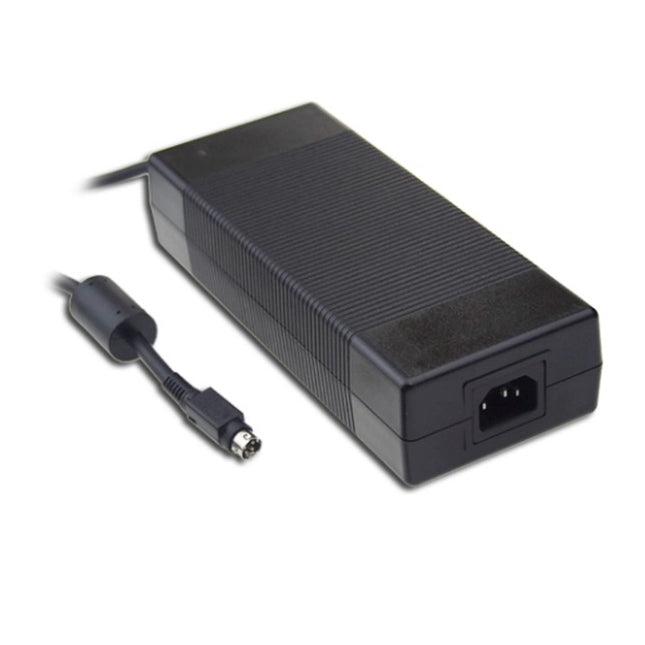

  MEAN WELL GC220 series: Two-stage Battery Charger - GC220A12-AD1

  MEAN WELL GC220A12-AD1 is a two-stage battery charger with a typical 13.6 V charging output, 13.5 A continuous output current and a catalogue-rated 183.6 W output. This 12 V battery-voltage-code model uses the Anderson (AD1) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC220 Datasheet (PDF) The GC220 section is on PDF pages 13, 14, 15. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC220A12-AD1 Series and voltage code GC220: single-output battery charger. A12 identifies the 12 V battery-voltage code; the typical charger output is 13.6 V. Selected connector code AD1; optional configuration with Anderson (AD1). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 13.6 V DC. Continuous output current (typical) 13.5 A. Rated output power 183.6 W. Recommended battery capacity 80–200 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 90–264 VAC or 127–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.90 at 230 VAC and >0.98 at 115 VAC, full load. Efficiency (typical) 89%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 4 A at 115 VAC; 2 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 120 A at 230 VAC; leakage maximum 1.5 mA at 240 VAC; no-load consumption <1 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, re-power to recover. Overtemperature 95±10°C, sensed by TSW1; power-transistor heatsink. Output shuts down; it recovers automatically after the temperature falls. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 60°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 50°C: 100%; 60°C: 80%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 90 VAC: 90%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 1557.3 thousand hours, Telcordia SR-332 (Bellcore); minimum 170.2 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 210 × 85 × 46 mm (L × W × H); case 961A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector AD1: Anderson (AD1); optional model configuration. Output cable SJTW 14AWG × 2C; 1000±50 mm Housing and contacts Anderson 1327FP red housing (+V), 1327G6FP black housing (−V), and 261G2 contacts rated 45 A, or equivalent. Connector rating scope The 45 A figure is a contact-component rating; this charger's continuous output remains 13.5 A. Unit mass reference 1200 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. These references identify the fitted output-connector construction. Loose contacts, mating housings and additional leads are not stated as included. GC220 AD1 is the optional connector configuration selected by this complete order code. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. UL1012 applies to AD1 versions only. Listed approvals UL / TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is an independent unit; the final complete equipment must still be checked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $159.69

  View options

•

  View options

  MEAN WELL GC220 series: Two-stage Battery Charger - GC220A48-R7B

  MEAN WELL GC220A48-R7B is a two-stage battery charger with a typical 54.4 V charging output, 4 A continuous output current and a catalogue-rated 217.6 W output. This 48 V battery-voltage-code model uses the four-pin power DIN (R7B) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC220 Datasheet (PDF) The GC220 section is on PDF pages 13, 14, 15. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC220A48-R7B Series and voltage code GC220: single-output battery charger. A48 identifies the 48 V battery-voltage code; the typical charger output is 54.4 V. Selected connector code R7B; standard configuration with four-pin power DIN (R7B). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 54.4 V DC. Continuous output current (typical) 4 A. Rated output power 217.6 W. Recommended battery capacity 20–65 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 90–264 VAC or 127–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.90 at 230 VAC and >0.98 at 115 VAC, full load. Efficiency (typical) 93%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 4 A at 115 VAC; 2 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 120 A at 230 VAC; leakage maximum 1.5 mA at 240 VAC; no-load consumption <1 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, re-power to recover. Overtemperature 95±10°C, sensed by TSW1; power-transistor heatsink. Output shuts down; it recovers automatically after the temperature falls. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 60°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 50°C: 100%; 60°C: 80%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 90 VAC: 90%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 1557.3 thousand hours, Telcordia SR-332 (Bellcore); minimum 170.2 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 210 × 85 × 46 mm (L × W × H); case 961A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector R7B: four-pin power DIN (R7B); standard model configuration. Output cable UL2464 16AWG × 4C; 1000±50 mm Connector reference and polarity KYCON KPP-4S or equivalent. Pins 1 and 4: +V; pins 2 and 3: −V. Follow the viewing direction in the connector drawing. Output earth connection The R7B drawing connects −V to AC FG. Unit mass reference 1100 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. The specified connector is fitted to this model's output lead. Confirm the mating connector against the complete drawing; a separate mating part or adapter kit is not listed as included. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. UL1012 is listed only for the AD1 version, not this R7B configuration. Listed approvals TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is an independent unit; the final complete equipment must still be checked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $159.69

  View options

•

  View options

  MEAN WELL GC220 series: Two-stage Battery Charger - GC220A24-R7B

  MEAN WELL GC220A24-R7B is a two-stage battery charger with a typical 27.2 V charging output, 8 A continuous output current and a catalogue-rated 217.6 W output. This 24 V battery-voltage-code model uses the four-pin power DIN (R7B) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC220 Datasheet (PDF) The GC220 section is on PDF pages 13, 14, 15. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC220A24-R7B Series and voltage code GC220: single-output battery charger. A24 identifies the 24 V battery-voltage code; the typical charger output is 27.2 V. Selected connector code R7B; standard configuration with four-pin power DIN (R7B). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 27.2 V DC. Continuous output current (typical) 8 A. Rated output power 217.6 W. Recommended battery capacity 40–125 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 90–264 VAC or 127–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.90 at 230 VAC and >0.98 at 115 VAC, full load. Efficiency (typical) 92.5%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 4 A at 115 VAC; 2 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 120 A at 230 VAC; leakage maximum 1.5 mA at 240 VAC; no-load consumption <1 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, re-power to recover. Overtemperature 95±10°C, sensed by TSW1; power-transistor heatsink. Output shuts down; it recovers automatically after the temperature falls. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 60°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 50°C: 100%; 60°C: 80%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 90 VAC: 90%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 1557.3 thousand hours, Telcordia SR-332 (Bellcore); minimum 170.2 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 210 × 85 × 46 mm (L × W × H); case 961A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector R7B: four-pin power DIN (R7B); standard model configuration. Output cable UL2464 16AWG × 4C; 1000±50 mm Connector reference and polarity KYCON KPP-4S or equivalent. Pins 1 and 4: +V; pins 2 and 3: −V. Follow the viewing direction in the connector drawing. Output earth connection The R7B drawing connects −V to AC FG. Unit mass reference 1100 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. The specified connector is fitted to this model's output lead. Confirm the mating connector against the complete drawing; a separate mating part or adapter kit is not listed as included. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. UL1012 is listed only for the AD1 version, not this R7B configuration. Listed approvals TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is an independent unit; the final complete equipment must still be checked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $159.69

  View options

•

  View options

  MEAN WELL GC220 series: Two-stage Battery Charger - GC220A12-R7B

  MEAN WELL GC220A12-R7B is a two-stage battery charger with a typical 13.6 V charging output, 13.5 A continuous output current and a catalogue-rated 183.6 W output. This 12 V battery-voltage-code model uses the four-pin power DIN (R7B) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC220 Datasheet (PDF) The GC220 section is on PDF pages 13, 14, 15. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC220A12-R7B Series and voltage code GC220: single-output battery charger. A12 identifies the 12 V battery-voltage code; the typical charger output is 13.6 V. Selected connector code R7B; standard configuration with four-pin power DIN (R7B). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 13.6 V DC. Continuous output current (typical) 13.5 A. Rated output power 183.6 W. Recommended battery capacity 80–200 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 90–264 VAC or 127–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.90 at 230 VAC and >0.98 at 115 VAC, full load. Efficiency (typical) 89%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 4 A at 115 VAC; 2 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 120 A at 230 VAC; leakage maximum 1.5 mA at 240 VAC; no-load consumption <1 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, re-power to recover. Overtemperature 95±10°C, sensed by TSW1; power-transistor heatsink. Output shuts down; it recovers automatically after the temperature falls. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 60°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 50°C: 100%; 60°C: 80%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 90 VAC: 90%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 1557.3 thousand hours, Telcordia SR-332 (Bellcore); minimum 170.2 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 210 × 85 × 46 mm (L × W × H); case 961A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector R7B: four-pin power DIN (R7B); standard model configuration. Output cable UL2464 16AWG × 4C; 1000±50 mm Connector reference and polarity KYCON KPP-4S or equivalent. Pins 1 and 4: +V; pins 2 and 3: −V. Follow the viewing direction in the connector drawing. Output earth connection The R7B drawing connects −V to AC FG. Unit mass reference 1100 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. The specified connector is fitted to this model's output lead. Confirm the mating connector against the complete drawing; a separate mating part or adapter kit is not listed as included. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. UL1012 is listed only for the AD1 version, not this R7B configuration. Listed approvals TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is an independent unit; the final complete equipment must still be checked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $159.69

  View options

•

  View options

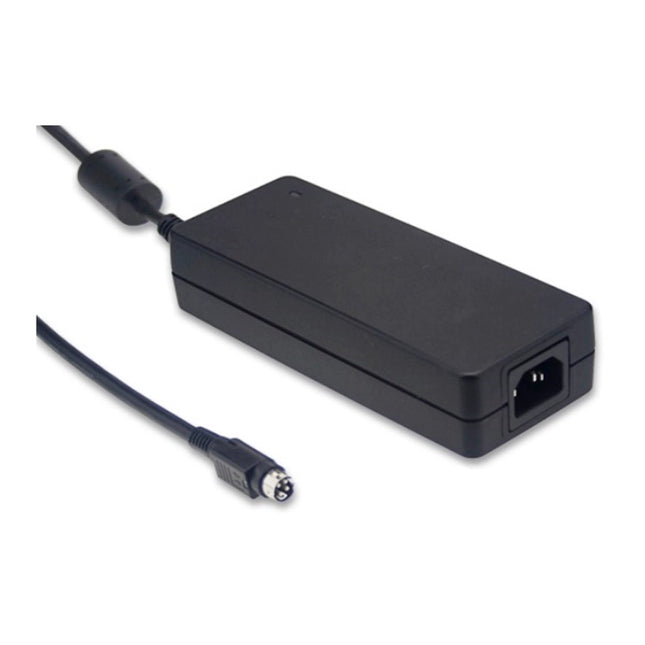

  MEAN WELL GC160 series: Two-stage Battery Charger - GC160A48-AD1

  MEAN WELL GC160A48-AD1 is a two-stage battery charger with a typical 54.4 V charging output, 2.95 A continuous output current and a catalogue-rated 160.5 W output. This 48 V battery-voltage-code model uses the Anderson (AD1) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC160 Datasheet (PDF) The GC160 section is on PDF pages 10, 11, 12. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC160A48-AD1 Series and voltage code GC160: single-output battery charger. A48 identifies the 48 V battery-voltage code; the typical charger output is 54.4 V. Selected connector code AD1; standard configuration with Anderson (AD1). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 54.4 V DC. Continuous output current (typical) 2.95 A. Rated output power 160.5 W. Recommended battery capacity 15–45 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 85–264 VAC or 120–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.94 at 230 VAC and >0.98 at 115 VAC, full load. Efficiency (typical) 94%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 1.85 A at 115 VAC; 1 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 120 A at 230 VAC; leakage maximum 0.75 mA at 240 VAC; no-load consumption <1 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, re-power to recover. Overtemperature 90±10°C, sensed by RTH2; internal ambient temperature. Output shuts down; re-power to recover. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 70°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 50°C: 100%; 70°C: 50%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 85 VAC: 85%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 2197.9 thousand hours, Telcordia SR-332 (Bellcore); minimum 274.1 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 175 × 72 × 35 mm (L × W × H); case 997A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector AD1: Anderson (AD1); standard model configuration. Output cable SJTW 16AWG × 2C; 1200±50 mm Housing and contacts Anderson 1327FP red housing (+V), 1327G6FP black housing (−V), and 261G2 contacts rated 45 A, or equivalent. Connector rating scope The 45 A figure is a contact-component rating; this charger's continuous output remains 2.95 A. Unit mass reference 770 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. These references identify the fitted output-connector construction. Loose contacts, mating housings and additional leads are not stated as included. AD1 is a standard connector configuration for this series. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. UL1012 applies to AD1 versions only. Listed approvals UL / TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is a component for integration into final equipment; the complete equipment must be rechecked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $111.88

  View options

•

  View options

  MEAN WELL GC160 series: Two-stage Battery Charger - GC160A24-AD1

  MEAN WELL GC160A24-AD1 is a two-stage battery charger with a typical 27.2 V charging output, 5.89 A continuous output current and a catalogue-rated 160.2 W output. This 24 V battery-voltage-code model uses the Anderson (AD1) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC160 Datasheet (PDF) The GC160 section is on PDF pages 10, 11, 12. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC160A24-AD1 Series and voltage code GC160: single-output battery charger. A24 identifies the 24 V battery-voltage code; the typical charger output is 27.2 V. Selected connector code AD1; standard configuration with Anderson (AD1). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 27.2 V DC. Continuous output current (typical) 5.89 A. Rated output power 160.2 W. Recommended battery capacity 30–90 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 85–264 VAC or 120–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.94 at 230 VAC and >0.98 at 115 VAC, full load. Efficiency (typical) 92.5%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 1.85 A at 115 VAC; 1 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 120 A at 230 VAC; leakage maximum 0.75 mA at 240 VAC; no-load consumption <1 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, re-power to recover. Overtemperature 90±10°C, sensed by RTH2; internal ambient temperature. Output shuts down; re-power to recover. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 70°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 50°C: 100%; 70°C: 50%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 85 VAC: 85%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 2197.9 thousand hours, Telcordia SR-332 (Bellcore); minimum 274.1 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 175 × 72 × 35 mm (L × W × H); case 997A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector AD1: Anderson (AD1); standard model configuration. Output cable SJTW 16AWG × 2C; 1200±50 mm Housing and contacts Anderson 1327FP red housing (+V), 1327G6FP black housing (−V), and 261G2 contacts rated 45 A, or equivalent. Connector rating scope The 45 A figure is a contact-component rating; this charger's continuous output remains 5.89 A. Unit mass reference 770 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. These references identify the fitted output-connector construction. Loose contacts, mating housings and additional leads are not stated as included. AD1 is a standard connector configuration for this series. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. UL1012 applies to AD1 versions only. Listed approvals UL / TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is a component for integration into final equipment; the complete equipment must be rechecked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $111.88

  View options

•

  View options

  MEAN WELL GC160 series: Two-stage Battery Charger - GC160A12-AD1

  MEAN WELL GC160A12-AD1 is a two-stage battery charger with a typical 13.6 V charging output, 10 A continuous output current and a catalogue-rated 136 W output. This 12 V battery-voltage-code model uses the Anderson (AD1) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC160 Datasheet (PDF) The GC160 section is on PDF pages 10, 11, 12. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC160A12-AD1 Series and voltage code GC160: single-output battery charger. A12 identifies the 12 V battery-voltage code; the typical charger output is 13.6 V. Selected connector code AD1; standard configuration with Anderson (AD1). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 13.6 V DC. Continuous output current (typical) 10 A. Rated output power 136 W. Recommended battery capacity 60–160 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 85–264 VAC or 120–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.94 at 230 VAC and >0.98 at 115 VAC, full load. Efficiency (typical) 89%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 1.85 A at 115 VAC; 1 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 120 A at 230 VAC; leakage maximum 0.75 mA at 240 VAC; no-load consumption <1 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, re-power to recover. Overtemperature 90±10°C, sensed by RTH2; internal ambient temperature. Output shuts down; re-power to recover. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 70°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 50°C: 100%; 70°C: 50%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 85 VAC: 85%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 2197.9 thousand hours, Telcordia SR-332 (Bellcore); minimum 274.1 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 175 × 72 × 35 mm (L × W × H); case 997A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector AD1: Anderson (AD1); standard model configuration. Output cable SJTW 16AWG × 2C; 1200±50 mm Housing and contacts Anderson 1327FP red housing (+V), 1327G6FP black housing (−V), and 261G2 contacts rated 45 A, or equivalent. Connector rating scope The 45 A figure is a contact-component rating; this charger's continuous output remains 10 A. Unit mass reference 770 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. These references identify the fitted output-connector construction. Loose contacts, mating housings and additional leads are not stated as included. AD1 is a standard connector configuration for this series. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. UL1012 applies to AD1 versions only. Listed approvals UL / TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is a component for integration into final equipment; the complete equipment must be rechecked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $111.88

  View options

•

  View options

  MEAN WELL GC160 series: Two-stage Battery Charger - GC160A48-R7B

  MEAN WELL GC160A48-R7B is a two-stage battery charger with a typical 54.4 V charging output, 2.95 A continuous output current and a catalogue-rated 160.5 W output. This 48 V battery-voltage-code model uses the four-pin power DIN (R7B) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC160 Datasheet (PDF) The GC160 section is on PDF pages 10, 11, 12. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC160A48-R7B Series and voltage code GC160: single-output battery charger. A48 identifies the 48 V battery-voltage code; the typical charger output is 54.4 V. Selected connector code R7B; standard configuration with four-pin power DIN (R7B). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 54.4 V DC. Continuous output current (typical) 2.95 A. Rated output power 160.5 W. Recommended battery capacity 15–45 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 85–264 VAC or 120–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.94 at 230 VAC and >0.98 at 115 VAC, full load. Efficiency (typical) 94%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 1.85 A at 115 VAC; 1 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 120 A at 230 VAC; leakage maximum 0.75 mA at 240 VAC; no-load consumption <1 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, re-power to recover. Overtemperature 90±10°C, sensed by RTH2; internal ambient temperature. Output shuts down; re-power to recover. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 70°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 50°C: 100%; 70°C: 50%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 85 VAC: 85%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 2197.9 thousand hours, Telcordia SR-332 (Bellcore); minimum 274.1 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 175 × 72 × 35 mm (L × W × H); case 997A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector R7B: four-pin power DIN (R7B); standard model configuration. Output cable UL2464 18AWG × 4C; 1200±50 mm Connector reference and polarity KYCON KPP-4S or equivalent. Pins 1 and 4: +V; pins 2 and 3: −V. Follow the viewing direction in the connector drawing. Output earth connection The R7B drawing connects −V to AC FG. Unit mass reference 700 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. The specified connector is fitted to this model's output lead. Confirm the mating connector against the complete drawing; a separate mating part or adapter kit is not listed as included. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. UL1012 is listed only for the AD1 version, not this R7B configuration. Listed approvals TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is a component for integration into final equipment; the complete equipment must be rechecked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $111.88

  View options

•

  View options

  MEAN WELL GC160 series: Two-stage Battery Charger - GC160A24-R7B

  MEAN WELL GC160A24-R7B is a two-stage battery charger with a typical 27.2 V charging output, 5.89 A continuous output current and a catalogue-rated 160.2 W output. This 24 V battery-voltage-code model uses the four-pin power DIN (R7B) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC160 Datasheet (PDF) The GC160 section is on PDF pages 10, 11, 12. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC160A24-R7B Series and voltage code GC160: single-output battery charger. A24 identifies the 24 V battery-voltage code; the typical charger output is 27.2 V. Selected connector code R7B; standard configuration with four-pin power DIN (R7B). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 27.2 V DC. Continuous output current (typical) 5.89 A. Rated output power 160.2 W. Recommended battery capacity 30–90 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 85–264 VAC or 120–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.94 at 230 VAC and >0.98 at 115 VAC, full load. Efficiency (typical) 92.5%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 1.85 A at 115 VAC; 1 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 120 A at 230 VAC; leakage maximum 0.75 mA at 240 VAC; no-load consumption <1 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, re-power to recover. Overtemperature 90±10°C, sensed by RTH2; internal ambient temperature. Output shuts down; re-power to recover. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 70°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 50°C: 100%; 70°C: 50%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 85 VAC: 85%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 2197.9 thousand hours, Telcordia SR-332 (Bellcore); minimum 274.1 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 175 × 72 × 35 mm (L × W × H); case 997A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector R7B: four-pin power DIN (R7B); standard model configuration. Output cable UL2464 18AWG × 4C; 1200±50 mm Connector reference and polarity KYCON KPP-4S or equivalent. Pins 1 and 4: +V; pins 2 and 3: −V. Follow the viewing direction in the connector drawing. Output earth connection The R7B drawing connects −V to AC FG. Unit mass reference 700 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. The specified connector is fitted to this model's output lead. Confirm the mating connector against the complete drawing; a separate mating part or adapter kit is not listed as included. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. UL1012 is listed only for the AD1 version, not this R7B configuration. Listed approvals TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is a component for integration into final equipment; the complete equipment must be rechecked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $111.88

  View options

•

  View options

  MEAN WELL GC160 series: Two-stage Battery Charger - GC160A12-R7B

  MEAN WELL GC160A12-R7B is a two-stage battery charger with a typical 13.6 V charging output, 10 A continuous output current and a catalogue-rated 136 W output. This 12 V battery-voltage-code model uses the four-pin power DIN (R7B) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC160 Datasheet (PDF) The GC160 section is on PDF pages 10, 11, 12. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC160A12-R7B Series and voltage code GC160: single-output battery charger. A12 identifies the 12 V battery-voltage code; the typical charger output is 13.6 V. Selected connector code R7B; standard configuration with four-pin power DIN (R7B). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 13.6 V DC. Continuous output current (typical) 10 A. Rated output power 136 W. Recommended battery capacity 60–160 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 85–264 VAC or 120–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.94 at 230 VAC and >0.98 at 115 VAC, full load. Efficiency (typical) 89%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 1.85 A at 115 VAC; 1 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 120 A at 230 VAC; leakage maximum 0.75 mA at 240 VAC; no-load consumption <1 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, re-power to recover. Overtemperature 90±10°C, sensed by RTH2; internal ambient temperature. Output shuts down; re-power to recover. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 70°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 50°C: 100%; 70°C: 50%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 85 VAC: 85%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 2197.9 thousand hours, Telcordia SR-332 (Bellcore); minimum 274.1 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 175 × 72 × 35 mm (L × W × H); case 997A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector R7B: four-pin power DIN (R7B); standard model configuration. Output cable UL2464 18AWG × 4C; 1200±50 mm Connector reference and polarity KYCON KPP-4S or equivalent. Pins 1 and 4: +V; pins 2 and 3: −V. Follow the viewing direction in the connector drawing. Output earth connection The R7B drawing connects −V to AC FG. Unit mass reference 700 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. The specified connector is fitted to this model's output lead. Confirm the mating connector against the complete drawing; a separate mating part or adapter kit is not listed as included. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. UL1012 is listed only for the AD1 version, not this R7B configuration. Listed approvals TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is a component for integration into final equipment; the complete equipment must be rechecked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $111.88

  View options

•

  View options

  MEAN WELL GC120 series: Two-stage Battery Charger - GC120A48-AD1

  MEAN WELL GC120A48-AD1 is a two-stage battery charger with a typical 54.4 V charging output, 2.21 A continuous output current and a catalogue-rated 120.2 W output. This 48 V battery-voltage-code model uses the Anderson (AD1) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC120 Datasheet (PDF) The GC120 section is on PDF pages 7, 8, 9. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC120A48-AD1 Series and voltage code GC120: single-output battery charger. A48 identifies the 48 V battery-voltage code; the typical charger output is 54.4 V. Selected connector code AD1; standard configuration with Anderson (AD1). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 54.4 V DC. Continuous output current (typical) 2.21 A. Rated output power 120.2 W. Recommended battery capacity 10–35 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 85–264 VAC or 120–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.97 at 230 VAC and >0.99 at 115 VAC, full load. Efficiency (typical) 91%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 1.4 A at 115 VAC; 0.7 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 70 A at 230 VAC; leakage maximum 0.75 mA at 240 VAC; no-load consumption <0.5 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 59–69 V; output shutdown, re-power to recover. Overtemperature 100±10°C, sensed by RTH2; internal ambient temperature. Output shuts down; re-power to recover. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 70°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 45°C: 100%; 70°C: 50%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 85 VAC: 85%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 2707.9 thousand hours, Telcordia SR-332 (Bellcore); minimum 400.5 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 167 × 67 × 35 mm (L × W × H); case 947A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector AD1: Anderson (AD1); standard model configuration. Output cable SJTW 18AWG × 2C; 1200±50 mm Housing and contacts Anderson 1327FP red housing (+V), 1327G6FP black housing (−V), and 261G2 contacts rated 45 A, or equivalent. Connector rating scope The 45 A figure is a contact-component rating; this charger's continuous output remains 2.21 A. Unit mass reference 620 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. These references identify the fitted output-connector construction. Loose contacts, mating housings and additional leads are not stated as included. AD1 is a standard connector configuration for this series. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. PSE J62368-1 is also listed. UL1012 applies to AD1 versions only. Listed approvals UL / TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is a component for integration into final equipment; the complete equipment must be rechecked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $95.12

  View options

•

  View options

  MEAN WELL GC120 series: Two-stage Battery Charger - GC120A24-AD1

  MEAN WELL GC120A24-AD1 is a two-stage battery charger with a typical 27.2 V charging output, 4.42 A continuous output current and a catalogue-rated 120.2 W output. This 24 V battery-voltage-code model uses the Anderson (AD1) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC120 Datasheet (PDF) The GC120 section is on PDF pages 7, 8, 9. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC120A24-AD1 Series and voltage code GC120: single-output battery charger. A24 identifies the 24 V battery-voltage code; the typical charger output is 27.2 V. Selected connector code AD1; standard configuration with Anderson (AD1). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 27.2 V DC. Continuous output current (typical) 4.42 A. Rated output power 120.2 W. Recommended battery capacity 20–65 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 85–264 VAC or 120–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.97 at 230 VAC and >0.99 at 115 VAC, full load. Efficiency (typical) 90%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 1.4 A at 115 VAC; 0.7 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 70 A at 230 VAC; leakage maximum 0.75 mA at 240 VAC; no-load consumption <0.5 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 29–33 V; output shutdown, re-power to recover. Overtemperature 100±10°C, sensed by RTH2; internal ambient temperature. Output shuts down; re-power to recover. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 70°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 45°C: 100%; 70°C: 50%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 85 VAC: 85%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 2707.9 thousand hours, Telcordia SR-332 (Bellcore); minimum 400.5 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 167 × 67 × 35 mm (L × W × H); case 947A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector AD1: Anderson (AD1); standard model configuration. Output cable SJTW 18AWG × 2C; 1200±50 mm Housing and contacts Anderson 1327FP red housing (+V), 1327G6FP black housing (−V), and 261G2 contacts rated 45 A, or equivalent. Connector rating scope The 45 A figure is a contact-component rating; this charger's continuous output remains 4.42 A. Unit mass reference 620 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. These references identify the fitted output-connector construction. Loose contacts, mating housings and additional leads are not stated as included. AD1 is a standard connector configuration for this series. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. PSE J62368-1 is also listed. UL1012 applies to AD1 versions only. Listed approvals UL / TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is a component for integration into final equipment; the complete equipment must be rechecked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $95.12

  View options

•

  View options

  MEAN WELL GC120 series: Two-stage Battery Charger - GC120A12-AD1

  MEAN WELL GC120A12-AD1 is a two-stage battery charger with a typical 13.6 V charging output, 7.5 A continuous output current and a catalogue-rated 102 W output. This 12 V battery-voltage-code model uses the Anderson (AD1) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC120 Datasheet (PDF) The GC120 section is on PDF pages 7, 8, 9. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC120A12-AD1 Series and voltage code GC120: single-output battery charger. A12 identifies the 12 V battery-voltage code; the typical charger output is 13.6 V. Selected connector code AD1; standard configuration with Anderson (AD1). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 13.6 V DC. Continuous output current (typical) 7.5 A. Rated output power 102 W. Recommended battery capacity 40–100 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 85–264 VAC or 120–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.97 at 230 VAC and >0.99 at 115 VAC, full load. Efficiency (typical) 86.5%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 1.4 A at 115 VAC; 0.7 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 70 A at 230 VAC; leakage maximum 0.75 mA at 240 VAC; no-load consumption <0.5 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 14–16.5 V; output shutdown, re-power to recover. Overtemperature 100±10°C, sensed by RTH2; internal ambient temperature. Output shuts down; re-power to recover. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 70°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 45°C: 100%; 70°C: 50%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 85 VAC: 85%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 2707.9 thousand hours, Telcordia SR-332 (Bellcore); minimum 400.5 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 167 × 67 × 35 mm (L × W × H); case 947A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector AD1: Anderson (AD1); standard model configuration. Output cable SJTW 18AWG × 2C; 1200±50 mm Housing and contacts Anderson 1327FP red housing (+V), 1327G6FP black housing (−V), and 261G2 contacts rated 45 A, or equivalent. Connector rating scope The 45 A figure is a contact-component rating; this charger's continuous output remains 7.5 A. Unit mass reference 620 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. These references identify the fitted output-connector construction. Loose contacts, mating housings and additional leads are not stated as included. AD1 is a standard connector configuration for this series. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. PSE J62368-1 is also listed. UL1012 applies to AD1 versions only. Listed approvals UL / TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is a component for integration into final equipment; the complete equipment must be rechecked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $95.12

  View options

•

  View options

  MEAN WELL GC120 series: Two-stage Battery Charger - GC120A48-R7B

  MEAN WELL GC120A48-R7B is a two-stage battery charger with a typical 54.4 V charging output, 2.21 A continuous output current and a catalogue-rated 120.2 W output. This 48 V battery-voltage-code model uses the four-pin power DIN (R7B) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC120 Datasheet (PDF) The GC120 section is on PDF pages 7, 8, 9. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC120A48-R7B Series and voltage code GC120: single-output battery charger. A48 identifies the 48 V battery-voltage code; the typical charger output is 54.4 V. Selected connector code R7B; standard configuration with four-pin power DIN (R7B). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 54.4 V DC. Continuous output current (typical) 2.21 A. Rated output power 120.2 W. Recommended battery capacity 10–35 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 85–264 VAC or 120–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.97 at 230 VAC and >0.99 at 115 VAC, full load. Efficiency (typical) 91%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 1.4 A at 115 VAC; 0.7 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 70 A at 230 VAC; leakage maximum 0.75 mA at 240 VAC; no-load consumption <0.5 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 59–69 V; output shutdown, re-power to recover. Overtemperature 100±10°C, sensed by RTH2; internal ambient temperature. Output shuts down; re-power to recover. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 70°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 45°C: 100%; 70°C: 50%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 85 VAC: 85%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 2707.9 thousand hours, Telcordia SR-332 (Bellcore); minimum 400.5 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 167 × 67 × 35 mm (L × W × H); case 947A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector R7B: four-pin power DIN (R7B); standard model configuration. Output cable UL2464 18AWG × 4C; 1200±50 mm Connector reference and polarity KYCON KPP-4S or equivalent. Pins 1 and 4: +V; pins 2 and 3: −V. Follow the viewing direction in the connector drawing. Output earth connection The R7B drawing connects −V to AC FG. Unit mass reference 620 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. The specified connector is fitted to this model's output lead. Confirm the mating connector against the complete drawing; a separate mating part or adapter kit is not listed as included. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. PSE J62368-1 is also listed. UL1012 is listed only for the AD1 version, not this R7B configuration. Listed approvals TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is a component for integration into final equipment; the complete equipment must be rechecked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $95.12

  View options

•

  View options

  MEAN WELL GC120 series: Two-stage Battery Charger - GC120A24-R7B

  MEAN WELL GC120A24-R7B is a two-stage battery charger with a typical 27.2 V charging output, 4.42 A continuous output current and a catalogue-rated 120.2 W output. This 24 V battery-voltage-code model uses the four-pin power DIN (R7B) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC120 Datasheet (PDF) The GC120 section is on PDF pages 7, 8, 9. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC120A24-R7B Series and voltage code GC120: single-output battery charger. A24 identifies the 24 V battery-voltage code; the typical charger output is 27.2 V. Selected connector code R7B; standard configuration with four-pin power DIN (R7B). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 27.2 V DC. Continuous output current (typical) 4.42 A. Rated output power 120.2 W. Recommended battery capacity 20–65 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 85–264 VAC or 120–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.97 at 230 VAC and >0.99 at 115 VAC, full load. Efficiency (typical) 90%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 1.4 A at 115 VAC; 0.7 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 70 A at 230 VAC; leakage maximum 0.75 mA at 240 VAC; no-load consumption <0.5 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 29–33 V; output shutdown, re-power to recover. Overtemperature 100±10°C, sensed by RTH2; internal ambient temperature. Output shuts down; re-power to recover. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 70°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 45°C: 100%; 70°C: 50%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 85 VAC: 85%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 2707.9 thousand hours, Telcordia SR-332 (Bellcore); minimum 400.5 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 167 × 67 × 35 mm (L × W × H); case 947A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector R7B: four-pin power DIN (R7B); standard model configuration. Output cable UL2464 18AWG × 4C; 1200±50 mm Connector reference and polarity KYCON KPP-4S or equivalent. Pins 1 and 4: +V; pins 2 and 3: −V. Follow the viewing direction in the connector drawing. Output earth connection The R7B drawing connects −V to AC FG. Unit mass reference 620 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. The specified connector is fitted to this model's output lead. Confirm the mating connector against the complete drawing; a separate mating part or adapter kit is not listed as included. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. PSE J62368-1 is also listed. UL1012 is listed only for the AD1 version, not this R7B configuration. Listed approvals TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is a component for integration into final equipment; the complete equipment must be rechecked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $95.12

  View options

•

  View options

  MEAN WELL GC120 series: Two-stage Battery Charger - GC120A12-R7B

  MEAN WELL GC120A12-R7B is a two-stage battery charger with a typical 13.6 V charging output, 7.5 A continuous output current and a catalogue-rated 102 W output. This 12 V battery-voltage-code model uses the four-pin power DIN (R7B) connector. Match the battery chemistry, charging voltage and permitted current before use. Product Datasheet Download MEAN WELL GC120 Datasheet (PDF) The GC120 section is on PDF pages 7, 8, 9. Refer to the complete mechanical drawings and notes when planning installation. Model and charging selection Complete order code GC120A12-R7B Series and voltage code GC120: single-output battery charger. A12 identifies the 12 V battery-voltage code; the typical charger output is 13.6 V. Selected connector code R7B; standard configuration with four-pin power DIN (R7B). The series is intended for lead-acid batteries (flooded, gel and AGM) and Li-ion battery applications described as lithium iron and lithium manganese in the catalogue. Charger specifications may require modification for the particular battery. Confirm compatibility with the battery manufacturer and MEAN WELL; nominal battery voltage alone is insufficient. Charging output Typical charging voltage 13.6 V DC. Continuous output current (typical) 7.5 A. Rated output power 102 W. Recommended battery capacity 40–100 Ah; manufacturer-suggested range. Observe the battery manufacturer's maximum charging-current limit. Charging stages and indication Stage 1: constant current (CC), red LED. Stage 2: constant voltage (CV) / floating charge, green LED. Constant-current operating region 50–100% of rated output voltage. The charging curve shows current tapering during CV operation toward its 10% reference line. The charging curve is a stage illustration, not a fixed charging-time guarantee. Respect the specified current and power limits as well as the battery's permitted charging profile. AC and DC input Input voltage and frequency 85–264 VAC or 120–370 VDC; 47–63 Hz AC. Input class and inlet Class I with protective earth; three-pole IEC320-C14 AC inlet. Use a suitable grounded mains connection. Active PFC / power factor (typical) Built-in active PFC; PF >0.97 at 230 VAC and >0.99 at 115 VAC, full load. Efficiency (typical) 86.5%, under the default 230 VAC / rated-load / 25°C test conditions. AC current 1.4 A at 115 VAC; 0.7 A at 230 VAC. Inrush / leakage / no-load power Inrush maximum 70 A at 230 VAC; leakage maximum 0.75 mA at 240 VAC; no-load consumption <0.5 W. Protection Overload 90–110% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Short circuit Hiccup mode, with automatic recovery after the fault is removed. Overvoltage 14–16.5 V; output shutdown, re-power to recover. Overtemperature 100±10°C, sensed by RTH2; internal ambient temperature. Output shuts down; re-power to recover. This is a protection-sensor threshold, not the permitted external ambient temperature. Cooling and derating Working temperature and cooling -30 to 70°C, subject to the derating curves; free-air convection, horizontal orientation. Temperature curve at 230 VAC -30°C: 100%; 45°C: 100%; 70°C: 50%. Reduce load along the sloped section. Temperature curve at 100 VAC -30°C: 100%; 40°C: 100%; 60°C: 50%. Reduce load along the sloped section. Input-voltage curve 85 VAC: 85%; 100 VAC: 100%; 264 VAC: 100%; AC test frequency 60 Hz. Apply input-voltage and temperature derating together; the maximum ambient rating does not imply full-load operation. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for these fanless units. This temperature correction is not a separately specified maximum operating-altitude approval. Environment and reliability Humidity Working: 20–90% RH, non-condensing. Storage: 10–95% RH. Storage temperature −40 to +85°C. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 min/cycle; 60 min along each X, Y and Z axis. MTBF Minimum 2707.9 thousand hours, Telcordia SR-332 (Bellcore); minimum 400.5 thousand hours, MIL-HDBK-217F at 25°C. Dimensions, connections and ordering Dimensions 167 × 67 × 35 mm (L × W × H); case 947A; drawing tolerance ±1 mm. Construction Fully enclosed plastic case with a two-colour charging-status LED. Selected output connector R7B: four-pin power DIN (R7B); standard model configuration. Output cable UL2464 18AWG × 4C; 1200±50 mm Connector reference and polarity KYCON KPP-4S or equivalent. Pins 1 and 4: +V; pins 2 and 3: −V. Follow the viewing direction in the connector drawing. Output earth connection The R7B drawing connects −V to AC FG. Unit mass reference 620 g, from the catalogue PACKING reference per unit; not a measured net weight or shipping-package weight. The specified connector is fitted to this model's output lead. Confirm the mating connector against the complete drawing; a separate mating part or adapter kit is not listed as included. Other output plugs and cable types are available by customer request. Confirm the complete approved configuration with the supplier; the R7B and AD1 versions are distinct order codes. The AC inlet is specified, but an included AC mains cord is not identified in these pages. Confirm regional cord supply with the seller. Safety, EMC and application notes Safety-standard scope TUV BS EN/EN62368-1 and EAC TP TC 004. PSE J62368-1 is also listed. UL1012 is listed only for the AD1 version, not this R7B configuration. Listed approvals TUV / CB / FCC / CE / UKCA / EAC, as listed for this connector configuration. Isolation Input-to-output withstand: 3 kVAC. Input-to-output insulation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 Class B; FCC Part 15 / CISPR22 Class B; CAN ICES-3(B)/NMB-3(B); BS EN/EN61000-3-2 and -3-3; EAC TP TC 020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035, light-industry level; EAC TP TC 020. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Catalogue warranty statement The manufacturer datasheet lists a 2-year warranty; applicable sales terms are confirmed with the supplier. The charger is a component for integration into final equipment; the complete equipment must be rechecked for EMC compliance. Use the full mechanical drawing and the supplied unit's instructions when selecting connectors and planning installation.

  Read more less

  $95.12

  View options

•

  View options

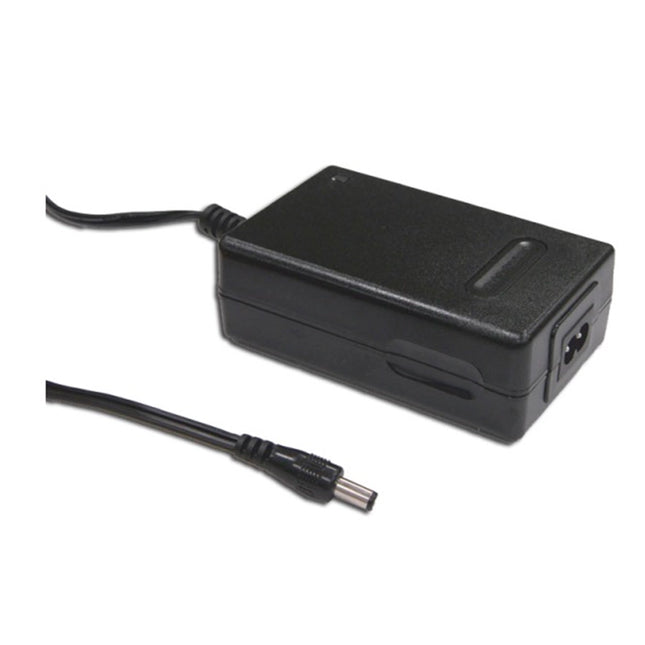

  MEAN WELL GC30E series: AC/DC Battery-Charging Power Adapter - GC30E-6P1J

  MEAN WELL GC30E-6P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 28.6 V at no load, with 1.04 A rated current and 30 W catalogue-rated power. It has an attached EURO-type two-pin AC cord. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30E Datasheet (PDF) The GC30E section is on PDF pages 3, 4. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30E-6P1J; safety-model designation GC30E-6. DC output voltage 28.6 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 1.04 A; operating current range 0–1.04 A. Rated output power 30 W, as specified for this exact model. Charging voltage range 27.1–28.8 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 150 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 80% at 230 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Attached EURO-type two-pin AC power cord; Class II, without an earth pin. AC cord / inlet configuration The AC cord is specified as 6 ft; its mechanical drawing gives 1830 ±50 mm. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 230 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 4: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 18 AWG; 1830 ±50 mm, according to the mechanical drawing for 28.6 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 405 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed TUV BS EN/EN 62368-1; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN 55014-1 Class B; FCC Part 15 Class B; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6 and -11; light-industry level, criterion A; EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2025-01-23 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 230 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  Read more less

  $90.69

  View options

•

  View options

  MEAN WELL GC30E series: AC/DC Battery-Charging Power Adapter - GC30E-5P1J

  MEAN WELL GC30E-5P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 16.8 V at no load, with 1.6 A rated current and 27 W catalogue-rated power. It has an attached EURO-type two-pin AC cord. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30E Datasheet (PDF) The GC30E section is on PDF pages 3, 4. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30E-5P1J; safety-model designation GC30E-5. DC output voltage 16.8 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 1.6 A; operating current range 0–1.6 A. Rated output power 27 W, as specified for this exact model. Charging voltage range 16–17 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 100 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 78% at 230 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Attached EURO-type two-pin AC power cord; Class II, without an earth pin. AC cord / inlet configuration The AC cord is specified as 6 ft; its mechanical drawing gives 1830 ±50 mm. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 230 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 4: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 18 AWG; 1830 ±50 mm, according to the mechanical drawing for 16.8 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 405 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed TUV BS EN/EN 62368-1; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN 55014-1 Class B; FCC Part 15 Class B; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6 and -11; light-industry level, criterion A; EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2025-01-23 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 230 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  Read more less

  $90.69

  View options

•

  View options

  MEAN WELL GC30E series: AC/DC Battery-Charging Power Adapter - GC30E-4P1J

  MEAN WELL GC30E-4P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 14.3 V at no load, with 2.09 A rated current and 30 W catalogue-rated power. It has an attached EURO-type two-pin AC cord. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30E Datasheet (PDF) The GC30E section is on PDF pages 3, 4. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30E-4P1J; safety-model designation GC30E-4. DC output voltage 14.3 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 2.09 A; operating current range 0–2.09 A. Rated output power 30 W, as specified for this exact model. Charging voltage range 13.5–14.5 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 100 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 78% at 230 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Attached EURO-type two-pin AC power cord; Class II, without an earth pin. AC cord / inlet configuration The AC cord is specified as 6 ft; its mechanical drawing gives 1830 ±50 mm. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 230 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 4: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 18 AWG; 1830 ±50 mm, according to the mechanical drawing for 14.3 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 405 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed TUV BS EN/EN 62368-1; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN 55014-1 Class B; FCC Part 15 Class B; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6 and -11; light-industry level, criterion A; EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2025-01-23 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 230 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  Read more less

  $90.69

  View options

•

  View options

  MEAN WELL GC30E series: AC/DC Battery-Charging Power Adapter - GC30E-2P1J

  MEAN WELL GC30E-2P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 8.4 V at no load, with 3 A rated current and 25.2 W catalogue-rated power. It has an attached EURO-type two-pin AC cord. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30E Datasheet (PDF) The GC30E section is on PDF pages 3, 4. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30E-2P1J; safety-model designation GC30E-2. DC output voltage 8.4 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 3 A; operating current range 0–3 A. Rated output power 25.2 W, as specified for this exact model. Charging voltage range 7.7–8.6 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 80 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 76% at 230 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Attached EURO-type two-pin AC power cord; Class II, without an earth pin. AC cord / inlet configuration The AC cord is specified as 6 ft; its mechanical drawing gives 1830 ±50 mm. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 230 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 4: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 16 AWG; 1230 ±50 mm, according to the mechanical drawing for 8.4 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 405 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed TUV BS EN/EN 62368-1; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN 55014-1 Class B; FCC Part 15 Class B; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6 and -11; light-industry level, criterion A; EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2025-01-23 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 230 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  Read more less

  $90.69
