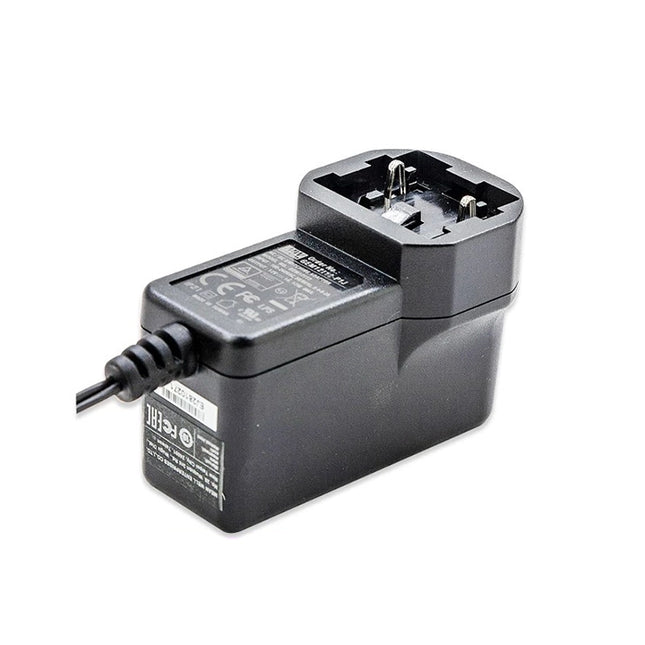

MEAN WELL GEM Series Medical Adapters
The GEM series represents MEAN WELL's highly reliable, eco-friendly wall-mounted medical power adapters. Designed with an innovative interchangeable AC plug system, these adapters are the ultimate solution for portable medical devices intended for the global market.
- Medical Grade Certified: Complies with international medical safety regulations (2xMOPP) with extremely low leakage current (<100μA), making it suitable for BF (Body Floating) patient contact applications.
- Global Adaptability: Features a modular AC plug design. Manufacturers can ship a single power supply body and simply attach the appropriate regional plug, vastly simplifying global inventory.
- Class II Power: Designed without an earth ground pin, utilizing double insulation to ensure maximum patient and operator safety.
- Compact & Portable: The space-saving wall-mount design does not block adjacent power outlets, making it highly convenient for home healthcare and mobile clinical use.
Technical Highlights
- Ultra-Low Power Consumption: Features an exceptionally low no-load power consumption (typically <0.075W to <0.15W), meeting stringent EISA 2007/DoE and EU ErP Level VI energy efficiency standards (GEM06I meets Level V).
- Wide Operating Temperature: Capable of reliable operation in varied environments ranging from -20°C to +70°C.
- Comprehensive Protections: Built-in safeguards against short circuits, overloads, and over-voltage scenarios ensure continuous, risk-free operation.
- Durable Enclosure: Housed in a fully enclosed, flame-retardant plastic case (IP21/IP22 rated) to protect against dust and minor moisture ingress.
- Warranty: Backed by a standard 3-year manufacturer warranty.
Power Range & Ideal Applications
The GEM series scales across multiple wattages to support a wide variety of medical and home healthcare electronics.
| Series Models | Standard Output Voltages | Target Applications |
|---|---|---|
| GEM06I, GEM12I, GEM18I (6W - 18W) | 5V, 7.5V, 9V, 12V, 15V, 18V, 24V, 48V | Blood glucose meters, blood pressure monitors, nebulizers, inhalers, and small portable diagnostic devices. |
| GEM30I, GEM40I, GEM60I (30W - 60W) | Sleep apnea devices (CPAP), medical computer tablets, larger portable oxygen concentrators, and clinical diagnostic carts. |
Interchangeable AC Plugs (Accessories)
The core advantage of the GEM series is its interchangeable AC plug interface. These modular plugs slide and lock securely into the main adapter body, transforming it instantly for any regional power grid. Plugs are ordered separately or as a complete mixed set.
| Plug Model | Region / Style | Description |
|---|---|---|

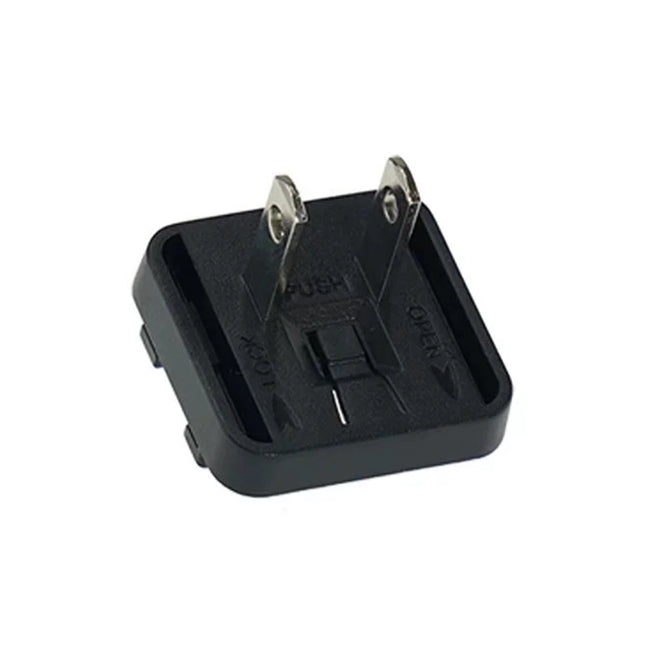

| AC PLUG-US2 | North America / USA | Standard 2-pin American plug. Fits standard NEMA 1-15 wall outlets. |

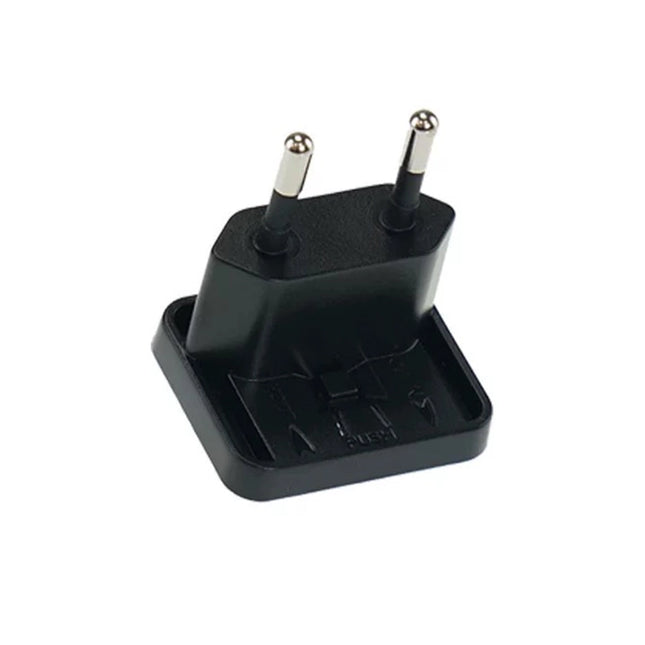

| AC PLUG-EU2 | Europe | Standard 2-pin European (Europlug) style. Fits standard CEE 7/16 sockets. |

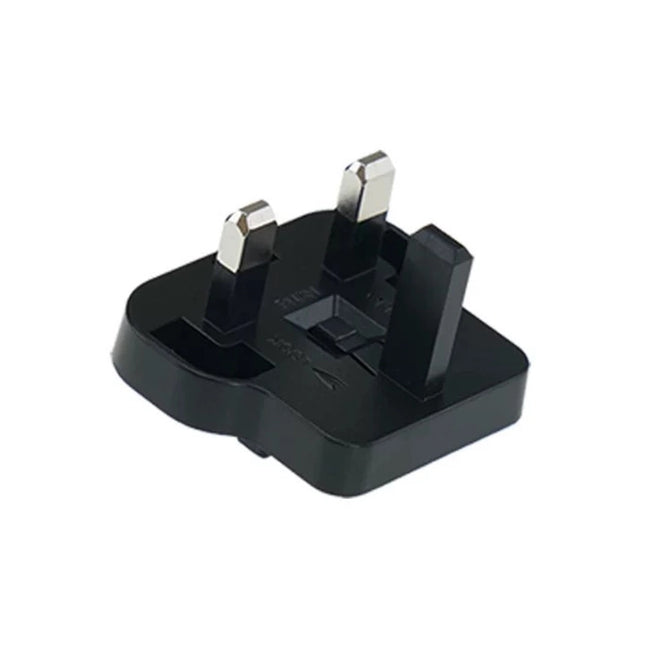

| AC PLUG-UK2 | United Kingdom | Standard UK 3-pin style (utilizing only 2 pins for Class II power transmission). Fits BS 1363 sockets. |

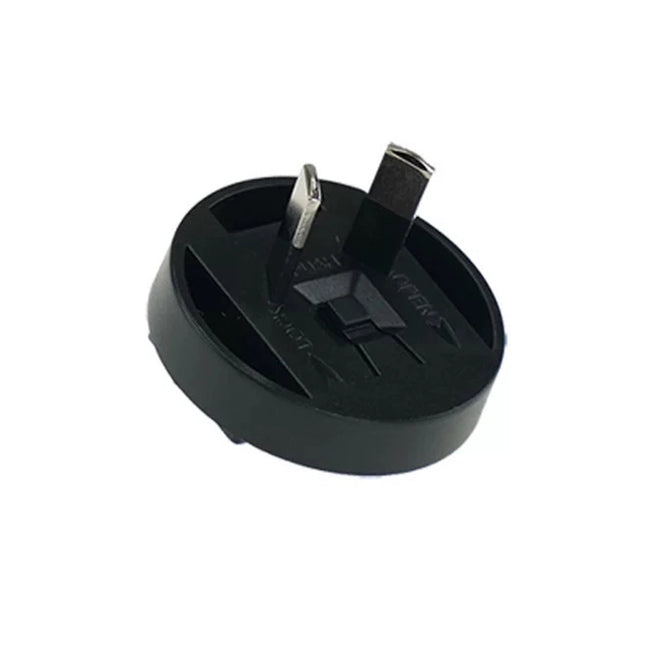

| AC PLUG-AU2 | Australia / New Zealand | Standard 2-pin Australian angled plug. Fits AS/NZS 3112 sockets. |
| AC PLUG-MIX2 | Global Kit | A complete combination package containing all four regional plugs (US, EU, UK, AU) for ultimate travel or global deployment flexibility. |
Logistics Advantage: Purchasing the main adapter body and the required regional plugs as separate line items allows medical device manufacturers to dynamically allocate their power supply inventory based on real-time global shipping destinations.
