MEAN WELL LDB series: constant current buck-buck LED driver power supply - LDB-600LW
Output current range: 600mA Output voltage range: 2 ~ 30VDC No-load output voltage: 75VDC Input voltage range: 9 ~ 28VDC Line Type Size (mm):31.8X20.3X12.2 Product Features 1. DC-DC buck-boost converter. 2. Constant current output 300 ~ 600mA. 3. Wide input voltage 9 ~ 36VDC. 4, the highest efficiency can reach 91%. 5. Complies with BS EN/EN55015 and FCC part15. 6. Built-in PWM and remote control on/off. 7. Protection type: short circuit/over temperature. 8, 3 years warranty.
$21.43
-
MEAN WELL LDB series: constant current buck-buck LED driver power supply - LDB-500LW
Output current range: 500mA Output voltage range: 2 ~ 32VDC No-load output voltage: 75VDC Input voltage range: 9 ~ 30VDC Line Type Size (mm):31.8X20.3X12.2 Product Features 1. DC-DC buck-boost converter. 2. Constant current output 300 ~ 600mA. 3. Wide input voltage 9 ~ 36VDC. 4, the highest efficiency can reach 91%. 5. Complies with BS EN/EN55015 and FCC part15. 6. Built-in PWM and remote control on/off. 7. Protection type: short circuit/over temperature. 8, 3 years warranty.
$21.43
-
MEAN WELL LDB series: constant current buck-buck LED driver power supply - LDB-350LW
Output current range: 350mA Output voltage range: 2 ~ 40VDC No-load output voltage: 75VDC Input voltage range: 9 ~ 36VDC Line Type Size (mm):31.8X20.3X12.2 Product Features 1. DC-DC buck-boost converter. 2. Constant current output 300 ~ 600mA. 3. Wide input voltage 9 ~ 36VDC. 4, the highest efficiency can reach 91%. 5. Complies with BS EN/EN55015 and FCC part15. 6. Built-in PWM and remote control on/off. 7. Protection type: short circuit/over temperature. 8, 3 years warranty.
$21.43
-
MEAN WELL LDB series: constant current buck-buck LED driver power supply - LDB-300LW
Output current range: 300mA Output voltage range: 2 ~ 40VDC No-load output voltage: 75VDC Input voltage range: 9 ~ 36VDC Line Type Size (mm):31.8X20.3X12.2 Product Features 1. DC-DC buck-boost converter. 2. Constant current output 300 ~ 600mA. 3. Wide input voltage 9 ~ 36VDC. 4, the highest efficiency can reach 91%. 5. Complies with BS EN/EN55015 and FCC part15. 6. Built-in PWM and remote control on/off. 7. Protection type: short circuit/over temperature. 8, 3 years warranty.
$21.43
-
MEAN WELL LDB series: constant current buck-buck LED driver power supply - LDB-600L
Output current range: 600mA Output voltage range: 2 ~ 30VDC No-load output voltage: 75VDC Input voltage range: 9 ~ 28VDC PIN foot type Size (mm):31.8X20.3X12.2 Product Features 1. DC-DC buck-boost converter. 2. Constant current output 300 ~ 600mA. 3. Wide input voltage 9 ~ 36VDC. 4, the highest efficiency can reach 91%. 5. Complies with BS EN/EN55015 and FCC part15. 6. Built-in PWM and remote control on/off. 7. Protection type: short circuit/over temperature. 8, 3 years warranty.
$21.43
-
MEAN WELL LDB series: constant current buck-buck LED driver power supply - LDB-500L
Output current range: 500mA Output voltage range: 2 ~ 32VDC No-load output voltage: 75VDC Input voltage range: 9 ~ 30VDC PIN foot type Size (mm):31.8X20.3X12.2 Product Features 1. DC-DC buck-boost converter. 2. Constant current output 300 ~ 600mA. 3. Wide input voltage 9 ~ 36VDC. 4, the highest efficiency can reach 91%. 5. Complies with BS EN/EN55015 and FCC part15. 6. Built-in PWM and remote control on/off. 7. Protection type: short circuit/over temperature. 8, 3 years warranty.
$21.43
-

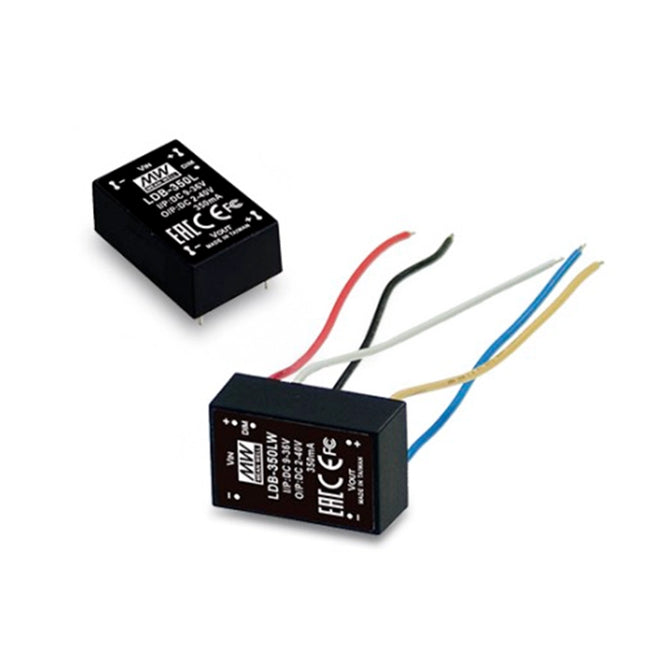

MEAN WELL LDB series: constant current buck-buck LED driver power supply - LDB-350L
Output current range: 350mA Output voltage range: 2 ~ 40VDC No-load output voltage: 75VDC Input voltage range: 9 ~ 36VDC PIN foot type Size (mm):31.8X20.3X12.2 Product Features 1. DC-DC buck-boost converter. 2. Constant current output 300 ~ 600mA. 3. Wide input voltage 9 ~ 36VDC. 4, the highest efficiency can reach 91%. 5. Complies with BS EN/EN55015 and FCC part15. 6. Built-in PWM and remote control on/off. 7. Protection type: short circuit/over temperature. 8, 3 years warranty.
$21.43
-
MEAN WELL LDB series: constant current buck-buck LED driver power supply - LDB-300L
Output current range: 300mA Output voltage range: 2 ~ 40VDC No-load output voltage: 75VDC Input voltage range: 9 ~ 36VDC PIN foot type Size (mm):31.8X20.3X12.2 Product Features 1. DC-DC buck-boost converter. 2. Constant current output 300 ~ 600mA. 3. Wide input voltage 9 ~ 36VDC. 4, the highest efficiency can reach 91%. 5. Complies with BS EN/EN55015 and FCC part15. 6. Built-in PWM and remote control on/off. 7. Protection type: short circuit/over temperature. 8, 3 years warranty.
$21.43
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-65-1750W
Output current rating: 1750mA Output voltage range: 12.5 ~ 37VDC Output power rating: 64.75W Input rated voltage: 9.5 ~ 32VDC Outlet type Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$32.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-65-1400W
Output current rating: 1400mA Output voltage range: 12.5 ~ 46VDC Output power rating: 64.4W Input rated voltage: 9.5 ~ 32VDC Outlet type Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$32.14
-

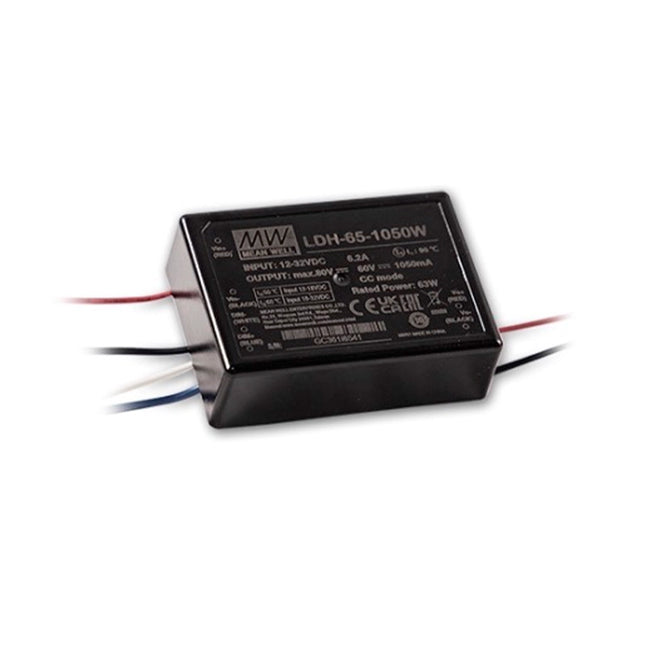

MEAN WELL LDH series: boost constant current LED driver power supply - LDH-65-1050W
Rated output current: 1050mA Output voltage range: 12.5 ~ 60VDC Output power rating: 63W Input rated voltage: 9.5 ~ 32VDC Outlet type Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$32.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-65-700W
Output current rating: 700mA Output voltage range: 12.5 ~ 80VDC Output power rating: 56W Input rated voltage: 9.5 ~ 32VDC Outlet type Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$32.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-65-1750
Output current rating: 1750mA Output voltage range: 12.5 ~ 37VDC Output power rating: 64.75W Input rated voltage: 9.5 ~ 32VDC PIN foot type Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$32.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-65-1400
Output current rating: 1400mA Output voltage range: 12.5 ~ 46VDC Output power rating: 64.4W Input rated voltage: 9.5 ~ 32VDC PIN foot type Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$32.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-65-1050
Rated output current: 1050mA Output voltage range: 12.5 ~ 60VDC Output power rating: 63W Input rated voltage: 9.5 ~ 32VDC PIN foot type Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$32.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-65-700
Output current rating: 700mA Output voltage range: 12.5 ~ 80VDC Output power rating: 56W Input rated voltage: 9.5 ~ 32VDC PIN foot type Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$32.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45B-1050WDA
Rated output current: 1050mA Output voltage range: 36 ~ 43VDC No load output voltage (maximum):50V Output power rating: 45.15W Input rated voltage range: 18 ~ 32VDC Linear, DALI Dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$36.00
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45B-700WDA
Output current rating: 700mA Output voltage range: 36 ~ 64VDC No load output voltage (maximum):75V Output power rating: 44.8W Input rated voltage range: 18 ~ 32VDC Linear, DALI Dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$36.00
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45B-500WDA
Output rated current: 500mA Output voltage range: 36 ~ 86VDC No load output voltage (maximum):100V Output power rating: 43W Input rated voltage range: 18 ~ 32VDC Linear, DALI Dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$36.00
-

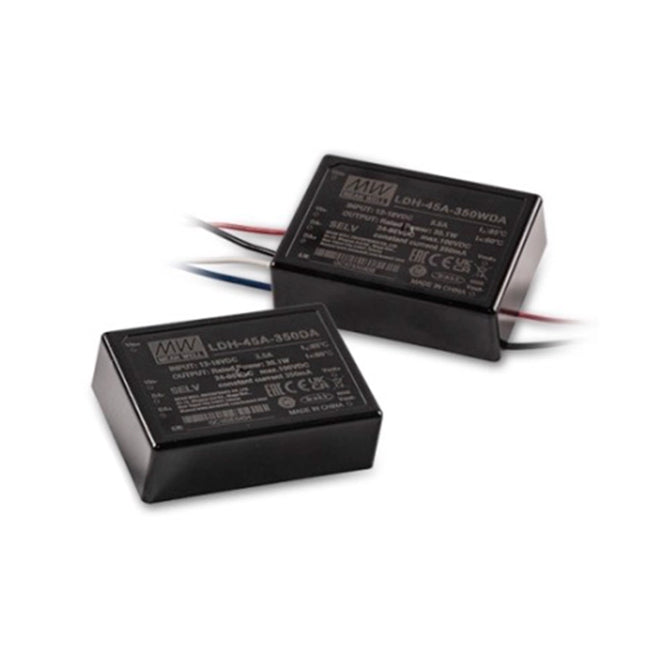

MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45B-350WDA
Rated output current: 350mA Output voltage range: 36 ~ 126VDC No-load output voltage (maximum):146V Output power rating: 45.15W Input rated voltage range: 18 ~ 32VDC Linear, DALI Dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$36.00
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45B-1050DA
Rated output current: 1050mA Output voltage range: 36 ~ 43VDC No load output voltage (maximum):50V Output power rating: 45.15W Input rated voltage range: 18 ~ 32VDC PIN pin type, DALI dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$36.00
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45B-700DA
Output current rating: 700mA Output voltage range: 36 ~ 64VDC No load output voltage (maximum):75V Output power rating: 44.8W Input rated voltage range: 18 ~ 32VDC PIN pin type, DALI dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$36.00
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45B-500DA
Output rated current: 500mA Output voltage range: 36 ~ 86VDC No load output voltage (maximum):100V Output power rating: 43W Input rated voltage range: 18 ~ 32VDC PIN pin type, DALI dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$36.00
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45B-350DA
Rated output current: 350mA Output voltage range: 36 ~ 126VDC No-load output voltage (maximum):146V Output power rating: 45.15W Input rated voltage range: 18 ~ 32VDC PIN pin type, DALI dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$36.00
You have seen 24 out of 56 products
