MEAN WELL ERG-5000H-T is a four-channel energy recycling grid-type DC-AC inverter with 60–420 VDC inputs and a typical rated DC input power of 5000 W. Its Terminal block DC connections support CC/CV testing while recovered energy returns to a compatible single-phase AC utility. Product Datasheet Download MEAN WELL ERG-5000 Datasheet (PDF) The ERG-5000 section is on PDF pages 8, 9, 10, 11, 12, 13, 14, 15, 16, 17. Refer to the complete mechanical drawings and notes when planning installation. Model and DC Input Ratings Complete order code ERG-5000H-T DC input connection Terminal block Independent DC input channels 4 Typical rated DC input power 5000 W Typical maximum DC input power 6000 W Typical rated input power per channel 1250 W Typical maximum input power per channel 1500 W DC input voltage range 60–420 VDC Typical rated input current per channel 21 A Typical maximum input current per channel 25 A This model uses the 60–420 VDC input range selected by H in the order code. The -T suffix selects terminal-block DC inputs. The four-channel rated input is 1250 W × 4, and the typical maximum is 1500 W × 4. The maximum 6000 W capability automatically derates toward rated power as ambient temperature rises; over-temperature protection operates if the internal temperature limit is exceeded. No fixed maximum-power duration is specified. Observe voltage, current, total-power and temperature limits together. Maximum current and maximum voltage are not an unrestricted simultaneous operating point. This product absorbs DC energy from equipment under test and returns energy to the AC utility. AC Grid Return and Efficiency Typical rated AC output apparent power 4500–4600 VA at 60–420 VDC input AC grid voltage 180–264 VAC, with the stated ±5 VAC tolerance AC connection Single phase AC frequency range 47–63 Hz Typical maximum AC output current 24 A at 230 VAC Power factor at rated power >0.97 Typical THD at rated power <5% Typical conversion efficiency 91% at 380 VDC input and 5000 W input power Typical energy recycling ratio 88% at 380 VDC input and 5000 W input power The recycling-ratio reference assumes that the source power supply has at least 96.5% efficiency. System energy recycling ratio equals source power-supply efficiency multiplied by ERG conversion efficiency; it is not the ERG efficiency alone. Unless otherwise stated, specifications are measured at 230 VAC output, 380 VDC input, rated input power and 25°C ambient. The efficiency and recycling plots use the same DC voltage and 25°C, with 100% load defined as 5000 W. The plots illustrate changes with load rather than a constant efficiency guarantee. The AC power figures are stated in VA. The 5000 W and 6000 W figures above describe DC input power, not a promise of that amount of AC output. Connect the AC output to a compatible utility system and protective earth as shown in the connection diagram. Operating Modes and CANBus Control Constant-current setting range 0.1–25 A ±1% Constant-voltage setting range 60–420 VDC ±1% Communication interface CANBus CANBus baud rate 250 kbps Maximum system unit count 64 CANBus address switches SW51 and SW52 CC means constant-current operation and CV means constant-voltage operation. Current-setting tolerance is based on maximum input current; voltage-setting tolerance is based on maximum input voltage. Tolerance can increase at ambient-temperature extremes. Use the MEAN WELL CMU2A controller or a suitable CANBus interface for remote setting, monitoring and data analysis. Select the controller configuration for the ERG application; it is separate equipment in the system diagram. Follow the manufacturer’s user manual for addressing, commands and system setup. JK1 provides two linked eight-position CANBus sockets. Use twisted-pair communication wiring. After connecting the communication cable, fit termination resistors to the remaining end sockets of both the ERG system and CMU2A to suppress signal reflections. The controller’s separate power input shown in the system diagram is not an additional ERG input rating. AC and Communication Pin Assignments JK1 pins 1 and 9 CANH: CANBus data high JK1 pins 2 and 10 CANL: CANBus data low JK1 pins 3 and 11 NC: reserved for future use JK1 pins 4 and 12 FG: CANBus reference ground JK1 pins 5–8 and 13–16 NC: do not use TB1 pin 1 L: AC/L TB1 pin 2 N: AC/N TB1 pin 3 FG: protective earth TB1 maximum mounting torque 8 kgf·cm The TB1 torque applies to the AC terminal block. Keep protective-earth and CANBus reference-ground connections consistent with the diagram. The JK1 communication connector is excluded from the isolation withstand ratings listed below. DC Input Connections DC input channels CH1, CH2, CH3 and CH4 DC terminal polarity Each channel has a separately marked +V and −V connection The front drawing shows four terminal-block channel connections. Observe the individual +V and −V markings and select leads for the actual current and installation. The NEWSOK numbered-contact table and connector leads apply to the NEWSOK construction, not this -T terminal-block version. Channel and System Configurations Four channels in parallel: connect the four channels to one suitable source as shown in the front-panel wiring diagram. Two independent groups: each source uses a pair of channels, giving a rated input allocation of 1250 W × 2 per group. Four independent channels: connect up to four separate units under test to the four channel pairs. A single ERG can use four channels in series, or two sets of two channels in series, following the two separate diagrams. Multiple ERG units can be arranged in the illustrated series/parallel systems, up to 64 units. This system count does not override channel voltage, current, power, insulation or control limits. Follow the manufacturer’s diagrams and user manual for the selected arrangement. Select suitable wires between the power supplies under test and the ERG to reduce line loss and improve energy recycling. Verify polarity and the complete interconnection before enabling the system. Protection Over-temperature protection Shuts down AC output voltage; resets after the fault is removed DC input over-voltage protection Shuts down AC output voltage; resets after the fault is removed DC input under-voltage protection Shuts down AC output voltage; resets after the fault is removed AC grid fault Shuts down AC output voltage; resets after the fault is removed Communication failure Shuts down AC output voltage after a 4-second communication failure; resets after communication is re-established Over-power protection Constant-power limiting at maximum input power Grid-fault protection includes AC over-voltage and under-voltage. Correct the fault condition before restoring operation. Channel Status Indicators LED1–4 OFF No AC utility connected Steady green Normal operation Flashing green Abnormal status: over-temperature protection or grid fault Steady orange Standby mode Flashing orange Internal communication error Steady red DC input under-voltage protection Flashing red DC input over-voltage protection Loading, Cooling and Environment Operating ambient temperature −20 to +60°C Working humidity 20–90% RH, non-condensing Storage temperature −40 to +85°C Storage humidity 10–95% RH Cooling Built-in fans Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z The static input-voltage graph shows 100% rated input loading throughout 60–420 VDC. The ambient-temperature range does not guarantee maximum-power operation at every temperature. Observe automatic reduction from maximum input power toward rated power and keep the fan path clear. The mechanical drawing shows exhaust airflow toward the rear AC-output side. Dimensions and Installation Catalogue body dimensions 460 × 211 × 83.5 mm Mechanical drawing reference Case No. 223F; dimensions in millimetres Mounting holes 8-M4, both sides Rear connection projection 20 mm maximum, shown separately from body length Use the complete version-specific mounting drawing to locate the holes. The drawing gives a 399 mm longitudinal hole reference; the front offset differs between the 504 mm NEWSOK body and the 460 mm terminal-block body. Allow separate clearance for DC connections, the rear terminal projection, cables and fan airflow. Compatible Control and Accessory List External control option CMU2A controller or suitable CANBus interface Mount brackets in accessory list 2 Termination resistor in accessory list 1 Mounting screws in accessory list 4 × M4, L = 8 mm The accessory list gives the quantities above. Confirm the supplied accessory contents and controller configuration when ordering. Use the correct terminal or NEWSOK lead arrangement for this exact model; a controller or complete test system is not included merely because it appears in the application diagram. Safety, EMC and Reliability Safety approval BS EN/EN62368-1 DC input to AC output withstand voltage 2.5 kVDC DC input to protective earth withstand voltage 2.5 kVDC AC output to protective earth withstand voltage 2.5 kVDC Minimum MTBF, Telcordia SR-332 (Bellcore) 172 k hours Minimum MTBF, MIL-HDBK-217F at 25°C 19.5 k hours Manufacturer catalogue warranty 5 years For these isolation ratings, I/P means DC input and O/P means AC output. JK1 is excluded; do not apply the power-terminal withstand test specification to the communication port. Emission compliance: BS EN/EN55032 (CISPR32), Class A. Immunity compliance: BS EN/EN55035 and BS EN/EN61000-4-2, -3, -4, -5 and -6, light-industry criteria A. Additional filter guidance is provided in the manufacturer’s user manual. This unit is a component for installation in final equipment. EMC testing used a 900 × 1300 mm metal plate, 2 mm thick. Reconfirm EMC for the completed equipment and its actual wiring and installation. Manufacturer-listed applications include power-supply and battery burn-in/testing, energy-saving recycling systems and connector mechanical testing. Select the DC range and channel arrangement to match the actual equipment under test.

Read more less

MEAN WELL ERG-5000H is a four-channel energy recycling grid-type DC-AC inverter with 60–420 VDC inputs and a typical rated DC input power of 5000 W. Its NEWSOK DC connections support CC/CV testing while recovered energy returns to a compatible single-phase AC utility. Product Datasheet Download MEAN WELL ERG-5000 Datasheet (PDF) The ERG-5000 section is on PDF pages 8, 9, 10, 11, 12, 13, 14, 15, 16, 17. Refer to the complete mechanical drawings and notes when planning installation. Model and DC Input Ratings Complete order code ERG-5000H DC input connection NEWSOK Independent DC input channels 4 Typical rated DC input power 5000 W Typical maximum DC input power 6000 W Typical rated input power per channel 1250 W Typical maximum input power per channel 1500 W DC input voltage range 60–420 VDC Typical rated input current per channel 21 A Typical maximum input current per channel 25 A This model uses the 60–420 VDC input range selected by H in the order code. The absence of -T selects the NEWSOK DC connector arrangement. The four-channel rated input is 1250 W × 4, and the typical maximum is 1500 W × 4. The maximum 6000 W capability automatically derates toward rated power as ambient temperature rises; over-temperature protection operates if the internal temperature limit is exceeded. No fixed maximum-power duration is specified. Observe voltage, current, total-power and temperature limits together. Maximum current and maximum voltage are not an unrestricted simultaneous operating point. This product absorbs DC energy from equipment under test and returns energy to the AC utility. AC Grid Return and Efficiency Typical rated AC output apparent power 4500–4600 VA at 60–420 VDC input AC grid voltage 180–264 VAC, with the stated ±5 VAC tolerance AC connection Single phase AC frequency range 47–63 Hz Typical maximum AC output current 24 A at 230 VAC Power factor at rated power >0.97 Typical THD at rated power <5% Typical conversion efficiency 91% at 380 VDC input and 5000 W input power Typical energy recycling ratio 88% at 380 VDC input and 5000 W input power The recycling-ratio reference assumes that the source power supply has at least 96.5% efficiency. System energy recycling ratio equals source power-supply efficiency multiplied by ERG conversion efficiency; it is not the ERG efficiency alone. Unless otherwise stated, specifications are measured at 230 VAC output, 380 VDC input, rated input power and 25°C ambient. The efficiency and recycling plots use the same DC voltage and 25°C, with 100% load defined as 5000 W. The plots illustrate changes with load rather than a constant efficiency guarantee. The AC power figures are stated in VA. The 5000 W and 6000 W figures above describe DC input power, not a promise of that amount of AC output. Connect the AC output to a compatible utility system and protective earth as shown in the connection diagram. Operating Modes and CANBus Control Constant-current setting range 0.1–25 A ±1% Constant-voltage setting range 60–420 VDC ±1% Communication interface CANBus CANBus baud rate 250 kbps Maximum system unit count 64 CANBus address switches SW51 and SW52 CC means constant-current operation and CV means constant-voltage operation. Current-setting tolerance is based on maximum input current; voltage-setting tolerance is based on maximum input voltage. Tolerance can increase at ambient-temperature extremes. Use the MEAN WELL CMU2A controller or a suitable CANBus interface for remote setting, monitoring and data analysis. Select the controller configuration for the ERG application; it is separate equipment in the system diagram. Follow the manufacturer’s user manual for addressing, commands and system setup. JK1 provides two linked eight-position CANBus sockets. Use twisted-pair communication wiring. After connecting the communication cable, fit termination resistors to the remaining end sockets of both the ERG system and CMU2A to suppress signal reflections. The controller’s separate power input shown in the system diagram is not an additional ERG input rating. AC and Communication Pin Assignments JK1 pins 1 and 9 CANH: CANBus data high JK1 pins 2 and 10 CANL: CANBus data low JK1 pins 3 and 11 NC: reserved for future use JK1 pins 4 and 12 FG: CANBus reference ground JK1 pins 5–8 and 13–16 NC: do not use TB1 pin 1 L: AC/L TB1 pin 2 N: AC/N TB1 pin 3 FG: protective earth TB1 maximum mounting torque 8 kgf·cm The TB1 torque applies to the AC terminal block. Keep protective-earth and CANBus reference-ground connections consistent with the diagram. The JK1 communication connector is excluded from the isolation withstand ratings listed below. DC Input Connections DC input connector PRO-TEN 5.7 mm NEWSOK PCB-mount assembly or equivalent Mating connector description PRO-TEN 5.7 mm NEWSOK SURLOK PIN or equivalent CH1 input contacts +V: pins 1 and 2; −V: pins 9 and 10 CH2 input contacts +V: pins 3 and 4; −V: pins 11 and 12 CH3 input contacts +V: pins 5 and 6; −V: pins 13 and 14 CH4 input contacts +V: pins 7 and 8; −V: pins 15 and 16 Pins 1–8 are positive DC inputs and pins 9–16 are negative DC inputs. Use both contacts assigned to each channel and follow the front-view numbering in the drawing. Confirm the complete mating assembly and cable termination for the installed connector. Channel and System Configurations Four channels in parallel: connect the four channels to one suitable source as shown in the front-panel wiring diagram. Two independent groups: each source uses a pair of channels, giving a rated input allocation of 1250 W × 2 per group. Four independent channels: connect up to four separate units under test to the four channel pairs. A single ERG can use four channels in series, or two sets of two channels in series, following the two separate diagrams. Multiple ERG units can be arranged in the illustrated series/parallel systems, up to 64 units. This system count does not override channel voltage, current, power, insulation or control limits. Follow the manufacturer’s diagrams and user manual for the selected arrangement. Select suitable wires between the power supplies under test and the ERG to reduce line loss and improve energy recycling. Verify polarity and the complete interconnection before enabling the system. Protection Over-temperature protection Shuts down AC output voltage; resets after the fault is removed DC input over-voltage protection Shuts down AC output voltage; resets after the fault is removed DC input under-voltage protection Shuts down AC output voltage; resets after the fault is removed AC grid fault Shuts down AC output voltage; resets after the fault is removed Communication failure Shuts down AC output voltage after a 4-second communication failure; resets after communication is re-established Over-power protection Constant-power limiting at maximum input power Grid-fault protection includes AC over-voltage and under-voltage. Correct the fault condition before restoring operation. Channel Status Indicators LED1–4 OFF No AC utility connected Steady green Normal operation Flashing green Abnormal status: over-temperature protection or grid fault Steady orange Standby mode Flashing orange Internal communication error Steady red DC input under-voltage protection Flashing red DC input over-voltage protection Loading, Cooling and Environment Operating ambient temperature −20 to +60°C Working humidity 20–90% RH, non-condensing Storage temperature −40 to +85°C Storage humidity 10–95% RH Cooling Built-in fans Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z The static input-voltage graph shows 100% rated input loading throughout 60–420 VDC. The ambient-temperature range does not guarantee maximum-power operation at every temperature. Observe automatic reduction from maximum input power toward rated power and keep the fan path clear. The mechanical drawing shows exhaust airflow toward the rear AC-output side. Dimensions and Installation Catalogue body dimensions 504 × 211 × 83.5 mm Mechanical drawing reference Case No. 223F; dimensions in millimetres Mounting holes 8-M4, both sides Rear connection projection 20 mm maximum, shown separately from body length Catalogue packing reference per unit 12000 g Use the complete version-specific mounting drawing to locate the holes. The drawing gives a 399 mm longitudinal hole reference; the front offset differs between the 504 mm NEWSOK body and the 460 mm terminal-block body. Allow separate clearance for DC connections, the rear terminal projection, cables and fan airflow. The 12000 g value is the catalogue packing reference per NEWSOK unit, not a measured net weight or shipping-parcel weight. The common specification table lists 12 kg per unit, one unit per 12 kg carton and 0.86 CUFT for this construction. Compatible Control and Accessory List External control option CMU2A controller or suitable CANBus interface Positive connector leads in accessory list 8 red leads; UL1028, 8 AWG, 500 mm Negative connector leads in accessory list 8 black leads; UL1028, 8 AWG, 500 mm Mount brackets in accessory list 2 Termination resistor in accessory list 1 Mounting screws in accessory list 4 × M4, L = 8 mm The accessory list gives the quantities above. Confirm the supplied accessory contents and controller configuration when ordering. Use the correct terminal or NEWSOK lead arrangement for this exact model; a controller or complete test system is not included merely because it appears in the application diagram. Safety, EMC and Reliability Safety approval BS EN/EN62368-1 DC input to AC output withstand voltage 2.5 kVDC DC input to protective earth withstand voltage 2.5 kVDC AC output to protective earth withstand voltage 2.5 kVDC Minimum MTBF, Telcordia SR-332 (Bellcore) 172 k hours Minimum MTBF, MIL-HDBK-217F at 25°C 19.5 k hours Manufacturer catalogue warranty 5 years For these isolation ratings, I/P means DC input and O/P means AC output. JK1 is excluded; do not apply the power-terminal withstand test specification to the communication port. Emission compliance: BS EN/EN55032 (CISPR32), Class A. Immunity compliance: BS EN/EN55035 and BS EN/EN61000-4-2, -3, -4, -5 and -6, light-industry criteria A. Additional filter guidance is provided in the manufacturer’s user manual. This unit is a component for installation in final equipment. EMC testing used a 900 × 1300 mm metal plate, 2 mm thick. Reconfirm EMC for the completed equipment and its actual wiring and installation. Manufacturer-listed applications include power-supply and battery burn-in/testing, energy-saving recycling systems and connector mechanical testing. Select the DC range and channel arrangement to match the actual equipment under test.

Read more less

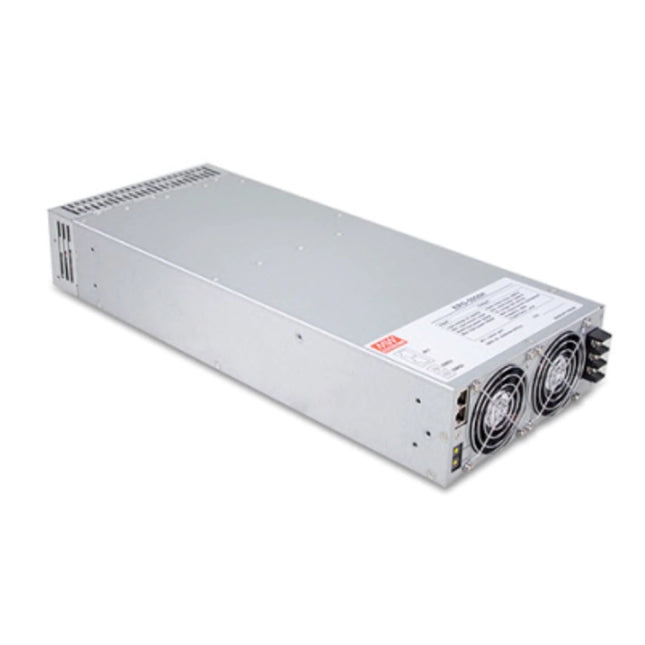

MEAN WELL ERG-5000-T is a four-channel energy recycling grid-type DC-AC inverter with 10–60 VDC inputs and a typical rated DC input power of 5000 W. Its Terminal block DC connections support CC/CV testing while recovered energy returns to a compatible single-phase AC utility. Product Datasheet Download MEAN WELL ERG-5000 Datasheet (PDF) The ERG-5000 section is on PDF pages 8, 9, 10, 11, 12, 13, 14, 15, 16, 17. Refer to the complete mechanical drawings and notes when planning installation. Model and DC Input Ratings Complete order code ERG-5000-T DC input connection Terminal block Independent DC input channels 4 Typical rated DC input power 5000 W Typical maximum DC input power 6000 W Typical rated input power per channel 1250 W Typical maximum input power per channel 1500 W DC input voltage range 10–60 VDC Typical rated input current per channel 105 A Typical maximum input current per channel 125 A This model uses the 10–60 VDC input range; the code has no H voltage-range suffix. The -T suffix selects terminal-block DC inputs. The four-channel rated input is 1250 W × 4, and the typical maximum is 1500 W × 4. The maximum 6000 W capability automatically derates toward rated power as ambient temperature rises; over-temperature protection operates if the internal temperature limit is exceeded. No fixed maximum-power duration is specified. Observe voltage, current, total-power and temperature limits together. Maximum current and maximum voltage are not an unrestricted simultaneous operating point. This product absorbs DC energy from equipment under test and returns energy to the AC utility. AC Grid Return and Efficiency Typical rated AC output apparent power 2600–4320 VA at 10–12 VDC input; 4320–4400 VA at 12–60 VDC input AC grid voltage 180–264 VAC, with the stated ±5 VAC tolerance AC connection Single phase AC frequency range 47–63 Hz Typical maximum AC output current 24 A at 230 VAC Power factor at rated power >0.97 Typical THD at rated power <5% Typical conversion efficiency 88% at 48 VDC input and 5000 W input power Typical energy recycling ratio 80% at 48 VDC input and 5000 W input power The recycling-ratio reference assumes that the source power supply has at least 90.5% efficiency. System energy recycling ratio equals source power-supply efficiency multiplied by ERG conversion efficiency; it is not the ERG efficiency alone. Unless otherwise stated, specifications are measured at 230 VAC output, 48 VDC input, rated input power and 25°C ambient. The efficiency and recycling plots use the same DC voltage and 25°C, with 100% load defined as 5000 W. The plots illustrate changes with load rather than a constant efficiency guarantee. The AC power figures are stated in VA. The 5000 W and 6000 W figures above describe DC input power, not a promise of that amount of AC output. Connect the AC output to a compatible utility system and protective earth as shown in the connection diagram. Operating Modes and CANBus Control Constant-current setting range 0.5–125 A ±1% Constant-voltage setting range 10–60 VDC ±1% Communication interface CANBus CANBus baud rate 250 kbps Maximum system unit count 64 CANBus address switches SW51 and SW52 CC means constant-current operation and CV means constant-voltage operation. Current-setting tolerance is based on maximum input current; voltage-setting tolerance is based on maximum input voltage. Tolerance can increase at ambient-temperature extremes. Use the MEAN WELL CMU2A controller or a suitable CANBus interface for remote setting, monitoring and data analysis. Select the controller configuration for the ERG application; it is separate equipment in the system diagram. Follow the manufacturer’s user manual for addressing, commands and system setup. JK1 provides two linked eight-position CANBus sockets. Use twisted-pair communication wiring. After connecting the communication cable, fit termination resistors to the remaining end sockets of both the ERG system and CMU2A to suppress signal reflections. The controller’s separate power input shown in the system diagram is not an additional ERG input rating. AC and Communication Pin Assignments JK1 pins 1 and 9 CANH: CANBus data high JK1 pins 2 and 10 CANL: CANBus data low JK1 pins 3 and 11 NC: reserved for future use JK1 pins 4 and 12 FG: CANBus reference ground JK1 pins 5–8 and 13–16 NC: do not use TB1 pin 1 L: AC/L TB1 pin 2 N: AC/N TB1 pin 3 FG: protective earth TB1 maximum mounting torque 8 kgf·cm The TB1 torque applies to the AC terminal block. Keep protective-earth and CANBus reference-ground connections consistent with the diagram. The JK1 communication connector is excluded from the isolation withstand ratings listed below. DC Input Connections DC input channels CH1, CH2, CH3 and CH4 DC terminal polarity Each channel has a separately marked +V and −V connection The front drawing shows four terminal-block channel connections. Observe the individual +V and −V markings and select leads for the actual current and installation. The NEWSOK numbered-contact table and connector leads apply to the NEWSOK construction, not this -T terminal-block version. Channel and System Configurations Four channels in parallel: connect the four channels to one suitable source as shown in the front-panel wiring diagram. Two independent groups: each source uses a pair of channels, giving a rated input allocation of 1250 W × 2 per group. Four independent channels: connect up to four separate units under test to the four channel pairs. A single ERG can use four channels in series, or two sets of two channels in series, following the two separate diagrams. Multiple ERG units can be arranged in the illustrated series/parallel systems, up to 64 units. This system count does not override channel voltage, current, power, insulation or control limits. Follow the manufacturer’s diagrams and user manual for the selected arrangement. Select suitable wires between the power supplies under test and the ERG to reduce line loss and improve energy recycling. Verify polarity and the complete interconnection before enabling the system. Protection Over-temperature protection Shuts down AC output voltage; resets after the fault is removed DC input over-voltage protection Shuts down AC output voltage; resets after the fault is removed DC input under-voltage protection Shuts down AC output voltage; resets after the fault is removed AC grid fault Shuts down AC output voltage; resets after the fault is removed Communication failure Shuts down AC output voltage after a 4-second communication failure; resets after communication is re-established Over-power protection Constant-power limiting at maximum input power Grid-fault protection includes AC over-voltage and under-voltage. Correct the fault condition before restoring operation. Channel Status Indicators LED1–4 OFF No AC utility connected Steady green Normal operation Flashing green Abnormal status: over-temperature protection or grid fault Steady orange Standby mode Flashing orange Internal communication error Steady red DC input under-voltage protection Flashing red DC input over-voltage protection Loading, Cooling and Environment Operating ambient temperature −20 to +60°C Working humidity 20–90% RH, non-condensing Storage temperature −40 to +85°C Storage humidity 10–95% RH Cooling Built-in fans Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z The static input-voltage graph limits rated input loading to 60% at 10 VDC, rising to 100% at 12 VDC and remaining at 100% through 60 VDC. The ambient-temperature range does not guarantee maximum-power operation at every temperature. Observe automatic reduction from maximum input power toward rated power and keep the fan path clear. The mechanical drawing shows exhaust airflow toward the rear AC-output side. Dimensions and Installation Catalogue body dimensions 460 × 211 × 83.5 mm Mechanical drawing reference Case No. 223F; dimensions in millimetres Mounting holes 8-M4, both sides Rear connection projection 20 mm maximum, shown separately from body length Use the complete version-specific mounting drawing to locate the holes. The drawing gives a 399 mm longitudinal hole reference; the front offset differs between the 504 mm NEWSOK body and the 460 mm terminal-block body. Allow separate clearance for DC connections, the rear terminal projection, cables and fan airflow. Compatible Control and Accessory List External control option CMU2A controller or suitable CANBus interface Mount brackets in accessory list 2 Termination resistor in accessory list 1 Mounting screws in accessory list 4 × M4, L = 8 mm The accessory list gives the quantities above. Confirm the supplied accessory contents and controller configuration when ordering. Use the correct terminal or NEWSOK lead arrangement for this exact model; a controller or complete test system is not included merely because it appears in the application diagram. Safety, EMC and Reliability Safety approval BS EN/EN62368-1 DC input to AC output withstand voltage 4 kVDC DC input to protective earth withstand voltage 2.5 kVDC AC output to protective earth withstand voltage 2.5 kVDC Minimum MTBF, Telcordia SR-332 (Bellcore) 148.8 k hours Minimum MTBF, MIL-HDBK-217F at 25°C 15 k hours Manufacturer catalogue warranty 5 years For these isolation ratings, I/P means DC input and O/P means AC output. JK1 is excluded; do not apply the power-terminal withstand test specification to the communication port. Emission compliance: BS EN/EN55032 (CISPR32), Class A. Immunity compliance: BS EN/EN55035 and BS EN/EN61000-4-2, -3, -4, -5 and -6, light-industry criteria A. Additional filter guidance is provided in the manufacturer’s user manual. This unit is a component for installation in final equipment. EMC testing used a 900 × 1300 mm metal plate, 2 mm thick. Reconfirm EMC for the completed equipment and its actual wiring and installation. Manufacturer-listed applications include power-supply and battery burn-in/testing, energy-saving recycling systems and connector mechanical testing. Select the DC range and channel arrangement to match the actual equipment under test.

Read more less

MEAN WELL ERG-5000 is a four-channel energy recycling grid-type DC-AC inverter with 10–60 VDC inputs and a typical rated DC input power of 5000 W. Its NEWSOK DC connections support CC/CV testing while recovered energy returns to a compatible single-phase AC utility. Product Datasheet Download MEAN WELL ERG-5000 Datasheet (PDF) The ERG-5000 section is on PDF pages 8, 9, 10, 11, 12, 13, 14, 15, 16, 17. Refer to the complete mechanical drawings and notes when planning installation. Model and DC Input Ratings Complete order code ERG-5000 DC input connection NEWSOK Independent DC input channels 4 Typical rated DC input power 5000 W Typical maximum DC input power 6000 W Typical rated input power per channel 1250 W Typical maximum input power per channel 1500 W DC input voltage range 10–60 VDC Typical rated input current per channel 105 A Typical maximum input current per channel 125 A This model uses the 10–60 VDC input range; the code has no H voltage-range suffix. The absence of -T selects the NEWSOK DC connector arrangement. The four-channel rated input is 1250 W × 4, and the typical maximum is 1500 W × 4. The maximum 6000 W capability automatically derates toward rated power as ambient temperature rises; over-temperature protection operates if the internal temperature limit is exceeded. No fixed maximum-power duration is specified. Observe voltage, current, total-power and temperature limits together. Maximum current and maximum voltage are not an unrestricted simultaneous operating point. This product absorbs DC energy from equipment under test and returns energy to the AC utility. AC Grid Return and Efficiency Typical rated AC output apparent power 2600–4320 VA at 10–12 VDC input; 4320–4400 VA at 12–60 VDC input AC grid voltage 180–264 VAC, with the stated ±5 VAC tolerance AC connection Single phase AC frequency range 47–63 Hz Typical maximum AC output current 24 A at 230 VAC Power factor at rated power >0.97 Typical THD at rated power <5% Typical conversion efficiency 88% at 48 VDC input and 5000 W input power Typical energy recycling ratio 80% at 48 VDC input and 5000 W input power The recycling-ratio reference assumes that the source power supply has at least 90.5% efficiency. System energy recycling ratio equals source power-supply efficiency multiplied by ERG conversion efficiency; it is not the ERG efficiency alone. Unless otherwise stated, specifications are measured at 230 VAC output, 48 VDC input, rated input power and 25°C ambient. The efficiency and recycling plots use the same DC voltage and 25°C, with 100% load defined as 5000 W. The plots illustrate changes with load rather than a constant efficiency guarantee. The AC power figures are stated in VA. The 5000 W and 6000 W figures above describe DC input power, not a promise of that amount of AC output. Connect the AC output to a compatible utility system and protective earth as shown in the connection diagram. Operating Modes and CANBus Control Constant-current setting range 0.5–125 A ±1% Constant-voltage setting range 10–60 VDC ±1% Communication interface CANBus CANBus baud rate 250 kbps Maximum system unit count 64 CANBus address switches SW51 and SW52 CC means constant-current operation and CV means constant-voltage operation. Current-setting tolerance is based on maximum input current; voltage-setting tolerance is based on maximum input voltage. Tolerance can increase at ambient-temperature extremes. Use the MEAN WELL CMU2A controller or a suitable CANBus interface for remote setting, monitoring and data analysis. Select the controller configuration for the ERG application; it is separate equipment in the system diagram. Follow the manufacturer’s user manual for addressing, commands and system setup. JK1 provides two linked eight-position CANBus sockets. Use twisted-pair communication wiring. After connecting the communication cable, fit termination resistors to the remaining end sockets of both the ERG system and CMU2A to suppress signal reflections. The controller’s separate power input shown in the system diagram is not an additional ERG input rating. AC and Communication Pin Assignments JK1 pins 1 and 9 CANH: CANBus data high JK1 pins 2 and 10 CANL: CANBus data low JK1 pins 3 and 11 NC: reserved for future use JK1 pins 4 and 12 FG: CANBus reference ground JK1 pins 5–8 and 13–16 NC: do not use TB1 pin 1 L: AC/L TB1 pin 2 N: AC/N TB1 pin 3 FG: protective earth TB1 maximum mounting torque 8 kgf·cm The TB1 torque applies to the AC terminal block. Keep protective-earth and CANBus reference-ground connections consistent with the diagram. The JK1 communication connector is excluded from the isolation withstand ratings listed below. DC Input Connections DC input connector PRO-TEN 5.7 mm NEWSOK PCB-mount assembly or equivalent Mating connector description PRO-TEN 5.7 mm NEWSOK SURLOK PIN or equivalent CH1 input contacts +V: pins 1 and 2; −V: pins 9 and 10 CH2 input contacts +V: pins 3 and 4; −V: pins 11 and 12 CH3 input contacts +V: pins 5 and 6; −V: pins 13 and 14 CH4 input contacts +V: pins 7 and 8; −V: pins 15 and 16 Pins 1–8 are positive DC inputs and pins 9–16 are negative DC inputs. Use both contacts assigned to each channel and follow the front-view numbering in the drawing. Confirm the complete mating assembly and cable termination for the installed connector. Channel and System Configurations Four channels in parallel: connect the four channels to one suitable source as shown in the front-panel wiring diagram. Two independent groups: each source uses a pair of channels, giving a rated input allocation of 1250 W × 2 per group. Four independent channels: connect up to four separate units under test to the four channel pairs. A single ERG can use four channels in series, or two sets of two channels in series, following the two separate diagrams. Multiple ERG units can be arranged in the illustrated series/parallel systems, up to 64 units. This system count does not override channel voltage, current, power, insulation or control limits. Follow the manufacturer’s diagrams and user manual for the selected arrangement. Select suitable wires between the power supplies under test and the ERG to reduce line loss and improve energy recycling. Verify polarity and the complete interconnection before enabling the system. Protection Over-temperature protection Shuts down AC output voltage; resets after the fault is removed DC input over-voltage protection Shuts down AC output voltage; resets after the fault is removed DC input under-voltage protection Shuts down AC output voltage; resets after the fault is removed AC grid fault Shuts down AC output voltage; resets after the fault is removed Communication failure Shuts down AC output voltage after a 4-second communication failure; resets after communication is re-established Over-power protection Constant-power limiting at maximum input power Grid-fault protection includes AC over-voltage and under-voltage. Correct the fault condition before restoring operation. Channel Status Indicators LED1–4 OFF No AC utility connected Steady green Normal operation Flashing green Abnormal status: over-temperature protection or grid fault Steady orange Standby mode Flashing orange Internal communication error Steady red DC input under-voltage protection Flashing red DC input over-voltage protection Loading, Cooling and Environment Operating ambient temperature −20 to +60°C Working humidity 20–90% RH, non-condensing Storage temperature −40 to +85°C Storage humidity 10–95% RH Cooling Built-in fans Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z The static input-voltage graph limits rated input loading to 60% at 10 VDC, rising to 100% at 12 VDC and remaining at 100% through 60 VDC. The ambient-temperature range does not guarantee maximum-power operation at every temperature. Observe automatic reduction from maximum input power toward rated power and keep the fan path clear. The mechanical drawing shows exhaust airflow toward the rear AC-output side. Dimensions and Installation Catalogue body dimensions 504 × 211 × 83.5 mm Mechanical drawing reference Case No. 223F; dimensions in millimetres Mounting holes 8-M4, both sides Rear connection projection 20 mm maximum, shown separately from body length Catalogue packing reference per unit 12000 g Use the complete version-specific mounting drawing to locate the holes. The drawing gives a 399 mm longitudinal hole reference; the front offset differs between the 504 mm NEWSOK body and the 460 mm terminal-block body. Allow separate clearance for DC connections, the rear terminal projection, cables and fan airflow. The 12000 g value is the catalogue packing reference per NEWSOK unit, not a measured net weight or shipping-parcel weight. The common specification table lists 12 kg per unit, one unit per 12 kg carton and 0.86 CUFT for this construction. Compatible Control and Accessory List External control option CMU2A controller or suitable CANBus interface Positive connector leads in accessory list 8 red leads; UL1028, 8 AWG, 500 mm Negative connector leads in accessory list 8 black leads; UL1028, 8 AWG, 500 mm Mount brackets in accessory list 2 Termination resistor in accessory list 1 Mounting screws in accessory list 4 × M4, L = 8 mm The accessory list gives the quantities above. Confirm the supplied accessory contents and controller configuration when ordering. Use the correct terminal or NEWSOK lead arrangement for this exact model; a controller or complete test system is not included merely because it appears in the application diagram. Safety, EMC and Reliability Safety approval BS EN/EN62368-1 DC input to AC output withstand voltage 4 kVDC DC input to protective earth withstand voltage 2.5 kVDC AC output to protective earth withstand voltage 2.5 kVDC Minimum MTBF, Telcordia SR-332 (Bellcore) 148.8 k hours Minimum MTBF, MIL-HDBK-217F at 25°C 15 k hours Manufacturer catalogue warranty 5 years For these isolation ratings, I/P means DC input and O/P means AC output. JK1 is excluded; do not apply the power-terminal withstand test specification to the communication port. Emission compliance: BS EN/EN55032 (CISPR32), Class A. Immunity compliance: BS EN/EN55035 and BS EN/EN61000-4-2, -3, -4, -5 and -6, light-industry criteria A. Additional filter guidance is provided in the manufacturer’s user manual. This unit is a component for installation in final equipment. EMC testing used a 900 × 1300 mm metal plate, 2 mm thick. Reconfirm EMC for the completed equipment and its actual wiring and installation. Manufacturer-listed applications include power-supply and battery burn-in/testing, energy-saving recycling systems and connector mechanical testing. Select the DC range and channel arrangement to match the actual equipment under test.

Read more less

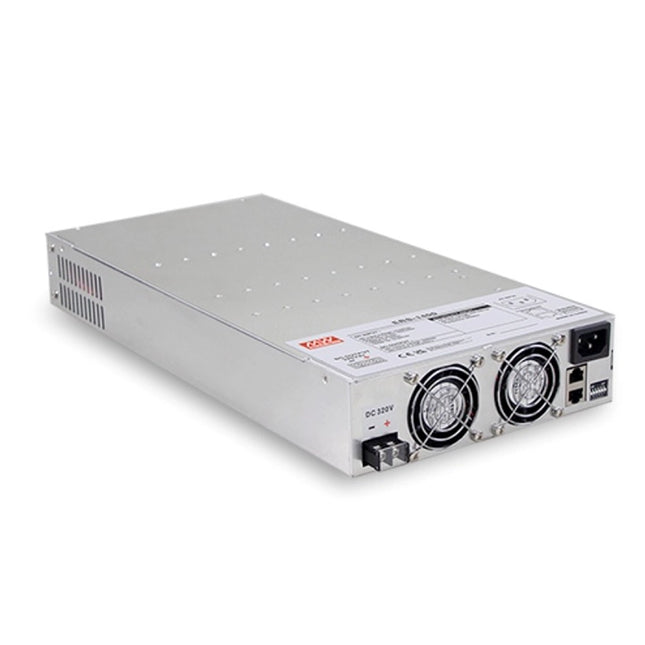

MEAN WELL ERS-1400H is a four-channel energy recycling DC power supply for battery testing, power-supply burn-in and other energy-recovery systems. It accepts 60–380 VDC and returns recovered energy through a 320 VDC output. The typical rated input reaches 1440 W in the 100–380 VDC range, with reduced input-power capability below that range. This model provides CC/CV control, internal fan cooling and built-in CANBus communication. Product Datasheet Download MEAN WELL ERS-1400 Datasheet (PDF) The ERS-1400 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. Model and DC Energy-Recovery Ratings Complete order number ERS-1400H Series ERS-1400 Input channels 4 DC input voltage range 60–380 VDC Maximum typical DC input power 1440 W Typical input power below the full-power range 864–1440 W at 60–100 VDC Typical rated input current 3.6 A per channel × 4 channels DC output voltage 320 VDC DC output voltage tolerance ±2% Maximum DC output current 6.3 A Maximum output ripple and noise 4 V The 1440 W typical rated input applies at 100–380 VDC. Input voltage, channel current and combined input power must all remain within their applicable limits. The recovered 320 VDC output is shown feeding the input of suitable equipment under test in the burn-in system. Use equipment and wiring rated for that recovery connection; the separately listed maximum output current is not an additional rated-output-power allowance. Unless otherwise stated, ratings are measured at 320 VDC output, 380 VDC input, rated input power and 25°C ambient. Control Modes and Input-Power Curve Constant-current setting per channel 0.5–3.6 A, ±1% Available control modes CC/CV Constant-voltage setting 60–380 VDC, ±10 V Select constant-current or constant-voltage operation for this H version. Match every connected source to its voltage range and limit the combined channel input to the permitted total power. The static-characteristic curve marks 60% input power at 60 VDC, rising to 100% at 100 VDC and remaining at 100% through 380 VDC. Control tolerances are calculated from maximum input current and maximum input voltage. Tolerances can increase at high and low ambient temperatures. Efficiency and AC Auxiliary Input Typical conversion efficiency 90% at 380 VDC input Typical energy recycling ratio 85% AC input voltage range 180–264 VAC AC input frequency 47–63 Hz Power factor 0.97 at 230 VAC Typical AC inrush current 50 A at 230 VAC The 85% recycling example is specified at 380 VDC input and 1440 W with the power supply under test operating at an efficiency of at least 96%. System energy recycling ratio is calculated as the efficiency of the power supply under test multiplied by the ERS unit efficiency. Wiring losses and the operating point affect the achieved result. The efficiency-versus-load plot is measured at 380 VDC input and 25°C. Use the plotted load dependence for system assessment; the typical efficiency is not a guarantee at every load. Connect the rear AC inlet to L, N and protective earth as shown in the wiring diagram. The 180–264 VAC rating belongs to the ERS unit; the separate CMU2A supply shown in the system drawing is rated 90–264 VAC. Channel Connections and SW1 Configuration DC input connector assembly PRO-TEN 5.7 mm NEWSOK PCB mount assembly or equivalent Mating DC input component PRO-TEN 5.7 mm NEWSOK SURLOK PIN or equivalent Channel 1 input contacts +V: pins 1 and 9; −V: pins 2 and 10 Channel 2 input contacts +V: pins 3 and 11; −V: pins 4 and 12 Channel 3 input contacts +V: pins 5 and 13; −V: pins 6 and 14 Channel 4 input contacts +V: pins 7 and 15; −V: pins 8 and 16 SW1 OFF connection pairs CH1: 9/10; CH2: 11/12; CH3: 13/14; CH4: 15/16 SW1 ON connection pairs CH1: 1/2; CH2: 3/4; CH3: 5/6; CH4: 7/8 The positive contacts are the odd-numbered pins and the negative contacts are the even-numbered pins. Follow the selected SW1 arrangement and complete manufacturer connection diagram. SW1 OFF is the independent-input arrangement; the function diagram shows the four DC inputs used in parallel or as standalone channels. SW1 ON is identified for the series-input arrangement and is used in the illustrated higher-power or higher-voltage burn-in configurations. For higher burn-in power, the diagram shows multiple ERS units connected to one suitable power supply whose output exceeds 1440 W. Each ERS unit retains its own input limits; the maximum communication-node count is not a separate power-parallel rating. The voltage-increase example shows four sources in series so that the applied voltage is Vo1 + Vo2 + Vo3 + Vo4. Each illustrated source is below 10 V; this is a wiring example, not an extension of this model’s input-voltage range. Select a valid combined voltage for the exact ERS model. Select suitable input conductors to reduce line loss and improve energy recovery. Confirm the selected series/parallel topology, source isolation and complete wiring against the manufacturer’s function and user manuals before connection. CANBus, Monitoring and Status Communication interface CANBus CANBus baud rate 250 kbit/s Maximum connected ERS units 64 Communication pins 1 and 9 CANH Communication pins 2 and 10 CANL Communication pins 3 and 11 NC, reserved for future use Communication pins 4 and 12 FG, reference ground for the CANBus interface Communication pins 5–8 and 13–16 NC, unused V1–V4 indicators, OFF No AC utility connected V1–V4 indicators, steady green Normal operation V1–V4 indicators, flashing green Abnormal status Use the CANBus interface or the optional CMU2A control and monitoring console for setting, monitoring and data analysis. The illustrated Ethernet connection is on the CMU2A console, not an Ethernet port specification for the ERS unit. Set each CANBus address using the rear address switches according to the user manual. The catalogue identifies the controller ordering configuration as CMU2A-#R#; select the appropriate complete CMU2A configuration with the supplier. Use twisted-pair communication wiring. Fit termination resistors to the remaining sockets at the ERS and CMU2A ends as illustrated to prevent signal reflections. Protection and Recovery Overtemperature protection DC output shutdown; reset after the fault is removed DC input overvoltage protection DC output shutdown; reset after the fault is removed DC input undervoltage protection DC output shutdown; reset after the fault is removed Communication-loss protection Shutdown following 4 seconds of failed communication Overpower protection Constant-power limiting at the maximum input power Communication-loss protection resets after communication is restored. Remove the relevant fault before resetting the system. Protection operation does not increase the permitted input range or power. Cooling, Environment and Installation Working ambient temperature −20 to +60°C Working humidity 20–90% RH, non-condensing Storage temperature and humidity −40 to +85°C; 10–95% RH Cooling method Internal fan cooling Catalogue dimensions, L × W × H 450 × 213 × 63.5 mm Mechanical drawing tolerance ±1 mm Mounting-hole callout 12 × M4, L=6, both sides DC output pin 1 HV+, 320 VDC positive DC output pin 2 HV−, 320 VDC negative Maximum DC output terminal mounting torque 18 kgf·cm Catalogue mass per unit 5.76 kg / 5760 g Keep the illustrated airflow path clear; the mechanical drawing shows airflow toward the rear fan and connection panel. Use the full drawing for mounting positions and connection clearance. A 15 mm maximum rear DC-terminal projection is marked separately from the body dimensions. The PACKING entry states 5.76 kg per unit, with 2 units / 12.5 kg / 1.68 CUFT per carton. The single-unit value is a catalogue packing reference, not a measured shipment weight. Optional Wires and System Accessories Positive-input optional wire order number PFF5NEWSOK-500RED Negative-input optional wire order number PFF5NEWSOK-500BK Wire specification UL1028 8 AWG Wire drawing dimension 500 mm Listed wire quantities 4 red +V wires and 4 black −V wires Listed termination resistor quantity 1 Optional control and monitoring console CMU2A configuration selected for the application The red cable is for the +V input connector; the black cable is for the −V input connector. The accessory page identifies the wires as optional and directs customers to MEAN WELL for ordering details. Confirm cable quantity and the supplied assembly when ordering. The termination resistor is listed without a separate order code. Confirm the required termination components and communication cable for the intended CANBus installation. Safety, EMC, Reliability and Applications Safety approval BS EN/EN62368-1 EMC emissions compliance BS EN/EN55032 (CISPR32) EMC immunity compliance BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; light industry level, criteria A MTBF, Telcordia SR-332 264.2 thousand hours minimum MTBF, MIL-HDBK-217F 27.7 thousand hours minimum at 25°C Manufacturer catalogue warranty 5 years The ERS unit is a component intended for installation in final equipment. EMC tests were performed with the unit mounted on a 900 × 1300 × 2 mm metal plate; the final equipment must be checked again for EMC compliance. Consult the user manual for the specified additional-filter guidance. Applications include battery testing, power-supply aging systems, energy-recycling systems and connector mechanical testing. Select compatible test equipment and the complete system configuration for the actual voltage and power.

Read more less

MEAN WELL ERS-1400 is a four-channel energy recycling DC power supply for battery testing, power-supply burn-in and other energy-recovery systems. It accepts 10–60 VDC and returns recovered energy through a 320 VDC output. The typical rated input reaches 1440 W in the 12–60 VDC range, with reduced input-power capability below that range. This model provides CC/CP control, internal fan cooling and built-in CANBus communication. Product Datasheet Download MEAN WELL ERS-1400 Datasheet (PDF) The ERS-1400 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. Model and DC Energy-Recovery Ratings Complete order number ERS-1400 Series ERS-1400 Input channels 4 DC input voltage range 10–60 VDC Maximum typical DC input power 1440 W Typical input power below the full-power range 1200–1440 W at 10–12 VDC Typical rated input current 30 A per channel × 4 channels DC output voltage 320 VDC DC output voltage tolerance ±2% Maximum DC output current 6.3 A Maximum output ripple and noise 4 V The 1440 W typical rated input applies at 12–60 VDC. Input voltage, channel current and combined input power must all remain within their applicable limits. The recovered 320 VDC output is shown feeding the input of suitable equipment under test in the burn-in system. Use equipment and wiring rated for that recovery connection; the separately listed maximum output current is not an additional rated-output-power allowance. Unless otherwise stated, ratings are measured at 320 VDC output, 48 VDC input, rated input power and 25°C ambient. Control Modes and Input-Power Curve Constant-current setting per channel 0.5–30 A, ±1% Available control modes CC/CP Constant-power setting per channel 5–360 W, ±5% Select constant-current or constant-power operation for this version. The 360 W per-channel CP limit and the permitted total input power apply together; the four 30 A channel ratings do not permit exceeding the total power limit. The static-characteristic curve marks 83.3% input power at 10 VDC, rising to 100% at 12 VDC and remaining at 100% through 60 VDC. Control tolerances are calculated from maximum input current and maximum input voltage. Tolerances can increase at high and low ambient temperatures. Efficiency and AC Auxiliary Input Typical conversion efficiency 91% at 48 VDC input Typical energy recycling ratio 85% AC input voltage range 180–264 VAC AC input frequency 47–63 Hz Power factor 0.97 at 230 VAC Typical AC inrush current 50 A at 230 VAC The 85% recycling example is specified at 48 VDC input and 1440 W with the power supply under test operating at an efficiency of at least 95%. System energy recycling ratio is calculated as the efficiency of the power supply under test multiplied by the ERS unit efficiency. Wiring losses and the operating point affect the achieved result. The efficiency-versus-load plot is measured at 48 VDC input and 25°C. Use the plotted load dependence for system assessment; the typical efficiency is not a guarantee at every load. Connect the rear AC inlet to L, N and protective earth as shown in the wiring diagram. The 180–264 VAC rating belongs to the ERS unit; the separate CMU2A supply shown in the system drawing is rated 90–264 VAC. Channel Connections and SW1 Configuration DC input connector assembly PRO-TEN 5.7 mm NEWSOK PCB mount assembly or equivalent Mating DC input component PRO-TEN 5.7 mm NEWSOK SURLOK PIN or equivalent Channel 1 input contacts +V: pins 1 and 9; −V: pins 2 and 10 Channel 2 input contacts +V: pins 3 and 11; −V: pins 4 and 12 Channel 3 input contacts +V: pins 5 and 13; −V: pins 6 and 14 Channel 4 input contacts +V: pins 7 and 15; −V: pins 8 and 16 SW1 OFF connection pairs CH1: 9/10; CH2: 11/12; CH3: 13/14; CH4: 15/16 SW1 ON connection pairs CH1: 1/2; CH2: 3/4; CH3: 5/6; CH4: 7/8 The positive contacts are the odd-numbered pins and the negative contacts are the even-numbered pins. Follow the selected SW1 arrangement and complete manufacturer connection diagram. SW1 OFF is the independent-input arrangement; the function diagram shows the four DC inputs used in parallel or as standalone channels. SW1 ON is identified for the series-input arrangement and is used in the illustrated higher-power or higher-voltage burn-in configurations. For higher burn-in power, the diagram shows multiple ERS units connected to one suitable power supply whose output exceeds 1440 W. Each ERS unit retains its own input limits; the maximum communication-node count is not a separate power-parallel rating. The voltage-increase example shows four sources in series so that the applied voltage is Vo1 + Vo2 + Vo3 + Vo4. Each illustrated source is below 10 V; this is a wiring example, not an extension of this model’s input-voltage range. Select a valid combined voltage for the exact ERS model. Select suitable input conductors to reduce line loss and improve energy recovery. Confirm the selected series/parallel topology, source isolation and complete wiring against the manufacturer’s function and user manuals before connection. CANBus, Monitoring and Status Communication interface CANBus CANBus baud rate 250 kbit/s Maximum connected ERS units 64 Communication pins 1 and 9 CANH Communication pins 2 and 10 CANL Communication pins 3 and 11 NC, reserved for future use Communication pins 4 and 12 FG, reference ground for the CANBus interface Communication pins 5–8 and 13–16 NC, unused V1–V4 indicators, OFF No AC utility connected V1–V4 indicators, steady green Normal operation V1–V4 indicators, flashing green Abnormal status Use the CANBus interface or the optional CMU2A control and monitoring console for setting, monitoring and data analysis. The illustrated Ethernet connection is on the CMU2A console, not an Ethernet port specification for the ERS unit. Set each CANBus address using the rear address switches according to the user manual. The catalogue identifies the controller ordering configuration as CMU2A-#R#; select the appropriate complete CMU2A configuration with the supplier. Use twisted-pair communication wiring. Fit termination resistors to the remaining sockets at the ERS and CMU2A ends as illustrated to prevent signal reflections. Protection and Recovery Overtemperature protection DC output shutdown; reset after the fault is removed DC input overvoltage protection DC output shutdown; reset after the fault is removed DC input undervoltage protection DC output shutdown; reset after the fault is removed Communication-loss protection Shutdown following 4 seconds of failed communication Overpower protection Constant-power limiting at the maximum input power Communication-loss protection resets after communication is restored. Remove the relevant fault before resetting the system. Protection operation does not increase the permitted input range or power. Cooling, Environment and Installation Working ambient temperature −20 to +60°C Working humidity 20–90% RH, non-condensing Storage temperature and humidity −40 to +85°C; 10–95% RH Cooling method Internal fan cooling Catalogue dimensions, L × W × H 450 × 213 × 63.5 mm Mechanical drawing tolerance ±1 mm Mounting-hole callout 12 × M4, L=6, both sides DC output pin 1 HV+, 320 VDC positive DC output pin 2 HV−, 320 VDC negative Maximum DC output terminal mounting torque 18 kgf·cm Catalogue mass per unit 5.76 kg / 5760 g Keep the illustrated airflow path clear; the mechanical drawing shows airflow toward the rear fan and connection panel. Use the full drawing for mounting positions and connection clearance. A 15 mm maximum rear DC-terminal projection is marked separately from the body dimensions. The PACKING entry states 5.76 kg per unit, with 2 units / 12.5 kg / 1.68 CUFT per carton. The single-unit value is a catalogue packing reference, not a measured shipment weight. Optional Wires and System Accessories Positive-input optional wire order number PFF5NEWSOK-500RED Negative-input optional wire order number PFF5NEWSOK-500BK Wire specification UL1028 8 AWG Wire drawing dimension 500 mm Listed wire quantities 4 red +V wires and 4 black −V wires Listed termination resistor quantity 1 Optional control and monitoring console CMU2A configuration selected for the application The red cable is for the +V input connector; the black cable is for the −V input connector. The accessory page identifies the wires as optional and directs customers to MEAN WELL for ordering details. Confirm cable quantity and the supplied assembly when ordering. The termination resistor is listed without a separate order code. Confirm the required termination components and communication cable for the intended CANBus installation. Safety, EMC, Reliability and Applications Safety approval BS EN/EN62368-1 EMC emissions compliance BS EN/EN55032 (CISPR32) EMC immunity compliance BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; light industry level, criteria A MTBF, Telcordia SR-332 260.3 thousand hours minimum MTBF, MIL-HDBK-217F 29.4 thousand hours minimum at 25°C Manufacturer catalogue warranty 5 years The ERS unit is a component intended for installation in final equipment. EMC tests were performed with the unit mounted on a 900 × 1300 × 2 mm metal plate; the final equipment must be checked again for EMC compliance. Consult the user manual for the specified additional-filter guidance. Applications include battery testing, power-supply aging systems, energy-recycling systems and connector mechanical testing. Select compatible test equipment and the complete system configuration for the actual voltage and power.
