MEAN WELL GC Series Battery Chargers (30W ~ 330W)

  • Product Features
  • General Specifications
  • Series Overview
  • Connector & Ordering

Product Features

  • Broad Battery Compatibility: Suitable for charging Lead-Acid batteries (flooded, Gel, AGM) and Lithium-ion batteries (lithium iron, lithium manganese).
  • 2-Stage Charging: Utilizes a reliable 2-stage charging characteristic (Constant Current & Constant Voltage) for optimized battery life.
  • Active PFC Function: High-power models (120W to 330W) feature built-in active Power Factor Correction (PF > 0.94~0.97).
  • Fanless Design: Cooled by free air convection, ensuring completely silent operation and high reliability in dusty or quiet environments.
  • Intuitive Status Indicator: Equipped with a 2-color LED indicator to clearly display charging status (Red: Charging, Green: Fully Charged/Float).
  • Comprehensive Protection: Safeguards against Short circuit, Overload, Over voltage, and Over temperature.
  • Global Certifications: Fully certified for global use (UL, CUL, TUV, EAC, CB, FCC, CE, UKCA).

General Specifications

Parameter Specification Detail
Input Voltage 90 ~ 264VAC (Universal Input)
Charging Mode CC (Constant Current) + CV (Constant Voltage)
Operating Temp. -30°C to +70°C (Refer to derating curves)
No Load Power < 1.0W (30W models) / < 0.5W ~ 1W (120W+ models)
Enclosure Type Fully enclosed plastic case (94V-0 flame retardant)
Safety Standards UL62368-1, CSA C22.2, EN62368-1, IEC62368-1

Series Overview

Series Rated Power Output Voltages (Approx.) Format / AC Inlet
GC30 (B/E/U) 30W 4.2V ~ 28.6V Wall-mount / Desktop (IEC320-C8 / EU / US Plugs)
GC120 120W 13.6V, 27.2V, 54.4V Desktop (IEC320-C14)
GC160 160W 13.6V, 27.2V, 54.4V Desktop (IEC320-C14)
GC220 220W 13.6V, 27.2V, 54.4V Desktop (IEC320-C14)
GC330 330W 40.8V, 54.4V Desktop (IEC320-C14)
Applications: E-bikes, scooters, electric wheelchairs, autonomous mobile robots (AMR), and various portable power storage systems.

Output Connectors & Ordering

Power Range Connector Option Description
30W P1J (Standard) 2.1x5.5x11mm DC Barrel Plug
120W - 220W R7B 4-pin Power DIN (For robust connections)
120W - 220W AD1 Anderson Connector (Quick disconnect)
330W C4P Heavy-duty 4-pin connector
Ordering Example:
GC30B-11P1J: 30W, IEC320-C8 AC inlet, 7.2V output, P1J connector.
GC160A24-AD1: 160W, 27.2V output, Anderson Connector.
Note: Consult datasheet for specific battery capacity recommendations (Ah) corresponding to each charger model.
  • GC30E-11P1J

    MEAN WELL GC30E series: AC/DC Battery-Charging Power Adapter - GC30E-11P1J

    MEAN WELL GC30E-11P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 7.2 V at no load, with 3 A rated current and 21.6 W catalogue-rated power. It has an attached EURO-type two-pin AC cord. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30E Datasheet (PDF) The GC30E section is on PDF pages 3, 4. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30E-11P1J; safety-model designation GC30E-11. DC output voltage 7.2 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 3 A; operating current range 0–3 A. Rated output power 21.6 W, as specified for this exact model. Charging voltage range 6.5–7.5 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 80 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 74% at 230 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Attached EURO-type two-pin AC power cord; Class II, without an earth pin. AC cord / inlet configuration The AC cord is specified as 6 ft; its mechanical drawing gives 1830 ±50 mm. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 230 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 4: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 16 AWG; 1230 ±50 mm, according to the mechanical drawing for 7.2 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 405 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed TUV BS EN/EN 62368-1; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN 55014-1 Class B; FCC Part 15 Class B; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6 and -11; light-industry level, criterion A; EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2025-01-23 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 230 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  • GC30E-1P1J

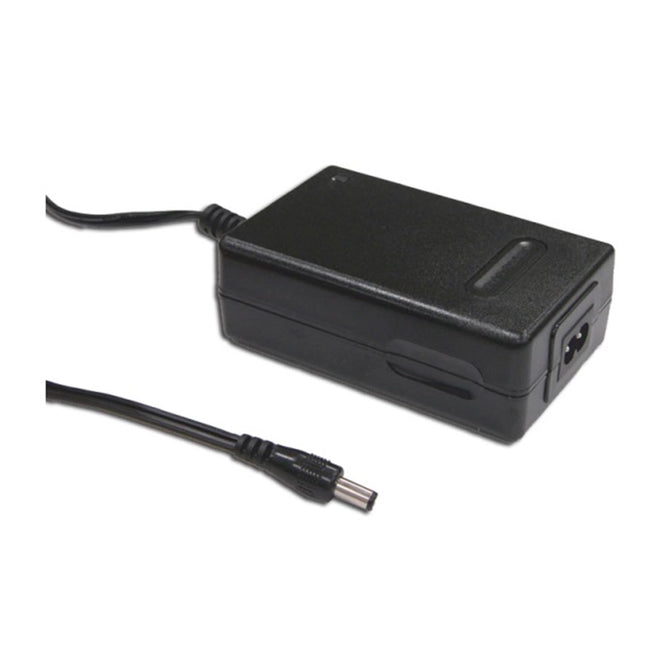

    MEAN WELL GC30E series: AC/DC Battery-Charging Power Adapter - GC30E-1P1J

    MEAN WELL GC30E-1P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 5.6 V at no load, with 3.99 A rated current and 22.38 W catalogue-rated power. It has an attached EURO-type two-pin AC cord. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30E Datasheet (PDF) The GC30E section is on PDF pages 3, 4. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30E-1P1J; safety-model designation GC30E-1. DC output voltage 5.6 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 3.99 A; operating current range 0–3.99 A. Rated output power 22.38 W, as specified for this exact model. Charging voltage range 5–5.8 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 50 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 70% at 230 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Attached EURO-type two-pin AC power cord; Class II, without an earth pin. AC cord / inlet configuration The AC cord is specified as 6 ft; its mechanical drawing gives 1830 ±50 mm. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 230 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 4: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 16 AWG; 1230 ±50 mm, according to the mechanical drawing for 5.6 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 405 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed TUV BS EN/EN 62368-1; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN 55014-1 Class B; FCC Part 15 Class B; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6 and -11; light-industry level, criterion A; EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2025-01-23 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 230 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  • GC30E-0P1J

    MEAN WELL GC30E series: AC/DC Battery-Charging Power Adapter - GC30E-0P1J

    MEAN WELL GC30E-0P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 4.2 V at no load, with 4 A rated current and 16.8 W catalogue-rated power. It has an attached EURO-type two-pin AC cord. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30E Datasheet (PDF) The GC30E section is on PDF pages 3, 4. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30E-0P1J; safety-model designation GC30E-0. DC output voltage 4.2 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 4 A; operating current range 0–4 A. Rated output power 16.8 W, as specified for this exact model. Charging voltage range 3.6–4.4 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 50 mVp-p. Line regulation ±1.0%; measured from low to high input line at rated load. Typical efficiency 55% at 230 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Attached EURO-type two-pin AC power cord; Class II, without an earth pin. AC cord / inlet configuration The AC cord is specified as 6 ft; its mechanical drawing gives 1830 ±50 mm. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 230 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 4: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 16 AWG; 1230 ±50 mm, according to the mechanical drawing for 4.2 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 405 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed TUV BS EN/EN 62368-1; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN 55014-1 Class B; FCC Part 15 Class B; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6 and -11; light-industry level, criterion A; EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2025-01-23 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 230 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  • GC30U-6P1J

    MEAN WELL GC30U series: AC/DC Battery-Charging Power Adapter - GC30U-6P1J

    MEAN WELL GC30U-6P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 28.6 V at no load, with 1.04 A rated current and 30 W catalogue-rated power. It has an attached USA-type two-pin AC cord. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30U Datasheet (PDF) The GC30U section is on PDF pages 5, 6. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30U-6P1J; safety-model designation GC30U-6. DC output voltage 28.6 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 1.04 A; operating current range 0–1.04 A. Rated output power 30 W, as specified for this exact model. Charging voltage range 27.1–28.8 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 150 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 80% at 115 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Attached USA-type two-pin AC power cord; Class II, without an earth pin. AC cord / inlet configuration Confirm the required AC cord length for the supplied configuration when ordering. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 115 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 6: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 18 AWG; 1830 ±50 mm, according to the mechanical drawing for 28.6 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 405 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed UL 62368-1; CSA C22.2; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission FCC Part 15 Class B; EAC TP TC 020. EMC immunity EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2022-04-15 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 115 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  • GC30U-5P1J

    MEAN WELL GC30U series: AC/DC Battery-Charging Power Adapter - GC30U-5P1J

    MEAN WELL GC30U-5P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 16.8 V at no load, with 1.6 A rated current and 27 W catalogue-rated power. It has an attached USA-type two-pin AC cord. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30U Datasheet (PDF) The GC30U section is on PDF pages 5, 6. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30U-5P1J; safety-model designation GC30U-5. DC output voltage 16.8 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 1.6 A; operating current range 0–1.6 A. Rated output power 27 W, as specified for this exact model. Charging voltage range 16–17 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 100 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 78% at 115 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Attached USA-type two-pin AC power cord; Class II, without an earth pin. AC cord / inlet configuration Confirm the required AC cord length for the supplied configuration when ordering. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 115 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 6: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 18 AWG; 1830 ±50 mm, according to the mechanical drawing for 16.8 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 405 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed UL 62368-1; CSA C22.2; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission FCC Part 15 Class B; EAC TP TC 020. EMC immunity EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2022-04-15 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 115 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  • GC30U-4P1J

    MEAN WELL GC30U series: AC/DC Battery-Charging Power Adapter - GC30U-4P1J

    MEAN WELL GC30U-4P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 14.3 V at no load, with 2.09 A rated current and 30 W catalogue-rated power. It has an attached USA-type two-pin AC cord. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30U Datasheet (PDF) The GC30U section is on PDF pages 5, 6. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30U-4P1J; safety-model designation GC30U-4. DC output voltage 14.3 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 2.09 A; operating current range 0–2.09 A. Rated output power 30 W, as specified for this exact model. Charging voltage range 13.5–14.5 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 100 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 78% at 115 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Attached USA-type two-pin AC power cord; Class II, without an earth pin. AC cord / inlet configuration Confirm the required AC cord length for the supplied configuration when ordering. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 115 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 6: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 18 AWG; 1830 ±50 mm, according to the mechanical drawing for 14.3 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 405 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed UL 62368-1; CSA C22.2; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission FCC Part 15 Class B; EAC TP TC 020. EMC immunity EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2022-04-15 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 115 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  • GC30U-2P1J

    MEAN WELL GC30U series: AC/DC Battery-Charging Power Adapter - GC30U-2P1J

    MEAN WELL GC30U-2P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 8.4 V at no load, with 3 A rated current and 25.2 W catalogue-rated power. It has an attached USA-type two-pin AC cord. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30U Datasheet (PDF) The GC30U section is on PDF pages 5, 6. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30U-2P1J; safety-model designation GC30U-2. DC output voltage 8.4 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 3 A; operating current range 0–3 A. Rated output power 25.2 W, as specified for this exact model. Charging voltage range 7.7–8.6 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 80 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 76% at 115 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Attached USA-type two-pin AC power cord; Class II, without an earth pin. AC cord / inlet configuration Confirm the required AC cord length for the supplied configuration when ordering. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 115 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 6: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 16 AWG; 1230 ±50 mm, according to the mechanical drawing for 8.4 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 405 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed UL 62368-1; CSA C22.2; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission FCC Part 15 Class B; EAC TP TC 020. EMC immunity EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2022-04-15 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 115 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  • GC30U-11P1J

    MEAN WELL GC30U series: AC/DC Battery-Charging Power Adapter - GC30U-11P1J

    MEAN WELL GC30U-11P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 7.2 V at no load, with 3 A rated current and 21.6 W catalogue-rated power. It has an attached USA-type two-pin AC cord. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30U Datasheet (PDF) The GC30U section is on PDF pages 5, 6. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30U-11P1J; safety-model designation GC30U-11. DC output voltage 7.2 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 3 A; operating current range 0–3 A. Rated output power 21.6 W, as specified for this exact model. Charging voltage range 6.5–7.5 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 80 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 74% at 115 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Attached USA-type two-pin AC power cord; Class II, without an earth pin. AC cord / inlet configuration Confirm the required AC cord length for the supplied configuration when ordering. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 115 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 6: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 16 AWG; 1230 ±50 mm, according to the mechanical drawing for 7.2 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 405 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed UL 62368-1; CSA C22.2; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission FCC Part 15 Class B; EAC TP TC 020. EMC immunity EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2022-04-15 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 115 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  • GC30U-1P1J

    MEAN WELL GC30U series: AC/DC Battery-Charging Power Adapter - GC30U-1P1J

    MEAN WELL GC30U-1P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 5.6 V at no load, with 3.99 A rated current and 22.38 W catalogue-rated power. It has an attached USA-type two-pin AC cord. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30U Datasheet (PDF) The GC30U section is on PDF pages 5, 6. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30U-1P1J; safety-model designation GC30U-1. DC output voltage 5.6 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 3.99 A; operating current range 0–3.99 A. Rated output power 22.38 W, as specified for this exact model. Charging voltage range 5–5.8 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 50 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 70% at 115 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Attached USA-type two-pin AC power cord; Class II, without an earth pin. AC cord / inlet configuration Confirm the required AC cord length for the supplied configuration when ordering. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 115 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 6: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 16 AWG; 1230 ±50 mm, according to the mechanical drawing for 5.6 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 405 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed UL 62368-1; CSA C22.2; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission FCC Part 15 Class B; EAC TP TC 020. EMC immunity EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2022-04-15 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 115 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  • GC30U-0P1J

    MEAN WELL GC30U series: AC/DC Battery-Charging Power Adapter - GC30U-0P1J

    MEAN WELL GC30U-0P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 4.2 V at no load, with 4 A rated current and 16.8 W catalogue-rated power. It has an attached USA-type two-pin AC cord. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30U Datasheet (PDF) The GC30U section is on PDF pages 5, 6. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30U-0P1J; safety-model designation GC30U-0. DC output voltage 4.2 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 4 A; operating current range 0–4 A. Rated output power 16.8 W, as specified for this exact model. Charging voltage range 3.6–4.4 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 50 mVp-p. Line regulation ±1.0%; measured from low to high input line at rated load. Typical efficiency 55% at 115 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Attached USA-type two-pin AC power cord; Class II, without an earth pin. AC cord / inlet configuration Confirm the required AC cord length for the supplied configuration when ordering. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 115 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 6: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 16 AWG; 1230 ±50 mm, according to the mechanical drawing for 4.2 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 405 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed UL 62368-1; CSA C22.2; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission FCC Part 15 Class B; EAC TP TC 020. EMC immunity EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2022-04-15 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 115 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  • GC30B-6P1J

    MEAN WELL GC30B series: AC/DC Battery-Charging Power Adapter - GC30B-6P1J

    MEAN WELL GC30B-6P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 28.6 V at no load, with 1.04 A rated current and 30 W catalogue-rated power. It uses a two-pole IEC 320-C8 inlet. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30B Datasheet (PDF) The GC30B section is on PDF pages 1, 2. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30B-6P1J; safety-model designation GC30B-6. DC output voltage 28.6 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 1.04 A; operating current range 0–1.04 A. Rated output power 30 W, as specified for this exact model. Charging voltage range 27.1–28.8 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 150 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 80% at 230 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Two-pole IEC 320-C8 AC inlet; Class II, without an earth pin. AC cord / inlet configuration Select a suitable mains lead for the IEC 320-C8 inlet; no mains-lead part number or inclusion is stated in these pages. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 230 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 2: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 18 AWG; 1830 ±50 mm, according to the mechanical drawing for 28.6 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 309 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed UL 62368-1; CSA C22.2; TUV BS EN/EN 62368-1; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN 55014-1 Class B; FCC Part 15 Class B; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6 and -11; light-industry level, criterion A; EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2025-01-23 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 230 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  • GC30B-5P1J

    MEAN WELL GC30B series: AC/DC Battery-Charging Power Adapter - GC30B-5P1J

    MEAN WELL GC30B-5P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 16.8 V at no load, with 1.6 A rated current and 27 W catalogue-rated power. It uses a two-pole IEC 320-C8 inlet. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30B Datasheet (PDF) The GC30B section is on PDF pages 1, 2. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30B-5P1J; safety-model designation GC30B-5. DC output voltage 16.8 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 1.6 A; operating current range 0–1.6 A. Rated output power 27 W, as specified for this exact model. Charging voltage range 16–17 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 100 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 78% at 230 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Two-pole IEC 320-C8 AC inlet; Class II, without an earth pin. AC cord / inlet configuration Select a suitable mains lead for the IEC 320-C8 inlet; no mains-lead part number or inclusion is stated in these pages. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 230 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 2: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 18 AWG; 1830 ±50 mm, according to the mechanical drawing for 16.8 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 309 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed UL 62368-1; CSA C22.2; TUV BS EN/EN 62368-1; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN 55014-1 Class B; FCC Part 15 Class B; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6 and -11; light-industry level, criterion A; EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2025-01-23 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 230 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  • GC30B-4P1J

    MEAN WELL GC30B series: AC/DC Battery-Charging Power Adapter - GC30B-4P1J

    MEAN WELL GC30B-4P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 14.3 V at no load, with 2.09 A rated current and 30 W catalogue-rated power. It uses a two-pole IEC 320-C8 inlet. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30B Datasheet (PDF) The GC30B section is on PDF pages 1, 2. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30B-4P1J; safety-model designation GC30B-4. DC output voltage 14.3 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 2.09 A; operating current range 0–2.09 A. Rated output power 30 W, as specified for this exact model. Charging voltage range 13.5–14.5 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 100 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 78% at 230 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Two-pole IEC 320-C8 AC inlet; Class II, without an earth pin. AC cord / inlet configuration Select a suitable mains lead for the IEC 320-C8 inlet; no mains-lead part number or inclusion is stated in these pages. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 230 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 2: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 18 AWG; 1830 ±50 mm, according to the mechanical drawing for 14.3 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 309 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed UL 62368-1; CSA C22.2; TUV BS EN/EN 62368-1; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN 55014-1 Class B; FCC Part 15 Class B; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6 and -11; light-industry level, criterion A; EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2025-01-23 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 230 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  • GC30B-2P1J

    MEAN WELL GC30B series: AC/DC Battery-Charging Power Adapter - GC30B-2P1J

    MEAN WELL GC30B-2P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 8.4 V at no load, with 3 A rated current and 25.2 W catalogue-rated power. It uses a two-pole IEC 320-C8 inlet. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30B Datasheet (PDF) The GC30B section is on PDF pages 1, 2. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30B-2P1J; safety-model designation GC30B-2. DC output voltage 8.4 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 3 A; operating current range 0–3 A. Rated output power 25.2 W, as specified for this exact model. Charging voltage range 7.7–8.6 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 80 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 76% at 230 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Two-pole IEC 320-C8 AC inlet; Class II, without an earth pin. AC cord / inlet configuration Select a suitable mains lead for the IEC 320-C8 inlet; no mains-lead part number or inclusion is stated in these pages. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 230 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 2: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 16 AWG; 1230 ±50 mm, according to the mechanical drawing for 8.4 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 309 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed UL 62368-1; CSA C22.2; TUV BS EN/EN 62368-1; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN 55014-1 Class B; FCC Part 15 Class B; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6 and -11; light-industry level, criterion A; EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2025-01-23 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 230 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  • GC30B-11P1J

    MEAN WELL GC30B series: AC/DC Battery-Charging Power Adapter - GC30B-11P1J

    MEAN WELL GC30B-11P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 7.2 V at no load, with 3 A rated current and 21.6 W catalogue-rated power. It uses a two-pole IEC 320-C8 inlet. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30B Datasheet (PDF) The GC30B section is on PDF pages 1, 2. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30B-11P1J; safety-model designation GC30B-11. DC output voltage 7.2 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 3 A; operating current range 0–3 A. Rated output power 21.6 W, as specified for this exact model. Charging voltage range 6.5–7.5 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 80 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 74% at 230 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Two-pole IEC 320-C8 AC inlet; Class II, without an earth pin. AC cord / inlet configuration Select a suitable mains lead for the IEC 320-C8 inlet; no mains-lead part number or inclusion is stated in these pages. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 230 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 2: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 16 AWG; 1230 ±50 mm, according to the mechanical drawing for 7.2 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 309 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed UL 62368-1; CSA C22.2; TUV BS EN/EN 62368-1; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN 55014-1 Class B; FCC Part 15 Class B; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6 and -11; light-industry level, criterion A; EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2025-01-23 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 230 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  • GC30B-1P1J

    MEAN WELL GC30B series: AC/DC Battery-Charging Power Adapter - GC30B-1P1J

    MEAN WELL GC30B-1P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 5.6 V at no load, with 3.99 A rated current and 22.38 W catalogue-rated power. It uses a two-pole IEC 320-C8 inlet. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30B Datasheet (PDF) The GC30B section is on PDF pages 1, 2. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30B-1P1J; safety-model designation GC30B-1. DC output voltage 5.6 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 3.99 A; operating current range 0–3.99 A. Rated output power 22.38 W, as specified for this exact model. Charging voltage range 5–5.8 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 50 mVp-p. Line regulation ±0.5%; measured from low to high input line at rated load. Typical efficiency 70% at 230 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Two-pole IEC 320-C8 AC inlet; Class II, without an earth pin. AC cord / inlet configuration Select a suitable mains lead for the IEC 320-C8 inlet; no mains-lead part number or inclusion is stated in these pages. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 230 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 2: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 16 AWG; 1230 ±50 mm, according to the mechanical drawing for 5.6 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 309 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed UL 62368-1; CSA C22.2; TUV BS EN/EN 62368-1; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN 55014-1 Class B; FCC Part 15 Class B; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6 and -11; light-industry level, criterion A; EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2025-01-23 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 230 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.

  • GC30B-0P1J

    MEAN WELL GC30B series: AC/DC Battery-Charging Power Adapter - GC30B-0P1J

    MEAN WELL GC30B-0P1J is a Class II AC/DC power adapter with a two-stage constant-current/constant-voltage battery-charging function. Its output is set to 4.2 V at no load, with 4 A rated current and 16.8 W catalogue-rated power. It uses a two-pole IEC 320-C8 inlet. The P1J DC output is center positive; select the charger to match the battery’s required charging conditions. Product Datasheet Download MEAN WELL GC30B Datasheet (PDF) The GC30B section is on PDF pages 1, 2. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific Charging Output Complete ordering code GC30B-0P1J; safety-model designation GC30B-0. DC output voltage 4.2 V set point, measured at the output plug with no load; this is not a nominal battery-voltage designation. Rated output current 4 A; operating current range 0–4 A. Rated output power 16.8 W, as specified for this exact model. Charging voltage range 3.6–4.4 V across 0–100% rated load; this is the charging operating range, not a user-adjustment range. Ripple and noise, maximum 50 mVp-p. Line regulation ±1.0%; measured from low to high input line at rated load. Typical efficiency 55% at 230 VAC, rated load and the stated test ambient. Choose the charger by the battery manufacturer’s required charge voltage, current, chemistry and protection arrangement. The catalogue lists flooded, gel and AGM lead-acid batteries and Li-ion types described as lithium iron and lithium manganese; a modified charging specification may be required for the actual battery. Confirm that specification with the battery supplier and MEAN WELL. Charging Sequence and Status Stage 1 Constant-current charging: current is limited while battery voltage rises toward the set voltage. Stage 2 Constant-voltage operation: voltage remains near the set value while current tapers; the charging graph labels the low-current region float charging. Two-colour LED Red: charging; green: float charging. The specification gives red ON above 250 mA and green ON below 100 mA. Continuous-load use The catalogue identifies suitability for continuous loads and equipment with high surge demand; respect the exact model ratings and derating. The current thresholds are indicator conditions, not a universal battery state-of-charge measurement. No maximum charging time or guaranteed surge duration is specified for this model. Input and Timing Input voltage 90–264 VAC or 127–370 VDC; full-range input. Input frequency 47–63 Hz. AC connection Two-pole IEC 320-C8 AC inlet; Class II, without an earth pin. AC cord / inlet configuration Select a suitable mains lead for the IEC 320-C8 inlet; no mains-lead part number or inclusion is stated in these pages. AC input current 0.7 A at 100 VAC; 0.35 A at 230 VAC. Inrush current, maximum 40 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. No-load power consumption Less than 1.0 W. Set-up / rise / hold-up time 200 / 50 / 16 ms at full load; the default specification test input for this version is 230 VAC. Protection Functions Short circuit / overload Constant-current limiting with automatic recovery after the fault is removed. The overload entry lists 90–110% in constant-current mode and over 300% in pulsing mode. Overvoltage 110–135% of rated output voltage; clamping by a Zener diode. Overtemperature IC1 junction temperature Tj above 130°C triggers output shutdown; automatic recovery after temperature falls. The pulsing-mode percentage is a protection characteristic, not a continuous output or timed peak-power rating. The 130°C threshold is an internal semiconductor junction temperature, not the permitted ambient temperature. Environment and Derating Working temperature 0°C to +50°C, with load derating. Thermal load curve 100% load from 0°C to +40°C; reduce to 70% at +50°C. Apply the plotted curve between these points. Input-voltage load curve Full load within the specified 90–264 VAC range before applying temperature derating. Cooling Natural convection; keep the enclosed case and surrounding air path unobstructed. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20°C to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes each along X, Y and Z. Dimensions, Output Plug and Configuration Specified body dimensions, L × W × H 108 × 67 × 36 mm; fully enclosed plastic case. Mechanical drawing Physical catalogue page 2: body layout, cable exits, power LED and four rubber feet. Allow for the attached cable and connector beyond the body dimensions. Standard output connector P1J tuning-fork barrel plug; 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm barrel length. Output polarity Center positive (+); outer barrel negative (−). Model-specific DC cable UL1185 16 AWG; 1230 ±50 mm, according to the mechanical drawing for 4.2 V output. Other connector / cable configurations Available by customer request. Specify the required plug, polarity and cable arrangement before ordering a different configuration. Catalogue packing reference per unit 309 g; this is the stated unit reference, not the carton total or an independently measured shipping weight. Match the mating socket’s dimensions, polarity and current capability to this P1J output. Additional plug, cable and battery-interface parts must be specified for the intended assembly; the P1J ordering code does not identify an extra adapter kit. Catalogue Safety and EMC Insulation class Class II, without an earth pin. Safety standards listed UL 62368-1; CSA C22.2; TUV BS EN/EN 62368-1; EAC TP TC 004. Input-to-output dielectric withstand 3 kVAC. Input-to-output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN 55014-1 Class B; FCC Part 15 Class B; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6 and -11; light-industry level, criterion A; EAC TP TC 020. Catalogue warranty 2 years. These statements describe the 2025-01-23 catalogue specification for this adapter version. Battery compatibility and the compliance of the completed equipment depend on its actual installation and configuration. Measurement Conditions Unless a parameter states otherwise, the catalogue uses 230 VAC input, rated load, 25°C and 70% RH ambient. The DC set voltage is measured at the plug terminals at 0% load; the charging voltage range is measured from 0% to 100% rated load. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors.
