  MEAN WELL GST36B series: Desktop AC/DC Power Adapter - GST36B05-P1J

  MEAN WELL GST36B05-P1J supplies 5 VDC at up to 4.3 A, with a 21.5 W maximum catalogue output rating. This Class II desktop adapter uses an IEC320-C8 two-pole AC inlet and a P1J center-positive DC plug. Apply the input and ambient derating limits below. Product Datasheet Download MEAN WELL GST36B Datasheet (PDF) The GST36B section is on PDF pages 41, 42, 43, 44, 45. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GST36B05-P1J. Series and format GST36B single-output desktop AC/DC adapter; Class II without FG. Output voltage 5 VDC. Rated current / operating range 4.3 A rated; 0–4.3 A range. Rated output power, maximum 21.5 W, subject to input and temperature derating. Ripple and noise, maximum 90 mVp-p. Voltage tolerance / load regulation ±5.0% / ±5.0%. Line regulation ±1.0%. Efficiency, typical 82%. Model code GST36B identifies the series and AC-input format; 05 identifies the 5 V output; P1J identifies the standard DC plug. Choose the load to stay within the voltage, current and maximum-power ratings together. The output-voltage setting is measured at the DC plug terminal with 50% load. Input, Timing and Energy AC input 85–264 VAC; 47–63 Hz. AC connection IEC320-C8 two-pole AC inlet. Input current 0.8 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, maximum 35 A at 115 VAC; 70 A at 230 VAC. Leakage current, maximum 0.25 mA at 240 VAC. Start-up and hold-up At full load: 230 VAC, 1000 / 30 / 50 ms; 115 VAC, 1500 / 30 / 13 ms (set-up / rise / hold-up). No-load power consumption <0.075 W. Energy efficiency Level VI; EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5. Select a suitable mains lead for the C8 inlet and the local outlet. Confirm AC-cord supply with the order; the series datasheet does not specify a supplied mains lead. Protection Short circuit / overload 110–150% of rated output power; hiccup mode with automatic recovery after removal of the fault. Overvoltage 110–140% of rated output voltage; zener-diode clamp. Cooling and Environment Working ambient −30 to +70°C, subject to the model-specific derating curve. Temperature derating Full load through 50°C, falling to 50% at 70°C. Operation in the −30 to −20°C portion is specified for 230 VAC input only. Input-voltage curve, 60 Hz 85% load at 85 VAC, rising to 100% at 100 VAC and remaining at 100% through 264 VAC. Operating humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle and 60 minutes along each X, Y and Z axis. Use the temperature and input-voltage limits together. Allow unobstructed heat dissipation around the enclosure; lower input voltage or higher ambient can reduce available output. Mechanical Details and Standard Connections Body dimensions, L × W × H 79 × 54 × 33 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. DC output cable UL2468, 16 AWG; 1000 ±50 mm. Standard DC plug P1J tuning-fork type; 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. DC polarity Center positive (C+); outer contact negative. Catalogue single-unit weight 203 g from the explicit single-unit PACKING entry; this is a catalogue reference rather than a measured shipping weight. Packing 60 pieces / 13.2 kg / 1.15 CUFT. Check the complete mechanical drawing for plug orientation, cable routing and local clearances. Optional DC Connections and Accessories Optional DC-plug customization of the standard cable is subject to a minimum order quantity. Quick-adapter accessories are sold separately without a minimum order quantity. Match voltage, polarity, dimensions and current rating before selecting a connector; an accessory current rating does not increase the adapter output rating. Dimensions below are outside diameter / inside diameter / insertion length in millimetres. Optional tuning-fork types: P1I 5.5 / 2.1 / 9.5 mm; P1L 5.5 / 2.5 / 9.5 mm; P1M 5.5 / 2.5 / 11 mm; P1IR 5.5 / 2.1 / 9.5 mm; P1JR 5.5 / 2.1 / 11 mm; P1LR 5.5 / 2.5 / 9.5 mm; P1MR 5.5 / 2.5 / 11 mm. Types ending in R are right-angled. Quick adapters are listed for the optional tuning-fork types above, each rated 7.5 A maximum. Barrel-style cable options: P2I 5.5 / 2.1 / 9.5 mm; P2J 5.5 / 2.1 / 11 mm; P2L 5.5 / 2.5 / 9.5 mm; P2M 5.5 / 2.5 / 11 mm; P2IR 5.5 / 2.1 / 9.5 mm; P2JR 5.5 / 2.1 / 11 mm; P2LR 5.5 / 2.5 / 9.5 mm; P2MR 5.5 / 2.5 / 11 mm. No quick adapter is listed for these barrel types. Locking cable options, SWITCHCRAFT original or equivalent: P2S(S761K) 5.53 / 2.03 / 12.06 mm; P2K(761K) 5.53 / 2.54 / 12.06 mm; P2C(S760K) 5.53 / 2.03 / 9.52 mm; P2D(760K) 5.53 / 2.54 / 9.52 mm. No quick adapter is listed for these locking types. Mini-pin cable options, EIAJ equivalent: P3A 2.35 / 0.7 / 11 mm; P3B 4 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. Quick adapters are available, rated 5 A maximum. Center-pin cable options, EIAJ equivalent (outside / inside / insertion / center-pin diameter): P4A 5.5 / 3.4 / 11 / 1.0 mm; P4B 6.5 / 4.4 / 11 / 1.4 mm; P4C 7.4 / 5.1 / 11 / 0.6 mm. Quick adapters are available, rated 7.5 A maximum. R6B: Locking mini-DIN 3-pin male; KYCON KPPX-3P equivalent. Pins: 1 +Vo; 2 −Vo; 3 +Vo. Quick adapter available, 7.5 A maximum. R7B: Locking mini-DIN 4-pin male; KYCON KPPX-4P equivalent. Pins: 1 +Vo; 2 −Vo; 3 −Vo; 4 +Vo. Quick adapter available, 7.5 A maximum. R7BF: Locking mini-DIN 4-pin female; KYCON KPJX-CM-4S equivalent. Pins: 1 +Vo; 2 −Vo; 3 −Vo; 4 +Vo. No quick adapter is listed for this type. R1B: DIN 5-pin male. Pins: 1 −Vo; 2 −Vo; 3 +Vo; 4 −Vo; 5 +Vo. Quick adapter available, 7.5 A maximum. Stripped and tinned leads are available by customer request: lead 1 +Vo and lead 2 −Vo. Standard illustrated lengths are L = 25 mm and L1 = 5 mm; other lengths are by request. Red/black colours in the drawing are references only; follow the actual product. No quick adapter is listed for this lead option. Safety and EMC Safety standards listed UL62368-1; CSA C22.2 No.62368-1; TUV BS EN/EN62368-1; BSMI CNS15598-1; CCC GB4943.1; AS/NZS62368.1; PSE J62368-1; BIS IS13252; KC K60950-1; EAC TP TC004. Withstand voltage Input/output: 4242 VDC. Insulation resistance Input/output: 100 MΩ at 500 VDC, 25°C and 70% RH. Conducted and radiated emissions BS EN/EN55032 (CISPR32), FCC Part 15 / CISPR22, CAN ICES-3(B) / NMB-3(B), CNS15936, GB17625.1, EAC TP TC020 and MSIP KN32: Class B conducted and radiated emissions. Limited power source The series is listed as passing LPS requirements. Harmonic current BS EN/EN61000-3-2 and GB9254: Class A. Voltage flicker BS EN/EN61000-3-3. Immunity: BS EN/EN55035. IEC/EN61000-4-2 ESD: level 3, 8 kV air; level 2, 4 kV contact. -4-3 RF: level 2, 3 V/m; -4-4 EFT: level 2, 1 kV; -4-5 surge: level 3, 1 kV line-to-line. -4-6 conducted susceptibility: level 2, 3 V; -4-8 magnetic field: level 2, 3 A/m. -4-11: >95% dip for 0.5 periods, 30% dip for 25 periods and >95% interruption for 250 periods. The adapter is considered an independent unit. Reconfirm whole-system EMC compliance in the final equipment with its actual cable and installation. Reliability and Measurement Notes MTBF, minimum estimates 3838.3 thousand hours, Telcordia SR-332 (Bellcore); 557.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty 3-year manufacturer warranty, subject to applicable terms. Catalogue revision GST36B-SPEC, 2026-04-03; combined PDF pages 41–45. Unless otherwise stated, parameters are specified at 230 VAC input, rated load, 25°C and 70% RH. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Load regulation is measured from 10% to 100% rated load.

  Read more less

  $33.51

  View options

•

  View options

  MEAN WELL GST25E series: Wall-Plug AC/DC Power Adapter - GST25E48-P1J

  MEAN WELL GST25E48-P1J is a single-output wall-plug AC/DC power adapter rated at 48 V, 0.52 A and 25 W maximum. It uses integral two-pole EURO AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25E Datasheet (PDF) The GST25E section is on PDF pages 31, 32, 33, 34, 35. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25E48-P1J. Safety model number GST25E48. DC output voltage 48 V. Rated output current 0.52 A. Output current range 0–0.52 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 150 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Typical efficiency 89%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole EURO AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL1185, 18 AWG, 1800 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 38 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals TUV EN62368-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EU ErP and CoC Version 5. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions EN55032 (CISPR32) and EAC TP TC020: Class B conducted and radiated emissions. Harmonic current EN61000-3-2: Class A. Voltage flicker EN61000-3-3. Immunity standard BS EN/EN55035. Electrostatic discharge IEC/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. Radio-frequency field IEC/EN61000-4-3: Level 2, 3 V/m. Electrical fast transient IEC/EN61000-4-4: Level 2, 1 kV. Surge IEC/EN61000-4-5: Level 3, 1 kV line–line. Conducted RF / magnetic field IEC/EN61000-4-6: Level 2, 3 V; IEC/EN61000-4-8: Level 2, 3 A/m. Voltage dips and interruptions IEC/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 230 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 202.5 g, explicitly listed in PACKING. Carton packing 60 pieces / 13.2 kg / 1.15 CUFT. Catalogue revision GST25E-SPEC, 2026-04-03; combined PDF pages 31–35.

  Read more less

  $31.54

  View options

•

  View options

  MEAN WELL GST25E series: Wall-Plug AC/DC Power Adapter - GST25E28-P1J

  MEAN WELL GST25E28-P1J is a single-output wall-plug AC/DC power adapter rated at 28 V, 0.89 A and 25 W maximum. It uses integral two-pole EURO AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25E Datasheet (PDF) The GST25E section is on PDF pages 31, 32, 33, 34, 35. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25E28-P1J. Safety model number GST25E28. DC output voltage 28 V. Rated output current 0.89 A. Output current range 0–0.89 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 150 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Typical efficiency 88%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole EURO AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL1185, 18 AWG, 1800 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 38 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals TUV EN62368-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EU ErP and CoC Version 5. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions EN55032 (CISPR32) and EAC TP TC020: Class B conducted and radiated emissions. Harmonic current EN61000-3-2: Class A. Voltage flicker EN61000-3-3. Immunity standard BS EN/EN55035. Electrostatic discharge IEC/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. Radio-frequency field IEC/EN61000-4-3: Level 2, 3 V/m. Electrical fast transient IEC/EN61000-4-4: Level 2, 1 kV. Surge IEC/EN61000-4-5: Level 3, 1 kV line–line. Conducted RF / magnetic field IEC/EN61000-4-6: Level 2, 3 V; IEC/EN61000-4-8: Level 2, 3 A/m. Voltage dips and interruptions IEC/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 230 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 202.5 g, explicitly listed in PACKING. Carton packing 60 pieces / 13.2 kg / 1.15 CUFT. Catalogue revision GST25E-SPEC, 2026-04-03; combined PDF pages 31–35.

  Read more less

  $31.54

  View options

•

  View options

  MEAN WELL GST25E series: Wall-Plug AC/DC Power Adapter - GST25E24-P1J

  MEAN WELL GST25E24-P1J is a single-output wall-plug AC/DC power adapter rated at 24 V, 1.04 A and 25 W maximum. It uses integral two-pole EURO AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25E Datasheet (PDF) The GST25E section is on PDF pages 31, 32, 33, 34, 35. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25E24-P1J. Safety model number GST25E24. DC output voltage 24 V. Rated output current 1.04 A. Output current range 0–1.04 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 150 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Typical efficiency 88%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole EURO AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL1185, 18 AWG, 1800 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 38 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals TUV EN62368-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EU ErP and CoC Version 5. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions EN55032 (CISPR32) and EAC TP TC020: Class B conducted and radiated emissions. Harmonic current EN61000-3-2: Class A. Voltage flicker EN61000-3-3. Immunity standard BS EN/EN55035. Electrostatic discharge IEC/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. Radio-frequency field IEC/EN61000-4-3: Level 2, 3 V/m. Electrical fast transient IEC/EN61000-4-4: Level 2, 1 kV. Surge IEC/EN61000-4-5: Level 3, 1 kV line–line. Conducted RF / magnetic field IEC/EN61000-4-6: Level 2, 3 V; IEC/EN61000-4-8: Level 2, 3 A/m. Voltage dips and interruptions IEC/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 230 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 202.5 g, explicitly listed in PACKING. Carton packing 60 pieces / 13.2 kg / 1.15 CUFT. Catalogue revision GST25E-SPEC, 2026-04-03; combined PDF pages 31–35.

  Read more less

  $31.54

  View options

•

  View options

  MEAN WELL GST25E series: Wall-Plug AC/DC Power Adapter - GST25E18-P1J

  MEAN WELL GST25E18-P1J is a single-output wall-plug AC/DC power adapter rated at 18 V, 1.38 A and 25 W maximum. It uses integral two-pole EURO AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25E Datasheet (PDF) The GST25E section is on PDF pages 31, 32, 33, 34, 35. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25E18-P1J. Safety model number GST25E18. DC output voltage 18 V. Rated output current 1.38 A. Output current range 0–1.38 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 100 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Typical efficiency 87%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole EURO AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL1185, 18 AWG, 1800 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 38 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals TUV EN62368-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EU ErP and CoC Version 5. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions EN55032 (CISPR32) and EAC TP TC020: Class B conducted and radiated emissions. Harmonic current EN61000-3-2: Class A. Voltage flicker EN61000-3-3. Immunity standard BS EN/EN55035. Electrostatic discharge IEC/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. Radio-frequency field IEC/EN61000-4-3: Level 2, 3 V/m. Electrical fast transient IEC/EN61000-4-4: Level 2, 1 kV. Surge IEC/EN61000-4-5: Level 3, 1 kV line–line. Conducted RF / magnetic field IEC/EN61000-4-6: Level 2, 3 V; IEC/EN61000-4-8: Level 2, 3 A/m. Voltage dips and interruptions IEC/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 230 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 202.5 g, explicitly listed in PACKING. Carton packing 60 pieces / 13.2 kg / 1.15 CUFT. Catalogue revision GST25E-SPEC, 2026-04-03; combined PDF pages 31–35.

  Read more less

  $31.54

  View options

•

  View options

  MEAN WELL GST25E series: Wall-Plug AC/DC Power Adapter - GST25E15-P1J

  MEAN WELL GST25E15-P1J is a single-output wall-plug AC/DC power adapter rated at 15 V, 1.66 A and 25 W maximum. It uses integral two-pole EURO AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25E Datasheet (PDF) The GST25E section is on PDF pages 31, 32, 33, 34, 35. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25E15-P1J. Safety model number GST25E15. DC output voltage 15 V. Rated output current 1.66 A. Output current range 0–1.66 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 100 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Typical efficiency 87%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole EURO AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL1185, 18 AWG, 1800 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 38 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals TUV EN62368-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EU ErP and CoC Version 5. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions EN55032 (CISPR32) and EAC TP TC020: Class B conducted and radiated emissions. Harmonic current EN61000-3-2: Class A. Voltage flicker EN61000-3-3. Immunity standard BS EN/EN55035. Electrostatic discharge IEC/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. Radio-frequency field IEC/EN61000-4-3: Level 2, 3 V/m. Electrical fast transient IEC/EN61000-4-4: Level 2, 1 kV. Surge IEC/EN61000-4-5: Level 3, 1 kV line–line. Conducted RF / magnetic field IEC/EN61000-4-6: Level 2, 3 V; IEC/EN61000-4-8: Level 2, 3 A/m. Voltage dips and interruptions IEC/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 230 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 202.5 g, explicitly listed in PACKING. Carton packing 60 pieces / 13.2 kg / 1.15 CUFT. Catalogue revision GST25E-SPEC, 2026-04-03; combined PDF pages 31–35.

  Read more less

  $31.54

  View options

•

  View options

  MEAN WELL GST25E series: Wall-Plug AC/DC Power Adapter - GST25E12-P1J

  MEAN WELL GST25E12-P1J is a single-output wall-plug AC/DC power adapter rated at 12 V, 2.08 A and 25 W maximum. It uses integral two-pole EURO AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25E Datasheet (PDF) The GST25E section is on PDF pages 31, 32, 33, 34, 35. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25E12-P1J. Safety model number GST25E12. DC output voltage 12 V. Rated output current 2.08 A. Output current range 0–2.08 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 80 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Typical efficiency 86.5%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole EURO AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL2468, 16 AWG, 1000 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 38 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. For this 5–12 V cable arrangement, an additional filter is shown near the adapter body with a 35 ±10 mm reference distance. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals TUV EN62368-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EU ErP and CoC Version 5. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions EN55032 (CISPR32) and EAC TP TC020: Class B conducted and radiated emissions. Harmonic current EN61000-3-2: Class A. Voltage flicker EN61000-3-3. Immunity standard BS EN/EN55035. Electrostatic discharge IEC/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. Radio-frequency field IEC/EN61000-4-3: Level 2, 3 V/m. Electrical fast transient IEC/EN61000-4-4: Level 2, 1 kV. Surge IEC/EN61000-4-5: Level 3, 1 kV line–line. Conducted RF / magnetic field IEC/EN61000-4-6: Level 2, 3 V; IEC/EN61000-4-8: Level 2, 3 A/m. Voltage dips and interruptions IEC/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 230 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 202.5 g, explicitly listed in PACKING. Carton packing 60 pieces / 13.2 kg / 1.15 CUFT. Catalogue revision GST25E-SPEC, 2026-04-03; combined PDF pages 31–35.

  Read more less

  $31.54

  View options

•

  View options

  MEAN WELL GST25E series: Wall-Plug AC/DC Power Adapter - GST25E09-P1J

  MEAN WELL GST25E09-P1J is a single-output wall-plug AC/DC power adapter rated at 9 V, 2.55 A and 23 W maximum. It uses integral two-pole EURO AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25E Datasheet (PDF) The GST25E section is on PDF pages 31, 32, 33, 34, 35. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25E09-P1J. Safety model number GST25E09. DC output voltage 9 V. Rated output current 2.55 A. Output current range 0–2.55 A. Maximum rated output power 23 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 80 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Typical efficiency 85%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole EURO AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL2468, 16 AWG, 1000 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 38 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. For this 5–12 V cable arrangement, an additional filter is shown near the adapter body with a 35 ±10 mm reference distance. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals TUV EN62368-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EU ErP and CoC Version 5. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions EN55032 (CISPR32) and EAC TP TC020: Class B conducted and radiated emissions. Harmonic current EN61000-3-2: Class A. Voltage flicker EN61000-3-3. Immunity standard BS EN/EN55035. Electrostatic discharge IEC/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. Radio-frequency field IEC/EN61000-4-3: Level 2, 3 V/m. Electrical fast transient IEC/EN61000-4-4: Level 2, 1 kV. Surge IEC/EN61000-4-5: Level 3, 1 kV line–line. Conducted RF / magnetic field IEC/EN61000-4-6: Level 2, 3 V; IEC/EN61000-4-8: Level 2, 3 A/m. Voltage dips and interruptions IEC/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 230 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 202.5 g, explicitly listed in PACKING. Carton packing 60 pieces / 13.2 kg / 1.15 CUFT. Catalogue revision GST25E-SPEC, 2026-04-03; combined PDF pages 31–35.

  Read more less

  $31.54

  View options

•

  View options

  MEAN WELL GST25E series: Wall-Plug AC/DC Power Adapter - GST25E07-P1J

  MEAN WELL GST25E07-P1J is a single-output wall-plug AC/DC power adapter rated at 7.5 V, 2.93 A and 22 W maximum. It uses integral two-pole EURO AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25E Datasheet (PDF) The GST25E section is on PDF pages 31, 32, 33, 34, 35. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25E07-P1J. Safety model number GST25E07. DC output voltage 7.5 V. Rated output current 2.93 A. Output current range 0–2.93 A. Maximum rated output power 22 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 80 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Typical efficiency 84.5%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole EURO AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL2468, 16 AWG, 1000 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 38 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. For this 5–12 V cable arrangement, an additional filter is shown near the adapter body with a 35 ±10 mm reference distance. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals TUV EN62368-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EU ErP and CoC Version 5. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions EN55032 (CISPR32) and EAC TP TC020: Class B conducted and radiated emissions. Harmonic current EN61000-3-2: Class A. Voltage flicker EN61000-3-3. Immunity standard BS EN/EN55035. Electrostatic discharge IEC/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. Radio-frequency field IEC/EN61000-4-3: Level 2, 3 V/m. Electrical fast transient IEC/EN61000-4-4: Level 2, 1 kV. Surge IEC/EN61000-4-5: Level 3, 1 kV line–line. Conducted RF / magnetic field IEC/EN61000-4-6: Level 2, 3 V; IEC/EN61000-4-8: Level 2, 3 A/m. Voltage dips and interruptions IEC/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 230 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 202.5 g, explicitly listed in PACKING. Carton packing 60 pieces / 13.2 kg / 1.15 CUFT. Catalogue revision GST25E-SPEC, 2026-04-03; combined PDF pages 31–35.

  Read more less

  $31.54

  View options

•

  View options

  MEAN WELL GST25E series: Wall-Plug AC/DC Power Adapter - GST25E05-P1J

  MEAN WELL GST25E05-P1J is a single-output wall-plug AC/DC power adapter rated at 5 V, 4.0 A and 20 W maximum. It uses integral two-pole EURO AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25E Datasheet (PDF) The GST25E section is on PDF pages 31, 32, 33, 34, 35. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25E05-P1J. Safety model number GST25E05. DC output voltage 5 V. Rated output current 4.0 A. Output current range 0–4.0 A. Maximum rated output power 20 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 80 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Typical efficiency 81.5%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole EURO AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL2468, 16 AWG, 1000 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 38 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. For this 5–12 V cable arrangement, an additional filter is shown near the adapter body with a 35 ±10 mm reference distance. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals TUV EN62368-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EU ErP and CoC Version 5. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions EN55032 (CISPR32) and EAC TP TC020: Class B conducted and radiated emissions. Harmonic current EN61000-3-2: Class A. Voltage flicker EN61000-3-3. Immunity standard BS EN/EN55035. Electrostatic discharge IEC/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. Radio-frequency field IEC/EN61000-4-3: Level 2, 3 V/m. Electrical fast transient IEC/EN61000-4-4: Level 2, 1 kV. Surge IEC/EN61000-4-5: Level 3, 1 kV line–line. Conducted RF / magnetic field IEC/EN61000-4-6: Level 2, 3 V; IEC/EN61000-4-8: Level 2, 3 A/m. Voltage dips and interruptions IEC/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 230 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 202.5 g, explicitly listed in PACKING. Carton packing 60 pieces / 13.2 kg / 1.15 CUFT. Catalogue revision GST25E-SPEC, 2026-04-03; combined PDF pages 31–35.

  Read more less

  $31.54

  View options

•

  View options

  MEAN WELL GST25U series: Wall-Plug AC/DC Power Adapter - GST25U48-P1J

  MEAN WELL GST25U48-P1J is a single-output wall-plug AC/DC power adapter rated at 48 V, 0.52 A and 25 W maximum. It uses integral two-pole USA AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25U Datasheet (PDF) The GST25U section is on PDF pages 36, 37, 38, 39, 40. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25U48-P1J. Safety model number GST25U48. DC output voltage 48 V. Rated output current 0.52 A. Output current range 0–0.52 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 150 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Typical efficiency 89%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole USA AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL1185, 18 AWG, 1800 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 17 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals UL62368-1; CSA C22.2 No. 62368-1; BSMI CNS15598-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EISA 2007 / DoE and Canada NRCan. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions FCC Part 15 / CISPR22, CAN ICES-3(B) / NMB-3(B), CNS15936 and EAC TP TC020: Class B conducted and radiated emissions. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 115 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 198 g, explicitly listed in PACKING. Carton packing 60 pieces / 12.9 kg / 1.15 CUFT. Catalogue revision GST25U-SPEC, 2026-04-03; combined PDF pages 36–40.

  Read more less

  $31.54

  View options

•

  View options

  MEAN WELL GST25U series: Wall-Plug AC/DC Power Adapter - GST25U28-P1J

  MEAN WELL GST25U28-P1J is a single-output wall-plug AC/DC power adapter rated at 28 V, 0.89 A and 25 W maximum. It uses integral two-pole USA AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25U Datasheet (PDF) The GST25U section is on PDF pages 36, 37, 38, 39, 40. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25U28-P1J. Safety model number GST25U28. DC output voltage 28 V. Rated output current 0.89 A. Output current range 0–0.89 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 150 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Typical efficiency 88%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole USA AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL1185, 18 AWG, 1800 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 17 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals UL62368-1; CSA C22.2 No. 62368-1; BSMI CNS15598-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EISA 2007 / DoE and Canada NRCan. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions FCC Part 15 / CISPR22, CAN ICES-3(B) / NMB-3(B), CNS15936 and EAC TP TC020: Class B conducted and radiated emissions. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 115 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 198 g, explicitly listed in PACKING. Carton packing 60 pieces / 12.9 kg / 1.15 CUFT. Catalogue revision GST25U-SPEC, 2026-04-03; combined PDF pages 36–40.

  Read more less

  $31.54

  View options

•

  View options

  MEAN WELL GST25U series: Wall-Plug AC/DC Power Adapter - GST25U24-P1J

  MEAN WELL GST25U24-P1J is a single-output wall-plug AC/DC power adapter rated at 24 V, 1.04 A and 25 W maximum. It uses integral two-pole USA AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25U Datasheet (PDF) The GST25U section is on PDF pages 36, 37, 38, 39, 40. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25U24-P1J. Safety model number GST25U24. DC output voltage 24 V. Rated output current 1.04 A. Output current range 0–1.04 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 150 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Typical efficiency 88%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole USA AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL1185, 18 AWG, 1800 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 17 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals UL62368-1; CSA C22.2 No. 62368-1; BSMI CNS15598-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EISA 2007 / DoE and Canada NRCan. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions FCC Part 15 / CISPR22, CAN ICES-3(B) / NMB-3(B), CNS15936 and EAC TP TC020: Class B conducted and radiated emissions. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 115 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 198 g, explicitly listed in PACKING. Carton packing 60 pieces / 12.9 kg / 1.15 CUFT. Catalogue revision GST25U-SPEC, 2026-04-03; combined PDF pages 36–40.

  Read more less

  $29.08

  View options

•

  View options

  MEAN WELL GST25U series: Wall-Plug AC/DC Power Adapter - GST25U18-P1J

  MEAN WELL GST25U18-P1J is a single-output wall-plug AC/DC power adapter rated at 18 V, 1.38 A and 25 W maximum. It uses integral two-pole USA AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25U Datasheet (PDF) The GST25U section is on PDF pages 36, 37, 38, 39, 40. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25U18-P1J. Safety model number GST25U18. DC output voltage 18 V. Rated output current 1.38 A. Output current range 0–1.38 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 100 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Typical efficiency 87%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole USA AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL1185, 18 AWG, 1800 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 17 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals UL62368-1; CSA C22.2 No. 62368-1; BSMI CNS15598-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EISA 2007 / DoE and Canada NRCan. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions FCC Part 15 / CISPR22, CAN ICES-3(B) / NMB-3(B), CNS15936 and EAC TP TC020: Class B conducted and radiated emissions. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 115 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 198 g, explicitly listed in PACKING. Carton packing 60 pieces / 12.9 kg / 1.15 CUFT. Catalogue revision GST25U-SPEC, 2026-04-03; combined PDF pages 36–40.

  Read more less

  $31.54

  View options

•

  View options

  MEAN WELL GST25U series: Wall-Plug AC/DC Power Adapter - GST25U15-P1J

  MEAN WELL GST25U15-P1J is a single-output wall-plug AC/DC power adapter rated at 15 V, 1.66 A and 25 W maximum. It uses integral two-pole USA AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25U Datasheet (PDF) The GST25U section is on PDF pages 36, 37, 38, 39, 40. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25U15-P1J. Safety model number GST25U15. DC output voltage 15 V. Rated output current 1.66 A. Output current range 0–1.66 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 100 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Typical efficiency 87%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole USA AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL1185, 18 AWG, 1800 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 17 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals UL62368-1; CSA C22.2 No. 62368-1; BSMI CNS15598-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EISA 2007 / DoE and Canada NRCan. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions FCC Part 15 / CISPR22, CAN ICES-3(B) / NMB-3(B), CNS15936 and EAC TP TC020: Class B conducted and radiated emissions. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 115 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 198 g, explicitly listed in PACKING. Carton packing 60 pieces / 12.9 kg / 1.15 CUFT. Catalogue revision GST25U-SPEC, 2026-04-03; combined PDF pages 36–40.

  Read more less

  $31.54

  View options

•

  View options

  MEAN WELL GST25U series: Wall-Plug AC/DC Power Adapter - GST25U12-P1J

  MEAN WELL GST25U12-P1J is a single-output wall-plug AC/DC power adapter rated at 12 V, 2.08 A and 25 W maximum. It uses integral two-pole USA AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25U Datasheet (PDF) The GST25U section is on PDF pages 36, 37, 38, 39, 40. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25U12-P1J. Safety model number GST25U12. DC output voltage 12 V. Rated output current 2.08 A. Output current range 0–2.08 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 80 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Typical efficiency 86.5%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole USA AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL2468, 16 AWG, 1000 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 17 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. For this 5–12 V cable arrangement, an additional filter is shown near the adapter body with a 35 ±10 mm reference distance. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals UL62368-1; CSA C22.2 No. 62368-1; BSMI CNS15598-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EISA 2007 / DoE and Canada NRCan. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions FCC Part 15 / CISPR22, CAN ICES-3(B) / NMB-3(B), CNS15936 and EAC TP TC020: Class B conducted and radiated emissions. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 115 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 198 g, explicitly listed in PACKING. Carton packing 60 pieces / 12.9 kg / 1.15 CUFT. Catalogue revision GST25U-SPEC, 2026-04-03; combined PDF pages 36–40.

  Read more less

  $29.08

  View options

•

  View options

  MEAN WELL GST25U series: Wall-Plug AC/DC Power Adapter - GST25U09-P1J

  MEAN WELL GST25U09-P1J is a single-output wall-plug AC/DC power adapter rated at 9 V, 2.55 A and 23 W maximum. It uses integral two-pole USA AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25U Datasheet (PDF) The GST25U section is on PDF pages 36, 37, 38, 39, 40. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25U09-P1J. Safety model number GST25U09. DC output voltage 9 V. Rated output current 2.55 A. Output current range 0–2.55 A. Maximum rated output power 23 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 80 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Typical efficiency 85%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole USA AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL2468, 16 AWG, 1000 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 17 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. For this 5–12 V cable arrangement, an additional filter is shown near the adapter body with a 35 ±10 mm reference distance. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals UL62368-1; CSA C22.2 No. 62368-1; BSMI CNS15598-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EISA 2007 / DoE and Canada NRCan. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions FCC Part 15 / CISPR22, CAN ICES-3(B) / NMB-3(B), CNS15936 and EAC TP TC020: Class B conducted and radiated emissions. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 115 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 198 g, explicitly listed in PACKING. Carton packing 60 pieces / 12.9 kg / 1.15 CUFT. Catalogue revision GST25U-SPEC, 2026-04-03; combined PDF pages 36–40.

  Read more less

  $31.54

  View options

•

  View options

  MEAN WELL GST25U series: Wall-Plug AC/DC Power Adapter - GST25U07-P1J

  MEAN WELL GST25U07-P1J is a single-output wall-plug AC/DC power adapter rated at 7.5 V, 2.93 A and 22 W maximum. It uses integral two-pole USA AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25U Datasheet (PDF) The GST25U section is on PDF pages 36, 37, 38, 39, 40. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25U07-P1J. Safety model number GST25U07. DC output voltage 7.5 V. Rated output current 2.93 A. Output current range 0–2.93 A. Maximum rated output power 22 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 80 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Typical efficiency 84.5%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole USA AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL2468, 16 AWG, 1000 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 17 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. For this 5–12 V cable arrangement, an additional filter is shown near the adapter body with a 35 ±10 mm reference distance. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals UL62368-1; CSA C22.2 No. 62368-1; BSMI CNS15598-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EISA 2007 / DoE and Canada NRCan. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions FCC Part 15 / CISPR22, CAN ICES-3(B) / NMB-3(B), CNS15936 and EAC TP TC020: Class B conducted and radiated emissions. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 115 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 198 g, explicitly listed in PACKING. Carton packing 60 pieces / 12.9 kg / 1.15 CUFT. Catalogue revision GST25U-SPEC, 2026-04-03; combined PDF pages 36–40.

  Read more less

  $31.54

  View options

•

  View options

  MEAN WELL GST25U series: Wall-Plug AC/DC Power Adapter - GST25U05-P1J

  MEAN WELL GST25U05-P1J is a single-output wall-plug AC/DC power adapter rated at 5 V, 4.0 A and 20 W maximum. It uses integral two-pole USA AC plug and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25U Datasheet (PDF) The GST25U section is on PDF pages 36, 37, 38, 39, 40. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25U05-P1J. Safety model number GST25U05. DC output voltage 5 V. Rated output current 4.0 A. Output current range 0–4.0 A. Maximum rated output power 20 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 80 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Typical efficiency 81.5%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Integral two-pole USA AC plug. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic wall-plug adapter. Body dimensions, L × W × H 79 × 54 × 33 mm; excluding the projecting AC plug. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36. DC output cable UL2468, 16 AWG, 1000 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). AC plug projection 17 mm as shown on the mechanical drawing. The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. For this 5–12 V cable arrangement, an additional filter is shown near the adapter body with a 35 ±10 mm reference distance. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals UL62368-1; CSA C22.2 No. 62368-1; BSMI CNS15598-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EISA 2007 / DoE and Canada NRCan. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions FCC Part 15 / CISPR22, CAN ICES-3(B) / NMB-3(B), CNS15936 and EAC TP TC020: Class B conducted and radiated emissions. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 115 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 198 g, explicitly listed in PACKING. Carton packing 60 pieces / 12.9 kg / 1.15 CUFT. Catalogue revision GST25U-SPEC, 2026-04-03; combined PDF pages 36–40.

  Read more less

  $29.08

  View options

•

  View options

  MEAN WELL GST25B series: Desktop AC/DC Power Adapter - GST25B48-P1J

  MEAN WELL GST25B48-P1J is a single-output desktop AC/DC power adapter rated at 48 V, 0.52 A and 25 W maximum. It uses two-pole IEC 320-C8 AC inlet and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25B Datasheet (PDF) The GST25B section is on PDF pages 26, 27, 28, 29, 30. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25B48-P1J. Safety model number GST25B48. DC output voltage 48 V. Rated output current 0.52 A. Output current range 0–0.52 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 150 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Typical efficiency 89%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Two-pole IEC 320-C8 AC inlet. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic desktop adapter. Body dimensions, L × W × H 79 × 54 × 33 mm. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36B. DC output cable UL1185, 18 AWG, 1800 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals UL62368-1; CSA C22.2 No. 62368-1; TUV BS EN/EN62368-1; BSMI CNS15598-1; CCC GB4943.1; PSE J62368-1; AS/NZS62368.1; BIS IS13252; KC K60950-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EISA 2007 / DoE, Canada NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions BS EN/EN55032 (CISPR32), FCC Part 15 / CISPR22, CAN ICES-3(B) / NMB-3(B), CNS15936, GB17625.1, EAC TP TC020 and MSIP KN32: Class B conducted and radiated emissions. Harmonic current BS EN/EN61000-3-2 and GB9254: Class A. Voltage flicker BS EN/EN61000-3-3. Immunity standard BS EN/EN55035. Electrostatic discharge IEC/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. Radio-frequency field IEC/EN61000-4-3: Level 2, 3 V/m. Electrical fast transient IEC/EN61000-4-4: Level 2, 1 kV. Surge IEC/EN61000-4-5: Level 3, 1 kV line–line. Conducted RF / magnetic field IEC/EN61000-4-6: Level 2, 3 V; IEC/EN61000-4-8: Level 2, 3 A/m. Voltage dips and interruptions IEC/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 230 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 191.5 g, explicitly listed in PACKING. Carton packing 60 pieces / 12.5 kg / 1.15 CUFT. Catalogue revision GST25B-SPEC, 2026-04-03; combined PDF pages 26–30.

  Read more less

  $31.54

  View options

•

  View options

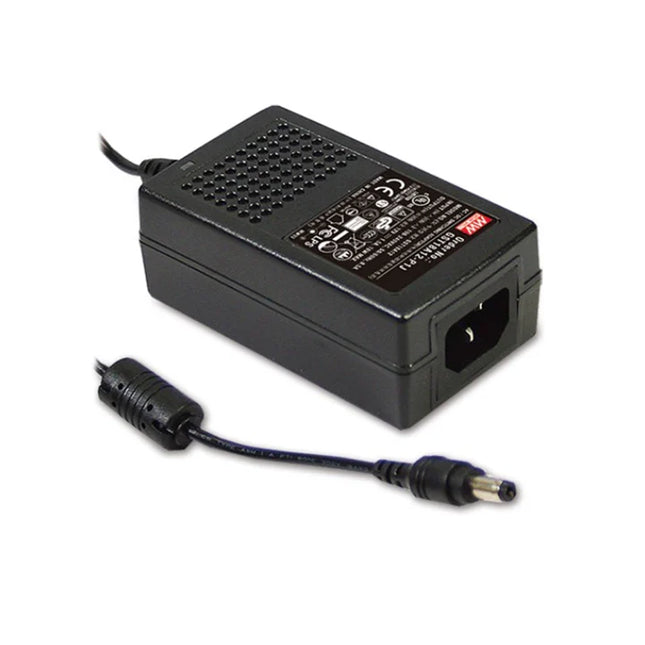

  MEAN WELL GST25B series: Desktop AC/DC Power Adapter - GST25B28-P1J

  MEAN WELL GST25B28-P1J is a single-output desktop AC/DC power adapter rated at 28 V, 0.89 A and 25 W maximum. It uses two-pole IEC 320-C8 AC inlet and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25B Datasheet (PDF) The GST25B section is on PDF pages 26, 27, 28, 29, 30. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25B28-P1J. Safety model number GST25B28. DC output voltage 28 V. Rated output current 0.89 A. Output current range 0–0.89 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 150 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Typical efficiency 88%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Two-pole IEC 320-C8 AC inlet. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic desktop adapter. Body dimensions, L × W × H 79 × 54 × 33 mm. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36B. DC output cable UL1185, 18 AWG, 1800 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals UL62368-1; CSA C22.2 No. 62368-1; TUV BS EN/EN62368-1; BSMI CNS15598-1; CCC GB4943.1; PSE J62368-1; AS/NZS62368.1; BIS IS13252; KC K60950-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EISA 2007 / DoE, Canada NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions BS EN/EN55032 (CISPR32), FCC Part 15 / CISPR22, CAN ICES-3(B) / NMB-3(B), CNS15936, GB17625.1, EAC TP TC020 and MSIP KN32: Class B conducted and radiated emissions. Harmonic current BS EN/EN61000-3-2 and GB9254: Class A. Voltage flicker BS EN/EN61000-3-3. Immunity standard BS EN/EN55035. Electrostatic discharge IEC/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. Radio-frequency field IEC/EN61000-4-3: Level 2, 3 V/m. Electrical fast transient IEC/EN61000-4-4: Level 2, 1 kV. Surge IEC/EN61000-4-5: Level 3, 1 kV line–line. Conducted RF / magnetic field IEC/EN61000-4-6: Level 2, 3 V; IEC/EN61000-4-8: Level 2, 3 A/m. Voltage dips and interruptions IEC/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 230 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 191.5 g, explicitly listed in PACKING. Carton packing 60 pieces / 12.5 kg / 1.15 CUFT. Catalogue revision GST25B-SPEC, 2026-04-03; combined PDF pages 26–30.

  Read more less

  $31.54

  View options

•

  View options

  MEAN WELL GST25B series: Desktop AC/DC Power Adapter - GST25B24-P1J

  MEAN WELL GST25B24-P1J is a single-output desktop AC/DC power adapter rated at 24 V, 1.04 A and 25 W maximum. It uses two-pole IEC 320-C8 AC inlet and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25B Datasheet (PDF) The GST25B section is on PDF pages 26, 27, 28, 29, 30. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25B24-P1J. Safety model number GST25B24. DC output voltage 24 V. Rated output current 1.04 A. Output current range 0–1.04 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 150 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Typical efficiency 88%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Two-pole IEC 320-C8 AC inlet. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic desktop adapter. Body dimensions, L × W × H 79 × 54 × 33 mm. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36B. DC output cable UL1185, 18 AWG, 1800 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals UL62368-1; CSA C22.2 No. 62368-1; TUV BS EN/EN62368-1; BSMI CNS15598-1; CCC GB4943.1; PSE J62368-1; AS/NZS62368.1; BIS IS13252; KC K60950-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EISA 2007 / DoE, Canada NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions BS EN/EN55032 (CISPR32), FCC Part 15 / CISPR22, CAN ICES-3(B) / NMB-3(B), CNS15936, GB17625.1, EAC TP TC020 and MSIP KN32: Class B conducted and radiated emissions. Harmonic current BS EN/EN61000-3-2 and GB9254: Class A. Voltage flicker BS EN/EN61000-3-3. Immunity standard BS EN/EN55035. Electrostatic discharge IEC/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. Radio-frequency field IEC/EN61000-4-3: Level 2, 3 V/m. Electrical fast transient IEC/EN61000-4-4: Level 2, 1 kV. Surge IEC/EN61000-4-5: Level 3, 1 kV line–line. Conducted RF / magnetic field IEC/EN61000-4-6: Level 2, 3 V; IEC/EN61000-4-8: Level 2, 3 A/m. Voltage dips and interruptions IEC/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 230 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 191.5 g, explicitly listed in PACKING. Carton packing 60 pieces / 12.5 kg / 1.15 CUFT. Catalogue revision GST25B-SPEC, 2026-04-03; combined PDF pages 26–30.

  Read more less

  $30.06

  View options

•

  View options

  MEAN WELL GST25B series: Desktop AC/DC Power Adapter - GST25B18-P1J

  MEAN WELL GST25B18-P1J is a single-output desktop AC/DC power adapter rated at 18 V, 1.38 A and 25 W maximum. It uses two-pole IEC 320-C8 AC inlet and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25B Datasheet (PDF) The GST25B section is on PDF pages 26, 27, 28, 29, 30. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25B18-P1J. Safety model number GST25B18. DC output voltage 18 V. Rated output current 1.38 A. Output current range 0–1.38 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 100 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Typical efficiency 87%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Two-pole IEC 320-C8 AC inlet. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic desktop adapter. Body dimensions, L × W × H 79 × 54 × 33 mm. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36B. DC output cable UL1185, 18 AWG, 1800 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals UL62368-1; CSA C22.2 No. 62368-1; TUV BS EN/EN62368-1; BSMI CNS15598-1; CCC GB4943.1; PSE J62368-1; AS/NZS62368.1; BIS IS13252; KC K60950-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EISA 2007 / DoE, Canada NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions BS EN/EN55032 (CISPR32), FCC Part 15 / CISPR22, CAN ICES-3(B) / NMB-3(B), CNS15936, GB17625.1, EAC TP TC020 and MSIP KN32: Class B conducted and radiated emissions. Harmonic current BS EN/EN61000-3-2 and GB9254: Class A. Voltage flicker BS EN/EN61000-3-3. Immunity standard BS EN/EN55035. Electrostatic discharge IEC/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. Radio-frequency field IEC/EN61000-4-3: Level 2, 3 V/m. Electrical fast transient IEC/EN61000-4-4: Level 2, 1 kV. Surge IEC/EN61000-4-5: Level 3, 1 kV line–line. Conducted RF / magnetic field IEC/EN61000-4-6: Level 2, 3 V; IEC/EN61000-4-8: Level 2, 3 A/m. Voltage dips and interruptions IEC/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 230 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 191.5 g, explicitly listed in PACKING. Carton packing 60 pieces / 12.5 kg / 1.15 CUFT. Catalogue revision GST25B-SPEC, 2026-04-03; combined PDF pages 26–30.

  Read more less

  $30.06

  View options

•

  View options

  MEAN WELL GST25B series: Desktop AC/DC Power Adapter - GST25B15-P1J

  MEAN WELL GST25B15-P1J is a single-output desktop AC/DC power adapter rated at 15 V, 1.66 A and 25 W maximum. It uses two-pole IEC 320-C8 AC inlet and a center-positive P1J DC connector. Class II, double-insulated, without FG. Apply the specified temperature and low-input-voltage derating. Product Datasheet Download MEAN WELL GST25B Datasheet (PDF) The GST25B section is on PDF pages 26, 27, 28, 29, 30. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete order number GST25B15-P1J. Safety model number GST25B15. DC output voltage 15 V. Rated output current 1.66 A. Output current range 0–1.66 A. Maximum rated output power 25 W, subject to input-voltage and ambient-temperature derating. Maximum ripple and noise 100 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Typical efficiency 87%. AC Input, Class and Timing AC input range 85–264 VAC, 47–63 Hz. AC connection Two-pole IEC 320-C8 AC inlet. Electrical class Class II, double-insulated, without FG. AC input current 0.6 A at 115 VAC; 0.35 A at 230 VAC. Maximum cold-start inrush 35 A at 115 VAC; 65 A at 230 VAC. Maximum leakage current 0.25 mA at 240 VAC. Set-up / rise / hold-up at 230 VAC 1000 / 30 / 50 ms at full load. Set-up / rise / hold-up at 115 VAC 1500 / 30 / 15 ms at full load. No-load power Less than 0.075 W. Power indication Power-on LED. Protection and Load Derating Short circuit and overload Overload threshold: 110–150% of rated output power. Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 110–140% of rated output voltage; zener-diode clamping. Thermal load curve 100% load from −30°C through 50°C; derate to 50% at 70°C. Input-voltage load curve At 60 Hz: 85% load at 85 VAC, increasing to 100% at 100 VAC; 100% through 264 VAC. Apply the temperature and input-voltage limits together. Operation at the upper ambient limit requires reduced load. Enclosure, Dimensions and Output Cable Construction Fully enclosed 94V-0 flame-retardant plastic desktop adapter. Body dimensions, L × W × H 79 × 54 × 33 mm. Mechanical drawing tolerance ±1 mm, except dimensions with their own tolerance. Case reference GSM36B. DC output cable UL1185, 18 AWG, 1800 ±50 mm. Standard P1J connector Tuning-fork type; 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length. P1J polarity C+: center / inside positive (+Vo), outside negative (−Vo). The output-side cable filter is shown with a 70 ±10 mm reference distance to the connector. Optional DC Plug and Adapter Selection Selection and supply Alternative plug types are available on a customized cable, with MOQ applicable. Listed quick adapters are sold separately without MOQ. These options are not included with the standard P1J configuration. Tuning-fork choices P1I: 5.5 × 2.1 × 9.5; P1L: 5.5 × 2.5 × 9.5; P1M: 5.5 × 2.5 × 11; P1IR: 5.5 × 2.1 × 9.5; P1JR: 5.5 × 2.1 × 11; P1LR: 5.5 × 2.5 × 9.5; P1MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P1IR, P1JR, P1LR, P1MR are right-angled; the other entries are straight. Quick-adapter rating: 7.5 A maximum. Barrel choices P2I: 5.5 × 2.1 × 9.5; P2J: 5.5 × 2.1 × 11; P2L: 5.5 × 2.5 × 9.5; P2M: 5.5 × 2.5 × 11; P2IR: 5.5 × 2.1 × 9.5; P2JR: 5.5 × 2.1 × 11; P2LR: 5.5 × 2.5 × 9.5; P2MR: 5.5 × 2.5 × 11. Dimensions are OD × ID × insertion length, in mm. P2IR, P2JR, P2LR, P2MR are right-angled; the other entries are straight. Customized cable only; no quick adapter is listed. Locking choices P2S (S761K): 5.53 × 2.03 × 12.06; P2K (761K): 5.53 × 2.54 × 12.06; P2C (S760K): 5.53 × 2.03 × 9.52; P2D (760K): 5.53 × 2.54 × 9.52. Dimensions are OD × ID × insertion length, in mm. SWITCHCRAFT original or equivalent. Customized cable only; no quick adapter is listed. Mini-pin choices P3A: 2.35 × 0.7 × 11; P3B: 4 × 1.7 × 11; P3C: 4.75 × 1.7 × 11. Dimensions are OD × ID × insertion length, in mm. EIAJ equivalent. Quick-adapter rating: 5 A maximum. Center-pin choices P4A: 5.5 × 3.4 × 11 × 1.0; P4B: 6.5 × 4.4 × 11 × 1.4; P4C: 7.4 × 5.1 × 11 × 0.6. Dimensions are OD × ID × insertion length × center-pin diameter, in mm. EIAJ equivalent; quick adapters rated 7.5 A maximum. R6B Locking male mini-DIN 3-pin; KYCON KPPX-3P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 +Vo. Quick adapter rated 7.5 A maximum. R7B Locking male mini-DIN 4-pin; KYCON KPPX-4P equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Quick adapter rated 7.5 A maximum. R7BF Locking female mini-DIN 4-pin; KYCON KPJX-CM-4S equivalent. pin 1 +Vo; pin 2 −Vo; pin 3 −Vo; pin 4 +Vo. Customized cable only; no quick adapter is listed. R1B Male DIN 5-pin. pin 1 −Vo; pin 2 −Vo; pin 3 +Vo; pin 4 −Vo; pin 5 +Vo. Quick adapter rated 7.5 A maximum. Stripped and tinned leads Customized leads: pin 1 +Vo, pin 2 −Vo. Standard reference lengths L = 25 mm and L1 = 5 mm; other lengths by request. Red and black colours are references only; use actual product identification. No quick adapter is listed. Match connector dimensions, polarity and pin assignment to the load. The plug type references describe cable or adapter selection; they do not increase this power supply’s output-current or power rating. The applicable limit is the lower of the supply and accessory ratings. Environment and Reliability Operating conditions −30 to +70°C with load derating; 20–90% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10-minute cycle, 60 minutes along each X, Y and Z axis. MTBF, minimum estimates 3879.7 thousand hours under Telcordia SR-332 (Bellcore); 674.6 thousand hours under MIL-HDBK-217F at 25°C. Warranty Three-year manufacturer warranty, subject to applicable terms. Safety and Efficiency Catalogue safety approvals UL62368-1; CSA C22.2 No. 62368-1; TUV BS EN/EN62368-1; BSMI CNS15598-1; CCC GB4943.1; PSE J62368-1; AS/NZS62368.1; BIS IS13252; KC K60950-1; EAC TP TC004. Limited power source LPS compliant. Energy compliance Energy efficiency Level VI; EISA 2007 / DoE, Canada NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5. Withstand voltage Input–output: 4242 VDC. Insulation resistance Input–output: 100 MΩ at 500 VDC, 25°C and 70% RH. Electromagnetic Compatibility Conducted and radiated emissions BS EN/EN55032 (CISPR32), FCC Part 15 / CISPR22, CAN ICES-3(B) / NMB-3(B), CNS15936, GB17625.1, EAC TP TC020 and MSIP KN32: Class B conducted and radiated emissions. Harmonic current BS EN/EN61000-3-2 and GB9254: Class A. Voltage flicker BS EN/EN61000-3-3. Immunity standard BS EN/EN55035. Electrostatic discharge IEC/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. Radio-frequency field IEC/EN61000-4-3: Level 2, 3 V/m. Electrical fast transient IEC/EN61000-4-4: Level 2, 1 kV. Surge IEC/EN61000-4-5: Level 3, 1 kV line–line. Conducted RF / magnetic field IEC/EN61000-4-6: Level 2, 3 V; IEC/EN61000-4-8: Level 2, 3 A/m. Voltage dips and interruptions IEC/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. The adapter is an independent power unit. The final equipment must be checked for EMC compliance with its actual wiring and installation. Measurement Conditions and Catalogue Default test conditions 230 VAC input, rated load, 25°C ambient and 70% RH, unless otherwise specified. Output-voltage set point Measured at the DC plug terminal at 50% load. Ripple measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Regulation conditions Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation: low-to-high line at rated load. Load regulation: 10–100% rated load. Single-unit reference weight 191.5 g, explicitly listed in PACKING. Carton packing 60 pieces / 12.5 kg / 1.15 CUFT. Catalogue revision GST25B-SPEC, 2026-04-03; combined PDF pages 26–30.

  Read more less

  $31.54

  View options
