HVGC Series: Constant Current LED Driver

Show previous products

•

  View options

  MEAN WELL HVGC-240 series: Constant Current LED Driver - HVGC-240-1050B

  HVGC-240-1050B LED driver MEAN WELL HVGC-240-1050B is a 240 W, 1050 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP67 design supports suitable indoor or outdoor installations subject to the installation requirements. 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Download MEAN WELL HVGC-240 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 28–36. Use the exact output and function suffix when selecting the driver. Output and function Rated output 1050 mA constant current; 240 W rated power. Constant current region 114.3–228.6 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Open-circuit voltage 235 V maximum. Current accuracy Current tolerance: ±5%. Current ripple: 5% maximum at rated current. Function and ingress rating B type; IP67. 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Current adjustment No internal user-adjustable current potentiometer is specified for this suffix. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Dimming signals Apply 0–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or additive resistance between DIM+ and DIM−. Typical dimming source current: 100 µA. Resistance control runs from a short circuit to 100 kΩ/N; N is the number of synchronized drivers. Dimming range and wiring Minimum dimming level is approximately 5%; output current is undefined between 0% and 5%. The output can fall to 0% with approximately 0 Ω, 0 VDC, or 0% PWM duty. Purple DIM+ and pink DIM−; do not connect DIM− to −V. Connect directly to LEDs; additional downstream drivers are unsuitable. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.76 A at 347 VAC; 0.56 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 93%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 60% at 480 VAC. Set-up time 500 ms at 230, 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 50 A; 532 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 240–263 V; shuts down output voltage; re-power to recover. Overtemperature Shuts down and latches off output voltage; re-power to recover. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +90°C, with maximum Tcase +90°C. Horizontal installation: at 180 VAC, 100% load from −40 to +50°C, then 60% at +60°C; at 230 VAC, 100% through +55°C, then 60% at +65°C; above 277 VAC, 100% through +60°C, then 60% at +70°C. The case-temperature load curve shows 100% from −40 to +90°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating The 60 Hz static graph shows 100% load from 180 to 528 VAC; the notes still require assessment of low-input derating. Follow the separate voltage-dependent ambient-temperature curves. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 45 kHz; PWM switching frequency 65 kHz. PF curves use Tc 80°C; THD and efficiency examples use the 700 mA model at Tc 80°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C, 50,000 h at 80°C, 35,000 h at 85°C and 25,000 h at 90°C. MTBF: 1769.1K hours minimum, Telcordia SR-332 (Bellcore); 145.2K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 254.2 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 230.2 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 115.1 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads UL2517 22 AWG × 2C; purple DIM+ and pink DIM−. Lead length: 300 ±20 mm. Unit weight and packing 1.35 kg (1350 g) per unit. Carton reference: 12 pcs / 17.2 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.13-12; IEC/BS EN/EN 61347-1 and 61347-2-13; BS EN/EN 62384 (independent); EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 at ≥80% load; BS EN/EN 61000-3-3; FCC Part 15 Subpart B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Applications Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Dimming isolation The installation manual lists HVGC-65 through HVGC-320 analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements. Controller installation The depicted 22 AWG dimming conductors are smaller than 18 AWG. For standalone use, use only SELV dimming controllers or networks; contact MEAN WELL before using FELV control. Verify controller compatibility and capacity for this exact DIM interface. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $205.52

  View options

•

  View options

  MEAN WELL HVGC-240 series: Constant Current LED Driver - HVGC-240-700B

  HVGC-240-700B LED driver MEAN WELL HVGC-240-700B is a 240 W, 700 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP67 design supports suitable indoor or outdoor installations subject to the installation requirements. 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Download MEAN WELL HVGC-240 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 28–36. Use the exact output and function suffix when selecting the driver. Output and function Rated output 700 mA constant current; 240 W rated power. Constant current region 171.4–342.8 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Open-circuit voltage 354 V maximum. Current accuracy Current tolerance: ±5%. Current ripple: 5% maximum at rated current. Function and ingress rating B type; IP67. 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Current adjustment No internal user-adjustable current potentiometer is specified for this suffix. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Dimming signals Apply 0–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or additive resistance between DIM+ and DIM−. Typical dimming source current: 100 µA. Resistance control runs from a short circuit to 100 kΩ/N; N is the number of synchronized drivers. Dimming range and wiring Minimum dimming level is approximately 5%; output current is undefined between 0% and 5%. The output can fall to 0% with approximately 0 Ω, 0 VDC, or 0% PWM duty. Purple DIM+ and pink DIM−; do not connect DIM− to −V. Connect directly to LEDs; additional downstream drivers are unsuitable. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.76 A at 347 VAC; 0.56 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 93.5%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 60% at 480 VAC. Set-up time 500 ms at 230, 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 50 A; 532 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 360–394 V; shuts down output voltage; re-power to recover. Overtemperature Shuts down and latches off output voltage; re-power to recover. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +90°C, with maximum Tcase +90°C. Horizontal installation: at 180 VAC, 100% load from −40 to +50°C, then 60% at +60°C; at 230 VAC, 100% through +55°C, then 60% at +65°C; above 277 VAC, 100% through +60°C, then 60% at +70°C. The case-temperature load curve shows 100% from −40 to +90°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating The 60 Hz static graph shows 100% load from 180 to 528 VAC; the notes still require assessment of low-input derating. Follow the separate voltage-dependent ambient-temperature curves. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 45 kHz; PWM switching frequency 65 kHz. PF curves use Tc 80°C; THD and efficiency examples use the 700 mA model at Tc 80°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C, 50,000 h at 80°C, 35,000 h at 85°C and 25,000 h at 90°C. MTBF: 1769.1K hours minimum, Telcordia SR-332 (Bellcore); 145.2K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 254.2 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 230.2 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 115.1 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads UL2517 22 AWG × 2C; purple DIM+ and pink DIM−. Lead length: 300 ±20 mm. Unit weight and packing 1.35 kg (1350 g) per unit. Carton reference: 12 pcs / 17.2 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.13-12; IEC/BS EN/EN 61347-1 and 61347-2-13; BS EN/EN 62384 (independent); EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 at ≥80% load; BS EN/EN 61000-3-3; FCC Part 15 Subpart B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Applications Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Dimming isolation The installation manual lists HVGC-65 through HVGC-320 analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements. Controller installation The depicted 22 AWG dimming conductors are smaller than 18 AWG. For standalone use, use only SELV dimming controllers or networks; contact MEAN WELL before using FELV control. Verify controller compatibility and capacity for this exact DIM interface. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $205.52

  View options

•

  View options

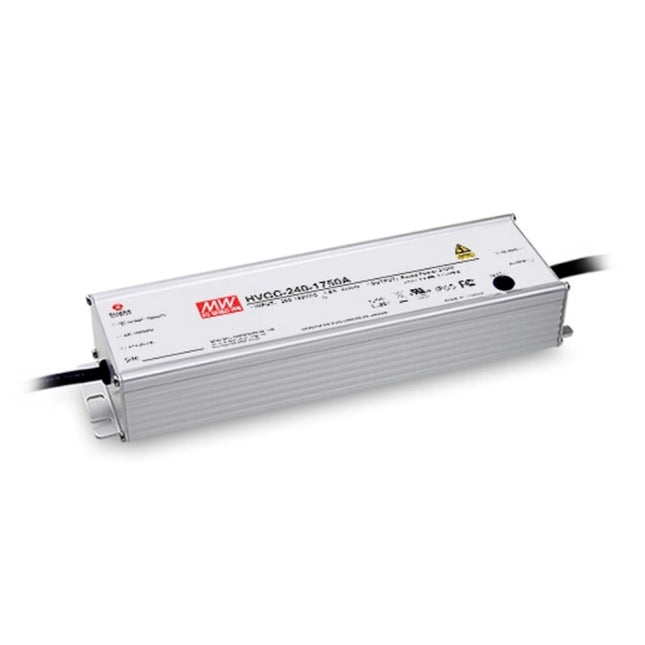

  MEAN WELL HVGC-240 series: Constant Current LED Driver - HVGC-240-3500A

  HVGC-240-3500A LED driver MEAN WELL HVGC-240-3500A is a 240.1 W, 3500 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP65 design supports suitable indoor or outdoor installations subject to the installation requirements. Output current adjustable through the built-in potentiometer. Download MEAN WELL HVGC-240 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 28–36. Use the exact output and function suffix when selecting the driver. Output and function Rated output 3500 mA constant current; 240.1 W rated power. Constant current region 34.3–68.6 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Open-circuit voltage 71 V maximum. Current accuracy Current tolerance: ±5%. Current ripple: 5% maximum at rated current. Function and ingress rating A type; IP65. Output current adjustable through the built-in potentiometer. Current adjustment 1750–3500 mA through the built-in Io ADJ potentiometer; output voltage adjustment is not specified. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.76 A at 347 VAC; 0.56 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 92.5%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 60% at 480 VAC. Set-up time 500 ms at 230, 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 50 A; 532 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 72–79 V; shuts down output voltage; re-power to recover. Overtemperature Shuts down and latches off output voltage; re-power to recover. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +90°C, with maximum Tcase +90°C. Horizontal installation: at 180 VAC, 100% load from −40 to +50°C, then 60% at +60°C; at 230 VAC, 100% through +55°C, then 60% at +65°C; above 277 VAC, 100% through +60°C, then 60% at +70°C. The case-temperature load curve shows 100% from −40 to +90°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating The 60 Hz static graph shows 100% load from 180 to 528 VAC; the notes still require assessment of low-input derating. Follow the separate voltage-dependent ambient-temperature curves. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 45 kHz; PWM switching frequency 65 kHz. PF curves use Tc 80°C; THD and efficiency examples use the 700 mA model at Tc 80°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C, 50,000 h at 80°C, 35,000 h at 85°C and 25,000 h at 90°C. MTBF: 1769.1K hours minimum, Telcordia SR-332 (Bellcore); 145.2K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 254.2 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 230.2 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 115.1 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads No external DIM lead is shown for this suffix. Unit weight and packing 1.35 kg (1350 g) per unit. Carton reference: 12 pcs / 17.2 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.13-12; IEC/BS EN/EN 61347-1 and 61347-2-13; BS EN/EN 62384 (independent); EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. A/AB types require built-in installation to comply with the Type HL application. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 at ≥80% load; BS EN/EN 61000-3-3; FCC Part 15 Subpart B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Applications Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Weather protection This model is IP65 and must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $201.58

  View options

•

  View options

  MEAN WELL HVGC-240 series: Constant Current LED Driver - HVGC-240-2800A

  HVGC-240-2800A LED driver MEAN WELL HVGC-240-2800A is a 240 W, 2800 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP65 design supports suitable indoor or outdoor installations subject to the installation requirements. Output current adjustable through the built-in potentiometer. Download MEAN WELL HVGC-240 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 28–36. Use the exact output and function suffix when selecting the driver. Output and function Rated output 2800 mA constant current; 240 W rated power. Constant current region 42.9–85.7 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Open-circuit voltage 88 V maximum. Current accuracy Current tolerance: ±5%. Current ripple: 5% maximum at rated current. Function and ingress rating A type; IP65. Output current adjustable through the built-in potentiometer. Current adjustment 1400–2800 mA through the built-in Io ADJ potentiometer; output voltage adjustment is not specified. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.76 A at 347 VAC; 0.56 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 92.5%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 60% at 480 VAC. Set-up time 500 ms at 230, 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 50 A; 532 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 90–99 V; shuts down output voltage; re-power to recover. Overtemperature Shuts down and latches off output voltage; re-power to recover. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +90°C, with maximum Tcase +90°C. Horizontal installation: at 180 VAC, 100% load from −40 to +50°C, then 60% at +60°C; at 230 VAC, 100% through +55°C, then 60% at +65°C; above 277 VAC, 100% through +60°C, then 60% at +70°C. The case-temperature load curve shows 100% from −40 to +90°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating The 60 Hz static graph shows 100% load from 180 to 528 VAC; the notes still require assessment of low-input derating. Follow the separate voltage-dependent ambient-temperature curves. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 45 kHz; PWM switching frequency 65 kHz. PF curves use Tc 80°C; THD and efficiency examples use the 700 mA model at Tc 80°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C, 50,000 h at 80°C, 35,000 h at 85°C and 25,000 h at 90°C. MTBF: 1769.1K hours minimum, Telcordia SR-332 (Bellcore); 145.2K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 254.2 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 230.2 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 115.1 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads No external DIM lead is shown for this suffix. Unit weight and packing 1.35 kg (1350 g) per unit. Carton reference: 12 pcs / 17.2 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.13-12; IEC/BS EN/EN 61347-1 and 61347-2-13; BS EN/EN 62384 (independent); EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. A/AB types require built-in installation to comply with the Type HL application. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 at ≥80% load; BS EN/EN 61000-3-3; FCC Part 15 Subpart B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Applications Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Weather protection This model is IP65 and must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $201.58

  View options

•

  View options

  MEAN WELL HVGC-240 series: Constant Current LED Driver - HVGC-240-2100A

  HVGC-240-2100A LED driver MEAN WELL HVGC-240-2100A is a 240 W, 2100 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP65 design supports suitable indoor or outdoor installations subject to the installation requirements. Output current adjustable through the built-in potentiometer. Download MEAN WELL HVGC-240 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 28–36. Use the exact output and function suffix when selecting the driver. Output and function Rated output 2100 mA constant current; 240 W rated power. Constant current region 57.2–114.3 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Open-circuit voltage 117 V maximum. Current accuracy Current tolerance: ±5%. Current ripple: 5% maximum at rated current. Function and ingress rating A type; IP65. Output current adjustable through the built-in potentiometer. Current adjustment 1050–2100 mA through the built-in Io ADJ potentiometer; output voltage adjustment is not specified. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.76 A at 347 VAC; 0.56 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 92.5%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 60% at 480 VAC. Set-up time 500 ms at 230, 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 50 A; 532 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 120–131.4 V; shuts down output voltage; re-power to recover. Overtemperature Shuts down and latches off output voltage; re-power to recover. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +90°C, with maximum Tcase +90°C. Horizontal installation: at 180 VAC, 100% load from −40 to +50°C, then 60% at +60°C; at 230 VAC, 100% through +55°C, then 60% at +65°C; above 277 VAC, 100% through +60°C, then 60% at +70°C. The case-temperature load curve shows 100% from −40 to +90°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating The 60 Hz static graph shows 100% load from 180 to 528 VAC; the notes still require assessment of low-input derating. Follow the separate voltage-dependent ambient-temperature curves. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 45 kHz; PWM switching frequency 65 kHz. PF curves use Tc 80°C; THD and efficiency examples use the 700 mA model at Tc 80°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C, 50,000 h at 80°C, 35,000 h at 85°C and 25,000 h at 90°C. MTBF: 1769.1K hours minimum, Telcordia SR-332 (Bellcore); 145.2K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 254.2 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 230.2 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 115.1 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads No external DIM lead is shown for this suffix. Unit weight and packing 1.35 kg (1350 g) per unit. Carton reference: 12 pcs / 17.2 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.13-12; IEC/BS EN/EN 61347-1 and 61347-2-13; BS EN/EN 62384 (independent); EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. A/AB types require built-in installation to comply with the Type HL application. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 at ≥80% load; BS EN/EN 61000-3-3; FCC Part 15 Subpart B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Applications Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Weather protection This model is IP65 and must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $201.58

  View options

•

  View options

  MEAN WELL HVGC-240 series: Constant Current LED Driver - HVGC-240-1750A

  HVGC-240-1750A LED driver MEAN WELL HVGC-240-1750A is a 240 W, 1750 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP65 design supports suitable indoor or outdoor installations subject to the installation requirements. Output current adjustable through the built-in potentiometer. Download MEAN WELL HVGC-240 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 28–36. Use the exact output and function suffix when selecting the driver. Output and function Rated output 1750 mA constant current; 240 W rated power. Constant current region 68.5–137.1 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Open-circuit voltage 141 V maximum. Current accuracy Current tolerance: ±5%. Current ripple: 5% maximum at rated current. Function and ingress rating A type; IP65. Output current adjustable through the built-in potentiometer. Current adjustment 875–1750 mA through the built-in Io ADJ potentiometer; output voltage adjustment is not specified. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.76 A at 347 VAC; 0.56 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 93%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 60% at 480 VAC. Set-up time 500 ms at 230, 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 50 A; 532 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 144–158 V; shuts down output voltage; re-power to recover. Overtemperature Shuts down and latches off output voltage; re-power to recover. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +90°C, with maximum Tcase +90°C. Horizontal installation: at 180 VAC, 100% load from −40 to +50°C, then 60% at +60°C; at 230 VAC, 100% through +55°C, then 60% at +65°C; above 277 VAC, 100% through +60°C, then 60% at +70°C. The case-temperature load curve shows 100% from −40 to +90°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating The 60 Hz static graph shows 100% load from 180 to 528 VAC; the notes still require assessment of low-input derating. Follow the separate voltage-dependent ambient-temperature curves. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 45 kHz; PWM switching frequency 65 kHz. PF curves use Tc 80°C; THD and efficiency examples use the 700 mA model at Tc 80°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C, 50,000 h at 80°C, 35,000 h at 85°C and 25,000 h at 90°C. MTBF: 1769.1K hours minimum, Telcordia SR-332 (Bellcore); 145.2K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 254.2 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 230.2 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 115.1 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads No external DIM lead is shown for this suffix. Unit weight and packing 1.35 kg (1350 g) per unit. Carton reference: 12 pcs / 17.2 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.13-12; IEC/BS EN/EN 61347-1 and 61347-2-13; BS EN/EN 62384 (independent); EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. A/AB types require built-in installation to comply with the Type HL application. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 at ≥80% load; BS EN/EN 61000-3-3; FCC Part 15 Subpart B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Applications Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Weather protection This model is IP65 and must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $201.58

  View options

•

  View options

  MEAN WELL HVGC-240 series: Constant Current LED Driver - HVGC-240-1400A

  HVGC-240-1400A LED driver MEAN WELL HVGC-240-1400A is a 240 W, 1400 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP65 design supports suitable indoor or outdoor installations subject to the installation requirements. Output current adjustable through the built-in potentiometer. Download MEAN WELL HVGC-240 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 28–36. Use the exact output and function suffix when selecting the driver. Output and function Rated output 1400 mA constant current; 240 W rated power. Constant current region 85.7–171.4 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Open-circuit voltage 176 V maximum. Current accuracy Current tolerance: ±5%. Current ripple: 5% maximum at rated current. Function and ingress rating A type; IP65. Output current adjustable through the built-in potentiometer. Current adjustment 700–1400 mA through the built-in Io ADJ potentiometer; output voltage adjustment is not specified. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.76 A at 347 VAC; 0.56 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 93%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 60% at 480 VAC. Set-up time 500 ms at 230, 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 50 A; 532 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 180–197 V; shuts down output voltage; re-power to recover. Overtemperature Shuts down and latches off output voltage; re-power to recover. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +90°C, with maximum Tcase +90°C. Horizontal installation: at 180 VAC, 100% load from −40 to +50°C, then 60% at +60°C; at 230 VAC, 100% through +55°C, then 60% at +65°C; above 277 VAC, 100% through +60°C, then 60% at +70°C. The case-temperature load curve shows 100% from −40 to +90°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating The 60 Hz static graph shows 100% load from 180 to 528 VAC; the notes still require assessment of low-input derating. Follow the separate voltage-dependent ambient-temperature curves. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 45 kHz; PWM switching frequency 65 kHz. PF curves use Tc 80°C; THD and efficiency examples use the 700 mA model at Tc 80°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C, 50,000 h at 80°C, 35,000 h at 85°C and 25,000 h at 90°C. MTBF: 1769.1K hours minimum, Telcordia SR-332 (Bellcore); 145.2K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 254.2 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 230.2 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 115.1 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads No external DIM lead is shown for this suffix. Unit weight and packing 1.35 kg (1350 g) per unit. Carton reference: 12 pcs / 17.2 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.13-12; IEC/BS EN/EN 61347-1 and 61347-2-13; BS EN/EN 62384 (independent); EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. A/AB types require built-in installation to comply with the Type HL application. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 at ≥80% load; BS EN/EN 61000-3-3; FCC Part 15 Subpart B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Applications Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Weather protection This model is IP65 and must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $201.58

  View options

•

  View options

  MEAN WELL HVGC-240 series: Constant Current LED Driver - HVGC-240-1050A

  HVGC-240-1050A LED driver MEAN WELL HVGC-240-1050A is a 240 W, 1050 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP65 design supports suitable indoor or outdoor installations subject to the installation requirements. Output current adjustable through the built-in potentiometer. Download MEAN WELL HVGC-240 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 28–36. Use the exact output and function suffix when selecting the driver. Output and function Rated output 1050 mA constant current; 240 W rated power. Constant current region 114.3–228.6 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Open-circuit voltage 235 V maximum. Current accuracy Current tolerance: ±5%. Current ripple: 5% maximum at rated current. Function and ingress rating A type; IP65. Output current adjustable through the built-in potentiometer. Current adjustment 525–1050 mA through the built-in Io ADJ potentiometer; output voltage adjustment is not specified. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.76 A at 347 VAC; 0.56 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 93%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 60% at 480 VAC. Set-up time 500 ms at 230, 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 50 A; 532 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 240–263 V; shuts down output voltage; re-power to recover. Overtemperature Shuts down and latches off output voltage; re-power to recover. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +90°C, with maximum Tcase +90°C. Horizontal installation: at 180 VAC, 100% load from −40 to +50°C, then 60% at +60°C; at 230 VAC, 100% through +55°C, then 60% at +65°C; above 277 VAC, 100% through +60°C, then 60% at +70°C. The case-temperature load curve shows 100% from −40 to +90°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating The 60 Hz static graph shows 100% load from 180 to 528 VAC; the notes still require assessment of low-input derating. Follow the separate voltage-dependent ambient-temperature curves. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 45 kHz; PWM switching frequency 65 kHz. PF curves use Tc 80°C; THD and efficiency examples use the 700 mA model at Tc 80°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C, 50,000 h at 80°C, 35,000 h at 85°C and 25,000 h at 90°C. MTBF: 1769.1K hours minimum, Telcordia SR-332 (Bellcore); 145.2K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 254.2 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 230.2 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 115.1 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads No external DIM lead is shown for this suffix. Unit weight and packing 1.35 kg (1350 g) per unit. Carton reference: 12 pcs / 17.2 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.13-12; IEC/BS EN/EN 61347-1 and 61347-2-13; BS EN/EN 62384 (independent); EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. A/AB types require built-in installation to comply with the Type HL application. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 at ≥80% load; BS EN/EN 61000-3-3; FCC Part 15 Subpart B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Applications Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Weather protection This model is IP65 and must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $201.58

  View options

•

  View options

  MEAN WELL HVGC-240 series: Constant Current LED Driver - HVGC-240-700A

  HVGC-240-700A LED driver MEAN WELL HVGC-240-700A is a 240 W, 700 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP65 design supports suitable indoor or outdoor installations subject to the installation requirements. Output current adjustable through the built-in potentiometer. Download MEAN WELL HVGC-240 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 28–36. Use the exact output and function suffix when selecting the driver. Output and function Rated output 700 mA constant current; 240 W rated power. Constant current region 171.4–342.8 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Open-circuit voltage 354 V maximum. Current accuracy Current tolerance: ±5%. Current ripple: 5% maximum at rated current. Function and ingress rating A type; IP65. Output current adjustable through the built-in potentiometer. Current adjustment 350–700 mA through the built-in Io ADJ potentiometer; output voltage adjustment is not specified. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.76 A at 347 VAC; 0.56 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 93.5%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 60% at 480 VAC. Set-up time 500 ms at 230, 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 50 A; 532 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 360–394 V; shuts down output voltage; re-power to recover. Overtemperature Shuts down and latches off output voltage; re-power to recover. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +90°C, with maximum Tcase +90°C. Horizontal installation: at 180 VAC, 100% load from −40 to +50°C, then 60% at +60°C; at 230 VAC, 100% through +55°C, then 60% at +65°C; above 277 VAC, 100% through +60°C, then 60% at +70°C. The case-temperature load curve shows 100% from −40 to +90°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating The 60 Hz static graph shows 100% load from 180 to 528 VAC; the notes still require assessment of low-input derating. Follow the separate voltage-dependent ambient-temperature curves. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 45 kHz; PWM switching frequency 65 kHz. PF curves use Tc 80°C; THD and efficiency examples use the 700 mA model at Tc 80°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C, 50,000 h at 80°C, 35,000 h at 85°C and 25,000 h at 90°C. MTBF: 1769.1K hours minimum, Telcordia SR-332 (Bellcore); 145.2K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 254.2 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 230.2 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 115.1 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads No external DIM lead is shown for this suffix. Unit weight and packing 1.35 kg (1350 g) per unit. Carton reference: 12 pcs / 17.2 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.13-12; IEC/BS EN/EN 61347-1 and 61347-2-13; BS EN/EN 62384 (independent); EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. A/AB types require built-in installation to comply with the Type HL application. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 at ≥80% load; BS EN/EN 61000-3-3; FCC Part 15 Subpart B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Applications Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Weather protection This model is IP65 and must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $201.58

  View options

•

  View options

  MEAN WELL HVGC-150 series: Constant Current LED Driver - HVGC-150-1400D

  HVGC-150-1400D LED driver MEAN WELL HVGC-150-1400D is a 149.8 W, 1400 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP67 design supports suitable indoor or outdoor installations subject to the installation requirements. Timer dimming by request; safety pending. Contact MEAN WELL for the required program and approval status. Download MEAN WELL HVGC-150 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 19–27. Use the exact output and function suffix when selecting the driver. Output and function Rated output 1400 mA constant current; 149.8 W rated power. Constant current region 12–107 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Current accuracy Current tolerance: ±5%. Current ripple: 8% maximum at rated current. Ripple is measured between 50% and 100% of maximum voltage under rated power delivery. Function and ingress rating D type; IP67. Timer dimming by request; safety pending. Contact MEAN WELL for the required program and approval status. Current adjustment No internal user-adjustable current potentiometer is specified for this suffix. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Catalog option By request; confirm specification and availability with MEAN WELL. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.5 A at 347 VAC; 0.38 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 90%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 75% at 480 VAC. Set-up time 500 ms at 230 VAC; 400 ms at 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 35 A; 790 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 113–124 V; shuts down output voltage, with automatic recovery or re-power recovery. Overtemperature Shuts down output voltage; automatic recovery after the temperature falls. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +80°C, with maximum Tcase +80°C. Horizontal installation: 100% load from −40 to +60°C ambient, then derate to 60% at +70°C. The case-temperature load curve shows 100% from −40 to +80°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating At 60 Hz: 80% load at 180 VAC, increasing to 100% at 200 VAC, then 100% through 528 VAC. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 130 kHz; PWM switching frequency 70 kHz. PF curves use Tc 70°C; THD and efficiency examples use the 350 mA model at Tc 70°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C and 50,000 h at 80°C. MTBF: 1755.7K hours minimum, Telcordia SR-332 (Bellcore); 179.5K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 245 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 221 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 106.9 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads No external DIM lead is shown for this suffix. Unit weight and packing 1.24 kg (1240 g) per unit. Carton reference: 12 pcs / 15.9 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards Family standards reference: UL 8750 Type HL; CSA C22.2 No. 250.0-08; TUV BS EN/EN 61347-1 and 61347-2-13; EAC TP TC 004. The D timer option is specifically marked safety pending; this family list does not establish completed approval for D. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. This D variant remains safety pending; confirm its actual approval before such use. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥50% load; BS EN/EN 61000-3-3; FCC Part 15 Class B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Accessories and applications Optional waterproof connectors M12-04: four pins, 5 A per pin, 10 A maximum suitable current. M12-05: five pins, 5 A per pin, 10 A maximum suitable current. M15-02: two pins, 12 A per pin, 12 A maximum suitable current. Confirm voltage rating, pin use, wire size and environmental sealing; current ratings alone do not establish compatibility with high-voltage output. Optional cable joiners CJ04-1 accepts 14–16 AWG; CJ04-2 accepts 18–22 AWG. The standard 18 AWG output falls within CJ04-2’s wire range, not CJ04-1’s. This is a wire-size comparison only; verify all connection and sealing requirements. Joiner drawing: 66 mm long, Ø25 mm, with 26 mm and 20 mm sections. Up to four wires may be joined by soldering or tool clamping; purchase separately. Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Timer ordering and approval This D timer-dimming version is available by customer request and its option-table safety status is pending. Confirm the required timer profile and approvals with MEAN WELL; D does not mean DALI or DALI-2. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $181.86

  View options

•

  View options

  MEAN WELL HVGC-150 series: Constant Current LED Driver - HVGC-150-1050D

  HVGC-150-1050D LED driver MEAN WELL HVGC-150-1050D is a 150.15 W, 1050 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP67 design supports suitable indoor or outdoor installations subject to the installation requirements. Timer dimming by request; safety pending. Contact MEAN WELL for the required program and approval status. Download MEAN WELL HVGC-150 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 19–27. Use the exact output and function suffix when selecting the driver. Output and function Rated output 1050 mA constant current; 150.15 W rated power. Constant current region 15–143 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Current accuracy Current tolerance: ±5%. Current ripple: 8% maximum at rated current. Ripple is measured between 50% and 100% of maximum voltage under rated power delivery. Function and ingress rating D type; IP67. Timer dimming by request; safety pending. Contact MEAN WELL for the required program and approval status. Current adjustment No internal user-adjustable current potentiometer is specified for this suffix. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Catalog option By request; confirm specification and availability with MEAN WELL. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.5 A at 347 VAC; 0.38 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 90%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 75% at 480 VAC. Set-up time 500 ms at 230 VAC; 400 ms at 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 35 A; 790 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 151–165 V; shuts down output voltage, with automatic recovery or re-power recovery. Overtemperature Shuts down output voltage; automatic recovery after the temperature falls. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +80°C, with maximum Tcase +80°C. Horizontal installation: 100% load from −40 to +60°C ambient, then derate to 60% at +70°C. The case-temperature load curve shows 100% from −40 to +80°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating At 60 Hz: 80% load at 180 VAC, increasing to 100% at 200 VAC, then 100% through 528 VAC. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 130 kHz; PWM switching frequency 70 kHz. PF curves use Tc 70°C; THD and efficiency examples use the 350 mA model at Tc 70°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C and 50,000 h at 80°C. MTBF: 1755.7K hours minimum, Telcordia SR-332 (Bellcore); 179.5K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 245 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 221 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 106.9 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads No external DIM lead is shown for this suffix. Unit weight and packing 1.24 kg (1240 g) per unit. Carton reference: 12 pcs / 15.9 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards Family standards reference: UL 8750 Type HL; CSA C22.2 No. 250.0-08; TUV BS EN/EN 61347-1 and 61347-2-13; EAC TP TC 004. The D timer option is specifically marked safety pending; this family list does not establish completed approval for D. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. This D variant remains safety pending; confirm its actual approval before such use. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥50% load; BS EN/EN 61000-3-3; FCC Part 15 Class B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Accessories and applications Optional waterproof connectors M12-04: four pins, 5 A per pin, 10 A maximum suitable current. M12-05: five pins, 5 A per pin, 10 A maximum suitable current. M15-02: two pins, 12 A per pin, 12 A maximum suitable current. Confirm voltage rating, pin use, wire size and environmental sealing; current ratings alone do not establish compatibility with high-voltage output. Optional cable joiners CJ04-1 accepts 14–16 AWG; CJ04-2 accepts 18–22 AWG. The standard 18 AWG output falls within CJ04-2’s wire range, not CJ04-1’s. This is a wire-size comparison only; verify all connection and sealing requirements. Joiner drawing: 66 mm long, Ø25 mm, with 26 mm and 20 mm sections. Up to four wires may be joined by soldering or tool clamping; purchase separately. Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Timer ordering and approval This D timer-dimming version is available by customer request and its option-table safety status is pending. Confirm the required timer profile and approvals with MEAN WELL; D does not mean DALI or DALI-2. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $181.86

  View options

•

  View options

  MEAN WELL HVGC-150 series: Constant Current LED Driver - HVGC-150-700D

  HVGC-150-700D LED driver MEAN WELL HVGC-150-700D is a 150.5 W, 700 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP67 design supports suitable indoor or outdoor installations subject to the installation requirements. Timer dimming by request; safety pending. Contact MEAN WELL for the required program and approval status. Download MEAN WELL HVGC-150 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 19–27. Use the exact output and function suffix when selecting the driver. Output and function Rated output 700 mA constant current; 150.5 W rated power. Constant current region 21–215 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Current accuracy Current tolerance: ±5%. Current ripple: 8% maximum at rated current. Ripple is measured between 50% and 100% of maximum voltage under rated power delivery. Function and ingress rating D type; IP67. Timer dimming by request; safety pending. Contact MEAN WELL for the required program and approval status. Current adjustment No internal user-adjustable current potentiometer is specified for this suffix. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Catalog option By request; confirm specification and availability with MEAN WELL. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.5 A at 347 VAC; 0.38 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 91%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 75% at 480 VAC. Set-up time 500 ms at 230 VAC; 400 ms at 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 35 A; 790 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 226–247 V; shuts down output voltage, with automatic recovery or re-power recovery. Overtemperature Shuts down output voltage; automatic recovery after the temperature falls. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +80°C, with maximum Tcase +80°C. Horizontal installation: 100% load from −40 to +60°C ambient, then derate to 60% at +70°C. The case-temperature load curve shows 100% from −40 to +80°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating At 60 Hz: 80% load at 180 VAC, increasing to 100% at 200 VAC, then 100% through 528 VAC. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 130 kHz; PWM switching frequency 70 kHz. PF curves use Tc 70°C; THD and efficiency examples use the 350 mA model at Tc 70°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C and 50,000 h at 80°C. MTBF: 1755.7K hours minimum, Telcordia SR-332 (Bellcore); 179.5K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 245 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 221 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 106.9 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads No external DIM lead is shown for this suffix. Unit weight and packing 1.24 kg (1240 g) per unit. Carton reference: 12 pcs / 15.9 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards Family standards reference: UL 8750 Type HL; CSA C22.2 No. 250.0-08; TUV BS EN/EN 61347-1 and 61347-2-13; EAC TP TC 004. The D timer option is specifically marked safety pending; this family list does not establish completed approval for D. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. This D variant remains safety pending; confirm its actual approval before such use. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥50% load; BS EN/EN 61000-3-3; FCC Part 15 Class B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Accessories and applications Optional waterproof connectors M12-04: four pins, 5 A per pin, 10 A maximum suitable current. M12-05: five pins, 5 A per pin, 10 A maximum suitable current. M15-02: two pins, 12 A per pin, 12 A maximum suitable current. Confirm voltage rating, pin use, wire size and environmental sealing; current ratings alone do not establish compatibility with high-voltage output. Optional cable joiners CJ04-1 accepts 14–16 AWG; CJ04-2 accepts 18–22 AWG. The standard 18 AWG output falls within CJ04-2’s wire range, not CJ04-1’s. This is a wire-size comparison only; verify all connection and sealing requirements. Joiner drawing: 66 mm long, Ø25 mm, with 26 mm and 20 mm sections. Up to four wires may be joined by soldering or tool clamping; purchase separately. Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Timer ordering and approval This D timer-dimming version is available by customer request and its option-table safety status is pending. Confirm the required timer profile and approvals with MEAN WELL; D does not mean DALI or DALI-2. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $181.86

  View options

•

  View options

  MEAN WELL HVGC-150 series: Constant Current LED Driver - HVGC-150-500D

  HVGC-150-500D LED driver MEAN WELL HVGC-150-500D is a 150 W, 500 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP67 design supports suitable indoor or outdoor installations subject to the installation requirements. Timer dimming by request; safety pending. Contact MEAN WELL for the required program and approval status. Download MEAN WELL HVGC-150 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 19–27. Use the exact output and function suffix when selecting the driver. Output and function Rated output 500 mA constant current; 150 W rated power. Constant current region 30–300 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Current accuracy Current tolerance: ±5%. Current ripple: 8% maximum at rated current. Ripple is measured between 50% and 100% of maximum voltage under rated power delivery. Function and ingress rating D type; IP67. Timer dimming by request; safety pending. Contact MEAN WELL for the required program and approval status. Current adjustment No internal user-adjustable current potentiometer is specified for this suffix. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Catalog option By request; confirm specification and availability with MEAN WELL. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.5 A at 347 VAC; 0.38 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 91%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 75% at 480 VAC. Set-up time 500 ms at 230 VAC; 400 ms at 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 35 A; 790 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 316–346 V; shuts down output voltage, with automatic recovery or re-power recovery. Overtemperature Shuts down output voltage; automatic recovery after the temperature falls. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +80°C, with maximum Tcase +80°C. Horizontal installation: 100% load from −40 to +60°C ambient, then derate to 60% at +70°C. The case-temperature load curve shows 100% from −40 to +80°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating At 60 Hz: 80% load at 180 VAC, increasing to 100% at 200 VAC, then 100% through 528 VAC. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 130 kHz; PWM switching frequency 70 kHz. PF curves use Tc 70°C; THD and efficiency examples use the 350 mA model at Tc 70°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C and 50,000 h at 80°C. MTBF: 1755.7K hours minimum, Telcordia SR-332 (Bellcore); 179.5K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 245 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 221 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 106.9 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads No external DIM lead is shown for this suffix. Unit weight and packing 1.24 kg (1240 g) per unit. Carton reference: 12 pcs / 15.9 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards Family standards reference: UL 8750 Type HL; CSA C22.2 No. 250.0-08; TUV BS EN/EN 61347-1 and 61347-2-13; EAC TP TC 004. The D timer option is specifically marked safety pending; this family list does not establish completed approval for D. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. This D variant remains safety pending; confirm its actual approval before such use. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥50% load; BS EN/EN 61000-3-3; FCC Part 15 Class B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Accessories and applications Optional waterproof connectors M12-04: four pins, 5 A per pin, 10 A maximum suitable current. M12-05: five pins, 5 A per pin, 10 A maximum suitable current. M15-02: two pins, 12 A per pin, 12 A maximum suitable current. Confirm voltage rating, pin use, wire size and environmental sealing; current ratings alone do not establish compatibility with high-voltage output. Optional cable joiners CJ04-1 accepts 14–16 AWG; CJ04-2 accepts 18–22 AWG. The standard 18 AWG output falls within CJ04-2’s wire range, not CJ04-1’s. This is a wire-size comparison only; verify all connection and sealing requirements. Joiner drawing: 66 mm long, Ø25 mm, with 26 mm and 20 mm sections. Up to four wires may be joined by soldering or tool clamping; purchase separately. Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Timer ordering and approval This D timer-dimming version is available by customer request and its option-table safety status is pending. Confirm the required timer profile and approvals with MEAN WELL; D does not mean DALI or DALI-2. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $181.86

  View options

•

  View options

  MEAN WELL HVGC-150 series: Constant Current LED Driver - HVGC-150-350D

  HVGC-150-350D LED driver MEAN WELL HVGC-150-350D is a 149.8 W, 350 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP67 design supports suitable indoor or outdoor installations subject to the installation requirements. Timer dimming by request; safety pending. Contact MEAN WELL for the required program and approval status. Download MEAN WELL HVGC-150 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 19–27. Use the exact output and function suffix when selecting the driver. Output and function Rated output 350 mA constant current; 149.8 W rated power. Constant current region 42–428 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Current accuracy Current tolerance: ±5%. Current ripple: 8% maximum at rated current. Ripple is measured between 50% and 100% of maximum voltage under rated power delivery. Function and ingress rating D type; IP67. Timer dimming by request; safety pending. Contact MEAN WELL for the required program and approval status. Current adjustment No internal user-adjustable current potentiometer is specified for this suffix. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Catalog option By request; confirm specification and availability with MEAN WELL. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.5 A at 347 VAC; 0.38 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 91%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 75% at 480 VAC. Set-up time 500 ms at 230 VAC; 400 ms at 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 35 A; 790 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 430–460 V; shuts down output voltage, with automatic recovery or re-power recovery. Overtemperature Shuts down output voltage; automatic recovery after the temperature falls. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +80°C, with maximum Tcase +80°C. Horizontal installation: 100% load from −40 to +60°C ambient, then derate to 60% at +70°C. The case-temperature load curve shows 100% from −40 to +80°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating At 60 Hz: 80% load at 180 VAC, increasing to 100% at 200 VAC, then 100% through 528 VAC. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 130 kHz; PWM switching frequency 70 kHz. PF curves use Tc 70°C; THD and efficiency examples use the 350 mA model at Tc 70°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C and 50,000 h at 80°C. MTBF: 1755.7K hours minimum, Telcordia SR-332 (Bellcore); 179.5K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 245 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 221 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 106.9 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads No external DIM lead is shown for this suffix. Unit weight and packing 1.24 kg (1240 g) per unit. Carton reference: 12 pcs / 15.9 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards Family standards reference: UL 8750 Type HL; CSA C22.2 No. 250.0-08; TUV BS EN/EN 61347-1 and 61347-2-13; EAC TP TC 004. The D timer option is specifically marked safety pending; this family list does not establish completed approval for D. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. This D variant remains safety pending; confirm its actual approval before such use. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥50% load; BS EN/EN 61000-3-3; FCC Part 15 Class B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Accessories and applications Optional waterproof connectors M12-04: four pins, 5 A per pin, 10 A maximum suitable current. M12-05: five pins, 5 A per pin, 10 A maximum suitable current. M15-02: two pins, 12 A per pin, 12 A maximum suitable current. Confirm voltage rating, pin use, wire size and environmental sealing; current ratings alone do not establish compatibility with high-voltage output. Optional cable joiners CJ04-1 accepts 14–16 AWG; CJ04-2 accepts 18–22 AWG. The standard 18 AWG output falls within CJ04-2’s wire range, not CJ04-1’s. This is a wire-size comparison only; verify all connection and sealing requirements. Joiner drawing: 66 mm long, Ø25 mm, with 26 mm and 20 mm sections. Up to four wires may be joined by soldering or tool clamping; purchase separately. Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Timer ordering and approval This D timer-dimming version is available by customer request and its option-table safety status is pending. Confirm the required timer profile and approvals with MEAN WELL; D does not mean DALI or DALI-2. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $181.86

  View options

•

  View options

  MEAN WELL HVGC-150 series: Constant Current LED Driver - HVGC-150-1400AB

  HVGC-150-1400AB LED driver MEAN WELL HVGC-150-1400AB is a 149.8 W, 1400 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP65 design supports suitable indoor or outdoor installations subject to the installation requirements. Output current adjustable through the built-in potentiometer, plus 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Download MEAN WELL HVGC-150 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 19–27. Use the exact output and function suffix when selecting the driver. Output and function Rated output 1400 mA constant current; 149.8 W rated power. Constant current region 12–107 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Current accuracy Current tolerance: ±5%. Current ripple: 8% maximum at rated current. Ripple is measured between 50% and 100% of maximum voltage under rated power delivery. Function and ingress rating AB type; IP65. Output current adjustable through the built-in potentiometer, plus 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Current adjustment 840–1400 mA through the built-in Io ADJ potentiometer; output voltage adjustment is not specified. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Dimming signals Apply 0–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or additive resistance between DIM+ and DIM−. Typical dimming source current: 100 µA. Resistance control runs from a short circuit to 100 kΩ/N; N is the number of synchronized drivers. Dimming range and wiring Minimum dimming level is approximately 6%; output current is undefined between 0% and 6%. The output can fall to 0% with approximately 0 Ω, 0 VDC, or 0% PWM duty. Purple DIM+ and pink DIM−; do not connect DIM− to −V. Connect directly to LEDs; additional downstream drivers are unsuitable. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.5 A at 347 VAC; 0.38 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 90%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 75% at 480 VAC. Set-up time 500 ms at 230 VAC; 400 ms at 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 35 A; 790 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 113–124 V; shuts down output voltage, with automatic recovery or re-power recovery. Overtemperature Shuts down output voltage; automatic recovery after the temperature falls. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +80°C, with maximum Tcase +80°C. Horizontal installation: 100% load from −40 to +60°C ambient, then derate to 60% at +70°C. The case-temperature load curve shows 100% from −40 to +80°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating At 60 Hz: 80% load at 180 VAC, increasing to 100% at 200 VAC, then 100% through 528 VAC. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 130 kHz; PWM switching frequency 70 kHz. PF curves use Tc 70°C; THD and efficiency examples use the 350 mA model at Tc 70°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C and 50,000 h at 80°C. MTBF: 1755.7K hours minimum, Telcordia SR-332 (Bellcore); 179.5K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 245 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 221 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 106.9 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads UL2517 18 AWG × 2C; purple DIM+ and pink DIM−. Lead length: 300 ±20 mm. Unit weight and packing 1.24 kg (1240 g) per unit. Carton reference: 12 pcs / 15.9 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.0-08; TUV BS EN/EN 61347-1 and 61347-2-13; EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. A/AB types require built-in installation to comply with the Type HL application. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥50% load; BS EN/EN 61000-3-3; FCC Part 15 Class B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Accessories and applications Optional waterproof connectors M12-04: four pins, 5 A per pin, 10 A maximum suitable current. M12-05: five pins, 5 A per pin, 10 A maximum suitable current. M15-02: two pins, 12 A per pin, 12 A maximum suitable current. Confirm voltage rating, pin use, wire size and environmental sealing; current ratings alone do not establish compatibility with high-voltage output. Optional cable joiners CJ04-1 accepts 14–16 AWG; CJ04-2 accepts 18–22 AWG. The standard 18 AWG output falls within CJ04-2’s wire range, not CJ04-1’s. This is a wire-size comparison only; verify all connection and sealing requirements. Joiner drawing: 66 mm long, Ø25 mm, with 26 mm and 20 mm sections. Up to four wires may be joined by soldering or tool clamping; purchase separately. Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Weather protection This model is IP65 and must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Dimming isolation The installation manual lists HVGC-65 through HVGC-320 analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements. Controller installation Verify controller compatibility and capacity for this exact DIM interface. The depicted control conductors are 18 AWG. If standalone dimming conductors smaller than 18 AWG are used, use only SELV controllers or networks and contact MEAN WELL before using FELV control. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $181.86

  View options

•

  View options

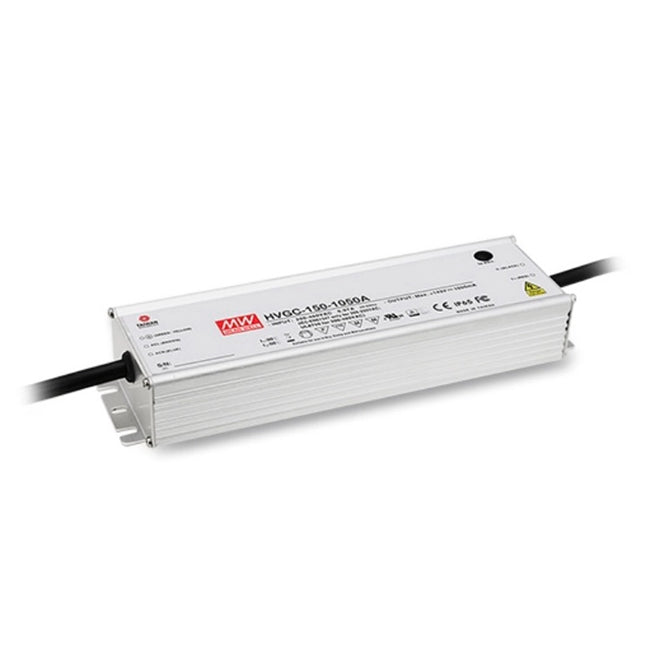

  MEAN WELL HVGC-150 series: Constant Current LED Driver - HVGC-150-1050AB

  HVGC-150-1050AB LED driver MEAN WELL HVGC-150-1050AB is a 150.15 W, 1050 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP65 design supports suitable indoor or outdoor installations subject to the installation requirements. Output current adjustable through the built-in potentiometer, plus 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Download MEAN WELL HVGC-150 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 19–27. Use the exact output and function suffix when selecting the driver. Output and function Rated output 1050 mA constant current; 150.15 W rated power. Constant current region 15–143 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Current accuracy Current tolerance: ±5%. Current ripple: 8% maximum at rated current. Ripple is measured between 50% and 100% of maximum voltage under rated power delivery. Function and ingress rating AB type; IP65. Output current adjustable through the built-in potentiometer, plus 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Current adjustment 630–1050 mA through the built-in Io ADJ potentiometer; output voltage adjustment is not specified. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Dimming signals Apply 0–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or additive resistance between DIM+ and DIM−. Typical dimming source current: 100 µA. Resistance control runs from a short circuit to 100 kΩ/N; N is the number of synchronized drivers. Dimming range and wiring Minimum dimming level is approximately 6%; output current is undefined between 0% and 6%. The output can fall to 0% with approximately 0 Ω, 0 VDC, or 0% PWM duty. Purple DIM+ and pink DIM−; do not connect DIM− to −V. Connect directly to LEDs; additional downstream drivers are unsuitable. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.5 A at 347 VAC; 0.38 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 90%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 75% at 480 VAC. Set-up time 500 ms at 230 VAC; 400 ms at 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 35 A; 790 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 151–165 V; shuts down output voltage, with automatic recovery or re-power recovery. Overtemperature Shuts down output voltage; automatic recovery after the temperature falls. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +80°C, with maximum Tcase +80°C. Horizontal installation: 100% load from −40 to +60°C ambient, then derate to 60% at +70°C. The case-temperature load curve shows 100% from −40 to +80°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating At 60 Hz: 80% load at 180 VAC, increasing to 100% at 200 VAC, then 100% through 528 VAC. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 130 kHz; PWM switching frequency 70 kHz. PF curves use Tc 70°C; THD and efficiency examples use the 350 mA model at Tc 70°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C and 50,000 h at 80°C. MTBF: 1755.7K hours minimum, Telcordia SR-332 (Bellcore); 179.5K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 245 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 221 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 106.9 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads UL2517 18 AWG × 2C; purple DIM+ and pink DIM−. Lead length: 300 ±20 mm. Unit weight and packing 1.24 kg (1240 g) per unit. Carton reference: 12 pcs / 15.9 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.0-08; TUV BS EN/EN 61347-1 and 61347-2-13; EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. A/AB types require built-in installation to comply with the Type HL application. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥50% load; BS EN/EN 61000-3-3; FCC Part 15 Class B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Accessories and applications Optional waterproof connectors M12-04: four pins, 5 A per pin, 10 A maximum suitable current. M12-05: five pins, 5 A per pin, 10 A maximum suitable current. M15-02: two pins, 12 A per pin, 12 A maximum suitable current. Confirm voltage rating, pin use, wire size and environmental sealing; current ratings alone do not establish compatibility with high-voltage output. Optional cable joiners CJ04-1 accepts 14–16 AWG; CJ04-2 accepts 18–22 AWG. The standard 18 AWG output falls within CJ04-2’s wire range, not CJ04-1’s. This is a wire-size comparison only; verify all connection and sealing requirements. Joiner drawing: 66 mm long, Ø25 mm, with 26 mm and 20 mm sections. Up to four wires may be joined by soldering or tool clamping; purchase separately. Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Weather protection This model is IP65 and must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Dimming isolation The installation manual lists HVGC-65 through HVGC-320 analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements. Controller installation Verify controller compatibility and capacity for this exact DIM interface. The depicted control conductors are 18 AWG. If standalone dimming conductors smaller than 18 AWG are used, use only SELV controllers or networks and contact MEAN WELL before using FELV control. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $181.86

  View options

•

  View options

  MEAN WELL HVGC-150 series: Constant Current LED Driver - HVGC-150-700AB

  HVGC-150-700AB LED driver MEAN WELL HVGC-150-700AB is a 150.5 W, 700 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP65 design supports suitable indoor or outdoor installations subject to the installation requirements. Output current adjustable through the built-in potentiometer, plus 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Download MEAN WELL HVGC-150 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 19–27. Use the exact output and function suffix when selecting the driver. Output and function Rated output 700 mA constant current; 150.5 W rated power. Constant current region 21–215 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Current accuracy Current tolerance: ±5%. Current ripple: 8% maximum at rated current. Ripple is measured between 50% and 100% of maximum voltage under rated power delivery. Function and ingress rating AB type; IP65. Output current adjustable through the built-in potentiometer, plus 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Current adjustment 420–700 mA through the built-in Io ADJ potentiometer; output voltage adjustment is not specified. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Dimming signals Apply 0–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or additive resistance between DIM+ and DIM−. Typical dimming source current: 100 µA. Resistance control runs from a short circuit to 100 kΩ/N; N is the number of synchronized drivers. Dimming range and wiring Minimum dimming level is approximately 6%; output current is undefined between 0% and 6%. The output can fall to 0% with approximately 0 Ω, 0 VDC, or 0% PWM duty. Purple DIM+ and pink DIM−; do not connect DIM− to −V. Connect directly to LEDs; additional downstream drivers are unsuitable. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.5 A at 347 VAC; 0.38 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 91%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 75% at 480 VAC. Set-up time 500 ms at 230 VAC; 400 ms at 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 35 A; 790 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 226–247 V; shuts down output voltage, with automatic recovery or re-power recovery. Overtemperature Shuts down output voltage; automatic recovery after the temperature falls. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +80°C, with maximum Tcase +80°C. Horizontal installation: 100% load from −40 to +60°C ambient, then derate to 60% at +70°C. The case-temperature load curve shows 100% from −40 to +80°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating At 60 Hz: 80% load at 180 VAC, increasing to 100% at 200 VAC, then 100% through 528 VAC. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 130 kHz; PWM switching frequency 70 kHz. PF curves use Tc 70°C; THD and efficiency examples use the 350 mA model at Tc 70°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C and 50,000 h at 80°C. MTBF: 1755.7K hours minimum, Telcordia SR-332 (Bellcore); 179.5K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 245 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 221 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 106.9 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads UL2517 18 AWG × 2C; purple DIM+ and pink DIM−. Lead length: 300 ±20 mm. Unit weight and packing 1.24 kg (1240 g) per unit. Carton reference: 12 pcs / 15.9 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.0-08; TUV BS EN/EN 61347-1 and 61347-2-13; EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. A/AB types require built-in installation to comply with the Type HL application. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥50% load; BS EN/EN 61000-3-3; FCC Part 15 Class B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Accessories and applications Optional waterproof connectors M12-04: four pins, 5 A per pin, 10 A maximum suitable current. M12-05: five pins, 5 A per pin, 10 A maximum suitable current. M15-02: two pins, 12 A per pin, 12 A maximum suitable current. Confirm voltage rating, pin use, wire size and environmental sealing; current ratings alone do not establish compatibility with high-voltage output. Optional cable joiners CJ04-1 accepts 14–16 AWG; CJ04-2 accepts 18–22 AWG. The standard 18 AWG output falls within CJ04-2’s wire range, not CJ04-1’s. This is a wire-size comparison only; verify all connection and sealing requirements. Joiner drawing: 66 mm long, Ø25 mm, with 26 mm and 20 mm sections. Up to four wires may be joined by soldering or tool clamping; purchase separately. Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Weather protection This model is IP65 and must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Dimming isolation The installation manual lists HVGC-65 through HVGC-320 analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements. Controller installation Verify controller compatibility and capacity for this exact DIM interface. The depicted control conductors are 18 AWG. If standalone dimming conductors smaller than 18 AWG are used, use only SELV controllers or networks and contact MEAN WELL before using FELV control. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $181.86

  View options

•

  View options

  MEAN WELL HVGC-150 series: Constant Current LED Driver - HVGC-150-500AB

  HVGC-150-500AB LED driver MEAN WELL HVGC-150-500AB is a 150 W, 500 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP65 design supports suitable indoor or outdoor installations subject to the installation requirements. Output current adjustable through the built-in potentiometer, plus 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Download MEAN WELL HVGC-150 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 19–27. Use the exact output and function suffix when selecting the driver. Output and function Rated output 500 mA constant current; 150 W rated power. Constant current region 30–300 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Current accuracy Current tolerance: ±5%. Current ripple: 8% maximum at rated current. Ripple is measured between 50% and 100% of maximum voltage under rated power delivery. Function and ingress rating AB type; IP65. Output current adjustable through the built-in potentiometer, plus 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Current adjustment 300–500 mA through the built-in Io ADJ potentiometer; output voltage adjustment is not specified. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Dimming signals Apply 0–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or additive resistance between DIM+ and DIM−. Typical dimming source current: 100 µA. Resistance control runs from a short circuit to 100 kΩ/N; N is the number of synchronized drivers. Dimming range and wiring Minimum dimming level is approximately 6%; output current is undefined between 0% and 6%. The output can fall to 0% with approximately 0 Ω, 0 VDC, or 0% PWM duty. Purple DIM+ and pink DIM−; do not connect DIM− to −V. Connect directly to LEDs; additional downstream drivers are unsuitable. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.5 A at 347 VAC; 0.38 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 91%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 75% at 480 VAC. Set-up time 500 ms at 230 VAC; 400 ms at 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 35 A; 790 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 316–346 V; shuts down output voltage, with automatic recovery or re-power recovery. Overtemperature Shuts down output voltage; automatic recovery after the temperature falls. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +80°C, with maximum Tcase +80°C. Horizontal installation: 100% load from −40 to +60°C ambient, then derate to 60% at +70°C. The case-temperature load curve shows 100% from −40 to +80°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating At 60 Hz: 80% load at 180 VAC, increasing to 100% at 200 VAC, then 100% through 528 VAC. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 130 kHz; PWM switching frequency 70 kHz. PF curves use Tc 70°C; THD and efficiency examples use the 350 mA model at Tc 70°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C and 50,000 h at 80°C. MTBF: 1755.7K hours minimum, Telcordia SR-332 (Bellcore); 179.5K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 245 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 221 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 106.9 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads UL2517 18 AWG × 2C; purple DIM+ and pink DIM−. Lead length: 300 ±20 mm. Unit weight and packing 1.24 kg (1240 g) per unit. Carton reference: 12 pcs / 15.9 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.0-08; TUV BS EN/EN 61347-1 and 61347-2-13; EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. A/AB types require built-in installation to comply with the Type HL application. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥50% load; BS EN/EN 61000-3-3; FCC Part 15 Class B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Accessories and applications Optional waterproof connectors M12-04: four pins, 5 A per pin, 10 A maximum suitable current. M12-05: five pins, 5 A per pin, 10 A maximum suitable current. M15-02: two pins, 12 A per pin, 12 A maximum suitable current. Confirm voltage rating, pin use, wire size and environmental sealing; current ratings alone do not establish compatibility with high-voltage output. Optional cable joiners CJ04-1 accepts 14–16 AWG; CJ04-2 accepts 18–22 AWG. The standard 18 AWG output falls within CJ04-2’s wire range, not CJ04-1’s. This is a wire-size comparison only; verify all connection and sealing requirements. Joiner drawing: 66 mm long, Ø25 mm, with 26 mm and 20 mm sections. Up to four wires may be joined by soldering or tool clamping; purchase separately. Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Weather protection This model is IP65 and must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Dimming isolation The installation manual lists HVGC-65 through HVGC-320 analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements. Controller installation Verify controller compatibility and capacity for this exact DIM interface. The depicted control conductors are 18 AWG. If standalone dimming conductors smaller than 18 AWG are used, use only SELV controllers or networks and contact MEAN WELL before using FELV control. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $181.86

  View options

•

  View options

  MEAN WELL HVGC-150 series: Constant Current LED Driver - HVGC-150-350AB

  HVGC-150-350AB LED driver MEAN WELL HVGC-150-350AB is a 149.8 W, 350 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP65 design supports suitable indoor or outdoor installations subject to the installation requirements. Output current adjustable through the built-in potentiometer, plus 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Download MEAN WELL HVGC-150 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 19–27. Use the exact output and function suffix when selecting the driver. Output and function Rated output 350 mA constant current; 149.8 W rated power. Constant current region 42–428 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Current accuracy Current tolerance: ±5%. Current ripple: 8% maximum at rated current. Ripple is measured between 50% and 100% of maximum voltage under rated power delivery. Function and ingress rating AB type; IP65. Output current adjustable through the built-in potentiometer, plus 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Current adjustment 210–350 mA through the built-in Io ADJ potentiometer; output voltage adjustment is not specified. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Dimming signals Apply 0–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or additive resistance between DIM+ and DIM−. Typical dimming source current: 100 µA. Resistance control runs from a short circuit to 100 kΩ/N; N is the number of synchronized drivers. Dimming range and wiring Minimum dimming level is approximately 6%; output current is undefined between 0% and 6%. The output can fall to 0% with approximately 0 Ω, 0 VDC, or 0% PWM duty. Purple DIM+ and pink DIM−; do not connect DIM− to −V. Connect directly to LEDs; additional downstream drivers are unsuitable. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.5 A at 347 VAC; 0.38 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 91%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 75% at 480 VAC. Set-up time 500 ms at 230 VAC; 400 ms at 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 35 A; 790 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 430–460 V; shuts down output voltage, with automatic recovery or re-power recovery. Overtemperature Shuts down output voltage; automatic recovery after the temperature falls. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +80°C, with maximum Tcase +80°C. Horizontal installation: 100% load from −40 to +60°C ambient, then derate to 60% at +70°C. The case-temperature load curve shows 100% from −40 to +80°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating At 60 Hz: 80% load at 180 VAC, increasing to 100% at 200 VAC, then 100% through 528 VAC. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 130 kHz; PWM switching frequency 70 kHz. PF curves use Tc 70°C; THD and efficiency examples use the 350 mA model at Tc 70°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C and 50,000 h at 80°C. MTBF: 1755.7K hours minimum, Telcordia SR-332 (Bellcore); 179.5K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 245 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 221 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 106.9 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads UL2517 18 AWG × 2C; purple DIM+ and pink DIM−. Lead length: 300 ±20 mm. Unit weight and packing 1.24 kg (1240 g) per unit. Carton reference: 12 pcs / 15.9 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.0-08; TUV BS EN/EN 61347-1 and 61347-2-13; EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. A/AB types require built-in installation to comply with the Type HL application. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥50% load; BS EN/EN 61000-3-3; FCC Part 15 Class B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Accessories and applications Optional waterproof connectors M12-04: four pins, 5 A per pin, 10 A maximum suitable current. M12-05: five pins, 5 A per pin, 10 A maximum suitable current. M15-02: two pins, 12 A per pin, 12 A maximum suitable current. Confirm voltage rating, pin use, wire size and environmental sealing; current ratings alone do not establish compatibility with high-voltage output. Optional cable joiners CJ04-1 accepts 14–16 AWG; CJ04-2 accepts 18–22 AWG. The standard 18 AWG output falls within CJ04-2’s wire range, not CJ04-1’s. This is a wire-size comparison only; verify all connection and sealing requirements. Joiner drawing: 66 mm long, Ø25 mm, with 26 mm and 20 mm sections. Up to four wires may be joined by soldering or tool clamping; purchase separately. Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Weather protection This model is IP65 and must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Dimming isolation The installation manual lists HVGC-65 through HVGC-320 analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements. Controller installation Verify controller compatibility and capacity for this exact DIM interface. The depicted control conductors are 18 AWG. If standalone dimming conductors smaller than 18 AWG are used, use only SELV controllers or networks and contact MEAN WELL before using FELV control. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $181.86

  View options

•

  View options

  MEAN WELL HVGC-150 series: Constant Current LED Driver - HVGC-150-1400B

  HVGC-150-1400B LED driver MEAN WELL HVGC-150-1400B is a 149.8 W, 1400 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP67 design supports suitable indoor or outdoor installations subject to the installation requirements. 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Download MEAN WELL HVGC-150 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 19–27. Use the exact output and function suffix when selecting the driver. Output and function Rated output 1400 mA constant current; 149.8 W rated power. Constant current region 12–107 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Current accuracy Current tolerance: ±5%. Current ripple: 8% maximum at rated current. Ripple is measured between 50% and 100% of maximum voltage under rated power delivery. Function and ingress rating B type; IP67. 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Current adjustment No internal user-adjustable current potentiometer is specified for this suffix. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Dimming signals Apply 0–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or additive resistance between DIM+ and DIM−. Typical dimming source current: 100 µA. Resistance control runs from a short circuit to 100 kΩ/N; N is the number of synchronized drivers. Dimming range and wiring Minimum dimming level is approximately 6%; output current is undefined between 0% and 6%. The output can fall to 0% with approximately 0 Ω, 0 VDC, or 0% PWM duty. Purple DIM+ and pink DIM−; do not connect DIM− to −V. Connect directly to LEDs; additional downstream drivers are unsuitable. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.5 A at 347 VAC; 0.38 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 90%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 75% at 480 VAC. Set-up time 500 ms at 230 VAC; 400 ms at 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 35 A; 790 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 113–124 V; shuts down output voltage, with automatic recovery or re-power recovery. Overtemperature Shuts down output voltage; automatic recovery after the temperature falls. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +80°C, with maximum Tcase +80°C. Horizontal installation: 100% load from −40 to +60°C ambient, then derate to 60% at +70°C. The case-temperature load curve shows 100% from −40 to +80°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating At 60 Hz: 80% load at 180 VAC, increasing to 100% at 200 VAC, then 100% through 528 VAC. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 130 kHz; PWM switching frequency 70 kHz. PF curves use Tc 70°C; THD and efficiency examples use the 350 mA model at Tc 70°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C and 50,000 h at 80°C. MTBF: 1755.7K hours minimum, Telcordia SR-332 (Bellcore); 179.5K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 245 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 221 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 106.9 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads UL2517 18 AWG × 2C; purple DIM+ and pink DIM−. Lead length: 300 ±20 mm. Unit weight and packing 1.24 kg (1240 g) per unit. Carton reference: 12 pcs / 15.9 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.0-08; TUV BS EN/EN 61347-1 and 61347-2-13; EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥50% load; BS EN/EN 61000-3-3; FCC Part 15 Class B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Accessories and applications Optional waterproof connectors M12-04: four pins, 5 A per pin, 10 A maximum suitable current. M12-05: five pins, 5 A per pin, 10 A maximum suitable current. M15-02: two pins, 12 A per pin, 12 A maximum suitable current. Confirm voltage rating, pin use, wire size and environmental sealing; current ratings alone do not establish compatibility with high-voltage output. Optional cable joiners CJ04-1 accepts 14–16 AWG; CJ04-2 accepts 18–22 AWG. The standard 18 AWG output falls within CJ04-2’s wire range, not CJ04-1’s. This is a wire-size comparison only; verify all connection and sealing requirements. Joiner drawing: 66 mm long, Ø25 mm, with 26 mm and 20 mm sections. Up to four wires may be joined by soldering or tool clamping; purchase separately. Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Dimming isolation The installation manual lists HVGC-65 through HVGC-320 analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements. Controller installation Verify controller compatibility and capacity for this exact DIM interface. The depicted control conductors are 18 AWG. If standalone dimming conductors smaller than 18 AWG are used, use only SELV controllers or networks and contact MEAN WELL before using FELV control. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $179.40

  View options

•

  View options

  MEAN WELL HVGC-150 series: Constant Current LED Driver - HVGC-150-1050B

  HVGC-150-1050B LED driver MEAN WELL HVGC-150-1050B is a 150.15 W, 1050 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP67 design supports suitable indoor or outdoor installations subject to the installation requirements. 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Download MEAN WELL HVGC-150 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 19–27. Use the exact output and function suffix when selecting the driver. Output and function Rated output 1050 mA constant current; 150.15 W rated power. Constant current region 15–143 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Current accuracy Current tolerance: ±5%. Current ripple: 8% maximum at rated current. Ripple is measured between 50% and 100% of maximum voltage under rated power delivery. Function and ingress rating B type; IP67. 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Current adjustment No internal user-adjustable current potentiometer is specified for this suffix. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Dimming signals Apply 0–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or additive resistance between DIM+ and DIM−. Typical dimming source current: 100 µA. Resistance control runs from a short circuit to 100 kΩ/N; N is the number of synchronized drivers. Dimming range and wiring Minimum dimming level is approximately 6%; output current is undefined between 0% and 6%. The output can fall to 0% with approximately 0 Ω, 0 VDC, or 0% PWM duty. Purple DIM+ and pink DIM−; do not connect DIM− to −V. Connect directly to LEDs; additional downstream drivers are unsuitable. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.5 A at 347 VAC; 0.38 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 90%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 75% at 480 VAC. Set-up time 500 ms at 230 VAC; 400 ms at 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 35 A; 790 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 151–165 V; shuts down output voltage, with automatic recovery or re-power recovery. Overtemperature Shuts down output voltage; automatic recovery after the temperature falls. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +80°C, with maximum Tcase +80°C. Horizontal installation: 100% load from −40 to +60°C ambient, then derate to 60% at +70°C. The case-temperature load curve shows 100% from −40 to +80°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating At 60 Hz: 80% load at 180 VAC, increasing to 100% at 200 VAC, then 100% through 528 VAC. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 130 kHz; PWM switching frequency 70 kHz. PF curves use Tc 70°C; THD and efficiency examples use the 350 mA model at Tc 70°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C and 50,000 h at 80°C. MTBF: 1755.7K hours minimum, Telcordia SR-332 (Bellcore); 179.5K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 245 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 221 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 106.9 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads UL2517 18 AWG × 2C; purple DIM+ and pink DIM−. Lead length: 300 ±20 mm. Unit weight and packing 1.24 kg (1240 g) per unit. Carton reference: 12 pcs / 15.9 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.0-08; TUV BS EN/EN 61347-1 and 61347-2-13; EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥50% load; BS EN/EN 61000-3-3; FCC Part 15 Class B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Accessories and applications Optional waterproof connectors M12-04: four pins, 5 A per pin, 10 A maximum suitable current. M12-05: five pins, 5 A per pin, 10 A maximum suitable current. M15-02: two pins, 12 A per pin, 12 A maximum suitable current. Confirm voltage rating, pin use, wire size and environmental sealing; current ratings alone do not establish compatibility with high-voltage output. Optional cable joiners CJ04-1 accepts 14–16 AWG; CJ04-2 accepts 18–22 AWG. The standard 18 AWG output falls within CJ04-2’s wire range, not CJ04-1’s. This is a wire-size comparison only; verify all connection and sealing requirements. Joiner drawing: 66 mm long, Ø25 mm, with 26 mm and 20 mm sections. Up to four wires may be joined by soldering or tool clamping; purchase separately. Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Dimming isolation The installation manual lists HVGC-65 through HVGC-320 analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements. Controller installation Verify controller compatibility and capacity for this exact DIM interface. The depicted control conductors are 18 AWG. If standalone dimming conductors smaller than 18 AWG are used, use only SELV controllers or networks and contact MEAN WELL before using FELV control. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $179.40

  View options

•

  View options

  MEAN WELL HVGC-150 series: Constant Current LED Driver - HVGC-150-700B

  HVGC-150-700B LED driver MEAN WELL HVGC-150-700B is a 150.5 W, 700 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP67 design supports suitable indoor or outdoor installations subject to the installation requirements. 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Download MEAN WELL HVGC-150 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 19–27. Use the exact output and function suffix when selecting the driver. Output and function Rated output 700 mA constant current; 150.5 W rated power. Constant current region 21–215 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Current accuracy Current tolerance: ±5%. Current ripple: 8% maximum at rated current. Ripple is measured between 50% and 100% of maximum voltage under rated power delivery. Function and ingress rating B type; IP67. 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Current adjustment No internal user-adjustable current potentiometer is specified for this suffix. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Dimming signals Apply 0–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or additive resistance between DIM+ and DIM−. Typical dimming source current: 100 µA. Resistance control runs from a short circuit to 100 kΩ/N; N is the number of synchronized drivers. Dimming range and wiring Minimum dimming level is approximately 6%; output current is undefined between 0% and 6%. The output can fall to 0% with approximately 0 Ω, 0 VDC, or 0% PWM duty. Purple DIM+ and pink DIM−; do not connect DIM− to −V. Connect directly to LEDs; additional downstream drivers are unsuitable. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.5 A at 347 VAC; 0.38 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 91%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 75% at 480 VAC. Set-up time 500 ms at 230 VAC; 400 ms at 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 35 A; 790 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 226–247 V; shuts down output voltage, with automatic recovery or re-power recovery. Overtemperature Shuts down output voltage; automatic recovery after the temperature falls. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +80°C, with maximum Tcase +80°C. Horizontal installation: 100% load from −40 to +60°C ambient, then derate to 60% at +70°C. The case-temperature load curve shows 100% from −40 to +80°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating At 60 Hz: 80% load at 180 VAC, increasing to 100% at 200 VAC, then 100% through 528 VAC. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 130 kHz; PWM switching frequency 70 kHz. PF curves use Tc 70°C; THD and efficiency examples use the 350 mA model at Tc 70°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C and 50,000 h at 80°C. MTBF: 1755.7K hours minimum, Telcordia SR-332 (Bellcore); 179.5K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 245 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 221 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 106.9 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads UL2517 18 AWG × 2C; purple DIM+ and pink DIM−. Lead length: 300 ±20 mm. Unit weight and packing 1.24 kg (1240 g) per unit. Carton reference: 12 pcs / 15.9 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.0-08; TUV BS EN/EN 61347-1 and 61347-2-13; EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥50% load; BS EN/EN 61000-3-3; FCC Part 15 Class B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Accessories and applications Optional waterproof connectors M12-04: four pins, 5 A per pin, 10 A maximum suitable current. M12-05: five pins, 5 A per pin, 10 A maximum suitable current. M15-02: two pins, 12 A per pin, 12 A maximum suitable current. Confirm voltage rating, pin use, wire size and environmental sealing; current ratings alone do not establish compatibility with high-voltage output. Optional cable joiners CJ04-1 accepts 14–16 AWG; CJ04-2 accepts 18–22 AWG. The standard 18 AWG output falls within CJ04-2’s wire range, not CJ04-1’s. This is a wire-size comparison only; verify all connection and sealing requirements. Joiner drawing: 66 mm long, Ø25 mm, with 26 mm and 20 mm sections. Up to four wires may be joined by soldering or tool clamping; purchase separately. Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Dimming isolation The installation manual lists HVGC-65 through HVGC-320 analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements. Controller installation Verify controller compatibility and capacity for this exact DIM interface. The depicted control conductors are 18 AWG. If standalone dimming conductors smaller than 18 AWG are used, use only SELV controllers or networks and contact MEAN WELL before using FELV control. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $179.40

  View options

•

  View options

  MEAN WELL HVGC-150 series: Constant Current LED Driver - HVGC-150-500B

  HVGC-150-500B LED driver MEAN WELL HVGC-150-500B is a 150 W, 500 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP67 design supports suitable indoor or outdoor installations subject to the installation requirements. 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Download MEAN WELL HVGC-150 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 19–27. Use the exact output and function suffix when selecting the driver. Output and function Rated output 500 mA constant current; 150 W rated power. Constant current region 30–300 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Current accuracy Current tolerance: ±5%. Current ripple: 8% maximum at rated current. Ripple is measured between 50% and 100% of maximum voltage under rated power delivery. Function and ingress rating B type; IP67. 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Current adjustment No internal user-adjustable current potentiometer is specified for this suffix. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Dimming signals Apply 0–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or additive resistance between DIM+ and DIM−. Typical dimming source current: 100 µA. Resistance control runs from a short circuit to 100 kΩ/N; N is the number of synchronized drivers. Dimming range and wiring Minimum dimming level is approximately 6%; output current is undefined between 0% and 6%. The output can fall to 0% with approximately 0 Ω, 0 VDC, or 0% PWM duty. Purple DIM+ and pink DIM−; do not connect DIM− to −V. Connect directly to LEDs; additional downstream drivers are unsuitable. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.5 A at 347 VAC; 0.38 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 91%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 75% at 480 VAC. Set-up time 500 ms at 230 VAC; 400 ms at 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 35 A; 790 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 316–346 V; shuts down output voltage, with automatic recovery or re-power recovery. Overtemperature Shuts down output voltage; automatic recovery after the temperature falls. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +80°C, with maximum Tcase +80°C. Horizontal installation: 100% load from −40 to +60°C ambient, then derate to 60% at +70°C. The case-temperature load curve shows 100% from −40 to +80°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating At 60 Hz: 80% load at 180 VAC, increasing to 100% at 200 VAC, then 100% through 528 VAC. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 130 kHz; PWM switching frequency 70 kHz. PF curves use Tc 70°C; THD and efficiency examples use the 350 mA model at Tc 70°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C and 50,000 h at 80°C. MTBF: 1755.7K hours minimum, Telcordia SR-332 (Bellcore); 179.5K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 245 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 221 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 106.9 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads UL2517 18 AWG × 2C; purple DIM+ and pink DIM−. Lead length: 300 ±20 mm. Unit weight and packing 1.24 kg (1240 g) per unit. Carton reference: 12 pcs / 15.9 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.0-08; TUV BS EN/EN 61347-1 and 61347-2-13; EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥50% load; BS EN/EN 61000-3-3; FCC Part 15 Class B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Accessories and applications Optional waterproof connectors M12-04: four pins, 5 A per pin, 10 A maximum suitable current. M12-05: five pins, 5 A per pin, 10 A maximum suitable current. M15-02: two pins, 12 A per pin, 12 A maximum suitable current. Confirm voltage rating, pin use, wire size and environmental sealing; current ratings alone do not establish compatibility with high-voltage output. Optional cable joiners CJ04-1 accepts 14–16 AWG; CJ04-2 accepts 18–22 AWG. The standard 18 AWG output falls within CJ04-2’s wire range, not CJ04-1’s. This is a wire-size comparison only; verify all connection and sealing requirements. Joiner drawing: 66 mm long, Ø25 mm, with 26 mm and 20 mm sections. Up to four wires may be joined by soldering or tool clamping; purchase separately. Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Dimming isolation The installation manual lists HVGC-65 through HVGC-320 analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements. Controller installation Verify controller compatibility and capacity for this exact DIM interface. The depicted control conductors are 18 AWG. If standalone dimming conductors smaller than 18 AWG are used, use only SELV controllers or networks and contact MEAN WELL before using FELV control. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $179.40

  View options

•

  View options

  MEAN WELL HVGC-150 series: Constant Current LED Driver - HVGC-150-350B

  HVGC-150-350B LED driver MEAN WELL HVGC-150-350B is a 149.8 W, 350 mA constant current LED driver with high-voltage output, a metal Class I enclosure, active PFC and fanless free-air convection cooling. Its IP67 design supports suitable indoor or outdoor installations subject to the installation requirements. 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Download MEAN WELL HVGC-150 Datasheet (PDF)Download MEAN WELL LED Installation Manual HVGC catalog, PDF pages 19–27. Use the exact output and function suffix when selecting the driver. Output and function Rated output 350 mA constant current; 149.8 W rated power. Constant current region 42–428 V. Select the LED load within this range; the highest output voltage depends on the system configuration. Contact MEAN WELL for compatibility questions. Current accuracy Current tolerance: ±5%. Current ripple: 8% maximum at rated current. Ripple is measured between 50% and 100% of maximum voltage under rated power delivery. Function and ingress rating B type; IP67. 3-in-1 dimming using 0–10 VDC, 10 V PWM or resistance. Current adjustment No internal user-adjustable current potentiometer is specified for this suffix. LED connection This series operates in constant current mode to drive LEDs directly. The exact current option and function suffix determine the operating limits. Dimming signals Apply 0–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or additive resistance between DIM+ and DIM−. Typical dimming source current: 100 µA. Resistance control runs from a short circuit to 100 kΩ/N; N is the number of synchronized drivers. Dimming range and wiring Minimum dimming level is approximately 6%; output current is undefined between 0% and 6%. The output can fall to 0% with approximately 0 Ω, 0 VDC, or 0% PWM duty. Purple DIM+ and pink DIM−; do not connect DIM− to −V. Connect directly to LEDs; additional downstream drivers are unsuitable. Catalog option The datasheet identifies this as a standard / in-stock function option. This is a catalog classification, not a promise of current inventory. Input and performance Input range 180–528 VAC or 254–747 VDC; 47–63 Hz AC. Apply the voltage-specific thermal limits. AC current and power factor Typical AC current: 0.5 A at 347 VAC; 0.38 A at 480 VAC. Full-load typical PF: ≥0.98 / ≥0.97 / ≥0.95 / ≥0.93 at 230 / 277 / 347 / 480 VAC. Efficiency and harmonic distortion Typical efficiency: 91%. THD <20% at loads ≥50% at 230, 277 and 347 VAC; 75% at 480 VAC. Set-up time 500 ms at 230 VAC; 400 ms at 347 and 480 VAC. Measured at first cold start; repeated power cycling may increase set-up time. Mains loading Typical cold-start inrush: 35 A; 790 µs pulse width measured at 50% Ipeak at 480 VAC, per NEMA 410. Maximum units on a 16 A type B / type C circuit breaker at 480 VAC: 4 / 6. Leakage and measurement conditions Leakage current <0.75 mA at 480 VAC. Unless otherwise stated, specifications use 347 VAC, rated output current and 25°C ambient. Separate rise-time, hold-up-time and idle-power values are not stated. Protection Short circuit Constant current limiting; automatic recovery when the fault is removed. Overvoltage 430–460 V; shuts down output voltage, with automatic recovery or re-power recovery. Overtemperature Shuts down output voltage; automatic recovery after the temperature falls. Temperature and reliability Case and ambient limits Operating case temperature: −40 to +80°C, with maximum Tcase +80°C. Horizontal installation: 100% load from −40 to +60°C ambient, then derate to 60% at +70°C. The case-temperature load curve shows 100% from −40 to +80°C. Meet both case and ambient limits; free-air convection cooling. Input and altitude derating At 60 Hz: 80% load at 180 VAC, increasing to 100% at 200 VAC, then 100% through 528 VAC. Above 2,000 m altitude, reduce allowable ambient temperature by 3.5°C per 1,000 m for this fanless design. Environment Working humidity: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient: ±0.03%/°C over 0–60°C. Vibration: 10–500 Hz, 5 G, 12 min/cycle, 72 min along each X, Y and Z axis. Operating curves PFC switching frequency 130 kHz; PWM switching frequency 70 kHz. PF curves use Tc 70°C; THD and efficiency examples use the 350 mA model at Tc 70°C, distinguishing 230, 277, 347 and 480 VAC. These examples do not guarantee identical performance for every current option. Life and reliability Typical lifetime >50,000 hours at Tc / TMP about 80°C or lower. The lifetime graph indicates approximately 100,000 h at Tc 20–70°C, 70,000 h at 75°C and 50,000 h at 80°C. MTBF: 1755.7K hours minimum, Telcordia SR-332 (Bellcore); 179.5K hours minimum, MIL-HDBK-217F at 25°C. Warranty Five-year manufacturer warranty, subject to its warranty statement and the specified operating conditions. Mechanical details and wiring Dimensions 245 × 68 × 38.8 mm (L × W × H); case 994; drawing tolerance ±1 mm. Mounting reference The mechanical drawings show four Ø4.2 mm mounting slots, vertical spacing 34.2 mm, and main case body length 221 mm excluding end mounting flanges. Use the full drawing for fixing positions. Temperature measurement point The marked tc point is 106.9 mm from the main case right edge and 34 mm from the bottom edge; use this point for case-temperature verification. Input and output leads Input: STW 18 AWG × 3C; brown AC/L, blue AC/N and green/yellow FG. Output: STW 18 AWG × 2C; red +V and black −V. Input and output lead lengths: 300 ±20 mm. Control leads UL2517 18 AWG × 2C; purple DIM+ and pink DIM−. Lead length: 300 ±20 mm. Unit weight and packing 1.24 kg (1240 g) per unit. Carton reference: 12 pcs / 15.9 kg / 0.78 CUFT. Per-unit mass is separately stated in the specification. Safety and EMC Electrical classification Metal Class I design requiring protective earth. This electrical protection class is distinct from any hazardous-location designation. Safety standards UL 8750 Type HL; CSA C22.2 No. 250.0-08; TUV BS EN/EN 61347-1 and 61347-2-13; EAC TP TC 004. Type HL application The family specifies Type HL for Class I, Division 2 hazardous classified locations. Isolation Withstand voltage: input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Isolation resistance: 100 MΩ at 500 VDC, 25°C and 70% RH across these paths. EMC Emissions: BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at ≥50% load; BS EN/EN 61000-3-3; FCC Part 15 Class B; EAC TP TC 020. Immunity: BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547, light-industry level; EAC TP TC 020. Surge immunity: 4 kV line-to-earth and 2 kV line-to-line. System integration The driver is a component; final equipment manufacturers must re-qualify EMC for the complete installation. For the stated ErP luminaire requirement, use behind a mains switch without a permanent unswitched mains connection. The product is intended for North American and EU lighting equipment; contact MEAN WELL for other uses. Accessories and applications Optional waterproof connectors M12-04: four pins, 5 A per pin, 10 A maximum suitable current. M12-05: five pins, 5 A per pin, 10 A maximum suitable current. M15-02: two pins, 12 A per pin, 12 A maximum suitable current. Confirm voltage rating, pin use, wire size and environmental sealing; current ratings alone do not establish compatibility with high-voltage output. Optional cable joiners CJ04-1 accepts 14–16 AWG; CJ04-2 accepts 18–22 AWG. The standard 18 AWG output falls within CJ04-2’s wire range, not CJ04-1’s. This is a wire-size comparison only; verify all connection and sealing requirements. Joiner drawing: 66 mm long, Ø25 mm, with 26 mm and 20 mm sections. Up to four wires may be joined by soldering or tool clamping; purchase separately. Applications LED street, high-bay, parking-space and fishing-lamp lighting. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor to PE according to this Class I model’s wiring diagram. Dimming isolation The installation manual lists HVGC-65 through HVGC-320 analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements. Controller installation Verify controller compatibility and capacity for this exact DIM interface. The depicted control conductors are 18 AWG. If standalone dimming conductors smaller than 18 AWG are used, use only SELV controllers or networks and contact MEAN WELL before using FELV control. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.
