MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45B-1050W
Rated output current: 1050mA Output voltage range: 21 ~ 43VDC No load output voltage (maximum):50V Output power rating: 45.15W Input rated voltage range: 18 ~ 32VDC Linear, PWM and Analog Voltage (Analog) Dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$23.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45B-700W
Output current rating: 700mA Output voltage range: 21 ~ 64VDC No load output voltage (maximum):75V Output power rating: 44.8W Input rated voltage range: 18 ~ 32VDC Linear, PWM and Analog Voltage (Analog) Dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$23.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45B-500W
Output rated current: 500mA Output voltage range: 21 ~ 86VDC No load output voltage (maximum):100V Output power rating: 43W Input rated voltage range: 18 ~ 32VDC Linear, PWM and Analog Voltage (Analog) Dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$23.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45B-350W
Rated output current: 350mA Output voltage range: 21 ~ 126VDC No-load output voltage (maximum):146V Output power rating: 45.15W Input rated voltage range: 18 ~ 32VDC Linear, PWM and Analog Voltage (Analog) Dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$23.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45B-1050
Rated output current: 1050mA Output voltage range: 21 ~ 43VDC No load output voltage (maximum):50V Output power rating: 45.15W Input rated voltage range: 18 ~ 32VDC PIN pin type, PWM and analog voltage (Analog) dimming; Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$23.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45B-700
Output current rating: 700mA Output voltage range: 21 ~ 64VDC No load output voltage (maximum):75V Output power rating: 44.8W Input rated voltage range: 18 ~ 32VDC PIN pin type, PWM and analog voltage (Analog) dimming; Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$23.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45B-500
Output rated current: 500mA Output voltage range: 21 ~ 86VDC No load output voltage (maximum):100V Output power rating: 43W Input rated voltage range: 18 ~ 32VDC PIN pin type, PWM and analog voltage (Analog) dimming; Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$23.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45B-350
Rated output current: 350mA Output voltage range: 21 ~ 126VDC No-load output voltage (maximum):146V Output power rating: 45.15W Input rated voltage range: 18 ~ 32VDC PIN pin type, PWM and analog voltage (Analog) dimming; Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$23.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-1050WDA
Rated output current: 1050mA Output voltage range: 24 ~ 43VDC No load output voltage (maximum):50V Output power rating: 45.15W Input rated voltage range: 9 ~ 18VDC Linear, DALI Dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$36.00
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-700WDA
Output current rating: 700mA Output voltage range: 24 ~ 64VDC No load output voltage (maximum):75V Output power rating: 44.8W Input rated voltage range: 9 ~ 18VDC Linear, DALI Dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$36.00
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-500WDA
Output rated current: 500mA Output voltage range: 24 ~ 86VDC No load output voltage (maximum):100V Output power rating: 43W Input rated voltage range: 9 ~ 18VDC Linear, DALI Dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$36.00
-

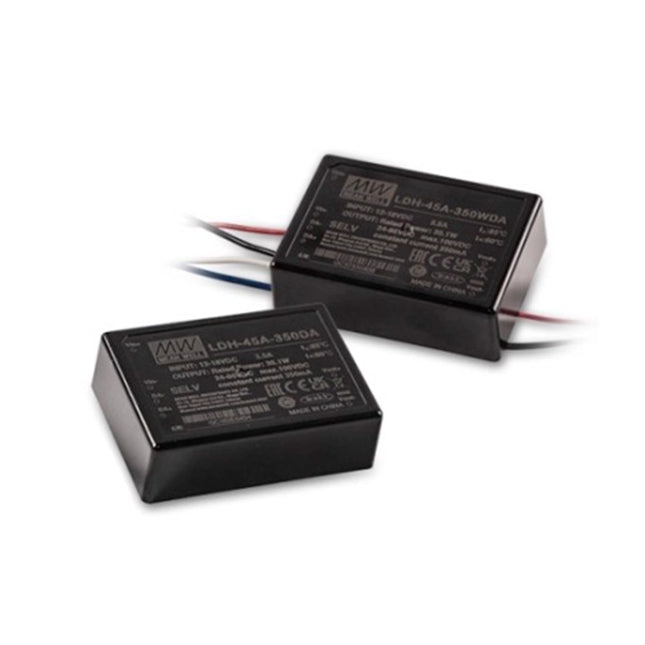

MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-350WDA
Rated output current: 350mA Output voltage range: 24 ~ 86VDC No load output voltage (maximum):100V Output power rating: 30.1W Input rated voltage range: 9 ~ 18VDC Linear, DALI Dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$36.00
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-1050DA
Rated output current: 1050mA Output voltage range: 24 ~ 43VDC No load output voltage (maximum):50V Output power rating: 45.15W Input rated voltage range: 9 ~ 18VDC PIN pin type, DALI dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$36.00
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-700DA
Output current rating: 700mA Output voltage range: 24 ~ 64VDC No load output voltage (maximum):75V Output power rating: 44.8W Input rated voltage range: 9 ~ 18VDC PIN pin type, DALI dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$36.00
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-500DA
Output rated current: 500mA Output voltage range: 24 ~ 86VDC No load output voltage (maximum):100V Output power rating: 43W Input rated voltage range: 9 ~ 18VDC PIN pin type, DALI dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$36.00
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-350DA
Rated output current: 350mA Output voltage range: 24 ~ 86VDC No load output voltage (maximum):100V Output power rating: 30.1W Input rated voltage range: 9 ~ 18VDC PIN pin type, DALI dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$36.00
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-1050W
Rated output current: 1050mA Output voltage range: 12 ~ 43VDC No load output voltage (maximum):50V Output power rating: 45.15W Input rated voltage range: 9 ~ 18VDC Linear, PWM and Analog Voltage (Analog) Dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$23.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-700W
Output current rating: 700mA Output voltage range: 12 ~ 64VDC No load output voltage (maximum):75V Output power rating: 44.8W Input rated voltage range: 9 ~ 18VDC Linear, PWM and Analog Voltage (Analog) Dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$23.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-500W
Output rated current: 500mA Output voltage range: 12 ~ 86VDC No load output voltage (maximum):100V Output power rating: 43W Input rated voltage range: 9 ~ 18VDC Linear, PWM and Analog Voltage (Analog) Dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$23.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-350W
Rated output current: 350mA Output voltage range: 12 ~ 86VDC No load output voltage (maximum):100V Output power rating: 30.1W Input rated voltage range: 9 ~ 18VDC Linear, PWM and Analog Voltage (Analog) Dimming Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$23.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-1050
Rated output current: 1050mA Output voltage range: 12 ~ 43VDC No load output voltage (maximum):50V Output power rating: 45.15W Input rated voltage range: 9 ~ 18VDC PIN pin type, PWM and analog voltage (Analog) dimming; Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$23.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-700
Output current rating: 700mA Output voltage range: 12 ~ 64VDC No load output voltage (maximum):75V Output power rating: 44.8W Input rated voltage range: 9 ~ 18VDC PIN pin type, PWM and analog voltage (Analog) dimming; Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$23.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-500
Output rated current: 500mA Output voltage range: 12 ~ 86VDC No load output voltage (maximum):100V Output power rating: 43W Input rated voltage range: 9 ~ 18VDC PIN pin type, PWM and analog voltage (Analog) dimming; Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$23.14
-
MEAN WELL LDH series: boost constant current LED driver power supply - LDH-45A-350
Rated output current: 350mA Output voltage range: 12 ~ 86VDC No load output voltage (maximum):100V Output power rating: 30.1W Input rated voltage range: 9 ~ 18VDC PIN pin type, PWM and analog voltage (Analog) dimming; Size (mm):75X53X22.7 Product Features 1. DC-DC boost converter. 2. Wide input and output voltage range. 3, the highest efficiency can reach 96%. 4. Built-in EMI filter circuit, conforms to BS EN/EN55015 without additional input filter and capacitor. 5. Two-in-one dimming function (0~10V,PWM signal). 6. Class III safe voltage application. 7. Protection type: short circuit/overvoltage. 8, 3 years warranty.
$23.14
