MEAN WELL NGE100U is an NGE100 series 4-port USB GaN fast charger with two USB-C and two USB-A outputs. Total output is 100 W maximum across the charger. Either USB-C port can provide up to 100 W when used alone; each USB-A port is rated up to 18 W, with shared-power limits when several ports are used. This US version has a non-interchangeable, 90-degree folding AC plug. Compatible devices negotiate their charging voltage and power; input-voltage and temperature derating apply. Product Datasheet Download MEAN WELL NGE100 Datasheet (PDF) The NGE100 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. USB Output and Model Selection Complete model NGE100U Total output power 100 W maximum for the complete charger, shared across all active ports. USB-C1 and USB-C2, each PD3.0: 5, 9, 12 or 15 V at up to 3 A; 20 V at up to 5 A. Each port: 100 W maximum. The power-allocation note also lists PD2.0 support. USB-A1 and USB-A2, each QC3.0: 5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A or 20 V / 0.9 A. Each port: 18 W maximum. 5 V-only operation 45 W maximum total: C1 = 5 V / 3 A; C2 = 5 V / 3 A; A1 = 5 V / 1.5 A; A2 = 5 V / 1.5 A. Charging protocols QC2.0, QC3.0 and PD3.0 are listed in the series features; the USB-C allocation note also lists PD2.0. Automatic voltage selection 5, 9, 12, 15 or 20 V according to the connected device and applicable port protocol. Ripple/noise, maximum 200 mVp-p at each of the listed 5 / 9 / 12 / 15 / 20 V outputs; see measurement conditions. Voltage tolerance ±5.0% at 5 / 9 V; ±4.0% at 12 / 15 / 20 V. Includes set-up, line and load regulation. Line regulation ±1.0% at all five listed output voltages. Load regulation ±5.0% at 5 / 9 V; ±4.0% at 12 / 15 / 20 V. Set-up / hold-up time 1000 / 30 ms at 230 VAC; 2000 / 10 ms at 115 VAC; measured with USB-C1 at 20 V / 5 A. These output voltages are negotiated modes of one complete charger, not separate fixed-voltage order numbers. Charging performance depends on the supported device protocol, cable rating, active-port combination and available input/thermal power. Recommended Port Power Allocation A1 A1 18 W. A2 A2 18 W. C1 C1 100 W. C2 C2 100 W. A1 + A2 A1 18 W; A2 18 W. C1 + C2 C1 65 W; C2 30 W. C2 + A1 C2 80 W; A1 18 W. C1 + A2 C1 80 W; A2 18 W. C2 + A2 C2 80 W; A2 18 W. C1 + A1 C1 80 W; A1 18 W. C2 + A1 + A2 C2 60 W; A1 18 W; A2 18 W. C1 + A1 + A2 C1 60 W; A1 18 W; A2 18 W. C1 + C2 + A2 C1 50 W; C2 30 W; A2 18 W. C1 + C2 + A1 C1 50 W; C2 30 W; A1 18 W. C1 + C2 + A1 + A2 C1 45 W; C2 30 W; A1 12 W; A2 12 W. Each row is a separate catalogue recommendation for the listed active ports. The 100 W total limit applies to the charger, not independently to all four ports. The 5 V-only configuration remains limited to 45 W as specified above. When additional devices are connected, protocol identification and power allocation may interrupt charging 1–3 times before it resumes; the catalogue identifies this as normal operation. AC Input, Protection and Efficiency AC input range 90–264 VAC; 47–63 Hz. Power factor >0.92 at 230 VAC; >0.98 at 115 VAC. Typical efficiency 88% at 20 V / 5 A under the catalogue reference conditions. AC input current 1.6 A at 115 VAC; 0.8 A at 230 VAC. Inrush current, maximum 65 A at 115 VAC; 95 A at 230 VAC. Leakage current, maximum 0.5 mA at 240 VAC. Short circuit Short-circuit protection is listed among the series protections. Overload 101–150% of rated output power; hiccup mode, with automatic recovery after the fault condition is removed. Overtemperature Output voltage shuts down; automatic recovery after temperature decreases. No-load power <0.3 W. Energy-efficiency marking Level VI. The specification note additionally states design conformity with US DoE Level VII, docket EERE-2020-BT-STD-0006. This design statement is distinct from the Level VI marking shown in the catalogue. Operating Conditions and Derating Working temperature -30 to +70°C, subject to the load curve. Ambient-temperature curve 100% load from -30 to +35°C; 65% at +50°C; 50% at +60°C; 30% at +70°C. Input-voltage curve, 60 Hz 80% load at 90 VAC; rises to 100% at 100 VAC and remains at 100% through 264 VAC. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C from 0 to +40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. The load must satisfy both the ambient-temperature and input-voltage limits as well as the selected port allocation. The upper working-temperature limit is not a full-power rating. Dimensions and AC Installation AC configuration US, non-interchangeable AC plug; 90-degree vertically folding two-flat-pin inlet. Body dimensions 62 × 30 × 85.5 mm (catalogue L × W × H); case NGE100; mechanical drawing general tolerance ±1 mm. Case Enclosed 94V-0 flame-retardant plastic housing. Output-port order The mechanical drawing shows USB-C1, USB-C2, USB-A1 and USB-A2 from top to bottom. Reference main-body mass 249 g, explicitly listed per main body in the catalogue packing table; separate from the 353 g retail-package reference. The NGE100U AC inlet is non-interchangeable. The universal NGE100 plug-head set is not part of this US-version package. Included Accessories and Applications Included USB cable One 100 cm Type-C cable for charging and data transmission. AC inlet US two-flat-pin inlet built into the body; vertically folds through 90 degrees. The catalogue illustrates compatible smartphones, tablets, laptops, earphones, game devices and other USB-powered equipment. Match the device charging protocol and required output to the specified port modes and shared-power limit. Use the manufacturer’s installation instructions for the supplied model and regional plug. Safety and Regional Scope Model-specific marks shown CB, UL/cUL, PSE, BSMI, FCC; apply the catalogue scope for this exact AC version. Input/output withstand 3 kVAC. Input/output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. The NGE100U certificate panel shows CB, UL/cUL, PSE, BSMI and FCC. The corresponding catalogue references include IEC62368-1, UL62368-1, PSE J62368-1 and BSMI CNS15598-1. Select the supplied regional version and follow its marking and installation instructions. The catalogue treats the charger as an independent unit; the final equipment still requires confirmation of whole-system EMC conformity. EMC Reference Conducted / radiated emissions Class B: BS EN/EN55032 (CISPR32), FCC Part 15, CISPR22, CAN ICES-3(B)/NMB-3(B), GB/T9254.1-2021 and KS C9832. Harmonic current Class A: BS EN/EN61000-3-2 and GB17625.1-2022. Voltage flicker BS EN/EN61000-3-3. Immunity framework BS EN/EN55035 (CISPR35) and KS C9835. Electrostatic discharge BS EN/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. RF field / fast transients BS EN/EN61000-4-3: Level 2, 3 V/m; -4-4: Level 2, 1 kV. Surge / conducted immunity BS EN/EN61000-4-5: Level 3, 1 kV L-N; -4-6: Level 2, 3 V. Magnetic-field immunity BS EN/EN61000-4-8: Level 1, 1 A/m. Voltage dips / interruptions BS EN/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. Measurement and Service References General test conditions 230 VAC, rated load, 25°C and 70% RH, unless otherwise specified. DC voltage set point Measured at the output-plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Line / load regulation tests Line: low to high input at rated load. Load: 0–100% output load. Minimum MTBF reference 336.4 thousand hours, MIL-HDBK-217F at 25°C; 3008.3 thousand hours, Telcordia TR/SR-332 (Bellcore) at 25°C. Catalogue warranty 3 years. Catalogue version 2026-04-03; physical PDF pages 1–7. MTBF is a statistical reference under the stated conditions, not a guaranteed service life.

Read more less

MEAN WELL NGE100U is an NGE100 series 4-port USB GaN fast charger with two USB-C and two USB-A outputs. Total output is 100 W maximum across the charger. Either USB-C port can provide up to 100 W when used alone; each USB-A port is rated up to 18 W, with shared-power limits when several ports are used. This US version has a non-interchangeable, 90-degree folding AC plug. Compatible devices negotiate their charging voltage and power; input-voltage and temperature derating apply. Product Datasheet Download MEAN WELL NGE100 Datasheet (PDF) The NGE100 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. USB Output and Model Selection Complete model NGE100U Total output power 100 W maximum for the complete charger, shared across all active ports. USB-C1 and USB-C2, each PD3.0: 5, 9, 12 or 15 V at up to 3 A; 20 V at up to 5 A. Each port: 100 W maximum. The power-allocation note also lists PD2.0 support. USB-A1 and USB-A2, each QC3.0: 5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A or 20 V / 0.9 A. Each port: 18 W maximum. 5 V-only operation 45 W maximum total: C1 = 5 V / 3 A; C2 = 5 V / 3 A; A1 = 5 V / 1.5 A; A2 = 5 V / 1.5 A. Charging protocols QC2.0, QC3.0 and PD3.0 are listed in the series features; the USB-C allocation note also lists PD2.0. Automatic voltage selection 5, 9, 12, 15 or 20 V according to the connected device and applicable port protocol. Ripple/noise, maximum 200 mVp-p at each of the listed 5 / 9 / 12 / 15 / 20 V outputs; see measurement conditions. Voltage tolerance ±5.0% at 5 / 9 V; ±4.0% at 12 / 15 / 20 V. Includes set-up, line and load regulation. Line regulation ±1.0% at all five listed output voltages. Load regulation ±5.0% at 5 / 9 V; ±4.0% at 12 / 15 / 20 V. Set-up / hold-up time 1000 / 30 ms at 230 VAC; 2000 / 10 ms at 115 VAC; measured with USB-C1 at 20 V / 5 A. These output voltages are negotiated modes of one complete charger, not separate fixed-voltage order numbers. Charging performance depends on the supported device protocol, cable rating, active-port combination and available input/thermal power. Recommended Port Power Allocation A1 A1 18 W. A2 A2 18 W. C1 C1 100 W. C2 C2 100 W. A1 + A2 A1 18 W; A2 18 W. C1 + C2 C1 65 W; C2 30 W. C2 + A1 C2 80 W; A1 18 W. C1 + A2 C1 80 W; A2 18 W. C2 + A2 C2 80 W; A2 18 W. C1 + A1 C1 80 W; A1 18 W. C2 + A1 + A2 C2 60 W; A1 18 W; A2 18 W. C1 + A1 + A2 C1 60 W; A1 18 W; A2 18 W. C1 + C2 + A2 C1 50 W; C2 30 W; A2 18 W. C1 + C2 + A1 C1 50 W; C2 30 W; A1 18 W. C1 + C2 + A1 + A2 C1 45 W; C2 30 W; A1 12 W; A2 12 W. Each row is a separate catalogue recommendation for the listed active ports. The 100 W total limit applies to the charger, not independently to all four ports. The 5 V-only configuration remains limited to 45 W as specified above. When additional devices are connected, protocol identification and power allocation may interrupt charging 1–3 times before it resumes; the catalogue identifies this as normal operation. AC Input, Protection and Efficiency AC input range 90–264 VAC; 47–63 Hz. Power factor >0.92 at 230 VAC; >0.98 at 115 VAC. Typical efficiency 88% at 20 V / 5 A under the catalogue reference conditions. AC input current 1.6 A at 115 VAC; 0.8 A at 230 VAC. Inrush current, maximum 65 A at 115 VAC; 95 A at 230 VAC. Leakage current, maximum 0.5 mA at 240 VAC. Short circuit Short-circuit protection is listed among the series protections. Overload 101–150% of rated output power; hiccup mode, with automatic recovery after the fault condition is removed. Overtemperature Output voltage shuts down; automatic recovery after temperature decreases. No-load power <0.3 W. Energy-efficiency marking Level VI. The specification note additionally states design conformity with US DoE Level VII, docket EERE-2020-BT-STD-0006. This design statement is distinct from the Level VI marking shown in the catalogue. Operating Conditions and Derating Working temperature -30 to +70°C, subject to the load curve. Ambient-temperature curve 100% load from -30 to +35°C; 65% at +50°C; 50% at +60°C; 30% at +70°C. Input-voltage curve, 60 Hz 80% load at 90 VAC; rises to 100% at 100 VAC and remains at 100% through 264 VAC. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C from 0 to +40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. The load must satisfy both the ambient-temperature and input-voltage limits as well as the selected port allocation. The upper working-temperature limit is not a full-power rating. Dimensions and AC Installation AC configuration US, non-interchangeable AC plug; 90-degree vertically folding two-flat-pin inlet. Body dimensions 62 × 30 × 85.5 mm (catalogue L × W × H); case NGE100; mechanical drawing general tolerance ±1 mm. Case Enclosed 94V-0 flame-retardant plastic housing. Output-port order The mechanical drawing shows USB-C1, USB-C2, USB-A1 and USB-A2 from top to bottom. Reference main-body mass 249 g, explicitly listed per main body in the catalogue packing table; separate from the 353 g retail-package reference. The NGE100U AC inlet is non-interchangeable. The universal NGE100 plug-head set is not part of this US-version package. Included Accessories and Applications Included USB cable One 100 cm Type-C cable for charging and data transmission. AC inlet US two-flat-pin inlet built into the body; vertically folds through 90 degrees. The catalogue illustrates compatible smartphones, tablets, laptops, earphones, game devices and other USB-powered equipment. Match the device charging protocol and required output to the specified port modes and shared-power limit. Use the manufacturer’s installation instructions for the supplied model and regional plug. Safety and Regional Scope Model-specific marks shown CB, UL/cUL, PSE, BSMI, FCC; apply the catalogue scope for this exact AC version. Input/output withstand 3 kVAC. Input/output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. The NGE100U certificate panel shows CB, UL/cUL, PSE, BSMI and FCC. The corresponding catalogue references include IEC62368-1, UL62368-1, PSE J62368-1 and BSMI CNS15598-1. Select the supplied regional version and follow its marking and installation instructions. The catalogue treats the charger as an independent unit; the final equipment still requires confirmation of whole-system EMC conformity. EMC Reference Conducted / radiated emissions Class B: BS EN/EN55032 (CISPR32), FCC Part 15, CISPR22, CAN ICES-3(B)/NMB-3(B), GB/T9254.1-2021 and KS C9832. Harmonic current Class A: BS EN/EN61000-3-2 and GB17625.1-2022. Voltage flicker BS EN/EN61000-3-3. Immunity framework BS EN/EN55035 (CISPR35) and KS C9835. Electrostatic discharge BS EN/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. RF field / fast transients BS EN/EN61000-4-3: Level 2, 3 V/m; -4-4: Level 2, 1 kV. Surge / conducted immunity BS EN/EN61000-4-5: Level 3, 1 kV L-N; -4-6: Level 2, 3 V. Magnetic-field immunity BS EN/EN61000-4-8: Level 1, 1 A/m. Voltage dips / interruptions BS EN/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. Measurement and Service References General test conditions 230 VAC, rated load, 25°C and 70% RH, unless otherwise specified. DC voltage set point Measured at the output-plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Line / load regulation tests Line: low to high input at rated load. Load: 0–100% output load. Minimum MTBF reference 336.4 thousand hours, MIL-HDBK-217F at 25°C; 3008.3 thousand hours, Telcordia TR/SR-332 (Bellcore) at 25°C. Catalogue warranty 3 years. Catalogue version 2026-04-03; physical PDF pages 1–7. MTBF is a statistical reference under the stated conditions, not a guaranteed service life.

Read more less

MEAN WELL NGE100U is an NGE100 series 4-port USB GaN fast charger with two USB-C and two USB-A outputs. Total output is 100 W maximum across the charger. Either USB-C port can provide up to 100 W when used alone; each USB-A port is rated up to 18 W, with shared-power limits when several ports are used. This US version has a non-interchangeable, 90-degree folding AC plug. Compatible devices negotiate their charging voltage and power; input-voltage and temperature derating apply. Product Datasheet Download MEAN WELL NGE100 Datasheet (PDF) The NGE100 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. USB Output and Model Selection Complete model NGE100U Total output power 100 W maximum for the complete charger, shared across all active ports. USB-C1 and USB-C2, each PD3.0: 5, 9, 12 or 15 V at up to 3 A; 20 V at up to 5 A. Each port: 100 W maximum. The power-allocation note also lists PD2.0 support. USB-A1 and USB-A2, each QC3.0: 5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A or 20 V / 0.9 A. Each port: 18 W maximum. 5 V-only operation 45 W maximum total: C1 = 5 V / 3 A; C2 = 5 V / 3 A; A1 = 5 V / 1.5 A; A2 = 5 V / 1.5 A. Charging protocols QC2.0, QC3.0 and PD3.0 are listed in the series features; the USB-C allocation note also lists PD2.0. Automatic voltage selection 5, 9, 12, 15 or 20 V according to the connected device and applicable port protocol. Ripple/noise, maximum 200 mVp-p at each of the listed 5 / 9 / 12 / 15 / 20 V outputs; see measurement conditions. Voltage tolerance ±5.0% at 5 / 9 V; ±4.0% at 12 / 15 / 20 V. Includes set-up, line and load regulation. Line regulation ±1.0% at all five listed output voltages. Load regulation ±5.0% at 5 / 9 V; ±4.0% at 12 / 15 / 20 V. Set-up / hold-up time 1000 / 30 ms at 230 VAC; 2000 / 10 ms at 115 VAC; measured with USB-C1 at 20 V / 5 A. These output voltages are negotiated modes of one complete charger, not separate fixed-voltage order numbers. Charging performance depends on the supported device protocol, cable rating, active-port combination and available input/thermal power. Recommended Port Power Allocation A1 A1 18 W. A2 A2 18 W. C1 C1 100 W. C2 C2 100 W. A1 + A2 A1 18 W; A2 18 W. C1 + C2 C1 65 W; C2 30 W. C2 + A1 C2 80 W; A1 18 W. C1 + A2 C1 80 W; A2 18 W. C2 + A2 C2 80 W; A2 18 W. C1 + A1 C1 80 W; A1 18 W. C2 + A1 + A2 C2 60 W; A1 18 W; A2 18 W. C1 + A1 + A2 C1 60 W; A1 18 W; A2 18 W. C1 + C2 + A2 C1 50 W; C2 30 W; A2 18 W. C1 + C2 + A1 C1 50 W; C2 30 W; A1 18 W. C1 + C2 + A1 + A2 C1 45 W; C2 30 W; A1 12 W; A2 12 W. Each row is a separate catalogue recommendation for the listed active ports. The 100 W total limit applies to the charger, not independently to all four ports. The 5 V-only configuration remains limited to 45 W as specified above. When additional devices are connected, protocol identification and power allocation may interrupt charging 1–3 times before it resumes; the catalogue identifies this as normal operation. AC Input, Protection and Efficiency AC input range 90–264 VAC; 47–63 Hz. Power factor >0.92 at 230 VAC; >0.98 at 115 VAC. Typical efficiency 88% at 20 V / 5 A under the catalogue reference conditions. AC input current 1.6 A at 115 VAC; 0.8 A at 230 VAC. Inrush current, maximum 65 A at 115 VAC; 95 A at 230 VAC. Leakage current, maximum 0.5 mA at 240 VAC. Short circuit Short-circuit protection is listed among the series protections. Overload 101–150% of rated output power; hiccup mode, with automatic recovery after the fault condition is removed. Overtemperature Output voltage shuts down; automatic recovery after temperature decreases. No-load power <0.3 W. Energy-efficiency marking Level VI. The specification note additionally states design conformity with US DoE Level VII, docket EERE-2020-BT-STD-0006. This design statement is distinct from the Level VI marking shown in the catalogue. Operating Conditions and Derating Working temperature -30 to +70°C, subject to the load curve. Ambient-temperature curve 100% load from -30 to +35°C; 65% at +50°C; 50% at +60°C; 30% at +70°C. Input-voltage curve, 60 Hz 80% load at 90 VAC; rises to 100% at 100 VAC and remains at 100% through 264 VAC. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C from 0 to +40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. The load must satisfy both the ambient-temperature and input-voltage limits as well as the selected port allocation. The upper working-temperature limit is not a full-power rating. Dimensions and AC Installation AC configuration US, non-interchangeable AC plug; 90-degree vertically folding two-flat-pin inlet. Body dimensions 62 × 30 × 85.5 mm (catalogue L × W × H); case NGE100; mechanical drawing general tolerance ±1 mm. Case Enclosed 94V-0 flame-retardant plastic housing. Output-port order The mechanical drawing shows USB-C1, USB-C2, USB-A1 and USB-A2 from top to bottom. Reference main-body mass 249 g, explicitly listed per main body in the catalogue packing table; separate from the 353 g retail-package reference. The NGE100U AC inlet is non-interchangeable. The universal NGE100 plug-head set is not part of this US-version package. Included Accessories and Applications Included USB cable One 100 cm Type-C cable for charging and data transmission. AC inlet US two-flat-pin inlet built into the body; vertically folds through 90 degrees. The catalogue illustrates compatible smartphones, tablets, laptops, earphones, game devices and other USB-powered equipment. Match the device charging protocol and required output to the specified port modes and shared-power limit. Use the manufacturer’s installation instructions for the supplied model and regional plug. Safety and Regional Scope Model-specific marks shown CB, UL/cUL, PSE, BSMI, FCC; apply the catalogue scope for this exact AC version. Input/output withstand 3 kVAC. Input/output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. The NGE100U certificate panel shows CB, UL/cUL, PSE, BSMI and FCC. The corresponding catalogue references include IEC62368-1, UL62368-1, PSE J62368-1 and BSMI CNS15598-1. Select the supplied regional version and follow its marking and installation instructions. The catalogue treats the charger as an independent unit; the final equipment still requires confirmation of whole-system EMC conformity. EMC Reference Conducted / radiated emissions Class B: BS EN/EN55032 (CISPR32), FCC Part 15, CISPR22, CAN ICES-3(B)/NMB-3(B), GB/T9254.1-2021 and KS C9832. Harmonic current Class A: BS EN/EN61000-3-2 and GB17625.1-2022. Voltage flicker BS EN/EN61000-3-3. Immunity framework BS EN/EN55035 (CISPR35) and KS C9835. Electrostatic discharge BS EN/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. RF field / fast transients BS EN/EN61000-4-3: Level 2, 3 V/m; -4-4: Level 2, 1 kV. Surge / conducted immunity BS EN/EN61000-4-5: Level 3, 1 kV L-N; -4-6: Level 2, 3 V. Magnetic-field immunity BS EN/EN61000-4-8: Level 1, 1 A/m. Voltage dips / interruptions BS EN/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. Measurement and Service References General test conditions 230 VAC, rated load, 25°C and 70% RH, unless otherwise specified. DC voltage set point Measured at the output-plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Line / load regulation tests Line: low to high input at rated load. Load: 0–100% output load. Minimum MTBF reference 336.4 thousand hours, MIL-HDBK-217F at 25°C; 3008.3 thousand hours, Telcordia TR/SR-332 (Bellcore) at 25°C. Catalogue warranty 3 years. Catalogue version 2026-04-03; physical PDF pages 1–7. MTBF is a statistical reference under the stated conditions, not a guaranteed service life.

Read more less

MEAN WELL NGE100U is an NGE100 series 4-port USB GaN fast charger with two USB-C and two USB-A outputs. Total output is 100 W maximum across the charger. Either USB-C port can provide up to 100 W when used alone; each USB-A port is rated up to 18 W, with shared-power limits when several ports are used. This US version has a non-interchangeable, 90-degree folding AC plug. Compatible devices negotiate their charging voltage and power; input-voltage and temperature derating apply. Product Datasheet Download MEAN WELL NGE100 Datasheet (PDF) The NGE100 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. USB Output and Model Selection Complete model NGE100U Total output power 100 W maximum for the complete charger, shared across all active ports. USB-C1 and USB-C2, each PD3.0: 5, 9, 12 or 15 V at up to 3 A; 20 V at up to 5 A. Each port: 100 W maximum. The power-allocation note also lists PD2.0 support. USB-A1 and USB-A2, each QC3.0: 5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A or 20 V / 0.9 A. Each port: 18 W maximum. 5 V-only operation 45 W maximum total: C1 = 5 V / 3 A; C2 = 5 V / 3 A; A1 = 5 V / 1.5 A; A2 = 5 V / 1.5 A. Charging protocols QC2.0, QC3.0 and PD3.0 are listed in the series features; the USB-C allocation note also lists PD2.0. Automatic voltage selection 5, 9, 12, 15 or 20 V according to the connected device and applicable port protocol. Ripple/noise, maximum 200 mVp-p at each of the listed 5 / 9 / 12 / 15 / 20 V outputs; see measurement conditions. Voltage tolerance ±5.0% at 5 / 9 V; ±4.0% at 12 / 15 / 20 V. Includes set-up, line and load regulation. Line regulation ±1.0% at all five listed output voltages. Load regulation ±5.0% at 5 / 9 V; ±4.0% at 12 / 15 / 20 V. Set-up / hold-up time 1000 / 30 ms at 230 VAC; 2000 / 10 ms at 115 VAC; measured with USB-C1 at 20 V / 5 A. These output voltages are negotiated modes of one complete charger, not separate fixed-voltage order numbers. Charging performance depends on the supported device protocol, cable rating, active-port combination and available input/thermal power. Recommended Port Power Allocation A1 A1 18 W. A2 A2 18 W. C1 C1 100 W. C2 C2 100 W. A1 + A2 A1 18 W; A2 18 W. C1 + C2 C1 65 W; C2 30 W. C2 + A1 C2 80 W; A1 18 W. C1 + A2 C1 80 W; A2 18 W. C2 + A2 C2 80 W; A2 18 W. C1 + A1 C1 80 W; A1 18 W. C2 + A1 + A2 C2 60 W; A1 18 W; A2 18 W. C1 + A1 + A2 C1 60 W; A1 18 W; A2 18 W. C1 + C2 + A2 C1 50 W; C2 30 W; A2 18 W. C1 + C2 + A1 C1 50 W; C2 30 W; A1 18 W. C1 + C2 + A1 + A2 C1 45 W; C2 30 W; A1 12 W; A2 12 W. Each row is a separate catalogue recommendation for the listed active ports. The 100 W total limit applies to the charger, not independently to all four ports. The 5 V-only configuration remains limited to 45 W as specified above. When additional devices are connected, protocol identification and power allocation may interrupt charging 1–3 times before it resumes; the catalogue identifies this as normal operation. AC Input, Protection and Efficiency AC input range 90–264 VAC; 47–63 Hz. Power factor >0.92 at 230 VAC; >0.98 at 115 VAC. Typical efficiency 88% at 20 V / 5 A under the catalogue reference conditions. AC input current 1.6 A at 115 VAC; 0.8 A at 230 VAC. Inrush current, maximum 65 A at 115 VAC; 95 A at 230 VAC. Leakage current, maximum 0.5 mA at 240 VAC. Short circuit Short-circuit protection is listed among the series protections. Overload 101–150% of rated output power; hiccup mode, with automatic recovery after the fault condition is removed. Overtemperature Output voltage shuts down; automatic recovery after temperature decreases. No-load power <0.3 W. Energy-efficiency marking Level VI. The specification note additionally states design conformity with US DoE Level VII, docket EERE-2020-BT-STD-0006. This design statement is distinct from the Level VI marking shown in the catalogue. Operating Conditions and Derating Working temperature -30 to +70°C, subject to the load curve. Ambient-temperature curve 100% load from -30 to +35°C; 65% at +50°C; 50% at +60°C; 30% at +70°C. Input-voltage curve, 60 Hz 80% load at 90 VAC; rises to 100% at 100 VAC and remains at 100% through 264 VAC. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C from 0 to +40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. The load must satisfy both the ambient-temperature and input-voltage limits as well as the selected port allocation. The upper working-temperature limit is not a full-power rating. Dimensions and AC Installation AC configuration US, non-interchangeable AC plug; 90-degree vertically folding two-flat-pin inlet. Body dimensions 62 × 30 × 85.5 mm (catalogue L × W × H); case NGE100; mechanical drawing general tolerance ±1 mm. Case Enclosed 94V-0 flame-retardant plastic housing. Output-port order The mechanical drawing shows USB-C1, USB-C2, USB-A1 and USB-A2 from top to bottom. Reference main-body mass 249 g, explicitly listed per main body in the catalogue packing table; separate from the 353 g retail-package reference. The NGE100U AC inlet is non-interchangeable. The universal NGE100 plug-head set is not part of this US-version package. Included Accessories and Applications Included USB cable One 100 cm Type-C cable for charging and data transmission. AC inlet US two-flat-pin inlet built into the body; vertically folds through 90 degrees. The catalogue illustrates compatible smartphones, tablets, laptops, earphones, game devices and other USB-powered equipment. Match the device charging protocol and required output to the specified port modes and shared-power limit. Use the manufacturer’s installation instructions for the supplied model and regional plug. Safety and Regional Scope Model-specific marks shown CB, UL/cUL, PSE, BSMI, FCC; apply the catalogue scope for this exact AC version. Input/output withstand 3 kVAC. Input/output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. The NGE100U certificate panel shows CB, UL/cUL, PSE, BSMI and FCC. The corresponding catalogue references include IEC62368-1, UL62368-1, PSE J62368-1 and BSMI CNS15598-1. Select the supplied regional version and follow its marking and installation instructions. The catalogue treats the charger as an independent unit; the final equipment still requires confirmation of whole-system EMC conformity. EMC Reference Conducted / radiated emissions Class B: BS EN/EN55032 (CISPR32), FCC Part 15, CISPR22, CAN ICES-3(B)/NMB-3(B), GB/T9254.1-2021 and KS C9832. Harmonic current Class A: BS EN/EN61000-3-2 and GB17625.1-2022. Voltage flicker BS EN/EN61000-3-3. Immunity framework BS EN/EN55035 (CISPR35) and KS C9835. Electrostatic discharge BS EN/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. RF field / fast transients BS EN/EN61000-4-3: Level 2, 3 V/m; -4-4: Level 2, 1 kV. Surge / conducted immunity BS EN/EN61000-4-5: Level 3, 1 kV L-N; -4-6: Level 2, 3 V. Magnetic-field immunity BS EN/EN61000-4-8: Level 1, 1 A/m. Voltage dips / interruptions BS EN/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. Measurement and Service References General test conditions 230 VAC, rated load, 25°C and 70% RH, unless otherwise specified. DC voltage set point Measured at the output-plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Line / load regulation tests Line: low to high input at rated load. Load: 0–100% output load. Minimum MTBF reference 336.4 thousand hours, MIL-HDBK-217F at 25°C; 3008.3 thousand hours, Telcordia TR/SR-332 (Bellcore) at 25°C. Catalogue warranty 3 years. Catalogue version 2026-04-03; physical PDF pages 1–7. MTBF is a statistical reference under the stated conditions, not a guaranteed service life.

Read more less

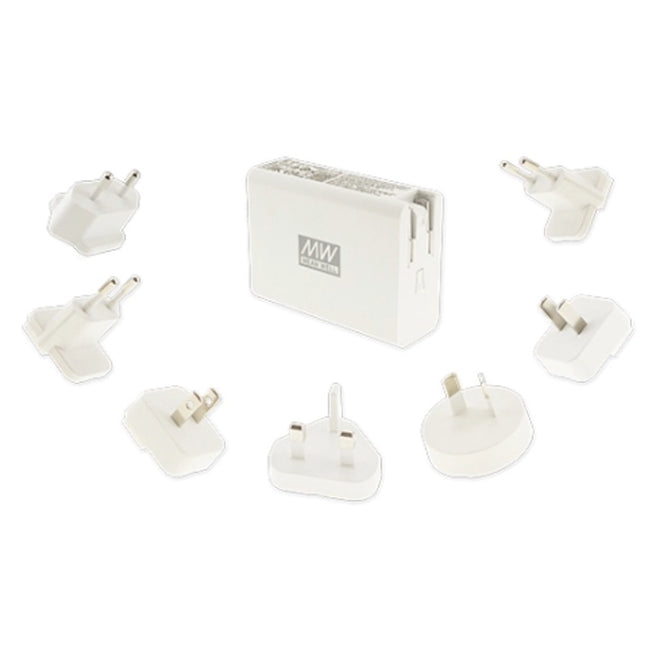

MEAN WELL NGE100 is an NGE100 series 4-port USB GaN fast charger with two USB-C and two USB-A outputs. Total output is 100 W maximum across the charger. Either USB-C port can provide up to 100 W when used alone; each USB-A port is rated up to 18 W, with shared-power limits when several ports are used. This universal version includes seven interchangeable regional AC plug heads. Compatible devices negotiate their charging voltage and power; input-voltage and temperature derating apply. Product Datasheet Download MEAN WELL NGE100 Datasheet (PDF) The NGE100 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. USB Output and Model Selection Complete model NGE100 Total output power 100 W maximum for the complete charger, shared across all active ports. USB-C1 and USB-C2, each PD3.0: 5, 9, 12 or 15 V at up to 3 A; 20 V at up to 5 A. Each port: 100 W maximum. The power-allocation note also lists PD2.0 support. USB-A1 and USB-A2, each QC3.0: 5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A or 20 V / 0.9 A. Each port: 18 W maximum. 5 V-only operation 45 W maximum total: C1 = 5 V / 3 A; C2 = 5 V / 3 A; A1 = 5 V / 1.5 A; A2 = 5 V / 1.5 A. Charging protocols QC2.0, QC3.0 and PD3.0 are listed in the series features; the USB-C allocation note also lists PD2.0. Automatic voltage selection 5, 9, 12, 15 or 20 V according to the connected device and applicable port protocol. Ripple/noise, maximum 200 mVp-p at each of the listed 5 / 9 / 12 / 15 / 20 V outputs; see measurement conditions. Voltage tolerance ±5.0% at 5 / 9 V; ±4.0% at 12 / 15 / 20 V. Includes set-up, line and load regulation. Line regulation ±1.0% at all five listed output voltages. Load regulation ±5.0% at 5 / 9 V; ±4.0% at 12 / 15 / 20 V. Set-up / hold-up time 1000 / 30 ms at 230 VAC; 2000 / 10 ms at 115 VAC; measured with USB-C1 at 20 V / 5 A. These output voltages are negotiated modes of one complete charger, not separate fixed-voltage order numbers. Charging performance depends on the supported device protocol, cable rating, active-port combination and available input/thermal power. Recommended Port Power Allocation A1 A1 18 W. A2 A2 18 W. C1 C1 100 W. C2 C2 100 W. A1 + A2 A1 18 W; A2 18 W. C1 + C2 C1 65 W; C2 30 W. C2 + A1 C2 80 W; A1 18 W. C1 + A2 C1 80 W; A2 18 W. C2 + A2 C2 80 W; A2 18 W. C1 + A1 C1 80 W; A1 18 W. C2 + A1 + A2 C2 60 W; A1 18 W; A2 18 W. C1 + A1 + A2 C1 60 W; A1 18 W; A2 18 W. C1 + C2 + A2 C1 50 W; C2 30 W; A2 18 W. C1 + C2 + A1 C1 50 W; C2 30 W; A1 18 W. C1 + C2 + A1 + A2 C1 45 W; C2 30 W; A1 12 W; A2 12 W. Each row is a separate catalogue recommendation for the listed active ports. The 100 W total limit applies to the charger, not independently to all four ports. The 5 V-only configuration remains limited to 45 W as specified above. When additional devices are connected, protocol identification and power allocation may interrupt charging 1–3 times before it resumes; the catalogue identifies this as normal operation. AC Input, Protection and Efficiency AC input range 90–264 VAC; 47–63 Hz. Power factor >0.92 at 230 VAC; >0.98 at 115 VAC. Typical efficiency 88% at 20 V / 5 A under the catalogue reference conditions. AC input current 1.6 A at 115 VAC; 0.8 A at 230 VAC. Inrush current, maximum 65 A at 115 VAC; 95 A at 230 VAC. Leakage current, maximum 0.5 mA at 240 VAC. Short circuit Short-circuit protection is listed among the series protections. Overload 101–150% of rated output power; hiccup mode, with automatic recovery after the fault condition is removed. Overtemperature Output voltage shuts down; automatic recovery after temperature decreases. No-load power <0.3 W. Energy-efficiency marking Level VI. The specification note additionally states design conformity with US DoE Level VII, docket EERE-2020-BT-STD-0006. This design statement is distinct from the Level VI marking shown in the catalogue. Operating Conditions and Derating Working temperature -30 to +70°C, subject to the load curve. Ambient-temperature curve 100% load from -30 to +35°C; 65% at +50°C; 50% at +60°C; 30% at +70°C. Input-voltage curve, 60 Hz 80% load at 90 VAC; rises to 100% at 100 VAC and remains at 100% through 264 VAC. Working humidity 20–90% RH, non-condensing. Storage temperature / humidity -20 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C from 0 to +40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. The load must satisfy both the ambient-temperature and input-voltage limits as well as the selected port allocation. The upper working-temperature limit is not a full-power rating. Dimensions and AC Installation AC configuration Universal, interchangeable AC plugs; fixed non-folding main-body pins. Body dimensions 62 × 30 × 85.5 mm (catalogue L × W × H); case NGE100; mechanical drawing general tolerance ±1 mm. Case Enclosed 94V-0 flame-retardant plastic housing. Output-port order The mechanical drawing shows USB-C1, USB-C2, USB-A1 and USB-A2 from top to bottom. Use NGE100 with one of its designated regional AC inlet heads. Slide the selected head along the guided rail between the metal prongs until it locks with a click; check that it is stable and correctly fitted before use. The AC heads are included accessories for this universal version. Select any replacement specifically for NGE100; matching appearance or a plug code from another series does not establish compatibility. Included Accessories and Applications Included USB cable One 100 cm Type-C cable for charging and data transmission. Included AC heads Seven types: EU, US, UK, AU, CN, KR and IN, for this NGE100 interchangeable version. Included storage accessory Drawstring pouch for the AC plug accessories. The catalogue illustrates compatible smartphones, tablets, laptops, earphones, game devices and other USB-powered equipment. Match the device charging protocol and required output to the specified port modes and shared-power limit. Use the manufacturer’s installation instructions for the supplied model and regional plug. Safety and Regional Scope Model-specific marks shown CB, DEKRA, PSE, UL/cUL, RCM, CCC, BSMI, EAC, KC, BIS, CE, UKCA, FCC; apply the catalogue scope for this exact AC version. Input/output withstand 3 kVAC. Input/output insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH. The applicable catalogue safety table lists UL62368-1; DEKRA BS EN/EN62368-1; BSMI CNS15598-1; PSE J62368-1; CCC GB4943.1-2022; RCM AS/NZS62368.1; KC62368-1; BIS IS13252 (Part 1):2010 / IEC60950-1:2005; and EAC TP TC004. The CB logo is labelled IEC62368-1. Select the supplied regional version and follow its marking and installation instructions. The catalogue treats the charger as an independent unit; the final equipment still requires confirmation of whole-system EMC conformity. EMC Reference Conducted / radiated emissions Class B: BS EN/EN55032 (CISPR32), FCC Part 15, CISPR22, CAN ICES-3(B)/NMB-3(B), GB/T9254.1-2021 and KS C9832. Harmonic current Class A: BS EN/EN61000-3-2 and GB17625.1-2022. Voltage flicker BS EN/EN61000-3-3. Immunity framework BS EN/EN55035 (CISPR35) and KS C9835. Electrostatic discharge BS EN/EN61000-4-2: Level 3, 8 kV air; Level 2, 4 kV contact. RF field / fast transients BS EN/EN61000-4-3: Level 2, 3 V/m; -4-4: Level 2, 1 kV. Surge / conducted immunity BS EN/EN61000-4-5: Level 3, 1 kV L-N; -4-6: Level 2, 3 V. Magnetic-field immunity BS EN/EN61000-4-8: Level 1, 1 A/m. Voltage dips / interruptions BS EN/EN61000-4-11: >95% dip for 0.5 period; 30% dip for 25 periods; >95% interruption for 250 periods. Measurement and Service References General test conditions 230 VAC, rated load, 25°C and 70% RH, unless otherwise specified. DC voltage set point Measured at the output-plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Line / load regulation tests Line: low to high input at rated load. Load: 0–100% output load. Minimum MTBF reference 336.4 thousand hours, MIL-HDBK-217F at 25°C; 3008.3 thousand hours, Telcordia TR/SR-332 (Bellcore) at 25°C. Catalogue warranty 3 years. Catalogue version 2026-04-03; physical PDF pages 1–7. MTBF is a statistical reference under the stated conditions, not a guaranteed service life.
