NTS Series: Pure Sine Wave DC-AC Inverter

MEAN WELL NTS Series True Sine Wave DC-AC Inverters

Product Features
Key Specifications
Series Range
Selection & Ordering

Product Features

The NTS series is a high-reliability, true sine wave DC-AC inverter designed to convert battery power into clean AC electricity for industrial and consumer applications.

True Sine Wave Output: THD < 3%, ensuring safe operation for sensitive electronics (e.g., medical devices, computers, and motor-based equipment).
High Reliability Design: Features a rugged, industrial-grade design that supports a wide operating temperature range (-20°C to +70°C).
Intelligent Energy Management: Includes a "Power Saving Mode" to minimize battery drain when the load is low.
Global Adaptability: Configurable output voltage (100V-120V or 200V-240V) and frequency (50Hz/60Hz) via DIP switches on the front panel.
Comprehensive Protections: Built-in safeguards including Low voltage alarm, Low voltage shutdown, Over voltage, Over temperature, and Short circuit protection.
Versatile Control: Equipped with a remote control interface (contact closure) for convenient power ON/OFF.

Key Specifications

Parameter	Specification Detail
Waveform	True Sine Wave (THD < 3%)
Input DC Voltage	12V, 24V, or 48V models available
AC Output Efficiency	Up to 93% (varies by model)
Protection Type	Overload, Over Voltage, Over Temp, Low DC Voltage
Safety Compliance	IEC 62368-1, UL 62368-1, EAC, AS/NZS 62368.1
Cooling	Thermo-controlled cooling fan

Series Range Overview

Model	Continuous Power	Peak Power (10s)
NTS-250P	250W	375W
NTS-300	300W	450W
NTS-400P	400W	600W
NTS-450	450W	675W
NTS-750	750W	1125W
NTS-1200	1200W	1800W
NTS-1700	1700W	2550W
NTS-2200	2200W	3300W
NTS-3200	3200W	4800W

Selection & Ordering Guide

When selecting your NTS inverter, consider the input voltage of your battery bank and your target AC output requirements.

Suffix Component	Description
DC Input	Choose 12, 24, or 48 (representing nominal battery voltage)
AC Output	Choose 1 (110V range) or 2 (230V range)
Outlet Type	Select the specific plug type required for your region (US, EU, CN, AU, UK, UN, TB)

Ordering Example:
NTS-3200-212US: 3200W, 12V DC Input, 110V AC Output, US Socket.
NTS-2200-224EU: 2200W, 24V DC Input, 230V AC Output, EU Socket.

Show previous products

View options

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-300-148GFCI

AC output power rating (continuous):300W AC output over power (3 minutes):345W AC output peak power (10 seconds):450W AC instantaneous power (30 cycles):600W AC output AC voltage: factory set at 110VAC,100/110/115/120VAC can be selected by DIP S.W AC output frequency: factory set at 60Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 48V DC input voltage range (Typ.):40 ~ 66VDC DC input DC current (Typ.):8A Size (mm):210X130X55 AC output socket type: USA Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$238.71

View options
View options

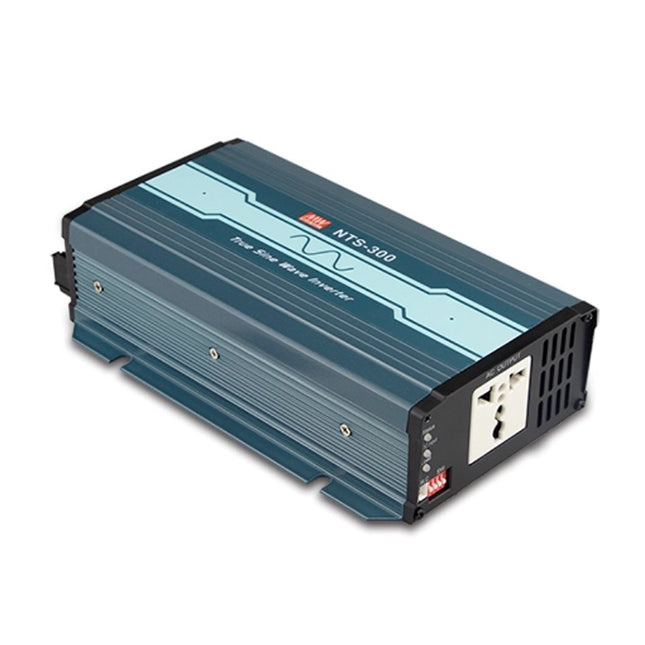

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-300-124GFCI

AC output power rating (continuous):300W AC output over power (3 minutes):345W AC output peak power (10 seconds):450W AC instantaneous power (30 cycles):600W AC output AC voltage: factory set at 110VAC,100/110/115/120VAC can be selected by DIP S.W AC output frequency: factory set at 60Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 24V DC input voltage range (Typ.):20 ~ 33VDC DC Input DC Current (Typ.):15A Size (mm):210X130X55 AC output socket type: USA Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$238.71

View options
View options

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-300-112GFCI

AC output power rating (continuous):300W AC output over power (3 minutes):345W AC output peak power (10 seconds):450W AC instantaneous power (30 cycles):600W AC output AC voltage: factory set at 110VAC,100/110/115/120VAC can be selected by DIP S.W AC output frequency: factory set at 60Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 12V DC input voltage range (Typ.):10 ~ 16.5VDC DC input DC current (Typ.):30A Size (mm):210X130X55 AC output socket type: USA Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$238.71

View options
View options

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-300-148US

AC output power rating (continuous):300W AC output over power (3 minutes):345W AC output peak power (10 seconds):450W AC instantaneous power (30 cycles):600W AC output AC voltage: factory set at 110VAC,100/110/115/120VAC can be selected by DIP S.W AC output frequency: factory set at 60Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 48V DC input voltage range (Typ.):40 ~ 66VDC DC input DC current (Typ.):8A Size (mm):210X130X55 AC output socket type: USA Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$238.71

View options
View options

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-300-124US

AC output power rating (continuous):300W AC output over power (3 minutes):345W AC output peak power (10 seconds):450W AC instantaneous power (30 cycles):600W AC output AC voltage: factory set at 110VAC,100/110/115/120VAC can be selected by DIP S.W AC output frequency: factory set at 60Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 24V DC input voltage range (Typ.):20 ~ 33VDC DC Input DC Current (Typ.):15A Size (mm):210X130X55 AC output socket type: USA Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$238.71

View options
View options

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-300-112US

AC output power rating (continuous):300W AC output over power (3 minutes):345W AC output peak power (10 seconds):450W AC instantaneous power (30 cycles):600W AC output AC voltage: factory set at 110VAC,100/110/115/120VAC can be selected by DIP S.W AC output frequency: factory set at 60Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 12V DC input voltage range (Typ.):10 ~ 16.5VDC DC input DC current (Typ.):30A Size (mm):210X130X55 AC output socket type: USA Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$238.71

View options
View options

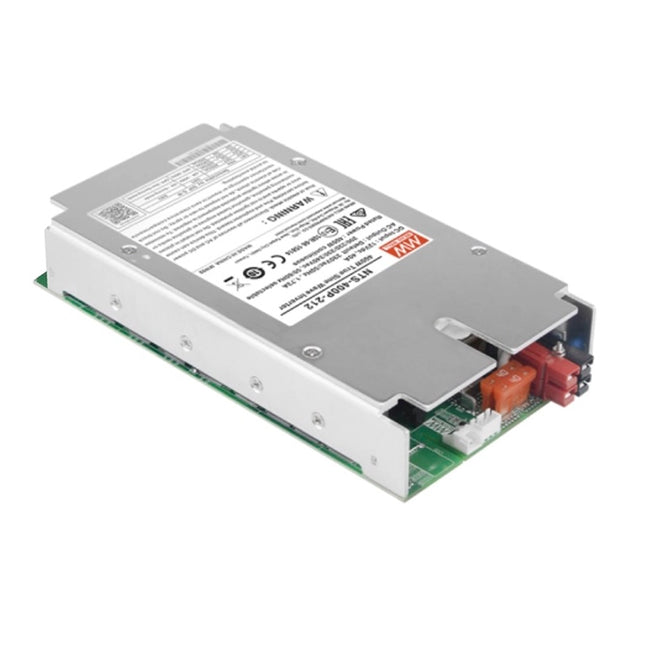

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-400P-248

PCB built-in type AC output power rating (continuous):400W AC output over power (3 minutes):460W AC output peak power (10 seconds):600W AC instantaneous power (30 cycles):800W AC output AC voltage: factory set at 230VAC,200/220/230/240VAC can be selected by DIP S.W AC output frequency: factory set at 50Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 48V DC input voltage range (Typ.):40 ~ 66VDC DC input DC current (Typ.):10A Size (mm):186X100.5X32 Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$223.29

View options
View options

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-400P-224

PCB built-in type AC output power rating (continuous):400W AC output over power (3 minutes):460W AC output peak power (10 seconds):600W AC instantaneous power (30 cycles):800W AC output AC voltage: factory set at 230VAC,200/220/230/240VAC can be selected by DIP S.W AC output frequency: factory set at 50Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 24V DC input voltage range (Typ.):20 ~ 33VDC DC input DC current (Typ.):20A Size (mm):186X100.5X32 Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$223.29

View options
View options

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-400P-212

PCB built-in type AC output power rating (continuous):400W AC output over power (3 minutes):460W AC output peak power (10 seconds):600W AC instantaneous power (30 cycles):800W AC output AC voltage: factory set at 230VAC,200/220/230/240VAC can be selected by DIP S.W AC output frequency: factory set at 50Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 12V DC input voltage range (Typ.):10 ~ 16.5VDC DC input DC current (Typ.):40A Size (mm):186X100.5X32 Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$223.29

View options
View options

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-400P-148

PCB built-in type AC output power rating (continuous):400W AC output over power (3 minutes):460W AC output peak power (10 seconds):600W AC instantaneous power (30 cycles):800W AC output AC voltage: factory set at 110VAC,100/110/115/120VAC can be selected by DIP S.W AC output frequency: factory set at 60Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 48V DC input voltage range (Typ.):40 ~ 66VDC DC input DC current (Typ.):10A Size (mm):186X100.5X32 Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$223.29

View options
View options

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-400P-124

PCB built-in type AC output power rating (continuous):400W AC output over power (3 minutes):460W AC output peak power (10 seconds):600W AC instantaneous power (30 cycles):800W AC output AC voltage: factory set at 110VAC,100/110/115/120VAC can be selected by DIP S.W AC output frequency: factory set at 60Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 24V DC input voltage range (Typ.):20 ~ 33VDC DC input DC current (Typ.):20A Size (mm):186X100.5X32 Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$223.29

View options
View options

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-400P-112

PCB built-in type AC output power rating (continuous):400W AC output over power (3 minutes):460W AC output peak power (10 seconds):600W AC instantaneous power (30 cycles):800W AC output AC voltage: factory set at 110VAC,100/110/115/120VAC can be selected by DIP S.W AC output frequency: factory set at 60Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 12V DC input voltage range (Typ.):10 ~ 16.5VDC DC input DC current (Typ.):40A Size (mm):186X100.5X32 Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$223.29

View options
View options

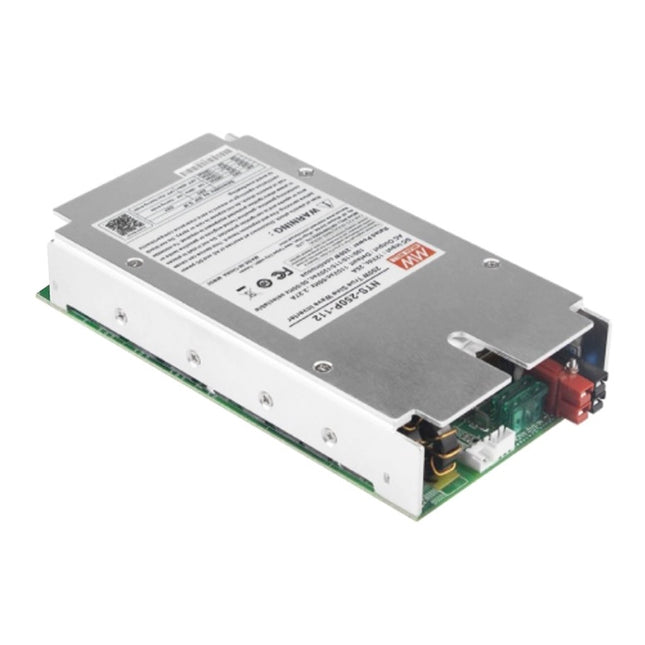

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-250P-248

PCB built-in type AC output power rating (continuous):250W AC output over power (3 minutes):287.5W AC output peak power (10 seconds):375W AC instantaneous power (30 cycles):500W AC output AC voltage: factory set at 230VAC,200/220/230/240VAC can be selected by DIP S.W AC output frequency: factory set at 50Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 48V DC input voltage range (Typ.):40 ~ 66VDC DC Input DC Current (Typ.):7A Size (mm):186X100.5X32 Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$210.86

View options
View options

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-250P-224

PCB built-in type AC output power rating (continuous):250W AC output over power (3 minutes):287.5W AC output peak power (10 seconds):375W AC instantaneous power (30 cycles):500W AC output AC voltage: factory set at 230VAC,200/220/230/240VAC can be selected by DIP S.W AC output frequency: factory set at 50Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 24V DC input voltage range (Typ.):20 ~ 33VDC DC Input DC Current (Typ.):13A Size (mm):186X100.5X32 Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$210.86

View options
View options

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-250P-212

PCB built-in type AC output power rating (continuous):250W AC output over power (3 minutes):287.5W AC output peak power (10 seconds):375W AC instantaneous power (30 cycles):500W AC output AC voltage: factory set at 230VAC,200/220/230/240VAC can be selected by DIP S.W AC output frequency: factory set at 50Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 12V DC input voltage range (Typ.):10 ~ 16.5VDC DC input DC current (Typ.):25A Size (mm):186X100.5X32 Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$210.86

View options
View options

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-250P-148

PCB built-in type AC output power rating (continuous):250W AC output over power (3 minutes):287.5W AC output peak power (10 seconds):375W AC instantaneous power (30 cycles):500W AC output AC voltage: factory set at 110VAC,100/110/115/120VAC can be selected by DIP S.W AC output frequency: factory set at 60Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 48V DC input voltage range (Typ.):40 ~ 66VDC DC Input DC Current (Typ.):7A Size (mm):186X100.5X32 Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$210.86

View options
View options

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-250P-124

PCB built-in type AC output power rating (continuous):250W AC output over power (3 minutes):287.5W AC output peak power (10 seconds):375W AC instantaneous power (30 cycles):500W AC output AC voltage: factory set at 110VAC,100/110/115/120VAC can be selected by DIP S.W AC output frequency: factory set at 60Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 24V DC input voltage range (Typ.):20 ~ 33VDC DC Input DC Current (Typ.):13A Size (mm):186X100.5X32 Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$210.86

View options
View options

MEAN WELL NTS series: sine wave DC-AC inverter - NTS-250P-112

PCB built-in type AC output power rating (continuous):250W AC output over power (3 minutes):287.5W AC output peak power (10 seconds):375W AC instantaneous power (30 cycles):500W AC output AC voltage: factory set at 110VAC,100/110/115/120VAC can be selected by DIP S.W AC output frequency: factory set at 60Hz ± 0.1Hz,50/60Hz can be selected by DIP S.W DC input DC voltage: 12V DC input voltage range (Typ.):10 ~ 16.5VDC DC input DC current (Typ.):25A Size (mm):186X100.5X32 Click to download Airtac product catalog Product Features 1. High frequency design, small size, light weight and portable, built-in type (NTS-250P/400P), pure sine wave output (THD<3%). 2. Instantaneous output power up to 200%, no fan design, natural air cooling, no noise (NTS-250P/400P/300). 3. The AC output voltage and frequency can be adjusted by DIP S.W on the panel, and the no-load power consumption in standby power saving mode is <1.2~1.7W (depending on the model). 4. -25~70 ℃ wide working temperature, protection function: DC input: reverse polarity/DC low voltage alarm/DC low voltage shutdown/overvoltage, AC output: short circuit/overload/overtemperature. 5. Remote control on/off power supply, remote control (IRC1,IRC2,IRC3, accessories sold separately, suitable for 750W ~ 3200W). 6. Support RS-232 communication (750W ~ 3200W, communication line DS-RJ11-RS232 sold separately), built-in Tx/Rx monitoring inverter status (only NTS-250P/400P). 7. Handle accessories (model DS-Carry handle, sold separately), suitable for lead-acid batteries or lithium-ion batteries. 8. Internal PCB board, with coating protection, 3 years warranty.

Read more less

$210.86

View options

You have seen 186 out of 186 products
