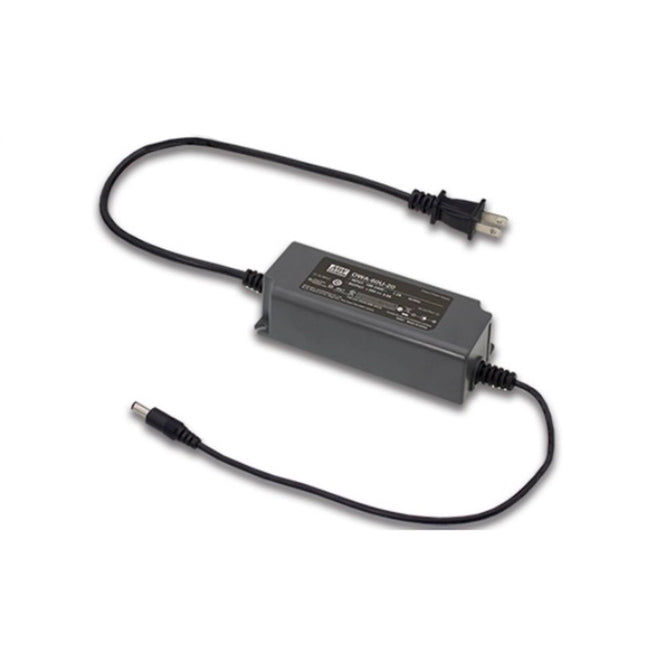

MEAN WELL OWA-60E-54 is a moistureproof AC/DC adapter with 54 VDC, 1.12 A and 60.48 W rated output. Match the connected equipment to its fixed output voltage and rated current. This E version uses a CEE 7/7 AC plug and 90–264 VAC input. The IP67 rating is for the power body; connector protection must suit the installation.
Download MEAN WELL OWA-60E Datasheet (PDF)Download MEAN WELL Installation Manual (PDF)Download MEAN WELL DC Plug Converter Guide (PDF)Catalog location: PDF pages 6–10; specification table on page 7, curves on page 8, and connection drawing on page 9.
Model and output
Parameter
Specification
Model and code
OWA-60E-54 — OWA-60E; E identifies the European AC plug version; 54 identifies the nominal DC output voltage.
Output mode
Single-output constant-voltage external AC/DC adapter.
Rated output voltage
54 VDC
Rated output current
1.12 A
Rated output power
60.48 W (catalog rating)
Maximum ripple and noise
350 mVp-p; measured at 20 MHz bandwidth with a 12-inch twisted pair and parallel 0.1 μF / 47 μF capacitors.
Voltage tolerance
±1%; includes initial setup tolerance, line regulation and load regulation.
Line and load regulation
Line: ±1%; load: ±1%.
Input and electrical performance
Parameter
Specification
Input voltage
90–264 VAC or 127–370 VDC. For DC operation, verify the manufacturer’s connection instructions and appropriate input connection for the delivered model.
Input frequency
47–63 Hz
Typical efficiency
91% at 230 VAC.
Typical AC input current
1.2 A at 115 VAC; 0.7 A at 230 VAC
Setup and rise time
Setup 500 ms / rise 80 ms at 230 VAC; setup 1000 ms / rise 80 ms at 115 VAC; 95% load. Setup time is measured at cold first start; turning the power supply ON/OFF may increase setup time.
Typical hold-up time
10 ms at full load, 115 or 230 VAC.
Typical inrush current
Cold start: 65 A at 230 VAC; 750 μs width at 50% peak current.
Leakage current
<0.25 mA at 240 VAC.
No-load consumption
<0.15 W
Protection and operating conditions
Parameter
Specification
Overload protection
105–115%; hiccup mode, automatically recovers after the fault is removed.
Short-circuit protection
Hiccup mode, automatically recovers after the fault is removed.
Overvoltage protection
58–66 V; output shuts down. Remove the fault and re-power to recover.
Overtemperature protection
Output shuts down. Remove the overtemperature condition and re-power to recover.
Ambient temperature
−35 to +70°C, subject to derating. Operation from −35 to −25°C is specified only at 230 VAC.
Cooling and load derating
Fanless free-air convection with the recommended horizontal mounting. 100% load through +50°C, decreasing to 50% at +70°C. Apply thermal and input/load limits together; the upper ambient limit is not a full-load rating.
Input/load curve
At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC and remaining at 100% through 264 VAC.
Humidity and storage
Working: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH.
Temperature coefficient
±0.03%/°C over 0–50°C.
Vibration
10–500 Hz, 5 G, 12 minutes per cycle, 72 minutes each along X, Y and Z axes.
Safety and compliance
Parameter
Specification
Catalog safety and construction
Class II power unit, no FG connection; fully silicone-potted plastic enclosure. IP67 applies to the power body, not an unrestricted waterproof rating for plugs or the complete installation. EN61558-1 and EN61558-2-16; EAC TP TC 004.
Energy-efficiency declarations
Energy efficiency Level VI; EU ErP requirements are stated in the catalog. CoC Version 5 is also stated for this model.
EMC emissions
EN55032 (CISPR32) Class B; EN55014-1; EN61000-3-2 Class A; EN61000-3-3; EAC TP TC 020.
Insulation
Input-to-output withstand voltage: 3.75 kVAC. Input-to-output isolation resistance: 100 MΩ at 500 VDC / 25°C / 70% RH.
EMC immunity
EN61000-4-2/-3/-4/-5/-6/-8/-11; EN55014-2; EN55035; light-industrial level with L–N surge 2 kV; EAC TP TC 020.
Connections and installation
Parameter
Specification
Dimensions and mounting
130 × 53 × 35 mm (L × W × H); case OWA-60, drawing tolerance ±1 mm; two Ø4.5 mm mounting holes. Follow the recommended horizontal mounting and dimensioned drawing. Retain the supplied cable/ferrite arrangement where fitted.
AC connection
CEE 7/7; H05RN-F 1.0 mm² × 2 conductors, 1500 ±50 mm.
DC connection
Standard tuning-fork barrel plug: 2.1 mm ID × 5.5 mm OD × 11 mm long, center positive / outer negative. H05RN-F 1.0 mm² × 2 conductors, 300 ±20 mm. Output −V is not connected to FG.
Optional connectors
Lumberg 3611 03 or equivalent: pin 1 positive, pin 2 floating, pin 3 negative; XLR3P NEUTRIK NC3MX or equivalent: pin 1 positive, pins 2/3 negative; XLR4P NEUTRIK NC4MX or equivalent: pins 1/2 positive, pins 3/4 negative; CHOGORI 22002411-01 or equivalent: pin 1 positive, pin 2 negative; Unicable UT-D170F4-2P or equivalent: pin 1 positive, pin 2 negative; Unicable UT-D224-2P or equivalent: pin 1 positive, pin 2 negative. These are optional connector configurations, not the standard connector or included separate accessories. Confirm the factory configuration with MEAN WELL before ordering; observe both the supply rating and connector limit.
Catalog packing reference
0.41 kg per unit (410 g); this is the catalog PACKING reference, not a measured net weight or a shipping-parcel weight.
MTBF
4386.2 / 522.9 thousand hours minimum, Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively.
Disconnect AC power before connecting the DC plug, installing, cleaning or servicing, and prevent accidental reconnection. Check voltage, polarity, connector size and current rating before use; never force an incompatible plug. Keep connections secure and protect cables from damage. Provide ventilation and leave 10–15 cm clearance when an adjacent device is a heat source; do not stack objects on the unit. Follow the catalog’s horizontal mounting and load curves; nonstandard mounting or high ambient temperature may require additional derating. Keep plugs and connections appropriately protected; do not immerse the unit in water. Do not open the enclosure. Damaged external cables must be replaced by the manufacturer, a service agent or similarly qualified personnel. Verify insulation, interconnections and EMC in the final equipment.
Separate plug converters
Separately sold plug converters for the standard P1J interface are listed in the DC plug guide: DC PLUG-P1J-P1I, DC PLUG-P1J-P1M, DC PLUG-P1J-P1L, DC PLUG-P1J-P3A, DC PLUG-P1J-P3B, DC PLUG-P1J-P3C, DC PLUG-P1J-P4A, DC PLUG-P1J-P4B, DC PLUG-P1J-P4C, DC PLUG-P1J-P1IR, DC PLUG-P1J-P1MR, DC PLUG-P1J-P1LR, DC PLUG-P1J-P1JR, DC PLUG-P1J-R6B, DC PLUG-P1J-R7B and DC PLUG-P1J-R1B. Select the exact mating size and verify polarity and permitted current from the manufacturer’s specifications; the converter must not be assumed to retain the full supply rating.
Specification notes
Unless otherwise specified, catalog parameters are measured at 230 VAC input, rated load and 25°C ambient. Typical efficiency, power factor and time values depend on operating conditions; protection thresholds do not authorize continuous overload. The manufacturer catalog states a 5-year warranty; applicable manufacturer terms govern.
