XLG Series: Constant Power LED Driver

Show previous products

•

  View options

  MEAN WELL XLG-100 series: constant-power LED driver - XLG-100-H-A

  XLG-100-H-A LED driver MEAN WELL XLG-100-H-A is an IP67 metal-housed constant-power LED driver with a 100 W rated output, 2100 mA default current and a 27–56 V constant-current region. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-100 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 33–41; XLG-100 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function Standard version. A function: output-current setting through a built-in potentiometer. Rated output 100 W; 2100 mA default output current. Constant-current region 27–56 V. Use the shaded I–V envelope and the rated power; the full current/voltage rectangle is not a valid operating region. Full-power current range 1750–2780 mA, within the constant-power operating envelope. Current setting 875–2780 mA is the series current-setting range. This A/AB suffix permits adjustment with its built-in potentiometer. Open-circuit voltage 60 V maximum. Current accuracy and ripple Current tolerance ±5%; current ripple 3.0% at rated current. Startup Setup 500 ms at 230 VAC or 1200 ms at 115 VAC, measured at first cold start; rapid repeat switching can lengthen setup. I–V selection 875 mA/56 V and 1750 mA/56 V at the top; the upper right point is 2780 mA/36 V. Use the specification maximum of 2780 mA, even though the lower-right drawing label rounds to 2800 mA. At lower current, the minimum usable voltage rises. Follow the complete shaded boundary and the rated power simultaneously. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Typical specification values. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 91%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1.1 A / 115 VAC; 0.5 A / 230 VAC; 0.42 A / 277 VAC. Typical. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 8 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overpower protection 105–150%; hiccup mode, automatically recovers after fault removal. Output overvoltage protection 66–90 V; output shuts down. Re-power on to recover. Overtemperature protection Output shuts down. Re-power on to recover. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 80°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 2782.6 K hours minimum by Telcordia SR-332; 276.4 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement Use the built-in Io ADJ potentiometer to set the current within the published range; protect the adjustment seal. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. The feature list identifies LVLE for the H version. Safety standards UL8750 (Type HL), CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Mexico certificate NOM-058-SCFI-2017 is listed except for blank type. Contact MEAN WELL to confirm the required certificate for the exact order. Type HL application Catalog Type HL application is Class I, Division 2. A/AB types must be considered for built-in use to comply with the Type HL application. The component designation does not approve a complete luminaire or installation. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. A 6 kV line-to-line / 10 kV line-to-earth option is listed; confirm the ordered modification before relying on the higher rating. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275B; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Adjustable-unit weather protection This IP67 model has a built-in adjustment function. Install it indoors or in a location sheltered from rain outdoors, as required by the installation manual. IP67 does not permit immersion. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $58.16

  View options

•

  View options

  MEAN WELL XLG-100 series: constant-power LED driver - XLG-100-L-A

  XLG-100-L-A LED driver MEAN WELL XLG-100-L-A is an IP67 metal-housed constant-power LED driver with a 100 W rated output, 700 mA default current and a 71–142 V constant-current region. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-100 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 33–41; XLG-100 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function Standard version. A function: output-current setting through a built-in potentiometer. Rated output 100 W; 700 mA default output current. Constant-current region 71–142 V. Use the shaded I–V envelope and the rated power; the full current/voltage rectangle is not a valid operating region. Full-power current range 700–1050 mA, within the constant-power operating envelope. Current setting 350–1050 mA is the series current-setting range. This A/AB suffix permits adjustment with its built-in potentiometer. Open-circuit voltage 149 V maximum. Current accuracy and ripple Current tolerance ±5%; current ripple 3.0% at rated current. Startup Setup 500 ms at 230 VAC or 1200 ms at 115 VAC, measured at first cold start; rapid repeat switching can lengthen setup. I–V selection 350 mA/142 V and 700 mA/142 V at the top; 700 mA/71 V and 1050 mA/71 V at the bottom; 1050 mA/95 V at the right upper boundary. At lower current, the minimum usable voltage rises. Follow the complete shaded boundary and the rated power simultaneously. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Typical specification values. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 92.5%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1.1 A / 115 VAC; 0.5 A / 230 VAC; 0.42 A / 277 VAC. Typical. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 8 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overpower protection 105–150%; hiccup mode, automatically recovers after fault removal. Output overvoltage protection 160–220 V; output shuts down. Re-power on to recover. Overtemperature protection Output shuts down. Re-power on to recover. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 80°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 2782.6 K hours minimum by Telcordia SR-332; 276.4 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement Use the built-in Io ADJ potentiometer to set the current within the published range; protect the adjustment seal. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Check the exact model markings and certification scope. Safety standards UL8750 (Type HL), CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Mexico certificate NOM-058-SCFI-2017 is listed except for blank type. Contact MEAN WELL to confirm the required certificate for the exact order. Type HL application Catalog Type HL application is Class I, Division 2. A/AB types must be considered for built-in use to comply with the Type HL application. The component designation does not approve a complete luminaire or installation. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. A 6 kV line-to-line / 10 kV line-to-earth option is listed; confirm the ordered modification before relying on the higher rating. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275B; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Adjustable-unit weather protection This IP67 model has a built-in adjustment function. Install it indoors or in a location sheltered from rain outdoors, as required by the installation manual. IP67 does not permit immersion. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $62.59

  View options

•

  View options

  MEAN WELL XLG-100 series: constant-power LED driver - XLG-100-H

  XLG-100-H LED driver MEAN WELL XLG-100-H is an IP67 metal-housed constant-power LED driver with a 100 W rated output, 2100 mA default current and a 27–56 V constant-current region. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-100 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 33–41; XLG-100 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function Standard version. Blank function suffix: fixed output voltage and current; catalog option by request for harsh environments. Rated output 100 W; 2100 mA default output current. Constant-current region 27–56 V. Use the shaded I–V envelope and the rated power; the full current/voltage rectangle is not a valid operating region. Full-power current range 1750–2780 mA, within the constant-power operating envelope. Current setting 875–2780 mA is the series current-setting range. The blank suffix has a fixed factory setting; this range is not a user adjustment feature on this SKU. Open-circuit voltage 60 V maximum. Current accuracy and ripple Current tolerance ±5%; current ripple 3.0% at rated current. Startup Setup 500 ms at 230 VAC or 1200 ms at 115 VAC, measured at first cold start; rapid repeat switching can lengthen setup. I–V selection 875 mA/56 V and 1750 mA/56 V at the top; the upper right point is 2780 mA/36 V. Use the specification maximum of 2780 mA, even though the lower-right drawing label rounds to 2800 mA. At lower current, the minimum usable voltage rises. Follow the complete shaded boundary and the rated power simultaneously. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Typical specification values. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 91%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1.1 A / 115 VAC; 0.5 A / 230 VAC; 0.42 A / 277 VAC. Typical. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 8 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overpower protection 105–150%; hiccup mode, automatically recovers after fault removal. Output overvoltage protection 66–90 V; output shuts down. Re-power on to recover. Overtemperature protection Output shuts down. Re-power on to recover. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 80°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 2782.6 K hours minimum by Telcordia SR-332; 276.4 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement This suffix has fixed output settings and does not provide an external dimming input. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. The feature list identifies LVLE for the H version. Safety standards UL8750 (Type HL), CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Type HL application Catalog Type HL application is Class I, Division 2. The component designation does not approve a complete luminaire or installation. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. A 6 kV line-to-line / 10 kV line-to-earth option is listed; confirm the ordered modification before relying on the higher rating. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275B; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $58.16

  View options

•

  View options

  MEAN WELL XLG-100 series: constant-power LED driver - XLG-100-L

  XLG-100-L LED driver MEAN WELL XLG-100-L is an IP67 metal-housed constant-power LED driver with a 100 W rated output, 700 mA default current and a 71–142 V constant-current region. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-100 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 33–41; XLG-100 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function Standard version. Blank function suffix: fixed output voltage and current; catalog option by request for harsh environments. Rated output 100 W; 700 mA default output current. Constant-current region 71–142 V. Use the shaded I–V envelope and the rated power; the full current/voltage rectangle is not a valid operating region. Full-power current range 700–1050 mA, within the constant-power operating envelope. Current setting 350–1050 mA is the series current-setting range. The blank suffix has a fixed factory setting; this range is not a user adjustment feature on this SKU. Open-circuit voltage 149 V maximum. Current accuracy and ripple Current tolerance ±5%; current ripple 3.0% at rated current. Startup Setup 500 ms at 230 VAC or 1200 ms at 115 VAC, measured at first cold start; rapid repeat switching can lengthen setup. I–V selection 350 mA/142 V and 700 mA/142 V at the top; 700 mA/71 V and 1050 mA/71 V at the bottom; 1050 mA/95 V at the right upper boundary. At lower current, the minimum usable voltage rises. Follow the complete shaded boundary and the rated power simultaneously. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Typical specification values. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 92.5%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1.1 A / 115 VAC; 0.5 A / 230 VAC; 0.42 A / 277 VAC. Typical. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 8 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overpower protection 105–150%; hiccup mode, automatically recovers after fault removal. Output overvoltage protection 160–220 V; output shuts down. Re-power on to recover. Overtemperature protection Output shuts down. Re-power on to recover. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 80°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 2782.6 K hours minimum by Telcordia SR-332; 276.4 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement This suffix has fixed output settings and does not provide an external dimming input. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Check the exact model markings and certification scope. Safety standards UL8750 (Type HL), CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Type HL application Catalog Type HL application is Class I, Division 2. The component designation does not approve a complete luminaire or installation. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. A 6 kV line-to-line / 10 kV line-to-earth option is listed; confirm the ordered modification before relying on the higher rating. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275B; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $62.59

  View options

•

  View options

  MEAN WELL XLG-100 series: constant-voltage LED driver - XLG-100I-24-CV

  XLG-100I-24-CV LED driver MEAN WELL XLG-100I-24-CV is an IP67 metal-housed constant-voltage LED driver with a 96 W rated output, 24 V DC and 4 A rated current. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-100 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 33–41; XLG-100 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function I identifies the India version with input overvoltage protection. CV function: constant-voltage operation only, fixed voltage/current settings, by request; not a constant-current driver. Rated output 96 W; 24 V DC, 4 A rated current. Output operating region 24 V constant-voltage operation only; the CC region of other function versions does not apply. Output adjustment Voltage and current settings are fixed; no current-adjustment potentiometer or external dimming leads are specified for this suffix. Ripple and regulation 240 mVp-p maximum ripple/noise; voltage tolerance ±2%; line regulation ±0.5%; load regulation ±1%. Startup and hold-up Setup 500 ms / rise 100 ms at 230 VAC; setup 1200 ms / rise 100 ms at 115 VAC. Typical hold-up 12 ms at either 115 VAC or 230 VAC. Setup is measured at first cold start; rapid repeat switching may increase it. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 92%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1.1 A / 115 VAC; 0.5 A / 230 VAC; 0.42 A / 277 VAC. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 8 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode; automatically recovers when the fault is removed. Overcurrent protection 110–160%. Hiccup mode; automatically recovers when the fault is removed. Output overvoltage protection 27–34 V; output shuts down. Re-power on to recover. Overtemperature protection Output shuts down. Re-power on to recover. Input overvoltage protection 320–390 VAC threshold. Output shuts down above the protection voltage and recovers automatically after fault removal. This I version can survive 440 VAC input stress for 48 hours; that is a survival condition, not a normal operating input rating. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 80°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 2782.6 K hours minimum by Telcordia SR-332; 276.4 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement This suffix has fixed output settings and does not provide an external dimming input. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Check the exact model markings and certification scope. CV certification restriction Only CE / ENEC / CB is available for the CV type. Do not apply the UL/CSA or other certificate claims of different suffixes to this CV version. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. A 6 kV line-to-line / 10 kV line-to-earth option is listed; confirm the ordered modification before relying on the higher rating. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275B; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. India ordering option The India version is by request and needs a production minimum quantity; confirm current terms with MEAN WELL. No current stock or delivery claim is made. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $58.16

  View options

•

  View options

  MEAN WELL XLG-100 series: constant-voltage LED driver - XLG-100I-12-CV

  XLG-100I-12-CV LED driver MEAN WELL XLG-100I-12-CV is an IP67 metal-housed constant-voltage LED driver with a 96 W rated output, 12 V DC and 8 A rated current. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-100 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 33–41; XLG-100 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function I identifies the India version with input overvoltage protection. CV function: constant-voltage operation only, fixed voltage/current settings, by request; not a constant-current driver. Rated output 96 W; 12 V DC, 8 A rated current. Output operating region 12 V constant-voltage operation only; the CC region of other function versions does not apply. Output adjustment Voltage and current settings are fixed; no current-adjustment potentiometer or external dimming leads are specified for this suffix. Ripple and regulation 150 mVp-p maximum ripple/noise; voltage tolerance ±3%; line regulation ±0.5%; load regulation ±2%. Startup and hold-up Setup 500 ms / rise 100 ms at 230 VAC; setup 1200 ms / rise 100 ms at 115 VAC. Typical hold-up 12 ms at either 115 VAC or 230 VAC. Setup is measured at first cold start; rapid repeat switching may increase it. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 92%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1.1 A / 115 VAC; 0.5 A / 230 VAC; 0.42 A / 277 VAC. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 8 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode; automatically recovers when the fault is removed. Overcurrent protection 110–160%. Hiccup mode; automatically recovers when the fault is removed. Output overvoltage protection 13.5–18 V; output shuts down. Re-power on to recover. Overtemperature protection Output shuts down. Re-power on to recover. Input overvoltage protection 320–390 VAC threshold. Output shuts down above the protection voltage and recovers automatically after fault removal. This I version can survive 440 VAC input stress for 48 hours; that is a survival condition, not a normal operating input rating. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 80°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 2782.6 K hours minimum by Telcordia SR-332; 276.4 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement This suffix has fixed output settings and does not provide an external dimming input. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Check the exact model markings and certification scope. CV certification restriction Only CE / ENEC / CB is available for the CV type. Do not apply the UL/CSA or other certificate claims of different suffixes to this CV version. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. A 6 kV line-to-line / 10 kV line-to-earth option is listed; confirm the ordered modification before relying on the higher rating. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275B; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². For this 12 V model the output cable is SJOW 14 AWG × 2 cores. Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. India ordering option The India version is by request and needs a production minimum quantity; confirm current terms with MEAN WELL. No current stock or delivery claim is made. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $58.16

  View options

•

  View options

  MEAN WELL XLG-100 series: constant-voltage/constant-current LED driver - XLG-100I-24-A

  XLG-100I-24-A LED driver MEAN WELL XLG-100I-24-A is an IP67 metal-housed constant-voltage/constant-current LED driver with a 96 W rated output, 24 V DC and 4 A rated current. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-100 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 33–41; XLG-100 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function I identifies the India version with input overvoltage protection. A function: output-current setting through a built-in potentiometer. Rated output 96 W; 24 V DC, 4 A rated current. Output operating region Constant-current region 16.8–24 V. This version can directly drive suitable LEDs in CC mode or supply an appropriate downstream DC/DC driver in CV mode. The highest CC voltage depends on the final system. Output adjustment Output current adjustable 2–4 A with the built-in potentiometer; retain voltage/current/power limits. Ripple and regulation 240 mVp-p maximum ripple/noise; voltage tolerance ±2%; line regulation ±0.5%; load regulation ±1%. Startup and hold-up Setup 500 ms / rise 100 ms at 230 VAC; setup 1200 ms / rise 100 ms at 115 VAC. Typical hold-up 12 ms at either 115 VAC or 230 VAC. Setup is measured at first cold start; rapid repeat switching may increase it. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 92%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1.1 A / 115 VAC; 0.5 A / 230 VAC; 0.42 A / 277 VAC. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 8 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overcurrent protection 95–108%. Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Output overvoltage protection 27–34 V; output shuts down. Re-power on to recover. Overtemperature protection Output shuts down. Re-power on to recover. Input overvoltage protection 320–390 VAC threshold. Output shuts down above the protection voltage and recovers automatically after fault removal. This I version can survive 440 VAC input stress for 48 hours; that is a survival condition, not a normal operating input rating. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 80°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 2782.6 K hours minimum by Telcordia SR-332; 276.4 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement Use the built-in Io ADJ potentiometer to set the current within the published range; protect the adjustment seal. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. The feature list identifies Class 2 for the 24 V version. Safety standards The I version has no UL/CSA certification. IS15885 (Part 2/Sec 13) is listed for the I version. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Mexico certificate NOM-058-SCFI-2017 is listed except for blank type. Contact MEAN WELL to confirm the required certificate for the exact order. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. A 6 kV line-to-line / 10 kV line-to-earth option is listed; confirm the ordered modification before relying on the higher rating. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275B; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. India ordering option The India version is by request and needs a production minimum quantity; confirm current terms with MEAN WELL. No current stock or delivery claim is made. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Adjustable-unit weather protection This IP67 model has a built-in adjustment function. Install it indoors or in a location sheltered from rain outdoors, as required by the installation manual. IP67 does not permit immersion. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $58.16

  View options

•

  View options

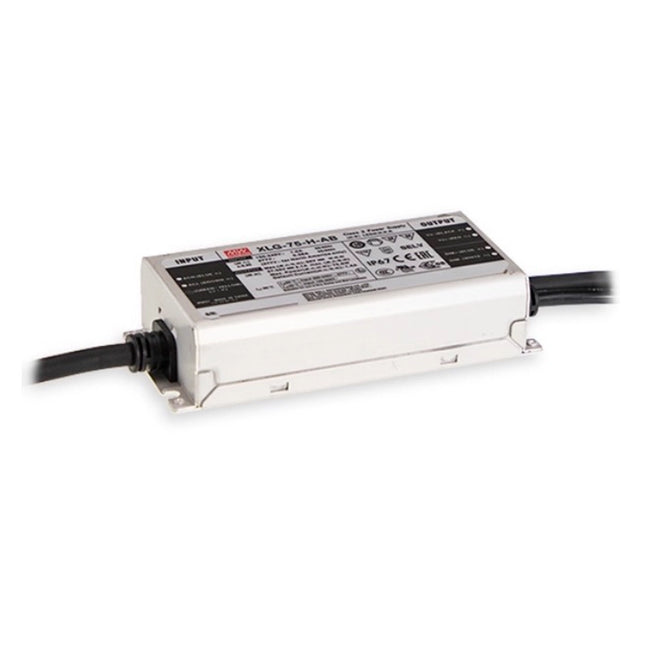

  MEAN WELL XLG-100 series: constant-voltage/constant-current LED driver - XLG-100I-12-A

  XLG-100I-12-A LED driver MEAN WELL XLG-100I-12-A is an IP67 metal-housed constant-voltage/constant-current LED driver with a 96 W rated output, 12 V DC and 8 A rated current. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-100 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 33–41; XLG-100 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function I identifies the India version with input overvoltage protection. A function: output-current setting through a built-in potentiometer. Rated output 96 W; 12 V DC, 8 A rated current. Output operating region Constant-current region 8.4–12 V. This version can directly drive suitable LEDs in CC mode or supply an appropriate downstream DC/DC driver in CV mode. The highest CC voltage depends on the final system. Output adjustment Output current adjustable 4–8 A with the built-in potentiometer; retain voltage/current/power limits. Ripple and regulation 150 mVp-p maximum ripple/noise; voltage tolerance ±3%; line regulation ±0.5%; load regulation ±2%. Startup and hold-up Setup 500 ms / rise 100 ms at 230 VAC; setup 1200 ms / rise 100 ms at 115 VAC. Typical hold-up 12 ms at either 115 VAC or 230 VAC. Setup is measured at first cold start; rapid repeat switching may increase it. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 92%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1.1 A / 115 VAC; 0.5 A / 230 VAC; 0.42 A / 277 VAC. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 8 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overcurrent protection 95–108%. Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Output overvoltage protection 13.5–18 V; output shuts down. Re-power on to recover. Overtemperature protection Output shuts down. Re-power on to recover. Input overvoltage protection 320–390 VAC threshold. Output shuts down above the protection voltage and recovers automatically after fault removal. This I version can survive 440 VAC input stress for 48 hours; that is a survival condition, not a normal operating input rating. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 80°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 2782.6 K hours minimum by Telcordia SR-332; 276.4 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement Use the built-in Io ADJ potentiometer to set the current within the published range; protect the adjustment seal. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Check the exact model markings and certification scope. Safety standards The I version has no UL/CSA certification. IS15885 (Part 2/Sec 13) is listed for the I version. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Mexico certificate NOM-058-SCFI-2017 is listed except for blank type. Contact MEAN WELL to confirm the required certificate for the exact order. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. A 6 kV line-to-line / 10 kV line-to-earth option is listed; confirm the ordered modification before relying on the higher rating. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275B; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². For this 12 V model the output cable is SJOW 14 AWG × 2 cores. Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. India ordering option The India version is by request and needs a production minimum quantity; confirm current terms with MEAN WELL. No current stock or delivery claim is made. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Adjustable-unit weather protection This IP67 model has a built-in adjustment function. Install it indoors or in a location sheltered from rain outdoors, as required by the installation manual. IP67 does not permit immersion. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $58.16

  View options

•

  View options

  MEAN WELL XLG-100 series: constant-voltage/constant-current LED driver - XLG-100I-24

  XLG-100I-24 LED driver MEAN WELL XLG-100I-24 is an IP67 metal-housed constant-voltage/constant-current LED driver with a 96 W rated output, 24 V DC and 4 A rated current. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-100 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 33–41; XLG-100 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function I identifies the India version with input overvoltage protection. Blank function suffix: fixed output voltage and current; catalog option by request for harsh environments. Rated output 96 W; 24 V DC, 4 A rated current. Output operating region Constant-current region 16.8–24 V. This version can directly drive suitable LEDs in CC mode or supply an appropriate downstream DC/DC driver in CV mode. The highest CC voltage depends on the final system. Output adjustment Voltage and current settings are fixed; no current-adjustment potentiometer or external dimming leads are specified for this suffix. Ripple and regulation 240 mVp-p maximum ripple/noise; voltage tolerance ±2%; line regulation ±0.5%; load regulation ±1%. Startup and hold-up Setup 500 ms / rise 100 ms at 230 VAC; setup 1200 ms / rise 100 ms at 115 VAC. Typical hold-up 12 ms at either 115 VAC or 230 VAC. Setup is measured at first cold start; rapid repeat switching may increase it. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 92%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1.1 A / 115 VAC; 0.5 A / 230 VAC; 0.42 A / 277 VAC. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 8 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overcurrent protection 95–108%. Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Output overvoltage protection 27–34 V; output shuts down. Re-power on to recover. Overtemperature protection Output shuts down. Re-power on to recover. Input overvoltage protection 320–390 VAC threshold. Output shuts down above the protection voltage and recovers automatically after fault removal. This I version can survive 440 VAC input stress for 48 hours; that is a survival condition, not a normal operating input rating. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 80°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 2782.6 K hours minimum by Telcordia SR-332; 276.4 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement This suffix has fixed output settings and does not provide an external dimming input. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. The feature list identifies Class 2 for the 24 V version. Safety standards The I version has no UL/CSA certification. IS15885 (Part 2/Sec 13) is listed for the I version. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. A 6 kV line-to-line / 10 kV line-to-earth option is listed; confirm the ordered modification before relying on the higher rating. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275B; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. India ordering option The India version is by request and needs a production minimum quantity; confirm current terms with MEAN WELL. No current stock or delivery claim is made. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $58.16

  View options

•

  View options

  MEAN WELL XLG-100 series: constant-voltage/constant-current LED driver - XLG-100I-12

  XLG-100I-12 LED driver MEAN WELL XLG-100I-12 is an IP67 metal-housed constant-voltage/constant-current LED driver with a 96 W rated output, 12 V DC and 8 A rated current. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-100 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 33–41; XLG-100 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function I identifies the India version with input overvoltage protection. Blank function suffix: fixed output voltage and current; catalog option by request for harsh environments. Rated output 96 W; 12 V DC, 8 A rated current. Output operating region Constant-current region 8.4–12 V. This version can directly drive suitable LEDs in CC mode or supply an appropriate downstream DC/DC driver in CV mode. The highest CC voltage depends on the final system. Output adjustment Voltage and current settings are fixed; no current-adjustment potentiometer or external dimming leads are specified for this suffix. Ripple and regulation 150 mVp-p maximum ripple/noise; voltage tolerance ±3%; line regulation ±0.5%; load regulation ±2%. Startup and hold-up Setup 500 ms / rise 100 ms at 230 VAC; setup 1200 ms / rise 100 ms at 115 VAC. Typical hold-up 12 ms at either 115 VAC or 230 VAC. Setup is measured at first cold start; rapid repeat switching may increase it. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 92%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1.1 A / 115 VAC; 0.5 A / 230 VAC; 0.42 A / 277 VAC. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 8 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overcurrent protection 95–108%. Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Output overvoltage protection 13.5–18 V; output shuts down. Re-power on to recover. Overtemperature protection Output shuts down. Re-power on to recover. Input overvoltage protection 320–390 VAC threshold. Output shuts down above the protection voltage and recovers automatically after fault removal. This I version can survive 440 VAC input stress for 48 hours; that is a survival condition, not a normal operating input rating. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 80°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 2782.6 K hours minimum by Telcordia SR-332; 276.4 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement This suffix has fixed output settings and does not provide an external dimming input. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Check the exact model markings and certification scope. Safety standards The I version has no UL/CSA certification. IS15885 (Part 2/Sec 13) is listed for the I version. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. A 6 kV line-to-line / 10 kV line-to-earth option is listed; confirm the ordered modification before relying on the higher rating. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275B; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². For this 12 V model the output cable is SJOW 14 AWG × 2 cores. Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. India ordering option The India version is by request and needs a production minimum quantity; confirm current terms with MEAN WELL. No current stock or delivery claim is made. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $58.16

  View options

•

  View options

  MEAN WELL XLG-100 series: constant-voltage LED driver - XLG-100-24-CV

  XLG-100-24-CV LED driver MEAN WELL XLG-100-24-CV is an IP67 metal-housed constant-voltage LED driver with a 96 W rated output, 24 V DC and 4 A rated current. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-100 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 33–41; XLG-100 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function Standard version. CV function: constant-voltage operation only, fixed voltage/current settings, by request; not a constant-current driver. Rated output 96 W; 24 V DC, 4 A rated current. Output operating region 24 V constant-voltage operation only; the CC region of other function versions does not apply. Output adjustment Voltage and current settings are fixed; no current-adjustment potentiometer or external dimming leads are specified for this suffix. Ripple and regulation 240 mVp-p maximum ripple/noise; voltage tolerance ±2%; line regulation ±0.5%; load regulation ±1%. Startup and hold-up Setup 500 ms / rise 100 ms at 230 VAC; setup 1200 ms / rise 100 ms at 115 VAC. Typical hold-up 12 ms at either 115 VAC or 230 VAC. Setup is measured at first cold start; rapid repeat switching may increase it. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 92%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1.1 A / 115 VAC; 0.5 A / 230 VAC; 0.42 A / 277 VAC. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 8 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Low-load consumption No-load consumption <0.5 W for the standard version. Protection Short-circuit protection Hiccup mode; automatically recovers when the fault is removed. Overcurrent protection 110–160%. Hiccup mode; automatically recovers when the fault is removed. Output overvoltage protection 27–34 V; output shuts down. Re-power on to recover. Overtemperature protection Output shuts down. Re-power on to recover. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 80°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 2782.6 K hours minimum by Telcordia SR-332; 276.4 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement This suffix has fixed output settings and does not provide an external dimming input. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Check the exact model markings and certification scope. CV certification restriction Only CE / ENEC / CB is available for the CV type. Do not apply the UL/CSA or other certificate claims of different suffixes to this CV version. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. A 6 kV line-to-line / 10 kV line-to-earth option is listed; confirm the ordered modification before relying on the higher rating. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275B; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $58.16

  View options

•

  View options

  MEAN WELL XLG-100 series: constant-voltage LED driver - XLG-100-12-CV

  XLG-100-12-CV LED driver MEAN WELL XLG-100-12-CV is an IP67 metal-housed constant-voltage LED driver with a 96 W rated output, 12 V DC and 8 A rated current. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-100 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 33–41; XLG-100 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function Standard version. CV function: constant-voltage operation only, fixed voltage/current settings, by request; not a constant-current driver. Rated output 96 W; 12 V DC, 8 A rated current. Output operating region 12 V constant-voltage operation only; the CC region of other function versions does not apply. Output adjustment Voltage and current settings are fixed; no current-adjustment potentiometer or external dimming leads are specified for this suffix. Ripple and regulation 150 mVp-p maximum ripple/noise; voltage tolerance ±3%; line regulation ±0.5%; load regulation ±2%. Startup and hold-up Setup 500 ms / rise 100 ms at 230 VAC; setup 1200 ms / rise 100 ms at 115 VAC. Typical hold-up 12 ms at either 115 VAC or 230 VAC. Setup is measured at first cold start; rapid repeat switching may increase it. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 92%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1.1 A / 115 VAC; 0.5 A / 230 VAC; 0.42 A / 277 VAC. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 8 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Low-load consumption No-load consumption <0.5 W for the standard version. Protection Short-circuit protection Hiccup mode; automatically recovers when the fault is removed. Overcurrent protection 110–160%. Hiccup mode; automatically recovers when the fault is removed. Output overvoltage protection 13.5–18 V; output shuts down. Re-power on to recover. Overtemperature protection Output shuts down. Re-power on to recover. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 80°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 2782.6 K hours minimum by Telcordia SR-332; 276.4 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement This suffix has fixed output settings and does not provide an external dimming input. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Check the exact model markings and certification scope. CV certification restriction Only CE / ENEC / CB is available for the CV type. Do not apply the UL/CSA or other certificate claims of different suffixes to this CV version. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. A 6 kV line-to-line / 10 kV line-to-earth option is listed; confirm the ordered modification before relying on the higher rating. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275B; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². For this 12 V model the output cable is SJOW 14 AWG × 2 cores. Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $58.16

  View options

•

  View options

  MEAN WELL XLG-100 series: constant-voltage/constant-current LED driver - XLG-100-24

  XLG-100-24 LED driver MEAN WELL XLG-100-24 is an IP67 metal-housed constant-voltage/constant-current LED driver with a 96 W rated output, 24 V DC and 4 A rated current. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-100 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 33–41; XLG-100 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function Standard version. Blank function suffix: fixed output voltage and current; catalog option by request for harsh environments. Rated output 96 W; 24 V DC, 4 A rated current. Output operating region Constant-current region 16.8–24 V. This version can directly drive suitable LEDs in CC mode or supply an appropriate downstream DC/DC driver in CV mode. The highest CC voltage depends on the final system. Output adjustment Voltage and current settings are fixed; no current-adjustment potentiometer or external dimming leads are specified for this suffix. Ripple and regulation 240 mVp-p maximum ripple/noise; voltage tolerance ±2%; line regulation ±0.5%; load regulation ±1%. Startup and hold-up Setup 500 ms / rise 100 ms at 230 VAC; setup 1200 ms / rise 100 ms at 115 VAC. Typical hold-up 12 ms at either 115 VAC or 230 VAC. Setup is measured at first cold start; rapid repeat switching may increase it. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 92%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1.1 A / 115 VAC; 0.5 A / 230 VAC; 0.42 A / 277 VAC. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 8 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Low-load consumption No-load consumption <0.5 W for the standard version. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overcurrent protection 95–108%. Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Output overvoltage protection 27–34 V; output shuts down. Re-power on to recover. Overtemperature protection Output shuts down. Re-power on to recover. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 80°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 2782.6 K hours minimum by Telcordia SR-332; 276.4 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement This suffix has fixed output settings and does not provide an external dimming input. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. The feature list identifies Class 2 for the 24 V version. Safety standards UL8750 (Type HL), UL879, CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Type HL application Catalog Type HL application is Class I, Division 2. The component designation does not approve a complete luminaire or installation. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. A 6 kV line-to-line / 10 kV line-to-earth option is listed; confirm the ordered modification before relying on the higher rating. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275B; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $58.16

  View options

•

  View options

  MEAN WELL XLG-100 series: constant-voltage/constant-current LED driver - XLG-100-12

  XLG-100-12 LED driver MEAN WELL XLG-100-12 is an IP67 metal-housed constant-voltage/constant-current LED driver with a 96 W rated output, 12 V DC and 8 A rated current. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-100 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 33–41; XLG-100 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function Standard version. Blank function suffix: fixed output voltage and current; catalog option by request for harsh environments. Rated output 96 W; 12 V DC, 8 A rated current. Output operating region Constant-current region 8.4–12 V. This version can directly drive suitable LEDs in CC mode or supply an appropriate downstream DC/DC driver in CV mode. The highest CC voltage depends on the final system. Output adjustment Voltage and current settings are fixed; no current-adjustment potentiometer or external dimming leads are specified for this suffix. Ripple and regulation 150 mVp-p maximum ripple/noise; voltage tolerance ±3%; line regulation ±0.5%; load regulation ±2%. Startup and hold-up Setup 500 ms / rise 100 ms at 230 VAC; setup 1200 ms / rise 100 ms at 115 VAC. Typical hold-up 12 ms at either 115 VAC or 230 VAC. Setup is measured at first cold start; rapid repeat switching may increase it. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 92%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1.1 A / 115 VAC; 0.5 A / 230 VAC; 0.42 A / 277 VAC. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 8 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Low-load consumption No-load consumption <0.5 W for the standard version. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overcurrent protection 95–108%. Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Output overvoltage protection 13.5–18 V; output shuts down. Re-power on to recover. Overtemperature protection Output shuts down. Re-power on to recover. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 80°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 2782.6 K hours minimum by Telcordia SR-332; 276.4 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement This suffix has fixed output settings and does not provide an external dimming input. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Check the exact model markings and certification scope. Safety standards UL8750 (Type HL), UL879, CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Type HL application Catalog Type HL application is Class I, Division 2. The component designation does not approve a complete luminaire or installation. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. A 6 kV line-to-line / 10 kV line-to-earth option is listed; confirm the ordered modification before relying on the higher rating. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275B; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². For this 12 V model the output cable is SJOW 14 AWG × 2 cores. Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $58.16

  View options

•

  View options

  MEAN WELL XLG-75 series: 3-in-1 dimmable constant-power LED driver - XLG-75I-H-AB

  XLG-75I-H-AB LED driver MEAN WELL XLG-75I-H-AB is an IP67 metal-housed 3-in-1 dimmable constant-power LED driver with a 75.6 W rated output, 1400 mA default current and a 27–56 V constant-current region. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-75 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 24–32; XLG-75 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function I identifies the India version with input overvoltage protection. AB function: built-in output-current potentiometer plus isolated 3-in-1 dimming. Rated output 75.6 W; 1400 mA default output current. Constant-current region 27–56 V. Use the shaded I–V envelope and the rated power; the full current/voltage rectangle is not a valid operating region. Full-power current range 1300–2100 mA, within the constant-power operating envelope. Current setting 650–2100 mA is the series current-setting range. This A/AB suffix permits adjustment with its built-in potentiometer. Open-circuit voltage 60 V maximum. Current accuracy and ripple Current tolerance ±5%; current ripple 3.0% at rated current. Startup Setup 500 ms at 230 VAC or 1200 ms at 115 VAC, measured at first cold start; rapid repeat switching can lengthen setup. I–V selection 650 mA/56 V and 1300 mA/56 V at the top; 1300 mA/27 V and 2100 mA/27 V at the bottom; 2100 mA/36 V at the right upper boundary. At lower current, the minimum usable voltage rises. Follow the complete shaded boundary and the rated power simultaneously. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Typical specification values. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 90%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1 A / 115 VAC; 0.45 A / 230 VAC; 0.38 A / 277 VAC. Typical. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 9 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overpower protection 110–150%; hiccup mode, automatically recovers after fault removal. Overtemperature protection Output shuts down. Re-power on to recover. Input overvoltage protection 320–370 VAC threshold. Output shuts down above the protection voltage and recovers automatically after fault removal. This I version can survive 440 VAC input stress for 48 hours; that is a survival condition, not a normal operating input rating. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 75°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 3404.7 K hours minimum by Telcordia SR-332; 276.3 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement Use the built-in Io ADJ potentiometer to set the current within the published range; protect the adjustment seal. Isolated 3-in-1 dimming Apply 0–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or resistance between DIM+ (purple) and DIM− (pink). Typical dimming-source current 100 µA. Dimming limits Minimum defined dimming level approximately 8%; output current is undefined between 0% and 8%. Output may fall to 0% at approximately 0 Ω, 0 VDC, or 10 V PWM with 0% duty cycle. Dimming wiring Do not connect DIM− to V−. Direct connection to LEDs is suggested; the dimming arrangement is not suitable for an additional downstream driver. Synchronized resistance control Resistance scale 10 kΩ/N through 100 kΩ/N, where N is the synchronized driver quantity. Verify the control-source capacity and insulation for the complete installation. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Class 2 power-unit design is stated for the non-L types. Safety standards The I version has no UL/CSA certification. IS15885 (Part 2/Sec 13) is listed for the I version. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Appliance standard provisions The catalog also lists EN60335-1 and compliance with EN60335-2-89 Annex BB and EN60335-2-24 Annex CC; confirm suitability of the final appliance installation. Mexico certificate NOM-058-SCFI-2017 is listed except for blank type. Contact MEAN WELL to confirm the required certificate for the exact order. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275A; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Dimming leads DIM+ purple and DIM− pink; UL2517 20 AWG × 2 cores, 350±20 mm. Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. India ordering option The India version is by request and needs a production minimum quantity; confirm current terms with MEAN WELL. No current stock or delivery claim is made. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Adjustable-unit weather protection This IP67 model has a built-in adjustment function. Install it indoors or in a location sheltered from rain outdoors, as required by the installation manual. IP67 does not permit immersion. Dimming-controller installation Verify that the controller can drive the actual interface and number of units. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this exact model’s dimming method and wiring. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $62.59

  View options

•

  View options

  MEAN WELL XLG-75 series: 3-in-1 dimmable constant-power LED driver - XLG-75I-L-AB

  XLG-75I-L-AB LED driver MEAN WELL XLG-75I-L-AB is an IP67 metal-housed 3-in-1 dimmable constant-power LED driver with a 74.9 W rated output, 700 mA default current and a 53–107 V constant-current region. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-75 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 24–32; XLG-75 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function I identifies the India version with input overvoltage protection. AB function: built-in output-current potentiometer plus isolated 3-in-1 dimming. Rated output 74.9 W; 700 mA default output current. Constant-current region 53–107 V. Use the shaded I–V envelope and the rated power; the full current/voltage rectangle is not a valid operating region. Full-power current range 700–1050 mA, within the constant-power operating envelope. Current setting 350–1050 mA is the series current-setting range. This A/AB suffix permits adjustment with its built-in potentiometer. Open-circuit voltage 115 V maximum. Current accuracy and ripple Current tolerance ±5%; current ripple 3.0% at rated current. Startup Setup 500 ms at 230 VAC or 1200 ms at 115 VAC, measured at first cold start; rapid repeat switching can lengthen setup. I–V selection 350 mA/107 V and 700 mA/107 V at the top; 700 mA/53 V and 1050 mA/53 V at the bottom; 1050 mA/71 V at the right upper boundary. At lower current, the minimum usable voltage rises. Follow the complete shaded boundary and the rated power simultaneously. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Typical specification values. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 91%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1 A / 115 VAC; 0.45 A / 230 VAC; 0.38 A / 277 VAC. Typical. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 9 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overpower protection 110–150%; hiccup mode, automatically recovers after fault removal. Overtemperature protection Output shuts down. Re-power on to recover. Input overvoltage protection 320–370 VAC threshold. Output shuts down above the protection voltage and recovers automatically after fault removal. This I version can survive 440 VAC input stress for 48 hours; that is a survival condition, not a normal operating input rating. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 75°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 3404.7 K hours minimum by Telcordia SR-332; 276.3 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement Use the built-in Io ADJ potentiometer to set the current within the published range; protect the adjustment seal. Isolated 3-in-1 dimming Apply 0–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or resistance between DIM+ (purple) and DIM− (pink). Typical dimming-source current 100 µA. Dimming limits Minimum defined dimming level approximately 8%; output current is undefined between 0% and 8%. Output may fall to 0% at approximately 0 Ω, 0 VDC, or 10 V PWM with 0% duty cycle. Dimming wiring Do not connect DIM− to V−. Direct connection to LEDs is suggested; the dimming arrangement is not suitable for an additional downstream driver. Synchronized resistance control Resistance scale 10 kΩ/N through 100 kΩ/N, where N is the synchronized driver quantity. Verify the control-source capacity and insulation for the complete installation. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Check the exact model markings and certification scope. Safety standards The I version has no UL/CSA certification. IS15885 (Part 2/Sec 13) is listed for the I version. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Appliance standard provisions The catalog also lists EN60335-1 and compliance with EN60335-2-89 Annex BB and EN60335-2-24 Annex CC; confirm suitability of the final appliance installation. Mexico certificate NOM-058-SCFI-2017 is listed except for blank type. Contact MEAN WELL to confirm the required certificate for the exact order. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275A; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Dimming leads DIM+ purple and DIM− pink; UL2517 20 AWG × 2 cores, 350±20 mm. Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. India ordering option The India version is by request and needs a production minimum quantity; confirm current terms with MEAN WELL. No current stock or delivery claim is made. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Adjustable-unit weather protection This IP67 model has a built-in adjustment function. Install it indoors or in a location sheltered from rain outdoors, as required by the installation manual. IP67 does not permit immersion. Dimming-controller installation Verify that the controller can drive the actual interface and number of units. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this exact model’s dimming method and wiring. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $62.59

  View options

•

  View options

  MEAN WELL XLG-75 series: constant-power LED driver - XLG-75I-H-A

  XLG-75I-H-A LED driver MEAN WELL XLG-75I-H-A is an IP67 metal-housed constant-power LED driver with a 75.6 W rated output, 1400 mA default current and a 27–56 V constant-current region. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-75 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 24–32; XLG-75 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function I identifies the India version with input overvoltage protection. A function: output-current setting through a built-in potentiometer. Rated output 75.6 W; 1400 mA default output current. Constant-current region 27–56 V. Use the shaded I–V envelope and the rated power; the full current/voltage rectangle is not a valid operating region. Full-power current range 1300–2100 mA, within the constant-power operating envelope. Current setting 650–2100 mA is the series current-setting range. This A/AB suffix permits adjustment with its built-in potentiometer. Open-circuit voltage 60 V maximum. Current accuracy and ripple Current tolerance ±5%; current ripple 3.0% at rated current. Startup Setup 500 ms at 230 VAC or 1200 ms at 115 VAC, measured at first cold start; rapid repeat switching can lengthen setup. I–V selection 650 mA/56 V and 1300 mA/56 V at the top; 1300 mA/27 V and 2100 mA/27 V at the bottom; 2100 mA/36 V at the right upper boundary. At lower current, the minimum usable voltage rises. Follow the complete shaded boundary and the rated power simultaneously. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Typical specification values. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 90%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1 A / 115 VAC; 0.45 A / 230 VAC; 0.38 A / 277 VAC. Typical. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 9 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overpower protection 110–150%; hiccup mode, automatically recovers after fault removal. Overtemperature protection Output shuts down. Re-power on to recover. Input overvoltage protection 320–370 VAC threshold. Output shuts down above the protection voltage and recovers automatically after fault removal. This I version can survive 440 VAC input stress for 48 hours; that is a survival condition, not a normal operating input rating. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 75°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 3404.7 K hours minimum by Telcordia SR-332; 276.3 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement Use the built-in Io ADJ potentiometer to set the current within the published range; protect the adjustment seal. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Class 2 power-unit design is stated for the non-L types. Safety standards The I version has no UL/CSA certification. IS15885 (Part 2/Sec 13) is listed for the I version. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Appliance standard provisions The catalog also lists EN60335-1 and compliance with EN60335-2-89 Annex BB and EN60335-2-24 Annex CC; confirm suitability of the final appliance installation. Mexico certificate NOM-058-SCFI-2017 is listed except for blank type. Contact MEAN WELL to confirm the required certificate for the exact order. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275A; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. India ordering option The India version is by request and needs a production minimum quantity; confirm current terms with MEAN WELL. No current stock or delivery claim is made. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Adjustable-unit weather protection This IP67 model has a built-in adjustment function. Install it indoors or in a location sheltered from rain outdoors, as required by the installation manual. IP67 does not permit immersion. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $52.74

  View options

•

  View options

  MEAN WELL XLG-75 series: constant-power LED driver - XLG-75I-L-A

  XLG-75I-L-A LED driver MEAN WELL XLG-75I-L-A is an IP67 metal-housed constant-power LED driver with a 74.9 W rated output, 700 mA default current and a 53–107 V constant-current region. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-75 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 24–32; XLG-75 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function I identifies the India version with input overvoltage protection. A function: output-current setting through a built-in potentiometer. Rated output 74.9 W; 700 mA default output current. Constant-current region 53–107 V. Use the shaded I–V envelope and the rated power; the full current/voltage rectangle is not a valid operating region. Full-power current range 700–1050 mA, within the constant-power operating envelope. Current setting 350–1050 mA is the series current-setting range. This A/AB suffix permits adjustment with its built-in potentiometer. Open-circuit voltage 115 V maximum. Current accuracy and ripple Current tolerance ±5%; current ripple 3.0% at rated current. Startup Setup 500 ms at 230 VAC or 1200 ms at 115 VAC, measured at first cold start; rapid repeat switching can lengthen setup. I–V selection 350 mA/107 V and 700 mA/107 V at the top; 700 mA/53 V and 1050 mA/53 V at the bottom; 1050 mA/71 V at the right upper boundary. At lower current, the minimum usable voltage rises. Follow the complete shaded boundary and the rated power simultaneously. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Typical specification values. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 91%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1 A / 115 VAC; 0.45 A / 230 VAC; 0.38 A / 277 VAC. Typical. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 9 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overpower protection 110–150%; hiccup mode, automatically recovers after fault removal. Overtemperature protection Output shuts down. Re-power on to recover. Input overvoltage protection 320–370 VAC threshold. Output shuts down above the protection voltage and recovers automatically after fault removal. This I version can survive 440 VAC input stress for 48 hours; that is a survival condition, not a normal operating input rating. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 75°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 3404.7 K hours minimum by Telcordia SR-332; 276.3 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement Use the built-in Io ADJ potentiometer to set the current within the published range; protect the adjustment seal. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Check the exact model markings and certification scope. Safety standards The I version has no UL/CSA certification. IS15885 (Part 2/Sec 13) is listed for the I version. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Appliance standard provisions The catalog also lists EN60335-1 and compliance with EN60335-2-89 Annex BB and EN60335-2-24 Annex CC; confirm suitability of the final appliance installation. Mexico certificate NOM-058-SCFI-2017 is listed except for blank type. Contact MEAN WELL to confirm the required certificate for the exact order. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275A; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. India ordering option The India version is by request and needs a production minimum quantity; confirm current terms with MEAN WELL. No current stock or delivery claim is made. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Adjustable-unit weather protection This IP67 model has a built-in adjustment function. Install it indoors or in a location sheltered from rain outdoors, as required by the installation manual. IP67 does not permit immersion. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $56.68

  View options

•

  View options

  MEAN WELL XLG-75 series: constant-power LED driver - XLG-75I-H

  XLG-75I-H LED driver MEAN WELL XLG-75I-H is an IP67 metal-housed constant-power LED driver with a 75.6 W rated output, 1400 mA default current and a 27–56 V constant-current region. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-75 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 24–32; XLG-75 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function I identifies the India version with input overvoltage protection. Blank function suffix: fixed output voltage and current; catalog option by request for harsh environments. Rated output 75.6 W; 1400 mA default output current. Constant-current region 27–56 V. Use the shaded I–V envelope and the rated power; the full current/voltage rectangle is not a valid operating region. Full-power current range 1300–2100 mA, within the constant-power operating envelope. Current setting 650–2100 mA is the series current-setting range. The blank suffix has a fixed factory setting; this range is not a user adjustment feature on this SKU. Open-circuit voltage 60 V maximum. Current accuracy and ripple Current tolerance ±5%; current ripple 3.0% at rated current. Startup Setup 500 ms at 230 VAC or 1200 ms at 115 VAC, measured at first cold start; rapid repeat switching can lengthen setup. I–V selection 650 mA/56 V and 1300 mA/56 V at the top; 1300 mA/27 V and 2100 mA/27 V at the bottom; 2100 mA/36 V at the right upper boundary. At lower current, the minimum usable voltage rises. Follow the complete shaded boundary and the rated power simultaneously. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Typical specification values. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 90%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1 A / 115 VAC; 0.45 A / 230 VAC; 0.38 A / 277 VAC. Typical. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 9 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overpower protection 110–150%; hiccup mode, automatically recovers after fault removal. Overtemperature protection Output shuts down. Re-power on to recover. Input overvoltage protection 320–370 VAC threshold. Output shuts down above the protection voltage and recovers automatically after fault removal. This I version can survive 440 VAC input stress for 48 hours; that is a survival condition, not a normal operating input rating. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 75°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 3404.7 K hours minimum by Telcordia SR-332; 276.3 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement This suffix has fixed output settings and does not provide an external dimming input. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Class 2 power-unit design is stated for the non-L types. Safety standards The I version has no UL/CSA certification. IS15885 (Part 2/Sec 13) is listed for the I version. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Appliance standard provisions The catalog also lists EN60335-1 and compliance with EN60335-2-89 Annex BB and EN60335-2-24 Annex CC; confirm suitability of the final appliance installation. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275A; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. India ordering option The India version is by request and needs a production minimum quantity; confirm current terms with MEAN WELL. No current stock or delivery claim is made. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $52.74

  View options

•

  View options

  MEAN WELL XLG-75 series: constant-power LED driver - XLG-75I-L

  XLG-75I-L LED driver MEAN WELL XLG-75I-L is an IP67 metal-housed constant-power LED driver with a 74.9 W rated output, 700 mA default current and a 53–107 V constant-current region. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-75 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 24–32; XLG-75 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function I identifies the India version with input overvoltage protection. Blank function suffix: fixed output voltage and current; catalog option by request for harsh environments. Rated output 74.9 W; 700 mA default output current. Constant-current region 53–107 V. Use the shaded I–V envelope and the rated power; the full current/voltage rectangle is not a valid operating region. Full-power current range 700–1050 mA, within the constant-power operating envelope. Current setting 350–1050 mA is the series current-setting range. The blank suffix has a fixed factory setting; this range is not a user adjustment feature on this SKU. Open-circuit voltage 115 V maximum. Current accuracy and ripple Current tolerance ±5%; current ripple 3.0% at rated current. Startup Setup 500 ms at 230 VAC or 1200 ms at 115 VAC, measured at first cold start; rapid repeat switching can lengthen setup. I–V selection 350 mA/107 V and 700 mA/107 V at the top; 700 mA/53 V and 1050 mA/53 V at the bottom; 1050 mA/71 V at the right upper boundary. At lower current, the minimum usable voltage rises. Follow the complete shaded boundary and the rated power simultaneously. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Typical specification values. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 91%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1 A / 115 VAC; 0.45 A / 230 VAC; 0.38 A / 277 VAC. Typical. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 9 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overpower protection 110–150%; hiccup mode, automatically recovers after fault removal. Overtemperature protection Output shuts down. Re-power on to recover. Input overvoltage protection 320–370 VAC threshold. Output shuts down above the protection voltage and recovers automatically after fault removal. This I version can survive 440 VAC input stress for 48 hours; that is a survival condition, not a normal operating input rating. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 75°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 3404.7 K hours minimum by Telcordia SR-332; 276.3 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement This suffix has fixed output settings and does not provide an external dimming input. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Check the exact model markings and certification scope. Safety standards The I version has no UL/CSA certification. IS15885 (Part 2/Sec 13) is listed for the I version. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Appliance standard provisions The catalog also lists EN60335-1 and compliance with EN60335-2-89 Annex BB and EN60335-2-24 Annex CC; confirm suitability of the final appliance installation. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275A; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. India ordering option The India version is by request and needs a production minimum quantity; confirm current terms with MEAN WELL. No current stock or delivery claim is made. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $56.68

  View options

•

  View options

  MEAN WELL XLG-75 series: 3-in-1 dimmable constant-power LED driver - XLG-75-H-AB

  XLG-75-H-AB LED driver MEAN WELL XLG-75-H-AB is an IP67 metal-housed 3-in-1 dimmable constant-power LED driver with a 75.6 W rated output, 1400 mA default current and a 27–56 V constant-current region. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-75 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 24–32; XLG-75 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function Standard version. AB function: built-in output-current potentiometer plus isolated 3-in-1 dimming. Rated output 75.6 W; 1400 mA default output current. Constant-current region 27–56 V. Use the shaded I–V envelope and the rated power; the full current/voltage rectangle is not a valid operating region. Full-power current range 1300–2100 mA, within the constant-power operating envelope. Current setting 650–2100 mA is the series current-setting range. This A/AB suffix permits adjustment with its built-in potentiometer. Open-circuit voltage 60 V maximum. Current accuracy and ripple Current tolerance ±5%; current ripple 3.0% at rated current. Startup Setup 500 ms at 230 VAC or 1200 ms at 115 VAC, measured at first cold start; rapid repeat switching can lengthen setup. I–V selection 650 mA/56 V and 1300 mA/56 V at the top; 1300 mA/27 V and 2100 mA/27 V at the bottom; 2100 mA/36 V at the right upper boundary. At lower current, the minimum usable voltage rises. Follow the complete shaded boundary and the rated power simultaneously. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Typical specification values. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 90%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1 A / 115 VAC; 0.45 A / 230 VAC; 0.38 A / 277 VAC. Typical. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 9 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Low-load consumption Dimming-off standby consumption <0.5 W for the standard AB version. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overpower protection 110–150%; hiccup mode, automatically recovers after fault removal. Overtemperature protection Output shuts down. Re-power on to recover. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 75°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 3404.7 K hours minimum by Telcordia SR-332; 276.3 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement Use the built-in Io ADJ potentiometer to set the current within the published range; protect the adjustment seal. Isolated 3-in-1 dimming Apply 0–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or resistance between DIM+ (purple) and DIM− (pink). Typical dimming-source current 100 µA. Dimming limits Minimum defined dimming level approximately 8%; output current is undefined between 0% and 8%. Output may fall to 0% at approximately 0 Ω, 0 VDC, or 10 V PWM with 0% duty cycle. Dimming wiring Do not connect DIM− to V−. Direct connection to LEDs is suggested; the dimming arrangement is not suitable for an additional downstream driver. Synchronized resistance control Resistance scale 10 kΩ/N through 100 kΩ/N, where N is the synchronized driver quantity. Verify the control-source capacity and insulation for the complete installation. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Class 2 power-unit design is stated for the non-L types. Safety standards UL8750 (Type HL), CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Appliance standard provisions The catalog also lists EN60335-1 and compliance with EN60335-2-89 Annex BB and EN60335-2-24 Annex CC; confirm suitability of the final appliance installation. Mexico certificate NOM-058-SCFI-2017 is listed except for blank type. Contact MEAN WELL to confirm the required certificate for the exact order. Type HL application Catalog Type HL application is Class I, Division 2. A/AB types must be considered for built-in use to comply with the Type HL application. The component designation does not approve a complete luminaire or installation. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275A; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Dimming leads DIM+ purple and DIM− pink; UL2517 20 AWG × 2 cores, 350±20 mm. Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Adjustable-unit weather protection This IP67 model has a built-in adjustment function. Install it indoors or in a location sheltered from rain outdoors, as required by the installation manual. IP67 does not permit immersion. Dimming-controller installation Verify that the controller can drive the actual interface and number of units. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this exact model’s dimming method and wiring. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $62.59

  View options

•

  View options

  MEAN WELL XLG-75 series: 3-in-1 dimmable constant-power LED driver - XLG-75-L-AB

  XLG-75-L-AB LED driver MEAN WELL XLG-75-L-AB is an IP67 metal-housed 3-in-1 dimmable constant-power LED driver with a 74.9 W rated output, 700 mA default current and a 53–107 V constant-current region. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-75 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 24–32; XLG-75 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function Standard version. AB function: built-in output-current potentiometer plus isolated 3-in-1 dimming. Rated output 74.9 W; 700 mA default output current. Constant-current region 53–107 V. Use the shaded I–V envelope and the rated power; the full current/voltage rectangle is not a valid operating region. Full-power current range 700–1050 mA, within the constant-power operating envelope. Current setting 350–1050 mA is the series current-setting range. This A/AB suffix permits adjustment with its built-in potentiometer. Open-circuit voltage 115 V maximum. Current accuracy and ripple Current tolerance ±5%; current ripple 3.0% at rated current. Startup Setup 500 ms at 230 VAC or 1200 ms at 115 VAC, measured at first cold start; rapid repeat switching can lengthen setup. I–V selection 350 mA/107 V and 700 mA/107 V at the top; 700 mA/53 V and 1050 mA/53 V at the bottom; 1050 mA/71 V at the right upper boundary. At lower current, the minimum usable voltage rises. Follow the complete shaded boundary and the rated power simultaneously. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Typical specification values. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 91%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1 A / 115 VAC; 0.45 A / 230 VAC; 0.38 A / 277 VAC. Typical. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 9 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Low-load consumption Dimming-off standby consumption <0.5 W for the standard AB version. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overpower protection 110–150%; hiccup mode, automatically recovers after fault removal. Overtemperature protection Output shuts down. Re-power on to recover. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 75°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 3404.7 K hours minimum by Telcordia SR-332; 276.3 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement Use the built-in Io ADJ potentiometer to set the current within the published range; protect the adjustment seal. Isolated 3-in-1 dimming Apply 0–10 VDC, a 10 V PWM signal at 100 Hz–3 kHz, or resistance between DIM+ (purple) and DIM− (pink). Typical dimming-source current 100 µA. Dimming limits Minimum defined dimming level approximately 8%; output current is undefined between 0% and 8%. Output may fall to 0% at approximately 0 Ω, 0 VDC, or 10 V PWM with 0% duty cycle. Dimming wiring Do not connect DIM− to V−. Direct connection to LEDs is suggested; the dimming arrangement is not suitable for an additional downstream driver. Synchronized resistance control Resistance scale 10 kΩ/N through 100 kΩ/N, where N is the synchronized driver quantity. Verify the control-source capacity and insulation for the complete installation. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Check the exact model markings and certification scope. Safety standards UL8750 (Type HL), CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Appliance standard provisions The catalog also lists EN60335-1 and compliance with EN60335-2-89 Annex BB and EN60335-2-24 Annex CC; confirm suitability of the final appliance installation. Mexico certificate NOM-058-SCFI-2017 is listed except for blank type. Contact MEAN WELL to confirm the required certificate for the exact order. Type HL application Catalog Type HL application is Class I, Division 2. A/AB types must be considered for built-in use to comply with the Type HL application. The component designation does not approve a complete luminaire or installation. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275A; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Dimming leads DIM+ purple and DIM− pink; UL2517 20 AWG × 2 cores, 350±20 mm. Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Adjustable-unit weather protection This IP67 model has a built-in adjustment function. Install it indoors or in a location sheltered from rain outdoors, as required by the installation manual. IP67 does not permit immersion. Dimming-controller installation Verify that the controller can drive the actual interface and number of units. For standalone use with dimming conductors smaller than 18 AWG (0.75 mm²), use SELV controllers/networks; contact MEAN WELL for guidance before using FELV control. Follow this exact model’s dimming method and wiring. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $62.59

  View options

•

  View options

  MEAN WELL XLG-75 series: constant-power LED driver - XLG-75-H-A

  XLG-75-H-A LED driver MEAN WELL XLG-75-H-A is an IP67 metal-housed constant-power LED driver with a 75.6 W rated output, 1400 mA default current and a 27–56 V constant-current region. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-75 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 24–32; XLG-75 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function Standard version. A function: output-current setting through a built-in potentiometer. Rated output 75.6 W; 1400 mA default output current. Constant-current region 27–56 V. Use the shaded I–V envelope and the rated power; the full current/voltage rectangle is not a valid operating region. Full-power current range 1300–2100 mA, within the constant-power operating envelope. Current setting 650–2100 mA is the series current-setting range. This A/AB suffix permits adjustment with its built-in potentiometer. Open-circuit voltage 60 V maximum. Current accuracy and ripple Current tolerance ±5%; current ripple 3.0% at rated current. Startup Setup 500 ms at 230 VAC or 1200 ms at 115 VAC, measured at first cold start; rapid repeat switching can lengthen setup. I–V selection 650 mA/56 V and 1300 mA/56 V at the top; 1300 mA/27 V and 2100 mA/27 V at the bottom; 2100 mA/36 V at the right upper boundary. At lower current, the minimum usable voltage rises. Follow the complete shaded boundary and the rated power simultaneously. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Typical specification values. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 90%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1 A / 115 VAC; 0.45 A / 230 VAC; 0.38 A / 277 VAC. Typical. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 9 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overpower protection 110–150%; hiccup mode, automatically recovers after fault removal. Overtemperature protection Output shuts down. Re-power on to recover. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 75°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 3404.7 K hours minimum by Telcordia SR-332; 276.3 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement Use the built-in Io ADJ potentiometer to set the current within the published range; protect the adjustment seal. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Class 2 power-unit design is stated for the non-L types. Safety standards UL8750 (Type HL), CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Appliance standard provisions The catalog also lists EN60335-1 and compliance with EN60335-2-89 Annex BB and EN60335-2-24 Annex CC; confirm suitability of the final appliance installation. Mexico certificate NOM-058-SCFI-2017 is listed except for blank type. Contact MEAN WELL to confirm the required certificate for the exact order. Type HL application Catalog Type HL application is Class I, Division 2. A/AB types must be considered for built-in use to comply with the Type HL application. The component designation does not approve a complete luminaire or installation. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275A; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Adjustable-unit weather protection This IP67 model has a built-in adjustment function. Install it indoors or in a location sheltered from rain outdoors, as required by the installation manual. IP67 does not permit immersion. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $52.74

  View options

•

  View options

  MEAN WELL XLG-75 series: constant-power LED driver - XLG-75-L-A

  XLG-75-L-A LED driver MEAN WELL XLG-75-L-A is an IP67 metal-housed constant-power LED driver with a 74.9 W rated output, 700 mA default current and a 53–107 V constant-current region. Its fanless design uses natural air convection and active power-factor correction. Download MEAN WELL XLG-75 Datasheet (PDF)Download MEAN WELL LED Installation Manual XLG catalog, PDF pages 24–32; XLG-75 specification dated 2026-02-04. Use the exact output and function suffix when selecting the driver. Output and model selection Model and function Standard version. A function: output-current setting through a built-in potentiometer. Rated output 74.9 W; 700 mA default output current. Constant-current region 53–107 V. Use the shaded I–V envelope and the rated power; the full current/voltage rectangle is not a valid operating region. Full-power current range 700–1050 mA, within the constant-power operating envelope. Current setting 350–1050 mA is the series current-setting range. This A/AB suffix permits adjustment with its built-in potentiometer. Open-circuit voltage 115 V maximum. Current accuracy and ripple Current tolerance ±5%; current ripple 3.0% at rated current. Startup Setup 500 ms at 230 VAC or 1200 ms at 115 VAC, measured at first cold start; rapid repeat switching can lengthen setup. I–V selection 350 mA/107 V and 700 mA/107 V at the top; 700 mA/53 V and 1050 mA/53 V at the bottom; 1050 mA/71 V at the right upper boundary. At lower current, the minimum usable voltage rises. Follow the complete shaded boundary and the rated power simultaneously. Input and performance Input supply 100–305 VAC or 142–431 VDC; AC frequency 47–63 Hz. The 60 Hz static curve permits full load across 100–305 VAC; thermal derating still applies. Power factor At full load: PF ≥0.97 / 115 VAC, ≥0.95 / 230 VAC, ≥0.92 / 277 VAC. Typical specification values. Total harmonic distortion THD <10% at load ≥50% for 115/230 VAC, or load ≥75% for 277 VAC. Typical efficiency 91%, at the specification reference conditions: 230 VAC input, rated current and 25°C ambient. Input current 1 A / 115 VAC; 0.45 A / 230 VAC; 0.38 A / 277 VAC. Typical. Inrush current Typical cold-start peak 50 A at 230 VAC; width 300 µs at 50% peak, per NEMA 410. 16 A circuit breaker loading 9 units on type B or 14 units on type C at 230 VAC, as listed in the datasheet. Leakage current <0.75 mA at 277 VAC. Protection Short-circuit protection Hiccup mode or constant-current limiting; automatically recovers when the fault is removed. Overpower protection 110–150%; hiccup mode, automatically recovers after fault removal. Overtemperature protection Output shuts down. Re-power on to recover. Operating conditions Case temperature Tcase −40 to +90°C; maximum case temperature +90°C. Measure the specified tc point, not ambient air. Ambient derating Horizontal mounting: at 230 VAC, full load through 60°C ambient, reducing to 60% at 70°C; at 100 VAC, full load through 50°C, reducing to 60% at 60°C. At rated current in CC mode, typical maximum full-load Ta is 60°C / 230 VAC or 50°C / 100 VAC. Keep case temperature within its limit. Cold starting The region from −40 to −30°C is marked for 230 VAC input only. Below 110 VAC at −30°C, restart may occur within 5 seconds after power-on. Cooling and altitude Natural air convection. Above 2000 m altitude, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless model. Humidity and storage Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C, 10–95% RH non-condensing. Temperature coefficient ±0.03%/°C over 0–60°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Lifetime and warranty Catalog typical life expectancy >50,000 hours with the marked tc point about 75°C or below. Five-year manufacturer warranty, subject to its terms. Higher case temperature reduces expected life. Reliability 3404.7 K hours minimum by Telcordia SR-332; 276.3 K hours minimum by MIL-HDBK-217F at 25°C. MTBF is not a service-life guarantee. Control and dimming Control arrangement Use the built-in Io ADJ potentiometer to set the current within the published range; protect the adjustment seal. Safety and EMC Housing and classification IP67 metal housing, Class I input; connect the protective-earth lead. Check the exact model markings and certification scope. Safety standards UL8750 (Type HL), CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29); KC61347-1 and KC61347-2-13. Appliance standard provisions The catalog also lists EN60335-1 and compliance with EN60335-2-89 Annex BB and EN60335-2-24 Annex CC; confirm suitability of the final appliance installation. Mexico certificate NOM-058-SCFI-2017 is listed except for blank type. Contact MEAN WELL to confirm the required certificate for the exact order. Type HL application Catalog Type HL application is Class I, Division 2. A/AB types must be considered for built-in use to comply with the Type HL application. The component designation does not approve a complete luminaire or installation. Regional marking Products sourced from the Americas may not carry PSE/CCC/BIS/KC logos; verify the exact unit and destination requirements. Electrical insulation Withstand input–output 3.75 kVAC; input–FG 2 kVAC; output–FG 1.5 kVAC. Insulation resistance for these pairs: 100 MΩ / 500 VDC / 25°C / 70% RH. EMC emissions Conducted/radiated: BS EN/EN55015 (CISPR15), GB/T17743. Harmonic current: BS EN/EN61000-3-2 and GB17625.1, Class C at load ≥50%; flicker: BS EN/EN61000-3-3. EMC immunity BS EN/EN61547. ESD Level 3, 8 kV air and Level 2, 4 kV contact; radiated/EFT/conducted Level 3; magnetic field Level 4. Test series BS EN/EN61000-4-2, -3, -4, -5, -6 and -8. Surge immunity 4 kV line-to-line, 6 kV line-to-earth. Voltage dips and interruptions BS EN/EN61000-4-11: >95% dip for 0.5 periods; 30% dip for 25 periods; >95% interruptions for 250 periods. Final equipment and ErP Requalify EMC on the complete installation. For the catalog ErP lighting-fixture condition, use behind a switch rather than permanently connecting to the mains. Dimensions and installation Dimensions and mounting 140 × 63 × 32 mm (L × W × H), case 275A; drawing tolerance ±1 mm. Four Ø4.5 mm mounting holes, 134 mm longitudinal and 40 mm transverse spacing. Recommended mounting direction is horizontal on a flat surface. Power wiring AC/L brown; AC/N blue; protective earth green/yellow. Output V+ red and V− black. Power leads 300±20 mm. Input SJOW 17 AWG × 3 cores / H05RN-F 3 × 1.0 mm². Output SJOW 17 AWG × 2 cores / 1.0 mm². Case-temperature point The tc location is marked 57 mm and 24 mm from the mechanical drawing references; measure this case point when evaluating thermal limits. Unit packing reference 0.58 kg per unit = 580 g, explicitly listed in the catalog packing row. This is not a measured net weight or the total carton weight. Accessories and selection No dedicated MEAN WELL accessory order code is specified for this model in the inspected series sheets. Select suitable installation hardware and, where applicable, a compatible isolated dimming controller. Maintain IP67 sealing and observe the installation manual. Installation manual requirements Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Connect a fitted FG lead to protective earth according to the model wiring; the manual exempts only units marked Class II and ungrounded. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Adjustable-unit weather protection This IP67 model has a built-in adjustment function. Install it indoors or in a location sheltered from rain outdoors, as required by the installation manual. IP67 does not permit immersion. Confirm the exact LED load, operating temperature, control interface and installation requirements against the linked datasheet and manual before commissioning.

  Read more less

  $56.68
