MEAN WELL DDR series: rail type DC-DC converter - DDR-120A-48
Output voltage: 48V Output current: 0 ~ 2.1A Output power rating: 100.8W Output peak current: 3.15A Output peak power: 150W(3sec.) Input voltage: 9 ~ 18VDC Size (mm):32X125.2X102 Product Features 1. Metal shell, 2:1 wide range input. 2. Railway & ITE dual certification, 150% peak load. 3, -40 ~ +70 ℃ wide range of working temperature, no fan design, natural air cooling. 4. Mounting guide rail: TS-35/7.5 or TS-35/15. 5, 4KVdc I/O enhanced isolation, DC output adjustable (± 15%). 6. DC OK relay control and remote control ON/OFF(DDR-240/480). 7. Current sharing and parallel connection function, up to 4 units can be connected in parallel (DDR-240 W/480, up to 960W/1920W). 8. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection, 3 years warranty.
$135.43
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-120A-24
Output voltage: 24V Output current: 0 ~ 4.2A Output power rating: 100.8W Output peak current: 6.3A Output peak power: 150W(3sec.) Input voltage: 9 ~ 18VDC Size (mm):32X125.2X102 Product Features 1. Metal shell, 2:1 wide range input. 2. Railway & ITE dual certification, 150% peak load. 3, -40 ~ +70 ℃ wide range of working temperature, no fan design, natural air cooling. 4. Mounting guide rail: TS-35/7.5 or TS-35/15. 5, 4KVdc I/O enhanced isolation, DC output adjustable (± 15%). 6. DC OK relay control and remote control ON/OFF(DDR-240/480). 7. Current sharing and parallel connection function, up to 4 units can be connected in parallel (DDR-240 W/480, up to 960W/1920W). 8. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection, 3 years warranty.
$135.43
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-120A-12
Output voltage: 12V Output current: 0 ~ 8.3A Output power rating: 99.6W Output peak current: 12.45A Output peak power: 150W(3sec.) Input voltage: 9 ~ 18VDC Size (mm):32X125.2X102 Product Features 1. Metal shell, 2:1 wide range input. 2. Railway & ITE dual certification, 150% peak load. 3, -40 ~ +70 ℃ wide range of working temperature, no fan design, natural air cooling. 4. Mounting guide rail: TS-35/7.5 or TS-35/15. 5, 4KVdc I/O enhanced isolation, DC output adjustable (± 15%). 6. DC OK relay control and remote control ON/OFF(DDR-240/480). 7. Current sharing and parallel connection function, up to 4 units can be connected in parallel (DDR-240 W/480, up to 960W/1920W). 8. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection, 3 years warranty.
$135.43
-

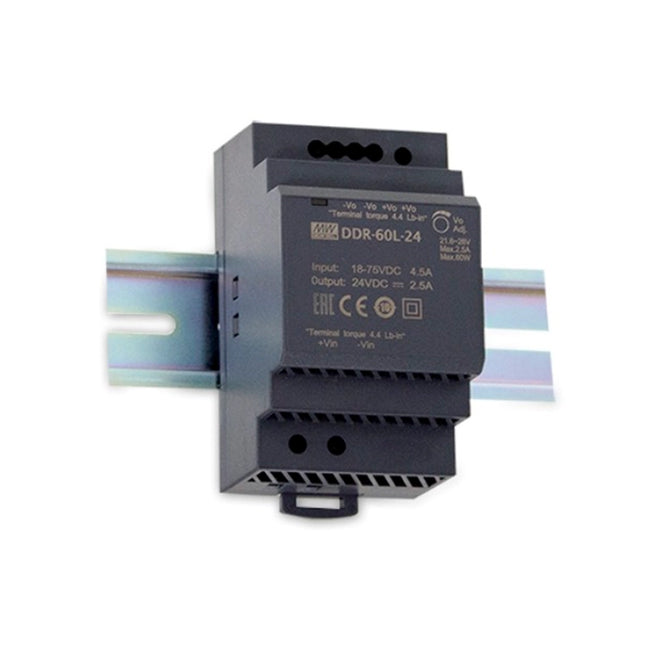

MEAN WELL DDR series: rail type DC-DC converter - DDR-60L-24
Output voltage: 24V Output current: 0 ~ 2.5A Output power rating: 60W Input voltage: 18 ~ 75VDC Input efficiency (Typ.):92% Input DC current (Typ.):1.5A/48VDC Input Surge Current (Typ.):20A/48VDC Size (mm):52.5X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$66.86
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-60L-15
Output voltage: 15V Output current: 0 ~ 4A Output power rating: 60W Input voltage: 18 ~ 75VDC Input efficiency (Typ.):92% Input DC current (Typ.):1.5A/48VDC Input Surge Current (Typ.):20A/48VDC Size (mm):52.5X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$66.86
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-60L-12
Output voltage: 12V Output current: 0 ~ 5A Output power rating: 60W Input voltage: 18 ~ 75VDC Input efficiency (Typ.):91% Input DC current (Typ.):1.5A/48VDC Input Surge Current (Typ.):20A/48VDC Size (mm):52.5X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$66.86
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-60L-5
Output voltage: 5V Output current: 0 ~ 12A Output power rating: 60W Input voltage: 18 ~ 75VDC Input efficiency (Typ.):87.5% Input DC current (Typ.):1.5A/48VDC Input Surge Current (Typ.):20A/48VDC Size (mm):52.5X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$66.86
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-60G-24
Output voltage: 24V Output current: 0 ~ 2.5A Output power rating: 60W Input voltage: 9 ~ 36VDC Input efficiency (Typ.):91% Input DC Current (Typ.):3A/24VDC Input Surge Current (Typ.):20A/24VDC Size (mm):52.5X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$66.86
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-60G-15
Output voltage: 15V Output current: 0 ~ 4A Output power rating: 60W Input voltage: 9 ~ 36VDC Input efficiency (Typ.):91% Input DC Current (Typ.):3A/24VDC Input Surge Current (Typ.):20A/24VDC Size (mm):52.5X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$66.86
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-60G-12
Output voltage: 12V Output current: 0 ~ 5A Output power rating: 60W Input voltage: 9 ~ 36VDC Input efficiency (Typ.):91% Input DC Current (Typ.):3A/24VDC Input Surge Current (Typ.):20A/24VDC Size (mm):52.5X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$66.86
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-60G-5
Output voltage: 5V Output current: 0 ~ 10.8A Output power rating: 54W Input voltage: 9 ~ 36VDC Input efficiency (Typ.):87.5% Input DC Current (Typ.):3A/24VDC Input Surge Current (Typ.):20A/24VDC Size (mm):52.5X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$66.86
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-30L-24
Output voltage: 24V Output current: 0 ~ 1.25A Output power rating: 30W Input voltage: 18 ~ 75VDC Input efficiency (Typ.):91% Input DC current (Typ.):0.8A/48VDC Input Surge Current (Typ.):15A/48VDC Size (mm):35X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$54.43
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-30L-15
Output voltage: 15V Output current: 0 ~ 2A Output power rating: 30W Input voltage: 18 ~ 75VDC Input efficiency (Typ.):90% Input DC current (Typ.):0.8A/48VDC Input Surge Current (Typ.):15A/48VDC Size (mm):35X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$54.43
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-30L-12
Output voltage: 12V Output current: 0 ~ 2.5A Output power rating: 30W Input voltage: 18 ~ 75VDC Input efficiency (Typ.):89% Input DC current (Typ.):0.8A/48VDC Input Surge Current (Typ.):15A/48VDC Size (mm):35X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$54.43
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-30L-5
Output voltage: 5V Output current: 0 ~ 6A Output power rating: 30W Input voltage: 18 ~ 75VDC Input efficiency (Typ.):86% Input DC current (Typ.):0.8A/48VDC Input Surge Current (Typ.):15A/48VDC Size (mm):35X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$54.43
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-30G-24
Output voltage: 24V Output current: 0 ~ 1.25A Output power rating: 30W Input voltage: 9 ~ 36VDC Input efficiency (Typ.):89% Input DC current (Typ.):1.5A/24VDC Input Surge Current (Typ.):15A/24VDC Size (mm):35X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$54.43
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-30G-15
Output voltage: 15V Output current: 0 ~ 2A Output power rating: 30W Input voltage: 9 ~ 36VDC Input efficiency (Typ.):87% Input DC current (Typ.):1.5A/24VDC Input Surge Current (Typ.):15A/24VDC Size (mm):35X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$54.43
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-30G-12
Output voltage: 12V Output current: 0 ~ 2.5A Output power rating: 30W Input voltage: 9 ~ 36VDC Input efficiency (Typ.):86% Input DC current (Typ.):1.5A/24VDC Input Surge Current (Typ.):15A/24VDC Size (mm):35X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$54.43
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-30G-5
Output voltage: 5V Output current: 0 ~ 6A Output power rating: 30W Input voltage: 9 ~ 36VDC Input efficiency (Typ.):85% Input DC current (Typ.):1.5A/24VDC Input Surge Current (Typ.):15A/24VDC Size (mm):35X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$54.43
-

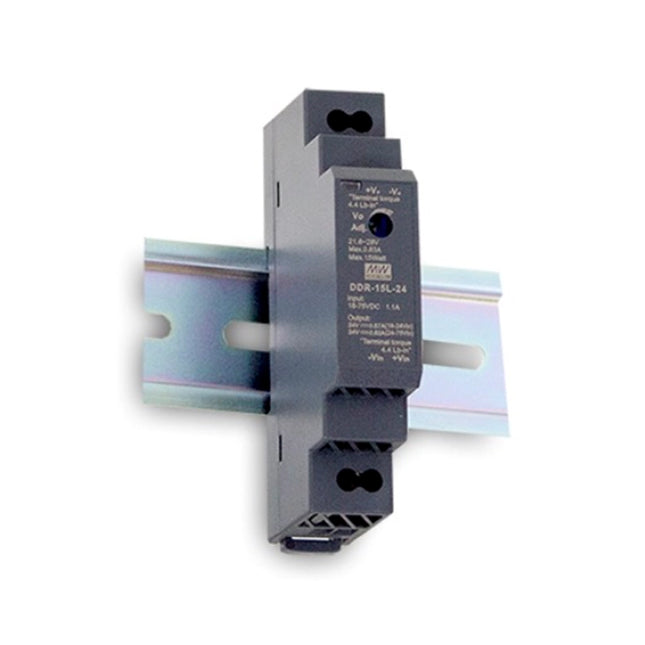

MEAN WELL DDR series: rail type DC-DC converter - DDR-15L-24
Output voltage: 24V Output current: 0 ~ 0.63A Output power rating: 15W Input voltage: 18 ~ 75VDC Input efficiency (Typ.):87% Input DC current (Typ.):0.4A/48VDC Input Surge Current (Typ.):15A/48VDC Size (mm):17.5X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$41.14
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-15L-15
Output voltage: 15V Output current: 0 ~ 1A Output power rating: 15W Input voltage: 18 ~ 75VDC Input efficiency (Typ.):86% Input DC current (Typ.):0.4A/48VDC Input Surge Current (Typ.):15A/48VDC Size (mm):17.5X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$41.14
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-15L-12
Output voltage: 12V Output current: 0 ~ 1.25A Output power rating: 15W Input voltage: 18 ~ 75VDC Input efficiency (Typ.):86% Input DC current (Typ.):0.4A/48VDC Input Surge Current (Typ.):15A/48VDC Size (mm):17.5X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$41.14
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-15L-5
Output voltage: 5V Output current: 0 ~ 3A Output power rating: 15W Input voltage: 18 ~ 75VDC Input efficiency (Typ.):85% Input DC current (Typ.):0.4A/48VDC Input Surge Current (Typ.):15A/48VDC Size (mm):17.5X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$41.14
-
MEAN WELL DDR series: rail type DC-DC converter - DDR-15L-3.3
Output voltage: 3.3V Output current: 0 ~ 4.5A Output power rating: 15W Input voltage: 18 ~ 75VDC Input efficiency (Typ.):84% Input DC current (Typ.):0.4A/48VDC Input Surge Current (Typ.):15A/48VDC Size (mm):17.5X90X54.5 Product Features 1. Plastic shell, 4:1 super wide input range. 2. Ultra-thin width 1SU ~ 3SU, no fan design, natural air cooling. 3. Mounting guide rail: TS-35/7.5 or TS-35/15. 4, 4KVdc I/O to strengthen the isolation. 5, -40 ~ +85 ℃ wide range of working temperature. 6. DC output adjustable (+-10%). 7. Protection type: short circuit/overload/overvoltage/input undervoltage/input reverse polarity protection. 8, 3 years warranty.
$41.14
You have seen 48 out of 53 products
