  MEAN WELL GSM36U series: Medical Wall-Mounted AC/DC Power Adapter - GSM36U48-P1J

  MEAN WELL GSM36U48-P1J is a Class II medical wall-mounted power adapter with fixed two-pin US mains plug, supplying 48 VDC at 0.75 A with a 36 W rated maximum output. Its center-positive P1J plug, 2 × MOPP isolation and BF-rated design support the stated medical applications. Apply the input and ambient-temperature derating. Product Datasheet Download MEAN WELL GSM36U Datasheet (PDF) The GSM36U section is on PDF pages 54, 55, 56, 57, 58. Refer to the complete mechanical drawings and notes when planning installation. Model and Rated Output Complete model GSM36U48-P1J. Product type Single-output Class II medical wall-mounted AC/DC power adapter. Nominal output 48 VDC. Rated output current 0.75 A. Current range 0–0.75 A. Rated output power, maximum 36 W; apply the current, voltage and derating limits together. Ripple and noise, maximum 240 mVp-p. Voltage tolerance ±2%. Line regulation ±1%. Load regulation ±2%. Efficiency, typical 88%. Model code GSM36U identifies the series and AC connection; 48 identifies 48 V; P1J is the standard center-positive tuning-fork DC plug. Select the complete model and match the equipment voltage, current and polarity. The nominal series wattage is not the output rating of every model. Input, Timing and Efficiency AC input 80–264 VAC, 47–63 Hz. DC input 113–370 VDC. AC connection Fixed two-pin US mains plug. AC current, typical 0.9 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time, full load 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC. Hold-up time, full load Typical 16 ms at 230 VAC and 10 ms at 115 VAC. No-load consumption <0.1 W. Energy framework Energy-efficiency Level VI. The series lists EISA 2007/DoE and NRCan, with the 5–9 V Level V exception. The two-pole mains plug is integral to the adapter. Select the US or European plug configuration for the intended socket. Medical Isolation and Protection Medical design 2 × MOPP primary-to-secondary isolation; BF-rated design and the listed home-healthcare standards. Touch current <50 µA at 264 VAC. Electrical class Class II; no protective-earth connection. Input/output withstand 4 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, input-to-output. Overload 105–170% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage 50.4–64.8 V; output shutdown, re-power on to recover. Short circuit Short-circuit protection is listed. The adapter supports the stated medical application class; safety and EMC of the complete medical equipment still require assessment with its actual load, wiring and installation. Environment and Derating Operating temperature −25 to +60°C; apply derating. Temperature/load curve Horizontal mounting: 100% load from −25°C to 40°C, then reduce to 80% at 60°C. Low-input load curve 80% at 80 VAC, reaching 100% at 100 VAC and remaining at 100% to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of X, Y and Z. Follow both input-voltage and ambient-temperature limits. The upper operating temperature is a derated endpoint, not a full-power ambient rating. Refer to the applicable curves on PDF page 56. Mechanical Details and Cable Body dimensions, L × W × H 79 × 54 × 33 mm; tolerance ±1 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic. DC cable UL1185, 16 AWG; 1800 mm, ±50 mm. Catalogue single-unit weight 215 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. Carton packing 60 pieces / 13.9 kg. Power indication Power-on LED. Ferrite-to-plug segment 70 ±10 mm, as shown in the mechanical drawing. Mains-pin projection The drawing marks 17 mm beyond the body. Body dimensions exclude the attached DC cable and plug and the projecting mains pins. Allow room for the cable exit and connector; follow PDF page 56. Standard P1J Output Connection Connector Straight tuning-fork barrel plug P1J: 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. Polarity C+: center/inside positive; outside negative. Match the mating socket dimensions, insertion depth, polarity and voltage before connection. A mechanically fitting plug does not make different output models interchangeable. Optional DC Plugs and Accessories Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Barrel alternatives P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. Minimum-pin alternatives P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent. Center-pin alternatives P4A: 5.5 / 3.4 / 11 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11 mm, center pin 0.6 mm. EIAJ equivalent. R6B Locking three-pin male Mini DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. R7B Locking four-pin male Mini DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R7BF Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R1B Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. All optional plug dimensions are in mm. Codes ending in R in the P1/P2 lists indicate the illustrated right-angle version; the other P1/P2 barrel forms are straight. Confirm the complete cable assembly, mating side and current capability when ordering. No mating socket or optional cable is stated as included. Factory DC-plug customization is subject to a minimum order quantity. The listed quick-adapter accessories are sold separately without a minimum order quantity. The tuning-fork alternatives, P4A/P4B/P4C, R6B and R7B and R1B have 7.5 A maximum quick-adapter ratings; P3A/P3B/P3C quick adapters are limited to 5 A. Barrel and locking alternatives, R7BF have no quick-adapter accessory listed. Keep the load within both this model’s 0.75 A output rating and the selected accessory’s current rating. Stripped and tinned leads are available by request: lead 1 red is +Vo and lead 2 black is −Vo; colours are reference only and must be verified on the actual assembly. The standard drawing marks L = 25 mm and L1 = 5 mm. Both lengths can be specified by request; no complete separate ordering code is printed for this lead option. Safety and EMC Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Conducted / radiated emissions FCC Part 15 / CISPR22, Class B. Use the standards listed for this exact US, European or desktop configuration; do not transfer certification or immunity claims from another adapter variant. Final equipment compliance must be checked with its actual cable and load. Measurement Conditions and Reliability General measurement conditions Unless otherwise specified: 115 VAC, rated load, 25°C and 70% RH. Voltage set point Measured at the plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Manufacturer warranty 3 years, subject to manufacturer warranty terms. Catalogue revision 2026-04-03; combined PDF pages 54–58. Minimum MTBF 3777.8 thousand hours by Telcordia SR-332; 651.4 thousand hours by MIL-HDBK-217F at 25°C. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated on/off switching may increase it. Application and Selection Examples include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Select this exact mains-plug version and output rating for the equipment. Check the matching socket and all applicable safety requirements before installation.

  Read more less

  $38.44

  View options

•

  View options

  MEAN WELL GSM36U series: Medical Wall-Mounted AC/DC Power Adapter - GSM36U24-P1J

  MEAN WELL GSM36U24-P1J is a Class II medical wall-mounted power adapter with fixed two-pin US mains plug, supplying 24 VDC at 1.5 A with a 36 W rated maximum output. Its center-positive P1J plug, 2 × MOPP isolation and BF-rated design support the stated medical applications. Apply the input and ambient-temperature derating. Product Datasheet Download MEAN WELL GSM36U Datasheet (PDF) The GSM36U section is on PDF pages 54, 55, 56, 57, 58. Refer to the complete mechanical drawings and notes when planning installation. Model and Rated Output Complete model GSM36U24-P1J. Product type Single-output Class II medical wall-mounted AC/DC power adapter. Nominal output 24 VDC. Rated output current 1.5 A. Current range 0–1.5 A. Rated output power, maximum 36 W; apply the current, voltage and derating limits together. Ripple and noise, maximum 180 mVp-p. Voltage tolerance ±2%. Line regulation ±1%. Load regulation ±2%. Efficiency, typical 87%. Model code GSM36U identifies the series and AC connection; 24 identifies 24 V; P1J is the standard center-positive tuning-fork DC plug. Select the complete model and match the equipment voltage, current and polarity. The nominal series wattage is not the output rating of every model. Input, Timing and Efficiency AC input 80–264 VAC, 47–63 Hz. DC input 113–370 VDC. AC connection Fixed two-pin US mains plug. AC current, typical 0.9 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time, full load 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC. Hold-up time, full load Typical 16 ms at 230 VAC and 10 ms at 115 VAC. No-load consumption <0.1 W. Energy framework Energy-efficiency Level VI. The series lists EISA 2007/DoE and NRCan, with the 5–9 V Level V exception. The two-pole mains plug is integral to the adapter. Select the US or European plug configuration for the intended socket. Medical Isolation and Protection Medical design 2 × MOPP primary-to-secondary isolation; BF-rated design and the listed home-healthcare standards. Touch current <50 µA at 264 VAC. Electrical class Class II; no protective-earth connection. Input/output withstand 4 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, input-to-output. Overload 105–170% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage 25.2–32.4 V; output shutdown, re-power on to recover. Short circuit Short-circuit protection is listed. The adapter supports the stated medical application class; safety and EMC of the complete medical equipment still require assessment with its actual load, wiring and installation. Environment and Derating Operating temperature −25 to +60°C; apply derating. Temperature/load curve Horizontal mounting: 100% load from −25°C to 40°C, then reduce to 80% at 60°C. Low-input load curve 80% at 80 VAC, reaching 100% at 100 VAC and remaining at 100% to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of X, Y and Z. Follow both input-voltage and ambient-temperature limits. The upper operating temperature is a derated endpoint, not a full-power ambient rating. Refer to the applicable curves on PDF page 56. Mechanical Details and Cable Body dimensions, L × W × H 79 × 54 × 33 mm; tolerance ±1 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic. DC cable UL1185, 16 AWG; 1800 mm, ±50 mm. Catalogue single-unit weight 215 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. Carton packing 60 pieces / 13.9 kg. Power indication Power-on LED. Ferrite-to-plug segment 70 ±10 mm, as shown in the mechanical drawing. Mains-pin projection The drawing marks 17 mm beyond the body. Body dimensions exclude the attached DC cable and plug and the projecting mains pins. Allow room for the cable exit and connector; follow PDF page 56. Standard P1J Output Connection Connector Straight tuning-fork barrel plug P1J: 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. Polarity C+: center/inside positive; outside negative. Match the mating socket dimensions, insertion depth, polarity and voltage before connection. A mechanically fitting plug does not make different output models interchangeable. Optional DC Plugs and Accessories Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Barrel alternatives P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. Minimum-pin alternatives P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent. Center-pin alternatives P4A: 5.5 / 3.4 / 11 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11 mm, center pin 0.6 mm. EIAJ equivalent. R6B Locking three-pin male Mini DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. R7B Locking four-pin male Mini DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R7BF Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R1B Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. All optional plug dimensions are in mm. Codes ending in R in the P1/P2 lists indicate the illustrated right-angle version; the other P1/P2 barrel forms are straight. Confirm the complete cable assembly, mating side and current capability when ordering. No mating socket or optional cable is stated as included. Factory DC-plug customization is subject to a minimum order quantity. The listed quick-adapter accessories are sold separately without a minimum order quantity. The tuning-fork alternatives, P4A/P4B/P4C, R6B and R7B and R1B have 7.5 A maximum quick-adapter ratings; P3A/P3B/P3C quick adapters are limited to 5 A. Barrel and locking alternatives, R7BF have no quick-adapter accessory listed. Keep the load within both this model’s 1.5 A output rating and the selected accessory’s current rating. Stripped and tinned leads are available by request: lead 1 red is +Vo and lead 2 black is −Vo; colours are reference only and must be verified on the actual assembly. The standard drawing marks L = 25 mm and L1 = 5 mm. Both lengths can be specified by request; no complete separate ordering code is printed for this lead option. Safety and EMC Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Conducted / radiated emissions FCC Part 15 / CISPR22, Class B. Use the standards listed for this exact US, European or desktop configuration; do not transfer certification or immunity claims from another adapter variant. Final equipment compliance must be checked with its actual cable and load. Measurement Conditions and Reliability General measurement conditions Unless otherwise specified: 115 VAC, rated load, 25°C and 70% RH. Voltage set point Measured at the plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Manufacturer warranty 3 years, subject to manufacturer warranty terms. Catalogue revision 2026-04-03; combined PDF pages 54–58. Minimum MTBF 3777.8 thousand hours by Telcordia SR-332; 651.4 thousand hours by MIL-HDBK-217F at 25°C. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated on/off switching may increase it. Application and Selection Examples include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Select this exact mains-plug version and output rating for the equipment. Check the matching socket and all applicable safety requirements before installation.

  Read more less

  $38.44

  View options

•

  View options

  MEAN WELL GSM36U series: Medical Wall-Mounted AC/DC Power Adapter - GSM36U18-P1J

  MEAN WELL GSM36U18-P1J is a Class II medical wall-mounted power adapter with fixed two-pin US mains plug, supplying 18 VDC at 2 A with a 36 W rated maximum output. Its center-positive P1J plug, 2 × MOPP isolation and BF-rated design support the stated medical applications. Apply the input and ambient-temperature derating. Product Datasheet Download MEAN WELL GSM36U Datasheet (PDF) The GSM36U section is on PDF pages 54, 55, 56, 57, 58. Refer to the complete mechanical drawings and notes when planning installation. Model and Rated Output Complete model GSM36U18-P1J. Product type Single-output Class II medical wall-mounted AC/DC power adapter. Nominal output 18 VDC. Rated output current 2 A. Current range 0–2 A. Rated output power, maximum 36 W; apply the current, voltage and derating limits together. Ripple and noise, maximum 150 mVp-p. Voltage tolerance ±3%. Line regulation ±1%. Load regulation ±3%. Efficiency, typical 87%. Model code GSM36U identifies the series and AC connection; 18 identifies 18 V; P1J is the standard center-positive tuning-fork DC plug. Select the complete model and match the equipment voltage, current and polarity. The nominal series wattage is not the output rating of every model. Input, Timing and Efficiency AC input 80–264 VAC, 47–63 Hz. DC input 113–370 VDC. AC connection Fixed two-pin US mains plug. AC current, typical 0.9 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time, full load 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC. Hold-up time, full load Typical 16 ms at 230 VAC and 10 ms at 115 VAC. No-load consumption <0.1 W. Energy framework Energy-efficiency Level VI. The series lists EISA 2007/DoE and NRCan, with the 5–9 V Level V exception. The two-pole mains plug is integral to the adapter. Select the US or European plug configuration for the intended socket. Medical Isolation and Protection Medical design 2 × MOPP primary-to-secondary isolation; BF-rated design and the listed home-healthcare standards. Touch current <50 µA at 264 VAC. Electrical class Class II; no protective-earth connection. Input/output withstand 4 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, input-to-output. Overload 105–170% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage 18.9–25.2 V; output shutdown, re-power on to recover. Short circuit Short-circuit protection is listed. The adapter supports the stated medical application class; safety and EMC of the complete medical equipment still require assessment with its actual load, wiring and installation. Environment and Derating Operating temperature −25 to +60°C; apply derating. Temperature/load curve Horizontal mounting: 100% load from −25°C to 40°C, then reduce to 80% at 60°C. Low-input load curve 80% at 80 VAC, reaching 100% at 100 VAC and remaining at 100% to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of X, Y and Z. Follow both input-voltage and ambient-temperature limits. The upper operating temperature is a derated endpoint, not a full-power ambient rating. Refer to the applicable curves on PDF page 56. Mechanical Details and Cable Body dimensions, L × W × H 79 × 54 × 33 mm; tolerance ±1 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic. DC cable UL1185, 16 AWG; 1800 mm, ±50 mm. Catalogue single-unit weight 215 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. Carton packing 60 pieces / 13.9 kg. Power indication Power-on LED. Ferrite-to-plug segment 70 ±10 mm, as shown in the mechanical drawing. Mains-pin projection The drawing marks 17 mm beyond the body. Body dimensions exclude the attached DC cable and plug and the projecting mains pins. Allow room for the cable exit and connector; follow PDF page 56. Standard P1J Output Connection Connector Straight tuning-fork barrel plug P1J: 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. Polarity C+: center/inside positive; outside negative. Match the mating socket dimensions, insertion depth, polarity and voltage before connection. A mechanically fitting plug does not make different output models interchangeable. Optional DC Plugs and Accessories Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Barrel alternatives P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. Minimum-pin alternatives P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent. Center-pin alternatives P4A: 5.5 / 3.4 / 11 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11 mm, center pin 0.6 mm. EIAJ equivalent. R6B Locking three-pin male Mini DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. R7B Locking four-pin male Mini DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R7BF Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R1B Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. All optional plug dimensions are in mm. Codes ending in R in the P1/P2 lists indicate the illustrated right-angle version; the other P1/P2 barrel forms are straight. Confirm the complete cable assembly, mating side and current capability when ordering. No mating socket or optional cable is stated as included. Factory DC-plug customization is subject to a minimum order quantity. The listed quick-adapter accessories are sold separately without a minimum order quantity. The tuning-fork alternatives, P4A/P4B/P4C, R6B and R7B and R1B have 7.5 A maximum quick-adapter ratings; P3A/P3B/P3C quick adapters are limited to 5 A. Barrel and locking alternatives, R7BF have no quick-adapter accessory listed. Keep the load within both this model’s 2 A output rating and the selected accessory’s current rating. Stripped and tinned leads are available by request: lead 1 red is +Vo and lead 2 black is −Vo; colours are reference only and must be verified on the actual assembly. The standard drawing marks L = 25 mm and L1 = 5 mm. Both lengths can be specified by request; no complete separate ordering code is printed for this lead option. Safety and EMC Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Conducted / radiated emissions FCC Part 15 / CISPR22, Class B. Use the standards listed for this exact US, European or desktop configuration; do not transfer certification or immunity claims from another adapter variant. Final equipment compliance must be checked with its actual cable and load. Measurement Conditions and Reliability General measurement conditions Unless otherwise specified: 115 VAC, rated load, 25°C and 70% RH. Voltage set point Measured at the plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Manufacturer warranty 3 years, subject to manufacturer warranty terms. Catalogue revision 2026-04-03; combined PDF pages 54–58. Minimum MTBF 3777.8 thousand hours by Telcordia SR-332; 651.4 thousand hours by MIL-HDBK-217F at 25°C. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated on/off switching may increase it. Application and Selection Examples include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Select this exact mains-plug version and output rating for the equipment. Check the matching socket and all applicable safety requirements before installation.

  Read more less

  $38.44

  View options

•

  View options

  MEAN WELL GSM36U series: Medical Wall-Mounted AC/DC Power Adapter - GSM36U15-P1J

  MEAN WELL GSM36U15-P1J is a Class II medical wall-mounted power adapter with fixed two-pin US mains plug, supplying 15 VDC at 2.4 A with a 36 W rated maximum output. Its center-positive P1J plug, 2 × MOPP isolation and BF-rated design support the stated medical applications. Apply the input and ambient-temperature derating. Product Datasheet Download MEAN WELL GSM36U Datasheet (PDF) The GSM36U section is on PDF pages 54, 55, 56, 57, 58. Refer to the complete mechanical drawings and notes when planning installation. Model and Rated Output Complete model GSM36U15-P1J. Product type Single-output Class II medical wall-mounted AC/DC power adapter. Nominal output 15 VDC. Rated output current 2.4 A. Current range 0–2.4 A. Rated output power, maximum 36 W; apply the current, voltage and derating limits together. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3%. Line regulation ±1%. Load regulation ±3%. Efficiency, typical 87%. Model code GSM36U identifies the series and AC connection; 15 identifies 15 V; P1J is the standard center-positive tuning-fork DC plug. Select the complete model and match the equipment voltage, current and polarity. The nominal series wattage is not the output rating of every model. Input, Timing and Efficiency AC input 80–264 VAC, 47–63 Hz. DC input 113–370 VDC. AC connection Fixed two-pin US mains plug. AC current, typical 0.9 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time, full load 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC. Hold-up time, full load Typical 16 ms at 230 VAC and 10 ms at 115 VAC. No-load consumption <0.1 W. Energy framework Energy-efficiency Level VI. The series lists EISA 2007/DoE and NRCan, with the 5–9 V Level V exception. The two-pole mains plug is integral to the adapter. Select the US or European plug configuration for the intended socket. Medical Isolation and Protection Medical design 2 × MOPP primary-to-secondary isolation; BF-rated design and the listed home-healthcare standards. Touch current <50 µA at 264 VAC. Electrical class Class II; no protective-earth connection. Input/output withstand 4 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, input-to-output. Overload 105–170% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage 15.75–20.25 V; output shutdown, re-power on to recover. Short circuit Short-circuit protection is listed. The adapter supports the stated medical application class; safety and EMC of the complete medical equipment still require assessment with its actual load, wiring and installation. Environment and Derating Operating temperature −25 to +60°C; apply derating. Temperature/load curve Horizontal mounting: 100% load from −25°C to 40°C, then reduce to 80% at 60°C. Low-input load curve 80% at 80 VAC, reaching 100% at 100 VAC and remaining at 100% to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of X, Y and Z. Follow both input-voltage and ambient-temperature limits. The upper operating temperature is a derated endpoint, not a full-power ambient rating. Refer to the applicable curves on PDF page 56. Mechanical Details and Cable Body dimensions, L × W × H 79 × 54 × 33 mm; tolerance ±1 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic. DC cable UL1185, 16 AWG; 1800 mm, ±50 mm. Catalogue single-unit weight 215 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. Carton packing 60 pieces / 13.9 kg. Power indication Power-on LED. Ferrite-to-plug segment 70 ±10 mm, as shown in the mechanical drawing. Mains-pin projection The drawing marks 17 mm beyond the body. Body dimensions exclude the attached DC cable and plug and the projecting mains pins. Allow room for the cable exit and connector; follow PDF page 56. Standard P1J Output Connection Connector Straight tuning-fork barrel plug P1J: 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. Polarity C+: center/inside positive; outside negative. Match the mating socket dimensions, insertion depth, polarity and voltage before connection. A mechanically fitting plug does not make different output models interchangeable. Optional DC Plugs and Accessories Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Barrel alternatives P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. Minimum-pin alternatives P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent. Center-pin alternatives P4A: 5.5 / 3.4 / 11 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11 mm, center pin 0.6 mm. EIAJ equivalent. R6B Locking three-pin male Mini DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. R7B Locking four-pin male Mini DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R7BF Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R1B Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. All optional plug dimensions are in mm. Codes ending in R in the P1/P2 lists indicate the illustrated right-angle version; the other P1/P2 barrel forms are straight. Confirm the complete cable assembly, mating side and current capability when ordering. No mating socket or optional cable is stated as included. Factory DC-plug customization is subject to a minimum order quantity. The listed quick-adapter accessories are sold separately without a minimum order quantity. The tuning-fork alternatives, P4A/P4B/P4C, R6B and R7B and R1B have 7.5 A maximum quick-adapter ratings; P3A/P3B/P3C quick adapters are limited to 5 A. Barrel and locking alternatives, R7BF have no quick-adapter accessory listed. Keep the load within both this model’s 2.4 A output rating and the selected accessory’s current rating. Stripped and tinned leads are available by request: lead 1 red is +Vo and lead 2 black is −Vo; colours are reference only and must be verified on the actual assembly. The standard drawing marks L = 25 mm and L1 = 5 mm. Both lengths can be specified by request; no complete separate ordering code is printed for this lead option. Safety and EMC Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Conducted / radiated emissions FCC Part 15 / CISPR22, Class B. Use the standards listed for this exact US, European or desktop configuration; do not transfer certification or immunity claims from another adapter variant. Final equipment compliance must be checked with its actual cable and load. Measurement Conditions and Reliability General measurement conditions Unless otherwise specified: 115 VAC, rated load, 25°C and 70% RH. Voltage set point Measured at the plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Manufacturer warranty 3 years, subject to manufacturer warranty terms. Catalogue revision 2026-04-03; combined PDF pages 54–58. Minimum MTBF 3777.8 thousand hours by Telcordia SR-332; 651.4 thousand hours by MIL-HDBK-217F at 25°C. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated on/off switching may increase it. Application and Selection Examples include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Select this exact mains-plug version and output rating for the equipment. Check the matching socket and all applicable safety requirements before installation.

  Read more less

  $38.44

  View options

•

  View options

  MEAN WELL GSM36U series: Medical Wall-Mounted AC/DC Power Adapter - GSM36U12-P1J

  MEAN WELL GSM36U12-P1J is a Class II medical wall-mounted power adapter with fixed two-pin US mains plug, supplying 12 VDC at 3 A with a 36 W rated maximum output. Its center-positive P1J plug, 2 × MOPP isolation and BF-rated design support the stated medical applications. Apply the input and ambient-temperature derating. Product Datasheet Download MEAN WELL GSM36U Datasheet (PDF) The GSM36U section is on PDF pages 54, 55, 56, 57, 58. Refer to the complete mechanical drawings and notes when planning installation. Model and Rated Output Complete model GSM36U12-P1J. Product type Single-output Class II medical wall-mounted AC/DC power adapter. Nominal output 12 VDC. Rated output current 3 A. Current range 0–3 A. Rated output power, maximum 36 W; apply the current, voltage and derating limits together. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3%. Line regulation ±1%. Load regulation ±3%. Efficiency, typical 86%. Model code GSM36U identifies the series and AC connection; 12 identifies 12 V; P1J is the standard center-positive tuning-fork DC plug. Select the complete model and match the equipment voltage, current and polarity. The nominal series wattage is not the output rating of every model. Input, Timing and Efficiency AC input 80–264 VAC, 47–63 Hz. DC input 113–370 VDC. AC connection Fixed two-pin US mains plug. AC current, typical 0.9 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time, full load 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC. Hold-up time, full load Typical 16 ms at 230 VAC and 10 ms at 115 VAC. No-load consumption <0.1 W. Energy framework Energy-efficiency Level VI. The series lists EISA 2007/DoE and NRCan, with the 5–9 V Level V exception. The two-pole mains plug is integral to the adapter. Select the US or European plug configuration for the intended socket. Medical Isolation and Protection Medical design 2 × MOPP primary-to-secondary isolation; BF-rated design and the listed home-healthcare standards. Touch current <50 µA at 264 VAC. Electrical class Class II; no protective-earth connection. Input/output withstand 4 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, input-to-output. Overload 105–170% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage 12.6–17.2 V; output shutdown, re-power on to recover. Short circuit Short-circuit protection is listed. The adapter supports the stated medical application class; safety and EMC of the complete medical equipment still require assessment with its actual load, wiring and installation. Environment and Derating Operating temperature −25 to +60°C; apply derating. Temperature/load curve Horizontal mounting: 100% load from −25°C to 40°C, then reduce to 80% at 60°C. Low-input load curve 80% at 80 VAC, reaching 100% at 100 VAC and remaining at 100% to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of X, Y and Z. Follow both input-voltage and ambient-temperature limits. The upper operating temperature is a derated endpoint, not a full-power ambient rating. Refer to the applicable curves on PDF page 56. Mechanical Details and Cable Body dimensions, L × W × H 79 × 54 × 33 mm; tolerance ±1 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic. DC cable UL1185, 16 AWG; 1800 mm, ±50 mm. Catalogue single-unit weight 215 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. Carton packing 60 pieces / 13.9 kg. Power indication Power-on LED. Ferrite-to-plug segment 70 ±10 mm, as shown in the mechanical drawing. Mains-pin projection The drawing marks 17 mm beyond the body. Body dimensions exclude the attached DC cable and plug and the projecting mains pins. Allow room for the cable exit and connector; follow PDF page 56. Standard P1J Output Connection Connector Straight tuning-fork barrel plug P1J: 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. Polarity C+: center/inside positive; outside negative. Match the mating socket dimensions, insertion depth, polarity and voltage before connection. A mechanically fitting plug does not make different output models interchangeable. Optional DC Plugs and Accessories Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Barrel alternatives P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. Minimum-pin alternatives P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent. Center-pin alternatives P4A: 5.5 / 3.4 / 11 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11 mm, center pin 0.6 mm. EIAJ equivalent. R6B Locking three-pin male Mini DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. R7B Locking four-pin male Mini DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R7BF Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R1B Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. All optional plug dimensions are in mm. Codes ending in R in the P1/P2 lists indicate the illustrated right-angle version; the other P1/P2 barrel forms are straight. Confirm the complete cable assembly, mating side and current capability when ordering. No mating socket or optional cable is stated as included. Factory DC-plug customization is subject to a minimum order quantity. The listed quick-adapter accessories are sold separately without a minimum order quantity. The tuning-fork alternatives, P4A/P4B/P4C, R6B and R7B and R1B have 7.5 A maximum quick-adapter ratings; P3A/P3B/P3C quick adapters are limited to 5 A. Barrel and locking alternatives, R7BF have no quick-adapter accessory listed. Keep the load within both this model’s 3 A output rating and the selected accessory’s current rating. Stripped and tinned leads are available by request: lead 1 red is +Vo and lead 2 black is −Vo; colours are reference only and must be verified on the actual assembly. The standard drawing marks L = 25 mm and L1 = 5 mm. Both lengths can be specified by request; no complete separate ordering code is printed for this lead option. Safety and EMC Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Conducted / radiated emissions FCC Part 15 / CISPR22, Class B. Use the standards listed for this exact US, European or desktop configuration; do not transfer certification or immunity claims from another adapter variant. Final equipment compliance must be checked with its actual cable and load. Measurement Conditions and Reliability General measurement conditions Unless otherwise specified: 115 VAC, rated load, 25°C and 70% RH. Voltage set point Measured at the plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Manufacturer warranty 3 years, subject to manufacturer warranty terms. Catalogue revision 2026-04-03; combined PDF pages 54–58. Minimum MTBF 3777.8 thousand hours by Telcordia SR-332; 651.4 thousand hours by MIL-HDBK-217F at 25°C. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated on/off switching may increase it. Application and Selection Examples include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Select this exact mains-plug version and output rating for the equipment. Check the matching socket and all applicable safety requirements before installation.

  Read more less

  $38.44

  View options

•

  View options

  MEAN WELL GSM36U series: Medical Wall-Mounted AC/DC Power Adapter - GSM36U09-P1J

  MEAN WELL GSM36U09-P1J is a Class II medical wall-mounted power adapter with fixed two-pin US mains plug, supplying 9 VDC at 4 A with a 36 W rated maximum output. Its center-positive P1J plug, 2 × MOPP isolation and BF-rated design support the stated medical applications. Apply the input and ambient-temperature derating. Product Datasheet Download MEAN WELL GSM36U Datasheet (PDF) The GSM36U section is on PDF pages 54, 55, 56, 57, 58. Refer to the complete mechanical drawings and notes when planning installation. Model and Rated Output Complete model GSM36U09-P1J. Product type Single-output Class II medical wall-mounted AC/DC power adapter. Nominal output 9 VDC. Rated output current 4 A. Current range 0–4 A. Rated output power, maximum 36 W; apply the current, voltage and derating limits together. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±5%. Line regulation ±1%. Load regulation ±5%. Efficiency, typical 84%. Model code GSM36U identifies the series and AC connection; 09 identifies 9 V; P1J is the standard center-positive tuning-fork DC plug. Select the complete model and match the equipment voltage, current and polarity. The nominal series wattage is not the output rating of every model. Input, Timing and Efficiency AC input 80–264 VAC, 47–63 Hz. DC input 113–370 VDC. AC connection Fixed two-pin US mains plug. AC current, typical 0.9 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time, full load 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC. Hold-up time, full load Typical 16 ms at 230 VAC and 10 ms at 115 VAC. No-load consumption <0.1 W. Energy framework Energy-efficiency Level V. The series lists EISA 2007/DoE and NRCan, with the 5–9 V Level V exception. The two-pole mains plug is integral to the adapter. Select the US or European plug configuration for the intended socket. Medical Isolation and Protection Medical design 2 × MOPP primary-to-secondary isolation; BF-rated design and the listed home-healthcare standards. Touch current <50 µA at 264 VAC. Electrical class Class II; no protective-earth connection. Input/output withstand 4 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, input-to-output. Overload 105–170% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage 9.45–13 V; output shutdown, re-power on to recover. Short circuit Short-circuit protection is listed. The adapter supports the stated medical application class; safety and EMC of the complete medical equipment still require assessment with its actual load, wiring and installation. Environment and Derating Operating temperature −25 to +60°C; apply derating. Temperature/load curve Horizontal mounting: 100% load from −25°C to 40°C, then reduce to 80% at 60°C. Low-input load curve 80% at 80 VAC, reaching 100% at 100 VAC and remaining at 100% to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of X, Y and Z. Follow both input-voltage and ambient-temperature limits. The upper operating temperature is a derated endpoint, not a full-power ambient rating. Refer to the applicable curves on PDF page 56. Mechanical Details and Cable Body dimensions, L × W × H 79 × 54 × 33 mm; tolerance ±1 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic. DC cable UL1185, 16 AWG; 1200 mm, ±50 mm. Catalogue single-unit weight 215 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. Carton packing 60 pieces / 13.9 kg. Power indication Power-on LED. Ferrite-to-plug segment 70 ±10 mm, as shown in the mechanical drawing. Mains-pin projection The drawing marks 17 mm beyond the body. Body dimensions exclude the attached DC cable and plug and the projecting mains pins. Allow room for the cable exit and connector; follow PDF page 56. Standard P1J Output Connection Connector Straight tuning-fork barrel plug P1J: 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. Polarity C+: center/inside positive; outside negative. Match the mating socket dimensions, insertion depth, polarity and voltage before connection. A mechanically fitting plug does not make different output models interchangeable. Optional DC Plugs and Accessories Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Barrel alternatives P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. Minimum-pin alternatives P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent. Center-pin alternatives P4A: 5.5 / 3.4 / 11 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11 mm, center pin 0.6 mm. EIAJ equivalent. R6B Locking three-pin male Mini DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. R7B Locking four-pin male Mini DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R7BF Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R1B Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. All optional plug dimensions are in mm. Codes ending in R in the P1/P2 lists indicate the illustrated right-angle version; the other P1/P2 barrel forms are straight. Confirm the complete cable assembly, mating side and current capability when ordering. No mating socket or optional cable is stated as included. Factory DC-plug customization is subject to a minimum order quantity. The listed quick-adapter accessories are sold separately without a minimum order quantity. The tuning-fork alternatives, P4A/P4B/P4C, R6B and R7B and R1B have 7.5 A maximum quick-adapter ratings; P3A/P3B/P3C quick adapters are limited to 5 A. Barrel and locking alternatives, R7BF have no quick-adapter accessory listed. Keep the load within both this model’s 4 A output rating and the selected accessory’s current rating. Stripped and tinned leads are available by request: lead 1 red is +Vo and lead 2 black is −Vo; colours are reference only and must be verified on the actual assembly. The standard drawing marks L = 25 mm and L1 = 5 mm. Both lengths can be specified by request; no complete separate ordering code is printed for this lead option. Safety and EMC Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Conducted / radiated emissions FCC Part 15 / CISPR22, Class B. Use the standards listed for this exact US, European or desktop configuration; do not transfer certification or immunity claims from another adapter variant. Final equipment compliance must be checked with its actual cable and load. Measurement Conditions and Reliability General measurement conditions Unless otherwise specified: 115 VAC, rated load, 25°C and 70% RH. Voltage set point Measured at the plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Manufacturer warranty 3 years, subject to manufacturer warranty terms. Catalogue revision 2026-04-03; combined PDF pages 54–58. Minimum MTBF 3777.8 thousand hours by Telcordia SR-332; 651.4 thousand hours by MIL-HDBK-217F at 25°C. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated on/off switching may increase it. Application and Selection Examples include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Select this exact mains-plug version and output rating for the equipment. Check the matching socket and all applicable safety requirements before installation.

  Read more less

  $38.44

  View options

•

  View options

  MEAN WELL GSM36U series: Medical Wall-Mounted AC/DC Power Adapter - GSM36U07-P1J

  MEAN WELL GSM36U07-P1J is a Class II medical wall-mounted power adapter with fixed two-pin US mains plug, supplying 7.5 VDC at 4.32 A with a 32.4 W rated maximum output. Its center-positive P1J plug, 2 × MOPP isolation and BF-rated design support the stated medical applications. Apply the input and ambient-temperature derating. Product Datasheet Download MEAN WELL GSM36U Datasheet (PDF) The GSM36U section is on PDF pages 54, 55, 56, 57, 58. Refer to the complete mechanical drawings and notes when planning installation. Model and Rated Output Complete model GSM36U07-P1J. Product type Single-output Class II medical wall-mounted AC/DC power adapter. Nominal output 7.5 VDC. Rated output current 4.32 A. Current range 0–4.32 A. Rated output power, maximum 32.4 W; apply the current, voltage and derating limits together. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±5%. Line regulation ±1%. Load regulation ±5%. Efficiency, typical 83%. Model code GSM36U identifies the series and AC connection; 07 identifies 7.5 V; P1J is the standard center-positive tuning-fork DC plug. Select the complete model and match the equipment voltage, current and polarity. The nominal series wattage is not the output rating of every model. Input, Timing and Efficiency AC input 80–264 VAC, 47–63 Hz. DC input 113–370 VDC. AC connection Fixed two-pin US mains plug. AC current, typical 0.9 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time, full load 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC. Hold-up time, full load Typical 16 ms at 230 VAC and 10 ms at 115 VAC. No-load consumption <0.1 W. Energy framework Energy-efficiency Level V. The series lists EISA 2007/DoE and NRCan, with the 5–9 V Level V exception. The two-pole mains plug is integral to the adapter. Select the US or European plug configuration for the intended socket. Medical Isolation and Protection Medical design 2 × MOPP primary-to-secondary isolation; BF-rated design and the listed home-healthcare standards. Touch current <50 µA at 264 VAC. Electrical class Class II; no protective-earth connection. Input/output withstand 4 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, input-to-output. Overload 105–170% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage 7.88–10.5 V; output shutdown, re-power on to recover. Short circuit Short-circuit protection is listed. The adapter supports the stated medical application class; safety and EMC of the complete medical equipment still require assessment with its actual load, wiring and installation. Environment and Derating Operating temperature −25 to +60°C; apply derating. Temperature/load curve Horizontal mounting: 100% load from −25°C to 40°C, then reduce to 80% at 60°C. Low-input load curve 80% at 80 VAC, reaching 100% at 100 VAC and remaining at 100% to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of X, Y and Z. Follow both input-voltage and ambient-temperature limits. The upper operating temperature is a derated endpoint, not a full-power ambient rating. Refer to the applicable curves on PDF page 56. Mechanical Details and Cable Body dimensions, L × W × H 79 × 54 × 33 mm; tolerance ±1 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic. DC cable UL1185, 16 AWG; 1200 mm, ±50 mm. Catalogue single-unit weight 215 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. Carton packing 60 pieces / 13.9 kg. Power indication Power-on LED. Ferrite-to-plug segment 70 ±10 mm, as shown in the mechanical drawing. Mains-pin projection The drawing marks 17 mm beyond the body. Body dimensions exclude the attached DC cable and plug and the projecting mains pins. Allow room for the cable exit and connector; follow PDF page 56. Standard P1J Output Connection Connector Straight tuning-fork barrel plug P1J: 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. Polarity C+: center/inside positive; outside negative. Match the mating socket dimensions, insertion depth, polarity and voltage before connection. A mechanically fitting plug does not make different output models interchangeable. Optional DC Plugs and Accessories Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Barrel alternatives P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. Minimum-pin alternatives P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent. Center-pin alternatives P4A: 5.5 / 3.4 / 11 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11 mm, center pin 0.6 mm. EIAJ equivalent. R6B Locking three-pin male Mini DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. R7B Locking four-pin male Mini DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R7BF Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R1B Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. All optional plug dimensions are in mm. Codes ending in R in the P1/P2 lists indicate the illustrated right-angle version; the other P1/P2 barrel forms are straight. Confirm the complete cable assembly, mating side and current capability when ordering. No mating socket or optional cable is stated as included. Factory DC-plug customization is subject to a minimum order quantity. The listed quick-adapter accessories are sold separately without a minimum order quantity. The tuning-fork alternatives, P4A/P4B/P4C, R6B and R7B and R1B have 7.5 A maximum quick-adapter ratings; P3A/P3B/P3C quick adapters are limited to 5 A. Barrel and locking alternatives, R7BF have no quick-adapter accessory listed. Keep the load within both this model’s 4.32 A output rating and the selected accessory’s current rating. Stripped and tinned leads are available by request: lead 1 red is +Vo and lead 2 black is −Vo; colours are reference only and must be verified on the actual assembly. The standard drawing marks L = 25 mm and L1 = 5 mm. Both lengths can be specified by request; no complete separate ordering code is printed for this lead option. Safety and EMC Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Conducted / radiated emissions FCC Part 15 / CISPR22, Class B. Use the standards listed for this exact US, European or desktop configuration; do not transfer certification or immunity claims from another adapter variant. Final equipment compliance must be checked with its actual cable and load. Measurement Conditions and Reliability General measurement conditions Unless otherwise specified: 115 VAC, rated load, 25°C and 70% RH. Voltage set point Measured at the plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Manufacturer warranty 3 years, subject to manufacturer warranty terms. Catalogue revision 2026-04-03; combined PDF pages 54–58. Minimum MTBF 3777.8 thousand hours by Telcordia SR-332; 651.4 thousand hours by MIL-HDBK-217F at 25°C. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated on/off switching may increase it. Application and Selection Examples include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Select this exact mains-plug version and output rating for the equipment. Check the matching socket and all applicable safety requirements before installation.

  Read more less

  $38.44

  View options

•

  View options

  MEAN WELL GSM36U series: Medical Wall-Mounted AC/DC Power Adapter - GSM36U05-P1J

  MEAN WELL GSM36U05-P1J is a Class II medical wall-mounted power adapter with fixed two-pin US mains plug, supplying 5 VDC at 4.5 A with a 22.5 W rated maximum output. Its center-positive P1J plug, 2 × MOPP isolation and BF-rated design support the stated medical applications. Apply the input and ambient-temperature derating. Product Datasheet Download MEAN WELL GSM36U Datasheet (PDF) The GSM36U section is on PDF pages 54, 55, 56, 57, 58. Refer to the complete mechanical drawings and notes when planning installation. Model and Rated Output Complete model GSM36U05-P1J. Product type Single-output Class II medical wall-mounted AC/DC power adapter. Nominal output 5 VDC. Rated output current 4.5 A. Current range 0–4.5 A. Rated output power, maximum 22.5 W; apply the current, voltage and derating limits together. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±6%. Line regulation ±1%. Load regulation ±6%. Efficiency, typical 80%. Model code GSM36U identifies the series and AC connection; 05 identifies 5 V; P1J is the standard center-positive tuning-fork DC plug. Select the complete model and match the equipment voltage, current and polarity. The nominal series wattage is not the output rating of every model. Input, Timing and Efficiency AC input 80–264 VAC, 47–63 Hz. DC input 113–370 VDC. AC connection Fixed two-pin US mains plug. AC current, typical 0.9 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time, full load 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC. Hold-up time, full load Typical 16 ms at 230 VAC and 10 ms at 115 VAC. No-load consumption <0.1 W. Energy framework Energy-efficiency Level V. The series lists EISA 2007/DoE and NRCan, with the 5–9 V Level V exception. The two-pole mains plug is integral to the adapter. Select the US or European plug configuration for the intended socket. Medical Isolation and Protection Medical design 2 × MOPP primary-to-secondary isolation; BF-rated design and the listed home-healthcare standards. Touch current <50 µA at 264 VAC. Electrical class Class II; no protective-earth connection. Input/output withstand 4 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, input-to-output. Overload 105–170% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage 5.25–7.5 V; output shutdown, re-power on to recover. Short circuit Short-circuit protection is listed. The adapter supports the stated medical application class; safety and EMC of the complete medical equipment still require assessment with its actual load, wiring and installation. Environment and Derating Operating temperature −25 to +60°C; apply derating. Temperature/load curve Horizontal mounting: 100% load from −25°C to 40°C, then reduce to 80% at 60°C. Low-input load curve 80% at 80 VAC, reaching 100% at 100 VAC and remaining at 100% to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of X, Y and Z. Follow both input-voltage and ambient-temperature limits. The upper operating temperature is a derated endpoint, not a full-power ambient rating. Refer to the applicable curves on PDF page 56. Mechanical Details and Cable Body dimensions, L × W × H 79 × 54 × 33 mm; tolerance ±1 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic. DC cable UL1185, 16 AWG; 1200 mm, ±50 mm. Catalogue single-unit weight 215 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. Carton packing 60 pieces / 13.9 kg. Power indication Power-on LED. Ferrite-to-plug segment 70 ±10 mm, as shown in the mechanical drawing. Mains-pin projection The drawing marks 17 mm beyond the body. Body dimensions exclude the attached DC cable and plug and the projecting mains pins. Allow room for the cable exit and connector; follow PDF page 56. Standard P1J Output Connection Connector Straight tuning-fork barrel plug P1J: 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. Polarity C+: center/inside positive; outside negative. Match the mating socket dimensions, insertion depth, polarity and voltage before connection. A mechanically fitting plug does not make different output models interchangeable. Optional DC Plugs and Accessories Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Barrel alternatives P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. Minimum-pin alternatives P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent. Center-pin alternatives P4A: 5.5 / 3.4 / 11 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11 mm, center pin 0.6 mm. EIAJ equivalent. R6B Locking three-pin male Mini DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. R7B Locking four-pin male Mini DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R7BF Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R1B Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. All optional plug dimensions are in mm. Codes ending in R in the P1/P2 lists indicate the illustrated right-angle version; the other P1/P2 barrel forms are straight. Confirm the complete cable assembly, mating side and current capability when ordering. No mating socket or optional cable is stated as included. Factory DC-plug customization is subject to a minimum order quantity. The listed quick-adapter accessories are sold separately without a minimum order quantity. The tuning-fork alternatives, P4A/P4B/P4C, R6B and R7B and R1B have 7.5 A maximum quick-adapter ratings; P3A/P3B/P3C quick adapters are limited to 5 A. Barrel and locking alternatives, R7BF have no quick-adapter accessory listed. Keep the load within both this model’s 4.5 A output rating and the selected accessory’s current rating. Stripped and tinned leads are available by request: lead 1 red is +Vo and lead 2 black is −Vo; colours are reference only and must be verified on the actual assembly. The standard drawing marks L = 25 mm and L1 = 5 mm. Both lengths can be specified by request; no complete separate ordering code is printed for this lead option. Safety and EMC Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Conducted / radiated emissions FCC Part 15 / CISPR22, Class B. Use the standards listed for this exact US, European or desktop configuration; do not transfer certification or immunity claims from another adapter variant. Final equipment compliance must be checked with its actual cable and load. Measurement Conditions and Reliability General measurement conditions Unless otherwise specified: 115 VAC, rated load, 25°C and 70% RH. Voltage set point Measured at the plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Manufacturer warranty 3 years, subject to manufacturer warranty terms. Catalogue revision 2026-04-03; combined PDF pages 54–58. Minimum MTBF 3777.8 thousand hours by Telcordia SR-332; 651.4 thousand hours by MIL-HDBK-217F at 25°C. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated on/off switching may increase it. Application and Selection Examples include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Select this exact mains-plug version and output rating for the equipment. Check the matching socket and all applicable safety requirements before installation.

  Read more less

  $38.44

  View options

•

  View options

  MEAN WELL GSM36B series: Medical Desktop AC/DC Power Adapter - GSM36B48-P1J

  MEAN WELL GSM36B48-P1J is a Class II medical desktop power adapter with IEC320-C8 two-pole inlet, supplying 48 VDC at 0.75 A with a 36 W rated maximum output. Its center-positive P1J plug, 2 × MOPP isolation and BF-rated design support the stated medical applications. Apply the input and ambient-temperature derating. Product Datasheet Download MEAN WELL GSM36B Datasheet (PDF) The GSM36B section is on PDF pages 49, 50, 51, 52, 53. Refer to the complete mechanical drawings and notes when planning installation. Model and Rated Output Complete model GSM36B48-P1J. Product type Single-output Class II medical desktop AC/DC power adapter. Nominal output 48 VDC. Rated output current 0.75 A. Current range 0–0.75 A. Rated output power, maximum 36 W; apply the current, voltage and derating limits together. Ripple and noise, maximum 240 mVp-p. Voltage tolerance ±2%. Line regulation ±1%. Load regulation ±2%. Efficiency, typical 88%. Model code GSM36B identifies the series and AC connection; 48 identifies 48 V; P1J is the standard center-positive tuning-fork DC plug. Select the complete model and match the equipment voltage, current and polarity. The nominal series wattage is not the output rating of every model. Input, Timing and Efficiency AC input 80–264 VAC, 47–63 Hz. DC input 113–370 VDC. AC connection IEC320-C8 two-pole inlet. AC current, typical 0.9 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time, full load 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC. Hold-up time, full load Typical 16 ms at 230 VAC and 10 ms at 115 VAC. No-load consumption <0.1 W. Energy framework Energy-efficiency Level VI. EISA 2007/DoE, NRCan, Australia/New Zealand MEPS, EU ErP and CoC Version 5 are listed for the series, with the 5–9 V Level V exception. Use a suitable approved mains lead for the C8 inlet; confirm whether the order includes it, because the catalogue does not specify an included AC cord. Medical Isolation and Protection Medical design 2 × MOPP primary-to-secondary isolation; BF-rated design and the listed home-healthcare standards. Touch current <50 µA at 264 VAC. Electrical class Class II; no protective-earth connection. Input/output withstand 4 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, input-to-output. Overload 105–170% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage 50.4–64.8 V; output shutdown, re-power on to recover. Short circuit Short-circuit protection is listed. The adapter supports the stated medical application class; safety and EMC of the complete medical equipment still require assessment with its actual load, wiring and installation. Environment and Derating Operating temperature −25 to +60°C; apply derating. Temperature/load curve Horizontal mounting: 100% load from −25°C to 40°C, then reduce to 80% at 60°C. Low-input load curve 80% at 80 VAC, reaching 100% at 100 VAC and remaining at 100% to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of X, Y and Z. Follow both input-voltage and ambient-temperature limits. The upper operating temperature is a derated endpoint, not a full-power ambient rating. Refer to the applicable curves on PDF page 51. Mechanical Details and Cable Body dimensions, L × W × H 79 × 54 × 33 mm; tolerance ±1 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic. DC cable UL1185, 16 AWG; 1800 mm, ±50 mm. Catalogue single-unit weight 235 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. Carton packing 60 pieces / 15.1 kg. Power indication Power-on LED. Ferrite-to-plug segment 70 ±10 mm, as shown in the mechanical drawing. Body dimensions exclude the attached DC cable and plug. Allow room for the cable exit and connector; follow PDF page 51. Standard P1J Output Connection Connector Straight tuning-fork barrel plug P1J: 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. Polarity C+: center/inside positive; outside negative. Match the mating socket dimensions, insertion depth, polarity and voltage before connection. A mechanically fitting plug does not make different output models interchangeable. Optional DC Plugs and Accessories Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Barrel alternatives P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. Minimum-pin alternatives P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent. Center-pin alternatives P4A: 5.5 / 3.4 / 11 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11 mm, center pin 0.6 mm. EIAJ equivalent. R6B Locking three-pin male Mini DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. R7B Locking four-pin male Mini DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R7BF Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R1B Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. All optional plug dimensions are in mm. Codes ending in R in the P1/P2 lists indicate the illustrated right-angle version; the other P1/P2 barrel forms are straight. Confirm the complete cable assembly, mating side and current capability when ordering. No mating socket or optional cable is stated as included. Factory DC-plug customization is subject to a minimum order quantity. The listed quick-adapter accessories are sold separately without a minimum order quantity. The tuning-fork alternatives, P4A/P4B/P4C, R6B and R7B and R1B have 7.5 A maximum quick-adapter ratings; P3A/P3B/P3C quick adapters are limited to 5 A. Barrel and locking alternatives, R7BF have no quick-adapter accessory listed. Keep the load within both this model’s 0.75 A output rating and the selected accessory’s current rating. Stripped and tinned leads are available by request: lead 1 red is +Vo and lead 2 black is −Vo; colours are reference only and must be verified on the actual assembly. The standard drawing marks L = 25 mm and L1 = 5 mm. Both lengths can be specified by request; no complete separate ordering code is printed for this lead option. Safety and EMC Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Conducted / radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22, CAN ICES-3(B)/NMB-3(B), MSIP KN32: Class B. Harmonic current / flicker EN61000-3-2, Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD, EN61000-4-2 Level 4: 15 kV air and 8 kV contact. Radiated RF, EN61000-4-3 Level 3: 10 V/m, 80 MHz–2.7 GHz; Table 9 also lists 9–28 V/m over 385 MHz–5.78 GHz. EFT, EN61000-4-4 Level 3, 2 kV. Surge, EN61000-4-5 Level 3, 1 kV line-to-line. Conducted RF, EN61000-4-6 Level 3, 10 V. Magnetic field, EN61000-4-8 Level 4, 30 A/m. Voltage dips / interruptions, EN61000-4-11 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Use the standards listed for this exact US, European or desktop configuration; do not transfer certification or immunity claims from another adapter variant. Final equipment compliance must be checked with its actual cable and load. Measurement Conditions and Reliability General measurement conditions Unless otherwise specified: 230 VAC, rated load, 25°C and 70% RH. Voltage set point Measured at the plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Manufacturer warranty 3 years, subject to manufacturer warranty terms. Catalogue revision 2026-04-03; combined PDF pages 49–53. Minimum MTBF 3777.8 thousand hours by Telcordia SR-332; 651.4 thousand hours by MIL-HDBK-217F at 25°C. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated on/off switching may increase it. Application and Selection Examples include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Select this exact mains-plug version and output rating for the equipment. Check the matching socket and all applicable safety requirements before installation.

  Read more less

  $38.44

  View options

•

  View options

  MEAN WELL GSM36B series: Medical Desktop AC/DC Power Adapter - GSM36B24-P1J

  MEAN WELL GSM36B24-P1J is a Class II medical desktop power adapter with IEC320-C8 two-pole inlet, supplying 24 VDC at 1.5 A with a 36 W rated maximum output. Its center-positive P1J plug, 2 × MOPP isolation and BF-rated design support the stated medical applications. Apply the input and ambient-temperature derating. Product Datasheet Download MEAN WELL GSM36B Datasheet (PDF) The GSM36B section is on PDF pages 49, 50, 51, 52, 53. Refer to the complete mechanical drawings and notes when planning installation. Model and Rated Output Complete model GSM36B24-P1J. Product type Single-output Class II medical desktop AC/DC power adapter. Nominal output 24 VDC. Rated output current 1.5 A. Current range 0–1.5 A. Rated output power, maximum 36 W; apply the current, voltage and derating limits together. Ripple and noise, maximum 180 mVp-p. Voltage tolerance ±2%. Line regulation ±1%. Load regulation ±2%. Efficiency, typical 87%. Model code GSM36B identifies the series and AC connection; 24 identifies 24 V; P1J is the standard center-positive tuning-fork DC plug. Select the complete model and match the equipment voltage, current and polarity. The nominal series wattage is not the output rating of every model. Input, Timing and Efficiency AC input 80–264 VAC, 47–63 Hz. DC input 113–370 VDC. AC connection IEC320-C8 two-pole inlet. AC current, typical 0.9 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time, full load 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC. Hold-up time, full load Typical 16 ms at 230 VAC and 10 ms at 115 VAC. No-load consumption <0.1 W. Energy framework Energy-efficiency Level VI. EISA 2007/DoE, NRCan, Australia/New Zealand MEPS, EU ErP and CoC Version 5 are listed for the series, with the 5–9 V Level V exception. Use a suitable approved mains lead for the C8 inlet; confirm whether the order includes it, because the catalogue does not specify an included AC cord. Medical Isolation and Protection Medical design 2 × MOPP primary-to-secondary isolation; BF-rated design and the listed home-healthcare standards. Touch current <50 µA at 264 VAC. Electrical class Class II; no protective-earth connection. Input/output withstand 4 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, input-to-output. Overload 105–170% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage 25.2–32.4 V; output shutdown, re-power on to recover. Short circuit Short-circuit protection is listed. The adapter supports the stated medical application class; safety and EMC of the complete medical equipment still require assessment with its actual load, wiring and installation. Environment and Derating Operating temperature −25 to +60°C; apply derating. Temperature/load curve Horizontal mounting: 100% load from −25°C to 40°C, then reduce to 80% at 60°C. Low-input load curve 80% at 80 VAC, reaching 100% at 100 VAC and remaining at 100% to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of X, Y and Z. Follow both input-voltage and ambient-temperature limits. The upper operating temperature is a derated endpoint, not a full-power ambient rating. Refer to the applicable curves on PDF page 51. Mechanical Details and Cable Body dimensions, L × W × H 79 × 54 × 33 mm; tolerance ±1 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic. DC cable UL1185, 16 AWG; 1800 mm, ±50 mm. Catalogue single-unit weight 235 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. Carton packing 60 pieces / 15.1 kg. Power indication Power-on LED. Ferrite-to-plug segment 70 ±10 mm, as shown in the mechanical drawing. Body dimensions exclude the attached DC cable and plug. Allow room for the cable exit and connector; follow PDF page 51. Standard P1J Output Connection Connector Straight tuning-fork barrel plug P1J: 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. Polarity C+: center/inside positive; outside negative. Match the mating socket dimensions, insertion depth, polarity and voltage before connection. A mechanically fitting plug does not make different output models interchangeable. Optional DC Plugs and Accessories Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Barrel alternatives P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. Minimum-pin alternatives P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent. Center-pin alternatives P4A: 5.5 / 3.4 / 11 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11 mm, center pin 0.6 mm. EIAJ equivalent. R6B Locking three-pin male Mini DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. R7B Locking four-pin male Mini DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R7BF Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R1B Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. All optional plug dimensions are in mm. Codes ending in R in the P1/P2 lists indicate the illustrated right-angle version; the other P1/P2 barrel forms are straight. Confirm the complete cable assembly, mating side and current capability when ordering. No mating socket or optional cable is stated as included. Factory DC-plug customization is subject to a minimum order quantity. The listed quick-adapter accessories are sold separately without a minimum order quantity. The tuning-fork alternatives, P4A/P4B/P4C, R6B and R7B and R1B have 7.5 A maximum quick-adapter ratings; P3A/P3B/P3C quick adapters are limited to 5 A. Barrel and locking alternatives, R7BF have no quick-adapter accessory listed. Keep the load within both this model’s 1.5 A output rating and the selected accessory’s current rating. Stripped and tinned leads are available by request: lead 1 red is +Vo and lead 2 black is −Vo; colours are reference only and must be verified on the actual assembly. The standard drawing marks L = 25 mm and L1 = 5 mm. Both lengths can be specified by request; no complete separate ordering code is printed for this lead option. Safety and EMC Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Conducted / radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22, CAN ICES-3(B)/NMB-3(B), MSIP KN32: Class B. Harmonic current / flicker EN61000-3-2, Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD, EN61000-4-2 Level 4: 15 kV air and 8 kV contact. Radiated RF, EN61000-4-3 Level 3: 10 V/m, 80 MHz–2.7 GHz; Table 9 also lists 9–28 V/m over 385 MHz–5.78 GHz. EFT, EN61000-4-4 Level 3, 2 kV. Surge, EN61000-4-5 Level 3, 1 kV line-to-line. Conducted RF, EN61000-4-6 Level 3, 10 V. Magnetic field, EN61000-4-8 Level 4, 30 A/m. Voltage dips / interruptions, EN61000-4-11 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Use the standards listed for this exact US, European or desktop configuration; do not transfer certification or immunity claims from another adapter variant. Final equipment compliance must be checked with its actual cable and load. Measurement Conditions and Reliability General measurement conditions Unless otherwise specified: 230 VAC, rated load, 25°C and 70% RH. Voltage set point Measured at the plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Manufacturer warranty 3 years, subject to manufacturer warranty terms. Catalogue revision 2026-04-03; combined PDF pages 49–53. Minimum MTBF 3777.8 thousand hours by Telcordia SR-332; 651.4 thousand hours by MIL-HDBK-217F at 25°C. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated on/off switching may increase it. Application and Selection Examples include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Select this exact mains-plug version and output rating for the equipment. Check the matching socket and all applicable safety requirements before installation.

  Read more less

  $38.44

  View options

•

  View options

  MEAN WELL GSM36B series: Medical Desktop AC/DC Power Adapter - GSM36B18-P1J

  MEAN WELL GSM36B18-P1J is a Class II medical desktop power adapter with IEC320-C8 two-pole inlet, supplying 18 VDC at 2 A with a 36 W rated maximum output. Its center-positive P1J plug, 2 × MOPP isolation and BF-rated design support the stated medical applications. Apply the input and ambient-temperature derating. Product Datasheet Download MEAN WELL GSM36B Datasheet (PDF) The GSM36B section is on PDF pages 49, 50, 51, 52, 53. Refer to the complete mechanical drawings and notes when planning installation. Model and Rated Output Complete model GSM36B18-P1J. Product type Single-output Class II medical desktop AC/DC power adapter. Nominal output 18 VDC. Rated output current 2 A. Current range 0–2 A. Rated output power, maximum 36 W; apply the current, voltage and derating limits together. Ripple and noise, maximum 150 mVp-p. Voltage tolerance ±3%. Line regulation ±1%. Load regulation ±3%. Efficiency, typical 87%. Model code GSM36B identifies the series and AC connection; 18 identifies 18 V; P1J is the standard center-positive tuning-fork DC plug. Select the complete model and match the equipment voltage, current and polarity. The nominal series wattage is not the output rating of every model. Input, Timing and Efficiency AC input 80–264 VAC, 47–63 Hz. DC input 113–370 VDC. AC connection IEC320-C8 two-pole inlet. AC current, typical 0.9 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time, full load 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC. Hold-up time, full load Typical 16 ms at 230 VAC and 10 ms at 115 VAC. No-load consumption <0.1 W. Energy framework Energy-efficiency Level VI. EISA 2007/DoE, NRCan, Australia/New Zealand MEPS, EU ErP and CoC Version 5 are listed for the series, with the 5–9 V Level V exception. Use a suitable approved mains lead for the C8 inlet; confirm whether the order includes it, because the catalogue does not specify an included AC cord. Medical Isolation and Protection Medical design 2 × MOPP primary-to-secondary isolation; BF-rated design and the listed home-healthcare standards. Touch current <50 µA at 264 VAC. Electrical class Class II; no protective-earth connection. Input/output withstand 4 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, input-to-output. Overload 105–170% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage 18.9–25.2 V; output shutdown, re-power on to recover. Short circuit Short-circuit protection is listed. The adapter supports the stated medical application class; safety and EMC of the complete medical equipment still require assessment with its actual load, wiring and installation. Environment and Derating Operating temperature −25 to +60°C; apply derating. Temperature/load curve Horizontal mounting: 100% load from −25°C to 40°C, then reduce to 80% at 60°C. Low-input load curve 80% at 80 VAC, reaching 100% at 100 VAC and remaining at 100% to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of X, Y and Z. Follow both input-voltage and ambient-temperature limits. The upper operating temperature is a derated endpoint, not a full-power ambient rating. Refer to the applicable curves on PDF page 51. Mechanical Details and Cable Body dimensions, L × W × H 79 × 54 × 33 mm; tolerance ±1 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic. DC cable UL1185, 16 AWG; 1800 mm, ±50 mm. Catalogue single-unit weight 235 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. Carton packing 60 pieces / 15.1 kg. Power indication Power-on LED. Ferrite-to-plug segment 70 ±10 mm, as shown in the mechanical drawing. Body dimensions exclude the attached DC cable and plug. Allow room for the cable exit and connector; follow PDF page 51. Standard P1J Output Connection Connector Straight tuning-fork barrel plug P1J: 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. Polarity C+: center/inside positive; outside negative. Match the mating socket dimensions, insertion depth, polarity and voltage before connection. A mechanically fitting plug does not make different output models interchangeable. Optional DC Plugs and Accessories Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Barrel alternatives P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. Minimum-pin alternatives P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent. Center-pin alternatives P4A: 5.5 / 3.4 / 11 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11 mm, center pin 0.6 mm. EIAJ equivalent. R6B Locking three-pin male Mini DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. R7B Locking four-pin male Mini DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R7BF Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R1B Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. All optional plug dimensions are in mm. Codes ending in R in the P1/P2 lists indicate the illustrated right-angle version; the other P1/P2 barrel forms are straight. Confirm the complete cable assembly, mating side and current capability when ordering. No mating socket or optional cable is stated as included. Factory DC-plug customization is subject to a minimum order quantity. The listed quick-adapter accessories are sold separately without a minimum order quantity. The tuning-fork alternatives, P4A/P4B/P4C, R6B and R7B and R1B have 7.5 A maximum quick-adapter ratings; P3A/P3B/P3C quick adapters are limited to 5 A. Barrel and locking alternatives, R7BF have no quick-adapter accessory listed. Keep the load within both this model’s 2 A output rating and the selected accessory’s current rating. Stripped and tinned leads are available by request: lead 1 red is +Vo and lead 2 black is −Vo; colours are reference only and must be verified on the actual assembly. The standard drawing marks L = 25 mm and L1 = 5 mm. Both lengths can be specified by request; no complete separate ordering code is printed for this lead option. Safety and EMC Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Conducted / radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22, CAN ICES-3(B)/NMB-3(B), MSIP KN32: Class B. Harmonic current / flicker EN61000-3-2, Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD, EN61000-4-2 Level 4: 15 kV air and 8 kV contact. Radiated RF, EN61000-4-3 Level 3: 10 V/m, 80 MHz–2.7 GHz; Table 9 also lists 9–28 V/m over 385 MHz–5.78 GHz. EFT, EN61000-4-4 Level 3, 2 kV. Surge, EN61000-4-5 Level 3, 1 kV line-to-line. Conducted RF, EN61000-4-6 Level 3, 10 V. Magnetic field, EN61000-4-8 Level 4, 30 A/m. Voltage dips / interruptions, EN61000-4-11 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Use the standards listed for this exact US, European or desktop configuration; do not transfer certification or immunity claims from another adapter variant. Final equipment compliance must be checked with its actual cable and load. Measurement Conditions and Reliability General measurement conditions Unless otherwise specified: 230 VAC, rated load, 25°C and 70% RH. Voltage set point Measured at the plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Manufacturer warranty 3 years, subject to manufacturer warranty terms. Catalogue revision 2026-04-03; combined PDF pages 49–53. Minimum MTBF 3777.8 thousand hours by Telcordia SR-332; 651.4 thousand hours by MIL-HDBK-217F at 25°C. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated on/off switching may increase it. Application and Selection Examples include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Select this exact mains-plug version and output rating for the equipment. Check the matching socket and all applicable safety requirements before installation.

  Read more less

  $38.44

  View options

•

  View options

  MEAN WELL GSM36B series: Medical Desktop AC/DC Power Adapter - GSM36B15-P1J

  MEAN WELL GSM36B15-P1J is a Class II medical desktop power adapter with IEC320-C8 two-pole inlet, supplying 15 VDC at 2.4 A with a 36 W rated maximum output. Its center-positive P1J plug, 2 × MOPP isolation and BF-rated design support the stated medical applications. Apply the input and ambient-temperature derating. Product Datasheet Download MEAN WELL GSM36B Datasheet (PDF) The GSM36B section is on PDF pages 49, 50, 51, 52, 53. Refer to the complete mechanical drawings and notes when planning installation. Model and Rated Output Complete model GSM36B15-P1J. Product type Single-output Class II medical desktop AC/DC power adapter. Nominal output 15 VDC. Rated output current 2.4 A. Current range 0–2.4 A. Rated output power, maximum 36 W; apply the current, voltage and derating limits together. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3%. Line regulation ±1%. Load regulation ±3%. Efficiency, typical 87%. Model code GSM36B identifies the series and AC connection; 15 identifies 15 V; P1J is the standard center-positive tuning-fork DC plug. Select the complete model and match the equipment voltage, current and polarity. The nominal series wattage is not the output rating of every model. Input, Timing and Efficiency AC input 80–264 VAC, 47–63 Hz. DC input 113–370 VDC. AC connection IEC320-C8 two-pole inlet. AC current, typical 0.9 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time, full load 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC. Hold-up time, full load Typical 16 ms at 230 VAC and 10 ms at 115 VAC. No-load consumption <0.1 W. Energy framework Energy-efficiency Level VI. EISA 2007/DoE, NRCan, Australia/New Zealand MEPS, EU ErP and CoC Version 5 are listed for the series, with the 5–9 V Level V exception. Use a suitable approved mains lead for the C8 inlet; confirm whether the order includes it, because the catalogue does not specify an included AC cord. Medical Isolation and Protection Medical design 2 × MOPP primary-to-secondary isolation; BF-rated design and the listed home-healthcare standards. Touch current <50 µA at 264 VAC. Electrical class Class II; no protective-earth connection. Input/output withstand 4 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, input-to-output. Overload 105–170% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage 15.75–20.25 V; output shutdown, re-power on to recover. Short circuit Short-circuit protection is listed. The adapter supports the stated medical application class; safety and EMC of the complete medical equipment still require assessment with its actual load, wiring and installation. Environment and Derating Operating temperature −25 to +60°C; apply derating. Temperature/load curve Horizontal mounting: 100% load from −25°C to 40°C, then reduce to 80% at 60°C. Low-input load curve 80% at 80 VAC, reaching 100% at 100 VAC and remaining at 100% to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of X, Y and Z. Follow both input-voltage and ambient-temperature limits. The upper operating temperature is a derated endpoint, not a full-power ambient rating. Refer to the applicable curves on PDF page 51. Mechanical Details and Cable Body dimensions, L × W × H 79 × 54 × 33 mm; tolerance ±1 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic. DC cable UL1185, 16 AWG; 1800 mm, ±50 mm. Catalogue single-unit weight 235 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. Carton packing 60 pieces / 15.1 kg. Power indication Power-on LED. Ferrite-to-plug segment 70 ±10 mm, as shown in the mechanical drawing. Body dimensions exclude the attached DC cable and plug. Allow room for the cable exit and connector; follow PDF page 51. Standard P1J Output Connection Connector Straight tuning-fork barrel plug P1J: 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. Polarity C+: center/inside positive; outside negative. Match the mating socket dimensions, insertion depth, polarity and voltage before connection. A mechanically fitting plug does not make different output models interchangeable. Optional DC Plugs and Accessories Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Barrel alternatives P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. Minimum-pin alternatives P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent. Center-pin alternatives P4A: 5.5 / 3.4 / 11 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11 mm, center pin 0.6 mm. EIAJ equivalent. R6B Locking three-pin male Mini DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. R7B Locking four-pin male Mini DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R7BF Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R1B Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. All optional plug dimensions are in mm. Codes ending in R in the P1/P2 lists indicate the illustrated right-angle version; the other P1/P2 barrel forms are straight. Confirm the complete cable assembly, mating side and current capability when ordering. No mating socket or optional cable is stated as included. Factory DC-plug customization is subject to a minimum order quantity. The listed quick-adapter accessories are sold separately without a minimum order quantity. The tuning-fork alternatives, P4A/P4B/P4C, R6B and R7B and R1B have 7.5 A maximum quick-adapter ratings; P3A/P3B/P3C quick adapters are limited to 5 A. Barrel and locking alternatives, R7BF have no quick-adapter accessory listed. Keep the load within both this model’s 2.4 A output rating and the selected accessory’s current rating. Stripped and tinned leads are available by request: lead 1 red is +Vo and lead 2 black is −Vo; colours are reference only and must be verified on the actual assembly. The standard drawing marks L = 25 mm and L1 = 5 mm. Both lengths can be specified by request; no complete separate ordering code is printed for this lead option. Safety and EMC Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Conducted / radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22, CAN ICES-3(B)/NMB-3(B), MSIP KN32: Class B. Harmonic current / flicker EN61000-3-2, Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD, EN61000-4-2 Level 4: 15 kV air and 8 kV contact. Radiated RF, EN61000-4-3 Level 3: 10 V/m, 80 MHz–2.7 GHz; Table 9 also lists 9–28 V/m over 385 MHz–5.78 GHz. EFT, EN61000-4-4 Level 3, 2 kV. Surge, EN61000-4-5 Level 3, 1 kV line-to-line. Conducted RF, EN61000-4-6 Level 3, 10 V. Magnetic field, EN61000-4-8 Level 4, 30 A/m. Voltage dips / interruptions, EN61000-4-11 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Use the standards listed for this exact US, European or desktop configuration; do not transfer certification or immunity claims from another adapter variant. Final equipment compliance must be checked with its actual cable and load. Measurement Conditions and Reliability General measurement conditions Unless otherwise specified: 230 VAC, rated load, 25°C and 70% RH. Voltage set point Measured at the plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Manufacturer warranty 3 years, subject to manufacturer warranty terms. Catalogue revision 2026-04-03; combined PDF pages 49–53. Minimum MTBF 3777.8 thousand hours by Telcordia SR-332; 651.4 thousand hours by MIL-HDBK-217F at 25°C. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated on/off switching may increase it. Application and Selection Examples include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Select this exact mains-plug version and output rating for the equipment. Check the matching socket and all applicable safety requirements before installation.

  Read more less

  $38.44

  View options

•

  View options

  MEAN WELL GSM36B series: Medical Desktop AC/DC Power Adapter - GSM36B12-P1J

  MEAN WELL GSM36B12-P1J is a Class II medical desktop power adapter with IEC320-C8 two-pole inlet, supplying 12 VDC at 3 A with a 36 W rated maximum output. Its center-positive P1J plug, 2 × MOPP isolation and BF-rated design support the stated medical applications. Apply the input and ambient-temperature derating. Product Datasheet Download MEAN WELL GSM36B Datasheet (PDF) The GSM36B section is on PDF pages 49, 50, 51, 52, 53. Refer to the complete mechanical drawings and notes when planning installation. Model and Rated Output Complete model GSM36B12-P1J. Product type Single-output Class II medical desktop AC/DC power adapter. Nominal output 12 VDC. Rated output current 3 A. Current range 0–3 A. Rated output power, maximum 36 W; apply the current, voltage and derating limits together. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3%. Line regulation ±1%. Load regulation ±3%. Efficiency, typical 86%. Model code GSM36B identifies the series and AC connection; 12 identifies 12 V; P1J is the standard center-positive tuning-fork DC plug. Select the complete model and match the equipment voltage, current and polarity. The nominal series wattage is not the output rating of every model. Input, Timing and Efficiency AC input 80–264 VAC, 47–63 Hz. DC input 113–370 VDC. AC connection IEC320-C8 two-pole inlet. AC current, typical 0.9 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time, full load 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC. Hold-up time, full load Typical 16 ms at 230 VAC and 10 ms at 115 VAC. No-load consumption <0.1 W. Energy framework Energy-efficiency Level VI. EISA 2007/DoE, NRCan, Australia/New Zealand MEPS, EU ErP and CoC Version 5 are listed for the series, with the 5–9 V Level V exception. Use a suitable approved mains lead for the C8 inlet; confirm whether the order includes it, because the catalogue does not specify an included AC cord. Medical Isolation and Protection Medical design 2 × MOPP primary-to-secondary isolation; BF-rated design and the listed home-healthcare standards. Touch current <50 µA at 264 VAC. Electrical class Class II; no protective-earth connection. Input/output withstand 4 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, input-to-output. Overload 105–170% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage 12.6–17.2 V; output shutdown, re-power on to recover. Short circuit Short-circuit protection is listed. The adapter supports the stated medical application class; safety and EMC of the complete medical equipment still require assessment with its actual load, wiring and installation. Environment and Derating Operating temperature −25 to +60°C; apply derating. Temperature/load curve Horizontal mounting: 100% load from −25°C to 40°C, then reduce to 80% at 60°C. Low-input load curve 80% at 80 VAC, reaching 100% at 100 VAC and remaining at 100% to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of X, Y and Z. Follow both input-voltage and ambient-temperature limits. The upper operating temperature is a derated endpoint, not a full-power ambient rating. Refer to the applicable curves on PDF page 51. Mechanical Details and Cable Body dimensions, L × W × H 79 × 54 × 33 mm; tolerance ±1 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic. DC cable UL1185, 16 AWG; 1800 mm, ±50 mm. Catalogue single-unit weight 235 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. Carton packing 60 pieces / 15.1 kg. Power indication Power-on LED. Ferrite-to-plug segment 70 ±10 mm, as shown in the mechanical drawing. Body dimensions exclude the attached DC cable and plug. Allow room for the cable exit and connector; follow PDF page 51. Standard P1J Output Connection Connector Straight tuning-fork barrel plug P1J: 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. Polarity C+: center/inside positive; outside negative. Match the mating socket dimensions, insertion depth, polarity and voltage before connection. A mechanically fitting plug does not make different output models interchangeable. Optional DC Plugs and Accessories Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Barrel alternatives P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. Minimum-pin alternatives P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent. Center-pin alternatives P4A: 5.5 / 3.4 / 11 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11 mm, center pin 0.6 mm. EIAJ equivalent. R6B Locking three-pin male Mini DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. R7B Locking four-pin male Mini DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R7BF Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R1B Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. All optional plug dimensions are in mm. Codes ending in R in the P1/P2 lists indicate the illustrated right-angle version; the other P1/P2 barrel forms are straight. Confirm the complete cable assembly, mating side and current capability when ordering. No mating socket or optional cable is stated as included. Factory DC-plug customization is subject to a minimum order quantity. The listed quick-adapter accessories are sold separately without a minimum order quantity. The tuning-fork alternatives, P4A/P4B/P4C, R6B and R7B and R1B have 7.5 A maximum quick-adapter ratings; P3A/P3B/P3C quick adapters are limited to 5 A. Barrel and locking alternatives, R7BF have no quick-adapter accessory listed. Keep the load within both this model’s 3 A output rating and the selected accessory’s current rating. Stripped and tinned leads are available by request: lead 1 red is +Vo and lead 2 black is −Vo; colours are reference only and must be verified on the actual assembly. The standard drawing marks L = 25 mm and L1 = 5 mm. Both lengths can be specified by request; no complete separate ordering code is printed for this lead option. Safety and EMC Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Conducted / radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22, CAN ICES-3(B)/NMB-3(B), MSIP KN32: Class B. Harmonic current / flicker EN61000-3-2, Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD, EN61000-4-2 Level 4: 15 kV air and 8 kV contact. Radiated RF, EN61000-4-3 Level 3: 10 V/m, 80 MHz–2.7 GHz; Table 9 also lists 9–28 V/m over 385 MHz–5.78 GHz. EFT, EN61000-4-4 Level 3, 2 kV. Surge, EN61000-4-5 Level 3, 1 kV line-to-line. Conducted RF, EN61000-4-6 Level 3, 10 V. Magnetic field, EN61000-4-8 Level 4, 30 A/m. Voltage dips / interruptions, EN61000-4-11 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Use the standards listed for this exact US, European or desktop configuration; do not transfer certification or immunity claims from another adapter variant. Final equipment compliance must be checked with its actual cable and load. Measurement Conditions and Reliability General measurement conditions Unless otherwise specified: 230 VAC, rated load, 25°C and 70% RH. Voltage set point Measured at the plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Manufacturer warranty 3 years, subject to manufacturer warranty terms. Catalogue revision 2026-04-03; combined PDF pages 49–53. Minimum MTBF 3777.8 thousand hours by Telcordia SR-332; 651.4 thousand hours by MIL-HDBK-217F at 25°C. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated on/off switching may increase it. Application and Selection Examples include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Select this exact mains-plug version and output rating for the equipment. Check the matching socket and all applicable safety requirements before installation.

  Read more less

  $38.44

  View options

•

  View options

  MEAN WELL GSM36B series: Medical Desktop AC/DC Power Adapter - GSM36B09-P1J

  MEAN WELL GSM36B09-P1J is a Class II medical desktop power adapter with IEC320-C8 two-pole inlet, supplying 9 VDC at 4 A with a 36 W rated maximum output. Its center-positive P1J plug, 2 × MOPP isolation and BF-rated design support the stated medical applications. Apply the input and ambient-temperature derating. Product Datasheet Download MEAN WELL GSM36B Datasheet (PDF) The GSM36B section is on PDF pages 49, 50, 51, 52, 53. Refer to the complete mechanical drawings and notes when planning installation. Model and Rated Output Complete model GSM36B09-P1J. Product type Single-output Class II medical desktop AC/DC power adapter. Nominal output 9 VDC. Rated output current 4 A. Current range 0–4 A. Rated output power, maximum 36 W; apply the current, voltage and derating limits together. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±5%. Line regulation ±1%. Load regulation ±5%. Efficiency, typical 84%. Model code GSM36B identifies the series and AC connection; 09 identifies 9 V; P1J is the standard center-positive tuning-fork DC plug. Select the complete model and match the equipment voltage, current and polarity. The nominal series wattage is not the output rating of every model. Input, Timing and Efficiency AC input 80–264 VAC, 47–63 Hz. DC input 113–370 VDC. AC connection IEC320-C8 two-pole inlet. AC current, typical 0.9 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time, full load 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC. Hold-up time, full load Typical 16 ms at 230 VAC and 10 ms at 115 VAC. No-load consumption <0.1 W. Energy framework Energy-efficiency Level V. EISA 2007/DoE, NRCan, Australia/New Zealand MEPS, EU ErP and CoC Version 5 are listed for the series, with the 5–9 V Level V exception. Use a suitable approved mains lead for the C8 inlet; confirm whether the order includes it, because the catalogue does not specify an included AC cord. Medical Isolation and Protection Medical design 2 × MOPP primary-to-secondary isolation; BF-rated design and the listed home-healthcare standards. Touch current <50 µA at 264 VAC. Electrical class Class II; no protective-earth connection. Input/output withstand 4 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, input-to-output. Overload 105–170% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage 9.45–13 V; output shutdown, re-power on to recover. Short circuit Short-circuit protection is listed. The adapter supports the stated medical application class; safety and EMC of the complete medical equipment still require assessment with its actual load, wiring and installation. Environment and Derating Operating temperature −25 to +60°C; apply derating. Temperature/load curve Horizontal mounting: 100% load from −25°C to 40°C, then reduce to 80% at 60°C. Low-input load curve 80% at 80 VAC, reaching 100% at 100 VAC and remaining at 100% to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of X, Y and Z. Follow both input-voltage and ambient-temperature limits. The upper operating temperature is a derated endpoint, not a full-power ambient rating. Refer to the applicable curves on PDF page 51. Mechanical Details and Cable Body dimensions, L × W × H 79 × 54 × 33 mm; tolerance ±1 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic. DC cable UL1185, 16 AWG; 1200 mm, ±50 mm. Catalogue single-unit weight 235 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. Carton packing 60 pieces / 15.1 kg. Power indication Power-on LED. Ferrite-to-plug segment 70 ±10 mm, as shown in the mechanical drawing. Body dimensions exclude the attached DC cable and plug. Allow room for the cable exit and connector; follow PDF page 51. Standard P1J Output Connection Connector Straight tuning-fork barrel plug P1J: 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. Polarity C+: center/inside positive; outside negative. Match the mating socket dimensions, insertion depth, polarity and voltage before connection. A mechanically fitting plug does not make different output models interchangeable. Optional DC Plugs and Accessories Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Barrel alternatives P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. Minimum-pin alternatives P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent. Center-pin alternatives P4A: 5.5 / 3.4 / 11 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11 mm, center pin 0.6 mm. EIAJ equivalent. R6B Locking three-pin male Mini DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. R7B Locking four-pin male Mini DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R7BF Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R1B Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. All optional plug dimensions are in mm. Codes ending in R in the P1/P2 lists indicate the illustrated right-angle version; the other P1/P2 barrel forms are straight. Confirm the complete cable assembly, mating side and current capability when ordering. No mating socket or optional cable is stated as included. Factory DC-plug customization is subject to a minimum order quantity. The listed quick-adapter accessories are sold separately without a minimum order quantity. The tuning-fork alternatives, P4A/P4B/P4C, R6B and R7B and R1B have 7.5 A maximum quick-adapter ratings; P3A/P3B/P3C quick adapters are limited to 5 A. Barrel and locking alternatives, R7BF have no quick-adapter accessory listed. Keep the load within both this model’s 4 A output rating and the selected accessory’s current rating. Stripped and tinned leads are available by request: lead 1 red is +Vo and lead 2 black is −Vo; colours are reference only and must be verified on the actual assembly. The standard drawing marks L = 25 mm and L1 = 5 mm. Both lengths can be specified by request; no complete separate ordering code is printed for this lead option. Safety and EMC Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Conducted / radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22, CAN ICES-3(B)/NMB-3(B), MSIP KN32: Class B. Harmonic current / flicker EN61000-3-2, Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD, EN61000-4-2 Level 4: 15 kV air and 8 kV contact. Radiated RF, EN61000-4-3 Level 3: 10 V/m, 80 MHz–2.7 GHz; Table 9 also lists 9–28 V/m over 385 MHz–5.78 GHz. EFT, EN61000-4-4 Level 3, 2 kV. Surge, EN61000-4-5 Level 3, 1 kV line-to-line. Conducted RF, EN61000-4-6 Level 3, 10 V. Magnetic field, EN61000-4-8 Level 4, 30 A/m. Voltage dips / interruptions, EN61000-4-11 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Use the standards listed for this exact US, European or desktop configuration; do not transfer certification or immunity claims from another adapter variant. Final equipment compliance must be checked with its actual cable and load. Measurement Conditions and Reliability General measurement conditions Unless otherwise specified: 230 VAC, rated load, 25°C and 70% RH. Voltage set point Measured at the plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Manufacturer warranty 3 years, subject to manufacturer warranty terms. Catalogue revision 2026-04-03; combined PDF pages 49–53. Minimum MTBF 3777.8 thousand hours by Telcordia SR-332; 651.4 thousand hours by MIL-HDBK-217F at 25°C. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated on/off switching may increase it. Application and Selection Examples include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Select this exact mains-plug version and output rating for the equipment. Check the matching socket and all applicable safety requirements before installation.

  Read more less

  $38.44

  View options

•

  View options

  MEAN WELL GSM36B series: Medical Desktop AC/DC Power Adapter - GSM36B07-P1J

  MEAN WELL GSM36B07-P1J is a Class II medical desktop power adapter with IEC320-C8 two-pole inlet, supplying 7.5 VDC at 4.32 A with a 32.4 W rated maximum output. Its center-positive P1J plug, 2 × MOPP isolation and BF-rated design support the stated medical applications. Apply the input and ambient-temperature derating. Product Datasheet Download MEAN WELL GSM36B Datasheet (PDF) The GSM36B section is on PDF pages 49, 50, 51, 52, 53. Refer to the complete mechanical drawings and notes when planning installation. Model and Rated Output Complete model GSM36B07-P1J. Product type Single-output Class II medical desktop AC/DC power adapter. Nominal output 7.5 VDC. Rated output current 4.32 A. Current range 0–4.32 A. Rated output power, maximum 32.4 W; apply the current, voltage and derating limits together. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±5%. Line regulation ±1%. Load regulation ±5%. Efficiency, typical 83%. Model code GSM36B identifies the series and AC connection; 07 identifies 7.5 V; P1J is the standard center-positive tuning-fork DC plug. Select the complete model and match the equipment voltage, current and polarity. The nominal series wattage is not the output rating of every model. Input, Timing and Efficiency AC input 80–264 VAC, 47–63 Hz. DC input 113–370 VDC. AC connection IEC320-C8 two-pole inlet. AC current, typical 0.9 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time, full load 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC. Hold-up time, full load Typical 16 ms at 230 VAC and 10 ms at 115 VAC. No-load consumption <0.1 W. Energy framework Energy-efficiency Level V. EISA 2007/DoE, NRCan, Australia/New Zealand MEPS, EU ErP and CoC Version 5 are listed for the series, with the 5–9 V Level V exception. Use a suitable approved mains lead for the C8 inlet; confirm whether the order includes it, because the catalogue does not specify an included AC cord. Medical Isolation and Protection Medical design 2 × MOPP primary-to-secondary isolation; BF-rated design and the listed home-healthcare standards. Touch current <50 µA at 264 VAC. Electrical class Class II; no protective-earth connection. Input/output withstand 4 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, input-to-output. Overload 105–170% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage 7.88–10.5 V; output shutdown, re-power on to recover. Short circuit Short-circuit protection is listed. The adapter supports the stated medical application class; safety and EMC of the complete medical equipment still require assessment with its actual load, wiring and installation. Environment and Derating Operating temperature −25 to +60°C; apply derating. Temperature/load curve Horizontal mounting: 100% load from −25°C to 40°C, then reduce to 80% at 60°C. Low-input load curve 80% at 80 VAC, reaching 100% at 100 VAC and remaining at 100% to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of X, Y and Z. Follow both input-voltage and ambient-temperature limits. The upper operating temperature is a derated endpoint, not a full-power ambient rating. Refer to the applicable curves on PDF page 51. Mechanical Details and Cable Body dimensions, L × W × H 79 × 54 × 33 mm; tolerance ±1 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic. DC cable UL1185, 16 AWG; 1200 mm, ±50 mm. Catalogue single-unit weight 235 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. Carton packing 60 pieces / 15.1 kg. Power indication Power-on LED. Ferrite-to-plug segment 70 ±10 mm, as shown in the mechanical drawing. Body dimensions exclude the attached DC cable and plug. Allow room for the cable exit and connector; follow PDF page 51. Standard P1J Output Connection Connector Straight tuning-fork barrel plug P1J: 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. Polarity C+: center/inside positive; outside negative. Match the mating socket dimensions, insertion depth, polarity and voltage before connection. A mechanically fitting plug does not make different output models interchangeable. Optional DC Plugs and Accessories Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Barrel alternatives P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. Minimum-pin alternatives P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent. Center-pin alternatives P4A: 5.5 / 3.4 / 11 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11 mm, center pin 0.6 mm. EIAJ equivalent. R6B Locking three-pin male Mini DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. R7B Locking four-pin male Mini DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R7BF Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R1B Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. All optional plug dimensions are in mm. Codes ending in R in the P1/P2 lists indicate the illustrated right-angle version; the other P1/P2 barrel forms are straight. Confirm the complete cable assembly, mating side and current capability when ordering. No mating socket or optional cable is stated as included. Factory DC-plug customization is subject to a minimum order quantity. The listed quick-adapter accessories are sold separately without a minimum order quantity. The tuning-fork alternatives, P4A/P4B/P4C, R6B and R7B and R1B have 7.5 A maximum quick-adapter ratings; P3A/P3B/P3C quick adapters are limited to 5 A. Barrel and locking alternatives, R7BF have no quick-adapter accessory listed. Keep the load within both this model’s 4.32 A output rating and the selected accessory’s current rating. Stripped and tinned leads are available by request: lead 1 red is +Vo and lead 2 black is −Vo; colours are reference only and must be verified on the actual assembly. The standard drawing marks L = 25 mm and L1 = 5 mm. Both lengths can be specified by request; no complete separate ordering code is printed for this lead option. Safety and EMC Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Conducted / radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22, CAN ICES-3(B)/NMB-3(B), MSIP KN32: Class B. Harmonic current / flicker EN61000-3-2, Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD, EN61000-4-2 Level 4: 15 kV air and 8 kV contact. Radiated RF, EN61000-4-3 Level 3: 10 V/m, 80 MHz–2.7 GHz; Table 9 also lists 9–28 V/m over 385 MHz–5.78 GHz. EFT, EN61000-4-4 Level 3, 2 kV. Surge, EN61000-4-5 Level 3, 1 kV line-to-line. Conducted RF, EN61000-4-6 Level 3, 10 V. Magnetic field, EN61000-4-8 Level 4, 30 A/m. Voltage dips / interruptions, EN61000-4-11 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Use the standards listed for this exact US, European or desktop configuration; do not transfer certification or immunity claims from another adapter variant. Final equipment compliance must be checked with its actual cable and load. Measurement Conditions and Reliability General measurement conditions Unless otherwise specified: 230 VAC, rated load, 25°C and 70% RH. Voltage set point Measured at the plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Manufacturer warranty 3 years, subject to manufacturer warranty terms. Catalogue revision 2026-04-03; combined PDF pages 49–53. Minimum MTBF 3777.8 thousand hours by Telcordia SR-332; 651.4 thousand hours by MIL-HDBK-217F at 25°C. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated on/off switching may increase it. Application and Selection Examples include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Select this exact mains-plug version and output rating for the equipment. Check the matching socket and all applicable safety requirements before installation.

  Read more less

  $38.44

  View options

•

  View options

  MEAN WELL GSM36B series: Medical Desktop AC/DC Power Adapter - GSM36B05-P1J

  MEAN WELL GSM36B05-P1J is a Class II medical desktop power adapter with IEC320-C8 two-pole inlet, supplying 5 VDC at 4.5 A with a 22.5 W rated maximum output. Its center-positive P1J plug, 2 × MOPP isolation and BF-rated design support the stated medical applications. Apply the input and ambient-temperature derating. Product Datasheet Download MEAN WELL GSM36B Datasheet (PDF) The GSM36B section is on PDF pages 49, 50, 51, 52, 53. Refer to the complete mechanical drawings and notes when planning installation. Model and Rated Output Complete model GSM36B05-P1J. Product type Single-output Class II medical desktop AC/DC power adapter. Nominal output 5 VDC. Rated output current 4.5 A. Current range 0–4.5 A. Rated output power, maximum 22.5 W; apply the current, voltage and derating limits together. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±6%. Line regulation ±1%. Load regulation ±6%. Efficiency, typical 80%. Model code GSM36B identifies the series and AC connection; 05 identifies 5 V; P1J is the standard center-positive tuning-fork DC plug. Select the complete model and match the equipment voltage, current and polarity. The nominal series wattage is not the output rating of every model. Input, Timing and Efficiency AC input 80–264 VAC, 47–63 Hz. DC input 113–370 VDC. AC connection IEC320-C8 two-pole inlet. AC current, typical 0.9 A at 115 VAC; 0.45 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time, full load 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC. Hold-up time, full load Typical 16 ms at 230 VAC and 10 ms at 115 VAC. No-load consumption <0.1 W. Energy framework Energy-efficiency Level V. EISA 2007/DoE, NRCan, Australia/New Zealand MEPS, EU ErP and CoC Version 5 are listed for the series, with the 5–9 V Level V exception. Use a suitable approved mains lead for the C8 inlet; confirm whether the order includes it, because the catalogue does not specify an included AC cord. Medical Isolation and Protection Medical design 2 × MOPP primary-to-secondary isolation; BF-rated design and the listed home-healthcare standards. Touch current <50 µA at 264 VAC. Electrical class Class II; no protective-earth connection. Input/output withstand 4 kVAC. Insulation resistance 100 MΩ at 500 VDC, 25°C and 70% RH, input-to-output. Overload 105–170% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage 5.25–7.5 V; output shutdown, re-power on to recover. Short circuit Short-circuit protection is listed. The adapter supports the stated medical application class; safety and EMC of the complete medical equipment still require assessment with its actual load, wiring and installation. Environment and Derating Operating temperature −25 to +60°C; apply derating. Temperature/load curve Horizontal mounting: 100% load from −25°C to 40°C, then reduce to 80% at 60°C. Low-input load curve 80% at 80 VAC, reaching 100% at 100 VAC and remaining at 100% to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each of X, Y and Z. Follow both input-voltage and ambient-temperature limits. The upper operating temperature is a derated endpoint, not a full-power ambient rating. Refer to the applicable curves on PDF page 51. Mechanical Details and Cable Body dimensions, L × W × H 79 × 54 × 33 mm; tolerance ±1 mm. Enclosure Fully enclosed 94V-0 flame-retardant plastic. DC cable UL1185, 16 AWG; 1200 mm, ±50 mm. Catalogue single-unit weight 235 g, from the explicit PACKING per-unit value; a catalogue packing reference, not a measured net or shipping weight. Carton packing 60 pieces / 15.1 kg. Power indication Power-on LED. Ferrite-to-plug segment 70 ±10 mm, as shown in the mechanical drawing. Body dimensions exclude the attached DC cable and plug. Allow room for the cable exit and connector; follow PDF page 51. Standard P1J Output Connection Connector Straight tuning-fork barrel plug P1J: 5.5 mm outside diameter, 2.1 mm inside diameter, 11 ±0.5 mm insertion length. Polarity C+: center/inside positive; outside negative. Match the mating socket dimensions, insertion depth, polarity and voltage before connection. A mechanically fitting plug does not make different output models interchangeable. Optional DC Plugs and Accessories Tuning-fork alternatives P1I: 5.5 / 2.1 / 9.5; P1L: 5.5 / 2.5 / 9.5; P1M: 5.5 / 2.5 / 11; P1IR: 5.5 / 2.1 / 9.5; P1JR: 5.5 / 2.1 / 11; P1LR: 5.5 / 2.5 / 9.5; P1MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Barrel alternatives P2I: 5.5 / 2.1 / 9.5; P2J: 5.5 / 2.1 / 11; P2L: 5.5 / 2.5 / 9.5; P2M: 5.5 / 2.5 / 11; P2IR: 5.5 / 2.1 / 9.5; P2JR: 5.5 / 2.1 / 11; P2LR: 5.5 / 2.5 / 9.5; P2MR: 5.5 / 2.5 / 11 mm (outside diameter / inside diameter / length). Locking alternatives P2S (S761K): 5.53 / 2.03 / 12.06; P2K (761K): 5.53 / 2.54 / 12.06; P2C (S760K): 5.53 / 2.03 / 9.52; P2D (760K): 5.53 / 2.54 / 9.52 mm (outside diameter / inside diameter / length). SWITCHCRAFT original or equivalent. Minimum-pin alternatives P3A: 2.35 / 0.7 / 11; P3B: 4.0 / 1.7 / 11; P3C: 4.75 / 1.7 / 11 mm (outside diameter / inside diameter / length). EIAJ equivalent. Center-pin alternatives P4A: 5.5 / 3.4 / 11 mm, center pin 1.0 mm; P4B: 6.5 / 4.4 / 11 mm, center pin 1.4 mm; P4C: 7.4 / 5.1 / 11 mm, center pin 0.6 mm. EIAJ equivalent. R6B Locking three-pin male Mini DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. R7B Locking four-pin male Mini DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R7BF Locking four-pin female Mini DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. R1B Male five-pin DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. All optional plug dimensions are in mm. Codes ending in R in the P1/P2 lists indicate the illustrated right-angle version; the other P1/P2 barrel forms are straight. Confirm the complete cable assembly, mating side and current capability when ordering. No mating socket or optional cable is stated as included. Factory DC-plug customization is subject to a minimum order quantity. The listed quick-adapter accessories are sold separately without a minimum order quantity. The tuning-fork alternatives, P4A/P4B/P4C, R6B and R7B and R1B have 7.5 A maximum quick-adapter ratings; P3A/P3B/P3C quick adapters are limited to 5 A. Barrel and locking alternatives, R7BF have no quick-adapter accessory listed. Keep the load within both this model’s 4.5 A output rating and the selected accessory’s current rating. Stripped and tinned leads are available by request: lead 1 red is +Vo and lead 2 black is −Vo; colours are reference only and must be verified on the actual assembly. The standard drawing marks L = 25 mm and L1 = 5 mm. Both lengths can be specified by request; no complete separate ordering code is printed for this lead option. Safety and EMC Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Conducted / radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22, CAN ICES-3(B)/NMB-3(B), MSIP KN32: Class B. Harmonic current / flicker EN61000-3-2, Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD, EN61000-4-2 Level 4: 15 kV air and 8 kV contact. Radiated RF, EN61000-4-3 Level 3: 10 V/m, 80 MHz–2.7 GHz; Table 9 also lists 9–28 V/m over 385 MHz–5.78 GHz. EFT, EN61000-4-4 Level 3, 2 kV. Surge, EN61000-4-5 Level 3, 1 kV line-to-line. Conducted RF, EN61000-4-6 Level 3, 10 V. Magnetic field, EN61000-4-8 Level 4, 30 A/m. Voltage dips / interruptions, EN61000-4-11 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Use the standards listed for this exact US, European or desktop configuration; do not transfer certification or immunity claims from another adapter variant. Final equipment compliance must be checked with its actual cable and load. Measurement Conditions and Reliability General measurement conditions Unless otherwise specified: 230 VAC, rated load, 25°C and 70% RH. Voltage set point Measured at the plug terminal at 50% load. Ripple/noise measurement 20 MHz bandwidth; 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors. Manufacturer warranty 3 years, subject to manufacturer warranty terms. Catalogue revision 2026-04-03; combined PDF pages 49–53. Minimum MTBF 3777.8 thousand hours by Telcordia SR-332; 651.4 thousand hours by MIL-HDBK-217F at 25°C. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low line to high line at rated load. Set-up time is measured at the first cold start; repeated on/off switching may increase it. Application and Selection Examples include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Select this exact mains-plug version and output rating for the equipment. Check the matching socket and all applicable safety requirements before installation.

  Read more less

  $38.44

  View options

•

  View options

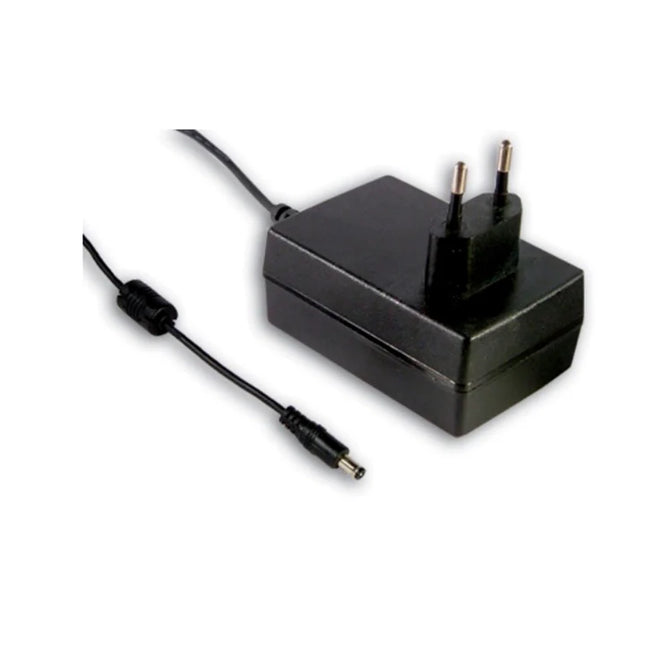

  MEAN WELL GSM25E series: Medical Wall-Plug AC/DC Power Adapter - GSM25E48-P1J

  MEAN WELL GSM25E48-P1J provides 48 V at up to 0.52 A, with a catalogue-rated maximum output of 25 W. This Class II medical wall-plug AC/DC adapter has a two-pole EURO AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25E Datasheet (PDF) The GSM25E section is on PDF pages 44, 45, 46, 47, 48. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25E48-P1J. Series and format GSM25E single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; E denotes the two-pole EURO AC plug; 48 denotes 48 V output; P1J specifies the standard centre-positive output plug. DC output voltage 48 VDC. Rated output current 0.52 A. Output current range 0–0.52 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 240 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Efficiency, typical 88%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole EURO AC plug; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 48 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. EU ErP and CoC Version 5. Use a mains socket suitable for the integral EURO plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 50.4–64.8 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 230 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 14.8 kg per carton. AC plug projection The drawing marks 38 mm from the body to the end of the EURO plug assembly; refer to the drawing for the full base and pin profile. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 0.52 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions EN55011 (CISPR11): Class B. Harmonic current and flicker EN61000-3-2 Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst EN61000-4-4: Level 3, 2 kV. Surge EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF EN61000-4-6: Level 3, 10 V. Magnetic field EN61000-4-8: Level 4, 30 A/m. Dips and interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  Read more less

  $36.47

  View options

•

  View options

  MEAN WELL GSM25E series: Medical Wall-Plug AC/DC Power Adapter - GSM25E24-P1J

  MEAN WELL GSM25E24-P1J provides 24 V at up to 1.04 A, with a catalogue-rated maximum output of 25 W. This Class II medical wall-plug AC/DC adapter has a two-pole EURO AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25E Datasheet (PDF) The GSM25E section is on PDF pages 44, 45, 46, 47, 48. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25E24-P1J. Series and format GSM25E single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; E denotes the two-pole EURO AC plug; 24 denotes 24 V output; P1J specifies the standard centre-positive output plug. DC output voltage 24 VDC. Rated output current 1.04 A. Output current range 0–1.04 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 180 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Efficiency, typical 87%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole EURO AC plug; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 24 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. EU ErP and CoC Version 5. Use a mains socket suitable for the integral EURO plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 25.2–32.4 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 230 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 14.8 kg per carton. AC plug projection The drawing marks 38 mm from the body to the end of the EURO plug assembly; refer to the drawing for the full base and pin profile. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 1.04 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions EN55011 (CISPR11): Class B. Harmonic current and flicker EN61000-3-2 Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst EN61000-4-4: Level 3, 2 kV. Surge EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF EN61000-4-6: Level 3, 10 V. Magnetic field EN61000-4-8: Level 4, 30 A/m. Dips and interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  Read more less

  $36.47

  View options

•

  View options

  MEAN WELL GSM25E series: Medical Wall-Plug AC/DC Power Adapter - GSM25E18-P1J

  MEAN WELL GSM25E18-P1J provides 18 V at up to 1.38 A, with a catalogue-rated maximum output of 25 W. This Class II medical wall-plug AC/DC adapter has a two-pole EURO AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25E Datasheet (PDF) The GSM25E section is on PDF pages 44, 45, 46, 47, 48. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25E18-P1J. Series and format GSM25E single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; E denotes the two-pole EURO AC plug; 18 denotes 18 V output; P1J specifies the standard centre-positive output plug. DC output voltage 18 VDC. Rated output current 1.38 A. Output current range 0–1.38 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 150 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Efficiency, typical 86%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole EURO AC plug; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 18 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. EU ErP and CoC Version 5. Use a mains socket suitable for the integral EURO plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 18.9–25.2 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 230 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 14.8 kg per carton. AC plug projection The drawing marks 38 mm from the body to the end of the EURO plug assembly; refer to the drawing for the full base and pin profile. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 1.38 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions EN55011 (CISPR11): Class B. Harmonic current and flicker EN61000-3-2 Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst EN61000-4-4: Level 3, 2 kV. Surge EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF EN61000-4-6: Level 3, 10 V. Magnetic field EN61000-4-8: Level 4, 30 A/m. Dips and interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  Read more less

  $36.47

  View options

•

  View options

  MEAN WELL GSM25E series: Medical Wall-Plug AC/DC Power Adapter - GSM25E15-P1J

  MEAN WELL GSM25E15-P1J provides 15 V at up to 1.66 A, with a catalogue-rated maximum output of 25 W. This Class II medical wall-plug AC/DC adapter has a two-pole EURO AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25E Datasheet (PDF) The GSM25E section is on PDF pages 44, 45, 46, 47, 48. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25E15-P1J. Series and format GSM25E single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; E denotes the two-pole EURO AC plug; 15 denotes 15 V output; P1J specifies the standard centre-positive output plug. DC output voltage 15 VDC. Rated output current 1.66 A. Output current range 0–1.66 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Efficiency, typical 86%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole EURO AC plug; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 15 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. EU ErP and CoC Version 5. Use a mains socket suitable for the integral EURO plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 15.75–20.25 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 230 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 14.8 kg per carton. AC plug projection The drawing marks 38 mm from the body to the end of the EURO plug assembly; refer to the drawing for the full base and pin profile. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 1.66 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions EN55011 (CISPR11): Class B. Harmonic current and flicker EN61000-3-2 Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst EN61000-4-4: Level 3, 2 kV. Surge EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF EN61000-4-6: Level 3, 10 V. Magnetic field EN61000-4-8: Level 4, 30 A/m. Dips and interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  Read more less

  $36.47

  View options

•

  View options

  MEAN WELL GSM25E series: Medical Wall-Plug AC/DC Power Adapter - GSM25E12-P1J

  MEAN WELL GSM25E12-P1J provides 12 V at up to 2.08 A, with a catalogue-rated maximum output of 25 W. This Class II medical wall-plug AC/DC adapter has a two-pole EURO AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25E Datasheet (PDF) The GSM25E section is on PDF pages 44, 45, 46, 47, 48. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25E12-P1J. Series and format GSM25E single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; E denotes the two-pole EURO AC plug; 12 denotes 12 V output; P1J specifies the standard centre-positive output plug. DC output voltage 12 VDC. Rated output current 2.08 A. Output current range 0–2.08 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Efficiency, typical 86%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole EURO AC plug; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 12 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. EU ErP and CoC Version 5. Use a mains socket suitable for the integral EURO plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 12.6–17.2 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 16 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 230 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 14.8 kg per carton. AC plug projection The drawing marks 38 mm from the body to the end of the EURO plug assembly; refer to the drawing for the full base and pin profile. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 2.08 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions EN55011 (CISPR11): Class B. Harmonic current and flicker EN61000-3-2 Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst EN61000-4-4: Level 3, 2 kV. Surge EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF EN61000-4-6: Level 3, 10 V. Magnetic field EN61000-4-8: Level 4, 30 A/m. Dips and interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  Read more less

  $36.47

  View options

•

  View options

  MEAN WELL GSM25E series: Medical Wall-Plug AC/DC Power Adapter - GSM25E09-P1J

  MEAN WELL GSM25E09-P1J provides 9 V at up to 2.77 A, with a catalogue-rated maximum output of 25 W. This Class II medical wall-plug AC/DC adapter has a two-pole EURO AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25E Datasheet (PDF) The GSM25E section is on PDF pages 44, 45, 46, 47, 48. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25E09-P1J. Series and format GSM25E single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; E denotes the two-pole EURO AC plug; 09 denotes 9 V output; P1J specifies the standard centre-positive output plug. DC output voltage 9 VDC. Rated output current 2.77 A. Output current range 0–2.77 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Efficiency, typical 84%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole EURO AC plug; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level V for this 9 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. EU ErP and CoC Version 5. Use a mains socket suitable for the integral EURO plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 9.45–13 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 16 AWG; 1200 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 230 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 14.8 kg per carton. AC plug projection The drawing marks 38 mm from the body to the end of the EURO plug assembly; refer to the drawing for the full base and pin profile. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 2.77 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions EN55011 (CISPR11): Class B. Harmonic current and flicker EN61000-3-2 Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst EN61000-4-4: Level 3, 2 kV. Surge EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF EN61000-4-6: Level 3, 10 V. Magnetic field EN61000-4-8: Level 4, 30 A/m. Dips and interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  Read more less

  $36.47

  View options

•

  View options

  MEAN WELL GSM25E series: Medical Wall-Plug AC/DC Power Adapter - GSM25E07-P1J

  MEAN WELL GSM25E07-P1J provides 7.5 V at up to 2.93 A, with a catalogue-rated maximum output of 22 W. This Class II medical wall-plug AC/DC adapter has a two-pole EURO AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25E Datasheet (PDF) The GSM25E section is on PDF pages 44, 45, 46, 47, 48. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25E07-P1J. Series and format GSM25E single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; E denotes the two-pole EURO AC plug; 07 denotes 7.5 V output; P1J specifies the standard centre-positive output plug. DC output voltage 7.5 VDC. Rated output current 2.93 A. Output current range 0–2.93 A. Catalogue-rated maximum power 22 W, subject to input and ambient derating. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Efficiency, typical 83%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole EURO AC plug; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level V for this 7.5 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. EU ErP and CoC Version 5. Use a mains socket suitable for the integral EURO plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 7.88–10.5 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 16 AWG; 1200 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 230 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 14.8 kg per carton. AC plug projection The drawing marks 38 mm from the body to the end of the EURO plug assembly; refer to the drawing for the full base and pin profile. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 2.93 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions EN55011 (CISPR11): Class B. Harmonic current and flicker EN61000-3-2 Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst EN61000-4-4: Level 3, 2 kV. Surge EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF EN61000-4-6: Level 3, 10 V. Magnetic field EN61000-4-8: Level 4, 30 A/m. Dips and interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  Read more less

  $36.47

  View options

•

  View options

  MEAN WELL GSM25E series: Medical Wall-Plug AC/DC Power Adapter - GSM25E05-P1J

  MEAN WELL GSM25E05-P1J provides 5 V at up to 4 A, with a catalogue-rated maximum output of 20 W. This Class II medical wall-plug AC/DC adapter has a two-pole EURO AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25E Datasheet (PDF) The GSM25E section is on PDF pages 44, 45, 46, 47, 48. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25E05-P1J. Series and format GSM25E single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; E denotes the two-pole EURO AC plug; 05 denotes 5 V output; P1J specifies the standard centre-positive output plug. DC output voltage 5 VDC. Rated output current 4 A. Output current range 0–4 A. Catalogue-rated maximum power 20 W, subject to input and ambient derating. Ripple and noise, maximum 60 mVp-p. Voltage tolerance ±6.0%. Line regulation ±1.0%. Load regulation ±6.0%. Efficiency, typical 80%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole EURO AC plug; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level V for this 5 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. EU ErP and CoC Version 5. Use a mains socket suitable for the integral EURO plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 5.25–7.5 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 16 AWG; 1200 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 230 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 14.8 kg per carton. AC plug projection The drawing marks 38 mm from the body to the end of the EURO plug assembly; refer to the drawing for the full base and pin profile. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 4 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions EN55011 (CISPR11): Class B. Harmonic current and flicker EN61000-3-2 Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst EN61000-4-4: Level 3, 2 kV. Surge EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF EN61000-4-6: Level 3, 10 V. Magnetic field EN61000-4-8: Level 4, 30 A/m. Dips and interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  Read more less

  $36.47

  View options
