GSM Series: Medical Grade Green Power Adapter

122 products

MEAN WELL GSM18/25/36 Series Medical Power Adapters

  • Product Features
  • General Specifications
  • Series Overview
  • Ordering Information

Product Features

  • Medical Safety Certified: Compliant with IEC 60601-1 standards, featuring 2xMOPP (Means of Patient Protection) isolation.
  • Green Power Design: High efficiency up to 88% and extremely low no-load power consumption.
  • Ultra-Low Leakage Current: Engineered for medical safety with leakage current < 50µA at 264VAC.
  • Universal AC Input: Supports wide input range (80~264VAC), suitable for global medical applications.
  • Comprehensive Protection: Equipped with built-in Short circuit, Overload, and Over voltage protections with auto-recovery.
  • Rugged Reliability: High MTBF (>3800K hours) and vibration resistance; operates reliably in temperatures ranging from -25°C to +60°C.

General Specifications

Item Specification Detail
Input Voltage 80 ~ 264VAC
Operating Temp. -25°C to +60°C
Leakage Current < 50µA / 264VAC
Isolation I/P-O/P: 4KVAC (2xMOPP)
Safety Standards IEC 60601-1, ANSI/AAMI ES60601-1, CAN/CSA C22.2
MTBF ~3887K hours (Telcordia SR-332)

Series Overview

Series Rated Power Output Voltages Features
GSM18 18W 5V, 7.5V, 9V, 12V, 15V, 18V, 24V, 48V Compact, Medical Grade
GSM25 25W 5V, 7.5V, 9V, 12V, 15V, 18V, 24V, 48V Compact, Medical Grade
GSM36 36W 5V, 7.5V, 9V, 12V, 15V, 18V, 24V, 48V Compact, Medical Grade
Applications: Suitable for medical monitoring equipment, portable diagnostic devices, sleep apnea machines, and home healthcare. Various plug types (B/E/U) available.

Product Ordering Code

Component Example Description
Series GSM18 18W Medical Power Adapter
Type B / E / U Connector/Case Variant
Voltage 12 12V DC Output
Plug P1J Standard DC Plug
Example:
GSM18B12-P1J: 18W, 12V output, B-type connector configuration.
GSM36U24-P1J: 36W, 24V output, U-type connector configuration.
  • GSM25U48-P1J

    MEAN WELL GSM25U series: Medical Wall-Plug AC/DC Power Adapter - GSM25U48-P1J

    MEAN WELL GSM25U48-P1J provides 48 V at up to 0.52 A, with a catalogue-rated maximum output of 25 W. This Class II medical wall-plug AC/DC adapter has a two-pole USA AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25U Datasheet (PDF) The GSM25U section is on PDF pages 39, 40, 41, 42, 43. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25U48-P1J. Series and format GSM25U single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; U denotes the two-pole USA AC plug; 48 denotes 48 V output; P1J specifies the standard centre-positive output plug. DC output voltage 48 VDC. Rated output current 0.52 A. Output current range 0–0.52 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 240 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Efficiency, typical 88%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole USA AC plug; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 48 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. USA EISA2007/DoE and Canada NRCan. Use a mains socket suitable for the integral USA plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 50.4–64.8 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 215 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 13.9 kg per carton. AC plug projection The drawing marks 17 mm for the USA plug projection. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 0.52 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2; CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions FCC Part 15 / CISPR22: Class B. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 115 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM25U24-P1J

    MEAN WELL GSM25U series: Medical Wall-Plug AC/DC Power Adapter - GSM25U24-P1J

    MEAN WELL GSM25U24-P1J provides 24 V at up to 1.04 A, with a catalogue-rated maximum output of 25 W. This Class II medical wall-plug AC/DC adapter has a two-pole USA AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25U Datasheet (PDF) The GSM25U section is on PDF pages 39, 40, 41, 42, 43. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25U24-P1J. Series and format GSM25U single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; U denotes the two-pole USA AC plug; 24 denotes 24 V output; P1J specifies the standard centre-positive output plug. DC output voltage 24 VDC. Rated output current 1.04 A. Output current range 0–1.04 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 180 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Efficiency, typical 87%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole USA AC plug; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 24 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. USA EISA2007/DoE and Canada NRCan. Use a mains socket suitable for the integral USA plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 25.2–32.4 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 215 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 13.9 kg per carton. AC plug projection The drawing marks 17 mm for the USA plug projection. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 1.04 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2; CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions FCC Part 15 / CISPR22: Class B. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 115 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM25U18-P1J

    MEAN WELL GSM25U series: Medical Wall-Plug AC/DC Power Adapter - GSM25U18-P1J

    MEAN WELL GSM25U18-P1J provides 18 V at up to 1.38 A, with a catalogue-rated maximum output of 25 W. This Class II medical wall-plug AC/DC adapter has a two-pole USA AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25U Datasheet (PDF) The GSM25U section is on PDF pages 39, 40, 41, 42, 43. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25U18-P1J. Series and format GSM25U single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; U denotes the two-pole USA AC plug; 18 denotes 18 V output; P1J specifies the standard centre-positive output plug. DC output voltage 18 VDC. Rated output current 1.38 A. Output current range 0–1.38 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 150 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Efficiency, typical 87%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole USA AC plug; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 18 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. USA EISA2007/DoE and Canada NRCan. Use a mains socket suitable for the integral USA plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 18.9–25.2 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 215 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 13.9 kg per carton. AC plug projection The drawing marks 17 mm for the USA plug projection. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 1.38 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2; CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions FCC Part 15 / CISPR22: Class B. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 115 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM25U15-P1J

    MEAN WELL GSM25U series: Medical Wall-Plug AC/DC Power Adapter - GSM25U15-P1J

    MEAN WELL GSM25U15-P1J provides 15 V at up to 1.66 A, with a catalogue-rated maximum output of 25 W. This Class II medical wall-plug AC/DC adapter has a two-pole USA AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25U Datasheet (PDF) The GSM25U section is on PDF pages 39, 40, 41, 42, 43. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25U15-P1J. Series and format GSM25U single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; U denotes the two-pole USA AC plug; 15 denotes 15 V output; P1J specifies the standard centre-positive output plug. DC output voltage 15 VDC. Rated output current 1.66 A. Output current range 0–1.66 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Efficiency, typical 87%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole USA AC plug; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 15 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. USA EISA2007/DoE and Canada NRCan. Use a mains socket suitable for the integral USA plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 15.75–20.25 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 215 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 13.9 kg per carton. AC plug projection The drawing marks 17 mm for the USA plug projection. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 1.66 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2; CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions FCC Part 15 / CISPR22: Class B. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 115 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM25U12-P1J

    MEAN WELL GSM25U series: Medical Wall-Plug AC/DC Power Adapter - GSM25U12-P1J

    MEAN WELL GSM25U12-P1J provides 12 V at up to 2.08 A, with a catalogue-rated maximum output of 25 W. This Class II medical wall-plug AC/DC adapter has a two-pole USA AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25U Datasheet (PDF) The GSM25U section is on PDF pages 39, 40, 41, 42, 43. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25U12-P1J. Series and format GSM25U single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; U denotes the two-pole USA AC plug; 12 denotes 12 V output; P1J specifies the standard centre-positive output plug. DC output voltage 12 VDC. Rated output current 2.08 A. Output current range 0–2.08 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Efficiency, typical 86%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole USA AC plug; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 12 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. USA EISA2007/DoE and Canada NRCan. Use a mains socket suitable for the integral USA plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 12.6–17.2 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 16 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 215 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 13.9 kg per carton. AC plug projection The drawing marks 17 mm for the USA plug projection. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 2.08 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2; CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions FCC Part 15 / CISPR22: Class B. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 115 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM25U09-P1J

    MEAN WELL GSM25U series: Medical Wall-Plug AC/DC Power Adapter - GSM25U09-P1J

    MEAN WELL GSM25U09-P1J provides 9 V at up to 2.77 A, with a catalogue-rated maximum output of 25 W. This Class II medical wall-plug AC/DC adapter has a two-pole USA AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25U Datasheet (PDF) The GSM25U section is on PDF pages 39, 40, 41, 42, 43. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25U09-P1J. Series and format GSM25U single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; U denotes the two-pole USA AC plug; 09 denotes 9 V output; P1J specifies the standard centre-positive output plug. DC output voltage 9 VDC. Rated output current 2.77 A. Output current range 0–2.77 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Efficiency, typical 84%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole USA AC plug; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level V for this 9 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. USA EISA2007/DoE and Canada NRCan. Use a mains socket suitable for the integral USA plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 9.45–13 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 16 AWG; 1200 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 215 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 13.9 kg per carton. AC plug projection The drawing marks 17 mm for the USA plug projection. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 2.77 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2; CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions FCC Part 15 / CISPR22: Class B. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 115 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM25U07-P1J

    MEAN WELL GSM25U series: Medical Wall-Plug AC/DC Power Adapter - GSM25U07-P1J

    MEAN WELL GSM25U07-P1J provides 7.5 V at up to 2.93 A, with a catalogue-rated maximum output of 22 W. This Class II medical wall-plug AC/DC adapter has a two-pole USA AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25U Datasheet (PDF) The GSM25U section is on PDF pages 39, 40, 41, 42, 43. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25U07-P1J. Series and format GSM25U single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; U denotes the two-pole USA AC plug; 07 denotes 7.5 V output; P1J specifies the standard centre-positive output plug. DC output voltage 7.5 VDC. Rated output current 2.93 A. Output current range 0–2.93 A. Catalogue-rated maximum power 22 W, subject to input and ambient derating. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Efficiency, typical 83%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole USA AC plug; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level V for this 7.5 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. USA EISA2007/DoE and Canada NRCan. Use a mains socket suitable for the integral USA plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 7.88–10.5 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 16 AWG; 1200 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 215 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 13.9 kg per carton. AC plug projection The drawing marks 17 mm for the USA plug projection. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 2.93 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2; CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions FCC Part 15 / CISPR22: Class B. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 115 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM25U05-P1J

    MEAN WELL GSM25U series: Medical Wall-Plug AC/DC Power Adapter - GSM25U05-P1J

    MEAN WELL GSM25U05-P1J provides 5 V at up to 4 A, with a catalogue-rated maximum output of 20 W. This Class II medical wall-plug AC/DC adapter has a two-pole USA AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25U Datasheet (PDF) The GSM25U section is on PDF pages 39, 40, 41, 42, 43. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25U05-P1J. Series and format GSM25U single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; U denotes the two-pole USA AC plug; 05 denotes 5 V output; P1J specifies the standard centre-positive output plug. DC output voltage 5 VDC. Rated output current 4 A. Output current range 0–4 A. Catalogue-rated maximum power 20 W, subject to input and ambient derating. Ripple and noise, maximum 60 mVp-p. Voltage tolerance ±6.0%. Line regulation ±1.0%. Load regulation ±6.0%. Efficiency, typical 80%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole USA AC plug; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level V for this 5 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. USA EISA2007/DoE and Canada NRCan. Use a mains socket suitable for the integral USA plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 5.25–7.5 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 16 AWG; 1200 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 215 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 13.9 kg per carton. AC plug projection The drawing marks 17 mm for the USA plug projection. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 4 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2; CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions FCC Part 15 / CISPR22: Class B. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 115 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

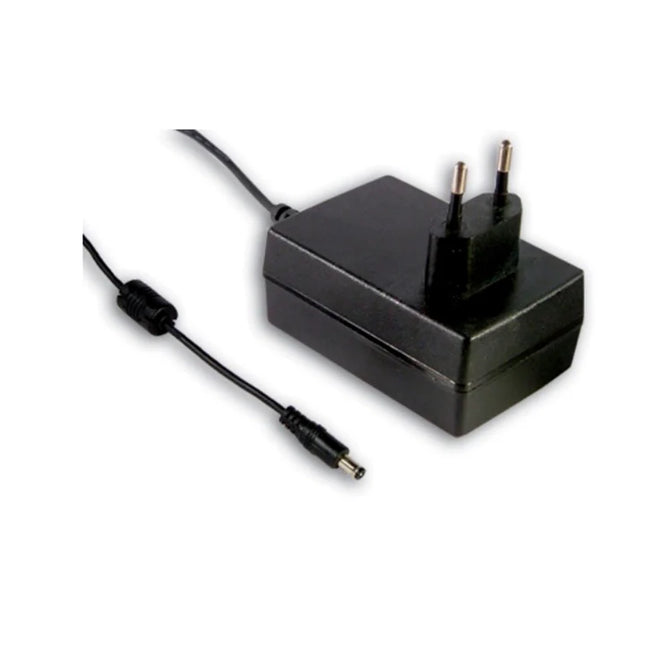

  • GSM25B48-P1J

    MEAN WELL GSM25B series: Medical Desktop AC/DC Power Adapter - GSM25B48-P1J

    MEAN WELL GSM25B48-P1J provides 48 V at up to 0.52 A, with a catalogue-rated maximum output of 25 W. This Class II medical desktop AC/DC adapter has an IEC320-C8 two-pole AC inlet and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25B Datasheet (PDF) The GSM25B section is on PDF pages 34, 35, 36, 37, 38. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25B48-P1J. Series and format GSM25B single-output medical desktop AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; B denotes the IEC320-C8 two-pole AC inlet; 48 denotes 48 V output; P1J specifies the standard centre-positive output plug. DC output voltage 48 VDC. Rated output current 0.52 A. Output current range 0–0.52 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 240 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Efficiency, typical 88%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection IEC320-C8 two-pole AC inlet; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 48 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. USA EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS, EU ErP and CoC Version 5. Select a suitable mains lead for the C8 inlet and local supply; confirm mains-lead inclusion with the order. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 50.4–64.8 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 235 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 15.1 kg per carton. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 0.52 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2; CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) and MSIP KN32: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM25B24-P1J

    MEAN WELL GSM25B series: Medical Desktop AC/DC Power Adapter - GSM25B24-P1J

    MEAN WELL GSM25B24-P1J provides 24 V at up to 1.04 A, with a catalogue-rated maximum output of 25 W. This Class II medical desktop AC/DC adapter has an IEC320-C8 two-pole AC inlet and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25B Datasheet (PDF) The GSM25B section is on PDF pages 34, 35, 36, 37, 38. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25B24-P1J. Series and format GSM25B single-output medical desktop AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; B denotes the IEC320-C8 two-pole AC inlet; 24 denotes 24 V output; P1J specifies the standard centre-positive output plug. DC output voltage 24 VDC. Rated output current 1.04 A. Output current range 0–1.04 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 180 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Efficiency, typical 87%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection IEC320-C8 two-pole AC inlet; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 24 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. USA EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS, EU ErP and CoC Version 5. Select a suitable mains lead for the C8 inlet and local supply; confirm mains-lead inclusion with the order. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 25.2–32.4 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 235 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 15.1 kg per carton. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 1.04 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2; CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) and MSIP KN32: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM25B18-P1J

    MEAN WELL GSM25B series: Medical Desktop AC/DC Power Adapter - GSM25B18-P1J

    MEAN WELL GSM25B18-P1J provides 18 V at up to 1.38 A, with a catalogue-rated maximum output of 25 W. This Class II medical desktop AC/DC adapter has an IEC320-C8 two-pole AC inlet and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25B Datasheet (PDF) The GSM25B section is on PDF pages 34, 35, 36, 37, 38. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25B18-P1J. Series and format GSM25B single-output medical desktop AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; B denotes the IEC320-C8 two-pole AC inlet; 18 denotes 18 V output; P1J specifies the standard centre-positive output plug. DC output voltage 18 VDC. Rated output current 1.38 A. Output current range 0–1.38 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 150 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Efficiency, typical 86%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection IEC320-C8 two-pole AC inlet; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 18 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. USA EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS, EU ErP and CoC Version 5. Select a suitable mains lead for the C8 inlet and local supply; confirm mains-lead inclusion with the order. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 18.9–25.2 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 235 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 15.1 kg per carton. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 1.38 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2; CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) and MSIP KN32: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM25B15-P1J

    MEAN WELL GSM25B series: Medical Desktop AC/DC Power Adapter - GSM25B15-P1J

    MEAN WELL GSM25B15-P1J provides 15 V at up to 1.66 A, with a catalogue-rated maximum output of 25 W. This Class II medical desktop AC/DC adapter has an IEC320-C8 two-pole AC inlet and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25B Datasheet (PDF) The GSM25B section is on PDF pages 34, 35, 36, 37, 38. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25B15-P1J. Series and format GSM25B single-output medical desktop AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; B denotes the IEC320-C8 two-pole AC inlet; 15 denotes 15 V output; P1J specifies the standard centre-positive output plug. DC output voltage 15 VDC. Rated output current 1.66 A. Output current range 0–1.66 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Efficiency, typical 86%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection IEC320-C8 two-pole AC inlet; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 15 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. USA EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS, EU ErP and CoC Version 5. Select a suitable mains lead for the C8 inlet and local supply; confirm mains-lead inclusion with the order. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 15.75–20.25 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 235 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 15.1 kg per carton. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 1.66 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2; CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) and MSIP KN32: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM25B12-P1J

    MEAN WELL GSM25B series: Medical Desktop AC/DC Power Adapter - GSM25B12-P1J

    MEAN WELL GSM25B12-P1J provides 12 V at up to 2.08 A, with a catalogue-rated maximum output of 25 W. This Class II medical desktop AC/DC adapter has an IEC320-C8 two-pole AC inlet and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25B Datasheet (PDF) The GSM25B section is on PDF pages 34, 35, 36, 37, 38. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25B12-P1J. Series and format GSM25B single-output medical desktop AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; B denotes the IEC320-C8 two-pole AC inlet; 12 denotes 12 V output; P1J specifies the standard centre-positive output plug. DC output voltage 12 VDC. Rated output current 2.08 A. Output current range 0–2.08 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Efficiency, typical 86%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection IEC320-C8 two-pole AC inlet; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 12 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. USA EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS, EU ErP and CoC Version 5. Select a suitable mains lead for the C8 inlet and local supply; confirm mains-lead inclusion with the order. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 12.6–17.2 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 16 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 235 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 15.1 kg per carton. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 2.08 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2; CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) and MSIP KN32: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM25B09-P1J

    MEAN WELL GSM25B series: Medical Desktop AC/DC Power Adapter - GSM25B09-P1J

    MEAN WELL GSM25B09-P1J provides 9 V at up to 2.77 A, with a catalogue-rated maximum output of 25 W. This Class II medical desktop AC/DC adapter has an IEC320-C8 two-pole AC inlet and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25B Datasheet (PDF) The GSM25B section is on PDF pages 34, 35, 36, 37, 38. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25B09-P1J. Series and format GSM25B single-output medical desktop AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; B denotes the IEC320-C8 two-pole AC inlet; 09 denotes 9 V output; P1J specifies the standard centre-positive output plug. DC output voltage 9 VDC. Rated output current 2.77 A. Output current range 0–2.77 A. Catalogue-rated maximum power 25 W, subject to input and ambient derating. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Efficiency, typical 84%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection IEC320-C8 two-pole AC inlet; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level V for this 9 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. USA EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS, EU ErP and CoC Version 5. Select a suitable mains lead for the C8 inlet and local supply; confirm mains-lead inclusion with the order. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 9.45–13 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 16 AWG; 1200 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 235 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 15.1 kg per carton. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 2.77 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2; CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) and MSIP KN32: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM25B07-P1J

    MEAN WELL GSM25B series: Medical Desktop AC/DC Power Adapter - GSM25B07-P1J

    MEAN WELL GSM25B07-P1J provides 7.5 V at up to 2.93 A, with a catalogue-rated maximum output of 22 W. This Class II medical desktop AC/DC adapter has an IEC320-C8 two-pole AC inlet and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25B Datasheet (PDF) The GSM25B section is on PDF pages 34, 35, 36, 37, 38. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25B07-P1J. Series and format GSM25B single-output medical desktop AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; B denotes the IEC320-C8 two-pole AC inlet; 07 denotes 7.5 V output; P1J specifies the standard centre-positive output plug. DC output voltage 7.5 VDC. Rated output current 2.93 A. Output current range 0–2.93 A. Catalogue-rated maximum power 22 W, subject to input and ambient derating. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Efficiency, typical 83%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection IEC320-C8 two-pole AC inlet; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level V for this 7.5 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. USA EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS, EU ErP and CoC Version 5. Select a suitable mains lead for the C8 inlet and local supply; confirm mains-lead inclusion with the order. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 7.88–10.5 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 16 AWG; 1200 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 235 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 15.1 kg per carton. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 2.93 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2; CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) and MSIP KN32: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM25B05-P1J

    MEAN WELL GSM25B series: Medical Desktop AC/DC Power Adapter - GSM25B05-P1J

    MEAN WELL GSM25B05-P1J provides 5 V at up to 4 A, with a catalogue-rated maximum output of 20 W. This Class II medical desktop AC/DC adapter has an IEC320-C8 two-pole AC inlet and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM25B Datasheet (PDF) The GSM25B section is on PDF pages 34, 35, 36, 37, 38. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM25B05-P1J. Series and format GSM25B single-output medical desktop AC/DC power adapter. Model code GSM is the medical adapter series; 25 is the power family; B denotes the IEC320-C8 two-pole AC inlet; 05 denotes 5 V output; P1J specifies the standard centre-positive output plug. DC output voltage 5 VDC. Rated output current 4 A. Output current range 0–4 A. Catalogue-rated maximum power 20 W, subject to input and ambient derating. Ripple and noise, maximum 60 mVp-p. Voltage tolerance ±6.0%. Line regulation ±1.0%. Load regulation ±6.0%. Efficiency, typical 80%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection IEC320-C8 two-pole AC inlet; Class II, double-insulated, without FG. AC current, typical 0.7 A at 115 VAC; 0.35 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level V for this 5 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. USA EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS, EU ErP and CoC Version 5. Select a suitable mains lead for the C8 inlet and local supply; confirm mains-lead inclusion with the order. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 5.25–7.5 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 16 AWG; 1200 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 235 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 15.1 kg per carton. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 4 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2; CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) and MSIP KN32: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3887.1 thousand hours, Telcordia SR-332 (Bellcore); 791.9 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM18E48-P1J

    MEAN WELL GSM18E series: Medical Wall-Plug AC/DC Power Adapter - GSM18E48-P1J

    MEAN WELL GSM18E48-P1J provides 48 V at up to 0.375 A, with a catalogue-rated maximum output of 18 W. This Class II medical wall-plug AC/DC adapter has a two-pole EURO AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM18E Datasheet (PDF) The GSM18E section is on PDF pages 29, 30, 31, 32, 33. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM18E48-P1J. Series and format GSM18E single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 18 is the power family; E denotes the two-pole EURO AC plug; 48 denotes 48 V output; P1J specifies the standard centre-positive output plug. DC output voltage 48 VDC. Rated output current 0.375 A. Output current range 0–0.375 A. Catalogue-rated maximum power 18 W, subject to input and ambient derating. Ripple and noise, maximum 240 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Efficiency, typical 88%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole EURO AC plug; Class II, double-insulated, without FG. AC current, typical 0.5 A at 115 VAC; 0.25 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 48 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. EU ErP and CoC Version 5. Use a mains socket suitable for the integral EURO plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 50.4–64.8 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 200 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 13 kg per carton. AC plug projection The drawing marks 38 mm from the body to the end of the EURO plug assembly; refer to the drawing for the full base and pin profile. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 0.375 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions EN55011 (CISPR11): Class B. Harmonic current and flicker EN61000-3-2 Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst EN61000-4-4: Level 3, 2 kV. Surge EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF EN61000-4-6: Level 3, 10 V. Magnetic field EN61000-4-8: Level 4, 30 A/m. Dips and interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3888.9 thousand hours, Telcordia SR-332 (Bellcore); 794.6 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM18E24-P1J

    MEAN WELL GSM18E series: Medical Wall-Plug AC/DC Power Adapter - GSM18E24-P1J

    MEAN WELL GSM18E24-P1J provides 24 V at up to 0.75 A, with a catalogue-rated maximum output of 18 W. This Class II medical wall-plug AC/DC adapter has a two-pole EURO AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM18E Datasheet (PDF) The GSM18E section is on PDF pages 29, 30, 31, 32, 33. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM18E24-P1J. Series and format GSM18E single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 18 is the power family; E denotes the two-pole EURO AC plug; 24 denotes 24 V output; P1J specifies the standard centre-positive output plug. DC output voltage 24 VDC. Rated output current 0.75 A. Output current range 0–0.75 A. Catalogue-rated maximum power 18 W, subject to input and ambient derating. Ripple and noise, maximum 180 mVp-p. Voltage tolerance ±2.0%. Line regulation ±1.0%. Load regulation ±2.0%. Efficiency, typical 87%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole EURO AC plug; Class II, double-insulated, without FG. AC current, typical 0.5 A at 115 VAC; 0.25 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 24 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. EU ErP and CoC Version 5. Use a mains socket suitable for the integral EURO plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 25.2–32.4 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 200 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 13 kg per carton. AC plug projection The drawing marks 38 mm from the body to the end of the EURO plug assembly; refer to the drawing for the full base and pin profile. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 0.75 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions EN55011 (CISPR11): Class B. Harmonic current and flicker EN61000-3-2 Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst EN61000-4-4: Level 3, 2 kV. Surge EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF EN61000-4-6: Level 3, 10 V. Magnetic field EN61000-4-8: Level 4, 30 A/m. Dips and interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3888.9 thousand hours, Telcordia SR-332 (Bellcore); 794.6 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM18E18-P1J

    MEAN WELL GSM18E series: Medical Wall-Plug AC/DC Power Adapter - GSM18E18-P1J

    MEAN WELL GSM18E18-P1J provides 18 V at up to 1 A, with a catalogue-rated maximum output of 18 W. This Class II medical wall-plug AC/DC adapter has a two-pole EURO AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM18E Datasheet (PDF) The GSM18E section is on PDF pages 29, 30, 31, 32, 33. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM18E18-P1J. Series and format GSM18E single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 18 is the power family; E denotes the two-pole EURO AC plug; 18 denotes 18 V output; P1J specifies the standard centre-positive output plug. DC output voltage 18 VDC. Rated output current 1 A. Output current range 0–1 A. Catalogue-rated maximum power 18 W, subject to input and ambient derating. Ripple and noise, maximum 150 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Efficiency, typical 86%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole EURO AC plug; Class II, double-insulated, without FG. AC current, typical 0.5 A at 115 VAC; 0.25 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 18 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. EU ErP and CoC Version 5. Use a mains socket suitable for the integral EURO plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 18.9–24.3 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 200 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 13 kg per carton. AC plug projection The drawing marks 38 mm from the body to the end of the EURO plug assembly; refer to the drawing for the full base and pin profile. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 1 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions EN55011 (CISPR11): Class B. Harmonic current and flicker EN61000-3-2 Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst EN61000-4-4: Level 3, 2 kV. Surge EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF EN61000-4-6: Level 3, 10 V. Magnetic field EN61000-4-8: Level 4, 30 A/m. Dips and interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3888.9 thousand hours, Telcordia SR-332 (Bellcore); 794.6 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM18E15-P1J

    MEAN WELL GSM18E series: Medical Wall-Plug AC/DC Power Adapter - GSM18E15-P1J

    MEAN WELL GSM18E15-P1J provides 15 V at up to 1.2 A, with a catalogue-rated maximum output of 18 W. This Class II medical wall-plug AC/DC adapter has a two-pole EURO AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM18E Datasheet (PDF) The GSM18E section is on PDF pages 29, 30, 31, 32, 33. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM18E15-P1J. Series and format GSM18E single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 18 is the power family; E denotes the two-pole EURO AC plug; 15 denotes 15 V output; P1J specifies the standard centre-positive output plug. DC output voltage 15 VDC. Rated output current 1.2 A. Output current range 0–1.2 A. Catalogue-rated maximum power 18 W, subject to input and ambient derating. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Efficiency, typical 85.5%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole EURO AC plug; Class II, double-insulated, without FG. AC current, typical 0.5 A at 115 VAC; 0.25 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 15 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. EU ErP and CoC Version 5. Use a mains socket suitable for the integral EURO plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 15.75–20.25 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 200 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 13 kg per carton. AC plug projection The drawing marks 38 mm from the body to the end of the EURO plug assembly; refer to the drawing for the full base and pin profile. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 1.2 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions EN55011 (CISPR11): Class B. Harmonic current and flicker EN61000-3-2 Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst EN61000-4-4: Level 3, 2 kV. Surge EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF EN61000-4-6: Level 3, 10 V. Magnetic field EN61000-4-8: Level 4, 30 A/m. Dips and interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3888.9 thousand hours, Telcordia SR-332 (Bellcore); 794.6 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM18E12-P1J

    MEAN WELL GSM18E series: Medical Wall-Plug AC/DC Power Adapter - GSM18E12-P1J

    MEAN WELL GSM18E12-P1J provides 12 V at up to 1.5 A, with a catalogue-rated maximum output of 18 W. This Class II medical wall-plug AC/DC adapter has a two-pole EURO AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM18E Datasheet (PDF) The GSM18E section is on PDF pages 29, 30, 31, 32, 33. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM18E12-P1J. Series and format GSM18E single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 18 is the power family; E denotes the two-pole EURO AC plug; 12 denotes 12 V output; P1J specifies the standard centre-positive output plug. DC output voltage 12 VDC. Rated output current 1.5 A. Output current range 0–1.5 A. Catalogue-rated maximum power 18 W, subject to input and ambient derating. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Efficiency, typical 85%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole EURO AC plug; Class II, double-insulated, without FG. AC current, typical 0.5 A at 115 VAC; 0.25 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level VI for this 12 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. EU ErP and CoC Version 5. Use a mains socket suitable for the integral EURO plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 12.6–17.2 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 18 AWG; 1800 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 200 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 13 kg per carton. AC plug projection The drawing marks 38 mm from the body to the end of the EURO plug assembly; refer to the drawing for the full base and pin profile. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 1.5 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions EN55011 (CISPR11): Class B. Harmonic current and flicker EN61000-3-2 Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst EN61000-4-4: Level 3, 2 kV. Surge EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF EN61000-4-6: Level 3, 10 V. Magnetic field EN61000-4-8: Level 4, 30 A/m. Dips and interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3888.9 thousand hours, Telcordia SR-332 (Bellcore); 794.6 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM18E09-P1J

    MEAN WELL GSM18E series: Medical Wall-Plug AC/DC Power Adapter - GSM18E09-P1J

    MEAN WELL GSM18E09-P1J provides 9 V at up to 2 A, with a catalogue-rated maximum output of 18 W. This Class II medical wall-plug AC/DC adapter has a two-pole EURO AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM18E Datasheet (PDF) The GSM18E section is on PDF pages 29, 30, 31, 32, 33. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM18E09-P1J. Series and format GSM18E single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 18 is the power family; E denotes the two-pole EURO AC plug; 09 denotes 9 V output; P1J specifies the standard centre-positive output plug. DC output voltage 9 VDC. Rated output current 2 A. Output current range 0–2 A. Catalogue-rated maximum power 18 W, subject to input and ambient derating. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Efficiency, typical 84%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole EURO AC plug; Class II, double-insulated, without FG. AC current, typical 0.5 A at 115 VAC; 0.25 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level V for this 9 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. EU ErP and CoC Version 5. Use a mains socket suitable for the integral EURO plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 9.45–12.6 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 16 AWG; 1200 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 200 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 13 kg per carton. AC plug projection The drawing marks 38 mm from the body to the end of the EURO plug assembly; refer to the drawing for the full base and pin profile. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 2 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions EN55011 (CISPR11): Class B. Harmonic current and flicker EN61000-3-2 Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst EN61000-4-4: Level 3, 2 kV. Surge EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF EN61000-4-6: Level 3, 10 V. Magnetic field EN61000-4-8: Level 4, 30 A/m. Dips and interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3888.9 thousand hours, Telcordia SR-332 (Bellcore); 794.6 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM18E07-P1J

    MEAN WELL GSM18E series: Medical Wall-Plug AC/DC Power Adapter - GSM18E07-P1J

    MEAN WELL GSM18E07-P1J provides 7.5 V at up to 2 A, with a catalogue-rated maximum output of 15 W. This Class II medical wall-plug AC/DC adapter has a two-pole EURO AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM18E Datasheet (PDF) The GSM18E section is on PDF pages 29, 30, 31, 32, 33. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM18E07-P1J. Series and format GSM18E single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 18 is the power family; E denotes the two-pole EURO AC plug; 07 denotes 7.5 V output; P1J specifies the standard centre-positive output plug. DC output voltage 7.5 VDC. Rated output current 2 A. Output current range 0–2 A. Catalogue-rated maximum power 15 W, subject to input and ambient derating. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Efficiency, typical 83%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole EURO AC plug; Class II, double-insulated, without FG. AC current, typical 0.5 A at 115 VAC; 0.25 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level V for this 7.5 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. EU ErP and CoC Version 5. Use a mains socket suitable for the integral EURO plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 7.88–10.13 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 16 AWG; 1200 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 200 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 13 kg per carton. AC plug projection The drawing marks 38 mm from the body to the end of the EURO plug assembly; refer to the drawing for the full base and pin profile. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 2 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions EN55011 (CISPR11): Class B. Harmonic current and flicker EN61000-3-2 Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst EN61000-4-4: Level 3, 2 kV. Surge EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF EN61000-4-6: Level 3, 10 V. Magnetic field EN61000-4-8: Level 4, 30 A/m. Dips and interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3888.9 thousand hours, Telcordia SR-332 (Bellcore); 794.6 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.

  • GSM18E05-P1J

    MEAN WELL GSM18E series: Medical Wall-Plug AC/DC Power Adapter - GSM18E05-P1J

    MEAN WELL GSM18E05-P1J provides 5 V at up to 3 A, with a catalogue-rated maximum output of 15 W. This Class II medical wall-plug AC/DC adapter has a two-pole EURO AC plug and a centre-positive P1J output. Select the load within the stated current, power and derating limits. Product Datasheet Download MEAN WELL GSM18E Datasheet (PDF) The GSM18E section is on PDF pages 29, 30, 31, 32, 33. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM18E05-P1J. Series and format GSM18E single-output medical wall-plug AC/DC power adapter. Model code GSM is the medical adapter series; 18 is the power family; E denotes the two-pole EURO AC plug; 05 denotes 5 V output; P1J specifies the standard centre-positive output plug. DC output voltage 5 VDC. Rated output current 3 A. Output current range 0–3 A. Catalogue-rated maximum power 15 W, subject to input and ambient derating. Ripple and noise, maximum 60 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Efficiency, typical 80%. Keep the load within the rated current, output voltage and maximum power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Frequency 47–63 Hz. Input connection two-pole EURO AC plug; Class II, double-insulated, without FG. AC current, typical 0.5 A at 115 VAC; 0.25 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 55 A at 230 VAC. Set-up / rise time 500 / 30 ms at 230 VAC; 1000 / 30 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC and at 115 VAC, at full load. Touch leakage current <50 µA at 264 VAC. No-load consumption <0.1 W. Energy efficiency Level V for this 5 V model. The series distinguishes 5–9 V Level V and 12–48 V Level VI. EU ErP and CoC Version 5. Use a mains socket suitable for the integral EURO plug and input rating. Protection Short circuit / overload 105–170% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 5.25–7.5 V; output shutdown, re-power to recover. Derating and Environment Working temperature −25 to +60°C, subject to the load curve. Horizontal temperature curve 100% load from −25 to 40°C, falling to 80% at 60°C. Use the plotted curve between these points. Static input curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage and ambient-temperature derating together. Keep the enclosure clear for normal heat dissipation. Mechanical Details and Connection Body dimensions, L × W × H 79 × 54 × 33 mm; mechanical drawing tolerance ±1 mm. Case and indicator 94V-0 flame-retardant plastic enclosure, double insulation and a power-on LED. Output cable UL1185, 16 AWG; 1200 ±50 mm. Standard P1J output Tuning-fork plug, 5.5 mm outside diameter × 2.1 mm inside diameter × 11 ±0.5 mm insertion length; centre positive (C+), outside negative. Cable-end drawing detail 70 ±10 mm between the indicated cable-end features; follow the complete drawing for routing. Catalogue single-unit weight 200 g, explicitly listed in PACKING; a catalogue reference, not a measured shipment weight. Packing 60 pieces / 13 kg per carton. AC plug projection The drawing marks 38 mm from the body to the end of the EURO plug assembly; refer to the drawing for the full base and pin profile. Match the DC plug dimensions and polarity to the equipment before connection. Allow space for the inlet or plug, cable and connector. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom cable termination is subject to MOQ. Quick adapters are sold separately without MOQ; these are options, not additional included plugs or outputs. Tuning-fork styles OD / ID / length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1M 5.5 / 2.5 / 11. Right-angle options: P1IR 5.5 / 2.1 / 9.5; P1JR 5.5 / 2.1 / 11; P1LR 5.5 / 2.5 / 9.5; P1MR 5.5 / 2.5 / 11. Quick adapters are listed at 7.5 A maximum. Barrel styles P2I / P2IR 5.5 / 2.1 / 9.5 mm; P2J / P2JR 5.5 / 2.1 / 11 mm; P2L / P2LR 5.5 / 2.5 / 9.5 mm; P2M / P2MR 5.5 / 2.5 / 11 mm. R denotes right-angle form. Custom cable options; no quick adapter is listed. Locking styles P2S (S761K) 5.53 / 2.03 / 12.06 mm; P2K (761K) 5.53 / 2.54 / 12.06 mm; P2C (S760K) 5.53 / 2.03 / 9.52 mm; P2D (760K) 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; custom options without a listed quick adapter. Mini-pin styles P3A 2.35 / 0.7 / 11 mm; P3B 4.0 / 1.7 / 11 mm; P3C 4.75 / 1.7 / 11 mm. EIAJ equivalent; quick adapters rated 5 A maximum. Centre-pin styles OD / ID / length / centre pin in mm: P4A 5.5 / 3.4 / 11 / 1.0; P4B 6.5 / 4.4 / 11 / 1.4; P4C 7.4 / 5.1 / 11 / 0.6. EIAJ equivalent; quick adapters rated 7.5 A maximum. Confirm dimensions, voltage, polarity and load current for the complete mating interface. An accessory current rating does not increase this adapter’s 3 A output rating. Optional DIN Connectors and Lead Ends R6B Three-pin male locking mini-DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Quick adapter: 7.5 A maximum. R7B Four-pin male locking mini-DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Quick adapter: 7.5 A maximum. R7BF Four-pin female locking mini-DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom cable option; no quick adapter is listed. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Quick adapter: 7.5 A maximum. Stripped and tinned leads By customer request: lead 1 +Vo and lead 2 −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Colours in the drawing are reference only; follow the actual supplied product. Use the connector drawing view to identify pin numbers. Custom cable terminations are alternatives to the standard P1J connector. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; BS EN/EN60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF and home-healthcare applications The series is marked BF-rated and lists medical and home-healthcare standards. Select the complete equipment insulation and applied-part design for the intended use. The adapter is a power component; its approvals do not replace safety and EMC assessment of the completed medical equipment. EMC Conducted and radiated emissions EN55011 (CISPR11): Class B. Harmonic current and flicker EN61000-3-2 Class A; EN61000-3-3. Immunity framework EN60601-1-2 and EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / burst EN61000-4-4: Level 3, 2 kV. Surge EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF EN61000-4-6: Level 3, 10 V. Magnetic field EN61000-4-8: Level 4, 30 A/m. Dips and interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, 100% interruption for 250 periods. Reconfirm that the complete equipment meets the applicable EMC requirements. Reliability, Applications and Measurement Conditions MTBF, minimum 3888.9 thousand hours, Telcordia SR-332 (Bellcore); 794.6 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Listed applications include blood glucose meters, blood pressure meters, nebulizers, inhalers and portable medical devices. Match the equipment load and connection requirements to this model. Unless otherwise specified, test conditions are 230 VAC input, rated load, 25°C and 70% RH. DC output voltage is set at the plug terminal at 50% load. Ripple and noise are measured with 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high input at rated load. Set-up time is measured on the first cold start; repeated ON/OFF cycling may increase it. Follow the supplied product marking and the manufacturer’s installation instructions.


You have seen 72 out of 122 products
