  MEAN WELL GSM120B series: Medical Desktop AC/DC Power Adapter - GSM120B12-R7B

  MEAN WELL GSM120B12-R7B is a 12 V, 8.5 A desktop medical AC/DC adapter with a catalogue-rated maximum output of 102 W. Its Class II IEC320-C8 inlet and R7B output connector define the connection format. Apply the stated input, ambient-temperature and connector-current limits when selecting the load. Product Datasheet Download MEAN WELL GSM120B Datasheet (PDF) The GSM120B section is on PDF pages 36, 37, 38, 39, 40. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM120B12-R7B. Series and format GSM120B single-output desktop medical AC/DC power adapter. Model code GSM identifies the adapter series; 120 the power family; B the Class II C8 inlet; 12 the nominal output voltage; R7B the standard DC connector. DC output voltage 12 VDC. Rated output current 8.5 A. Output current range 0–8.5 A. Catalogue-rated output power, maximum 102 W; subject to input and ambient derating. Ripple and noise, maximum 100 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Efficiency, typical 88%. Select the load to stay within the rated current, output voltage and maximum output-power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Input frequency 47–63 Hz. AC inlet and class IEC320-C8; Class II, two-pole inlet without FG. Power factor, typical >0.93 at 230 VAC; >0.97 at 115 VAC, at full load. Input current, typical 1.4 A at 115 VAC; 0.7 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up and rise times At full load: 1500 / 30 ms at 230 VAC; 2000 / 30 ms at 115 VAC. Hold-up time, typical At full load: 40 ms at 230 VAC; 24 ms at 115 VAC. Touch leakage current <100 µA at 264 VAC. No-load consumption <0.15 W. Energy efficiency Level VI and CoC Version 5; EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP are listed for the series. Choose an AC mains lead appropriate to the IEC320-C8 inlet and local supply. Confirm whether the mains lead is included with the order. Protection Short circuit / overload 105–160% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, with re-power required for recovery. Overtemperature Output shutdown; re-power to recover. Derating and Environment Working ambient −30 to +70°C, subject to derating. Horizontal temperature curve 100% load through 40°C; 80% at 50°C; 50% at 70°C. Use the plotted curve between these points. Input-voltage curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Operating altitude Up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage, ambient-temperature and altitude derating together. Maintain free airflow around the enclosure. Mechanical Details and Standard Connection Dimensions, L × W × H 167 × 67 × 35 mm; mechanical drawing tolerance ±1 mm. Enclosure and indicator Enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. Output cable UL2464, 16 AWG × 4 conductors; length 1000 ±50 mm. Standard output connector R7B four-pin male locking power DIN; KYCON KPPX-4P equivalent. Pins 1 and 4: +Vo; pins 2 and 3: −Vo. Follow the drawing view when identifying contacts. Grounding and polarity Class II input has no FG connection. Use both positive and both negative contacts as specified in the connector drawing. Catalogue single-unit weight 600 g, from the explicit 0.6 kg single-unit PACKING entry; a catalogue reference, not a measured shipping weight. Packing 20 pieces / 13 kg / 0.89 CUFT. Allow space for the inlet, cable, ferrite and connector. Use the complete mechanical drawing for cable routing and connector orientation. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom DC-plug changes are subject to MOQ. Quick adapters are separately sold without MOQ; they are not included with the standard -R7B unit. P1J and P1M P1J / P1M quick adapters are listed only for 15–48 V models and are rated 7.5 A maximum. This 12 V, 8.5 A model is excluded from that listed quick-adapter range, and a 7.5 A adapter cannot carry its full rated output. Retain the standard R7B connection or obtain a specifically approved custom termination. P1J is 5.5 mm OD / 2.1 mm ID / 11 mm long; P1M is 5.5 / 2.5 / 11 mm. Both are straight tuning-fork types. R7BF Four-pin female locking DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo; pins 2 and 3 −Vo. Custom option, without a listed quick adapter. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Custom option, without a listed quick adapter. MIC4 NEUTRIK XLR NC4FX equivalent: pins 1 and 2 +Vo; pins 3 and 4 −Vo. Custom option, without a listed quick adapter. C6P MOLEX 39-01-2060 (4.2 mm) equivalent: pins 1–3 +Vo; pins 4–6 −Vo. FG is not connected to the output connector. Custom option, without a listed quick adapter. C4P AMP 1-480702-0 (6.35 mm) equivalent: pins 1 and 2 +Vo; pins 3 and 4 −Vo. FG is not connected to the output connector. Custom option, without a listed quick adapter. Stripped and tinned leads By customer request. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Reference colours: red/blue +Vo and black/white −Vo; verify the actual supplied lead identification. Match the connector, voltage, current and polarity to the equipment. Use the drawing view for pin numbering; custom terminations are alternatives to the standard plug. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF application The series is marked BF-rated and lists medical home-healthcare standards; assess the completed medical equipment and applied-part design for the intended use. The adapter is a power component. Its listed approvals do not replace final-system safety, EMC and applied-part assessment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m from 80 MHz to 2.7 GHz; Table 9, 9–28 V/m from 385 MHz to 5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Reliability, Applications and Test Conditions MTBF, minimum 2546.9 thousand hours, Telcordia SR-332 (Bellcore); 372.0 thousand hours, MIL-HDBK-217F at 25°C. Series lifetime statement >105 thousand hours is listed for the series; select operating conditions appropriate to the required service life. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Applications listed for the series include mobile clinical workstations, oral irrigators, portable haemodialysis equipment, breathing equipment and medical computer monitors. Choose the complete configuration for the equipment’s load, insulation and connection requirements. Unless otherwise stated, specifications use 230 VAC input, rated load, 25°C and 70% RH. Output voltage is set at the plug terminal at 50% load. Ripple and noise use 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high line at rated load. Set-up time is measured at the first cold start. Repeated power cycling may increase start-up time. Follow the manufacturer’s installation instructions and the complete mechanical and electrical drawings.

  Read more less

  $114.84

  View options

•

  View options

  MEAN WELL GSM120A series: Medical Desktop AC/DC Power Adapter - GSM120A48-R7B

  MEAN WELL GSM120A48-R7B is a 48 V, 2.5 A desktop medical AC/DC adapter with a catalogue-rated maximum output of 120 W. Its Class I IEC320-C14 inlet and R7B output connector define the connection format. Apply the stated input, ambient-temperature and connector-current limits when selecting the load. Product Datasheet Download MEAN WELL GSM120A Datasheet (PDF) The GSM120A section is on PDF pages 31, 32, 33, 34, 35. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM120A48-R7B. Series and format GSM120A single-output desktop medical AC/DC power adapter. Model code GSM identifies the adapter series; 120 the power family; A the Class I C14 inlet; 48 the nominal output voltage; R7B the standard DC connector. DC output voltage 48 VDC. Rated output current 2.5 A. Output current range 0–2.5 A. Catalogue-rated output power, maximum 120 W; subject to input and ambient derating. Ripple and noise, maximum 200 mVp-p. Voltage tolerance ±2.5%. Line regulation ±1.0%. Load regulation ±2.5%. Efficiency, typical 91.5%. Select the load to stay within the rated current, output voltage and maximum output-power limits simultaneously. Input and Energy Input voltage 80–264 VAC. Input frequency 47–63 Hz. AC inlet and class IEC320-C14; Class I, three-pole inlet with protective earth. Power factor, typical >0.93 at 230 VAC; >0.97 at 115 VAC, at full load. Input current, typical 1.4 A at 115 VAC; 0.7 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up and rise times At full load: 1500 / 30 ms at 230 VAC; 2000 / 30 ms at 115 VAC. Hold-up time, typical At full load: 40 ms at 230 VAC; 24 ms at 115 VAC. Touch leakage current <100 µA at 264 VAC. Earth leakage current <115 µA at 264 VAC. No-load consumption <0.15 W. Energy efficiency Level VI and CoC Version 5; EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP are listed for the series. Choose an AC mains lead appropriate to the IEC320-C14 inlet and local supply. Confirm whether the mains lead is included with the order. Protection Short circuit / overload 105–160% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, with re-power required for recovery. Overtemperature Output shutdown; re-power to recover. Derating and Environment Working ambient −30 to +70°C, subject to derating. Horizontal temperature curve 100% load through 40°C; 80% at 50°C; 50% at 70°C. Use the plotted curve between these points. Input-voltage curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Operating altitude Up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage, ambient-temperature and altitude derating together. Maintain free airflow around the enclosure. Mechanical Details and Standard Connection Dimensions, L × W × H 167 × 67 × 35 mm; mechanical drawing tolerance ±1 mm. Enclosure and indicator Enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. Output cable UL2464, 18 AWG × 4 conductors; length 1200 ±50 mm. Standard output connector R7B four-pin male locking power DIN; KYCON KPPX-4P equivalent. Pins 1 and 4: +Vo; pins 2 and 3: −Vo. Follow the drawing view when identifying contacts. Grounding and polarity The R7B outer shell is connected to AC FG; output −V is not connected to AC FG. Catalogue single-unit weight 600 g, from the explicit 0.6 kg single-unit PACKING entry; a catalogue reference, not a measured shipping weight. Packing 20 pieces / 13 kg / 0.89 CUFT. Allow space for the inlet, cable, ferrite and connector. Use the complete mechanical drawing for cable routing and connector orientation. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom DC-plug changes are subject to MOQ. Quick adapters are separately sold without MOQ; they are not included with the standard -R7B unit. P1J and P1M P1J / P1M quick adapters are listed only for 15–48 V models and are rated 7.5 A maximum. This 48 V model is within the listed voltage range; keep the load within both its 2.5 A output rating and the adapter limit. P1J is 5.5 mm OD / 2.1 mm ID / 11 mm long; P1M is 5.5 / 2.5 / 11 mm. Both are straight tuning-fork types. R7BF Four-pin female locking DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo; pins 2 and 3 −Vo. Custom option, without a listed quick adapter. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Custom option, without a listed quick adapter. MIC4 NEUTRIK XLR NC4FX equivalent: pins 1 and 2 +Vo; pins 3 and 4 −Vo. Custom option, without a listed quick adapter. C6P MOLEX 39-01-2060 (4.2 mm) equivalent: pins 1–3 +Vo; pins 4–6 −Vo. FG is not connected to the output connector. Custom option, without a listed quick adapter. C4P AMP 1-480702-0 (6.35 mm) equivalent: pins 1 and 2 +Vo; pins 3 and 4 −Vo. FG is not connected to the output connector. Custom option, without a listed quick adapter. Stripped and tinned leads By customer request. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Reference colours: red/blue +Vo and black/white −Vo; verify the actual supplied lead identification. Match the connector, voltage, current and polarity to the equipment. Use the drawing view for pin numbering; custom terminations are alternatives to the standard plug. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005/A2:2021; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Primary to earth: 1 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. Input-to-FG withstand 2 kVAC. Output-to-FG condition 0.5 kVAC in the standard configuration. The 1.5 kVAC BF-rated version is an option to specify separately. The adapter is a power component. Its listed approvals do not replace final-system safety, EMC and applied-part assessment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m from 80 MHz to 2.7 GHz; Table 9, 9–28 V/m from 385 MHz to 5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line; 2 kV line-to-FG. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Reliability, Applications and Test Conditions MTBF, minimum 2413.9 thousand hours, Telcordia SR-332 (Bellcore); 388.5 thousand hours, MIL-HDBK-217F at 25°C. Series lifetime statement >95 thousand hours is listed for the series; select operating conditions appropriate to the required service life. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Applications listed for the series include mobile clinical workstations, oral irrigators, portable haemodialysis equipment, breathing equipment and medical computer monitors. Choose the complete configuration for the equipment’s load, insulation and connection requirements. Unless otherwise stated, specifications use 230 VAC input, rated load, 25°C and 70% RH. Output voltage is set at the plug terminal at 50% load. Ripple and noise use 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high line at rated load. Set-up time is measured at the first cold start. Repeated power cycling may increase start-up time. Follow the manufacturer’s installation instructions and the complete mechanical and electrical drawings.

  Read more less

  $114.84

  View options

•

  View options

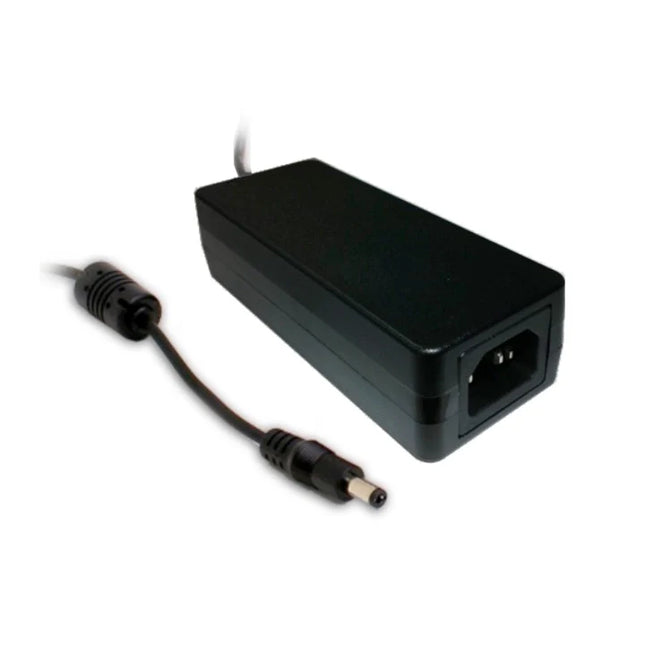

  MEAN WELL GSM120A series: Medical Desktop AC/DC Power Adapter - GSM120A24-R7B

  MEAN WELL GSM120A24-R7B is a 24 V, 5 A desktop medical AC/DC adapter with a catalogue-rated maximum output of 120 W. Its Class I IEC320-C14 inlet and R7B output connector define the connection format. Apply the stated input, ambient-temperature and connector-current limits when selecting the load. Product Datasheet Download MEAN WELL GSM120A Datasheet (PDF) The GSM120A section is on PDF pages 31, 32, 33, 34, 35. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM120A24-R7B. Series and format GSM120A single-output desktop medical AC/DC power adapter. Model code GSM identifies the adapter series; 120 the power family; A the Class I C14 inlet; 24 the nominal output voltage; R7B the standard DC connector. DC output voltage 24 VDC. Rated output current 5 A. Output current range 0–5 A. Catalogue-rated output power, maximum 120 W; subject to input and ambient derating. Ripple and noise, maximum 180 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Efficiency, typical 90%. Select the load to stay within the rated current, output voltage and maximum output-power limits simultaneously. Input and Energy Input voltage 80–264 VAC. Input frequency 47–63 Hz. AC inlet and class IEC320-C14; Class I, three-pole inlet with protective earth. Power factor, typical >0.93 at 230 VAC; >0.97 at 115 VAC, at full load. Input current, typical 1.4 A at 115 VAC; 0.7 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up and rise times At full load: 1500 / 30 ms at 230 VAC; 2000 / 30 ms at 115 VAC. Hold-up time, typical At full load: 40 ms at 230 VAC; 24 ms at 115 VAC. Touch leakage current <100 µA at 264 VAC. Earth leakage current <115 µA at 264 VAC. No-load consumption <0.15 W. Energy efficiency Level VI and CoC Version 5; EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP are listed for the series. Choose an AC mains lead appropriate to the IEC320-C14 inlet and local supply. Confirm whether the mains lead is included with the order. Protection Short circuit / overload 105–160% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, with re-power required for recovery. Overtemperature Output shutdown; re-power to recover. Derating and Environment Working ambient −30 to +70°C, subject to derating. Horizontal temperature curve 100% load through 40°C; 80% at 50°C; 50% at 70°C. Use the plotted curve between these points. Input-voltage curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Operating altitude Up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage, ambient-temperature and altitude derating together. Maintain free airflow around the enclosure. Mechanical Details and Standard Connection Dimensions, L × W × H 167 × 67 × 35 mm; mechanical drawing tolerance ±1 mm. Enclosure and indicator Enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. Output cable UL2464, 18 AWG × 4 conductors; length 1200 ±50 mm. Standard output connector R7B four-pin male locking power DIN; KYCON KPPX-4P equivalent. Pins 1 and 4: +Vo; pins 2 and 3: −Vo. Follow the drawing view when identifying contacts. Grounding and polarity The R7B outer shell is connected to AC FG; output −V is not connected to AC FG. Catalogue single-unit weight 600 g, from the explicit 0.6 kg single-unit PACKING entry; a catalogue reference, not a measured shipping weight. Packing 20 pieces / 13 kg / 0.89 CUFT. Allow space for the inlet, cable, ferrite and connector. Use the complete mechanical drawing for cable routing and connector orientation. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom DC-plug changes are subject to MOQ. Quick adapters are separately sold without MOQ; they are not included with the standard -R7B unit. P1J and P1M P1J / P1M quick adapters are listed only for 15–48 V models and are rated 7.5 A maximum. This 24 V model is within the listed voltage range; keep the load within both its 5 A output rating and the adapter limit. P1J is 5.5 mm OD / 2.1 mm ID / 11 mm long; P1M is 5.5 / 2.5 / 11 mm. Both are straight tuning-fork types. R7BF Four-pin female locking DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo; pins 2 and 3 −Vo. Custom option, without a listed quick adapter. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Custom option, without a listed quick adapter. MIC4 NEUTRIK XLR NC4FX equivalent: pins 1 and 2 +Vo; pins 3 and 4 −Vo. Custom option, without a listed quick adapter. C6P MOLEX 39-01-2060 (4.2 mm) equivalent: pins 1–3 +Vo; pins 4–6 −Vo. FG is not connected to the output connector. Custom option, without a listed quick adapter. C4P AMP 1-480702-0 (6.35 mm) equivalent: pins 1 and 2 +Vo; pins 3 and 4 −Vo. FG is not connected to the output connector. Custom option, without a listed quick adapter. Stripped and tinned leads By customer request. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Reference colours: red/blue +Vo and black/white −Vo; verify the actual supplied lead identification. Match the connector, voltage, current and polarity to the equipment. Use the drawing view for pin numbering; custom terminations are alternatives to the standard plug. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005/A2:2021; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Primary to earth: 1 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. Input-to-FG withstand 2 kVAC. Output-to-FG condition 0.5 kVAC in the standard configuration. The 1.5 kVAC BF-rated version is an option to specify separately. The adapter is a power component. Its listed approvals do not replace final-system safety, EMC and applied-part assessment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m from 80 MHz to 2.7 GHz; Table 9, 9–28 V/m from 385 MHz to 5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line; 2 kV line-to-FG. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Reliability, Applications and Test Conditions MTBF, minimum 2413.9 thousand hours, Telcordia SR-332 (Bellcore); 388.5 thousand hours, MIL-HDBK-217F at 25°C. Series lifetime statement >95 thousand hours is listed for the series; select operating conditions appropriate to the required service life. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Applications listed for the series include mobile clinical workstations, oral irrigators, portable haemodialysis equipment, breathing equipment and medical computer monitors. Choose the complete configuration for the equipment’s load, insulation and connection requirements. Unless otherwise stated, specifications use 230 VAC input, rated load, 25°C and 70% RH. Output voltage is set at the plug terminal at 50% load. Ripple and noise use 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high line at rated load. Set-up time is measured at the first cold start. Repeated power cycling may increase start-up time. Follow the manufacturer’s installation instructions and the complete mechanical and electrical drawings.

  Read more less

  $114.84

  View options

•

  View options

  MEAN WELL GSM120A series: Medical Desktop AC/DC Power Adapter - GSM120A20-R7B

  MEAN WELL GSM120A20-R7B is a 20 V, 6 A desktop medical AC/DC adapter with a catalogue-rated maximum output of 120 W. Its Class I IEC320-C14 inlet and R7B output connector define the connection format. Apply the stated input, ambient-temperature and connector-current limits when selecting the load. Product Datasheet Download MEAN WELL GSM120A Datasheet (PDF) The GSM120A section is on PDF pages 31, 32, 33, 34, 35. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM120A20-R7B. Series and format GSM120A single-output desktop medical AC/DC power adapter. Model code GSM identifies the adapter series; 120 the power family; A the Class I C14 inlet; 20 the nominal output voltage; R7B the standard DC connector. DC output voltage 20 VDC. Rated output current 6 A. Output current range 0–6 A. Catalogue-rated output power, maximum 120 W; subject to input and ambient derating. Ripple and noise, maximum 180 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±4.0%. Efficiency, typical 89%. Select the load to stay within the rated current, output voltage and maximum output-power limits simultaneously. Input and Energy Input voltage 80–264 VAC. Input frequency 47–63 Hz. AC inlet and class IEC320-C14; Class I, three-pole inlet with protective earth. Power factor, typical >0.93 at 230 VAC; >0.97 at 115 VAC, at full load. Input current, typical 1.4 A at 115 VAC; 0.7 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up and rise times At full load: 1500 / 30 ms at 230 VAC; 2000 / 30 ms at 115 VAC. Hold-up time, typical At full load: 40 ms at 230 VAC; 24 ms at 115 VAC. Touch leakage current <100 µA at 264 VAC. Earth leakage current <115 µA at 264 VAC. No-load consumption <0.15 W. Energy efficiency Level VI and CoC Version 5; EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP are listed for the series. Choose an AC mains lead appropriate to the IEC320-C14 inlet and local supply. Confirm whether the mains lead is included with the order. Protection Short circuit / overload 105–160% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, with re-power required for recovery. Overtemperature Output shutdown; re-power to recover. Derating and Environment Working ambient −30 to +70°C, subject to derating. Horizontal temperature curve 100% load through 40°C; 80% at 50°C; 50% at 70°C. Use the plotted curve between these points. Input-voltage curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Operating altitude Up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage, ambient-temperature and altitude derating together. Maintain free airflow around the enclosure. Mechanical Details and Standard Connection Dimensions, L × W × H 167 × 67 × 35 mm; mechanical drawing tolerance ±1 mm. Enclosure and indicator Enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. Output cable UL2464, 18 AWG × 4 conductors; length 1200 ±50 mm. Standard output connector R7B four-pin male locking power DIN; KYCON KPPX-4P equivalent. Pins 1 and 4: +Vo; pins 2 and 3: −Vo. Follow the drawing view when identifying contacts. Grounding and polarity The R7B outer shell is connected to AC FG; output −V is not connected to AC FG. Catalogue single-unit weight 600 g, from the explicit 0.6 kg single-unit PACKING entry; a catalogue reference, not a measured shipping weight. Packing 20 pieces / 13 kg / 0.89 CUFT. Allow space for the inlet, cable, ferrite and connector. Use the complete mechanical drawing for cable routing and connector orientation. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom DC-plug changes are subject to MOQ. Quick adapters are separately sold without MOQ; they are not included with the standard -R7B unit. P1J and P1M P1J / P1M quick adapters are listed only for 15–48 V models and are rated 7.5 A maximum. This 20 V model is within the listed voltage range; keep the load within both its 6 A output rating and the adapter limit. P1J is 5.5 mm OD / 2.1 mm ID / 11 mm long; P1M is 5.5 / 2.5 / 11 mm. Both are straight tuning-fork types. R7BF Four-pin female locking DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo; pins 2 and 3 −Vo. Custom option, without a listed quick adapter. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Custom option, without a listed quick adapter. MIC4 NEUTRIK XLR NC4FX equivalent: pins 1 and 2 +Vo; pins 3 and 4 −Vo. Custom option, without a listed quick adapter. C6P MOLEX 39-01-2060 (4.2 mm) equivalent: pins 1–3 +Vo; pins 4–6 −Vo. FG is not connected to the output connector. Custom option, without a listed quick adapter. C4P AMP 1-480702-0 (6.35 mm) equivalent: pins 1 and 2 +Vo; pins 3 and 4 −Vo. FG is not connected to the output connector. Custom option, without a listed quick adapter. Stripped and tinned leads By customer request. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Reference colours: red/blue +Vo and black/white −Vo; verify the actual supplied lead identification. Match the connector, voltage, current and polarity to the equipment. Use the drawing view for pin numbering; custom terminations are alternatives to the standard plug. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005/A2:2021; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Primary to earth: 1 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. Input-to-FG withstand 2 kVAC. Output-to-FG condition 0.5 kVAC in the standard configuration. The 1.5 kVAC BF-rated version is an option to specify separately. The adapter is a power component. Its listed approvals do not replace final-system safety, EMC and applied-part assessment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m from 80 MHz to 2.7 GHz; Table 9, 9–28 V/m from 385 MHz to 5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line; 2 kV line-to-FG. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Reliability, Applications and Test Conditions MTBF, minimum 2413.9 thousand hours, Telcordia SR-332 (Bellcore); 388.5 thousand hours, MIL-HDBK-217F at 25°C. Series lifetime statement >95 thousand hours is listed for the series; select operating conditions appropriate to the required service life. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Applications listed for the series include mobile clinical workstations, oral irrigators, portable haemodialysis equipment, breathing equipment and medical computer monitors. Choose the complete configuration for the equipment’s load, insulation and connection requirements. Unless otherwise stated, specifications use 230 VAC input, rated load, 25°C and 70% RH. Output voltage is set at the plug terminal at 50% load. Ripple and noise use 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high line at rated load. Set-up time is measured at the first cold start. Repeated power cycling may increase start-up time. Follow the manufacturer’s installation instructions and the complete mechanical and electrical drawings.

  Read more less

  $114.84

  View options

•

  View options

  MEAN WELL GSM120A series: Medical Desktop AC/DC Power Adapter - GSM120A15-R7B

  MEAN WELL GSM120A15-R7B is a 15 V, 7 A desktop medical AC/DC adapter with a catalogue-rated maximum output of 105 W. Its Class I IEC320-C14 inlet and R7B output connector define the connection format. Apply the stated input, ambient-temperature and connector-current limits when selecting the load. Product Datasheet Download MEAN WELL GSM120A Datasheet (PDF) The GSM120A section is on PDF pages 31, 32, 33, 34, 35. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM120A15-R7B. Series and format GSM120A single-output desktop medical AC/DC power adapter. Model code GSM identifies the adapter series; 120 the power family; A the Class I C14 inlet; 15 the nominal output voltage; R7B the standard DC connector. DC output voltage 15 VDC. Rated output current 7 A. Output current range 0–7 A. Catalogue-rated output power, maximum 105 W; subject to input and ambient derating. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Efficiency, typical 89%. Select the load to stay within the rated current, output voltage and maximum output-power limits simultaneously. Input and Energy Input voltage 80–264 VAC. Input frequency 47–63 Hz. AC inlet and class IEC320-C14; Class I, three-pole inlet with protective earth. Power factor, typical >0.93 at 230 VAC; >0.97 at 115 VAC, at full load. Input current, typical 1.4 A at 115 VAC; 0.7 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up and rise times At full load: 1500 / 30 ms at 230 VAC; 2000 / 30 ms at 115 VAC. Hold-up time, typical At full load: 40 ms at 230 VAC; 24 ms at 115 VAC. Touch leakage current <100 µA at 264 VAC. Earth leakage current <115 µA at 264 VAC. No-load consumption <0.15 W. Energy efficiency Level VI and CoC Version 5; EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP are listed for the series. Choose an AC mains lead appropriate to the IEC320-C14 inlet and local supply. Confirm whether the mains lead is included with the order. Protection Short circuit / overload 105–160% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, with re-power required for recovery. Overtemperature Output shutdown; re-power to recover. Derating and Environment Working ambient −30 to +70°C, subject to derating. Horizontal temperature curve 100% load through 40°C; 80% at 50°C; 50% at 70°C. Use the plotted curve between these points. Input-voltage curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Operating altitude Up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage, ambient-temperature and altitude derating together. Maintain free airflow around the enclosure. Mechanical Details and Standard Connection Dimensions, L × W × H 167 × 67 × 35 mm; mechanical drawing tolerance ±1 mm. Enclosure and indicator Enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. Output cable UL2464, 18 AWG × 4 conductors; length 1200 ±50 mm. Standard output connector R7B four-pin male locking power DIN; KYCON KPPX-4P equivalent. Pins 1 and 4: +Vo; pins 2 and 3: −Vo. Follow the drawing view when identifying contacts. Grounding and polarity The R7B outer shell is connected to AC FG; output −V is not connected to AC FG. Catalogue single-unit weight 600 g, from the explicit 0.6 kg single-unit PACKING entry; a catalogue reference, not a measured shipping weight. Packing 20 pieces / 13 kg / 0.89 CUFT. Allow space for the inlet, cable, ferrite and connector. Use the complete mechanical drawing for cable routing and connector orientation. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom DC-plug changes are subject to MOQ. Quick adapters are separately sold without MOQ; they are not included with the standard -R7B unit. P1J and P1M P1J / P1M quick adapters are listed only for 15–48 V models and are rated 7.5 A maximum. This 15 V model is within the listed voltage range; keep the load within both its 7 A output rating and the adapter limit. P1J is 5.5 mm OD / 2.1 mm ID / 11 mm long; P1M is 5.5 / 2.5 / 11 mm. Both are straight tuning-fork types. R7BF Four-pin female locking DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo; pins 2 and 3 −Vo. Custom option, without a listed quick adapter. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Custom option, without a listed quick adapter. MIC4 NEUTRIK XLR NC4FX equivalent: pins 1 and 2 +Vo; pins 3 and 4 −Vo. Custom option, without a listed quick adapter. C6P MOLEX 39-01-2060 (4.2 mm) equivalent: pins 1–3 +Vo; pins 4–6 −Vo. FG is not connected to the output connector. Custom option, without a listed quick adapter. C4P AMP 1-480702-0 (6.35 mm) equivalent: pins 1 and 2 +Vo; pins 3 and 4 −Vo. FG is not connected to the output connector. Custom option, without a listed quick adapter. Stripped and tinned leads By customer request. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Reference colours: red/blue +Vo and black/white −Vo; verify the actual supplied lead identification. Match the connector, voltage, current and polarity to the equipment. Use the drawing view for pin numbering; custom terminations are alternatives to the standard plug. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005/A2:2021; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Primary to earth: 1 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. Input-to-FG withstand 2 kVAC. Output-to-FG condition 0.5 kVAC in the standard configuration. The 1.5 kVAC BF-rated version is an option to specify separately. The adapter is a power component. Its listed approvals do not replace final-system safety, EMC and applied-part assessment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m from 80 MHz to 2.7 GHz; Table 9, 9–28 V/m from 385 MHz to 5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line; 2 kV line-to-FG. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Reliability, Applications and Test Conditions MTBF, minimum 2413.9 thousand hours, Telcordia SR-332 (Bellcore); 388.5 thousand hours, MIL-HDBK-217F at 25°C. Series lifetime statement >95 thousand hours is listed for the series; select operating conditions appropriate to the required service life. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Applications listed for the series include mobile clinical workstations, oral irrigators, portable haemodialysis equipment, breathing equipment and medical computer monitors. Choose the complete configuration for the equipment’s load, insulation and connection requirements. Unless otherwise stated, specifications use 230 VAC input, rated load, 25°C and 70% RH. Output voltage is set at the plug terminal at 50% load. Ripple and noise use 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high line at rated load. Set-up time is measured at the first cold start. Repeated power cycling may increase start-up time. Follow the manufacturer’s installation instructions and the complete mechanical and electrical drawings.

  Read more less

  $114.84

  View options

•

  View options

  MEAN WELL GSM120A series: Medical Desktop AC/DC Power Adapter - GSM120A12-R7B

  MEAN WELL GSM120A12-R7B is a 12 V, 8.5 A desktop medical AC/DC adapter with a catalogue-rated maximum output of 102 W. Its Class I IEC320-C14 inlet and R7B output connector define the connection format. Apply the stated input, ambient-temperature and connector-current limits when selecting the load. Product Datasheet Download MEAN WELL GSM120A Datasheet (PDF) The GSM120A section is on PDF pages 31, 32, 33, 34, 35. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM120A12-R7B. Series and format GSM120A single-output desktop medical AC/DC power adapter. Model code GSM identifies the adapter series; 120 the power family; A the Class I C14 inlet; 12 the nominal output voltage; R7B the standard DC connector. DC output voltage 12 VDC. Rated output current 8.5 A. Output current range 0–8.5 A. Catalogue-rated output power, maximum 102 W; subject to input and ambient derating. Ripple and noise, maximum 100 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Efficiency, typical 88%. Select the load to stay within the rated current, output voltage and maximum output-power limits simultaneously. Input and Energy Input voltage 80–264 VAC. Input frequency 47–63 Hz. AC inlet and class IEC320-C14; Class I, three-pole inlet with protective earth. Power factor, typical >0.93 at 230 VAC; >0.97 at 115 VAC, at full load. Input current, typical 1.4 A at 115 VAC; 0.7 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up and rise times At full load: 1500 / 30 ms at 230 VAC; 2000 / 30 ms at 115 VAC. Hold-up time, typical At full load: 40 ms at 230 VAC; 24 ms at 115 VAC. Touch leakage current <100 µA at 264 VAC. Earth leakage current <115 µA at 264 VAC. No-load consumption <0.15 W. Energy efficiency Level VI and CoC Version 5; EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP are listed for the series. Choose an AC mains lead appropriate to the IEC320-C14 inlet and local supply. Confirm whether the mains lead is included with the order. Protection Short circuit / overload 105–160% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, with re-power required for recovery. Overtemperature Output shutdown; re-power to recover. Derating and Environment Working ambient −30 to +70°C, subject to derating. Horizontal temperature curve 100% load through 40°C; 80% at 50°C; 50% at 70°C. Use the plotted curve between these points. Input-voltage curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Operating altitude Up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage, ambient-temperature and altitude derating together. Maintain free airflow around the enclosure. Mechanical Details and Standard Connection Dimensions, L × W × H 167 × 67 × 35 mm; mechanical drawing tolerance ±1 mm. Enclosure and indicator Enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. Output cable UL2464, 16 AWG × 4 conductors; length 1000 ±50 mm. Standard output connector R7B four-pin male locking power DIN; KYCON KPPX-4P equivalent. Pins 1 and 4: +Vo; pins 2 and 3: −Vo. Follow the drawing view when identifying contacts. Grounding and polarity The R7B outer shell is connected to AC FG; output −V is not connected to AC FG. Catalogue single-unit weight 600 g, from the explicit 0.6 kg single-unit PACKING entry; a catalogue reference, not a measured shipping weight. Packing 20 pieces / 13 kg / 0.89 CUFT. Allow space for the inlet, cable, ferrite and connector. Use the complete mechanical drawing for cable routing and connector orientation. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom DC-plug changes are subject to MOQ. Quick adapters are separately sold without MOQ; they are not included with the standard -R7B unit. P1J and P1M P1J / P1M quick adapters are listed only for 15–48 V models and are rated 7.5 A maximum. This 12 V, 8.5 A model is excluded from that listed quick-adapter range, and a 7.5 A adapter cannot carry its full rated output. Retain the standard R7B connection or obtain a specifically approved custom termination. P1J is 5.5 mm OD / 2.1 mm ID / 11 mm long; P1M is 5.5 / 2.5 / 11 mm. Both are straight tuning-fork types. R7BF Four-pin female locking DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo; pins 2 and 3 −Vo. Custom option, without a listed quick adapter. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Custom option, without a listed quick adapter. MIC4 NEUTRIK XLR NC4FX equivalent: pins 1 and 2 +Vo; pins 3 and 4 −Vo. Custom option, without a listed quick adapter. C6P MOLEX 39-01-2060 (4.2 mm) equivalent: pins 1–3 +Vo; pins 4–6 −Vo. FG is not connected to the output connector. Custom option, without a listed quick adapter. C4P AMP 1-480702-0 (6.35 mm) equivalent: pins 1 and 2 +Vo; pins 3 and 4 −Vo. FG is not connected to the output connector. Custom option, without a listed quick adapter. Stripped and tinned leads By customer request. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Reference colours: red/blue +Vo and black/white −Vo; verify the actual supplied lead identification. Match the connector, voltage, current and polarity to the equipment. Use the drawing view for pin numbering; custom terminations are alternatives to the standard plug. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005/A2:2021; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Primary to earth: 1 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. Input-to-FG withstand 2 kVAC. Output-to-FG condition 0.5 kVAC in the standard configuration. The 1.5 kVAC BF-rated version is an option to specify separately. The adapter is a power component. Its listed approvals do not replace final-system safety, EMC and applied-part assessment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m from 80 MHz to 2.7 GHz; Table 9, 9–28 V/m from 385 MHz to 5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line; 2 kV line-to-FG. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Reliability, Applications and Test Conditions MTBF, minimum 2413.9 thousand hours, Telcordia SR-332 (Bellcore); 388.5 thousand hours, MIL-HDBK-217F at 25°C. Series lifetime statement >95 thousand hours is listed for the series; select operating conditions appropriate to the required service life. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Applications listed for the series include mobile clinical workstations, oral irrigators, portable haemodialysis equipment, breathing equipment and medical computer monitors. Choose the complete configuration for the equipment’s load, insulation and connection requirements. Unless otherwise stated, specifications use 230 VAC input, rated load, 25°C and 70% RH. Output voltage is set at the plug terminal at 50% load. Ripple and noise use 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high line at rated load. Set-up time is measured at the first cold start. Repeated power cycling may increase start-up time. Follow the manufacturer’s installation instructions and the complete mechanical and electrical drawings.

  Read more less

  $114.84

  View options

•

  View options

  MEAN WELL GSM90B series: Medical Desktop AC/DC Power Adapter - GSM90B48-P1M

  MEAN WELL GSM90B48-P1M is a 48 V, 1.87 A desktop medical AC/DC adapter with a catalogue-rated maximum output of 90 W. Its Class II IEC320-C8 inlet and P1M output connector define the connection format. Apply the stated input, ambient-temperature and connector-current limits when selecting the load. Product Datasheet Download MEAN WELL GSM90B Datasheet (PDF) The GSM90B section is on PDF pages 26, 27, 28, 29, 30. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM90B48-P1M. Series and format GSM90B single-output desktop medical AC/DC power adapter. Model code GSM identifies the adapter series; 90 the power family; B the Class II C8 inlet; 48 the nominal output voltage; P1M the standard DC connector. DC output voltage 48 VDC. Rated output current 1.87 A. Output current range 0–1.87 A. Catalogue-rated output power, maximum 90 W; subject to input and ambient derating. Ripple and noise, maximum 200 mVp-p. Voltage tolerance ±2.5%. Line regulation ±1.0%. Load regulation ±2.5%. Efficiency, typical 91%. Select the load to stay within the rated current, output voltage and maximum output-power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Input frequency 47–63 Hz. AC inlet and class IEC320-C8; Class II, two-pole inlet without FG. Power factor, typical >0.91 at 230 VAC; >0.95 at 115 VAC, at full load. Input current, typical 1.3 A at 115 VAC; 0.6 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Set-up and rise times At full load: 1000 / 50 ms at 230 VAC; 1500 / 50 ms at 115 VAC. Hold-up time, typical At full load: 30 ms at 230 VAC; 20 ms at 115 VAC. Touch leakage current <100 µA at 264 VAC. No-load consumption <0.15 W. Energy efficiency Level VI and CoC Version 5; EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP are listed for the series. Choose an AC mains lead appropriate to the IEC320-C8 inlet and local supply. Confirm whether the mains lead is included with the order. Protection Short circuit / overload 110–150% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, with re-power required for recovery. Overtemperature Output shutdown; re-power to recover. Derating and Environment Working ambient −30 to +70°C, subject to derating. Horizontal temperature curve 100% load through 40°C; 80% at 50°C; 50% at 70°C. Use the plotted curve between these points. Input-voltage curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Operating altitude Up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage, ambient-temperature and altitude derating together. Maintain free airflow around the enclosure. Mechanical Details and Standard Connection Dimensions, L × W × H 145 × 60 × 32 mm; mechanical drawing tolerance ±1 mm. Enclosure and indicator Enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. Output cable UL1185, 16 AWG; length 1200 ±50 mm. Standard output connector P1M tuning-fork barrel plug, centre positive (C+); 5.5 mm outside diameter, 2.5 mm inside diameter, 11 ±0.5 mm insertion length. Grounding and polarity Class II input has no FG connection; use the centre-positive P1M polarity. Catalogue single-unit weight 450 g, from the explicit 0.45 kg single-unit PACKING entry; a catalogue reference, not a measured shipping weight. Packing 30 pieces / 14.5 kg / 0.9 CUFT. Allow space for the inlet, cable, ferrite and connector. Use the complete mechanical drawing for cable routing and connector orientation. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom DC-plug changes are subject to MOQ. Quick adapters are separately sold accessories without MOQ; they are not extra connectors included with the standard -P1M unit. Quick adapters listed for this family P1J and P1JR, and R7B: available with a maximum current rating of 7.5 A. Match voltage, polarity, plug dimensions and load current before use. Tuning-fork custom plugs Dimensions are OD / ID / insertion length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1J 5.5 / 2.1 / 11. Right-angle types: P1IR 5.5 / 2.1 / 9.5; P1LR 5.5 / 2.5 / 9.5; P1JR 5.5 / 2.1 / 11; P1MR 5.5 / 2.5 / 11. Barrel-style custom plugs P2I / P2IR: 5.5 / 2.1 / 9.5 mm; P2J / P2JR: 5.5 / 2.1 / 11 mm; P2L / P2LR: 5.5 / 2.5 / 9.5 mm; P2M / P2MR: 5.5 / 2.5 / 11 mm. R denotes the right-angle form in this table; quick adapters are not listed for these types. Locking custom barrel plugs P2S (S761K): 5.53 / 2.03 / 12.06 mm; P2K (761K): 5.53 / 2.54 / 12.06 mm; P2C (S760K): 5.53 / 2.03 / 9.52 mm; P2D (760K): 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; no quick-adapter entry. Mini-pin custom plugs P3A: 2.35 / 0.7 / 11 mm; P3B: 4.0 / 1.7 / 11 mm; P3C: 4.75 / 1.7 / 11 mm. No quick-adapter entry. Centre-pin custom plugs P4A: OD 5.5 / ID 3.4 / length 11 / centre pin 1.0 mm; P4B: 6.5 / 4.4 / 11 / 1.4 mm; P4C: 7.4 / 5.1 / 11 / 0.6 mm. No quick-adapter entry. The dimensions above describe the manufacturer’s plug options. For a custom plug, confirm its complete mating interface, polarity and current capacity with the order. Optional DIN Connectors and Lead Ends R6B Three-pin male DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Custom configuration; no quick-adapter entry. R7B Four-pin male locking DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. A 7.5 A maximum quick adapter is listed. R7BF Four-pin female locking DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom configuration; no quick-adapter entry. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Custom configuration; no quick-adapter entry. Stripped and tinned leads By customer request. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Reference colours: red +Vo and black −Vo; verify the actual supplied lead identification. Use the specified connector drawing view for all pin numbers. Custom cable terminations are alternatives to the standard output plug, not additional outputs. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF application The series is marked BF-rated and lists medical home-healthcare standards; assess the completed medical equipment and applied-part design for the intended use. The adapter is a power component. Its listed approvals do not replace final-system safety, EMC and applied-part assessment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m from 80 MHz to 2.7 GHz; Table 9, 9–28 V/m from 385 MHz to 5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Reliability, Applications and Test Conditions MTBF, minimum 2743.3 thousand hours, Telcordia SR-332 (Bellcore); 353.3 thousand hours, MIL-HDBK-217F at 25°C. Series lifetime statement >90 thousand hours is listed for the series; select operating conditions appropriate to the required service life. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Applications listed for the series include mobile clinical workstations, oral irrigators, portable haemodialysis equipment, breathing equipment and medical computer monitors. Choose the complete configuration for the equipment’s load, insulation and connection requirements. Unless otherwise stated, specifications use 230 VAC input, rated load, 25°C and 70% RH. Output voltage is set at the plug terminal at 50% load. Ripple and noise use 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high line at rated load. Set-up time is measured at the first cold start. Repeated power cycling may increase start-up time. Follow the manufacturer’s installation instructions and the complete mechanical and electrical drawings.

  Read more less

  $76.89

  View options

•

  View options

  MEAN WELL GSM90B series: Medical Desktop AC/DC Power Adapter - GSM90B24-P1M

  MEAN WELL GSM90B24-P1M is a 24 V, 3.75 A desktop medical AC/DC adapter with a catalogue-rated maximum output of 90 W. Its Class II IEC320-C8 inlet and P1M output connector define the connection format. Apply the stated input, ambient-temperature and connector-current limits when selecting the load. Product Datasheet Download MEAN WELL GSM90B Datasheet (PDF) The GSM90B section is on PDF pages 26, 27, 28, 29, 30. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM90B24-P1M. Series and format GSM90B single-output desktop medical AC/DC power adapter. Model code GSM identifies the adapter series; 90 the power family; B the Class II C8 inlet; 24 the nominal output voltage; P1M the standard DC connector. DC output voltage 24 VDC. Rated output current 3.75 A. Output current range 0–3.75 A. Catalogue-rated output power, maximum 90 W; subject to input and ambient derating. Ripple and noise, maximum 180 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Efficiency, typical 90%. Select the load to stay within the rated current, output voltage and maximum output-power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Input frequency 47–63 Hz. AC inlet and class IEC320-C8; Class II, two-pole inlet without FG. Power factor, typical >0.91 at 230 VAC; >0.95 at 115 VAC, at full load. Input current, typical 1.3 A at 115 VAC; 0.6 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Set-up and rise times At full load: 1000 / 50 ms at 230 VAC; 1500 / 50 ms at 115 VAC. Hold-up time, typical At full load: 30 ms at 230 VAC; 20 ms at 115 VAC. Touch leakage current <100 µA at 264 VAC. No-load consumption <0.15 W. Energy efficiency Level VI and CoC Version 5; EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP are listed for the series. Choose an AC mains lead appropriate to the IEC320-C8 inlet and local supply. Confirm whether the mains lead is included with the order. Protection Short circuit / overload 110–150% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, with re-power required for recovery. Overtemperature Output shutdown; re-power to recover. Derating and Environment Working ambient −30 to +70°C, subject to derating. Horizontal temperature curve 100% load through 40°C; 80% at 50°C; 50% at 70°C. Use the plotted curve between these points. Input-voltage curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Operating altitude Up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage, ambient-temperature and altitude derating together. Maintain free airflow around the enclosure. Mechanical Details and Standard Connection Dimensions, L × W × H 145 × 60 × 32 mm; mechanical drawing tolerance ±1 mm. Enclosure and indicator Enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. Output cable UL1185, 16 AWG; length 1200 ±50 mm. Standard output connector P1M tuning-fork barrel plug, centre positive (C+); 5.5 mm outside diameter, 2.5 mm inside diameter, 11 ±0.5 mm insertion length. Grounding and polarity Class II input has no FG connection; use the centre-positive P1M polarity. Catalogue single-unit weight 450 g, from the explicit 0.45 kg single-unit PACKING entry; a catalogue reference, not a measured shipping weight. Packing 30 pieces / 14.5 kg / 0.9 CUFT. Allow space for the inlet, cable, ferrite and connector. Use the complete mechanical drawing for cable routing and connector orientation. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom DC-plug changes are subject to MOQ. Quick adapters are separately sold accessories without MOQ; they are not extra connectors included with the standard -P1M unit. Quick adapters listed for this family P1J and P1JR, and R7B: available with a maximum current rating of 7.5 A. Match voltage, polarity, plug dimensions and load current before use. Tuning-fork custom plugs Dimensions are OD / ID / insertion length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1J 5.5 / 2.1 / 11. Right-angle types: P1IR 5.5 / 2.1 / 9.5; P1LR 5.5 / 2.5 / 9.5; P1JR 5.5 / 2.1 / 11; P1MR 5.5 / 2.5 / 11. Barrel-style custom plugs P2I / P2IR: 5.5 / 2.1 / 9.5 mm; P2J / P2JR: 5.5 / 2.1 / 11 mm; P2L / P2LR: 5.5 / 2.5 / 9.5 mm; P2M / P2MR: 5.5 / 2.5 / 11 mm. R denotes the right-angle form in this table; quick adapters are not listed for these types. Locking custom barrel plugs P2S (S761K): 5.53 / 2.03 / 12.06 mm; P2K (761K): 5.53 / 2.54 / 12.06 mm; P2C (S760K): 5.53 / 2.03 / 9.52 mm; P2D (760K): 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; no quick-adapter entry. Mini-pin custom plugs P3A: 2.35 / 0.7 / 11 mm; P3B: 4.0 / 1.7 / 11 mm; P3C: 4.75 / 1.7 / 11 mm. No quick-adapter entry. Centre-pin custom plugs P4A: OD 5.5 / ID 3.4 / length 11 / centre pin 1.0 mm; P4B: 6.5 / 4.4 / 11 / 1.4 mm; P4C: 7.4 / 5.1 / 11 / 0.6 mm. No quick-adapter entry. The dimensions above describe the manufacturer’s plug options. For a custom plug, confirm its complete mating interface, polarity and current capacity with the order. Optional DIN Connectors and Lead Ends R6B Three-pin male DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Custom configuration; no quick-adapter entry. R7B Four-pin male locking DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. A 7.5 A maximum quick adapter is listed. R7BF Four-pin female locking DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom configuration; no quick-adapter entry. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Custom configuration; no quick-adapter entry. Stripped and tinned leads By customer request. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Reference colours: red +Vo and black −Vo; verify the actual supplied lead identification. Use the specified connector drawing view for all pin numbers. Custom cable terminations are alternatives to the standard output plug, not additional outputs. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF application The series is marked BF-rated and lists medical home-healthcare standards; assess the completed medical equipment and applied-part design for the intended use. The adapter is a power component. Its listed approvals do not replace final-system safety, EMC and applied-part assessment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m from 80 MHz to 2.7 GHz; Table 9, 9–28 V/m from 385 MHz to 5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Reliability, Applications and Test Conditions MTBF, minimum 2743.3 thousand hours, Telcordia SR-332 (Bellcore); 353.3 thousand hours, MIL-HDBK-217F at 25°C. Series lifetime statement >90 thousand hours is listed for the series; select operating conditions appropriate to the required service life. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Applications listed for the series include mobile clinical workstations, oral irrigators, portable haemodialysis equipment, breathing equipment and medical computer monitors. Choose the complete configuration for the equipment’s load, insulation and connection requirements. Unless otherwise stated, specifications use 230 VAC input, rated load, 25°C and 70% RH. Output voltage is set at the plug terminal at 50% load. Ripple and noise use 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high line at rated load. Set-up time is measured at the first cold start. Repeated power cycling may increase start-up time. Follow the manufacturer’s installation instructions and the complete mechanical and electrical drawings.

  Read more less

  $76.89

  View options

•

  View options

  MEAN WELL GSM90B series: Medical Desktop AC/DC Power Adapter - GSM90B19-P1M

  MEAN WELL GSM90B19-P1M is a 19 V, 4.74 A desktop medical AC/DC adapter with a catalogue-rated maximum output of 90 W. Its Class II IEC320-C8 inlet and P1M output connector define the connection format. Apply the stated input, ambient-temperature and connector-current limits when selecting the load. Product Datasheet Download MEAN WELL GSM90B Datasheet (PDF) The GSM90B section is on PDF pages 26, 27, 28, 29, 30. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM90B19-P1M. Series and format GSM90B single-output desktop medical AC/DC power adapter. Model code GSM identifies the adapter series; 90 the power family; B the Class II C8 inlet; 19 the nominal output voltage; P1M the standard DC connector. DC output voltage 19 VDC. Rated output current 4.74 A. Output current range 0–4.74 A. Catalogue-rated output power, maximum 90 W; subject to input and ambient derating. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±4.0%. Line regulation ±1.0%. Load regulation ±4.0%. Efficiency, typical 89%. Select the load to stay within the rated current, output voltage and maximum output-power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Input frequency 47–63 Hz. AC inlet and class IEC320-C8; Class II, two-pole inlet without FG. Power factor, typical >0.91 at 230 VAC; >0.95 at 115 VAC, at full load. Input current, typical 1.3 A at 115 VAC; 0.6 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Set-up and rise times At full load: 1000 / 50 ms at 230 VAC; 1500 / 50 ms at 115 VAC. Hold-up time, typical At full load: 30 ms at 230 VAC; 20 ms at 115 VAC. Touch leakage current <100 µA at 264 VAC. No-load consumption <0.15 W. Energy efficiency Level VI and CoC Version 5; EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP are listed for the series. Choose an AC mains lead appropriate to the IEC320-C8 inlet and local supply. Confirm whether the mains lead is included with the order. Protection Short circuit / overload 110–150% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, with re-power required for recovery. Overtemperature Output shutdown; re-power to recover. Derating and Environment Working ambient −30 to +70°C, subject to derating. Horizontal temperature curve 100% load through 40°C; 80% at 50°C; 50% at 70°C. Use the plotted curve between these points. Input-voltage curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Operating altitude Up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage, ambient-temperature and altitude derating together. Maintain free airflow around the enclosure. Mechanical Details and Standard Connection Dimensions, L × W × H 145 × 60 × 32 mm; mechanical drawing tolerance ±1 mm. Enclosure and indicator Enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. Output cable UL1185, 16 AWG; length 1200 ±50 mm. Standard output connector P1M tuning-fork barrel plug, centre positive (C+); 5.5 mm outside diameter, 2.5 mm inside diameter, 11 ±0.5 mm insertion length. Grounding and polarity Class II input has no FG connection; use the centre-positive P1M polarity. Catalogue single-unit weight 450 g, from the explicit 0.45 kg single-unit PACKING entry; a catalogue reference, not a measured shipping weight. Packing 30 pieces / 14.5 kg / 0.9 CUFT. Allow space for the inlet, cable, ferrite and connector. Use the complete mechanical drawing for cable routing and connector orientation. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom DC-plug changes are subject to MOQ. Quick adapters are separately sold accessories without MOQ; they are not extra connectors included with the standard -P1M unit. Quick adapters listed for this family P1J and P1JR, and R7B: available with a maximum current rating of 7.5 A. Match voltage, polarity, plug dimensions and load current before use. Tuning-fork custom plugs Dimensions are OD / ID / insertion length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1J 5.5 / 2.1 / 11. Right-angle types: P1IR 5.5 / 2.1 / 9.5; P1LR 5.5 / 2.5 / 9.5; P1JR 5.5 / 2.1 / 11; P1MR 5.5 / 2.5 / 11. Barrel-style custom plugs P2I / P2IR: 5.5 / 2.1 / 9.5 mm; P2J / P2JR: 5.5 / 2.1 / 11 mm; P2L / P2LR: 5.5 / 2.5 / 9.5 mm; P2M / P2MR: 5.5 / 2.5 / 11 mm. R denotes the right-angle form in this table; quick adapters are not listed for these types. Locking custom barrel plugs P2S (S761K): 5.53 / 2.03 / 12.06 mm; P2K (761K): 5.53 / 2.54 / 12.06 mm; P2C (S760K): 5.53 / 2.03 / 9.52 mm; P2D (760K): 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; no quick-adapter entry. Mini-pin custom plugs P3A: 2.35 / 0.7 / 11 mm; P3B: 4.0 / 1.7 / 11 mm; P3C: 4.75 / 1.7 / 11 mm. No quick-adapter entry. Centre-pin custom plugs P4A: OD 5.5 / ID 3.4 / length 11 / centre pin 1.0 mm; P4B: 6.5 / 4.4 / 11 / 1.4 mm; P4C: 7.4 / 5.1 / 11 / 0.6 mm. No quick-adapter entry. The dimensions above describe the manufacturer’s plug options. For a custom plug, confirm its complete mating interface, polarity and current capacity with the order. Optional DIN Connectors and Lead Ends R6B Three-pin male DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Custom configuration; no quick-adapter entry. R7B Four-pin male locking DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. A 7.5 A maximum quick adapter is listed. R7BF Four-pin female locking DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom configuration; no quick-adapter entry. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Custom configuration; no quick-adapter entry. Stripped and tinned leads By customer request. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Reference colours: red +Vo and black −Vo; verify the actual supplied lead identification. Use the specified connector drawing view for all pin numbers. Custom cable terminations are alternatives to the standard output plug, not additional outputs. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF application The series is marked BF-rated and lists medical home-healthcare standards; assess the completed medical equipment and applied-part design for the intended use. The adapter is a power component. Its listed approvals do not replace final-system safety, EMC and applied-part assessment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m from 80 MHz to 2.7 GHz; Table 9, 9–28 V/m from 385 MHz to 5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Reliability, Applications and Test Conditions MTBF, minimum 2743.3 thousand hours, Telcordia SR-332 (Bellcore); 353.3 thousand hours, MIL-HDBK-217F at 25°C. Series lifetime statement >90 thousand hours is listed for the series; select operating conditions appropriate to the required service life. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Applications listed for the series include mobile clinical workstations, oral irrigators, portable haemodialysis equipment, breathing equipment and medical computer monitors. Choose the complete configuration for the equipment’s load, insulation and connection requirements. Unless otherwise stated, specifications use 230 VAC input, rated load, 25°C and 70% RH. Output voltage is set at the plug terminal at 50% load. Ripple and noise use 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high line at rated load. Set-up time is measured at the first cold start. Repeated power cycling may increase start-up time. Follow the manufacturer’s installation instructions and the complete mechanical and electrical drawings.

  Read more less

  $76.89

  View options

•

  View options

  MEAN WELL GSM90B series: Medical Desktop AC/DC Power Adapter - GSM90B15-P1M

  MEAN WELL GSM90B15-P1M is a 15 V, 6 A desktop medical AC/DC adapter with a catalogue-rated maximum output of 90 W. Its Class II IEC320-C8 inlet and P1M output connector define the connection format. Apply the stated input, ambient-temperature and connector-current limits when selecting the load. Product Datasheet Download MEAN WELL GSM90B Datasheet (PDF) The GSM90B section is on PDF pages 26, 27, 28, 29, 30. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM90B15-P1M. Series and format GSM90B single-output desktop medical AC/DC power adapter. Model code GSM identifies the adapter series; 90 the power family; B the Class II C8 inlet; 15 the nominal output voltage; P1M the standard DC connector. DC output voltage 15 VDC. Rated output current 6 A. Output current range 0–6 A. Catalogue-rated output power, maximum 90 W; subject to input and ambient derating. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Efficiency, typical 89%. Select the load to stay within the rated current, output voltage and maximum output-power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Input frequency 47–63 Hz. AC inlet and class IEC320-C8; Class II, two-pole inlet without FG. Power factor, typical >0.91 at 230 VAC; >0.95 at 115 VAC, at full load. Input current, typical 1.3 A at 115 VAC; 0.6 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Set-up and rise times At full load: 1000 / 50 ms at 230 VAC; 1500 / 50 ms at 115 VAC. Hold-up time, typical At full load: 30 ms at 230 VAC; 20 ms at 115 VAC. Touch leakage current <100 µA at 264 VAC. No-load consumption <0.15 W. Energy efficiency Level VI and CoC Version 5; EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP are listed for the series. Choose an AC mains lead appropriate to the IEC320-C8 inlet and local supply. Confirm whether the mains lead is included with the order. Protection Short circuit / overload 110–150% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, with re-power required for recovery. Overtemperature Output shutdown; re-power to recover. Derating and Environment Working ambient −30 to +70°C, subject to derating. Horizontal temperature curve 100% load through 40°C; 80% at 50°C; 50% at 70°C. Use the plotted curve between these points. Input-voltage curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Operating altitude Up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage, ambient-temperature and altitude derating together. Maintain free airflow around the enclosure. Mechanical Details and Standard Connection Dimensions, L × W × H 145 × 60 × 32 mm; mechanical drawing tolerance ±1 mm. Enclosure and indicator Enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. Output cable UL1185, 14 AWG; length 1000 ±50 mm. Standard output connector P1M tuning-fork barrel plug, centre positive (C+); 5.5 mm outside diameter, 2.5 mm inside diameter, 11 ±0.5 mm insertion length. Grounding and polarity Class II input has no FG connection; use the centre-positive P1M polarity. Catalogue single-unit weight 450 g, from the explicit 0.45 kg single-unit PACKING entry; a catalogue reference, not a measured shipping weight. Packing 30 pieces / 14.5 kg / 0.9 CUFT. Allow space for the inlet, cable, ferrite and connector. Use the complete mechanical drawing for cable routing and connector orientation. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom DC-plug changes are subject to MOQ. Quick adapters are separately sold accessories without MOQ; they are not extra connectors included with the standard -P1M unit. Quick adapters listed for this family P1J and P1JR, and R7B: available with a maximum current rating of 7.5 A. Match voltage, polarity, plug dimensions and load current before use. Tuning-fork custom plugs Dimensions are OD / ID / insertion length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1J 5.5 / 2.1 / 11. Right-angle types: P1IR 5.5 / 2.1 / 9.5; P1LR 5.5 / 2.5 / 9.5; P1JR 5.5 / 2.1 / 11; P1MR 5.5 / 2.5 / 11. Barrel-style custom plugs P2I / P2IR: 5.5 / 2.1 / 9.5 mm; P2J / P2JR: 5.5 / 2.1 / 11 mm; P2L / P2LR: 5.5 / 2.5 / 9.5 mm; P2M / P2MR: 5.5 / 2.5 / 11 mm. R denotes the right-angle form in this table; quick adapters are not listed for these types. Locking custom barrel plugs P2S (S761K): 5.53 / 2.03 / 12.06 mm; P2K (761K): 5.53 / 2.54 / 12.06 mm; P2C (S760K): 5.53 / 2.03 / 9.52 mm; P2D (760K): 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; no quick-adapter entry. Mini-pin custom plugs P3A: 2.35 / 0.7 / 11 mm; P3B: 4.0 / 1.7 / 11 mm; P3C: 4.75 / 1.7 / 11 mm. No quick-adapter entry. Centre-pin custom plugs P4A: OD 5.5 / ID 3.4 / length 11 / centre pin 1.0 mm; P4B: 6.5 / 4.4 / 11 / 1.4 mm; P4C: 7.4 / 5.1 / 11 / 0.6 mm. No quick-adapter entry. The dimensions above describe the manufacturer’s plug options. For a custom plug, confirm its complete mating interface, polarity and current capacity with the order. Optional DIN Connectors and Lead Ends R6B Three-pin male DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Custom configuration; no quick-adapter entry. R7B Four-pin male locking DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. A 7.5 A maximum quick adapter is listed. R7BF Four-pin female locking DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom configuration; no quick-adapter entry. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Custom configuration; no quick-adapter entry. Stripped and tinned leads By customer request. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Reference colours: red +Vo and black −Vo; verify the actual supplied lead identification. Use the specified connector drawing view for all pin numbers. Custom cable terminations are alternatives to the standard output plug, not additional outputs. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF application The series is marked BF-rated and lists medical home-healthcare standards; assess the completed medical equipment and applied-part design for the intended use. The adapter is a power component. Its listed approvals do not replace final-system safety, EMC and applied-part assessment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m from 80 MHz to 2.7 GHz; Table 9, 9–28 V/m from 385 MHz to 5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Reliability, Applications and Test Conditions MTBF, minimum 2743.3 thousand hours, Telcordia SR-332 (Bellcore); 353.3 thousand hours, MIL-HDBK-217F at 25°C. Series lifetime statement >90 thousand hours is listed for the series; select operating conditions appropriate to the required service life. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Applications listed for the series include mobile clinical workstations, oral irrigators, portable haemodialysis equipment, breathing equipment and medical computer monitors. Choose the complete configuration for the equipment’s load, insulation and connection requirements. Unless otherwise stated, specifications use 230 VAC input, rated load, 25°C and 70% RH. Output voltage is set at the plug terminal at 50% load. Ripple and noise use 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high line at rated load. Set-up time is measured at the first cold start. Repeated power cycling may increase start-up time. Follow the manufacturer’s installation instructions and the complete mechanical and electrical drawings.

  Read more less

  $76.89

  View options

•

  View options

  MEAN WELL GSM90B series: Medical Desktop AC/DC Power Adapter - GSM90B12-P1M

  MEAN WELL GSM90B12-P1M is a 12 V, 6.67 A desktop medical AC/DC adapter with a catalogue-rated maximum output of 80 W. Its Class II IEC320-C8 inlet and P1M output connector define the connection format. Apply the stated input, ambient-temperature and connector-current limits when selecting the load. Product Datasheet Download MEAN WELL GSM90B Datasheet (PDF) The GSM90B section is on PDF pages 26, 27, 28, 29, 30. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM90B12-P1M. Series and format GSM90B single-output desktop medical AC/DC power adapter. Model code GSM identifies the adapter series; 90 the power family; B the Class II C8 inlet; 12 the nominal output voltage; P1M the standard DC connector. DC output voltage 12 VDC. Rated output current 6.67 A. Output current range 0–6.67 A. Catalogue-rated output power, maximum 80 W; subject to input and ambient derating. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Efficiency, typical 88%. Select the load to stay within the rated current, output voltage and maximum output-power limits simultaneously. Input and Energy Input voltage 80–264 VAC or 113–370 VDC. Input frequency 47–63 Hz. AC inlet and class IEC320-C8; Class II, two-pole inlet without FG. Power factor, typical >0.91 at 230 VAC; >0.95 at 115 VAC, at full load. Input current, typical 1.3 A at 115 VAC; 0.6 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Set-up and rise times At full load: 1000 / 50 ms at 230 VAC; 1500 / 50 ms at 115 VAC. Hold-up time, typical At full load: 30 ms at 230 VAC; 20 ms at 115 VAC. Touch leakage current <100 µA at 264 VAC. No-load consumption <0.15 W. Energy efficiency Level VI and CoC Version 5; EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP are listed for the series. Choose an AC mains lead appropriate to the IEC320-C8 inlet and local supply. Confirm whether the mains lead is included with the order. Protection Short circuit / overload 110–150% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, with re-power required for recovery. Overtemperature Output shutdown; re-power to recover. Derating and Environment Working ambient −30 to +70°C, subject to derating. Horizontal temperature curve 100% load through 40°C; 80% at 50°C; 50% at 70°C. Use the plotted curve between these points. Input-voltage curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Operating altitude Up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage, ambient-temperature and altitude derating together. Maintain free airflow around the enclosure. Mechanical Details and Standard Connection Dimensions, L × W × H 145 × 60 × 32 mm; mechanical drawing tolerance ±1 mm. Enclosure and indicator Enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. Output cable UL1185, 14 AWG; length 1000 ±50 mm. Standard output connector P1M tuning-fork barrel plug, centre positive (C+); 5.5 mm outside diameter, 2.5 mm inside diameter, 11 ±0.5 mm insertion length. Grounding and polarity Class II input has no FG connection; use the centre-positive P1M polarity. Catalogue single-unit weight 450 g, from the explicit 0.45 kg single-unit PACKING entry; a catalogue reference, not a measured shipping weight. Packing 30 pieces / 14.5 kg / 0.9 CUFT. Allow space for the inlet, cable, ferrite and connector. Use the complete mechanical drawing for cable routing and connector orientation. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom DC-plug changes are subject to MOQ. Quick adapters are separately sold accessories without MOQ; they are not extra connectors included with the standard -P1M unit. Quick adapters listed for this family P1J and P1JR, and R7B: available with a maximum current rating of 7.5 A. Match voltage, polarity, plug dimensions and load current before use. Tuning-fork custom plugs Dimensions are OD / ID / insertion length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1J 5.5 / 2.1 / 11. Right-angle types: P1IR 5.5 / 2.1 / 9.5; P1LR 5.5 / 2.5 / 9.5; P1JR 5.5 / 2.1 / 11; P1MR 5.5 / 2.5 / 11. Barrel-style custom plugs P2I / P2IR: 5.5 / 2.1 / 9.5 mm; P2J / P2JR: 5.5 / 2.1 / 11 mm; P2L / P2LR: 5.5 / 2.5 / 9.5 mm; P2M / P2MR: 5.5 / 2.5 / 11 mm. R denotes the right-angle form in this table; quick adapters are not listed for these types. Locking custom barrel plugs P2S (S761K): 5.53 / 2.03 / 12.06 mm; P2K (761K): 5.53 / 2.54 / 12.06 mm; P2C (S760K): 5.53 / 2.03 / 9.52 mm; P2D (760K): 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; no quick-adapter entry. Mini-pin custom plugs P3A: 2.35 / 0.7 / 11 mm; P3B: 4.0 / 1.7 / 11 mm; P3C: 4.75 / 1.7 / 11 mm. No quick-adapter entry. Centre-pin custom plugs P4A: OD 5.5 / ID 3.4 / length 11 / centre pin 1.0 mm; P4B: 6.5 / 4.4 / 11 / 1.4 mm; P4C: 7.4 / 5.1 / 11 / 0.6 mm. No quick-adapter entry. The dimensions above describe the manufacturer’s plug options. For a custom plug, confirm its complete mating interface, polarity and current capacity with the order. Optional DIN Connectors and Lead Ends R6B Three-pin male DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Custom configuration; no quick-adapter entry. R7B Four-pin male locking DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. A 7.5 A maximum quick adapter is listed. R7BF Four-pin female locking DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom configuration; no quick-adapter entry. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Custom configuration; no quick-adapter entry. Stripped and tinned leads By customer request. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Reference colours: red +Vo and black −Vo; verify the actual supplied lead identification. Use the specified connector drawing view for all pin numbers. Custom cable terminations are alternatives to the standard output plug, not additional outputs. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. BF application The series is marked BF-rated and lists medical home-healthcare standards; assess the completed medical equipment and applied-part design for the intended use. The adapter is a power component. Its listed approvals do not replace final-system safety, EMC and applied-part assessment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m from 80 MHz to 2.7 GHz; Table 9, 9–28 V/m from 385 MHz to 5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Reliability, Applications and Test Conditions MTBF, minimum 2743.3 thousand hours, Telcordia SR-332 (Bellcore); 353.3 thousand hours, MIL-HDBK-217F at 25°C. Series lifetime statement >90 thousand hours is listed for the series; select operating conditions appropriate to the required service life. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Applications listed for the series include mobile clinical workstations, oral irrigators, portable haemodialysis equipment, breathing equipment and medical computer monitors. Choose the complete configuration for the equipment’s load, insulation and connection requirements. Unless otherwise stated, specifications use 230 VAC input, rated load, 25°C and 70% RH. Output voltage is set at the plug terminal at 50% load. Ripple and noise use 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high line at rated load. Set-up time is measured at the first cold start. Repeated power cycling may increase start-up time. Follow the manufacturer’s installation instructions and the complete mechanical and electrical drawings.

  Read more less

  $76.89

  View options

•

  View options

  MEAN WELL GSM90A series: Medical Desktop AC/DC Power Adapter - GSM90A48-P1M

  MEAN WELL GSM90A48-P1M is a 48 V, 1.87 A desktop medical AC/DC adapter with a catalogue-rated maximum output of 90 W. Its Class I IEC320-C14 inlet and P1M output connector define the connection format. Apply the stated input, ambient-temperature and connector-current limits when selecting the load. Product Datasheet Download MEAN WELL GSM90A Datasheet (PDF) The GSM90A section is on PDF pages 21, 22, 23, 24, 25. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM90A48-P1M. Series and format GSM90A single-output desktop medical AC/DC power adapter. Model code GSM identifies the adapter series; 90 the power family; A the Class I C14 inlet; 48 the nominal output voltage; P1M the standard DC connector. DC output voltage 48 VDC. Rated output current 1.87 A. Output current range 0–1.87 A. Catalogue-rated output power, maximum 90 W; subject to input and ambient derating. Ripple and noise, maximum 200 mVp-p. Voltage tolerance ±2.5%. Line regulation ±1.0%. Load regulation ±2.5%. Efficiency, typical 91%. Select the load to stay within the rated current, output voltage and maximum output-power limits simultaneously. Input and Energy Input voltage 80–264 VAC. Input frequency 47–63 Hz. AC inlet and class IEC320-C14; Class I, three-pole inlet with protective earth. Power factor, typical >0.91 at 230 VAC; >0.95 at 115 VAC, at full load. Input current, typical 1.3 A at 115 VAC; 0.6 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Set-up and rise times At full load: 1000 / 50 ms at 230 VAC; 1000 / 50 ms at 115 VAC. Hold-up time, typical At full load: 40 ms at 230 VAC; 25 ms at 115 VAC. Touch leakage current <100 µA at 264 VAC. Earth leakage current <125 µA at 264 VAC. No-load consumption <0.15 W. Energy efficiency Level VI and CoC Version 5; EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP are listed for the series. Choose an AC mains lead appropriate to the IEC320-C14 inlet and local supply. Confirm whether the mains lead is included with the order. Protection Short circuit / overload 110–150% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, with re-power required for recovery. Overtemperature Output shutdown; re-power to recover. Derating and Environment Working ambient −30 to +70°C, subject to derating. Horizontal temperature curve 100% load through 40°C; 80% at 50°C; 50% at 70°C. Use the plotted curve between these points. Input-voltage curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Operating altitude Up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage, ambient-temperature and altitude derating together. Maintain free airflow around the enclosure. Mechanical Details and Standard Connection Dimensions, L × W × H 145 × 60 × 32 mm; mechanical drawing tolerance ±1 mm. Enclosure and indicator Enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. Output cable UL1185, 16 AWG; length 1200 ±50 mm. Standard output connector P1M tuning-fork barrel plug, centre positive (C+); 5.5 mm outside diameter, 2.5 mm inside diameter, 11 ±0.5 mm insertion length. Grounding and polarity The standard output −V is connected to AC FG. An output −V not connected to AC FG is an optional configuration to specify separately. Catalogue single-unit weight 450 g, from the explicit 0.45 kg single-unit PACKING entry; a catalogue reference, not a measured shipping weight. Packing 30 pieces / 14.5 kg / 0.9 CUFT. Allow space for the inlet, cable, ferrite and connector. Use the complete mechanical drawing for cable routing and connector orientation. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom DC-plug changes are subject to MOQ. Quick adapters are separately sold accessories without MOQ; they are not extra connectors included with the standard -P1M unit. Quick adapters listed for this family P1J and P1JR, and R7B: available with a maximum current rating of 7.5 A. Match voltage, polarity, plug dimensions and load current before use. Tuning-fork custom plugs Dimensions are OD / ID / insertion length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1J 5.5 / 2.1 / 11. Right-angle types: P1IR 5.5 / 2.1 / 9.5; P1LR 5.5 / 2.5 / 9.5; P1JR 5.5 / 2.1 / 11; P1MR 5.5 / 2.5 / 11. Barrel-style custom plugs P2I / P2IR: 5.5 / 2.1 / 9.5 mm; P2J / P2JR: 5.5 / 2.1 / 11 mm; P2L / P2LR: 5.5 / 2.5 / 9.5 mm; P2M / P2MR: 5.5 / 2.5 / 11 mm. R denotes the right-angle form in this table; quick adapters are not listed for these types. Locking custom barrel plugs P2S (S761K): 5.53 / 2.03 / 12.06 mm; P2K (761K): 5.53 / 2.54 / 12.06 mm; P2C (S760K): 5.53 / 2.03 / 9.52 mm; P2D (760K): 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; no quick-adapter entry. Mini-pin custom plugs P3A: 2.35 / 0.7 / 11 mm; P3B: 4.0 / 1.7 / 11 mm; P3C: 4.75 / 1.7 / 11 mm. No quick-adapter entry. Centre-pin custom plugs P4A: OD 5.5 / ID 3.4 / length 11 / centre pin 1.0 mm; P4B: 6.5 / 4.4 / 11 / 1.4 mm; P4C: 7.4 / 5.1 / 11 / 0.6 mm. No quick-adapter entry. The dimensions above describe the manufacturer’s plug options. For a custom plug, confirm its complete mating interface, polarity and current capacity with the order. Optional DIN Connectors and Lead Ends R6B Three-pin male DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Custom configuration; no quick-adapter entry. R7B Four-pin male locking DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. A 7.5 A maximum quick adapter is listed. R7BF Four-pin female locking DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom configuration; no quick-adapter entry. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Custom configuration; no quick-adapter entry. Stripped and tinned leads By customer request. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Reference colours: red +Vo and black −Vo; verify the actual supplied lead identification. Use the specified connector drawing view for all pin numbers. Custom cable terminations are alternatives to the standard output plug, not additional outputs. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Primary to earth: 1 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. Input-to-FG withstand 2 kVAC. Output-to-FG condition SHORT, consistent with the standard output −V / FG connection. Medical integration Select this Class I, grounded-output configuration for equipment whose insulation and patient-protection design accommodates the specified earth connection. The adapter is a power component. Its listed approvals do not replace final-system safety, EMC and applied-part assessment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m from 80 MHz to 2.7 GHz; Table 9, 9–28 V/m from 385 MHz to 5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line; 2 kV line-to-FG. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Reliability, Applications and Test Conditions MTBF, minimum 2538.4 thousand hours, Telcordia SR-332 (Bellcore); 387.5 thousand hours, MIL-HDBK-217F at 25°C. Series lifetime statement >130 thousand hours is listed for the series; select operating conditions appropriate to the required service life. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Applications listed for the series include mobile clinical workstations, oral irrigators, portable haemodialysis equipment, breathing equipment and medical computer monitors. Choose the complete configuration for the equipment’s load, insulation and connection requirements. Unless otherwise stated, specifications use 230 VAC input, rated load, 25°C and 70% RH. Output voltage is set at the plug terminal at 50% load. Ripple and noise use 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high line at rated load. Set-up time is measured at the first cold start. Repeated power cycling may increase start-up time. Follow the manufacturer’s installation instructions and the complete mechanical and electrical drawings.

  Read more less

  $76.89

  View options

•

  View options

  MEAN WELL GSM90A series: Medical Desktop AC/DC Power Adapter - GSM90A24-P1M

  MEAN WELL GSM90A24-P1M is a 24 V, 3.75 A desktop medical AC/DC adapter with a catalogue-rated maximum output of 90 W. Its Class I IEC320-C14 inlet and P1M output connector define the connection format. Apply the stated input, ambient-temperature and connector-current limits when selecting the load. Product Datasheet Download MEAN WELL GSM90A Datasheet (PDF) The GSM90A section is on PDF pages 21, 22, 23, 24, 25. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM90A24-P1M. Series and format GSM90A single-output desktop medical AC/DC power adapter. Model code GSM identifies the adapter series; 90 the power family; A the Class I C14 inlet; 24 the nominal output voltage; P1M the standard DC connector. DC output voltage 24 VDC. Rated output current 3.75 A. Output current range 0–3.75 A. Catalogue-rated output power, maximum 90 W; subject to input and ambient derating. Ripple and noise, maximum 180 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Efficiency, typical 90%. Select the load to stay within the rated current, output voltage and maximum output-power limits simultaneously. Input and Energy Input voltage 80–264 VAC. Input frequency 47–63 Hz. AC inlet and class IEC320-C14; Class I, three-pole inlet with protective earth. Power factor, typical >0.91 at 230 VAC; >0.95 at 115 VAC, at full load. Input current, typical 1.3 A at 115 VAC; 0.6 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Set-up and rise times At full load: 1000 / 50 ms at 230 VAC; 1000 / 50 ms at 115 VAC. Hold-up time, typical At full load: 40 ms at 230 VAC; 25 ms at 115 VAC. Touch leakage current <100 µA at 264 VAC. Earth leakage current <125 µA at 264 VAC. No-load consumption <0.15 W. Energy efficiency Level VI and CoC Version 5; EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP are listed for the series. Choose an AC mains lead appropriate to the IEC320-C14 inlet and local supply. Confirm whether the mains lead is included with the order. Protection Short circuit / overload 110–150% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, with re-power required for recovery. Overtemperature Output shutdown; re-power to recover. Derating and Environment Working ambient −30 to +70°C, subject to derating. Horizontal temperature curve 100% load through 40°C; 80% at 50°C; 50% at 70°C. Use the plotted curve between these points. Input-voltage curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Operating altitude Up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage, ambient-temperature and altitude derating together. Maintain free airflow around the enclosure. Mechanical Details and Standard Connection Dimensions, L × W × H 145 × 60 × 32 mm; mechanical drawing tolerance ±1 mm. Enclosure and indicator Enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. Output cable UL1185, 16 AWG; length 1200 ±50 mm. Standard output connector P1M tuning-fork barrel plug, centre positive (C+); 5.5 mm outside diameter, 2.5 mm inside diameter, 11 ±0.5 mm insertion length. Grounding and polarity The standard output −V is connected to AC FG. An output −V not connected to AC FG is an optional configuration to specify separately. Catalogue single-unit weight 450 g, from the explicit 0.45 kg single-unit PACKING entry; a catalogue reference, not a measured shipping weight. Packing 30 pieces / 14.5 kg / 0.9 CUFT. Allow space for the inlet, cable, ferrite and connector. Use the complete mechanical drawing for cable routing and connector orientation. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom DC-plug changes are subject to MOQ. Quick adapters are separately sold accessories without MOQ; they are not extra connectors included with the standard -P1M unit. Quick adapters listed for this family P1J and P1JR, and R7B: available with a maximum current rating of 7.5 A. Match voltage, polarity, plug dimensions and load current before use. Tuning-fork custom plugs Dimensions are OD / ID / insertion length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1J 5.5 / 2.1 / 11. Right-angle types: P1IR 5.5 / 2.1 / 9.5; P1LR 5.5 / 2.5 / 9.5; P1JR 5.5 / 2.1 / 11; P1MR 5.5 / 2.5 / 11. Barrel-style custom plugs P2I / P2IR: 5.5 / 2.1 / 9.5 mm; P2J / P2JR: 5.5 / 2.1 / 11 mm; P2L / P2LR: 5.5 / 2.5 / 9.5 mm; P2M / P2MR: 5.5 / 2.5 / 11 mm. R denotes the right-angle form in this table; quick adapters are not listed for these types. Locking custom barrel plugs P2S (S761K): 5.53 / 2.03 / 12.06 mm; P2K (761K): 5.53 / 2.54 / 12.06 mm; P2C (S760K): 5.53 / 2.03 / 9.52 mm; P2D (760K): 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; no quick-adapter entry. Mini-pin custom plugs P3A: 2.35 / 0.7 / 11 mm; P3B: 4.0 / 1.7 / 11 mm; P3C: 4.75 / 1.7 / 11 mm. No quick-adapter entry. Centre-pin custom plugs P4A: OD 5.5 / ID 3.4 / length 11 / centre pin 1.0 mm; P4B: 6.5 / 4.4 / 11 / 1.4 mm; P4C: 7.4 / 5.1 / 11 / 0.6 mm. No quick-adapter entry. The dimensions above describe the manufacturer’s plug options. For a custom plug, confirm its complete mating interface, polarity and current capacity with the order. Optional DIN Connectors and Lead Ends R6B Three-pin male DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Custom configuration; no quick-adapter entry. R7B Four-pin male locking DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. A 7.5 A maximum quick adapter is listed. R7BF Four-pin female locking DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom configuration; no quick-adapter entry. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Custom configuration; no quick-adapter entry. Stripped and tinned leads By customer request. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Reference colours: red +Vo and black −Vo; verify the actual supplied lead identification. Use the specified connector drawing view for all pin numbers. Custom cable terminations are alternatives to the standard output plug, not additional outputs. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Primary to earth: 1 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. Input-to-FG withstand 2 kVAC. Output-to-FG condition SHORT, consistent with the standard output −V / FG connection. Medical integration Select this Class I, grounded-output configuration for equipment whose insulation and patient-protection design accommodates the specified earth connection. The adapter is a power component. Its listed approvals do not replace final-system safety, EMC and applied-part assessment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m from 80 MHz to 2.7 GHz; Table 9, 9–28 V/m from 385 MHz to 5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line; 2 kV line-to-FG. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Reliability, Applications and Test Conditions MTBF, minimum 2538.4 thousand hours, Telcordia SR-332 (Bellcore); 387.5 thousand hours, MIL-HDBK-217F at 25°C. Series lifetime statement >130 thousand hours is listed for the series; select operating conditions appropriate to the required service life. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Applications listed for the series include mobile clinical workstations, oral irrigators, portable haemodialysis equipment, breathing equipment and medical computer monitors. Choose the complete configuration for the equipment’s load, insulation and connection requirements. Unless otherwise stated, specifications use 230 VAC input, rated load, 25°C and 70% RH. Output voltage is set at the plug terminal at 50% load. Ripple and noise use 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high line at rated load. Set-up time is measured at the first cold start. Repeated power cycling may increase start-up time. Follow the manufacturer’s installation instructions and the complete mechanical and electrical drawings.

  Read more less

  $76.89

  View options

•

  View options

  MEAN WELL GSM90A series: Medical Desktop AC/DC Power Adapter - GSM90A19-P1M

  MEAN WELL GSM90A19-P1M is a 19 V, 4.74 A desktop medical AC/DC adapter with a catalogue-rated maximum output of 90 W. Its Class I IEC320-C14 inlet and P1M output connector define the connection format. Apply the stated input, ambient-temperature and connector-current limits when selecting the load. Product Datasheet Download MEAN WELL GSM90A Datasheet (PDF) The GSM90A section is on PDF pages 21, 22, 23, 24, 25. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM90A19-P1M. Series and format GSM90A single-output desktop medical AC/DC power adapter. Model code GSM identifies the adapter series; 90 the power family; A the Class I C14 inlet; 19 the nominal output voltage; P1M the standard DC connector. DC output voltage 19 VDC. Rated output current 4.74 A. Output current range 0–4.74 A. Catalogue-rated output power, maximum 90 W; subject to input and ambient derating. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±4.0%. Line regulation ±1.0%. Load regulation ±4.0%. Efficiency, typical 89%. Select the load to stay within the rated current, output voltage and maximum output-power limits simultaneously. Input and Energy Input voltage 80–264 VAC. Input frequency 47–63 Hz. AC inlet and class IEC320-C14; Class I, three-pole inlet with protective earth. Power factor, typical >0.91 at 230 VAC; >0.95 at 115 VAC, at full load. Input current, typical 1.3 A at 115 VAC; 0.6 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Set-up and rise times At full load: 1000 / 50 ms at 230 VAC; 1000 / 50 ms at 115 VAC. Hold-up time, typical At full load: 40 ms at 230 VAC; 25 ms at 115 VAC. Touch leakage current <100 µA at 264 VAC. Earth leakage current <125 µA at 264 VAC. No-load consumption <0.15 W. Energy efficiency Level VI and CoC Version 5; EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP are listed for the series. Choose an AC mains lead appropriate to the IEC320-C14 inlet and local supply. Confirm whether the mains lead is included with the order. Protection Short circuit / overload 110–150% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, with re-power required for recovery. Overtemperature Output shutdown; re-power to recover. Derating and Environment Working ambient −30 to +70°C, subject to derating. Horizontal temperature curve 100% load through 40°C; 80% at 50°C; 50% at 70°C. Use the plotted curve between these points. Input-voltage curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Operating altitude Up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage, ambient-temperature and altitude derating together. Maintain free airflow around the enclosure. Mechanical Details and Standard Connection Dimensions, L × W × H 145 × 60 × 32 mm; mechanical drawing tolerance ±1 mm. Enclosure and indicator Enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. Output cable UL1185, 16 AWG; length 1200 ±50 mm. Standard output connector P1M tuning-fork barrel plug, centre positive (C+); 5.5 mm outside diameter, 2.5 mm inside diameter, 11 ±0.5 mm insertion length. Grounding and polarity The standard output −V is connected to AC FG. An output −V not connected to AC FG is an optional configuration to specify separately. Catalogue single-unit weight 450 g, from the explicit 0.45 kg single-unit PACKING entry; a catalogue reference, not a measured shipping weight. Packing 30 pieces / 14.5 kg / 0.9 CUFT. Allow space for the inlet, cable, ferrite and connector. Use the complete mechanical drawing for cable routing and connector orientation. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom DC-plug changes are subject to MOQ. Quick adapters are separately sold accessories without MOQ; they are not extra connectors included with the standard -P1M unit. Quick adapters listed for this family P1J and P1JR, and R7B: available with a maximum current rating of 7.5 A. Match voltage, polarity, plug dimensions and load current before use. Tuning-fork custom plugs Dimensions are OD / ID / insertion length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1J 5.5 / 2.1 / 11. Right-angle types: P1IR 5.5 / 2.1 / 9.5; P1LR 5.5 / 2.5 / 9.5; P1JR 5.5 / 2.1 / 11; P1MR 5.5 / 2.5 / 11. Barrel-style custom plugs P2I / P2IR: 5.5 / 2.1 / 9.5 mm; P2J / P2JR: 5.5 / 2.1 / 11 mm; P2L / P2LR: 5.5 / 2.5 / 9.5 mm; P2M / P2MR: 5.5 / 2.5 / 11 mm. R denotes the right-angle form in this table; quick adapters are not listed for these types. Locking custom barrel plugs P2S (S761K): 5.53 / 2.03 / 12.06 mm; P2K (761K): 5.53 / 2.54 / 12.06 mm; P2C (S760K): 5.53 / 2.03 / 9.52 mm; P2D (760K): 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; no quick-adapter entry. Mini-pin custom plugs P3A: 2.35 / 0.7 / 11 mm; P3B: 4.0 / 1.7 / 11 mm; P3C: 4.75 / 1.7 / 11 mm. No quick-adapter entry. Centre-pin custom plugs P4A: OD 5.5 / ID 3.4 / length 11 / centre pin 1.0 mm; P4B: 6.5 / 4.4 / 11 / 1.4 mm; P4C: 7.4 / 5.1 / 11 / 0.6 mm. No quick-adapter entry. The dimensions above describe the manufacturer’s plug options. For a custom plug, confirm its complete mating interface, polarity and current capacity with the order. Optional DIN Connectors and Lead Ends R6B Three-pin male DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Custom configuration; no quick-adapter entry. R7B Four-pin male locking DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. A 7.5 A maximum quick adapter is listed. R7BF Four-pin female locking DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom configuration; no quick-adapter entry. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Custom configuration; no quick-adapter entry. Stripped and tinned leads By customer request. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Reference colours: red +Vo and black −Vo; verify the actual supplied lead identification. Use the specified connector drawing view for all pin numbers. Custom cable terminations are alternatives to the standard output plug, not additional outputs. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Primary to earth: 1 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. Input-to-FG withstand 2 kVAC. Output-to-FG condition SHORT, consistent with the standard output −V / FG connection. Medical integration Select this Class I, grounded-output configuration for equipment whose insulation and patient-protection design accommodates the specified earth connection. The adapter is a power component. Its listed approvals do not replace final-system safety, EMC and applied-part assessment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m from 80 MHz to 2.7 GHz; Table 9, 9–28 V/m from 385 MHz to 5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line; 2 kV line-to-FG. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Reliability, Applications and Test Conditions MTBF, minimum 2538.4 thousand hours, Telcordia SR-332 (Bellcore); 387.5 thousand hours, MIL-HDBK-217F at 25°C. Series lifetime statement >130 thousand hours is listed for the series; select operating conditions appropriate to the required service life. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Applications listed for the series include mobile clinical workstations, oral irrigators, portable haemodialysis equipment, breathing equipment and medical computer monitors. Choose the complete configuration for the equipment’s load, insulation and connection requirements. Unless otherwise stated, specifications use 230 VAC input, rated load, 25°C and 70% RH. Output voltage is set at the plug terminal at 50% load. Ripple and noise use 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high line at rated load. Set-up time is measured at the first cold start. Repeated power cycling may increase start-up time. Follow the manufacturer’s installation instructions and the complete mechanical and electrical drawings.

  Read more less

  $76.89

  View options

•

  View options

  MEAN WELL GSM90A series: Medical Desktop AC/DC Power Adapter - GSM90A15-P1M

  MEAN WELL GSM90A15-P1M is a 15 V, 6 A desktop medical AC/DC adapter with a catalogue-rated maximum output of 90 W. Its Class I IEC320-C14 inlet and P1M output connector define the connection format. Apply the stated input, ambient-temperature and connector-current limits when selecting the load. Product Datasheet Download MEAN WELL GSM90A Datasheet (PDF) The GSM90A section is on PDF pages 21, 22, 23, 24, 25. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM90A15-P1M. Series and format GSM90A single-output desktop medical AC/DC power adapter. Model code GSM identifies the adapter series; 90 the power family; A the Class I C14 inlet; 15 the nominal output voltage; P1M the standard DC connector. DC output voltage 15 VDC. Rated output current 6 A. Output current range 0–6 A. Catalogue-rated output power, maximum 90 W; subject to input and ambient derating. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Efficiency, typical 89%. Select the load to stay within the rated current, output voltage and maximum output-power limits simultaneously. Input and Energy Input voltage 80–264 VAC. Input frequency 47–63 Hz. AC inlet and class IEC320-C14; Class I, three-pole inlet with protective earth. Power factor, typical >0.91 at 230 VAC; >0.95 at 115 VAC, at full load. Input current, typical 1.3 A at 115 VAC; 0.6 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Set-up and rise times At full load: 1000 / 50 ms at 230 VAC; 1000 / 50 ms at 115 VAC. Hold-up time, typical At full load: 40 ms at 230 VAC; 25 ms at 115 VAC. Touch leakage current <100 µA at 264 VAC. Earth leakage current <125 µA at 264 VAC. No-load consumption <0.15 W. Energy efficiency Level VI and CoC Version 5; EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP are listed for the series. Choose an AC mains lead appropriate to the IEC320-C14 inlet and local supply. Confirm whether the mains lead is included with the order. Protection Short circuit / overload 110–150% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, with re-power required for recovery. Overtemperature Output shutdown; re-power to recover. Derating and Environment Working ambient −30 to +70°C, subject to derating. Horizontal temperature curve 100% load through 40°C; 80% at 50°C; 50% at 70°C. Use the plotted curve between these points. Input-voltage curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Operating altitude Up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage, ambient-temperature and altitude derating together. Maintain free airflow around the enclosure. Mechanical Details and Standard Connection Dimensions, L × W × H 145 × 60 × 32 mm; mechanical drawing tolerance ±1 mm. Enclosure and indicator Enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. Output cable UL1185, 14 AWG; length 1000 ±50 mm. Standard output connector P1M tuning-fork barrel plug, centre positive (C+); 5.5 mm outside diameter, 2.5 mm inside diameter, 11 ±0.5 mm insertion length. Grounding and polarity The standard output −V is connected to AC FG. An output −V not connected to AC FG is an optional configuration to specify separately. Catalogue single-unit weight 450 g, from the explicit 0.45 kg single-unit PACKING entry; a catalogue reference, not a measured shipping weight. Packing 30 pieces / 14.5 kg / 0.9 CUFT. Allow space for the inlet, cable, ferrite and connector. Use the complete mechanical drawing for cable routing and connector orientation. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom DC-plug changes are subject to MOQ. Quick adapters are separately sold accessories without MOQ; they are not extra connectors included with the standard -P1M unit. Quick adapters listed for this family P1J and P1JR, and R7B: available with a maximum current rating of 7.5 A. Match voltage, polarity, plug dimensions and load current before use. Tuning-fork custom plugs Dimensions are OD / ID / insertion length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1J 5.5 / 2.1 / 11. Right-angle types: P1IR 5.5 / 2.1 / 9.5; P1LR 5.5 / 2.5 / 9.5; P1JR 5.5 / 2.1 / 11; P1MR 5.5 / 2.5 / 11. Barrel-style custom plugs P2I / P2IR: 5.5 / 2.1 / 9.5 mm; P2J / P2JR: 5.5 / 2.1 / 11 mm; P2L / P2LR: 5.5 / 2.5 / 9.5 mm; P2M / P2MR: 5.5 / 2.5 / 11 mm. R denotes the right-angle form in this table; quick adapters are not listed for these types. Locking custom barrel plugs P2S (S761K): 5.53 / 2.03 / 12.06 mm; P2K (761K): 5.53 / 2.54 / 12.06 mm; P2C (S760K): 5.53 / 2.03 / 9.52 mm; P2D (760K): 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; no quick-adapter entry. Mini-pin custom plugs P3A: 2.35 / 0.7 / 11 mm; P3B: 4.0 / 1.7 / 11 mm; P3C: 4.75 / 1.7 / 11 mm. No quick-adapter entry. Centre-pin custom plugs P4A: OD 5.5 / ID 3.4 / length 11 / centre pin 1.0 mm; P4B: 6.5 / 4.4 / 11 / 1.4 mm; P4C: 7.4 / 5.1 / 11 / 0.6 mm. No quick-adapter entry. The dimensions above describe the manufacturer’s plug options. For a custom plug, confirm its complete mating interface, polarity and current capacity with the order. Optional DIN Connectors and Lead Ends R6B Three-pin male DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Custom configuration; no quick-adapter entry. R7B Four-pin male locking DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. A 7.5 A maximum quick adapter is listed. R7BF Four-pin female locking DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom configuration; no quick-adapter entry. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Custom configuration; no quick-adapter entry. Stripped and tinned leads By customer request. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Reference colours: red +Vo and black −Vo; verify the actual supplied lead identification. Use the specified connector drawing view for all pin numbers. Custom cable terminations are alternatives to the standard output plug, not additional outputs. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Primary to earth: 1 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. Input-to-FG withstand 2 kVAC. Output-to-FG condition SHORT, consistent with the standard output −V / FG connection. Medical integration Select this Class I, grounded-output configuration for equipment whose insulation and patient-protection design accommodates the specified earth connection. The adapter is a power component. Its listed approvals do not replace final-system safety, EMC and applied-part assessment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m from 80 MHz to 2.7 GHz; Table 9, 9–28 V/m from 385 MHz to 5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line; 2 kV line-to-FG. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Reliability, Applications and Test Conditions MTBF, minimum 2538.4 thousand hours, Telcordia SR-332 (Bellcore); 387.5 thousand hours, MIL-HDBK-217F at 25°C. Series lifetime statement >130 thousand hours is listed for the series; select operating conditions appropriate to the required service life. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Applications listed for the series include mobile clinical workstations, oral irrigators, portable haemodialysis equipment, breathing equipment and medical computer monitors. Choose the complete configuration for the equipment’s load, insulation and connection requirements. Unless otherwise stated, specifications use 230 VAC input, rated load, 25°C and 70% RH. Output voltage is set at the plug terminal at 50% load. Ripple and noise use 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high line at rated load. Set-up time is measured at the first cold start. Repeated power cycling may increase start-up time. Follow the manufacturer’s installation instructions and the complete mechanical and electrical drawings.

  Read more less

  $76.89

  View options

•

  View options

  MEAN WELL GSM90A series: Medical Desktop AC/DC Power Adapter - GSM90A12-P1M

  MEAN WELL GSM90A12-P1M is a 12 V, 6.67 A desktop medical AC/DC adapter with a catalogue-rated maximum output of 80 W. Its Class I IEC320-C14 inlet and P1M output connector define the connection format. Apply the stated input, ambient-temperature and connector-current limits when selecting the load. Product Datasheet Download MEAN WELL GSM90A Datasheet (PDF) The GSM90A section is on PDF pages 21, 22, 23, 24, 25. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Complete model GSM90A12-P1M. Series and format GSM90A single-output desktop medical AC/DC power adapter. Model code GSM identifies the adapter series; 90 the power family; A the Class I C14 inlet; 12 the nominal output voltage; P1M the standard DC connector. DC output voltage 12 VDC. Rated output current 6.67 A. Output current range 0–6.67 A. Catalogue-rated output power, maximum 80 W; subject to input and ambient derating. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Efficiency, typical 88%. Select the load to stay within the rated current, output voltage and maximum output-power limits simultaneously. Input and Energy Input voltage 80–264 VAC. Input frequency 47–63 Hz. AC inlet and class IEC320-C14; Class I, three-pole inlet with protective earth. Power factor, typical >0.91 at 230 VAC; >0.95 at 115 VAC, at full load. Input current, typical 1.3 A at 115 VAC; 0.6 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Set-up and rise times At full load: 1000 / 50 ms at 230 VAC; 1000 / 50 ms at 115 VAC. Hold-up time, typical At full load: 40 ms at 230 VAC; 25 ms at 115 VAC. Touch leakage current <100 µA at 264 VAC. Earth leakage current <125 µA at 264 VAC. No-load consumption <0.15 W. Energy efficiency Level VI and CoC Version 5; EISA2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP are listed for the series. Choose an AC mains lead appropriate to the IEC320-C14 inlet and local supply. Confirm whether the mains lead is included with the order. Protection Short circuit / overload 110–150% of rated output power; hiccup mode, automatically recovering after the fault is removed. Overvoltage 105–135% of rated output voltage; output shutdown, with re-power required for recovery. Overtemperature Output shutdown; re-power to recover. Derating and Environment Working ambient −30 to +70°C, subject to derating. Horizontal temperature curve 100% load through 40°C; 80% at 50°C; 50% at 70°C. Use the plotted curve between these points. Input-voltage curve, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–40°C. Operating altitude Up to 3000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Apply input-voltage, ambient-temperature and altitude derating together. Maintain free airflow around the enclosure. Mechanical Details and Standard Connection Dimensions, L × W × H 145 × 60 × 32 mm; mechanical drawing tolerance ±1 mm. Enclosure and indicator Enclosed 94V-0 flame-retardant plastic case; power-on LED indicator. Output cable UL1185, 14 AWG; length 1000 ±50 mm. Standard output connector P1M tuning-fork barrel plug, centre positive (C+); 5.5 mm outside diameter, 2.5 mm inside diameter, 11 ±0.5 mm insertion length. Grounding and polarity The standard output −V is connected to AC FG. An output −V not connected to AC FG is an optional configuration to specify separately. Catalogue single-unit weight 450 g, from the explicit 0.45 kg single-unit PACKING entry; a catalogue reference, not a measured shipping weight. Packing 30 pieces / 14.5 kg / 0.9 CUFT. Allow space for the inlet, cable, ferrite and connector. Use the complete mechanical drawing for cable routing and connector orientation. Optional DC Plugs and Quick Adapters Ordering and inclusion Custom DC-plug changes are subject to MOQ. Quick adapters are separately sold accessories without MOQ; they are not extra connectors included with the standard -P1M unit. Quick adapters listed for this family P1J and P1JR, and R7B: available with a maximum current rating of 7.5 A. Match voltage, polarity, plug dimensions and load current before use. Tuning-fork custom plugs Dimensions are OD / ID / insertion length in mm: P1I 5.5 / 2.1 / 9.5; P1L 5.5 / 2.5 / 9.5; P1J 5.5 / 2.1 / 11. Right-angle types: P1IR 5.5 / 2.1 / 9.5; P1LR 5.5 / 2.5 / 9.5; P1JR 5.5 / 2.1 / 11; P1MR 5.5 / 2.5 / 11. Barrel-style custom plugs P2I / P2IR: 5.5 / 2.1 / 9.5 mm; P2J / P2JR: 5.5 / 2.1 / 11 mm; P2L / P2LR: 5.5 / 2.5 / 9.5 mm; P2M / P2MR: 5.5 / 2.5 / 11 mm. R denotes the right-angle form in this table; quick adapters are not listed for these types. Locking custom barrel plugs P2S (S761K): 5.53 / 2.03 / 12.06 mm; P2K (761K): 5.53 / 2.54 / 12.06 mm; P2C (S760K): 5.53 / 2.03 / 9.52 mm; P2D (760K): 5.53 / 2.54 / 9.52 mm. SWITCHCRAFT original or equivalent; no quick-adapter entry. Mini-pin custom plugs P3A: 2.35 / 0.7 / 11 mm; P3B: 4.0 / 1.7 / 11 mm; P3C: 4.75 / 1.7 / 11 mm. No quick-adapter entry. Centre-pin custom plugs P4A: OD 5.5 / ID 3.4 / length 11 / centre pin 1.0 mm; P4B: 6.5 / 4.4 / 11 / 1.4 mm; P4C: 7.4 / 5.1 / 11 / 0.6 mm. No quick-adapter entry. The dimensions above describe the manufacturer’s plug options. For a custom plug, confirm its complete mating interface, polarity and current capacity with the order. Optional DIN Connectors and Lead Ends R6B Three-pin male DIN, KYCON KPPX-3P equivalent: pins 1 and 3 +Vo, pin 2 −Vo. Custom configuration; no quick-adapter entry. R7B Four-pin male locking DIN, KYCON KPPX-4P equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. A 7.5 A maximum quick adapter is listed. R7BF Four-pin female locking DIN, KYCON KPJX-CM-4S equivalent: pins 1 and 4 +Vo, pins 2 and 3 −Vo. Custom configuration; no quick-adapter entry. R1B Five-pin male DIN: pins 1, 2 and 4 −Vo; pins 3 and 5 +Vo. Custom configuration; no quick-adapter entry. Stripped and tinned leads By customer request. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Reference colours: red +Vo and black −Vo; verify the actual supplied lead identification. Use the specified connector drawing view for all pin numbers. Custom cable terminations are alternatives to the standard output plug, not additional outputs. Medical Safety and Isolation Listed safety standards IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. Isolation Primary to secondary: 2 MOPP. Primary to earth: 1 MOPP. Input-to-output withstand 4 kVAC. Input-to-output insulation 100 MΩ at 500 VDC, 25°C and 70% RH. Input-to-FG withstand 2 kVAC. Output-to-FG condition SHORT, consistent with the standard output −V / FG connection. Medical integration Select this Class I, grounded-output configuration for equipment whose insulation and patient-protection design accommodates the specified earth connection. The adapter is a power component. Its listed approvals do not replace final-system safety, EMC and applied-part assessment. EMC Conducted and radiated emissions BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22: Class B. Harmonic current and flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity framework BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD BS EN/EN61000-4-2: Level 4, 15 kV air and 8 kV contact. Radiated RF BS EN/EN61000-4-3: Level 3, 10 V/m from 80 MHz to 2.7 GHz; Table 9, 9–28 V/m from 385 MHz to 5.78 GHz. EFT / burst BS EN/EN61000-4-4: Level 3, 2 kV. Surge BS EN/EN61000-4-5: Level 3, 1 kV line-to-line; 2 kV line-to-FG. Conducted RF BS EN/EN61000-4-6: Level 3, 10 V. Magnetic field BS EN/EN61000-4-8: Level 4, 30 A/m. Dips and interruptions BS EN/EN61000-4-11: 100% dip for 1 period; 30% dip for 25 periods; 100% interruption for 250 periods. Reliability, Applications and Test Conditions MTBF, minimum 2538.4 thousand hours, Telcordia SR-332 (Bellcore); 387.5 thousand hours, MIL-HDBK-217F at 25°C. Series lifetime statement >130 thousand hours is listed for the series; select operating conditions appropriate to the required service life. Manufacturer warranty The datasheet lists a 3-year manufacturer warranty, subject to the manufacturer’s terms. Applications listed for the series include mobile clinical workstations, oral irrigators, portable haemodialysis equipment, breathing equipment and medical computer monitors. Choose the complete configuration for the equipment’s load, insulation and connection requirements. Unless otherwise stated, specifications use 230 VAC input, rated load, 25°C and 70% RH. Output voltage is set at the plug terminal at 50% load. Ripple and noise use 20 MHz bandwidth, a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation; line regulation is measured from low to high line at rated load. Set-up time is measured at the first cold start. Repeated power cycling may increase start-up time. Follow the manufacturer’s installation instructions and the complete mechanical and electrical drawings.

  Read more less

  $76.89

  View options

•

  View options

  MEAN WELL GSM60B series: Medical AC/DC Desktop Power Adapter - GSM60B48-P1J

  MEAN WELL GSM60B48-P1J is a GSM60B single-output medical AC/DC desktop power adapter rated at 48 VDC, 1.25 A and 60 W. Its Class II construction uses a two-pole IEC320-C8 AC inlet without protective earth. The standard P1J tuning-fork DC plug is center-positive, with a 5.5 mm outer diameter, 2.1 mm inner diameter and 11 mm nominal length. Apply the stated load and derating limits. Product Datasheet Download MEAN WELL GSM60B Datasheet (PDF) The GSM60B section is on PDF pages 16, 17, 18, 19, 20. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order number GSM60B48-P1J. Product category Single-output medical AC/DC desktop power adapter. Input class / inlet Class II; IEC320-C8; double insulation, no FG. Standard output termination P1J tuning fork; 5.5 mm OD × 2.1 mm ID × 11 mm nominal length; center positive. Enclosure / indication Fully enclosed 94V-0 flame-retardant plastic case; power-on LED. No-load power <0.1 W. Energy efficiency Level VI for this voltage model; CoC Version 5. The series lists compliance with USA EISA 2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP. Use the efficiency level specified for this particular voltage model. Model-Specific DC Output Nominal DC voltage 48 VDC. Rated current 1.25 A. Current range 0–1.25 A. Rated output power, maximum 60 W. Ripple and noise, maximum 200 mVp-p. Voltage tolerance ±2.5%. Line regulation ±1.0%. Load regulation ±2.5%. Typical efficiency 91.5%. Observe the current range and rated power together. The output-voltage set point is measured at the DC plug terminals at 50% load. Input and Timing AC input 80–264 VAC; 47–63 Hz. AC input current, typical 1.4 A at 115 VAC; 1 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Leakage current, maximum Touch current <50 µA at 264 VAC. Set-up / rise time, full load 1000 / 30 ms at 230 VAC; 1500 / 30 ms at 115 VAC. Hold-up time, typical at full load 50 ms at 230 VAC; 16 ms at 115 VAC. Select a regional mains cord suitable for the inlet and load. A detachable AC cord is not established as included by this catalogue. Set-up time is measured at the first cold start; repeated ON/OFF operation may increase it. Protection Short circuit / overload 105–160% of rated output power; hiccup operation, automatically recovering after the fault is removed. Overvoltage 50.4–64.8 V; output shuts down; re-power to recover. Overtemperature Output shuts down; re-power to recover. Cooling and Operating Limits Working ambient −30 to +70°C, subject to the horizontal-installation derating curve. Temperature derating 100% load from −30 to 50°C, decreasing linearly to 50% at 70°C. Input derating, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% through 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0 to 40°C. Operating altitude Up to 3000 m; above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Use the temperature and input-voltage limits together. The maximum ambient temperature is not an unconditional full-load rating. Medical Isolation and Safety Means of patient protection Primary to secondary: 2 × MOPP. Dielectric withstand Input/output: 4 kVAC. Insulation resistance Input/output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. Voltage-specific approvals PSE J60950-1 and KC K60950-1 are listed only for the 48 V model. The medical ratings apply to the adapter. Final equipment must be assessed for its actual patient connections, applied-part classification, isolation and EMC requirements. The B-type series is presented for BF applications and lists the home-healthcare standard IEC60601-1-11; this does not by itself certify the complete medical device as BF. EMC Conducted / radiated emissions Class B: BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22. Harmonics / flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity standards BS EN/EN60601-1-2; BS EN/EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. RF susceptibility EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / surge EN61000-4-4: Level 3, 2 kV. EN61000-4-5: Level 3, 1 kV line-to-line. Conducted / magnetic immunity EN61000-4-6: Level 3, 10 V; EN61000-4-8: Level 4, 30 A/m. Voltage dips / interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, and 100% interruption for 250 periods. The adapter is an independent unit; compliance of the complete equipment with the applicable EMC requirements must be confirmed in its final installation. Dimensions, Cable and Standard Plug Enclosure, L × W × H 125 × 50 × 31.5 mm; mechanical drawing tolerance ±1 mm. Attached DC cable UL1185 16 AWG, 1500 ±50 mm. Plug projection 11 ±0.5 mm; the drawing also marks a 70 ±10 mm cable-end section. P1J polarity Inside contact positive (+); outside contact negative (−). Use the dimensional drawing for placement and the supplied connector identification for mating. The plug dimensions and polarity must match the equipment input. Optional DC Plug Types P1I straight tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1L straight tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1M straight tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum. P1IR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1JR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 11 mm. Quick adapter available, 7.5 A maximum. P1LR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1MR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum. P2I straight barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed. P2J straight barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed. P2L straight barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed. P2M straight barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed. P2IR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed. P2JR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed. P2LR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed. P2MR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed. P2S locking; OD × ID × L: 5.53 × 2.03 × 12.06 mm. SWITCHCRAFT S761K original or equivalent. Custom cable option; no quick adapter listed. P2K locking; OD × ID × L: 5.53 × 2.54 × 12.06 mm. SWITCHCRAFT 761K original or equivalent. Custom cable option; no quick adapter listed. P2C locking; OD × ID × L: 5.53 × 2.03 × 9.52 mm. SWITCHCRAFT S760K original or equivalent. Custom cable option; no quick adapter listed. P2D locking; OD × ID × L: 5.53 × 2.54 × 9.52 mm. SWITCHCRAFT 760K original or equivalent. Custom cable option; no quick adapter listed. P3A minimum-pin; OD × ID × L: 2.35 × 0.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P3B minimum-pin; OD × ID × L: 4.0 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P3C minimum-pin; OD × ID × L: 4.75 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P4A center-pin; OD × ID × L: 5.5 × 3.4 × 11 mm. Center pin 1.0 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. P4B center-pin; OD × ID × L: 6.5 × 4.4 × 11 mm. Center pin 1.4 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. P4C center-pin; OD × ID × L: 7.4 × 5.1 × 11 mm. Center pin 0.6 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. The supplied standard model uses P1J. A custom cable with a different plug is subject to the applicable minimum order quantity. Listed quick adapters are sold separately without a minimum order quantity. Select the exact dimensions, polarity and current rating for the load. The accessory current rating does not increase the adapter rating; a 5 A quick adapter cannot carry a load above 5 A. Optional Multi-Pin and Lead Terminations R6B Locking three-pin male mini-DIN; KYCON KPPX-3P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 +Vo. Quick adapter available, 7.5 A maximum. R7B Locking four-pin male mini-DIN; KYCON KPPX-4P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. Quick adapter available, 7.5 A maximum. R7BF Locking four-pin female mini-DIN; KYCON KPJX-CM-4S equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. No quick adapter listed. R1B Five-pin male DIN; pin 1 −Vo, pin 2 −Vo, pin 3 +Vo, pin 4 −Vo, pin 5 +Vo. Quick adapter available, 7.5 A maximum. Stripped and tinned option By customer request: conductor 1 = +Vo; conductor 2 = −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Lead colors The red/black illustration is for reference only; follow the actual supplied product. Use the numbered connector-face drawing to establish orientation. These are optional connection types, not additional connectors included with the P1J adapter. Weight, Reliability and Measurement Notes Catalogue unit weight 320 g, converted from the per-unit PACKING entry; not a measured shipment weight. Carton packing 40 pieces / 13.8 kg / 1.04 CUFT. Lifetime reference Catalogue feature: >95,000 hours; this is distinct from MTBF. MTBF, minimum estimate 3491.2 thousand hours, Telcordia SR-332 (Bellcore); 694.3 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty 3 years, subject to applicable terms. Catalogue revision 2026-05-09; physical PDF pages 16–20. Unless specified otherwise, ratings are measured at 230 VAC, rated load, 25°C and 70% RH. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low to high input at rated load.

  Read more less

  $53.72

  View options

•

  View options

  MEAN WELL GSM60B series: Medical AC/DC Desktop Power Adapter - GSM60B24-P1J

  MEAN WELL GSM60B24-P1J is a GSM60B single-output medical AC/DC desktop power adapter rated at 24 VDC, 2.5 A and 60 W. Its Class II construction uses a two-pole IEC320-C8 AC inlet without protective earth. The standard P1J tuning-fork DC plug is center-positive, with a 5.5 mm outer diameter, 2.1 mm inner diameter and 11 mm nominal length. Apply the stated load and derating limits. Product Datasheet Download MEAN WELL GSM60B Datasheet (PDF) The GSM60B section is on PDF pages 16, 17, 18, 19, 20. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order number GSM60B24-P1J. Product category Single-output medical AC/DC desktop power adapter. Input class / inlet Class II; IEC320-C8; double insulation, no FG. Standard output termination P1J tuning fork; 5.5 mm OD × 2.1 mm ID × 11 mm nominal length; center positive. Enclosure / indication Fully enclosed 94V-0 flame-retardant plastic case; power-on LED. No-load power <0.1 W. Energy efficiency Level VI for this voltage model; CoC Version 5. The series lists compliance with USA EISA 2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP. Use the efficiency level specified for this particular voltage model. Model-Specific DC Output Nominal DC voltage 24 VDC. Rated current 2.5 A. Current range 0–2.5 A. Rated output power, maximum 60 W. Ripple and noise, maximum 150 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Typical efficiency 90%. Observe the current range and rated power together. The output-voltage set point is measured at the DC plug terminals at 50% load. Input and Timing AC input 80–264 VAC; 47–63 Hz. AC input current, typical 1.4 A at 115 VAC; 1 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Leakage current, maximum Touch current <50 µA at 264 VAC. Set-up / rise time, full load 1000 / 30 ms at 230 VAC; 1500 / 30 ms at 115 VAC. Hold-up time, typical at full load 50 ms at 230 VAC; 16 ms at 115 VAC. Select a regional mains cord suitable for the inlet and load. A detachable AC cord is not established as included by this catalogue. Set-up time is measured at the first cold start; repeated ON/OFF operation may increase it. Protection Short circuit / overload 105–160% of rated output power; hiccup operation, automatically recovering after the fault is removed. Overvoltage 25.2–32.4 V; output shuts down; re-power to recover. Overtemperature Output shuts down; re-power to recover. Cooling and Operating Limits Working ambient −30 to +70°C, subject to the horizontal-installation derating curve. Temperature derating 100% load from −30 to 50°C, decreasing linearly to 50% at 70°C. Input derating, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% through 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0 to 40°C. Operating altitude Up to 3000 m; above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Use the temperature and input-voltage limits together. The maximum ambient temperature is not an unconditional full-load rating. Medical Isolation and Safety Means of patient protection Primary to secondary: 2 × MOPP. Dielectric withstand Input/output: 4 kVAC. Insulation resistance Input/output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. The medical ratings apply to the adapter. Final equipment must be assessed for its actual patient connections, applied-part classification, isolation and EMC requirements. The B-type series is presented for BF applications and lists the home-healthcare standard IEC60601-1-11; this does not by itself certify the complete medical device as BF. EMC Conducted / radiated emissions Class B: BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22. Harmonics / flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity standards BS EN/EN60601-1-2; BS EN/EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. RF susceptibility EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / surge EN61000-4-4: Level 3, 2 kV. EN61000-4-5: Level 3, 1 kV line-to-line. Conducted / magnetic immunity EN61000-4-6: Level 3, 10 V; EN61000-4-8: Level 4, 30 A/m. Voltage dips / interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, and 100% interruption for 250 periods. The adapter is an independent unit; compliance of the complete equipment with the applicable EMC requirements must be confirmed in its final installation. Dimensions, Cable and Standard Plug Enclosure, L × W × H 125 × 50 × 31.5 mm; mechanical drawing tolerance ±1 mm. Attached DC cable UL1185 16 AWG, 1500 ±50 mm. Plug projection 11 ±0.5 mm; the drawing also marks a 70 ±10 mm cable-end section. P1J polarity Inside contact positive (+); outside contact negative (−). Use the dimensional drawing for placement and the supplied connector identification for mating. The plug dimensions and polarity must match the equipment input. Optional DC Plug Types P1I straight tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1L straight tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1M straight tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum. P1IR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1JR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 11 mm. Quick adapter available, 7.5 A maximum. P1LR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1MR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum. P2I straight barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed. P2J straight barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed. P2L straight barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed. P2M straight barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed. P2IR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed. P2JR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed. P2LR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed. P2MR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed. P2S locking; OD × ID × L: 5.53 × 2.03 × 12.06 mm. SWITCHCRAFT S761K original or equivalent. Custom cable option; no quick adapter listed. P2K locking; OD × ID × L: 5.53 × 2.54 × 12.06 mm. SWITCHCRAFT 761K original or equivalent. Custom cable option; no quick adapter listed. P2C locking; OD × ID × L: 5.53 × 2.03 × 9.52 mm. SWITCHCRAFT S760K original or equivalent. Custom cable option; no quick adapter listed. P2D locking; OD × ID × L: 5.53 × 2.54 × 9.52 mm. SWITCHCRAFT 760K original or equivalent. Custom cable option; no quick adapter listed. P3A minimum-pin; OD × ID × L: 2.35 × 0.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P3B minimum-pin; OD × ID × L: 4.0 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P3C minimum-pin; OD × ID × L: 4.75 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P4A center-pin; OD × ID × L: 5.5 × 3.4 × 11 mm. Center pin 1.0 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. P4B center-pin; OD × ID × L: 6.5 × 4.4 × 11 mm. Center pin 1.4 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. P4C center-pin; OD × ID × L: 7.4 × 5.1 × 11 mm. Center pin 0.6 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. The supplied standard model uses P1J. A custom cable with a different plug is subject to the applicable minimum order quantity. Listed quick adapters are sold separately without a minimum order quantity. Select the exact dimensions, polarity and current rating for the load. The accessory current rating does not increase the adapter rating; a 5 A quick adapter cannot carry a load above 5 A. Optional Multi-Pin and Lead Terminations R6B Locking three-pin male mini-DIN; KYCON KPPX-3P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 +Vo. Quick adapter available, 7.5 A maximum. R7B Locking four-pin male mini-DIN; KYCON KPPX-4P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. Quick adapter available, 7.5 A maximum. R7BF Locking four-pin female mini-DIN; KYCON KPJX-CM-4S equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. No quick adapter listed. R1B Five-pin male DIN; pin 1 −Vo, pin 2 −Vo, pin 3 +Vo, pin 4 −Vo, pin 5 +Vo. Quick adapter available, 7.5 A maximum. Stripped and tinned option By customer request: conductor 1 = +Vo; conductor 2 = −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Lead colors The red/black illustration is for reference only; follow the actual supplied product. Use the numbered connector-face drawing to establish orientation. These are optional connection types, not additional connectors included with the P1J adapter. Weight, Reliability and Measurement Notes Catalogue unit weight 320 g, converted from the per-unit PACKING entry; not a measured shipment weight. Carton packing 40 pieces / 13.8 kg / 1.04 CUFT. Lifetime reference Catalogue feature: >95,000 hours; this is distinct from MTBF. MTBF, minimum estimate 3491.2 thousand hours, Telcordia SR-332 (Bellcore); 694.3 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty 3 years, subject to applicable terms. Catalogue revision 2026-05-09; physical PDF pages 16–20. Unless specified otherwise, ratings are measured at 230 VAC, rated load, 25°C and 70% RH. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low to high input at rated load.

  Read more less

  $53.72

  View options

•

  View options

  MEAN WELL GSM60B series: Medical AC/DC Desktop Power Adapter - GSM60B18-P1J

  MEAN WELL GSM60B18-P1J is a GSM60B single-output medical AC/DC desktop power adapter rated at 18 VDC, 3.33 A and 60 W. Its Class II construction uses a two-pole IEC320-C8 AC inlet without protective earth. The standard P1J tuning-fork DC plug is center-positive, with a 5.5 mm outer diameter, 2.1 mm inner diameter and 11 mm nominal length. Apply the stated load and derating limits. Product Datasheet Download MEAN WELL GSM60B Datasheet (PDF) The GSM60B section is on PDF pages 16, 17, 18, 19, 20. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order number GSM60B18-P1J. Product category Single-output medical AC/DC desktop power adapter. Input class / inlet Class II; IEC320-C8; double insulation, no FG. Standard output termination P1J tuning fork; 5.5 mm OD × 2.1 mm ID × 11 mm nominal length; center positive. Enclosure / indication Fully enclosed 94V-0 flame-retardant plastic case; power-on LED. No-load power <0.1 W. Energy efficiency Level VI for this voltage model; CoC Version 5. The series lists compliance with USA EISA 2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP. Use the efficiency level specified for this particular voltage model. Model-Specific DC Output Nominal DC voltage 18 VDC. Rated current 3.33 A. Current range 0–3.33 A. Rated output power, maximum 60 W. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Typical efficiency 89%. Observe the current range and rated power together. The output-voltage set point is measured at the DC plug terminals at 50% load. Input and Timing AC input 80–264 VAC; 47–63 Hz. AC input current, typical 1.4 A at 115 VAC; 1 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Leakage current, maximum Touch current <50 µA at 264 VAC. Set-up / rise time, full load 1000 / 30 ms at 230 VAC; 1500 / 30 ms at 115 VAC. Hold-up time, typical at full load 50 ms at 230 VAC; 16 ms at 115 VAC. Select a regional mains cord suitable for the inlet and load. A detachable AC cord is not established as included by this catalogue. Set-up time is measured at the first cold start; repeated ON/OFF operation may increase it. Protection Short circuit / overload 105–160% of rated output power; hiccup operation, automatically recovering after the fault is removed. Overvoltage 18.9–24.3 V; output shuts down; re-power to recover. Overtemperature Output shuts down; re-power to recover. Cooling and Operating Limits Working ambient −30 to +70°C, subject to the horizontal-installation derating curve. Temperature derating 100% load from −30 to 50°C, decreasing linearly to 50% at 70°C. Input derating, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% through 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0 to 40°C. Operating altitude Up to 3000 m; above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Use the temperature and input-voltage limits together. The maximum ambient temperature is not an unconditional full-load rating. Medical Isolation and Safety Means of patient protection Primary to secondary: 2 × MOPP. Dielectric withstand Input/output: 4 kVAC. Insulation resistance Input/output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. The medical ratings apply to the adapter. Final equipment must be assessed for its actual patient connections, applied-part classification, isolation and EMC requirements. The B-type series is presented for BF applications and lists the home-healthcare standard IEC60601-1-11; this does not by itself certify the complete medical device as BF. EMC Conducted / radiated emissions Class B: BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22. Harmonics / flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity standards BS EN/EN60601-1-2; BS EN/EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. RF susceptibility EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / surge EN61000-4-4: Level 3, 2 kV. EN61000-4-5: Level 3, 1 kV line-to-line. Conducted / magnetic immunity EN61000-4-6: Level 3, 10 V; EN61000-4-8: Level 4, 30 A/m. Voltage dips / interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, and 100% interruption for 250 periods. The adapter is an independent unit; compliance of the complete equipment with the applicable EMC requirements must be confirmed in its final installation. Dimensions, Cable and Standard Plug Enclosure, L × W × H 125 × 50 × 31.5 mm; mechanical drawing tolerance ±1 mm. Attached DC cable UL1185 16 AWG, 1500 ±50 mm. Plug projection 11 ±0.5 mm; the drawing also marks a 70 ±10 mm cable-end section. P1J polarity Inside contact positive (+); outside contact negative (−). Use the dimensional drawing for placement and the supplied connector identification for mating. The plug dimensions and polarity must match the equipment input. Optional DC Plug Types P1I straight tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1L straight tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1M straight tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum. P1IR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1JR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 11 mm. Quick adapter available, 7.5 A maximum. P1LR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1MR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum. P2I straight barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed. P2J straight barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed. P2L straight barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed. P2M straight barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed. P2IR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed. P2JR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed. P2LR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed. P2MR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed. P2S locking; OD × ID × L: 5.53 × 2.03 × 12.06 mm. SWITCHCRAFT S761K original or equivalent. Custom cable option; no quick adapter listed. P2K locking; OD × ID × L: 5.53 × 2.54 × 12.06 mm. SWITCHCRAFT 761K original or equivalent. Custom cable option; no quick adapter listed. P2C locking; OD × ID × L: 5.53 × 2.03 × 9.52 mm. SWITCHCRAFT S760K original or equivalent. Custom cable option; no quick adapter listed. P2D locking; OD × ID × L: 5.53 × 2.54 × 9.52 mm. SWITCHCRAFT 760K original or equivalent. Custom cable option; no quick adapter listed. P3A minimum-pin; OD × ID × L: 2.35 × 0.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P3B minimum-pin; OD × ID × L: 4.0 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P3C minimum-pin; OD × ID × L: 4.75 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P4A center-pin; OD × ID × L: 5.5 × 3.4 × 11 mm. Center pin 1.0 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. P4B center-pin; OD × ID × L: 6.5 × 4.4 × 11 mm. Center pin 1.4 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. P4C center-pin; OD × ID × L: 7.4 × 5.1 × 11 mm. Center pin 0.6 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. The supplied standard model uses P1J. A custom cable with a different plug is subject to the applicable minimum order quantity. Listed quick adapters are sold separately without a minimum order quantity. Select the exact dimensions, polarity and current rating for the load. The accessory current rating does not increase the adapter rating; a 5 A quick adapter cannot carry a load above 5 A. Optional Multi-Pin and Lead Terminations R6B Locking three-pin male mini-DIN; KYCON KPPX-3P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 +Vo. Quick adapter available, 7.5 A maximum. R7B Locking four-pin male mini-DIN; KYCON KPPX-4P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. Quick adapter available, 7.5 A maximum. R7BF Locking four-pin female mini-DIN; KYCON KPJX-CM-4S equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. No quick adapter listed. R1B Five-pin male DIN; pin 1 −Vo, pin 2 −Vo, pin 3 +Vo, pin 4 −Vo, pin 5 +Vo. Quick adapter available, 7.5 A maximum. Stripped and tinned option By customer request: conductor 1 = +Vo; conductor 2 = −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Lead colors The red/black illustration is for reference only; follow the actual supplied product. Use the numbered connector-face drawing to establish orientation. These are optional connection types, not additional connectors included with the P1J adapter. Weight, Reliability and Measurement Notes Catalogue unit weight 320 g, converted from the per-unit PACKING entry; not a measured shipment weight. Carton packing 40 pieces / 13.8 kg / 1.04 CUFT. Lifetime reference Catalogue feature: >95,000 hours; this is distinct from MTBF. MTBF, minimum estimate 3491.2 thousand hours, Telcordia SR-332 (Bellcore); 694.3 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty 3 years, subject to applicable terms. Catalogue revision 2026-05-09; physical PDF pages 16–20. Unless specified otherwise, ratings are measured at 230 VAC, rated load, 25°C and 70% RH. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low to high input at rated load.

  Read more less

  $53.72

  View options

•

  View options

  MEAN WELL GSM60B series: Medical AC/DC Desktop Power Adapter - GSM60B15-P1J

  MEAN WELL GSM60B15-P1J is a GSM60B single-output medical AC/DC desktop power adapter rated at 15 VDC, 4 A and 60 W. Its Class II construction uses a two-pole IEC320-C8 AC inlet without protective earth. The standard P1J tuning-fork DC plug is center-positive, with a 5.5 mm outer diameter, 2.1 mm inner diameter and 11 mm nominal length. Apply the stated load and derating limits. Product Datasheet Download MEAN WELL GSM60B Datasheet (PDF) The GSM60B section is on PDF pages 16, 17, 18, 19, 20. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order number GSM60B15-P1J. Product category Single-output medical AC/DC desktop power adapter. Input class / inlet Class II; IEC320-C8; double insulation, no FG. Standard output termination P1J tuning fork; 5.5 mm OD × 2.1 mm ID × 11 mm nominal length; center positive. Enclosure / indication Fully enclosed 94V-0 flame-retardant plastic case; power-on LED. No-load power <0.1 W. Energy efficiency Level VI for this voltage model; CoC Version 5. The series lists compliance with USA EISA 2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP. Use the efficiency level specified for this particular voltage model. Model-Specific DC Output Nominal DC voltage 15 VDC. Rated current 4 A. Current range 0–4 A. Rated output power, maximum 60 W. Ripple and noise, maximum 100 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Typical efficiency 88.5%. Observe the current range and rated power together. The output-voltage set point is measured at the DC plug terminals at 50% load. Input and Timing AC input 80–264 VAC; 47–63 Hz. AC input current, typical 1.4 A at 115 VAC; 1 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Leakage current, maximum Touch current <50 µA at 264 VAC. Set-up / rise time, full load 1000 / 30 ms at 230 VAC; 1500 / 30 ms at 115 VAC. Hold-up time, typical at full load 50 ms at 230 VAC; 16 ms at 115 VAC. Select a regional mains cord suitable for the inlet and load. A detachable AC cord is not established as included by this catalogue. Set-up time is measured at the first cold start; repeated ON/OFF operation may increase it. Protection Short circuit / overload 105–160% of rated output power; hiccup operation, automatically recovering after the fault is removed. Overvoltage 15.7–20.3 V; output shuts down; re-power to recover. Overtemperature Output shuts down; re-power to recover. Cooling and Operating Limits Working ambient −30 to +70°C, subject to the horizontal-installation derating curve. Temperature derating 100% load from −30 to 50°C, decreasing linearly to 50% at 70°C. Input derating, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% through 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0 to 40°C. Operating altitude Up to 3000 m; above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Use the temperature and input-voltage limits together. The maximum ambient temperature is not an unconditional full-load rating. Medical Isolation and Safety Means of patient protection Primary to secondary: 2 × MOPP. Dielectric withstand Input/output: 4 kVAC. Insulation resistance Input/output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. The medical ratings apply to the adapter. Final equipment must be assessed for its actual patient connections, applied-part classification, isolation and EMC requirements. The B-type series is presented for BF applications and lists the home-healthcare standard IEC60601-1-11; this does not by itself certify the complete medical device as BF. EMC Conducted / radiated emissions Class B: BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22. Harmonics / flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity standards BS EN/EN60601-1-2; BS EN/EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. RF susceptibility EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / surge EN61000-4-4: Level 3, 2 kV. EN61000-4-5: Level 3, 1 kV line-to-line. Conducted / magnetic immunity EN61000-4-6: Level 3, 10 V; EN61000-4-8: Level 4, 30 A/m. Voltage dips / interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, and 100% interruption for 250 periods. The adapter is an independent unit; compliance of the complete equipment with the applicable EMC requirements must be confirmed in its final installation. Dimensions, Cable and Standard Plug Enclosure, L × W × H 125 × 50 × 31.5 mm; mechanical drawing tolerance ±1 mm. Attached DC cable UL2464 16 AWG, 1000 ±50 mm. Plug projection 11 ±0.5 mm; the drawing also marks a 70 ±10 mm cable-end section. P1J polarity Inside contact positive (+); outside contact negative (−). Use the dimensional drawing for placement and the supplied connector identification for mating. The plug dimensions and polarity must match the equipment input. Optional DC Plug Types P1I straight tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1L straight tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1M straight tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum. P1IR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1JR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 11 mm. Quick adapter available, 7.5 A maximum. P1LR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1MR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum. P2I straight barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed. P2J straight barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed. P2L straight barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed. P2M straight barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed. P2IR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed. P2JR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed. P2LR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed. P2MR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed. P2S locking; OD × ID × L: 5.53 × 2.03 × 12.06 mm. SWITCHCRAFT S761K original or equivalent. Custom cable option; no quick adapter listed. P2K locking; OD × ID × L: 5.53 × 2.54 × 12.06 mm. SWITCHCRAFT 761K original or equivalent. Custom cable option; no quick adapter listed. P2C locking; OD × ID × L: 5.53 × 2.03 × 9.52 mm. SWITCHCRAFT S760K original or equivalent. Custom cable option; no quick adapter listed. P2D locking; OD × ID × L: 5.53 × 2.54 × 9.52 mm. SWITCHCRAFT 760K original or equivalent. Custom cable option; no quick adapter listed. P3A minimum-pin; OD × ID × L: 2.35 × 0.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P3B minimum-pin; OD × ID × L: 4.0 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P3C minimum-pin; OD × ID × L: 4.75 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P4A center-pin; OD × ID × L: 5.5 × 3.4 × 11 mm. Center pin 1.0 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. P4B center-pin; OD × ID × L: 6.5 × 4.4 × 11 mm. Center pin 1.4 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. P4C center-pin; OD × ID × L: 7.4 × 5.1 × 11 mm. Center pin 0.6 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. The supplied standard model uses P1J. A custom cable with a different plug is subject to the applicable minimum order quantity. Listed quick adapters are sold separately without a minimum order quantity. Select the exact dimensions, polarity and current rating for the load. The accessory current rating does not increase the adapter rating; a 5 A quick adapter cannot carry a load above 5 A. Optional Multi-Pin and Lead Terminations R6B Locking three-pin male mini-DIN; KYCON KPPX-3P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 +Vo. Quick adapter available, 7.5 A maximum. R7B Locking four-pin male mini-DIN; KYCON KPPX-4P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. Quick adapter available, 7.5 A maximum. R7BF Locking four-pin female mini-DIN; KYCON KPJX-CM-4S equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. No quick adapter listed. R1B Five-pin male DIN; pin 1 −Vo, pin 2 −Vo, pin 3 +Vo, pin 4 −Vo, pin 5 +Vo. Quick adapter available, 7.5 A maximum. Stripped and tinned option By customer request: conductor 1 = +Vo; conductor 2 = −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Lead colors The red/black illustration is for reference only; follow the actual supplied product. Use the numbered connector-face drawing to establish orientation. These are optional connection types, not additional connectors included with the P1J adapter. Weight, Reliability and Measurement Notes Catalogue unit weight 320 g, converted from the per-unit PACKING entry; not a measured shipment weight. Carton packing 40 pieces / 13.8 kg / 1.04 CUFT. Lifetime reference Catalogue feature: >95,000 hours; this is distinct from MTBF. MTBF, minimum estimate 3491.2 thousand hours, Telcordia SR-332 (Bellcore); 694.3 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty 3 years, subject to applicable terms. Catalogue revision 2026-05-09; physical PDF pages 16–20. Unless specified otherwise, ratings are measured at 230 VAC, rated load, 25°C and 70% RH. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low to high input at rated load.

  Read more less

  $53.72

  View options

•

  View options

  MEAN WELL GSM60B series: Medical AC/DC Desktop Power Adapter - GSM60B12-P1J

  MEAN WELL GSM60B12-P1J is a GSM60B single-output medical AC/DC desktop power adapter rated at 12 VDC, 5 A and 60 W. Its Class II construction uses a two-pole IEC320-C8 AC inlet without protective earth. The standard P1J tuning-fork DC plug is center-positive, with a 5.5 mm outer diameter, 2.1 mm inner diameter and 11 mm nominal length. Apply the stated load and derating limits. Product Datasheet Download MEAN WELL GSM60B Datasheet (PDF) The GSM60B section is on PDF pages 16, 17, 18, 19, 20. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order number GSM60B12-P1J. Product category Single-output medical AC/DC desktop power adapter. Input class / inlet Class II; IEC320-C8; double insulation, no FG. Standard output termination P1J tuning fork; 5.5 mm OD × 2.1 mm ID × 11 mm nominal length; center positive. Enclosure / indication Fully enclosed 94V-0 flame-retardant plastic case; power-on LED. No-load power <0.1 W. Energy efficiency Level VI for this voltage model; CoC Version 5. The series lists compliance with USA EISA 2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP. Use the efficiency level specified for this particular voltage model. Model-Specific DC Output Nominal DC voltage 12 VDC. Rated current 5 A. Current range 0–5 A. Rated output power, maximum 60 W. Ripple and noise, maximum 100 mVp-p. Voltage tolerance ±3.0%. Line regulation ±1.0%. Load regulation ±3.0%. Typical efficiency 88%. Observe the current range and rated power together. The output-voltage set point is measured at the DC plug terminals at 50% load. Input and Timing AC input 80–264 VAC; 47–63 Hz. AC input current, typical 1.4 A at 115 VAC; 1 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Leakage current, maximum Touch current <50 µA at 264 VAC. Set-up / rise time, full load 1000 / 30 ms at 230 VAC; 1500 / 30 ms at 115 VAC. Hold-up time, typical at full load 50 ms at 230 VAC; 16 ms at 115 VAC. Select a regional mains cord suitable for the inlet and load. A detachable AC cord is not established as included by this catalogue. Set-up time is measured at the first cold start; repeated ON/OFF operation may increase it. Protection Short circuit / overload 105–160% of rated output power; hiccup operation, automatically recovering after the fault is removed. Overvoltage 12.6–16.2 V; output shuts down; re-power to recover. Overtemperature Output shuts down; re-power to recover. Cooling and Operating Limits Working ambient −30 to +70°C, subject to the horizontal-installation derating curve. Temperature derating 100% load from −30 to 50°C, decreasing linearly to 50% at 70°C. Input derating, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% through 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0 to 40°C. Operating altitude Up to 3000 m; above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Use the temperature and input-voltage limits together. The maximum ambient temperature is not an unconditional full-load rating. Medical Isolation and Safety Means of patient protection Primary to secondary: 2 × MOPP. Dielectric withstand Input/output: 4 kVAC. Insulation resistance Input/output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. The medical ratings apply to the adapter. Final equipment must be assessed for its actual patient connections, applied-part classification, isolation and EMC requirements. The B-type series is presented for BF applications and lists the home-healthcare standard IEC60601-1-11; this does not by itself certify the complete medical device as BF. EMC Conducted / radiated emissions Class B: BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22. Harmonics / flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity standards BS EN/EN60601-1-2; BS EN/EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. RF susceptibility EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / surge EN61000-4-4: Level 3, 2 kV. EN61000-4-5: Level 3, 1 kV line-to-line. Conducted / magnetic immunity EN61000-4-6: Level 3, 10 V; EN61000-4-8: Level 4, 30 A/m. Voltage dips / interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, and 100% interruption for 250 periods. The adapter is an independent unit; compliance of the complete equipment with the applicable EMC requirements must be confirmed in its final installation. Dimensions, Cable and Standard Plug Enclosure, L × W × H 125 × 50 × 31.5 mm; mechanical drawing tolerance ±1 mm. Attached DC cable UL2464 16 AWG, 1000 ±50 mm. Plug projection 11 ±0.5 mm; the drawing also marks a 70 ±10 mm cable-end section. P1J polarity Inside contact positive (+); outside contact negative (−). Use the dimensional drawing for placement and the supplied connector identification for mating. The plug dimensions and polarity must match the equipment input. Optional DC Plug Types P1I straight tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1L straight tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1M straight tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum. P1IR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1JR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 11 mm. Quick adapter available, 7.5 A maximum. P1LR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1MR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum. P2I straight barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed. P2J straight barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed. P2L straight barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed. P2M straight barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed. P2IR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed. P2JR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed. P2LR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed. P2MR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed. P2S locking; OD × ID × L: 5.53 × 2.03 × 12.06 mm. SWITCHCRAFT S761K original or equivalent. Custom cable option; no quick adapter listed. P2K locking; OD × ID × L: 5.53 × 2.54 × 12.06 mm. SWITCHCRAFT 761K original or equivalent. Custom cable option; no quick adapter listed. P2C locking; OD × ID × L: 5.53 × 2.03 × 9.52 mm. SWITCHCRAFT S760K original or equivalent. Custom cable option; no quick adapter listed. P2D locking; OD × ID × L: 5.53 × 2.54 × 9.52 mm. SWITCHCRAFT 760K original or equivalent. Custom cable option; no quick adapter listed. P3A minimum-pin; OD × ID × L: 2.35 × 0.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P3B minimum-pin; OD × ID × L: 4.0 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P3C minimum-pin; OD × ID × L: 4.75 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P4A center-pin; OD × ID × L: 5.5 × 3.4 × 11 mm. Center pin 1.0 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. P4B center-pin; OD × ID × L: 6.5 × 4.4 × 11 mm. Center pin 1.4 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. P4C center-pin; OD × ID × L: 7.4 × 5.1 × 11 mm. Center pin 0.6 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. The supplied standard model uses P1J. A custom cable with a different plug is subject to the applicable minimum order quantity. Listed quick adapters are sold separately without a minimum order quantity. Select the exact dimensions, polarity and current rating for the load. The accessory current rating does not increase the adapter rating; a 5 A quick adapter cannot carry a load above 5 A. Optional Multi-Pin and Lead Terminations R6B Locking three-pin male mini-DIN; KYCON KPPX-3P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 +Vo. Quick adapter available, 7.5 A maximum. R7B Locking four-pin male mini-DIN; KYCON KPPX-4P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. Quick adapter available, 7.5 A maximum. R7BF Locking four-pin female mini-DIN; KYCON KPJX-CM-4S equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. No quick adapter listed. R1B Five-pin male DIN; pin 1 −Vo, pin 2 −Vo, pin 3 +Vo, pin 4 −Vo, pin 5 +Vo. Quick adapter available, 7.5 A maximum. Stripped and tinned option By customer request: conductor 1 = +Vo; conductor 2 = −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Lead colors The red/black illustration is for reference only; follow the actual supplied product. Use the numbered connector-face drawing to establish orientation. These are optional connection types, not additional connectors included with the P1J adapter. Weight, Reliability and Measurement Notes Catalogue unit weight 320 g, converted from the per-unit PACKING entry; not a measured shipment weight. Carton packing 40 pieces / 13.8 kg / 1.04 CUFT. Lifetime reference Catalogue feature: >95,000 hours; this is distinct from MTBF. MTBF, minimum estimate 3491.2 thousand hours, Telcordia SR-332 (Bellcore); 694.3 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty 3 years, subject to applicable terms. Catalogue revision 2026-05-09; physical PDF pages 16–20. Unless specified otherwise, ratings are measured at 230 VAC, rated load, 25°C and 70% RH. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low to high input at rated load.

  Read more less

  $53.72

  View options

•

  View options

  MEAN WELL GSM60B series: Medical AC/DC Desktop Power Adapter - GSM60B09-P1J

  MEAN WELL GSM60B09-P1J is a GSM60B single-output medical AC/DC desktop power adapter rated at 9 VDC, 6 A and 54 W. Its Class II construction uses a two-pole IEC320-C8 AC inlet without protective earth. The standard P1J tuning-fork DC plug is center-positive, with a 5.5 mm outer diameter, 2.1 mm inner diameter and 11 mm nominal length. Apply the stated load and derating limits. Product Datasheet Download MEAN WELL GSM60B Datasheet (PDF) The GSM60B section is on PDF pages 16, 17, 18, 19, 20. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order number GSM60B09-P1J. Product category Single-output medical AC/DC desktop power adapter. Input class / inlet Class II; IEC320-C8; double insulation, no FG. Standard output termination P1J tuning fork; 5.5 mm OD × 2.1 mm ID × 11 mm nominal length; center positive. Enclosure / indication Fully enclosed 94V-0 flame-retardant plastic case; power-on LED. No-load power <0.1 W. Energy efficiency Level V for this voltage model; CoC Version 5. The series lists compliance with USA EISA 2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP. Use the efficiency level specified for this particular voltage model. Model-Specific DC Output Nominal DC voltage 9 VDC. Rated current 6 A. Current range 0–6 A. Rated output power, maximum 54 W. Ripple and noise, maximum 100 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Typical efficiency 87.5%. Observe the current range and rated power together. The output-voltage set point is measured at the DC plug terminals at 50% load. Input and Timing AC input 80–264 VAC; 47–63 Hz. AC input current, typical 1.4 A at 115 VAC; 1 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Leakage current, maximum Touch current <50 µA at 264 VAC. Set-up / rise time, full load 1000 / 30 ms at 230 VAC; 1500 / 30 ms at 115 VAC. Hold-up time, typical at full load 50 ms at 230 VAC; 16 ms at 115 VAC. Select a regional mains cord suitable for the inlet and load. A detachable AC cord is not established as included by this catalogue. Set-up time is measured at the first cold start; repeated ON/OFF operation may increase it. Protection Short circuit / overload 105–160% of rated output power; hiccup operation, automatically recovering after the fault is removed. Overvoltage 9.4–12.2 V; output shuts down; re-power to recover. Overtemperature Output shuts down; re-power to recover. Cooling and Operating Limits Working ambient −30 to +70°C, subject to the horizontal-installation derating curve. Temperature derating 100% load from −30 to 50°C, decreasing linearly to 50% at 70°C. Input derating, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% through 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0 to 40°C. Operating altitude Up to 3000 m; above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Use the temperature and input-voltage limits together. The maximum ambient temperature is not an unconditional full-load rating. Medical Isolation and Safety Means of patient protection Primary to secondary: 2 × MOPP. Dielectric withstand Input/output: 4 kVAC. Insulation resistance Input/output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. The medical ratings apply to the adapter. Final equipment must be assessed for its actual patient connections, applied-part classification, isolation and EMC requirements. The B-type series is presented for BF applications and lists the home-healthcare standard IEC60601-1-11; this does not by itself certify the complete medical device as BF. EMC Conducted / radiated emissions Class B: BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22. Harmonics / flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity standards BS EN/EN60601-1-2; BS EN/EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. RF susceptibility EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / surge EN61000-4-4: Level 3, 2 kV. EN61000-4-5: Level 3, 1 kV line-to-line. Conducted / magnetic immunity EN61000-4-6: Level 3, 10 V; EN61000-4-8: Level 4, 30 A/m. Voltage dips / interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, and 100% interruption for 250 periods. The adapter is an independent unit; compliance of the complete equipment with the applicable EMC requirements must be confirmed in its final installation. Dimensions, Cable and Standard Plug Enclosure, L × W × H 125 × 50 × 31.5 mm; mechanical drawing tolerance ±1 mm. Attached DC cable UL2464 16 AWG, 1000 ±50 mm. Plug projection 11 ±0.5 mm; the drawing also marks a 70 ±10 mm cable-end section. P1J polarity Inside contact positive (+); outside contact negative (−). Use the dimensional drawing for placement and the supplied connector identification for mating. The plug dimensions and polarity must match the equipment input. Optional DC Plug Types P1I straight tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1L straight tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1M straight tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum. P1IR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1JR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 11 mm. Quick adapter available, 7.5 A maximum. P1LR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1MR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum. P2I straight barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed. P2J straight barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed. P2L straight barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed. P2M straight barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed. P2IR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed. P2JR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed. P2LR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed. P2MR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed. P2S locking; OD × ID × L: 5.53 × 2.03 × 12.06 mm. SWITCHCRAFT S761K original or equivalent. Custom cable option; no quick adapter listed. P2K locking; OD × ID × L: 5.53 × 2.54 × 12.06 mm. SWITCHCRAFT 761K original or equivalent. Custom cable option; no quick adapter listed. P2C locking; OD × ID × L: 5.53 × 2.03 × 9.52 mm. SWITCHCRAFT S760K original or equivalent. Custom cable option; no quick adapter listed. P2D locking; OD × ID × L: 5.53 × 2.54 × 9.52 mm. SWITCHCRAFT 760K original or equivalent. Custom cable option; no quick adapter listed. P3A minimum-pin; OD × ID × L: 2.35 × 0.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P3B minimum-pin; OD × ID × L: 4.0 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P3C minimum-pin; OD × ID × L: 4.75 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P4A center-pin; OD × ID × L: 5.5 × 3.4 × 11 mm. Center pin 1.0 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. P4B center-pin; OD × ID × L: 6.5 × 4.4 × 11 mm. Center pin 1.4 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. P4C center-pin; OD × ID × L: 7.4 × 5.1 × 11 mm. Center pin 0.6 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. The supplied standard model uses P1J. A custom cable with a different plug is subject to the applicable minimum order quantity. Listed quick adapters are sold separately without a minimum order quantity. Select the exact dimensions, polarity and current rating for the load. The accessory current rating does not increase the adapter rating; a 5 A quick adapter cannot carry a load above 5 A. Optional Multi-Pin and Lead Terminations R6B Locking three-pin male mini-DIN; KYCON KPPX-3P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 +Vo. Quick adapter available, 7.5 A maximum. R7B Locking four-pin male mini-DIN; KYCON KPPX-4P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. Quick adapter available, 7.5 A maximum. R7BF Locking four-pin female mini-DIN; KYCON KPJX-CM-4S equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. No quick adapter listed. R1B Five-pin male DIN; pin 1 −Vo, pin 2 −Vo, pin 3 +Vo, pin 4 −Vo, pin 5 +Vo. Quick adapter available, 7.5 A maximum. Stripped and tinned option By customer request: conductor 1 = +Vo; conductor 2 = −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Lead colors The red/black illustration is for reference only; follow the actual supplied product. Use the numbered connector-face drawing to establish orientation. These are optional connection types, not additional connectors included with the P1J adapter. Weight, Reliability and Measurement Notes Catalogue unit weight 320 g, converted from the per-unit PACKING entry; not a measured shipment weight. Carton packing 40 pieces / 13.8 kg / 1.04 CUFT. Lifetime reference Catalogue feature: >95,000 hours; this is distinct from MTBF. MTBF, minimum estimate 3491.2 thousand hours, Telcordia SR-332 (Bellcore); 694.3 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty 3 years, subject to applicable terms. Catalogue revision 2026-05-09; physical PDF pages 16–20. Unless specified otherwise, ratings are measured at 230 VAC, rated load, 25°C and 70% RH. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low to high input at rated load.

  Read more less

  $53.72

  View options

•

  View options

  MEAN WELL GSM60B series: Medical AC/DC Desktop Power Adapter - GSM60B07-P1J

  MEAN WELL GSM60B07-P1J is a GSM60B single-output medical AC/DC desktop power adapter rated at 7.5 VDC, 6 A and 45 W. Its Class II construction uses a two-pole IEC320-C8 AC inlet without protective earth. The standard P1J tuning-fork DC plug is center-positive, with a 5.5 mm outer diameter, 2.1 mm inner diameter and 11 mm nominal length. Apply the stated load and derating limits. Product Datasheet Download MEAN WELL GSM60B Datasheet (PDF) The GSM60B section is on PDF pages 16, 17, 18, 19, 20. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order number GSM60B07-P1J. Product category Single-output medical AC/DC desktop power adapter. Input class / inlet Class II; IEC320-C8; double insulation, no FG. Standard output termination P1J tuning fork; 5.5 mm OD × 2.1 mm ID × 11 mm nominal length; center positive. Enclosure / indication Fully enclosed 94V-0 flame-retardant plastic case; power-on LED. No-load power <0.1 W. Energy efficiency Level V for this voltage model; CoC Version 5. The series lists compliance with USA EISA 2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP. Use the efficiency level specified for this particular voltage model. Model-Specific DC Output Nominal DC voltage 7.5 VDC. Rated current 6 A. Current range 0–6 A. Rated output power, maximum 45 W. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Typical efficiency 86%. Observe the current range and rated power together. The output-voltage set point is measured at the DC plug terminals at 50% load. Input and Timing AC input 80–264 VAC; 47–63 Hz. AC input current, typical 1.4 A at 115 VAC; 1 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Leakage current, maximum Touch current <50 µA at 264 VAC. Set-up / rise time, full load 1000 / 30 ms at 230 VAC; 1500 / 30 ms at 115 VAC. Hold-up time, typical at full load 50 ms at 230 VAC; 16 ms at 115 VAC. Select a regional mains cord suitable for the inlet and load. A detachable AC cord is not established as included by this catalogue. Set-up time is measured at the first cold start; repeated ON/OFF operation may increase it. Protection Short circuit / overload 105–160% of rated output power; hiccup operation, automatically recovering after the fault is removed. Overvoltage 7.8–10.2 V; output shuts down; re-power to recover. Overtemperature Output shuts down; re-power to recover. Cooling and Operating Limits Working ambient −30 to +70°C, subject to the horizontal-installation derating curve. Temperature derating 100% load from −30 to 50°C, decreasing linearly to 50% at 70°C. Input derating, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% through 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0 to 40°C. Operating altitude Up to 3000 m; above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Use the temperature and input-voltage limits together. The maximum ambient temperature is not an unconditional full-load rating. Medical Isolation and Safety Means of patient protection Primary to secondary: 2 × MOPP. Dielectric withstand Input/output: 4 kVAC. Insulation resistance Input/output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. The medical ratings apply to the adapter. Final equipment must be assessed for its actual patient connections, applied-part classification, isolation and EMC requirements. The B-type series is presented for BF applications and lists the home-healthcare standard IEC60601-1-11; this does not by itself certify the complete medical device as BF. EMC Conducted / radiated emissions Class B: BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22. Harmonics / flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity standards BS EN/EN60601-1-2; BS EN/EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. RF susceptibility EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / surge EN61000-4-4: Level 3, 2 kV. EN61000-4-5: Level 3, 1 kV line-to-line. Conducted / magnetic immunity EN61000-4-6: Level 3, 10 V; EN61000-4-8: Level 4, 30 A/m. Voltage dips / interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, and 100% interruption for 250 periods. The adapter is an independent unit; compliance of the complete equipment with the applicable EMC requirements must be confirmed in its final installation. Dimensions, Cable and Standard Plug Enclosure, L × W × H 125 × 50 × 31.5 mm; mechanical drawing tolerance ±1 mm. Attached DC cable UL2464 16 AWG, 1000 ±50 mm. Plug projection 11 ±0.5 mm; the drawing also marks a 70 ±10 mm cable-end section. P1J polarity Inside contact positive (+); outside contact negative (−). Use the dimensional drawing for placement and the supplied connector identification for mating. The plug dimensions and polarity must match the equipment input. Optional DC Plug Types P1I straight tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1L straight tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1M straight tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum. P1IR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1JR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 11 mm. Quick adapter available, 7.5 A maximum. P1LR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1MR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum. P2I straight barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed. P2J straight barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed. P2L straight barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed. P2M straight barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed. P2IR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed. P2JR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed. P2LR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed. P2MR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed. P2S locking; OD × ID × L: 5.53 × 2.03 × 12.06 mm. SWITCHCRAFT S761K original or equivalent. Custom cable option; no quick adapter listed. P2K locking; OD × ID × L: 5.53 × 2.54 × 12.06 mm. SWITCHCRAFT 761K original or equivalent. Custom cable option; no quick adapter listed. P2C locking; OD × ID × L: 5.53 × 2.03 × 9.52 mm. SWITCHCRAFT S760K original or equivalent. Custom cable option; no quick adapter listed. P2D locking; OD × ID × L: 5.53 × 2.54 × 9.52 mm. SWITCHCRAFT 760K original or equivalent. Custom cable option; no quick adapter listed. P3A minimum-pin; OD × ID × L: 2.35 × 0.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P3B minimum-pin; OD × ID × L: 4.0 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P3C minimum-pin; OD × ID × L: 4.75 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P4A center-pin; OD × ID × L: 5.5 × 3.4 × 11 mm. Center pin 1.0 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. P4B center-pin; OD × ID × L: 6.5 × 4.4 × 11 mm. Center pin 1.4 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. P4C center-pin; OD × ID × L: 7.4 × 5.1 × 11 mm. Center pin 0.6 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. The supplied standard model uses P1J. A custom cable with a different plug is subject to the applicable minimum order quantity. Listed quick adapters are sold separately without a minimum order quantity. Select the exact dimensions, polarity and current rating for the load. The accessory current rating does not increase the adapter rating; a 5 A quick adapter cannot carry a load above 5 A. Optional Multi-Pin and Lead Terminations R6B Locking three-pin male mini-DIN; KYCON KPPX-3P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 +Vo. Quick adapter available, 7.5 A maximum. R7B Locking four-pin male mini-DIN; KYCON KPPX-4P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. Quick adapter available, 7.5 A maximum. R7BF Locking four-pin female mini-DIN; KYCON KPJX-CM-4S equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. No quick adapter listed. R1B Five-pin male DIN; pin 1 −Vo, pin 2 −Vo, pin 3 +Vo, pin 4 −Vo, pin 5 +Vo. Quick adapter available, 7.5 A maximum. Stripped and tinned option By customer request: conductor 1 = +Vo; conductor 2 = −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Lead colors The red/black illustration is for reference only; follow the actual supplied product. Use the numbered connector-face drawing to establish orientation. These are optional connection types, not additional connectors included with the P1J adapter. Weight, Reliability and Measurement Notes Catalogue unit weight 320 g, converted from the per-unit PACKING entry; not a measured shipment weight. Carton packing 40 pieces / 13.8 kg / 1.04 CUFT. Lifetime reference Catalogue feature: >95,000 hours; this is distinct from MTBF. MTBF, minimum estimate 3491.2 thousand hours, Telcordia SR-332 (Bellcore); 694.3 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty 3 years, subject to applicable terms. Catalogue revision 2026-05-09; physical PDF pages 16–20. Unless specified otherwise, ratings are measured at 230 VAC, rated load, 25°C and 70% RH. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low to high input at rated load.

  Read more less

  $53.72

  View options

•

  View options

  MEAN WELL GSM60B series: Medical AC/DC Desktop Power Adapter - GSM60B05-P1J

  MEAN WELL GSM60B05-P1J is a GSM60B single-output medical AC/DC desktop power adapter rated at 5 VDC, 6 A and 30 W. Its Class II construction uses a two-pole IEC320-C8 AC inlet without protective earth. The standard P1J tuning-fork DC plug is center-positive, with a 5.5 mm outer diameter, 2.1 mm inner diameter and 11 mm nominal length. Apply the stated load and derating limits. Product Datasheet Download MEAN WELL GSM60B Datasheet (PDF) The GSM60B section is on PDF pages 16, 17, 18, 19, 20. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order number GSM60B05-P1J. Product category Single-output medical AC/DC desktop power adapter. Input class / inlet Class II; IEC320-C8; double insulation, no FG. Standard output termination P1J tuning fork; 5.5 mm OD × 2.1 mm ID × 11 mm nominal length; center positive. Enclosure / indication Fully enclosed 94V-0 flame-retardant plastic case; power-on LED. No-load power <0.1 W. Energy efficiency Level V for this voltage model; CoC Version 5. The series lists compliance with USA EISA 2007/DoE, Canada NRCan, Australia/New Zealand MEPS and EU ErP. Use the efficiency level specified for this particular voltage model. Model-Specific DC Output Nominal DC voltage 5 VDC. Rated current 6 A. Current range 0–6 A. Rated output power, maximum 30 W. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±5.0%. Line regulation ±1.0%. Load regulation ±5.0%. Typical efficiency 81.5%. Observe the current range and rated power together. The output-voltage set point is measured at the DC plug terminals at 50% load. Input and Timing AC input 80–264 VAC; 47–63 Hz. AC input current, typical 1.4 A at 115 VAC; 1 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC. Leakage current, maximum Touch current <50 µA at 264 VAC. Set-up / rise time, full load 1000 / 30 ms at 230 VAC; 1500 / 30 ms at 115 VAC. Hold-up time, typical at full load 50 ms at 230 VAC; 16 ms at 115 VAC. Select a regional mains cord suitable for the inlet and load. A detachable AC cord is not established as included by this catalogue. Set-up time is measured at the first cold start; repeated ON/OFF operation may increase it. Protection Short circuit / overload 105–160% of rated output power; hiccup operation, automatically recovering after the fault is removed. Overvoltage 5.2–7.0 V; output shuts down; re-power to recover. Overtemperature Output shuts down; re-power to recover. Cooling and Operating Limits Working ambient −30 to +70°C, subject to the horizontal-installation derating curve. Temperature derating 100% load from −30 to 50°C, decreasing linearly to 50% at 70°C. Input derating, 60 Hz 80% load at 80 VAC, rising to 100% at 100 VAC; 100% through 264 VAC. Working humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0 to 40°C. Operating altitude Up to 3000 m; above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for this fanless adapter. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Use the temperature and input-voltage limits together. The maximum ambient temperature is not an unconditional full-load rating. Medical Isolation and Safety Means of patient protection Primary to secondary: 2 × MOPP. Dielectric withstand Input/output: 4 kVAC. Insulation resistance Input/output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue safety standards IEC60601-1:2005+A1+A2 and IEC60601-1-11:2015+A1; TUV BS EN/EN60601-1:2006+A1+A12+A2 and BS EN/EN60601-1-11:2015+A1; ANSI/AAMI ES60601-1:2005+A2 and ANSI/AAMI HA60601-1-11+A1; CAN/CSA C22.2 No.60601-1:2014+A2 and CSA C22.2 No.60601-1-11:2015+A1; EAC TP TC 004. The medical ratings apply to the adapter. Final equipment must be assessed for its actual patient connections, applied-part classification, isolation and EMC requirements. The B-type series is presented for BF applications and lists the home-healthcare standard IEC60601-1-11; this does not by itself certify the complete medical device as BF. EMC Conducted / radiated emissions Class B: BS EN/EN55011 (CISPR11), FCC Part 15 / CISPR22. Harmonics / flicker BS EN/EN61000-3-2 Class A; BS EN/EN61000-3-3. Immunity standards BS EN/EN60601-1-2; BS EN/EN61204-3. ESD EN61000-4-2: Level 4, 15 kV air and 8 kV contact. RF susceptibility EN61000-4-3: Level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9, 9–28 V/m at 385 MHz–5.78 GHz. EFT / surge EN61000-4-4: Level 3, 2 kV. EN61000-4-5: Level 3, 1 kV line-to-line. Conducted / magnetic immunity EN61000-4-6: Level 3, 10 V; EN61000-4-8: Level 4, 30 A/m. Voltage dips / interruptions EN61000-4-11: 100% dip for 1 period, 30% dip for 25 periods, and 100% interruption for 250 periods. The adapter is an independent unit; compliance of the complete equipment with the applicable EMC requirements must be confirmed in its final installation. Dimensions, Cable and Standard Plug Enclosure, L × W × H 125 × 50 × 31.5 mm; mechanical drawing tolerance ±1 mm. Attached DC cable UL2464 16 AWG, 1000 ±50 mm. Plug projection 11 ±0.5 mm; the drawing also marks a 70 ±10 mm cable-end section. P1J polarity Inside contact positive (+); outside contact negative (−). Use the dimensional drawing for placement and the supplied connector identification for mating. The plug dimensions and polarity must match the equipment input. Optional DC Plug Types P1I straight tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1L straight tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1M straight tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum. P1IR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1JR right-angled tuning fork; OD × ID × L: 5.5 × 2.1 × 11 mm. Quick adapter available, 7.5 A maximum. P1LR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Quick adapter available, 7.5 A maximum. P1MR right-angled tuning fork; OD × ID × L: 5.5 × 2.5 × 11 mm. Quick adapter available, 7.5 A maximum. P2I straight barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed. P2J straight barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed. P2L straight barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed. P2M straight barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed. P2IR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 9.5 mm. Custom cable option; no quick adapter listed. P2JR right-angled barrel; OD × ID × L: 5.5 × 2.1 × 11 mm. Custom cable option; no quick adapter listed. P2LR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 9.5 mm. Custom cable option; no quick adapter listed. P2MR right-angled barrel; OD × ID × L: 5.5 × 2.5 × 11 mm. Custom cable option; no quick adapter listed. P2S locking; OD × ID × L: 5.53 × 2.03 × 12.06 mm. SWITCHCRAFT S761K original or equivalent. Custom cable option; no quick adapter listed. P2K locking; OD × ID × L: 5.53 × 2.54 × 12.06 mm. SWITCHCRAFT 761K original or equivalent. Custom cable option; no quick adapter listed. P2C locking; OD × ID × L: 5.53 × 2.03 × 9.52 mm. SWITCHCRAFT S760K original or equivalent. Custom cable option; no quick adapter listed. P2D locking; OD × ID × L: 5.53 × 2.54 × 9.52 mm. SWITCHCRAFT 760K original or equivalent. Custom cable option; no quick adapter listed. P3A minimum-pin; OD × ID × L: 2.35 × 0.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P3B minimum-pin; OD × ID × L: 4.0 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P3C minimum-pin; OD × ID × L: 4.75 × 1.7 × 11 mm. EIAJ equivalent. Quick adapter available, 5 A maximum. P4A center-pin; OD × ID × L: 5.5 × 3.4 × 11 mm. Center pin 1.0 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. P4B center-pin; OD × ID × L: 6.5 × 4.4 × 11 mm. Center pin 1.4 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. P4C center-pin; OD × ID × L: 7.4 × 5.1 × 11 mm. Center pin 0.6 mm; EIAJ equivalent. Quick adapter available, 7.5 A maximum. The supplied standard model uses P1J. A custom cable with a different plug is subject to the applicable minimum order quantity. Listed quick adapters are sold separately without a minimum order quantity. Select the exact dimensions, polarity and current rating for the load. The accessory current rating does not increase the adapter rating; a 5 A quick adapter cannot carry a load above 5 A. Optional Multi-Pin and Lead Terminations R6B Locking three-pin male mini-DIN; KYCON KPPX-3P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 +Vo. Quick adapter available, 7.5 A maximum. R7B Locking four-pin male mini-DIN; KYCON KPPX-4P equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. Quick adapter available, 7.5 A maximum. R7BF Locking four-pin female mini-DIN; KYCON KPJX-CM-4S equivalent; pin 1 +Vo, pin 2 −Vo, pin 3 −Vo, pin 4 +Vo. No quick adapter listed. R1B Five-pin male DIN; pin 1 −Vo, pin 2 −Vo, pin 3 +Vo, pin 4 −Vo, pin 5 +Vo. Quick adapter available, 7.5 A maximum. Stripped and tinned option By customer request: conductor 1 = +Vo; conductor 2 = −Vo. Standard L = 25 mm and L1 = 5 mm; other lengths by request. Lead colors The red/black illustration is for reference only; follow the actual supplied product. Use the numbered connector-face drawing to establish orientation. These are optional connection types, not additional connectors included with the P1J adapter. Weight, Reliability and Measurement Notes Catalogue unit weight 320 g, converted from the per-unit PACKING entry; not a measured shipment weight. Carton packing 40 pieces / 13.8 kg / 1.04 CUFT. Lifetime reference Catalogue feature: >95,000 hours; this is distinct from MTBF. MTBF, minimum estimate 3491.2 thousand hours, Telcordia SR-332 (Bellcore); 694.3 thousand hours, MIL-HDBK-217F at 25°C. Manufacturer warranty 3 years, subject to applicable terms. Catalogue revision 2026-05-09; physical PDF pages 16–20. Unless specified otherwise, ratings are measured at 230 VAC, rated load, 25°C and 70% RH. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Line regulation is measured from low to high input at rated load.

  Read more less

  $53.72

  View options

Show more products
