HBG-240-36-AB circular LED driver

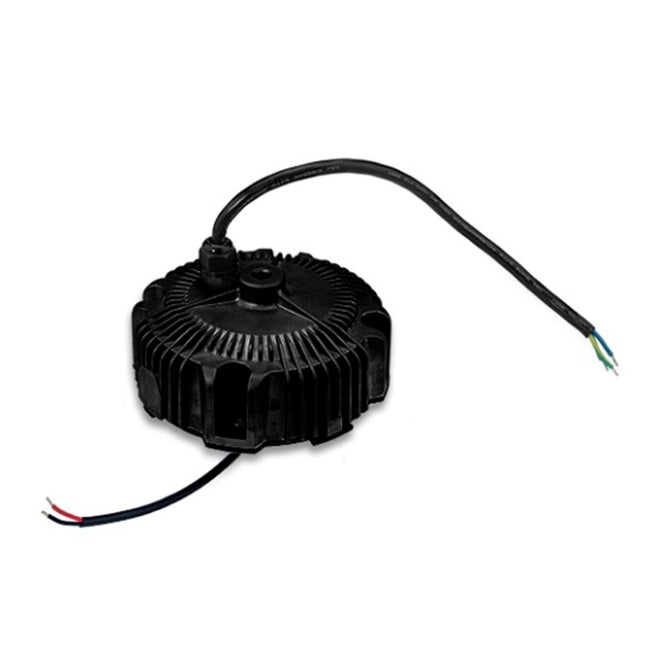

MEAN WELL HBG-240-36-AB is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 36 V DC, 6.7 A and 240 W, with a 21.6–36 V constant-current operating region. Built-in output-current adjustment and 3-in-1 dimming. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. The catalog lists 36 V, 6.7 A and 240 W; observe the 240 W rating rather than increasing it to the arithmetic product.
Download MEAN WELL HBG-240 Datasheet (PDF)Catalog pages 34–42; series revision 2024-10-11.
Download MEAN WELL LED Installation ManualModel and output
Parameter
Model-specific information
Complete model
HBG-240-36-AB
Output architecture
Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs.
Rated output current
6.7 A
Rated output power
240 W. Observe this power limit together with the current and voltage limits.
Constant-current voltage window
21.6–36 V. The LED string configuration determines the operating voltage in this region.
Rated DC voltage
36 V
Version and function
Built-in output-current adjustment and 3-in-1 dimming; AB suffix; IP65.
Output-current adjustment
4.0–6.7 A via the built-in Io ADJ potentiometer.
Ripple and noise
250 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors.
Voltage tolerance and regulation
Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±0.5%.
Analog dimming
Apply 1–10 V DC, a 10 V PWM signal at 100 Hz–3 kHz, or resistance between DIM+ and DIM−. The control changes the output constant-current level. Dimming source current: 100 µA typical.
Dimming transfer and off
The catalog graphs show 10–100% output current for 1–10 V DC, 10–100% duty of the 10 V PWM signal, or 10 kΩ/N–100 kΩ/N. N is the number of synchronized drivers. Use the illustrated external switch and relay arrangement for 0% brightness, or consult MEAN WELL for other off options.
Dimming connection limits
Do not connect DIM− to −V. Direct connection to LEDs is recommended for this dimming arrangement; do not use additional LED drivers with it.
Input and electrical performance
Parameter
Model-specific information
Input voltage and frequency
90–305 VAC or 127–431 VDC; AC frequency 47–63 Hz. Apply the input-load limits below.
Power factor
Active PFC; >0.98 / >0.95 / >0.93 at 115 / 230 / 277 VAC respectively, at full load.
Total harmonic distortion
Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥80% at 277 VAC.
Efficiency
92.5% typical at the default catalog test conditions.
AC input current
2.5 / 1.3 / 1.2 A typical at 115 / 230 / 277 VAC respectively.
Inrush current
Cold start: 75 A typical at 230 VAC; pulse width 680 µs measured at 50% of peak, per NEMA 410.
Circuit-breaker loading
Catalog maximum number on a 16 A breaker at 230 VAC: 2 units on type B / 3 on type C. Apply the actual installation and breaker conditions.
Leakage current
Less than 0.75 mA at 277 VAC.
Setup and rise time
500 ms setup / 120 ms rise at 230 VAC; 2500 ms setup / 120 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it.
Hold-up time
15 ms typical at 115 VAC and 230 VAC.
Protection
Parameter
Model-specific information
Overcurrent protection
95–108%; constant-current limiting. Recovers automatically after the fault is removed.
Short-circuit protection
Hiccup mode; recovers automatically after the fault is removed.
Overvoltage protection
43–52 V; shuts down and latches the output off; re-power on to recover.
Overtemperature protection
Shuts down the output; recovers automatically after the temperature falls.
Thermal and environmental limits
Parameter
Model-specific information
Cooling and case temperature
Fanless free-air convection; operating case temperature −40°C to +75°C; maximum case temperature +75°C. These are case-temperature limits, not unconditional ambient full-load ratings.
Temperature/load conditions
Horizontal installation: the 100 VAC curve permits 100% load through +50°C ambient; the 230 VAC curve permits 100% through +60°C. Each curve ends at its stated limit. The case-temperature graph permits 100% through +75°C and ends there.
Input/load derating
At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC.
Lifetime conditions
Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 35,000 h at 75°C. Graph estimates are not an extension of the operating-temperature ratings.
Temperature coefficient
±0.03%/°C from 0°C to +50°C.
Humidity and storage
Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH.
Altitude derating
Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver.
Vibration
10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis.
MTBF reference
1792.9 K hours minimum, Telcordia SR-332; 172.4 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime.
Mechanical details and connections
Parameter
Model-specific information
Construction and ingress protection
Circular metal housing with Class I design; IP65 for this function version. Observe the installation and waterproofing conditions.
Dimensions
Ø191.5 × 69 mm (diameter × height); case 213; mechanical drawing tolerance ±1 mm.
Mounting
Four Ø8 mm mounting holes, with 162 mm opposing-hole spans; central thread designated M12 × P1.75–18h in the drawing.
Input cable
SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing.
Output cable
SJTW 14 AWG × 2 conductors; 300 ±20 mm; red +V and black −V.
Control cable
SVT 18 AWG × 2 conductors; 300 ±20 mm. Purple DIM+; pink DIM−. Use the specific analog-dimming interface wiring.
Temperature measuring points
Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°.
Mechanical safety
Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 15 kg or less. Protect the luminaire against shock during packaging and transportation.
Unit reference mass
2100 g, converted from the catalog PACKING per-unit reference (2.1 kg); not an individually measured net or shipment weight.
Safety, testing and integration
Parameter
Model-specific information
Safety and certification scope
UL 8750; CSA C22.2 No. 250.13-12; ENEC BS EN/EN 61347-1 and BS EN/EN 61347-2-13 independent; BS EN/EN 62384; GB 19510.1 and GB 19510.14; EAC TP TC 004. CCC is optional in the catalog; confirm the supplied certification configuration when required.
SELV marking
SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements.
Dielectric withstand
Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC.
Insulation resistance
Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH.
EMC emissions
BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥75%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020.
EMC immunity
BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020.
Specification test conditions
Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 65°C; the THD and efficiency example is the 48 V model.
Type HL source limitation
The catalog footnote discusses built-in use or potting the Io-adjustment hole for Type HL applications, but the HBG-240 safety row lists UL 8750 without a Type HL designation. Confirm the actual certification before specifying a Type HL installation.
System integration
This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance.
Catalog warranty statement
The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions.
Installation requirements
Parameter
Model-specific information
Installation safety
Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself.
Ventilation and mounting
Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements.
System wiring and protection
Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system.
Environmental and load limits
Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person.
Connection seals and support
If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications.
Protective-earth installation
Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram.
Weather protection
This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion.
Dimming isolation
The LED installation manual identifies HBG analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements.
