HBG Series , HBGC Series: Constant Current LED Driver. ; XBG Series, HBGC Series: Constant Power LED Driver

Show previous products

•

  View options

  MEAN WELL HBG-200 series: constant-voltage and constant-current LED driver - HBG-200-48-B

  HBG-200-48-B circular LED driver MEAN WELL HBG-200-48-B is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 48 V DC, 4.1 A and 196.8 W, with a 28.8–48 V constant-current operating region. 3-in-1 dimming. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-200 Datasheet (PDF)Catalog pages 25–33; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-200-48-B Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 4.1 A Rated output power 196.8 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 28.8–48 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 48 V Version and function 3-in-1 dimming; B suffix; IP67. Ripple and noise 250 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Analog dimming Apply 0–10 V DC, a 10 V PWM signal at 100 Hz–3 kHz, or resistance between DIM+ and DIM−. The control changes the output constant-current level. Dimming source current: 100 µA typical. Dimming transfer and off Minimum dimming level is about 8%; output current is undefined between 0% and 8%. About 0 Ω, 0 V DC or 0% duty of the 10 V PWM signal can turn the output off. Resistance reaches full output at 100 kΩ/N; N is the number of synchronized drivers. Dimming connection limits Do not connect DIM− to −V. Direct connection to LEDs is recommended for this dimming arrangement; do not use additional LED drivers with it. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 93% typical at the default catalog test conditions. AC input current 1.9 / 1.0 / 0.9 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 85 A typical at 230 VAC; pulse width 600 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode or constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 54–62 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 60% load; 100–180 VAC permits 80%; load rises to 100% at 200 VAC and remains there through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and 20,000 h at 80°C, falling further by 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2042.7 K hours minimum, Telcordia SR-332; 207.4 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP67 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Control cable SVT 18 AWG × 2 conductors; 300 ±20 mm. Purple DIM+; pink DIM−. Use the specific analog-dimming interface wiring. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; ENEC BS EN/EN 61347-1 and BS EN/EN 61347-2-13 independent; BS EN/EN 62384; GB 19510.1 and GB 19510.14; EAC TP TC 004. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Dimming isolation The LED installation manual identifies HBG analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements.

  Read more less

  $153.77

  View options

•

  View options

  MEAN WELL HBG-200 series: constant-voltage and constant-current LED driver - HBG-200-36-B

  HBG-200-36-B circular LED driver MEAN WELL HBG-200-36-B is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 36 V DC, 5.5 A and 198 W, with a 21.6–36 V constant-current operating region. 3-in-1 dimming. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-200 Datasheet (PDF)Catalog pages 25–33; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-200-36-B Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 5.5 A Rated output power 198 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 21.6–36 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 36 V Version and function 3-in-1 dimming; B suffix; IP67. Ripple and noise 250 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Analog dimming Apply 0–10 V DC, a 10 V PWM signal at 100 Hz–3 kHz, or resistance between DIM+ and DIM−. The control changes the output constant-current level. Dimming source current: 100 µA typical. Dimming transfer and off Minimum dimming level is about 8%; output current is undefined between 0% and 8%. About 0 Ω, 0 V DC or 0% duty of the 10 V PWM signal can turn the output off. Resistance reaches full output at 100 kΩ/N; N is the number of synchronized drivers. Dimming connection limits Do not connect DIM− to −V. Direct connection to LEDs is recommended for this dimming arrangement; do not use additional LED drivers with it. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 92% typical at the default catalog test conditions. AC input current 1.9 / 1.0 / 0.9 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 85 A typical at 230 VAC; pulse width 600 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode or constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 41–47 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 60% load; 100–180 VAC permits 80%; load rises to 100% at 200 VAC and remains there through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and 20,000 h at 80°C, falling further by 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2042.7 K hours minimum, Telcordia SR-332; 207.4 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP67 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Control cable SVT 18 AWG × 2 conductors; 300 ±20 mm. Purple DIM+; pink DIM−. Use the specific analog-dimming interface wiring. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; ENEC BS EN/EN 61347-1 and BS EN/EN 61347-2-13 independent; BS EN/EN 62384; GB 19510.1 and GB 19510.14; EAC TP TC 004. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Dimming isolation The LED installation manual identifies HBG analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements.

  Read more less

  $153.77

  View options

•

  View options

  MEAN WELL HBG-200 series: constant-voltage and constant-current LED driver - HBG-200-60-A

  HBG-200-60-A circular LED driver MEAN WELL HBG-200-60-A is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 60 V DC, 3.3 A and 198 W, with a 36–60 V constant-current operating region. Built-in output-current adjustment. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-200 Datasheet (PDF)Catalog pages 25–33; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-200-60-A Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 3.3 A Rated output power 198 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 36–60 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 60 V Version and function Built-in output-current adjustment; A suffix; IP65. Output-current adjustment 1.98–3.3 A via the built-in Io ADJ potentiometer. Ripple and noise 350 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 93.5% typical at the default catalog test conditions. AC input current 1.9 / 1.0 / 0.9 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 85 A typical at 230 VAC; pulse width 600 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode or constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 65–75 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 60% load; 100–180 VAC permits 80%; load rises to 100% at 200 VAC and remains there through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and 20,000 h at 80°C, falling further by 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2042.7 K hours minimum, Telcordia SR-332; 207.4 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP65 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; ENEC BS EN/EN 61347-1 and BS EN/EN 61347-2-13 independent; BS EN/EN 62384; GB 19510.1 and GB 19510.14; EAC TP TC 004. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. For A/AB versions, use as a built-in component or fill the Io-adjustment hole with potting compound as required by the catalog. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion.

  Read more less

  $149.34

  View options

•

  View options

  MEAN WELL HBG-200 series: constant-voltage and constant-current LED driver - HBG-200-48-A

  HBG-200-48-A circular LED driver MEAN WELL HBG-200-48-A is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 48 V DC, 4.1 A and 196.8 W, with a 28.8–48 V constant-current operating region. Built-in output-current adjustment. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-200 Datasheet (PDF)Catalog pages 25–33; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-200-48-A Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 4.1 A Rated output power 196.8 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 28.8–48 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 48 V Version and function Built-in output-current adjustment; A suffix; IP65. Output-current adjustment 2.46–4.1 A via the built-in Io ADJ potentiometer. Ripple and noise 250 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 93% typical at the default catalog test conditions. AC input current 1.9 / 1.0 / 0.9 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 85 A typical at 230 VAC; pulse width 600 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode or constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 54–62 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 60% load; 100–180 VAC permits 80%; load rises to 100% at 200 VAC and remains there through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and 20,000 h at 80°C, falling further by 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2042.7 K hours minimum, Telcordia SR-332; 207.4 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP65 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; ENEC BS EN/EN 61347-1 and BS EN/EN 61347-2-13 independent; BS EN/EN 62384; GB 19510.1 and GB 19510.14; EAC TP TC 004. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. For A/AB versions, use as a built-in component or fill the Io-adjustment hole with potting compound as required by the catalog. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion.

  Read more less

  $149.34

  View options

•

  View options

  MEAN WELL HBG-200 series: constant-voltage and constant-current LED driver - HBG-200-36-A

  HBG-200-36-A circular LED driver MEAN WELL HBG-200-36-A is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 36 V DC, 5.5 A and 198 W, with a 21.6–36 V constant-current operating region. Built-in output-current adjustment. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-200 Datasheet (PDF)Catalog pages 25–33; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-200-36-A Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 5.5 A Rated output power 198 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 21.6–36 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 36 V Version and function Built-in output-current adjustment; A suffix; IP65. Output-current adjustment 3.3–5.5 A via the built-in Io ADJ potentiometer. Ripple and noise 250 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 92% typical at the default catalog test conditions. AC input current 1.9 / 1.0 / 0.9 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 85 A typical at 230 VAC; pulse width 600 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode or constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 41–47 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 60% load; 100–180 VAC permits 80%; load rises to 100% at 200 VAC and remains there through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and 20,000 h at 80°C, falling further by 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2042.7 K hours minimum, Telcordia SR-332; 207.4 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP65 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; ENEC BS EN/EN 61347-1 and BS EN/EN 61347-2-13 independent; BS EN/EN 62384; GB 19510.1 and GB 19510.14; EAC TP TC 004. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. For A/AB versions, use as a built-in component or fill the Io-adjustment hole with potting compound as required by the catalog. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion.

  Read more less

  $149.34

  View options

•

  View options

  MEAN WELL HBG-200 series: constant-voltage and constant-current LED driver - HBG-200-60

  HBG-200-60 circular LED driver MEAN WELL HBG-200-60 is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 60 V DC, 3.3 A and 198 W, with a 36–60 V constant-current operating region. Fixed output-current setting. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-200 Datasheet (PDF)Catalog pages 25–33; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-200-60 Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 3.3 A Rated output power 198 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 36–60 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 60 V Version and function Fixed output-current setting; blank suffix; IP67. Ripple and noise 350 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 93.5% typical at the default catalog test conditions. AC input current 1.9 / 1.0 / 0.9 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 85 A typical at 230 VAC; pulse width 600 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode or constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 65–75 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 60% load; 100–180 VAC permits 80%; load rises to 100% at 200 VAC and remains there through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and 20,000 h at 80°C, falling further by 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2042.7 K hours minimum, Telcordia SR-332; 207.4 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP67 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; ENEC BS EN/EN 61347-1 and BS EN/EN 61347-2-13 independent; BS EN/EN 62384; GB 19510.1 and GB 19510.14; EAC TP TC 004. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram.

  Read more less

  $149.34

  View options

•

  View options

  MEAN WELL HBG-200 series: constant-voltage and constant-current LED driver - HBG-200-48

  HBG-200-48 circular LED driver MEAN WELL HBG-200-48 is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 48 V DC, 4.1 A and 196.8 W, with a 28.8–48 V constant-current operating region. Fixed output-current setting. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-200 Datasheet (PDF)Catalog pages 25–33; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-200-48 Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 4.1 A Rated output power 196.8 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 28.8–48 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 48 V Version and function Fixed output-current setting; blank suffix; IP67. Ripple and noise 250 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 93% typical at the default catalog test conditions. AC input current 1.9 / 1.0 / 0.9 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 85 A typical at 230 VAC; pulse width 600 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode or constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 54–62 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 60% load; 100–180 VAC permits 80%; load rises to 100% at 200 VAC and remains there through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and 20,000 h at 80°C, falling further by 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2042.7 K hours minimum, Telcordia SR-332; 207.4 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP67 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; ENEC BS EN/EN 61347-1 and BS EN/EN 61347-2-13 independent; BS EN/EN 62384; GB 19510.1 and GB 19510.14; EAC TP TC 004. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram.

  Read more less

  $149.34

  View options

•

  View options

  MEAN WELL HBG-200 series: constant-voltage and constant-current LED driver - HBG-200-36

  HBG-200-36 circular LED driver MEAN WELL HBG-200-36 is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 36 V DC, 5.5 A and 198 W, with a 21.6–36 V constant-current operating region. Fixed output-current setting. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-200 Datasheet (PDF)Catalog pages 25–33; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-200-36 Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 5.5 A Rated output power 198 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 21.6–36 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 36 V Version and function Fixed output-current setting; blank suffix; IP67. Ripple and noise 250 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 92% typical at the default catalog test conditions. AC input current 1.9 / 1.0 / 0.9 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 85 A typical at 230 VAC; pulse width 600 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode or constant-current limiting; recovers automatically after the fault is removed. Overvoltage protection 41–47 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 60% load; 100–180 VAC permits 80%; load rises to 100% at 200 VAC and remains there through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and 20,000 h at 80°C, falling further by 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2042.7 K hours minimum, Telcordia SR-332; 207.4 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP67 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; ENEC BS EN/EN 61347-1 and BS EN/EN 61347-2-13 independent; BS EN/EN 62384; GB 19510.1 and GB 19510.14; EAC TP TC 004. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram.

  Read more less

  $149.34

  View options

•

  View options

  MEAN WELL HBG-160 series: constant-voltage and constant-current LED driver - HBG-160-60-DA

  HBG-160-60-DA circular LED driver MEAN WELL HBG-160-60-DA is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 60 V DC, 2.6 A and 156 W, with a 36–60 V constant-current operating region. DALI control. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-160 Datasheet (PDF)Catalog pages 16–24; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-160-60-DA Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 2.6 A Rated output power 156 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 36–60 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 60 V Version and function DALI control; DA suffix; IP67. Ripple and noise 300 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. DALI interface Primary-side DALI interface across DA+ and DA−; 16 groups and 64 addresses. The first dimming step is fixed at 8% of output. DALI standards IEC 62386-101, IEC 62386-102 and IEC 62386-207. This DA version is specified as DALI. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency The model-column reference is 93.5% typical; the DA version is specified as 1% less efficient than that table reference. AC input current 1.7 / 0.78 / 0.7 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 65 A typical at 230 VAC; pulse width 550 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 65–75 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 20,000 h at 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2047.8 K hours minimum, Telcordia SR-332; 194.1 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP67 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Control cable SVT 18 AWG × 2 conductors; 300 ±20 mm. Purple DA+; pink DA−. Use the specific DALI interface wiring. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and BS EN/EN 61347-2-13; GB 19510.1 and GB 19510.14; EAC TP TC 004. The cover marks ENEC for DA only and excludes DA from the TÜV and double-M marks. BIS IS 15885 is explicitly listed for this model. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Digital control interface Use the primary-side DALI interface shown for this DA model. Do not connect an analog 0–10 V or PWM controller as if these were DIM terminals.

  Read more less

  $150.32

  View options

•

  View options

  MEAN WELL HBG-160 series: constant-voltage and constant-current LED driver - HBG-160-48-DA

  HBG-160-48-DA circular LED driver MEAN WELL HBG-160-48-DA is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 48 V DC, 3.3 A and 158.4 W, with a 28.8–48 V constant-current operating region. DALI control. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-160 Datasheet (PDF)Catalog pages 16–24; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-160-48-DA Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 3.3 A Rated output power 158.4 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 28.8–48 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 48 V Version and function DALI control; DA suffix; IP67. Ripple and noise 300 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. DALI interface Primary-side DALI interface across DA+ and DA−; 16 groups and 64 addresses. The first dimming step is fixed at 8% of output. DALI standards IEC 62386-101, IEC 62386-102 and IEC 62386-207. This DA version is specified as DALI. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency The model-column reference is 93% typical; the DA version is specified as 1% less efficient than that table reference. AC input current 1.7 / 0.78 / 0.7 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 65 A typical at 230 VAC; pulse width 550 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 54–62 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 20,000 h at 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2047.8 K hours minimum, Telcordia SR-332; 194.1 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP67 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Control cable SVT 18 AWG × 2 conductors; 300 ±20 mm. Purple DA+; pink DA−. Use the specific DALI interface wiring. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and BS EN/EN 61347-2-13; GB 19510.1 and GB 19510.14; EAC TP TC 004. The cover marks ENEC for DA only and excludes DA from the TÜV and double-M marks. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Digital control interface Use the primary-side DALI interface shown for this DA model. Do not connect an analog 0–10 V or PWM controller as if these were DIM terminals.

  Read more less

  $150.32

  View options

•

  View options

  MEAN WELL HBG-160 series: constant-voltage and constant-current LED driver - HBG-160-36-DA

  HBG-160-36-DA circular LED driver MEAN WELL HBG-160-36-DA is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 36 V DC, 4.4 A and 158.4 W, with a 21.6–36 V constant-current operating region. DALI control. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-160 Datasheet (PDF)Catalog pages 16–24; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-160-36-DA Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 4.4 A Rated output power 158.4 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 21.6–36 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 36 V Version and function DALI control; DA suffix; IP67. Ripple and noise 300 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. DALI interface Primary-side DALI interface across DA+ and DA−; 16 groups and 64 addresses. The first dimming step is fixed at 8% of output. DALI standards IEC 62386-101, IEC 62386-102 and IEC 62386-207. This DA version is specified as DALI. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency The model-column reference is 92% typical; the DA version is specified as 1% less efficient than that table reference. AC input current 1.7 / 0.78 / 0.7 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 65 A typical at 230 VAC; pulse width 550 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 41–47 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 20,000 h at 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2047.8 K hours minimum, Telcordia SR-332; 194.1 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP67 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Control cable SVT 18 AWG × 2 conductors; 300 ±20 mm. Purple DA+; pink DA−. Use the specific DALI interface wiring. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and BS EN/EN 61347-2-13; GB 19510.1 and GB 19510.14; EAC TP TC 004. The cover marks ENEC for DA only and excludes DA from the TÜV and double-M marks. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Digital control interface Use the primary-side DALI interface shown for this DA model. Do not connect an analog 0–10 V or PWM controller as if these were DIM terminals.

  Read more less

  $150.32

  View options

•

  View options

  MEAN WELL HBG-160 series: constant-voltage and constant-current LED driver - HBG-160-24-DA

  HBG-160-24-DA circular LED driver MEAN WELL HBG-160-24-DA is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 24 V DC, 6.5 A and 156 W, with a 14.4–24 V constant-current operating region. DALI control. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-160 Datasheet (PDF)Catalog pages 16–24; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-160-24-DA Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 6.5 A Rated output power 156 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 14.4–24 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 24 V Version and function DALI control; DA suffix; IP67. Ripple and noise 200 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. DALI interface Primary-side DALI interface across DA+ and DA−; 16 groups and 64 addresses. The first dimming step is fixed at 8% of output. DALI standards IEC 62386-101, IEC 62386-102 and IEC 62386-207. This DA version is specified as DALI. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency The model-column reference is 92% typical; the DA version is specified as 1% less efficient than that table reference. AC input current 1.7 / 0.78 / 0.7 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 65 A typical at 230 VAC; pulse width 550 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 28–34 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 20,000 h at 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2047.8 K hours minimum, Telcordia SR-332; 194.1 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP67 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Control cable SVT 18 AWG × 2 conductors; 300 ±20 mm. Purple DA+; pink DA−. Use the specific DALI interface wiring. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and BS EN/EN 61347-2-13; GB 19510.1 and GB 19510.14; EAC TP TC 004. The cover marks ENEC for DA only and excludes DA from the TÜV and double-M marks. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Digital control interface Use the primary-side DALI interface shown for this DA model. Do not connect an analog 0–10 V or PWM controller as if these were DIM terminals.

  Read more less

  $150.32

  View options

•

  View options

  MEAN WELL HBG-160 series: constant-voltage and constant-current LED driver - HBG-160-60-AB

  HBG-160-60-AB circular LED driver MEAN WELL HBG-160-60-AB is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 60 V DC, 2.6 A and 156 W, with a 36–60 V constant-current operating region. Built-in output-current adjustment and 3-in-1 dimming. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-160 Datasheet (PDF)Catalog pages 16–24; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-160-60-AB Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 2.6 A Rated output power 156 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 36–60 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 60 V Version and function Built-in output-current adjustment and 3-in-1 dimming; AB suffix; IP65. Output-current adjustment 1.6–2.6 A via the built-in Io ADJ potentiometer. Ripple and noise 300 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Analog dimming Apply 1–10 V DC, a 10 V PWM signal at 100 Hz–3 kHz, or resistance between DIM+ and DIM−. The control changes the output constant-current level. Dimming source current: 100 µA typical. Dimming transfer and off The catalog graphs show 10–100% output current for 1–10 V DC, 10–100% duty of the 10 V PWM signal, or 10 kΩ/N–100 kΩ/N. N is the number of synchronized drivers. Use the illustrated external switch and relay arrangement for 0% brightness, or consult MEAN WELL for other off options. Dimming connection limits Do not connect DIM− to −V. Direct connection to LEDs is recommended for this dimming arrangement; do not use additional LED drivers with it. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 93.5% typical at the default catalog test conditions. AC input current 1.7 / 0.78 / 0.7 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 65 A typical at 230 VAC; pulse width 550 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 65–75 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 20,000 h at 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2047.8 K hours minimum, Telcordia SR-332; 194.1 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP65 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Control cable SVT 18 AWG × 2 conductors; 300 ±20 mm. Purple DIM+; pink DIM−. Use the specific analog-dimming interface wiring. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and BS EN/EN 61347-2-13; GB 19510.1 and GB 19510.14; EAC TP TC 004. The cover marks TÜV and the double-M mark for non-DA versions; ENEC is marked for DA only. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. For A/AB versions, use as a built-in component or fill the Io-adjustment hole with potting compound as required by the catalog. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Dimming isolation The LED installation manual identifies HBG analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements.

  Read more less

  $138.49

  View options

•

  View options

  MEAN WELL HBG-160 series: constant-voltage and constant-current LED driver - HBG-160-48-AB

  HBG-160-48-AB circular LED driver MEAN WELL HBG-160-48-AB is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 48 V DC, 3.3 A and 158.4 W, with a 28.8–48 V constant-current operating region. Built-in output-current adjustment and 3-in-1 dimming. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-160 Datasheet (PDF)Catalog pages 16–24; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-160-48-AB Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 3.3 A Rated output power 158.4 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 28.8–48 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 48 V Version and function Built-in output-current adjustment and 3-in-1 dimming; AB suffix; IP65. Output-current adjustment 1.98–3.3 A via the built-in Io ADJ potentiometer. Ripple and noise 300 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Analog dimming Apply 1–10 V DC, a 10 V PWM signal at 100 Hz–3 kHz, or resistance between DIM+ and DIM−. The control changes the output constant-current level. Dimming source current: 100 µA typical. Dimming transfer and off The catalog graphs show 10–100% output current for 1–10 V DC, 10–100% duty of the 10 V PWM signal, or 10 kΩ/N–100 kΩ/N. N is the number of synchronized drivers. Use the illustrated external switch and relay arrangement for 0% brightness, or consult MEAN WELL for other off options. Dimming connection limits Do not connect DIM− to −V. Direct connection to LEDs is recommended for this dimming arrangement; do not use additional LED drivers with it. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 93% typical at the default catalog test conditions. AC input current 1.7 / 0.78 / 0.7 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 65 A typical at 230 VAC; pulse width 550 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 54–62 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 20,000 h at 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2047.8 K hours minimum, Telcordia SR-332; 194.1 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP65 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Control cable SVT 18 AWG × 2 conductors; 300 ±20 mm. Purple DIM+; pink DIM−. Use the specific analog-dimming interface wiring. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and BS EN/EN 61347-2-13; GB 19510.1 and GB 19510.14; EAC TP TC 004. The cover marks TÜV and the double-M mark for non-DA versions; ENEC is marked for DA only. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. For A/AB versions, use as a built-in component or fill the Io-adjustment hole with potting compound as required by the catalog. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Dimming isolation The LED installation manual identifies HBG analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements.

  Read more less

  $138.49

  View options

•

  View options

  MEAN WELL HBG-160 series: constant-voltage and constant-current LED driver - HBG-160-36-AB

  HBG-160-36-AB circular LED driver MEAN WELL HBG-160-36-AB is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 36 V DC, 4.4 A and 158.4 W, with a 21.6–36 V constant-current operating region. Built-in output-current adjustment and 3-in-1 dimming. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-160 Datasheet (PDF)Catalog pages 16–24; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-160-36-AB Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 4.4 A Rated output power 158.4 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 21.6–36 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 36 V Version and function Built-in output-current adjustment and 3-in-1 dimming; AB suffix; IP65. Output-current adjustment 2.6–4.4 A via the built-in Io ADJ potentiometer. Ripple and noise 300 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Analog dimming Apply 1–10 V DC, a 10 V PWM signal at 100 Hz–3 kHz, or resistance between DIM+ and DIM−. The control changes the output constant-current level. Dimming source current: 100 µA typical. Dimming transfer and off The catalog graphs show 10–100% output current for 1–10 V DC, 10–100% duty of the 10 V PWM signal, or 10 kΩ/N–100 kΩ/N. N is the number of synchronized drivers. Use the illustrated external switch and relay arrangement for 0% brightness, or consult MEAN WELL for other off options. Dimming connection limits Do not connect DIM− to −V. Direct connection to LEDs is recommended for this dimming arrangement; do not use additional LED drivers with it. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 92% typical at the default catalog test conditions. AC input current 1.7 / 0.78 / 0.7 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 65 A typical at 230 VAC; pulse width 550 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 41–47 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 20,000 h at 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2047.8 K hours minimum, Telcordia SR-332; 194.1 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP65 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Control cable SVT 18 AWG × 2 conductors; 300 ±20 mm. Purple DIM+; pink DIM−. Use the specific analog-dimming interface wiring. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and BS EN/EN 61347-2-13; GB 19510.1 and GB 19510.14; EAC TP TC 004. The cover marks TÜV and the double-M mark for non-DA versions; ENEC is marked for DA only. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. For A/AB versions, use as a built-in component or fill the Io-adjustment hole with potting compound as required by the catalog. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Dimming isolation The LED installation manual identifies HBG analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements.

  Read more less

  $138.49

  View options

•

  View options

  MEAN WELL HBG-160 series: constant-voltage and constant-current LED driver - HBG-160-24-AB

  HBG-160-24-AB circular LED driver MEAN WELL HBG-160-24-AB is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 24 V DC, 6.5 A and 156 W, with a 14.4–24 V constant-current operating region. Built-in output-current adjustment and 3-in-1 dimming. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-160 Datasheet (PDF)Catalog pages 16–24; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-160-24-AB Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 6.5 A Rated output power 156 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 14.4–24 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 24 V Version and function Built-in output-current adjustment and 3-in-1 dimming; AB suffix; IP65. Output-current adjustment 3.9–6.5 A via the built-in Io ADJ potentiometer. Ripple and noise 200 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Analog dimming Apply 1–10 V DC, a 10 V PWM signal at 100 Hz–3 kHz, or resistance between DIM+ and DIM−. The control changes the output constant-current level. Dimming source current: 100 µA typical. Dimming transfer and off The catalog graphs show 10–100% output current for 1–10 V DC, 10–100% duty of the 10 V PWM signal, or 10 kΩ/N–100 kΩ/N. N is the number of synchronized drivers. Use the illustrated external switch and relay arrangement for 0% brightness, or consult MEAN WELL for other off options. Dimming connection limits Do not connect DIM− to −V. Direct connection to LEDs is recommended for this dimming arrangement; do not use additional LED drivers with it. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 92% typical at the default catalog test conditions. AC input current 1.7 / 0.78 / 0.7 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 65 A typical at 230 VAC; pulse width 550 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 28–34 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 20,000 h at 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2047.8 K hours minimum, Telcordia SR-332; 194.1 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP65 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Control cable SVT 18 AWG × 2 conductors; 300 ±20 mm. Purple DIM+; pink DIM−. Use the specific analog-dimming interface wiring. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and BS EN/EN 61347-2-13; GB 19510.1 and GB 19510.14; EAC TP TC 004. The cover marks TÜV and the double-M mark for non-DA versions; ENEC is marked for DA only. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. For A/AB versions, use as a built-in component or fill the Io-adjustment hole with potting compound as required by the catalog. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion. Dimming isolation The LED installation manual identifies HBG analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements.

  Read more less

  $138.49

  View options

•

  View options

  MEAN WELL HBG-160 series: constant-voltage and constant-current LED driver - HBG-160-60-B

  HBG-160-60-B circular LED driver MEAN WELL HBG-160-60-B is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 60 V DC, 2.6 A and 156 W, with a 36–60 V constant-current operating region. 3-in-1 dimming. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-160 Datasheet (PDF)Catalog pages 16–24; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-160-60-B Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 2.6 A Rated output power 156 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 36–60 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 60 V Version and function 3-in-1 dimming; B suffix; IP67. Ripple and noise 300 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Analog dimming Apply 1–10 V DC, a 10 V PWM signal at 100 Hz–3 kHz, or resistance between DIM+ and DIM−. The control changes the output constant-current level. Dimming source current: 100 µA typical. Dimming transfer and off The catalog graphs show 10–100% output current for 1–10 V DC, 10–100% duty of the 10 V PWM signal, or 10 kΩ/N–100 kΩ/N. N is the number of synchronized drivers. Use the illustrated external switch and relay arrangement for 0% brightness, or consult MEAN WELL for other off options. Dimming connection limits Do not connect DIM− to −V. Direct connection to LEDs is recommended for this dimming arrangement; do not use additional LED drivers with it. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 93.5% typical at the default catalog test conditions. AC input current 1.7 / 0.78 / 0.7 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 65 A typical at 230 VAC; pulse width 550 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 65–75 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 20,000 h at 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2047.8 K hours minimum, Telcordia SR-332; 194.1 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP67 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Control cable SVT 18 AWG × 2 conductors; 300 ±20 mm. Purple DIM+; pink DIM−. Use the specific analog-dimming interface wiring. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and BS EN/EN 61347-2-13; GB 19510.1 and GB 19510.14; EAC TP TC 004. The cover marks TÜV and the double-M mark for non-DA versions; ENEC is marked for DA only. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Dimming isolation The LED installation manual identifies HBG analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements.

  Read more less

  $136.52

  View options

•

  View options

  MEAN WELL HBG-160 series: constant-voltage and constant-current LED driver - HBG-160-48-B

  HBG-160-48-B circular LED driver MEAN WELL HBG-160-48-B is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 48 V DC, 3.3 A and 158.4 W, with a 28.8–48 V constant-current operating region. 3-in-1 dimming. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-160 Datasheet (PDF)Catalog pages 16–24; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-160-48-B Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 3.3 A Rated output power 158.4 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 28.8–48 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 48 V Version and function 3-in-1 dimming; B suffix; IP67. Ripple and noise 300 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Analog dimming Apply 1–10 V DC, a 10 V PWM signal at 100 Hz–3 kHz, or resistance between DIM+ and DIM−. The control changes the output constant-current level. Dimming source current: 100 µA typical. Dimming transfer and off The catalog graphs show 10–100% output current for 1–10 V DC, 10–100% duty of the 10 V PWM signal, or 10 kΩ/N–100 kΩ/N. N is the number of synchronized drivers. Use the illustrated external switch and relay arrangement for 0% brightness, or consult MEAN WELL for other off options. Dimming connection limits Do not connect DIM− to −V. Direct connection to LEDs is recommended for this dimming arrangement; do not use additional LED drivers with it. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 93% typical at the default catalog test conditions. AC input current 1.7 / 0.78 / 0.7 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 65 A typical at 230 VAC; pulse width 550 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 54–62 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 20,000 h at 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2047.8 K hours minimum, Telcordia SR-332; 194.1 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP67 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Control cable SVT 18 AWG × 2 conductors; 300 ±20 mm. Purple DIM+; pink DIM−. Use the specific analog-dimming interface wiring. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and BS EN/EN 61347-2-13; GB 19510.1 and GB 19510.14; EAC TP TC 004. The cover marks TÜV and the double-M mark for non-DA versions; ENEC is marked for DA only. BIS IS 15885 is explicitly listed for this model. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Dimming isolation The LED installation manual identifies HBG analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements.

  Read more less

  $136.52

  View options

•

  View options

  MEAN WELL HBG-160 series: constant-voltage and constant-current LED driver - HBG-160-36-B

  HBG-160-36-B circular LED driver MEAN WELL HBG-160-36-B is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 36 V DC, 4.4 A and 158.4 W, with a 21.6–36 V constant-current operating region. 3-in-1 dimming. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-160 Datasheet (PDF)Catalog pages 16–24; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-160-36-B Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 4.4 A Rated output power 158.4 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 21.6–36 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 36 V Version and function 3-in-1 dimming; B suffix; IP67. Ripple and noise 300 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Analog dimming Apply 1–10 V DC, a 10 V PWM signal at 100 Hz–3 kHz, or resistance between DIM+ and DIM−. The control changes the output constant-current level. Dimming source current: 100 µA typical. Dimming transfer and off The catalog graphs show 10–100% output current for 1–10 V DC, 10–100% duty of the 10 V PWM signal, or 10 kΩ/N–100 kΩ/N. N is the number of synchronized drivers. Use the illustrated external switch and relay arrangement for 0% brightness, or consult MEAN WELL for other off options. Dimming connection limits Do not connect DIM− to −V. Direct connection to LEDs is recommended for this dimming arrangement; do not use additional LED drivers with it. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 92% typical at the default catalog test conditions. AC input current 1.7 / 0.78 / 0.7 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 65 A typical at 230 VAC; pulse width 550 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 41–47 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 20,000 h at 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2047.8 K hours minimum, Telcordia SR-332; 194.1 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP67 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Control cable SVT 18 AWG × 2 conductors; 300 ±20 mm. Purple DIM+; pink DIM−. Use the specific analog-dimming interface wiring. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and BS EN/EN 61347-2-13; GB 19510.1 and GB 19510.14; EAC TP TC 004. The cover marks TÜV and the double-M mark for non-DA versions; ENEC is marked for DA only. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Dimming isolation The LED installation manual identifies HBG analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements.

  Read more less

  $136.52

  View options

•

  View options

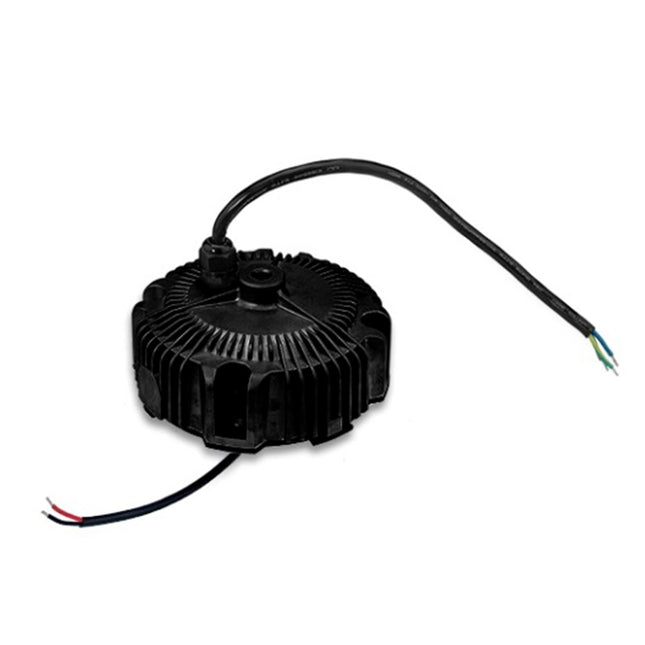

  MEAN WELL HBG-160 series: constant-voltage and constant-current LED driver - HBG-160-24-B

  HBG-160-24-B circular LED driver MEAN WELL HBG-160-24-B is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 24 V DC, 6.5 A and 156 W, with a 14.4–24 V constant-current operating region. 3-in-1 dimming. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-160 Datasheet (PDF)Catalog pages 16–24; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-160-24-B Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 6.5 A Rated output power 156 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 14.4–24 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 24 V Version and function 3-in-1 dimming; B suffix; IP67. Ripple and noise 200 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Analog dimming Apply 1–10 V DC, a 10 V PWM signal at 100 Hz–3 kHz, or resistance between DIM+ and DIM−. The control changes the output constant-current level. Dimming source current: 100 µA typical. Dimming transfer and off The catalog graphs show 10–100% output current for 1–10 V DC, 10–100% duty of the 10 V PWM signal, or 10 kΩ/N–100 kΩ/N. N is the number of synchronized drivers. Use the illustrated external switch and relay arrangement for 0% brightness, or consult MEAN WELL for other off options. Dimming connection limits Do not connect DIM− to −V. Direct connection to LEDs is recommended for this dimming arrangement; do not use additional LED drivers with it. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 92% typical at the default catalog test conditions. AC input current 1.7 / 0.78 / 0.7 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 65 A typical at 230 VAC; pulse width 550 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 28–34 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 20,000 h at 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2047.8 K hours minimum, Telcordia SR-332; 194.1 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP67 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Control cable SVT 18 AWG × 2 conductors; 300 ±20 mm. Purple DIM+; pink DIM−. Use the specific analog-dimming interface wiring. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and BS EN/EN 61347-2-13; GB 19510.1 and GB 19510.14; EAC TP TC 004. The cover marks TÜV and the double-M mark for non-DA versions; ENEC is marked for DA only. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Dimming isolation The LED installation manual identifies HBG analog dimming as not isolated from the secondary output. Follow this model’s DIM wiring and controller requirements.

  Read more less

  $136.52

  View options

•

  View options

  MEAN WELL HBG-160 series: constant-voltage and constant-current LED driver - HBG-160-60-A

  HBG-160-60-A circular LED driver MEAN WELL HBG-160-60-A is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 60 V DC, 2.6 A and 156 W, with a 36–60 V constant-current operating region. Built-in output-current adjustment. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-160 Datasheet (PDF)Catalog pages 16–24; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-160-60-A Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 2.6 A Rated output power 156 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 36–60 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 60 V Version and function Built-in output-current adjustment; A suffix; IP65. Output-current adjustment 1.6–2.6 A via the built-in Io ADJ potentiometer. Ripple and noise 300 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 93.5% typical at the default catalog test conditions. AC input current 1.7 / 0.78 / 0.7 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 65 A typical at 230 VAC; pulse width 550 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 65–75 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 20,000 h at 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2047.8 K hours minimum, Telcordia SR-332; 194.1 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP65 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and BS EN/EN 61347-2-13; GB 19510.1 and GB 19510.14; EAC TP TC 004. The cover marks TÜV and the double-M mark for non-DA versions; ENEC is marked for DA only. BIS IS 15885 is explicitly listed for this model. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. For A/AB versions, use as a built-in component or fill the Io-adjustment hole with potting compound as required by the catalog. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion.

  Read more less

  $131.59

  View options

•

  View options

  MEAN WELL HBG-160 series: constant-voltage and constant-current LED driver - HBG-160-48-A

  HBG-160-48-A circular LED driver MEAN WELL HBG-160-48-A is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 48 V DC, 3.3 A and 158.4 W, with a 28.8–48 V constant-current operating region. Built-in output-current adjustment. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-160 Datasheet (PDF)Catalog pages 16–24; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-160-48-A Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 3.3 A Rated output power 158.4 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 28.8–48 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 48 V Version and function Built-in output-current adjustment; A suffix; IP65. Output-current adjustment 1.98–3.3 A via the built-in Io ADJ potentiometer. Ripple and noise 300 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 93% typical at the default catalog test conditions. AC input current 1.7 / 0.78 / 0.7 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 65 A typical at 230 VAC; pulse width 550 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 54–62 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 20,000 h at 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2047.8 K hours minimum, Telcordia SR-332; 194.1 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP65 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and BS EN/EN 61347-2-13; GB 19510.1 and GB 19510.14; EAC TP TC 004. The cover marks TÜV and the double-M mark for non-DA versions; ENEC is marked for DA only. BIS IS 15885 is explicitly listed for this model. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. For A/AB versions, use as a built-in component or fill the Io-adjustment hole with potting compound as required by the catalog. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion.

  Read more less

  $131.59

  View options

•

  View options

  MEAN WELL HBG-160 series: constant-voltage and constant-current LED driver - HBG-160-36-A

  HBG-160-36-A circular LED driver MEAN WELL HBG-160-36-A is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 36 V DC, 4.4 A and 158.4 W, with a 21.6–36 V constant-current operating region. Built-in output-current adjustment. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-160 Datasheet (PDF)Catalog pages 16–24; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-160-36-A Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 4.4 A Rated output power 158.4 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 21.6–36 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 36 V Version and function Built-in output-current adjustment; A suffix; IP65. Output-current adjustment 2.6–4.4 A via the built-in Io ADJ potentiometer. Ripple and noise 300 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 92% typical at the default catalog test conditions. AC input current 1.7 / 0.78 / 0.7 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 65 A typical at 230 VAC; pulse width 550 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 41–47 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 20,000 h at 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2047.8 K hours minimum, Telcordia SR-332; 194.1 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP65 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and BS EN/EN 61347-2-13; GB 19510.1 and GB 19510.14; EAC TP TC 004. The cover marks TÜV and the double-M mark for non-DA versions; ENEC is marked for DA only. BIS IS 15885 is explicitly listed for this model. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. For A/AB versions, use as a built-in component or fill the Io-adjustment hole with potting compound as required by the catalog. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion.

  Read more less

  $131.59

  View options

•

  View options

  MEAN WELL HBG-160 series: constant-voltage and constant-current LED driver - HBG-160-24-A

  HBG-160-24-A circular LED driver MEAN WELL HBG-160-24-A is a circular AC/DC constant-voltage and constant-current LED driver for LED high-bay, low-bay, stage and spotlight luminaires. Its rated output is 24 V DC, 6.5 A and 156 W, with a 14.4–24 V constant-current operating region. Built-in output-current adjustment. Match the LED load to the current, voltage window and power limit, and observe input and temperature derating. Download MEAN WELL HBG-160 Datasheet (PDF)Catalog pages 16–24; series revision 2024-10-11. Download MEAN WELL LED Installation ManualModel and output Parameter Model-specific information Complete model HBG-160-24-A Output architecture Constant voltage (CV) plus constant current (CC). CV operation is usually used with an additional DC/DC LED driver; CC operation can directly drive the LEDs. Rated output current 6.5 A Rated output power 156 W. Observe this power limit together with the current and voltage limits. Constant-current voltage window 14.4–24 V. The LED string configuration determines the operating voltage in this region. Rated DC voltage 24 V Version and function Built-in output-current adjustment; A suffix; IP65. Output-current adjustment 3.9–6.5 A via the built-in Io ADJ potentiometer. Ripple and noise 200 mVp-p maximum; measured with 20 MHz bandwidth, a 12-inch twisted pair, and parallel 0.1 µF and 47 µF capacitors. Voltage tolerance and regulation Voltage tolerance ±2.0%, including setup, line and load regulation; line regulation ±0.5%; load regulation ±1.0%. Input and electrical performance Parameter Model-specific information Input voltage and frequency 90–305 VAC or 127–417 VDC; AC frequency 47–63 Hz. Apply the input-load limits below. Power factor Active PFC; >0.98 / >0.95 / >0.92 at 115 / 230 / 277 VAC respectively, at full load. Total harmonic distortion Less than 20% at load ≥60% at 115 VAC, ≥60% at 230 VAC, and ≥75% at 277 VAC. Efficiency 92% typical at the default catalog test conditions. AC input current 1.7 / 0.78 / 0.7 A typical at 115 / 230 / 277 VAC respectively. Inrush current Cold start: 65 A typical at 230 VAC; pulse width 550 µs measured at 50% of peak, per NEMA 410. Circuit-breaker loading Catalog maximum number on a 16 A breaker at 230 VAC: 4 units on type B / 7 on type C. Apply the actual installation and breaker conditions. Leakage current Less than 0.75 mA at 277 VAC. Setup and rise time 500 ms setup / 200 ms rise at 230 VAC; 2500 ms setup / 200 ms rise at 115 VAC. Setup time is measured at cold first start; switching the driver on/off may increase it. Hold-up time 12 ms typical at 115 VAC and 230 VAC. Protection Parameter Model-specific information Overcurrent protection 95–108%; constant-current limiting. Recovers automatically after the fault is removed. Short-circuit protection Hiccup mode; recovers automatically after the fault is removed. Overvoltage protection 28–34 V; shuts down the output, with automatic recovery or re-power on to recover. Overtemperature protection Shuts down the output; recovers automatically after the temperature falls. Thermal and environmental limits Parameter Model-specific information Cooling and case temperature Fanless free-air convection; operating case temperature −40°C to +85°C; maximum case temperature +85°C. These are case-temperature limits, not unconditional ambient full-load ratings. Temperature/load conditions Horizontal installation: 100% load through +60°C ambient; the graph ends at +60°C with no higher-temperature extension. The case-temperature graph permits 100% through +85°C and ends there. The ambient range −40°C to −30°C is for 230 VAC input only. Input/load derating At 60 Hz: 90 VAC permits 80% load, rising to 100% at 100 VAC and remaining at 100% through 305 VAC. Lifetime conditions Catalog typical life expectancy exceeds 50,000 hours when the designated tc/TMP point is about 70°C or lower. The illustrated lifetime is about 100,000 h through 60°C, 50,000 h at 70°C and about 20,000 h at 85°C. Graph estimates are not an extension of the operating-temperature ratings. Temperature coefficient ±0.03%/°C from 0°C to +50°C. Humidity and storage Working: 20–95% RH, non-condensing. Storage: −40°C to +80°C, 10–95% RH. Altitude derating Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Vibration 10–500 Hz, 5 G; 12 minutes per cycle, 72 minutes along each X, Y and Z axis. MTBF reference 2047.8 K hours minimum, Telcordia SR-332; 194.1 K hours minimum, MIL-HDBK-217F at 25°C. MTBF is distinct from service lifetime. Mechanical details and connections Parameter Model-specific information Construction and ingress protection Circular metal housing with Class I design; IP65 for this function version. Observe the installation and waterproofing conditions. Dimensions Ø151.68 × 66.5 mm (diameter × height); case 211; mechanical drawing tolerance ±1 mm. Mounting Four Ø6 mm mounting holes, with 132 mm opposing-hole spans; central thread designated M10 × P1.5–18h in the drawing. Input cable SJTW 18 AWG × 3 conductors; brown AC/L, blue AC/N and green/yellow FG; 300 ±20 mm. Connect the protective earth for the Class I metal housing. Output cable SJTW 18 AWG × 2 conductors; 200 ±20 mm; red +V and black −V. Temperature measuring points Measure at the tc point identified in the relevant version drawing. The mechanical drawing also defines the ambient Ta measurement position 150 mm away at 45°. Mechanical safety Inspect the driver for cracks if the package is damaged. Do not drop or bump it. Fit every screw, including the suspension screw, with a spring washer and tighten securely. The complete luminaire, including this driver, must weigh 10 kg or less. Protect the luminaire against shock during packaging and transportation. Unit reference mass 1530 g, converted from the catalog PACKING per-unit reference (1.53 kg); not an individually measured net or shipment weight. Safety, testing and integration Parameter Model-specific information Safety and certification scope UL 8750 Type HL; CSA C22.2 No. 250.13-12; BS EN/EN 61347-1 and BS EN/EN 61347-2-13; GB 19510.1 and GB 19510.14; EAC TP TC 004. The cover marks TÜV and the double-M mark for non-DA versions; ENEC is marked for DA only. CCC is optional in the catalog; confirm the supplied certification configuration when required. SELV marking SELV is marked on this series cover; the finished luminaire must still meet its applicable safety requirements. Dielectric withstand Input–output: 3.75 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance Input–output, input–FG and output–FG: 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015; BS EN/EN 61000-3-2 Class C at load ≥60%; BS EN/EN 61000-3-3; GB/T 17743; GB 17625.1; EAC TP TC 020. EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN 61547; light industry level; line–earth surge 4 kV and line–line surge 2 kV; EAC TP TC 020. Specification test conditions Unless a parameter states otherwise: 230 VAC input, rated current and 25°C ambient. PF, THD and efficiency plots use Tcase 75°C; the THD and efficiency example is the 48 V model. Type HL application Catalog Type HL designation is for the stated Class I, Division 2 hazardous-location application; it is distinct from the electrical Class I construction. For A/AB versions, use as a built-in component or fill the Io-adjustment hole with potting compound as required by the catalog. System integration This driver is a component used with final equipment. Re-qualify EMC on the complete installed system; the driver specifications do not replace final-luminaire compliance. Catalog warranty statement The manufacturer catalog states a 5-year warranty, subject to MEAN WELL’s warranty statement and conditions. Installation requirements Parameter Model-specific information Installation safety Disconnect the mains supply and prevent accidental reconnection before installation or maintenance. Have faults examined by a qualified technician; do not open the power-supply case yourself. Ventilation and mounting Keep ventilation clear and do not stack objects on the unit. Keep 10–15 cm clearance when the adjacent device is a heat source. Follow this model’s mounting, ambient-temperature and output-derating requirements. System wiring and protection Use approved primary and secondary wiring rated for at least the applicable unit current. Provide suitable system-level insulation and an enclosure around single-insulated wiring; verify EMC again in the completed system. Environmental and load limits Do not immerse the unit or install it near fire or above its specified ambient limit. Keep output current and power within the model’s rated operating envelope. If a fitted external flexible cable is damaged, replacement is limited to the manufacturer, its service agent or a similarly qualified person. Connection seals and support If waterproof connectors are fitted, secure their connections to prevent water entry. Verify the mounting structure and luminaire strength; use safety cables for bay-light applications. Protective-earth installation Connect the fitted FG/PE conductor or connector terminal to protective earth according to this exact model’s wiring diagram. Weather protection This IP65 model must be installed indoors or in a location sheltered from rain outdoors, as required by the installation manual. The IP rating does not permit immersion.

  Read more less

  $131.59

  View options
