  MEAN WELL LPC-60 series: constant current LED power supply - LPC-60-1400

  MEAN WELL LPC-60-1400 Constant Current LED Power Supply The MEAN WELL LPC-60-1400 is a single-output constant current LED power supply with 1400 mA output across 9-42 V DC, with 58.8 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPC-60 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 20; wiring and derating: page 21. Model selection and application Parameter Details Full model / series LPC-60-1400 / LPC-60 Model code LPC-60 identifies the series; the final code 1400 denotes 1400 mA output current. Use the actual power below, not the series number, for load sizing. Load selection Use an LED load requiring 1400 mA whose total operating voltage stays within 9-42 V DC. This is a current-regulated output; the voltage range is not an adjustable constant-voltage setting. Keep within the power and derating limits. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details Rated output current 1400 mA Constant-current region / power 9-42 V DC; catalog rated power 58.8 W. Current accuracy / ripple Current accuracy ±5.0%; current ripple ±5%. Ripple is measured at 60-100% of maximum voltage under rated power delivery. Voltage tolerance ±5.0%; separate from current accuracy. Setup / rise and hold-up 500 ms setup / 120 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 1.2 A at 115 VAC; 0.7 A at 230 VAC; typical efficiency 85% at catalog conditions. Cold-start inrush, typical 60 A at 230 VAC; 540 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 3 units on Type B or 6 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overvoltage 44.1-56.7 V; output shutdown with TVS-diode clamping. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +50°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 162.5 x 42.5 x 32 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 976A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1007, 16 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals BIS IS 15885, UL 1310, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design; Class 2 power unit; LPS. Class II and Class 2 are separate classifications. CAN/CSA No.223-M91 is listed for the 1750 mA model only, not this model. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 400 g per unit (0.4 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 5269.3 thousand hours per Telcordia SR-332 (Bellcore); 567.2 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet.

  Read more less

  $32.04

  View options

•

  View options

  MEAN WELL LPC-60 series: constant current LED power supply - LPC-60-1050

  MEAN WELL LPC-60-1050 Constant Current LED Power Supply The MEAN WELL LPC-60-1050 is a single-output constant current LED power supply with 1050 mA output across 9-48 V DC, with 50.4 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPC-60 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 20; wiring and derating: page 21. Model selection and application Parameter Details Full model / series LPC-60-1050 / LPC-60 Model code LPC-60 identifies the series; the final code 1050 denotes 1050 mA output current. Use the actual power below, not the series number, for load sizing. Load selection Use an LED load requiring 1050 mA whose total operating voltage stays within 9-48 V DC. This is a current-regulated output; the voltage range is not an adjustable constant-voltage setting. Keep within the power and derating limits. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details Rated output current 1050 mA Constant-current region / power 9-48 V DC; catalog rated power 50.4 W. Current accuracy / ripple Current accuracy ±5.0%; current ripple ±5%. Ripple is measured at 60-100% of maximum voltage under rated power delivery. Voltage tolerance ±5.0%; separate from current accuracy. Setup / rise and hold-up 500 ms setup / 120 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 1.2 A at 115 VAC; 0.7 A at 230 VAC; typical efficiency 87% at catalog conditions. Cold-start inrush, typical 60 A at 230 VAC; 540 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 3 units on Type B or 6 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overvoltage 50.4-60 V; output shutdown with TVS-diode clamping. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +50°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 162.5 x 42.5 x 32 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 976A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1007, 16 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals BIS IS 15885, UL 1310, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design; Class 2 power unit; LPS. Class II and Class 2 are separate classifications. CAN/CSA No.223-M91 is listed for the 1750 mA model only, not this model. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 400 g per unit (0.4 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 5269.3 thousand hours per Telcordia SR-332 (Bellcore); 567.2 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet.

  Read more less

  $32.04

  View options

•

  View options

  MEAN WELL LPC-35 series: constant current LED power supply - LPC-35-1400

  MEAN WELL LPC-35-1400 Constant Current LED Power Supply The MEAN WELL LPC-35-1400 is a single-output constant current LED power supply with 1400 mA output across 9-24 V DC, with 33.6 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPC-35 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 18; wiring and derating: page 19. Model selection and application Parameter Details Full model / series LPC-35-1400 / LPC-35 Model code LPC-35 identifies the series; the final code 1400 denotes 1400 mA output current. Use the actual power below, not the series number, for load sizing. Load selection Use an LED load requiring 1400 mA whose total operating voltage stays within 9-24 V DC. This is a current-regulated output; the voltage range is not an adjustable constant-voltage setting. Keep within the power and derating limits. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details Rated output current 1400 mA Constant-current region / power 9-24 V DC; catalog rated power 33.6 W. Current accuracy / ripple Current accuracy ±5.0%; current ripple ±5%. Ripple is measured at 60-100% of maximum voltage under rated power delivery. Voltage tolerance ±5.0%; separate from current accuracy. Setup / rise and hold-up 500 ms setup / 120 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 1.1 A at 115 VAC; 0.7 A at 230 VAC; typical efficiency 85% at catalog conditions. Cold-start inrush, typical 55 A at 230 VAC; 500 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 4 units on Type B or 7 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overvoltage 27.6-32.4 V; output shutdown with zener-diode clamping. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +55°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 148 x 40 x 30 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 975A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1007, 16 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals CAN/CSA C22.2 No.223-M91, UL 1310, BIS IS 15885, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design; Class 2 power unit; LPS. Class II and Class 2 are separate classifications. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 340 g per unit (0.34 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 6050.2 thousand hours per Telcordia SR-332 (Bellcore); 574.4 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 60 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification.

  Read more less

  $29.08

  View options

•

  View options

  MEAN WELL LPC-35 series: constant current LED power supply - LPC-35-1050

  MEAN WELL LPC-35-1050 Constant Current LED Power Supply The MEAN WELL LPC-35-1050 is a single-output constant current LED power supply with 1050 mA output across 9-30 V DC, with 31.5 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPC-35 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 18; wiring and derating: page 19. Model selection and application Parameter Details Full model / series LPC-35-1050 / LPC-35 Model code LPC-35 identifies the series; the final code 1050 denotes 1050 mA output current. Use the actual power below, not the series number, for load sizing. Load selection Use an LED load requiring 1050 mA whose total operating voltage stays within 9-30 V DC. This is a current-regulated output; the voltage range is not an adjustable constant-voltage setting. Keep within the power and derating limits. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details Rated output current 1050 mA Constant-current region / power 9-30 V DC; catalog rated power 31.5 W. Current accuracy / ripple Current accuracy ±5.0%; current ripple ±5%. Ripple is measured at 60-100% of maximum voltage under rated power delivery. Voltage tolerance ±5.0%; separate from current accuracy. Setup / rise and hold-up 500 ms setup / 120 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 1.1 A at 115 VAC; 0.7 A at 230 VAC; typical efficiency 85% at catalog conditions. Cold-start inrush, typical 55 A at 230 VAC; 500 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 4 units on Type B or 7 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overvoltage 31.5-40.5 V; output shutdown with zener-diode clamping. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +55°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 148 x 40 x 30 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 975A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1007, 16 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals CAN/CSA C22.2 No.223-M91, UL 1310, BIS IS 15885, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design; Class 2 power unit; LPS. Class II and Class 2 are separate classifications. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 340 g per unit (0.34 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 6050.2 thousand hours per Telcordia SR-332 (Bellcore); 574.4 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 60 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification.

  Read more less

  $29.08

  View options

•

  View options

  MEAN WELL LPC-35 series: constant current LED power supply - LPC-35-700

  MEAN WELL LPC-35-700 Constant Current LED Power Supply The MEAN WELL LPC-35-700 is a single-output constant current LED power supply with 700 mA output across 9-48 V DC, with 33.6 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPC-35 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 18; wiring and derating: page 19. Model selection and application Parameter Details Full model / series LPC-35-700 / LPC-35 Model code LPC-35 identifies the series; the final code 700 denotes 700 mA output current. Use the actual power below, not the series number, for load sizing. Load selection Use an LED load requiring 700 mA whose total operating voltage stays within 9-48 V DC. This is a current-regulated output; the voltage range is not an adjustable constant-voltage setting. Keep within the power and derating limits. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details Rated output current 700 mA Constant-current region / power 9-48 V DC; catalog rated power 33.6 W. Current accuracy / ripple Current accuracy ±5.0%; current ripple ±5%. Ripple is measured at 60-100% of maximum voltage under rated power delivery. Voltage tolerance ±5.0%; separate from current accuracy. Setup / rise and hold-up 500 ms setup / 120 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 1.1 A at 115 VAC; 0.7 A at 230 VAC; typical efficiency 85% at catalog conditions. Cold-start inrush, typical 55 A at 230 VAC; 500 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 4 units on Type B or 7 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overvoltage 50.4-60 V; output shutdown with zener-diode clamping. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +55°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 148 x 40 x 30 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 975A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1007, 16 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 1310, BIS IS 15885, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design; Class 2 power unit; LPS. Class II and Class 2 are separate classifications. The listed CAN/CSA No.223-M91 approval excludes this 700 mA model. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 340 g per unit (0.34 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 6050.2 thousand hours per Telcordia SR-332 (Bellcore); 574.4 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 60 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification.

  Read more less

  $29.08

  View options

•

  View options

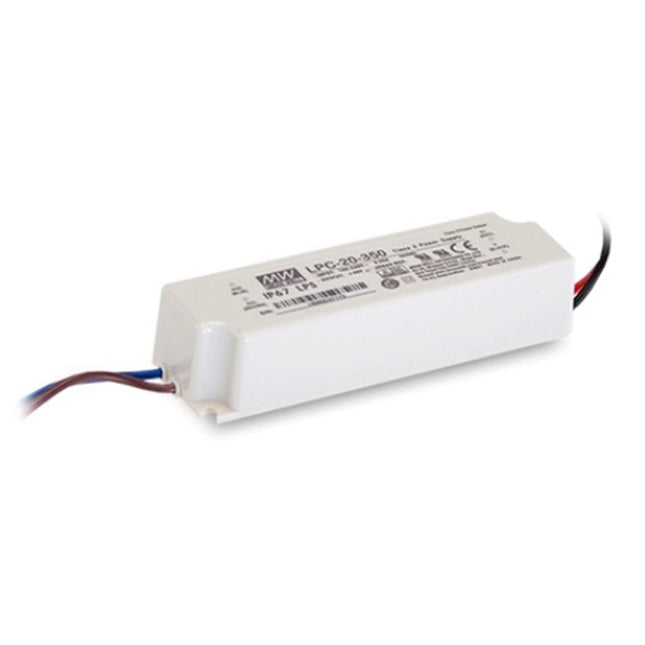

  MEAN WELL LPC-20 series: constant current LED power supply - LPC-20-350

  MEAN WELL LPC-20-350 Constant Current LED Power Supply The MEAN WELL LPC-20-350 is a single-output constant current LED power supply with 350 mA output across 9-48 V DC, with 16.8 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPC-20 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 16; wiring and derating: page 17. Model selection and application Parameter Details Full model / series LPC-20-350 / LPC-20 Model code LPC-20 identifies the series; the final code 350 denotes 350 mA output current. Use the actual power below, not the series number, for load sizing. Load selection Use an LED load requiring 350 mA whose total operating voltage stays within 9-48 V DC. This is a current-regulated output; the voltage range is not an adjustable constant-voltage setting. Keep within the power and derating limits. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details Rated output current 350 mA Constant-current region / power 9-48 V DC; catalog rated power 16.8 W. Current accuracy / ripple Current accuracy ±5.0%; current ripple ±5%. Ripple is measured at 60-100% of maximum voltage under rated power delivery. Voltage tolerance ±5.0%; separate from current accuracy. Setup / rise and hold-up 500 ms setup / 250 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 0.55 A at 115 VAC; 0.35 A at 230 VAC; typical efficiency 83% at catalog conditions. Cold-start inrush, typical 70 A at 230 VAC; 220 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 8 units on Type B or 14 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overvoltage 50.4-60 V; output shutdown with zener-diode clamping. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +60°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 118 x 35 x 26 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 972A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1015, 18 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 879, UL 1310, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design; Class 2 power unit; LPS. Class II and Class 2 are separate classifications. The listed CSA No.207-M89 and No.223-M91 approvals exclude this 350 mA model. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 220 g per unit (0.22 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 5708.9 thousand hours per Telcordia SR-332 (Bellcore); 700.1 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 60 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification.

  Read more less

  $20.70

  View options

•

  View options

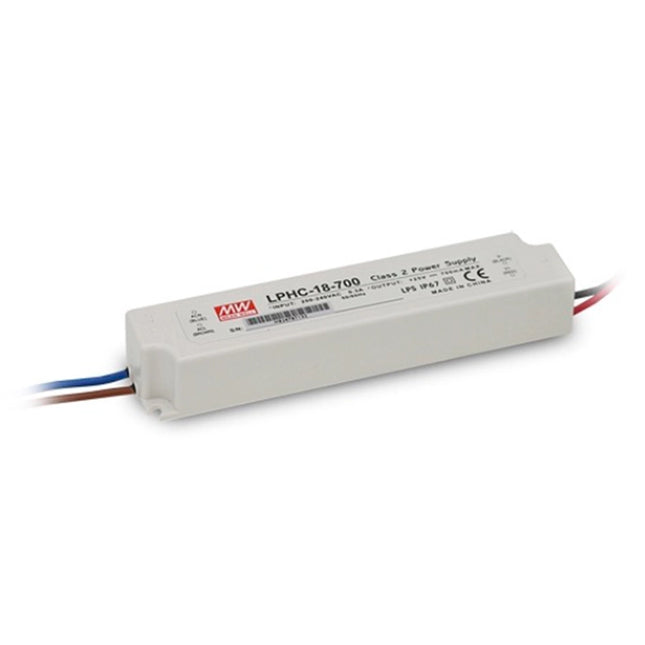

  MEAN WELL LPHC-18 series: constant current LED power supply - LPHC-18-350

  MEAN WELL LPHC-18-350 Constant Current LED Power Supply The MEAN WELL LPHC-18-350 is a single-output constant current LED power supply with 350 mA output across 6-48 V DC, with 16.8 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPHC-18 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 14; wiring and derating: page 15. Model selection and application Parameter Details Full model / series LPHC-18-350 / LPHC-18 Model code LPHC-18 identifies the series; the final code 350 denotes 350 mA output current. Use the actual power below, not the series number, for load sizing. Load selection Use an LED load requiring 350 mA whose total operating voltage stays within 6-48 V DC. This is a current-regulated output; the voltage range is not an adjustable constant-voltage setting. Keep within the power and derating limits. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details Rated output current 350 mA Constant-current region / power 6-48 V DC; catalog rated power 16.8 W. Current accuracy / ripple Current accuracy ±8.0%; current ripple ±5%. Ripple is measured at 60-100% of maximum voltage under rated power delivery. Voltage tolerance ±5.0%; separate from current accuracy. Setup / rise and hold-up 3600 ms setup / 100 ms rise at 230 VAC. Typical hold-up: 20 ms at 230 VAC, full load. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 180-264 VAC, 47-63 Hz; 254-370 VDC. AC input current / efficiency 0.3 A at 230 VAC; typical efficiency 80% at catalog conditions. Cold-start inrush, typical 50 A at 230 VAC; 190 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 180 VAC, rising to 100% at 195 VAC; 100% from 195 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 13 units on Type B or 22 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overvoltage 50.4-60 V; output shutdown with zener-diode clamping. Overtemperature Hiccup mode, automatic recovery after temperature falls. Detection is at the main control IC U1, with typical junction temperature Tj 170°C; this is not an allowable ambient temperature. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +50°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.2%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Wiring, dimensions and installation Parameter Details Dimensions / mounting 140 x 30 x 22 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 300 ±20 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1015, 18 AWG, 300 ±20 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 254-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals BIS IS 15885, EAC TP TC 004, IP67, LVD BS EN/EN 62368-1. Classification / qualifications Class II insulation design; LPS. Class II and Class 2 are separate classifications. UL 1310 Class 2 and CAN/CSA No.223-M91 are design references only; the datasheet does not list them as approvals. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class A, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 175 g per unit (0.175 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 7399.9 thousand hours per Telcordia SR-332 (Bellcore); 1086.9 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 60 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification.

  Read more less

  $16.26

  View options

•

  View options

  MEAN WELL LPVL-150 series: constant voltage LED power supply - LPVL-150-24

  MEAN WELL LPVL-150-24 Constant Voltage LED Power Supply The MEAN WELL LPVL-150-24 is a single-output constant voltage LED power supply with 24 V DC, 6.3 A rated output and 151.2 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPVL-150 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 12; wiring and derating: page 13. Model selection and application Parameter Details Full model / series LPVL-150-24 / LPVL-150 Model code LPVL-150 identifies the series; the final code 24 denotes 24 V output. Use the actual power below, not the series number, for load sizing. The L input variant is 90-132 VAC; it is distinct from the 180-305 VAC LPV-150 version. Load selection Use a load designed for 24 V constant voltage. Keep current within 0-6.3 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. Output and dynamic performance Parameter Details DC output / current 24 V; rated current 6.3 A; current range 0-6.3 A. Catalog rated power 151.2 W. Apply all current and derating limits. Ripple and noise, maximum 200 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 1500 ms setup / 50 ms rise at 115 VAC. Typical hold-up: 10 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 115 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-132 VAC, 47-63 Hz; no DC-input rating is specified for this LPVL model. AC input current / efficiency 3 A at 115 VAC; typical efficiency 89% at catalog conditions. Cold-start inrush, typical 75 A at 115 VAC; 900 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 120 VAC. Input derating The 60 Hz L-type curve shows 100% load across 90-132 VAC, subject to the separate temperature derating limit. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 115 VAC, the catalog lists 1 units on Type B or 2 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 27-35 V; output shutdown; re-power to recover. Overtemperature Output shutdown, automatic recovery after temperature falls. Environment and derating Parameter Details Working temperature -25 to +60°C within the LPVL curve. Cooling / load derating Free-air convection in the horizontal orientation shown. The shared table lists +65°C, but the LPVL curve ends at +60°C. Full load through +40°C, then linear derating to 60% at +60°C; do not extend the LPVL branch to +65°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 40°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. The series specifies a 94V-0 flame-retardant case. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 191 x 63 x 37.5 mm (L x W x H); drawing tolerance ±1 mm. Two Ø4.5 mm mounting features; case LPC-150. Use the drawing to position mounting hardware. Input leads SJTW, 18 AWG, 330 ±20 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads SJTW, 14 AWG, 320 ±20 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 8750 Type HL, CSA C22.2 No.250.13-12, UL 879, CSA C22.2 No.207-M89, IP67. Classification / qualifications Class II insulation design. Class II and Class 2 are separate classifications. Type HL is specified for use in Class I, Division 2 hazardous (classified) location luminaires, subject to the complete approved installation. Listed in the UL Sign Component Manual (SAM). The LPV blank-type IEC/BIS/EAC approvals are not assigned to this L-type model. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC Emission: compliance to FCC Part 15. Immunity: design reference to IEC 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level; this is not the LPV blank-type compliance claim. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 790 g per unit (0.79 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 3361.2 thousand hours per Telcordia SR-332 (Bellcore); 391.9 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 47 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification.

  Read more less

  $75.90

  View options

•

  View options

  MEAN WELL LPVL-150 series: constant voltage LED power supply - LPVL-150-12

  MEAN WELL LPVL-150-12 Constant Voltage LED Power Supply The MEAN WELL LPVL-150-12 is a single-output constant voltage LED power supply with 12 V DC, 10 A rated output and 120 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPVL-150 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 12; wiring and derating: page 13. Model selection and application Parameter Details Full model / series LPVL-150-12 / LPVL-150 Model code LPVL-150 identifies the series; the final code 12 denotes 12 V output. Use the actual power below, not the series number, for load sizing. The L input variant is 90-132 VAC; it is distinct from the 180-305 VAC LPV-150 version. Load selection Use a load designed for 12 V constant voltage. Keep current within 0-10 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. Output and dynamic performance Parameter Details DC output / current 12 V; rated current 10 A; current range 0-10 A. Catalog rated power 120 W. Apply all current and derating limits. Ripple and noise, maximum 200 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 1500 ms setup / 50 ms rise at 115 VAC. Typical hold-up: 10 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 115 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-132 VAC, 47-63 Hz; no DC-input rating is specified for this LPVL model. AC input current / efficiency 3 A at 115 VAC; typical efficiency 87% at catalog conditions. Cold-start inrush, typical 75 A at 115 VAC; 900 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 120 VAC. Input derating The 60 Hz L-type curve shows 100% load across 90-132 VAC, subject to the separate temperature derating limit. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 115 VAC, the catalog lists 1 units on Type B or 2 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 13.5-18 V; output shutdown; re-power to recover. Overtemperature Output shutdown, automatic recovery after temperature falls. Environment and derating Parameter Details Working temperature -25 to +60°C within the LPVL curve. Cooling / load derating Free-air convection in the horizontal orientation shown. The shared table lists +65°C, but the LPVL curve ends at +60°C. Full load through +40°C, then linear derating to 60% at +60°C; do not extend the LPVL branch to +65°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 40°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. The series specifies a 94V-0 flame-retardant case. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 191 x 63 x 37.5 mm (L x W x H); drawing tolerance ±1 mm. Two Ø4.5 mm mounting features; case LPC-150. Use the drawing to position mounting hardware. Input leads SJTW, 18 AWG, 330 ±20 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads SJTW, 14 AWG, 320 ±20 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 8750 Type HL, CSA C22.2 No.250.13-12, UL 879, CSA C22.2 No.207-M89, IP67. Classification / qualifications Class II insulation design. Class II and Class 2 are separate classifications. Type HL is specified for use in Class I, Division 2 hazardous (classified) location luminaires, subject to the complete approved installation. Listed in the UL Sign Component Manual (SAM). The LPV blank-type IEC/BIS/EAC approvals are not assigned to this L-type model. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC Emission: compliance to FCC Part 15. Immunity: design reference to IEC 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level; this is not the LPV blank-type compliance claim. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 790 g per unit (0.79 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 3361.2 thousand hours per Telcordia SR-332 (Bellcore); 391.9 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 47 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification.

  Read more less

  $75.90

  View options

•

  View options

  MEAN WELL LPV-150 series: constant voltage LED power supply - LPV-150-48

  MEAN WELL LPV-150-48 Constant Voltage LED Power Supply The MEAN WELL LPV-150-48 is a single-output constant voltage LED power supply with 48 V DC, 3.2 A rated output and 153.6 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-150 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 12; wiring and derating: page 13. Model selection and application Parameter Details Full model / series LPV-150-48 / LPV-150 Model code LPV-150 identifies the series; the final code 48 denotes 48 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 48 V constant voltage. Keep current within 0-3.2 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 48 V; rated current 3.2 A; current range 0-3.2 A. Catalog rated power 153.6 W. Apply all current and derating limits. Ripple and noise, maximum 200 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 500 ms setup / 50 ms rise at both 230 VAC and 277 VAC. Typical hold-up: 18 ms at 230 VAC; 20 ms at 277 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 180-305 VAC, 47-63 Hz; 254-431 VDC. AC input current / efficiency 1.7 A at 230 VAC; 1.5 A at 277 VAC; typical efficiency 90% at catalog conditions. Cold-start inrush, typical 60 A at 230 VAC; 900 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating The 60 Hz curve shows 100% load across 180-305 VAC, subject to the separate temperature derating limit. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 2 units on Type B or 3 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 52-63 V; output shutdown; re-power to recover. Overtemperature Output shutdown, automatic recovery after temperature falls. Environment and derating Parameter Details Working temperature -25 to +65°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +50°C, then linear derating to 60% at +65°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. The series specifies a 94V-0 flame-retardant case. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 191 x 63 x 37.5 mm (L x W x H); drawing tolerance ±1 mm. Two Ø4.5 mm mounting features; case LPC-150. Use the drawing to position mounting hardware. Input leads SJTW, 18 AWG, 330 ±20 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads SJTW, 14 AWG, 320 ±20 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 254-431 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 8750, CSA C22.2 No.250.13-12, UL 879, CSA C22.2 No.207-M89, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design. Class II and Class 2 are separate classifications. BIS IS 15885 is listed only for the 12 V and 24 V LPV-150 models; it is not claimed for this model. The series is listed in the UL Sign Component Manual (SAM). Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A at ≤80% load, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 790 g per unit (0.79 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 3361.2 thousand hours per Telcordia SR-332 (Bellcore); 391.9 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 47 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification.

  Read more less

  $75.90

  View options

•

  View options

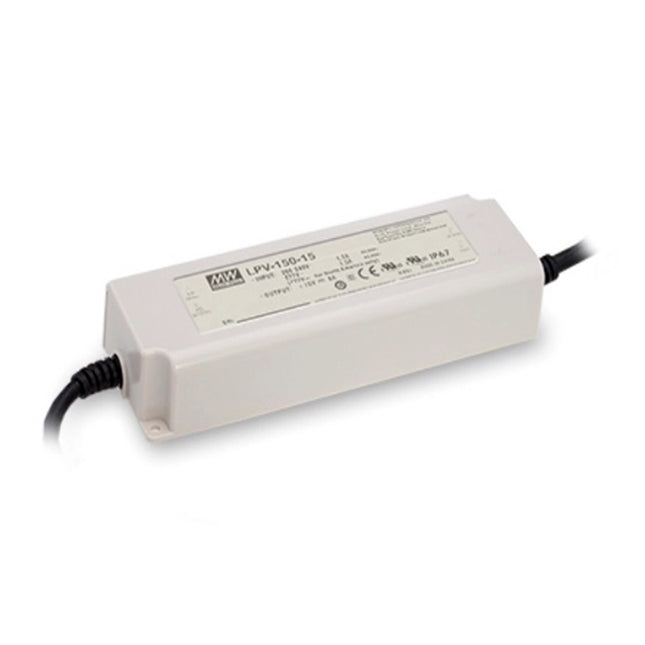

  MEAN WELL LPV-150 series: constant voltage LED power supply - LPV-150-36

  MEAN WELL LPV-150-36 Constant Voltage LED Power Supply The MEAN WELL LPV-150-36 is a single-output constant voltage LED power supply with 36 V DC, 4.2 A rated output and 151.2 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-150 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 12; wiring and derating: page 13. Model selection and application Parameter Details Full model / series LPV-150-36 / LPV-150 Model code LPV-150 identifies the series; the final code 36 denotes 36 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 36 V constant voltage. Keep current within 0-4.2 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 36 V; rated current 4.2 A; current range 0-4.2 A. Catalog rated power 151.2 W. Apply all current and derating limits. Ripple and noise, maximum 200 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 500 ms setup / 50 ms rise at both 230 VAC and 277 VAC. Typical hold-up: 18 ms at 230 VAC; 20 ms at 277 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 180-305 VAC, 47-63 Hz; 254-431 VDC. AC input current / efficiency 1.7 A at 230 VAC; 1.5 A at 277 VAC; typical efficiency 89% at catalog conditions. Cold-start inrush, typical 60 A at 230 VAC; 900 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating The 60 Hz curve shows 100% load across 180-305 VAC, subject to the separate temperature derating limit. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 2 units on Type B or 3 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 40-49 V; output shutdown; re-power to recover. Overtemperature Output shutdown, automatic recovery after temperature falls. Environment and derating Parameter Details Working temperature -25 to +65°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +50°C, then linear derating to 60% at +65°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. The series specifies a 94V-0 flame-retardant case. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 191 x 63 x 37.5 mm (L x W x H); drawing tolerance ±1 mm. Two Ø4.5 mm mounting features; case LPC-150. Use the drawing to position mounting hardware. Input leads SJTW, 18 AWG, 330 ±20 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads SJTW, 14 AWG, 320 ±20 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 254-431 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 8750, CSA C22.2 No.250.13-12, UL 879, CSA C22.2 No.207-M89, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design. Class II and Class 2 are separate classifications. BIS IS 15885 is listed only for the 12 V and 24 V LPV-150 models; it is not claimed for this model. The series is listed in the UL Sign Component Manual (SAM). Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A at ≤80% load, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 790 g per unit (0.79 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 3361.2 thousand hours per Telcordia SR-332 (Bellcore); 391.9 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 47 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification.

  Read more less

  $75.90

  View options

•

  View options

  MEAN WELL LPV-150 series: constant voltage LED power supply - LPV-150-24

  MEAN WELL LPV-150-24 Constant Voltage LED Power Supply The MEAN WELL LPV-150-24 is a single-output constant voltage LED power supply with 24 V DC, 6.3 A rated output and 151.2 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-150 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 12; wiring and derating: page 13. Model selection and application Parameter Details Full model / series LPV-150-24 / LPV-150 Model code LPV-150 identifies the series; the final code 24 denotes 24 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 24 V constant voltage. Keep current within 0-6.3 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 24 V; rated current 6.3 A; current range 0-6.3 A. Catalog rated power 151.2 W. Apply all current and derating limits. Ripple and noise, maximum 200 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 500 ms setup / 50 ms rise at both 230 VAC and 277 VAC. Typical hold-up: 18 ms at 230 VAC; 20 ms at 277 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 180-305 VAC, 47-63 Hz; 254-431 VDC. AC input current / efficiency 1.7 A at 230 VAC; 1.5 A at 277 VAC; typical efficiency 89% at catalog conditions. Cold-start inrush, typical 60 A at 230 VAC; 900 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating The 60 Hz curve shows 100% load across 180-305 VAC, subject to the separate temperature derating limit. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 2 units on Type B or 3 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 27-35 V; output shutdown; re-power to recover. Overtemperature Output shutdown, automatic recovery after temperature falls. Environment and derating Parameter Details Working temperature -25 to +65°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +50°C, then linear derating to 60% at +65°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. The series specifies a 94V-0 flame-retardant case. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 191 x 63 x 37.5 mm (L x W x H); drawing tolerance ±1 mm. Two Ø4.5 mm mounting features; case LPC-150. Use the drawing to position mounting hardware. Input leads SJTW, 18 AWG, 330 ±20 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads SJTW, 14 AWG, 320 ±20 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 254-431 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals BIS IS 15885, UL 8750, CSA C22.2 No.250.13-12, UL 879, CSA C22.2 No.207-M89, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design. Class II and Class 2 are separate classifications. The series is listed in the UL Sign Component Manual (SAM). Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A at ≤80% load, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 790 g per unit (0.79 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 3361.2 thousand hours per Telcordia SR-332 (Bellcore); 391.9 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 47 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification.

  Read more less

  $70.97

  View options

•

  View options

  MEAN WELL LPV-150 series: constant voltage LED power supply - LPV-150-15

  MEAN WELL LPV-150-15 Constant Voltage LED Power Supply The MEAN WELL LPV-150-15 is a single-output constant voltage LED power supply with 15 V DC, 8 A rated output and 120 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-150 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 12; wiring and derating: page 13. Model selection and application Parameter Details Full model / series LPV-150-15 / LPV-150 Model code LPV-150 identifies the series; the final code 15 denotes 15 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 15 V constant voltage. Keep current within 0-8 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 15 V; rated current 8 A; current range 0-8 A. Catalog rated power 120 W. Apply all current and derating limits. Ripple and noise, maximum 200 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 500 ms setup / 50 ms rise at both 230 VAC and 277 VAC. Typical hold-up: 18 ms at 230 VAC; 20 ms at 277 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 180-305 VAC, 47-63 Hz; 254-431 VDC. AC input current / efficiency 1.7 A at 230 VAC; 1.5 A at 277 VAC; typical efficiency 88% at catalog conditions. Cold-start inrush, typical 60 A at 230 VAC; 900 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating The 60 Hz curve shows 100% load across 180-305 VAC, subject to the separate temperature derating limit. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 2 units on Type B or 3 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 17-25 V; output shutdown; re-power to recover. Overtemperature Output shutdown, automatic recovery after temperature falls. Environment and derating Parameter Details Working temperature -25 to +65°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +40°C, then linear derating to 60% at +65°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 40°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. The series specifies a 94V-0 flame-retardant case. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 191 x 63 x 37.5 mm (L x W x H); drawing tolerance ±1 mm. Two Ø4.5 mm mounting features; case LPC-150. Use the drawing to position mounting hardware. Input leads SJTW, 18 AWG, 330 ±20 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads SJTW, 14 AWG, 320 ±20 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 254-431 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 8750, CSA C22.2 No.250.13-12, UL 879, CSA C22.2 No.207-M89, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design. Class II and Class 2 are separate classifications. BIS IS 15885 is listed only for the 12 V and 24 V LPV-150 models; it is not claimed for this model. The series is listed in the UL Sign Component Manual (SAM). Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A at ≤80% load, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 790 g per unit (0.79 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 3361.2 thousand hours per Telcordia SR-332 (Bellcore); 391.9 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 47 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification.

  Read more less

  $75.90

  View options

•

  View options

  MEAN WELL LPV-150 series: constant voltage LED power supply - LPV-150-12

  MEAN WELL LPV-150-12 Constant Voltage LED Power Supply The MEAN WELL LPV-150-12 is a single-output constant voltage LED power supply with 12 V DC, 10 A rated output and 120 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-150 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 12; wiring and derating: page 13. Model selection and application Parameter Details Full model / series LPV-150-12 / LPV-150 Model code LPV-150 identifies the series; the final code 12 denotes 12 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 12 V constant voltage. Keep current within 0-10 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 12 V; rated current 10 A; current range 0-10 A. Catalog rated power 120 W. Apply all current and derating limits. Ripple and noise, maximum 200 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 500 ms setup / 50 ms rise at both 230 VAC and 277 VAC. Typical hold-up: 18 ms at 230 VAC; 20 ms at 277 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 180-305 VAC, 47-63 Hz; 254-431 VDC. AC input current / efficiency 1.7 A at 230 VAC; 1.5 A at 277 VAC; typical efficiency 87% at catalog conditions. Cold-start inrush, typical 60 A at 230 VAC; 900 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating The 60 Hz curve shows 100% load across 180-305 VAC, subject to the separate temperature derating limit. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 2 units on Type B or 3 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 13.5-18 V; output shutdown; re-power to recover. Overtemperature Output shutdown, automatic recovery after temperature falls. Environment and derating Parameter Details Working temperature -25 to +65°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +40°C, then linear derating to 60% at +65°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 40°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. The series specifies a 94V-0 flame-retardant case. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 191 x 63 x 37.5 mm (L x W x H); drawing tolerance ±1 mm. Two Ø4.5 mm mounting features; case LPC-150. Use the drawing to position mounting hardware. Input leads SJTW, 18 AWG, 330 ±20 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads SJTW, 14 AWG, 320 ±20 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 254-431 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals BIS IS 15885, UL 8750, CSA C22.2 No.250.13-12, UL 879, CSA C22.2 No.207-M89, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design. Class II and Class 2 are separate classifications. The series is listed in the UL Sign Component Manual (SAM). Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A at ≤80% load, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 790 g per unit (0.79 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 3361.2 thousand hours per Telcordia SR-332 (Bellcore); 391.9 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 47 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification.

  Read more less

  $70.97

  View options

•

  View options

  MEAN WELL LPV-100 series: constant voltage LED power supply - LPV-100-48

  MEAN WELL LPV-100-48 Constant Voltage LED Power Supply The MEAN WELL LPV-100-48 is a single-output constant voltage LED power supply with 48 V DC, 2.1 A rated output and 100.8 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-100 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 9; wiring and derating: page 10. Model selection and application Parameter Details Full model / series LPV-100-48 / LPV-100 Model code LPV-100 identifies the series; the final code 48 denotes 48 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 48 V constant voltage. Keep current within 0-2.1 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 48 V; rated current 2.1 A; current range 0-2.1 A. Catalog rated power 100.8 W. Apply all current and derating limits. Ripple and noise, maximum 150 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 2000 ms setup / 25 ms rise at both 230 VAC and 115 VAC. Typical hold-up: 50 ms at 230 VAC; 14 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 2.2 A at 115 VAC; 1.2 A at 230 VAC; typical efficiency 89% at catalog conditions. Cold-start inrush, typical 75 A at 230 VAC; 700 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 2 units on Type B or 3 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 55.2-64.8 V; output shutdown; re-power to recover. Environment and derating Parameter Details Working temperature -25 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +50°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 190 x 52 x 37 mm (L x W x H); drawing tolerance ±1 mm. Two Ø4.5 mm mounting features; case LPC-100A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 300 ±10 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1015, 14 AWG, 300 ±10 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 8750, CSA C22.2 No.250.13-12, UL 879, CSA C22.2 No.207-M89, BIS IS 15885 (factory-dependent), EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design. Class II and Class 2 are separate classifications. BIS registration R-41027766 applies to GZ-factory 12 V and 24 V units only; R-62002178 covers ID-factory 5-48 V units. Verify the actual factory and marking. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A at ≤80% load, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 610 g per unit (0.61 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 4497.1 thousand hours per Telcordia SR-332 (Bellcore); 681.6 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Verify the actual unit markings for the intended market.

  Read more less

  $54.71

  View options

•

  View options

  MEAN WELL LPV-100 series: constant voltage LED power supply - LPV-100-36

  MEAN WELL LPV-100-36 Constant Voltage LED Power Supply The MEAN WELL LPV-100-36 is a single-output constant voltage LED power supply with 36 V DC, 2.8 A rated output and 100.8 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-100 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 9; wiring and derating: page 10. Model selection and application Parameter Details Full model / series LPV-100-36 / LPV-100 Model code LPV-100 identifies the series; the final code 36 denotes 36 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 36 V constant voltage. Keep current within 0-2.8 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 36 V; rated current 2.8 A; current range 0-2.8 A. Catalog rated power 100.8 W. Apply all current and derating limits. Ripple and noise, maximum 150 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 2000 ms setup / 25 ms rise at both 230 VAC and 115 VAC. Typical hold-up: 50 ms at 230 VAC; 14 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 2.2 A at 115 VAC; 1.2 A at 230 VAC; typical efficiency 88% at catalog conditions. Cold-start inrush, typical 75 A at 230 VAC; 700 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 2 units on Type B or 3 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 41.4-48.6 V; output shutdown; re-power to recover. Environment and derating Parameter Details Working temperature -25 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +50°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 190 x 52 x 37 mm (L x W x H); drawing tolerance ±1 mm. Two Ø4.5 mm mounting features; case LPC-100A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 300 ±10 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1015, 14 AWG, 300 ±10 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 8750, CSA C22.2 No.250.13-12, UL 879, CSA C22.2 No.207-M89, BIS IS 15885 (factory-dependent), EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design. Class II and Class 2 are separate classifications. BIS registration R-41027766 applies to GZ-factory 12 V and 24 V units only; R-62002178 covers ID-factory 5-48 V units. Verify the actual factory and marking. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A at ≤80% load, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 610 g per unit (0.61 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 4497.1 thousand hours per Telcordia SR-332 (Bellcore); 681.6 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Verify the actual unit markings for the intended market.

  Read more less

  $54.71

  View options

•

  View options

  MEAN WELL LPV-100 series: constant voltage LED power supply - LPV-100-24

  MEAN WELL LPV-100-24 Constant Voltage LED Power Supply The MEAN WELL LPV-100-24 is a single-output constant voltage LED power supply with 24 V DC, 4.2 A rated output and 100.8 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-100 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 9; wiring and derating: page 10. Model selection and application Parameter Details Full model / series LPV-100-24 / LPV-100 Model code LPV-100 identifies the series; the final code 24 denotes 24 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 24 V constant voltage. Keep current within 0-4.2 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 24 V; rated current 4.2 A; current range 0-4.2 A. Catalog rated power 100.8 W. Apply all current and derating limits. Ripple and noise, maximum 150 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 2000 ms setup / 25 ms rise at both 230 VAC and 115 VAC. Typical hold-up: 50 ms at 230 VAC; 14 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 2.2 A at 115 VAC; 1.2 A at 230 VAC; typical efficiency 88% at catalog conditions. Cold-start inrush, typical 75 A at 230 VAC; 700 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 2 units on Type B or 3 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 27.6-32.4 V; output shutdown; re-power to recover. Environment and derating Parameter Details Working temperature -25 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +50°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 190 x 52 x 37 mm (L x W x H); drawing tolerance ±1 mm. Two Ø4.5 mm mounting features; case LPC-100A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 300 ±10 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1015, 14 AWG, 300 ±10 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 8750, CSA C22.2 No.250.13-12, UL 879, CSA C22.2 No.207-M89, BIS IS 15885 (factory-dependent), EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design. Class II and Class 2 are separate classifications. BIS registration R-41027766 applies to GZ-factory 12 V and 24 V units only; R-62002178 covers ID-factory 5-48 V units. Verify the actual factory and marking. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A at ≤80% load, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 610 g per unit (0.61 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 4497.1 thousand hours per Telcordia SR-332 (Bellcore); 681.6 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Verify the actual unit markings for the intended market.

  Read more less

  $50.76

  View options

•

  View options

  MEAN WELL LPV-100 series: constant voltage LED power supply - LPV-100-15

  MEAN WELL LPV-100-15 Constant Voltage LED Power Supply The MEAN WELL LPV-100-15 is a single-output constant voltage LED power supply with 15 V DC, 6.7 A rated output and 100.5 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-100 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 9; wiring and derating: page 10. Model selection and application Parameter Details Full model / series LPV-100-15 / LPV-100 Model code LPV-100 identifies the series; the final code 15 denotes 15 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 15 V constant voltage. Keep current within 0-6.7 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 15 V; rated current 6.7 A; current range 0-6.7 A. Catalog rated power 100.5 W. Apply all current and derating limits. Ripple and noise, maximum 120 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 2000 ms setup / 25 ms rise at both 230 VAC and 115 VAC. Typical hold-up: 50 ms at 230 VAC; 14 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 2.2 A at 115 VAC; 1.2 A at 230 VAC; typical efficiency 87% at catalog conditions. Cold-start inrush, typical 75 A at 230 VAC; 700 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 2 units on Type B or 3 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 17.25-20.25 V; output shutdown; re-power to recover. Environment and derating Parameter Details Working temperature -25 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +50°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 190 x 52 x 37 mm (L x W x H); drawing tolerance ±1 mm. Two Ø4.5 mm mounting features; case LPC-100A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 300 ±10 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1015, 14 AWG, 300 ±10 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 8750, CSA C22.2 No.250.13-12, UL 879, CSA C22.2 No.207-M89, BIS IS 15885 (factory-dependent), EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design. Class II and Class 2 are separate classifications. BIS registration R-41027766 applies to GZ-factory 12 V and 24 V units only; R-62002178 covers ID-factory 5-48 V units. Verify the actual factory and marking. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A at ≤80% load, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 610 g per unit (0.61 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 4497.1 thousand hours per Telcordia SR-332 (Bellcore); 681.6 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Verify the actual unit markings for the intended market.

  Read more less

  $54.71

  View options

•

  View options

  MEAN WELL LPV-100 series: constant voltage LED power supply - LPV-100-12

  MEAN WELL LPV-100-12 Constant Voltage LED Power Supply The MEAN WELL LPV-100-12 is a single-output constant voltage LED power supply with 12 V DC, 8.5 A rated output and 102 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-100 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 9; wiring and derating: page 10. Model selection and application Parameter Details Full model / series LPV-100-12 / LPV-100 Model code LPV-100 identifies the series; the final code 12 denotes 12 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 12 V constant voltage. Keep current within 0-8.5 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 12 V; rated current 8.5 A; current range 0-8.5 A. Catalog rated power 102 W. Apply all current and derating limits. Ripple and noise, maximum 120 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 2000 ms setup / 25 ms rise at both 230 VAC and 115 VAC. Typical hold-up: 50 ms at 230 VAC; 14 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 2.2 A at 115 VAC; 1.2 A at 230 VAC; typical efficiency 85% at catalog conditions. Cold-start inrush, typical 75 A at 230 VAC; 700 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 2 units on Type B or 3 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 13.8-16.2 V; output shutdown; re-power to recover. Environment and derating Parameter Details Working temperature -25 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +40°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 190 x 52 x 37 mm (L x W x H); drawing tolerance ±1 mm. Two Ø4.5 mm mounting features; case LPC-100A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 300 ±10 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1015, 14 AWG, 300 ±10 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 8750, CSA C22.2 No.250.13-12, UL 879, CSA C22.2 No.207-M89, BIS IS 15885 (factory-dependent), EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design. Class II and Class 2 are separate classifications. BIS registration R-41027766 applies to GZ-factory 12 V and 24 V units only; R-62002178 covers ID-factory 5-48 V units. Verify the actual factory and marking. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A at ≤80% load, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 610 g per unit (0.61 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 4497.1 thousand hours per Telcordia SR-332 (Bellcore); 681.6 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Verify the actual unit markings for the intended market.

  Read more less

  $50.76

  View options

•

  View options

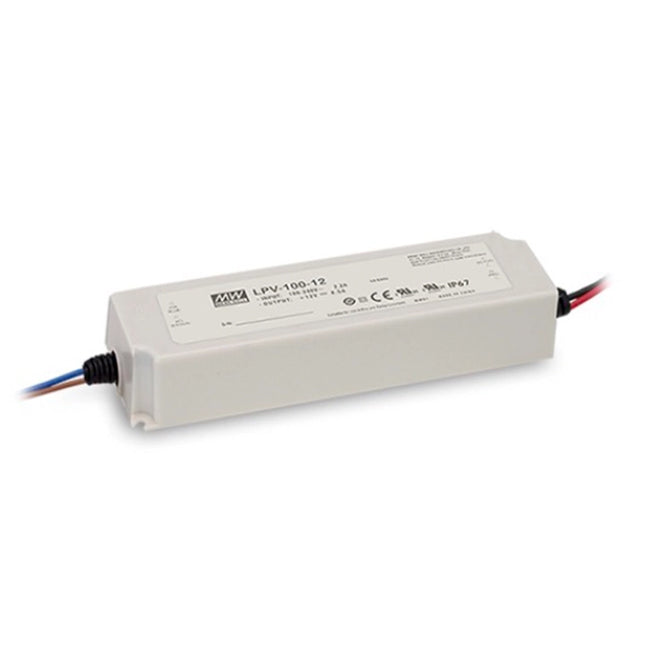

  MEAN WELL LPV-100 series: constant voltage LED power supply - LPV-100-5

  MEAN WELL LPV-100-5 Constant Voltage LED Power Supply The MEAN WELL LPV-100-5 is a single-output constant voltage LED power supply with 5 V DC, 12 A rated output and 60 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-100 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 9; wiring and derating: page 10. Model selection and application Parameter Details Full model / series LPV-100-5 / LPV-100 Model code LPV-100 identifies the series; the final code 5 denotes 5 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 5 V constant voltage. Keep current within 0-12 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 5 V; rated current 12 A; current range 0-12 A. Catalog rated power 60 W. Apply all current and derating limits. Ripple and noise, maximum 80 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±8.0%; line regulation ±1.0%; load regulation ±6.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 2000 ms setup / 25 ms rise at both 230 VAC and 115 VAC. Typical hold-up: 50 ms at 230 VAC; 14 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 2.2 A at 115 VAC; 1.2 A at 230 VAC; typical efficiency 80% at catalog conditions. Cold-start inrush, typical 75 A at 230 VAC; 700 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 2 units on Type B or 3 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 5.75-6.75 V; output shutdown; re-power to recover. Environment and derating Parameter Details Working temperature -25 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +40°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 190 x 52 x 37 mm (L x W x H); drawing tolerance ±1 mm. Two Ø4.5 mm mounting features; case LPC-100A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 300 ±10 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1015, 14 AWG, 300 ±10 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 8750, CSA C22.2 No.250.13-12, UL 879, CSA C22.2 No.207-M89, BIS IS 15885 (factory-dependent), EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design. Class II and Class 2 are separate classifications. BIS registration R-41027766 applies to GZ-factory 12 V and 24 V units only; R-62002178 covers ID-factory 5-48 V units. Verify the actual factory and marking. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A at ≤80% load, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 610 g per unit (0.61 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 4497.1 thousand hours per Telcordia SR-332 (Bellcore); 681.6 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Verify the actual unit markings for the intended market.

  Read more less

  $54.71

  View options

•

  View options

  MEAN WELL LPV-60 series: constant voltage LED power supply - LPV-60-36

  MEAN WELL LPV-60-36 Constant Voltage LED Power Supply The MEAN WELL LPV-60-36 is a single-output constant voltage LED power supply with 36 V DC, 1.67 A rated output and 60 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-60 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 7; wiring and derating: page 8. Model selection and application Parameter Details Full model / series LPV-60-36 / LPV-60 Model code LPV-60 identifies the series; the final code 36 denotes 36 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 36 V constant voltage. Keep current within 0-1.67 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 36 V; rated current 1.67 A; current range 0-1.67 A. Catalog rated power 60 W. Apply all current and derating limits. Ripple and noise, maximum 150 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 500 ms setup / 20 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 1.2 A at 115 VAC; 1 A at 230 VAC; typical efficiency 86% at catalog conditions. Cold-start inrush, typical 60 A at 230 VAC; 525 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 3 units on Type B or 6 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 41.4-48.6 V; output shutdown; re-power to recover. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. At 230 VAC: full load through +50°C, then linear derating to 60% at +70°C. At 115 VAC: follow the lower thermal-derating curve in the datasheet; its full-load limit is below the 230 VAC limit, and it reaches 60% load at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 162.5 x 42.5 x 32 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 976A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1007, 16 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals CSA C22.2 No.207-M89, CAN/CSA C22.2 No.223-M91, UL 879, UL 1310, BIS IS 15885, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design; Class 2 power unit; LPS. Class II and Class 2 are separate classifications. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 400 g per unit (0.4 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 5188.4 thousand hours per Telcordia SR-332 (Bellcore); 732.1 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 65 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Products sourced from China may not carry the BIS logo. Verify the actual unit markings for the intended market.

  Read more less

  $30.56

  View options

•

  View options

  MEAN WELL LPV-60 series: constant voltage LED power supply - LPV-60-15

  MEAN WELL LPV-60-15 Constant Voltage LED Power Supply The MEAN WELL LPV-60-15 is a single-output constant voltage LED power supply with 15 V DC, 4 A rated output and 60 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-60 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 7; wiring and derating: page 8. Model selection and application Parameter Details Full model / series LPV-60-15 / LPV-60 Model code LPV-60 identifies the series; the final code 15 denotes 15 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 15 V constant voltage. Keep current within 0-4 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 15 V; rated current 4 A; current range 0-4 A. Catalog rated power 60 W. Apply all current and derating limits. Ripple and noise, maximum 120 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 500 ms setup / 20 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 1.2 A at 115 VAC; 1 A at 230 VAC; typical efficiency 83% at catalog conditions. Cold-start inrush, typical 60 A at 230 VAC; 525 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 3 units on Type B or 6 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 17.25-20.25 V; output shutdown; re-power to recover. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. At 230 VAC: full load through +50°C, then linear derating to 60% at +70°C. At 115 VAC: follow the lower thermal-derating curve in the datasheet; its full-load limit is below the 230 VAC limit, and it reaches 60% load at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 162.5 x 42.5 x 32 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 976A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1007, 16 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals CSA C22.2 No.207-M89, CAN/CSA C22.2 No.223-M91, UL 879, UL 1310, BIS IS 15885, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design; Class 2 power unit; LPS. Class II and Class 2 are separate classifications. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 400 g per unit (0.4 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 5188.4 thousand hours per Telcordia SR-332 (Bellcore); 732.1 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 65 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Products sourced from China may not carry the BIS logo. Verify the actual unit markings for the intended market.

  Read more less

  $33.02

  View options

•

  View options

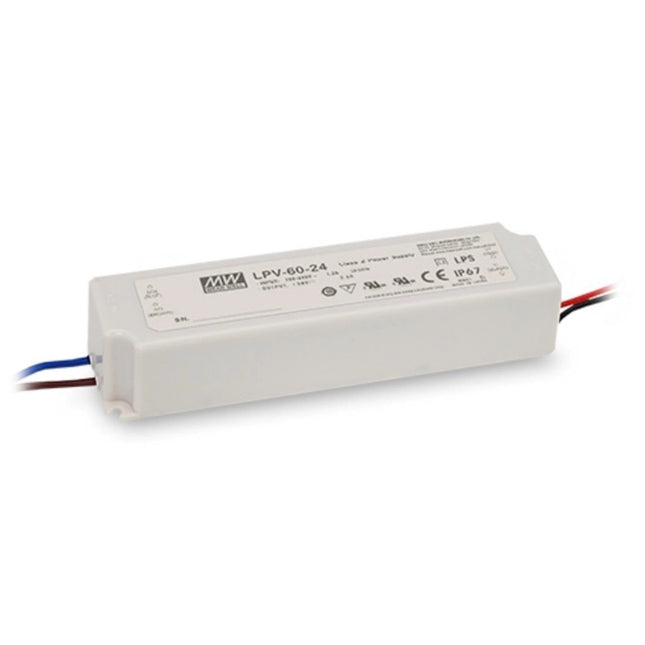

  MEAN WELL LPV-60 series: constant voltage LED power supply - LPV-60-5

  MEAN WELL LPV-60-5 Constant Voltage LED Power Supply The MEAN WELL LPV-60-5 is a single-output constant voltage LED power supply with 5 V DC, 8 A rated output and 40 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-60 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 7; wiring and derating: page 8. Model selection and application Parameter Details Full model / series LPV-60-5 / LPV-60 Model code LPV-60 identifies the series; the final code 5 denotes 5 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 5 V constant voltage. Keep current within 0-8 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 5 V; rated current 8 A; current range 0-8 A. Catalog rated power 40 W. Apply all current and derating limits. Ripple and noise, maximum 80 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±8.0%; line regulation ±1.0%; load regulation ±6.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 500 ms setup / 20 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 1.2 A at 115 VAC; 1 A at 230 VAC; typical efficiency 76% at catalog conditions. Cold-start inrush, typical 60 A at 230 VAC; 525 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 3 units on Type B or 6 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 5.75-6.75 V; output shutdown; re-power to recover. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. At 230 VAC: full load through +50°C, then linear derating to 60% at +70°C. At 115 VAC: follow the lower thermal-derating curve in the datasheet; its full-load limit is below the 230 VAC limit, and it reaches 60% load at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 162.5 x 42.5 x 32 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 976A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1007, 16 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals BIS IS 15885, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design. Class II and Class 2 are separate classifications. This 5 V model is excluded from the series LPS, UL 879 and UL 1310 claims, and from the listed CSA approvals. Do not apply the series Class 2 claim to it. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 400 g per unit (0.4 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 5188.4 thousand hours per Telcordia SR-332 (Bellcore); 732.1 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 65 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Products sourced from China may not carry the BIS logo. Verify the actual unit markings for the intended market.

  Read more less

  $33.02

  View options

•

  View options

  MEAN WELL LPV-35 series: constant voltage LED power supply - LPV-35-36

  MEAN WELL LPV-35-36 Constant Voltage LED Power Supply The MEAN WELL LPV-35-36 is a single-output constant voltage LED power supply with 36 V DC, 1 A rated output and 36 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-35 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 5; wiring and derating: page 6. Model selection and application Parameter Details Full model / series LPV-35-36 / LPV-35 Model code LPV-35 identifies the series; the final code 36 denotes 36 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 36 V constant voltage. Keep current within 0-1 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 36 V; rated current 1 A; current range 0-1 A. Catalog rated power 36 W. Apply all current and derating limits. Ripple and noise, maximum 150 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 500 ms setup / 20 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 1.1 A at 115 VAC; 0.7 A at 230 VAC; typical efficiency 85% at catalog conditions. Cold-start inrush, typical 55 A at 230 VAC; 510 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 4 units on Type B or 7 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 41.4-48.6 V; output shutdown; re-power to recover. Environment and derating Parameter Details Working temperature -30 to +65°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +55°C, then linear derating to 60% at +65°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 148 x 40 x 30 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 975A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1007, 16 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 1310 Class 2, CAN/CSA No.223-M91, BIS IS 15885, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design; Class 2 power unit; LPS. Class II and Class 2 are separate classifications. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 310 g per unit (0.31 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 5170.3 thousand hours per Telcordia SR-332 (Bellcore); 743.5 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 65 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Products sourced from China may not carry the BIS logo. Verify the actual unit markings for the intended market.

  Read more less

  $27.11

  View options
