MEAN WELL LPC, LPV, LPH & LPHC Series

MEAN WELL LP Family: LPC, LPV, LPH & LPHC Series LED Drivers

  • Series Overview
  • Key Features
  • Technical Specifications
  • Selection Guide

Series Overview

The LP family (LPC, LPV, LPH, and LPHC) represents MEAN WELL’s specialized plastic-encapsulated LED drivers. They are engineered to provide robust, waterproof performance at an economical price point, making them the industry standard for high-volume signage, architectural, and decorative lighting projects.

  • LPV Series (Standard CV): Standard Constant Voltage power supplies, ideal for traditional 12V/24V LED strips and modules.
  • LPC Series (Standard CC): Standard Constant Current power supplies, ensuring stable, flicker-free output for direct-drive LED chips.
  • LPH Series (Compact CV): Slim/Compact Constant Voltage power supplies, optimized for narrow light channels and space-constrained areas.
  • LPHC Series (Compact CC): Slim/Compact Constant Current power supplies, designed for compact fixtures requiring direct mA driving.

Key Features

  • IP67 Waterproof Rating: Fully potted with thermal-conductive silicone, providing complete protection against dust and water immersion. Perfect for damp, wet, or outdoor locations.
  • Class II Design: No earth pin required (double insulated), significantly simplifying installation and reducing wiring complexity in light boxes and fixtures.
  • Dual Driving Modes Available: Flexible design choices with dedicated series for Constant Voltage (CV) and Constant Current (CC) requirements.
  • Fanless & Maintenance-Free: Completely silent operation utilizing passive free air convection cooling.
  • Rugged Reliability: Built-in short circuit, over-voltage, and over-temperature protections. Designed to withstand a 300VAC input surge for up to 5 seconds.

Shared Technical Specifications

Parameter Specification Detail
Input Voltage 90 ~ 264VAC (Universal)
IP Rating IP67 (Fully potted housing)
Operating Temp. -30°C to +70°C (Refer to specific derating curves)
Cooling Method Free air convection (Fanless)
Safety Standards UL, CB, CE, EAC, UKCA

Example Power Range (LPC Series)

The Constant Current LPC series spans a wide wattage range for diverse applications:

Model Series Rated Power Best Suited For
LPC-20 20W Small signs, localized accent lighting
LPC-35 / LPC-60 35W / 60W Medium-sized signage, commercial LED fixtures
LPC-100 / LPC-150 100W / 150W High-performance installations, heavy-duty luminaires

Application & Selection Guide

Choose the correct LP series based on your LED load requirements (Voltage vs. Current) and installation space:

LED Load Type Standard Size Compact / Slim Size
Needs Constant Voltage (CV)
(e.g., LED strips & modules with internal resistors)
LPV Series LPH Series
Needs Constant Current (CC)
(e.g., Bare LED chips, high-power COBs directly driven)
LPC Series LPHC Series
Design & Installation Tips:

1. Thermal Management: Because these units are fully potted for IP67 protection, they efficiently conduct heat to the case. Always mount the unit on a thermally conductive surface (like a metal chassis or beam) to maximize lifespan in high-heat environments.
2. Voltage Matching (CC Models): When using Constant Current models (LPC/LPHC), ensure the total forward voltage of your LED string falls strictly within the DC voltage range specified on the datasheet.
  • LPV-35-24

    MEAN WELL LPV-35 series: constant voltage LED power supply - LPV-35-24

    MEAN WELL LPV-35-24 Constant Voltage LED Power Supply The MEAN WELL LPV-35-24 is a single-output constant voltage LED power supply with 24 V DC, 1.5 A rated output and 36 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-35 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 5; wiring and derating: page 6. Model selection and application Parameter Details Full model / series LPV-35-24 / LPV-35 Model code LPV-35 identifies the series; the final code 24 denotes 24 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 24 V constant voltage. Keep current within 0-1.5 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 24 V; rated current 1.5 A; current range 0-1.5 A. Catalog rated power 36 W. Apply all current and derating limits. Ripple and noise, maximum 150 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 500 ms setup / 20 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 1.1 A at 115 VAC; 0.7 A at 230 VAC; typical efficiency 85% at catalog conditions. Cold-start inrush, typical 55 A at 230 VAC; 510 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 4 units on Type B or 7 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 27.6-32.4 V; output shutdown; re-power to recover. Environment and derating Parameter Details Working temperature -30 to +65°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +55°C, then linear derating to 60% at +65°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 148 x 40 x 30 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 975A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1007, 16 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 1310 Class 2, CAN/CSA No.223-M91, BIS IS 15885, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design; Class 2 power unit; LPS. Class II and Class 2 are separate classifications. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 310 g per unit (0.31 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 5170.3 thousand hours per Telcordia SR-332 (Bellcore); 743.5 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 65 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Products sourced from China may not carry the BIS logo. Verify the actual unit markings for the intended market.

  • LPV-35-15

    MEAN WELL LPV-35 series: constant voltage LED power supply - LPV-35-15

    MEAN WELL LPV-35-15 Constant Voltage LED Power Supply The MEAN WELL LPV-35-15 is a single-output constant voltage LED power supply with 15 V DC, 2.4 A rated output and 36 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-35 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 5; wiring and derating: page 6. Model selection and application Parameter Details Full model / series LPV-35-15 / LPV-35 Model code LPV-35 identifies the series; the final code 15 denotes 15 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 15 V constant voltage. Keep current within 0-2.4 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 15 V; rated current 2.4 A; current range 0-2.4 A. Catalog rated power 36 W. Apply all current and derating limits. Ripple and noise, maximum 120 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 500 ms setup / 20 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 1.1 A at 115 VAC; 0.7 A at 230 VAC; typical efficiency 84% at catalog conditions. Cold-start inrush, typical 55 A at 230 VAC; 510 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 4 units on Type B or 7 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 17.25-20.25 V; output shutdown; re-power to recover. Environment and derating Parameter Details Working temperature -30 to +60°C within the model-specific curve. Cooling / load derating Free-air convection in the horizontal orientation shown. The shared series table lists +65°C, but this output-voltage curve ends at +60°C. Full load through +50°C, then linear derating to 60% at +60°C; do not extend this branch to +65°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 148 x 40 x 30 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 975A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1007, 16 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 1310 Class 2, CAN/CSA No.223-M91, BIS IS 15885, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design; Class 2 power unit; LPS. Class II and Class 2 are separate classifications. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 310 g per unit (0.31 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 5170.3 thousand hours per Telcordia SR-332 (Bellcore); 743.5 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 65 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Products sourced from China may not carry the BIS logo. Verify the actual unit markings for the intended market.

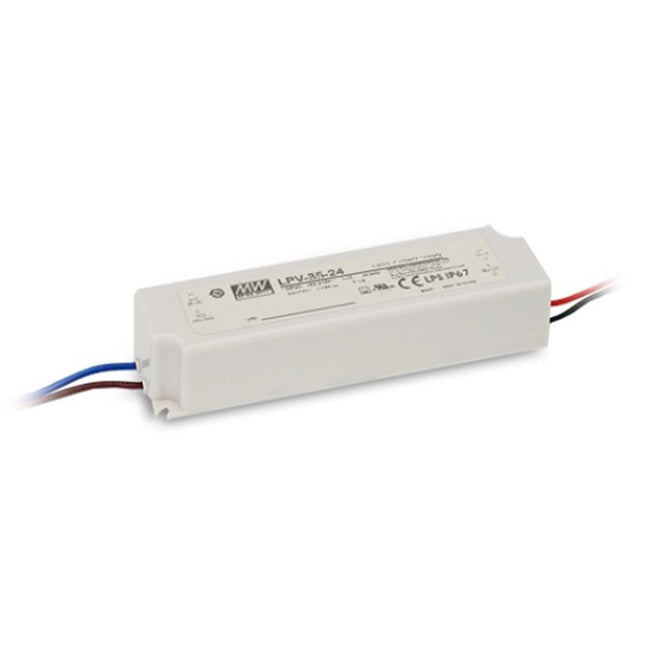

  • LPV-35-5

    MEAN WELL LPV-35 series: constant voltage LED power supply - LPV-35-5

    MEAN WELL LPV-35-5 Constant Voltage LED Power Supply The MEAN WELL LPV-35-5 is a single-output constant voltage LED power supply with 5 V DC output: the catalog permits 6 A continuous output and lists 30 W, while the UL 1310 Class 2 test report certifies output current only up to 5 A. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-35 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 5; wiring and derating: page 6. Model selection and application Parameter Details Full model / series LPV-35-5 / LPV-35 Model code LPV-35 identifies the series; the final code 5 denotes 5 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 5 V constant voltage. Keep current within 0-6 A and power within the catalog rating, with derating applied. For UL 1310 Class 2 applications, limit output current to the certified 5 A; the 6 A continuous capability is not a 6 A Class 2 certification. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 5 V; rated current 5 A; current range 0-6 A. Continuous 6 A is stated in note 7; UL 1310 Class 2 output current is certified only up to 5 A. Catalog rated power 30 W. Apply all current and derating limits. Ripple and noise, maximum 80 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±6.0%; line regulation ±1.0%; load regulation ±4.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 500 ms setup / 20 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 1.1 A at 115 VAC; 0.7 A at 230 VAC; typical efficiency 77% at catalog conditions. Cold-start inrush, typical 55 A at 230 VAC; 510 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 4 units on Type B or 7 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 5.75-6.75 V; output shutdown; re-power to recover. Environment and derating Parameter Details Working temperature -30 to +60°C within the model-specific curve. Cooling / load derating Free-air convection in the horizontal orientation shown. The shared series table lists +65°C, but this output-voltage curve ends at +60°C. Full load through +50°C, then linear derating to 60% at +60°C; do not extend this branch to +65°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 148 x 40 x 30 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 975A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1007, 16 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 1310 Class 2, CAN/CSA No.223-M91, BIS IS 15885, EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design; Class 2 power unit; LPS. Class II and Class 2 are separate classifications. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 310 g per unit (0.31 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 5170.3 thousand hours per Telcordia SR-332 (Bellcore); 743.5 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 65 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Products sourced from China may not carry the BIS logo. Verify the actual unit markings for the intended market.

  • LPV-20-24

    MEAN WELL LPV-20 series: constant voltage LED power supply - LPV-20-24

    MEAN WELL LPV-20-24 Constant Voltage LED Power Supply The MEAN WELL LPV-20-24 is a single-output constant voltage LED power supply with 24 V DC, 0.84 A rated output and 20.2 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-20 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 3; wiring and derating: page 4. Model selection and application Parameter Details Full model / series LPV-20-24 / LPV-20 Model code LPV-20 identifies the series; the final code 24 denotes 24 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 24 V constant voltage. Keep current within 0-0.84 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 24 V; rated current 0.84 A; current range 0-0.84 A. Catalog rated power 20.2 W. Apply all current and derating limits. Ripple and noise, maximum 150 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 500 ms setup / 20 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 0.55 A at 115 VAC; 0.35 A at 230 VAC; typical efficiency 83% at catalog conditions. Cold-start inrush, typical 70 A at 230 VAC; 215 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 8 units on Type B or 14 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 28-32 V; output shutdown with zener-diode clamping. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +60°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 118 x 35 x 26 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 972A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1015, 18 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 879, UL 1310, CSA C22.2 No.207-M89, CAN/CSA C22.2 No.223-M91, BIS IS 15885 (Part 2/Sec 13), EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design; Class 2 power unit; LPS. Class II and Class 2 are separate classifications. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 200 g per unit (0.2 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 6025.8 thousand hours per Telcordia SR-332 (Bellcore); 786.5 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 65 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Products sourced from China may not carry the BIS logo. Verify the actual unit markings for the intended market.

  • LPV-20-15

    MEAN WELL LPV-20 series: constant voltage LED power supply - LPV-20-15

    MEAN WELL LPV-20-15 Constant Voltage LED Power Supply The MEAN WELL LPV-20-15 is a single-output constant voltage LED power supply with 15 V DC, 1.33 A rated output and 20 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-20 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 3; wiring and derating: page 4. Model selection and application Parameter Details Full model / series LPV-20-15 / LPV-20 Model code LPV-20 identifies the series; the final code 15 denotes 15 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 15 V constant voltage. Keep current within 0-1.33 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 15 V; rated current 1.33 A; current range 0-1.33 A. Catalog rated power 20 W. Apply all current and derating limits. Ripple and noise, maximum 120 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 500 ms setup / 20 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 0.55 A at 115 VAC; 0.35 A at 230 VAC; typical efficiency 83% at catalog conditions. Cold-start inrush, typical 70 A at 230 VAC; 215 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 8 units on Type B or 14 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 17.5-21 V; output shutdown with zener-diode clamping. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +60°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 118 x 35 x 26 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 972A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1015, 18 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 879, UL 1310, CSA C22.2 No.207-M89, CAN/CSA C22.2 No.223-M91, BIS IS 15885 (Part 2/Sec 13), EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design; Class 2 power unit; LPS. Class II and Class 2 are separate classifications. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 200 g per unit (0.2 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 6025.8 thousand hours per Telcordia SR-332 (Bellcore); 786.5 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 65 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Products sourced from China may not carry the BIS logo. Verify the actual unit markings for the intended market.

  • LPV-20-12

    MEAN WELL LPV-20 series: constant voltage LED power supply - LPV-20-12

    MEAN WELL LPV-20-12 Constant Voltage LED Power Supply The MEAN WELL LPV-20-12 is a single-output constant voltage LED power supply with 12 V DC, 1.67 A rated output and 20 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-20 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 3; wiring and derating: page 4. Model selection and application Parameter Details Full model / series LPV-20-12 / LPV-20 Model code LPV-20 identifies the series; the final code 12 denotes 12 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 12 V constant voltage. Keep current within 0-1.67 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 12 V; rated current 1.67 A; current range 0-1.67 A. Catalog rated power 20 W. Apply all current and derating limits. Ripple and noise, maximum 120 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 500 ms setup / 20 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 0.55 A at 115 VAC; 0.35 A at 230 VAC; typical efficiency 81% at catalog conditions. Cold-start inrush, typical 70 A at 230 VAC; 215 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 8 units on Type B or 14 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 13.8-16 V; output shutdown with zener-diode clamping. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +60°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 118 x 35 x 26 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 972A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1015, 18 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 879, UL 1310, CSA C22.2 No.207-M89, CAN/CSA C22.2 No.223-M91, BIS IS 15885 (Part 2/Sec 13), EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design; Class 2 power unit; LPS. Class II and Class 2 are separate classifications. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 200 g per unit (0.2 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 6025.8 thousand hours per Telcordia SR-332 (Bellcore); 786.5 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 65 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Products sourced from China may not carry the BIS logo. Verify the actual unit markings for the intended market.

  • LPV-20-5

    MEAN WELL LPV-20 series: constant voltage LED power supply - LPV-20-5

    MEAN WELL LPV-20-5 Constant Voltage LED Power Supply The MEAN WELL LPV-20-5 is a single-output constant voltage LED power supply with 5 V DC, 3 A rated output and 15 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPV-20 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 3; wiring and derating: page 4. Model selection and application Parameter Details Full model / series LPV-20-5 / LPV-20 Model code LPV-20 identifies the series; the final code 5 denotes 5 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 5 V constant voltage. Keep current within 0-3 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 5 V; rated current 3 A; current range 0-3 A. Catalog rated power 15 W. Apply all current and derating limits. Ripple and noise, maximum 80 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±5.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 500 ms setup / 20 ms rise at both 230 VAC and 115 VAC, full load. Typical hold-up: 50 ms at 230 VAC; 16 ms at 115 VAC, full load. Setup is measured at first cold start; repeated ON/OFF operation may increase setup time. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 90-264 VAC, 47-63 Hz; 127-370 VDC. AC input current / efficiency 0.55 A at 115 VAC; 0.35 A at 230 VAC; typical efficiency 77% at catalog conditions. Cold-start inrush, typical 70 A at 230 VAC; 215 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 90 VAC, rising to 100% at 100 VAC; 100% from 100 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 8 units on Type B or 14 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Brief input withstand 300 VAC surge input for 5 seconds. This does not change the continuous input rating or authorize output peak power. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload 110-150% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 5.75-6.75 V; output shutdown with zener-diode clamping. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +60°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. The catalog footnote cautions against immersion exceeding 30 minutes; this is not permission to use the product submerged. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Altitude derating For this fanless model above 2000 m (6500 ft), reduce allowable ambient temperature by 3.5°C per additional 1000 m. Wiring, dimensions and installation Parameter Details Dimensions / mounting 118 x 35 x 26 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features; case 972A. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 600 ±30 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1015, 18 AWG, 600 ±30 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 127-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals UL 879, UL 1310, CSA C22.2 No.207-M89, CAN/CSA C22.2 No.223-M91, BIS IS 15885 (Part 2/Sec 13), EAC TP TC 004, IP67, IEC 62368-1, BS EN/EN 62368-1. Classification / qualifications Class II insulation design; Class 2 power unit; LPS. Class II and Class 2 are separate classifications. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 200 g per unit (0.2 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 6025.8 thousand hours per Telcordia SR-332 (Bellcore); 786.5 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 65 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification. Regional markings The datasheet notes that products sourced from the Americas may not carry TUV/BIS/CCC logos. Products sourced from China may not carry the BIS logo. Verify the actual unit markings for the intended market.

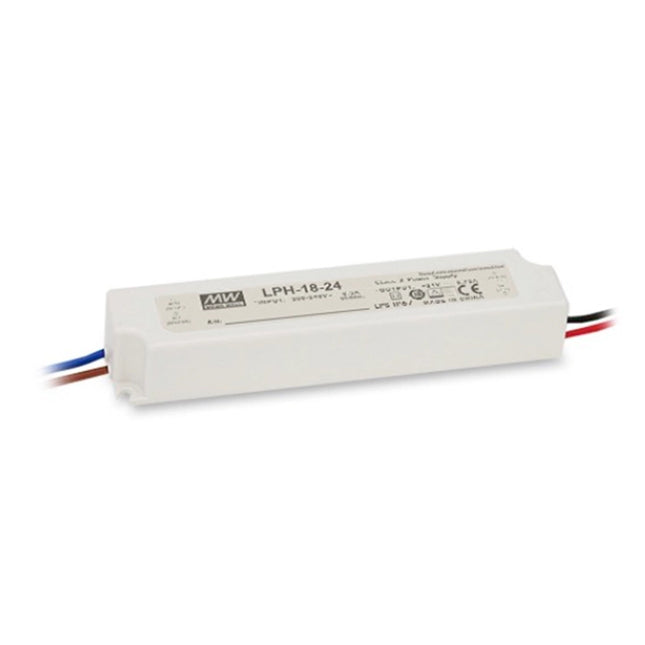

  • LPH-18-36

    MEAN WELL LPH-18 series: constant voltage LED power supply - LPH-18-36

    MEAN WELL LPH-18-36 Constant Voltage LED Power Supply The MEAN WELL LPH-18-36 is a single-output constant voltage LED power supply with 36 V DC, 0.5 A rated output and 18 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPH-18 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 1; wiring and derating: page 2. Model selection and application Parameter Details Full model / series LPH-18-36 / LPH-18 Model code LPH-18 identifies the series; the final code 36 denotes 36 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 36 V constant voltage. Keep current within 0-0.5 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 36 V; rated current 0.5 A; current range 0-0.5 A. Catalog rated power 18 W. Apply all current and derating limits. Ripple and noise, maximum 200 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±3.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 1500 ms setup / 30 ms rise at 230 VAC. Typical hold-up: 50 ms at 230 VAC, full load. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 180-264 VAC, 47-63 Hz; 254-370 VDC. AC input current / efficiency 0.3 A at 230 VAC; typical efficiency 83% at catalog conditions. Cold-start inrush, typical 50 A at 230 VAC; 155 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 180 VAC, rising to 100% at 190 VAC; 100% from 190 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 17 units on Type B or 28 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload Above 105% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 41.4-48.6 V; output shutdown with zener-diode clamping. Overtemperature Hiccup mode, automatic recovery after temperature falls. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +50°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Wiring, dimensions and installation Parameter Details Dimensions / mounting 140 x 30 x 22 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 300 ±20 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1015, 18 AWG, 300 ±20 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 254-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals IEC/BS EN/EN 62368-1, BIS IS 15885, EAC TP TC 004, IP67. Classification / qualifications Class II insulation design; LPS. Class II and Class 2 are separate classifications. UL 1310 Class 2 and CAN/CSA No.223-M91 are design references only; the datasheet does not list them as approvals. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 175 g per unit (0.175 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 7827.3 thousand hours per Telcordia SR-332 (Bellcore); 1311.1 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 60 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification. Regional markings The datasheet notes that products sourced from China may not carry the BIS logo; verify the actual unit marking.

  • LPH-18-24

    MEAN WELL LPH-18 series: constant voltage LED power supply - LPH-18-24

    MEAN WELL LPH-18-24 Constant Voltage LED Power Supply The MEAN WELL LPH-18-24 is a single-output constant voltage LED power supply with 24 V DC, 0.75 A rated output and 18 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPH-18 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 1; wiring and derating: page 2. Model selection and application Parameter Details Full model / series LPH-18-24 / LPH-18 Model code LPH-18 identifies the series; the final code 24 denotes 24 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 24 V constant voltage. Keep current within 0-0.75 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 24 V; rated current 0.75 A; current range 0-0.75 A. Catalog rated power 18 W. Apply all current and derating limits. Ripple and noise, maximum 150 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±3.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 1500 ms setup / 30 ms rise at 230 VAC. Typical hold-up: 50 ms at 230 VAC, full load. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 180-264 VAC, 47-63 Hz; 254-370 VDC. AC input current / efficiency 0.3 A at 230 VAC; typical efficiency 82% at catalog conditions. Cold-start inrush, typical 50 A at 230 VAC; 155 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 180 VAC, rising to 100% at 190 VAC; 100% from 190 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 17 units on Type B or 28 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload Above 105% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 27.6-32.4 V; output shutdown with zener-diode clamping. Overtemperature Hiccup mode, automatic recovery after temperature falls. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +50°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Wiring, dimensions and installation Parameter Details Dimensions / mounting 140 x 30 x 22 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 300 ±20 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1015, 18 AWG, 300 ±20 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 254-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals IEC/BS EN/EN 62368-1, BIS IS 15885, EAC TP TC 004, IP67. Classification / qualifications Class II insulation design; LPS. Class II and Class 2 are separate classifications. UL 1310 Class 2 and CAN/CSA No.223-M91 are design references only; the datasheet does not list them as approvals. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 175 g per unit (0.175 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 7827.3 thousand hours per Telcordia SR-332 (Bellcore); 1311.1 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 60 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification. Regional markings The datasheet notes that products sourced from China may not carry the BIS logo; verify the actual unit marking.

  • LPH-18-12

    MEAN WELL LPH-18 series: constant voltage LED power supply - LPH-18-12

    MEAN WELL LPH-18-12 Constant Voltage LED Power Supply The MEAN WELL LPH-18-12 is a single-output constant voltage LED power supply with 12 V DC, 1.5 A rated output and 18 W catalog rated power. It uses a fully encapsulated, isolated IP67 plastic enclosure and free-air convection cooling. Select this exact output and input version, and apply the operating limits below. Download MEAN WELL LPH-18 Datasheet (PDF) Download MEAN WELL LED Installation Manual (PDF) Model specifications: PDF page 1; wiring and derating: page 2. Model selection and application Parameter Details Full model / series LPH-18-12 / LPH-18 Model code LPH-18 identifies the series; the final code 12 denotes 12 V output. Use the actual power below, not the series number, for load sizing. Load selection Use a load designed for 12 V constant voltage. Keep current within 0-1.5 A and power within the catalog rating, with derating applied. Intended use Suitable for LED-related fixtures or appliances such as decoration or advertising devices. The manufacturer states that this product is not intended for LED applications in the EU and China. The installation manual additionally limits this series to devices whose primary use differs from lighting (for example copiers or overhead projectors), or scale and display lighting. Output and dynamic performance Parameter Details DC output / current 12 V; rated current 1.5 A; current range 0-1.5 A. Catalog rated power 18 W. Apply all current and derating limits. Ripple and noise, maximum 120 mV peak-to-peak; measured at 20 MHz bandwidth using 12-inch twisted-pair leads with parallel 0.1 µF and 47 µF capacitors. Voltage tolerance / regulation Tolerance ±3.0%; line regulation ±1.0%; load regulation ±2.0%. Tolerance includes setup, line and load regulation. Setup / rise and hold-up 1500 ms setup / 30 ms rise at 230 VAC. Typical hold-up: 50 ms at 230 VAC, full load. Measurement basis 230 VAC input, rated load and 25°C ambient unless specified otherwise. Typical values vary with operating conditions. Input and electrical planning Parameter Details Rated input 180-264 VAC, 47-63 Hz; 254-370 VDC. AC input current / efficiency 0.3 A at 230 VAC; typical efficiency 77% at catalog conditions. Cold-start inrush, typical 50 A at 230 VAC; 155 µs pulse width measured at 50% of peak. Leakage current 0.25 mA at 240 VAC. Input derating At 60 Hz: 80% load at 180 VAC, rising to 100% at 190 VAC; 100% from 190 to 264 VAC. Also apply the thermal limit; input and temperature limits are not independent allowances. 16 A breaker reference At 230 VAC, the catalog lists 17 units on Type B or 28 units on Type C 16 A circuit breakers. Assess the actual installation and circuit conditions. Protection behavior Parameter Details Short circuit Short-circuit protection is listed in the model features. Overload Above 105% of rated output power; hiccup mode, automatic recovery after fault removal. Overvoltage 13.8-16.2 V; output shutdown with zener-diode clamping. Overtemperature Hiccup mode, automatic recovery after temperature falls. Environment and derating Parameter Details Working temperature -30 to +70°C. Cooling / load derating Free-air convection in the horizontal orientation shown. Full load through +50°C, then linear derating to 60% at +70°C. Humidity and storage 20-90% RH working, non-condensing. Storage: -40 to +80°C, 10-95% RH. Temperature coefficient / vibration ±0.03%/°C over 0 to 50°C. Vibration: 10-500 Hz, 2 G; 10 min/cycle and 60 min along each X, Y and Z axis. IP67 enclosure and exposure Fully encapsulated plastic enclosure; suitable for indoor use or outdoor use without direct sunlight exposure. Do not immerse or operate the supply in water, as required by the installation manual. Provide the required protection for the completed wiring; IP67 is not unconditional outdoor permission. Wiring, dimensions and installation Parameter Details Dimensions / mounting 140 x 30 x 22 mm (L x W x H); drawing tolerance ±1 mm. Two Ø3.6 mm mounting features. Use the drawing to position mounting hardware. Input leads UL 1015, 18 AWG, 300 ±20 mm. Brown = AC/L; blue = AC/N, as shown in this model drawing. Output leads UL 1015, 18 AWG, 300 ±20 mm. Red = +V; black = -V. Observe load polarity. Insulation / installation Class II design with no FG connection. Before installation or maintenance, disconnect from the utility and prevent inadvertent reconnection. Keep ventilation clear and do not stack objects on the supply. Maintain 10-15 cm clearance when an adjacent device is a heat source. Nonstandard orientation or high ambient temperature requires output-current derating. Select approved primary and secondary cables rated at least for the unit current. Provide system-level insulation and isolation around interconnections; cover single-insulated wires with the system enclosure. Do not open the case. Have faults examined by a qualified technician; damaged external cables must be replaced by the manufacturer, its service agent or a similarly qualified person. DC input wiring Rated DC input: 254-370 VDC. Before DC connection, verify the manufacturer polarity instructions for this exact model; do not infer the L/N-to-positive/negative mapping from another series. Case-temperature point The mechanical drawing marks the T case / tc measurement location. The adjacent location dimensions are not maximum temperature values. Connection items This is a lead-wired module. Choose suitable connection and mounting hardware for the final equipment from the wire and mechanical requirements above. Standards and manufacturer references Parameter Details Listed approvals IEC/BS EN/EN 62368-1, BIS IS 15885, EAC TP TC 004, IP67. Classification / qualifications Class II insulation design; LPS. Class II and Class 2 are separate classifications. UL 1310 Class 2 and CAN/CSA No.223-M91 are design references only; the datasheet does not list them as approvals. Electrical isolation Input-to-output withstand: 3 kVAC. Insulation resistance: >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032 (CISPR 32) Class B, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035, BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11, light-industry level, and EAC TP TC 020. Final-equipment assessment The supply is a component. EMC depends on the load, wiring and final enclosure; the equipment manufacturer must re-qualify the completed installation. Catalog mass 175 g per unit (0.175 kg), from the PACKING field. This is the catalog packing reference, not a measured net weight or a complete shipping-package weight. Reliability references Minimum MTBF: 7827.3 thousand hours per Telcordia SR-332 (Bellcore); 1311.1 thousand hours per MIL-HDBK-217F at 25°C. These statistical references are not service-life guarantees. Manufacturer statements 100% full-load burn-in test and two-year warranty are listed in the manufacturer datasheet. Block-diagram frequency 60 kHz switching oscillator frequency as shown in the block diagram; not a dimming interface specification. Regional markings The datasheet notes that products sourced from China may not carry the BIS logo; verify the actual unit marking.
