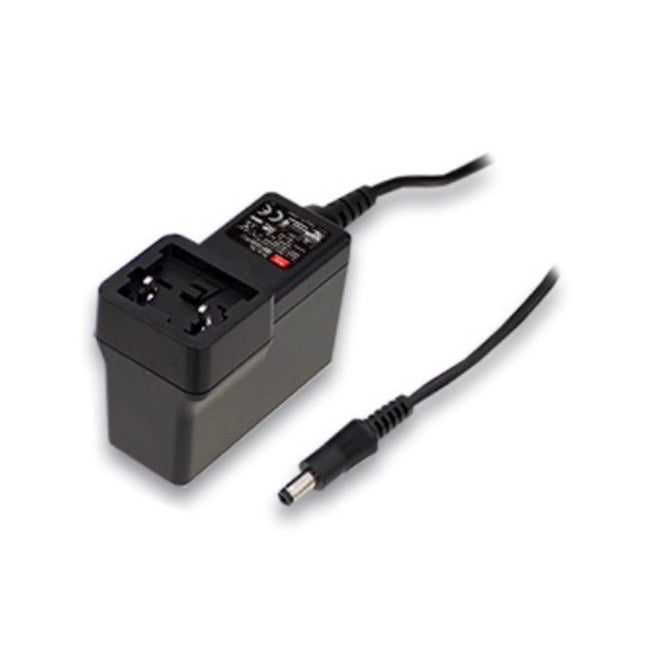

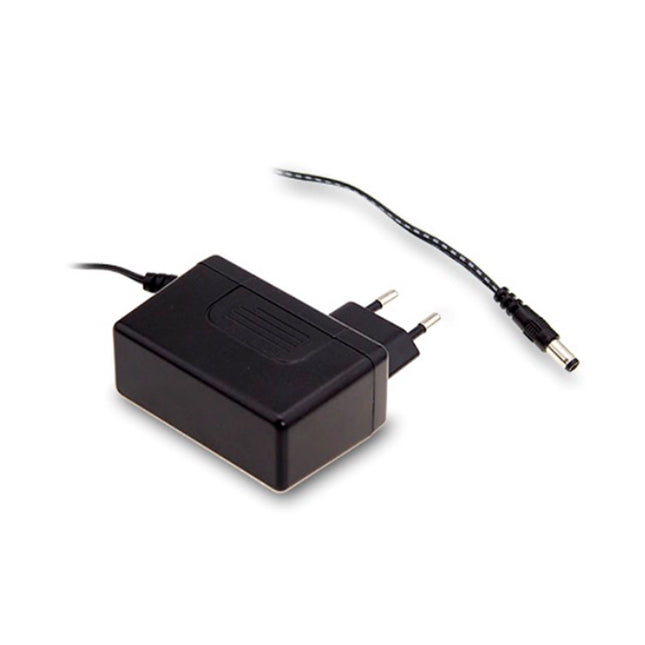

GSV30I48-P1J — Constant-Voltage LED Power Adapter
MEAN WELL GSV30I48-P1J is a 30 W external constant-voltage LED power adapter delivering 48 VDC at up to 0.625 A. It combines active PFC, Class II/2 construction without functional earth (FG), and free-air convection cooling for indoor LED strip, decorative, commercial, mirror, table and portable lighting. I version: interchangeable AC plug interface; AC plug is excluded and must be ordered separately.
Download MEAN WELL GSV30 Datasheet (PDF)This combined catalog covers GSV30 on PDF pages 42–48.
Output specifications
Parameter
Specification
Full model
GSV30I48-P1J
Model code
GSV30 identifies the power-supply series; I identifies the AC plug configuration, 48 the rated output voltage, and P1J the supplied center-positive DC connector.
Output design
Constant-voltage output with active power factor correction (PFC).
Rated output voltage
48 VDC
Rated output current
0.625 A
Rated output power
30 W.
Open-circuit voltage
<57 V; this is a no-load limit, not the rated operating voltage.
Maximum ripple and noise
5.5 Vp-p
Voltage tolerance
±4 V. Includes setup tolerance, line regulation and load regulation from 1% to 100% load at 230 VAC.
Line regulation
±2.0%
No-load consumption
0.5 W maximum in the specification table; the series feature page states <0.5 W.
Input and electrical performance
Parameter
Specification
Input voltage
180–264 VAC or 255–373 VDC. Use the correct input connection and the applicable installation instructions.
Input frequency
47–63 Hz
Power factor
>0.92 at 230 VAC and full load (typical specification).
Total harmonic distortion
<20% at 230 VAC and full load; lower-load performance depends on the load curve.
Efficiency
89% minimum at 230 VAC, as printed in the model column of the catalog efficiency row.
Typical AC input current
0.5 A at 230 VAC
Setup time
500 ms at 230 VAC and full load.
Maximum inrush current
Cold start: 20 A at 230 VAC, with 200 μs width measured at 50% of peak current.
Leakage current
<0.25 mA maximum at 230 VAC
Measurement conditions
Unless otherwise stated: 230 VAC input, rated load, and 25°C ambient. Ripple and noise use 20 MHz bandwidth and a 12-inch twisted pair, with the catalog-specified 104PF/50V ceramic and 47 μF/50V capacitor termination.
Protection functions
Parameter
Specification
Overload protection
105–200% of rated output power; hiccup mode, with automatic recovery after the fault condition is removed.
Overvoltage protection
57.6–72 V; zener-diode clamping with output shorting, as described in the catalog.
Short-circuit protection
Hiccup mode; automatic recovery after the fault condition is removed.
Environment and derating
Parameter
Specification
Working ambient temperature
−20 to +50°C, subject to derating.
Ambient derating curve
Horizontal mounting: 100% load from −20 to +40°C, reducing to 70% at +50°C. Apply ambient, input and case-temperature limits together.
Case-temperature curve
The catalog output-load curve ends at Tcase 75°C. Check the actual product label for its maximum Tc and keep the marked case measurement point within that limit.
Cooling and mounting
Free-air convection. Nonstandard orientation or high ambient temperature can raise internal temperature and require output-current derating.
Input-voltage/load curve
100% load across 180–264 VAC at 50/60 Hz, within the applicable thermal limits.
Humidity and storage
Working: 20–95% RH, non-condensing. Storage: −30 to +80°C, 10–95% RH.
Temperature coefficient
±0.03%/°C over −20 to +50°C.
Altitude derating
For this fanless design, reduce the allowed ambient temperature by 3.5°C per 1000 m above 2000 m.
Vibration
10–500 Hz, 2G, 12 minutes per cycle; 72 minutes along each of the X, Y and Z axes.
Performance-curve scope
The PF, THD and efficiency plots are 24 V model examples at 230 VAC. The THD/efficiency plots use Tcase 75°C. Use the model-specific efficiency and full-load specifications above for this SKU.
Dimensions, connectors and accessories
Parameter
Specification
AC input configuration
I version: interchangeable AC plug interface; AC plug is excluded and must be ordered separately.
Housing dimensions
75.5 × 39.1 × 56.2 mm (L × W × H).
Single-unit catalog weight
166 g, taken directly from the I packing entry; not calculated by dividing carton weight.
Standard DC output connector
P1J, center positive (C+), tuning-fork type; 5.5 mm outer diameter × 2.1 mm inner diameter × 11 mm nominal insertion length (drawing: 11 ±0.5 mm). Outer contact is negative.
DC output cable
UL2468 24 AWG; 1500 mm with +150/−0 mm length tolerance.
Interchangeable AC plug options
For GSV30I/GSV60I: AC plug-UK2 (U.K. type) or AC plug-EU2 (European type), ordered separately. The catalog identifies these as the same accessory type used by GEM06–60I.
Optional DC connectors
The supplied model is P1J. Alternative factory cable/plug configurations are by customer request and subject to MOQ. Separately sold quick-adapter accessories are available without MOQ; verify exact input/output connector, polarity and current rating before selection.
Quick-adapter selection
The catalog lists quick-adapter availability for tuning-fork P1I/P1L/P1M/P1IR/P1JR/P1LR/P1MR, center-pin P4A/P4B/P4C, and male mini-DIN R6B/R7B connector types, with a 7.5 A maximum accessory rating. This accessory limit does not increase the adapter’s rated output current.
Other factory connector options
Barrel and locking barrel styles, female R7BF, and stripped/tinned leads are listed as custom output configurations without a quick-adapter accessory in this catalog. Their connector codes do not change the connector supplied on this P1J SKU.
P1J quick-adapter ordering codes
Straight tuning-fork: DC PLUG-P1J-P1I, DC PLUG-P1J-P1M, DC PLUG-P1J-P1L. Right-angle tuning-fork: DC PLUG-P1J-P1IR, DC PLUG-P1J-P1MR, DC PLUG-P1J-P1LR, DC PLUG-P1J-P1JR.
Center-pin and mini-DIN adapters
DC PLUG-P1J-P4A, DC PLUG-P1J-P4B, DC PLUG-P1J-P4C, DC PLUG-P1J-R6B, DC PLUG-P1J-R7B. These are separately ordered accessories, not included with the power supply.
Adapter output selection
P1I/P1IR: 5.5 mm OD, 2.1 mm ID, 9.5 mm long; P1L/P1LR: 5.5/2.5/9.5 mm; P1M/P1MR: 5.5/2.5/11 mm; P1JR: 5.5/2.1/11 mm. P4A: 5.5/3.4/11 mm with 1.0 mm center pin; P4B: 6.5/4.4/11 mm with 1.4 mm pin; P4C: 7.4/5.1/11 mm with 0.6 mm pin.
Mini-DIN output pin assignment
R6B: male 3-pin locking connector, KYCON KPPX-3P equivalent; pins 1 and 3 positive, pin 2 negative. R7B: male 4-pin locking connector, KYCON KPPX-4P equivalent; pins 1 and 4 positive, pins 2 and 3 negative. Follow the catalog mating-face drawing when wiring.
Safety, EMC and reliability
Parameter
Specification
Safety construction
Class II/2 power unit, no FG; SELV marking appears in the catalog.
Safety standards
LVD BS EN/EN61347-1 and BS EN/EN61347-2-13 approved, as listed in the catalog.
Withstand voltage
Input to output: 3.75 kVAC
Isolation resistance
Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH.
EMC emissions
BS EN/EN55015; BS EN/EN61000-3-2 Class C at 100% load; BS EN/EN61000-3-3.
EMC immunity
BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN61547, light industry level, criteria A.
MTBF
450,000 hours minimum, MIL-HDBK-217F at 25°C; a reliability estimate, not a guaranteed service life.
Catalog warranty
3 years, subject to the manufacturer’s warranty terms.
Selection and installation
Parameter
Specification
Load selection
Use an LED load designed for 48 V constant-voltage operation and stay within 0.625 A / 30 W after all required derating. Confirm connector dimensions and center-positive polarity before connection.
External dimming connection
The catalog illustrates a constant-voltage adapter feeding an external DC 12–24 V PWM dimmer and LED strip. This is an output-side controller example, not a built-in AC phase-cut dimming function. Verify the controller’s input voltage, load current and output polarity. The illustrated 12–24 V controller is not suitable evidence for this 48 V output; select a controller explicitly rated for 48 V.
Installation and maintenance
Disconnect the adapter from mains before installation or maintenance, and prevent unintended reconnection. Use approved primary and secondary cables with current ratings at least equal to the unit rating. Do not immerse the unit in water or open its enclosure; faults must be examined by a qualified technician. A damaged external cable must be replaced by the manufacturer, its service agent or a similarly qualified person.
Thermal check
Keep ventilation clear, apply orientation/ambient derating, and check the marked Tc point against the maximum temperature on the product label. Do not stack objects on the unit; leave 10–15 cm clearance when an adjacent device is a heat source.
System integration
EMC depends on the complete installation. The final-equipment manufacturer must re-qualify the complete system and confirm the LED load and any controller are compatible.
Installation and accessory documents
Download LED Installation ManualDownload DC Plug Selection GuideConfirm the full model, plug configuration, LED voltage/current requirements and thermal conditions before ordering or installation.
