RPD , RPT , RPTG : Medical Open Frame Power Supply ; MPQ : Medical Grade Output Power Supply

MEAN WELL Medical Multi-Output Power Supply (RPD/RPT/MPQ Series)

Product Features
General Specifications
Output Models Overview
Product Ordering Code

Product Features

Medical Safety Certified: 2 x MOPP (Primary to Secondary) compliant with IEC/EN60601-1 and ANSI/AAMI ES60601-1.
Multi-Channel Output: Supports Dual (RPD), Triple (RPT), and Quad (MPQ) output configurations for complex system requirements.
High Efficiency & PFC: Features active PFC function (for higher wattage models) and high-efficiency circuit design.
Low Leakage: Ultra-low leakage current (<100µA to <160µA), ideal for BF (Body Floating) medical equipment.
Flexible Cooling: Supports dual power ratings (natural convection vs. forced air cooling with CFM ratings).
Advanced Control: Select models (RPT-160G) include 5V auxiliary standby and PS-ON control signal.
Diverse Mounting: Compact bare PCB designs with optional enclosed (-C) covers.
Comprehensive Protection: Built-in short circuit, overload, over voltage, and over temperature (on select models) protections.

General Specifications

Item	Specification Description
Input Voltage	90 ~ 264VAC / 127 ~ 370VDC (Universal Input)
Frequency	47 ~ 63Hz
Isolation	I/P-O/P: 2xMOPP; I/P-FG: 1xMOPP; O/P-FG: 1xMOPP
Withstand Voltage	I/P-O/P: 4KVAC; I/P-FG: 2KVAC; O/P-FG: 1.5KVAC
Working Temp.	-20°C ~ +70°C (Refer to specific model derating curve)
Safety Standards	IEC 60601-1, TUV/EN 60601-1, ANSI/AAMI ES60601-1, EAC, UL62368-1
EMC Emission	BS EN/EN55011 (CISPR11) Class B

Output Models Overview

RPD & RPT Series (50W - 160W)

Series	Configuration	Max Power
RPD-60/65/75	Dual Output (e.g., 5V/12V, 24V)	50W - 75W
RPT-60/65/75	Triple Output (e.g., 5V/12V/-5V)	40W - 75W
RPT-160	Triple Output (w/ PFC/Standby)	98W (Conv.) / 145W (CFM)

MPQ-200 Series (200W Quad Output)

Model	CH1	CH2	CH3	CH4
MPQ-200B	5V/15A	12V/7A	-5V/2A	-12V/2A
MPQ-200D	5V/15A	24V/3A	12V/2A	-12V/2A

Note: MPQ-200 series requires 25CFM forced air cooling to achieve rated output currents.

Product Ordering Code

No.	Item	Description
1	Series	RPD (Dual), RPT (Triple), MPQ (Quad)
2	Control Option	Blank (Standard); G (w/ 5Vsb & PS-ON for RPT-160)
3	Rated Power	60W, 65W, 75W, 160W, 200W
4	Config	Voltage combination identifier (A, B, C, D, F, etc.)
5	Enclosure	Blank (Bare PCB); -C (Enclosed w/ cover)

Example: RPTG-160B-C (160W Triple Output, 5Vsb/PS-ON, Enclosed).

Show previous products

View options

MEAN WELL RPD-75 Series: Substrate Type Medical Power Supply - RPD-75A

5 "X3" package Output channel: CH2 Output voltage: 12V Output current: 0.3 ~ 4A Rated power: 71W Peak load (23.5CFM):95.5W Input voltage: 90 ~ 264VAC,127 ~ 370VDC Size (mm):127X76.2X31 Click to download Airtac product catalog Product Features 1, 4 "x 2", 5 "x 3" general use small size. 2, Class I or Class II configuration, through the medical class safety certification (2xMOPP). 3. Built-in active PFC(RPT-160, MPQ-200), suitable for BF level application requirements. 4. Very low leakage current, built-in P.G and P.F signal output (RPT-160). 5. No-load power consumption <0.1W ~ 0.75W, protection type: short circuit/overload/overvoltage, over temperature (RPT-160). 6. 5V0.8A spare output (RPTG-160). 7. LED power on indicator (RPT-160/MPQ-200 only). 8, 3 years warranty.

Read more less

$51.86

View options
View options

MEAN WELL RPD-75 Series: Substrate Type Medical Power Supply - RPD-75A

5 "X3" package Output channel: CH1 Output voltage: 5V Output current: 1 ~ 9.5A Rated power: 71W Peak load (23.5CFM):95.5W Input voltage: 90 ~ 264VAC,127 ~ 370VDC Size (mm):127X76.2X31 Click to download Airtac product catalog Product Features 1, 4 "x 2", 5 "x 3" general use small size. 2, Class I or Class II configuration, through the medical class safety certification (2xMOPP). 3. Built-in active PFC(RPT-160, MPQ-200), suitable for BF level application requirements. 4. Very low leakage current, built-in P.G and P.F signal output (RPT-160). 5. No-load power consumption <0.1W ~ 0.75W, protection type: short circuit/overload/overvoltage, over temperature (RPT-160). 6. 5V0.8A spare output (RPTG-160). 7. LED power on indicator (RPT-160/MPQ-200 only). 8, 3 years warranty.

Read more less

$51.86

View options
View options

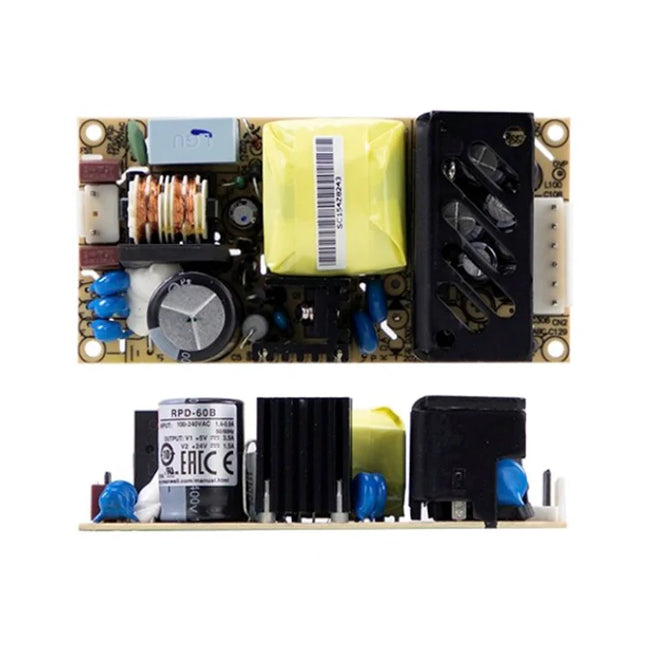

MEAN WELL RPD-60 Series: Substrate Type Medical Power Supply - RPD-60B

4 "X2" package Output channel: CH2 Output voltage: 24V Output current: 0.1 ~ 1.65A Rated power: 53.5W Peak load (10sec.):58.85W Input voltage: 90 ~ 264VAC,127 ~ 370VDC Size (mm):101.6X50.8X29 Click to download Airtac product catalog Product Features 1, 4 "x 2", 5 "x 3" general use small size. 2, Class I or Class II configuration, through the medical class safety certification (2xMOPP). 3. Built-in active PFC(RPT-160, MPQ-200), suitable for BF level application requirements. 4. Very low leakage current, built-in P.G and P.F signal output (RPT-160). 5. No-load power consumption <0.1W ~ 0.75W, protection type: short circuit/overload/overvoltage, over temperature (RPT-160). 6. 5V0.8A spare output (RPTG-160). 7. LED power on indicator (RPT-160/MPQ-200 only). 8, 3 years warranty.

Read more less

$33.86

View options
View options

MEAN WELL RPD-60 Series: Substrate Type Medical Power Supply - RPD-60B

4 "X2" package Output channel: CH1 Output voltage: 5V Output current: 0.5 ~ 3.85A Rated power: 53.5W Peak load (10sec.):58.85W Input voltage: 90 ~ 264VAC,127 ~ 370VDC Size (mm):101.6X50.8X29 Click to download Airtac product catalog Product Features 1, 4 "x 2", 5 "x 3" general use small size. 2, Class I or Class II configuration, through the medical class safety certification (2xMOPP). 3. Built-in active PFC(RPT-160, MPQ-200), suitable for BF level application requirements. 4. Very low leakage current, built-in P.G and P.F signal output (RPT-160). 5. No-load power consumption <0.1W ~ 0.75W, protection type: short circuit/overload/overvoltage, over temperature (RPT-160). 6. 5V0.8A spare output (RPTG-160). 7. LED power on indicator (RPT-160/MPQ-200 only). 8, 3 years warranty.

Read more less

$33.86

View options
View options

MEAN WELL RPD-60 Series: Substrate Type Medical Power Supply - RPD-60A

4 "X2" package Output channel: CH2 Output voltage: 12V Output current: 0.1 ~ 2.2A Rated power: 49W Peak load (10sec.):53.9W Input voltage: 90 ~ 264VAC,127 ~ 370VDC Size (mm):101.6X50.8X29 Click to download Airtac product catalog Product Features 1, 4 "x 2", 5 "x 3" general use small size. 2, Class I or Class II configuration, through the medical class safety certification (2xMOPP). 3. Built-in active PFC(RPT-160, MPQ-200), suitable for BF level application requirements. 4. Very low leakage current, built-in P.G and P.F signal output (RPT-160). 5. No-load power consumption <0.1W ~ 0.75W, protection type: short circuit/overload/overvoltage, over temperature (RPT-160). 6. 5V0.8A spare output (RPTG-160). 7. LED power on indicator (RPT-160/MPQ-200 only). 8, 3 years warranty.

Read more less

$33.86

View options
View options

MEAN WELL RPD-60 Series: Substrate Type Medical Power Supply - RPD-60A

4 "X2" package Output channel: CH1 Output voltage: 5V Output current: 0.5 ~ 5.5A Rated power: 49W Peak load (10sec.):53.9W Input voltage: 90 ~ 264VAC,127 ~ 370VDC Size (mm):101.6X50.8X29 Click to download Airtac product catalog Product Features 1, 4 "x 2", 5 "x 3" general use small size. 2, Class I or Class II configuration, through the medical class safety certification (2xMOPP). 3. Built-in active PFC(RPT-160, MPQ-200), suitable for BF level application requirements. 4. Very low leakage current, built-in P.G and P.F signal output (RPT-160). 5. No-load power consumption <0.1W ~ 0.75W, protection type: short circuit/overload/overvoltage, over temperature (RPT-160). 6. 5V0.8A spare output (RPTG-160). 7. LED power on indicator (RPT-160/MPQ-200 only). 8, 3 years warranty.

Read more less

$33.86
