  MEAN WELL RPS-400 series: Medical AC/DC Power Supply, Enclosed - RPS-400-12-C

  MEAN WELL RPS-400-12-C is a 12 V medical AC/DC power supply in the enclosed casing without a built-in fan configuration. It supplies 20.8 A / 249.6 W by convection or 33.3 A / 399.6 W with 25 CFM airflow. Select the installation class, load and operating temperature using the version-specific limits below. Product Datasheet Download MEAN WELL RPS-400 Datasheet (PDF) The RPS-400 section is on PDF pages 8, 9, 10, 11, 12, 13, 14, 15, 16, 17. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-400-12-C. C: Enclosed casing without a built-in fan. System class This enclosed version is not suitable for a Class II system without FG; use the Class I arrangement with FG. Integration use Medical power conversion for applications such as oral irrigators, hemodialysis equipment, medical monitors, sleep-apnea devices, pumps and electric beds. BF use requires appropriate complete-system consideration. Main DC Output Nominal main output 12 V. Forced-air current and power 33.3 A / 399.6 W; 25 CFM external airflow. Convection current and power 20.8 A / 249.6 W, subject to the input-voltage and temperature curves. Ripple and noise, maximum 120 mVp-p. Main-output voltage adjustment 11.4–12.6 V. Voltage tolerance ±3.0%, including set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 91.5%. Use the exact model ratings above; the series designation is not a substitute for its printed wattage. Forced-air ratings are cooling-dependent continuous ratings, not an unrestricted overload or peak-power allowance. Unless specified otherwise, values are measured at 230 VAC, rated load and 25°C. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Input and Timing Input range 80–264 VAC or 113–370 VDC; 47–63 Hz AC. Apply the input derating curve. Power factor Built-in active PFC; at full load, PF >0.94 at 230 VAC and >0.98 at 115 VAC. Input current, typical 4.2 A at 115 VAC; 2.1 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 1000 ms / 30 ms at 230 VAC; 1500 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 16 ms at both 230 VAC and 115 VAC, full load. Leakage current Earth leakage <200 µA at 264 VAC / 50 Hz; touch current <70 µA at 264 VAC, measured from primary input to DC output. No-load power Less than 0.5 W by PS-ON control. Protection and Auxiliary Outputs Short circuit / overload Short-circuit protection; overload at 105–135% of rated output power. Hiccup mode recovers automatically after the fault is removed. Overvoltage Threshold 13.2–15.6 V; output shuts down and requires re-power on to recover. Overtemperature Output shuts down and recovers automatically after temperature decreases. 5 V standby 5 V, 0.6 A without a fan or 1 A with 25 CFM; tolerance ±2%, maximum ripple 120 mVp-p. These are cooling-qualified standby limits. 12 V fan supply 12 V / 0.5 A for driving a fan. Tolerance −15% to +10% at 35% main-output rated current with 25 CFM. Use the dedicated CN12 polarity below. Control, Status and Remote Sense PS-ON high (2–5 V) turns the main output on; low (0–0.5 V) turns it off. The PG TTL signal goes high 10–500 ms after power set-up and goes low at least 1 ms before output falls below 90% of its rated voltage, providing the listed power-good/power-fail indication. CN11: TKP DH2I-2X2 or equivalent; pin 1 −S, pin 2 +S, pin 3 DC COM, pin 4 PG. The −S/+S pins are the remote-sense connections; this section does not specify a numerical cable-drop compensation limit. Follow the complete connection and installation instructions. CN95: TKP DH2L-2X2 or equivalent; pin 1 5Vsb, pins 2 and 4 DC COM, pin 3 PS-ON. Both CN11 and CN95 list TKP DH2 or equivalent mating housings and TKP or equivalent terminals; the catalogue does not provide a more complete terminal ordering suffix. Cooling, Derating and Environment Horizontal temperature/load curves The convection curve uses nominal 250 W up to 35°C at 115 VAC, then 130 W at 60°C; at 230 VAC it holds 250 W to 40°C, then 160 W at 60°C. With 25 CFM, the plotted nominal 400 W holds to 50°C and falls to 200 W at 70°C. Input-voltage curve, 60 Hz 70% load at 80 VAC, 80% at 90 VAC, rising to 100% at 115 VAC and remaining at 100% through 264 VAC. Working ambient / humidity −30 to +70°C with derating; 20–90% RH, non-condensing. Convection curves for PCB/C end at 60°C; the 70°C point requires the plotted forced-air configuration. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient / vibration ±0.03%/°C over 0–50°C. Vibration: 10–500 Hz, 2 G, 10 minutes per cycle and 60 minutes each along X, Y and Z. Altitude Operating altitude up to 4000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. The plotted curves use nominal series-level wattages. Apply them together with this exact model’s voltage/current/power ratings, its installed cooling arrangement and input derating; neither the curve nor the upper temperature permits exceeding the model rating. Dimensions and Installation Dimensions, L × W × H 130 × 86 × 43 mm; case 247A. Mounting and clearance Bottom: four M3 holes, 120 × 50 mm pattern, maximum penetration 2 mm (hole group 1). Side: two M3 holes, maximum penetration 4 mm (hole group 2). Use 4–6 kgf·cm mounting torque and the complete hole-location drawing. Airflow Use an external 25 CFM fan 5 cm from the unit in the direction shown in the mechanical drawing to obtain the forced-air rating. The catalogue does not state that this external fan is included. Board and adjustment references SVR1 is the main-output adjustment reference. FS1 is marked F8A/250V. HS1, HS2, HS3 and HS4 must not be shorted. Drawing units are millimetres with general tolerance ±1 mm unless separately marked. Use the full model-specific mechanical drawing for offsets and clearances; included screws, loose connectors and installation hardware are not stated. Power Connections and Mating Parts AC input CN1 JST B3P-VH or equivalent: pin 1 AC/L, pin 2 no pin, pin 3 AC/N. Mating housing: JST VHR or equivalent; terminal: JST SVH-21T-P1.1 or equivalent. VHR is the printed family reference, not an invented complete ordering suffix. Main DC output CN2: −V; CN3: +V. M3.5 pan-head screws at two positions; maximum torque 8 lbs-in (90 cNm), as printed. Fan connector CN12 TKP 8812-2 or equivalent: pin 1 DC COM, pin 2 +12 V. Mating housing TKP 2502 or equivalent; terminal TKP 8811 or equivalent. Mating-part references identify compatible interface components; they do not establish that loose mating parts are supplied. Choose the correct position count and terminal for each connection. Safety, Isolation and EMC Medical approvals IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. BS EN/EN60335-1 is a design reference by request, not an unconditional additional approval. Isolation / withstand Primary-secondary: 2 × MOPP; primary-earth and secondary-earth: 1 × MOPP each. Withstand: input-output 4 kVAC, input-FG 2 kVAC, output-FG 1.5 kVAC. BF suitability depends on appropriate complete-system configuration. Insulation resistance Input-output and input-FG: 100 MΩ at 500 VDC, 25°C and 70% RH. Emissions BS EN/EN55011 (CISPR11). Use the Class I configuration with FG; the specification lists conducted and radiated Class B. Do not transfer the PCB-only Class II option to this enclosed version. Harmonic current: BS EN/EN61000-3-2 Class A; flicker: BS EN/EN61000-3-3. Immunity: BS EN/EN55035, BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD (EN61000-4-2): level 4, 15 kV air / 8 kV contact. RF (-4-3): level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9: 9–28 V/m at 385 MHz–5.78 GHz. EFT (-4-4): level 3, 2 kV; surge (-4-5): level 4, 4 kV line-FG / 2 kV line-line. Conducted susceptibility (-4-6): level 3, 10 V; magnetic field (-4-8): level 4, 30 A/m. Dips/interruption (-4-11): 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. Class I EMC testing used a 360 × 360 × 1 mm metal plate. This is an installation component; re-confirm EMC compliance in the final equipment. Weight, Reliability and Catalogue Single-unit catalogue weight 510 g (0.51 kg), explicitly listed as P.W. in PACKING; a catalogue unit reference, not a measured shipping-parcel weight. Packing reference 24 pieces / 13.2 kg / 0.77 CUFT. Minimum MTBF estimates 1393.3 thousand hours, Telcordia SR-332 (Bellcore); 194.1 thousand hours, MIL-HDBK-217F at 25°C. These statistical estimates are not guaranteed service lives. Catalogue and warranty RPS-400-SPEC, 2024-11-22, combined PDF pages 8–17. Three-year manufacturer warranty, subject to applicable terms.

  Read more less

  $201.09

  View options

•

  View options

  MEAN WELL RPS-400 series: Medical AC/DC Power Supply, Open Frame - RPS-400-48

  MEAN WELL RPS-400-48 is a 48 V medical AC/DC power supply in the pcb open-frame configuration. It supplies 5.3 A / 254.4 W by convection or 8.4 A / 403.2 W with 25 CFM airflow. Select the installation class, load and operating temperature using the version-specific limits below. Product Datasheet Download MEAN WELL RPS-400 Datasheet (PDF) The RPS-400 section is on PDF pages 8, 9, 10, 11, 12, 13, 14, 15, 16, 17. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-400-48. Blank suffix: PCB open-frame construction. System class PCB type supports Class I with FG or Class II without FG, with different EMC limits. Integration use Medical power conversion for applications such as oral irrigators, hemodialysis equipment, medical monitors, sleep-apnea devices, pumps and electric beds. BF use requires appropriate complete-system consideration. Main DC Output Nominal main output 48 V. Forced-air current and power 8.4 A / 403.2 W; 25 CFM external airflow. Convection current and power 5.3 A / 254.4 W, subject to the input-voltage and temperature curves. Ripple and noise, maximum 200 mVp-p. Main-output voltage adjustment 45.6–50.4 V. Voltage tolerance ±1.0%, including set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 94%. Use the exact model ratings above; the series designation is not a substitute for its printed wattage. Forced-air ratings are cooling-dependent continuous ratings, not an unrestricted overload or peak-power allowance. Unless specified otherwise, values are measured at 230 VAC, rated load and 25°C. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Input and Timing Input range 80–264 VAC or 113–370 VDC; 47–63 Hz AC. Apply the input derating curve. Power factor Built-in active PFC; at full load, PF >0.94 at 230 VAC and >0.98 at 115 VAC. Input current, typical 4.2 A at 115 VAC; 2.1 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 1000 ms / 30 ms at 230 VAC; 1500 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 16 ms at both 230 VAC and 115 VAC, full load. Leakage current Earth leakage <200 µA at 264 VAC / 50 Hz; touch current <70 µA at 264 VAC, measured from primary input to DC output. No-load power Less than 0.5 W by PS-ON control. Protection and Auxiliary Outputs Short circuit / overload Short-circuit protection; overload at 105–135% of rated output power. Hiccup mode recovers automatically after the fault is removed. Overvoltage Threshold 52.8–62.4 V; output shuts down and requires re-power on to recover. Overtemperature Output shuts down and recovers automatically after temperature decreases. 5 V standby 5 V, 0.6 A without a fan or 1 A with 25 CFM; tolerance ±2%, maximum ripple 120 mVp-p. These are cooling-qualified standby limits. 12 V fan supply 12 V / 0.5 A for driving a fan. Tolerance −15% to +10% at 35% main-output rated current with 25 CFM. Use the dedicated CN12 polarity below. Control, Status and Remote Sense PS-ON high (2–5 V) turns the main output on; low (0–0.5 V) turns it off. The PG TTL signal goes high 10–500 ms after power set-up and goes low at least 1 ms before output falls below 90% of its rated voltage, providing the listed power-good/power-fail indication. CN11: TKP DH2I-2X2 or equivalent; pin 1 −S, pin 2 +S, pin 3 DC COM, pin 4 PG. The −S/+S pins are the remote-sense connections; this section does not specify a numerical cable-drop compensation limit. Follow the complete connection and installation instructions. CN95: TKP DH2L-2X2 or equivalent; pin 1 5Vsb, pins 2 and 4 DC COM, pin 3 PS-ON. Both CN11 and CN95 list TKP DH2 or equivalent mating housings and TKP or equivalent terminals; the catalogue does not provide a more complete terminal ordering suffix. Cooling, Derating and Environment Horizontal temperature/load curves The convection curve uses nominal 250 W up to 40°C at 115 VAC, then 160 W at 60°C; at 230 VAC it holds 250 W to 45°C, then 190 W at 60°C. With 25 CFM, the plotted nominal 400 W holds to 50°C and falls to 200 W at 70°C. Input-voltage curve, 60 Hz 70% load at 80 VAC, 80% at 90 VAC, rising to 100% at 115 VAC and remaining at 100% through 264 VAC. Working ambient / humidity −30 to +70°C with derating; 20–90% RH, non-condensing. Convection curves for PCB/C end at 60°C; the 70°C point requires the plotted forced-air configuration. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient / vibration ±0.03%/°C over 0–50°C. Vibration: 10–500 Hz, 2 G, 10 minutes per cycle and 60 minutes each along X, Y and Z. Altitude Operating altitude up to 4000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. The plotted curves use nominal series-level wattages. Apply them together with this exact model’s voltage/current/power ratings, its installed cooling arrangement and input derating; neither the curve nor the upper temperature permits exceeding the model rating. Dimensions and Installation Dimensions, L × W × H 127 × 76.2 × 35 mm; PCB type. Mounting and clearance Four Ø3.5 mm holes on a 115.6 × 64.8 mm pattern, with 5.7 mm edge offsets. Side view: 35 mm body height and 3 mm maximum underside projection; allow the full shown clearance. Airflow Use an external 25 CFM fan 5 cm from the unit in the direction shown in the mechanical drawing to obtain the forced-air rating. The catalogue does not state that this external fan is included. Board and adjustment references SVR1 is the main-output adjustment reference. FS1 is marked F8A/250V. HS1, HS2, HS3 and HS4 must not be shorted. Drawing units are millimetres with general tolerance ±1 mm unless separately marked. Use the full model-specific mechanical drawing for offsets and clearances; included screws, loose connectors and installation hardware are not stated. Power Connections and Mating Parts AC input CN1 JST B3P-VH or equivalent: pin 1 AC/L, pin 2 no pin, pin 3 AC/N. Mating housing: JST VHR or equivalent; terminal: JST SVH-21T-P1.1 or equivalent. VHR is the printed family reference, not an invented complete ordering suffix. Main DC output CN2: −V; CN3: +V. M3.5 pan-head screws at two positions; maximum torque 8 lbs-in (90 cNm), as printed. Fan connector CN12 TKP 8812-2 or equivalent: pin 1 DC COM, pin 2 +12 V. Mating housing TKP 2502 or equivalent; terminal TKP 8811 or equivalent. Mating-part references identify compatible interface components; they do not establish that loose mating parts are supplied. Choose the correct position count and terminal for each connection. Safety, Isolation and EMC Medical approvals IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. BS EN/EN60335-1 is a design reference by request, not an unconditional additional approval. Isolation / withstand Primary-secondary: 2 × MOPP; primary-earth and secondary-earth: 1 × MOPP each. Withstand: input-output 4 kVAC, input-FG 2 kVAC, output-FG 1.5 kVAC. BF suitability depends on appropriate complete-system configuration. Insulation resistance Input-output and input-FG: 100 MΩ at 500 VDC, 25°C and 70% RH. Emissions BS EN/EN55011 (CISPR11). For the PCB type with FG, conducted/radiated Class B at 230 VAC; at 110 VAC, conducted Class B and radiated Class A. In Class II without FG, conducted and radiated Class A. Harmonic current: BS EN/EN61000-3-2 Class A; flicker: BS EN/EN61000-3-3. Immunity: BS EN/EN55035, BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD (EN61000-4-2): level 4, 15 kV air / 8 kV contact. RF (-4-3): level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9: 9–28 V/m at 385 MHz–5.78 GHz. EFT (-4-4): level 3, 2 kV; surge (-4-5): level 4, 4 kV line-FG / 2 kV line-line. Conducted susceptibility (-4-6): level 3, 10 V; magnetic field (-4-8): level 4, 30 A/m. Dips/interruption (-4-11): 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. Class I EMC testing used a 360 × 360 × 1 mm metal plate. Class II testing used a 130 × 86.6 × 1 mm metal plate. This is an installation component; re-confirm EMC compliance in the final equipment. Weight, Reliability and Catalogue Single-unit catalogue weight 390 g (0.39 kg), explicitly listed as P.W. in PACKING; a catalogue unit reference, not a measured shipping-parcel weight. Packing reference 36 pieces / 15 kg / 0.96 CUFT. Minimum MTBF estimates 1393.3 thousand hours, Telcordia SR-332 (Bellcore); 194.1 thousand hours, MIL-HDBK-217F at 25°C. These statistical estimates are not guaranteed service lives. Catalogue and warranty RPS-400-SPEC, 2024-11-22, combined PDF pages 8–17. Three-year manufacturer warranty, subject to applicable terms.

  Read more less

  $187.29

  View options

•

  View options

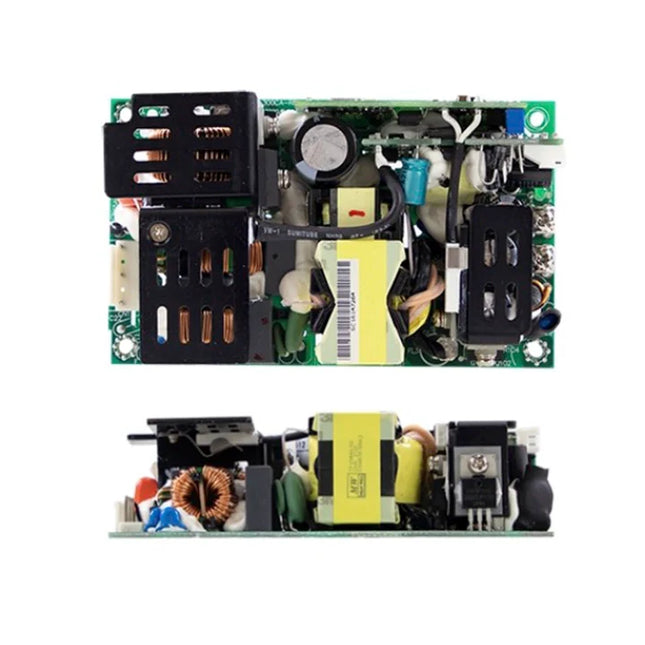

  MEAN WELL RPS-400 series: Medical AC/DC Power Supply, Open Frame - RPS-400-36

  MEAN WELL RPS-400-36 is a 36 V medical AC/DC power supply in the pcb open-frame configuration. It supplies 7 A / 252 W by convection or 11.2 A / 403.2 W with 25 CFM airflow. Select the installation class, load and operating temperature using the version-specific limits below. Product Datasheet Download MEAN WELL RPS-400 Datasheet (PDF) The RPS-400 section is on PDF pages 8, 9, 10, 11, 12, 13, 14, 15, 16, 17. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-400-36. Blank suffix: PCB open-frame construction. System class PCB type supports Class I with FG or Class II without FG, with different EMC limits. Integration use Medical power conversion for applications such as oral irrigators, hemodialysis equipment, medical monitors, sleep-apnea devices, pumps and electric beds. BF use requires appropriate complete-system consideration. Main DC Output Nominal main output 36 V. Forced-air current and power 11.2 A / 403.2 W; 25 CFM external airflow. Convection current and power 7 A / 252 W, subject to the input-voltage and temperature curves. Ripple and noise, maximum 200 mVp-p. Main-output voltage adjustment 34.2–37.8 V. Voltage tolerance ±1.0%, including set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 94%. Use the exact model ratings above; the series designation is not a substitute for its printed wattage. Forced-air ratings are cooling-dependent continuous ratings, not an unrestricted overload or peak-power allowance. Unless specified otherwise, values are measured at 230 VAC, rated load and 25°C. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Input and Timing Input range 80–264 VAC or 113–370 VDC; 47–63 Hz AC. Apply the input derating curve. Power factor Built-in active PFC; at full load, PF >0.94 at 230 VAC and >0.98 at 115 VAC. Input current, typical 4.2 A at 115 VAC; 2.1 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 1000 ms / 30 ms at 230 VAC; 1500 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 16 ms at both 230 VAC and 115 VAC, full load. Leakage current Earth leakage <200 µA at 264 VAC / 50 Hz; touch current <70 µA at 264 VAC, measured from primary input to DC output. No-load power Less than 0.5 W by PS-ON control. Protection and Auxiliary Outputs Short circuit / overload Short-circuit protection; overload at 105–135% of rated output power. Hiccup mode recovers automatically after the fault is removed. Overvoltage Threshold 39.6–46.8 V; output shuts down and requires re-power on to recover. Overtemperature Output shuts down and recovers automatically after temperature decreases. 5 V standby 5 V, 0.6 A without a fan or 1 A with 25 CFM; tolerance ±2%, maximum ripple 120 mVp-p. These are cooling-qualified standby limits. 12 V fan supply 12 V / 0.5 A for driving a fan. Tolerance −15% to +10% at 35% main-output rated current with 25 CFM. Use the dedicated CN12 polarity below. Control, Status and Remote Sense PS-ON high (2–5 V) turns the main output on; low (0–0.5 V) turns it off. The PG TTL signal goes high 10–500 ms after power set-up and goes low at least 1 ms before output falls below 90% of its rated voltage, providing the listed power-good/power-fail indication. CN11: TKP DH2I-2X2 or equivalent; pin 1 −S, pin 2 +S, pin 3 DC COM, pin 4 PG. The −S/+S pins are the remote-sense connections; this section does not specify a numerical cable-drop compensation limit. Follow the complete connection and installation instructions. CN95: TKP DH2L-2X2 or equivalent; pin 1 5Vsb, pins 2 and 4 DC COM, pin 3 PS-ON. Both CN11 and CN95 list TKP DH2 or equivalent mating housings and TKP or equivalent terminals; the catalogue does not provide a more complete terminal ordering suffix. Cooling, Derating and Environment Horizontal temperature/load curves The convection curve uses nominal 250 W up to 40°C at 115 VAC, then 160 W at 60°C; at 230 VAC it holds 250 W to 45°C, then 190 W at 60°C. With 25 CFM, the plotted nominal 400 W holds to 50°C and falls to 200 W at 70°C. Input-voltage curve, 60 Hz 70% load at 80 VAC, 80% at 90 VAC, rising to 100% at 115 VAC and remaining at 100% through 264 VAC. Working ambient / humidity −30 to +70°C with derating; 20–90% RH, non-condensing. Convection curves for PCB/C end at 60°C; the 70°C point requires the plotted forced-air configuration. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient / vibration ±0.03%/°C over 0–50°C. Vibration: 10–500 Hz, 2 G, 10 minutes per cycle and 60 minutes each along X, Y and Z. Altitude Operating altitude up to 4000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. The plotted curves use nominal series-level wattages. Apply them together with this exact model’s voltage/current/power ratings, its installed cooling arrangement and input derating; neither the curve nor the upper temperature permits exceeding the model rating. Dimensions and Installation Dimensions, L × W × H 127 × 76.2 × 35 mm; PCB type. Mounting and clearance Four Ø3.5 mm holes on a 115.6 × 64.8 mm pattern, with 5.7 mm edge offsets. Side view: 35 mm body height and 3 mm maximum underside projection; allow the full shown clearance. Airflow Use an external 25 CFM fan 5 cm from the unit in the direction shown in the mechanical drawing to obtain the forced-air rating. The catalogue does not state that this external fan is included. Board and adjustment references SVR1 is the main-output adjustment reference. FS1 is marked F8A/250V. HS1, HS2, HS3 and HS4 must not be shorted. Drawing units are millimetres with general tolerance ±1 mm unless separately marked. Use the full model-specific mechanical drawing for offsets and clearances; included screws, loose connectors and installation hardware are not stated. Power Connections and Mating Parts AC input CN1 JST B3P-VH or equivalent: pin 1 AC/L, pin 2 no pin, pin 3 AC/N. Mating housing: JST VHR or equivalent; terminal: JST SVH-21T-P1.1 or equivalent. VHR is the printed family reference, not an invented complete ordering suffix. Main DC output CN2: −V; CN3: +V. M3.5 pan-head screws at two positions; maximum torque 8 lbs-in (90 cNm), as printed. Fan connector CN12 TKP 8812-2 or equivalent: pin 1 DC COM, pin 2 +12 V. Mating housing TKP 2502 or equivalent; terminal TKP 8811 or equivalent. Mating-part references identify compatible interface components; they do not establish that loose mating parts are supplied. Choose the correct position count and terminal for each connection. Safety, Isolation and EMC Medical approvals IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. BS EN/EN60335-1 is a design reference by request, not an unconditional additional approval. Isolation / withstand Primary-secondary: 2 × MOPP; primary-earth and secondary-earth: 1 × MOPP each. Withstand: input-output 4 kVAC, input-FG 2 kVAC, output-FG 1.5 kVAC. BF suitability depends on appropriate complete-system configuration. Insulation resistance Input-output and input-FG: 100 MΩ at 500 VDC, 25°C and 70% RH. Emissions BS EN/EN55011 (CISPR11). For the PCB type with FG, conducted/radiated Class B at 230 VAC; at 110 VAC, conducted Class B and radiated Class A. In Class II without FG, conducted and radiated Class A. Harmonic current: BS EN/EN61000-3-2 Class A; flicker: BS EN/EN61000-3-3. Immunity: BS EN/EN55035, BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD (EN61000-4-2): level 4, 15 kV air / 8 kV contact. RF (-4-3): level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9: 9–28 V/m at 385 MHz–5.78 GHz. EFT (-4-4): level 3, 2 kV; surge (-4-5): level 4, 4 kV line-FG / 2 kV line-line. Conducted susceptibility (-4-6): level 3, 10 V; magnetic field (-4-8): level 4, 30 A/m. Dips/interruption (-4-11): 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. Class I EMC testing used a 360 × 360 × 1 mm metal plate. Class II testing used a 130 × 86.6 × 1 mm metal plate. This is an installation component; re-confirm EMC compliance in the final equipment. Weight, Reliability and Catalogue Single-unit catalogue weight 390 g (0.39 kg), explicitly listed as P.W. in PACKING; a catalogue unit reference, not a measured shipping-parcel weight. Packing reference 36 pieces / 15 kg / 0.96 CUFT. Minimum MTBF estimates 1393.3 thousand hours, Telcordia SR-332 (Bellcore); 194.1 thousand hours, MIL-HDBK-217F at 25°C. These statistical estimates are not guaranteed service lives. Catalogue and warranty RPS-400-SPEC, 2024-11-22, combined PDF pages 8–17. Three-year manufacturer warranty, subject to applicable terms.

  Read more less

  $191.72

  View options

•

  View options

  MEAN WELL RPS-400 series: Medical AC/DC Power Supply, Open Frame - RPS-400-27

  MEAN WELL RPS-400-27 is a 27 V medical AC/DC power supply in the pcb open-frame configuration. It supplies 9.3 A / 251.1 W by convection or 14.9 A / 402.3 W with 25 CFM airflow. Select the installation class, load and operating temperature using the version-specific limits below. Product Datasheet Download MEAN WELL RPS-400 Datasheet (PDF) The RPS-400 section is on PDF pages 8, 9, 10, 11, 12, 13, 14, 15, 16, 17. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-400-27. Blank suffix: PCB open-frame construction. System class PCB type supports Class I with FG or Class II without FG, with different EMC limits. Integration use Medical power conversion for applications such as oral irrigators, hemodialysis equipment, medical monitors, sleep-apnea devices, pumps and electric beds. BF use requires appropriate complete-system consideration. Main DC Output Nominal main output 27 V. Forced-air current and power 14.9 A / 402.3 W; 25 CFM external airflow. Convection current and power 9.3 A / 251.1 W, subject to the input-voltage and temperature curves. Ripple and noise, maximum 200 mVp-p. Main-output voltage adjustment 25.6–28.4 V. Voltage tolerance ±1.0%, including set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 93.5%. Use the exact model ratings above; the series designation is not a substitute for its printed wattage. Forced-air ratings are cooling-dependent continuous ratings, not an unrestricted overload or peak-power allowance. Unless specified otherwise, values are measured at 230 VAC, rated load and 25°C. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Input and Timing Input range 80–264 VAC or 113–370 VDC; 47–63 Hz AC. Apply the input derating curve. Power factor Built-in active PFC; at full load, PF >0.94 at 230 VAC and >0.98 at 115 VAC. Input current, typical 4.2 A at 115 VAC; 2.1 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 1000 ms / 30 ms at 230 VAC; 1500 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 16 ms at both 230 VAC and 115 VAC, full load. Leakage current Earth leakage <200 µA at 264 VAC / 50 Hz; touch current <70 µA at 264 VAC, measured from primary input to DC output. No-load power Less than 0.5 W by PS-ON control. Protection and Auxiliary Outputs Short circuit / overload Short-circuit protection; overload at 105–135% of rated output power. Hiccup mode recovers automatically after the fault is removed. Overvoltage Threshold 29.7–35.1 V; output shuts down and requires re-power on to recover. Overtemperature Output shuts down and recovers automatically after temperature decreases. 5 V standby 5 V, 0.6 A without a fan or 1 A with 25 CFM; tolerance ±2%, maximum ripple 120 mVp-p. These are cooling-qualified standby limits. 12 V fan supply 12 V / 0.5 A for driving a fan. Tolerance −15% to +10% at 35% main-output rated current with 25 CFM. Use the dedicated CN12 polarity below. Control, Status and Remote Sense PS-ON high (2–5 V) turns the main output on; low (0–0.5 V) turns it off. The PG TTL signal goes high 10–500 ms after power set-up and goes low at least 1 ms before output falls below 90% of its rated voltage, providing the listed power-good/power-fail indication. CN11: TKP DH2I-2X2 or equivalent; pin 1 −S, pin 2 +S, pin 3 DC COM, pin 4 PG. The −S/+S pins are the remote-sense connections; this section does not specify a numerical cable-drop compensation limit. Follow the complete connection and installation instructions. CN95: TKP DH2L-2X2 or equivalent; pin 1 5Vsb, pins 2 and 4 DC COM, pin 3 PS-ON. Both CN11 and CN95 list TKP DH2 or equivalent mating housings and TKP or equivalent terminals; the catalogue does not provide a more complete terminal ordering suffix. Cooling, Derating and Environment Horizontal temperature/load curves The convection curve uses nominal 250 W up to 40°C at 115 VAC, then 160 W at 60°C; at 230 VAC it holds 250 W to 45°C, then 190 W at 60°C. With 25 CFM, the plotted nominal 400 W holds to 50°C and falls to 200 W at 70°C. Input-voltage curve, 60 Hz 70% load at 80 VAC, 80% at 90 VAC, rising to 100% at 115 VAC and remaining at 100% through 264 VAC. Working ambient / humidity −30 to +70°C with derating; 20–90% RH, non-condensing. Convection curves for PCB/C end at 60°C; the 70°C point requires the plotted forced-air configuration. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient / vibration ±0.03%/°C over 0–50°C. Vibration: 10–500 Hz, 2 G, 10 minutes per cycle and 60 minutes each along X, Y and Z. Altitude Operating altitude up to 4000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. The plotted curves use nominal series-level wattages. Apply them together with this exact model’s voltage/current/power ratings, its installed cooling arrangement and input derating; neither the curve nor the upper temperature permits exceeding the model rating. Dimensions and Installation Dimensions, L × W × H 127 × 76.2 × 35 mm; PCB type. Mounting and clearance Four Ø3.5 mm holes on a 115.6 × 64.8 mm pattern, with 5.7 mm edge offsets. Side view: 35 mm body height and 3 mm maximum underside projection; allow the full shown clearance. Airflow Use an external 25 CFM fan 5 cm from the unit in the direction shown in the mechanical drawing to obtain the forced-air rating. The catalogue does not state that this external fan is included. Board and adjustment references SVR1 is the main-output adjustment reference. FS1 is marked F8A/250V. HS1, HS2, HS3 and HS4 must not be shorted. Drawing units are millimetres with general tolerance ±1 mm unless separately marked. Use the full model-specific mechanical drawing for offsets and clearances; included screws, loose connectors and installation hardware are not stated. Power Connections and Mating Parts AC input CN1 JST B3P-VH or equivalent: pin 1 AC/L, pin 2 no pin, pin 3 AC/N. Mating housing: JST VHR or equivalent; terminal: JST SVH-21T-P1.1 or equivalent. VHR is the printed family reference, not an invented complete ordering suffix. Main DC output CN2: −V; CN3: +V. M3.5 pan-head screws at two positions; maximum torque 8 lbs-in (90 cNm), as printed. Fan connector CN12 TKP 8812-2 or equivalent: pin 1 DC COM, pin 2 +12 V. Mating housing TKP 2502 or equivalent; terminal TKP 8811 or equivalent. Mating-part references identify compatible interface components; they do not establish that loose mating parts are supplied. Choose the correct position count and terminal for each connection. Safety, Isolation and EMC Medical approvals IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. BS EN/EN60335-1 is a design reference by request, not an unconditional additional approval. Isolation / withstand Primary-secondary: 2 × MOPP; primary-earth and secondary-earth: 1 × MOPP each. Withstand: input-output 4 kVAC, input-FG 2 kVAC, output-FG 1.5 kVAC. BF suitability depends on appropriate complete-system configuration. Insulation resistance Input-output and input-FG: 100 MΩ at 500 VDC, 25°C and 70% RH. Emissions BS EN/EN55011 (CISPR11). For the PCB type with FG, conducted/radiated Class B at 230 VAC; at 110 VAC, conducted Class B and radiated Class A. In Class II without FG, conducted and radiated Class A. Harmonic current: BS EN/EN61000-3-2 Class A; flicker: BS EN/EN61000-3-3. Immunity: BS EN/EN55035, BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD (EN61000-4-2): level 4, 15 kV air / 8 kV contact. RF (-4-3): level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9: 9–28 V/m at 385 MHz–5.78 GHz. EFT (-4-4): level 3, 2 kV; surge (-4-5): level 4, 4 kV line-FG / 2 kV line-line. Conducted susceptibility (-4-6): level 3, 10 V; magnetic field (-4-8): level 4, 30 A/m. Dips/interruption (-4-11): 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. Class I EMC testing used a 360 × 360 × 1 mm metal plate. Class II testing used a 130 × 86.6 × 1 mm metal plate. This is an installation component; re-confirm EMC compliance in the final equipment. Weight, Reliability and Catalogue Single-unit catalogue weight 390 g (0.39 kg), explicitly listed as P.W. in PACKING; a catalogue unit reference, not a measured shipping-parcel weight. Packing reference 36 pieces / 15 kg / 0.96 CUFT. Minimum MTBF estimates 1393.3 thousand hours, Telcordia SR-332 (Bellcore); 194.1 thousand hours, MIL-HDBK-217F at 25°C. These statistical estimates are not guaranteed service lives. Catalogue and warranty RPS-400-SPEC, 2024-11-22, combined PDF pages 8–17. Three-year manufacturer warranty, subject to applicable terms.

  Read more less

  $187.29

  View options

•

  View options

  MEAN WELL RPS-400 series: Medical AC/DC Power Supply, Open Frame - RPS-400-24

  MEAN WELL RPS-400-24 is a 24 V medical AC/DC power supply in the pcb open-frame configuration. It supplies 10.5 A / 252 W by convection or 16.7 A / 400.8 W with 25 CFM airflow. Select the installation class, load and operating temperature using the version-specific limits below. Product Datasheet Download MEAN WELL RPS-400 Datasheet (PDF) The RPS-400 section is on PDF pages 8, 9, 10, 11, 12, 13, 14, 15, 16, 17. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-400-24. Blank suffix: PCB open-frame construction. System class PCB type supports Class I with FG or Class II without FG, with different EMC limits. Integration use Medical power conversion for applications such as oral irrigators, hemodialysis equipment, medical monitors, sleep-apnea devices, pumps and electric beds. BF use requires appropriate complete-system consideration. Main DC Output Nominal main output 24 V. Forced-air current and power 16.7 A / 400.8 W; 25 CFM external airflow. Convection current and power 10.5 A / 252 W, subject to the input-voltage and temperature curves. Ripple and noise, maximum 150 mVp-p. Main-output voltage adjustment 22.8–25.2 V. Voltage tolerance ±2.0%, including set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 93%. Use the exact model ratings above; the series designation is not a substitute for its printed wattage. Forced-air ratings are cooling-dependent continuous ratings, not an unrestricted overload or peak-power allowance. Unless specified otherwise, values are measured at 230 VAC, rated load and 25°C. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Input and Timing Input range 80–264 VAC or 113–370 VDC; 47–63 Hz AC. Apply the input derating curve. Power factor Built-in active PFC; at full load, PF >0.94 at 230 VAC and >0.98 at 115 VAC. Input current, typical 4.2 A at 115 VAC; 2.1 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 1000 ms / 30 ms at 230 VAC; 1500 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 16 ms at both 230 VAC and 115 VAC, full load. Leakage current Earth leakage <200 µA at 264 VAC / 50 Hz; touch current <70 µA at 264 VAC, measured from primary input to DC output. No-load power Less than 0.5 W by PS-ON control. Protection and Auxiliary Outputs Short circuit / overload Short-circuit protection; overload at 105–135% of rated output power. Hiccup mode recovers automatically after the fault is removed. Overvoltage Threshold 26.4–31.2 V; output shuts down and requires re-power on to recover. Overtemperature Output shuts down and recovers automatically after temperature decreases. 5 V standby 5 V, 0.6 A without a fan or 1 A with 25 CFM; tolerance ±2%, maximum ripple 120 mVp-p. These are cooling-qualified standby limits. 12 V fan supply 12 V / 0.5 A for driving a fan. Tolerance −15% to +10% at 35% main-output rated current with 25 CFM. Use the dedicated CN12 polarity below. Control, Status and Remote Sense PS-ON high (2–5 V) turns the main output on; low (0–0.5 V) turns it off. The PG TTL signal goes high 10–500 ms after power set-up and goes low at least 1 ms before output falls below 90% of its rated voltage, providing the listed power-good/power-fail indication. CN11: TKP DH2I-2X2 or equivalent; pin 1 −S, pin 2 +S, pin 3 DC COM, pin 4 PG. The −S/+S pins are the remote-sense connections; this section does not specify a numerical cable-drop compensation limit. Follow the complete connection and installation instructions. CN95: TKP DH2L-2X2 or equivalent; pin 1 5Vsb, pins 2 and 4 DC COM, pin 3 PS-ON. Both CN11 and CN95 list TKP DH2 or equivalent mating housings and TKP or equivalent terminals; the catalogue does not provide a more complete terminal ordering suffix. Cooling, Derating and Environment Horizontal temperature/load curves The convection curve uses nominal 250 W up to 40°C at 115 VAC, then 160 W at 60°C; at 230 VAC it holds 250 W to 45°C, then 190 W at 60°C. With 25 CFM, the plotted nominal 400 W holds to 50°C and falls to 200 W at 70°C. Input-voltage curve, 60 Hz 70% load at 80 VAC, 80% at 90 VAC, rising to 100% at 115 VAC and remaining at 100% through 264 VAC. Working ambient / humidity −30 to +70°C with derating; 20–90% RH, non-condensing. Convection curves for PCB/C end at 60°C; the 70°C point requires the plotted forced-air configuration. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient / vibration ±0.03%/°C over 0–50°C. Vibration: 10–500 Hz, 2 G, 10 minutes per cycle and 60 minutes each along X, Y and Z. Altitude Operating altitude up to 4000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. The plotted curves use nominal series-level wattages. Apply them together with this exact model’s voltage/current/power ratings, its installed cooling arrangement and input derating; neither the curve nor the upper temperature permits exceeding the model rating. Dimensions and Installation Dimensions, L × W × H 127 × 76.2 × 35 mm; PCB type. Mounting and clearance Four Ø3.5 mm holes on a 115.6 × 64.8 mm pattern, with 5.7 mm edge offsets. Side view: 35 mm body height and 3 mm maximum underside projection; allow the full shown clearance. Airflow Use an external 25 CFM fan 5 cm from the unit in the direction shown in the mechanical drawing to obtain the forced-air rating. The catalogue does not state that this external fan is included. Board and adjustment references SVR1 is the main-output adjustment reference. FS1 is marked F8A/250V. HS1, HS2, HS3 and HS4 must not be shorted. Drawing units are millimetres with general tolerance ±1 mm unless separately marked. Use the full model-specific mechanical drawing for offsets and clearances; included screws, loose connectors and installation hardware are not stated. Power Connections and Mating Parts AC input CN1 JST B3P-VH or equivalent: pin 1 AC/L, pin 2 no pin, pin 3 AC/N. Mating housing: JST VHR or equivalent; terminal: JST SVH-21T-P1.1 or equivalent. VHR is the printed family reference, not an invented complete ordering suffix. Main DC output CN2: −V; CN3: +V. M3.5 pan-head screws at two positions; maximum torque 8 lbs-in (90 cNm), as printed. Fan connector CN12 TKP 8812-2 or equivalent: pin 1 DC COM, pin 2 +12 V. Mating housing TKP 2502 or equivalent; terminal TKP 8811 or equivalent. Mating-part references identify compatible interface components; they do not establish that loose mating parts are supplied. Choose the correct position count and terminal for each connection. Safety, Isolation and EMC Medical approvals IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. BS EN/EN60335-1 is a design reference by request, not an unconditional additional approval. Isolation / withstand Primary-secondary: 2 × MOPP; primary-earth and secondary-earth: 1 × MOPP each. Withstand: input-output 4 kVAC, input-FG 2 kVAC, output-FG 1.5 kVAC. BF suitability depends on appropriate complete-system configuration. Insulation resistance Input-output and input-FG: 100 MΩ at 500 VDC, 25°C and 70% RH. Emissions BS EN/EN55011 (CISPR11). For the PCB type with FG, conducted/radiated Class B at 230 VAC; at 110 VAC, conducted Class B and radiated Class A. In Class II without FG, conducted and radiated Class A. Harmonic current: BS EN/EN61000-3-2 Class A; flicker: BS EN/EN61000-3-3. Immunity: BS EN/EN55035, BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD (EN61000-4-2): level 4, 15 kV air / 8 kV contact. RF (-4-3): level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9: 9–28 V/m at 385 MHz–5.78 GHz. EFT (-4-4): level 3, 2 kV; surge (-4-5): level 4, 4 kV line-FG / 2 kV line-line. Conducted susceptibility (-4-6): level 3, 10 V; magnetic field (-4-8): level 4, 30 A/m. Dips/interruption (-4-11): 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. Class I EMC testing used a 360 × 360 × 1 mm metal plate. Class II testing used a 130 × 86.6 × 1 mm metal plate. This is an installation component; re-confirm EMC compliance in the final equipment. Weight, Reliability and Catalogue Single-unit catalogue weight 390 g (0.39 kg), explicitly listed as P.W. in PACKING; a catalogue unit reference, not a measured shipping-parcel weight. Packing reference 36 pieces / 15 kg / 0.96 CUFT. Minimum MTBF estimates 1393.3 thousand hours, Telcordia SR-332 (Bellcore); 194.1 thousand hours, MIL-HDBK-217F at 25°C. These statistical estimates are not guaranteed service lives. Catalogue and warranty RPS-400-SPEC, 2024-11-22, combined PDF pages 8–17. Three-year manufacturer warranty, subject to applicable terms.

  Read more less

  $187.29

  View options

•

  View options

  MEAN WELL RPS-400 series: Medical AC/DC Power Supply, Open Frame - RPS-400-18

  MEAN WELL RPS-400-18 is an 18 V medical AC/DC power supply in the pcb open-frame configuration. It supplies 13.9 A / 250.2 W by convection or 22.3 A / 401.4 W with 25 CFM airflow. Select the installation class, load and operating temperature using the version-specific limits below. Product Datasheet Download MEAN WELL RPS-400 Datasheet (PDF) The RPS-400 section is on PDF pages 8, 9, 10, 11, 12, 13, 14, 15, 16, 17. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-400-18. Blank suffix: PCB open-frame construction. System class PCB type supports Class I with FG or Class II without FG, with different EMC limits. Integration use Medical power conversion for applications such as oral irrigators, hemodialysis equipment, medical monitors, sleep-apnea devices, pumps and electric beds. BF use requires appropriate complete-system consideration. Main DC Output Nominal main output 18 V. Forced-air current and power 22.3 A / 401.4 W; 25 CFM external airflow. Convection current and power 13.9 A / 250.2 W, subject to the input-voltage and temperature curves. Ripple and noise, maximum 150 mVp-p. Main-output voltage adjustment 17.1–18.9 V. Voltage tolerance ±3.0%, including set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 93%. Use the exact model ratings above; the series designation is not a substitute for its printed wattage. Forced-air ratings are cooling-dependent continuous ratings, not an unrestricted overload or peak-power allowance. Unless specified otherwise, values are measured at 230 VAC, rated load and 25°C. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Input and Timing Input range 80–264 VAC or 113–370 VDC; 47–63 Hz AC. Apply the input derating curve. Power factor Built-in active PFC; at full load, PF >0.94 at 230 VAC and >0.98 at 115 VAC. Input current, typical 4.2 A at 115 VAC; 2.1 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 1000 ms / 30 ms at 230 VAC; 1500 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 16 ms at both 230 VAC and 115 VAC, full load. Leakage current Earth leakage <200 µA at 264 VAC / 50 Hz; touch current <70 µA at 264 VAC, measured from primary input to DC output. No-load power Less than 0.5 W by PS-ON control. Protection and Auxiliary Outputs Short circuit / overload Short-circuit protection; overload at 105–135% of rated output power. Hiccup mode recovers automatically after the fault is removed. Overvoltage Threshold 19.8–23.4 V; output shuts down and requires re-power on to recover. Overtemperature Output shuts down and recovers automatically after temperature decreases. 5 V standby 5 V, 0.6 A without a fan or 1 A with 25 CFM; tolerance ±2%, maximum ripple 120 mVp-p. These are cooling-qualified standby limits. 12 V fan supply 12 V / 0.5 A for driving a fan. Tolerance −15% to +10% at 35% main-output rated current with 25 CFM. Use the dedicated CN12 polarity below. Control, Status and Remote Sense PS-ON high (2–5 V) turns the main output on; low (0–0.5 V) turns it off. The PG TTL signal goes high 10–500 ms after power set-up and goes low at least 1 ms before output falls below 90% of its rated voltage, providing the listed power-good/power-fail indication. CN11: TKP DH2I-2X2 or equivalent; pin 1 −S, pin 2 +S, pin 3 DC COM, pin 4 PG. The −S/+S pins are the remote-sense connections; this section does not specify a numerical cable-drop compensation limit. Follow the complete connection and installation instructions. CN95: TKP DH2L-2X2 or equivalent; pin 1 5Vsb, pins 2 and 4 DC COM, pin 3 PS-ON. Both CN11 and CN95 list TKP DH2 or equivalent mating housings and TKP or equivalent terminals; the catalogue does not provide a more complete terminal ordering suffix. Cooling, Derating and Environment Horizontal temperature/load curves The convection curve uses nominal 250 W up to 40°C at 115 VAC, then 160 W at 60°C; at 230 VAC it holds 250 W to 45°C, then 190 W at 60°C. With 25 CFM, the plotted nominal 400 W holds to 50°C and falls to 200 W at 70°C. Input-voltage curve, 60 Hz 70% load at 80 VAC, 80% at 90 VAC, rising to 100% at 115 VAC and remaining at 100% through 264 VAC. Working ambient / humidity −30 to +70°C with derating; 20–90% RH, non-condensing. Convection curves for PCB/C end at 60°C; the 70°C point requires the plotted forced-air configuration. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient / vibration ±0.03%/°C over 0–50°C. Vibration: 10–500 Hz, 2 G, 10 minutes per cycle and 60 minutes each along X, Y and Z. Altitude Operating altitude up to 4000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. The plotted curves use nominal series-level wattages. Apply them together with this exact model’s voltage/current/power ratings, its installed cooling arrangement and input derating; neither the curve nor the upper temperature permits exceeding the model rating. Dimensions and Installation Dimensions, L × W × H 127 × 76.2 × 35 mm; PCB type. Mounting and clearance Four Ø3.5 mm holes on a 115.6 × 64.8 mm pattern, with 5.7 mm edge offsets. Side view: 35 mm body height and 3 mm maximum underside projection; allow the full shown clearance. Airflow Use an external 25 CFM fan 5 cm from the unit in the direction shown in the mechanical drawing to obtain the forced-air rating. The catalogue does not state that this external fan is included. Board and adjustment references SVR1 is the main-output adjustment reference. FS1 is marked F8A/250V. HS1, HS2, HS3 and HS4 must not be shorted. Drawing units are millimetres with general tolerance ±1 mm unless separately marked. Use the full model-specific mechanical drawing for offsets and clearances; included screws, loose connectors and installation hardware are not stated. Power Connections and Mating Parts AC input CN1 JST B3P-VH or equivalent: pin 1 AC/L, pin 2 no pin, pin 3 AC/N. Mating housing: JST VHR or equivalent; terminal: JST SVH-21T-P1.1 or equivalent. VHR is the printed family reference, not an invented complete ordering suffix. Main DC output CN2: −V; CN3: +V. M3.5 pan-head screws at two positions; maximum torque 8 lbs-in (90 cNm), as printed. Fan connector CN12 TKP 8812-2 or equivalent: pin 1 DC COM, pin 2 +12 V. Mating housing TKP 2502 or equivalent; terminal TKP 8811 or equivalent. Mating-part references identify compatible interface components; they do not establish that loose mating parts are supplied. Choose the correct position count and terminal for each connection. Safety, Isolation and EMC Medical approvals IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. BS EN/EN60335-1 is a design reference by request, not an unconditional additional approval. Isolation / withstand Primary-secondary: 2 × MOPP; primary-earth and secondary-earth: 1 × MOPP each. Withstand: input-output 4 kVAC, input-FG 2 kVAC, output-FG 1.5 kVAC. BF suitability depends on appropriate complete-system configuration. Insulation resistance Input-output and input-FG: 100 MΩ at 500 VDC, 25°C and 70% RH. Emissions BS EN/EN55011 (CISPR11). For the PCB type with FG, conducted/radiated Class B at 230 VAC; at 110 VAC, conducted Class B and radiated Class A. In Class II without FG, conducted and radiated Class A. Harmonic current: BS EN/EN61000-3-2 Class A; flicker: BS EN/EN61000-3-3. Immunity: BS EN/EN55035, BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD (EN61000-4-2): level 4, 15 kV air / 8 kV contact. RF (-4-3): level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9: 9–28 V/m at 385 MHz–5.78 GHz. EFT (-4-4): level 3, 2 kV; surge (-4-5): level 4, 4 kV line-FG / 2 kV line-line. Conducted susceptibility (-4-6): level 3, 10 V; magnetic field (-4-8): level 4, 30 A/m. Dips/interruption (-4-11): 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. Class I EMC testing used a 360 × 360 × 1 mm metal plate. Class II testing used a 130 × 86.6 × 1 mm metal plate. This is an installation component; re-confirm EMC compliance in the final equipment. Weight, Reliability and Catalogue Single-unit catalogue weight 390 g (0.39 kg), explicitly listed as P.W. in PACKING; a catalogue unit reference, not a measured shipping-parcel weight. Packing reference 36 pieces / 15 kg / 0.96 CUFT. Minimum MTBF estimates 1393.3 thousand hours, Telcordia SR-332 (Bellcore); 194.1 thousand hours, MIL-HDBK-217F at 25°C. These statistical estimates are not guaranteed service lives. Catalogue and warranty RPS-400-SPEC, 2024-11-22, combined PDF pages 8–17. Three-year manufacturer warranty, subject to applicable terms.

  Read more less

  $187.29

  View options

•

  View options

  MEAN WELL RPS-400 series: Medical AC/DC Power Supply, Open Frame - RPS-400-15

  MEAN WELL RPS-400-15 is a 15 V medical AC/DC power supply in the pcb open-frame configuration. It supplies 16.7 A / 250.5 W by convection or 26.7 A / 400.5 W with 25 CFM airflow. Select the installation class, load and operating temperature using the version-specific limits below. Product Datasheet Download MEAN WELL RPS-400 Datasheet (PDF) The RPS-400 section is on PDF pages 8, 9, 10, 11, 12, 13, 14, 15, 16, 17. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-400-15. Blank suffix: PCB open-frame construction. System class PCB type supports Class I with FG or Class II without FG, with different EMC limits. Integration use Medical power conversion for applications such as oral irrigators, hemodialysis equipment, medical monitors, sleep-apnea devices, pumps and electric beds. BF use requires appropriate complete-system consideration. Main DC Output Nominal main output 15 V. Forced-air current and power 26.7 A / 400.5 W; 25 CFM external airflow. Convection current and power 16.7 A / 250.5 W, subject to the input-voltage and temperature curves. Ripple and noise, maximum 120 mVp-p. Main-output voltage adjustment 14.3–15.8 V. Voltage tolerance ±3.0%, including set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 92%. Use the exact model ratings above; the series designation is not a substitute for its printed wattage. Forced-air ratings are cooling-dependent continuous ratings, not an unrestricted overload or peak-power allowance. Unless specified otherwise, values are measured at 230 VAC, rated load and 25°C. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Input and Timing Input range 80–264 VAC or 113–370 VDC; 47–63 Hz AC. Apply the input derating curve. Power factor Built-in active PFC; at full load, PF >0.94 at 230 VAC and >0.98 at 115 VAC. Input current, typical 4.2 A at 115 VAC; 2.1 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 1000 ms / 30 ms at 230 VAC; 1500 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 16 ms at both 230 VAC and 115 VAC, full load. Leakage current Earth leakage <200 µA at 264 VAC / 50 Hz; touch current <70 µA at 264 VAC, measured from primary input to DC output. No-load power Less than 0.5 W by PS-ON control. Protection and Auxiliary Outputs Short circuit / overload Short-circuit protection; overload at 105–135% of rated output power. Hiccup mode recovers automatically after the fault is removed. Overvoltage Threshold 16.5–19.5 V; output shuts down and requires re-power on to recover. Overtemperature Output shuts down and recovers automatically after temperature decreases. 5 V standby 5 V, 0.6 A without a fan or 1 A with 25 CFM; tolerance ±2%, maximum ripple 120 mVp-p. These are cooling-qualified standby limits. 12 V fan supply 12 V / 0.5 A for driving a fan. Tolerance −15% to +10% at 35% main-output rated current with 25 CFM. Use the dedicated CN12 polarity below. Control, Status and Remote Sense PS-ON high (2–5 V) turns the main output on; low (0–0.5 V) turns it off. The PG TTL signal goes high 10–500 ms after power set-up and goes low at least 1 ms before output falls below 90% of its rated voltage, providing the listed power-good/power-fail indication. CN11: TKP DH2I-2X2 or equivalent; pin 1 −S, pin 2 +S, pin 3 DC COM, pin 4 PG. The −S/+S pins are the remote-sense connections; this section does not specify a numerical cable-drop compensation limit. Follow the complete connection and installation instructions. CN95: TKP DH2L-2X2 or equivalent; pin 1 5Vsb, pins 2 and 4 DC COM, pin 3 PS-ON. Both CN11 and CN95 list TKP DH2 or equivalent mating housings and TKP or equivalent terminals; the catalogue does not provide a more complete terminal ordering suffix. Cooling, Derating and Environment Horizontal temperature/load curves The convection curve uses nominal 250 W up to 40°C at 115 VAC, then 160 W at 60°C; at 230 VAC it holds 250 W to 45°C, then 190 W at 60°C. With 25 CFM, the plotted nominal 400 W holds to 50°C and falls to 200 W at 70°C. Input-voltage curve, 60 Hz 70% load at 80 VAC, 80% at 90 VAC, rising to 100% at 115 VAC and remaining at 100% through 264 VAC. Working ambient / humidity −30 to +70°C with derating; 20–90% RH, non-condensing. Convection curves for PCB/C end at 60°C; the 70°C point requires the plotted forced-air configuration. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient / vibration ±0.03%/°C over 0–50°C. Vibration: 10–500 Hz, 2 G, 10 minutes per cycle and 60 minutes each along X, Y and Z. Altitude Operating altitude up to 4000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. The plotted curves use nominal series-level wattages. Apply them together with this exact model’s voltage/current/power ratings, its installed cooling arrangement and input derating; neither the curve nor the upper temperature permits exceeding the model rating. Dimensions and Installation Dimensions, L × W × H 127 × 76.2 × 35 mm; PCB type. Mounting and clearance Four Ø3.5 mm holes on a 115.6 × 64.8 mm pattern, with 5.7 mm edge offsets. Side view: 35 mm body height and 3 mm maximum underside projection; allow the full shown clearance. Airflow Use an external 25 CFM fan 5 cm from the unit in the direction shown in the mechanical drawing to obtain the forced-air rating. The catalogue does not state that this external fan is included. Board and adjustment references SVR1 is the main-output adjustment reference. FS1 is marked F8A/250V. HS1, HS2, HS3 and HS4 must not be shorted. Drawing units are millimetres with general tolerance ±1 mm unless separately marked. Use the full model-specific mechanical drawing for offsets and clearances; included screws, loose connectors and installation hardware are not stated. Power Connections and Mating Parts AC input CN1 JST B3P-VH or equivalent: pin 1 AC/L, pin 2 no pin, pin 3 AC/N. Mating housing: JST VHR or equivalent; terminal: JST SVH-21T-P1.1 or equivalent. VHR is the printed family reference, not an invented complete ordering suffix. Main DC output CN2: −V; CN3: +V. M3.5 pan-head screws at two positions; maximum torque 8 lbs-in (90 cNm), as printed. Fan connector CN12 TKP 8812-2 or equivalent: pin 1 DC COM, pin 2 +12 V. Mating housing TKP 2502 or equivalent; terminal TKP 8811 or equivalent. Mating-part references identify compatible interface components; they do not establish that loose mating parts are supplied. Choose the correct position count and terminal for each connection. Safety, Isolation and EMC Medical approvals IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. BS EN/EN60335-1 is a design reference by request, not an unconditional additional approval. Isolation / withstand Primary-secondary: 2 × MOPP; primary-earth and secondary-earth: 1 × MOPP each. Withstand: input-output 4 kVAC, input-FG 2 kVAC, output-FG 1.5 kVAC. BF suitability depends on appropriate complete-system configuration. Insulation resistance Input-output and input-FG: 100 MΩ at 500 VDC, 25°C and 70% RH. Emissions BS EN/EN55011 (CISPR11). For the PCB type with FG, conducted/radiated Class B at 230 VAC; at 110 VAC, conducted Class B and radiated Class A. In Class II without FG, conducted and radiated Class A. Harmonic current: BS EN/EN61000-3-2 Class A; flicker: BS EN/EN61000-3-3. Immunity: BS EN/EN55035, BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD (EN61000-4-2): level 4, 15 kV air / 8 kV contact. RF (-4-3): level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9: 9–28 V/m at 385 MHz–5.78 GHz. EFT (-4-4): level 3, 2 kV; surge (-4-5): level 4, 4 kV line-FG / 2 kV line-line. Conducted susceptibility (-4-6): level 3, 10 V; magnetic field (-4-8): level 4, 30 A/m. Dips/interruption (-4-11): 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. Class I EMC testing used a 360 × 360 × 1 mm metal plate. Class II testing used a 130 × 86.6 × 1 mm metal plate. This is an installation component; re-confirm EMC compliance in the final equipment. Weight, Reliability and Catalogue Single-unit catalogue weight 390 g (0.39 kg), explicitly listed as P.W. in PACKING; a catalogue unit reference, not a measured shipping-parcel weight. Packing reference 36 pieces / 15 kg / 0.96 CUFT. Minimum MTBF estimates 1393.3 thousand hours, Telcordia SR-332 (Bellcore); 194.1 thousand hours, MIL-HDBK-217F at 25°C. These statistical estimates are not guaranteed service lives. Catalogue and warranty RPS-400-SPEC, 2024-11-22, combined PDF pages 8–17. Three-year manufacturer warranty, subject to applicable terms.

  Read more less

  $187.29

  View options

•

  View options

  MEAN WELL RPS-400 series: Medical AC/DC Power Supply, Open Frame - RPS-400-12

  MEAN WELL RPS-400-12 is a 12 V medical AC/DC power supply in the pcb open-frame configuration. It supplies 20.8 A / 249.6 W by convection or 33.3 A / 399.6 W with 25 CFM airflow. Select the installation class, load and operating temperature using the version-specific limits below. Product Datasheet Download MEAN WELL RPS-400 Datasheet (PDF) The RPS-400 section is on PDF pages 8, 9, 10, 11, 12, 13, 14, 15, 16, 17. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-400-12. Blank suffix: PCB open-frame construction. System class PCB type supports Class I with FG or Class II without FG, with different EMC limits. Integration use Medical power conversion for applications such as oral irrigators, hemodialysis equipment, medical monitors, sleep-apnea devices, pumps and electric beds. BF use requires appropriate complete-system consideration. Main DC Output Nominal main output 12 V. Forced-air current and power 33.3 A / 399.6 W; 25 CFM external airflow. Convection current and power 20.8 A / 249.6 W, subject to the input-voltage and temperature curves. Ripple and noise, maximum 120 mVp-p. Main-output voltage adjustment 11.4–12.6 V. Voltage tolerance ±3.0%, including set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 91.5%. Use the exact model ratings above; the series designation is not a substitute for its printed wattage. Forced-air ratings are cooling-dependent continuous ratings, not an unrestricted overload or peak-power allowance. Unless specified otherwise, values are measured at 230 VAC, rated load and 25°C. Ripple/noise uses 20 MHz bandwidth and a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Input and Timing Input range 80–264 VAC or 113–370 VDC; 47–63 Hz AC. Apply the input derating curve. Power factor Built-in active PFC; at full load, PF >0.94 at 230 VAC and >0.98 at 115 VAC. Input current, typical 4.2 A at 115 VAC; 2.1 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 1000 ms / 30 ms at 230 VAC; 1500 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 16 ms at both 230 VAC and 115 VAC, full load. Leakage current Earth leakage <200 µA at 264 VAC / 50 Hz; touch current <70 µA at 264 VAC, measured from primary input to DC output. No-load power Less than 0.5 W by PS-ON control. Protection and Auxiliary Outputs Short circuit / overload Short-circuit protection; overload at 105–135% of rated output power. Hiccup mode recovers automatically after the fault is removed. Overvoltage Threshold 13.2–15.6 V; output shuts down and requires re-power on to recover. Overtemperature Output shuts down and recovers automatically after temperature decreases. 5 V standby 5 V, 0.6 A without a fan or 1 A with 25 CFM; tolerance ±2%, maximum ripple 120 mVp-p. These are cooling-qualified standby limits. 12 V fan supply 12 V / 0.5 A for driving a fan. Tolerance −15% to +10% at 35% main-output rated current with 25 CFM. Use the dedicated CN12 polarity below. Control, Status and Remote Sense PS-ON high (2–5 V) turns the main output on; low (0–0.5 V) turns it off. The PG TTL signal goes high 10–500 ms after power set-up and goes low at least 1 ms before output falls below 90% of its rated voltage, providing the listed power-good/power-fail indication. CN11: TKP DH2I-2X2 or equivalent; pin 1 −S, pin 2 +S, pin 3 DC COM, pin 4 PG. The −S/+S pins are the remote-sense connections; this section does not specify a numerical cable-drop compensation limit. Follow the complete connection and installation instructions. CN95: TKP DH2L-2X2 or equivalent; pin 1 5Vsb, pins 2 and 4 DC COM, pin 3 PS-ON. Both CN11 and CN95 list TKP DH2 or equivalent mating housings and TKP or equivalent terminals; the catalogue does not provide a more complete terminal ordering suffix. Cooling, Derating and Environment Horizontal temperature/load curves The convection curve uses nominal 250 W up to 40°C at 115 VAC, then 160 W at 60°C; at 230 VAC it holds 250 W to 45°C, then 190 W at 60°C. With 25 CFM, the plotted nominal 400 W holds to 50°C and falls to 200 W at 70°C. Input-voltage curve, 60 Hz 70% load at 80 VAC, 80% at 90 VAC, rising to 100% at 115 VAC and remaining at 100% through 264 VAC. Working ambient / humidity −30 to +70°C with derating; 20–90% RH, non-condensing. Convection curves for PCB/C end at 60°C; the 70°C point requires the plotted forced-air configuration. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient / vibration ±0.03%/°C over 0–50°C. Vibration: 10–500 Hz, 2 G, 10 minutes per cycle and 60 minutes each along X, Y and Z. Altitude Operating altitude up to 4000 m. Above 2000 m, reduce allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. The plotted curves use nominal series-level wattages. Apply them together with this exact model’s voltage/current/power ratings, its installed cooling arrangement and input derating; neither the curve nor the upper temperature permits exceeding the model rating. Dimensions and Installation Dimensions, L × W × H 127 × 76.2 × 35 mm; PCB type. Mounting and clearance Four Ø3.5 mm holes on a 115.6 × 64.8 mm pattern, with 5.7 mm edge offsets. Side view: 35 mm body height and 3 mm maximum underside projection; allow the full shown clearance. Airflow Use an external 25 CFM fan 5 cm from the unit in the direction shown in the mechanical drawing to obtain the forced-air rating. The catalogue does not state that this external fan is included. Board and adjustment references SVR1 is the main-output adjustment reference. FS1 is marked F8A/250V. HS1, HS2, HS3 and HS4 must not be shorted. Drawing units are millimetres with general tolerance ±1 mm unless separately marked. Use the full model-specific mechanical drawing for offsets and clearances; included screws, loose connectors and installation hardware are not stated. Power Connections and Mating Parts AC input CN1 JST B3P-VH or equivalent: pin 1 AC/L, pin 2 no pin, pin 3 AC/N. Mating housing: JST VHR or equivalent; terminal: JST SVH-21T-P1.1 or equivalent. VHR is the printed family reference, not an invented complete ordering suffix. Main DC output CN2: −V; CN3: +V. M3.5 pan-head screws at two positions; maximum torque 8 lbs-in (90 cNm), as printed. Fan connector CN12 TKP 8812-2 or equivalent: pin 1 DC COM, pin 2 +12 V. Mating housing TKP 2502 or equivalent; terminal TKP 8811 or equivalent. Mating-part references identify compatible interface components; they do not establish that loose mating parts are supplied. Choose the correct position count and terminal for each connection. Safety, Isolation and EMC Medical approvals IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; EAC TP TC004. BS EN/EN60335-1 is a design reference by request, not an unconditional additional approval. Isolation / withstand Primary-secondary: 2 × MOPP; primary-earth and secondary-earth: 1 × MOPP each. Withstand: input-output 4 kVAC, input-FG 2 kVAC, output-FG 1.5 kVAC. BF suitability depends on appropriate complete-system configuration. Insulation resistance Input-output and input-FG: 100 MΩ at 500 VDC, 25°C and 70% RH. Emissions BS EN/EN55011 (CISPR11). For the PCB type with FG, conducted/radiated Class B at 230 VAC; at 110 VAC, conducted Class B and radiated Class A. In Class II without FG, conducted and radiated Class A. Harmonic current: BS EN/EN61000-3-2 Class A; flicker: BS EN/EN61000-3-3. Immunity: BS EN/EN55035, BS EN/EN60601-1-2 and BS EN/EN61204-3. ESD (EN61000-4-2): level 4, 15 kV air / 8 kV contact. RF (-4-3): level 3, 10 V/m at 80 MHz–2.7 GHz; Table 9: 9–28 V/m at 385 MHz–5.78 GHz. EFT (-4-4): level 3, 2 kV; surge (-4-5): level 4, 4 kV line-FG / 2 kV line-line. Conducted susceptibility (-4-6): level 3, 10 V; magnetic field (-4-8): level 4, 30 A/m. Dips/interruption (-4-11): 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. Class I EMC testing used a 360 × 360 × 1 mm metal plate. Class II testing used a 130 × 86.6 × 1 mm metal plate. This is an installation component; re-confirm EMC compliance in the final equipment. Weight, Reliability and Catalogue Single-unit catalogue weight 390 g (0.39 kg), explicitly listed as P.W. in PACKING; a catalogue unit reference, not a measured shipping-parcel weight. Packing reference 36 pieces / 15 kg / 0.96 CUFT. Minimum MTBF estimates 1393.3 thousand hours, Telcordia SR-332 (Bellcore); 194.1 thousand hours, MIL-HDBK-217F at 25°C. These statistical estimates are not guaranteed service lives. Catalogue and warranty RPS-400-SPEC, 2024-11-22, combined PDF pages 8–17. Three-year manufacturer warranty, subject to applicable terms.

  Read more less

  $187.29

  View options

•

  View options

  MEAN WELL RPS-300 series: Enclosed Medical AC/DC Power Supply - RPS-300-48-C

  MEAN WELL RPS-300-48-C is a case-enclosed medical AC/DC power supply with active PFC and a nominal 48 V output. It provides up to 6.25 A / 300 W with the specified forced-air cooling, subject to input and ambient derating. The -C convection curve is limited to 180 W at temperatures up to 40°C, then derates further. Auxiliary standby and fan outputs, PS-ON, power-status signalling and remote sense support system integration. Product Datasheet Download MEAN WELL RPS-300 Datasheet (PDF) The RPS-300 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-300-48-C Product type Single-output enclosed medical AC/DC power supply with active PFC. Model code RPS-300 identifies the series; 48 is the nominal DC voltage; the -C suffix identifies the enclosed casing version. The 300W rating requires forced cooling and the specified input and ambient conditions. The model is not supplied as a top-fan or side-fan variant by this code; the cooling fan shown in the installation drawing is external. Primary-to-secondary insulation is 2 × MOPP. Suitability for BF applications requires appropriate consideration of the complete medical system; the component approval is not a guarantee of finished-equipment BF compliance. Model-Specific DC Output DC output voltage 48 V Current range, convection 0–4.17 A; subject to the enclosure and temperature limits below. Current range, forced cooling 0–6.25 A at 20.5 CFM. Printed output power ratings 200.2 W with convection; 300 W at 20.5 CFM. Apply all derating limits; the two modes are not interchangeable. Output adjustment 45.6–50.4 V, main output via SVR1. Ripple and noise, maximum 250 mVp-p. Voltage tolerance ±2.0%; includes set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 93% at the standard measurement conditions. The catalogue lists rounded current and power values independently. Respect both limits and the lower allowable load imposed by cooling, input voltage and ambient temperature; do not increase a rating by recalculating voltage × current. Unless otherwise stated, specifications are measured at 230 VAC, rated load and 25°C ambient. Ripple/noise is measured with 20 MHz bandwidth and a 12-inch twisted pair terminated by parallel 0.1 µF and 47 µF capacitors. Input and Start-Up Input range 90–264 VAC or 127–370 VDC; 47–63 Hz AC. Power factor, typical >0.93 at 230 VAC; >0.98 at 115 VAC, full load. Input current, typical 3.5 A at 115 VAC; 1.8 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 2500 ms / 30 ms at 230 VAC; 3000 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 13 ms at 230 VAC and 115 VAC, full load. No-load consumption <0.5 W by PS-ON control. The input-voltage load curve at 60 Hz permits 80% at 90 VAC, rising linearly to 100% at 115 VAC and remaining at 100% through 264 VAC. Apply this limit together with the thermal curves. The functional block diagram identifies a 65 kHz PFC stage and 70 kHz PWM stage. Protection Short circuit / overload 105–135% of rated output power; hiccup mode, with automatic recovery after the fault is removed. Overvoltage 52–59.5 V; output shuts down and requires re-powering to recover. Overtemperature TSW1 shuts down the output and recovers automatically after temperature decreases. TSW2 shuts down the output and requires re-powering to recover. Standby, Fan Supply and Control Signals 5 V standby output 5 V at 0.6 A without a fan or 1 A with 20.5 CFM cooling; tolerance ±2%; maximum ripple 150 mVp-p. Fan auxiliary supply 12 V / 0.5 A; tolerance −15% to +10% at a main-output load of 20% of the 20.5 CFM rated current. PS-ON logic Power ON: High, 2–5 V. Power OFF: Low, 0–0.5 V. Power Good / Power Fail TTL goes high after a delay greater than 10 ms and less than 500 ms after power set-up. It goes low at least 1 ms before output falls below 90% of nominal. The fan supply is dedicated to an additional external fan that cools this power supply, supports full-load delivery and promotes service life. Do not use it to drive other devices. Remote sense is provided at CN100: pin 1 is −S and pin 2 is +S; pin 3 is DC COM and pin 4 is PG. Follow the manufacturer installation instructions for sense wiring. This section does not specify a numerical line-drop compensation allowance or a separate PF connector pin. Cooling, Temperature and Environment Working temperature −30 to +70°C, with mode-specific derating; horizontal orientation. Operating humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 min per cycle, 60 min each on X, Y and Z. Operating altitude Up to 4000 m, with additional thermal derating above 2000 m. For this enclosed -C type, the horizontal convection curve is limited to 180W up to 40°C and falls to 100W at 60°C. The convection curve ends at 60°C; the 70°C endpoint belongs to forced cooling. With 20.5 CFM forced airflow, the common RPS-300 / RPS-300-C curve permits 300 W through 50°C, then falls to 150 W at 70°C. This is a cooling-dependent continuous rating, not a timed pulse or a duty-cycle peak allowance. Above 2000 m, reduce the allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. Observe the lower load allowed by all curves. Dimensions and Installation Overall size, L × W × H 130 × 86 × 43 mm. Construction Enclosed case No.247A; external cooling fan is not identified as an included item. Mounting details Bottom: 4-M3, L=2 mm, center spacing 120 × 50 mm. Side: 2-M3, L=4 mm, spacing 120 mm. Follow case drawing for slots and access. External fan position The enclosed mechanical drawing shows 25 CFM at 5 cm from the long side, with the fan center 57 mm from the output end. The specification and shared thermal curve are separately labelled 20.5 CFM; retain the drawing arrangement and verify cooling in the final installation. HS1 and HS2 must not be shorted. The LED and SVR1 adjustment are identified on the PCB drawing. The -C enclosed version is not suitable for a Class II system without FG; the catalogue recommends Class I construction with FG. Connect the specified FG terminal and follow the installation manual. Connections and Mating-Part References AC input, CN1 JST B5P-VH or equivalent: pin 1 FG; pins 2/4 absent; pin 3 AC/L; pin 5 AC/N. DC output, CN2 / CN3 CN2 is −V; CN3 is +V. M3.5 pan-head screws in two positions; maximum torque 8 lbf·in (90 cN·m). Signal connector, CN100 HRS DF11-4DP-2DS or equivalent: 1 −S, 2 +S, 3 DC COM, 4 PG. Standby / control, CN951 HRS DF11-4DP-2DS or equivalent: 1 5VSB, 2/4 DC COM, 3 PS-ON. Fan output, CN952 JST S2B-XH or equivalent: pin 1 DC COM; pin 2 +12 V. CN1 mating references are JST VHR housing and JST SVH-21T-P1.1 terminal, or equivalents. CN100 and CN951 reference HRS DF11-4DS housings and HRS DF11-**SC terminal variants. CN952 references JST XHP housing and JST SXH-001T-P0.6 terminal, or equivalents. VHR, XHP and the wildcard DF11-**SC are printed family or variant references, not newly completed ordering codes. Select the appropriate contact, position count and wire compatibility from the connector manufacturer. These mating references do not establish that loose housings, contacts, a cable kit or a fan are supplied with the power supply. Medical Isolation, Leakage and Safety Insulation levels Primary-secondary 2×MOPP; primary-earth 1×MOPP; secondary-earth 1×MOPP. Withstand voltage Input-output 4 kVAC; input-FG 2 kVAC; output-FG 1.5 kVAC. Isolation resistance 100 MΩ at 500 VDC / 25°C / 70% RH, for input-output, input-FG and output-FG. Leakage current, maximum Earth leakage<200 µA at 264 VAC; touch current <70 µA at 264 VAC. Touch current is measured from primary input to DC output. The PCB and enclosed versions have different earth-leakage limits; use the limit above for this selected construction. The safety table lists IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; IEC60335-1:2010+A1+A2; Dekra BS EN/EN60335-1:2012+A11+A13+A1+A14+A2+A15; and EAC TP TC004 approval. The cover additionally identifies UL62368-1, BS EN/EN62368-1 and IEC62368-1. Applicable equipment compliance must be assessed for the final configuration. EMC and Integration Conditions Conducted and radiated emissions: BS EN/EN55011 (CISPR11), Class B. Harmonic current: BS EN/EN61000-3-2 Class A; voltage flicker: BS EN/EN61000-3-3. Immunity references are BS EN/EN55035 and BS EN/EN60601-1-2. The listed immunity tests are EN61000-4-2 ESD Level 4, 15 kV air / 8 kV contact; EN61000-4-3 RF Level 3, 10 V/m at 80 MHz–2.7GHz and Table 9, 9–28 V/m at 385 MHz–5.78GHz; EN61000-4-4 EFT Level 3, 2 kV; EN61000-4-5 surge Level 4, 4 kV line-FG / 2 kV line-line; EN61000-4-6 conducted susceptibility Level 3, 10 V; EN61000-4-8 magnetic field Level 4, 30 A/m; EN61000-4-11 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. The power supply is a component for installation within final equipment. The listed Class I EMC tests used FG and a 360 × 360 mm metal plate 1 mm thick. Reconfirm EMC compliance in the complete equipment and follow the manufacturer installation instructions. Reliability and Weight Reference MTBF, minimum 1487.9 K hours, Telcordia SR-332 (Bellcore); 163.8 K hours, MIL-HDBK-217F at 25°C. Single-unit packing reference 0.563 kg = 563 g per unit, from the catalogue PACKING field. Carton reference 24pcs/14.5kg/0.77CUFT; this carton weight is not the product weight. The catalogue features list a typical lifetime greater than 40,000 hours and a 3-year warranty. Lifetime and MTBF are different catalogue reliability measures, not an unconditional operating-life guarantee. The single-unit packing reference is not an independently measured net or shipment weight.

  Read more less

  $171.02

  View options

•

  View options

  MEAN WELL RPS-300 series: Enclosed Medical AC/DC Power Supply - RPS-300-27-C

  MEAN WELL RPS-300-27-C is a case-enclosed medical AC/DC power supply with active PFC and a nominal 27 V output. It provides up to 11.12 A / 300 W with the specified forced-air cooling, subject to input and ambient derating. The -C convection curve is limited to 180 W at temperatures up to 40°C, then derates further. Auxiliary standby and fan outputs, PS-ON, power-status signalling and remote sense support system integration. Product Datasheet Download MEAN WELL RPS-300 Datasheet (PDF) The RPS-300 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-300-27-C Product type Single-output enclosed medical AC/DC power supply with active PFC. Model code RPS-300 identifies the series; 27 is the nominal DC voltage; the -C suffix identifies the enclosed casing version. The 300W rating requires forced cooling and the specified input and ambient conditions. The model is not supplied as a top-fan or side-fan variant by this code; the cooling fan shown in the installation drawing is external. Primary-to-secondary insulation is 2 × MOPP. Suitability for BF applications requires appropriate consideration of the complete medical system; the component approval is not a guarantee of finished-equipment BF compliance. Model-Specific DC Output DC output voltage 27 V Current range, convection 0–7.4 A; subject to the enclosure and temperature limits below. Current range, forced cooling 0–11.12 A at 20.5 CFM. Printed output power ratings 200 W with convection; 300 W at 20.5 CFM. Apply all derating limits; the two modes are not interchangeable. Output adjustment 25.65–28.35 V, main output via SVR1. Ripple and noise, maximum 200 mVp-p. Voltage tolerance ±2.0%; includes set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 93% at the standard measurement conditions. The catalogue lists rounded current and power values independently. Respect both limits and the lower allowable load imposed by cooling, input voltage and ambient temperature; do not increase a rating by recalculating voltage × current. Unless otherwise stated, specifications are measured at 230 VAC, rated load and 25°C ambient. Ripple/noise is measured with 20 MHz bandwidth and a 12-inch twisted pair terminated by parallel 0.1 µF and 47 µF capacitors. Input and Start-Up Input range 90–264 VAC or 127–370 VDC; 47–63 Hz AC. Power factor, typical >0.93 at 230 VAC; >0.98 at 115 VAC, full load. Input current, typical 3.5 A at 115 VAC; 1.8 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 2500 ms / 30 ms at 230 VAC; 3000 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 13 ms at 230 VAC and 115 VAC, full load. No-load consumption <0.5 W by PS-ON control. The input-voltage load curve at 60 Hz permits 80% at 90 VAC, rising linearly to 100% at 115 VAC and remaining at 100% through 264 VAC. Apply this limit together with the thermal curves. The functional block diagram identifies a 65 kHz PFC stage and 70 kHz PWM stage. Protection Short circuit / overload 105–135% of rated output power; hiccup mode, with automatic recovery after the fault is removed. Overvoltage 29.5–33.5 V; output shuts down and requires re-powering to recover. Overtemperature TSW1 shuts down the output and recovers automatically after temperature decreases. TSW2 shuts down the output and requires re-powering to recover. Standby, Fan Supply and Control Signals 5 V standby output 5 V at 0.6 A without a fan or 1 A with 20.5 CFM cooling; tolerance ±2%; maximum ripple 150 mVp-p. Fan auxiliary supply 12 V / 0.5 A; tolerance −15% to +10% at a main-output load of 20% of the 20.5 CFM rated current. PS-ON logic Power ON: High, 2–5 V. Power OFF: Low, 0–0.5 V. Power Good / Power Fail TTL goes high after a delay greater than 10 ms and less than 500 ms after power set-up. It goes low at least 1 ms before output falls below 90% of nominal. The fan supply is dedicated to an additional external fan that cools this power supply, supports full-load delivery and promotes service life. Do not use it to drive other devices. Remote sense is provided at CN100: pin 1 is −S and pin 2 is +S; pin 3 is DC COM and pin 4 is PG. Follow the manufacturer installation instructions for sense wiring. This section does not specify a numerical line-drop compensation allowance or a separate PF connector pin. Cooling, Temperature and Environment Working temperature −30 to +70°C, with mode-specific derating; horizontal orientation. Operating humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 min per cycle, 60 min each on X, Y and Z. Operating altitude Up to 4000 m, with additional thermal derating above 2000 m. For this enclosed -C type, the horizontal convection curve is limited to 180W up to 40°C and falls to 100W at 60°C. The convection curve ends at 60°C; the 70°C endpoint belongs to forced cooling. With 20.5 CFM forced airflow, the common RPS-300 / RPS-300-C curve permits 300 W through 50°C, then falls to 150 W at 70°C. This is a cooling-dependent continuous rating, not a timed pulse or a duty-cycle peak allowance. Above 2000 m, reduce the allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. Observe the lower load allowed by all curves. Dimensions and Installation Overall size, L × W × H 130 × 86 × 43 mm. Construction Enclosed case No.247A; external cooling fan is not identified as an included item. Mounting details Bottom: 4-M3, L=2 mm, center spacing 120 × 50 mm. Side: 2-M3, L=4 mm, spacing 120 mm. Follow case drawing for slots and access. External fan position The enclosed mechanical drawing shows 25 CFM at 5 cm from the long side, with the fan center 57 mm from the output end. The specification and shared thermal curve are separately labelled 20.5 CFM; retain the drawing arrangement and verify cooling in the final installation. HS1 and HS2 must not be shorted. The LED and SVR1 adjustment are identified on the PCB drawing. The -C enclosed version is not suitable for a Class II system without FG; the catalogue recommends Class I construction with FG. Connect the specified FG terminal and follow the installation manual. Connections and Mating-Part References AC input, CN1 JST B5P-VH or equivalent: pin 1 FG; pins 2/4 absent; pin 3 AC/L; pin 5 AC/N. DC output, CN2 / CN3 CN2 is −V; CN3 is +V. M3.5 pan-head screws in two positions; maximum torque 8 lbf·in (90 cN·m). Signal connector, CN100 HRS DF11-4DP-2DS or equivalent: 1 −S, 2 +S, 3 DC COM, 4 PG. Standby / control, CN951 HRS DF11-4DP-2DS or equivalent: 1 5VSB, 2/4 DC COM, 3 PS-ON. Fan output, CN952 JST S2B-XH or equivalent: pin 1 DC COM; pin 2 +12 V. CN1 mating references are JST VHR housing and JST SVH-21T-P1.1 terminal, or equivalents. CN100 and CN951 reference HRS DF11-4DS housings and HRS DF11-**SC terminal variants. CN952 references JST XHP housing and JST SXH-001T-P0.6 terminal, or equivalents. VHR, XHP and the wildcard DF11-**SC are printed family or variant references, not newly completed ordering codes. Select the appropriate contact, position count and wire compatibility from the connector manufacturer. These mating references do not establish that loose housings, contacts, a cable kit or a fan are supplied with the power supply. Medical Isolation, Leakage and Safety Insulation levels Primary-secondary 2×MOPP; primary-earth 1×MOPP; secondary-earth 1×MOPP. Withstand voltage Input-output 4 kVAC; input-FG 2 kVAC; output-FG 1.5 kVAC. Isolation resistance 100 MΩ at 500 VDC / 25°C / 70% RH, for input-output, input-FG and output-FG. Leakage current, maximum Earth leakage<200 µA at 264 VAC; touch current <70 µA at 264 VAC. Touch current is measured from primary input to DC output. The PCB and enclosed versions have different earth-leakage limits; use the limit above for this selected construction. The safety table lists IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; IEC60335-1:2010+A1+A2; Dekra BS EN/EN60335-1:2012+A11+A13+A1+A14+A2+A15; and EAC TP TC004 approval. The cover additionally identifies UL62368-1, BS EN/EN62368-1 and IEC62368-1. Applicable equipment compliance must be assessed for the final configuration. EMC and Integration Conditions Conducted and radiated emissions: BS EN/EN55011 (CISPR11), Class B. Harmonic current: BS EN/EN61000-3-2 Class A; voltage flicker: BS EN/EN61000-3-3. Immunity references are BS EN/EN55035 and BS EN/EN60601-1-2. The listed immunity tests are EN61000-4-2 ESD Level 4, 15 kV air / 8 kV contact; EN61000-4-3 RF Level 3, 10 V/m at 80 MHz–2.7GHz and Table 9, 9–28 V/m at 385 MHz–5.78GHz; EN61000-4-4 EFT Level 3, 2 kV; EN61000-4-5 surge Level 4, 4 kV line-FG / 2 kV line-line; EN61000-4-6 conducted susceptibility Level 3, 10 V; EN61000-4-8 magnetic field Level 4, 30 A/m; EN61000-4-11 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. The power supply is a component for installation within final equipment. The listed Class I EMC tests used FG and a 360 × 360 mm metal plate 1 mm thick. Reconfirm EMC compliance in the complete equipment and follow the manufacturer installation instructions. Reliability and Weight Reference MTBF, minimum 1487.9 K hours, Telcordia SR-332 (Bellcore); 163.8 K hours, MIL-HDBK-217F at 25°C. Single-unit packing reference 0.563 kg = 563 g per unit, from the catalogue PACKING field. Carton reference 24pcs/14.5kg/0.77CUFT; this carton weight is not the product weight. The catalogue features list a typical lifetime greater than 40,000 hours and a 3-year warranty. Lifetime and MTBF are different catalogue reliability measures, not an unconditional operating-life guarantee. The single-unit packing reference is not an independently measured net or shipment weight.

  Read more less

  $175.46

  View options

•

  View options

  MEAN WELL RPS-300 series: Enclosed Medical AC/DC Power Supply - RPS-300-24-C

  MEAN WELL RPS-300-24-C is a case-enclosed medical AC/DC power supply with active PFC and a nominal 24 V output. It provides up to 12.5 A / 300 W with the specified forced-air cooling, subject to input and ambient derating. The -C convection curve is limited to 180 W at temperatures up to 40°C, then derates further. Auxiliary standby and fan outputs, PS-ON, power-status signalling and remote sense support system integration. Product Datasheet Download MEAN WELL RPS-300 Datasheet (PDF) The RPS-300 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-300-24-C Product type Single-output enclosed medical AC/DC power supply with active PFC. Model code RPS-300 identifies the series; 24 is the nominal DC voltage; the -C suffix identifies the enclosed casing version. The 300W rating requires forced cooling and the specified input and ambient conditions. The model is not supplied as a top-fan or side-fan variant by this code; the cooling fan shown in the installation drawing is external. Primary-to-secondary insulation is 2 × MOPP. Suitability for BF applications requires appropriate consideration of the complete medical system; the component approval is not a guarantee of finished-equipment BF compliance. Model-Specific DC Output DC output voltage 24 V Current range, convection 0–8.33 A; subject to the enclosure and temperature limits below. Current range, forced cooling 0–12.5 A at 20.5 CFM. Printed output power ratings 200 W with convection; 300 W at 20.5 CFM. Apply all derating limits; the two modes are not interchangeable. Output adjustment 22.8–25.2 V, main output via SVR1. Ripple and noise, maximum 150 mVp-p. Voltage tolerance ±2.0%; includes set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 92.5% at the standard measurement conditions. The catalogue lists rounded current and power values independently. Respect both limits and the lower allowable load imposed by cooling, input voltage and ambient temperature; do not increase a rating by recalculating voltage × current. Unless otherwise stated, specifications are measured at 230 VAC, rated load and 25°C ambient. Ripple/noise is measured with 20 MHz bandwidth and a 12-inch twisted pair terminated by parallel 0.1 µF and 47 µF capacitors. Input and Start-Up Input range 90–264 VAC or 127–370 VDC; 47–63 Hz AC. Power factor, typical >0.93 at 230 VAC; >0.98 at 115 VAC, full load. Input current, typical 3.5 A at 115 VAC; 1.8 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 2500 ms / 30 ms at 230 VAC; 3000 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 13 ms at 230 VAC and 115 VAC, full load. No-load consumption <0.5 W by PS-ON control. The input-voltage load curve at 60 Hz permits 80% at 90 VAC, rising linearly to 100% at 115 VAC and remaining at 100% through 264 VAC. Apply this limit together with the thermal curves. The functional block diagram identifies a 65 kHz PFC stage and 70 kHz PWM stage. Protection Short circuit / overload 105–135% of rated output power; hiccup mode, with automatic recovery after the fault is removed. Overvoltage 26–30 V; output shuts down and requires re-powering to recover. Overtemperature TSW1 shuts down the output and recovers automatically after temperature decreases. TSW2 shuts down the output and requires re-powering to recover. Standby, Fan Supply and Control Signals 5 V standby output 5 V at 0.6 A without a fan or 1 A with 20.5 CFM cooling; tolerance ±2%; maximum ripple 150 mVp-p. Fan auxiliary supply 12 V / 0.5 A; tolerance −15% to +10% at a main-output load of 20% of the 20.5 CFM rated current. PS-ON logic Power ON: High, 2–5 V. Power OFF: Low, 0–0.5 V. Power Good / Power Fail TTL goes high after a delay greater than 10 ms and less than 500 ms after power set-up. It goes low at least 1 ms before output falls below 90% of nominal. The fan supply is dedicated to an additional external fan that cools this power supply, supports full-load delivery and promotes service life. Do not use it to drive other devices. Remote sense is provided at CN100: pin 1 is −S and pin 2 is +S; pin 3 is DC COM and pin 4 is PG. Follow the manufacturer installation instructions for sense wiring. This section does not specify a numerical line-drop compensation allowance or a separate PF connector pin. Cooling, Temperature and Environment Working temperature −30 to +70°C, with mode-specific derating; horizontal orientation. Operating humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 min per cycle, 60 min each on X, Y and Z. Operating altitude Up to 4000 m, with additional thermal derating above 2000 m. For this enclosed -C type, the horizontal convection curve is limited to 180W up to 40°C and falls to 100W at 60°C. The convection curve ends at 60°C; the 70°C endpoint belongs to forced cooling. With 20.5 CFM forced airflow, the common RPS-300 / RPS-300-C curve permits 300 W through 50°C, then falls to 150 W at 70°C. This is a cooling-dependent continuous rating, not a timed pulse or a duty-cycle peak allowance. Above 2000 m, reduce the allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. Observe the lower load allowed by all curves. Dimensions and Installation Overall size, L × W × H 130 × 86 × 43 mm. Construction Enclosed case No.247A; external cooling fan is not identified as an included item. Mounting details Bottom: 4-M3, L=2 mm, center spacing 120 × 50 mm. Side: 2-M3, L=4 mm, spacing 120 mm. Follow case drawing for slots and access. External fan position The enclosed mechanical drawing shows 25 CFM at 5 cm from the long side, with the fan center 57 mm from the output end. The specification and shared thermal curve are separately labelled 20.5 CFM; retain the drawing arrangement and verify cooling in the final installation. HS1 and HS2 must not be shorted. The LED and SVR1 adjustment are identified on the PCB drawing. The -C enclosed version is not suitable for a Class II system without FG; the catalogue recommends Class I construction with FG. Connect the specified FG terminal and follow the installation manual. Connections and Mating-Part References AC input, CN1 JST B5P-VH or equivalent: pin 1 FG; pins 2/4 absent; pin 3 AC/L; pin 5 AC/N. DC output, CN2 / CN3 CN2 is −V; CN3 is +V. M3.5 pan-head screws in two positions; maximum torque 8 lbf·in (90 cN·m). Signal connector, CN100 HRS DF11-4DP-2DS or equivalent: 1 −S, 2 +S, 3 DC COM, 4 PG. Standby / control, CN951 HRS DF11-4DP-2DS or equivalent: 1 5VSB, 2/4 DC COM, 3 PS-ON. Fan output, CN952 JST S2B-XH or equivalent: pin 1 DC COM; pin 2 +12 V. CN1 mating references are JST VHR housing and JST SVH-21T-P1.1 terminal, or equivalents. CN100 and CN951 reference HRS DF11-4DS housings and HRS DF11-**SC terminal variants. CN952 references JST XHP housing and JST SXH-001T-P0.6 terminal, or equivalents. VHR, XHP and the wildcard DF11-**SC are printed family or variant references, not newly completed ordering codes. Select the appropriate contact, position count and wire compatibility from the connector manufacturer. These mating references do not establish that loose housings, contacts, a cable kit or a fan are supplied with the power supply. Medical Isolation, Leakage and Safety Insulation levels Primary-secondary 2×MOPP; primary-earth 1×MOPP; secondary-earth 1×MOPP. Withstand voltage Input-output 4 kVAC; input-FG 2 kVAC; output-FG 1.5 kVAC. Isolation resistance 100 MΩ at 500 VDC / 25°C / 70% RH, for input-output, input-FG and output-FG. Leakage current, maximum Earth leakage<200 µA at 264 VAC; touch current <70 µA at 264 VAC. Touch current is measured from primary input to DC output. The PCB and enclosed versions have different earth-leakage limits; use the limit above for this selected construction. The safety table lists IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; IEC60335-1:2010+A1+A2; Dekra BS EN/EN60335-1:2012+A11+A13+A1+A14+A2+A15; and EAC TP TC004 approval. The cover additionally identifies UL62368-1, BS EN/EN62368-1 and IEC62368-1. Applicable equipment compliance must be assessed for the final configuration. EMC and Integration Conditions Conducted and radiated emissions: BS EN/EN55011 (CISPR11), Class B. Harmonic current: BS EN/EN61000-3-2 Class A; voltage flicker: BS EN/EN61000-3-3. Immunity references are BS EN/EN55035 and BS EN/EN60601-1-2. The listed immunity tests are EN61000-4-2 ESD Level 4, 15 kV air / 8 kV contact; EN61000-4-3 RF Level 3, 10 V/m at 80 MHz–2.7GHz and Table 9, 9–28 V/m at 385 MHz–5.78GHz; EN61000-4-4 EFT Level 3, 2 kV; EN61000-4-5 surge Level 4, 4 kV line-FG / 2 kV line-line; EN61000-4-6 conducted susceptibility Level 3, 10 V; EN61000-4-8 magnetic field Level 4, 30 A/m; EN61000-4-11 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. The power supply is a component for installation within final equipment. The listed Class I EMC tests used FG and a 360 × 360 mm metal plate 1 mm thick. Reconfirm EMC compliance in the complete equipment and follow the manufacturer installation instructions. Reliability and Weight Reference MTBF, minimum 1487.9 K hours, Telcordia SR-332 (Bellcore); 163.8 K hours, MIL-HDBK-217F at 25°C. Single-unit packing reference 0.563 kg = 563 g per unit, from the catalogue PACKING field. Carton reference 24pcs/14.5kg/0.77CUFT; this carton weight is not the product weight. The catalogue features list a typical lifetime greater than 40,000 hours and a 3-year warranty. Lifetime and MTBF are different catalogue reliability measures, not an unconditional operating-life guarantee. The single-unit packing reference is not an independently measured net or shipment weight.

  Read more less

  $158.70

  View options

•

  View options

  MEAN WELL RPS-300 series: Enclosed Medical AC/DC Power Supply - RPS-300-15-C

  MEAN WELL RPS-300-15-C is a case-enclosed medical AC/DC power supply with active PFC and a nominal 15 V output. It provides up to 20 A / 300 W with the specified forced-air cooling, subject to input and ambient derating. The -C convection curve is limited to 180 W at temperatures up to 40°C, then derates further. Auxiliary standby and fan outputs, PS-ON, power-status signalling and remote sense support system integration. Product Datasheet Download MEAN WELL RPS-300 Datasheet (PDF) The RPS-300 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-300-15-C Product type Single-output enclosed medical AC/DC power supply with active PFC. Model code RPS-300 identifies the series; 15 is the nominal DC voltage; the -C suffix identifies the enclosed casing version. The 300W rating requires forced cooling and the specified input and ambient conditions. The model is not supplied as a top-fan or side-fan variant by this code; the cooling fan shown in the installation drawing is external. Primary-to-secondary insulation is 2 × MOPP. Suitability for BF applications requires appropriate consideration of the complete medical system; the component approval is not a guarantee of finished-equipment BF compliance. Model-Specific DC Output DC output voltage 15 V Current range, convection 0–13.33 A; subject to the enclosure and temperature limits below. Current range, forced cooling 0–20 A at 20.5 CFM. Printed output power ratings 200 W with convection; 300 W at 20.5 CFM. Apply all derating limits; the two modes are not interchangeable. Output adjustment 14.25–15.75 V, main output via SVR1. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3.0%; includes set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 90% at the standard measurement conditions. The catalogue lists rounded current and power values independently. Respect both limits and the lower allowable load imposed by cooling, input voltage and ambient temperature; do not increase a rating by recalculating voltage × current. Unless otherwise stated, specifications are measured at 230 VAC, rated load and 25°C ambient. Ripple/noise is measured with 20 MHz bandwidth and a 12-inch twisted pair terminated by parallel 0.1 µF and 47 µF capacitors. Input and Start-Up Input range 90–264 VAC or 127–370 VDC; 47–63 Hz AC. Power factor, typical >0.93 at 230 VAC; >0.98 at 115 VAC, full load. Input current, typical 3.5 A at 115 VAC; 1.8 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 2500 ms / 30 ms at 230 VAC; 3000 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 13 ms at 230 VAC and 115 VAC, full load. No-load consumption <0.5 W by PS-ON control. The input-voltage load curve at 60 Hz permits 80% at 90 VAC, rising linearly to 100% at 115 VAC and remaining at 100% through 264 VAC. Apply this limit together with the thermal curves. The functional block diagram identifies a 65 kHz PFC stage and 70 kHz PWM stage. Protection Short circuit / overload 105–135% of rated output power; hiccup mode, with automatic recovery after the fault is removed. Overvoltage 16.2–18.5 V; output shuts down and requires re-powering to recover. Overtemperature TSW1 shuts down the output and recovers automatically after temperature decreases. TSW2 shuts down the output and requires re-powering to recover. Standby, Fan Supply and Control Signals 5 V standby output 5 V at 0.6 A without a fan or 1 A with 20.5 CFM cooling; tolerance ±2%; maximum ripple 150 mVp-p. Fan auxiliary supply 12 V / 0.5 A; tolerance −15% to +10% at a main-output load of 20% of the 20.5 CFM rated current. PS-ON logic Power ON: High, 2–5 V. Power OFF: Low, 0–0.5 V. Power Good / Power Fail TTL goes high after a delay greater than 10 ms and less than 500 ms after power set-up. It goes low at least 1 ms before output falls below 90% of nominal. The fan supply is dedicated to an additional external fan that cools this power supply, supports full-load delivery and promotes service life. Do not use it to drive other devices. Remote sense is provided at CN100: pin 1 is −S and pin 2 is +S; pin 3 is DC COM and pin 4 is PG. Follow the manufacturer installation instructions for sense wiring. This section does not specify a numerical line-drop compensation allowance or a separate PF connector pin. Cooling, Temperature and Environment Working temperature −30 to +70°C, with mode-specific derating; horizontal orientation. Operating humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 min per cycle, 60 min each on X, Y and Z. Operating altitude Up to 4000 m, with additional thermal derating above 2000 m. For this enclosed -C type, the horizontal convection curve is limited to 180W up to 40°C and falls to 100W at 60°C. The convection curve ends at 60°C; the 70°C endpoint belongs to forced cooling. With 20.5 CFM forced airflow, the common RPS-300 / RPS-300-C curve permits 300 W through 50°C, then falls to 150 W at 70°C. This is a cooling-dependent continuous rating, not a timed pulse or a duty-cycle peak allowance. Above 2000 m, reduce the allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. Observe the lower load allowed by all curves. Dimensions and Installation Overall size, L × W × H 130 × 86 × 43 mm. Construction Enclosed case No.247A; external cooling fan is not identified as an included item. Mounting details Bottom: 4-M3, L=2 mm, center spacing 120 × 50 mm. Side: 2-M3, L=4 mm, spacing 120 mm. Follow case drawing for slots and access. External fan position The enclosed mechanical drawing shows 25 CFM at 5 cm from the long side, with the fan center 57 mm from the output end. The specification and shared thermal curve are separately labelled 20.5 CFM; retain the drawing arrangement and verify cooling in the final installation. HS1 and HS2 must not be shorted. The LED and SVR1 adjustment are identified on the PCB drawing. The -C enclosed version is not suitable for a Class II system without FG; the catalogue recommends Class I construction with FG. Connect the specified FG terminal and follow the installation manual. Connections and Mating-Part References AC input, CN1 JST B5P-VH or equivalent: pin 1 FG; pins 2/4 absent; pin 3 AC/L; pin 5 AC/N. DC output, CN2 / CN3 CN2 is −V; CN3 is +V. M3.5 pan-head screws in two positions; maximum torque 8 lbf·in (90 cN·m). Signal connector, CN100 HRS DF11-4DP-2DS or equivalent: 1 −S, 2 +S, 3 DC COM, 4 PG. Standby / control, CN951 HRS DF11-4DP-2DS or equivalent: 1 5VSB, 2/4 DC COM, 3 PS-ON. Fan output, CN952 JST S2B-XH or equivalent: pin 1 DC COM; pin 2 +12 V. CN1 mating references are JST VHR housing and JST SVH-21T-P1.1 terminal, or equivalents. CN100 and CN951 reference HRS DF11-4DS housings and HRS DF11-**SC terminal variants. CN952 references JST XHP housing and JST SXH-001T-P0.6 terminal, or equivalents. VHR, XHP and the wildcard DF11-**SC are printed family or variant references, not newly completed ordering codes. Select the appropriate contact, position count and wire compatibility from the connector manufacturer. These mating references do not establish that loose housings, contacts, a cable kit or a fan are supplied with the power supply. Medical Isolation, Leakage and Safety Insulation levels Primary-secondary 2×MOPP; primary-earth 1×MOPP; secondary-earth 1×MOPP. Withstand voltage Input-output 4 kVAC; input-FG 2 kVAC; output-FG 1.5 kVAC. Isolation resistance 100 MΩ at 500 VDC / 25°C / 70% RH, for input-output, input-FG and output-FG. Leakage current, maximum Earth leakage<200 µA at 264 VAC; touch current <70 µA at 264 VAC. Touch current is measured from primary input to DC output. The PCB and enclosed versions have different earth-leakage limits; use the limit above for this selected construction. The safety table lists IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; IEC60335-1:2010+A1+A2; Dekra BS EN/EN60335-1:2012+A11+A13+A1+A14+A2+A15; and EAC TP TC004 approval. The cover additionally identifies UL62368-1, BS EN/EN62368-1 and IEC62368-1. Applicable equipment compliance must be assessed for the final configuration. EMC and Integration Conditions Conducted and radiated emissions: BS EN/EN55011 (CISPR11), Class B. Harmonic current: BS EN/EN61000-3-2 Class A; voltage flicker: BS EN/EN61000-3-3. Immunity references are BS EN/EN55035 and BS EN/EN60601-1-2. The listed immunity tests are EN61000-4-2 ESD Level 4, 15 kV air / 8 kV contact; EN61000-4-3 RF Level 3, 10 V/m at 80 MHz–2.7GHz and Table 9, 9–28 V/m at 385 MHz–5.78GHz; EN61000-4-4 EFT Level 3, 2 kV; EN61000-4-5 surge Level 4, 4 kV line-FG / 2 kV line-line; EN61000-4-6 conducted susceptibility Level 3, 10 V; EN61000-4-8 magnetic field Level 4, 30 A/m; EN61000-4-11 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. The power supply is a component for installation within final equipment. The listed Class I EMC tests used FG and a 360 × 360 mm metal plate 1 mm thick. Reconfirm EMC compliance in the complete equipment and follow the manufacturer installation instructions. Reliability and Weight Reference MTBF, minimum 1487.9 K hours, Telcordia SR-332 (Bellcore); 163.8 K hours, MIL-HDBK-217F at 25°C. Single-unit packing reference 0.563 kg = 563 g per unit, from the catalogue PACKING field. Carton reference 24pcs/14.5kg/0.77CUFT; this carton weight is not the product weight. The catalogue features list a typical lifetime greater than 40,000 hours and a 3-year warranty. Lifetime and MTBF are different catalogue reliability measures, not an unconditional operating-life guarantee. The single-unit packing reference is not an independently measured net or shipment weight.

  Read more less

  $171.02

  View options

•

  View options

  MEAN WELL RPS-300 series: Enclosed Medical AC/DC Power Supply - RPS-300-12-C

  MEAN WELL RPS-300-12-C is a case-enclosed medical AC/DC power supply with active PFC and a nominal 12 V output. It provides up to 25 A / 300 W with the specified forced-air cooling, subject to input and ambient derating. The -C convection curve is limited to 180 W at temperatures up to 40°C, then derates further. Auxiliary standby and fan outputs, PS-ON, power-status signalling and remote sense support system integration. Product Datasheet Download MEAN WELL RPS-300 Datasheet (PDF) The RPS-300 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-300-12-C Product type Single-output enclosed medical AC/DC power supply with active PFC. Model code RPS-300 identifies the series; 12 is the nominal DC voltage; the -C suffix identifies the enclosed casing version. The 300W rating requires forced cooling and the specified input and ambient conditions. The model is not supplied as a top-fan or side-fan variant by this code; the cooling fan shown in the installation drawing is external. Primary-to-secondary insulation is 2 × MOPP. Suitability for BF applications requires appropriate consideration of the complete medical system; the component approval is not a guarantee of finished-equipment BF compliance. Model-Specific DC Output DC output voltage 12 V Current range, convection 0–16.67 A; subject to the enclosure and temperature limits below. Current range, forced cooling 0–25 A at 20.5 CFM. Printed output power ratings 200 W with convection; 300 W at 20.5 CFM. Apply all derating limits; the two modes are not interchangeable. Output adjustment 11.4–12.6 V, main output via SVR1. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3.0%; includes set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 90% at the standard measurement conditions. The catalogue lists rounded current and power values independently. Respect both limits and the lower allowable load imposed by cooling, input voltage and ambient temperature; do not increase a rating by recalculating voltage × current. Unless otherwise stated, specifications are measured at 230 VAC, rated load and 25°C ambient. Ripple/noise is measured with 20 MHz bandwidth and a 12-inch twisted pair terminated by parallel 0.1 µF and 47 µF capacitors. Input and Start-Up Input range 90–264 VAC or 127–370 VDC; 47–63 Hz AC. Power factor, typical >0.93 at 230 VAC; >0.98 at 115 VAC, full load. Input current, typical 3.5 A at 115 VAC; 1.8 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 2500 ms / 30 ms at 230 VAC; 3000 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 13 ms at 230 VAC and 115 VAC, full load. No-load consumption <0.5 W by PS-ON control. The input-voltage load curve at 60 Hz permits 80% at 90 VAC, rising linearly to 100% at 115 VAC and remaining at 100% through 264 VAC. Apply this limit together with the thermal curves. The functional block diagram identifies a 65 kHz PFC stage and 70 kHz PWM stage. Protection Short circuit / overload 105–135% of rated output power; hiccup mode, with automatic recovery after the fault is removed. Overvoltage 13.5–15 V; output shuts down and requires re-powering to recover. Overtemperature TSW1 shuts down the output and recovers automatically after temperature decreases. TSW2 shuts down the output and requires re-powering to recover. Standby, Fan Supply and Control Signals 5 V standby output 5 V at 0.6 A without a fan or 1 A with 20.5 CFM cooling; tolerance ±2%; maximum ripple 150 mVp-p. Fan auxiliary supply 12 V / 0.5 A; tolerance −15% to +10% at a main-output load of 20% of the 20.5 CFM rated current. PS-ON logic Power ON: High, 2–5 V. Power OFF: Low, 0–0.5 V. Power Good / Power Fail TTL goes high after a delay greater than 10 ms and less than 500 ms after power set-up. It goes low at least 1 ms before output falls below 90% of nominal. The fan supply is dedicated to an additional external fan that cools this power supply, supports full-load delivery and promotes service life. Do not use it to drive other devices. Remote sense is provided at CN100: pin 1 is −S and pin 2 is +S; pin 3 is DC COM and pin 4 is PG. Follow the manufacturer installation instructions for sense wiring. This section does not specify a numerical line-drop compensation allowance or a separate PF connector pin. Cooling, Temperature and Environment Working temperature −30 to +70°C, with mode-specific derating; horizontal orientation. Operating humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 min per cycle, 60 min each on X, Y and Z. Operating altitude Up to 4000 m, with additional thermal derating above 2000 m. For this enclosed -C type, the horizontal convection curve is limited to 180W up to 40°C and falls to 100W at 60°C. The convection curve ends at 60°C; the 70°C endpoint belongs to forced cooling. With 20.5 CFM forced airflow, the common RPS-300 / RPS-300-C curve permits 300 W through 50°C, then falls to 150 W at 70°C. This is a cooling-dependent continuous rating, not a timed pulse or a duty-cycle peak allowance. Above 2000 m, reduce the allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. Observe the lower load allowed by all curves. Dimensions and Installation Overall size, L × W × H 130 × 86 × 43 mm. Construction Enclosed case No.247A; external cooling fan is not identified as an included item. Mounting details Bottom: 4-M3, L=2 mm, center spacing 120 × 50 mm. Side: 2-M3, L=4 mm, spacing 120 mm. Follow case drawing for slots and access. External fan position The enclosed mechanical drawing shows 25 CFM at 5 cm from the long side, with the fan center 57 mm from the output end. The specification and shared thermal curve are separately labelled 20.5 CFM; retain the drawing arrangement and verify cooling in the final installation. HS1 and HS2 must not be shorted. The LED and SVR1 adjustment are identified on the PCB drawing. The -C enclosed version is not suitable for a Class II system without FG; the catalogue recommends Class I construction with FG. Connect the specified FG terminal and follow the installation manual. Connections and Mating-Part References AC input, CN1 JST B5P-VH or equivalent: pin 1 FG; pins 2/4 absent; pin 3 AC/L; pin 5 AC/N. DC output, CN2 / CN3 CN2 is −V; CN3 is +V. M3.5 pan-head screws in two positions; maximum torque 8 lbf·in (90 cN·m). Signal connector, CN100 HRS DF11-4DP-2DS or equivalent: 1 −S, 2 +S, 3 DC COM, 4 PG. Standby / control, CN951 HRS DF11-4DP-2DS or equivalent: 1 5VSB, 2/4 DC COM, 3 PS-ON. Fan output, CN952 JST S2B-XH or equivalent: pin 1 DC COM; pin 2 +12 V. CN1 mating references are JST VHR housing and JST SVH-21T-P1.1 terminal, or equivalents. CN100 and CN951 reference HRS DF11-4DS housings and HRS DF11-**SC terminal variants. CN952 references JST XHP housing and JST SXH-001T-P0.6 terminal, or equivalents. VHR, XHP and the wildcard DF11-**SC are printed family or variant references, not newly completed ordering codes. Select the appropriate contact, position count and wire compatibility from the connector manufacturer. These mating references do not establish that loose housings, contacts, a cable kit or a fan are supplied with the power supply. Medical Isolation, Leakage and Safety Insulation levels Primary-secondary 2×MOPP; primary-earth 1×MOPP; secondary-earth 1×MOPP. Withstand voltage Input-output 4 kVAC; input-FG 2 kVAC; output-FG 1.5 kVAC. Isolation resistance 100 MΩ at 500 VDC / 25°C / 70% RH, for input-output, input-FG and output-FG. Leakage current, maximum Earth leakage<200 µA at 264 VAC; touch current <70 µA at 264 VAC. Touch current is measured from primary input to DC output. The PCB and enclosed versions have different earth-leakage limits; use the limit above for this selected construction. The safety table lists IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; IEC60335-1:2010+A1+A2; Dekra BS EN/EN60335-1:2012+A11+A13+A1+A14+A2+A15; and EAC TP TC004 approval. The cover additionally identifies UL62368-1, BS EN/EN62368-1 and IEC62368-1. Applicable equipment compliance must be assessed for the final configuration. EMC and Integration Conditions Conducted and radiated emissions: BS EN/EN55011 (CISPR11), Class B. Harmonic current: BS EN/EN61000-3-2 Class A; voltage flicker: BS EN/EN61000-3-3. Immunity references are BS EN/EN55035 and BS EN/EN60601-1-2. The listed immunity tests are EN61000-4-2 ESD Level 4, 15 kV air / 8 kV contact; EN61000-4-3 RF Level 3, 10 V/m at 80 MHz–2.7GHz and Table 9, 9–28 V/m at 385 MHz–5.78GHz; EN61000-4-4 EFT Level 3, 2 kV; EN61000-4-5 surge Level 4, 4 kV line-FG / 2 kV line-line; EN61000-4-6 conducted susceptibility Level 3, 10 V; EN61000-4-8 magnetic field Level 4, 30 A/m; EN61000-4-11 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. The power supply is a component for installation within final equipment. The listed Class I EMC tests used FG and a 360 × 360 mm metal plate 1 mm thick. Reconfirm EMC compliance in the complete equipment and follow the manufacturer installation instructions. Reliability and Weight Reference MTBF, minimum 1487.9 K hours, Telcordia SR-332 (Bellcore); 163.8 K hours, MIL-HDBK-217F at 25°C. Single-unit packing reference 0.563 kg = 563 g per unit, from the catalogue PACKING field. Carton reference 24pcs/14.5kg/0.77CUFT; this carton weight is not the product weight. The catalogue features list a typical lifetime greater than 40,000 hours and a 3-year warranty. Lifetime and MTBF are different catalogue reliability measures, not an unconditional operating-life guarantee. The single-unit packing reference is not an independently measured net or shipment weight.

  Read more less

  $158.70

  View options

•

  View options

  MEAN WELL RPS-300 series: PCB Medical AC/DC Power Supply - RPS-300-48

  MEAN WELL RPS-300-48 is a PCB-type medical AC/DC power supply with active PFC and a nominal 48 V output. It provides up to 6.25 A / 300 W with the specified forced-air cooling, subject to input and ambient derating. The catalogue convection rating is 200.2 W, with lower allowed output as temperature rises or input voltage falls. Auxiliary standby and fan outputs, PS-ON, power-status signalling and remote sense support system integration. Product Datasheet Download MEAN WELL RPS-300 Datasheet (PDF) The RPS-300 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-300-48 Product type Single-output PCB medical AC/DC power supply with active PFC. Model code RPS-300 identifies the series; 48 is the nominal DC voltage; no type suffix identifies the PCB version. The 300W rating requires forced cooling and the specified input and ambient conditions. The model is not supplied as a top-fan or side-fan variant by this code; the cooling fan shown in the installation drawing is external. Primary-to-secondary insulation is 2 × MOPP. Suitability for BF applications requires appropriate consideration of the complete medical system; the component approval is not a guarantee of finished-equipment BF compliance. Model-Specific DC Output DC output voltage 48 V Current range, convection 0–4.17 A; subject to the enclosure and temperature limits below. Current range, forced cooling 0–6.25 A at 20.5 CFM. Printed output power ratings 200.2 W with convection; 300 W at 20.5 CFM. Apply all derating limits; the two modes are not interchangeable. Output adjustment 45.6–50.4 V, main output via SVR1. Ripple and noise, maximum 250 mVp-p. Voltage tolerance ±2.0%; includes set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 93% at the standard measurement conditions. The catalogue lists rounded current and power values independently. Respect both limits and the lower allowable load imposed by cooling, input voltage and ambient temperature; do not increase a rating by recalculating voltage × current. Unless otherwise stated, specifications are measured at 230 VAC, rated load and 25°C ambient. Ripple/noise is measured with 20 MHz bandwidth and a 12-inch twisted pair terminated by parallel 0.1 µF and 47 µF capacitors. Input and Start-Up Input range 90–264 VAC or 127–370 VDC; 47–63 Hz AC. Power factor, typical >0.93 at 230 VAC; >0.98 at 115 VAC, full load. Input current, typical 3.5 A at 115 VAC; 1.8 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 2500 ms / 30 ms at 230 VAC; 3000 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 13 ms at 230 VAC and 115 VAC, full load. No-load consumption <0.5 W by PS-ON control. The input-voltage load curve at 60 Hz permits 80% at 90 VAC, rising linearly to 100% at 115 VAC and remaining at 100% through 264 VAC. Apply this limit together with the thermal curves. The functional block diagram identifies a 65 kHz PFC stage and 70 kHz PWM stage. Protection Short circuit / overload 105–135% of rated output power; hiccup mode, with automatic recovery after the fault is removed. Overvoltage 52–59.5 V; output shuts down and requires re-powering to recover. Overtemperature TSW1 shuts down the output and recovers automatically after temperature decreases. TSW2 shuts down the output and requires re-powering to recover. Standby, Fan Supply and Control Signals 5 V standby output 5 V at 0.6 A without a fan or 1 A with 20.5 CFM cooling; tolerance ±2%; maximum ripple 150 mVp-p. Fan auxiliary supply 12 V / 0.5 A; tolerance −15% to +10% at a main-output load of 20% of the 20.5 CFM rated current. PS-ON logic Power ON: High, 2–5 V. Power OFF: Low, 0–0.5 V. Power Good / Power Fail TTL goes high after a delay greater than 10 ms and less than 500 ms after power set-up. It goes low at least 1 ms before output falls below 90% of nominal. The fan supply is dedicated to an additional external fan that cools this power supply, supports full-load delivery and promotes service life. Do not use it to drive other devices. Remote sense is provided at CN100: pin 1 is −S and pin 2 is +S; pin 3 is DC COM and pin 4 is PG. Follow the manufacturer installation instructions for sense wiring. This section does not specify a numerical line-drop compensation allowance or a separate PF connector pin. Cooling, Temperature and Environment Working temperature −30 to +70°C, with mode-specific derating; horizontal orientation. Operating humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 min per cycle, 60 min each on X, Y and Z. Operating altitude Up to 4000 m, with additional thermal derating above 2000 m. For the PCB type, the horizontal convection curve allows 200W up to 50°C, falling to 100W at 60°C. At 115VAC the separate convection line starts derating from 200W at 40°C and also reaches 100W at 60°C. The convection curves end at 60°C; the 70°C endpoint belongs to forced cooling. With 20.5 CFM forced airflow, the common RPS-300 / RPS-300-C curve permits 300 W through 50°C, then falls to 150 W at 70°C. This is a cooling-dependent continuous rating, not a timed pulse or a duty-cycle peak allowance. Above 2000 m, reduce the allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. Observe the lower load allowed by all curves. Dimensions and Installation Overall size, L × W × H 127 × 76.2 × 35 mm. Construction Open PCB; mechanical drawing general tolerance ±1 mm, underside projection 3 mm maximum. Mounting details Four Ø3.2 mm holes; the drawing identifies 117 × 66.2 mm and 115.6 × 64.8 mm mounting dimensions with 5 / 5.7 mm edge offsets. Use the full drawing when making the support. External fan position The PCB drawing shows 20.5 CFM at 5 cm from the long edge, centered 56 mm from the output end, with airflow across the board as illustrated. HS1 and HS2 must not be shorted. The LED and SVR1 adjustment are identified on the PCB drawing. For the PCB type, the catalogue specifies EMI Class B conducted and radiated results in a Class I system with FG. The listed EMC testing uses protective grounding; do not treat these component results as an unqualified Class II system approval. Connections and Mating-Part References AC input, CN1 JST B5P-VH or equivalent: pin 1 FG; pins 2/4 absent; pin 3 AC/L; pin 5 AC/N. DC output, CN2 / CN3 CN2 is −V; CN3 is +V. M3.5 pan-head screws in two positions; maximum torque 8 lbf·in (90 cN·m). Signal connector, CN100 HRS DF11-4DP-2DS or equivalent: 1 −S, 2 +S, 3 DC COM, 4 PG. Standby / control, CN951 HRS DF11-4DP-2DS or equivalent: 1 5VSB, 2/4 DC COM, 3 PS-ON. Fan output, CN952 JST S2B-XH or equivalent: pin 1 DC COM; pin 2 +12 V. CN1 mating references are JST VHR housing and JST SVH-21T-P1.1 terminal, or equivalents. CN100 and CN951 reference HRS DF11-4DS housings and HRS DF11-**SC terminal variants. CN952 references JST XHP housing and JST SXH-001T-P0.6 terminal, or equivalents. VHR, XHP and the wildcard DF11-**SC are printed family or variant references, not newly completed ordering codes. Select the appropriate contact, position count and wire compatibility from the connector manufacturer. These mating references do not establish that loose housings, contacts, a cable kit or a fan are supplied with the power supply. Medical Isolation, Leakage and Safety Insulation levels Primary-secondary 2×MOPP; primary-earth 1×MOPP; secondary-earth 1×MOPP. Withstand voltage Input-output 4 kVAC; input-FG 2 kVAC; output-FG 1.5 kVAC. Isolation resistance 100 MΩ at 500 VDC / 25°C / 70% RH, for input-output, input-FG and output-FG. Leakage current, maximum Earth leakage<150 µA at 264 VAC; touch current <70 µA at 264 VAC. Touch current is measured from primary input to DC output. The PCB and enclosed versions have different earth-leakage limits; use the limit above for this selected construction. The safety table lists IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; IEC60335-1:2010+A1+A2; Dekra BS EN/EN60335-1:2012+A11+A13+A1+A14+A2+A15; and EAC TP TC004 approval. The cover additionally identifies UL62368-1, BS EN/EN62368-1 and IEC62368-1. Applicable equipment compliance must be assessed for the final configuration. EMC and Integration Conditions Conducted and radiated emissions: BS EN/EN55011 (CISPR11), Class B. Harmonic current: BS EN/EN61000-3-2 Class A; voltage flicker: BS EN/EN61000-3-3. Immunity references are BS EN/EN55035 and BS EN/EN60601-1-2. The listed immunity tests are EN61000-4-2 ESD Level 4, 15 kV air / 8 kV contact; EN61000-4-3 RF Level 3, 10 V/m at 80 MHz–2.7GHz and Table 9, 9–28 V/m at 385 MHz–5.78GHz; EN61000-4-4 EFT Level 3, 2 kV; EN61000-4-5 surge Level 4, 4 kV line-FG / 2 kV line-line; EN61000-4-6 conducted susceptibility Level 3, 10 V; EN61000-4-8 magnetic field Level 4, 30 A/m; EN61000-4-11 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. The power supply is a component for installation within final equipment. The listed Class I EMC tests used FG and a 360 × 360 mm metal plate 1 mm thick. Reconfirm EMC compliance in the complete equipment and follow the manufacturer installation instructions. Reliability and Weight Reference MTBF, minimum 2853.1 K hours, Telcordia SR-332 (Bellcore); 160.0 K hours, MIL-HDBK-217F at 25°C. Single-unit packing reference 0.37 kg = 370 g per unit, from the catalogue PACKING field. Carton reference 36pcs/14.3kg/0.96CUFT; this carton weight is not the product weight. The catalogue features list a typical lifetime greater than 40,000 hours and a 3-year warranty. Lifetime and MTBF are different catalogue reliability measures, not an unconditional operating-life guarantee. The single-unit packing reference is not an independently measured net or shipment weight.

  Read more less

  $156.73

  View options

•

  View options

  MEAN WELL RPS-300 series: PCB Medical AC/DC Power Supply - RPS-300-27

  MEAN WELL RPS-300-27 is a PCB-type medical AC/DC power supply with active PFC and a nominal 27 V output. It provides up to 11.12 A / 300 W with the specified forced-air cooling, subject to input and ambient derating. The catalogue convection rating is 200 W, with lower allowed output as temperature rises or input voltage falls. Auxiliary standby and fan outputs, PS-ON, power-status signalling and remote sense support system integration. Product Datasheet Download MEAN WELL RPS-300 Datasheet (PDF) The RPS-300 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-300-27 Product type Single-output PCB medical AC/DC power supply with active PFC. Model code RPS-300 identifies the series; 27 is the nominal DC voltage; no type suffix identifies the PCB version. The 300W rating requires forced cooling and the specified input and ambient conditions. The model is not supplied as a top-fan or side-fan variant by this code; the cooling fan shown in the installation drawing is external. Primary-to-secondary insulation is 2 × MOPP. Suitability for BF applications requires appropriate consideration of the complete medical system; the component approval is not a guarantee of finished-equipment BF compliance. Model-Specific DC Output DC output voltage 27 V Current range, convection 0–7.4 A; subject to the enclosure and temperature limits below. Current range, forced cooling 0–11.12 A at 20.5 CFM. Printed output power ratings 200 W with convection; 300 W at 20.5 CFM. Apply all derating limits; the two modes are not interchangeable. Output adjustment 25.65–28.35 V, main output via SVR1. Ripple and noise, maximum 200 mVp-p. Voltage tolerance ±2.0%; includes set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 93% at the standard measurement conditions. The catalogue lists rounded current and power values independently. Respect both limits and the lower allowable load imposed by cooling, input voltage and ambient temperature; do not increase a rating by recalculating voltage × current. Unless otherwise stated, specifications are measured at 230 VAC, rated load and 25°C ambient. Ripple/noise is measured with 20 MHz bandwidth and a 12-inch twisted pair terminated by parallel 0.1 µF and 47 µF capacitors. Input and Start-Up Input range 90–264 VAC or 127–370 VDC; 47–63 Hz AC. Power factor, typical >0.93 at 230 VAC; >0.98 at 115 VAC, full load. Input current, typical 3.5 A at 115 VAC; 1.8 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 2500 ms / 30 ms at 230 VAC; 3000 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 13 ms at 230 VAC and 115 VAC, full load. No-load consumption <0.5 W by PS-ON control. The input-voltage load curve at 60 Hz permits 80% at 90 VAC, rising linearly to 100% at 115 VAC and remaining at 100% through 264 VAC. Apply this limit together with the thermal curves. The functional block diagram identifies a 65 kHz PFC stage and 70 kHz PWM stage. Protection Short circuit / overload 105–135% of rated output power; hiccup mode, with automatic recovery after the fault is removed. Overvoltage 29.5–33.5 V; output shuts down and requires re-powering to recover. Overtemperature TSW1 shuts down the output and recovers automatically after temperature decreases. TSW2 shuts down the output and requires re-powering to recover. Standby, Fan Supply and Control Signals 5 V standby output 5 V at 0.6 A without a fan or 1 A with 20.5 CFM cooling; tolerance ±2%; maximum ripple 150 mVp-p. Fan auxiliary supply 12 V / 0.5 A; tolerance −15% to +10% at a main-output load of 20% of the 20.5 CFM rated current. PS-ON logic Power ON: High, 2–5 V. Power OFF: Low, 0–0.5 V. Power Good / Power Fail TTL goes high after a delay greater than 10 ms and less than 500 ms after power set-up. It goes low at least 1 ms before output falls below 90% of nominal. The fan supply is dedicated to an additional external fan that cools this power supply, supports full-load delivery and promotes service life. Do not use it to drive other devices. Remote sense is provided at CN100: pin 1 is −S and pin 2 is +S; pin 3 is DC COM and pin 4 is PG. Follow the manufacturer installation instructions for sense wiring. This section does not specify a numerical line-drop compensation allowance or a separate PF connector pin. Cooling, Temperature and Environment Working temperature −30 to +70°C, with mode-specific derating; horizontal orientation. Operating humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 min per cycle, 60 min each on X, Y and Z. Operating altitude Up to 4000 m, with additional thermal derating above 2000 m. For the PCB type, the horizontal convection curve allows 200W up to 50°C, falling to 100W at 60°C. At 115VAC the separate convection line starts derating from 200W at 40°C and also reaches 100W at 60°C. The convection curves end at 60°C; the 70°C endpoint belongs to forced cooling. With 20.5 CFM forced airflow, the common RPS-300 / RPS-300-C curve permits 300 W through 50°C, then falls to 150 W at 70°C. This is a cooling-dependent continuous rating, not a timed pulse or a duty-cycle peak allowance. Above 2000 m, reduce the allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. Observe the lower load allowed by all curves. Dimensions and Installation Overall size, L × W × H 127 × 76.2 × 35 mm. Construction Open PCB; mechanical drawing general tolerance ±1 mm, underside projection 3 mm maximum. Mounting details Four Ø3.2 mm holes; the drawing identifies 117 × 66.2 mm and 115.6 × 64.8 mm mounting dimensions with 5 / 5.7 mm edge offsets. Use the full drawing when making the support. External fan position The PCB drawing shows 20.5 CFM at 5 cm from the long edge, centered 56 mm from the output end, with airflow across the board as illustrated. HS1 and HS2 must not be shorted. The LED and SVR1 adjustment are identified on the PCB drawing. For the PCB type, the catalogue specifies EMI Class B conducted and radiated results in a Class I system with FG. The listed EMC testing uses protective grounding; do not treat these component results as an unqualified Class II system approval. Connections and Mating-Part References AC input, CN1 JST B5P-VH or equivalent: pin 1 FG; pins 2/4 absent; pin 3 AC/L; pin 5 AC/N. DC output, CN2 / CN3 CN2 is −V; CN3 is +V. M3.5 pan-head screws in two positions; maximum torque 8 lbf·in (90 cN·m). Signal connector, CN100 HRS DF11-4DP-2DS or equivalent: 1 −S, 2 +S, 3 DC COM, 4 PG. Standby / control, CN951 HRS DF11-4DP-2DS or equivalent: 1 5VSB, 2/4 DC COM, 3 PS-ON. Fan output, CN952 JST S2B-XH or equivalent: pin 1 DC COM; pin 2 +12 V. CN1 mating references are JST VHR housing and JST SVH-21T-P1.1 terminal, or equivalents. CN100 and CN951 reference HRS DF11-4DS housings and HRS DF11-**SC terminal variants. CN952 references JST XHP housing and JST SXH-001T-P0.6 terminal, or equivalents. VHR, XHP and the wildcard DF11-**SC are printed family or variant references, not newly completed ordering codes. Select the appropriate contact, position count and wire compatibility from the connector manufacturer. These mating references do not establish that loose housings, contacts, a cable kit or a fan are supplied with the power supply. Medical Isolation, Leakage and Safety Insulation levels Primary-secondary 2×MOPP; primary-earth 1×MOPP; secondary-earth 1×MOPP. Withstand voltage Input-output 4 kVAC; input-FG 2 kVAC; output-FG 1.5 kVAC. Isolation resistance 100 MΩ at 500 VDC / 25°C / 70% RH, for input-output, input-FG and output-FG. Leakage current, maximum Earth leakage<150 µA at 264 VAC; touch current <70 µA at 264 VAC. Touch current is measured from primary input to DC output. The PCB and enclosed versions have different earth-leakage limits; use the limit above for this selected construction. The safety table lists IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; IEC60335-1:2010+A1+A2; Dekra BS EN/EN60335-1:2012+A11+A13+A1+A14+A2+A15; and EAC TP TC004 approval. The cover additionally identifies UL62368-1, BS EN/EN62368-1 and IEC62368-1. Applicable equipment compliance must be assessed for the final configuration. EMC and Integration Conditions Conducted and radiated emissions: BS EN/EN55011 (CISPR11), Class B. Harmonic current: BS EN/EN61000-3-2 Class A; voltage flicker: BS EN/EN61000-3-3. Immunity references are BS EN/EN55035 and BS EN/EN60601-1-2. The listed immunity tests are EN61000-4-2 ESD Level 4, 15 kV air / 8 kV contact; EN61000-4-3 RF Level 3, 10 V/m at 80 MHz–2.7GHz and Table 9, 9–28 V/m at 385 MHz–5.78GHz; EN61000-4-4 EFT Level 3, 2 kV; EN61000-4-5 surge Level 4, 4 kV line-FG / 2 kV line-line; EN61000-4-6 conducted susceptibility Level 3, 10 V; EN61000-4-8 magnetic field Level 4, 30 A/m; EN61000-4-11 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. The power supply is a component for installation within final equipment. The listed Class I EMC tests used FG and a 360 × 360 mm metal plate 1 mm thick. Reconfirm EMC compliance in the complete equipment and follow the manufacturer installation instructions. Reliability and Weight Reference MTBF, minimum 2853.1 K hours, Telcordia SR-332 (Bellcore); 160.0 K hours, MIL-HDBK-217F at 25°C. Single-unit packing reference 0.37 kg = 370 g per unit, from the catalogue PACKING field. Carton reference 36pcs/14.3kg/0.96CUFT; this carton weight is not the product weight. The catalogue features list a typical lifetime greater than 40,000 hours and a 3-year warranty. Lifetime and MTBF are different catalogue reliability measures, not an unconditional operating-life guarantee. The single-unit packing reference is not an independently measured net or shipment weight.

  Read more less

  $156.73

  View options

•

  View options

  MEAN WELL RPS-300 series: PCB Medical AC/DC Power Supply - RPS-300-24

  MEAN WELL RPS-300-24 is a PCB-type medical AC/DC power supply with active PFC and a nominal 24 V output. It provides up to 12.5 A / 300 W with the specified forced-air cooling, subject to input and ambient derating. The catalogue convection rating is 200 W, with lower allowed output as temperature rises or input voltage falls. Auxiliary standby and fan outputs, PS-ON, power-status signalling and remote sense support system integration. Product Datasheet Download MEAN WELL RPS-300 Datasheet (PDF) The RPS-300 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-300-24 Product type Single-output PCB medical AC/DC power supply with active PFC. Model code RPS-300 identifies the series; 24 is the nominal DC voltage; no type suffix identifies the PCB version. The 300W rating requires forced cooling and the specified input and ambient conditions. The model is not supplied as a top-fan or side-fan variant by this code; the cooling fan shown in the installation drawing is external. Primary-to-secondary insulation is 2 × MOPP. Suitability for BF applications requires appropriate consideration of the complete medical system; the component approval is not a guarantee of finished-equipment BF compliance. Model-Specific DC Output DC output voltage 24 V Current range, convection 0–8.33 A; subject to the enclosure and temperature limits below. Current range, forced cooling 0–12.5 A at 20.5 CFM. Printed output power ratings 200 W with convection; 300 W at 20.5 CFM. Apply all derating limits; the two modes are not interchangeable. Output adjustment 22.8–25.2 V, main output via SVR1. Ripple and noise, maximum 150 mVp-p. Voltage tolerance ±2.0%; includes set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 92.5% at the standard measurement conditions. The catalogue lists rounded current and power values independently. Respect both limits and the lower allowable load imposed by cooling, input voltage and ambient temperature; do not increase a rating by recalculating voltage × current. Unless otherwise stated, specifications are measured at 230 VAC, rated load and 25°C ambient. Ripple/noise is measured with 20 MHz bandwidth and a 12-inch twisted pair terminated by parallel 0.1 µF and 47 µF capacitors. Input and Start-Up Input range 90–264 VAC or 127–370 VDC; 47–63 Hz AC. Power factor, typical >0.93 at 230 VAC; >0.98 at 115 VAC, full load. Input current, typical 3.5 A at 115 VAC; 1.8 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 2500 ms / 30 ms at 230 VAC; 3000 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 13 ms at 230 VAC and 115 VAC, full load. No-load consumption <0.5 W by PS-ON control. The input-voltage load curve at 60 Hz permits 80% at 90 VAC, rising linearly to 100% at 115 VAC and remaining at 100% through 264 VAC. Apply this limit together with the thermal curves. The functional block diagram identifies a 65 kHz PFC stage and 70 kHz PWM stage. Protection Short circuit / overload 105–135% of rated output power; hiccup mode, with automatic recovery after the fault is removed. Overvoltage 26–30 V; output shuts down and requires re-powering to recover. Overtemperature TSW1 shuts down the output and recovers automatically after temperature decreases. TSW2 shuts down the output and requires re-powering to recover. Standby, Fan Supply and Control Signals 5 V standby output 5 V at 0.6 A without a fan or 1 A with 20.5 CFM cooling; tolerance ±2%; maximum ripple 150 mVp-p. Fan auxiliary supply 12 V / 0.5 A; tolerance −15% to +10% at a main-output load of 20% of the 20.5 CFM rated current. PS-ON logic Power ON: High, 2–5 V. Power OFF: Low, 0–0.5 V. Power Good / Power Fail TTL goes high after a delay greater than 10 ms and less than 500 ms after power set-up. It goes low at least 1 ms before output falls below 90% of nominal. The fan supply is dedicated to an additional external fan that cools this power supply, supports full-load delivery and promotes service life. Do not use it to drive other devices. Remote sense is provided at CN100: pin 1 is −S and pin 2 is +S; pin 3 is DC COM and pin 4 is PG. Follow the manufacturer installation instructions for sense wiring. This section does not specify a numerical line-drop compensation allowance or a separate PF connector pin. Cooling, Temperature and Environment Working temperature −30 to +70°C, with mode-specific derating; horizontal orientation. Operating humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 min per cycle, 60 min each on X, Y and Z. Operating altitude Up to 4000 m, with additional thermal derating above 2000 m. For the PCB type, the horizontal convection curve allows 200W up to 50°C, falling to 100W at 60°C. At 115VAC the separate convection line starts derating from 200W at 40°C and also reaches 100W at 60°C. The convection curves end at 60°C; the 70°C endpoint belongs to forced cooling. With 20.5 CFM forced airflow, the common RPS-300 / RPS-300-C curve permits 300 W through 50°C, then falls to 150 W at 70°C. This is a cooling-dependent continuous rating, not a timed pulse or a duty-cycle peak allowance. Above 2000 m, reduce the allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. Observe the lower load allowed by all curves. Dimensions and Installation Overall size, L × W × H 127 × 76.2 × 35 mm. Construction Open PCB; mechanical drawing general tolerance ±1 mm, underside projection 3 mm maximum. Mounting details Four Ø3.2 mm holes; the drawing identifies 117 × 66.2 mm and 115.6 × 64.8 mm mounting dimensions with 5 / 5.7 mm edge offsets. Use the full drawing when making the support. External fan position The PCB drawing shows 20.5 CFM at 5 cm from the long edge, centered 56 mm from the output end, with airflow across the board as illustrated. HS1 and HS2 must not be shorted. The LED and SVR1 adjustment are identified on the PCB drawing. For the PCB type, the catalogue specifies EMI Class B conducted and radiated results in a Class I system with FG. The listed EMC testing uses protective grounding; do not treat these component results as an unqualified Class II system approval. Connections and Mating-Part References AC input, CN1 JST B5P-VH or equivalent: pin 1 FG; pins 2/4 absent; pin 3 AC/L; pin 5 AC/N. DC output, CN2 / CN3 CN2 is −V; CN3 is +V. M3.5 pan-head screws in two positions; maximum torque 8 lbf·in (90 cN·m). Signal connector, CN100 HRS DF11-4DP-2DS or equivalent: 1 −S, 2 +S, 3 DC COM, 4 PG. Standby / control, CN951 HRS DF11-4DP-2DS or equivalent: 1 5VSB, 2/4 DC COM, 3 PS-ON. Fan output, CN952 JST S2B-XH or equivalent: pin 1 DC COM; pin 2 +12 V. CN1 mating references are JST VHR housing and JST SVH-21T-P1.1 terminal, or equivalents. CN100 and CN951 reference HRS DF11-4DS housings and HRS DF11-**SC terminal variants. CN952 references JST XHP housing and JST SXH-001T-P0.6 terminal, or equivalents. VHR, XHP and the wildcard DF11-**SC are printed family or variant references, not newly completed ordering codes. Select the appropriate contact, position count and wire compatibility from the connector manufacturer. These mating references do not establish that loose housings, contacts, a cable kit or a fan are supplied with the power supply. Medical Isolation, Leakage and Safety Insulation levels Primary-secondary 2×MOPP; primary-earth 1×MOPP; secondary-earth 1×MOPP. Withstand voltage Input-output 4 kVAC; input-FG 2 kVAC; output-FG 1.5 kVAC. Isolation resistance 100 MΩ at 500 VDC / 25°C / 70% RH, for input-output, input-FG and output-FG. Leakage current, maximum Earth leakage<150 µA at 264 VAC; touch current <70 µA at 264 VAC. Touch current is measured from primary input to DC output. The PCB and enclosed versions have different earth-leakage limits; use the limit above for this selected construction. The safety table lists IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; IEC60335-1:2010+A1+A2; Dekra BS EN/EN60335-1:2012+A11+A13+A1+A14+A2+A15; and EAC TP TC004 approval. The cover additionally identifies UL62368-1, BS EN/EN62368-1 and IEC62368-1. Applicable equipment compliance must be assessed for the final configuration. EMC and Integration Conditions Conducted and radiated emissions: BS EN/EN55011 (CISPR11), Class B. Harmonic current: BS EN/EN61000-3-2 Class A; voltage flicker: BS EN/EN61000-3-3. Immunity references are BS EN/EN55035 and BS EN/EN60601-1-2. The listed immunity tests are EN61000-4-2 ESD Level 4, 15 kV air / 8 kV contact; EN61000-4-3 RF Level 3, 10 V/m at 80 MHz–2.7GHz and Table 9, 9–28 V/m at 385 MHz–5.78GHz; EN61000-4-4 EFT Level 3, 2 kV; EN61000-4-5 surge Level 4, 4 kV line-FG / 2 kV line-line; EN61000-4-6 conducted susceptibility Level 3, 10 V; EN61000-4-8 magnetic field Level 4, 30 A/m; EN61000-4-11 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. The power supply is a component for installation within final equipment. The listed Class I EMC tests used FG and a 360 × 360 mm metal plate 1 mm thick. Reconfirm EMC compliance in the complete equipment and follow the manufacturer installation instructions. Reliability and Weight Reference MTBF, minimum 2853.1 K hours, Telcordia SR-332 (Bellcore); 160.0 K hours, MIL-HDBK-217F at 25°C. Single-unit packing reference 0.37 kg = 370 g per unit, from the catalogue PACKING field. Carton reference 36pcs/14.3kg/0.96CUFT; this carton weight is not the product weight. The catalogue features list a typical lifetime greater than 40,000 hours and a 3-year warranty. Lifetime and MTBF are different catalogue reliability measures, not an unconditional operating-life guarantee. The single-unit packing reference is not an independently measured net or shipment weight.

  Read more less

  $145.39

  View options

•

  View options

  MEAN WELL RPS-300 series: PCB Medical AC/DC Power Supply - RPS-300-15

  MEAN WELL RPS-300-15 is a PCB-type medical AC/DC power supply with active PFC and a nominal 15 V output. It provides up to 20 A / 300 W with the specified forced-air cooling, subject to input and ambient derating. The catalogue convection rating is 200 W, with lower allowed output as temperature rises or input voltage falls. Auxiliary standby and fan outputs, PS-ON, power-status signalling and remote sense support system integration. Product Datasheet Download MEAN WELL RPS-300 Datasheet (PDF) The RPS-300 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-300-15 Product type Single-output PCB medical AC/DC power supply with active PFC. Model code RPS-300 identifies the series; 15 is the nominal DC voltage; no type suffix identifies the PCB version. The 300W rating requires forced cooling and the specified input and ambient conditions. The model is not supplied as a top-fan or side-fan variant by this code; the cooling fan shown in the installation drawing is external. Primary-to-secondary insulation is 2 × MOPP. Suitability for BF applications requires appropriate consideration of the complete medical system; the component approval is not a guarantee of finished-equipment BF compliance. Model-Specific DC Output DC output voltage 15 V Current range, convection 0–13.33 A; subject to the enclosure and temperature limits below. Current range, forced cooling 0–20 A at 20.5 CFM. Printed output power ratings 200 W with convection; 300 W at 20.5 CFM. Apply all derating limits; the two modes are not interchangeable. Output adjustment 14.25–15.75 V, main output via SVR1. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3.0%; includes set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 90% at the standard measurement conditions. The catalogue lists rounded current and power values independently. Respect both limits and the lower allowable load imposed by cooling, input voltage and ambient temperature; do not increase a rating by recalculating voltage × current. Unless otherwise stated, specifications are measured at 230 VAC, rated load and 25°C ambient. Ripple/noise is measured with 20 MHz bandwidth and a 12-inch twisted pair terminated by parallel 0.1 µF and 47 µF capacitors. Input and Start-Up Input range 90–264 VAC or 127–370 VDC; 47–63 Hz AC. Power factor, typical >0.93 at 230 VAC; >0.98 at 115 VAC, full load. Input current, typical 3.5 A at 115 VAC; 1.8 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 2500 ms / 30 ms at 230 VAC; 3000 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 13 ms at 230 VAC and 115 VAC, full load. No-load consumption <0.5 W by PS-ON control. The input-voltage load curve at 60 Hz permits 80% at 90 VAC, rising linearly to 100% at 115 VAC and remaining at 100% through 264 VAC. Apply this limit together with the thermal curves. The functional block diagram identifies a 65 kHz PFC stage and 70 kHz PWM stage. Protection Short circuit / overload 105–135% of rated output power; hiccup mode, with automatic recovery after the fault is removed. Overvoltage 16.2–18.5 V; output shuts down and requires re-powering to recover. Overtemperature TSW1 shuts down the output and recovers automatically after temperature decreases. TSW2 shuts down the output and requires re-powering to recover. Standby, Fan Supply and Control Signals 5 V standby output 5 V at 0.6 A without a fan or 1 A with 20.5 CFM cooling; tolerance ±2%; maximum ripple 150 mVp-p. Fan auxiliary supply 12 V / 0.5 A; tolerance −15% to +10% at a main-output load of 20% of the 20.5 CFM rated current. PS-ON logic Power ON: High, 2–5 V. Power OFF: Low, 0–0.5 V. Power Good / Power Fail TTL goes high after a delay greater than 10 ms and less than 500 ms after power set-up. It goes low at least 1 ms before output falls below 90% of nominal. The fan supply is dedicated to an additional external fan that cools this power supply, supports full-load delivery and promotes service life. Do not use it to drive other devices. Remote sense is provided at CN100: pin 1 is −S and pin 2 is +S; pin 3 is DC COM and pin 4 is PG. Follow the manufacturer installation instructions for sense wiring. This section does not specify a numerical line-drop compensation allowance or a separate PF connector pin. Cooling, Temperature and Environment Working temperature −30 to +70°C, with mode-specific derating; horizontal orientation. Operating humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 min per cycle, 60 min each on X, Y and Z. Operating altitude Up to 4000 m, with additional thermal derating above 2000 m. For the PCB type, the horizontal convection curve allows 200W up to 50°C, falling to 100W at 60°C. At 115VAC the separate convection line starts derating from 200W at 40°C and also reaches 100W at 60°C. The convection curves end at 60°C; the 70°C endpoint belongs to forced cooling. With 20.5 CFM forced airflow, the common RPS-300 / RPS-300-C curve permits 300 W through 50°C, then falls to 150 W at 70°C. This is a cooling-dependent continuous rating, not a timed pulse or a duty-cycle peak allowance. Above 2000 m, reduce the allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. Observe the lower load allowed by all curves. Dimensions and Installation Overall size, L × W × H 127 × 76.2 × 35 mm. Construction Open PCB; mechanical drawing general tolerance ±1 mm, underside projection 3 mm maximum. Mounting details Four Ø3.2 mm holes; the drawing identifies 117 × 66.2 mm and 115.6 × 64.8 mm mounting dimensions with 5 / 5.7 mm edge offsets. Use the full drawing when making the support. External fan position The PCB drawing shows 20.5 CFM at 5 cm from the long edge, centered 56 mm from the output end, with airflow across the board as illustrated. HS1 and HS2 must not be shorted. The LED and SVR1 adjustment are identified on the PCB drawing. For the PCB type, the catalogue specifies EMI Class B conducted and radiated results in a Class I system with FG. The listed EMC testing uses protective grounding; do not treat these component results as an unqualified Class II system approval. Connections and Mating-Part References AC input, CN1 JST B5P-VH or equivalent: pin 1 FG; pins 2/4 absent; pin 3 AC/L; pin 5 AC/N. DC output, CN2 / CN3 CN2 is −V; CN3 is +V. M3.5 pan-head screws in two positions; maximum torque 8 lbf·in (90 cN·m). Signal connector, CN100 HRS DF11-4DP-2DS or equivalent: 1 −S, 2 +S, 3 DC COM, 4 PG. Standby / control, CN951 HRS DF11-4DP-2DS or equivalent: 1 5VSB, 2/4 DC COM, 3 PS-ON. Fan output, CN952 JST S2B-XH or equivalent: pin 1 DC COM; pin 2 +12 V. CN1 mating references are JST VHR housing and JST SVH-21T-P1.1 terminal, or equivalents. CN100 and CN951 reference HRS DF11-4DS housings and HRS DF11-**SC terminal variants. CN952 references JST XHP housing and JST SXH-001T-P0.6 terminal, or equivalents. VHR, XHP and the wildcard DF11-**SC are printed family or variant references, not newly completed ordering codes. Select the appropriate contact, position count and wire compatibility from the connector manufacturer. These mating references do not establish that loose housings, contacts, a cable kit or a fan are supplied with the power supply. Medical Isolation, Leakage and Safety Insulation levels Primary-secondary 2×MOPP; primary-earth 1×MOPP; secondary-earth 1×MOPP. Withstand voltage Input-output 4 kVAC; input-FG 2 kVAC; output-FG 1.5 kVAC. Isolation resistance 100 MΩ at 500 VDC / 25°C / 70% RH, for input-output, input-FG and output-FG. Leakage current, maximum Earth leakage<150 µA at 264 VAC; touch current <70 µA at 264 VAC. Touch current is measured from primary input to DC output. The PCB and enclosed versions have different earth-leakage limits; use the limit above for this selected construction. The safety table lists IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; IEC60335-1:2010+A1+A2; Dekra BS EN/EN60335-1:2012+A11+A13+A1+A14+A2+A15; and EAC TP TC004 approval. The cover additionally identifies UL62368-1, BS EN/EN62368-1 and IEC62368-1. Applicable equipment compliance must be assessed for the final configuration. EMC and Integration Conditions Conducted and radiated emissions: BS EN/EN55011 (CISPR11), Class B. Harmonic current: BS EN/EN61000-3-2 Class A; voltage flicker: BS EN/EN61000-3-3. Immunity references are BS EN/EN55035 and BS EN/EN60601-1-2. The listed immunity tests are EN61000-4-2 ESD Level 4, 15 kV air / 8 kV contact; EN61000-4-3 RF Level 3, 10 V/m at 80 MHz–2.7GHz and Table 9, 9–28 V/m at 385 MHz–5.78GHz; EN61000-4-4 EFT Level 3, 2 kV; EN61000-4-5 surge Level 4, 4 kV line-FG / 2 kV line-line; EN61000-4-6 conducted susceptibility Level 3, 10 V; EN61000-4-8 magnetic field Level 4, 30 A/m; EN61000-4-11 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. The power supply is a component for installation within final equipment. The listed Class I EMC tests used FG and a 360 × 360 mm metal plate 1 mm thick. Reconfirm EMC compliance in the complete equipment and follow the manufacturer installation instructions. Reliability and Weight Reference MTBF, minimum 2853.1 K hours, Telcordia SR-332 (Bellcore); 160.0 K hours, MIL-HDBK-217F at 25°C. Single-unit packing reference 0.37 kg = 370 g per unit, from the catalogue PACKING field. Carton reference 36pcs/14.3kg/0.96CUFT; this carton weight is not the product weight. The catalogue features list a typical lifetime greater than 40,000 hours and a 3-year warranty. Lifetime and MTBF are different catalogue reliability measures, not an unconditional operating-life guarantee. The single-unit packing reference is not an independently measured net or shipment weight.

  Read more less

  $156.73

  View options

•

  View options

  MEAN WELL RPS-300 series: PCB Medical AC/DC Power Supply - RPS-300-12

  MEAN WELL RPS-300-12 is a PCB-type medical AC/DC power supply with active PFC and a nominal 12 V output. It provides up to 25 A / 300 W with the specified forced-air cooling, subject to input and ambient derating. The catalogue convection rating is 200 W, with lower allowed output as temperature rises or input voltage falls. Auxiliary standby and fan outputs, PS-ON, power-status signalling and remote sense support system integration. Product Datasheet Download MEAN WELL RPS-300 Datasheet (PDF) The RPS-300 section is on PDF pages 1, 2, 3, 4, 5, 6, 7. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete model RPS-300-12 Product type Single-output PCB medical AC/DC power supply with active PFC. Model code RPS-300 identifies the series; 12 is the nominal DC voltage; no type suffix identifies the PCB version. The 300W rating requires forced cooling and the specified input and ambient conditions. The model is not supplied as a top-fan or side-fan variant by this code; the cooling fan shown in the installation drawing is external. Primary-to-secondary insulation is 2 × MOPP. Suitability for BF applications requires appropriate consideration of the complete medical system; the component approval is not a guarantee of finished-equipment BF compliance. Model-Specific DC Output DC output voltage 12 V Current range, convection 0–16.67 A; subject to the enclosure and temperature limits below. Current range, forced cooling 0–25 A at 20.5 CFM. Printed output power ratings 200 W with convection; 300 W at 20.5 CFM. Apply all derating limits; the two modes are not interchangeable. Output adjustment 11.4–12.6 V, main output via SVR1. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±3.0%; includes set-up tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 90% at the standard measurement conditions. The catalogue lists rounded current and power values independently. Respect both limits and the lower allowable load imposed by cooling, input voltage and ambient temperature; do not increase a rating by recalculating voltage × current. Unless otherwise stated, specifications are measured at 230 VAC, rated load and 25°C ambient. Ripple/noise is measured with 20 MHz bandwidth and a 12-inch twisted pair terminated by parallel 0.1 µF and 47 µF capacitors. Input and Start-Up Input range 90–264 VAC or 127–370 VDC; 47–63 Hz AC. Power factor, typical >0.93 at 230 VAC; >0.98 at 115 VAC, full load. Input current, typical 3.5 A at 115 VAC; 1.8 A at 230 VAC. Cold-start inrush, typical 35 A at 115 VAC; 70 A at 230 VAC. Set-up / rise time 2500 ms / 30 ms at 230 VAC; 3000 ms / 30 ms at 115 VAC, full load. Hold-up time, typical 13 ms at 230 VAC and 115 VAC, full load. No-load consumption <0.5 W by PS-ON control. The input-voltage load curve at 60 Hz permits 80% at 90 VAC, rising linearly to 100% at 115 VAC and remaining at 100% through 264 VAC. Apply this limit together with the thermal curves. The functional block diagram identifies a 65 kHz PFC stage and 70 kHz PWM stage. Protection Short circuit / overload 105–135% of rated output power; hiccup mode, with automatic recovery after the fault is removed. Overvoltage 13.5–15 V; output shuts down and requires re-powering to recover. Overtemperature TSW1 shuts down the output and recovers automatically after temperature decreases. TSW2 shuts down the output and requires re-powering to recover. Standby, Fan Supply and Control Signals 5 V standby output 5 V at 0.6 A without a fan or 1 A with 20.5 CFM cooling; tolerance ±2%; maximum ripple 150 mVp-p. Fan auxiliary supply 12 V / 0.5 A; tolerance −15% to +10% at a main-output load of 20% of the 20.5 CFM rated current. PS-ON logic Power ON: High, 2–5 V. Power OFF: Low, 0–0.5 V. Power Good / Power Fail TTL goes high after a delay greater than 10 ms and less than 500 ms after power set-up. It goes low at least 1 ms before output falls below 90% of nominal. The fan supply is dedicated to an additional external fan that cools this power supply, supports full-load delivery and promotes service life. Do not use it to drive other devices. Remote sense is provided at CN100: pin 1 is −S and pin 2 is +S; pin 3 is DC COM and pin 4 is PG. Follow the manufacturer installation instructions for sense wiring. This section does not specify a numerical line-drop compensation allowance or a separate PF connector pin. Cooling, Temperature and Environment Working temperature −30 to +70°C, with mode-specific derating; horizontal orientation. Operating humidity 20–90% RH, non-condensing. Storage −40 to +85°C; 10–95% RH, non-condensing. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 min per cycle, 60 min each on X, Y and Z. Operating altitude Up to 4000 m, with additional thermal derating above 2000 m. For the PCB type, the horizontal convection curve allows 200W up to 50°C, falling to 100W at 60°C. At 115VAC the separate convection line starts derating from 200W at 40°C and also reaches 100W at 60°C. The convection curves end at 60°C; the 70°C endpoint belongs to forced cooling. With 20.5 CFM forced airflow, the common RPS-300 / RPS-300-C curve permits 300 W through 50°C, then falls to 150 W at 70°C. This is a cooling-dependent continuous rating, not a timed pulse or a duty-cycle peak allowance. Above 2000 m, reduce the allowable ambient temperature by 3.5°C per 1000 m for fanless operation or 5°C per 1000 m for fan-cooled operation. Observe the lower load allowed by all curves. Dimensions and Installation Overall size, L × W × H 127 × 76.2 × 35 mm. Construction Open PCB; mechanical drawing general tolerance ±1 mm, underside projection 3 mm maximum. Mounting details Four Ø3.2 mm holes; the drawing identifies 117 × 66.2 mm and 115.6 × 64.8 mm mounting dimensions with 5 / 5.7 mm edge offsets. Use the full drawing when making the support. External fan position The PCB drawing shows 20.5 CFM at 5 cm from the long edge, centered 56 mm from the output end, with airflow across the board as illustrated. HS1 and HS2 must not be shorted. The LED and SVR1 adjustment are identified on the PCB drawing. For the PCB type, the catalogue specifies EMI Class B conducted and radiated results in a Class I system with FG. The listed EMC testing uses protective grounding; do not treat these component results as an unqualified Class II system approval. Connections and Mating-Part References AC input, CN1 JST B5P-VH or equivalent: pin 1 FG; pins 2/4 absent; pin 3 AC/L; pin 5 AC/N. DC output, CN2 / CN3 CN2 is −V; CN3 is +V. M3.5 pan-head screws in two positions; maximum torque 8 lbf·in (90 cN·m). Signal connector, CN100 HRS DF11-4DP-2DS or equivalent: 1 −S, 2 +S, 3 DC COM, 4 PG. Standby / control, CN951 HRS DF11-4DP-2DS or equivalent: 1 5VSB, 2/4 DC COM, 3 PS-ON. Fan output, CN952 JST S2B-XH or equivalent: pin 1 DC COM; pin 2 +12 V. CN1 mating references are JST VHR housing and JST SVH-21T-P1.1 terminal, or equivalents. CN100 and CN951 reference HRS DF11-4DS housings and HRS DF11-**SC terminal variants. CN952 references JST XHP housing and JST SXH-001T-P0.6 terminal, or equivalents. VHR, XHP and the wildcard DF11-**SC are printed family or variant references, not newly completed ordering codes. Select the appropriate contact, position count and wire compatibility from the connector manufacturer. These mating references do not establish that loose housings, contacts, a cable kit or a fan are supplied with the power supply. Medical Isolation, Leakage and Safety Insulation levels Primary-secondary 2×MOPP; primary-earth 1×MOPP; secondary-earth 1×MOPP. Withstand voltage Input-output 4 kVAC; input-FG 2 kVAC; output-FG 1.5 kVAC. Isolation resistance 100 MΩ at 500 VDC / 25°C / 70% RH, for input-output, input-FG and output-FG. Leakage current, maximum Earth leakage<150 µA at 264 VAC; touch current <70 µA at 264 VAC. Touch current is measured from primary input to DC output. The PCB and enclosed versions have different earth-leakage limits; use the limit above for this selected construction. The safety table lists IEC60601-1:2005+A1+A2; TUV BS EN/EN60601-1:2006+A1+A12+A2; ANSI/AAMI ES60601-1:2005+A2; CAN/CSA C22.2 No.60601-1:2014+A2; IEC60335-1:2010+A1+A2; Dekra BS EN/EN60335-1:2012+A11+A13+A1+A14+A2+A15; and EAC TP TC004 approval. The cover additionally identifies UL62368-1, BS EN/EN62368-1 and IEC62368-1. Applicable equipment compliance must be assessed for the final configuration. EMC and Integration Conditions Conducted and radiated emissions: BS EN/EN55011 (CISPR11), Class B. Harmonic current: BS EN/EN61000-3-2 Class A; voltage flicker: BS EN/EN61000-3-3. Immunity references are BS EN/EN55035 and BS EN/EN60601-1-2. The listed immunity tests are EN61000-4-2 ESD Level 4, 15 kV air / 8 kV contact; EN61000-4-3 RF Level 3, 10 V/m at 80 MHz–2.7GHz and Table 9, 9–28 V/m at 385 MHz–5.78GHz; EN61000-4-4 EFT Level 3, 2 kV; EN61000-4-5 surge Level 4, 4 kV line-FG / 2 kV line-line; EN61000-4-6 conducted susceptibility Level 3, 10 V; EN61000-4-8 magnetic field Level 4, 30 A/m; EN61000-4-11 100% dip for 1 period, 30% dip for 25 periods and 100% interruption for 250 periods. The power supply is a component for installation within final equipment. The listed Class I EMC tests used FG and a 360 × 360 mm metal plate 1 mm thick. Reconfirm EMC compliance in the complete equipment and follow the manufacturer installation instructions. Reliability and Weight Reference MTBF, minimum 2853.1 K hours, Telcordia SR-332 (Bellcore); 160.0 K hours, MIL-HDBK-217F at 25°C. Single-unit packing reference 0.37 kg = 370 g per unit, from the catalogue PACKING field. Carton reference 36pcs/14.3kg/0.96CUFT; this carton weight is not the product weight. The catalogue features list a typical lifetime greater than 40,000 hours and a 3-year warranty. Lifetime and MTBF are different catalogue reliability measures, not an unconditional operating-life guarantee. The single-unit packing reference is not an independently measured net or shipment weight.

  Read more less

  $145.39
