MEAN WELL Ultra-High Power & High Voltage Solutions
3-Phase Portfolio: 7.5KW to 30KW | Digital Control | Active Parallel up to 360KW | 115V to 400V Output
Powering Industrial Giants
The MEAN WELL RST-HV and SHP-HV series represent the pinnacle of ultra-high power, high-voltage AC/DC power supplies. Ranging from an impressive 7.5KW up to a staggering 30KW per unit, these power supplies are engineered specifically for heavy-duty 3-phase industrial grids.
Core Industrial Strengths
- 3-Phase Input Ready: Broad compatibility with global heavy industrial grids. Supports 3-phase 3-wire ($\triangle$) or 3-phase 4-wire (Y) configurations depending on the specific model.
- High-Voltage Outputs: Tailored for next-generation applications with robust high-voltage DC outputs including 55V, 115V, 230V, 380V, and specialized 400V models.
- Extreme Efficiency: Advanced topologies guarantee high efficiency, peaking up to an exceptional 97% on the SHP-30K series.
- Application Focus: Perfectly suited for EV charging stations, automation energy systems, UV/laser diode applications, electrolysis systems, and industrial burn-in/aging facilities.
RST-HV Series: 7.5KW & 15KW High-Voltage Power
The RST series delivers massive power density with a focus on reliability and standard heavy-industrial integration, offering excellent Programmable Voltage (PV) and Current (PC) tuning.
| Model Series | RST-7K5-HV | RST-15K-HV |
|---|---|---|
| Rated Power | 7500W (7.5KW) | 15000W (15KW) |
| DC Voltages | 115V, 230V, 380V | 115V, 230V, 380V |
| AC Input Range | 3φ 3W /△ ：196~305VAC；3φ 4W / Y：340~530VAC | 3φ 3W /△ ：196~305VAC；3φ 4W / Y：340~530VAC |
| Efficiency (Max) | Up to 95% | Up to 94% |
| Parallel Function | Active Current Sharing (Up to 4 units / 30KW) | Active Current Sharing (Up to 2 units / 30KW) |

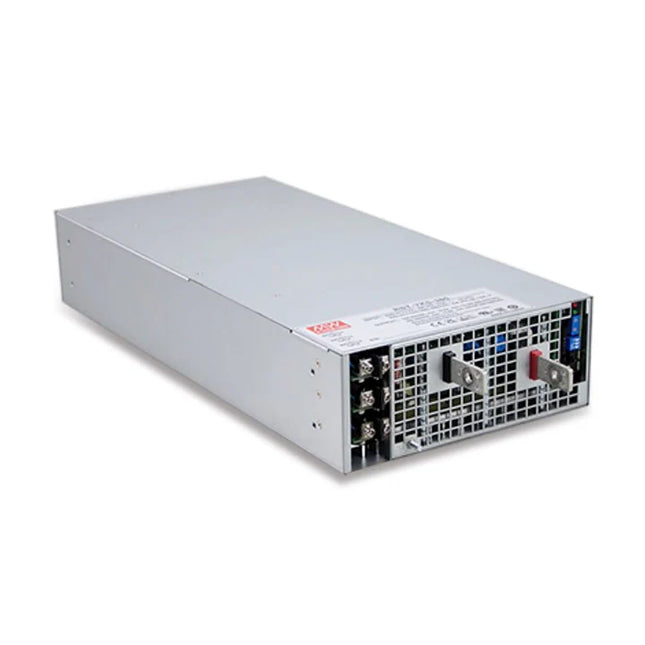

SHP-HV Series: 10KW & 30KW Digital High-Efficiency Power
The SHP series elevates industrial power to unprecedented levels. Not only does it hit massive 30KW single-unit outputs, but it also integrates advanced digital communication protocols and extreme parallel capabilities.
| Model Series | SHP-10K-HV | SHP-30K-HV | SHP-30K-400CP |
|---|---|---|---|
| Rated Power | 10000W (10KW) | 30000W (30KW) | 30000W (30KW) |
| DC Voltages | 55V, 115V, 230V, 380V | 55V, 115V, 230V, 380V | 400V (Specialized) |
| AC Input Range | 3φ3W / 3φ4W：340~530VAC | 3φ3W / 3φ4W：340~530VAC | 3φ3W / 3φ4W：340~530VAC |
| Efficiency (Max) | Up to 96.5% | Up to 97% | Up to 97% |
| Cooling Options | Forced Air or Water Cooling | Forced Air | Forced Air |
Advanced Digital Control & Massive Paralleling
These units are designed to be the intelligent heart of automated systems, offering deep diagnostic and control features.
Communication & Diagnostics (SHP Series)
- Digital Protocols: The SHP series supports optional factory-installed communication protocols to interface with central control hubs. Options include CANBus, PMBus, and MODBus-RTU/RS-485.
- Programmable Control: Standard Programmable Voltage (PV) allows tuning from 50~120% of rated voltage. Programmable Current (PC) allows scaling from 20~100%.
- Alarm Signals: Comprehensive remote monitoring signals including AC-Fail, DC-OK, Fan-Fail, and Over-Temperature (OTP) alarms.
- Auxiliary Power: Features a built-in 12V @ 1.5A auxiliary output to power external control boards.
Massive Active Paralleling
- SHP-10K: Current sharing capability supports up to 4 units in parallel, delivering a combined 40KW.
- SHP-30K: Engineered for extreme-scale facilities, capable of paralleling up to 12 units (or more, consult manual), delivering a jaw-dropping 360KW of unified system power.
Dimensions & Ordering Configurations
Physical Dimensions (L * W * H)
- RST-7K5-HV: 460 * 211 * 83.5 mm
- RST-15K-HV: 540 * 424 * 83.5 mm
- SHP-10K-HV (Air Cooled - Blank Type): 460 * 211 * 83.5 mm (Standard 2U height)
- SHP-10K-HV (Water Cooled - L Type): 460 * 216 * 83.5 mm (Standard 2U height)
- SHP-30K-HV / 400CP: 540 * 424 * 83.5 mm
SHP-10K-HV Configuration & Ordering Breakdown
| Series Name | Power | Output Voltage | Cooling Variant | Protocol Variant (Optional) |
|---|---|---|---|---|
| SHP | 10K | 55 / 115 / 230 / 380 |
Blank: Forced Air -L: Water Cooled |
Blank: CANBus (Standard) -PM: PMBus -MOD: MODBus |
SHP-10K-115-L-PM designates a 10KW unit, 115V output, equipped with a water-cooling plate, and configured for PMBus communication.
