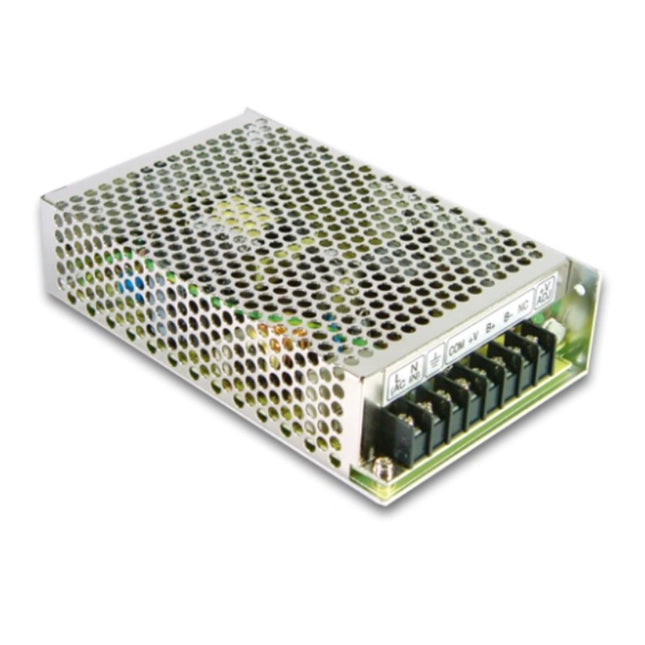

MEAN WELL ADD-55 series: Dual-Output Power Supply with Battery Charger - ADD-55B
MEAN WELL ADD-55B is a dual-output power supply with battery charger with 27.6 V / 5 V / 26.5 V channels and a total rated output of 55.12 W. The main load, 5 V auxiliary load and battery-charging channel share the unit’s power budget. Apply the specified cooling and load limits. Product Datasheet Download MEAN WELL ADD-55 Datasheet (PDF) The ADD-55 section is on PDF pages 23, 24. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Architecture Complete order code ADD-55B Series ADD-55 Output arrangement Dual-Output Power Supply with Battery Charger Input selection Universal AC input; no manual range-selection switch CH1 supplies the main DC load, CH2 supplies a separate 5 V load, and CH3 is the battery-charging channel. An external battery can provide the catalogue UPS function. Use the complete order code to select the voltage combination. The channel numbers identify circuits within one power supply, not separate products. Electrical Output Ratings Total rated output power 55.12 W CH1 voltage adjustment 24–29 V CH1 function Main regulated output CH1 output voltage 27.6 V CH1 rated current 1.3 A CH1 current range 0–2 A CH1 ripple and noise maximum 150 mVp-p CH1 voltage tolerance ±1% CH1 line regulation ±1% CH1 load regulation ±1% CH2 function 5 V auxiliary output CH2 output voltage 5 V CH2 rated current 3 A CH2 current range 0–4 A CH2 ripple and noise maximum 150 mVp-p CH2 voltage tolerance ±3% CH2 line regulation ±0.5% CH2 load regulation ±0.5% CH3 function Battery-charging output CH3 output voltage 26.5 V CH3 rated current 0.16 A The total rated power is shared by all listed channels. Observe the total-power, individual-current, adjustment and cooling limits together; the maximum values of different current ranges are not a simultaneous-output guarantee. CH1 adjustment does not establish an independently adjustable voltage range for the other channels. Check the connected load and, where used, the battery charging requirements before adjustment. Voltage tolerance includes setting tolerance, line regulation and load regulation. Ripple/noise is measured at 20 MHz bandwidth using a 12-inch twisted-pair lead terminated with 0.1 µF and 47 µF capacitors in parallel. Unlisted battery-channel ripple, regulation or current-range values are not specified as zero. Input and Timing AC input voltage 88–264 VAC DC input voltage 124–370 VDC AC input frequency 47–63 Hz Typical efficiency 74% Typical AC input current 1.6 A at 115 VAC; 1 A at 230 VAC Typical cold-start inrush current 20 A at 115 VAC; 40 A at 230 VAC Leakage current <1 mA at 240 VAC Set-up / rise time 800 / 50 ms at 230 VAC; 1600 / 50 ms at 115 VAC, full load Typical hold-up time 80 ms at 230 VAC; 16 ms at 115 VAC, full load Switching frequency 45 kHz Unless otherwise stated, catalogue parameters are measured at 230 VAC input, rated load and 25°C ambient. Timing values retain their stated input and load conditions. Connect the protective-earth terminal marked FG as shown in the wiring drawing. Protection and Battery Operation Short-circuit protection Provided Main-output overload threshold 105–150% of rated output power Overload recovery AC charging mode: hiccup with automatic recovery after fault removal; UPS mode: internal-fuse protection CH1 over-voltage threshold 28.98–37.26 V Over-voltage recovery Hiccup mode; automatic recovery after fault removal Battery-low protection Provided; numeric cutoff is not specified The over-voltage threshold is specified for CH1. It is not a separately guaranteed over-voltage threshold for every auxiliary or charging channel. AC charging and battery-backup operation have different overload protection mechanisms. An internal-fuse response is not an automatic electronic restart. Check battery polarity and the battery manufacturer’s charging requirements before connection. Optional Alarm Output Alarm availability Optional configuration CN1 pin 1 Battery-low alarm below 82.5% ±2% of charge voltage CN1 pin 2 AC-fail alarm Normal alarm level 0.8 V maximum Abnormal alarm level 5 V ±0.5 V Order and confirm the alarm-equipped configuration when these signals are required. The alarm threshold is distinct from battery-discharge cutoff. Obtain the mating arrangement and signal reference for the supplied option before wiring. Terminal Assignments and Mating Parts Terminal 1 AC/L Terminal 2 AC/N Terminal 3 FG Terminal 4 DC OUTPUT COM Terminal 5 DC OUTPUT +V Terminal 6 BAT. + Terminal 7 BAT.−/COM Terminal 8 DC/DC OUTPUT +5V Use the numbered terminal view for this exact series. NC means no connection. DC COM is the output return; FG is protective earth. Do not interchange them. Connect the external battery only to BAT.+ and BAT.−/COM. The battery return and output common are identified in the terminal and block diagrams. Select wiring and battery protection for the actual installation. Environment, Cooling and Derating Working ambient temperature −10 to +60°C, subject to the applicable cooling curve Working humidity 20–90% RH, non-condensing Storage temperature −20 to +85°C Storage humidity 10–95% RH Temperature coefficient ±0.03%/°C from 0 to 50°C on CH1 Vibration 10–500 Hz, 2G; 10 minutes/cycle, 60 minutes each along X, Y and Z For horizontal mounting without a fan, the curve permits 70% load from −10 to 40°C, decreasing to 50% at 50°C. The no-fan curve ends at 50°C. With at least 18.2 CFM external airflow arranged 10 cm from the unit as shown, the curve rises from 80% at −10°C to 100% at 0°C and remains at 100% through 60°C. Natural-convection operation does not mean unrestricted full rated power. Provide the specified external airflow when using the forced-air curve, and keep the ventilation path clear. Above 2000 m altitude, apply an additional ambient-temperature derating of 3.5°C per 1000 m for fanless models or 5°C per 1000 m for fan models, as specified in the catalogue installation note. Safety, EMC and Reliability Safety standards UL 62368-1; TÜV BS EN/EN 62368-1; EAC TP TC 004 approved Input-to-output withstand voltage 3 kVAC Input-to-FG withstand voltage 2 kVAC Output-to-FG withstand voltage 0.5 kVAC Isolation resistance 100 MΩ between I/P–O/P, I/P–FG and O/P–FG at 500 VDC, 25°C, 70% RH EMC emission BS EN/EN 55032 (CISPR 32), Class B; BS EN/EN 61000-3-2 and -3; EAC TP TC 020 EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8, -11; BS EN/EN 55035, light-industry level; EAC TP TC 020 MTBF, Telcordia SR-332 2002.7K hours minimum MTBF, MIL-HDBK-217F 373.8K hours minimum at 25°C This power supply is a component for installation in final equipment. The catalogue EMC tests use a 360 × 360 mm metal plate, 1 mm thick. Verify EMC compliance again in the completed equipment. The catalogue lists 100% full-load burn-in testing and a two-year warranty. MTBF is a reliability calculation, not a guaranteed operating lifetime. Mechanical Installation and Related Equipment Catalogue dimensions 159 × 97 × 38 mm (L × W × H) Case reference 901 Drawing dimensional tolerance ±1 mm Catalogue unit-weight reference 570 g Catalogue packing 0.57 kg; 24 pcs / 13.7 kg / 0.83 CUFT The mechanical drawing marks a 152.5 mm longitudinal mounting reference, 84.5 mm vertical reference, 2-M3 bottom holes, 3-M3 side holes and Ø3.5 mm holes. Use the exact drawing positions and keep clearance around the terminal block. The unit weight is the catalogue PACKING reference per unit, not a measured net or shipping weight. Carton quantities and carton weight are separate packing references. Select external wiring, ventilation and installation hardware to suit the actual load and enclosure. The cooling fan illustrated in the airflow setup is external; the drawing does not establish an included fan or a separate fan order code. An external battery is required for backup operation. Choose it for the stated charging voltage and current and the required backup duration; the catalogue does not prescribe a complete battery order code or guarantee a backup time.
$94.14
-
MEAN WELL ADD-55 series: Dual-Output Power Supply with Battery Charger - ADD-55B
MEAN WELL ADD-55B is a dual-output power supply with battery charger with 27.6 V / 5 V / 26.5 V channels and a total rated output of 55.12 W. The main load, 5 V auxiliary load and battery-charging channel share the unit’s power budget. Apply the specified cooling and load limits. Product Datasheet Download MEAN WELL ADD-55 Datasheet (PDF) The ADD-55 section is on PDF pages 23, 24. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Architecture Complete order code ADD-55B Series ADD-55 Output arrangement Dual-Output Power Supply with Battery Charger Input selection Universal AC input; no manual range-selection switch CH1 supplies the main DC load, CH2 supplies a separate 5 V load, and CH3 is the battery-charging channel. An external battery can provide the catalogue UPS function. Use the complete order code to select the voltage combination. The channel numbers identify circuits within one power supply, not separate products. Electrical Output Ratings Total rated output power 55.12 W CH1 voltage adjustment 24–29 V CH1 function Main regulated output CH1 output voltage 27.6 V CH1 rated current 1.3 A CH1 current range 0–2 A CH1 ripple and noise maximum 150 mVp-p CH1 voltage tolerance ±1% CH1 line regulation ±1% CH1 load regulation ±1% CH2 function 5 V auxiliary output CH2 output voltage 5 V CH2 rated current 3 A CH2 current range 0–4 A CH2 ripple and noise maximum 150 mVp-p CH2 voltage tolerance ±3% CH2 line regulation ±0.5% CH2 load regulation ±0.5% CH3 function Battery-charging output CH3 output voltage 26.5 V CH3 rated current 0.16 A The total rated power is shared by all listed channels. Observe the total-power, individual-current, adjustment and cooling limits together; the maximum values of different current ranges are not a simultaneous-output guarantee. CH1 adjustment does not establish an independently adjustable voltage range for the other channels. Check the connected load and, where used, the battery charging requirements before adjustment. Voltage tolerance includes setting tolerance, line regulation and load regulation. Ripple/noise is measured at 20 MHz bandwidth using a 12-inch twisted-pair lead terminated with 0.1 µF and 47 µF capacitors in parallel. Unlisted battery-channel ripple, regulation or current-range values are not specified as zero. Input and Timing AC input voltage 88–264 VAC DC input voltage 124–370 VDC AC input frequency 47–63 Hz Typical efficiency 74% Typical AC input current 1.6 A at 115 VAC; 1 A at 230 VAC Typical cold-start inrush current 20 A at 115 VAC; 40 A at 230 VAC Leakage current <1 mA at 240 VAC Set-up / rise time 800 / 50 ms at 230 VAC; 1600 / 50 ms at 115 VAC, full load Typical hold-up time 80 ms at 230 VAC; 16 ms at 115 VAC, full load Switching frequency 45 kHz Unless otherwise stated, catalogue parameters are measured at 230 VAC input, rated load and 25°C ambient. Timing values retain their stated input and load conditions. Connect the protective-earth terminal marked FG as shown in the wiring drawing. Protection and Battery Operation Short-circuit protection Provided Main-output overload threshold 105–150% of rated output power Overload recovery AC charging mode: hiccup with automatic recovery after fault removal; UPS mode: internal-fuse protection CH1 over-voltage threshold 28.98–37.26 V Over-voltage recovery Hiccup mode; automatic recovery after fault removal Battery-low protection Provided; numeric cutoff is not specified The over-voltage threshold is specified for CH1. It is not a separately guaranteed over-voltage threshold for every auxiliary or charging channel. AC charging and battery-backup operation have different overload protection mechanisms. An internal-fuse response is not an automatic electronic restart. Check battery polarity and the battery manufacturer’s charging requirements before connection. Optional Alarm Output Alarm availability Optional configuration CN1 pin 1 Battery-low alarm below 82.5% ±2% of charge voltage CN1 pin 2 AC-fail alarm Normal alarm level 0.8 V maximum Abnormal alarm level 5 V ±0.5 V Order and confirm the alarm-equipped configuration when these signals are required. The alarm threshold is distinct from battery-discharge cutoff. Obtain the mating arrangement and signal reference for the supplied option before wiring. Terminal Assignments and Mating Parts Terminal 1 AC/L Terminal 2 AC/N Terminal 3 FG Terminal 4 DC OUTPUT COM Terminal 5 DC OUTPUT +V Terminal 6 BAT. + Terminal 7 BAT.−/COM Terminal 8 DC/DC OUTPUT +5V Use the numbered terminal view for this exact series. NC means no connection. DC COM is the output return; FG is protective earth. Do not interchange them. Connect the external battery only to BAT.+ and BAT.−/COM. The battery return and output common are identified in the terminal and block diagrams. Select wiring and battery protection for the actual installation. Environment, Cooling and Derating Working ambient temperature −10 to +60°C, subject to the applicable cooling curve Working humidity 20–90% RH, non-condensing Storage temperature −20 to +85°C Storage humidity 10–95% RH Temperature coefficient ±0.03%/°C from 0 to 50°C on CH1 Vibration 10–500 Hz, 2G; 10 minutes/cycle, 60 minutes each along X, Y and Z For horizontal mounting without a fan, the curve permits 70% load from −10 to 40°C, decreasing to 50% at 50°C. The no-fan curve ends at 50°C. With at least 18.2 CFM external airflow arranged 10 cm from the unit as shown, the curve rises from 80% at −10°C to 100% at 0°C and remains at 100% through 60°C. Natural-convection operation does not mean unrestricted full rated power. Provide the specified external airflow when using the forced-air curve, and keep the ventilation path clear. Above 2000 m altitude, apply an additional ambient-temperature derating of 3.5°C per 1000 m for fanless models or 5°C per 1000 m for fan models, as specified in the catalogue installation note. Safety, EMC and Reliability Safety standards UL 62368-1; TÜV BS EN/EN 62368-1; EAC TP TC 004 approved Input-to-output withstand voltage 3 kVAC Input-to-FG withstand voltage 2 kVAC Output-to-FG withstand voltage 0.5 kVAC Isolation resistance 100 MΩ between I/P–O/P, I/P–FG and O/P–FG at 500 VDC, 25°C, 70% RH EMC emission BS EN/EN 55032 (CISPR 32), Class B; BS EN/EN 61000-3-2 and -3; EAC TP TC 020 EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8, -11; BS EN/EN 55035, light-industry level; EAC TP TC 020 MTBF, Telcordia SR-332 2002.7K hours minimum MTBF, MIL-HDBK-217F 373.8K hours minimum at 25°C This power supply is a component for installation in final equipment. The catalogue EMC tests use a 360 × 360 mm metal plate, 1 mm thick. Verify EMC compliance again in the completed equipment. The catalogue lists 100% full-load burn-in testing and a two-year warranty. MTBF is a reliability calculation, not a guaranteed operating lifetime. Mechanical Installation and Related Equipment Catalogue dimensions 159 × 97 × 38 mm (L × W × H) Case reference 901 Drawing dimensional tolerance ±1 mm Catalogue unit-weight reference 570 g Catalogue packing 0.57 kg; 24 pcs / 13.7 kg / 0.83 CUFT The mechanical drawing marks a 152.5 mm longitudinal mounting reference, 84.5 mm vertical reference, 2-M3 bottom holes, 3-M3 side holes and Ø3.5 mm holes. Use the exact drawing positions and keep clearance around the terminal block. The unit weight is the catalogue PACKING reference per unit, not a measured net or shipping weight. Carton quantities and carton weight are separate packing references. Select external wiring, ventilation and installation hardware to suit the actual load and enclosure. The cooling fan illustrated in the airflow setup is external; the drawing does not establish an included fan or a separate fan order code. An external battery is required for backup operation. Choose it for the stated charging voltage and current and the required backup duration; the catalogue does not prescribe a complete battery order code or guarantee a backup time.
$94.14
-
MEAN WELL ADD-55 series: Dual-Output Power Supply with Battery Charger - ADD-55B
MEAN WELL ADD-55B is a dual-output power supply with battery charger with 27.6 V / 5 V / 26.5 V channels and a total rated output of 55.12 W. The main load, 5 V auxiliary load and battery-charging channel share the unit’s power budget. Apply the specified cooling and load limits. Product Datasheet Download MEAN WELL ADD-55 Datasheet (PDF) The ADD-55 section is on PDF pages 23, 24. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Architecture Complete order code ADD-55B Series ADD-55 Output arrangement Dual-Output Power Supply with Battery Charger Input selection Universal AC input; no manual range-selection switch CH1 supplies the main DC load, CH2 supplies a separate 5 V load, and CH3 is the battery-charging channel. An external battery can provide the catalogue UPS function. Use the complete order code to select the voltage combination. The channel numbers identify circuits within one power supply, not separate products. Electrical Output Ratings Total rated output power 55.12 W CH1 voltage adjustment 24–29 V CH1 function Main regulated output CH1 output voltage 27.6 V CH1 rated current 1.3 A CH1 current range 0–2 A CH1 ripple and noise maximum 150 mVp-p CH1 voltage tolerance ±1% CH1 line regulation ±1% CH1 load regulation ±1% CH2 function 5 V auxiliary output CH2 output voltage 5 V CH2 rated current 3 A CH2 current range 0–4 A CH2 ripple and noise maximum 150 mVp-p CH2 voltage tolerance ±3% CH2 line regulation ±0.5% CH2 load regulation ±0.5% CH3 function Battery-charging output CH3 output voltage 26.5 V CH3 rated current 0.16 A The total rated power is shared by all listed channels. Observe the total-power, individual-current, adjustment and cooling limits together; the maximum values of different current ranges are not a simultaneous-output guarantee. CH1 adjustment does not establish an independently adjustable voltage range for the other channels. Check the connected load and, where used, the battery charging requirements before adjustment. Voltage tolerance includes setting tolerance, line regulation and load regulation. Ripple/noise is measured at 20 MHz bandwidth using a 12-inch twisted-pair lead terminated with 0.1 µF and 47 µF capacitors in parallel. Unlisted battery-channel ripple, regulation or current-range values are not specified as zero. Input and Timing AC input voltage 88–264 VAC DC input voltage 124–370 VDC AC input frequency 47–63 Hz Typical efficiency 74% Typical AC input current 1.6 A at 115 VAC; 1 A at 230 VAC Typical cold-start inrush current 20 A at 115 VAC; 40 A at 230 VAC Leakage current <1 mA at 240 VAC Set-up / rise time 800 / 50 ms at 230 VAC; 1600 / 50 ms at 115 VAC, full load Typical hold-up time 80 ms at 230 VAC; 16 ms at 115 VAC, full load Switching frequency 45 kHz Unless otherwise stated, catalogue parameters are measured at 230 VAC input, rated load and 25°C ambient. Timing values retain their stated input and load conditions. Connect the protective-earth terminal marked FG as shown in the wiring drawing. Protection and Battery Operation Short-circuit protection Provided Main-output overload threshold 105–150% of rated output power Overload recovery AC charging mode: hiccup with automatic recovery after fault removal; UPS mode: internal-fuse protection CH1 over-voltage threshold 28.98–37.26 V Over-voltage recovery Hiccup mode; automatic recovery after fault removal Battery-low protection Provided; numeric cutoff is not specified The over-voltage threshold is specified for CH1. It is not a separately guaranteed over-voltage threshold for every auxiliary or charging channel. AC charging and battery-backup operation have different overload protection mechanisms. An internal-fuse response is not an automatic electronic restart. Check battery polarity and the battery manufacturer’s charging requirements before connection. Optional Alarm Output Alarm availability Optional configuration CN1 pin 1 Battery-low alarm below 82.5% ±2% of charge voltage CN1 pin 2 AC-fail alarm Normal alarm level 0.8 V maximum Abnormal alarm level 5 V ±0.5 V Order and confirm the alarm-equipped configuration when these signals are required. The alarm threshold is distinct from battery-discharge cutoff. Obtain the mating arrangement and signal reference for the supplied option before wiring. Terminal Assignments and Mating Parts Terminal 1 AC/L Terminal 2 AC/N Terminal 3 FG Terminal 4 DC OUTPUT COM Terminal 5 DC OUTPUT +V Terminal 6 BAT. + Terminal 7 BAT.−/COM Terminal 8 DC/DC OUTPUT +5V Use the numbered terminal view for this exact series. NC means no connection. DC COM is the output return; FG is protective earth. Do not interchange them. Connect the external battery only to BAT.+ and BAT.−/COM. The battery return and output common are identified in the terminal and block diagrams. Select wiring and battery protection for the actual installation. Environment, Cooling and Derating Working ambient temperature −10 to +60°C, subject to the applicable cooling curve Working humidity 20–90% RH, non-condensing Storage temperature −20 to +85°C Storage humidity 10–95% RH Temperature coefficient ±0.03%/°C from 0 to 50°C on CH1 Vibration 10–500 Hz, 2G; 10 minutes/cycle, 60 minutes each along X, Y and Z For horizontal mounting without a fan, the curve permits 70% load from −10 to 40°C, decreasing to 50% at 50°C. The no-fan curve ends at 50°C. With at least 18.2 CFM external airflow arranged 10 cm from the unit as shown, the curve rises from 80% at −10°C to 100% at 0°C and remains at 100% through 60°C. Natural-convection operation does not mean unrestricted full rated power. Provide the specified external airflow when using the forced-air curve, and keep the ventilation path clear. Above 2000 m altitude, apply an additional ambient-temperature derating of 3.5°C per 1000 m for fanless models or 5°C per 1000 m for fan models, as specified in the catalogue installation note. Safety, EMC and Reliability Safety standards UL 62368-1; TÜV BS EN/EN 62368-1; EAC TP TC 004 approved Input-to-output withstand voltage 3 kVAC Input-to-FG withstand voltage 2 kVAC Output-to-FG withstand voltage 0.5 kVAC Isolation resistance 100 MΩ between I/P–O/P, I/P–FG and O/P–FG at 500 VDC, 25°C, 70% RH EMC emission BS EN/EN 55032 (CISPR 32), Class B; BS EN/EN 61000-3-2 and -3; EAC TP TC 020 EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8, -11; BS EN/EN 55035, light-industry level; EAC TP TC 020 MTBF, Telcordia SR-332 2002.7K hours minimum MTBF, MIL-HDBK-217F 373.8K hours minimum at 25°C This power supply is a component for installation in final equipment. The catalogue EMC tests use a 360 × 360 mm metal plate, 1 mm thick. Verify EMC compliance again in the completed equipment. The catalogue lists 100% full-load burn-in testing and a two-year warranty. MTBF is a reliability calculation, not a guaranteed operating lifetime. Mechanical Installation and Related Equipment Catalogue dimensions 159 × 97 × 38 mm (L × W × H) Case reference 901 Drawing dimensional tolerance ±1 mm Catalogue unit-weight reference 570 g Catalogue packing 0.57 kg; 24 pcs / 13.7 kg / 0.83 CUFT The mechanical drawing marks a 152.5 mm longitudinal mounting reference, 84.5 mm vertical reference, 2-M3 bottom holes, 3-M3 side holes and Ø3.5 mm holes. Use the exact drawing positions and keep clearance around the terminal block. The unit weight is the catalogue PACKING reference per unit, not a measured net or shipping weight. Carton quantities and carton weight are separate packing references. Select external wiring, ventilation and installation hardware to suit the actual load and enclosure. The cooling fan illustrated in the airflow setup is external; the drawing does not establish an included fan or a separate fan order code. An external battery is required for backup operation. Choose it for the stated charging voltage and current and the required backup duration; the catalogue does not prescribe a complete battery order code or guarantee a backup time.
$94.14
-
MEAN WELL ADS-155 series: AC/DC Power Supply with 5 V Auxiliary Output - ADS-15512
MEAN WELL ADS-15512 is an AC/DC power supply with 5 V auxiliary output with 12 V / 5 V channels and a total rated output of 153 W. The main output and 5 V auxiliary output share the unit’s power budget. Apply the specified cooling and load limits. Product Datasheet Download MEAN WELL ADS-155 Datasheet (PDF) The ADS-155 section is on PDF pages 17, 18. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Architecture Complete order code ADS-15512 Series ADS-155 Output arrangement AC/DC Power Supply with 5 V Auxiliary Output Input selection Universal AC input; no manual range-selection switch CH1 supplies the main DC load and CH2 is the regulated 5 V auxiliary output. This ADS model has no battery-charging or battery-backup connection. Use the complete order code to select the voltage combination. The channel numbers identify circuits within one power supply, not separate products. Electrical Output Ratings Total rated output power 153 W CH1 voltage adjustment 10.8–13.2 V CH1 function Main regulated output CH1 output voltage 12 V CH1 rated current 11.5 A CH1 current range 0–12.5 A CH1 ripple and noise maximum 150 mVp-p CH1 voltage tolerance ±2% CH1 line regulation ±0.5% CH1 load regulation ±1% CH2 function 5 V auxiliary output CH2 output voltage 5 V CH2 rated current 3 A CH2 current range 0–3 A CH2 ripple and noise maximum 100 mVp-p CH2 voltage tolerance ±3% CH2 line regulation ±0.5% CH2 load regulation ±2% The total rated power is shared by all listed channels. Observe the total-power, individual-current, adjustment and cooling limits together; the maximum values of different current ranges are not a simultaneous-output guarantee. CH1 adjustment does not establish an independently adjustable voltage range for the other channels. Check the connected load before adjustment. Voltage tolerance includes setting tolerance, line regulation and load regulation. Ripple/noise is measured at 20 MHz bandwidth using a 12-inch twisted-pair lead terminated with 0.1 µF and 47 µF capacitors in parallel. The 5 V channel has its own current and regulation limits even when the main output is lightly loaded. Input and Timing AC input voltage 88–264 VAC DC input voltage 124–370 VDC AC input frequency 47–63 Hz Typical efficiency 77% Typical AC input current 2.5 A at 115 VAC; 1.5 A at 230 VAC Typical cold-start inrush current 23 A at 115 VAC; 45 A at 230 VAC Leakage current <1 mA at 240 VAC Set-up / rise time 1000 / 90 ms at 230 VAC; 2000 / 90 ms at 115 VAC, full load Typical hold-up time 24 ms at 230 VAC; 20 ms at 115 VAC, full load Switching frequency PFC 67 kHz; PWM 134 kHz Typical power factor >0.92 Unless otherwise stated, catalogue parameters are measured at 230 VAC input, rated load and 25°C ambient. Timing values retain their stated input and load conditions. Active PFC is built in. Connect the protective-earth terminal marked FG as shown in the wiring drawing. Protection Short-circuit protection Provided Main-output overload threshold 105–135% of rated output power Overload recovery Constant-current limiting; automatic recovery after fault removal CH1 over-voltage threshold 13.8–16.2 V Over-voltage recovery Output shutdown; reapply power to recover The over-voltage threshold is specified for CH1. It is not a separately guaranteed over-voltage threshold for every auxiliary or charging channel. Terminal Assignments and Mating Parts Terminal 1 AC/L Terminal 2 AC/N Terminal 3 FG Terminal 4 +5V Terminal 5 NC Terminal 6 DC OUTPUT COM Terminal 7 DC OUTPUT COM Terminal 8 DC OUTPUT +V Use the numbered terminal view for this exact series. NC means no connection. DC COM is the output return; FG is protective earth. Do not interchange them. Environment, Cooling and Derating Working ambient temperature −10 to +60°C, subject to the applicable cooling curve Working humidity 20–90% RH, non-condensing Storage temperature −20 to +85°C Storage humidity 10–95% RH Temperature coefficient ±0.03%/°C from 0 to 50°C Vibration 10–500 Hz, 2G; 10 minutes/cycle, 60 minutes each along X, Y and Z For horizontal mounting without a fan, the curve permits 70% load from −10 to 50°C, decreasing to 50% at 60°C. With at least 21.6 CFM external airflow arranged 10 cm from the unit as shown, it permits 100% from −10 to 50°C and 80% at 60°C. Natural-convection operation does not mean unrestricted full rated power. Provide the specified external airflow when using the forced-air curve, and keep the ventilation path clear. Above 2000 m altitude, apply an additional ambient-temperature derating of 3.5°C per 1000 m for fanless models or 5°C per 1000 m for fan models, as specified in the catalogue installation note. The model-specific input derating plot at 60 Hz shows 80% load at 88 VAC, rising to 100% at 100 VAC and remaining at 100% through 264 VAC. Apply input and temperature limits together. Safety, EMC and Reliability Safety standards UL 62368-1; TÜV BS EN/EN 62368-1; EAC TP TC 004 approved Input-to-output withstand voltage 3 kVAC Input-to-FG withstand voltage 2 kVAC Output-to-FG withstand voltage 0.5 kVAC Isolation resistance 100 MΩ between I/P–O/P, I/P–FG and O/P–FG at 500 VDC, 25°C, 70% RH EMC emission BS EN/EN 55032 (CISPR 32), Class B; BS EN/EN 61000-3-2 and -3; EAC TP TC 020 EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8, -11; BS EN/EN 55035, light-industry level; EAC TP TC 020 MTBF, Telcordia SR-332 2235.6K hours minimum MTBF, MIL-HDBK-217F 252.1K hours minimum at 25°C This power supply is a component for installation in final equipment. Verify EMC compliance again in the completed equipment. The catalogue lists 100% full-load burn-in testing and a two-year warranty. MTBF is a reliability calculation, not a guaranteed operating lifetime. Mechanical Installation and Related Equipment Catalogue dimensions 199 × 110 × 50 mm (L × W × H) Case reference 906 Drawing dimensional tolerance ±1 mm Catalogue unit-weight reference 1000 g Catalogue packing 1 kg; 16 pcs / 16 kg / 0.95 CUFT The mechanical drawing marks 192 mm and 172 mm longitudinal references, a 97 mm vertical reference, 5-M3 bottom holes, 3-M3 side holes and Ø3.5 mm holes. Use the exact drawing positions and keep clearance around the terminal block. The unit weight is the catalogue PACKING reference per unit, not a measured net or shipping weight. Carton quantities and carton weight are separate packing references. Select external wiring, ventilation and installation hardware to suit the actual load and enclosure. The cooling fan illustrated in the airflow setup is external; the drawing does not establish an included fan or a separate fan order code.
$160.67
-
MEAN WELL ADS-155 series: AC/DC Power Supply with 5 V Auxiliary Output - ADS-15512
MEAN WELL ADS-15512 is an AC/DC power supply with 5 V auxiliary output with 12 V / 5 V channels and a total rated output of 153 W. The main output and 5 V auxiliary output share the unit’s power budget. Apply the specified cooling and load limits. Product Datasheet Download MEAN WELL ADS-155 Datasheet (PDF) The ADS-155 section is on PDF pages 17, 18. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Architecture Complete order code ADS-15512 Series ADS-155 Output arrangement AC/DC Power Supply with 5 V Auxiliary Output Input selection Universal AC input; no manual range-selection switch CH1 supplies the main DC load and CH2 is the regulated 5 V auxiliary output. This ADS model has no battery-charging or battery-backup connection. Use the complete order code to select the voltage combination. The channel numbers identify circuits within one power supply, not separate products. Electrical Output Ratings Total rated output power 153 W CH1 voltage adjustment 10.8–13.2 V CH1 function Main regulated output CH1 output voltage 12 V CH1 rated current 11.5 A CH1 current range 0–12.5 A CH1 ripple and noise maximum 150 mVp-p CH1 voltage tolerance ±2% CH1 line regulation ±0.5% CH1 load regulation ±1% CH2 function 5 V auxiliary output CH2 output voltage 5 V CH2 rated current 3 A CH2 current range 0–3 A CH2 ripple and noise maximum 100 mVp-p CH2 voltage tolerance ±3% CH2 line regulation ±0.5% CH2 load regulation ±2% The total rated power is shared by all listed channels. Observe the total-power, individual-current, adjustment and cooling limits together; the maximum values of different current ranges are not a simultaneous-output guarantee. CH1 adjustment does not establish an independently adjustable voltage range for the other channels. Check the connected load before adjustment. Voltage tolerance includes setting tolerance, line regulation and load regulation. Ripple/noise is measured at 20 MHz bandwidth using a 12-inch twisted-pair lead terminated with 0.1 µF and 47 µF capacitors in parallel. The 5 V channel has its own current and regulation limits even when the main output is lightly loaded. Input and Timing AC input voltage 88–264 VAC DC input voltage 124–370 VDC AC input frequency 47–63 Hz Typical efficiency 77% Typical AC input current 2.5 A at 115 VAC; 1.5 A at 230 VAC Typical cold-start inrush current 23 A at 115 VAC; 45 A at 230 VAC Leakage current <1 mA at 240 VAC Set-up / rise time 1000 / 90 ms at 230 VAC; 2000 / 90 ms at 115 VAC, full load Typical hold-up time 24 ms at 230 VAC; 20 ms at 115 VAC, full load Switching frequency PFC 67 kHz; PWM 134 kHz Typical power factor >0.92 Unless otherwise stated, catalogue parameters are measured at 230 VAC input, rated load and 25°C ambient. Timing values retain their stated input and load conditions. Active PFC is built in. Connect the protective-earth terminal marked FG as shown in the wiring drawing. Protection Short-circuit protection Provided Main-output overload threshold 105–135% of rated output power Overload recovery Constant-current limiting; automatic recovery after fault removal CH1 over-voltage threshold 13.8–16.2 V Over-voltage recovery Output shutdown; reapply power to recover The over-voltage threshold is specified for CH1. It is not a separately guaranteed over-voltage threshold for every auxiliary or charging channel. Terminal Assignments and Mating Parts Terminal 1 AC/L Terminal 2 AC/N Terminal 3 FG Terminal 4 +5V Terminal 5 NC Terminal 6 DC OUTPUT COM Terminal 7 DC OUTPUT COM Terminal 8 DC OUTPUT +V Use the numbered terminal view for this exact series. NC means no connection. DC COM is the output return; FG is protective earth. Do not interchange them. Environment, Cooling and Derating Working ambient temperature −10 to +60°C, subject to the applicable cooling curve Working humidity 20–90% RH, non-condensing Storage temperature −20 to +85°C Storage humidity 10–95% RH Temperature coefficient ±0.03%/°C from 0 to 50°C Vibration 10–500 Hz, 2G; 10 minutes/cycle, 60 minutes each along X, Y and Z For horizontal mounting without a fan, the curve permits 70% load from −10 to 50°C, decreasing to 50% at 60°C. With at least 21.6 CFM external airflow arranged 10 cm from the unit as shown, it permits 100% from −10 to 50°C and 80% at 60°C. Natural-convection operation does not mean unrestricted full rated power. Provide the specified external airflow when using the forced-air curve, and keep the ventilation path clear. Above 2000 m altitude, apply an additional ambient-temperature derating of 3.5°C per 1000 m for fanless models or 5°C per 1000 m for fan models, as specified in the catalogue installation note. The model-specific input derating plot at 60 Hz shows 80% load at 88 VAC, rising to 100% at 100 VAC and remaining at 100% through 264 VAC. Apply input and temperature limits together. Safety, EMC and Reliability Safety standards UL 62368-1; TÜV BS EN/EN 62368-1; EAC TP TC 004 approved Input-to-output withstand voltage 3 kVAC Input-to-FG withstand voltage 2 kVAC Output-to-FG withstand voltage 0.5 kVAC Isolation resistance 100 MΩ between I/P–O/P, I/P–FG and O/P–FG at 500 VDC, 25°C, 70% RH EMC emission BS EN/EN 55032 (CISPR 32), Class B; BS EN/EN 61000-3-2 and -3; EAC TP TC 020 EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8, -11; BS EN/EN 55035, light-industry level; EAC TP TC 020 MTBF, Telcordia SR-332 2235.6K hours minimum MTBF, MIL-HDBK-217F 252.1K hours minimum at 25°C This power supply is a component for installation in final equipment. Verify EMC compliance again in the completed equipment. The catalogue lists 100% full-load burn-in testing and a two-year warranty. MTBF is a reliability calculation, not a guaranteed operating lifetime. Mechanical Installation and Related Equipment Catalogue dimensions 199 × 110 × 50 mm (L × W × H) Case reference 906 Drawing dimensional tolerance ±1 mm Catalogue unit-weight reference 1000 g Catalogue packing 1 kg; 16 pcs / 16 kg / 0.95 CUFT The mechanical drawing marks 192 mm and 172 mm longitudinal references, a 97 mm vertical reference, 5-M3 bottom holes, 3-M3 side holes and Ø3.5 mm holes. Use the exact drawing positions and keep clearance around the terminal block. The unit weight is the catalogue PACKING reference per unit, not a measured net or shipping weight. Carton quantities and carton weight are separate packing references. Select external wiring, ventilation and installation hardware to suit the actual load and enclosure. The cooling fan illustrated in the airflow setup is external; the drawing does not establish an included fan or a separate fan order code.
$160.67
-
MEAN WELL ADS-155 series: AC/DC Power Supply with 5 V Auxiliary Output - ADS-15524
MEAN WELL ADS-15524 is an AC/DC power supply with 5 V auxiliary output with 24 V / 5 V channels and a total rated output of 154.2 W. The main output and 5 V auxiliary output share the unit’s power budget. Apply the specified cooling and load limits. Product Datasheet Download MEAN WELL ADS-155 Datasheet (PDF) The ADS-155 section is on PDF pages 17, 18. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Architecture Complete order code ADS-15524 Series ADS-155 Output arrangement AC/DC Power Supply with 5 V Auxiliary Output Input selection Universal AC input; no manual range-selection switch CH1 supplies the main DC load and CH2 is the regulated 5 V auxiliary output. This ADS model has no battery-charging or battery-backup connection. Use the complete order code to select the voltage combination. The channel numbers identify circuits within one power supply, not separate products. Electrical Output Ratings Total rated output power 154.2 W CH1 voltage adjustment 21.6–26.4 V CH1 function Main regulated output CH1 output voltage 24 V CH1 rated current 5.8 A CH1 current range 0–6.5 A CH1 ripple and noise maximum 150 mVp-p CH1 voltage tolerance ±1% CH1 line regulation ±0.5% CH1 load regulation ±0.5% CH2 function 5 V auxiliary output CH2 output voltage 5 V CH2 rated current 3 A CH2 current range 0–3 A CH2 ripple and noise maximum 100 mVp-p CH2 voltage tolerance ±3% CH2 line regulation ±0.5% CH2 load regulation ±2% The total rated power is shared by all listed channels. Observe the total-power, individual-current, adjustment and cooling limits together; the maximum values of different current ranges are not a simultaneous-output guarantee. CH1 adjustment does not establish an independently adjustable voltage range for the other channels. Check the connected load before adjustment. Voltage tolerance includes setting tolerance, line regulation and load regulation. Ripple/noise is measured at 20 MHz bandwidth using a 12-inch twisted-pair lead terminated with 0.1 µF and 47 µF capacitors in parallel. The 5 V channel has its own current and regulation limits even when the main output is lightly loaded. Input and Timing AC input voltage 88–264 VAC DC input voltage 124–370 VDC AC input frequency 47–63 Hz Typical efficiency 82% Typical AC input current 2.5 A at 115 VAC; 1.5 A at 230 VAC Typical cold-start inrush current 23 A at 115 VAC; 45 A at 230 VAC Leakage current <1 mA at 240 VAC Set-up / rise time 1000 / 90 ms at 230 VAC; 2000 / 90 ms at 115 VAC, full load Typical hold-up time 24 ms at 230 VAC; 20 ms at 115 VAC, full load Switching frequency PFC 67 kHz; PWM 134 kHz Typical power factor >0.92 Unless otherwise stated, catalogue parameters are measured at 230 VAC input, rated load and 25°C ambient. Timing values retain their stated input and load conditions. Active PFC is built in. Connect the protective-earth terminal marked FG as shown in the wiring drawing. Protection Short-circuit protection Provided Main-output overload threshold 105–135% of rated output power Overload recovery Constant-current limiting; automatic recovery after fault removal CH1 over-voltage threshold 27.6–32.4 V Over-voltage recovery Output shutdown; reapply power to recover The over-voltage threshold is specified for CH1. It is not a separately guaranteed over-voltage threshold for every auxiliary or charging channel. Terminal Assignments and Mating Parts Terminal 1 AC/L Terminal 2 AC/N Terminal 3 FG Terminal 4 +5V Terminal 5 NC Terminal 6 DC OUTPUT COM Terminal 7 DC OUTPUT COM Terminal 8 DC OUTPUT +V Use the numbered terminal view for this exact series. NC means no connection. DC COM is the output return; FG is protective earth. Do not interchange them. Environment, Cooling and Derating Working ambient temperature −10 to +60°C, subject to the applicable cooling curve Working humidity 20–90% RH, non-condensing Storage temperature −20 to +85°C Storage humidity 10–95% RH Temperature coefficient ±0.03%/°C from 0 to 50°C Vibration 10–500 Hz, 2G; 10 minutes/cycle, 60 minutes each along X, Y and Z For horizontal mounting without a fan, the curve permits 70% load from −10 to 50°C, decreasing to 50% at 60°C. With at least 21.6 CFM external airflow arranged 10 cm from the unit as shown, it permits 100% from −10 to 50°C and 80% at 60°C. Natural-convection operation does not mean unrestricted full rated power. Provide the specified external airflow when using the forced-air curve, and keep the ventilation path clear. Above 2000 m altitude, apply an additional ambient-temperature derating of 3.5°C per 1000 m for fanless models or 5°C per 1000 m for fan models, as specified in the catalogue installation note. Safety, EMC and Reliability Safety standards UL 62368-1; TÜV BS EN/EN 62368-1; EAC TP TC 004 approved Input-to-output withstand voltage 3 kVAC Input-to-FG withstand voltage 2 kVAC Output-to-FG withstand voltage 0.5 kVAC Isolation resistance 100 MΩ between I/P–O/P, I/P–FG and O/P–FG at 500 VDC, 25°C, 70% RH EMC emission BS EN/EN 55032 (CISPR 32), Class B; BS EN/EN 61000-3-2 and -3; EAC TP TC 020 EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8, -11; BS EN/EN 55035, light-industry level; EAC TP TC 020 MTBF, Telcordia SR-332 2235.6K hours minimum MTBF, MIL-HDBK-217F 252.1K hours minimum at 25°C This power supply is a component for installation in final equipment. Verify EMC compliance again in the completed equipment. The catalogue lists 100% full-load burn-in testing and a two-year warranty. MTBF is a reliability calculation, not a guaranteed operating lifetime. Mechanical Installation and Related Equipment Catalogue dimensions 199 × 110 × 50 mm (L × W × H) Case reference 906 Drawing dimensional tolerance ±1 mm Catalogue unit-weight reference 1000 g Catalogue packing 1 kg; 16 pcs / 16 kg / 0.95 CUFT The mechanical drawing marks 192 mm and 172 mm longitudinal references, a 97 mm vertical reference, 5-M3 bottom holes, 3-M3 side holes and Ø3.5 mm holes. Use the exact drawing positions and keep clearance around the terminal block. The unit weight is the catalogue PACKING reference per unit, not a measured net or shipping weight. Carton quantities and carton weight are separate packing references. Select external wiring, ventilation and installation hardware to suit the actual load and enclosure. The cooling fan illustrated in the airflow setup is external; the drawing does not establish an included fan or a separate fan order code.
$160.67
-
MEAN WELL ADS-155 series: AC/DC Power Supply with 5 V Auxiliary Output - ADS-15524
MEAN WELL ADS-15524 is an AC/DC power supply with 5 V auxiliary output with 24 V / 5 V channels and a total rated output of 154.2 W. The main output and 5 V auxiliary output share the unit’s power budget. Apply the specified cooling and load limits. Product Datasheet Download MEAN WELL ADS-155 Datasheet (PDF) The ADS-155 section is on PDF pages 17, 18. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Architecture Complete order code ADS-15524 Series ADS-155 Output arrangement AC/DC Power Supply with 5 V Auxiliary Output Input selection Universal AC input; no manual range-selection switch CH1 supplies the main DC load and CH2 is the regulated 5 V auxiliary output. This ADS model has no battery-charging or battery-backup connection. Use the complete order code to select the voltage combination. The channel numbers identify circuits within one power supply, not separate products. Electrical Output Ratings Total rated output power 154.2 W CH1 voltage adjustment 21.6–26.4 V CH1 function Main regulated output CH1 output voltage 24 V CH1 rated current 5.8 A CH1 current range 0–6.5 A CH1 ripple and noise maximum 150 mVp-p CH1 voltage tolerance ±1% CH1 line regulation ±0.5% CH1 load regulation ±0.5% CH2 function 5 V auxiliary output CH2 output voltage 5 V CH2 rated current 3 A CH2 current range 0–3 A CH2 ripple and noise maximum 100 mVp-p CH2 voltage tolerance ±3% CH2 line regulation ±0.5% CH2 load regulation ±2% The total rated power is shared by all listed channels. Observe the total-power, individual-current, adjustment and cooling limits together; the maximum values of different current ranges are not a simultaneous-output guarantee. CH1 adjustment does not establish an independently adjustable voltage range for the other channels. Check the connected load before adjustment. Voltage tolerance includes setting tolerance, line regulation and load regulation. Ripple/noise is measured at 20 MHz bandwidth using a 12-inch twisted-pair lead terminated with 0.1 µF and 47 µF capacitors in parallel. The 5 V channel has its own current and regulation limits even when the main output is lightly loaded. Input and Timing AC input voltage 88–264 VAC DC input voltage 124–370 VDC AC input frequency 47–63 Hz Typical efficiency 82% Typical AC input current 2.5 A at 115 VAC; 1.5 A at 230 VAC Typical cold-start inrush current 23 A at 115 VAC; 45 A at 230 VAC Leakage current <1 mA at 240 VAC Set-up / rise time 1000 / 90 ms at 230 VAC; 2000 / 90 ms at 115 VAC, full load Typical hold-up time 24 ms at 230 VAC; 20 ms at 115 VAC, full load Switching frequency PFC 67 kHz; PWM 134 kHz Typical power factor >0.92 Unless otherwise stated, catalogue parameters are measured at 230 VAC input, rated load and 25°C ambient. Timing values retain their stated input and load conditions. Active PFC is built in. Connect the protective-earth terminal marked FG as shown in the wiring drawing. Protection Short-circuit protection Provided Main-output overload threshold 105–135% of rated output power Overload recovery Constant-current limiting; automatic recovery after fault removal CH1 over-voltage threshold 27.6–32.4 V Over-voltage recovery Output shutdown; reapply power to recover The over-voltage threshold is specified for CH1. It is not a separately guaranteed over-voltage threshold for every auxiliary or charging channel. Terminal Assignments and Mating Parts Terminal 1 AC/L Terminal 2 AC/N Terminal 3 FG Terminal 4 +5V Terminal 5 NC Terminal 6 DC OUTPUT COM Terminal 7 DC OUTPUT COM Terminal 8 DC OUTPUT +V Use the numbered terminal view for this exact series. NC means no connection. DC COM is the output return; FG is protective earth. Do not interchange them. Environment, Cooling and Derating Working ambient temperature −10 to +60°C, subject to the applicable cooling curve Working humidity 20–90% RH, non-condensing Storage temperature −20 to +85°C Storage humidity 10–95% RH Temperature coefficient ±0.03%/°C from 0 to 50°C Vibration 10–500 Hz, 2G; 10 minutes/cycle, 60 minutes each along X, Y and Z For horizontal mounting without a fan, the curve permits 70% load from −10 to 50°C, decreasing to 50% at 60°C. With at least 21.6 CFM external airflow arranged 10 cm from the unit as shown, it permits 100% from −10 to 50°C and 80% at 60°C. Natural-convection operation does not mean unrestricted full rated power. Provide the specified external airflow when using the forced-air curve, and keep the ventilation path clear. Above 2000 m altitude, apply an additional ambient-temperature derating of 3.5°C per 1000 m for fanless models or 5°C per 1000 m for fan models, as specified in the catalogue installation note. Safety, EMC and Reliability Safety standards UL 62368-1; TÜV BS EN/EN 62368-1; EAC TP TC 004 approved Input-to-output withstand voltage 3 kVAC Input-to-FG withstand voltage 2 kVAC Output-to-FG withstand voltage 0.5 kVAC Isolation resistance 100 MΩ between I/P–O/P, I/P–FG and O/P–FG at 500 VDC, 25°C, 70% RH EMC emission BS EN/EN 55032 (CISPR 32), Class B; BS EN/EN 61000-3-2 and -3; EAC TP TC 020 EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8, -11; BS EN/EN 55035, light-industry level; EAC TP TC 020 MTBF, Telcordia SR-332 2235.6K hours minimum MTBF, MIL-HDBK-217F 252.1K hours minimum at 25°C This power supply is a component for installation in final equipment. Verify EMC compliance again in the completed equipment. The catalogue lists 100% full-load burn-in testing and a two-year warranty. MTBF is a reliability calculation, not a guaranteed operating lifetime. Mechanical Installation and Related Equipment Catalogue dimensions 199 × 110 × 50 mm (L × W × H) Case reference 906 Drawing dimensional tolerance ±1 mm Catalogue unit-weight reference 1000 g Catalogue packing 1 kg; 16 pcs / 16 kg / 0.95 CUFT The mechanical drawing marks 192 mm and 172 mm longitudinal references, a 97 mm vertical reference, 5-M3 bottom holes, 3-M3 side holes and Ø3.5 mm holes. Use the exact drawing positions and keep clearance around the terminal block. The unit weight is the catalogue PACKING reference per unit, not a measured net or shipping weight. Carton quantities and carton weight are separate packing references. Select external wiring, ventilation and installation hardware to suit the actual load and enclosure. The cooling fan illustrated in the airflow setup is external; the drawing does not establish an included fan or a separate fan order code.
$160.67
-
MEAN WELL ADS-155 series: AC/DC Power Supply with 5 V Auxiliary Output - ADS-15548
MEAN WELL ADS-15548 is an AC/DC power supply with 5 V auxiliary output with 48 V / 5 V channels and a total rated output of 154.2 W. The main output and 5 V auxiliary output share the unit’s power budget. Apply the specified cooling and load limits. Product Datasheet Download MEAN WELL ADS-155 Datasheet (PDF) The ADS-155 section is on PDF pages 17, 18. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Architecture Complete order code ADS-15548 Series ADS-155 Output arrangement AC/DC Power Supply with 5 V Auxiliary Output Input selection Universal AC input; no manual range-selection switch CH1 supplies the main DC load and CH2 is the regulated 5 V auxiliary output. This ADS model has no battery-charging or battery-backup connection. Use the complete order code to select the voltage combination. The channel numbers identify circuits within one power supply, not separate products. Electrical Output Ratings Total rated output power 154.2 W CH1 voltage adjustment 43.2–52.8 V CH1 function Main regulated output CH1 output voltage 48 V CH1 rated current 2.9 A CH1 current range 0–3.2 A CH1 ripple and noise maximum 240 mVp-p CH1 voltage tolerance ±1% CH1 line regulation ±0.5% CH1 load regulation ±1% CH2 function 5 V auxiliary output CH2 output voltage 5 V CH2 rated current 3 A CH2 current range 0–3 A CH2 ripple and noise maximum 100 mVp-p CH2 voltage tolerance ±5% CH2 line regulation ±0.5% CH2 load regulation ±1% The total rated power is shared by all listed channels. Observe the total-power, individual-current, adjustment and cooling limits together; the maximum values of different current ranges are not a simultaneous-output guarantee. CH1 adjustment does not establish an independently adjustable voltage range for the other channels. Check the connected load before adjustment. Voltage tolerance includes setting tolerance, line regulation and load regulation. Ripple/noise is measured at 20 MHz bandwidth using a 12-inch twisted-pair lead terminated with 0.1 µF and 47 µF capacitors in parallel. The 5 V channel has its own current and regulation limits even when the main output is lightly loaded. Input and Timing AC input voltage 88–264 VAC DC input voltage 124–370 VDC AC input frequency 47–63 Hz Typical efficiency 82% Typical AC input current 2.5 A at 115 VAC; 1.5 A at 230 VAC Typical cold-start inrush current 23 A at 115 VAC; 45 A at 230 VAC Leakage current <1 mA at 240 VAC Set-up / rise time 1000 / 90 ms at 230 VAC; 2000 / 90 ms at 115 VAC, full load Typical hold-up time 24 ms at 230 VAC; 20 ms at 115 VAC, full load Switching frequency PFC 67 kHz; PWM 134 kHz Typical power factor >0.92 Unless otherwise stated, catalogue parameters are measured at 230 VAC input, rated load and 25°C ambient. Timing values retain their stated input and load conditions. Active PFC is built in. Connect the protective-earth terminal marked FG as shown in the wiring drawing. Protection Short-circuit protection Provided Main-output overload threshold 105–135% of rated output power Overload recovery Constant-current limiting; automatic recovery after fault removal CH1 over-voltage threshold 55.2–64.8 V Over-voltage recovery Output shutdown; reapply power to recover The over-voltage threshold is specified for CH1. It is not a separately guaranteed over-voltage threshold for every auxiliary or charging channel. Terminal Assignments and Mating Parts Terminal 1 AC/L Terminal 2 AC/N Terminal 3 FG Terminal 4 +5V Terminal 5 NC Terminal 6 DC OUTPUT COM Terminal 7 DC OUTPUT COM Terminal 8 DC OUTPUT +V Use the numbered terminal view for this exact series. NC means no connection. DC COM is the output return; FG is protective earth. Do not interchange them. Environment, Cooling and Derating Working ambient temperature −10 to +60°C, subject to the applicable cooling curve Working humidity 20–90% RH, non-condensing Storage temperature −20 to +85°C Storage humidity 10–95% RH Temperature coefficient ±0.03%/°C from 0 to 50°C Vibration 10–500 Hz, 2G; 10 minutes/cycle, 60 minutes each along X, Y and Z For horizontal mounting without a fan, the curve permits 70% load from −10 to 50°C, decreasing to 50% at 60°C. With at least 21.6 CFM external airflow arranged 10 cm from the unit as shown, it permits 100% from −10 to 50°C and 80% at 60°C. Natural-convection operation does not mean unrestricted full rated power. Provide the specified external airflow when using the forced-air curve, and keep the ventilation path clear. Above 2000 m altitude, apply an additional ambient-temperature derating of 3.5°C per 1000 m for fanless models or 5°C per 1000 m for fan models, as specified in the catalogue installation note. Safety, EMC and Reliability Safety standards UL 62368-1; TÜV BS EN/EN 62368-1; EAC TP TC 004 approved Input-to-output withstand voltage 3 kVAC Input-to-FG withstand voltage 2 kVAC Output-to-FG withstand voltage 0.5 kVAC Isolation resistance 100 MΩ between I/P–O/P, I/P–FG and O/P–FG at 500 VDC, 25°C, 70% RH EMC emission BS EN/EN 55032 (CISPR 32), Class B; BS EN/EN 61000-3-2 and -3; EAC TP TC 020 EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8, -11; BS EN/EN 55035, light-industry level; EAC TP TC 020 MTBF, Telcordia SR-332 2235.6K hours minimum MTBF, MIL-HDBK-217F 252.1K hours minimum at 25°C This power supply is a component for installation in final equipment. Verify EMC compliance again in the completed equipment. The catalogue lists 100% full-load burn-in testing and a two-year warranty. MTBF is a reliability calculation, not a guaranteed operating lifetime. Mechanical Installation and Related Equipment Catalogue dimensions 199 × 110 × 50 mm (L × W × H) Case reference 906 Drawing dimensional tolerance ±1 mm Catalogue unit-weight reference 1000 g Catalogue packing 1 kg; 16 pcs / 16 kg / 0.95 CUFT The mechanical drawing marks 192 mm and 172 mm longitudinal references, a 97 mm vertical reference, 5-M3 bottom holes, 3-M3 side holes and Ø3.5 mm holes. Use the exact drawing positions and keep clearance around the terminal block. The unit weight is the catalogue PACKING reference per unit, not a measured net or shipping weight. Carton quantities and carton weight are separate packing references. Select external wiring, ventilation and installation hardware to suit the actual load and enclosure. The cooling fan illustrated in the airflow setup is external; the drawing does not establish an included fan or a separate fan order code.
$160.67
-
MEAN WELL ADS-155 series: AC/DC Power Supply with 5 V Auxiliary Output - ADS-15548
MEAN WELL ADS-15548 is an AC/DC power supply with 5 V auxiliary output with 48 V / 5 V channels and a total rated output of 154.2 W. The main output and 5 V auxiliary output share the unit’s power budget. Apply the specified cooling and load limits. Product Datasheet Download MEAN WELL ADS-155 Datasheet (PDF) The ADS-155 section is on PDF pages 17, 18. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Architecture Complete order code ADS-15548 Series ADS-155 Output arrangement AC/DC Power Supply with 5 V Auxiliary Output Input selection Universal AC input; no manual range-selection switch CH1 supplies the main DC load and CH2 is the regulated 5 V auxiliary output. This ADS model has no battery-charging or battery-backup connection. Use the complete order code to select the voltage combination. The channel numbers identify circuits within one power supply, not separate products. Electrical Output Ratings Total rated output power 154.2 W CH1 voltage adjustment 43.2–52.8 V CH1 function Main regulated output CH1 output voltage 48 V CH1 rated current 2.9 A CH1 current range 0–3.2 A CH1 ripple and noise maximum 240 mVp-p CH1 voltage tolerance ±1% CH1 line regulation ±0.5% CH1 load regulation ±1% CH2 function 5 V auxiliary output CH2 output voltage 5 V CH2 rated current 3 A CH2 current range 0–3 A CH2 ripple and noise maximum 100 mVp-p CH2 voltage tolerance ±5% CH2 line regulation ±0.5% CH2 load regulation ±1% The total rated power is shared by all listed channels. Observe the total-power, individual-current, adjustment and cooling limits together; the maximum values of different current ranges are not a simultaneous-output guarantee. CH1 adjustment does not establish an independently adjustable voltage range for the other channels. Check the connected load before adjustment. Voltage tolerance includes setting tolerance, line regulation and load regulation. Ripple/noise is measured at 20 MHz bandwidth using a 12-inch twisted-pair lead terminated with 0.1 µF and 47 µF capacitors in parallel. The 5 V channel has its own current and regulation limits even when the main output is lightly loaded. Input and Timing AC input voltage 88–264 VAC DC input voltage 124–370 VDC AC input frequency 47–63 Hz Typical efficiency 82% Typical AC input current 2.5 A at 115 VAC; 1.5 A at 230 VAC Typical cold-start inrush current 23 A at 115 VAC; 45 A at 230 VAC Leakage current <1 mA at 240 VAC Set-up / rise time 1000 / 90 ms at 230 VAC; 2000 / 90 ms at 115 VAC, full load Typical hold-up time 24 ms at 230 VAC; 20 ms at 115 VAC, full load Switching frequency PFC 67 kHz; PWM 134 kHz Typical power factor >0.92 Unless otherwise stated, catalogue parameters are measured at 230 VAC input, rated load and 25°C ambient. Timing values retain their stated input and load conditions. Active PFC is built in. Connect the protective-earth terminal marked FG as shown in the wiring drawing. Protection Short-circuit protection Provided Main-output overload threshold 105–135% of rated output power Overload recovery Constant-current limiting; automatic recovery after fault removal CH1 over-voltage threshold 55.2–64.8 V Over-voltage recovery Output shutdown; reapply power to recover The over-voltage threshold is specified for CH1. It is not a separately guaranteed over-voltage threshold for every auxiliary or charging channel. Terminal Assignments and Mating Parts Terminal 1 AC/L Terminal 2 AC/N Terminal 3 FG Terminal 4 +5V Terminal 5 NC Terminal 6 DC OUTPUT COM Terminal 7 DC OUTPUT COM Terminal 8 DC OUTPUT +V Use the numbered terminal view for this exact series. NC means no connection. DC COM is the output return; FG is protective earth. Do not interchange them. Environment, Cooling and Derating Working ambient temperature −10 to +60°C, subject to the applicable cooling curve Working humidity 20–90% RH, non-condensing Storage temperature −20 to +85°C Storage humidity 10–95% RH Temperature coefficient ±0.03%/°C from 0 to 50°C Vibration 10–500 Hz, 2G; 10 minutes/cycle, 60 minutes each along X, Y and Z For horizontal mounting without a fan, the curve permits 70% load from −10 to 50°C, decreasing to 50% at 60°C. With at least 21.6 CFM external airflow arranged 10 cm from the unit as shown, it permits 100% from −10 to 50°C and 80% at 60°C. Natural-convection operation does not mean unrestricted full rated power. Provide the specified external airflow when using the forced-air curve, and keep the ventilation path clear. Above 2000 m altitude, apply an additional ambient-temperature derating of 3.5°C per 1000 m for fanless models or 5°C per 1000 m for fan models, as specified in the catalogue installation note. Safety, EMC and Reliability Safety standards UL 62368-1; TÜV BS EN/EN 62368-1; EAC TP TC 004 approved Input-to-output withstand voltage 3 kVAC Input-to-FG withstand voltage 2 kVAC Output-to-FG withstand voltage 0.5 kVAC Isolation resistance 100 MΩ between I/P–O/P, I/P–FG and O/P–FG at 500 VDC, 25°C, 70% RH EMC emission BS EN/EN 55032 (CISPR 32), Class B; BS EN/EN 61000-3-2 and -3; EAC TP TC 020 EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8, -11; BS EN/EN 55035, light-industry level; EAC TP TC 020 MTBF, Telcordia SR-332 2235.6K hours minimum MTBF, MIL-HDBK-217F 252.1K hours minimum at 25°C This power supply is a component for installation in final equipment. Verify EMC compliance again in the completed equipment. The catalogue lists 100% full-load burn-in testing and a two-year warranty. MTBF is a reliability calculation, not a guaranteed operating lifetime. Mechanical Installation and Related Equipment Catalogue dimensions 199 × 110 × 50 mm (L × W × H) Case reference 906 Drawing dimensional tolerance ±1 mm Catalogue unit-weight reference 1000 g Catalogue packing 1 kg; 16 pcs / 16 kg / 0.95 CUFT The mechanical drawing marks 192 mm and 172 mm longitudinal references, a 97 mm vertical reference, 5-M3 bottom holes, 3-M3 side holes and Ø3.5 mm holes. Use the exact drawing positions and keep clearance around the terminal block. The unit weight is the catalogue PACKING reference per unit, not a measured net or shipping weight. Carton quantities and carton weight are separate packing references. Select external wiring, ventilation and installation hardware to suit the actual load and enclosure. The cooling fan illustrated in the airflow setup is external; the drawing does not establish an included fan or a separate fan order code.
$160.67
-
MEAN WELL ADS-55 series: AC/DC Power Supply with 5 V Auxiliary Output - ADS-5512
MEAN WELL ADS-5512 is an AC/DC power supply with 5 V auxiliary output with 12 V / 5 V channels and a total rated output of 51 W. The main output and 5 V auxiliary output share the unit’s power budget. Apply the specified cooling and load limits. Product Datasheet Download MEAN WELL ADS-55 Datasheet (PDF) The ADS-55 section is on PDF pages 15, 16. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Architecture Complete order code ADS-5512 Series ADS-55 Output arrangement AC/DC Power Supply with 5 V Auxiliary Output Input selection Universal AC input; no manual range-selection switch CH1 supplies the main DC load and CH2 is the regulated 5 V auxiliary output. This ADS model has no battery-charging or battery-backup connection. Use the complete order code to select the voltage combination. The channel numbers identify circuits within one power supply, not separate products. Electrical Output Ratings Total rated output power 51 W CH1 voltage adjustment 10.8–13.2 V CH1 function Main regulated output CH1 output voltage 12 V CH1 rated current 3 A CH1 current range 0–4 A CH1 ripple and noise maximum 100 mVp-p CH1 voltage tolerance ±1% CH1 line regulation ±0.5% CH1 load regulation ±0.5% CH2 function 5 V auxiliary output CH2 output voltage 5 V CH2 rated current 3 A CH2 current range 0–4 A CH2 ripple and noise maximum 100 mVp-p CH2 voltage tolerance ±3% CH2 line regulation ±0.5% CH2 load regulation ±0.5% The total rated power is shared by all listed channels. Observe the total-power, individual-current, adjustment and cooling limits together; the maximum values of different current ranges are not a simultaneous-output guarantee. CH1 adjustment does not establish an independently adjustable voltage range for the other channels. Check the connected load before adjustment. Voltage tolerance includes setting tolerance, line regulation and load regulation. Ripple/noise is measured at 20 MHz bandwidth using a 12-inch twisted-pair lead terminated with 0.1 µF and 47 µF capacitors in parallel. The 5 V channel has its own current and regulation limits even when the main output is lightly loaded. Input and Timing AC input voltage 88–264 VAC DC input voltage 124–370 VDC AC input frequency 47–63 Hz Typical efficiency 76% Typical AC input current 1.6 A at 115 VAC; 1 A at 230 VAC Typical cold-start inrush current 20 A at 115 VAC; 40 A at 230 VAC Leakage current <1 mA at 240 VAC Set-up / rise time 1400 / 50 ms at 230 VAC; 3300 / 50 ms at 115 VAC, full load Typical hold-up time 80 ms at 230 VAC; 16 ms at 115 VAC, full load Switching frequency 45 kHz Unless otherwise stated, catalogue parameters are measured at 230 VAC input, rated load and 25°C ambient. Timing values retain their stated input and load conditions. Connect the protective-earth terminal marked FG as shown in the wiring drawing. Protection Short-circuit protection Provided Main-output overload threshold 105–150% of rated output power Overload recovery Hiccup mode; automatic recovery after fault removal CH1 over-voltage threshold 13.8–16.2 V Over-voltage recovery Hiccup mode; automatic recovery after fault removal The over-voltage threshold is specified for CH1. It is not a separately guaranteed over-voltage threshold for every auxiliary or charging channel. Terminal Assignments and Mating Parts Terminal 1 AC/L Terminal 2 AC/N Terminal 3 FG Terminal 4 DC OUTPUT COM Terminal 5 DC OUTPUT +V Terminal 6 NC Terminal 7 DC OUTPUT COM Terminal 8 DC/DC OUTPUT +5V Use the numbered terminal view for this exact series. NC means no connection. DC COM is the output return; FG is protective earth. Do not interchange them. Environment, Cooling and Derating Working ambient temperature −10 to +60°C, subject to the applicable cooling curve Working humidity 20–90% RH, non-condensing Storage temperature −20 to +85°C Storage humidity 10–95% RH Temperature coefficient ±0.03%/°C from 0 to 50°C on CH1 Vibration 10–500 Hz, 2G; 10 minutes/cycle, 60 minutes each along X, Y and Z For horizontal mounting without a fan, the curve permits 70% load from −10 to 40°C, decreasing to 50% at 50°C. The no-fan curve ends at 50°C. With at least 18.2 CFM external airflow arranged 10 cm from the unit as shown, the curve rises from 80% at −10°C to 100% at 0°C and remains at 100% through 60°C. Natural-convection operation does not mean unrestricted full rated power. Provide the specified external airflow when using the forced-air curve, and keep the ventilation path clear. Above 2000 m altitude, apply an additional ambient-temperature derating of 3.5°C per 1000 m for fanless models or 5°C per 1000 m for fan models, as specified in the catalogue installation note. The model-specific static-characteristics graph plots output voltage and ripple against 60 Hz AC input. It is not an additional load-versus-input curve or permission to operate outside the 88–264 VAC input range. Safety, EMC and Reliability Safety standards UL 62368-1; TÜV BS EN/EN 62368-1; EAC TP TC 004 approved Input-to-output withstand voltage 3 kVAC Input-to-FG withstand voltage 2 kVAC Output-to-FG withstand voltage 0.5 kVAC Isolation resistance 100 MΩ between I/P–O/P, I/P–FG and O/P–FG at 500 VDC, 25°C, 70% RH EMC emission BS EN/EN 55032 (CISPR 32), Class B; BS EN/EN 61000-3-2 and -3; EAC TP TC 020 EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8, -11; BS EN/EN 55035, light-industry level; EAC TP TC 020 MTBF, Telcordia SR-332 2486.3K hours minimum MTBF, MIL-HDBK-217F 416.3K hours minimum at 25°C This power supply is a component for installation in final equipment. The catalogue EMC tests use a 360 × 360 mm metal plate, 1 mm thick. Verify EMC compliance again in the completed equipment. The catalogue lists 100% full-load burn-in testing and a two-year warranty. MTBF is a reliability calculation, not a guaranteed operating lifetime. Mechanical Installation and Related Equipment Catalogue dimensions 159 × 97 × 38 mm (L × W × H) Case reference 901 Drawing dimensional tolerance ±1 mm Catalogue unit-weight reference 570 g Catalogue packing 0.57 kg; 24 pcs / 13.7 kg / 0.83 CUFT The mechanical drawing marks a 152.5 mm longitudinal mounting reference, 84.5 mm vertical reference, 2-M3 bottom holes, 3-M3 side holes and Ø3.5 mm holes. Use the exact drawing positions and keep clearance around the terminal block. The unit weight is the catalogue PACKING reference per unit, not a measured net or shipping weight. Carton quantities and carton weight are separate packing references. Select external wiring, ventilation and installation hardware to suit the actual load and enclosure. The cooling fan illustrated in the airflow setup is external; the drawing does not establish an included fan or a separate fan order code.
$88.22
-
MEAN WELL ADS-55 series: AC/DC Power Supply with 5 V Auxiliary Output - ADS-5512
MEAN WELL ADS-5512 is an AC/DC power supply with 5 V auxiliary output with 12 V / 5 V channels and a total rated output of 51 W. The main output and 5 V auxiliary output share the unit’s power budget. Apply the specified cooling and load limits. Product Datasheet Download MEAN WELL ADS-55 Datasheet (PDF) The ADS-55 section is on PDF pages 15, 16. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Architecture Complete order code ADS-5512 Series ADS-55 Output arrangement AC/DC Power Supply with 5 V Auxiliary Output Input selection Universal AC input; no manual range-selection switch CH1 supplies the main DC load and CH2 is the regulated 5 V auxiliary output. This ADS model has no battery-charging or battery-backup connection. Use the complete order code to select the voltage combination. The channel numbers identify circuits within one power supply, not separate products. Electrical Output Ratings Total rated output power 51 W CH1 voltage adjustment 10.8–13.2 V CH1 function Main regulated output CH1 output voltage 12 V CH1 rated current 3 A CH1 current range 0–4 A CH1 ripple and noise maximum 100 mVp-p CH1 voltage tolerance ±1% CH1 line regulation ±0.5% CH1 load regulation ±0.5% CH2 function 5 V auxiliary output CH2 output voltage 5 V CH2 rated current 3 A CH2 current range 0–4 A CH2 ripple and noise maximum 100 mVp-p CH2 voltage tolerance ±3% CH2 line regulation ±0.5% CH2 load regulation ±0.5% The total rated power is shared by all listed channels. Observe the total-power, individual-current, adjustment and cooling limits together; the maximum values of different current ranges are not a simultaneous-output guarantee. CH1 adjustment does not establish an independently adjustable voltage range for the other channels. Check the connected load before adjustment. Voltage tolerance includes setting tolerance, line regulation and load regulation. Ripple/noise is measured at 20 MHz bandwidth using a 12-inch twisted-pair lead terminated with 0.1 µF and 47 µF capacitors in parallel. The 5 V channel has its own current and regulation limits even when the main output is lightly loaded. Input and Timing AC input voltage 88–264 VAC DC input voltage 124–370 VDC AC input frequency 47–63 Hz Typical efficiency 76% Typical AC input current 1.6 A at 115 VAC; 1 A at 230 VAC Typical cold-start inrush current 20 A at 115 VAC; 40 A at 230 VAC Leakage current <1 mA at 240 VAC Set-up / rise time 1400 / 50 ms at 230 VAC; 3300 / 50 ms at 115 VAC, full load Typical hold-up time 80 ms at 230 VAC; 16 ms at 115 VAC, full load Switching frequency 45 kHz Unless otherwise stated, catalogue parameters are measured at 230 VAC input, rated load and 25°C ambient. Timing values retain their stated input and load conditions. Connect the protective-earth terminal marked FG as shown in the wiring drawing. Protection Short-circuit protection Provided Main-output overload threshold 105–150% of rated output power Overload recovery Hiccup mode; automatic recovery after fault removal CH1 over-voltage threshold 13.8–16.2 V Over-voltage recovery Hiccup mode; automatic recovery after fault removal The over-voltage threshold is specified for CH1. It is not a separately guaranteed over-voltage threshold for every auxiliary or charging channel. Terminal Assignments and Mating Parts Terminal 1 AC/L Terminal 2 AC/N Terminal 3 FG Terminal 4 DC OUTPUT COM Terminal 5 DC OUTPUT +V Terminal 6 NC Terminal 7 DC OUTPUT COM Terminal 8 DC/DC OUTPUT +5V Use the numbered terminal view for this exact series. NC means no connection. DC COM is the output return; FG is protective earth. Do not interchange them. Environment, Cooling and Derating Working ambient temperature −10 to +60°C, subject to the applicable cooling curve Working humidity 20–90% RH, non-condensing Storage temperature −20 to +85°C Storage humidity 10–95% RH Temperature coefficient ±0.03%/°C from 0 to 50°C on CH1 Vibration 10–500 Hz, 2G; 10 minutes/cycle, 60 minutes each along X, Y and Z For horizontal mounting without a fan, the curve permits 70% load from −10 to 40°C, decreasing to 50% at 50°C. The no-fan curve ends at 50°C. With at least 18.2 CFM external airflow arranged 10 cm from the unit as shown, the curve rises from 80% at −10°C to 100% at 0°C and remains at 100% through 60°C. Natural-convection operation does not mean unrestricted full rated power. Provide the specified external airflow when using the forced-air curve, and keep the ventilation path clear. Above 2000 m altitude, apply an additional ambient-temperature derating of 3.5°C per 1000 m for fanless models or 5°C per 1000 m for fan models, as specified in the catalogue installation note. The model-specific static-characteristics graph plots output voltage and ripple against 60 Hz AC input. It is not an additional load-versus-input curve or permission to operate outside the 88–264 VAC input range. Safety, EMC and Reliability Safety standards UL 62368-1; TÜV BS EN/EN 62368-1; EAC TP TC 004 approved Input-to-output withstand voltage 3 kVAC Input-to-FG withstand voltage 2 kVAC Output-to-FG withstand voltage 0.5 kVAC Isolation resistance 100 MΩ between I/P–O/P, I/P–FG and O/P–FG at 500 VDC, 25°C, 70% RH EMC emission BS EN/EN 55032 (CISPR 32), Class B; BS EN/EN 61000-3-2 and -3; EAC TP TC 020 EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8, -11; BS EN/EN 55035, light-industry level; EAC TP TC 020 MTBF, Telcordia SR-332 2486.3K hours minimum MTBF, MIL-HDBK-217F 416.3K hours minimum at 25°C This power supply is a component for installation in final equipment. The catalogue EMC tests use a 360 × 360 mm metal plate, 1 mm thick. Verify EMC compliance again in the completed equipment. The catalogue lists 100% full-load burn-in testing and a two-year warranty. MTBF is a reliability calculation, not a guaranteed operating lifetime. Mechanical Installation and Related Equipment Catalogue dimensions 159 × 97 × 38 mm (L × W × H) Case reference 901 Drawing dimensional tolerance ±1 mm Catalogue unit-weight reference 570 g Catalogue packing 0.57 kg; 24 pcs / 13.7 kg / 0.83 CUFT The mechanical drawing marks a 152.5 mm longitudinal mounting reference, 84.5 mm vertical reference, 2-M3 bottom holes, 3-M3 side holes and Ø3.5 mm holes. Use the exact drawing positions and keep clearance around the terminal block. The unit weight is the catalogue PACKING reference per unit, not a measured net or shipping weight. Carton quantities and carton weight are separate packing references. Select external wiring, ventilation and installation hardware to suit the actual load and enclosure. The cooling fan illustrated in the airflow setup is external; the drawing does not establish an included fan or a separate fan order code.
$88.22
-
MEAN WELL ADS-55 series: AC/DC Power Supply with 5 V Auxiliary Output - ADS-5524
MEAN WELL ADS-5524 is an AC/DC power supply with 5 V auxiliary output with 24 V / 5 V channels and a total rated output of 58 W. The main output and 5 V auxiliary output share the unit’s power budget. Apply the specified cooling and load limits. Product Datasheet Download MEAN WELL ADS-55 Datasheet (PDF) The ADS-55 section is on PDF pages 15, 16. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Architecture Complete order code ADS-5524 Series ADS-55 Output arrangement AC/DC Power Supply with 5 V Auxiliary Output Input selection Universal AC input; no manual range-selection switch CH1 supplies the main DC load and CH2 is the regulated 5 V auxiliary output. This ADS model has no battery-charging or battery-backup connection. Use the complete order code to select the voltage combination. The channel numbers identify circuits within one power supply, not separate products. Electrical Output Ratings Total rated output power 58 W CH1 voltage adjustment 21.6–26.4 V CH1 function Main regulated output CH1 output voltage 24 V CH1 rated current 2 A CH1 current range 0–2.5 A CH1 ripple and noise maximum 100 mVp-p CH1 voltage tolerance ±1% CH1 line regulation ±1% CH1 load regulation ±1% CH2 function 5 V auxiliary output CH2 output voltage 5 V CH2 rated current 2 A CH2 current range 0–4 A CH2 ripple and noise maximum 100 mVp-p CH2 voltage tolerance ±3% CH2 line regulation ±0.5% CH2 load regulation ±0.5% The total rated power is shared by all listed channels. Observe the total-power, individual-current, adjustment and cooling limits together; the maximum values of different current ranges are not a simultaneous-output guarantee. CH1 adjustment does not establish an independently adjustable voltage range for the other channels. Check the connected load before adjustment. Voltage tolerance includes setting tolerance, line regulation and load regulation. Ripple/noise is measured at 20 MHz bandwidth using a 12-inch twisted-pair lead terminated with 0.1 µF and 47 µF capacitors in parallel. The 5 V channel has its own current and regulation limits even when the main output is lightly loaded. Input and Timing AC input voltage 88–264 VAC DC input voltage 124–370 VDC AC input frequency 47–63 Hz Typical efficiency 79% Typical AC input current 1.6 A at 115 VAC; 1 A at 230 VAC Typical cold-start inrush current 20 A at 115 VAC; 40 A at 230 VAC Leakage current <1 mA at 240 VAC Set-up / rise time 1400 / 50 ms at 230 VAC; 3300 / 50 ms at 115 VAC, full load Typical hold-up time 80 ms at 230 VAC; 16 ms at 115 VAC, full load Switching frequency 45 kHz Unless otherwise stated, catalogue parameters are measured at 230 VAC input, rated load and 25°C ambient. Timing values retain their stated input and load conditions. Connect the protective-earth terminal marked FG as shown in the wiring drawing. Protection Short-circuit protection Provided Main-output overload threshold 105–150% of rated output power Overload recovery Hiccup mode; automatic recovery after fault removal CH1 over-voltage threshold 27.6–32.4 V Over-voltage recovery Hiccup mode; automatic recovery after fault removal The over-voltage threshold is specified for CH1. It is not a separately guaranteed over-voltage threshold for every auxiliary or charging channel. Terminal Assignments and Mating Parts Terminal 1 AC/L Terminal 2 AC/N Terminal 3 FG Terminal 4 DC OUTPUT COM Terminal 5 DC OUTPUT +V Terminal 6 NC Terminal 7 DC OUTPUT COM Terminal 8 DC/DC OUTPUT +5V Use the numbered terminal view for this exact series. NC means no connection. DC COM is the output return; FG is protective earth. Do not interchange them. Environment, Cooling and Derating Working ambient temperature −10 to +60°C, subject to the applicable cooling curve Working humidity 20–90% RH, non-condensing Storage temperature −20 to +85°C Storage humidity 10–95% RH Temperature coefficient ±0.03%/°C from 0 to 50°C on CH1 Vibration 10–500 Hz, 2G; 10 minutes/cycle, 60 minutes each along X, Y and Z For horizontal mounting without a fan, the curve permits 70% load from −10 to 40°C, decreasing to 50% at 50°C. The no-fan curve ends at 50°C. With at least 18.2 CFM external airflow arranged 10 cm from the unit as shown, the curve rises from 80% at −10°C to 100% at 0°C and remains at 100% through 60°C. Natural-convection operation does not mean unrestricted full rated power. Provide the specified external airflow when using the forced-air curve, and keep the ventilation path clear. Above 2000 m altitude, apply an additional ambient-temperature derating of 3.5°C per 1000 m for fanless models or 5°C per 1000 m for fan models, as specified in the catalogue installation note. Safety, EMC and Reliability Safety standards UL 62368-1; TÜV BS EN/EN 62368-1; EAC TP TC 004 approved Input-to-output withstand voltage 3 kVAC Input-to-FG withstand voltage 2 kVAC Output-to-FG withstand voltage 0.5 kVAC Isolation resistance 100 MΩ between I/P–O/P, I/P–FG and O/P–FG at 500 VDC, 25°C, 70% RH EMC emission BS EN/EN 55032 (CISPR 32), Class B; BS EN/EN 61000-3-2 and -3; EAC TP TC 020 EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8, -11; BS EN/EN 55035, light-industry level; EAC TP TC 020 MTBF, Telcordia SR-332 2486.3K hours minimum MTBF, MIL-HDBK-217F 416.3K hours minimum at 25°C This power supply is a component for installation in final equipment. The catalogue EMC tests use a 360 × 360 mm metal plate, 1 mm thick. Verify EMC compliance again in the completed equipment. The catalogue lists 100% full-load burn-in testing and a two-year warranty. MTBF is a reliability calculation, not a guaranteed operating lifetime. Mechanical Installation and Related Equipment Catalogue dimensions 159 × 97 × 38 mm (L × W × H) Case reference 901 Drawing dimensional tolerance ±1 mm Catalogue unit-weight reference 570 g Catalogue packing 0.57 kg; 24 pcs / 13.7 kg / 0.83 CUFT The mechanical drawing marks a 152.5 mm longitudinal mounting reference, 84.5 mm vertical reference, 2-M3 bottom holes, 3-M3 side holes and Ø3.5 mm holes. Use the exact drawing positions and keep clearance around the terminal block. The unit weight is the catalogue PACKING reference per unit, not a measured net or shipping weight. Carton quantities and carton weight are separate packing references. Select external wiring, ventilation and installation hardware to suit the actual load and enclosure. The cooling fan illustrated in the airflow setup is external; the drawing does not establish an included fan or a separate fan order code.
$85.76
-
MEAN WELL ADS-55 series: AC/DC Power Supply with 5 V Auxiliary Output - ADS-5524
MEAN WELL ADS-5524 is an AC/DC power supply with 5 V auxiliary output with 24 V / 5 V channels and a total rated output of 58 W. The main output and 5 V auxiliary output share the unit’s power budget. Apply the specified cooling and load limits. Product Datasheet Download MEAN WELL ADS-55 Datasheet (PDF) The ADS-55 section is on PDF pages 15, 16. Refer to the complete mechanical drawings and notes when planning installation. Model and Output Architecture Complete order code ADS-5524 Series ADS-55 Output arrangement AC/DC Power Supply with 5 V Auxiliary Output Input selection Universal AC input; no manual range-selection switch CH1 supplies the main DC load and CH2 is the regulated 5 V auxiliary output. This ADS model has no battery-charging or battery-backup connection. Use the complete order code to select the voltage combination. The channel numbers identify circuits within one power supply, not separate products. Electrical Output Ratings Total rated output power 58 W CH1 voltage adjustment 21.6–26.4 V CH1 function Main regulated output CH1 output voltage 24 V CH1 rated current 2 A CH1 current range 0–2.5 A CH1 ripple and noise maximum 100 mVp-p CH1 voltage tolerance ±1% CH1 line regulation ±1% CH1 load regulation ±1% CH2 function 5 V auxiliary output CH2 output voltage 5 V CH2 rated current 2 A CH2 current range 0–4 A CH2 ripple and noise maximum 100 mVp-p CH2 voltage tolerance ±3% CH2 line regulation ±0.5% CH2 load regulation ±0.5% The total rated power is shared by all listed channels. Observe the total-power, individual-current, adjustment and cooling limits together; the maximum values of different current ranges are not a simultaneous-output guarantee. CH1 adjustment does not establish an independently adjustable voltage range for the other channels. Check the connected load before adjustment. Voltage tolerance includes setting tolerance, line regulation and load regulation. Ripple/noise is measured at 20 MHz bandwidth using a 12-inch twisted-pair lead terminated with 0.1 µF and 47 µF capacitors in parallel. The 5 V channel has its own current and regulation limits even when the main output is lightly loaded. Input and Timing AC input voltage 88–264 VAC DC input voltage 124–370 VDC AC input frequency 47–63 Hz Typical efficiency 79% Typical AC input current 1.6 A at 115 VAC; 1 A at 230 VAC Typical cold-start inrush current 20 A at 115 VAC; 40 A at 230 VAC Leakage current <1 mA at 240 VAC Set-up / rise time 1400 / 50 ms at 230 VAC; 3300 / 50 ms at 115 VAC, full load Typical hold-up time 80 ms at 230 VAC; 16 ms at 115 VAC, full load Switching frequency 45 kHz Unless otherwise stated, catalogue parameters are measured at 230 VAC input, rated load and 25°C ambient. Timing values retain their stated input and load conditions. Connect the protective-earth terminal marked FG as shown in the wiring drawing. Protection Short-circuit protection Provided Main-output overload threshold 105–150% of rated output power Overload recovery Hiccup mode; automatic recovery after fault removal CH1 over-voltage threshold 27.6–32.4 V Over-voltage recovery Hiccup mode; automatic recovery after fault removal The over-voltage threshold is specified for CH1. It is not a separately guaranteed over-voltage threshold for every auxiliary or charging channel. Terminal Assignments and Mating Parts Terminal 1 AC/L Terminal 2 AC/N Terminal 3 FG Terminal 4 DC OUTPUT COM Terminal 5 DC OUTPUT +V Terminal 6 NC Terminal 7 DC OUTPUT COM Terminal 8 DC/DC OUTPUT +5V Use the numbered terminal view for this exact series. NC means no connection. DC COM is the output return; FG is protective earth. Do not interchange them. Environment, Cooling and Derating Working ambient temperature −10 to +60°C, subject to the applicable cooling curve Working humidity 20–90% RH, non-condensing Storage temperature −20 to +85°C Storage humidity 10–95% RH Temperature coefficient ±0.03%/°C from 0 to 50°C on CH1 Vibration 10–500 Hz, 2G; 10 minutes/cycle, 60 minutes each along X, Y and Z For horizontal mounting without a fan, the curve permits 70% load from −10 to 40°C, decreasing to 50% at 50°C. The no-fan curve ends at 50°C. With at least 18.2 CFM external airflow arranged 10 cm from the unit as shown, the curve rises from 80% at −10°C to 100% at 0°C and remains at 100% through 60°C. Natural-convection operation does not mean unrestricted full rated power. Provide the specified external airflow when using the forced-air curve, and keep the ventilation path clear. Above 2000 m altitude, apply an additional ambient-temperature derating of 3.5°C per 1000 m for fanless models or 5°C per 1000 m for fan models, as specified in the catalogue installation note. Safety, EMC and Reliability Safety standards UL 62368-1; TÜV BS EN/EN 62368-1; EAC TP TC 004 approved Input-to-output withstand voltage 3 kVAC Input-to-FG withstand voltage 2 kVAC Output-to-FG withstand voltage 0.5 kVAC Isolation resistance 100 MΩ between I/P–O/P, I/P–FG and O/P–FG at 500 VDC, 25°C, 70% RH EMC emission BS EN/EN 55032 (CISPR 32), Class B; BS EN/EN 61000-3-2 and -3; EAC TP TC 020 EMC immunity BS EN/EN 61000-4-2, -3, -4, -5, -6, -8, -11; BS EN/EN 55035, light-industry level; EAC TP TC 020 MTBF, Telcordia SR-332 2486.3K hours minimum MTBF, MIL-HDBK-217F 416.3K hours minimum at 25°C This power supply is a component for installation in final equipment. The catalogue EMC tests use a 360 × 360 mm metal plate, 1 mm thick. Verify EMC compliance again in the completed equipment. The catalogue lists 100% full-load burn-in testing and a two-year warranty. MTBF is a reliability calculation, not a guaranteed operating lifetime. Mechanical Installation and Related Equipment Catalogue dimensions 159 × 97 × 38 mm (L × W × H) Case reference 901 Drawing dimensional tolerance ±1 mm Catalogue unit-weight reference 570 g Catalogue packing 0.57 kg; 24 pcs / 13.7 kg / 0.83 CUFT The mechanical drawing marks a 152.5 mm longitudinal mounting reference, 84.5 mm vertical reference, 2-M3 bottom holes, 3-M3 side holes and Ø3.5 mm holes. Use the exact drawing positions and keep clearance around the terminal block. The unit weight is the catalogue PACKING reference per unit, not a measured net or shipping weight. Carton quantities and carton weight are separate packing references. Select external wiring, ventilation and installation hardware to suit the actual load and enclosure. The cooling fan illustrated in the airflow setup is external; the drawing does not establish an included fan or a separate fan order code.
$85.76
-
MEAN WELL APC-12 series: constant current LED power supply - APC-12-350
MEAN WELL APC-12-350 Constant Current LED Power Supply The MEAN WELL APC-12-350 is a single-output AC/DC constant current LED power supply providing 350 mA constant current over a 9-36 V DC operating range, with a catalog rated power of 12.6 W. It accepts 90-264 VAC or 127-370 VDC and uses a fully isolated IP42 plastic enclosure cooled by free-air convection. Select an LED load requiring 350 mA and having a total operating voltage within 9-36 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Download MEAN WELL APC-12 Datasheet (PDF) See PDF pages 15-16 for this model column, its connection drawing and derating curves. Download MEAN WELL LED Installation Manual (PDF) Model and application Parameter Details Full model APC-12-350 Series and model code APC-12 is the product series. The final code 350 identifies the 350 mA output current. The series wattage designation is not a substitute for this model's actual rated output power. Operating mode Constant current. Select an LED load requiring 350 mA and having a total operating voltage within 9-36 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Intended application LED-related fixtures or appliances, such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. Application qualification Use the supply as a component in the final equipment. The equipment manufacturer must assess the complete installation and re-qualify EMC performance with the load, wiring and enclosure. Output and dynamic performance Parameter Details Rated output current 350 mA Operating DC voltage range 9-36 V Catalog rated power 12.6 W. Current accuracy ±8.0%. Voltage tolerance ±5.0%; the catalog note includes setup tolerance. This is separate from the ±8.0% output-current accuracy. Setup and rise time 3000 ms setup / 180 ms rise at 230 VAC; 3000 ms setup / 150 ms rise at 115 VAC, at full load. Hold-up time, typical 20 ms at 230 VAC; 15 ms at 115 VAC, at full load. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Typical values depend on operating conditions. Input and supply planning Parameter Details Input range 90-264 VAC, 47-63 Hz; alternatively 127-370 VDC. Apply the input-voltage derating curve. AC input current 0.2 A at 230 VAC; 0.35 A at 115 VAC Efficiency, typical 82% at the catalog measurement conditions; not a guaranteed efficiency at every input and load. Cold-start inrush, typical 70 A at 230 VAC; pulse width 150 µs measured at 50% of peak current. Leakage current 0.25 mA at 240 VAC. Input-voltage derating At 60 Hz, the static-characteristic curve shows 80% load at 90 VAC, rising to 100% at 100 VAC; 100% is shown from 100 to 264 VAC. Apply the more restrictive thermal/load condition at the same time. 16 A circuit-breaker reference At 230 VAC the catalog lists up to 17 units on a Type B 16 A circuit breaker, or 29 units on a Type C 16 A circuit breaker. Use this reference with the actual circuit and installation requirements. Protection and fault behavior Parameter Details Short-circuit protection Short-circuit protection is listed among the model features. Overvoltage protection 39.6-46.8 V; output shutoff with zener-diode clamping. Thermal operating limits Maintain the required ventilation and derate load as ambient temperature rises. Do not treat the upper ambient rating as a full-load rating. Environment and derating Parameter Details Working ambient temperature -30 to +70°C, subject to the derating curve. Cooling and temperature derating Free-air convection, with the horizontal orientation shown in the drawing. Full load is shown up to +45°C, then decreases linearly to 60% load at +70°C. Keep the input-voltage derating limit at the same time. Altitude derating Above 2000 m (6500 ft), reduce the allowable ambient temperature by 3.5°C per 1000 m for this fanless design. Working humidity 20-90% RH, non-condensing. Storage temperature / humidity -40 to +80°C; 10-95% RH. Temperature coefficient ±0.2%/°C over 0 to 50°C. Vibration 10-500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Enclosure Fully isolated plastic case, IP42 design. Observe the manufacturer installation instructions for the intended enclosure and environment. Dimensions, leads and installation Parameter Details Body dimensions 77 x 40 x 29 mm (L x W x H); drawing tolerance ±1 mm. Mounting outline The drawing shows 90 mm overall length across mounting tabs and 82.5 mm longitudinal mounting-center spacing. Input leads UL1569, 18 AWG; 150 ±10 mm. Brown = AC/L; blue = AC/N. Output leads UL1569, 20 AWG; 150 ±10 mm. Red = +V; black = -V. Match output polarity to the load. DC-input polarity When using DC input, connect the brown L lead to the positive side and the blue N lead to the negative side. Installation Class II design with no FG connection. Before installation or maintenance, disconnect the supply from the utility and prevent inadvertent reconnection. Keep proper ventilation around the unit and do not stack objects on it. When an adjacent device is a heat source, maintain 10-15 cm clearance. Keep lead-wire connections insulated and mechanically secured, and select approved cables rated for at least the unit current. Nonstandard mounting orientations or high ambient temperature require output-current derating. The installation manual limits APC/APV to equipment with a primary use other than lighting, such as copiers or overhead projectors, or to scale and display lighting; also observe the regional luminaire restriction above. Case-temperature point The mechanical drawing identifies the tc / T case measurement point. Its location dimensions are not temperature limits. Connection and mounting items This is a wired power-supply module. Select suitable connection and mounting hardware for the final equipment using the lead specifications and mechanical drawing above. Standards and catalog references Parameter Details Listed safety approvals UL 8750, CSA C22.2 No.250.0-08, EAC TP TC 004, BS EN/EN 62368-1, BIS IS 15885. Select the actual supplied regional version and required markings for the installation. Power-unit classification Class II insulation design; Class 2 power unit; LPS, as listed in the series features. Class II and Class 2 are different classifications. Withstand voltage Input-to-output: 3.75 kVAC. Insulation resistance Input-to-output: greater than 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032, BS EN/EN 61000-3-2, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035 and BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; light-industry level with 2 kV surge. The completed installation still requires assessment. Catalog mass reference 80 g per unit (0.08 kg), from the PACKING field. This is the catalog packing reference per unit, not a measured net weight or a complete shipping-package weight. Manufacturer catalog statement The manufacturer datasheet lists a two-year warranty and a 100% full-load burn-in test.
$14.29
-
MEAN WELL APC-12 series: constant current LED power supply - APC-12-700
MEAN WELL APC-12-700 Constant Current LED Power Supply The MEAN WELL APC-12-700 is a single-output AC/DC constant current LED power supply providing 700 mA constant current over a 9-18 V DC operating range, with a catalog rated power of 12.6 W. It accepts 90-264 VAC or 127-370 VDC and uses a fully isolated IP42 plastic enclosure cooled by free-air convection. Select an LED load requiring 700 mA and having a total operating voltage within 9-18 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Download MEAN WELL APC-12 Datasheet (PDF) See PDF pages 15-16 for this model column, its connection drawing and derating curves. Download MEAN WELL LED Installation Manual (PDF) Model and application Parameter Details Full model APC-12-700 Series and model code APC-12 is the product series. The final code 700 identifies the 700 mA output current. The series wattage designation is not a substitute for this model's actual rated output power. Operating mode Constant current. Select an LED load requiring 700 mA and having a total operating voltage within 9-18 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Intended application LED-related fixtures or appliances, such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. Application qualification Use the supply as a component in the final equipment. The equipment manufacturer must assess the complete installation and re-qualify EMC performance with the load, wiring and enclosure. Output and dynamic performance Parameter Details Rated output current 700 mA Operating DC voltage range 9-18 V Catalog rated power 12.6 W. Current accuracy ±8.0%. Voltage tolerance ±5.0%; the catalog note includes setup tolerance. This is separate from the ±8.0% output-current accuracy. Setup and rise time 3000 ms setup / 180 ms rise at 230 VAC; 3000 ms setup / 150 ms rise at 115 VAC, at full load. Hold-up time, typical 20 ms at 230 VAC; 15 ms at 115 VAC, at full load. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Typical values depend on operating conditions. Input and supply planning Parameter Details Input range 90-264 VAC, 47-63 Hz; alternatively 127-370 VDC. Apply the input-voltage derating curve. AC input current 0.2 A at 230 VAC; 0.35 A at 115 VAC Efficiency, typical 80% at the catalog measurement conditions; not a guaranteed efficiency at every input and load. Cold-start inrush, typical 70 A at 230 VAC; pulse width 150 µs measured at 50% of peak current. Leakage current 0.25 mA at 240 VAC. Input-voltage derating At 60 Hz, the static-characteristic curve shows 80% load at 90 VAC, rising to 100% at 100 VAC; 100% is shown from 100 to 264 VAC. Apply the more restrictive thermal/load condition at the same time. 16 A circuit-breaker reference At 230 VAC the catalog lists up to 17 units on a Type B 16 A circuit breaker, or 29 units on a Type C 16 A circuit breaker. Use this reference with the actual circuit and installation requirements. Protection and fault behavior Parameter Details Short-circuit protection Short-circuit protection is listed among the model features. Overvoltage protection 20.7-24.3 V; output shutoff with zener-diode clamping. Thermal operating limits Maintain the required ventilation and derate load as ambient temperature rises. Do not treat the upper ambient rating as a full-load rating. Environment and derating Parameter Details Working ambient temperature -30 to +70°C, subject to the derating curve. Cooling and temperature derating Free-air convection, with the horizontal orientation shown in the drawing. Full load is shown up to +45°C, then decreases linearly to 60% load at +70°C. Keep the input-voltage derating limit at the same time. Altitude derating Above 2000 m (6500 ft), reduce the allowable ambient temperature by 3.5°C per 1000 m for this fanless design. Working humidity 20-90% RH, non-condensing. Storage temperature / humidity -40 to +80°C; 10-95% RH. Temperature coefficient ±0.2%/°C over 0 to 50°C. Vibration 10-500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Enclosure Fully isolated plastic case, IP42 design. Observe the manufacturer installation instructions for the intended enclosure and environment. Dimensions, leads and installation Parameter Details Body dimensions 77 x 40 x 29 mm (L x W x H); drawing tolerance ±1 mm. Mounting outline The drawing shows 90 mm overall length across mounting tabs and 82.5 mm longitudinal mounting-center spacing. Input leads UL1569, 18 AWG; 150 ±10 mm. Brown = AC/L; blue = AC/N. Output leads UL1569, 20 AWG; 150 ±10 mm. Red = +V; black = -V. Match output polarity to the load. DC-input polarity When using DC input, connect the brown L lead to the positive side and the blue N lead to the negative side. Installation Class II design with no FG connection. Before installation or maintenance, disconnect the supply from the utility and prevent inadvertent reconnection. Keep proper ventilation around the unit and do not stack objects on it. When an adjacent device is a heat source, maintain 10-15 cm clearance. Keep lead-wire connections insulated and mechanically secured, and select approved cables rated for at least the unit current. Nonstandard mounting orientations or high ambient temperature require output-current derating. The installation manual limits APC/APV to equipment with a primary use other than lighting, such as copiers or overhead projectors, or to scale and display lighting; also observe the regional luminaire restriction above. Case-temperature point The mechanical drawing identifies the tc / T case measurement point. Its location dimensions are not temperature limits. Connection and mounting items This is a wired power-supply module. Select suitable connection and mounting hardware for the final equipment using the lead specifications and mechanical drawing above. Standards and catalog references Parameter Details Listed safety approvals UL 8750, CSA C22.2 No.250.0-08, EAC TP TC 004, BS EN/EN 62368-1, BIS IS 15885. Select the actual supplied regional version and required markings for the installation. Power-unit classification Class II insulation design; Class 2 power unit; LPS, as listed in the series features. Class II and Class 2 are different classifications. Withstand voltage Input-to-output: 3.75 kVAC. Insulation resistance Input-to-output: greater than 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032, BS EN/EN 61000-3-2, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035 and BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; light-industry level with 2 kV surge. The completed installation still requires assessment. Catalog mass reference 80 g per unit (0.08 kg), from the PACKING field. This is the catalog packing reference per unit, not a measured net weight or a complete shipping-package weight. Manufacturer catalog statement The manufacturer datasheet lists a two-year warranty and a 100% full-load burn-in test.
$14.29
-
MEAN WELL APC-16 series: constant current LED power supply - APC-16-350
MEAN WELL APC-16-350 Constant Current LED Power Supply The MEAN WELL APC-16-350 is a single-output AC/DC constant current LED power supply providing 350 mA constant current over a 12-48 V DC operating range, with a catalog rated power of 16.8 W. It accepts 90-264 VAC or 127-370 VDC and uses a fully isolated IP42 plastic enclosure cooled by free-air convection. Select an LED load requiring 350 mA and having a total operating voltage within 12-48 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Download MEAN WELL APC-16 Datasheet (PDF) See PDF pages 18-19 for this model column, its connection drawing and derating curves. Download MEAN WELL LED Installation Manual (PDF) Model and application Parameter Details Full model APC-16-350 Series and model code APC-16 is the product series. The final code 350 identifies the 350 mA output current. The series wattage designation is not a substitute for this model's actual rated output power. Operating mode Constant current. Select an LED load requiring 350 mA and having a total operating voltage within 12-48 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Intended application LED-related fixtures or appliances, such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. Application qualification Use the supply as a component in the final equipment. The equipment manufacturer must assess the complete installation and re-qualify EMC performance with the load, wiring and enclosure. Output and dynamic performance Parameter Details Rated output current 350 mA Operating DC voltage range 12-48 V Catalog rated power 16.8 W. Current accuracy ±8.0%. Voltage tolerance ±5.0%; the catalog note includes setup tolerance. This is separate from the ±8.0% output-current accuracy. Setup and rise time 3000 ms setup / 200 ms rise at both 230 VAC and 115 VAC, at full load. Hold-up time, typical 20 ms at 230 VAC; 12 ms at 115 VAC, at full load. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Typical values depend on operating conditions. Input and supply planning Parameter Details Input range 90-264 VAC, 47-63 Hz; alternatively 127-370 VDC. Apply the input-voltage derating curve. AC input current 0.3 A at 230 VAC; 0.5 A at 115 VAC Efficiency, typical 84% at the catalog measurement conditions; not a guaranteed efficiency at every input and load. Cold-start inrush, typical 45 A at 230 VAC; pulse width 210 µs measured at 50% of peak current. Leakage current 0.25 mA at 240 VAC. Input-voltage derating At 60 Hz, the static-characteristic curve shows 80% load at 90 VAC, rising to 100% at 100 VAC; 100% is shown from 100 to 264 VAC. Apply the more restrictive thermal/load condition at the same time. 16 A circuit-breaker reference At 230 VAC the catalog lists up to 13 units on a Type B 16 A circuit breaker, or 23 units on a Type C 16 A circuit breaker. Use this reference with the actual circuit and installation requirements. Protection and fault behavior Parameter Details Short-circuit protection Short-circuit protection is listed among the model features. Overvoltage protection 50.4-60 V; output shutoff with zener-diode clamping. Thermal operating limits Maintain the required ventilation and derate load as ambient temperature rises. Do not treat the upper ambient rating as a full-load rating. Environment and derating Parameter Details Working ambient temperature -30 to +70°C, subject to the derating curve. Cooling and temperature derating Free-air convection, with the horizontal orientation shown in the drawing. Full load is shown up to +40°C, then decreases linearly to 60% load at +70°C. Keep the input-voltage derating limit at the same time. Altitude derating Above 2000 m (6500 ft), reduce the allowable ambient temperature by 3.5°C per 1000 m for this fanless design. Working humidity 20-90% RH, non-condensing. Storage temperature / humidity -40 to +80°C; 10-95% RH. Temperature coefficient ±0.2%/°C over 0 to 50°C. Vibration 10-500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Enclosure Fully isolated plastic case, IP42 design. Observe the manufacturer installation instructions for the intended enclosure and environment. Dimensions, leads and installation Parameter Details Body dimensions 77 x 40 x 29 mm (L x W x H); drawing tolerance ±1 mm. Mounting outline The drawing shows 90 mm overall length across mounting tabs and 82.5 mm longitudinal mounting-center spacing. Input leads UL1569, 18 AWG; 150 ±10 mm. Brown = AC/L; blue = AC/N. Output leads UL1569, 20 AWG; 150 ±10 mm. Red = +V; black = -V. Match output polarity to the load. DC-input polarity When using DC input, connect the brown L lead to the positive side and the blue N lead to the negative side. Installation Class II design with no FG connection. Before installation or maintenance, disconnect the supply from the utility and prevent inadvertent reconnection. Keep proper ventilation around the unit and do not stack objects on it. When an adjacent device is a heat source, maintain 10-15 cm clearance. Keep lead-wire connections insulated and mechanically secured, and select approved cables rated for at least the unit current. Nonstandard mounting orientations or high ambient temperature require output-current derating. The installation manual limits APC/APV to equipment with a primary use other than lighting, such as copiers or overhead projectors, or to scale and display lighting; also observe the regional luminaire restriction above. Case-temperature point The mechanical drawing identifies the tc / T case measurement point. Its location dimensions are not temperature limits. Connection and mounting items This is a wired power-supply module. Select suitable connection and mounting hardware for the final equipment using the lead specifications and mechanical drawing above. Standards and catalog references Parameter Details Listed safety approvals UL 8750, CSA C22.2 No.250.0-08, EAC TP TC 004, BS EN/EN 62368-1, BIS IS 15885. Select the actual supplied regional version and required markings for the installation. Power-unit classification Class II insulation design; Class 2 power unit; LPS, as listed in the series features. Class II and Class 2 are different classifications. Withstand voltage Input-to-output: 3.75 kVAC. Insulation resistance Input-to-output: greater than 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032, BS EN/EN 61000-3-2, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035 and BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; light-industry level with 2 kV surge. The completed installation still requires assessment. Catalog mass reference 100 g per unit (0.1 kg), from the PACKING field. This is the catalog packing reference per unit, not a measured net weight or a complete shipping-package weight. Manufacturer catalog statement The manufacturer datasheet lists a two-year warranty and a 100% full-load burn-in test.
$14.79
-
MEAN WELL APC-16 series: constant current LED power supply - APC-16-700
MEAN WELL APC-16-700 Constant Current LED Power Supply The MEAN WELL APC-16-700 is a single-output AC/DC constant current LED power supply providing 700 mA constant current over a 9-24 V DC operating range, with a catalog rated power of 16.8 W. It accepts 90-264 VAC or 127-370 VDC and uses a fully isolated IP42 plastic enclosure cooled by free-air convection. Select an LED load requiring 700 mA and having a total operating voltage within 9-24 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Download MEAN WELL APC-16 Datasheet (PDF) See PDF pages 18-19 for this model column, its connection drawing and derating curves. Download MEAN WELL LED Installation Manual (PDF) Model and application Parameter Details Full model APC-16-700 Series and model code APC-16 is the product series. The final code 700 identifies the 700 mA output current. The series wattage designation is not a substitute for this model's actual rated output power. Operating mode Constant current. Select an LED load requiring 700 mA and having a total operating voltage within 9-24 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Intended application LED-related fixtures or appliances, such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. Application qualification Use the supply as a component in the final equipment. The equipment manufacturer must assess the complete installation and re-qualify EMC performance with the load, wiring and enclosure. Output and dynamic performance Parameter Details Rated output current 700 mA Operating DC voltage range 9-24 V Catalog rated power 16.8 W. Current accuracy ±8.0%. Voltage tolerance ±5.0%; the catalog note includes setup tolerance. This is separate from the ±8.0% output-current accuracy. Setup and rise time 3000 ms setup / 200 ms rise at both 230 VAC and 115 VAC, at full load. Hold-up time, typical 20 ms at 230 VAC; 12 ms at 115 VAC, at full load. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Typical values depend on operating conditions. Input and supply planning Parameter Details Input range 90-264 VAC, 47-63 Hz; alternatively 127-370 VDC. Apply the input-voltage derating curve. AC input current 0.3 A at 230 VAC; 0.5 A at 115 VAC Efficiency, typical 83% at the catalog measurement conditions; not a guaranteed efficiency at every input and load. Cold-start inrush, typical 45 A at 230 VAC; pulse width 210 µs measured at 50% of peak current. Leakage current 0.25 mA at 240 VAC. Input-voltage derating At 60 Hz, the static-characteristic curve shows 80% load at 90 VAC, rising to 100% at 100 VAC; 100% is shown from 100 to 264 VAC. Apply the more restrictive thermal/load condition at the same time. 16 A circuit-breaker reference At 230 VAC the catalog lists up to 13 units on a Type B 16 A circuit breaker, or 23 units on a Type C 16 A circuit breaker. Use this reference with the actual circuit and installation requirements. Protection and fault behavior Parameter Details Short-circuit protection Short-circuit protection is listed among the model features. Overvoltage protection 27.6-33.5 V; output shutoff with zener-diode clamping. Thermal operating limits Maintain the required ventilation and derate load as ambient temperature rises. Do not treat the upper ambient rating as a full-load rating. Environment and derating Parameter Details Working ambient temperature -30 to +70°C, subject to the derating curve. Cooling and temperature derating Free-air convection, with the horizontal orientation shown in the drawing. Full load is shown up to +40°C, then decreases linearly to 60% load at +70°C. Keep the input-voltage derating limit at the same time. Altitude derating Above 2000 m (6500 ft), reduce the allowable ambient temperature by 3.5°C per 1000 m for this fanless design. Working humidity 20-90% RH, non-condensing. Storage temperature / humidity -40 to +80°C; 10-95% RH. Temperature coefficient ±0.2%/°C over 0 to 50°C. Vibration 10-500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Enclosure Fully isolated plastic case, IP42 design. Observe the manufacturer installation instructions for the intended enclosure and environment. Dimensions, leads and installation Parameter Details Body dimensions 77 x 40 x 29 mm (L x W x H); drawing tolerance ±1 mm. Mounting outline The drawing shows 90 mm overall length across mounting tabs and 82.5 mm longitudinal mounting-center spacing. Input leads UL1569, 18 AWG; 150 ±10 mm. Brown = AC/L; blue = AC/N. Output leads UL1569, 20 AWG; 150 ±10 mm. Red = +V; black = -V. Match output polarity to the load. DC-input polarity When using DC input, connect the brown L lead to the positive side and the blue N lead to the negative side. Installation Class II design with no FG connection. Before installation or maintenance, disconnect the supply from the utility and prevent inadvertent reconnection. Keep proper ventilation around the unit and do not stack objects on it. When an adjacent device is a heat source, maintain 10-15 cm clearance. Keep lead-wire connections insulated and mechanically secured, and select approved cables rated for at least the unit current. Nonstandard mounting orientations or high ambient temperature require output-current derating. The installation manual limits APC/APV to equipment with a primary use other than lighting, such as copiers or overhead projectors, or to scale and display lighting; also observe the regional luminaire restriction above. Case-temperature point The mechanical drawing identifies the tc / T case measurement point. Its location dimensions are not temperature limits. Connection and mounting items This is a wired power-supply module. Select suitable connection and mounting hardware for the final equipment using the lead specifications and mechanical drawing above. Standards and catalog references Parameter Details Listed safety approvals UL 8750, CSA C22.2 No.250.0-08, EAC TP TC 004, BS EN/EN 62368-1, BIS IS 15885. Select the actual supplied regional version and required markings for the installation. Power-unit classification Class II insulation design; Class 2 power unit; LPS, as listed in the series features. Class II and Class 2 are different classifications. Withstand voltage Input-to-output: 3.75 kVAC. Insulation resistance Input-to-output: greater than 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032, BS EN/EN 61000-3-2, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035 and BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; light-industry level with 2 kV surge. The completed installation still requires assessment. Catalog mass reference 100 g per unit (0.1 kg), from the PACKING field. This is the catalog packing reference per unit, not a measured net weight or a complete shipping-package weight. Manufacturer catalog statement The manufacturer datasheet lists a two-year warranty and a 100% full-load burn-in test.
$14.79
-
MEAN WELL APC-25 series: constant current LED power supply - APC-25-1050
MEAN WELL APC-25-1050 Constant Current LED Power Supply The MEAN WELL APC-25-1050 is a single-output AC/DC constant current LED power supply providing 1050 mA constant current over a 9-24 V DC operating range, with a catalog rated power of 25.2 W. It accepts 90-264 VAC or 127-370 VDC and uses a fully isolated IP42 plastic enclosure cooled by free-air convection. Select an LED load requiring 1050 mA and having a total operating voltage within 9-24 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Download MEAN WELL APC-25 Datasheet (PDF) See PDF pages 20-21 for this model column, its connection drawing and derating curves. Download MEAN WELL LED Installation Manual (PDF) Model and application Parameter Details Full model APC-25-1050 Series and model code APC-25 is the product series. The final code 1050 identifies the 1050 mA output current. The series wattage designation is not a substitute for this model's actual rated output power. Operating mode Constant current. Select an LED load requiring 1050 mA and having a total operating voltage within 9-24 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Intended application LED-related fixtures or appliances, such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. Application qualification Use the supply as a component in the final equipment. The equipment manufacturer must assess the complete installation and re-qualify EMC performance with the load, wiring and enclosure. Output and dynamic performance Parameter Details Rated output current 1050 mA Operating DC voltage range 9-24 V Catalog rated power 25.2 W. Current accuracy ±8.0%. Current ripple 5.0%, as listed in the model specification. This current-ripple figure is not a voltage-ripple rating or a guarantee of a particular visible-flicker metric. Setup and rise time 1500 ms setup / 30 ms rise at both 230 VAC and 115 VAC, at full load. Hold-up time, typical 20 ms at 230 VAC; 12 ms at 115 VAC, at full load. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Typical values depend on operating conditions. Input and supply planning Parameter Details Input range 90-264 VAC, 47-63 Hz; alternatively 127-370 VDC. Apply the input-voltage derating curve. AC input current 0.4 A at 230 VAC; 0.8 A at 115 VAC Efficiency, typical 83% at the catalog measurement conditions; not a guaranteed efficiency at every input and load. Cold-start inrush, typical 45 A at 230 VAC; pulse width 310 µs measured at 50% of peak current. Leakage current 0.25 mA at 240 VAC. Input-voltage derating At 60 Hz, the static-characteristic curve shows 80% load at 90 VAC, rising to 100% at 100 VAC; 100% is shown from 100 to 264 VAC. Apply the more restrictive thermal/load condition at the same time. Short-duration input withstand Withstands 300 VAC surge input for 5 seconds. This is a brief input-withstand specification, not a continuous input rating or an output peak-power allowance. 16 A circuit-breaker reference At 230 VAC the catalog lists up to 9 units on a Type B 16 A circuit breaker, or 15 units on a Type C 16 A circuit breaker. Use this reference with the actual circuit and installation requirements. Protection and fault behavior Parameter Details Short-circuit protection Short-circuit protection is listed among the model features. Overvoltage protection 27-35 V; output shutdown; re-power on to recover. Thermal operating limits Maintain the required ventilation and derate load as ambient temperature rises. Do not treat the upper ambient rating as a full-load rating. Environment and derating Parameter Details Working ambient temperature -30 to +70°C, subject to the derating curve. Cooling and temperature derating Free-air convection, with the horizontal orientation shown in the drawing. Full load is shown up to +40°C, then decreases linearly to 60% load at +70°C. Keep the input-voltage derating limit at the same time. Altitude derating Above 2000 m (6500 ft), reduce the allowable ambient temperature by 3.5°C per 1000 m for this fanless design. Working humidity 20-90% RH, non-condensing. Storage temperature / humidity -40 to +80°C; 10-95% RH. Temperature coefficient ±0.2%/°C over 0 to 50°C. Vibration 10-500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Enclosure Fully isolated plastic case, IP42 design. Observe the manufacturer installation instructions for the intended enclosure and environment. Dimensions, leads and installation Parameter Details Body dimensions 84 x 57 x 29.5 mm (L x W x H); drawing tolerance ±1 mm. Mounting outline Case PCD16A; two mounting features are marked Ø3.6 mm with Ø8.9 mm surrounding features. Use the mechanical drawing for the offset mounting positions. Input leads UL1569, 18 AWG; 150 ±10 mm. Brown = AC/L; blue = AC/N. Output leads UL1569, 18 AWG; 150 ±10 mm. Red = +V; black = -V. Match output polarity to the load. DC-input polarity DC input is rated 127-370 VDC. Before DC connection, obtain the manufacturer polarity instructions for this exact model; do not assume the L/N-to-positive/negative mapping from another model. Installation Class II design with no FG connection. Before installation or maintenance, disconnect the supply from the utility and prevent inadvertent reconnection. Keep proper ventilation around the unit and do not stack objects on it. When an adjacent device is a heat source, maintain 10-15 cm clearance. Keep lead-wire connections insulated and mechanically secured, and select approved cables rated for at least the unit current. Nonstandard mounting orientations or high ambient temperature require output-current derating. The installation manual limits APC/APV to equipment with a primary use other than lighting, such as copiers or overhead projectors, or to scale and display lighting; also observe the regional luminaire restriction above. Case-temperature point The mechanical drawing identifies the tc / T case measurement point. Its location dimensions are not temperature limits. Connection and mounting items This is a wired power-supply module. Select suitable connection and mounting hardware for the final equipment using the lead specifications and mechanical drawing above. Standards and catalog references Parameter Details Listed safety approvals UL 8750, CSA C22.2 No.250.0-13, EAC TP TC 004, BS EN/EN 62368-1, BIS IS 15885. Select the actual supplied regional version and required markings for the installation. Limited power source LPS is listed for this model. Class II insulation design is shown separately; these identify different safety characteristics. Withstand voltage Input-to-output: 3 kVAC. Insulation resistance Input-to-output: greater than 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035 and BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; light-industry level with 2 kV surge. The completed installation still requires assessment. Catalog mass reference 130 g per unit (0.13 kg), from the PACKING field. This is the catalog packing reference per unit, not a measured net weight or a complete shipping-package weight. Manufacturer catalog statement The manufacturer datasheet lists a two-year warranty and a 100% full-load burn-in test.
$23.66
-
MEAN WELL APC-25 series: constant current LED power supply - APC-25-350
MEAN WELL APC-25-350 Constant Current LED Power Supply The MEAN WELL APC-25-350 is a single-output AC/DC constant current LED power supply providing 350 mA constant current over a 25-70 V DC operating range, with a catalog rated power of 24.5 W. It accepts 90-264 VAC or 127-370 VDC and uses a fully isolated IP42 plastic enclosure cooled by free-air convection. Select an LED load requiring 350 mA and having a total operating voltage within 25-70 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Download MEAN WELL APC-25 Datasheet (PDF) See PDF pages 20-21 for this model column, its connection drawing and derating curves. Download MEAN WELL LED Installation Manual (PDF) Model and application Parameter Details Full model APC-25-350 Series and model code APC-25 is the product series. The final code 350 identifies the 350 mA output current. The series wattage designation is not a substitute for this model's actual rated output power. Operating mode Constant current. Select an LED load requiring 350 mA and having a total operating voltage within 25-70 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Intended application LED-related fixtures or appliances, such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. Application qualification Use the supply as a component in the final equipment. The equipment manufacturer must assess the complete installation and re-qualify EMC performance with the load, wiring and enclosure. Output and dynamic performance Parameter Details Rated output current 350 mA Operating DC voltage range 25-70 V Catalog rated power 24.5 W. Current accuracy ±8.0%. Current ripple 5.0%, as listed in the model specification. This current-ripple figure is not a voltage-ripple rating or a guarantee of a particular visible-flicker metric. Setup and rise time 1500 ms setup / 30 ms rise at both 230 VAC and 115 VAC, at full load. Hold-up time, typical 20 ms at 230 VAC; 12 ms at 115 VAC, at full load. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Typical values depend on operating conditions. Input and supply planning Parameter Details Input range 90-264 VAC, 47-63 Hz; alternatively 127-370 VDC. Apply the input-voltage derating curve. AC input current 0.4 A at 230 VAC; 0.8 A at 115 VAC Efficiency, typical 83% at the catalog measurement conditions; not a guaranteed efficiency at every input and load. Cold-start inrush, typical 45 A at 230 VAC; pulse width 310 µs measured at 50% of peak current. Leakage current 0.25 mA at 240 VAC. Input-voltage derating At 60 Hz, the static-characteristic curve shows 80% load at 90 VAC, rising to 100% at 100 VAC; 100% is shown from 100 to 264 VAC. Apply the more restrictive thermal/load condition at the same time. Short-duration input withstand Withstands 300 VAC surge input for 5 seconds. This is a brief input-withstand specification, not a continuous input rating or an output peak-power allowance. 16 A circuit-breaker reference At 230 VAC the catalog lists up to 9 units on a Type B 16 A circuit breaker, or 15 units on a Type C 16 A circuit breaker. Use this reference with the actual circuit and installation requirements. Protection and fault behavior Parameter Details Short-circuit protection Short-circuit protection is listed among the model features. Overvoltage protection 76-94 V; output shutdown; re-power on to recover. Thermal operating limits Maintain the required ventilation and derate load as ambient temperature rises. Do not treat the upper ambient rating as a full-load rating. Environment and derating Parameter Details Working ambient temperature -30 to +70°C, subject to the derating curve. Cooling and temperature derating Free-air convection, with the horizontal orientation shown in the drawing. Full load is shown up to +40°C, then decreases linearly to 60% load at +70°C. Keep the input-voltage derating limit at the same time. Altitude derating Above 2000 m (6500 ft), reduce the allowable ambient temperature by 3.5°C per 1000 m for this fanless design. Working humidity 20-90% RH, non-condensing. Storage temperature / humidity -40 to +80°C; 10-95% RH. Temperature coefficient ±0.2%/°C over 0 to 50°C. Vibration 10-500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Enclosure Fully isolated plastic case, IP42 design. Observe the manufacturer installation instructions for the intended enclosure and environment. Dimensions, leads and installation Parameter Details Body dimensions 84 x 57 x 29.5 mm (L x W x H); drawing tolerance ±1 mm. Mounting outline Case PCD16A; two mounting features are marked Ø3.6 mm with Ø8.9 mm surrounding features. Use the mechanical drawing for the offset mounting positions. Input leads UL1569, 18 AWG; 150 ±10 mm. Brown = AC/L; blue = AC/N. Output leads UL1569, 18 AWG; 150 ±10 mm. Red = +V; black = -V. Match output polarity to the load. DC-input polarity DC input is rated 127-370 VDC. Before DC connection, obtain the manufacturer polarity instructions for this exact model; do not assume the L/N-to-positive/negative mapping from another model. Installation Class II design with no FG connection. Before installation or maintenance, disconnect the supply from the utility and prevent inadvertent reconnection. Keep proper ventilation around the unit and do not stack objects on it. When an adjacent device is a heat source, maintain 10-15 cm clearance. Keep lead-wire connections insulated and mechanically secured, and select approved cables rated for at least the unit current. Nonstandard mounting orientations or high ambient temperature require output-current derating. The installation manual limits APC/APV to equipment with a primary use other than lighting, such as copiers or overhead projectors, or to scale and display lighting; also observe the regional luminaire restriction above. Case-temperature point The mechanical drawing identifies the tc / T case measurement point. Its location dimensions are not temperature limits. Connection and mounting items This is a wired power-supply module. Select suitable connection and mounting hardware for the final equipment using the lead specifications and mechanical drawing above. Standards and catalog references Parameter Details Listed safety approvals EAC TP TC 004, BS EN/EN 62368-1. Select the actual supplied regional version and required markings for the installation. Insulation classification Class II insulation design with no FG connection. Withstand voltage Input-to-output: 3 kVAC. Insulation resistance Input-to-output: greater than 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035 and BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; light-industry level with 2 kV surge. The completed installation still requires assessment. Catalog mass reference 130 g per unit (0.13 kg), from the PACKING field. This is the catalog packing reference per unit, not a measured net weight or a complete shipping-package weight. Manufacturer catalog statement The manufacturer datasheet lists a two-year warranty and a 100% full-load burn-in test.
$23.66
-
MEAN WELL APC-25 series: constant current LED power supply - APC-25-500
MEAN WELL APC-25-500 Constant Current LED Power Supply The MEAN WELL APC-25-500 is a single-output AC/DC constant current LED power supply providing 500 mA constant current over a 15-50 V DC operating range, with a catalog rated power of 25.2 W. It accepts 90-264 VAC or 127-370 VDC and uses a fully isolated IP42 plastic enclosure cooled by free-air convection. Select an LED load requiring 500 mA and having a total operating voltage within 15-50 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Download MEAN WELL APC-25 Datasheet (PDF) See PDF pages 20-21 for this model column, its connection drawing and derating curves. Download MEAN WELL LED Installation Manual (PDF) Model and application Parameter Details Full model APC-25-500 Series and model code APC-25 is the product series. The final code 500 identifies the 500 mA output current. The series wattage designation is not a substitute for this model's actual rated output power. Operating mode Constant current. Select an LED load requiring 500 mA and having a total operating voltage within 15-50 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Intended application LED-related fixtures or appliances, such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. Application qualification Use the supply as a component in the final equipment. The equipment manufacturer must assess the complete installation and re-qualify EMC performance with the load, wiring and enclosure. Output and dynamic performance Parameter Details Rated output current 500 mA Operating DC voltage range 15-50 V Catalog rated power 25.2 W; retain the 15-50 V operating window and 500 mA current limit when selecting the load. Current accuracy ±8.0%. Current ripple 5.0%, as listed in the model specification. This current-ripple figure is not a voltage-ripple rating or a guarantee of a particular visible-flicker metric. Setup and rise time 1500 ms setup / 30 ms rise at both 230 VAC and 115 VAC, at full load. Hold-up time, typical 20 ms at 230 VAC; 12 ms at 115 VAC, at full load. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Typical values depend on operating conditions. Input and supply planning Parameter Details Input range 90-264 VAC, 47-63 Hz; alternatively 127-370 VDC. Apply the input-voltage derating curve. AC input current 0.4 A at 230 VAC; 0.8 A at 115 VAC Efficiency, typical 83% at the catalog measurement conditions; not a guaranteed efficiency at every input and load. Cold-start inrush, typical 45 A at 230 VAC; pulse width 310 µs measured at 50% of peak current. Leakage current 0.25 mA at 240 VAC. Input-voltage derating At 60 Hz, the static-characteristic curve shows 80% load at 90 VAC, rising to 100% at 100 VAC; 100% is shown from 100 to 264 VAC. Apply the more restrictive thermal/load condition at the same time. Short-duration input withstand Withstands 300 VAC surge input for 5 seconds. This is a brief input-withstand specification, not a continuous input rating or an output peak-power allowance. 16 A circuit-breaker reference At 230 VAC the catalog lists up to 9 units on a Type B 16 A circuit breaker, or 15 units on a Type C 16 A circuit breaker. Use this reference with the actual circuit and installation requirements. Protection and fault behavior Parameter Details Short-circuit protection Short-circuit protection is listed among the model features. Overvoltage protection 55-68 V; output shutdown; re-power on to recover. Thermal operating limits Maintain the required ventilation and derate load as ambient temperature rises. Do not treat the upper ambient rating as a full-load rating. Environment and derating Parameter Details Working ambient temperature -30 to +70°C, subject to the derating curve. Cooling and temperature derating Free-air convection, with the horizontal orientation shown in the drawing. Full load is shown up to +40°C, then decreases linearly to 60% load at +70°C. Keep the input-voltage derating limit at the same time. Altitude derating Above 2000 m (6500 ft), reduce the allowable ambient temperature by 3.5°C per 1000 m for this fanless design. Working humidity 20-90% RH, non-condensing. Storage temperature / humidity -40 to +80°C; 10-95% RH. Temperature coefficient ±0.2%/°C over 0 to 50°C. Vibration 10-500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Enclosure Fully isolated plastic case, IP42 design. Observe the manufacturer installation instructions for the intended enclosure and environment. Dimensions, leads and installation Parameter Details Body dimensions 84 x 57 x 29.5 mm (L x W x H); drawing tolerance ±1 mm. Mounting outline Case PCD16A; two mounting features are marked Ø3.6 mm with Ø8.9 mm surrounding features. Use the mechanical drawing for the offset mounting positions. Input leads UL1569, 18 AWG; 150 ±10 mm. Brown = AC/L; blue = AC/N. Output leads UL1569, 18 AWG; 150 ±10 mm. Red = +V; black = -V. Match output polarity to the load. DC-input polarity DC input is rated 127-370 VDC. Before DC connection, obtain the manufacturer polarity instructions for this exact model; do not assume the L/N-to-positive/negative mapping from another model. Installation Class II design with no FG connection. Before installation or maintenance, disconnect the supply from the utility and prevent inadvertent reconnection. Keep proper ventilation around the unit and do not stack objects on it. When an adjacent device is a heat source, maintain 10-15 cm clearance. Keep lead-wire connections insulated and mechanically secured, and select approved cables rated for at least the unit current. Nonstandard mounting orientations or high ambient temperature require output-current derating. The installation manual limits APC/APV to equipment with a primary use other than lighting, such as copiers or overhead projectors, or to scale and display lighting; also observe the regional luminaire restriction above. Case-temperature point The mechanical drawing identifies the tc / T case measurement point. Its location dimensions are not temperature limits. Connection and mounting items This is a wired power-supply module. Select suitable connection and mounting hardware for the final equipment using the lead specifications and mechanical drawing above. Standards and catalog references Parameter Details Listed safety approvals UL 8750, EAC TP TC 004, BS EN/EN 62368-1, BIS IS 15885. Select the actual supplied regional version and required markings for the installation. Limited power source LPS is listed for this model. Class II insulation design is shown separately; these identify different safety characteristics. Withstand voltage Input-to-output: 3 kVAC. Insulation resistance Input-to-output: greater than 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035 and BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; light-industry level with 2 kV surge. The completed installation still requires assessment. Catalog mass reference 130 g per unit (0.13 kg), from the PACKING field. This is the catalog packing reference per unit, not a measured net weight or a complete shipping-package weight. Manufacturer catalog statement The manufacturer datasheet lists a two-year warranty and a 100% full-load burn-in test.
$23.66
-
MEAN WELL APC-25 series: constant current LED power supply - APC-25-700
MEAN WELL APC-25-700 Constant Current LED Power Supply The MEAN WELL APC-25-700 is a single-output AC/DC constant current LED power supply providing 700 mA constant current over a 11-36 V DC operating range, with a catalog rated power of 25.2 W. It accepts 90-264 VAC or 127-370 VDC and uses a fully isolated IP42 plastic enclosure cooled by free-air convection. Select an LED load requiring 700 mA and having a total operating voltage within 11-36 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Download MEAN WELL APC-25 Datasheet (PDF) See PDF pages 20-21 for this model column, its connection drawing and derating curves. Download MEAN WELL LED Installation Manual (PDF) Model and application Parameter Details Full model APC-25-700 Series and model code APC-25 is the product series. The final code 700 identifies the 700 mA output current. The series wattage designation is not a substitute for this model's actual rated output power. Operating mode Constant current. Select an LED load requiring 700 mA and having a total operating voltage within 11-36 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Intended application LED-related fixtures or appliances, such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. Application qualification Use the supply as a component in the final equipment. The equipment manufacturer must assess the complete installation and re-qualify EMC performance with the load, wiring and enclosure. Output and dynamic performance Parameter Details Rated output current 700 mA Operating DC voltage range 11-36 V Catalog rated power 25.2 W. Current accuracy ±8.0%. Current ripple 5.0%, as listed in the model specification. This current-ripple figure is not a voltage-ripple rating or a guarantee of a particular visible-flicker metric. Setup and rise time 1500 ms setup / 30 ms rise at both 230 VAC and 115 VAC, at full load. Hold-up time, typical 20 ms at 230 VAC; 12 ms at 115 VAC, at full load. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Typical values depend on operating conditions. Input and supply planning Parameter Details Input range 90-264 VAC, 47-63 Hz; alternatively 127-370 VDC. Apply the input-voltage derating curve. AC input current 0.4 A at 230 VAC; 0.8 A at 115 VAC Efficiency, typical 83% at the catalog measurement conditions; not a guaranteed efficiency at every input and load. Cold-start inrush, typical 45 A at 230 VAC; pulse width 310 µs measured at 50% of peak current. Leakage current 0.25 mA at 240 VAC. Input-voltage derating At 60 Hz, the static-characteristic curve shows 80% load at 90 VAC, rising to 100% at 100 VAC; 100% is shown from 100 to 264 VAC. Apply the more restrictive thermal/load condition at the same time. Short-duration input withstand Withstands 300 VAC surge input for 5 seconds. This is a brief input-withstand specification, not a continuous input rating or an output peak-power allowance. 16 A circuit-breaker reference At 230 VAC the catalog lists up to 9 units on a Type B 16 A circuit breaker, or 15 units on a Type C 16 A circuit breaker. Use this reference with the actual circuit and installation requirements. Protection and fault behavior Parameter Details Short-circuit protection Short-circuit protection is listed among the model features. Overvoltage protection 41-49 V; output shutdown; re-power on to recover. Thermal operating limits Maintain the required ventilation and derate load as ambient temperature rises. Do not treat the upper ambient rating as a full-load rating. Environment and derating Parameter Details Working ambient temperature -30 to +70°C, subject to the derating curve. Cooling and temperature derating Free-air convection, with the horizontal orientation shown in the drawing. Full load is shown up to +40°C, then decreases linearly to 60% load at +70°C. Keep the input-voltage derating limit at the same time. Altitude derating Above 2000 m (6500 ft), reduce the allowable ambient temperature by 3.5°C per 1000 m for this fanless design. Working humidity 20-90% RH, non-condensing. Storage temperature / humidity -40 to +80°C; 10-95% RH. Temperature coefficient ±0.2%/°C over 0 to 50°C. Vibration 10-500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Enclosure Fully isolated plastic case, IP42 design. Observe the manufacturer installation instructions for the intended enclosure and environment. Dimensions, leads and installation Parameter Details Body dimensions 84 x 57 x 29.5 mm (L x W x H); drawing tolerance ±1 mm. Mounting outline Case PCD16A; two mounting features are marked Ø3.6 mm with Ø8.9 mm surrounding features. Use the mechanical drawing for the offset mounting positions. Input leads UL1569, 18 AWG; 150 ±10 mm. Brown = AC/L; blue = AC/N. Output leads UL1569, 18 AWG; 150 ±10 mm. Red = +V; black = -V. Match output polarity to the load. DC-input polarity DC input is rated 127-370 VDC. Before DC connection, obtain the manufacturer polarity instructions for this exact model; do not assume the L/N-to-positive/negative mapping from another model. Installation Class II design with no FG connection. Before installation or maintenance, disconnect the supply from the utility and prevent inadvertent reconnection. Keep proper ventilation around the unit and do not stack objects on it. When an adjacent device is a heat source, maintain 10-15 cm clearance. Keep lead-wire connections insulated and mechanically secured, and select approved cables rated for at least the unit current. Nonstandard mounting orientations or high ambient temperature require output-current derating. The installation manual limits APC/APV to equipment with a primary use other than lighting, such as copiers or overhead projectors, or to scale and display lighting; also observe the regional luminaire restriction above. Case-temperature point The mechanical drawing identifies the tc / T case measurement point. Its location dimensions are not temperature limits. Connection and mounting items This is a wired power-supply module. Select suitable connection and mounting hardware for the final equipment using the lead specifications and mechanical drawing above. Standards and catalog references Parameter Details Listed safety approvals UL 8750, CSA C22.2 No.250.0-13, EAC TP TC 004, BS EN/EN 62368-1, BIS IS 15885. Select the actual supplied regional version and required markings for the installation. Limited power source LPS is listed for this model. Class II insulation design is shown separately; these identify different safety characteristics. Withstand voltage Input-to-output: 3 kVAC. Insulation resistance Input-to-output: greater than 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035 and BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; light-industry level with 2 kV surge. The completed installation still requires assessment. Catalog mass reference 130 g per unit (0.13 kg), from the PACKING field. This is the catalog packing reference per unit, not a measured net weight or a complete shipping-package weight. Manufacturer catalog statement The manufacturer datasheet lists a two-year warranty and a 100% full-load burn-in test.
$23.66
-
MEAN WELL APC-35 series: constant current LED power supply - APC-35-1050
MEAN WELL APC-35-1050 Constant Current LED Power Supply The MEAN WELL APC-35-1050 is a single-output AC/DC constant current LED power supply providing 1050 mA constant current over a 11-33 V DC operating range, with a catalog rated power of 34.7 W. It accepts 90-264 VAC or 127-370 VDC and uses a fully isolated IP42 plastic enclosure cooled by free-air convection. Select an LED load requiring 1050 mA and having a total operating voltage within 11-33 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Download MEAN WELL APC-35 Datasheet (PDF) See PDF pages 22-23 for this model column, its connection drawing and derating curves. Download MEAN WELL LED Installation Manual (PDF) Model and application Parameter Details Full model APC-35-1050 Series and model code APC-35 is the product series. The final code 1050 identifies the 1050 mA output current. The series wattage designation is not a substitute for this model's actual rated output power. Operating mode Constant current. Select an LED load requiring 1050 mA and having a total operating voltage within 11-33 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Intended application LED-related fixtures or appliances, such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. Application qualification Use the supply as a component in the final equipment. The equipment manufacturer must assess the complete installation and re-qualify EMC performance with the load, wiring and enclosure. Output and dynamic performance Parameter Details Rated output current 1050 mA Operating DC voltage range 11-33 V Catalog rated power 34.7 W. Current accuracy ±8.0%. Current ripple 5.0%, as listed in the model specification. This current-ripple figure is not a voltage-ripple rating or a guarantee of a particular visible-flicker metric. Setup and rise time 1500 ms setup / 40 ms rise at both 230 VAC and 115 VAC, at full load. Hold-up time, typical 20 ms at 230 VAC; 12 ms at 115 VAC, at full load. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Typical values depend on operating conditions. Input and supply planning Parameter Details Input range 90-264 VAC, 47-63 Hz; alternatively 127-370 VDC. Apply the input-voltage derating curve. AC input current 0.5 A at 230 VAC; 0.75 A at 115 VAC Efficiency, typical 84% at the catalog measurement conditions; not a guaranteed efficiency at every input and load. Cold-start inrush, typical 45 A at 230 VAC; pulse width 490 µs measured at 50% of peak current. Leakage current 0.25 mA at 240 VAC. Input-voltage derating At 60 Hz, the static-characteristic curve shows 80% load at 90 VAC, rising to 100% at 100 VAC; 100% is shown from 100 to 264 VAC. Apply the more restrictive thermal/load condition at the same time. Short-duration input withstand Withstands 300 VAC surge input for 5 seconds. This is a brief input-withstand specification, not a continuous input rating or an output peak-power allowance. 16 A circuit-breaker reference At 230 VAC the catalog lists up to 5 units on a Type B 16 A circuit breaker, or 9 units on a Type C 16 A circuit breaker. Use this reference with the actual circuit and installation requirements. Protection and fault behavior Parameter Details Short-circuit protection Short-circuit protection is listed among the model features. Overvoltage protection 36-43 V; output shutdown; re-power on to recover. Thermal operating limits Maintain the required ventilation and derate load as ambient temperature rises. Do not treat the upper ambient rating as a full-load rating. Environment and derating Parameter Details Working ambient temperature -30 to +70°C, subject to the derating curve. Cooling and temperature derating Free-air convection, with the horizontal orientation shown in the drawing. Full load is shown up to +40°C, then decreases linearly to 60% load at +70°C. Keep the input-voltage derating limit at the same time. Altitude derating Above 2000 m (6500 ft), reduce the allowable ambient temperature by 3.5°C per 1000 m for this fanless design. Working humidity 20-90% RH, non-condensing. Storage temperature / humidity -40 to +80°C; 10-95% RH. Temperature coefficient ±0.2%/°C over 0 to 50°C. Vibration 10-500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Enclosure Fully isolated plastic case, IP42 design. Observe the manufacturer installation instructions for the intended enclosure and environment. Dimensions, leads and installation Parameter Details Body dimensions 84 x 57 x 29.5 mm (L x W x H); drawing tolerance ±1 mm. Mounting outline Case PCD16A; two mounting features are marked Ø3.6 mm with Ø8.9 mm surrounding features. Use the mechanical drawing for the offset mounting positions. Input leads UL1569, 18 AWG; 150 ±10 mm. Brown = AC/L; blue = AC/N. Output leads UL1569, 18 AWG; 150 ±10 mm. Red = +V; black = -V. Match output polarity to the load. DC-input polarity DC input is rated 127-370 VDC. Before DC connection, obtain the manufacturer polarity instructions for this exact model; do not assume the L/N-to-positive/negative mapping from another model. Installation Class II design with no FG connection. Before installation or maintenance, disconnect the supply from the utility and prevent inadvertent reconnection. Keep proper ventilation around the unit and do not stack objects on it. When an adjacent device is a heat source, maintain 10-15 cm clearance. Keep lead-wire connections insulated and mechanically secured, and select approved cables rated for at least the unit current. Nonstandard mounting orientations or high ambient temperature require output-current derating. The installation manual limits APC/APV to equipment with a primary use other than lighting, such as copiers or overhead projectors, or to scale and display lighting; also observe the regional luminaire restriction above. Case-temperature point The mechanical drawing identifies the tc / T case measurement point. Its location dimensions are not temperature limits. Connection and mounting items This is a wired power-supply module. Select suitable connection and mounting hardware for the final equipment using the lead specifications and mechanical drawing above. Standards and catalog references Parameter Details Listed safety approvals UL 8750, CSA C22.2 No.250.0-13, EAC TP TC 004, BS EN/EN 62368-1, BIS IS 15885. Select the actual supplied regional version and required markings for the installation. Limited power source LPS is listed for this model. Class II insulation design is shown separately; these identify different safety characteristics. Withstand voltage Input-to-output: 3 kVAC. Insulation resistance Input-to-output: greater than 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035 and BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; light-industry level with 2 kV surge. The completed installation still requires assessment. Catalog mass reference 180 g per unit (0.18 kg), from the PACKING field. This is the catalog packing reference per unit, not a measured net weight or a complete shipping-package weight. Manufacturer catalog statement The manufacturer datasheet lists a two-year warranty and a 100% full-load burn-in test.
$25.63
-
MEAN WELL APC-35 series: constant current LED power supply - APC-35-350
MEAN WELL APC-35-350 Constant Current LED Power Supply The MEAN WELL APC-35-350 is a single-output AC/DC constant current LED power supply providing 350 mA constant current over a 28-100 V DC operating range, with a catalog rated power of 35 W. It accepts 90-264 VAC or 127-370 VDC and uses a fully isolated IP42 plastic enclosure cooled by free-air convection. Select an LED load requiring 350 mA and having a total operating voltage within 28-100 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Download MEAN WELL APC-35 Datasheet (PDF) See PDF pages 22-23 for this model column, its connection drawing and derating curves. Download MEAN WELL LED Installation Manual (PDF) Model and application Parameter Details Full model APC-35-350 Series and model code APC-35 is the product series. The final code 350 identifies the 350 mA output current. The series wattage designation is not a substitute for this model's actual rated output power. Operating mode Constant current. Select an LED load requiring 350 mA and having a total operating voltage within 28-100 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Intended application LED-related fixtures or appliances, such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. Application qualification Use the supply as a component in the final equipment. The equipment manufacturer must assess the complete installation and re-qualify EMC performance with the load, wiring and enclosure. Output and dynamic performance Parameter Details Rated output current 350 mA Operating DC voltage range 28-100 V Catalog rated power 35 W. Current accuracy ±8.0%. Current ripple 5.0%, as listed in the model specification. This current-ripple figure is not a voltage-ripple rating or a guarantee of a particular visible-flicker metric. Setup and rise time 1500 ms setup / 40 ms rise at both 230 VAC and 115 VAC, at full load. Hold-up time, typical 20 ms at 230 VAC; 12 ms at 115 VAC, at full load. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Typical values depend on operating conditions. Input and supply planning Parameter Details Input range 90-264 VAC, 47-63 Hz; alternatively 127-370 VDC. Apply the input-voltage derating curve. AC input current 0.5 A at 230 VAC; 0.75 A at 115 VAC Efficiency, typical 84% at the catalog measurement conditions; not a guaranteed efficiency at every input and load. Cold-start inrush, typical 45 A at 230 VAC; pulse width 490 µs measured at 50% of peak current. Leakage current 0.25 mA at 240 VAC. Input-voltage derating At 60 Hz, the static-characteristic curve shows 80% load at 90 VAC, rising to 100% at 100 VAC; 100% is shown from 100 to 264 VAC. Apply the more restrictive thermal/load condition at the same time. Short-duration input withstand Withstands 300 VAC surge input for 5 seconds. This is a brief input-withstand specification, not a continuous input rating or an output peak-power allowance. 16 A circuit-breaker reference At 230 VAC the catalog lists up to 5 units on a Type B 16 A circuit breaker, or 9 units on a Type C 16 A circuit breaker. Use this reference with the actual circuit and installation requirements. Protection and fault behavior Parameter Details Short-circuit protection Short-circuit protection is listed among the model features. Overvoltage protection 110-130 V; output shutdown; re-power on to recover. Thermal operating limits Maintain the required ventilation and derate load as ambient temperature rises. Do not treat the upper ambient rating as a full-load rating. Environment and derating Parameter Details Working ambient temperature -30 to +70°C, subject to the derating curve. Cooling and temperature derating Free-air convection, with the horizontal orientation shown in the drawing. Full load is shown up to +40°C, then decreases linearly to 60% load at +70°C. Keep the input-voltage derating limit at the same time. Altitude derating Above 2000 m (6500 ft), reduce the allowable ambient temperature by 3.5°C per 1000 m for this fanless design. Working humidity 20-90% RH, non-condensing. Storage temperature / humidity -40 to +80°C; 10-95% RH. Temperature coefficient ±0.2%/°C over 0 to 50°C. Vibration 10-500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Enclosure Fully isolated plastic case, IP42 design. Observe the manufacturer installation instructions for the intended enclosure and environment. Dimensions, leads and installation Parameter Details Body dimensions 84 x 57 x 29.5 mm (L x W x H); drawing tolerance ±1 mm. Mounting outline Case PCD16A; two mounting features are marked Ø3.6 mm with Ø8.9 mm surrounding features. Use the mechanical drawing for the offset mounting positions. Input leads UL1569, 18 AWG; 150 ±10 mm. Brown = AC/L; blue = AC/N. Output leads UL1569, 18 AWG; 150 ±10 mm. Red = +V; black = -V. Match output polarity to the load. DC-input polarity DC input is rated 127-370 VDC. Before DC connection, obtain the manufacturer polarity instructions for this exact model; do not assume the L/N-to-positive/negative mapping from another model. Installation Class II design with no FG connection. Before installation or maintenance, disconnect the supply from the utility and prevent inadvertent reconnection. Keep proper ventilation around the unit and do not stack objects on it. When an adjacent device is a heat source, maintain 10-15 cm clearance. Keep lead-wire connections insulated and mechanically secured, and select approved cables rated for at least the unit current. Nonstandard mounting orientations or high ambient temperature require output-current derating. The installation manual limits APC/APV to equipment with a primary use other than lighting, such as copiers or overhead projectors, or to scale and display lighting; also observe the regional luminaire restriction above. Case-temperature point The mechanical drawing identifies the tc / T case measurement point. Its location dimensions are not temperature limits. Connection and mounting items This is a wired power-supply module. Select suitable connection and mounting hardware for the final equipment using the lead specifications and mechanical drawing above. Standards and catalog references Parameter Details Listed safety approvals EAC TP TC 004, BS EN/EN 62368-1. Select the actual supplied regional version and required markings for the installation. Insulation classification Class II insulation design with no FG connection. Withstand voltage Input-to-output: 3 kVAC. Insulation resistance Input-to-output: greater than 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035 and BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; light-industry level with 2 kV surge. The completed installation still requires assessment. Catalog mass reference 180 g per unit (0.18 kg), from the PACKING field. This is the catalog packing reference per unit, not a measured net weight or a complete shipping-package weight. Manufacturer catalog statement The manufacturer datasheet lists a two-year warranty and a 100% full-load burn-in test.
$25.63
-
MEAN WELL APC-35 series: constant current LED power supply - APC-35-500
MEAN WELL APC-35-500 Constant Current LED Power Supply The MEAN WELL APC-35-500 is a single-output AC/DC constant current LED power supply providing 500 mA constant current over a 25-70 V DC operating range, with a catalog rated power of 35 W. It accepts 90-264 VAC or 127-370 VDC and uses a fully isolated IP42 plastic enclosure cooled by free-air convection. Select an LED load requiring 500 mA and having a total operating voltage within 25-70 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Download MEAN WELL APC-35 Datasheet (PDF) See PDF pages 22-23 for this model column, its connection drawing and derating curves. Download MEAN WELL LED Installation Manual (PDF) Model and application Parameter Details Full model APC-35-500 Series and model code APC-35 is the product series. The final code 500 identifies the 500 mA output current. The series wattage designation is not a substitute for this model's actual rated output power. Operating mode Constant current. Select an LED load requiring 500 mA and having a total operating voltage within 25-70 V DC. The supply regulates current; do not select it as a fixed-voltage supply. Keep within the stated operating-voltage, power and derating limits. Intended application LED-related fixtures or appliances, such as decoration or advertising devices. The manufacturer states that this product is not intended for LED lighting luminaire applications in the EU and China. Application qualification Use the supply as a component in the final equipment. The equipment manufacturer must assess the complete installation and re-qualify EMC performance with the load, wiring and enclosure. Output and dynamic performance Parameter Details Rated output current 500 mA Operating DC voltage range 25-70 V Catalog rated power 35 W. Current accuracy ±8.0%. Current ripple 5.0%, as listed in the model specification. This current-ripple figure is not a voltage-ripple rating or a guarantee of a particular visible-flicker metric. Setup and rise time 1500 ms setup / 40 ms rise at both 230 VAC and 115 VAC, at full load. Hold-up time, typical 20 ms at 230 VAC; 12 ms at 115 VAC, at full load. Measurement basis Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Typical values depend on operating conditions. Input and supply planning Parameter Details Input range 90-264 VAC, 47-63 Hz; alternatively 127-370 VDC. Apply the input-voltage derating curve. AC input current 0.5 A at 230 VAC; 0.75 A at 115 VAC Efficiency, typical 84% at the catalog measurement conditions; not a guaranteed efficiency at every input and load. Cold-start inrush, typical 45 A at 230 VAC; pulse width 490 µs measured at 50% of peak current. Leakage current 0.25 mA at 240 VAC. Input-voltage derating At 60 Hz, the static-characteristic curve shows 80% load at 90 VAC, rising to 100% at 100 VAC; 100% is shown from 100 to 264 VAC. Apply the more restrictive thermal/load condition at the same time. Short-duration input withstand Withstands 300 VAC surge input for 5 seconds. This is a brief input-withstand specification, not a continuous input rating or an output peak-power allowance. 16 A circuit-breaker reference At 230 VAC the catalog lists up to 5 units on a Type B 16 A circuit breaker, or 9 units on a Type C 16 A circuit breaker. Use this reference with the actual circuit and installation requirements. Protection and fault behavior Parameter Details Short-circuit protection Short-circuit protection is listed among the model features. Overvoltage protection 77-91 V; output shutdown; re-power on to recover. Thermal operating limits Maintain the required ventilation and derate load as ambient temperature rises. Do not treat the upper ambient rating as a full-load rating. Environment and derating Parameter Details Working ambient temperature -30 to +70°C, subject to the derating curve. Cooling and temperature derating Free-air convection, with the horizontal orientation shown in the drawing. Full load is shown up to +40°C, then decreases linearly to 60% load at +70°C. Keep the input-voltage derating limit at the same time. Altitude derating Above 2000 m (6500 ft), reduce the allowable ambient temperature by 3.5°C per 1000 m for this fanless design. Working humidity 20-90% RH, non-condensing. Storage temperature / humidity -40 to +80°C; 10-95% RH. Temperature coefficient ±0.2%/°C over 0 to 50°C. Vibration 10-500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Enclosure Fully isolated plastic case, IP42 design. Observe the manufacturer installation instructions for the intended enclosure and environment. Dimensions, leads and installation Parameter Details Body dimensions 84 x 57 x 29.5 mm (L x W x H); drawing tolerance ±1 mm. Mounting outline Case PCD16A; two mounting features are marked Ø3.6 mm with Ø8.9 mm surrounding features. Use the mechanical drawing for the offset mounting positions. Input leads UL1569, 18 AWG; 150 ±10 mm. Brown = AC/L; blue = AC/N. Output leads UL1569, 18 AWG; 150 ±10 mm. Red = +V; black = -V. Match output polarity to the load. DC-input polarity DC input is rated 127-370 VDC. Before DC connection, obtain the manufacturer polarity instructions for this exact model; do not assume the L/N-to-positive/negative mapping from another model. Installation Class II design with no FG connection. Before installation or maintenance, disconnect the supply from the utility and prevent inadvertent reconnection. Keep proper ventilation around the unit and do not stack objects on it. When an adjacent device is a heat source, maintain 10-15 cm clearance. Keep lead-wire connections insulated and mechanically secured, and select approved cables rated for at least the unit current. Nonstandard mounting orientations or high ambient temperature require output-current derating. The installation manual limits APC/APV to equipment with a primary use other than lighting, such as copiers or overhead projectors, or to scale and display lighting; also observe the regional luminaire restriction above. Case-temperature point The mechanical drawing identifies the tc / T case measurement point. Its location dimensions are not temperature limits. Connection and mounting items This is a wired power-supply module. Select suitable connection and mounting hardware for the final equipment using the lead specifications and mechanical drawing above. Standards and catalog references Parameter Details Listed safety approvals EAC TP TC 004, BS EN/EN 62368-1. Select the actual supplied regional version and required markings for the installation. Insulation classification Class II insulation design with no FG connection. Withstand voltage Input-to-output: 3 kVAC. Insulation resistance Input-to-output: greater than 100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions Compliance listed to BS EN/EN 55032, BS EN/EN 61000-3-2 Class A, BS EN/EN 61000-3-3 and EAC TP TC 020. EMC immunity Compliance listed to BS EN/EN 55035 and BS EN/EN 61000-4-2, -3, -4, -5, -6, -8 and -11; light-industry level with 2 kV surge. The completed installation still requires assessment. Catalog mass reference 180 g per unit (0.18 kg), from the PACKING field. This is the catalog packing reference per unit, not a measured net weight or a complete shipping-package weight. Manufacturer catalog statement The manufacturer datasheet lists a two-year warranty and a 100% full-load burn-in test.
$25.63
You have seen 72 out of 8678 products
