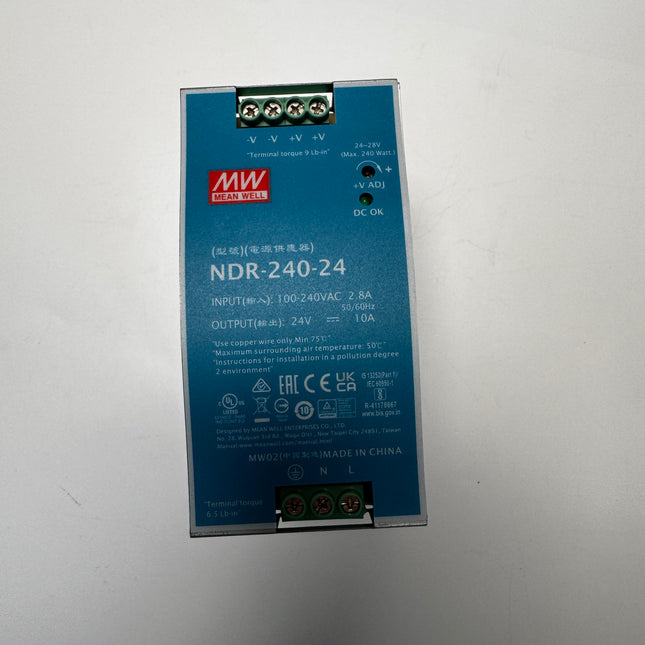

MEAN WELL NDR-240-24 is a single-output industrial DIN rail power supply rated at 24 V DC, 10 A and 240 W. It accepts 90–264 VAC or 127–370 VDC and combines active PFC, adjustable output and free-air convection in a 63 mm-wide metal housing. It mounts on TS-35/7.5 or TS-35/15 rail and provides an LED power indicator. Product Datasheet Download MEAN WELL NDR-240 Datasheet (PDF) The NDR-240 section is on PDF pages 9, 10, 11, 12. Refer to the complete mechanical drawings and notes when planning installation. Model and DC Output Complete model NDR-240-24; NDR-240 catalogue revision 2026-04-03. NDR identifies the series, 240 the output-wattage class, and 24 the nominal output voltage. Rated output 24 V DC / 10 A / 240 W; output-current range 0–10 A. Output adjustment 24–28 V using +V ADJ. Observe the rated current and power limits when adjusting voltage. Ripple and noise 150 mVp-p maximum; measured at 20 MHz bandwidth with a 12-inch twisted pair terminated by parallel 0.1 µF and 47 µF capacitors. Voltage tolerance ±1.0%, including setup tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%, respectively. Typical efficiency 88.5% at the default 230 VAC input, rated-load and 25°C ambient test conditions. The constant-current protection circuit supports inductive or capacitive load applications within the specified operating limits. Protection operation is not an additional continuous output rating. Input and Timing AC / DC input 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Active PFC / power factor Built-in active PFC. The typical-value table states PF >0.98 at 115 VAC and PF >0.95 at 230 VAC, at full load. Typical AC input current 2.5 A at 115 VAC; 1.3 A at 230 VAC. Typical inrush current 20 A at 115 VAC; 35 A at 230 VAC. Leakage current Less than 1 mA at 240 VAC. Setup / rise time 1500 / 100 ms at 230 VAC; 3000 / 100 ms at 115 VAC, at full load. Typical hold-up time 28 ms at 230 VAC; 22 ms at 115 VAC, at full load. Block-diagram switching frequency 70 kHz, as labelled in the block diagram. Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Low-input-voltage operation is subject to load derating. Protection and Indication Short circuit / overload 105–130% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Overvoltage 29–33 V; output shutdown, then re-power to recover. Overtemperature Output shutdown, with automatic recovery after the temperature decreases. No numerical trip temperature is stated in this model’s specification. Front indication / adjustment The front drawing identifies a DC OK LED indicator and a +V ADJ voltage-adjustment control. The protection range is not a published peak-power or duty-cycle rating. Use the model’s rated output together with the input and temperature derating curves. Cooling, Derating and Environment Housing and cooling Metal housing with free-air convection cooling; the temperature curve is specified for vertical mounting. Working temperature / load −20 to +70°C. The curve allows 100% load from −20 to +50°C, then decreases along the plotted straight line to 50% at +70°C. Input-voltage derating At 60 Hz AC, the curve shows 80% load at 90 VAC, increasing to 100% at 100 VAC; the full-load plateau continues through 264 VAC. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration Component: 10–500 Hz, 2G, 10 min/cycle, 60 min on each X, Y and Z axis. Mounting: compliance with IEC60068-2-6. High-altitude derating For this fanless model, reduce the permitted ambient temperature by 3.5°C per 1000 m above 2000 m. The footnote does not state a maximum approved operating altitude. Apply the input-voltage and temperature limits together, using the more restrictive permissible load. Refer to PDF page 11 for both curves. The +70°C endpoint is not a full-power operating point. Dimensions, Terminals and Installation Body dimensions 63 × 125.2 × 113.5 mm (W × H × D); case 979C; general drawing tolerance ±1 mm. DIN rail compatibility TS-35/7.5 or TS-35/15; the installation drawing shows a 35 mm rail. The rail is for reference and is not included with the unit. TB1 input terminals Pin 1: FG (protective earth); pin 2: AC/N or DC negative; pin 3: AC/L or DC positive. TB2 output terminals Pins 1 and 2: −V; pins 3 and 4: +V. Recommended full-load clearances 40 mm above, 20 mm below and 5 mm on each side. If an adjacent device is a heat source, 15 mm clearance is recommended. Wiring / fastening Connect FG to protective earth and follow the actual terminal markings. Consult the unit’s installation instructions for conductor sizes and tightening torques; the mechanical terminal table does not specify those numerical limits. Use the front, side and rear views on PDF page 12 for the DIN-rail latch and terminal positions. No separately orderable MEAN WELL rail, bracket, terminal cover, connector or cable accessory code is specified in these NDR-240 pages. Safety, Isolation and EMC Catalogue-listed approvals UL508, TUV BS EN/EN62368-1, EAC TP TC004 and BSMI CNS14336-1. Additional standards statement The catalogue states that the unit meets BS EN/EN60204-1. BIS / IS13252 scope The catalogue lists BIS IS13252 (Part 1):2010 / IEC60950-1:2005, with Note 8 stating that some models may not carry the BIS logo. Confirm the actual unit marking and the manufacturer’s applicable approval information before selecting for a BIS-marked requirement. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Isolation resistance Greater than 100 MΩ for input–output, input–FG and output–FG, at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2 and -3, EAC TP TC020, and CNS13438. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (EN50082-2); BS EN/EN61204-3, heavy-industry level; EAC TP TC020. Korean approval / EMC scope KC K60950-1, KSC9832 and KSC9835 entries are restricted to the family’s 48 V model and are not claimed for this 24 V model. The final equipment must be checked again to confirm that the whole system complies with applicable EMC requirements. The power supply’s listings do not by themselves certify the completed installation. Weight, Reliability and Applications Catalogue packing reference per unit 1000 g, from the explicit PACKING entry on PDF page 10: 1 kg; 12 pcs / 13 kg / 1.22 CUFT. This is a catalogue packing reference, not a measured net or shipping weight. MTBF reference 1645.2 K hours minimum under Telcordia SR-332 (Bellcore); 230.2 K hours minimum under MIL-HDBK-217F at 25°C. These are reliability references, not a guaranteed service life. Manufacturer-listed applications Industrial control systems; Semiconductor fabrication equipment; Factory automation; Electromechanical applications. Factory test / warranty The manufacturer lists 100% full-load burn-in testing and a three-year warranty, subject to its applicable terms.

Read more less

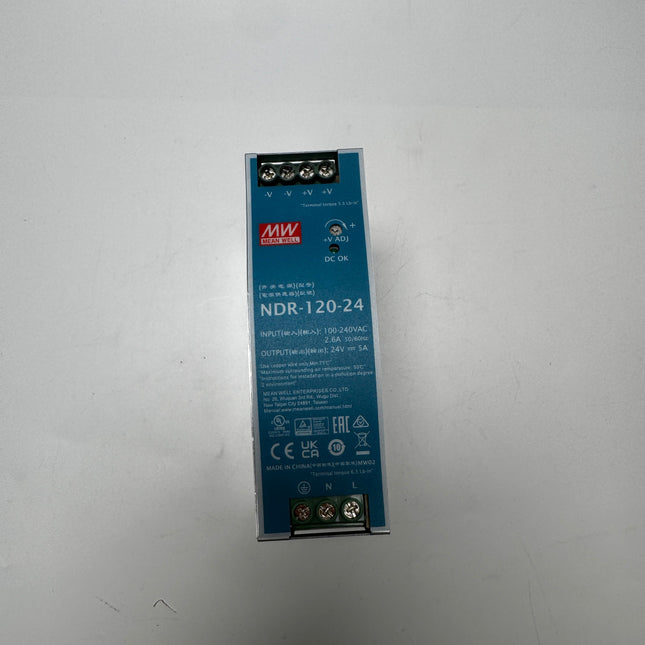

MEAN WELL NDR-120-24 is a slim, metal-enclosed industrial DIN rail power supply rated at 24 V DC, 5 A and 120 W. Its 40 mm-wide housing supports compact control cabinets. It uses free-air convection and constant-current overload protection; observe the model-specific input and temperature derating conditions below. Product Datasheet Download MEAN WELL NDR-120 Datasheet (PDF) The NDR-120 section is on PDF pages 5, 6, 7, 8. Refer to the complete mechanical drawings and notes when planning installation. Model Identification Complete model NDR-120-24 Series / voltage code NDR-120 is the slim industrial DIN rail family; the final 24 code denotes 24 V nominal DC output. Use the actual rated power below rather than the family number as an output guarantee. Construction / intended use Metal enclosure with free-air convection, adjustable DC output and constant-current overload limiting. The catalogue lists industrial control, semiconductor fabrication, factory automation and electro-mechanical applications. DC Output Nominal output 24 V DC; 5 A rated, current range 0–5 A; 120 W rated power. Output-voltage adjustment 24–28 V DC using +V ADJ. Stay within the permitted output current and power when adjusting. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±1.0%, including setup tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 88% under the stated default catalogue conditions. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with 0.1 µF and 47 µF parallel capacitors. Input and Starting AC input / frequency 90–264 VAC, full range; 47–63 Hz. Apply the low-input derating curve. DC input and polarity 127–370 VDC. Connect positive DC input to AC/L (+) and negative DC input to AC/N (-); maintain the FG protective-earth connection. AC current, typical 2.25 A at 115 VAC; 1.3 A at 230 VAC. Inrush current, typical 20 A at 115 VAC; 35 A at 230 VAC. Setup / rise time 1200 / 60 ms at 230 VAC; 2500 / 60 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC; 10 ms at 115 VAC, at full load. Leakage current Less than 1 mA at 240 VAC. Protection and Status Indication Short circuit / overload 105–130% of rated output power. Constant-current limiting; automatic recovery after the fault condition is removed. This is a protection threshold, not an additional continuous or timed-peak output rating. Overvoltage 29–33 V; output shutdown, re-power to recover. Overtemperature Output shutdown, re-power to recover. No numerical trip temperature is specified in this model’s table. Status / adjustment The front drawing identifies a DC OK LED and +V ADJ. The LED is an indicator, not a separately specified DC OK relay contact. Cooling, Derating and Environment Operating range / orientation Free-air convection; -20 to +70°C with vertical mounting, subject to all derating curves. The temperature range does not mean full output is available throughout. Low-temperature curve At 115 VAC, allowable load rises from 80% at -20°C to 100% at -10°C. The 230 VAC curve allows 100% in this low-temperature interval. High-temperature curve For this output-voltage model, the vertical curve remains at 100% through 50°C, then declines to 50% at 70°C. The separate low-temperature input-voltage condition also applies. Input-voltage curve, 60 Hz 90% load at 90 VAC, rising to 100% at 100 VAC; the 100% plateau continues through 264 VAC. Working humidity / storage Working: 20–95% RH, non-condensing. Storage: -40 to +85°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration Component: 10–500 Hz, 2 G, 10 minutes per cycle and 60 minutes along each X, Y and Z axis. Mounting complies with IEC60068-2-6. High-altitude derating For this fanless supply, reduce the allowable ambient temperature by 3.5°C per additional 1000 m above 2000 m (6500 ft). This note does not specify a maximum operating altitude. Apply input-voltage and temperature limits together. The published overload range is not a substitute for these operating limits. Dimensions, Terminals and Installation Dimensions / case 40 × 125.2 × 113.5 mm (W × H × D); case 992D, mechanical drawing tolerance ±1 mm. Compatible DIN rail TS-35/7.5 or TS-35/15; the drawing shows a 35 mm rail profile. The rail is for reference and is not included with the unit. Input terminal block TB1 Pin 1: FG protective earth; pin 2: AC/N or DC negative; pin 3: AC/L or DC positive. Output terminal block TB2 Pins 1–2: DC output -V; pins 3–4: DC output +V. Installation clearances For permanent full-power loading, the catalogue recommends 40 mm above, 20 mm below and 5 mm on each side. Where an adjacent device is a heat source, allow 15 mm clearance. Installation details Use the complete mechanical drawing, the supplied unit’s markings and the manufacturer’s installation instructions for the rail attachment and wiring. These model pages do not provide a separate mounting-kit, terminal-kit or connector ordering code. Do not infer that a rail or additional wiring accessory is supplied. Safety, Insulation and EMC Catalogue-listed safety UL508 and TUV BS EN/EN62368-1; EAC TP TC004 approved. The table states compliance with BS EN/EN60204-1. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance More than 100 MΩ for input–output, input–FG and output–FG at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2 and -3; EAC TP TC020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (BS EN/EN50082-2); BS EN/EN61204-3, heavy-industry level; EAC TP TC020. The supply is a component to be installed in final equipment. Reconfirm that the completed equipment meets the applicable EMC directives. Weight, Reliability and Reference Conditions Catalogue unit weight 600 g, converted from the explicit 0.6 kg PACKING reference per unit; not a measured net weight, shipping weight or carton-weight average. MTBF 2636.8 K hours minimum, Telcordia SR-332 (Bellcore); 453.3 K hours minimum, MIL-HDBK-217F at 25°C. These are reliability references, not guaranteed operating life. Manufacturer test / warranty statement The catalogue lists a 100% full-load burn-in test and three-year warranty. Applicable manufacturer terms govern warranty coverage. Default test conditions Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Applicable datasheet NDR-120-SPEC, 2026-04-03; combined NDR/EDR catalogue pages 5–8.

Read more less

MEAN WELL NDR-120-12 is a slim, metal-enclosed industrial DIN rail power supply rated at 12 V DC, 10 A and 120 W. Its 40 mm-wide housing supports compact control cabinets. It uses free-air convection and constant-current overload protection; observe the model-specific input and temperature derating conditions below. Product Datasheet Download MEAN WELL NDR-120 Datasheet (PDF) The NDR-120 section is on PDF pages 5, 6, 7, 8. Refer to the complete mechanical drawings and notes when planning installation. Model Identification Complete model NDR-120-12 Series / voltage code NDR-120 is the slim industrial DIN rail family; the final 12 code denotes 12 V nominal DC output. Use the actual rated power below rather than the family number as an output guarantee. Construction / intended use Metal enclosure with free-air convection, adjustable DC output and constant-current overload limiting. The catalogue lists industrial control, semiconductor fabrication, factory automation and electro-mechanical applications. DC Output Nominal output 12 V DC; 10 A rated, current range 0–10 A; 120 W rated power. Output-voltage adjustment 12–14 V DC using +V ADJ. Stay within the permitted output current and power when adjusting. Ripple and noise, maximum 100 mVp-p. Voltage tolerance ±2.0%, including setup tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 85.5% under the stated default catalogue conditions. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with 0.1 µF and 47 µF parallel capacitors. Input and Starting AC input / frequency 90–264 VAC, full range; 47–63 Hz. Apply the low-input derating curve. DC input and polarity 127–370 VDC. Connect positive DC input to AC/L (+) and negative DC input to AC/N (-); maintain the FG protective-earth connection. AC current, typical 2.25 A at 115 VAC; 1.3 A at 230 VAC. Inrush current, typical 20 A at 115 VAC; 35 A at 230 VAC. Setup / rise time 1200 / 60 ms at 230 VAC; 2500 / 60 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC; 10 ms at 115 VAC, at full load. Leakage current Less than 1 mA at 240 VAC. Protection and Status Indication Short circuit / overload 105–130% of rated output power. Constant-current limiting; automatic recovery after the fault condition is removed. This is a protection threshold, not an additional continuous or timed-peak output rating. Overvoltage 14–17 V; output shutdown, re-power to recover. Overtemperature Output shutdown, re-power to recover. No numerical trip temperature is specified in this model’s table. Status / adjustment The front drawing identifies a DC OK LED and +V ADJ. The LED is an indicator, not a separately specified DC OK relay contact. Cooling, Derating and Environment Operating range / orientation Free-air convection; -20 to +70°C with vertical mounting, subject to all derating curves. The temperature range does not mean full output is available throughout. Low-temperature curve At 115 VAC, allowable load rises from 80% at -20°C to 100% at -10°C. The 230 VAC curve allows 100% in this low-temperature interval. High-temperature curve At 115 VAC, this 12 V model remains at 100% through 45°C and then follows the lower curve to 50% at 70°C. At 230 VAC, it remains at 100% through 50°C and then follows the curve to 50% at 70°C. Input-voltage curve, 60 Hz 90% load at 90 VAC, rising to 100% at 100 VAC; the 100% plateau continues through 264 VAC. Working humidity / storage Working: 20–95% RH, non-condensing. Storage: -40 to +85°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration Component: 10–500 Hz, 2 G, 10 minutes per cycle and 60 minutes along each X, Y and Z axis. Mounting complies with IEC60068-2-6. High-altitude derating For this fanless supply, reduce the allowable ambient temperature by 3.5°C per additional 1000 m above 2000 m (6500 ft). This note does not specify a maximum operating altitude. Apply input-voltage and temperature limits together. The published overload range is not a substitute for these operating limits. Dimensions, Terminals and Installation Dimensions / case 40 × 125.2 × 113.5 mm (W × H × D); case 992D, mechanical drawing tolerance ±1 mm. Compatible DIN rail TS-35/7.5 or TS-35/15; the drawing shows a 35 mm rail profile. The rail is for reference and is not included with the unit. Input terminal block TB1 Pin 1: FG protective earth; pin 2: AC/N or DC negative; pin 3: AC/L or DC positive. Output terminal block TB2 Pins 1–2: DC output -V; pins 3–4: DC output +V. Installation clearances For permanent full-power loading, the catalogue recommends 40 mm above, 20 mm below and 5 mm on each side. Where an adjacent device is a heat source, allow 15 mm clearance. Installation details Use the complete mechanical drawing, the supplied unit’s markings and the manufacturer’s installation instructions for the rail attachment and wiring. These model pages do not provide a separate mounting-kit, terminal-kit or connector ordering code. Do not infer that a rail or additional wiring accessory is supplied. Safety, Insulation and EMC Catalogue-listed safety UL508 and TUV BS EN/EN62368-1; EAC TP TC004 approved. The table states compliance with BS EN/EN60204-1. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance More than 100 MΩ for input–output, input–FG and output–FG at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2 and -3; EAC TP TC020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (BS EN/EN50082-2); BS EN/EN61204-3, heavy-industry level; EAC TP TC020. The supply is a component to be installed in final equipment. Reconfirm that the completed equipment meets the applicable EMC directives. Weight, Reliability and Reference Conditions Catalogue unit weight 600 g, converted from the explicit 0.6 kg PACKING reference per unit; not a measured net weight, shipping weight or carton-weight average. MTBF 2636.8 K hours minimum, Telcordia SR-332 (Bellcore); 453.3 K hours minimum, MIL-HDBK-217F at 25°C. These are reliability references, not guaranteed operating life. Manufacturer test / warranty statement The catalogue lists a 100% full-load burn-in test and three-year warranty. Applicable manufacturer terms govern warranty coverage. Default test conditions Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Applicable datasheet NDR-120-SPEC, 2026-04-03; combined NDR/EDR catalogue pages 5–8.

Read more less

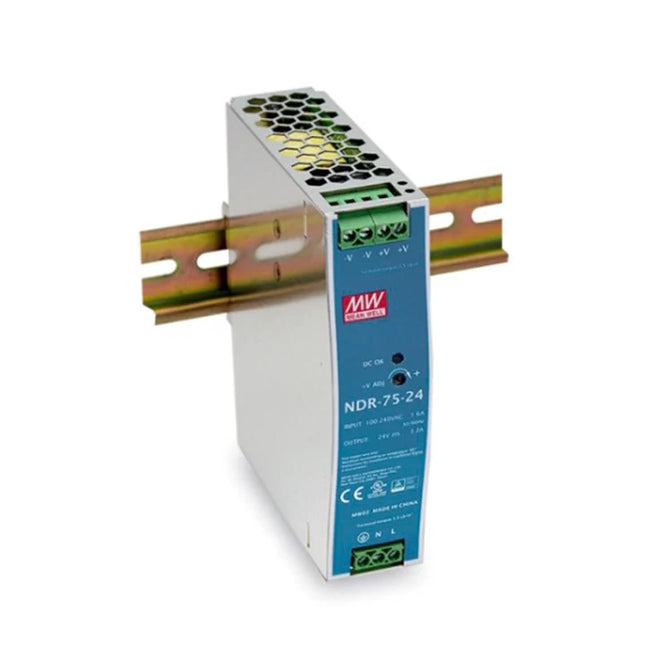

MEAN WELL NDR-75-24 is a slim, metal-enclosed industrial DIN rail power supply rated at 24 V DC, 3.2 A and 76.8 W. Its 32 mm-wide housing supports compact control cabinets. It uses free-air convection and constant-current overload protection; observe the model-specific input and temperature derating conditions below. Product Datasheet Download MEAN WELL NDR-75 Datasheet (PDF) The NDR-75 section is on PDF pages 1, 2, 3, 4. Refer to the complete mechanical drawings and notes when planning installation. Model Identification Complete model NDR-75-24 Series / voltage code NDR-75 is the slim industrial DIN rail family; the final 24 code denotes 24 V nominal DC output. Use the actual rated power below rather than the family number as an output guarantee. Construction / intended use Metal enclosure with free-air convection, adjustable DC output and constant-current overload limiting. The catalogue lists industrial control, semiconductor fabrication, factory automation and electro-mechanical applications. DC Output Nominal output 24 V DC; 3.2 A rated, current range 0–3.2 A; 76.8 W rated power. Output-voltage adjustment 24–28 V DC using +V ADJ. Stay within the permitted output current and power when adjusting. Ripple and noise, maximum 120 mVp-p. Voltage tolerance ±1.0%, including setup tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 88% under the stated default catalogue conditions. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with 0.1 µF and 47 µF parallel capacitors. Input and Starting AC input / frequency 90–264 VAC, full range; 47–63 Hz. Apply the low-input derating curve. DC input and polarity 127–370 VDC. Connect positive DC input to AC/L (+) and negative DC input to AC/N (-); maintain the FG protective-earth connection. AC current, typical 1.45 A at 115 VAC; 0.9 A at 230 VAC. Inrush current, typical 20 A at 115 VAC; 35 A at 230 VAC. Setup / rise time 1200 / 60 ms at 230 VAC; 2000 / 60 ms at 115 VAC, at full load. Hold-up time, typical 60 ms at 230 VAC; 12 ms at 115 VAC, at full load. Leakage current Less than 1 mA at 240 VAC. Protection and Status Indication Short circuit / overload 105–130% of rated output power. Constant-current limiting; automatic recovery after the fault condition is removed. This is a protection threshold, not an additional continuous or timed-peak output rating. Overvoltage 29–33 V; output shutdown, re-power to recover. Overtemperature Output shutdown, re-power to recover. No numerical trip temperature is specified in this model’s table. Status / adjustment The front drawing identifies a DC OK LED and +V ADJ. The LED is an indicator, not a separately specified DC OK relay contact. Cooling, Derating and Environment Operating range / orientation Free-air convection; -20 to +70°C with vertical mounting, subject to all derating curves. The temperature range does not mean full output is available throughout. Low-temperature curve At 115 VAC, allowable load rises from 80% at -20°C to 100% at -10°C. The 230 VAC curve allows 100% in this low-temperature interval. High-temperature curve For this output-voltage model, the vertical curve remains at 100% through 50°C, then declines to 50% at 70°C. The separate low-temperature input-voltage condition also applies. Input-voltage curve, 60 Hz 90% load at 90 VAC, rising to 100% at 100 VAC; the 100% plateau continues through 264 VAC. Working humidity / storage Working: 20–95% RH, non-condensing. Storage: -40 to +85°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration Component: 10–500 Hz, 2 G, 10 minutes per cycle and 60 minutes along each X, Y and Z axis. Mounting complies with IEC60068-2-6. High-altitude derating For this fanless supply, reduce the allowable ambient temperature by 3.5°C per additional 1000 m above 2000 m (6500 ft). This note does not specify a maximum operating altitude. Apply input-voltage and temperature limits together. The published overload range is not a substitute for these operating limits. Dimensions, Terminals and Installation Dimensions / case 32 × 125.2 × 102 mm (W × H × D); case 221A, mechanical drawing tolerance ±1 mm. Compatible DIN rail TS-35/7.5 or TS-35/15; the drawing shows a 35 mm rail profile. The rail is for reference and is not included with the unit. Input terminal block TB1 Pin 1: FG protective earth; pin 2: AC/N or DC negative; pin 3: AC/L or DC positive. Output terminal block TB2 Pins 1–2: DC output -V; pins 3–4: DC output +V. Installation clearances For permanent full-power loading, the catalogue recommends 40 mm above, 20 mm below and 5 mm on each side. Where an adjacent device is a heat source, allow 15 mm clearance. Installation details Use the complete mechanical drawing, the supplied unit’s markings and the manufacturer’s installation instructions for the rail attachment and wiring. These model pages do not provide a separate mounting-kit, terminal-kit or connector ordering code. Do not infer that a rail or additional wiring accessory is supplied. Safety, Insulation and EMC Catalogue-listed safety UL508 and TUV BS EN/EN62368-1; EAC TP TC004 approved. The table states compliance with BS EN/EN60204-1. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance More than 100 MΩ for input–output, input–FG and output–FG at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2 and -3; EAC TP TC020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (BS EN/EN50082-2); BS EN/EN61204-3, heavy-industry level; EAC TP TC020. The supply is a component to be installed in final equipment. Reconfirm that the completed equipment meets the applicable EMC directives. Weight, Reliability and Reference Conditions Catalogue unit weight 510 g, converted from the explicit 0.51 kg PACKING reference per unit; not a measured net weight, shipping weight or carton-weight average. MTBF 2757.3 K hours minimum, Telcordia SR-332 (Bellcore); 486.2 K hours minimum, MIL-HDBK-217F at 25°C. These are reliability references, not guaranteed operating life. Manufacturer test / warranty statement The catalogue lists a 100% full-load burn-in test and three-year warranty. Applicable manufacturer terms govern warranty coverage. Default test conditions Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Applicable datasheet NDR-75-SPEC, 2025-06-09; combined NDR/EDR catalogue pages 1–4.

Read more less

MEAN WELL EDR-150-24 supplies adjustable 24 V DC with catalogue ratings of 156 W and 6.5 A at 230 VAC, or 125 W and 5.2 A at 115 VAC. This slim, convection-cooled industrial supply fits TS35 DIN rails; select the load using both input-voltage and temperature derating. Product Datasheet Download MEAN WELL EDR-150 Datasheet (PDF) The EDR-150 section is on PDF pages 25, 26, 27, 28. Refer to the complete mechanical drawings and notes when planning installation. Model Code and Output Selection Complete model EDR-150-24 Series EDR-150 industrial DIN rail power supply Power-family code 150; use the model-specific rated power below. Output-voltage code 24 V DC Applications Industrial control systems, semiconductor fabrication equipment, factory automation and electromechanical apparatus. Output Specifications Nominal output 24 V DC Rated output current 6.5 A at 230 VAC; 5.2 A at 115 VAC. Continuous current range 0–6.5 A at 230 VAC; 0–5.2 A at 115 VAC. Catalogue-rated output power 156 W at 230 VAC; 125 W at 115 VAC. Ripple and noise, maximum 150 mVp-p Voltage adjustment 24–28 V Voltage tolerance ±1.0% Line regulation ±0.5% Load regulation ±1.0% Typical efficiency 87% Setup / rise time 1500 / 60 ms at 230 VAC; 3000 / 60 ms at 115 VAC, full load. Typical hold-up time 16 ms at 230 VAC; 10 ms at 115 VAC, full load. Observe the applicable current and power limits when adjusting voltage. Voltage tolerance includes setup tolerance, line regulation and load regulation. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Input and Protection AC input 90–264 VAC, 47–63 Hz; apply the low-input derating curve. DC input 127–370 VDC; connect positive to AC/L and negative to AC/N. Typical AC input current 2.6 A at 115 VAC; 1.7 A at 230 VAC. Typical inrush current 20 A at 115 VAC; 35 A at 230 VAC. Leakage current Less than 1 mA at 240 VAC. Short-circuit / overload protection 105–130% of rated output power at 230 VAC; 105–150% at 115 VAC. Constant-current limiting with automatic recovery after the fault is removed. At 90–100 VAC, note 7 specifies hiccup mode with automatic recovery. Overvoltage protection 29–33 V; output shutdown, re-power to recover. Overtemperature protection Output shutdown; re-power to recover. Environment and Load Derating Cooling / operating temperature Free-air convection; −20 to +60°C, subject to the model and input-specific derating curves. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Component vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Mounting compliance: IEC60068-2-6. High-altitude derating For this fanless supply, reduce permissible ambient temperature by 3.5°C per 1000 m above 2000 m (6500 ft). At 230 VAC, the vertical-mounting curve permits 100% load from −20°C through 50°C, then falls to 50% at 60°C. At 115 VAC it shows 80% at −20°C, 100% from −10°C through 40°C, and 50% at 60°C. At 60 Hz, the input curve shows 70% at 90 VAC; 80% from 100 through 165 VAC, labelled 125 W; and 100% from 180 through 264 VAC, labelled 156 W. Follow the rising segments between these points. The 115 VAC thermal curve does not override the 125 W / 5.2 A input-specific rating. Use both temperature and input-voltage limits when selecting the load; the ambient operating range is not an unconditional full-load rating. Dimensions, Connections and Installation Dimensions, W × H × D 40 × 125.2 × 113.5 mm; drawing tolerance ±1 mm; case 992D. TB1 input terminals 1: FG; 2: AC/N or DC negative; 3: AC/L or DC positive. TB2 output terminals 1 and 2: −V; 3 and 4: +V. Front-panel adjustment and indication +V ADJ control and DC OK LED, as shown in the mechanical drawing. Mounting rail TS35/7.5 or TS35/15 DIN rail; the illustrated rail is for reference and is not included. Full-power installation clearances Recommended: 40 mm above, 20 mm below and 5 mm on each side. Use 15 mm clearance where the adjacent device is a heat source. Install in the orientation shown in the derating and mechanical drawings and follow the installation manual for the supplied unit. The catalogue specifies rail compatibility but no separate model-specific accessory order code. Safety, Insulation and EMC Catalogue-listed safety UL508; TUV BS EN/EN62368-1; EAC TP TC004; BSMI CNS15598-1. The table also states compliance with BS EN/EN60204-1. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance More than 100 MΩ for input–output, input–FG and output–FG at 500 VDC, 25°C and 70% RH. Emissions BS EN/EN55032 (CISPR32) Class A; CNS15936 Class A; EAC TP TC020; BS EN/EN61000-3-3; BS EN/EN61000-3-2 Class A at no more than 80% load. Immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy-industry level; EAC TP TC020. This supply is a component for installation in final equipment. Reconfirm EMC compliance of the completed equipment; a listed component approval is not certification of the entire installation. Weight, Reliability and Reference Conditions Catalogue unit weight 600 g, converted from the explicit 0.6 kg per-unit PACKING reference; not a measured net or shipping weight and not a carton-weight average. MTBF 2717.1 K hours minimum, Telcordia SR-332 (Bellcore); 472.5 K hours minimum, MIL-HDBK-217F at 25°C. These are reliability references, not guaranteed service life. Manufacturer statements The catalogue lists 100% full-load burn-in testing and a two-year warranty; applicable manufacturer terms govern coverage. Default test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient. Datasheet revision EDR-150-24-SPEC, 2026-03-31; combined NDR/EDR catalogue pages 25–28.

Read more less

MEAN WELL EDR-120-48 is a slim industrial DIN rail AC/DC supply with one adjustable 48 V DC output, rated 2.5 A and 120 W. Convection cooling and constant-current overload protection support control-cabinet applications within the published input and temperature limits. Product Datasheet Download MEAN WELL EDR-120 Datasheet (PDF) The EDR-120 section is on PDF pages 21, 22, 23, 24. Refer to the complete mechanical drawings and notes when planning installation. Model Code and Output Selection Complete model EDR-120-48 Series EDR-120 industrial DIN rail power supply Power-family code 120; use the model-specific rated power below. Output-voltage code 48 V DC Applications Industrial control systems, semiconductor fabrication equipment, factory automation and electromechanical apparatus. Output Specifications Nominal output 48 V DC Rated output current 2.5 A. Continuous current range 0–2.5 A. Catalogue-rated output power 120 W. Ripple and noise, maximum 150 mVp-p Voltage adjustment 48–55 V Voltage tolerance ±1.0% Line regulation ±0.5% Load regulation ±1.0% Typical efficiency 88.5% Setup / rise time 1200 / 60 ms at 230 VAC; 2500 / 60 ms at 115 VAC, full load. Typical hold-up time 16 ms at 230 VAC; 10 ms at 115 VAC, full load. Observe the applicable current and power limits when adjusting voltage. Voltage tolerance includes setup tolerance, line regulation and load regulation. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Input and Protection AC input 90–264 VAC, 47–63 Hz; apply the low-input derating curve. DC input 127–370 VDC; connect positive to AC/L and negative to AC/N. Typical AC input current 2.25 A at 115 VAC; 1.3 A at 230 VAC. Typical inrush current 20 A at 115 VAC; 35 A at 230 VAC. Leakage current Less than 1 mA at 240 VAC. Short-circuit / overload protection 105–130% of rated output power; constant-current limiting with automatic recovery after the fault is removed. Overvoltage protection 56–65 V; output shutdown, re-power to recover. Overtemperature protection Output shutdown; re-power to recover. Environment and Load Derating Cooling / operating temperature Free-air convection; −20 to +60°C, subject to the model and input-specific derating curves. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Component vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Mounting compliance: IEC60068-2-6. High-altitude derating For this fanless supply, reduce permissible ambient temperature by 3.5°C per 1000 m above 2000 m (6500 ft). At 230 VAC, the vertical-mounting curve permits 100% load from −20°C through 50°C, then falls to 50% at 60°C. At 115 VAC it shows 80% at −20°C, 100% from −10°C through 40°C, and 50% at 60°C. At 60 Hz, the input curve shows 90% load at 90 VAC, rising to 100% at 100 VAC and remaining at 100% through 264 VAC. Use both temperature and input-voltage limits when selecting the load; the ambient operating range is not an unconditional full-load rating. Dimensions, Connections and Installation Dimensions, W × H × D 40 × 125.2 × 113.5 mm; drawing tolerance ±1 mm; case 992D. TB1 input terminals 1: FG; 2: AC/N or DC negative; 3: AC/L or DC positive. TB2 output terminals 1 and 2: −V; 3 and 4: +V. Front-panel adjustment and indication +V ADJ control and DC OK LED, as shown in the mechanical drawing. Mounting rail TS35/7.5 or TS35/15 DIN rail; the illustrated rail is for reference and is not included. Full-power installation clearances Recommended: 40 mm above, 20 mm below and 5 mm on each side. Use 15 mm clearance where the adjacent device is a heat source. Install in the orientation shown in the derating and mechanical drawings and follow the installation manual for the supplied unit. The catalogue specifies rail compatibility but no separate model-specific accessory order code. Safety, Insulation and EMC Catalogue-listed safety UL508; TUV BS EN/EN62368-1; EAC TP TC004; BSMI CNS15598-1. The table also states compliance with BS EN/EN60204-1. BIS IS13252 (Part 1):2010 / IEC60950-1:2005 is listed with note 8: some models may not carry the BIS logo; contact MEAN WELL sales for model-specific availability. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance More than 100 MΩ for input–output, input–FG and output–FG at 500 VDC, 25°C and 70% RH. Emissions BS EN/EN55032 (CISPR32) Class A; CNS15936 Class A; EAC TP TC020; BS EN/EN61000-3-3; BS EN/EN61000-3-2. Immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy-industry level, criteria A; EAC TP TC020. This supply is a component for installation in final equipment. Reconfirm EMC compliance of the completed equipment; a listed component approval is not certification of the entire installation. Weight, Reliability and Reference Conditions Catalogue unit weight 600 g, converted from the explicit 0.6 kg per-unit PACKING reference; not a measured net or shipping weight and not a carton-weight average. MTBF 2718.3 K hours minimum, Telcordia SR-332 (Bellcore); 474.7 K hours minimum, MIL-HDBK-217F at 25°C. These are reliability references, not guaranteed service life. Manufacturer statements The catalogue lists 100% full-load burn-in testing and a two-year warranty; applicable manufacturer terms govern coverage. Default test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient. Datasheet revision EDR-120-SPEC, 2026-03-31; combined NDR/EDR catalogue pages 21–24.

Read more less

MEAN WELL EDR-120-24 is a slim industrial DIN rail AC/DC supply with one adjustable 24 V DC output, rated 5 A and 120 W. Convection cooling and constant-current overload protection support control-cabinet applications within the published input and temperature limits. Product Datasheet Download MEAN WELL EDR-120 Datasheet (PDF) The EDR-120 section is on PDF pages 21, 22, 23, 24. Refer to the complete mechanical drawings and notes when planning installation. Model Code and Output Selection Complete model EDR-120-24 Series EDR-120 industrial DIN rail power supply Power-family code 120; use the model-specific rated power below. Output-voltage code 24 V DC Applications Industrial control systems, semiconductor fabrication equipment, factory automation and electromechanical apparatus. Output Specifications Nominal output 24 V DC Rated output current 5 A. Continuous current range 0–5 A. Catalogue-rated output power 120 W. Ripple and noise, maximum 120 mVp-p Voltage adjustment 24–28 V Voltage tolerance ±1.0% Line regulation ±0.5% Load regulation ±1.0% Typical efficiency 87.5% Setup / rise time 1200 / 60 ms at 230 VAC; 2500 / 60 ms at 115 VAC, full load. Typical hold-up time 16 ms at 230 VAC; 10 ms at 115 VAC, full load. Observe the applicable current and power limits when adjusting voltage. Voltage tolerance includes setup tolerance, line regulation and load regulation. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Input and Protection AC input 90–264 VAC, 47–63 Hz; apply the low-input derating curve. DC input 127–370 VDC; connect positive to AC/L and negative to AC/N. Typical AC input current 2.25 A at 115 VAC; 1.3 A at 230 VAC. Typical inrush current 20 A at 115 VAC; 35 A at 230 VAC. Leakage current Less than 1 mA at 240 VAC. Short-circuit / overload protection 105–130% of rated output power; constant-current limiting with automatic recovery after the fault is removed. Overvoltage protection 29–33 V; output shutdown, re-power to recover. Overtemperature protection Output shutdown; re-power to recover. Environment and Load Derating Cooling / operating temperature Free-air convection; −20 to +60°C, subject to the model and input-specific derating curves. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Component vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Mounting compliance: IEC60068-2-6. High-altitude derating For this fanless supply, reduce permissible ambient temperature by 3.5°C per 1000 m above 2000 m (6500 ft). At 230 VAC, the vertical-mounting curve permits 100% load from −20°C through 50°C, then falls to 50% at 60°C. At 115 VAC it shows 80% at −20°C, 100% from −10°C through 40°C, and 50% at 60°C. At 60 Hz, the input curve shows 90% load at 90 VAC, rising to 100% at 100 VAC and remaining at 100% through 264 VAC. Use both temperature and input-voltage limits when selecting the load; the ambient operating range is not an unconditional full-load rating. Dimensions, Connections and Installation Dimensions, W × H × D 40 × 125.2 × 113.5 mm; drawing tolerance ±1 mm; case 992D. TB1 input terminals 1: FG; 2: AC/N or DC negative; 3: AC/L or DC positive. TB2 output terminals 1 and 2: −V; 3 and 4: +V. Front-panel adjustment and indication +V ADJ control and DC OK LED, as shown in the mechanical drawing. Mounting rail TS35/7.5 or TS35/15 DIN rail; the illustrated rail is for reference and is not included. Full-power installation clearances Recommended: 40 mm above, 20 mm below and 5 mm on each side. Use 15 mm clearance where the adjacent device is a heat source. Install in the orientation shown in the derating and mechanical drawings and follow the installation manual for the supplied unit. The catalogue specifies rail compatibility but no separate model-specific accessory order code. Safety, Insulation and EMC Catalogue-listed safety UL508; TUV BS EN/EN62368-1; EAC TP TC004; BSMI CNS15598-1. The table also states compliance with BS EN/EN60204-1. BIS IS13252 (Part 1):2010 / IEC60950-1:2005 is listed with note 8: some models may not carry the BIS logo; contact MEAN WELL sales for model-specific availability. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance More than 100 MΩ for input–output, input–FG and output–FG at 500 VDC, 25°C and 70% RH. Emissions BS EN/EN55032 (CISPR32) Class A; CNS15936 Class A; EAC TP TC020; BS EN/EN61000-3-3; BS EN/EN61000-3-2. Immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy-industry level, criteria A; EAC TP TC020. This supply is a component for installation in final equipment. Reconfirm EMC compliance of the completed equipment; a listed component approval is not certification of the entire installation. Weight, Reliability and Reference Conditions Catalogue unit weight 600 g, converted from the explicit 0.6 kg per-unit PACKING reference; not a measured net or shipping weight and not a carton-weight average. MTBF 2718.3 K hours minimum, Telcordia SR-332 (Bellcore); 474.7 K hours minimum, MIL-HDBK-217F at 25°C. These are reliability references, not guaranteed service life. Manufacturer statements The catalogue lists 100% full-load burn-in testing and a two-year warranty; applicable manufacturer terms govern coverage. Default test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient. Datasheet revision EDR-120-SPEC, 2026-03-31; combined NDR/EDR catalogue pages 21–24.

Read more less

MEAN WELL EDR-120-12 is a slim industrial DIN rail AC/DC supply with one adjustable 12 V DC output, rated 10 A and 120 W. Convection cooling and constant-current overload protection support control-cabinet applications within the published input and temperature limits. Product Datasheet Download MEAN WELL EDR-120 Datasheet (PDF) The EDR-120 section is on PDF pages 21, 22, 23, 24. Refer to the complete mechanical drawings and notes when planning installation. Model Code and Output Selection Complete model EDR-120-12 Series EDR-120 industrial DIN rail power supply Power-family code 120; use the model-specific rated power below. Output-voltage code 12 V DC Applications Industrial control systems, semiconductor fabrication equipment, factory automation and electromechanical apparatus. Output Specifications Nominal output 12 V DC Rated output current 10 A. Continuous current range 0–10 A. Catalogue-rated output power 120 W. Ripple and noise, maximum 100 mVp-p Voltage adjustment 12–14 V Voltage tolerance ±2.0% Line regulation ±0.5% Load regulation ±1.0% Typical efficiency 85% Setup / rise time 1200 / 60 ms at 230 VAC; 2500 / 60 ms at 115 VAC, full load. Typical hold-up time 16 ms at 230 VAC; 10 ms at 115 VAC, full load. Observe the applicable current and power limits when adjusting voltage. Voltage tolerance includes setup tolerance, line regulation and load regulation. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Input and Protection AC input 90–264 VAC, 47–63 Hz; apply the low-input derating curve. DC input 127–370 VDC; connect positive to AC/L and negative to AC/N. Typical AC input current 2.25 A at 115 VAC; 1.3 A at 230 VAC. Typical inrush current 20 A at 115 VAC; 35 A at 230 VAC. Leakage current Less than 1 mA at 240 VAC. Short-circuit / overload protection 105–130% of rated output power; constant-current limiting with automatic recovery after the fault is removed. Overvoltage protection 14–17 V; output shutdown, re-power to recover. Overtemperature protection Output shutdown; re-power to recover. Environment and Load Derating Cooling / operating temperature Free-air convection; −20 to +60°C, subject to the model and input-specific derating curves. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Component vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Mounting compliance: IEC60068-2-6. High-altitude derating For this fanless supply, reduce permissible ambient temperature by 3.5°C per 1000 m above 2000 m (6500 ft). At 230 VAC, the vertical-mounting curve permits 100% load from −20°C through 45°C, then falls to 50% at 60°C. At 115 VAC it shows 80% at −20°C, 100% from −10°C through 40°C, and 50% at 60°C. At 60 Hz, the input curve shows 90% load at 90 VAC, rising to 100% at 100 VAC and remaining at 100% through 264 VAC. Use both temperature and input-voltage limits when selecting the load; the ambient operating range is not an unconditional full-load rating. Dimensions, Connections and Installation Dimensions, W × H × D 40 × 125.2 × 113.5 mm; drawing tolerance ±1 mm; case 992D. TB1 input terminals 1: FG; 2: AC/N or DC negative; 3: AC/L or DC positive. TB2 output terminals 1 and 2: −V; 3 and 4: +V. Front-panel adjustment and indication +V ADJ control and DC OK LED, as shown in the mechanical drawing. Mounting rail TS35/7.5 or TS35/15 DIN rail; the illustrated rail is for reference and is not included. Full-power installation clearances Recommended: 40 mm above, 20 mm below and 5 mm on each side. Use 15 mm clearance where the adjacent device is a heat source. Install in the orientation shown in the derating and mechanical drawings and follow the installation manual for the supplied unit. The catalogue specifies rail compatibility but no separate model-specific accessory order code. Safety, Insulation and EMC Catalogue-listed safety UL508; TUV BS EN/EN62368-1; EAC TP TC004; BSMI CNS15598-1. The table also states compliance with BS EN/EN60204-1. BIS IS13252 (Part 1):2010 / IEC60950-1:2005 is listed with note 8: some models may not carry the BIS logo; contact MEAN WELL sales for model-specific availability. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance More than 100 MΩ for input–output, input–FG and output–FG at 500 VDC, 25°C and 70% RH. Emissions BS EN/EN55032 (CISPR32) Class A; CNS15936 Class A; EAC TP TC020; BS EN/EN61000-3-3; BS EN/EN61000-3-2. Immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy-industry level, criteria A; EAC TP TC020. This supply is a component for installation in final equipment. Reconfirm EMC compliance of the completed equipment; a listed component approval is not certification of the entire installation. Weight, Reliability and Reference Conditions Catalogue unit weight 600 g, converted from the explicit 0.6 kg per-unit PACKING reference; not a measured net or shipping weight and not a carton-weight average. MTBF 2718.3 K hours minimum, Telcordia SR-332 (Bellcore); 474.7 K hours minimum, MIL-HDBK-217F at 25°C. These are reliability references, not guaranteed service life. Manufacturer statements The catalogue lists 100% full-load burn-in testing and a two-year warranty; applicable manufacturer terms govern coverage. Default test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient. Datasheet revision EDR-120-SPEC, 2026-03-31; combined NDR/EDR catalogue pages 21–24.

Read more less

MEAN WELL EDR-75-48 is a slim industrial DIN rail AC/DC supply with one adjustable 48 V DC output, rated 1.6 A and 76.8 W. Convection cooling and constant-current overload protection support control-cabinet applications within the published input and temperature limits. Product Datasheet Download MEAN WELL EDR-75 Datasheet (PDF) The EDR-75 section is on PDF pages 17, 18, 19, 20. Refer to the complete mechanical drawings and notes when planning installation. Model Code and Output Selection Complete model EDR-75-48 Series EDR-75 industrial DIN rail power supply Power-family code 75; use the model-specific rated power below. Output-voltage code 48 V DC Applications Industrial control systems, semiconductor fabrication equipment, factory automation and electromechanical apparatus. Output Specifications Nominal output 48 V DC Rated output current 1.6 A. Continuous current range 0–1.6 A. Catalogue-rated output power 76.8 W. Ripple and noise, maximum 150 mVp-p Voltage adjustment 48–55 V Voltage tolerance ±1.0% Line regulation ±0.5% Load regulation ±1.0% Typical efficiency 88.5% Setup / rise time 1200 / 60 ms at 230 VAC; 2000 / 60 ms at 115 VAC, full load. Typical hold-up time 60 ms at 230 VAC; 12 ms at 115 VAC, full load. Observe the applicable current and power limits when adjusting voltage. Voltage tolerance includes setup tolerance, line regulation and load regulation. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Input and Protection AC input 90–264 VAC, 47–63 Hz; apply the low-input derating curve. DC input 127–370 VDC; connect positive to AC/L and negative to AC/N. Typical AC input current 1.45 A at 115 VAC; 0.9 A at 230 VAC. Typical inrush current 20 A at 115 VAC; 35 A at 230 VAC. Leakage current Less than 1 mA at 240 VAC. Short-circuit / overload protection 105–130% of rated output power; constant-current limiting with automatic recovery after the fault is removed. Overvoltage protection 56–65 V; output shutdown, re-power to recover. Overtemperature protection Output shutdown; re-power to recover. Environment and Load Derating Cooling / operating temperature Free-air convection; −20 to +60°C, subject to the model and input-specific derating curves. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Component vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Mounting compliance: IEC60068-2-6. High-altitude derating For this fanless supply, reduce permissible ambient temperature by 3.5°C per 1000 m above 2000 m (6500 ft). At 230 VAC, the vertical-mounting curve permits 100% load from −20°C through 50°C, then falls to 50% at 60°C. At 115 VAC it shows 80% at −20°C, 100% from −10°C through 40°C, and 50% at 60°C. At 60 Hz, the input curve shows 90% load at 90 VAC, rising to 100% at 100 VAC and remaining at 100% through 264 VAC. Use both temperature and input-voltage limits when selecting the load; the ambient operating range is not an unconditional full-load rating. Dimensions, Connections and Installation Dimensions, W × H × D 32 × 125.2 × 102 mm; drawing tolerance ±1 mm; case 221. TB1 input terminals 1: FG; 2: AC/N or DC negative; 3: AC/L or DC positive. TB2 output terminals 1 and 2: −V; 3 and 4: +V. Front-panel adjustment and indication +V ADJ control and DC OK LED, as shown in the mechanical drawing. Mounting rail TS35/7.5 or TS35/15 DIN rail; the illustrated rail is for reference and is not included. Full-power installation clearances Recommended: 40 mm above, 20 mm below and 5 mm on each side. Use 15 mm clearance where the adjacent device is a heat source. Install in the orientation shown in the derating and mechanical drawings and follow the installation manual for the supplied unit. The catalogue specifies rail compatibility but no separate model-specific accessory order code. Safety, Insulation and EMC Catalogue-listed safety UL508; TUV BS EN/EN62368-1; EAC TP TC004; BSMI CNS15598-1. The table also states compliance with BS EN/EN60204-1. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance More than 100 MΩ for input–output, input–FG and output–FG at 500 VDC, 25°C and 70% RH. Emissions BS EN/EN55032 (CISPR32) Class A; CNS15936 Class A; EAC TP TC020; BS EN/EN61000-3-3; BS EN/EN61000-3-2. Immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy-industry level; EAC TP TC020. This supply is a component for installation in final equipment. Reconfirm EMC compliance of the completed equipment; a listed component approval is not certification of the entire installation. Weight, Reliability and Reference Conditions Catalogue unit weight 510 g, converted from the explicit 0.51 kg per-unit PACKING reference; not a measured net or shipping weight and not a carton-weight average. MTBF 2777.2 K hours minimum, Telcordia SR-332 (Bellcore); 506.6 K hours minimum, MIL-HDBK-217F at 25°C. These are reliability references, not guaranteed service life. Manufacturer statements The catalogue lists 100% full-load burn-in testing and a two-year warranty; applicable manufacturer terms govern coverage. Default test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient. Datasheet revision EDR-75-SPEC, 2026-03-31; combined NDR/EDR catalogue pages 17–20.

Read more less

MEAN WELL EDR-75-24 is a slim industrial DIN rail AC/DC supply with one adjustable 24 V DC output, rated 3.2 A and 76.8 W. Convection cooling and constant-current overload protection support control-cabinet applications within the published input and temperature limits. Product Datasheet Download MEAN WELL EDR-75 Datasheet (PDF) The EDR-75 section is on PDF pages 17, 18, 19, 20. Refer to the complete mechanical drawings and notes when planning installation. Model Code and Output Selection Complete model EDR-75-24 Series EDR-75 industrial DIN rail power supply Power-family code 75; use the model-specific rated power below. Output-voltage code 24 V DC Applications Industrial control systems, semiconductor fabrication equipment, factory automation and electromechanical apparatus. Output Specifications Nominal output 24 V DC Rated output current 3.2 A. Continuous current range 0–3.2 A. Catalogue-rated output power 76.8 W. Ripple and noise, maximum 120 mVp-p Voltage adjustment 24–28 V Voltage tolerance ±1.0% Line regulation ±0.5% Load regulation ±1.0% Typical efficiency 87.5% Setup / rise time 1200 / 60 ms at 230 VAC; 2000 / 60 ms at 115 VAC, full load. Typical hold-up time 60 ms at 230 VAC; 12 ms at 115 VAC, full load. Observe the applicable current and power limits when adjusting voltage. Voltage tolerance includes setup tolerance, line regulation and load regulation. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Input and Protection AC input 90–264 VAC, 47–63 Hz; apply the low-input derating curve. DC input 127–370 VDC; connect positive to AC/L and negative to AC/N. Typical AC input current 1.45 A at 115 VAC; 0.9 A at 230 VAC. Typical inrush current 20 A at 115 VAC; 35 A at 230 VAC. Leakage current Less than 1 mA at 240 VAC. Short-circuit / overload protection 105–130% of rated output power; constant-current limiting with automatic recovery after the fault is removed. Overvoltage protection 29–33 V; output shutdown, re-power to recover. Overtemperature protection Output shutdown; re-power to recover. Environment and Load Derating Cooling / operating temperature Free-air convection; −20 to +60°C, subject to the model and input-specific derating curves. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Component vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Mounting compliance: IEC60068-2-6. High-altitude derating For this fanless supply, reduce permissible ambient temperature by 3.5°C per 1000 m above 2000 m (6500 ft). At 230 VAC, the vertical-mounting curve permits 100% load from −20°C through 50°C, then falls to 50% at 60°C. At 115 VAC it shows 80% at −20°C, 100% from −10°C through 40°C, and 50% at 60°C. At 60 Hz, the input curve shows 90% load at 90 VAC, rising to 100% at 100 VAC and remaining at 100% through 264 VAC. Use both temperature and input-voltage limits when selecting the load; the ambient operating range is not an unconditional full-load rating. Dimensions, Connections and Installation Dimensions, W × H × D 32 × 125.2 × 102 mm; drawing tolerance ±1 mm; case 221. TB1 input terminals 1: FG; 2: AC/N or DC negative; 3: AC/L or DC positive. TB2 output terminals 1 and 2: −V; 3 and 4: +V. Front-panel adjustment and indication +V ADJ control and DC OK LED, as shown in the mechanical drawing. Mounting rail TS35/7.5 or TS35/15 DIN rail; the illustrated rail is for reference and is not included. Full-power installation clearances Recommended: 40 mm above, 20 mm below and 5 mm on each side. Use 15 mm clearance where the adjacent device is a heat source. Install in the orientation shown in the derating and mechanical drawings and follow the installation manual for the supplied unit. The catalogue specifies rail compatibility but no separate model-specific accessory order code. Safety, Insulation and EMC Catalogue-listed safety UL508; TUV BS EN/EN62368-1; EAC TP TC004; BSMI CNS15598-1. The table also states compliance with BS EN/EN60204-1. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance More than 100 MΩ for input–output, input–FG and output–FG at 500 VDC, 25°C and 70% RH. Emissions BS EN/EN55032 (CISPR32) Class A; CNS15936 Class A; EAC TP TC020; BS EN/EN61000-3-3; BS EN/EN61000-3-2. Immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy-industry level; EAC TP TC020. This supply is a component for installation in final equipment. Reconfirm EMC compliance of the completed equipment; a listed component approval is not certification of the entire installation. Weight, Reliability and Reference Conditions Catalogue unit weight 510 g, converted from the explicit 0.51 kg per-unit PACKING reference; not a measured net or shipping weight and not a carton-weight average. MTBF 2777.2 K hours minimum, Telcordia SR-332 (Bellcore); 506.6 K hours minimum, MIL-HDBK-217F at 25°C. These are reliability references, not guaranteed service life. Manufacturer statements The catalogue lists 100% full-load burn-in testing and a two-year warranty; applicable manufacturer terms govern coverage. Default test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient. Datasheet revision EDR-75-SPEC, 2026-03-31; combined NDR/EDR catalogue pages 17–20.

Read more less

MEAN WELL EDR-75-12 is a slim industrial DIN rail AC/DC supply with one adjustable 12 V DC output, rated 6.3 A and 75.6 W. Convection cooling and constant-current overload protection support control-cabinet applications within the published input and temperature limits. Product Datasheet Download MEAN WELL EDR-75 Datasheet (PDF) The EDR-75 section is on PDF pages 17, 18, 19, 20. Refer to the complete mechanical drawings and notes when planning installation. Model Code and Output Selection Complete model EDR-75-12 Series EDR-75 industrial DIN rail power supply Power-family code 75; use the model-specific rated power below. Output-voltage code 12 V DC Applications Industrial control systems, semiconductor fabrication equipment, factory automation and electromechanical apparatus. Output Specifications Nominal output 12 V DC Rated output current 6.3 A. Continuous current range 0–6.3 A. Catalogue-rated output power 75.6 W. Ripple and noise, maximum 80 mVp-p Voltage adjustment 12–14 V Voltage tolerance ±2.0% Line regulation ±0.5% Load regulation ±1.0% Typical efficiency 85.5% Setup / rise time 1200 / 60 ms at 230 VAC; 2000 / 60 ms at 115 VAC, full load. Typical hold-up time 60 ms at 230 VAC; 12 ms at 115 VAC, full load. Observe the applicable current and power limits when adjusting voltage. Voltage tolerance includes setup tolerance, line regulation and load regulation. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with parallel 0.1 µF and 47 µF capacitors. Input and Protection AC input 90–264 VAC, 47–63 Hz; apply the low-input derating curve. DC input 127–370 VDC; connect positive to AC/L and negative to AC/N. Typical AC input current 1.45 A at 115 VAC; 0.9 A at 230 VAC. Typical inrush current 20 A at 115 VAC; 35 A at 230 VAC. Leakage current Less than 1 mA at 240 VAC. Short-circuit / overload protection 105–130% of rated output power; constant-current limiting with automatic recovery after the fault is removed. Overvoltage protection 14–17 V; output shutdown, re-power to recover. Overtemperature protection Output shutdown; re-power to recover. Environment and Load Derating Cooling / operating temperature Free-air convection; −20 to +60°C, subject to the model and input-specific derating curves. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Component vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X, Y and Z axis. Mounting compliance: IEC60068-2-6. High-altitude derating For this fanless supply, reduce permissible ambient temperature by 3.5°C per 1000 m above 2000 m (6500 ft). At 230 VAC, the vertical-mounting curve permits 100% load from −20°C through 45°C, then falls to 50% at 60°C. At 115 VAC it shows 80% at −20°C, 100% from −10°C through 40°C, and 50% at 60°C. At 60 Hz, the input curve shows 90% load at 90 VAC, rising to 100% at 100 VAC and remaining at 100% through 264 VAC. Use both temperature and input-voltage limits when selecting the load; the ambient operating range is not an unconditional full-load rating. Dimensions, Connections and Installation Dimensions, W × H × D 32 × 125.2 × 102 mm; drawing tolerance ±1 mm; case 221. TB1 input terminals 1: FG; 2: AC/N or DC negative; 3: AC/L or DC positive. TB2 output terminals 1 and 2: −V; 3 and 4: +V. Front-panel adjustment and indication +V ADJ control and DC OK LED, as shown in the mechanical drawing. Mounting rail TS35/7.5 or TS35/15 DIN rail; the illustrated rail is for reference and is not included. Full-power installation clearances Recommended: 40 mm above, 20 mm below and 5 mm on each side. Use 15 mm clearance where the adjacent device is a heat source. Install in the orientation shown in the derating and mechanical drawings and follow the installation manual for the supplied unit. The catalogue specifies rail compatibility but no separate model-specific accessory order code. Safety, Insulation and EMC Catalogue-listed safety UL508; TUV BS EN/EN62368-1; EAC TP TC004; BSMI CNS15598-1. The table also states compliance with BS EN/EN60204-1. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance More than 100 MΩ for input–output, input–FG and output–FG at 500 VDC, 25°C and 70% RH. Emissions BS EN/EN55032 (CISPR32) Class A; CNS15936 Class A; EAC TP TC020; BS EN/EN61000-3-3; BS EN/EN61000-3-2. Immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy-industry level; EAC TP TC020. This supply is a component for installation in final equipment. Reconfirm EMC compliance of the completed equipment; a listed component approval is not certification of the entire installation. Weight, Reliability and Reference Conditions Catalogue unit weight 510 g, converted from the explicit 0.51 kg per-unit PACKING reference; not a measured net or shipping weight and not a carton-weight average. MTBF 2777.2 K hours minimum, Telcordia SR-332 (Bellcore); 506.6 K hours minimum, MIL-HDBK-217F at 25°C. These are reliability references, not guaranteed service life. Manufacturer statements The catalogue lists 100% full-load burn-in testing and a two-year warranty; applicable manufacturer terms govern coverage. Default test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient. Datasheet revision EDR-75-SPEC, 2026-03-31; combined NDR/EDR catalogue pages 17–20.

Read more less

MEAN WELL NDR-480-48 is a single-output industrial DIN rail power supply rated at 48 V DC, 10 A and 480 W. It accepts 90–264 VAC or 127–370 VDC and combines active PFC, adjustable output and free-air convection in an 85.5 mm-wide metal housing. It mounts on TS-35/7.5 or TS-35/15 rail and provides an LED power indicator. Product Datasheet Download MEAN WELL NDR-480 Datasheet (PDF) The NDR-480 section is on PDF pages 13, 14, 15, 16. Refer to the complete mechanical drawings and notes when planning installation. Model and DC Output Complete model NDR-480-48; NDR-480 catalogue revision 2025-01-10. NDR identifies the series, 480 the output-wattage class, and 48 the nominal output voltage. Rated output 48 V DC / 10 A / 480 W; output-current range 0–10 A. Output adjustment 48–55 V using +V ADJ. Observe the rated current and power limits when adjusting voltage. Ripple and noise 150 mVp-p maximum; measured at 20 MHz bandwidth with a 12-inch twisted pair terminated by parallel 0.1 µF and 47 µF capacitors. Voltage tolerance ±1.0%, including setup tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%, respectively. Typical efficiency 92.5% at the default 230 VAC input, rated-load and 25°C ambient test conditions. The constant-current protection circuit supports inductive or capacitive load applications within the specified operating limits. Protection operation is not an additional continuous output rating. Input and Timing AC / DC input 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Active PFC / power factor Built-in active PFC. The typical-value table states PF >0.98 at 115 VAC and PF >0.94 at 230 VAC, at full load. Typical AC input current 4.8 A at 115 VAC; 2.4 A at 230 VAC. Typical inrush current 20 A at 115 VAC; 35 A at 230 VAC. Leakage current Less than 2 mA at 240 VAC. Setup / rise time 1500 / 100 ms at 230 VAC; 3000 / 100 ms at 115 VAC, at full load. Typical hold-up time 16 ms at 230 VAC; 16 ms at 115 VAC, at full load. Block-diagram switching frequency PFC: 85 kHz; PWM: 65 kHz, as labelled in the block diagram. Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Low-input-voltage operation is subject to load derating. Protection and Indication Short circuit / overload 105–130% of rated output power; constant-current limiting, followed by shutdown after 3 seconds. Re-power to recover. Overvoltage 56–65 V; output shutdown, then re-power to recover. Overtemperature Output shutdown, with automatic recovery after the temperature decreases. No numerical trip temperature is stated in this model’s specification. Front indication / adjustment The front drawing identifies a DC OK LED indicator and a +V ADJ voltage-adjustment control. The protection range is not a published peak-power or duty-cycle rating. Use the model’s rated output together with the input and temperature derating curves. Cooling, Derating and Environment Housing and cooling Metal housing with free-air convection cooling; the temperature curve is specified for vertical mounting. Working temperature / load −20 to +70°C. The curve allows 100% load from −20 to +50°C, then decreases along the plotted straight line to 50% at +70°C. Input-voltage derating At 60 Hz AC, the curve shows 80% load at 90 VAC, increasing to 100% at 100 VAC; the full-load plateau continues through 264 VAC. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration Component: 10–500 Hz, 2G, 10 min/cycle, 60 min on each X, Y and Z axis. Mounting: compliance with IEC60068-2-6. High-altitude derating For this fanless model, reduce the permitted ambient temperature by 3.5°C per 1000 m above 2000 m. The footnote does not state a maximum approved operating altitude. Apply the input-voltage and temperature limits together, using the more restrictive permissible load. Refer to PDF page 15 for both curves. The +70°C endpoint is not a full-power operating point. Dimensions, Terminals and Installation Body dimensions 85.5 × 125.2 × 128.5 mm (W × H × D); case 984D; general drawing tolerance ±1 mm. DIN rail compatibility TS-35/7.5 or TS-35/15; the installation drawing shows a 35 mm rail. The rail is for reference and is not included with the unit. TB1 input terminals Pin 1: FG (protective earth); pin 2: AC/N or DC negative; pin 3: AC/L or DC positive. TB2 output terminals Pins 1 and 2: +V; pins 3 and 4: −V. Recommended full-load clearances 40 mm above, 20 mm below and 5 mm on each side. If an adjacent device is a heat source, 15 mm clearance is recommended. Wiring / fastening Connect FG to protective earth and follow the actual terminal markings. Consult the unit’s installation instructions for conductor sizes and tightening torques; the mechanical terminal table does not specify those numerical limits. Use the front, side and rear views on PDF page 16 for the DIN-rail latch and terminal positions. No separately orderable MEAN WELL rail, bracket, terminal cover, connector or cable accessory code is specified in these NDR-480 pages. Safety, Isolation and EMC Catalogue-listed approvals UL508, TUV BS EN/EN62368-1, EAC TP TC004 and BSMI CNS15598-1. Additional standards statement The catalogue states that the unit meets BS EN/EN60204-1. BIS / IS13252 scope The 48 V model is excluded from the catalogue’s IS13252 (Part 1) / IEC60950-1 approval listing. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Isolation resistance Greater than 100 MΩ for input–output, input–FG and output–FG, at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2 and -3, EAC TP TC020, and CNS15936 Class B. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (EN50082-2); BS EN/EN61204-3, heavy-industry level; EAC TP TC020. The final equipment must be checked again to confirm that the whole system complies with applicable EMC requirements. The power supply’s listings do not by themselves certify the completed installation. Weight, Reliability and Applications Catalogue packing reference per unit 1500 g, from the explicit PACKING entry on PDF page 14: 1.5 kg; 8 pcs / 13 kg / 0.9 CUFT. This is a catalogue packing reference, not a measured net or shipping weight. MTBF reference 1041.6 K hours minimum under Telcordia SR-332 (Bellcore); 146.8 K hours minimum under MIL-HDBK-217F at 25°C. These are reliability references, not a guaranteed service life. Manufacturer-listed applications Industrial control systems; Factory automation; Electromechanical apparatus. Factory test / warranty The manufacturer lists 100% full-load burn-in testing and a three-year warranty, subject to its applicable terms.

Read more less

MEAN WELL NDR-480-24 is a single-output industrial DIN rail power supply rated at 24 V DC, 20 A and 480 W. It accepts 90–264 VAC or 127–370 VDC and combines active PFC, adjustable output and free-air convection in an 85.5 mm-wide metal housing. It mounts on TS-35/7.5 or TS-35/15 rail and provides an LED power indicator. Product Datasheet Download MEAN WELL NDR-480 Datasheet (PDF) The NDR-480 section is on PDF pages 13, 14, 15, 16. Refer to the complete mechanical drawings and notes when planning installation. Model and DC Output Complete model NDR-480-24; NDR-480 catalogue revision 2025-01-10. NDR identifies the series, 480 the output-wattage class, and 24 the nominal output voltage. Rated output 24 V DC / 20 A / 480 W; output-current range 0–20 A. Output adjustment 24–28 V using +V ADJ. Observe the rated current and power limits when adjusting voltage. Ripple and noise 150 mVp-p maximum; measured at 20 MHz bandwidth with a 12-inch twisted pair terminated by parallel 0.1 µF and 47 µF capacitors. Voltage tolerance ±1.0%, including setup tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%, respectively. Typical efficiency 92.5% at the default 230 VAC input, rated-load and 25°C ambient test conditions. The constant-current protection circuit supports inductive or capacitive load applications within the specified operating limits. Protection operation is not an additional continuous output rating. Input and Timing AC / DC input 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Active PFC / power factor Built-in active PFC. The typical-value table states PF >0.98 at 115 VAC and PF >0.94 at 230 VAC, at full load. Typical AC input current 4.8 A at 115 VAC; 2.4 A at 230 VAC. Typical inrush current 20 A at 115 VAC; 35 A at 230 VAC. Leakage current Less than 2 mA at 240 VAC. Setup / rise time 1500 / 100 ms at 230 VAC; 3000 / 100 ms at 115 VAC, at full load. Typical hold-up time 16 ms at 230 VAC; 16 ms at 115 VAC, at full load. Block-diagram switching frequency PFC: 85 kHz; PWM: 65 kHz, as labelled in the block diagram. Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Low-input-voltage operation is subject to load derating. Protection and Indication Short circuit / overload 105–130% of rated output power; constant-current limiting, followed by shutdown after 3 seconds. Re-power to recover. Overvoltage 29–33 V; output shutdown, then re-power to recover. Overtemperature Output shutdown, with automatic recovery after the temperature decreases. No numerical trip temperature is stated in this model’s specification. Front indication / adjustment The front drawing identifies a DC OK LED indicator and a +V ADJ voltage-adjustment control. The protection range is not a published peak-power or duty-cycle rating. Use the model’s rated output together with the input and temperature derating curves. Cooling, Derating and Environment Housing and cooling Metal housing with free-air convection cooling; the temperature curve is specified for vertical mounting. Working temperature / load −20 to +70°C. The curve allows 100% load from −20 to +50°C, then decreases along the plotted straight line to 50% at +70°C. Input-voltage derating At 60 Hz AC, the curve shows 80% load at 90 VAC, increasing to 100% at 100 VAC; the full-load plateau continues through 264 VAC. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration Component: 10–500 Hz, 2G, 10 min/cycle, 60 min on each X, Y and Z axis. Mounting: compliance with IEC60068-2-6. High-altitude derating For this fanless model, reduce the permitted ambient temperature by 3.5°C per 1000 m above 2000 m. The footnote does not state a maximum approved operating altitude. Apply the input-voltage and temperature limits together, using the more restrictive permissible load. Refer to PDF page 15 for both curves. The +70°C endpoint is not a full-power operating point. Dimensions, Terminals and Installation Body dimensions 85.5 × 125.2 × 128.5 mm (W × H × D); case 984D; general drawing tolerance ±1 mm. DIN rail compatibility TS-35/7.5 or TS-35/15; the installation drawing shows a 35 mm rail. The rail is for reference and is not included with the unit. TB1 input terminals Pin 1: FG (protective earth); pin 2: AC/N or DC negative; pin 3: AC/L or DC positive. TB2 output terminals Pins 1 and 2: +V; pins 3 and 4: −V. Recommended full-load clearances 40 mm above, 20 mm below and 5 mm on each side. If an adjacent device is a heat source, 15 mm clearance is recommended. Wiring / fastening Connect FG to protective earth and follow the actual terminal markings. Consult the unit’s installation instructions for conductor sizes and tightening torques; the mechanical terminal table does not specify those numerical limits. Use the front, side and rear views on PDF page 16 for the DIN-rail latch and terminal positions. No separately orderable MEAN WELL rail, bracket, terminal cover, connector or cable accessory code is specified in these NDR-480 pages. Safety, Isolation and EMC Catalogue-listed approvals UL508, TUV BS EN/EN62368-1, EAC TP TC004 and BSMI CNS15598-1. Additional standards statement The catalogue states that the unit meets BS EN/EN60204-1. BIS / IS13252 scope The 24 V model is included in the catalogue’s IS13252 (Part 1) / IEC60950-1 listing; the 48 V model is excluded. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Isolation resistance Greater than 100 MΩ for input–output, input–FG and output–FG, at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2 and -3, EAC TP TC020, and CNS15936 Class B. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (EN50082-2); BS EN/EN61204-3, heavy-industry level; EAC TP TC020. The final equipment must be checked again to confirm that the whole system complies with applicable EMC requirements. The power supply’s listings do not by themselves certify the completed installation. Weight, Reliability and Applications Catalogue packing reference per unit 1500 g, from the explicit PACKING entry on PDF page 14: 1.5 kg; 8 pcs / 13 kg / 0.9 CUFT. This is a catalogue packing reference, not a measured net or shipping weight. MTBF reference 1041.6 K hours minimum under Telcordia SR-332 (Bellcore); 146.8 K hours minimum under MIL-HDBK-217F at 25°C. These are reliability references, not a guaranteed service life. Manufacturer-listed applications Industrial control systems; Factory automation; Electromechanical apparatus. Factory test / warranty The manufacturer lists 100% full-load burn-in testing and a three-year warranty, subject to its applicable terms.

Read more less

MEAN WELL NDR-240-48 is a single-output industrial DIN rail power supply rated at 48 V DC, 5 A and 240 W. It accepts 90–264 VAC or 127–370 VDC and combines active PFC, adjustable output and free-air convection in a 63 mm-wide metal housing. It mounts on TS-35/7.5 or TS-35/15 rail and provides an LED power indicator. Product Datasheet Download MEAN WELL NDR-240 Datasheet (PDF) The NDR-240 section is on PDF pages 9, 10, 11, 12. Refer to the complete mechanical drawings and notes when planning installation. Model and DC Output Complete model NDR-240-48; NDR-240 catalogue revision 2026-04-03. NDR identifies the series, 240 the output-wattage class, and 48 the nominal output voltage. Rated output 48 V DC / 5 A / 240 W; output-current range 0–5 A. Output adjustment 48–55 V using +V ADJ. Observe the rated current and power limits when adjusting voltage. Ripple and noise 150 mVp-p maximum; measured at 20 MHz bandwidth with a 12-inch twisted pair terminated by parallel 0.1 µF and 47 µF capacitors. Voltage tolerance ±1.0%, including setup tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%, respectively. Typical efficiency 90% at the default 230 VAC input, rated-load and 25°C ambient test conditions. The constant-current protection circuit supports inductive or capacitive load applications within the specified operating limits. Protection operation is not an additional continuous output rating. Input and Timing AC / DC input 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Active PFC / power factor Built-in active PFC. The typical-value table states PF >0.98 at 115 VAC and PF >0.95 at 230 VAC, at full load. Typical AC input current 2.5 A at 115 VAC; 1.3 A at 230 VAC. Typical inrush current 20 A at 115 VAC; 35 A at 230 VAC. Leakage current Less than 1 mA at 240 VAC. Setup / rise time 1500 / 100 ms at 230 VAC; 3000 / 100 ms at 115 VAC, at full load. Typical hold-up time 28 ms at 230 VAC; 22 ms at 115 VAC, at full load. Block-diagram switching frequency 70 kHz, as labelled in the block diagram. Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Low-input-voltage operation is subject to load derating. Protection and Indication Short circuit / overload 105–130% of rated output power; constant-current limiting, with automatic recovery after the fault is removed. Overvoltage 56–65 V; output shutdown, then re-power to recover. Overtemperature Output shutdown, with automatic recovery after the temperature decreases. No numerical trip temperature is stated in this model’s specification. Front indication / adjustment The front drawing identifies a DC OK LED indicator and a +V ADJ voltage-adjustment control. The protection range is not a published peak-power or duty-cycle rating. Use the model’s rated output together with the input and temperature derating curves. Cooling, Derating and Environment Housing and cooling Metal housing with free-air convection cooling; the temperature curve is specified for vertical mounting. Working temperature / load −20 to +70°C. The curve allows 100% load from −20 to +50°C, then decreases along the plotted straight line to 50% at +70°C. Input-voltage derating At 60 Hz AC, the curve shows 80% load at 90 VAC, increasing to 100% at 100 VAC; the full-load plateau continues through 264 VAC. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +85°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration Component: 10–500 Hz, 2G, 10 min/cycle, 60 min on each X, Y and Z axis. Mounting: compliance with IEC60068-2-6. High-altitude derating For this fanless model, reduce the permitted ambient temperature by 3.5°C per 1000 m above 2000 m. The footnote does not state a maximum approved operating altitude. Apply the input-voltage and temperature limits together, using the more restrictive permissible load. Refer to PDF page 11 for both curves. The +70°C endpoint is not a full-power operating point. Dimensions, Terminals and Installation Body dimensions 63 × 125.2 × 113.5 mm (W × H × D); case 979C; general drawing tolerance ±1 mm. DIN rail compatibility TS-35/7.5 or TS-35/15; the installation drawing shows a 35 mm rail. The rail is for reference and is not included with the unit. TB1 input terminals Pin 1: FG (protective earth); pin 2: AC/N or DC negative; pin 3: AC/L or DC positive. TB2 output terminals Pins 1 and 2: −V; pins 3 and 4: +V. Recommended full-load clearances 40 mm above, 20 mm below and 5 mm on each side. If an adjacent device is a heat source, 15 mm clearance is recommended. Wiring / fastening Connect FG to protective earth and follow the actual terminal markings. Consult the unit’s installation instructions for conductor sizes and tightening torques; the mechanical terminal table does not specify those numerical limits. Use the front, side and rear views on PDF page 12 for the DIN-rail latch and terminal positions. No separately orderable MEAN WELL rail, bracket, terminal cover, connector or cable accessory code is specified in these NDR-240 pages. Safety, Isolation and EMC Catalogue-listed approvals UL508, TUV BS EN/EN62368-1, EAC TP TC004 and BSMI CNS14336-1. Additional standards statement The catalogue states that the unit meets BS EN/EN60204-1. BIS / IS13252 scope The catalogue lists BIS IS13252 (Part 1):2010 / IEC60950-1:2005, with Note 8 stating that some models may not carry the BIS logo. Confirm the actual unit marking and the manufacturer’s applicable approval information before selecting for a BIS-marked requirement. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Isolation resistance Greater than 100 MΩ for input–output, input–FG and output–FG, at 500 VDC, 25°C and 70% RH. EMC emission BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2 and -3, EAC TP TC020, and CNS13438. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (EN50082-2); BS EN/EN61204-3, heavy-industry level; EAC TP TC020. Korean approval / EMC scope For this 48 V model, the catalogue additionally lists KC K60950-1 approval, KSC9832 emissions and KSC9835 immunity. The final equipment must be checked again to confirm that the whole system complies with applicable EMC requirements. The power supply’s listings do not by themselves certify the completed installation. Weight, Reliability and Applications Catalogue packing reference per unit 1000 g, from the explicit PACKING entry on PDF page 10: 1 kg; 12 pcs / 13 kg / 1.22 CUFT. This is a catalogue packing reference, not a measured net or shipping weight. MTBF reference 1645.2 K hours minimum under Telcordia SR-332 (Bellcore); 230.2 K hours minimum under MIL-HDBK-217F at 25°C. These are reliability references, not a guaranteed service life. Manufacturer-listed applications Industrial control systems; Semiconductor fabrication equipment; Factory automation; Electromechanical applications. Factory test / warranty The manufacturer lists 100% full-load burn-in testing and a three-year warranty, subject to its applicable terms.

Read more less

MEAN WELL NDR-120-48 is a slim, metal-enclosed industrial DIN rail power supply rated at 48 V DC, 2.5 A and 120 W. Its 40 mm-wide housing supports compact control cabinets. It uses free-air convection and constant-current overload protection; observe the model-specific input and temperature derating conditions below. Product Datasheet Download MEAN WELL NDR-120 Datasheet (PDF) The NDR-120 section is on PDF pages 5, 6, 7, 8. Refer to the complete mechanical drawings and notes when planning installation. Model Identification Complete model NDR-120-48 Series / voltage code NDR-120 is the slim industrial DIN rail family; the final 48 code denotes 48 V nominal DC output. Use the actual rated power below rather than the family number as an output guarantee. Construction / intended use Metal enclosure with free-air convection, adjustable DC output and constant-current overload limiting. The catalogue lists industrial control, semiconductor fabrication, factory automation and electro-mechanical applications. DC Output Nominal output 48 V DC; 2.5 A rated, current range 0–2.5 A; 120 W rated power. Output-voltage adjustment 48–55 V DC using +V ADJ. Stay within the permitted output current and power when adjusting. Ripple and noise, maximum 150 mVp-p. Voltage tolerance ±1.0%, including setup tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 89% under the stated default catalogue conditions. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with 0.1 µF and 47 µF parallel capacitors. Input and Starting AC input / frequency 90–264 VAC, full range; 47–63 Hz. Apply the low-input derating curve. DC input and polarity 127–370 VDC. Connect positive DC input to AC/L (+) and negative DC input to AC/N (-); maintain the FG protective-earth connection. AC current, typical 2.25 A at 115 VAC; 1.3 A at 230 VAC. Inrush current, typical 20 A at 115 VAC; 35 A at 230 VAC. Setup / rise time 1200 / 60 ms at 230 VAC; 2500 / 60 ms at 115 VAC, at full load. Hold-up time, typical 16 ms at 230 VAC; 10 ms at 115 VAC, at full load. Leakage current Less than 1 mA at 240 VAC. Protection and Status Indication Short circuit / overload 105–130% of rated output power. Constant-current limiting; automatic recovery after the fault condition is removed. This is a protection threshold, not an additional continuous or timed-peak output rating. Overvoltage 56–65 V; output shutdown, re-power to recover. Overtemperature Output shutdown, re-power to recover. No numerical trip temperature is specified in this model’s table. Status / adjustment The front drawing identifies a DC OK LED and +V ADJ. The LED is an indicator, not a separately specified DC OK relay contact. Cooling, Derating and Environment Operating range / orientation Free-air convection; -20 to +70°C with vertical mounting, subject to all derating curves. The temperature range does not mean full output is available throughout. Low-temperature curve At 115 VAC, allowable load rises from 80% at -20°C to 100% at -10°C. The 230 VAC curve allows 100% in this low-temperature interval. High-temperature curve For this output-voltage model, the vertical curve remains at 100% through 50°C, then declines to 50% at 70°C. The separate low-temperature input-voltage condition also applies. Input-voltage curve, 60 Hz 90% load at 90 VAC, rising to 100% at 100 VAC; the 100% plateau continues through 264 VAC. Working humidity / storage Working: 20–95% RH, non-condensing. Storage: -40 to +85°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration Component: 10–500 Hz, 2 G, 10 minutes per cycle and 60 minutes along each X, Y and Z axis. Mounting complies with IEC60068-2-6. High-altitude derating For this fanless supply, reduce the allowable ambient temperature by 3.5°C per additional 1000 m above 2000 m (6500 ft). This note does not specify a maximum operating altitude. Apply input-voltage and temperature limits together. The published overload range is not a substitute for these operating limits. Dimensions, Terminals and Installation Dimensions / case 40 × 125.2 × 113.5 mm (W × H × D); case 992D, mechanical drawing tolerance ±1 mm. Compatible DIN rail TS-35/7.5 or TS-35/15; the drawing shows a 35 mm rail profile. The rail is for reference and is not included with the unit. Input terminal block TB1 Pin 1: FG protective earth; pin 2: AC/N or DC negative; pin 3: AC/L or DC positive. Output terminal block TB2 Pins 1–2: DC output -V; pins 3–4: DC output +V. Installation clearances For permanent full-power loading, the catalogue recommends 40 mm above, 20 mm below and 5 mm on each side. Where an adjacent device is a heat source, allow 15 mm clearance. Installation details Use the complete mechanical drawing, the supplied unit’s markings and the manufacturer’s installation instructions for the rail attachment and wiring. These model pages do not provide a separate mounting-kit, terminal-kit or connector ordering code. Do not infer that a rail or additional wiring accessory is supplied. Safety, Insulation and EMC Catalogue-listed safety UL508 and TUV BS EN/EN62368-1; EAC TP TC004 approved. The table states compliance with BS EN/EN60204-1. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance More than 100 MΩ for input–output, input–FG and output–FG at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2 and -3; EAC TP TC020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (BS EN/EN50082-2); BS EN/EN61204-3, heavy-industry level; EAC TP TC020. The supply is a component to be installed in final equipment. Reconfirm that the completed equipment meets the applicable EMC directives. Weight, Reliability and Reference Conditions Catalogue unit weight 600 g, converted from the explicit 0.6 kg PACKING reference per unit; not a measured net weight, shipping weight or carton-weight average. MTBF 2636.8 K hours minimum, Telcordia SR-332 (Bellcore); 453.3 K hours minimum, MIL-HDBK-217F at 25°C. These are reliability references, not guaranteed operating life. Manufacturer test / warranty statement The catalogue lists a 100% full-load burn-in test and three-year warranty. Applicable manufacturer terms govern warranty coverage. Default test conditions Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Applicable datasheet NDR-120-SPEC, 2026-04-03; combined NDR/EDR catalogue pages 5–8.

Read more less

MEAN WELL NDR-75-48 is a slim, metal-enclosed industrial DIN rail power supply rated at 48 V DC, 1.6 A and 76.8 W. Its 32 mm-wide housing supports compact control cabinets. It uses free-air convection and constant-current overload protection; observe the model-specific input and temperature derating conditions below. Product Datasheet Download MEAN WELL NDR-75 Datasheet (PDF) The NDR-75 section is on PDF pages 1, 2, 3, 4. Refer to the complete mechanical drawings and notes when planning installation. Model Identification Complete model NDR-75-48 Series / voltage code NDR-75 is the slim industrial DIN rail family; the final 48 code denotes 48 V nominal DC output. Use the actual rated power below rather than the family number as an output guarantee. Construction / intended use Metal enclosure with free-air convection, adjustable DC output and constant-current overload limiting. The catalogue lists industrial control, semiconductor fabrication, factory automation and electro-mechanical applications. DC Output Nominal output 48 V DC; 1.6 A rated, current range 0–1.6 A; 76.8 W rated power. Output-voltage adjustment 48–55 V DC using +V ADJ. Stay within the permitted output current and power when adjusting. Ripple and noise, maximum 150 mVp-p. Voltage tolerance ±1.0%, including setup tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 89% under the stated default catalogue conditions. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with 0.1 µF and 47 µF parallel capacitors. Input and Starting AC input / frequency 90–264 VAC, full range; 47–63 Hz. Apply the low-input derating curve. DC input and polarity 127–370 VDC. Connect positive DC input to AC/L (+) and negative DC input to AC/N (-); maintain the FG protective-earth connection. AC current, typical 1.45 A at 115 VAC; 0.9 A at 230 VAC. Inrush current, typical 20 A at 115 VAC; 35 A at 230 VAC. Setup / rise time 1200 / 60 ms at 230 VAC; 2000 / 60 ms at 115 VAC, at full load. Hold-up time, typical 60 ms at 230 VAC; 12 ms at 115 VAC, at full load. Leakage current Less than 1 mA at 240 VAC. Protection and Status Indication Short circuit / overload 105–130% of rated output power. Constant-current limiting; automatic recovery after the fault condition is removed. This is a protection threshold, not an additional continuous or timed-peak output rating. Overvoltage 56–65 V; output shutdown, re-power to recover. Overtemperature Output shutdown, re-power to recover. No numerical trip temperature is specified in this model’s table. Status / adjustment The front drawing identifies a DC OK LED and +V ADJ. The LED is an indicator, not a separately specified DC OK relay contact. Cooling, Derating and Environment Operating range / orientation Free-air convection; -20 to +70°C with vertical mounting, subject to all derating curves. The temperature range does not mean full output is available throughout. Low-temperature curve At 115 VAC, allowable load rises from 80% at -20°C to 100% at -10°C. The 230 VAC curve allows 100% in this low-temperature interval. High-temperature curve For this output-voltage model, the vertical curve remains at 100% through 50°C, then declines to 50% at 70°C. The separate low-temperature input-voltage condition also applies. Input-voltage curve, 60 Hz 90% load at 90 VAC, rising to 100% at 100 VAC; the 100% plateau continues through 264 VAC. Working humidity / storage Working: 20–95% RH, non-condensing. Storage: -40 to +85°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration Component: 10–500 Hz, 2 G, 10 minutes per cycle and 60 minutes along each X, Y and Z axis. Mounting complies with IEC60068-2-6. High-altitude derating For this fanless supply, reduce the allowable ambient temperature by 3.5°C per additional 1000 m above 2000 m (6500 ft). This note does not specify a maximum operating altitude. Apply input-voltage and temperature limits together. The published overload range is not a substitute for these operating limits. Dimensions, Terminals and Installation Dimensions / case 32 × 125.2 × 102 mm (W × H × D); case 221A, mechanical drawing tolerance ±1 mm. Compatible DIN rail TS-35/7.5 or TS-35/15; the drawing shows a 35 mm rail profile. The rail is for reference and is not included with the unit. Input terminal block TB1 Pin 1: FG protective earth; pin 2: AC/N or DC negative; pin 3: AC/L or DC positive. Output terminal block TB2 Pins 1–2: DC output -V; pins 3–4: DC output +V. Installation clearances For permanent full-power loading, the catalogue recommends 40 mm above, 20 mm below and 5 mm on each side. Where an adjacent device is a heat source, allow 15 mm clearance. Installation details Use the complete mechanical drawing, the supplied unit’s markings and the manufacturer’s installation instructions for the rail attachment and wiring. These model pages do not provide a separate mounting-kit, terminal-kit or connector ordering code. Do not infer that a rail or additional wiring accessory is supplied. Safety, Insulation and EMC Catalogue-listed safety UL508 and TUV BS EN/EN62368-1; EAC TP TC004 approved. The table states compliance with BS EN/EN60204-1. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance More than 100 MΩ for input–output, input–FG and output–FG at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2 and -3; EAC TP TC020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (BS EN/EN50082-2); BS EN/EN61204-3, heavy-industry level; EAC TP TC020. The supply is a component to be installed in final equipment. Reconfirm that the completed equipment meets the applicable EMC directives. Weight, Reliability and Reference Conditions Catalogue unit weight 510 g, converted from the explicit 0.51 kg PACKING reference per unit; not a measured net weight, shipping weight or carton-weight average. MTBF 2757.3 K hours minimum, Telcordia SR-332 (Bellcore); 486.2 K hours minimum, MIL-HDBK-217F at 25°C. These are reliability references, not guaranteed operating life. Manufacturer test / warranty statement The catalogue lists a 100% full-load burn-in test and three-year warranty. Applicable manufacturer terms govern warranty coverage. Default test conditions Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Applicable datasheet NDR-75-SPEC, 2025-06-09; combined NDR/EDR catalogue pages 1–4.

Read more less

MEAN WELL NDR-75-12 is a slim, metal-enclosed industrial DIN rail power supply rated at 12 V DC, 6.3 A and 75.6 W. Its 32 mm-wide housing supports compact control cabinets. It uses free-air convection and constant-current overload protection; observe the model-specific input and temperature derating conditions below. Product Datasheet Download MEAN WELL NDR-75 Datasheet (PDF) The NDR-75 section is on PDF pages 1, 2, 3, 4. Refer to the complete mechanical drawings and notes when planning installation. Model Identification Complete model NDR-75-12 Series / voltage code NDR-75 is the slim industrial DIN rail family; the final 12 code denotes 12 V nominal DC output. Use the actual rated power below rather than the family number as an output guarantee. Construction / intended use Metal enclosure with free-air convection, adjustable DC output and constant-current overload limiting. The catalogue lists industrial control, semiconductor fabrication, factory automation and electro-mechanical applications. DC Output Nominal output 12 V DC; 6.3 A rated, current range 0–6.3 A; 75.6 W rated power. Output-voltage adjustment 12–14 V DC using +V ADJ. Stay within the permitted output current and power when adjusting. Ripple and noise, maximum 80 mVp-p. Voltage tolerance ±2.0%, including setup tolerance, line regulation and load regulation. Line / load regulation ±0.5% / ±1.0%. Efficiency, typical 85.5% under the stated default catalogue conditions. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted pair terminated with 0.1 µF and 47 µF parallel capacitors. Input and Starting AC input / frequency 90–264 VAC, full range; 47–63 Hz. Apply the low-input derating curve. DC input and polarity 127–370 VDC. Connect positive DC input to AC/L (+) and negative DC input to AC/N (-); maintain the FG protective-earth connection. AC current, typical 1.45 A at 115 VAC; 0.9 A at 230 VAC. Inrush current, typical 20 A at 115 VAC; 35 A at 230 VAC. Setup / rise time 1200 / 60 ms at 230 VAC; 2000 / 60 ms at 115 VAC, at full load. Hold-up time, typical 60 ms at 230 VAC; 12 ms at 115 VAC, at full load. Leakage current Less than 1 mA at 240 VAC. Protection and Status Indication Short circuit / overload 105–130% of rated output power. Constant-current limiting; automatic recovery after the fault condition is removed. This is a protection threshold, not an additional continuous or timed-peak output rating. Overvoltage 14–17 V; output shutdown, re-power to recover. Overtemperature Output shutdown, re-power to recover. No numerical trip temperature is specified in this model’s table. Status / adjustment The front drawing identifies a DC OK LED and +V ADJ. The LED is an indicator, not a separately specified DC OK relay contact. Cooling, Derating and Environment Operating range / orientation Free-air convection; -20 to +70°C with vertical mounting, subject to all derating curves. The temperature range does not mean full output is available throughout. Low-temperature curve At 115 VAC, allowable load rises from 80% at -20°C to 100% at -10°C. The 230 VAC curve allows 100% in this low-temperature interval. High-temperature curve At 115 VAC, this 12 V model remains at 100% through 45°C and then follows the lower curve to 50% at 70°C. At 230 VAC, it remains at 100% through 50°C and then follows the curve to 50% at 70°C. Input-voltage curve, 60 Hz 90% load at 90 VAC, rising to 100% at 100 VAC; the 100% plateau continues through 264 VAC. Working humidity / storage Working: 20–95% RH, non-condensing. Storage: -40 to +85°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration Component: 10–500 Hz, 2 G, 10 minutes per cycle and 60 minutes along each X, Y and Z axis. Mounting complies with IEC60068-2-6. High-altitude derating For this fanless supply, reduce the allowable ambient temperature by 3.5°C per additional 1000 m above 2000 m (6500 ft). This note does not specify a maximum operating altitude. Apply input-voltage and temperature limits together. The published overload range is not a substitute for these operating limits. Dimensions, Terminals and Installation Dimensions / case 32 × 125.2 × 102 mm (W × H × D); case 221A, mechanical drawing tolerance ±1 mm. Compatible DIN rail TS-35/7.5 or TS-35/15; the drawing shows a 35 mm rail profile. The rail is for reference and is not included with the unit. Input terminal block TB1 Pin 1: FG protective earth; pin 2: AC/N or DC negative; pin 3: AC/L or DC positive. Output terminal block TB2 Pins 1–2: DC output -V; pins 3–4: DC output +V. Installation clearances For permanent full-power loading, the catalogue recommends 40 mm above, 20 mm below and 5 mm on each side. Where an adjacent device is a heat source, allow 15 mm clearance. Installation details Use the complete mechanical drawing, the supplied unit’s markings and the manufacturer’s installation instructions for the rail attachment and wiring. These model pages do not provide a separate mounting-kit, terminal-kit or connector ordering code. Do not infer that a rail or additional wiring accessory is supplied. Safety, Insulation and EMC Catalogue-listed safety UL508 and TUV BS EN/EN62368-1; EAC TP TC004 approved. The table states compliance with BS EN/EN60204-1. Withstand voltage Input–output: 3 kVAC; input–FG: 2 kVAC; output–FG: 0.5 kVAC. Insulation resistance More than 100 MΩ for input–output, input–FG and output–FG at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2 and -3; EAC TP TC020. EMC immunity BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55035; BS EN/EN61000-6-2 (BS EN/EN50082-2); BS EN/EN61204-3, heavy-industry level; EAC TP TC020. The supply is a component to be installed in final equipment. Reconfirm that the completed equipment meets the applicable EMC directives. Weight, Reliability and Reference Conditions Catalogue unit weight 510 g, converted from the explicit 0.51 kg PACKING reference per unit; not a measured net weight, shipping weight or carton-weight average. MTBF 2757.3 K hours minimum, Telcordia SR-332 (Bellcore); 486.2 K hours minimum, MIL-HDBK-217F at 25°C. These are reliability references, not guaranteed operating life. Manufacturer test / warranty statement The catalogue lists a 100% full-load burn-in test and three-year warranty. Applicable manufacturer terms govern warranty coverage. Default test conditions Unless otherwise specified: 230 VAC input, rated load and 25°C ambient. Applicable datasheet NDR-75-SPEC, 2025-06-09; combined NDR/EDR catalogue pages 1–4.

Read more less
