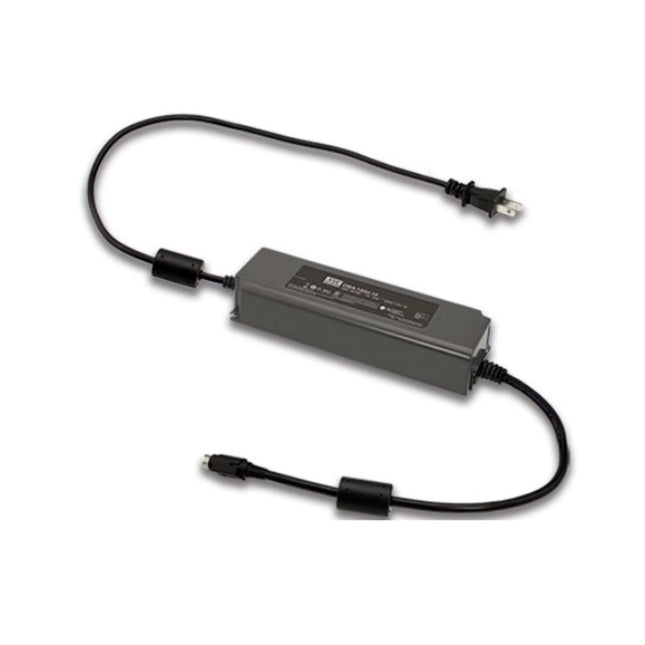

  MEAN WELL OWA-120U series: Moistureproof LED Power Supply - OWA-120U-54

  MEAN WELL OWA-120U-54 supplies 54 V DC at 2.3 A, with a rated output of 124.2 W. This Class II, fanless LED power supply uses a North American AC plug and a locking DIN four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120U Datasheet (PDF) The OWA-120U section is on PDF pages 22, 23, 24, 25, 26. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120U-54 Series / regional version OWA-120U; North American plug version. Output code 54 identifies the nominal 54 V DC output. Intended applications Indoor LED lighting, decorative or office lighting and general electronic devices requiring a moistureproof power body. Output performance Rated output voltage 54 V DC Rated output current 2.3 A Rated output power 124.2 W Ripple and noise 350 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±1.0% Line / load regulation ±0.5% / ±0.5% Constant-current region 32.4–54 V; this is an output-voltage region, not an adjustable current setting. Set-up / rise time 500 / 80 ms at 95% load, 230 / 115 VAC. Hold-up time 16 ms typical at full load, 230 / 115 VAC. Typical efficiency 89.5% at 115 VAC; 90.5% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 90–264 VAC / 127–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. Typical AC current 1.3 A at 115 VAC; 0.65 A at 230 VAC. Typical inrush current Cold start: 30 A at 115 VAC; 60 A at 230 VAC. Pulse width 520 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. Total harmonic distortion THD <20% at output loading ≥60%, 115 / 230 VAC. 16 A circuit-breaker limit At 230 VAC: up to 4 supplies on type B, or 6 supplies on type C. LED operating modes The output characteristic distinguishes constant-voltage operation with an LED driver, constant-current operation for direct drive, and a hiccup region below the specified 32.4 V minimum of the constant-current region. The maximum operating voltage in constant-current mode depends on the end-system configuration. Confirm LED compatibility with the manufacturer before direct-drive operation. The power-factor graph is for constant-current operation. The efficiency-versus-load illustration uses the 48 V model; use this model's specified typical efficiency for selection. Protection Over-current protection 95–108%; constant-current limiting, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 59–66 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the 20–54 V curve permits 100% load through 45°C, falling to 50% at 70°C. The −40 to −25°C region is marked for 230 VAC input only. Input-voltage derating At 60 Hz: 90 VAC corresponds to 80% load; 100–264 VAC permits 100%. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. The enclosure material is described as 94V-0 flame retardant. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety UL8750 listed; CSA C22.2 No. 250.13-12. The UL-listed supply is suitable for dry and damp locations. EMC emissions Compliance with FCC Part 15. Energy-efficiency references Level VI; EISA 2007 / DoE and Canada NRCan references are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection North American NEMA 1-15P male plug; SVT 18AWG × 2C; 1500±20 mm. DC lead UL2464 18AWG × 4C; 300±20 mm. Standard DC connector Locking power DIN 4 pins; KYCON KPPX-4P or equivalent. DC polarity / pin assignment Pins 1 and 4: +V; pins 2 and 3: −V. Catalogue packing reference per unit 1150 g (1.15 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional connections The series catalogue refers to separately purchased DC plug adapters. Specify a compatible connection to the standard locking DIN four-pin output, the required polarity, and a complete cable/connector assembly rated for the intended voltage and current. Confirm the adapter part number and compatibility when ordering; the standard output connector remains as stated above. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

  MEAN WELL OWA-120U series: Moistureproof LED Power Supply - OWA-120U-48

  MEAN WELL OWA-120U-48 supplies 48 V DC at 2.5 A, with a rated output of 120 W. This Class II, fanless LED power supply uses a North American AC plug and a locking DIN four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120U Datasheet (PDF) The OWA-120U section is on PDF pages 22, 23, 24, 25, 26. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120U-48 Series / regional version OWA-120U; North American plug version. Output code 48 identifies the nominal 48 V DC output. Intended applications Indoor LED lighting, decorative or office lighting and general electronic devices requiring a moistureproof power body. Output performance Rated output voltage 48 V DC Rated output current 2.5 A Rated output power 120 W Ripple and noise 250 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±1.0% Line / load regulation ±0.5% / ±0.5% Constant-current region 28.8–48 V; this is an output-voltage region, not an adjustable current setting. Set-up / rise time 500 / 80 ms at 95% load, 230 / 115 VAC. Hold-up time 16 ms typical at full load, 230 / 115 VAC. Typical efficiency 89.5% at 115 VAC; 90.5% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 90–264 VAC / 127–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. Typical AC current 1.3 A at 115 VAC; 0.65 A at 230 VAC. Typical inrush current Cold start: 30 A at 115 VAC; 60 A at 230 VAC. Pulse width 520 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. Total harmonic distortion THD <20% at output loading ≥60%, 115 / 230 VAC. 16 A circuit-breaker limit At 230 VAC: up to 4 supplies on type B, or 6 supplies on type C. LED operating modes The output characteristic distinguishes constant-voltage operation with an LED driver, constant-current operation for direct drive, and a hiccup region below the specified 28.8 V minimum of the constant-current region. The maximum operating voltage in constant-current mode depends on the end-system configuration. Confirm LED compatibility with the manufacturer before direct-drive operation. The power-factor graph is for constant-current operation. The efficiency-versus-load illustration uses the 48 V model; use this model's specified typical efficiency for selection. Protection Over-current protection 95–108%; constant-current limiting, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 54–60 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the 20–54 V curve permits 100% load through 45°C, falling to 50% at 70°C. The −40 to −25°C region is marked for 230 VAC input only. Input-voltage derating At 60 Hz: 90 VAC corresponds to 80% load; 100–264 VAC permits 100%. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. The enclosure material is described as 94V-0 flame retardant. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety UL8750 listed; CSA C22.2 No. 250.13-12. The UL-listed supply is suitable for dry and damp locations. EMC emissions Compliance with FCC Part 15. Energy-efficiency references Level VI; EISA 2007 / DoE and Canada NRCan references are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection North American NEMA 1-15P male plug; SVT 18AWG × 2C; 1500±20 mm. DC lead UL2464 18AWG × 4C; 300±20 mm. Standard DC connector Locking power DIN 4 pins; KYCON KPPX-4P or equivalent. DC polarity / pin assignment Pins 1 and 4: +V; pins 2 and 3: −V. Catalogue packing reference per unit 1150 g (1.15 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional connections The series catalogue refers to separately purchased DC plug adapters. Specify a compatible connection to the standard locking DIN four-pin output, the required polarity, and a complete cable/connector assembly rated for the intended voltage and current. Confirm the adapter part number and compatibility when ordering; the standard output connector remains as stated above. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

  MEAN WELL OWA-120U series: Moistureproof LED Power Supply - OWA-120U-42

  MEAN WELL OWA-120U-42 supplies 42 V DC at 2.9 A, with a rated output of 121.8 W. This Class II, fanless LED power supply uses a North American AC plug and a locking DIN four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120U Datasheet (PDF) The OWA-120U section is on PDF pages 22, 23, 24, 25, 26. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120U-42 Series / regional version OWA-120U; North American plug version. Output code 42 identifies the nominal 42 V DC output. Intended applications Indoor LED lighting, decorative or office lighting and general electronic devices requiring a moistureproof power body. Output performance Rated output voltage 42 V DC Rated output current 2.9 A Rated output power 121.8 W Ripple and noise 250 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±1.0% Line / load regulation ±0.5% / ±0.5% Constant-current region 25.2–42 V; this is an output-voltage region, not an adjustable current setting. Set-up / rise time 500 / 80 ms at 95% load, 230 / 115 VAC. Hold-up time 16 ms typical at full load, 230 / 115 VAC. Typical efficiency 89.5% at 115 VAC; 90.5% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 90–264 VAC / 127–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. Typical AC current 1.3 A at 115 VAC; 0.65 A at 230 VAC. Typical inrush current Cold start: 30 A at 115 VAC; 60 A at 230 VAC. Pulse width 520 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. Total harmonic distortion THD <20% at output loading ≥60%, 115 / 230 VAC. 16 A circuit-breaker limit At 230 VAC: up to 4 supplies on type B, or 6 supplies on type C. LED operating modes The output characteristic distinguishes constant-voltage operation with an LED driver, constant-current operation for direct drive, and a hiccup region below the specified 25.2 V minimum of the constant-current region. The maximum operating voltage in constant-current mode depends on the end-system configuration. Confirm LED compatibility with the manufacturer before direct-drive operation. The power-factor graph is for constant-current operation. The efficiency-versus-load illustration uses the 48 V model; use this model's specified typical efficiency for selection. Protection Over-current protection 95–108%; constant-current limiting, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 46–54 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the 20–54 V curve permits 100% load through 45°C, falling to 50% at 70°C. The −40 to −25°C region is marked for 230 VAC input only. Input-voltage derating At 60 Hz: 90 VAC corresponds to 80% load; 100–264 VAC permits 100%. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. The enclosure material is described as 94V-0 flame retardant. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety UL8750 listed; CSA C22.2 No. 250.13-12. The UL-listed supply is suitable for dry and damp locations. EMC emissions Compliance with FCC Part 15. Energy-efficiency references Level VI; EISA 2007 / DoE and Canada NRCan references are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection North American NEMA 1-15P male plug; SVT 18AWG × 2C; 1500±20 mm. DC lead UL2464 18AWG × 4C; 300±20 mm. Standard DC connector Locking power DIN 4 pins; KYCON KPPX-4P or equivalent. DC polarity / pin assignment Pins 1 and 4: +V; pins 2 and 3: −V. Catalogue packing reference per unit 1150 g (1.15 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional connections The series catalogue refers to separately purchased DC plug adapters. Specify a compatible connection to the standard locking DIN four-pin output, the required polarity, and a complete cable/connector assembly rated for the intended voltage and current. Confirm the adapter part number and compatibility when ordering; the standard output connector remains as stated above. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

  MEAN WELL OWA-120U series: Moistureproof LED Power Supply - OWA-120U-36

  MEAN WELL OWA-120U-36 supplies 36 V DC at 3.4 A, with a rated output of 122.4 W. This Class II, fanless LED power supply uses a North American AC plug and a locking DIN four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120U Datasheet (PDF) The OWA-120U section is on PDF pages 22, 23, 24, 25, 26. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120U-36 Series / regional version OWA-120U; North American plug version. Output code 36 identifies the nominal 36 V DC output. Intended applications Indoor LED lighting, decorative or office lighting and general electronic devices requiring a moistureproof power body. Output performance Rated output voltage 36 V DC Rated output current 3.4 A Rated output power 122.4 W Ripple and noise 200 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±2.0% Line / load regulation ±0.5% / ±0.5% Constant-current region 21.6–36 V; this is an output-voltage region, not an adjustable current setting. Set-up / rise time 500 / 80 ms at 95% load, 230 / 115 VAC. Hold-up time 16 ms typical at full load, 230 / 115 VAC. Typical efficiency 89% at 115 VAC; 90% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 90–264 VAC / 127–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. Typical AC current 1.3 A at 115 VAC; 0.65 A at 230 VAC. Typical inrush current Cold start: 30 A at 115 VAC; 60 A at 230 VAC. Pulse width 520 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. Total harmonic distortion THD <20% at output loading ≥60%, 115 / 230 VAC. 16 A circuit-breaker limit At 230 VAC: up to 4 supplies on type B, or 6 supplies on type C. LED operating modes The output characteristic distinguishes constant-voltage operation with an LED driver, constant-current operation for direct drive, and a hiccup region below the specified 21.6 V minimum of the constant-current region. The maximum operating voltage in constant-current mode depends on the end-system configuration. Confirm LED compatibility with the manufacturer before direct-drive operation. The power-factor graph is for constant-current operation. The efficiency-versus-load illustration uses the 48 V model; use this model's specified typical efficiency for selection. Protection Over-current protection 95–108%; constant-current limiting, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 41–46 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the 20–54 V curve permits 100% load through 45°C, falling to 50% at 70°C. The −40 to −25°C region is marked for 230 VAC input only. Input-voltage derating At 60 Hz: 90 VAC corresponds to 80% load; 100–264 VAC permits 100%. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. The enclosure material is described as 94V-0 flame retardant. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety UL8750 listed; CSA C22.2 No. 250.13-12. The UL-listed supply is suitable for dry and damp locations. EMC emissions Compliance with FCC Part 15. Energy-efficiency references Level VI; EISA 2007 / DoE and Canada NRCan references are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection North American NEMA 1-15P male plug; SVT 18AWG × 2C; 1500±20 mm. DC lead UL2464 18AWG × 4C; 300±20 mm. Standard DC connector Locking power DIN 4 pins; KYCON KPPX-4P or equivalent. DC polarity / pin assignment Pins 1 and 4: +V; pins 2 and 3: −V. Catalogue packing reference per unit 1150 g (1.15 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional connections The series catalogue refers to separately purchased DC plug adapters. Specify a compatible connection to the standard locking DIN four-pin output, the required polarity, and a complete cable/connector assembly rated for the intended voltage and current. Confirm the adapter part number and compatibility when ordering; the standard output connector remains as stated above. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

  MEAN WELL OWA-120U series: Moistureproof LED Power Supply - OWA-120U-30

  MEAN WELL OWA-120U-30 supplies 30 V DC at 4 A, with a rated output of 120 W. This Class II, fanless LED power supply uses a North American AC plug and a locking DIN four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120U Datasheet (PDF) The OWA-120U section is on PDF pages 22, 23, 24, 25, 26. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120U-30 Series / regional version OWA-120U; North American plug version. Output code 30 identifies the nominal 30 V DC output. Intended applications Indoor LED lighting, decorative or office lighting and general electronic devices requiring a moistureproof power body. Output performance Rated output voltage 30 V DC Rated output current 4 A Rated output power 120 W Ripple and noise 200 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±3.0% Line / load regulation ±0.5% / ±0.5% Constant-current region 18–30 V; this is an output-voltage region, not an adjustable current setting. Set-up / rise time 500 / 80 ms at 95% load, 230 / 115 VAC. Hold-up time 16 ms typical at full load, 230 / 115 VAC. Typical efficiency 89% at 115 VAC; 90% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 90–264 VAC / 127–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. Typical AC current 1.3 A at 115 VAC; 0.65 A at 230 VAC. Typical inrush current Cold start: 30 A at 115 VAC; 60 A at 230 VAC. Pulse width 520 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. Total harmonic distortion THD <20% at output loading ≥60%, 115 / 230 VAC. 16 A circuit-breaker limit At 230 VAC: up to 4 supplies on type B, or 6 supplies on type C. LED operating modes The output characteristic distinguishes constant-voltage operation with an LED driver, constant-current operation for direct drive, and a hiccup region below the specified 18 V minimum of the constant-current region. The maximum operating voltage in constant-current mode depends on the end-system configuration. Confirm LED compatibility with the manufacturer before direct-drive operation. The power-factor graph is for constant-current operation. The efficiency-versus-load illustration uses the 48 V model; use this model's specified typical efficiency for selection. Protection Over-current protection 95–108%; constant-current limiting, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 34–40 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the 20–54 V curve permits 100% load through 45°C, falling to 50% at 70°C. The −40 to −25°C region is marked for 230 VAC input only. Input-voltage derating At 60 Hz: 90 VAC corresponds to 80% load; 100–264 VAC permits 100%. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. The enclosure material is described as 94V-0 flame retardant. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety UL8750 listed; CSA C22.2 No. 250.13-12. The UL-listed supply is suitable for dry and damp locations. EMC emissions Compliance with FCC Part 15. Energy-efficiency references Level VI; EISA 2007 / DoE and Canada NRCan references are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection North American NEMA 1-15P male plug; SVT 18AWG × 2C; 1500±20 mm. DC lead UL2464 18AWG × 4C; 300±20 mm. Standard DC connector Locking power DIN 4 pins; KYCON KPPX-4P or equivalent. DC polarity / pin assignment Pins 1 and 4: +V; pins 2 and 3: −V. Catalogue packing reference per unit 1150 g (1.15 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional connections The series catalogue refers to separately purchased DC plug adapters. Specify a compatible connection to the standard locking DIN four-pin output, the required polarity, and a complete cable/connector assembly rated for the intended voltage and current. Confirm the adapter part number and compatibility when ordering; the standard output connector remains as stated above. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

  MEAN WELL OWA-120U series: Moistureproof LED Power Supply - OWA-120U-24

  MEAN WELL OWA-120U-24 supplies 24 V DC at 5 A, with a rated output of 120 W. This Class II, fanless LED power supply uses a North American AC plug and a locking DIN four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120U Datasheet (PDF) The OWA-120U section is on PDF pages 22, 23, 24, 25, 26. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120U-24 Series / regional version OWA-120U; North American plug version. Output code 24 identifies the nominal 24 V DC output. Intended applications Indoor LED lighting, decorative or office lighting and general electronic devices requiring a moistureproof power body. Output performance Rated output voltage 24 V DC Rated output current 5 A Rated output power 120 W Ripple and noise 150 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±4.0% Line / load regulation ±0.5% / ±0.5% Constant-current region 14.4–24 V; this is an output-voltage region, not an adjustable current setting. Set-up / rise time 500 / 80 ms at 95% load, 230 / 115 VAC. Hold-up time 16 ms typical at full load, 230 / 115 VAC. Typical efficiency 89.5% at 115 VAC; 90.5% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 90–264 VAC / 127–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. Typical AC current 1.3 A at 115 VAC; 0.65 A at 230 VAC. Typical inrush current Cold start: 30 A at 115 VAC; 60 A at 230 VAC. Pulse width 520 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. Total harmonic distortion THD <20% at output loading ≥60%, 115 / 230 VAC. 16 A circuit-breaker limit At 230 VAC: up to 4 supplies on type B, or 6 supplies on type C. LED operating modes The output characteristic distinguishes constant-voltage operation with an LED driver, constant-current operation for direct drive, and a hiccup region below the specified 14.4 V minimum of the constant-current region. The maximum operating voltage in constant-current mode depends on the end-system configuration. Confirm LED compatibility with the manufacturer before direct-drive operation. The power-factor graph is for constant-current operation. The efficiency-versus-load illustration uses the 48 V model; use this model's specified typical efficiency for selection. Protection Over-current protection 95–108%; constant-current limiting, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 28–34 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the 20–54 V curve permits 100% load through 45°C, falling to 50% at 70°C. The −40 to −25°C region is marked for 230 VAC input only. Input-voltage derating At 60 Hz: 90 VAC corresponds to 80% load; 100–264 VAC permits 100%. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. The enclosure material is described as 94V-0 flame retardant. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety UL8750 listed; CSA C22.2 No. 250.13-12. The UL-listed supply is suitable for dry and damp locations. EMC emissions Compliance with FCC Part 15. Energy-efficiency references Level VI; EISA 2007 / DoE and Canada NRCan references are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection North American NEMA 1-15P male plug; SVT 18AWG × 2C; 1500±20 mm. DC lead UL2464 18AWG × 4C; 300±20 mm. Standard DC connector Locking power DIN 4 pins; KYCON KPPX-4P or equivalent. DC polarity / pin assignment Pins 1 and 4: +V; pins 2 and 3: −V. Catalogue packing reference per unit 1150 g (1.15 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional connections The series catalogue refers to separately purchased DC plug adapters. Specify a compatible connection to the standard locking DIN four-pin output, the required polarity, and a complete cable/connector assembly rated for the intended voltage and current. Confirm the adapter part number and compatibility when ordering; the standard output connector remains as stated above. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

  MEAN WELL OWA-120U series: Moistureproof LED Power Supply - OWA-120U-15

  MEAN WELL OWA-120U-15 supplies 15 V DC at 8 A, with a rated output of 120 W. This Class II, fanless LED power supply uses a North American AC plug and a locking DIN four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120U Datasheet (PDF) The OWA-120U section is on PDF pages 22, 23, 24, 25, 26. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120U-15 Series / regional version OWA-120U; North American plug version. Output code 15 identifies the nominal 15 V DC output. Intended applications Indoor LED lighting, decorative or office lighting and general electronic devices requiring a moistureproof power body. Output performance Rated output voltage 15 V DC Rated output current 8 A Rated output power 120 W Ripple and noise 150 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±4.0% Line / load regulation ±0.5% / ±1.5% Constant-current region 9–15 V; this is an output-voltage region, not an adjustable current setting. Set-up / rise time 500 / 80 ms at 95% load, 230 / 115 VAC. Hold-up time 16 ms typical at full load, 230 / 115 VAC. Typical efficiency 88% at 115 VAC; 89% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 90–264 VAC / 127–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. Typical AC current 1.3 A at 115 VAC; 0.65 A at 230 VAC. Typical inrush current Cold start: 30 A at 115 VAC; 60 A at 230 VAC. Pulse width 520 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. Total harmonic distortion THD <20% at output loading ≥60%, 115 / 230 VAC. 16 A circuit-breaker limit At 230 VAC: up to 4 supplies on type B, or 6 supplies on type C. LED operating modes The output characteristic distinguishes constant-voltage operation with an LED driver, constant-current operation for direct drive, and a hiccup region below the specified 9 V minimum of the constant-current region. The maximum operating voltage in constant-current mode depends on the end-system configuration. Confirm LED compatibility with the manufacturer before direct-drive operation. The power-factor graph is for constant-current operation. The efficiency-versus-load illustration uses the 48 V model; use this model's specified typical efficiency for selection. Protection Over-current protection 95–108%; constant-current limiting, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 17.5–21 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the 12 / 15 V curve permits 100% load through 40°C, falling to 40% at 70°C. The −40 to −25°C region is marked for 230 VAC input only. Input-voltage derating At 60 Hz: 90 VAC corresponds to 80% load; 100–264 VAC permits 100%. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. The enclosure material is described as 94V-0 flame retardant. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety UL8750 listed; CSA C22.2 No. 250.13-12. The UL-listed supply is suitable for dry and damp locations. EMC emissions Compliance with FCC Part 15. Energy-efficiency references Level VI; EISA 2007 / DoE and Canada NRCan references are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection North American NEMA 1-15P male plug; SVT 18AWG × 2C; 1500±20 mm. DC lead UL2464 18AWG × 4C; 300±20 mm. Standard DC connector Locking power DIN 4 pins; KYCON KPPX-4P or equivalent. DC polarity / pin assignment Pins 1 and 4: +V; pins 2 and 3: −V. Catalogue packing reference per unit 1150 g (1.15 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional connections The series catalogue refers to separately purchased DC plug adapters. Specify a compatible connection to the standard locking DIN four-pin output, the required polarity, and a complete cable/connector assembly rated for the intended voltage and current. Confirm the adapter part number and compatibility when ordering; the standard output connector remains as stated above. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

  MEAN WELL OWA-120U series: Moistureproof LED Power Supply - OWA-120U-12

  MEAN WELL OWA-120U-12 supplies 12 V DC at 10 A, with a rated output of 120 W. This Class II, fanless LED power supply uses a North American AC plug and a locking DIN four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120U Datasheet (PDF) The OWA-120U section is on PDF pages 22, 23, 24, 25, 26. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120U-12 Series / regional version OWA-120U; North American plug version. Output code 12 identifies the nominal 12 V DC output. Intended applications Indoor LED lighting, decorative or office lighting and general electronic devices requiring a moistureproof power body. Output performance Rated output voltage 12 V DC Rated output current 10 A Rated output power 120 W Ripple and noise 150 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±4.0% Line / load regulation ±0.5% / ±2.0% Constant-current region 7.2–12 V; this is an output-voltage region, not an adjustable current setting. Set-up / rise time 500 / 80 ms at 95% load, 230 / 115 VAC. Hold-up time 16 ms typical at full load, 230 / 115 VAC. Typical efficiency 87% at 115 VAC; 87.5% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 90–264 VAC / 127–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. Typical AC current 1.3 A at 115 VAC; 0.65 A at 230 VAC. Typical inrush current Cold start: 30 A at 115 VAC; 60 A at 230 VAC. Pulse width 520 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. Total harmonic distortion THD <20% at output loading ≥60%, 115 / 230 VAC. 16 A circuit-breaker limit At 230 VAC: up to 4 supplies on type B, or 6 supplies on type C. LED operating modes The output characteristic distinguishes constant-voltage operation with an LED driver, constant-current operation for direct drive, and a hiccup region below the specified 7.2 V minimum of the constant-current region. The maximum operating voltage in constant-current mode depends on the end-system configuration. Confirm LED compatibility with the manufacturer before direct-drive operation. The power-factor graph is for constant-current operation. The efficiency-versus-load illustration uses the 48 V model; use this model's specified typical efficiency for selection. Protection Over-current protection 95–108%; constant-current limiting, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 15–17 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the 12 / 15 V curve permits 100% load through 40°C, falling to 40% at 70°C. The −40 to −25°C region is marked for 230 VAC input only. Input-voltage derating At 60 Hz: 90 VAC corresponds to 80% load; 100–264 VAC permits 100%. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. The enclosure material is described as 94V-0 flame retardant. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety UL8750 listed; CSA C22.2 No. 250.13-12. The UL-listed supply is suitable for dry and damp locations. EMC emissions Compliance with FCC Part 15. Energy-efficiency references Level VI; EISA 2007 / DoE and Canada NRCan references are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection North American NEMA 1-15P male plug; SVT 18AWG × 2C; 1500±20 mm. DC lead UL2464 18AWG × 4C; 300±20 mm. Standard DC connector Locking power DIN 4 pins; KYCON KPPX-4P or equivalent. DC polarity / pin assignment Pins 1 and 4: +V; pins 2 and 3: −V. Catalogue packing reference per unit 1150 g (1.15 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional connections The series catalogue refers to separately purchased DC plug adapters. Specify a compatible connection to the standard locking DIN four-pin output, the required polarity, and a complete cable/connector assembly rated for the intended voltage and current. Confirm the adapter part number and compatibility when ordering; the standard output connector remains as stated above. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

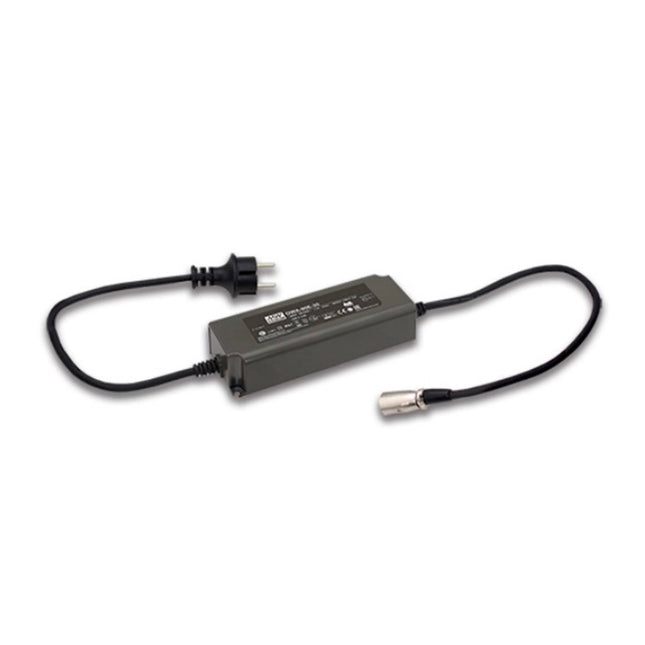

  MEAN WELL OWA-90E series: Moistureproof AC/DC Power Adapter - OWA-90E-54

  MEAN WELL OWA-90E-54 is an OWA-90E series moistureproof AC/DC power adapter with a 54 V DC output rated at 1.67 A and 90.18 W. It provides a regulated DC output with hiccup overload protection. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply. Product Datasheet Download MEAN WELL OWA-90E Datasheet (PDF) The OWA-90E section is on PDF pages 17, 18, 19, 20, 21. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete model OWA-90E-54 Nominal DC output 54 V Rated output current 1.67 A Catalogue-rated output power 90.18 W Ripple and noise, maximum 350 mVp-p; see measurement conditions. Voltage tolerance ±1.0%, including set-up, line and load regulation. Line regulation ±0.5%. Load regulation ±0.5%. Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load. Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC. Input and Efficiency Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Efficiency, typical 91% at 230 VAC. AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC. Cold-start inrush, typical 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. No-load consumption <0.15 W. Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load. Protection Overload 105–115%; hiccup mode, automatic recovery after fault removal. Short circuit Hiccup mode; automatic recovery after fault removal. Overvoltage 59–66 V; output shuts down. Re-power on to recover. Overtemperature Output shuts down. Re-power on to recover. Operating Conditions and Derating Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve. Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only. Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC. Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Safety, EMC and Insulation Catalogue safety listings EN 61558-1 and EN 61558-2-16; EAC TP TC 004. The EN 60335-1 listing excludes this voltage version. EMC emissions EN 55032 (CISPR 32) Class B; EN 55014-1; EN 61000-3-2; EN 61000-3-3; EAC TP TC 020. EMC immunity EN 61000-4-2, -3, -4, -5, -6, -8 and -11; EN 55035; EN 55014-2, light-industry level; 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI; EU ErP is listed. EU CoC version 5 is also listed. Insulation / grounding Class II design, without FG; input wiring has two conductors. Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded. Dielectric withstand Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application. Dimensions, Cables and Connections Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm. Enclosure construction Silicone-potted plastic case. Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges. AC input plug CEE 7/7, with the two-conductor input cable specified below. AC input cable H05RN-F 1.0 mm² × 2C, 1500 ±20 mm. Standard DC output connector XLR 4-pin, NEUTRIK NC4MX or equivalent: pins 1 and 2 are +V; pins 3 and 4 are −V. Standard output cable H05RN-F 1.0 mm² × 2C, 300 ±20 mm. Reference mass per unit 920 g, from the explicit single-unit PACKING value on catalogue page 18; not a measured net or shipping weight. Connector Options and Ordering Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floated; pin 3: −V. NEUTRIK NC3MX or equivalent XLR 3-pin: pin 1 is +V; pins 2 and 3 are −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel option 2.1 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V. These are alternative output-connector configurations listed for this series, rather than a set of extra connectors included with the standard unit. Specify the required connector and obtain the applicable ordering details from MEAN WELL. Measurement and Reliability Notes Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient. Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel. Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time. MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C. Catalogue warranty statement 5 years, as stated in the series catalogue. Catalogue reference OWA-90E, revision 2024-10-16, physical pages 17–21 of the linked combined PDF.

  Read more less

  $102.51

  View options

•

  View options

  MEAN WELL OWA-90E series: Moistureproof AC/DC Power Adapter - OWA-90E-48

  MEAN WELL OWA-90E-48 is an OWA-90E series moistureproof AC/DC power adapter with a 48 V DC output rated at 1.88 A and 90.24 W. It provides a regulated DC output with hiccup overload protection. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply. Product Datasheet Download MEAN WELL OWA-90E Datasheet (PDF) The OWA-90E section is on PDF pages 17, 18, 19, 20, 21. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete model OWA-90E-48 Nominal DC output 48 V Rated output current 1.88 A Catalogue-rated output power 90.24 W Ripple and noise, maximum 250 mVp-p; see measurement conditions. Voltage tolerance ±1.0%, including set-up, line and load regulation. Line regulation ±0.5%. Load regulation ±0.5%. Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load. Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC. Input and Efficiency Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Efficiency, typical 91% at 230 VAC. AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC. Cold-start inrush, typical 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. No-load consumption <0.15 W. Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load. Protection Overload 105–115%; hiccup mode, automatic recovery after fault removal. Short circuit Hiccup mode; automatic recovery after fault removal. Overvoltage 54–60 V; output shuts down. Re-power on to recover. Overtemperature Output shuts down. Re-power on to recover. Operating Conditions and Derating Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve. Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only. Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC. Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Safety, EMC and Insulation Catalogue safety listings EN 61558-1 and EN 61558-2-16; EAC TP TC 004. The EN 60335-1 listing excludes this voltage version. EMC emissions EN 55032 (CISPR 32) Class B; EN 55014-1; EN 61000-3-2; EN 61000-3-3; EAC TP TC 020. EMC immunity EN 61000-4-2, -3, -4, -5, -6, -8 and -11; EN 55035; EN 55014-2, light-industry level; 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI; EU ErP is listed. EU CoC version 5 is also listed. Insulation / grounding Class II design, without FG; input wiring has two conductors. Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded. Dielectric withstand Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application. Dimensions, Cables and Connections Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm. Enclosure construction Silicone-potted plastic case. Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges. AC input plug CEE 7/7, with the two-conductor input cable specified below. AC input cable H05RN-F 1.0 mm² × 2C, 1500 ±20 mm. Standard DC output connector XLR 4-pin, NEUTRIK NC4MX or equivalent: pins 1 and 2 are +V; pins 3 and 4 are −V. Standard output cable H05RN-F 1.0 mm² × 2C, 300 ±20 mm. Reference mass per unit 920 g, from the explicit single-unit PACKING value on catalogue page 18; not a measured net or shipping weight. Connector Options and Ordering Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floated; pin 3: −V. NEUTRIK NC3MX or equivalent XLR 3-pin: pin 1 is +V; pins 2 and 3 are −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel option 2.1 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V. These are alternative output-connector configurations listed for this series, rather than a set of extra connectors included with the standard unit. Specify the required connector and obtain the applicable ordering details from MEAN WELL. Measurement and Reliability Notes Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient. Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel. Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time. MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C. Catalogue warranty statement 5 years, as stated in the series catalogue. Catalogue reference OWA-90E, revision 2024-10-16, physical pages 17–21 of the linked combined PDF.

  Read more less

  $102.51

  View options

•

  View options

  MEAN WELL OWA-90E series: Moistureproof AC/DC Power Adapter - OWA-90E-42

  MEAN WELL OWA-90E-42 is an OWA-90E series moistureproof AC/DC power adapter with a 42 V DC output rated at 2.15 A and 90.3 W. It provides a regulated DC output with hiccup overload protection. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply. Product Datasheet Download MEAN WELL OWA-90E Datasheet (PDF) The OWA-90E section is on PDF pages 17, 18, 19, 20, 21. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete model OWA-90E-42 Nominal DC output 42 V Rated output current 2.15 A Catalogue-rated output power 90.3 W Ripple and noise, maximum 250 mVp-p; see measurement conditions. Voltage tolerance ±1.0%, including set-up, line and load regulation. Line regulation ±0.5%. Load regulation ±0.5%. Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load. Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC. Input and Efficiency Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Efficiency, typical 91% at 230 VAC. AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC. Cold-start inrush, typical 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. No-load consumption <0.15 W. Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load. Protection Overload 105–115%; hiccup mode, automatic recovery after fault removal. Short circuit Hiccup mode; automatic recovery after fault removal. Overvoltage 46–54 V; output shuts down. Re-power on to recover. Overtemperature Output shuts down. Re-power on to recover. Operating Conditions and Derating Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve. Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only. Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC. Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Safety, EMC and Insulation Catalogue safety listings EN 61558-1 and EN 61558-2-16; EAC TP TC 004. The EN 60335-1 listing excludes this voltage version. EMC emissions EN 55032 (CISPR 32) Class B; EN 55014-1; EN 61000-3-2; EN 61000-3-3; EAC TP TC 020. EMC immunity EN 61000-4-2, -3, -4, -5, -6, -8 and -11; EN 55035; EN 55014-2, light-industry level; 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI; EU ErP is listed. EU CoC version 5 is also listed. Insulation / grounding Class II design, without FG; input wiring has two conductors. Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded. Dielectric withstand Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application. Dimensions, Cables and Connections Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm. Enclosure construction Silicone-potted plastic case. Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges. AC input plug CEE 7/7, with the two-conductor input cable specified below. AC input cable H05RN-F 1.0 mm² × 2C, 1500 ±20 mm. Standard DC output connector XLR 4-pin, NEUTRIK NC4MX or equivalent: pins 1 and 2 are +V; pins 3 and 4 are −V. Standard output cable H05RN-F 1.0 mm² × 2C, 300 ±20 mm. Reference mass per unit 920 g, from the explicit single-unit PACKING value on catalogue page 18; not a measured net or shipping weight. Connector Options and Ordering Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floated; pin 3: −V. NEUTRIK NC3MX or equivalent XLR 3-pin: pin 1 is +V; pins 2 and 3 are −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel option 2.1 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V. These are alternative output-connector configurations listed for this series, rather than a set of extra connectors included with the standard unit. Specify the required connector and obtain the applicable ordering details from MEAN WELL. Measurement and Reliability Notes Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient. Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel. Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time. MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C. Catalogue warranty statement 5 years, as stated in the series catalogue. Catalogue reference OWA-90E, revision 2024-10-16, physical pages 17–21 of the linked combined PDF.

  Read more less

  $102.51

  View options

•

  View options

  MEAN WELL OWA-90E series: Moistureproof AC/DC Power Adapter - OWA-90E-36

  MEAN WELL OWA-90E-36 is an OWA-90E series moistureproof AC/DC power adapter with a 36 V DC output rated at 2.5 A and 90 W. It provides a regulated DC output with hiccup overload protection. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply. Product Datasheet Download MEAN WELL OWA-90E Datasheet (PDF) The OWA-90E section is on PDF pages 17, 18, 19, 20, 21. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete model OWA-90E-36 Nominal DC output 36 V Rated output current 2.5 A Catalogue-rated output power 90 W Ripple and noise, maximum 200 mVp-p; see measurement conditions. Voltage tolerance ±2.0%, including set-up, line and load regulation. Line regulation ±0.5%. Load regulation ±0.5%. Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load. Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC. Input and Efficiency Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Efficiency, typical 91% at 230 VAC. AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC. Cold-start inrush, typical 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. No-load consumption <0.15 W. Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load. Protection Overload 105–115%; hiccup mode, automatic recovery after fault removal. Short circuit Hiccup mode; automatic recovery after fault removal. Overvoltage 41–46 V; output shuts down. Re-power on to recover. Overtemperature Output shuts down. Re-power on to recover. Operating Conditions and Derating Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve. Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only. Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC. Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Safety, EMC and Insulation Catalogue safety listings EN 61558-1 and EN 61558-2-16; EAC TP TC 004. EN 60335-1 is also listed for this voltage version. EMC emissions EN 55032 (CISPR 32) Class B; EN 55014-1; EN 61000-3-2; EN 61000-3-3; EAC TP TC 020. EMC immunity EN 61000-4-2, -3, -4, -5, -6, -8 and -11; EN 55035; EN 55014-2, light-industry level; 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI; EU ErP is listed. EU CoC version 5 is also listed. Insulation / grounding Class II design, without FG; input wiring has two conductors. Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded. Dielectric withstand Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application. Dimensions, Cables and Connections Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm. Enclosure construction Silicone-potted plastic case. Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges. AC input plug CEE 7/7, with the two-conductor input cable specified below. AC input cable H05RN-F 1.0 mm² × 2C, 1500 ±20 mm. Standard DC output connector XLR 4-pin, NEUTRIK NC4MX or equivalent: pins 1 and 2 are +V; pins 3 and 4 are −V. Standard output cable H05RN-F 1.0 mm² × 2C, 300 ±20 mm. Reference mass per unit 920 g, from the explicit single-unit PACKING value on catalogue page 18; not a measured net or shipping weight. Connector Options and Ordering Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floated; pin 3: −V. NEUTRIK NC3MX or equivalent XLR 3-pin: pin 1 is +V; pins 2 and 3 are −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel option 2.1 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V. These are alternative output-connector configurations listed for this series, rather than a set of extra connectors included with the standard unit. Specify the required connector and obtain the applicable ordering details from MEAN WELL. Measurement and Reliability Notes Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient. Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel. Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time. MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C. Catalogue warranty statement 5 years, as stated in the series catalogue. Catalogue reference OWA-90E, revision 2024-10-16, physical pages 17–21 of the linked combined PDF.

  Read more less

  $102.51

  View options

•

  View options

  MEAN WELL OWA-90E series: Moistureproof AC/DC Power Adapter - OWA-90E-30

  MEAN WELL OWA-90E-30 is an OWA-90E series moistureproof AC/DC power adapter with a 30 V DC output rated at 3 A and 90 W. It provides a regulated DC output with hiccup overload protection. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply. Product Datasheet Download MEAN WELL OWA-90E Datasheet (PDF) The OWA-90E section is on PDF pages 17, 18, 19, 20, 21. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete model OWA-90E-30 Nominal DC output 30 V Rated output current 3 A Catalogue-rated output power 90 W Ripple and noise, maximum 200 mVp-p; see measurement conditions. Voltage tolerance ±3.0%, including set-up, line and load regulation. Line regulation ±0.5%. Load regulation ±0.5%. Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load. Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC. Input and Efficiency Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Efficiency, typical 90% at 230 VAC. AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC. Cold-start inrush, typical 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. No-load consumption <0.15 W. Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load. Protection Overload 105–115%; hiccup mode, automatic recovery after fault removal. Short circuit Hiccup mode; automatic recovery after fault removal. Overvoltage 34–40 V; output shuts down. Re-power on to recover. Overtemperature Output shuts down. Re-power on to recover. Operating Conditions and Derating Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve. Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only. Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC. Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Safety, EMC and Insulation Catalogue safety listings EN 61558-1 and EN 61558-2-16; EAC TP TC 004. EN 60335-1 is also listed for this voltage version. EMC emissions EN 55032 (CISPR 32) Class B; EN 55014-1; EN 61000-3-2; EN 61000-3-3; EAC TP TC 020. EMC immunity EN 61000-4-2, -3, -4, -5, -6, -8 and -11; EN 55035; EN 55014-2, light-industry level; 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI; EU ErP is listed. EU CoC version 5 is also listed. Insulation / grounding Class II design, without FG; input wiring has two conductors. Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded. Dielectric withstand Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application. Dimensions, Cables and Connections Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm. Enclosure construction Silicone-potted plastic case. Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges. AC input plug CEE 7/7, with the two-conductor input cable specified below. AC input cable H05RN-F 1.0 mm² × 2C, 1500 ±20 mm. Standard DC output connector XLR 4-pin, NEUTRIK NC4MX or equivalent: pins 1 and 2 are +V; pins 3 and 4 are −V. Standard output cable H05RN-F 1.0 mm² × 2C, 300 ±20 mm. Reference mass per unit 920 g, from the explicit single-unit PACKING value on catalogue page 18; not a measured net or shipping weight. Connector Options and Ordering Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floated; pin 3: −V. NEUTRIK NC3MX or equivalent XLR 3-pin: pin 1 is +V; pins 2 and 3 are −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel option 2.1 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V. These are alternative output-connector configurations listed for this series, rather than a set of extra connectors included with the standard unit. Specify the required connector and obtain the applicable ordering details from MEAN WELL. Measurement and Reliability Notes Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient. Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel. Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time. MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C. Catalogue warranty statement 5 years, as stated in the series catalogue. Catalogue reference OWA-90E, revision 2024-10-16, physical pages 17–21 of the linked combined PDF.

  Read more less

  $102.51

  View options

•

  View options

  MEAN WELL OWA-90E series: Moistureproof AC/DC Power Adapter - OWA-90E-24

  MEAN WELL OWA-90E-24 is an OWA-90E series moistureproof AC/DC power adapter with a 24 V DC output rated at 3.75 A and 90 W. It provides a regulated DC output with hiccup overload protection. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply. Product Datasheet Download MEAN WELL OWA-90E Datasheet (PDF) The OWA-90E section is on PDF pages 17, 18, 19, 20, 21. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete model OWA-90E-24 Nominal DC output 24 V Rated output current 3.75 A Catalogue-rated output power 90 W Ripple and noise, maximum 150 mVp-p; see measurement conditions. Voltage tolerance ±3.0%, including set-up, line and load regulation. Line regulation ±0.5%. Load regulation ±0.5%. Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load. Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC. Input and Efficiency Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Efficiency, typical 90% at 230 VAC. AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC. Cold-start inrush, typical 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. No-load consumption <0.15 W. Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load. Protection Overload 105–115%; hiccup mode, automatic recovery after fault removal. Short circuit Hiccup mode; automatic recovery after fault removal. Overvoltage 28–34 V; output shuts down. Re-power on to recover. Overtemperature Output shuts down. Re-power on to recover. Operating Conditions and Derating Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve. Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only. Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC. Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Safety, EMC and Insulation Catalogue safety listings EN 61558-1 and EN 61558-2-16; EAC TP TC 004. EN 60335-1 is also listed for this voltage version. EMC emissions EN 55032 (CISPR 32) Class B; EN 55014-1; EN 61000-3-2; EN 61000-3-3; EAC TP TC 020. EMC immunity EN 61000-4-2, -3, -4, -5, -6, -8 and -11; EN 55035; EN 55014-2, light-industry level; 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI; EU ErP is listed. EU CoC version 5 is also listed. Insulation / grounding Class II design, without FG; input wiring has two conductors. Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded. Dielectric withstand Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application. Dimensions, Cables and Connections Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm. Enclosure construction Silicone-potted plastic case. Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges. AC input plug CEE 7/7, with the two-conductor input cable specified below. AC input cable H05RN-F 1.0 mm² × 2C, 1500 ±20 mm. Standard DC output connector XLR 4-pin, NEUTRIK NC4MX or equivalent: pins 1 and 2 are +V; pins 3 and 4 are −V. Standard output cable H05RN-F 1.0 mm² × 2C, 300 ±20 mm. Reference mass per unit 920 g, from the explicit single-unit PACKING value on catalogue page 18; not a measured net or shipping weight. Connector Options and Ordering Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floated; pin 3: −V. NEUTRIK NC3MX or equivalent XLR 3-pin: pin 1 is +V; pins 2 and 3 are −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel option 2.1 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V. These are alternative output-connector configurations listed for this series, rather than a set of extra connectors included with the standard unit. Specify the required connector and obtain the applicable ordering details from MEAN WELL. Measurement and Reliability Notes Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient. Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel. Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time. MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C. Catalogue warranty statement 5 years, as stated in the series catalogue. Catalogue reference OWA-90E, revision 2024-10-16, physical pages 17–21 of the linked combined PDF.

  Read more less

  $102.51

  View options

•

  View options

  MEAN WELL OWA-90E series: Moistureproof AC/DC Power Adapter - OWA-90E-20

  MEAN WELL OWA-90E-20 is an OWA-90E series moistureproof AC/DC power adapter with a 20 V DC output rated at 4.5 A and 90 W. It provides a regulated DC output with hiccup overload protection. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply. Product Datasheet Download MEAN WELL OWA-90E Datasheet (PDF) The OWA-90E section is on PDF pages 17, 18, 19, 20, 21. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete model OWA-90E-20 Nominal DC output 20 V Rated output current 4.5 A Catalogue-rated output power 90 W Ripple and noise, maximum 150 mVp-p; see measurement conditions. Voltage tolerance ±4.0%, including set-up, line and load regulation. Line regulation ±0.5%. Load regulation ±0.5%. Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load. Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC. Input and Efficiency Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Efficiency, typical 90% at 230 VAC. AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC. Cold-start inrush, typical 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. No-load consumption <0.15 W. Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load. Protection Overload 105–115%; hiccup mode, automatic recovery after fault removal. Short circuit Hiccup mode; automatic recovery after fault removal. Overvoltage 23–27 V; output shuts down. Re-power on to recover. Overtemperature Output shuts down. Re-power on to recover. Operating Conditions and Derating Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve. Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only. Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC. Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Safety, EMC and Insulation Catalogue safety listings EN 61558-1 and EN 61558-2-16; EAC TP TC 004. EN 60335-1 is also listed for this voltage version. EMC emissions EN 55032 (CISPR 32) Class B; EN 55014-1; EN 61000-3-2; EN 61000-3-3; EAC TP TC 020. EMC immunity EN 61000-4-2, -3, -4, -5, -6, -8 and -11; EN 55035; EN 55014-2, light-industry level; 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI; EU ErP is listed. EU CoC version 5 is also listed. Insulation / grounding Class II design, without FG; input wiring has two conductors. Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded. Dielectric withstand Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application. Dimensions, Cables and Connections Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm. Enclosure construction Silicone-potted plastic case. Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges. AC input plug CEE 7/7, with the two-conductor input cable specified below. AC input cable H05RN-F 1.0 mm² × 2C, 1500 ±20 mm. Standard DC output connector XLR 4-pin, NEUTRIK NC4MX or equivalent: pins 1 and 2 are +V; pins 3 and 4 are −V. Standard output cable H05RN-F 1.0 mm² × 2C, 300 ±20 mm. Reference mass per unit 920 g, from the explicit single-unit PACKING value on catalogue page 18; not a measured net or shipping weight. Connector Options and Ordering Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floated; pin 3: −V. NEUTRIK NC3MX or equivalent XLR 3-pin: pin 1 is +V; pins 2 and 3 are −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel option 2.1 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V. These are alternative output-connector configurations listed for this series, rather than a set of extra connectors included with the standard unit. Specify the required connector and obtain the applicable ordering details from MEAN WELL. Measurement and Reliability Notes Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient. Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel. Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time. MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C. Catalogue warranty statement 5 years, as stated in the series catalogue. Catalogue reference OWA-90E, revision 2024-10-16, physical pages 17–21 of the linked combined PDF.

  Read more less

  $102.51

  View options

•

  View options

  MEAN WELL OWA-90E series: Moistureproof AC/DC Power Adapter - OWA-90E-15

  MEAN WELL OWA-90E-15 is an OWA-90E series moistureproof AC/DC power adapter with a 15 V DC output rated at 6 A and 90 W. It provides a regulated DC output with hiccup overload protection. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply. Product Datasheet Download MEAN WELL OWA-90E Datasheet (PDF) The OWA-90E section is on PDF pages 17, 18, 19, 20, 21. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete model OWA-90E-15 Nominal DC output 15 V Rated output current 6 A Catalogue-rated output power 90 W Ripple and noise, maximum 150 mVp-p; see measurement conditions. Voltage tolerance ±4.0%, including set-up, line and load regulation. Line regulation ±0.5%. Load regulation ±1.0%. Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load. Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC. Input and Efficiency Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Efficiency, typical 90% at 230 VAC. AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC. Cold-start inrush, typical 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. No-load consumption <0.15 W. Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load. Protection Overload 105–115%; hiccup mode, automatic recovery after fault removal. Short circuit Hiccup mode; automatic recovery after fault removal. Overvoltage 17.5–21 V; output shuts down. Re-power on to recover. Overtemperature Output shuts down. Re-power on to recover. Operating Conditions and Derating Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve. Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only. Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC. Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Safety, EMC and Insulation Catalogue safety listings EN 61558-1 and EN 61558-2-16; EAC TP TC 004. EN 60335-1 is also listed for this voltage version. EMC emissions EN 55032 (CISPR 32) Class B; EN 55014-1; EN 61000-3-2; EN 61000-3-3; EAC TP TC 020. EMC immunity EN 61000-4-2, -3, -4, -5, -6, -8 and -11; EN 55035; EN 55014-2, light-industry level; 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI; EU ErP is listed. EU CoC version 5 is also listed. Insulation / grounding Class II design, without FG; input wiring has two conductors. Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded. Dielectric withstand Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application. Dimensions, Cables and Connections Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm. Enclosure construction Silicone-potted plastic case. Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges. AC input plug CEE 7/7, with the two-conductor input cable specified below. AC input cable H05RN-F 1.0 mm² × 2C, 1500 ±20 mm. Standard DC output connector XLR 4-pin, NEUTRIK NC4MX or equivalent: pins 1 and 2 are +V; pins 3 and 4 are −V. Standard output cable H05RN-F 1.0 mm² × 2C, 300 ±20 mm. Reference mass per unit 920 g, from the explicit single-unit PACKING value on catalogue page 18; not a measured net or shipping weight. Connector Options and Ordering Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floated; pin 3: −V. NEUTRIK NC3MX or equivalent XLR 3-pin: pin 1 is +V; pins 2 and 3 are −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel option 2.1 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V. These are alternative output-connector configurations listed for this series, rather than a set of extra connectors included with the standard unit. Specify the required connector and obtain the applicable ordering details from MEAN WELL. Measurement and Reliability Notes Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient. Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel. Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time. MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C. Catalogue warranty statement 5 years, as stated in the series catalogue. Catalogue reference OWA-90E, revision 2024-10-16, physical pages 17–21 of the linked combined PDF.

  Read more less

  $102.51

  View options

•

  View options

  MEAN WELL OWA-90E series: Moistureproof AC/DC Power Adapter - OWA-90E-12

  MEAN WELL OWA-90E-12 is an OWA-90E series moistureproof AC/DC power adapter with a 12 V DC output rated at 7.5 A and 90 W. It provides a regulated DC output with hiccup overload protection. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply. Product Datasheet Download MEAN WELL OWA-90E Datasheet (PDF) The OWA-90E section is on PDF pages 17, 18, 19, 20, 21. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete model OWA-90E-12 Nominal DC output 12 V Rated output current 7.5 A Catalogue-rated output power 90 W Ripple and noise, maximum 150 mVp-p; see measurement conditions. Voltage tolerance ±4.0%, including set-up, line and load regulation. Line regulation ±0.5%. Load regulation ±1.5%. Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load. Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC. Input and Efficiency Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Efficiency, typical 89% at 230 VAC. AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC. Cold-start inrush, typical 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. No-load consumption <0.15 W. Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load. Protection Overload 105–115%; hiccup mode, automatic recovery after fault removal. Short circuit Hiccup mode; automatic recovery after fault removal. Overvoltage 15–17 V; output shuts down. Re-power on to recover. Overtemperature Output shuts down. Re-power on to recover. Operating Conditions and Derating Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve. Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only. Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC. Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. Safety, EMC and Insulation Catalogue safety listings EN 61558-1 and EN 61558-2-16; EAC TP TC 004. EN 60335-1 is also listed for this voltage version. EMC emissions EN 55032 (CISPR 32) Class B; EN 55014-1; EN 61000-3-2; EN 61000-3-3; EAC TP TC 020. EMC immunity EN 61000-4-2, -3, -4, -5, -6, -8 and -11; EN 55035; EN 55014-2, light-industry level; 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI; EU ErP is listed. The CoC version 5 claim excludes this 12 V version. Insulation / grounding Class II design, without FG; input wiring has two conductors. Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded. Dielectric withstand Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application. Dimensions, Cables and Connections Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm. Enclosure construction Silicone-potted plastic case. Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges. AC input plug CEE 7/7, with the two-conductor input cable specified below. AC input cable H05RN-F 1.0 mm² × 2C, 1500 ±20 mm. Standard DC output connector XLR 4-pin, NEUTRIK NC4MX or equivalent: pins 1 and 2 are +V; pins 3 and 4 are −V. Standard output cable H05RN-F 1.0 mm² × 2C, 300 ±20 mm. Reference mass per unit 920 g, from the explicit single-unit PACKING value on catalogue page 18; not a measured net or shipping weight. Connector Options and Ordering Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floated; pin 3: −V. NEUTRIK NC3MX or equivalent XLR 3-pin: pin 1 is +V; pins 2 and 3 are −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel option 2.1 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V. These are alternative output-connector configurations listed for this series, rather than a set of extra connectors included with the standard unit. Specify the required connector and obtain the applicable ordering details from MEAN WELL. Measurement and Reliability Notes Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient. Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel. Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time. MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C. Catalogue warranty statement 5 years, as stated in the series catalogue. Catalogue reference OWA-90E, revision 2024-10-16, physical pages 17–21 of the linked combined PDF.

  Read more less

  $102.51

  View options

•

  View options

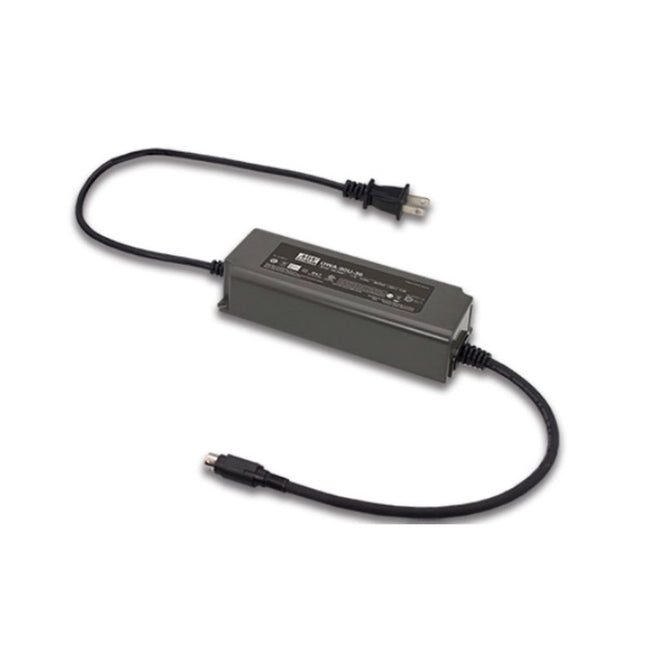

  MEAN WELL OWA-90U series: Moistureproof LED Power Adapter - OWA-90U-54

  MEAN WELL OWA-90U-54 is an OWA-90U series moistureproof LED power adapter with a 54 V DC output rated at 1.67 A and 90.18 W. It provides constant-voltage and constant-current operating regions for compatible LED systems. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply. Product Datasheet Download MEAN WELL OWA-90U Datasheet (PDF) The OWA-90U section is on PDF pages 11, 12, 13, 14, 15, 16. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete model OWA-90U-54 Nominal DC output 54 V Rated output current 1.67 A Catalogue-rated output power 90.18 W Ripple and noise, maximum 350 mVp-p; see measurement conditions. Voltage tolerance ±1.0%, including set-up, line and load regulation. Line regulation ±0.5%. Load regulation ±0.5%. Constant-current region 32.4–54 V, as specified for this complete model. Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load. Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC. For an LED module with its own DC/DC driver, the adapter normally operates in the constant-voltage region. Direct LED loading can use the specified 32.4–54 V constant-current region. Match the load and forward-voltage range to the complete system; operation below the constant-current region may enter hiccup protection. The efficiency-versus-load curves in this family section use the 48 V model as their example. They are not an efficiency guarantee for every output voltage or load. Input and Efficiency Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Efficiency, typical 89.5% at 115 VAC; 91% at 230 VAC. AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. No-load consumption <0.15 W. Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load. Total harmonic distortion <20% at output loads of at least 60%, at 115 or 230 VAC. 16 A circuit breaker at 230 VAC Maximum 3 units on a type B breaker or 6 units on a type C breaker, as listed in this series catalogue. Protection Overcurrent 95–108%; constant-current limiting, automatic recovery after fault removal. Short circuit Hiccup mode; automatic recovery after fault removal. Overvoltage 59–66 V; output shuts down. Re-power on to recover. Overtemperature Output shuts down. Re-power on to recover. Operating Conditions and Derating Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve. Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only. Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC. Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. High-altitude ambient derating For fanless operation above 2000 m, reduce the allowable ambient temperature by 3.5°C per additional 1000 m, as stated in the catalogue note. Safety, EMC and Insulation Catalogue safety listings UL 8750 listed for dry and damp locations. The CSA C22.2 No. 250.13-12 listing excludes this voltage version. Class 2 power unit Listed as a Class 2 power unit in the applicable catalogue. EMC emissions FCC Part 15, as listed in this catalogue. Energy-efficiency references Level VI; EISA 2007 / US Department of Energy and NRCan requirements are listed in the catalogue. Insulation / grounding Class II design, without FG; input wiring has two conductors. Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded. Dielectric withstand Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application. Dimensions, Cables and Connections Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm. Enclosure construction Silicone-potted plastic case; 94V-0 flame-retardant material is specified. Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges. AC input plug NEMA 1-15P male. AC input cable SVT 18 AWG × 2C, 1500 ±20 mm. Standard DC output connector Locking power DIN 4-pin, KYCON KPPX-4P or equivalent: pins 1 and 4 are +V; pins 2 and 3 are −V. Standard output cable UL2464 18 AWG × 4C, 300 ±20 mm. Reference mass per unit 830 g, from the explicit single-unit PACKING value on catalogue page 12; not a measured net or shipping weight. Connector Options and Ordering Complete alternative model OWA-90U-54-P1M P1M output connector Tuning-fork barrel, 2.5 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V. P1M output cable UL2464 16 AWG × 2C, 300 ±20 mm. The -P1M version is an alternative complete model for the catalogue-defined 20–54 V range. This product has the standard locking DIN 4-pin connector; the -P1M connector is not an extra connector supplied with it. Measurement and Reliability Notes Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient. Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel. Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time. MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C. Catalogue warranty statement 5 years, as stated in the series catalogue. Catalogue reference OWA-90U, revision 2024-10-16, physical pages 11–16 of the linked combined PDF.

  Read more less

  $102.51

  View options

•

  View options

  MEAN WELL OWA-90U series: Moistureproof LED Power Adapter - OWA-90U-48

  MEAN WELL OWA-90U-48 is an OWA-90U series moistureproof LED power adapter with a 48 V DC output rated at 1.88 A and 90.24 W. It provides constant-voltage and constant-current operating regions for compatible LED systems. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply. Product Datasheet Download MEAN WELL OWA-90U Datasheet (PDF) The OWA-90U section is on PDF pages 11, 12, 13, 14, 15, 16. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete model OWA-90U-48 Nominal DC output 48 V Rated output current 1.88 A Catalogue-rated output power 90.24 W Ripple and noise, maximum 250 mVp-p; see measurement conditions. Voltage tolerance ±1.0%, including set-up, line and load regulation. Line regulation ±0.5%. Load regulation ±0.5%. Constant-current region 28.8–48 V, as specified for this complete model. Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load. Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC. For an LED module with its own DC/DC driver, the adapter normally operates in the constant-voltage region. Direct LED loading can use the specified 28.8–48 V constant-current region. Match the load and forward-voltage range to the complete system; operation below the constant-current region may enter hiccup protection. The efficiency-versus-load curves in this family section use the 48 V model as their example. They are not an efficiency guarantee for every output voltage or load. Input and Efficiency Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Efficiency, typical 89.5% at 115 VAC; 91% at 230 VAC. AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. No-load consumption <0.15 W. Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load. Total harmonic distortion <20% at output loads of at least 60%, at 115 or 230 VAC. 16 A circuit breaker at 230 VAC Maximum 3 units on a type B breaker or 6 units on a type C breaker, as listed in this series catalogue. Protection Overcurrent 95–108%; constant-current limiting, automatic recovery after fault removal. Short circuit Hiccup mode; automatic recovery after fault removal. Overvoltage 54–60 V; output shuts down. Re-power on to recover. Overtemperature Output shuts down. Re-power on to recover. Operating Conditions and Derating Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve. Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only. Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC. Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. High-altitude ambient derating For fanless operation above 2000 m, reduce the allowable ambient temperature by 3.5°C per additional 1000 m, as stated in the catalogue note. Safety, EMC and Insulation Catalogue safety listings UL 8750 listed for dry and damp locations. The CSA C22.2 No. 250.13-12 listing excludes this voltage version. Class 2 power unit Listed as a Class 2 power unit in the applicable catalogue. EMC emissions FCC Part 15, as listed in this catalogue. Energy-efficiency references Level VI; EISA 2007 / US Department of Energy and NRCan requirements are listed in the catalogue. Insulation / grounding Class II design, without FG; input wiring has two conductors. Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded. Dielectric withstand Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application. Dimensions, Cables and Connections Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm. Enclosure construction Silicone-potted plastic case; 94V-0 flame-retardant material is specified. Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges. AC input plug NEMA 1-15P male. AC input cable SVT 18 AWG × 2C, 1500 ±20 mm. Standard DC output connector Locking power DIN 4-pin, KYCON KPPX-4P or equivalent: pins 1 and 4 are +V; pins 2 and 3 are −V. Standard output cable UL2464 18 AWG × 4C, 300 ±20 mm. Reference mass per unit 830 g, from the explicit single-unit PACKING value on catalogue page 12; not a measured net or shipping weight. Connector Options and Ordering Complete alternative model OWA-90U-48-P1M P1M output connector Tuning-fork barrel, 2.5 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V. P1M output cable UL2464 16 AWG × 2C, 300 ±20 mm. The -P1M version is an alternative complete model for the catalogue-defined 20–54 V range. This product has the standard locking DIN 4-pin connector; the -P1M connector is not an extra connector supplied with it. Measurement and Reliability Notes Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient. Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel. Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time. MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C. Catalogue warranty statement 5 years, as stated in the series catalogue. Catalogue reference OWA-90U, revision 2024-10-16, physical pages 11–16 of the linked combined PDF.

  Read more less

  $102.51

  View options

•

  View options

  MEAN WELL OWA-90U series: Moistureproof LED Power Adapter - OWA-90U-42

  MEAN WELL OWA-90U-42 is an OWA-90U series moistureproof LED power adapter with a 42 V DC output rated at 2.15 A and 90.3 W. It provides constant-voltage and constant-current operating regions for compatible LED systems. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply. Product Datasheet Download MEAN WELL OWA-90U Datasheet (PDF) The OWA-90U section is on PDF pages 11, 12, 13, 14, 15, 16. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete model OWA-90U-42 Nominal DC output 42 V Rated output current 2.15 A Catalogue-rated output power 90.3 W Ripple and noise, maximum 250 mVp-p; see measurement conditions. Voltage tolerance ±1.0%, including set-up, line and load regulation. Line regulation ±0.5%. Load regulation ±0.5%. Constant-current region 25.2–42 V, as specified for this complete model. Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load. Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC. For an LED module with its own DC/DC driver, the adapter normally operates in the constant-voltage region. Direct LED loading can use the specified 25.2–42 V constant-current region. Match the load and forward-voltage range to the complete system; operation below the constant-current region may enter hiccup protection. The efficiency-versus-load curves in this family section use the 48 V model as their example. They are not an efficiency guarantee for every output voltage or load. Input and Efficiency Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Efficiency, typical 89.5% at 115 VAC; 91% at 230 VAC. AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. No-load consumption <0.15 W. Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load. Total harmonic distortion <20% at output loads of at least 60%, at 115 or 230 VAC. 16 A circuit breaker at 230 VAC Maximum 3 units on a type B breaker or 6 units on a type C breaker, as listed in this series catalogue. Protection Overcurrent 95–108%; constant-current limiting, automatic recovery after fault removal. Short circuit Hiccup mode; automatic recovery after fault removal. Overvoltage 46–54 V; output shuts down. Re-power on to recover. Overtemperature Output shuts down. Re-power on to recover. Operating Conditions and Derating Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve. Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only. Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC. Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. High-altitude ambient derating For fanless operation above 2000 m, reduce the allowable ambient temperature by 3.5°C per additional 1000 m, as stated in the catalogue note. Safety, EMC and Insulation Catalogue safety listings UL 8750 listed for dry and damp locations. The CSA C22.2 No. 250.13-12 listing excludes this voltage version. Class 2 power unit Listed as a Class 2 power unit in the applicable catalogue. EMC emissions FCC Part 15, as listed in this catalogue. Energy-efficiency references Level VI; EISA 2007 / US Department of Energy and NRCan requirements are listed in the catalogue. Insulation / grounding Class II design, without FG; input wiring has two conductors. Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded. Dielectric withstand Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application. Dimensions, Cables and Connections Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm. Enclosure construction Silicone-potted plastic case; 94V-0 flame-retardant material is specified. Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges. AC input plug NEMA 1-15P male. AC input cable SVT 18 AWG × 2C, 1500 ±20 mm. Standard DC output connector Locking power DIN 4-pin, KYCON KPPX-4P or equivalent: pins 1 and 4 are +V; pins 2 and 3 are −V. Standard output cable UL2464 18 AWG × 4C, 300 ±20 mm. Reference mass per unit 830 g, from the explicit single-unit PACKING value on catalogue page 12; not a measured net or shipping weight. Connector Options and Ordering Complete alternative model OWA-90U-42-P1M P1M output connector Tuning-fork barrel, 2.5 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V. P1M output cable UL2464 16 AWG × 2C, 300 ±20 mm. The -P1M version is an alternative complete model for the catalogue-defined 20–54 V range. This product has the standard locking DIN 4-pin connector; the -P1M connector is not an extra connector supplied with it. Measurement and Reliability Notes Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient. Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel. Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time. MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C. Catalogue warranty statement 5 years, as stated in the series catalogue. Catalogue reference OWA-90U, revision 2024-10-16, physical pages 11–16 of the linked combined PDF.

  Read more less

  $102.51

  View options

•

  View options

  MEAN WELL OWA-90U series: Moistureproof LED Power Adapter - OWA-90U-36

  MEAN WELL OWA-90U-36 is an OWA-90U series moistureproof LED power adapter with a 36 V DC output rated at 2.5 A and 90 W. It provides constant-voltage and constant-current operating regions for compatible LED systems. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply. Product Datasheet Download MEAN WELL OWA-90U Datasheet (PDF) The OWA-90U section is on PDF pages 11, 12, 13, 14, 15, 16. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete model OWA-90U-36 Nominal DC output 36 V Rated output current 2.5 A Catalogue-rated output power 90 W Ripple and noise, maximum 200 mVp-p; see measurement conditions. Voltage tolerance ±2.0%, including set-up, line and load regulation. Line regulation ±0.5%. Load regulation ±0.5%. Constant-current region 21.6–36 V, as specified for this complete model. Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load. Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC. For an LED module with its own DC/DC driver, the adapter normally operates in the constant-voltage region. Direct LED loading can use the specified 21.6–36 V constant-current region. Match the load and forward-voltage range to the complete system; operation below the constant-current region may enter hiccup protection. The efficiency-versus-load curves in this family section use the 48 V model as their example. They are not an efficiency guarantee for every output voltage or load. Input and Efficiency Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Efficiency, typical 89.5% at 115 VAC; 91% at 230 VAC. AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. No-load consumption <0.15 W. Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load. Total harmonic distortion <20% at output loads of at least 60%, at 115 or 230 VAC. 16 A circuit breaker at 230 VAC Maximum 3 units on a type B breaker or 6 units on a type C breaker, as listed in this series catalogue. Protection Overcurrent 95–108%; constant-current limiting, automatic recovery after fault removal. Short circuit Hiccup mode; automatic recovery after fault removal. Overvoltage 41–46 V; output shuts down. Re-power on to recover. Overtemperature Output shuts down. Re-power on to recover. Operating Conditions and Derating Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve. Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only. Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC. Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. High-altitude ambient derating For fanless operation above 2000 m, reduce the allowable ambient temperature by 3.5°C per additional 1000 m, as stated in the catalogue note. Safety, EMC and Insulation Catalogue safety listings UL 8750 listed for dry and damp locations. CSA C22.2 No. 250.13-12 is also listed for this voltage version. Class 2 power unit Listed as a Class 2 power unit in the applicable catalogue. EMC emissions FCC Part 15, as listed in this catalogue. Energy-efficiency references Level VI; EISA 2007 / US Department of Energy and NRCan requirements are listed in the catalogue. Insulation / grounding Class II design, without FG; input wiring has two conductors. Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded. Dielectric withstand Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application. Dimensions, Cables and Connections Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm. Enclosure construction Silicone-potted plastic case; 94V-0 flame-retardant material is specified. Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges. AC input plug NEMA 1-15P male. AC input cable SVT 18 AWG × 2C, 1500 ±20 mm. Standard DC output connector Locking power DIN 4-pin, KYCON KPPX-4P or equivalent: pins 1 and 4 are +V; pins 2 and 3 are −V. Standard output cable UL2464 18 AWG × 4C, 300 ±20 mm. Reference mass per unit 830 g, from the explicit single-unit PACKING value on catalogue page 12; not a measured net or shipping weight. Connector Options and Ordering Complete alternative model OWA-90U-36-P1M P1M output connector Tuning-fork barrel, 2.5 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V. P1M output cable UL2464 16 AWG × 2C, 300 ±20 mm. The -P1M version is an alternative complete model for the catalogue-defined 20–54 V range. This product has the standard locking DIN 4-pin connector; the -P1M connector is not an extra connector supplied with it. Measurement and Reliability Notes Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient. Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel. Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time. MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C. Catalogue warranty statement 5 years, as stated in the series catalogue. Catalogue reference OWA-90U, revision 2024-10-16, physical pages 11–16 of the linked combined PDF.

  Read more less

  $102.51

  View options

•

  View options

  MEAN WELL OWA-90U series: Moistureproof LED Power Adapter - OWA-90U-30

  MEAN WELL OWA-90U-30 is an OWA-90U series moistureproof LED power adapter with a 30 V DC output rated at 3 A and 90 W. It provides constant-voltage and constant-current operating regions for compatible LED systems. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply. Product Datasheet Download MEAN WELL OWA-90U Datasheet (PDF) The OWA-90U section is on PDF pages 11, 12, 13, 14, 15, 16. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete model OWA-90U-30 Nominal DC output 30 V Rated output current 3 A Catalogue-rated output power 90 W Ripple and noise, maximum 200 mVp-p; see measurement conditions. Voltage tolerance ±3.0%, including set-up, line and load regulation. Line regulation ±0.5%. Load regulation ±0.5%. Constant-current region 18–30 V, as specified for this complete model. Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load. Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC. For an LED module with its own DC/DC driver, the adapter normally operates in the constant-voltage region. Direct LED loading can use the specified 18–30 V constant-current region. Match the load and forward-voltage range to the complete system; operation below the constant-current region may enter hiccup protection. The efficiency-versus-load curves in this family section use the 48 V model as their example. They are not an efficiency guarantee for every output voltage or load. Input and Efficiency Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Efficiency, typical 89% at 115 VAC; 90% at 230 VAC. AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. No-load consumption <0.15 W. Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load. Total harmonic distortion <20% at output loads of at least 60%, at 115 or 230 VAC. 16 A circuit breaker at 230 VAC Maximum 3 units on a type B breaker or 6 units on a type C breaker, as listed in this series catalogue. Protection Overcurrent 95–108%; constant-current limiting, automatic recovery after fault removal. Short circuit Hiccup mode; automatic recovery after fault removal. Overvoltage 34–40 V; output shuts down. Re-power on to recover. Overtemperature Output shuts down. Re-power on to recover. Operating Conditions and Derating Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve. Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only. Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC. Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. High-altitude ambient derating For fanless operation above 2000 m, reduce the allowable ambient temperature by 3.5°C per additional 1000 m, as stated in the catalogue note. Safety, EMC and Insulation Catalogue safety listings UL 8750 listed for dry and damp locations. CSA C22.2 No. 250.13-12 is also listed for this voltage version. Class 2 power unit Listed as a Class 2 power unit in the applicable catalogue. EMC emissions FCC Part 15, as listed in this catalogue. Energy-efficiency references Level VI; EISA 2007 / US Department of Energy and NRCan requirements are listed in the catalogue. Insulation / grounding Class II design, without FG; input wiring has two conductors. Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded. Dielectric withstand Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application. Dimensions, Cables and Connections Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm. Enclosure construction Silicone-potted plastic case; 94V-0 flame-retardant material is specified. Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges. AC input plug NEMA 1-15P male. AC input cable SVT 18 AWG × 2C, 1500 ±20 mm. Standard DC output connector Locking power DIN 4-pin, KYCON KPPX-4P or equivalent: pins 1 and 4 are +V; pins 2 and 3 are −V. Standard output cable UL2464 18 AWG × 4C, 300 ±20 mm. Reference mass per unit 830 g, from the explicit single-unit PACKING value on catalogue page 12; not a measured net or shipping weight. Connector Options and Ordering Complete alternative model OWA-90U-30-P1M P1M output connector Tuning-fork barrel, 2.5 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V. P1M output cable UL2464 16 AWG × 2C, 300 ±20 mm. The -P1M version is an alternative complete model for the catalogue-defined 20–54 V range. This product has the standard locking DIN 4-pin connector; the -P1M connector is not an extra connector supplied with it. Measurement and Reliability Notes Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient. Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel. Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time. MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C. Catalogue warranty statement 5 years, as stated in the series catalogue. Catalogue reference OWA-90U, revision 2024-10-16, physical pages 11–16 of the linked combined PDF.

  Read more less

  $102.51

  View options

•

  View options

  MEAN WELL OWA-90U series: Moistureproof LED Power Adapter - OWA-90U-24

  MEAN WELL OWA-90U-24 is an OWA-90U series moistureproof LED power adapter with a 24 V DC output rated at 3.75 A and 90 W. It provides constant-voltage and constant-current operating regions for compatible LED systems. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply. Product Datasheet Download MEAN WELL OWA-90U Datasheet (PDF) The OWA-90U section is on PDF pages 11, 12, 13, 14, 15, 16. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete model OWA-90U-24 Nominal DC output 24 V Rated output current 3.75 A Catalogue-rated output power 90 W Ripple and noise, maximum 150 mVp-p; see measurement conditions. Voltage tolerance ±3.0%, including set-up, line and load regulation. Line regulation ±0.5%. Load regulation ±0.5%. Constant-current region 14.4–24 V, as specified for this complete model. Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load. Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC. For an LED module with its own DC/DC driver, the adapter normally operates in the constant-voltage region. Direct LED loading can use the specified 14.4–24 V constant-current region. Match the load and forward-voltage range to the complete system; operation below the constant-current region may enter hiccup protection. The efficiency-versus-load curves in this family section use the 48 V model as their example. They are not an efficiency guarantee for every output voltage or load. Input and Efficiency Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Efficiency, typical 89% at 115 VAC; 90% at 230 VAC. AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. No-load consumption <0.15 W. Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load. Total harmonic distortion <20% at output loads of at least 60%, at 115 or 230 VAC. 16 A circuit breaker at 230 VAC Maximum 3 units on a type B breaker or 6 units on a type C breaker, as listed in this series catalogue. Protection Overcurrent 95–108%; constant-current limiting, automatic recovery after fault removal. Short circuit Hiccup mode; automatic recovery after fault removal. Overvoltage 28–34 V; output shuts down. Re-power on to recover. Overtemperature Output shuts down. Re-power on to recover. Operating Conditions and Derating Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve. Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only. Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC. Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. High-altitude ambient derating For fanless operation above 2000 m, reduce the allowable ambient temperature by 3.5°C per additional 1000 m, as stated in the catalogue note. Safety, EMC and Insulation Catalogue safety listings UL 8750 listed for dry and damp locations. CSA C22.2 No. 250.13-12 is also listed for this voltage version. Class 2 power unit Listed as a Class 2 power unit in the applicable catalogue. EMC emissions FCC Part 15, as listed in this catalogue. Energy-efficiency references Level VI; EISA 2007 / US Department of Energy and NRCan requirements are listed in the catalogue. Insulation / grounding Class II design, without FG; input wiring has two conductors. Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded. Dielectric withstand Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application. Dimensions, Cables and Connections Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm. Enclosure construction Silicone-potted plastic case; 94V-0 flame-retardant material is specified. Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges. AC input plug NEMA 1-15P male. AC input cable SVT 18 AWG × 2C, 1500 ±20 mm. Standard DC output connector Locking power DIN 4-pin, KYCON KPPX-4P or equivalent: pins 1 and 4 are +V; pins 2 and 3 are −V. Standard output cable UL2464 18 AWG × 4C, 300 ±20 mm. Reference mass per unit 830 g, from the explicit single-unit PACKING value on catalogue page 12; not a measured net or shipping weight. Connector Options and Ordering Complete alternative model OWA-90U-24-P1M P1M output connector Tuning-fork barrel, 2.5 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V. P1M output cable UL2464 16 AWG × 2C, 300 ±20 mm. The -P1M version is an alternative complete model for the catalogue-defined 20–54 V range. This product has the standard locking DIN 4-pin connector; the -P1M connector is not an extra connector supplied with it. Measurement and Reliability Notes Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient. Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel. Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time. MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C. Catalogue warranty statement 5 years, as stated in the series catalogue. Catalogue reference OWA-90U, revision 2024-10-16, physical pages 11–16 of the linked combined PDF.

  Read more less

  $102.51

  View options

•

  View options

  MEAN WELL OWA-90U series: Moistureproof LED Power Adapter - OWA-90U-20

  MEAN WELL OWA-90U-20 is an OWA-90U series moistureproof LED power adapter with a 20 V DC output rated at 4.5 A and 90 W. It provides constant-voltage and constant-current operating regions for compatible LED systems. The fanless, silicone-potted Class II housing has an IP67 rating excluding the DC connector. Input-voltage and ambient-temperature derating apply. Product Datasheet Download MEAN WELL OWA-90U Datasheet (PDF) The OWA-90U section is on PDF pages 11, 12, 13, 14, 15, 16. Refer to the complete mechanical drawings and notes when planning installation. Model-Specific DC Output Complete model OWA-90U-20 Nominal DC output 20 V Rated output current 4.5 A Catalogue-rated output power 90 W Ripple and noise, maximum 150 mVp-p; see measurement conditions. Voltage tolerance ±4.0%, including set-up, line and load regulation. Line regulation ±0.5%. Load regulation ±0.5%. Constant-current region 12–20 V, as specified for this complete model. Set-up / rise time 500 / 80 ms at 230 VAC; 500 / 80 ms at 115 VAC, measured at 95% load. Hold-up time, typical 16 ms at full load, at both 115 and 230 VAC. For an LED module with its own DC/DC driver, the adapter normally operates in the constant-voltage region. Direct LED loading can use the specified 12–20 V constant-current region. Match the load and forward-voltage range to the complete system; operation below the constant-current region may enter hiccup protection. The efficiency-versus-load curves in this family section use the 48 V model as their example. They are not an efficiency guarantee for every output voltage or load. Input and Efficiency Input voltage / frequency 90–264 VAC or 127–370 VDC; AC frequency 47–63 Hz. Efficiency, typical 89% at 115 VAC; 90% at 230 VAC. AC current, typical 0.95 A at 115 VAC; 0.5 A at 230 VAC. Cold-start inrush, typical 30 A at 115 VAC; 60 A at 230 VAC; pulse width 550 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. No-load consumption <0.15 W. Active PFC / typical power factor PF >0.98 at 115 VAC and >0.96 at 230 VAC, at full load. Total harmonic distortion <20% at output loads of at least 60%, at 115 or 230 VAC. 16 A circuit breaker at 230 VAC Maximum 3 units on a type B breaker or 6 units on a type C breaker, as listed in this series catalogue. Protection Overcurrent 95–108%; constant-current limiting, automatic recovery after fault removal. Short circuit Hiccup mode; automatic recovery after fault removal. Overvoltage 23–27 V; output shuts down. Re-power on to recover. Overtemperature Output shuts down. Re-power on to recover. Operating Conditions and Derating Working ambient -40 to +70°C, subject to the horizontal-mounting derating curve. Horizontal thermal derating The curve shows 100% load through 50°C, decreasing to 50% at 70°C. The -40 to −25°C portion is marked for 230 VAC input only. Input-voltage derating At 60 Hz, the curve shows 80% load at 90 VAC and 100% from 100 to 264 VAC. Cooling / recommended orientation Free-air convection without a fan. Install horizontally with the flat base supported, as shown in the installation drawing. Working humidity 20–95% RH, non-condensing. Storage temperature / humidity −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G, 12 minutes per cycle; 72 minutes along each X, Y and Z axis. High-altitude ambient derating For fanless operation above 2000 m, reduce the allowable ambient temperature by 3.5°C per additional 1000 m, as stated in the catalogue note. Safety, EMC and Insulation Catalogue safety listings UL 8750 listed for dry and damp locations. CSA C22.2 No. 250.13-12 is also listed for this voltage version. Class 2 power unit Listed as a Class 2 power unit in the applicable catalogue. EMC emissions FCC Part 15, as listed in this catalogue. Energy-efficiency references Level VI; EISA 2007 / US Department of Energy and NRCan requirements are listed in the catalogue. Insulation / grounding Class II design, without FG; input wiring has two conductors. Ingress protection IP67 applies to the potted power-unit body; the DC connector is excluded. Dielectric withstand Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. The listed standards and classifications apply to the adapter within the catalogue scope. Suitability and compliance of the assembled equipment depend on its installation and application. Dimensions, Cables and Connections Enclosure dimensions 171 × 63 × 37.5 mm (L × W × H), case PWM-90P; drawing general tolerance ±1 mm. Enclosure construction Silicone-potted plastic case; 94V-0 flame-retardant material is specified. Mounting holes Two Ø4.5 mm holes on diagonally opposed mounting tabs. The drawing places each hole center 5 mm from the adjacent tab edges. AC input plug NEMA 1-15P male. AC input cable SVT 18 AWG × 2C, 1500 ±20 mm. Standard DC output connector Locking power DIN 4-pin, KYCON KPPX-4P or equivalent: pins 1 and 4 are +V; pins 2 and 3 are −V. Standard output cable UL2464 18 AWG × 4C, 300 ±20 mm. Reference mass per unit 830 g, from the explicit single-unit PACKING value on catalogue page 12; not a measured net or shipping weight. Connector Options and Ordering Complete alternative model OWA-90U-20-P1M P1M output connector Tuning-fork barrel, 2.5 mm inner diameter × 5.5 mm outer diameter × 11 mm length; center +V, outside −V. P1M output cable UL2464 16 AWG × 2C, 300 ±20 mm. The -P1M version is an alternative complete model for the catalogue-defined 20–54 V range. This product has the standard locking DIN 4-pin connector; the -P1M connector is not an extra connector supplied with it. Measurement and Reliability Notes Default measurement conditions Unless stated otherwise: 230 VAC input, rated load and 25°C ambient. Ripple/noise measurement 20 MHz bandwidth, using a 12-inch twisted-pair lead terminated by 0.1 µF and 47 µF capacitors in parallel. Start-up condition Set-up time is measured from a cold first start. Repeated power cycling may increase the set-up time. MTBF, minimum calculated reference 3044.3 K hours under Telcordia SR-332 (Bellcore); 292.9 K hours under MIL-HDBK-217F at 25°C. Catalogue warranty statement 5 years, as stated in the series catalogue. Catalogue reference OWA-90U, revision 2024-10-16, physical pages 11–16 of the linked combined PDF.

  Read more less

  $102.51

  View options

Show more products
