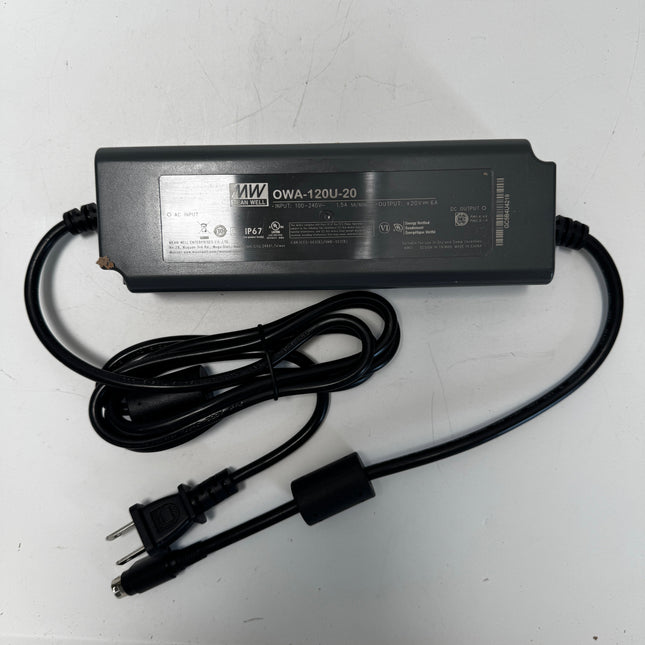

  MEAN WELL OWA-120U series: Moistureproof LED Power Supply - OWA-120U-20

  MEAN WELL OWA-120U-20 supplies 20 V DC at 6 A, with a rated output of 120 W. This Class II, fanless LED power supply uses a North American AC plug and a locking DIN four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120U Datasheet (PDF) The OWA-120U section is on PDF pages 22, 23, 24, 25, 26. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120U-20 Series / regional version OWA-120U; North American plug version. Output code 20 identifies the nominal 20 V DC output. Intended applications Indoor LED lighting, decorative or office lighting and general electronic devices requiring a moistureproof power body. Output performance Rated output voltage 20 V DC Rated output current 6 A Rated output power 120 W Ripple and noise 150 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±4.0% Line / load regulation ±0.5% / ±1.0% Constant-current region 12–20 V; this is an output-voltage region, not an adjustable current setting. Set-up / rise time 500 / 80 ms at 95% load, 230 / 115 VAC. Hold-up time 16 ms typical at full load, 230 / 115 VAC. Typical efficiency 89% at 115 VAC; 90% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 90–264 VAC / 127–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. Typical AC current 1.3 A at 115 VAC; 0.65 A at 230 VAC. Typical inrush current Cold start: 30 A at 115 VAC; 60 A at 230 VAC. Pulse width 520 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. Total harmonic distortion THD <20% at output loading ≥60%, 115 / 230 VAC. 16 A circuit-breaker limit At 230 VAC: up to 4 supplies on type B, or 6 supplies on type C. LED operating modes The output characteristic distinguishes constant-voltage operation with an LED driver, constant-current operation for direct drive, and a hiccup region below the specified 12 V minimum of the constant-current region. The maximum operating voltage in constant-current mode depends on the end-system configuration. Confirm LED compatibility with the manufacturer before direct-drive operation. The power-factor graph is for constant-current operation. The efficiency-versus-load illustration uses the 48 V model; use this model's specified typical efficiency for selection. Protection Over-current protection 95–108%; constant-current limiting, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 23–27 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the 20–54 V curve permits 100% load through 45°C, falling to 50% at 70°C. The −40 to −25°C region is marked for 230 VAC input only. Input-voltage derating At 60 Hz: 90 VAC corresponds to 80% load; 100–264 VAC permits 100%. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. The enclosure material is described as 94V-0 flame retardant. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety UL8750 listed; CSA C22.2 No. 250.13-12. The UL-listed supply is suitable for dry and damp locations. EMC emissions Compliance with FCC Part 15. Energy-efficiency references Level VI; EISA 2007 / DoE and Canada NRCan references are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection North American NEMA 1-15P male plug; SVT 18AWG × 2C; 1500±20 mm. DC lead UL2464 18AWG × 4C; 300±20 mm. Standard DC connector Locking power DIN 4 pins; KYCON KPPX-4P or equivalent. DC polarity / pin assignment Pins 1 and 4: +V; pins 2 and 3: −V. Catalogue packing reference per unit 1150 g (1.15 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional connections The series catalogue refers to separately purchased DC plug adapters. Specify a compatible connection to the standard locking DIN four-pin output, the required polarity, and a complete cable/connector assembly rated for the intended voltage and current. Confirm the adapter part number and compatibility when ordering; the standard output connector remains as stated above. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

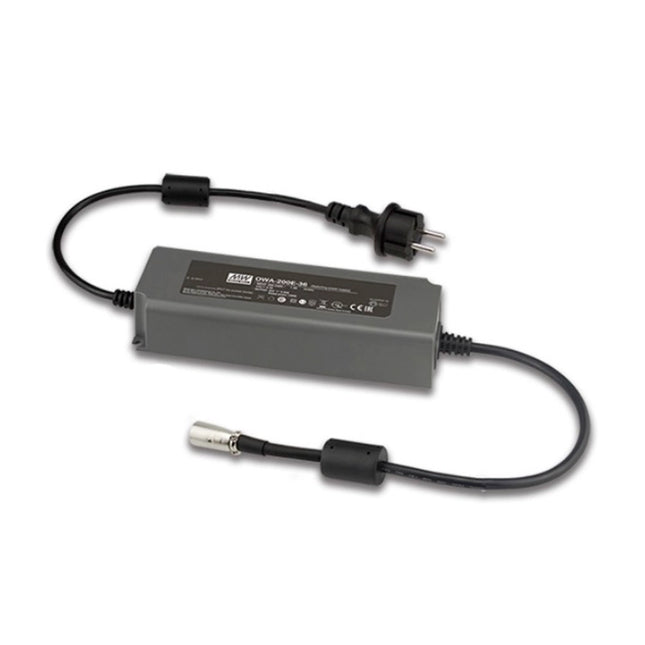

  MEAN WELL OWA-200E series: Moistureproof AC/DC Power Adapter - OWA-200E-54

  MEAN WELL OWA-200E-54 is a fanless Class II AC/DC power adapter with 54 VDC, 3.71 A rated current and 200 W rated output. It has a CEE 7/7 AC plug and a standard XLR4P DC connector. The fully potted power body is IP67; input-voltage, temperature and connection limits apply. Product Datasheet Download MEAN WELL OWA-200E Datasheet (PDF) The OWA-200E section is on PDF pages 37, 38, 39, 40, 41. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order model OWA-200E-54. Model code OWA-200E identifies the European AC-plug version; the final 54 code identifies 54 VDC. Power-supply construction Class II external AC/DC power supply without a functional-ground connection. The plastic enclosure is fully potted with silicone and cooled by free-air convection; no fan is used. Mains connection CEE 7/7 plug with attached H05RN-F 1.0 mm² × 2 conductors input lead. The power unit has no FG; do not infer a Class I grounding arrangement from the plug shape. Standard DC connection XLR4P (NEUTRIK NC4MX equivalent), maximum 15 A connector rating. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. Ingress protection IP67 applies to the power body. It does not establish the same rating for the AC plug, DC connector or completed connection. Output Ratings DC output voltage 54 VDC. Rated output current 3.71 A. No-load operation is supported; keep the load within the rated current, power and applicable derating limits. Rated output power 200 W. Observe both the stated current and power limits. Ripple and noise, maximum 350 mVp-p under the specified measurement conditions. Voltage tolerance ±3.0%. Line / load regulation ±0.5% line; ±3.0% load. Efficiency, typical 94% at 230 VAC. Input and Timing Input voltage / frequency 180–264 VAC or 254–370 VDC; 47–63 Hz for AC input. Power factor, typical Built-in active PFC; PF >0.96 at 230 VAC, full load. AC current, typical 1.1 A at 230 VAC. Cold-start inrush, typical 65 A at 230 VAC, pulse width 550 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. Set-up / rise / hold-up 500 ms set-up; 80 ms rise; 10 ms typical hold-up at full load. 230 VAC. No-load input power / efficiency level Less than 0.15 W; Level VI. EU ErP and CoC Version 5 compliance is listed for this series. Set-up time is measured at the first cold start. Repeated switching may increase the set-up time. Protection Overcurrent 105–150%; hiccup mode with automatic recovery after the fault condition is removed. Short circuit Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 59–70 V threshold range; shuts down the output. Re-power the unit to recover. Overtemperature Shuts down the output; re-power the unit to recover. Operating Conditions and Derating Working temperature −40 to +70°C, subject to the input-voltage and ambient-temperature curves. Ambient-temperature curve Horizontal mounting, 230 VAC: 100% load through 45°C, decreasing to 50% at 70°C. Input-voltage curve At 60 Hz, 100% load across 180–264 VAC. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G; 12 minutes per cycle and 72 minutes each along the X, Y and Z axes. Apply the most restrictive current, power, temperature and input-voltage limits together. The maximum ambient temperature is not a full-power operating point. The power-factor plot is a typical 200 W load characteristic. The efficiency-versus-load plot is specifically for the 48 V model at 230 VAC. It is not a guaranteed efficiency curve for every output-voltage version. Mechanical Details and Installation Body size 195 × 68 × 39.5 mm (L × W × H); case PWM-200E. Drawing dimensions use millimetres and a general ±1 mm tolerance. Attached cable lengths AC input: 1500 ±20 mm; DC output: 1000 ±20 mm. DC cable SJOW 14 AWG × 2 conductors; 300 V, 105°C cable marking. Mounting holes Two Ø4.5 mm mounting holes. Follow the mechanical drawing for the 5 mm edge references and connector/strain-relief clearances. Case-temperature reference The tc mark is located using the 97.5 mm and 34 mm drawing references. It identifies the case-temperature measuring point; no numeric tc limit is specified on this drawing. Catalogue unit weight 1320 g, catalogue packing reference per unit; not a measured net or shipping weight. Mount the unit horizontally on its base as illustrated on PDF page 41. Allow space for the attached cables, connectors and free-air cooling. The AC and DC cable assemblies are attached to the adapter. Keep the actual cable and connector arrangement suitable for the installation environment. Optional DC Connections R7B KYCON KPPX-4P equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo; pin 3 = −Vo; pin 4 = +Vo. C6P MOLEX 39-01-2060 equivalent (4.2 mm pitch); maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = +Vo; pin 4 = −Vo; pin 5 = −Vo; pin 6 = −Vo. FG is not connected to the output connector. MIC4 NEUTRIK XLR NC4FX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. M19 LLT-M19-20002F307 equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo. M15 DW-M15-02F equivalent; maximum 10 A. pin 1 = +Vo; pin 2 = −Vo. Listed only for 20 V, 24 V, 36 V, 48 V and 54 V versions. P1J Straight tuning fork: 5.5 mm outside diameter, 2.1 mm inside diameter, 11.0 mm length; maximum 7.5 A. Listed for the 36 V, 48 V and 54 V versions. Confirm the required polarity and mating socket when ordering. P1M Straight tuning fork: 5.5 mm outside diameter, 2.5 mm inside diameter, 11.0 mm length; maximum 7.5 A. Listed for the 36 V, 48 V and 54 V versions. Confirm the required polarity and mating socket when ordering. The standard connector for this model is XLR4P. The options above are the connector forms listed for this output-voltage version. Specify the required assembly before ordering; do not append unlisted connector suffixes to the model number. Optional DC plug kits are sold separately. A connector rating does not increase the power-supply rating. Use the lower permitted current of the supply, connector and cable, and verify the mating contact numbers before connection. IP67 is a power-body rating; select and protect the completed AC/DC connections for the actual environment. Safety and EMC Listed safety approvals DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004; IP67 for the power body. This voltage version is excluded from the EN60335-1 approval listed for the lower-voltage models. EMC emissions EN55032 (CISPR32), Class B; EN55035; EN55014-1; EN61000-3-2/3; EAC TP TC 020. EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55024; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020. Dielectric withstand Input to output: 4.2 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Class II construction has no functional-ground connection. Final equipment compliance and environmental protection depend on the complete installation. Measurement Conditions and Reliability General test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient temperature. Ripple/noise measurement 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance definition Includes set-up tolerance, line regulation and load regulation. MTBF, minimum 2677.8 thousand hours, Telcordia SR-332 (Bellcore); 267.6 thousand hours, MIL-HDBK-217F at 25°C. Internal switching frequencies PFC: 50–120 kHz; PWM: 60–130 kHz, as shown in the block diagram. Manufacturer warranty 5 years, subject to manufacturer warranty terms. Catalogue revision 2024-10-16; combined PDF pages 37–41. Applications and Selection Application examples include industrial PCs, POS and kiosk systems, portable battery or electric-lawn-mower charging equipment, household devices, and electronic products used in dusty or humid environments. For battery-charging applications, the manufacturer recommends a BMS controller. Confirm compatibility with the battery and charging system; the power adapter alone is not specified here as an autonomous battery-charge controller. Select the exact European input version, output voltage, load rating and connector required by the equipment.

  Read more less

  $136.52

  View options

•

  View options

  MEAN WELL OWA-200E series: Moistureproof AC/DC Power Adapter - OWA-200E-48

  MEAN WELL OWA-200E-48 is a fanless Class II AC/DC power adapter with 48 VDC, 4.17 A rated current and 200 W rated output. It has a CEE 7/7 AC plug and a standard XLR4P DC connector. The fully potted power body is IP67; input-voltage, temperature and connection limits apply. Product Datasheet Download MEAN WELL OWA-200E Datasheet (PDF) The OWA-200E section is on PDF pages 37, 38, 39, 40, 41. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order model OWA-200E-48. Model code OWA-200E identifies the European AC-plug version; the final 48 code identifies 48 VDC. Power-supply construction Class II external AC/DC power supply without a functional-ground connection. The plastic enclosure is fully potted with silicone and cooled by free-air convection; no fan is used. Mains connection CEE 7/7 plug with attached H05RN-F 1.0 mm² × 2 conductors input lead. The power unit has no FG; do not infer a Class I grounding arrangement from the plug shape. Standard DC connection XLR4P (NEUTRIK NC4MX equivalent), maximum 15 A connector rating. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. Ingress protection IP67 applies to the power body. It does not establish the same rating for the AC plug, DC connector or completed connection. Output Ratings DC output voltage 48 VDC. Rated output current 4.17 A. No-load operation is supported; keep the load within the rated current, power and applicable derating limits. Rated output power 200 W. Observe both the stated current and power limits. Ripple and noise, maximum 250 mVp-p under the specified measurement conditions. Voltage tolerance ±3.0%. Line / load regulation ±0.5% line; ±3.0% load. Efficiency, typical 94% at 230 VAC. Input and Timing Input voltage / frequency 180–264 VAC or 254–370 VDC; 47–63 Hz for AC input. Power factor, typical Built-in active PFC; PF >0.96 at 230 VAC, full load. AC current, typical 1.1 A at 230 VAC. Cold-start inrush, typical 65 A at 230 VAC, pulse width 550 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. Set-up / rise / hold-up 500 ms set-up; 80 ms rise; 10 ms typical hold-up at full load. 230 VAC. No-load input power / efficiency level Less than 0.15 W; Level VI. EU ErP and CoC Version 5 compliance is listed for this series. Set-up time is measured at the first cold start. Repeated switching may increase the set-up time. Protection Overcurrent 105–150%; hiccup mode with automatic recovery after the fault condition is removed. Short circuit Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 52–65 V threshold range; shuts down the output. Re-power the unit to recover. Overtemperature Shuts down the output; re-power the unit to recover. Operating Conditions and Derating Working temperature −40 to +70°C, subject to the input-voltage and ambient-temperature curves. Ambient-temperature curve Horizontal mounting, 230 VAC: 100% load through 45°C, decreasing to 50% at 70°C. Input-voltage curve At 60 Hz, 100% load across 180–264 VAC. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G; 12 minutes per cycle and 72 minutes each along the X, Y and Z axes. Apply the most restrictive current, power, temperature and input-voltage limits together. The maximum ambient temperature is not a full-power operating point. The power-factor plot is a typical 200 W load characteristic. The efficiency-versus-load plot is specifically for the 48 V model at 230 VAC. It is not a guaranteed efficiency curve for every output-voltage version. Mechanical Details and Installation Body size 195 × 68 × 39.5 mm (L × W × H); case PWM-200E. Drawing dimensions use millimetres and a general ±1 mm tolerance. Attached cable lengths AC input: 1500 ±20 mm; DC output: 1000 ±20 mm. DC cable SJOW 14 AWG × 2 conductors; 300 V, 105°C cable marking. Mounting holes Two Ø4.5 mm mounting holes. Follow the mechanical drawing for the 5 mm edge references and connector/strain-relief clearances. Case-temperature reference The tc mark is located using the 97.5 mm and 34 mm drawing references. It identifies the case-temperature measuring point; no numeric tc limit is specified on this drawing. Catalogue unit weight 1320 g, catalogue packing reference per unit; not a measured net or shipping weight. Mount the unit horizontally on its base as illustrated on PDF page 41. Allow space for the attached cables, connectors and free-air cooling. The AC and DC cable assemblies are attached to the adapter. Keep the actual cable and connector arrangement suitable for the installation environment. Optional DC Connections R7B KYCON KPPX-4P equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo; pin 3 = −Vo; pin 4 = +Vo. C6P MOLEX 39-01-2060 equivalent (4.2 mm pitch); maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = +Vo; pin 4 = −Vo; pin 5 = −Vo; pin 6 = −Vo. FG is not connected to the output connector. MIC4 NEUTRIK XLR NC4FX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. M19 LLT-M19-20002F307 equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo. M15 DW-M15-02F equivalent; maximum 10 A. pin 1 = +Vo; pin 2 = −Vo. Listed only for 20 V, 24 V, 36 V, 48 V and 54 V versions. P1J Straight tuning fork: 5.5 mm outside diameter, 2.1 mm inside diameter, 11.0 mm length; maximum 7.5 A. Listed for the 36 V, 48 V and 54 V versions. Confirm the required polarity and mating socket when ordering. P1M Straight tuning fork: 5.5 mm outside diameter, 2.5 mm inside diameter, 11.0 mm length; maximum 7.5 A. Listed for the 36 V, 48 V and 54 V versions. Confirm the required polarity and mating socket when ordering. The standard connector for this model is XLR4P. The options above are the connector forms listed for this output-voltage version. Specify the required assembly before ordering; do not append unlisted connector suffixes to the model number. Optional DC plug kits are sold separately. A connector rating does not increase the power-supply rating. Use the lower permitted current of the supply, connector and cable, and verify the mating contact numbers before connection. IP67 is a power-body rating; select and protect the completed AC/DC connections for the actual environment. Safety and EMC Listed safety approvals DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004; IP67 for the power body. This voltage version is excluded from the EN60335-1 approval listed for the lower-voltage models. EMC emissions EN55032 (CISPR32), Class B; EN55035; EN55014-1; EN61000-3-2/3; EAC TP TC 020. EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55024; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020. Dielectric withstand Input to output: 4.2 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Class II construction has no functional-ground connection. Final equipment compliance and environmental protection depend on the complete installation. Measurement Conditions and Reliability General test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient temperature. Ripple/noise measurement 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance definition Includes set-up tolerance, line regulation and load regulation. MTBF, minimum 2677.8 thousand hours, Telcordia SR-332 (Bellcore); 267.6 thousand hours, MIL-HDBK-217F at 25°C. Internal switching frequencies PFC: 50–120 kHz; PWM: 60–130 kHz, as shown in the block diagram. Manufacturer warranty 5 years, subject to manufacturer warranty terms. Catalogue revision 2024-10-16; combined PDF pages 37–41. Applications and Selection Application examples include industrial PCs, POS and kiosk systems, portable battery or electric-lawn-mower charging equipment, household devices, and electronic products used in dusty or humid environments. For battery-charging applications, the manufacturer recommends a BMS controller. Confirm compatibility with the battery and charging system; the power adapter alone is not specified here as an autonomous battery-charge controller. Select the exact European input version, output voltage, load rating and connector required by the equipment.

  Read more less

  $136.52

  View options

•

  View options

  MEAN WELL OWA-200E series: Moistureproof AC/DC Power Adapter - OWA-200E-42

  MEAN WELL OWA-200E-42 is a fanless Class II AC/DC power adapter with 42 VDC, 4.75 A rated current and 199 W rated output. It has a CEE 7/7 AC plug and a standard XLR4P DC connector. The fully potted power body is IP67; input-voltage, temperature and connection limits apply. Product Datasheet Download MEAN WELL OWA-200E Datasheet (PDF) The OWA-200E section is on PDF pages 37, 38, 39, 40, 41. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order model OWA-200E-42. Model code OWA-200E identifies the European AC-plug version; the final 42 code identifies 42 VDC. Power-supply construction Class II external AC/DC power supply without a functional-ground connection. The plastic enclosure is fully potted with silicone and cooled by free-air convection; no fan is used. Mains connection CEE 7/7 plug with attached H05RN-F 1.0 mm² × 2 conductors input lead. The power unit has no FG; do not infer a Class I grounding arrangement from the plug shape. Standard DC connection XLR4P (NEUTRIK NC4MX equivalent), maximum 15 A connector rating. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. Ingress protection IP67 applies to the power body. It does not establish the same rating for the AC plug, DC connector or completed connection. Output Ratings DC output voltage 42 VDC. Rated output current 4.75 A. No-load operation is supported; keep the load within the rated current, power and applicable derating limits. Rated output power 199 W. Observe both the stated current and power limits. Ripple and noise, maximum 250 mVp-p under the specified measurement conditions. Voltage tolerance ±3.0%. Line / load regulation ±0.5% line; ±3.0% load. Efficiency, typical 94% at 230 VAC. Input and Timing Input voltage / frequency 180–264 VAC or 254–370 VDC; 47–63 Hz for AC input. Power factor, typical Built-in active PFC; PF >0.96 at 230 VAC, full load. AC current, typical 1.1 A at 230 VAC. Cold-start inrush, typical 65 A at 230 VAC, pulse width 550 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. Set-up / rise / hold-up 500 ms set-up; 80 ms rise; 10 ms typical hold-up at full load. 230 VAC. No-load input power / efficiency level Less than 0.15 W; Level VI. EU ErP and CoC Version 5 compliance is listed for this series. Set-up time is measured at the first cold start. Repeated switching may increase the set-up time. Protection Overcurrent 105–150%; hiccup mode with automatic recovery after the fault condition is removed. Short circuit Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 46–57 V threshold range; shuts down the output. Re-power the unit to recover. Overtemperature Shuts down the output; re-power the unit to recover. Operating Conditions and Derating Working temperature −40 to +70°C, subject to the input-voltage and ambient-temperature curves. Ambient-temperature curve Horizontal mounting, 230 VAC: 100% load through 45°C, decreasing to 50% at 70°C. Input-voltage curve At 60 Hz, 100% load across 180–264 VAC. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G; 12 minutes per cycle and 72 minutes each along the X, Y and Z axes. Apply the most restrictive current, power, temperature and input-voltage limits together. The maximum ambient temperature is not a full-power operating point. The power-factor plot is a typical 200 W load characteristic. The efficiency-versus-load plot is specifically for the 48 V model at 230 VAC. It is not a guaranteed efficiency curve for every output-voltage version. Mechanical Details and Installation Body size 195 × 68 × 39.5 mm (L × W × H); case PWM-200E. Drawing dimensions use millimetres and a general ±1 mm tolerance. Attached cable lengths AC input: 1500 ±20 mm; DC output: 1000 ±20 mm. DC cable SJOW 14 AWG × 2 conductors; 300 V, 105°C cable marking. Mounting holes Two Ø4.5 mm mounting holes. Follow the mechanical drawing for the 5 mm edge references and connector/strain-relief clearances. Case-temperature reference The tc mark is located using the 97.5 mm and 34 mm drawing references. It identifies the case-temperature measuring point; no numeric tc limit is specified on this drawing. Catalogue unit weight 1320 g, catalogue packing reference per unit; not a measured net or shipping weight. Mount the unit horizontally on its base as illustrated on PDF page 41. Allow space for the attached cables, connectors and free-air cooling. The AC and DC cable assemblies are attached to the adapter. Keep the actual cable and connector arrangement suitable for the installation environment. Optional DC Connections R7B KYCON KPPX-4P equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo; pin 3 = −Vo; pin 4 = +Vo. C6P MOLEX 39-01-2060 equivalent (4.2 mm pitch); maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = +Vo; pin 4 = −Vo; pin 5 = −Vo; pin 6 = −Vo. FG is not connected to the output connector. MIC4 NEUTRIK XLR NC4FX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. M19 LLT-M19-20002F307 equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo. The standard connector for this model is XLR4P. The options above are the connector forms listed for this output-voltage version. Specify the required assembly before ordering; do not append unlisted connector suffixes to the model number. Optional DC plug kits are sold separately. A connector rating does not increase the power-supply rating. Use the lower permitted current of the supply, connector and cable, and verify the mating contact numbers before connection. IP67 is a power-body rating; select and protect the completed AC/DC connections for the actual environment. Safety and EMC Listed safety approvals DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004; IP67 for the power body. DEKRA EN60335-1 is also listed for this voltage version. EMC emissions EN55032 (CISPR32), Class B; EN55035; EN55014-1; EN61000-3-2/3; EAC TP TC 020. EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55024; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020. Dielectric withstand Input to output: 4.2 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Class II construction has no functional-ground connection. Final equipment compliance and environmental protection depend on the complete installation. Measurement Conditions and Reliability General test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient temperature. Ripple/noise measurement 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance definition Includes set-up tolerance, line regulation and load regulation. MTBF, minimum 2677.8 thousand hours, Telcordia SR-332 (Bellcore); 267.6 thousand hours, MIL-HDBK-217F at 25°C. Internal switching frequencies PFC: 50–120 kHz; PWM: 60–130 kHz, as shown in the block diagram. Manufacturer warranty 5 years, subject to manufacturer warranty terms. Catalogue revision 2024-10-16; combined PDF pages 37–41. Applications and Selection Application examples include industrial PCs, POS and kiosk systems, portable battery or electric-lawn-mower charging equipment, household devices, and electronic products used in dusty or humid environments. For battery-charging applications, the manufacturer recommends a BMS controller. Confirm compatibility with the battery and charging system; the power adapter alone is not specified here as an autonomous battery-charge controller. Select the exact European input version, output voltage, load rating and connector required by the equipment.

  Read more less

  $136.52

  View options

•

  View options

  MEAN WELL OWA-200E series: Moistureproof AC/DC Power Adapter - OWA-200E-36

  MEAN WELL OWA-200E-36 is a fanless Class II AC/DC power adapter with 36 VDC, 5.55 A rated current and 199 W rated output. It has a CEE 7/7 AC plug and a standard XLR4P DC connector. The fully potted power body is IP67; input-voltage, temperature and connection limits apply. Product Datasheet Download MEAN WELL OWA-200E Datasheet (PDF) The OWA-200E section is on PDF pages 37, 38, 39, 40, 41. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order model OWA-200E-36. Model code OWA-200E identifies the European AC-plug version; the final 36 code identifies 36 VDC. Power-supply construction Class II external AC/DC power supply without a functional-ground connection. The plastic enclosure is fully potted with silicone and cooled by free-air convection; no fan is used. Mains connection CEE 7/7 plug with attached H05RN-F 1.0 mm² × 2 conductors input lead. The power unit has no FG; do not infer a Class I grounding arrangement from the plug shape. Standard DC connection XLR4P (NEUTRIK NC4MX equivalent), maximum 15 A connector rating. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. Ingress protection IP67 applies to the power body. It does not establish the same rating for the AC plug, DC connector or completed connection. Output Ratings DC output voltage 36 VDC. Rated output current 5.55 A. No-load operation is supported; keep the load within the rated current, power and applicable derating limits. Rated output power 199 W. Observe both the stated current and power limits. Ripple and noise, maximum 200 mVp-p under the specified measurement conditions. Voltage tolerance ±3.0%. Line / load regulation ±0.5% line; ±3.0% load. Efficiency, typical 94% at 230 VAC. Input and Timing Input voltage / frequency 180–264 VAC or 254–370 VDC; 47–63 Hz for AC input. Power factor, typical Built-in active PFC; PF >0.96 at 230 VAC, full load. AC current, typical 1.1 A at 230 VAC. Cold-start inrush, typical 65 A at 230 VAC, pulse width 550 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. Set-up / rise / hold-up 500 ms set-up; 80 ms rise; 10 ms typical hold-up at full load. 230 VAC. No-load input power / efficiency level Less than 0.15 W; Level VI. EU ErP and CoC Version 5 compliance is listed for this series. Set-up time is measured at the first cold start. Repeated switching may increase the set-up time. Protection Overcurrent 105–150%; hiccup mode with automatic recovery after the fault condition is removed. Short circuit Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 41–49 V threshold range; shuts down the output. Re-power the unit to recover. Overtemperature Shuts down the output; re-power the unit to recover. Operating Conditions and Derating Working temperature −40 to +70°C, subject to the input-voltage and ambient-temperature curves. Ambient-temperature curve Horizontal mounting, 230 VAC: 100% load through 45°C, decreasing to 50% at 70°C. Input-voltage curve At 60 Hz, 100% load across 180–264 VAC. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G; 12 minutes per cycle and 72 minutes each along the X, Y and Z axes. Apply the most restrictive current, power, temperature and input-voltage limits together. The maximum ambient temperature is not a full-power operating point. The power-factor plot is a typical 200 W load characteristic. The efficiency-versus-load plot is specifically for the 48 V model at 230 VAC. It is not a guaranteed efficiency curve for every output-voltage version. Mechanical Details and Installation Body size 195 × 68 × 39.5 mm (L × W × H); case PWM-200E. Drawing dimensions use millimetres and a general ±1 mm tolerance. Attached cable lengths AC input: 1500 ±20 mm; DC output: 1000 ±20 mm. DC cable SJOW 14 AWG × 2 conductors; 300 V, 105°C cable marking. Mounting holes Two Ø4.5 mm mounting holes. Follow the mechanical drawing for the 5 mm edge references and connector/strain-relief clearances. Case-temperature reference The tc mark is located using the 97.5 mm and 34 mm drawing references. It identifies the case-temperature measuring point; no numeric tc limit is specified on this drawing. Catalogue unit weight 1320 g, catalogue packing reference per unit; not a measured net or shipping weight. Mount the unit horizontally on its base as illustrated on PDF page 41. Allow space for the attached cables, connectors and free-air cooling. The AC and DC cable assemblies are attached to the adapter. Keep the actual cable and connector arrangement suitable for the installation environment. Optional DC Connections R7B KYCON KPPX-4P equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo; pin 3 = −Vo; pin 4 = +Vo. C6P MOLEX 39-01-2060 equivalent (4.2 mm pitch); maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = +Vo; pin 4 = −Vo; pin 5 = −Vo; pin 6 = −Vo. FG is not connected to the output connector. MIC4 NEUTRIK XLR NC4FX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. M19 LLT-M19-20002F307 equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo. M15 DW-M15-02F equivalent; maximum 10 A. pin 1 = +Vo; pin 2 = −Vo. Listed only for 20 V, 24 V, 36 V, 48 V and 54 V versions. P1J Straight tuning fork: 5.5 mm outside diameter, 2.1 mm inside diameter, 11.0 mm length; maximum 7.5 A. Listed for the 36 V, 48 V and 54 V versions. Confirm the required polarity and mating socket when ordering. P1M Straight tuning fork: 5.5 mm outside diameter, 2.5 mm inside diameter, 11.0 mm length; maximum 7.5 A. Listed for the 36 V, 48 V and 54 V versions. Confirm the required polarity and mating socket when ordering. The standard connector for this model is XLR4P. The options above are the connector forms listed for this output-voltage version. Specify the required assembly before ordering; do not append unlisted connector suffixes to the model number. Optional DC plug kits are sold separately. A connector rating does not increase the power-supply rating. Use the lower permitted current of the supply, connector and cable, and verify the mating contact numbers before connection. IP67 is a power-body rating; select and protect the completed AC/DC connections for the actual environment. Safety and EMC Listed safety approvals DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004; IP67 for the power body. DEKRA EN60335-1 is also listed for this voltage version. EMC emissions EN55032 (CISPR32), Class B; EN55035; EN55014-1; EN61000-3-2/3; EAC TP TC 020. EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55024; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020. Dielectric withstand Input to output: 4.2 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Class II construction has no functional-ground connection. Final equipment compliance and environmental protection depend on the complete installation. Measurement Conditions and Reliability General test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient temperature. Ripple/noise measurement 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance definition Includes set-up tolerance, line regulation and load regulation. MTBF, minimum 2677.8 thousand hours, Telcordia SR-332 (Bellcore); 267.6 thousand hours, MIL-HDBK-217F at 25°C. Internal switching frequencies PFC: 50–120 kHz; PWM: 60–130 kHz, as shown in the block diagram. Manufacturer warranty 5 years, subject to manufacturer warranty terms. Catalogue revision 2024-10-16; combined PDF pages 37–41. Applications and Selection Application examples include industrial PCs, POS and kiosk systems, portable battery or electric-lawn-mower charging equipment, household devices, and electronic products used in dusty or humid environments. For battery-charging applications, the manufacturer recommends a BMS controller. Confirm compatibility with the battery and charging system; the power adapter alone is not specified here as an autonomous battery-charge controller. Select the exact European input version, output voltage, load rating and connector required by the equipment.

  Read more less

  $136.52

  View options

•

  View options

  MEAN WELL OWA-200E series: Moistureproof AC/DC Power Adapter - OWA-200E-24

  MEAN WELL OWA-200E-24 is a fanless Class II AC/DC power adapter with 24 VDC, 8.3 A rated current and 199 W rated output. It has a CEE 7/7 AC plug and a standard XLR4P DC connector. The fully potted power body is IP67; input-voltage, temperature and connection limits apply. Product Datasheet Download MEAN WELL OWA-200E Datasheet (PDF) The OWA-200E section is on PDF pages 37, 38, 39, 40, 41. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order model OWA-200E-24. Model code OWA-200E identifies the European AC-plug version; the final 24 code identifies 24 VDC. Power-supply construction Class II external AC/DC power supply without a functional-ground connection. The plastic enclosure is fully potted with silicone and cooled by free-air convection; no fan is used. Mains connection CEE 7/7 plug with attached H05RN-F 1.0 mm² × 2 conductors input lead. The power unit has no FG; do not infer a Class I grounding arrangement from the plug shape. Standard DC connection XLR4P (NEUTRIK NC4MX equivalent), maximum 15 A connector rating. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. Ingress protection IP67 applies to the power body. It does not establish the same rating for the AC plug, DC connector or completed connection. Output Ratings DC output voltage 24 VDC. Rated output current 8.3 A. No-load operation is supported; keep the load within the rated current, power and applicable derating limits. Rated output power 199 W. Observe both the stated current and power limits. Ripple and noise, maximum 150 mVp-p under the specified measurement conditions. Voltage tolerance ±4.0%. Line / load regulation ±0.5% line; ±4.0% load. Efficiency, typical 93% at 230 VAC. Input and Timing Input voltage / frequency 180–264 VAC or 254–370 VDC; 47–63 Hz for AC input. Power factor, typical Built-in active PFC; PF >0.96 at 230 VAC, full load. AC current, typical 1.1 A at 230 VAC. Cold-start inrush, typical 65 A at 230 VAC, pulse width 550 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. Set-up / rise / hold-up 500 ms set-up; 80 ms rise; 10 ms typical hold-up at full load. 230 VAC. No-load input power / efficiency level Less than 0.15 W; Level VI. EU ErP and CoC Version 5 compliance is listed for this series. Set-up time is measured at the first cold start. Repeated switching may increase the set-up time. Protection Overcurrent 105–150%; hiccup mode with automatic recovery after the fault condition is removed. Short circuit Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 27–34 V threshold range; shuts down the output. Re-power the unit to recover. Overtemperature Shuts down the output; re-power the unit to recover. Operating Conditions and Derating Working temperature −40 to +70°C, subject to the input-voltage and ambient-temperature curves. Ambient-temperature curve Horizontal mounting, 230 VAC: 100% load through 45°C, decreasing to 50% at 70°C. Input-voltage curve At 60 Hz, 100% load across 180–264 VAC. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G; 12 minutes per cycle and 72 minutes each along the X, Y and Z axes. Apply the most restrictive current, power, temperature and input-voltage limits together. The maximum ambient temperature is not a full-power operating point. The power-factor plot is a typical 200 W load characteristic. The efficiency-versus-load plot is specifically for the 48 V model at 230 VAC. It is not a guaranteed efficiency curve for every output-voltage version. Mechanical Details and Installation Body size 195 × 68 × 39.5 mm (L × W × H); case PWM-200E. Drawing dimensions use millimetres and a general ±1 mm tolerance. Attached cable lengths AC input: 1500 ±20 mm; DC output: 1000 ±20 mm. DC cable SJOW 14 AWG × 2 conductors; 300 V, 105°C cable marking. Mounting holes Two Ø4.5 mm mounting holes. Follow the mechanical drawing for the 5 mm edge references and connector/strain-relief clearances. Case-temperature reference The tc mark is located using the 97.5 mm and 34 mm drawing references. It identifies the case-temperature measuring point; no numeric tc limit is specified on this drawing. Catalogue unit weight 1320 g, catalogue packing reference per unit; not a measured net or shipping weight. Mount the unit horizontally on its base as illustrated on PDF page 41. Allow space for the attached cables, connectors and free-air cooling. The AC and DC cable assemblies are attached to the adapter. Keep the actual cable and connector arrangement suitable for the installation environment. Optional DC Connections R7B KYCON KPPX-4P equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo; pin 3 = −Vo; pin 4 = +Vo. C6P MOLEX 39-01-2060 equivalent (4.2 mm pitch); maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = +Vo; pin 4 = −Vo; pin 5 = −Vo; pin 6 = −Vo. FG is not connected to the output connector. MIC4 NEUTRIK XLR NC4FX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. M19 LLT-M19-20002F307 equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo. M15 DW-M15-02F equivalent; maximum 10 A. pin 1 = +Vo; pin 2 = −Vo. Listed only for 20 V, 24 V, 36 V, 48 V and 54 V versions. The standard connector for this model is XLR4P. The options above are the connector forms listed for this output-voltage version. Specify the required assembly before ordering; do not append unlisted connector suffixes to the model number. Optional DC plug kits are sold separately. A connector rating does not increase the power-supply rating. Use the lower permitted current of the supply, connector and cable, and verify the mating contact numbers before connection. IP67 is a power-body rating; select and protect the completed AC/DC connections for the actual environment. Safety and EMC Listed safety approvals DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004; IP67 for the power body. DEKRA EN60335-1 is also listed for this voltage version. EMC emissions EN55032 (CISPR32), Class B; EN55035; EN55014-1; EN61000-3-2/3; EAC TP TC 020. EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55024; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020. Dielectric withstand Input to output: 4.2 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Class II construction has no functional-ground connection. Final equipment compliance and environmental protection depend on the complete installation. Measurement Conditions and Reliability General test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient temperature. Ripple/noise measurement 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance definition Includes set-up tolerance, line regulation and load regulation. MTBF, minimum 2677.8 thousand hours, Telcordia SR-332 (Bellcore); 267.6 thousand hours, MIL-HDBK-217F at 25°C. Internal switching frequencies PFC: 50–120 kHz; PWM: 60–130 kHz, as shown in the block diagram. Manufacturer warranty 5 years, subject to manufacturer warranty terms. Catalogue revision 2024-10-16; combined PDF pages 37–41. Applications and Selection Application examples include industrial PCs, POS and kiosk systems, portable battery or electric-lawn-mower charging equipment, household devices, and electronic products used in dusty or humid environments. For battery-charging applications, the manufacturer recommends a BMS controller. Confirm compatibility with the battery and charging system; the power adapter alone is not specified here as an autonomous battery-charge controller. Select the exact European input version, output voltage, load rating and connector required by the equipment.

  Read more less

  $136.52

  View options

•

  View options

  MEAN WELL OWA-200E series: Moistureproof AC/DC Power Adapter - OWA-200E-20

  MEAN WELL OWA-200E-20 is a fanless Class II AC/DC power adapter with 20 VDC, 10 A rated current and 200 W rated output. It has a CEE 7/7 AC plug and a standard XLR4P DC connector. The fully potted power body is IP67; input-voltage, temperature and connection limits apply. Product Datasheet Download MEAN WELL OWA-200E Datasheet (PDF) The OWA-200E section is on PDF pages 37, 38, 39, 40, 41. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order model OWA-200E-20. Model code OWA-200E identifies the European AC-plug version; the final 20 code identifies 20 VDC. Power-supply construction Class II external AC/DC power supply without a functional-ground connection. The plastic enclosure is fully potted with silicone and cooled by free-air convection; no fan is used. Mains connection CEE 7/7 plug with attached H05RN-F 1.0 mm² × 2 conductors input lead. The power unit has no FG; do not infer a Class I grounding arrangement from the plug shape. Standard DC connection XLR4P (NEUTRIK NC4MX equivalent), maximum 15 A connector rating. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. Ingress protection IP67 applies to the power body. It does not establish the same rating for the AC plug, DC connector or completed connection. Output Ratings DC output voltage 20 VDC. Rated output current 10 A. No-load operation is supported; keep the load within the rated current, power and applicable derating limits. Rated output power 200 W. Observe both the stated current and power limits. Ripple and noise, maximum 150 mVp-p under the specified measurement conditions. Voltage tolerance ±4.0%. Line / load regulation ±0.5% line; ±4.0% load. Efficiency, typical 92.5% at 230 VAC. Input and Timing Input voltage / frequency 180–264 VAC or 254–370 VDC; 47–63 Hz for AC input. Power factor, typical Built-in active PFC; PF >0.96 at 230 VAC, full load. AC current, typical 1.1 A at 230 VAC. Cold-start inrush, typical 65 A at 230 VAC, pulse width 550 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. Set-up / rise / hold-up 500 ms set-up; 80 ms rise; 10 ms typical hold-up at full load. 230 VAC. No-load input power / efficiency level Less than 0.15 W; Level VI. EU ErP and CoC Version 5 compliance is listed for this series. Set-up time is measured at the first cold start. Repeated switching may increase the set-up time. Protection Overcurrent 105–150%; hiccup mode with automatic recovery after the fault condition is removed. Short circuit Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 22–27 V threshold range; shuts down the output. Re-power the unit to recover. Overtemperature Shuts down the output; re-power the unit to recover. Operating Conditions and Derating Working temperature −40 to +70°C, subject to the input-voltage and ambient-temperature curves. Ambient-temperature curve Horizontal mounting, 230 VAC: 100% load through 45°C, decreasing to 50% at 70°C. Input-voltage curve At 60 Hz, 100% load across 180–264 VAC. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G; 12 minutes per cycle and 72 minutes each along the X, Y and Z axes. Apply the most restrictive current, power, temperature and input-voltage limits together. The maximum ambient temperature is not a full-power operating point. The power-factor plot is a typical 200 W load characteristic. The efficiency-versus-load plot is specifically for the 48 V model at 230 VAC. It is not a guaranteed efficiency curve for every output-voltage version. Mechanical Details and Installation Body size 195 × 68 × 39.5 mm (L × W × H); case PWM-200E. Drawing dimensions use millimetres and a general ±1 mm tolerance. Attached cable lengths AC input: 1500 ±20 mm; DC output: 1000 ±20 mm. DC cable SJOW 14 AWG × 2 conductors; 300 V, 105°C cable marking. Mounting holes Two Ø4.5 mm mounting holes. Follow the mechanical drawing for the 5 mm edge references and connector/strain-relief clearances. Case-temperature reference The tc mark is located using the 97.5 mm and 34 mm drawing references. It identifies the case-temperature measuring point; no numeric tc limit is specified on this drawing. Catalogue unit weight 1320 g, catalogue packing reference per unit; not a measured net or shipping weight. Mount the unit horizontally on its base as illustrated on PDF page 41. Allow space for the attached cables, connectors and free-air cooling. The AC and DC cable assemblies are attached to the adapter. Keep the actual cable and connector arrangement suitable for the installation environment. Optional DC Connections R7B KYCON KPPX-4P equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo; pin 3 = −Vo; pin 4 = +Vo. C6P MOLEX 39-01-2060 equivalent (4.2 mm pitch); maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = +Vo; pin 4 = −Vo; pin 5 = −Vo; pin 6 = −Vo. FG is not connected to the output connector. MIC4 NEUTRIK XLR NC4FX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. M19 LLT-M19-20002F307 equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo. M15 DW-M15-02F equivalent; maximum 10 A. pin 1 = +Vo; pin 2 = −Vo. Listed only for 20 V, 24 V, 36 V, 48 V and 54 V versions. The standard connector for this model is XLR4P. The options above are the connector forms listed for this output-voltage version. Specify the required assembly before ordering; do not append unlisted connector suffixes to the model number. Optional DC plug kits are sold separately. A connector rating does not increase the power-supply rating. Use the lower permitted current of the supply, connector and cable, and verify the mating contact numbers before connection. IP67 is a power-body rating; select and protect the completed AC/DC connections for the actual environment. Safety and EMC Listed safety approvals DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004; IP67 for the power body. DEKRA EN60335-1 is also listed for this voltage version. EMC emissions EN55032 (CISPR32), Class B; EN55035; EN55014-1; EN61000-3-2/3; EAC TP TC 020. EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55024; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020. Dielectric withstand Input to output: 4.2 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Class II construction has no functional-ground connection. Final equipment compliance and environmental protection depend on the complete installation. Measurement Conditions and Reliability General test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient temperature. Ripple/noise measurement 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance definition Includes set-up tolerance, line regulation and load regulation. MTBF, minimum 2677.8 thousand hours, Telcordia SR-332 (Bellcore); 267.6 thousand hours, MIL-HDBK-217F at 25°C. Internal switching frequencies PFC: 50–120 kHz; PWM: 60–130 kHz, as shown in the block diagram. Manufacturer warranty 5 years, subject to manufacturer warranty terms. Catalogue revision 2024-10-16; combined PDF pages 37–41. Applications and Selection Application examples include industrial PCs, POS and kiosk systems, portable battery or electric-lawn-mower charging equipment, household devices, and electronic products used in dusty or humid environments. For battery-charging applications, the manufacturer recommends a BMS controller. Confirm compatibility with the battery and charging system; the power adapter alone is not specified here as an autonomous battery-charge controller. Select the exact European input version, output voltage, load rating and connector required by the equipment.

  Read more less

  $136.52

  View options

•

  View options

  MEAN WELL OWA-200E series: Moistureproof AC/DC Power Adapter - OWA-200E-12

  MEAN WELL OWA-200E-12 is a fanless Class II AC/DC power adapter with 12 VDC, 15 A rated current and 180 W rated output. It has a CEE 7/7 AC plug and a standard XLR4P DC connector. The fully potted power body is IP67; input-voltage, temperature and connection limits apply. Product Datasheet Download MEAN WELL OWA-200E Datasheet (PDF) The OWA-200E section is on PDF pages 37, 38, 39, 40, 41. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order model OWA-200E-12. Model code OWA-200E identifies the European AC-plug version; the final 12 code identifies 12 VDC. Power-supply construction Class II external AC/DC power supply without a functional-ground connection. The plastic enclosure is fully potted with silicone and cooled by free-air convection; no fan is used. Mains connection CEE 7/7 plug with attached H05RN-F 1.0 mm² × 2 conductors input lead. The power unit has no FG; do not infer a Class I grounding arrangement from the plug shape. Standard DC connection XLR4P (NEUTRIK NC4MX equivalent), maximum 15 A connector rating. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. Ingress protection IP67 applies to the power body. It does not establish the same rating for the AC plug, DC connector or completed connection. Output Ratings DC output voltage 12 VDC. Rated output current 15 A. No-load operation is supported; keep the load within the rated current, power and applicable derating limits. Rated output power 180 W. Observe both the stated current and power limits. Ripple and noise, maximum 150 mVp-p under the specified measurement conditions. Voltage tolerance ±5.0%. Line / load regulation ±0.5% line; ±5.0% load. Efficiency, typical 91% at 230 VAC. Input and Timing Input voltage / frequency 180–264 VAC or 254–370 VDC; 47–63 Hz for AC input. Power factor, typical Built-in active PFC; PF >0.96 at 230 VAC, full load. AC current, typical 1.1 A at 230 VAC. Cold-start inrush, typical 65 A at 230 VAC, pulse width 550 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. Set-up / rise / hold-up 500 ms set-up; 80 ms rise; 10 ms typical hold-up at full load. 230 VAC. No-load input power / efficiency level Less than 0.15 W; Level VI. EU ErP and CoC Version 5 compliance is listed for this series. Set-up time is measured at the first cold start. Repeated switching may increase the set-up time. Protection Overcurrent 105–150%; hiccup mode with automatic recovery after the fault condition is removed. Short circuit Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 13–18 V threshold range; shuts down the output. Re-power the unit to recover. Overtemperature Shuts down the output; re-power the unit to recover. Operating Conditions and Derating Working temperature −40 to +70°C, subject to the input-voltage and ambient-temperature curves. Ambient-temperature curve Horizontal mounting, 230 VAC: 100% load through 45°C, decreasing to 50% at 70°C. Input-voltage curve At 60 Hz, 100% load across 180–264 VAC. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G; 12 minutes per cycle and 72 minutes each along the X, Y and Z axes. Apply the most restrictive current, power, temperature and input-voltage limits together. The maximum ambient temperature is not a full-power operating point. The power-factor plot is a typical 200 W load characteristic. The efficiency-versus-load plot is specifically for the 48 V model at 230 VAC. It is not a guaranteed efficiency curve for every output-voltage version. Mechanical Details and Installation Body size 195 × 68 × 39.5 mm (L × W × H); case PWM-200E. Drawing dimensions use millimetres and a general ±1 mm tolerance. Attached cable lengths AC input: 1500 ±20 mm; DC output: 1000 ±20 mm. DC cable SJOW 14 AWG × 2 conductors; 300 V, 105°C cable marking. Mounting holes Two Ø4.5 mm mounting holes. Follow the mechanical drawing for the 5 mm edge references and connector/strain-relief clearances. Case-temperature reference The tc mark is located using the 97.5 mm and 34 mm drawing references. It identifies the case-temperature measuring point; no numeric tc limit is specified on this drawing. Catalogue unit weight 1320 g, catalogue packing reference per unit; not a measured net or shipping weight. Mount the unit horizontally on its base as illustrated on PDF page 41. Allow space for the attached cables, connectors and free-air cooling. The AC and DC cable assemblies are attached to the adapter. Keep the actual cable and connector arrangement suitable for the installation environment. Optional DC Connections R7B KYCON KPPX-4P equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo; pin 3 = −Vo; pin 4 = +Vo. C6P MOLEX 39-01-2060 equivalent (4.2 mm pitch); maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = +Vo; pin 4 = −Vo; pin 5 = −Vo; pin 6 = −Vo. FG is not connected to the output connector. MIC4 NEUTRIK XLR NC4FX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. M19 LLT-M19-20002F307 equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo. The standard connector for this model is XLR4P. The options above are the connector forms listed for this output-voltage version. Specify the required assembly before ordering; do not append unlisted connector suffixes to the model number. Optional DC plug kits are sold separately. A connector rating does not increase the power-supply rating. Use the lower permitted current of the supply, connector and cable, and verify the mating contact numbers before connection. IP67 is a power-body rating; select and protect the completed AC/DC connections for the actual environment. Safety and EMC Listed safety approvals DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004; IP67 for the power body. DEKRA EN60335-1 is also listed for this voltage version. EMC emissions EN55032 (CISPR32), Class B; EN55035; EN55014-1; EN61000-3-2/3; EAC TP TC 020. EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55024; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020. Dielectric withstand Input to output: 4.2 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Class II construction has no functional-ground connection. Final equipment compliance and environmental protection depend on the complete installation. Measurement Conditions and Reliability General test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient temperature. Ripple/noise measurement 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance definition Includes set-up tolerance, line regulation and load regulation. MTBF, minimum 2677.8 thousand hours, Telcordia SR-332 (Bellcore); 267.6 thousand hours, MIL-HDBK-217F at 25°C. Internal switching frequencies PFC: 50–120 kHz; PWM: 60–130 kHz, as shown in the block diagram. Manufacturer warranty 5 years, subject to manufacturer warranty terms. Catalogue revision 2024-10-16; combined PDF pages 37–41. Applications and Selection Application examples include industrial PCs, POS and kiosk systems, portable battery or electric-lawn-mower charging equipment, household devices, and electronic products used in dusty or humid environments. For battery-charging applications, the manufacturer recommends a BMS controller. Confirm compatibility with the battery and charging system; the power adapter alone is not specified here as an autonomous battery-charge controller. Select the exact European input version, output voltage, load rating and connector required by the equipment.

  Read more less

  $136.52

  View options

•

  View options

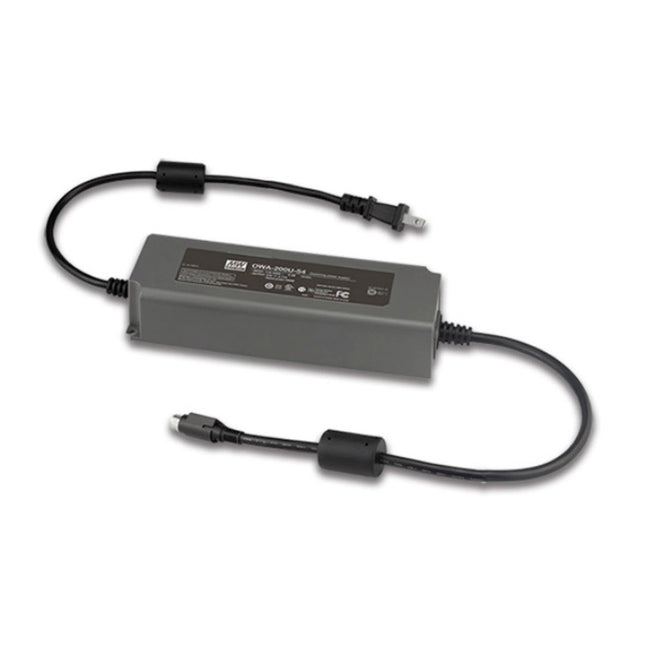

  MEAN WELL OWA-200U series: Moistureproof AC/DC Power Adapter - OWA-200U-54

  MEAN WELL OWA-200U-54 is a fanless Class II AC/DC power adapter with 54 VDC, 3.71 A rated current and 200 W rated output. It has a NEMA 1-15P AC plug and a standard R7B DC connector. The fully potted power body is IP67; input-voltage, temperature and connection limits apply. Product Datasheet Download MEAN WELL OWA-200U Datasheet (PDF) The OWA-200U section is on PDF pages 32, 33, 34, 35, 36. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order model OWA-200U-54. Model code OWA-200U identifies the North American AC-plug version; the final 54 code identifies 54 VDC. Power-supply construction Class II external AC/DC power supply without a functional-ground connection. The plastic enclosure is fully potted with silicone and cooled by free-air convection; no fan is used. The case material is rated 94V-0. Mains connection NEMA 1-15P plug with attached SVT 18 AWG × 2 conductors input lead. The power unit has no FG; do not infer a Class I grounding arrangement from the plug shape. Standard DC connection R7B (KYCON KPPX-4P equivalent), maximum 15 A connector rating. pin 1 = +Vo; pin 2 = −Vo; pin 3 = −Vo; pin 4 = +Vo. Ingress protection IP67 applies to the power body. It does not establish the same rating for the AC plug, DC connector or completed connection. Output Ratings DC output voltage 54 VDC. Rated output current 3.71 A. No-load operation is supported; keep the load within the rated current, power and applicable derating limits. Rated output power 200 W. Observe both the stated current and power limits. Ripple and noise, maximum 350 mVp-p under the specified measurement conditions. Voltage tolerance ±3.0%. Line / load regulation ±0.5% line; ±3.0% load. Efficiency, typical 94% at 230 VAC; 91.5% at 115 VAC. Input and Timing Input voltage / frequency 100–264 VAC or 142–370 VDC; 47–63 Hz for AC input. Power factor, typical Built-in active PFC; PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. AC current, typical 2.2 A at 115 VAC; 1.1 A at 230 VAC. Cold-start inrush, typical 90 A at 115 VAC, pulse width 300 µs measured at 50% of peak current; 180 A at 230 VAC, pulse width 450 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. Set-up / rise / hold-up 500 ms set-up; 80 ms rise; 10 ms typical hold-up at full load. 230 VAC / 115 VAC. No-load input power / efficiency level Less than 0.15 W; Level VI. EU ErP and CoC Version 5 compliance is listed for this series. Set-up time is measured at the first cold start. Repeated switching may increase the set-up time. Protection Overcurrent 105–150%; hiccup mode with automatic recovery after the fault condition is removed. Short circuit Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 59–70 V threshold range; shuts down the output. Re-power the unit to recover. Overtemperature Shuts down the output; re-power the unit to recover. Operating Conditions and Derating Working temperature −40 to +70°C, subject to the input-voltage and ambient-temperature curves. Ambient-temperature curve Horizontal mounting, 230 VAC: 100% load through 45°C, decreasing to 50% at 70°C. At 110 VAC: 100% through 40°C, decreasing to 40% at 70°C. The shaded −40 to −25°C region is for 230 VAC input only. Input-voltage curve At 60 Hz, 80% load at 100 VAC, rising to 100% at 110 VAC; 100% across 110–264 VAC. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G; 12 minutes per cycle and 72 minutes each along the X, Y and Z axes. Apply the most restrictive current, power, temperature and input-voltage limits together. The maximum ambient temperature is not a full-power operating point. The power-factor plot is a typical 200 W load characteristic. The efficiency-versus-load plot is specifically for the 48 V model at 115 VAC and 230 VAC. It is not a guaranteed efficiency curve for every output-voltage version. Mechanical Details and Installation Body size 195 × 68 × 39.5 mm (L × W × H); case PWM-200. Drawing dimensions use millimetres and a general ±1 mm tolerance. Attached cable lengths AC input: 1500 ±20 mm; DC output: 1000 ±20 mm. DC cable UL2464 16 AWG × 4 conductors. Mounting holes Two Ø4.5 mm mounting holes. Follow the mechanical drawing for the 5 mm edge references and connector/strain-relief clearances. Case-temperature reference The tc mark is located using the 97.5 mm and 34 mm drawing references. It identifies the case-temperature measuring point; no numeric tc limit is specified on this drawing. Catalogue packing reference per unit 1320 g (1.32 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. Mount the unit horizontally on its base as illustrated on PDF page 36. Allow space for the attached cables, connectors and free-air cooling. The AC and DC cable assemblies are attached to the adapter. Keep the actual cable and connector arrangement suitable for the installation environment. Optional DC Connections XLR4P NEUTRIK NC4MX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. C6P MOLEX 39-01-2060 equivalent (4.2 mm pitch); maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = +Vo; pin 4 = −Vo; pin 5 = −Vo; pin 6 = −Vo. FG is not connected to the output connector. MIC4 NEUTRIK XLR NC4FX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. M19 LLT-M19-20002F307 equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo. M15 DW-M15-02F equivalent; maximum 10 A. pin 1 = +Vo; pin 2 = −Vo. Listed only for 20 V, 24 V, 36 V, 48 V and 54 V versions. P1J Straight tuning fork: 5.5 mm outside diameter, 2.1 mm inside diameter, 11.0 mm length; maximum 7.5 A. Listed for the 36 V, 48 V and 54 V versions. Confirm the required polarity and mating socket when ordering. P1M Straight tuning fork: 5.5 mm outside diameter, 2.5 mm inside diameter, 11.0 mm length; maximum 7.5 A. Listed for the 36 V, 48 V and 54 V versions. Confirm the required polarity and mating socket when ordering. The standard connector for this model is R7B. The options above are the connector forms listed for this output-voltage version. Specify the required assembly before ordering; do not append unlisted connector suffixes to the model number. Optional DC plug kits are sold separately. A connector rating does not increase the power-supply rating. Use the lower permitted current of the supply, connector and cable, and verify the mating contact numbers before connection. IP67 is a power-body rating; select and protect the completed AC/DC connections for the actual environment. Safety and EMC Listed safety approvals UL62368-1; IP67 for the power body. UL LISTED for dry and damp locations. UL1012 is stated as a design reference. EMC emissions Compliance with FCC Part 15. Dielectric withstand Input to output: 4.2 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Class II construction has no functional-ground connection. Final equipment compliance and environmental protection depend on the complete installation. Measurement Conditions and Reliability General test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient temperature. Ripple/noise measurement 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance definition Includes set-up tolerance, line regulation and load regulation. MTBF, minimum 2680.8 thousand hours, Telcordia SR-332 (Bellcore); 268.5 thousand hours, MIL-HDBK-217F at 25°C. Internal switching frequencies PFC: 50–120 kHz; PWM: 60–130 kHz, as shown in the block diagram. Manufacturer warranty 5 years, subject to manufacturer warranty terms. Catalogue revision 2024-10-16; combined PDF pages 32–36. Applications and Selection Application examples include industrial PCs, POS and kiosk systems, portable battery or electric-lawn-mower charging equipment, household devices, and electronic products used in dusty or humid environments. For battery-charging applications, the manufacturer recommends a BMS controller. Confirm compatibility with the battery and charging system; the power adapter alone is not specified here as an autonomous battery-charge controller. Select the exact North American input version, output voltage, load rating and connector required by the equipment.

  Read more less

  $136.52

  View options

•

  View options

  MEAN WELL OWA-200U series: Moistureproof AC/DC Power Adapter - OWA-200U-48

  MEAN WELL OWA-200U-48 is a fanless Class II AC/DC power adapter with 48 VDC, 4.17 A rated current and 200 W rated output. It has a NEMA 1-15P AC plug and a standard R7B DC connector. The fully potted power body is IP67; input-voltage, temperature and connection limits apply. Product Datasheet Download MEAN WELL OWA-200U Datasheet (PDF) The OWA-200U section is on PDF pages 32, 33, 34, 35, 36. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order model OWA-200U-48. Model code OWA-200U identifies the North American AC-plug version; the final 48 code identifies 48 VDC. Power-supply construction Class II external AC/DC power supply without a functional-ground connection. The plastic enclosure is fully potted with silicone and cooled by free-air convection; no fan is used. The case material is rated 94V-0. Mains connection NEMA 1-15P plug with attached SVT 18 AWG × 2 conductors input lead. The power unit has no FG; do not infer a Class I grounding arrangement from the plug shape. Standard DC connection R7B (KYCON KPPX-4P equivalent), maximum 15 A connector rating. pin 1 = +Vo; pin 2 = −Vo; pin 3 = −Vo; pin 4 = +Vo. Ingress protection IP67 applies to the power body. It does not establish the same rating for the AC plug, DC connector or completed connection. Output Ratings DC output voltage 48 VDC. Rated output current 4.17 A. No-load operation is supported; keep the load within the rated current, power and applicable derating limits. Rated output power 200 W. Observe both the stated current and power limits. Ripple and noise, maximum 250 mVp-p under the specified measurement conditions. Voltage tolerance ±3.0%. Line / load regulation ±0.5% line; ±3.0% load. Efficiency, typical 94% at 230 VAC; 91.5% at 115 VAC. Input and Timing Input voltage / frequency 100–264 VAC or 142–370 VDC; 47–63 Hz for AC input. Power factor, typical Built-in active PFC; PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. AC current, typical 2.2 A at 115 VAC; 1.1 A at 230 VAC. Cold-start inrush, typical 90 A at 115 VAC, pulse width 300 µs measured at 50% of peak current; 180 A at 230 VAC, pulse width 450 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. Set-up / rise / hold-up 500 ms set-up; 80 ms rise; 10 ms typical hold-up at full load. 230 VAC / 115 VAC. No-load input power / efficiency level Less than 0.15 W; Level VI. EU ErP and CoC Version 5 compliance is listed for this series. Set-up time is measured at the first cold start. Repeated switching may increase the set-up time. Protection Overcurrent 105–150%; hiccup mode with automatic recovery after the fault condition is removed. Short circuit Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 52–65 V threshold range; shuts down the output. Re-power the unit to recover. Overtemperature Shuts down the output; re-power the unit to recover. Operating Conditions and Derating Working temperature −40 to +70°C, subject to the input-voltage and ambient-temperature curves. Ambient-temperature curve Horizontal mounting, 230 VAC: 100% load through 45°C, decreasing to 50% at 70°C. At 110 VAC: 100% through 40°C, decreasing to 40% at 70°C. The shaded −40 to −25°C region is for 230 VAC input only. Input-voltage curve At 60 Hz, 80% load at 100 VAC, rising to 100% at 110 VAC; 100% across 110–264 VAC. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G; 12 minutes per cycle and 72 minutes each along the X, Y and Z axes. Apply the most restrictive current, power, temperature and input-voltage limits together. The maximum ambient temperature is not a full-power operating point. The power-factor plot is a typical 200 W load characteristic. The efficiency-versus-load plot is specifically for the 48 V model at 115 VAC and 230 VAC. It is not a guaranteed efficiency curve for every output-voltage version. Mechanical Details and Installation Body size 195 × 68 × 39.5 mm (L × W × H); case PWM-200. Drawing dimensions use millimetres and a general ±1 mm tolerance. Attached cable lengths AC input: 1500 ±20 mm; DC output: 1000 ±20 mm. DC cable UL2464 16 AWG × 4 conductors. Mounting holes Two Ø4.5 mm mounting holes. Follow the mechanical drawing for the 5 mm edge references and connector/strain-relief clearances. Case-temperature reference The tc mark is located using the 97.5 mm and 34 mm drawing references. It identifies the case-temperature measuring point; no numeric tc limit is specified on this drawing. Catalogue packing reference per unit 1320 g (1.32 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. Mount the unit horizontally on its base as illustrated on PDF page 36. Allow space for the attached cables, connectors and free-air cooling. The AC and DC cable assemblies are attached to the adapter. Keep the actual cable and connector arrangement suitable for the installation environment. Optional DC Connections XLR4P NEUTRIK NC4MX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. C6P MOLEX 39-01-2060 equivalent (4.2 mm pitch); maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = +Vo; pin 4 = −Vo; pin 5 = −Vo; pin 6 = −Vo. FG is not connected to the output connector. MIC4 NEUTRIK XLR NC4FX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. M19 LLT-M19-20002F307 equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo. M15 DW-M15-02F equivalent; maximum 10 A. pin 1 = +Vo; pin 2 = −Vo. Listed only for 20 V, 24 V, 36 V, 48 V and 54 V versions. P1J Straight tuning fork: 5.5 mm outside diameter, 2.1 mm inside diameter, 11.0 mm length; maximum 7.5 A. Listed for the 36 V, 48 V and 54 V versions. Confirm the required polarity and mating socket when ordering. P1M Straight tuning fork: 5.5 mm outside diameter, 2.5 mm inside diameter, 11.0 mm length; maximum 7.5 A. Listed for the 36 V, 48 V and 54 V versions. Confirm the required polarity and mating socket when ordering. The standard connector for this model is R7B. The options above are the connector forms listed for this output-voltage version. Specify the required assembly before ordering; do not append unlisted connector suffixes to the model number. Optional DC plug kits are sold separately. A connector rating does not increase the power-supply rating. Use the lower permitted current of the supply, connector and cable, and verify the mating contact numbers before connection. IP67 is a power-body rating; select and protect the completed AC/DC connections for the actual environment. Safety and EMC Listed safety approvals UL62368-1; IP67 for the power body. UL LISTED for dry and damp locations. UL1012 is stated as a design reference. EMC emissions Compliance with FCC Part 15. Dielectric withstand Input to output: 4.2 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Class II construction has no functional-ground connection. Final equipment compliance and environmental protection depend on the complete installation. Measurement Conditions and Reliability General test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient temperature. Ripple/noise measurement 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance definition Includes set-up tolerance, line regulation and load regulation. MTBF, minimum 2680.8 thousand hours, Telcordia SR-332 (Bellcore); 268.5 thousand hours, MIL-HDBK-217F at 25°C. Internal switching frequencies PFC: 50–120 kHz; PWM: 60–130 kHz, as shown in the block diagram. Manufacturer warranty 5 years, subject to manufacturer warranty terms. Catalogue revision 2024-10-16; combined PDF pages 32–36. Applications and Selection Application examples include industrial PCs, POS and kiosk systems, portable battery or electric-lawn-mower charging equipment, household devices, and electronic products used in dusty or humid environments. For battery-charging applications, the manufacturer recommends a BMS controller. Confirm compatibility with the battery and charging system; the power adapter alone is not specified here as an autonomous battery-charge controller. Select the exact North American input version, output voltage, load rating and connector required by the equipment.

  Read more less

  $136.52

  View options

•

  View options

  MEAN WELL OWA-200U series: Moistureproof AC/DC Power Adapter - OWA-200U-42

  MEAN WELL OWA-200U-42 is a fanless Class II AC/DC power adapter with 42 VDC, 4.75 A rated current and 199 W rated output. It has a NEMA 1-15P AC plug and a standard R7B DC connector. The fully potted power body is IP67; input-voltage, temperature and connection limits apply. Product Datasheet Download MEAN WELL OWA-200U Datasheet (PDF) The OWA-200U section is on PDF pages 32, 33, 34, 35, 36. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order model OWA-200U-42. Model code OWA-200U identifies the North American AC-plug version; the final 42 code identifies 42 VDC. Power-supply construction Class II external AC/DC power supply without a functional-ground connection. The plastic enclosure is fully potted with silicone and cooled by free-air convection; no fan is used. The case material is rated 94V-0. Mains connection NEMA 1-15P plug with attached SVT 18 AWG × 2 conductors input lead. The power unit has no FG; do not infer a Class I grounding arrangement from the plug shape. Standard DC connection R7B (KYCON KPPX-4P equivalent), maximum 15 A connector rating. pin 1 = +Vo; pin 2 = −Vo; pin 3 = −Vo; pin 4 = +Vo. Ingress protection IP67 applies to the power body. It does not establish the same rating for the AC plug, DC connector or completed connection. Output Ratings DC output voltage 42 VDC. Rated output current 4.75 A. No-load operation is supported; keep the load within the rated current, power and applicable derating limits. Rated output power 199 W. Observe both the stated current and power limits. Ripple and noise, maximum 250 mVp-p under the specified measurement conditions. Voltage tolerance ±3.0%. Line / load regulation ±0.5% line; ±3.0% load. Efficiency, typical 94% at 230 VAC; 91.5% at 115 VAC. Input and Timing Input voltage / frequency 100–264 VAC or 142–370 VDC; 47–63 Hz for AC input. Power factor, typical Built-in active PFC; PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. AC current, typical 2.2 A at 115 VAC; 1.1 A at 230 VAC. Cold-start inrush, typical 90 A at 115 VAC, pulse width 300 µs measured at 50% of peak current; 180 A at 230 VAC, pulse width 450 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. Set-up / rise / hold-up 500 ms set-up; 80 ms rise; 10 ms typical hold-up at full load. 230 VAC / 115 VAC. No-load input power / efficiency level Less than 0.15 W; Level VI. EU ErP and CoC Version 5 compliance is listed for this series. Set-up time is measured at the first cold start. Repeated switching may increase the set-up time. Protection Overcurrent 105–150%; hiccup mode with automatic recovery after the fault condition is removed. Short circuit Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 46–57 V threshold range; shuts down the output. Re-power the unit to recover. Overtemperature Shuts down the output; re-power the unit to recover. Operating Conditions and Derating Working temperature −40 to +70°C, subject to the input-voltage and ambient-temperature curves. Ambient-temperature curve Horizontal mounting, 230 VAC: 100% load through 45°C, decreasing to 50% at 70°C. At 110 VAC: 100% through 40°C, decreasing to 40% at 70°C. The shaded −40 to −25°C region is for 230 VAC input only. Input-voltage curve At 60 Hz, 80% load at 100 VAC, rising to 100% at 110 VAC; 100% across 110–264 VAC. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G; 12 minutes per cycle and 72 minutes each along the X, Y and Z axes. Apply the most restrictive current, power, temperature and input-voltage limits together. The maximum ambient temperature is not a full-power operating point. The power-factor plot is a typical 200 W load characteristic. The efficiency-versus-load plot is specifically for the 48 V model at 115 VAC and 230 VAC. It is not a guaranteed efficiency curve for every output-voltage version. Mechanical Details and Installation Body size 195 × 68 × 39.5 mm (L × W × H); case PWM-200. Drawing dimensions use millimetres and a general ±1 mm tolerance. Attached cable lengths AC input: 1500 ±20 mm; DC output: 1000 ±20 mm. DC cable UL2464 16 AWG × 4 conductors. Mounting holes Two Ø4.5 mm mounting holes. Follow the mechanical drawing for the 5 mm edge references and connector/strain-relief clearances. Case-temperature reference The tc mark is located using the 97.5 mm and 34 mm drawing references. It identifies the case-temperature measuring point; no numeric tc limit is specified on this drawing. Catalogue packing reference per unit 1320 g (1.32 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. Mount the unit horizontally on its base as illustrated on PDF page 36. Allow space for the attached cables, connectors and free-air cooling. The AC and DC cable assemblies are attached to the adapter. Keep the actual cable and connector arrangement suitable for the installation environment. Optional DC Connections XLR4P NEUTRIK NC4MX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. C6P MOLEX 39-01-2060 equivalent (4.2 mm pitch); maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = +Vo; pin 4 = −Vo; pin 5 = −Vo; pin 6 = −Vo. FG is not connected to the output connector. MIC4 NEUTRIK XLR NC4FX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. M19 LLT-M19-20002F307 equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo. The standard connector for this model is R7B. The options above are the connector forms listed for this output-voltage version. Specify the required assembly before ordering; do not append unlisted connector suffixes to the model number. Optional DC plug kits are sold separately. A connector rating does not increase the power-supply rating. Use the lower permitted current of the supply, connector and cable, and verify the mating contact numbers before connection. IP67 is a power-body rating; select and protect the completed AC/DC connections for the actual environment. Safety and EMC Listed safety approvals UL62368-1; IP67 for the power body. UL LISTED for dry and damp locations. UL1012 is stated as a design reference. EMC emissions Compliance with FCC Part 15. Dielectric withstand Input to output: 4.2 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Class II construction has no functional-ground connection. Final equipment compliance and environmental protection depend on the complete installation. Measurement Conditions and Reliability General test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient temperature. Ripple/noise measurement 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance definition Includes set-up tolerance, line regulation and load regulation. MTBF, minimum 2680.8 thousand hours, Telcordia SR-332 (Bellcore); 268.5 thousand hours, MIL-HDBK-217F at 25°C. Internal switching frequencies PFC: 50–120 kHz; PWM: 60–130 kHz, as shown in the block diagram. Manufacturer warranty 5 years, subject to manufacturer warranty terms. Catalogue revision 2024-10-16; combined PDF pages 32–36. Applications and Selection Application examples include industrial PCs, POS and kiosk systems, portable battery or electric-lawn-mower charging equipment, household devices, and electronic products used in dusty or humid environments. For battery-charging applications, the manufacturer recommends a BMS controller. Confirm compatibility with the battery and charging system; the power adapter alone is not specified here as an autonomous battery-charge controller. Select the exact North American input version, output voltage, load rating and connector required by the equipment.

  Read more less

  $136.52

  View options

•

  View options

  MEAN WELL OWA-200U series: Moistureproof AC/DC Power Adapter - OWA-200U-36

  MEAN WELL OWA-200U-36 is a fanless Class II AC/DC power adapter with 36 VDC, 5.55 A rated current and 199 W rated output. It has a NEMA 1-15P AC plug and a standard R7B DC connector. The fully potted power body is IP67; input-voltage, temperature and connection limits apply. Product Datasheet Download MEAN WELL OWA-200U Datasheet (PDF) The OWA-200U section is on PDF pages 32, 33, 34, 35, 36. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order model OWA-200U-36. Model code OWA-200U identifies the North American AC-plug version; the final 36 code identifies 36 VDC. Power-supply construction Class II external AC/DC power supply without a functional-ground connection. The plastic enclosure is fully potted with silicone and cooled by free-air convection; no fan is used. The case material is rated 94V-0. Mains connection NEMA 1-15P plug with attached SVT 18 AWG × 2 conductors input lead. The power unit has no FG; do not infer a Class I grounding arrangement from the plug shape. Standard DC connection R7B (KYCON KPPX-4P equivalent), maximum 15 A connector rating. pin 1 = +Vo; pin 2 = −Vo; pin 3 = −Vo; pin 4 = +Vo. Ingress protection IP67 applies to the power body. It does not establish the same rating for the AC plug, DC connector or completed connection. Output Ratings DC output voltage 36 VDC. Rated output current 5.55 A. No-load operation is supported; keep the load within the rated current, power and applicable derating limits. Rated output power 199 W. Observe both the stated current and power limits. Ripple and noise, maximum 200 mVp-p under the specified measurement conditions. Voltage tolerance ±3.0%. Line / load regulation ±0.5% line; ±3.0% load. Efficiency, typical 94% at 230 VAC; 91.5% at 115 VAC. Input and Timing Input voltage / frequency 100–264 VAC or 142–370 VDC; 47–63 Hz for AC input. Power factor, typical Built-in active PFC; PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. AC current, typical 2.2 A at 115 VAC; 1.1 A at 230 VAC. Cold-start inrush, typical 90 A at 115 VAC, pulse width 300 µs measured at 50% of peak current; 180 A at 230 VAC, pulse width 450 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. Set-up / rise / hold-up 500 ms set-up; 80 ms rise; 10 ms typical hold-up at full load. 230 VAC / 115 VAC. No-load input power / efficiency level Less than 0.15 W; Level VI. EU ErP and CoC Version 5 compliance is listed for this series. Set-up time is measured at the first cold start. Repeated switching may increase the set-up time. Protection Overcurrent 105–150%; hiccup mode with automatic recovery after the fault condition is removed. Short circuit Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 41–49 V threshold range; shuts down the output. Re-power the unit to recover. Overtemperature Shuts down the output; re-power the unit to recover. Operating Conditions and Derating Working temperature −40 to +70°C, subject to the input-voltage and ambient-temperature curves. Ambient-temperature curve Horizontal mounting, 230 VAC: 100% load through 45°C, decreasing to 50% at 70°C. At 110 VAC: 100% through 40°C, decreasing to 40% at 70°C. The shaded −40 to −25°C region is for 230 VAC input only. Input-voltage curve At 60 Hz, 80% load at 100 VAC, rising to 100% at 110 VAC; 100% across 110–264 VAC. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G; 12 minutes per cycle and 72 minutes each along the X, Y and Z axes. Apply the most restrictive current, power, temperature and input-voltage limits together. The maximum ambient temperature is not a full-power operating point. The power-factor plot is a typical 200 W load characteristic. The efficiency-versus-load plot is specifically for the 48 V model at 115 VAC and 230 VAC. It is not a guaranteed efficiency curve for every output-voltage version. Mechanical Details and Installation Body size 195 × 68 × 39.5 mm (L × W × H); case PWM-200. Drawing dimensions use millimetres and a general ±1 mm tolerance. Attached cable lengths AC input: 1500 ±20 mm; DC output: 1000 ±20 mm. DC cable UL2464 16 AWG × 4 conductors. Mounting holes Two Ø4.5 mm mounting holes. Follow the mechanical drawing for the 5 mm edge references and connector/strain-relief clearances. Case-temperature reference The tc mark is located using the 97.5 mm and 34 mm drawing references. It identifies the case-temperature measuring point; no numeric tc limit is specified on this drawing. Catalogue packing reference per unit 1320 g (1.32 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. Mount the unit horizontally on its base as illustrated on PDF page 36. Allow space for the attached cables, connectors and free-air cooling. The AC and DC cable assemblies are attached to the adapter. Keep the actual cable and connector arrangement suitable for the installation environment. Optional DC Connections XLR4P NEUTRIK NC4MX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. C6P MOLEX 39-01-2060 equivalent (4.2 mm pitch); maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = +Vo; pin 4 = −Vo; pin 5 = −Vo; pin 6 = −Vo. FG is not connected to the output connector. MIC4 NEUTRIK XLR NC4FX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. M19 LLT-M19-20002F307 equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo. M15 DW-M15-02F equivalent; maximum 10 A. pin 1 = +Vo; pin 2 = −Vo. Listed only for 20 V, 24 V, 36 V, 48 V and 54 V versions. P1J Straight tuning fork: 5.5 mm outside diameter, 2.1 mm inside diameter, 11.0 mm length; maximum 7.5 A. Listed for the 36 V, 48 V and 54 V versions. Confirm the required polarity and mating socket when ordering. P1M Straight tuning fork: 5.5 mm outside diameter, 2.5 mm inside diameter, 11.0 mm length; maximum 7.5 A. Listed for the 36 V, 48 V and 54 V versions. Confirm the required polarity and mating socket when ordering. The standard connector for this model is R7B. The options above are the connector forms listed for this output-voltage version. Specify the required assembly before ordering; do not append unlisted connector suffixes to the model number. Optional DC plug kits are sold separately. A connector rating does not increase the power-supply rating. Use the lower permitted current of the supply, connector and cable, and verify the mating contact numbers before connection. IP67 is a power-body rating; select and protect the completed AC/DC connections for the actual environment. Safety and EMC Listed safety approvals UL62368-1; IP67 for the power body. UL LISTED for dry and damp locations. UL1012 is stated as a design reference. EMC emissions Compliance with FCC Part 15. Dielectric withstand Input to output: 4.2 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Class II construction has no functional-ground connection. Final equipment compliance and environmental protection depend on the complete installation. Measurement Conditions and Reliability General test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient temperature. Ripple/noise measurement 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance definition Includes set-up tolerance, line regulation and load regulation. MTBF, minimum 2680.8 thousand hours, Telcordia SR-332 (Bellcore); 268.5 thousand hours, MIL-HDBK-217F at 25°C. Internal switching frequencies PFC: 50–120 kHz; PWM: 60–130 kHz, as shown in the block diagram. Manufacturer warranty 5 years, subject to manufacturer warranty terms. Catalogue revision 2024-10-16; combined PDF pages 32–36. Applications and Selection Application examples include industrial PCs, POS and kiosk systems, portable battery or electric-lawn-mower charging equipment, household devices, and electronic products used in dusty or humid environments. For battery-charging applications, the manufacturer recommends a BMS controller. Confirm compatibility with the battery and charging system; the power adapter alone is not specified here as an autonomous battery-charge controller. Select the exact North American input version, output voltage, load rating and connector required by the equipment.

  Read more less

  $136.52

  View options

•

  View options

  MEAN WELL OWA-200U series: Moistureproof AC/DC Power Adapter - OWA-200U-24

  MEAN WELL OWA-200U-24 is a fanless Class II AC/DC power adapter with 24 VDC, 8.3 A rated current and 199 W rated output. It has a NEMA 1-15P AC plug and a standard R7B DC connector. The fully potted power body is IP67; input-voltage, temperature and connection limits apply. Product Datasheet Download MEAN WELL OWA-200U Datasheet (PDF) The OWA-200U section is on PDF pages 32, 33, 34, 35, 36. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order model OWA-200U-24. Model code OWA-200U identifies the North American AC-plug version; the final 24 code identifies 24 VDC. Power-supply construction Class II external AC/DC power supply without a functional-ground connection. The plastic enclosure is fully potted with silicone and cooled by free-air convection; no fan is used. The case material is rated 94V-0. Mains connection NEMA 1-15P plug with attached SVT 18 AWG × 2 conductors input lead. The power unit has no FG; do not infer a Class I grounding arrangement from the plug shape. Standard DC connection R7B (KYCON KPPX-4P equivalent), maximum 15 A connector rating. pin 1 = +Vo; pin 2 = −Vo; pin 3 = −Vo; pin 4 = +Vo. Ingress protection IP67 applies to the power body. It does not establish the same rating for the AC plug, DC connector or completed connection. Output Ratings DC output voltage 24 VDC. Rated output current 8.3 A. No-load operation is supported; keep the load within the rated current, power and applicable derating limits. Rated output power 199 W. Observe both the stated current and power limits. Ripple and noise, maximum 150 mVp-p under the specified measurement conditions. Voltage tolerance ±4.0%. Line / load regulation ±0.5% line; ±4.0% load. Efficiency, typical 93% at 230 VAC; 90.5% at 115 VAC. Input and Timing Input voltage / frequency 100–264 VAC or 142–370 VDC; 47–63 Hz for AC input. Power factor, typical Built-in active PFC; PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. AC current, typical 2.2 A at 115 VAC; 1.1 A at 230 VAC. Cold-start inrush, typical 90 A at 115 VAC, pulse width 300 µs measured at 50% of peak current; 180 A at 230 VAC, pulse width 450 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. Set-up / rise / hold-up 500 ms set-up; 80 ms rise; 10 ms typical hold-up at full load. 230 VAC / 115 VAC. No-load input power / efficiency level Less than 0.15 W; Level VI. EU ErP and CoC Version 5 compliance is listed for this series. Set-up time is measured at the first cold start. Repeated switching may increase the set-up time. Protection Overcurrent 105–150%; hiccup mode with automatic recovery after the fault condition is removed. Short circuit Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 27–34 V threshold range; shuts down the output. Re-power the unit to recover. Overtemperature Shuts down the output; re-power the unit to recover. Operating Conditions and Derating Working temperature −40 to +70°C, subject to the input-voltage and ambient-temperature curves. Ambient-temperature curve Horizontal mounting, 230 VAC: 100% load through 45°C, decreasing to 50% at 70°C. At 110 VAC: 100% through 40°C, decreasing to 40% at 70°C. The shaded −40 to −25°C region is for 230 VAC input only. Input-voltage curve At 60 Hz, 80% load at 100 VAC, rising to 100% at 110 VAC; 100% across 110–264 VAC. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G; 12 minutes per cycle and 72 minutes each along the X, Y and Z axes. Apply the most restrictive current, power, temperature and input-voltage limits together. The maximum ambient temperature is not a full-power operating point. The power-factor plot is a typical 200 W load characteristic. The efficiency-versus-load plot is specifically for the 48 V model at 115 VAC and 230 VAC. It is not a guaranteed efficiency curve for every output-voltage version. Mechanical Details and Installation Body size 195 × 68 × 39.5 mm (L × W × H); case PWM-200. Drawing dimensions use millimetres and a general ±1 mm tolerance. Attached cable lengths AC input: 1500 ±20 mm; DC output: 1000 ±20 mm. DC cable UL2464 16 AWG × 4 conductors. Mounting holes Two Ø4.5 mm mounting holes. Follow the mechanical drawing for the 5 mm edge references and connector/strain-relief clearances. Case-temperature reference The tc mark is located using the 97.5 mm and 34 mm drawing references. It identifies the case-temperature measuring point; no numeric tc limit is specified on this drawing. Catalogue packing reference per unit 1320 g (1.32 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. Mount the unit horizontally on its base as illustrated on PDF page 36. Allow space for the attached cables, connectors and free-air cooling. The AC and DC cable assemblies are attached to the adapter. Keep the actual cable and connector arrangement suitable for the installation environment. Optional DC Connections XLR4P NEUTRIK NC4MX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. C6P MOLEX 39-01-2060 equivalent (4.2 mm pitch); maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = +Vo; pin 4 = −Vo; pin 5 = −Vo; pin 6 = −Vo. FG is not connected to the output connector. MIC4 NEUTRIK XLR NC4FX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. M19 LLT-M19-20002F307 equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo. M15 DW-M15-02F equivalent; maximum 10 A. pin 1 = +Vo; pin 2 = −Vo. Listed only for 20 V, 24 V, 36 V, 48 V and 54 V versions. The standard connector for this model is R7B. The options above are the connector forms listed for this output-voltage version. Specify the required assembly before ordering; do not append unlisted connector suffixes to the model number. Optional DC plug kits are sold separately. A connector rating does not increase the power-supply rating. Use the lower permitted current of the supply, connector and cable, and verify the mating contact numbers before connection. IP67 is a power-body rating; select and protect the completed AC/DC connections for the actual environment. Safety and EMC Listed safety approvals UL62368-1; IP67 for the power body. UL LISTED for dry and damp locations. UL1012 is stated as a design reference. EMC emissions Compliance with FCC Part 15. Dielectric withstand Input to output: 4.2 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Class II construction has no functional-ground connection. Final equipment compliance and environmental protection depend on the complete installation. Measurement Conditions and Reliability General test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient temperature. Ripple/noise measurement 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance definition Includes set-up tolerance, line regulation and load regulation. MTBF, minimum 2680.8 thousand hours, Telcordia SR-332 (Bellcore); 268.5 thousand hours, MIL-HDBK-217F at 25°C. Internal switching frequencies PFC: 50–120 kHz; PWM: 60–130 kHz, as shown in the block diagram. Manufacturer warranty 5 years, subject to manufacturer warranty terms. Catalogue revision 2024-10-16; combined PDF pages 32–36. Applications and Selection Application examples include industrial PCs, POS and kiosk systems, portable battery or electric-lawn-mower charging equipment, household devices, and electronic products used in dusty or humid environments. For battery-charging applications, the manufacturer recommends a BMS controller. Confirm compatibility with the battery and charging system; the power adapter alone is not specified here as an autonomous battery-charge controller. Select the exact North American input version, output voltage, load rating and connector required by the equipment.

  Read more less

  $136.52

  View options

•

  View options

  MEAN WELL OWA-200U series: Moistureproof AC/DC Power Adapter - OWA-200U-20

  MEAN WELL OWA-200U-20 is a fanless Class II AC/DC power adapter with 20 VDC, 10 A rated current and 200 W rated output. It has a NEMA 1-15P AC plug and a standard R7B DC connector. The fully potted power body is IP67; input-voltage, temperature and connection limits apply. Product Datasheet Download MEAN WELL OWA-200U Datasheet (PDF) The OWA-200U section is on PDF pages 32, 33, 34, 35, 36. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order model OWA-200U-20. Model code OWA-200U identifies the North American AC-plug version; the final 20 code identifies 20 VDC. Power-supply construction Class II external AC/DC power supply without a functional-ground connection. The plastic enclosure is fully potted with silicone and cooled by free-air convection; no fan is used. The case material is rated 94V-0. Mains connection NEMA 1-15P plug with attached SVT 18 AWG × 2 conductors input lead. The power unit has no FG; do not infer a Class I grounding arrangement from the plug shape. Standard DC connection R7B (KYCON KPPX-4P equivalent), maximum 15 A connector rating. pin 1 = +Vo; pin 2 = −Vo; pin 3 = −Vo; pin 4 = +Vo. Ingress protection IP67 applies to the power body. It does not establish the same rating for the AC plug, DC connector or completed connection. Output Ratings DC output voltage 20 VDC. Rated output current 10 A. No-load operation is supported; keep the load within the rated current, power and applicable derating limits. Rated output power 200 W. Observe both the stated current and power limits. Ripple and noise, maximum 150 mVp-p under the specified measurement conditions. Voltage tolerance ±4.0%. Line / load regulation ±0.5% line; ±4.0% load. Efficiency, typical 92.5% at 230 VAC; 90% at 115 VAC. Input and Timing Input voltage / frequency 100–264 VAC or 142–370 VDC; 47–63 Hz for AC input. Power factor, typical Built-in active PFC; PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. AC current, typical 2.2 A at 115 VAC; 1.1 A at 230 VAC. Cold-start inrush, typical 90 A at 115 VAC, pulse width 300 µs measured at 50% of peak current; 180 A at 230 VAC, pulse width 450 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. Set-up / rise / hold-up 500 ms set-up; 80 ms rise; 10 ms typical hold-up at full load. 230 VAC / 115 VAC. No-load input power / efficiency level Less than 0.15 W; Level VI. EU ErP and CoC Version 5 compliance is listed for this series. Set-up time is measured at the first cold start. Repeated switching may increase the set-up time. Protection Overcurrent 105–150%; hiccup mode with automatic recovery after the fault condition is removed. Short circuit Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 22–27 V threshold range; shuts down the output. Re-power the unit to recover. Overtemperature Shuts down the output; re-power the unit to recover. Operating Conditions and Derating Working temperature −40 to +70°C, subject to the input-voltage and ambient-temperature curves. Ambient-temperature curve Horizontal mounting, 230 VAC: 100% load through 45°C, decreasing to 50% at 70°C. At 110 VAC: 100% through 40°C, decreasing to 40% at 70°C. The shaded −40 to −25°C region is for 230 VAC input only. Input-voltage curve At 60 Hz, 80% load at 100 VAC, rising to 100% at 110 VAC; 100% across 110–264 VAC. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G; 12 minutes per cycle and 72 minutes each along the X, Y and Z axes. Apply the most restrictive current, power, temperature and input-voltage limits together. The maximum ambient temperature is not a full-power operating point. The power-factor plot is a typical 200 W load characteristic. The efficiency-versus-load plot is specifically for the 48 V model at 115 VAC and 230 VAC. It is not a guaranteed efficiency curve for every output-voltage version. Mechanical Details and Installation Body size 195 × 68 × 39.5 mm (L × W × H); case PWM-200. Drawing dimensions use millimetres and a general ±1 mm tolerance. Attached cable lengths AC input: 1500 ±20 mm; DC output: 1000 ±20 mm. DC cable UL2464 16 AWG × 4 conductors. Mounting holes Two Ø4.5 mm mounting holes. Follow the mechanical drawing for the 5 mm edge references and connector/strain-relief clearances. Case-temperature reference The tc mark is located using the 97.5 mm and 34 mm drawing references. It identifies the case-temperature measuring point; no numeric tc limit is specified on this drawing. Catalogue packing reference per unit 1320 g (1.32 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. Mount the unit horizontally on its base as illustrated on PDF page 36. Allow space for the attached cables, connectors and free-air cooling. The AC and DC cable assemblies are attached to the adapter. Keep the actual cable and connector arrangement suitable for the installation environment. Optional DC Connections XLR4P NEUTRIK NC4MX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. C6P MOLEX 39-01-2060 equivalent (4.2 mm pitch); maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = +Vo; pin 4 = −Vo; pin 5 = −Vo; pin 6 = −Vo. FG is not connected to the output connector. MIC4 NEUTRIK XLR NC4FX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. M19 LLT-M19-20002F307 equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo. M15 DW-M15-02F equivalent; maximum 10 A. pin 1 = +Vo; pin 2 = −Vo. Listed only for 20 V, 24 V, 36 V, 48 V and 54 V versions. The standard connector for this model is R7B. The options above are the connector forms listed for this output-voltage version. Specify the required assembly before ordering; do not append unlisted connector suffixes to the model number. Optional DC plug kits are sold separately. A connector rating does not increase the power-supply rating. Use the lower permitted current of the supply, connector and cable, and verify the mating contact numbers before connection. IP67 is a power-body rating; select and protect the completed AC/DC connections for the actual environment. Safety and EMC Listed safety approvals UL62368-1; IP67 for the power body. UL LISTED for dry and damp locations. UL1012 is stated as a design reference. EMC emissions Compliance with FCC Part 15. Dielectric withstand Input to output: 4.2 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Class II construction has no functional-ground connection. Final equipment compliance and environmental protection depend on the complete installation. Measurement Conditions and Reliability General test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient temperature. Ripple/noise measurement 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance definition Includes set-up tolerance, line regulation and load regulation. MTBF, minimum 2680.8 thousand hours, Telcordia SR-332 (Bellcore); 268.5 thousand hours, MIL-HDBK-217F at 25°C. Internal switching frequencies PFC: 50–120 kHz; PWM: 60–130 kHz, as shown in the block diagram. Manufacturer warranty 5 years, subject to manufacturer warranty terms. Catalogue revision 2024-10-16; combined PDF pages 32–36. Applications and Selection Application examples include industrial PCs, POS and kiosk systems, portable battery or electric-lawn-mower charging equipment, household devices, and electronic products used in dusty or humid environments. For battery-charging applications, the manufacturer recommends a BMS controller. Confirm compatibility with the battery and charging system; the power adapter alone is not specified here as an autonomous battery-charge controller. Select the exact North American input version, output voltage, load rating and connector required by the equipment.

  Read more less

  $136.52

  View options

•

  View options

  MEAN WELL OWA-200U series: Moistureproof AC/DC Power Adapter - OWA-200U-12

  MEAN WELL OWA-200U-12 is a fanless Class II AC/DC power adapter with 12 VDC, 15 A rated current and 180 W rated output. It has a NEMA 1-15P AC plug and a standard R7B DC connector. The fully potted power body is IP67; input-voltage, temperature and connection limits apply. Product Datasheet Download MEAN WELL OWA-200U Datasheet (PDF) The OWA-200U section is on PDF pages 32, 33, 34, 35, 36. Refer to the complete mechanical drawings and notes when planning installation. Model and Configuration Complete order model OWA-200U-12. Model code OWA-200U identifies the North American AC-plug version; the final 12 code identifies 12 VDC. Power-supply construction Class II external AC/DC power supply without a functional-ground connection. The plastic enclosure is fully potted with silicone and cooled by free-air convection; no fan is used. The case material is rated 94V-0. Mains connection NEMA 1-15P plug with attached SVT 18 AWG × 2 conductors input lead. The power unit has no FG; do not infer a Class I grounding arrangement from the plug shape. Standard DC connection R7B (KYCON KPPX-4P equivalent), maximum 15 A connector rating. pin 1 = +Vo; pin 2 = −Vo; pin 3 = −Vo; pin 4 = +Vo. Ingress protection IP67 applies to the power body. It does not establish the same rating for the AC plug, DC connector or completed connection. Output Ratings DC output voltage 12 VDC. Rated output current 15 A. No-load operation is supported; keep the load within the rated current, power and applicable derating limits. Rated output power 180 W. Observe both the stated current and power limits. Ripple and noise, maximum 150 mVp-p under the specified measurement conditions. Voltage tolerance ±5.0%. Line / load regulation ±0.5% line; ±5.0% load. Efficiency, typical 91% at 230 VAC; 88.5% at 115 VAC. Input and Timing Input voltage / frequency 100–264 VAC or 142–370 VDC; 47–63 Hz for AC input. Power factor, typical Built-in active PFC; PF >0.97 at 115 VAC and >0.96 at 230 VAC, full load. AC current, typical 2.2 A at 115 VAC; 1.1 A at 230 VAC. Cold-start inrush, typical 90 A at 115 VAC, pulse width 300 µs measured at 50% of peak current; 180 A at 230 VAC, pulse width 450 µs measured at 50% of peak current. Leakage current <0.125 mA at 120 VAC; <0.25 mA at 240 VAC. Set-up / rise / hold-up 500 ms set-up; 80 ms rise; 10 ms typical hold-up at full load. 230 VAC / 115 VAC. No-load input power / efficiency level Less than 0.15 W; Level VI. EU ErP and CoC Version 5 compliance is listed for this series. Set-up time is measured at the first cold start. Repeated switching may increase the set-up time. Protection Overcurrent 105–150%; hiccup mode with automatic recovery after the fault condition is removed. Short circuit Hiccup mode with automatic recovery after the fault condition is removed. Overvoltage 13–18 V threshold range; shuts down the output. Re-power the unit to recover. Overtemperature Shuts down the output; re-power the unit to recover. Operating Conditions and Derating Working temperature −40 to +70°C, subject to the input-voltage and ambient-temperature curves. Ambient-temperature curve Horizontal mounting, 230 VAC: 100% load through 45°C, decreasing to 50% at 70°C. At 110 VAC: 100% through 40°C, decreasing to 40% at 70°C. The shaded −40 to −25°C region is for 230 VAC input only. Input-voltage curve At 60 Hz, 80% load at 100 VAC, rising to 100% at 110 VAC; 100% across 110–264 VAC. Working humidity 20–95% RH, non-condensing. Storage conditions −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 5 G; 12 minutes per cycle and 72 minutes each along the X, Y and Z axes. Apply the most restrictive current, power, temperature and input-voltage limits together. The maximum ambient temperature is not a full-power operating point. The power-factor plot is a typical 200 W load characteristic. The efficiency-versus-load plot is specifically for the 48 V model at 115 VAC and 230 VAC. It is not a guaranteed efficiency curve for every output-voltage version. Mechanical Details and Installation Body size 195 × 68 × 39.5 mm (L × W × H); case PWM-200. Drawing dimensions use millimetres and a general ±1 mm tolerance. Attached cable lengths AC input: 1500 ±20 mm; DC output: 1000 ±20 mm. DC cable UL2464 16 AWG × 4 conductors. Mounting holes Two Ø4.5 mm mounting holes. Follow the mechanical drawing for the 5 mm edge references and connector/strain-relief clearances. Case-temperature reference The tc mark is located using the 97.5 mm and 34 mm drawing references. It identifies the case-temperature measuring point; no numeric tc limit is specified on this drawing. Catalogue packing reference per unit 1320 g (1.32 kg), from the manufacturer's PACKING entry; not a measured net or shipping-parcel weight. Mount the unit horizontally on its base as illustrated on PDF page 36. Allow space for the attached cables, connectors and free-air cooling. The AC and DC cable assemblies are attached to the adapter. Keep the actual cable and connector arrangement suitable for the installation environment. Optional DC Connections XLR4P NEUTRIK NC4MX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. C6P MOLEX 39-01-2060 equivalent (4.2 mm pitch); maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = +Vo; pin 4 = −Vo; pin 5 = −Vo; pin 6 = −Vo. FG is not connected to the output connector. MIC4 NEUTRIK XLR NC4FX equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = +Vo; pin 3 = −Vo; pin 4 = −Vo. M19 LLT-M19-20002F307 equivalent; maximum 15 A. pin 1 = +Vo; pin 2 = −Vo. The standard connector for this model is R7B. The options above are the connector forms listed for this output-voltage version. Specify the required assembly before ordering; do not append unlisted connector suffixes to the model number. Optional DC plug kits are sold separately. A connector rating does not increase the power-supply rating. Use the lower permitted current of the supply, connector and cable, and verify the mating contact numbers before connection. IP67 is a power-body rating; select and protect the completed AC/DC connections for the actual environment. Safety and EMC Listed safety approvals UL62368-1; IP67 for the power body. UL LISTED for dry and damp locations. UL1012 is stated as a design reference. EMC emissions Compliance with FCC Part 15. Dielectric withstand Input to output: 4.2 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Class II construction has no functional-ground connection. Final equipment compliance and environmental protection depend on the complete installation. Measurement Conditions and Reliability General test conditions Unless otherwise stated: 230 VAC input, rated load and 25°C ambient temperature. Ripple/noise measurement 20 MHz bandwidth; a 12-inch twisted pair terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance definition Includes set-up tolerance, line regulation and load regulation. MTBF, minimum 2680.8 thousand hours, Telcordia SR-332 (Bellcore); 268.5 thousand hours, MIL-HDBK-217F at 25°C. Internal switching frequencies PFC: 50–120 kHz; PWM: 60–130 kHz, as shown in the block diagram. Manufacturer warranty 5 years, subject to manufacturer warranty terms. Catalogue revision 2024-10-16; combined PDF pages 32–36. Applications and Selection Application examples include industrial PCs, POS and kiosk systems, portable battery or electric-lawn-mower charging equipment, household devices, and electronic products used in dusty or humid environments. For battery-charging applications, the manufacturer recommends a BMS controller. Confirm compatibility with the battery and charging system; the power adapter alone is not specified here as an autonomous battery-charge controller. Select the exact North American input version, output voltage, load rating and connector required by the equipment.

  Read more less

  $136.52

  View options

•

  View options

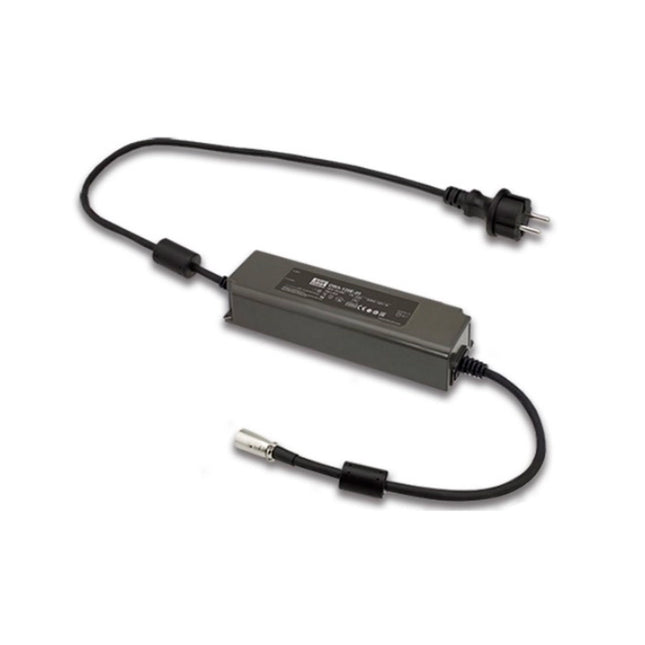

  MEAN WELL OWA-120E series: Moistureproof AC/DC Adapter - OWA-120E-54

  MEAN WELL OWA-120E-54 supplies 54 V DC at 2.3 A, with a rated output of 124.2 W. This Class II, fanless adapter uses a European AC plug and a standard XLR four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120E Datasheet (PDF) The OWA-120E section is on PDF pages 27, 28, 29, 30, 31. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120E-54 Series / regional version OWA-120E; European plug version. Output code 54 identifies the nominal 54 V DC output. Intended applications General electronic devices, household equipment, robot lawn mowers and compatible charging-system applications. For battery-powered equipment, use a charging system compatible with this output. Battery chemistry, charging stages and charge termination must be provided by the equipment's charging control. Output performance Rated output voltage 54 V DC Rated output current 2.3 A Rated output power 124.2 W Ripple and noise 350 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±1.0% Line / load regulation ±0.5% / ±0.5% Set-up / rise time 500 / 80 ms at 95% load, 230 VAC. Hold-up time 16 ms typical at full load, 230 VAC. Typical efficiency 90.5% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 180–264 VAC / 254–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.96 at 230 VAC, full load. Typical AC current 0.65 A at 230 VAC. Typical inrush current Cold start: 60 A at 230 VAC; pulse width 520 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. Protection Overload protection 105–115%; hiccup mode, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 59–66 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the curve permits 100% load from −40 to 40°C, falling to 40% at 70°C. Input-voltage derating At 60 Hz: the static characteristic shows 100% load from 180 to 264 VAC. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004. EN60335-1 is not included in the listed approval scope for the 48 V and 54 V versions. EMC emissions EN55032 (CISPR32) Class B; EN55014-1; EN61000-3-2 and EN61000-3-3; EAC TP TC 020. EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55035; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI and EU ErP requirements are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection European CEE 7/7 plug; H05RN-F 1.0 mm² × 2C; 1500±20 mm. DC lead H07RN-F 1.5 mm² × 2C; 300±20 mm. Standard DC connector XLR 4 pins; NEUTRIK NC4MX or equivalent. DC polarity / pin assignment Pins 1 and 2: +V; pins 3 and 4: −V. Catalogue packing reference per unit 1.15 kg (1150 g), as the per-unit PACKING reference; not a measured net weight or shipment weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional factory DC connectors Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floating; pin 3: −V. XLR 3-pin NEUTRIK NC3MX or equivalent Pin 1: +V; pins 2 and 3: −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. CHOGORI 23002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel connector 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm length; centre positive, outer sleeve negative. These are alternative factory output configurations, not additional connectors supplied with the standard model. For this 54 V, 2.3 A supply, confirm that the selected complete connector and cable assembly supports the intended load voltage and current; connector shape or matching polarity alone does not establish full-load compatibility. Specify the connector, pin numbering and cable requirements when ordering. The optional barrel connector dimensions do not by themselves establish its current rating. The IP67 power-body rating does not extend to the DC connector. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

  MEAN WELL OWA-120E series: Moistureproof AC/DC Adapter - OWA-120E-48

  MEAN WELL OWA-120E-48 supplies 48 V DC at 2.5 A, with a rated output of 120 W. This Class II, fanless adapter uses a European AC plug and a standard XLR four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120E Datasheet (PDF) The OWA-120E section is on PDF pages 27, 28, 29, 30, 31. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120E-48 Series / regional version OWA-120E; European plug version. Output code 48 identifies the nominal 48 V DC output. Intended applications General electronic devices, household equipment, robot lawn mowers and compatible charging-system applications. For battery-powered equipment, use a charging system compatible with this output. Battery chemistry, charging stages and charge termination must be provided by the equipment's charging control. Output performance Rated output voltage 48 V DC Rated output current 2.5 A Rated output power 120 W Ripple and noise 250 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±1.0% Line / load regulation ±0.5% / ±0.5% Set-up / rise time 500 / 80 ms at 95% load, 230 VAC. Hold-up time 16 ms typical at full load, 230 VAC. Typical efficiency 90.5% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 180–264 VAC / 254–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.96 at 230 VAC, full load. Typical AC current 0.65 A at 230 VAC. Typical inrush current Cold start: 60 A at 230 VAC; pulse width 520 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. Protection Overload protection 105–115%; hiccup mode, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 54–60 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the curve permits 100% load from −40 to 40°C, falling to 40% at 70°C. Input-voltage derating At 60 Hz: the static characteristic shows 100% load from 180 to 264 VAC. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004. EN60335-1 is not included in the listed approval scope for the 48 V and 54 V versions. EMC emissions EN55032 (CISPR32) Class B; EN55014-1; EN61000-3-2 and EN61000-3-3; EAC TP TC 020. EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55035; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI and EU ErP requirements are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection European CEE 7/7 plug; H05RN-F 1.0 mm² × 2C; 1500±20 mm. DC lead H07RN-F 1.5 mm² × 2C; 300±20 mm. Standard DC connector XLR 4 pins; NEUTRIK NC4MX or equivalent. DC polarity / pin assignment Pins 1 and 2: +V; pins 3 and 4: −V. Catalogue packing reference per unit 1.15 kg (1150 g), as the per-unit PACKING reference; not a measured net weight or shipment weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional factory DC connectors Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floating; pin 3: −V. XLR 3-pin NEUTRIK NC3MX or equivalent Pin 1: +V; pins 2 and 3: −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. CHOGORI 23002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel connector 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm length; centre positive, outer sleeve negative. These are alternative factory output configurations, not additional connectors supplied with the standard model. For this 48 V, 2.5 A supply, confirm that the selected complete connector and cable assembly supports the intended load voltage and current; connector shape or matching polarity alone does not establish full-load compatibility. Specify the connector, pin numbering and cable requirements when ordering. The optional barrel connector dimensions do not by themselves establish its current rating. The IP67 power-body rating does not extend to the DC connector. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

  MEAN WELL OWA-120E series: Moistureproof AC/DC Adapter - OWA-120E-42

  MEAN WELL OWA-120E-42 supplies 42 V DC at 2.9 A, with a rated output of 121.8 W. This Class II, fanless adapter uses a European AC plug and a standard XLR four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120E Datasheet (PDF) The OWA-120E section is on PDF pages 27, 28, 29, 30, 31. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120E-42 Series / regional version OWA-120E; European plug version. Output code 42 identifies the nominal 42 V DC output. Intended applications General electronic devices, household equipment, robot lawn mowers and compatible charging-system applications. For battery-powered equipment, use a charging system compatible with this output. Battery chemistry, charging stages and charge termination must be provided by the equipment's charging control. Output performance Rated output voltage 42 V DC Rated output current 2.9 A Rated output power 121.8 W Ripple and noise 250 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±1.0% Line / load regulation ±0.5% / ±0.5% Set-up / rise time 500 / 80 ms at 95% load, 230 VAC. Hold-up time 16 ms typical at full load, 230 VAC. Typical efficiency 90.5% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 180–264 VAC / 254–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.96 at 230 VAC, full load. Typical AC current 0.65 A at 230 VAC. Typical inrush current Cold start: 60 A at 230 VAC; pulse width 520 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. Protection Overload protection 105–115%; hiccup mode, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 46–54 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the curve permits 100% load from −40 to 40°C, falling to 40% at 70°C. Input-voltage derating At 60 Hz: the static characteristic shows 100% load from 180 to 264 VAC. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004. DEKRA EN60335-1 is also listed for this voltage version. EMC emissions EN55032 (CISPR32) Class B; EN55014-1; EN61000-3-2 and EN61000-3-3; EAC TP TC 020. EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55035; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI and EU ErP requirements are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection European CEE 7/7 plug; H05RN-F 1.0 mm² × 2C; 1500±20 mm. DC lead H07RN-F 1.5 mm² × 2C; 300±20 mm. Standard DC connector XLR 4 pins; NEUTRIK NC4MX or equivalent. DC polarity / pin assignment Pins 1 and 2: +V; pins 3 and 4: −V. Catalogue packing reference per unit 1.15 kg (1150 g), as the per-unit PACKING reference; not a measured net weight or shipment weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional factory DC connectors Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floating; pin 3: −V. XLR 3-pin NEUTRIK NC3MX or equivalent Pin 1: +V; pins 2 and 3: −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. CHOGORI 23002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel connector 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm length; centre positive, outer sleeve negative. These are alternative factory output configurations, not additional connectors supplied with the standard model. For this 42 V, 2.9 A supply, confirm that the selected complete connector and cable assembly supports the intended load voltage and current; connector shape or matching polarity alone does not establish full-load compatibility. Specify the connector, pin numbering and cable requirements when ordering. The optional barrel connector dimensions do not by themselves establish its current rating. The IP67 power-body rating does not extend to the DC connector. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

  MEAN WELL OWA-120E series: Moistureproof AC/DC Adapter - OWA-120E-36

  MEAN WELL OWA-120E-36 supplies 36 V DC at 3.4 A, with a rated output of 122.4 W. This Class II, fanless adapter uses a European AC plug and a standard XLR four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120E Datasheet (PDF) The OWA-120E section is on PDF pages 27, 28, 29, 30, 31. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120E-36 Series / regional version OWA-120E; European plug version. Output code 36 identifies the nominal 36 V DC output. Intended applications General electronic devices, household equipment, robot lawn mowers and compatible charging-system applications. For battery-powered equipment, use a charging system compatible with this output. Battery chemistry, charging stages and charge termination must be provided by the equipment's charging control. Output performance Rated output voltage 36 V DC Rated output current 3.4 A Rated output power 122.4 W Ripple and noise 200 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±2.0% Line / load regulation ±0.5% / ±0.5% Set-up / rise time 500 / 80 ms at 95% load, 230 VAC. Hold-up time 16 ms typical at full load, 230 VAC. Typical efficiency 90% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 180–264 VAC / 254–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.96 at 230 VAC, full load. Typical AC current 0.65 A at 230 VAC. Typical inrush current Cold start: 60 A at 230 VAC; pulse width 520 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. Protection Overload protection 105–115%; hiccup mode, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 41–46 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the curve permits 100% load from −40 to 40°C, falling to 40% at 70°C. Input-voltage derating At 60 Hz: the static characteristic shows 100% load from 180 to 264 VAC. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004. DEKRA EN60335-1 is also listed for this voltage version. EMC emissions EN55032 (CISPR32) Class B; EN55014-1; EN61000-3-2 and EN61000-3-3; EAC TP TC 020. EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55035; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI and EU ErP requirements are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection European CEE 7/7 plug; H05RN-F 1.0 mm² × 2C; 1500±20 mm. DC lead H07RN-F 1.5 mm² × 2C; 300±20 mm. Standard DC connector XLR 4 pins; NEUTRIK NC4MX or equivalent. DC polarity / pin assignment Pins 1 and 2: +V; pins 3 and 4: −V. Catalogue packing reference per unit 1.15 kg (1150 g), as the per-unit PACKING reference; not a measured net weight or shipment weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional factory DC connectors Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floating; pin 3: −V. XLR 3-pin NEUTRIK NC3MX or equivalent Pin 1: +V; pins 2 and 3: −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. CHOGORI 23002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel connector 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm length; centre positive, outer sleeve negative. These are alternative factory output configurations, not additional connectors supplied with the standard model. For this 36 V, 3.4 A supply, confirm that the selected complete connector and cable assembly supports the intended load voltage and current; connector shape or matching polarity alone does not establish full-load compatibility. Specify the connector, pin numbering and cable requirements when ordering. The optional barrel connector dimensions do not by themselves establish its current rating. The IP67 power-body rating does not extend to the DC connector. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

  MEAN WELL OWA-120E series: Moistureproof AC/DC Adapter - OWA-120E-30

  MEAN WELL OWA-120E-30 supplies 30 V DC at 4 A, with a rated output of 120 W. This Class II, fanless adapter uses a European AC plug and a standard XLR four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120E Datasheet (PDF) The OWA-120E section is on PDF pages 27, 28, 29, 30, 31. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120E-30 Series / regional version OWA-120E; European plug version. Output code 30 identifies the nominal 30 V DC output. Intended applications General electronic devices, household equipment, robot lawn mowers and compatible charging-system applications. For battery-powered equipment, use a charging system compatible with this output. Battery chemistry, charging stages and charge termination must be provided by the equipment's charging control. Output performance Rated output voltage 30 V DC Rated output current 4 A Rated output power 120 W Ripple and noise 200 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±3.0% Line / load regulation ±0.5% / ±0.5% Set-up / rise time 500 / 80 ms at 95% load, 230 VAC. Hold-up time 16 ms typical at full load, 230 VAC. Typical efficiency 90% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 180–264 VAC / 254–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.96 at 230 VAC, full load. Typical AC current 0.65 A at 230 VAC. Typical inrush current Cold start: 60 A at 230 VAC; pulse width 520 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. Protection Overload protection 105–115%; hiccup mode, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 34–40 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the curve permits 100% load from −40 to 40°C, falling to 40% at 70°C. Input-voltage derating At 60 Hz: the static characteristic shows 100% load from 180 to 264 VAC. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004. DEKRA EN60335-1 is also listed for this voltage version. EMC emissions EN55032 (CISPR32) Class B; EN55014-1; EN61000-3-2 and EN61000-3-3; EAC TP TC 020. EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55035; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI and EU ErP requirements are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection European CEE 7/7 plug; H05RN-F 1.0 mm² × 2C; 1500±20 mm. DC lead H07RN-F 1.5 mm² × 2C; 300±20 mm. Standard DC connector XLR 4 pins; NEUTRIK NC4MX or equivalent. DC polarity / pin assignment Pins 1 and 2: +V; pins 3 and 4: −V. Catalogue packing reference per unit 1.15 kg (1150 g), as the per-unit PACKING reference; not a measured net weight or shipment weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional factory DC connectors Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floating; pin 3: −V. XLR 3-pin NEUTRIK NC3MX or equivalent Pin 1: +V; pins 2 and 3: −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. CHOGORI 23002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel connector 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm length; centre positive, outer sleeve negative. These are alternative factory output configurations, not additional connectors supplied with the standard model. For this 30 V, 4 A supply, confirm that the selected complete connector and cable assembly supports the intended load voltage and current; connector shape or matching polarity alone does not establish full-load compatibility. Specify the connector, pin numbering and cable requirements when ordering. The optional barrel connector dimensions do not by themselves establish its current rating. The IP67 power-body rating does not extend to the DC connector. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

  MEAN WELL OWA-120E series: Moistureproof AC/DC Adapter - OWA-120E-24

  MEAN WELL OWA-120E-24 supplies 24 V DC at 5 A, with a rated output of 120 W. This Class II, fanless adapter uses a European AC plug and a standard XLR four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120E Datasheet (PDF) The OWA-120E section is on PDF pages 27, 28, 29, 30, 31. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120E-24 Series / regional version OWA-120E; European plug version. Output code 24 identifies the nominal 24 V DC output. Intended applications General electronic devices, household equipment, robot lawn mowers and compatible charging-system applications. For battery-powered equipment, use a charging system compatible with this output. Battery chemistry, charging stages and charge termination must be provided by the equipment's charging control. Output performance Rated output voltage 24 V DC Rated output current 5 A Rated output power 120 W Ripple and noise 150 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±4.0% Line / load regulation ±0.5% / ±0.5% Set-up / rise time 500 / 80 ms at 95% load, 230 VAC. Hold-up time 16 ms typical at full load, 230 VAC. Typical efficiency 90.5% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 180–264 VAC / 254–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.96 at 230 VAC, full load. Typical AC current 0.65 A at 230 VAC. Typical inrush current Cold start: 60 A at 230 VAC; pulse width 520 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. Protection Overload protection 105–115%; hiccup mode, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 28–34 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the curve permits 100% load from −40 to 40°C, falling to 40% at 70°C. Input-voltage derating At 60 Hz: the static characteristic shows 100% load from 180 to 264 VAC. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004. DEKRA EN60335-1 is also listed for this voltage version. EMC emissions EN55032 (CISPR32) Class B; EN55014-1; EN61000-3-2 and EN61000-3-3; EAC TP TC 020. EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55035; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI and EU ErP requirements are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection European CEE 7/7 plug; H05RN-F 1.0 mm² × 2C; 1500±20 mm. DC lead H07RN-F 1.5 mm² × 2C; 300±20 mm. Standard DC connector XLR 4 pins; NEUTRIK NC4MX or equivalent. DC polarity / pin assignment Pins 1 and 2: +V; pins 3 and 4: −V. Catalogue packing reference per unit 1.15 kg (1150 g), as the per-unit PACKING reference; not a measured net weight or shipment weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional factory DC connectors Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floating; pin 3: −V. XLR 3-pin NEUTRIK NC3MX or equivalent Pin 1: +V; pins 2 and 3: −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. CHOGORI 23002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel connector 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm length; centre positive, outer sleeve negative. These are alternative factory output configurations, not additional connectors supplied with the standard model. For this 24 V, 5 A supply, confirm that the selected complete connector and cable assembly supports the intended load voltage and current; connector shape or matching polarity alone does not establish full-load compatibility. Specify the connector, pin numbering and cable requirements when ordering. The optional barrel connector dimensions do not by themselves establish its current rating. The IP67 power-body rating does not extend to the DC connector. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

  MEAN WELL OWA-120E series: Moistureproof AC/DC Adapter - OWA-120E-20

  MEAN WELL OWA-120E-20 supplies 20 V DC at 6 A, with a rated output of 120 W. This Class II, fanless adapter uses a European AC plug and a standard XLR four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120E Datasheet (PDF) The OWA-120E section is on PDF pages 27, 28, 29, 30, 31. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120E-20 Series / regional version OWA-120E; European plug version. Output code 20 identifies the nominal 20 V DC output. Intended applications General electronic devices, household equipment, robot lawn mowers and compatible charging-system applications. For battery-powered equipment, use a charging system compatible with this output. Battery chemistry, charging stages and charge termination must be provided by the equipment's charging control. Output performance Rated output voltage 20 V DC Rated output current 6 A Rated output power 120 W Ripple and noise 150 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±4.0% Line / load regulation ±0.5% / ±1.0% Set-up / rise time 500 / 80 ms at 95% load, 230 VAC. Hold-up time 16 ms typical at full load, 230 VAC. Typical efficiency 90% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 180–264 VAC / 254–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.96 at 230 VAC, full load. Typical AC current 0.65 A at 230 VAC. Typical inrush current Cold start: 60 A at 230 VAC; pulse width 520 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. Protection Overload protection 105–115%; hiccup mode, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 23–27 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the curve permits 100% load from −40 to 40°C, falling to 40% at 70°C. Input-voltage derating At 60 Hz: the static characteristic shows 100% load from 180 to 264 VAC. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004. DEKRA EN60335-1 is also listed for this voltage version. EMC emissions EN55032 (CISPR32) Class B; EN55014-1; EN61000-3-2 and EN61000-3-3; EAC TP TC 020. EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55035; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI and EU ErP requirements are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection European CEE 7/7 plug; H05RN-F 1.0 mm² × 2C; 1500±20 mm. DC lead H07RN-F 1.5 mm² × 2C; 300±20 mm. Standard DC connector XLR 4 pins; NEUTRIK NC4MX or equivalent. DC polarity / pin assignment Pins 1 and 2: +V; pins 3 and 4: −V. Catalogue packing reference per unit 1.15 kg (1150 g), as the per-unit PACKING reference; not a measured net weight or shipment weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional factory DC connectors Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floating; pin 3: −V. XLR 3-pin NEUTRIK NC3MX or equivalent Pin 1: +V; pins 2 and 3: −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. CHOGORI 23002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel connector 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm length; centre positive, outer sleeve negative. These are alternative factory output configurations, not additional connectors supplied with the standard model. For this 20 V, 6 A supply, confirm that the selected complete connector and cable assembly supports the intended load voltage and current; connector shape or matching polarity alone does not establish full-load compatibility. Specify the connector, pin numbering and cable requirements when ordering. The optional barrel connector dimensions do not by themselves establish its current rating. The IP67 power-body rating does not extend to the DC connector. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

  MEAN WELL OWA-120E series: Moistureproof AC/DC Adapter - OWA-120E-15

  MEAN WELL OWA-120E-15 supplies 15 V DC at 8 A, with a rated output of 120 W. This Class II, fanless adapter uses a European AC plug and a standard XLR four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120E Datasheet (PDF) The OWA-120E section is on PDF pages 27, 28, 29, 30, 31. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120E-15 Series / regional version OWA-120E; European plug version. Output code 15 identifies the nominal 15 V DC output. Intended applications General electronic devices, household equipment, robot lawn mowers and compatible charging-system applications. For battery-powered equipment, use a charging system compatible with this output. Battery chemistry, charging stages and charge termination must be provided by the equipment's charging control. Output performance Rated output voltage 15 V DC Rated output current 8 A Rated output power 120 W Ripple and noise 150 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±4.0% Line / load regulation ±0.5% / ±1.5% Set-up / rise time 500 / 80 ms at 95% load, 230 VAC. Hold-up time 16 ms typical at full load, 230 VAC. Typical efficiency 89% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 180–264 VAC / 254–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.96 at 230 VAC, full load. Typical AC current 0.65 A at 230 VAC. Typical inrush current Cold start: 60 A at 230 VAC; pulse width 520 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. Protection Overload protection 105–115%; hiccup mode, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 17.5–21 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the curve permits 100% load from −40 to 40°C, falling to 40% at 70°C. Input-voltage derating At 60 Hz: the static characteristic shows 100% load from 180 to 264 VAC. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004. DEKRA EN60335-1 is also listed for this voltage version. EMC emissions EN55032 (CISPR32) Class B; EN55014-1; EN61000-3-2 and EN61000-3-3; EAC TP TC 020. EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55035; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI and EU ErP requirements are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection European CEE 7/7 plug; H05RN-F 1.0 mm² × 2C; 1500±20 mm. DC lead H07RN-F 1.5 mm² × 2C; 300±20 mm. Standard DC connector XLR 4 pins; NEUTRIK NC4MX or equivalent. DC polarity / pin assignment Pins 1 and 2: +V; pins 3 and 4: −V. Catalogue packing reference per unit 1.15 kg (1150 g), as the per-unit PACKING reference; not a measured net weight or shipment weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional factory DC connectors Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floating; pin 3: −V. XLR 3-pin NEUTRIK NC3MX or equivalent Pin 1: +V; pins 2 and 3: −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. CHOGORI 23002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel connector 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm length; centre positive, outer sleeve negative. These are alternative factory output configurations, not additional connectors supplied with the standard model. For this 15 V, 8 A supply, confirm that the selected complete connector and cable assembly supports the intended load voltage and current; connector shape or matching polarity alone does not establish full-load compatibility. Specify the connector, pin numbering and cable requirements when ordering. The optional barrel connector dimensions do not by themselves establish its current rating. The IP67 power-body rating does not extend to the DC connector. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

•

  View options

  MEAN WELL OWA-120E series: Moistureproof AC/DC Adapter - OWA-120E-12

  MEAN WELL OWA-120E-12 supplies 12 V DC at 9.6 A, with a rated output of 115.2 W. This Class II, fanless adapter uses a European AC plug and a standard XLR four-pin DC connector. Its fully potted power body is rated IP67; the DC connector is outside that rating. Observe the input and temperature derating limits. Product Datasheet Download MEAN WELL OWA-120E Datasheet (PDF) The OWA-120E section is on PDF pages 27, 28, 29, 30, 31. Refer to the complete mechanical drawings and notes when planning installation. Model and intended use Complete model OWA-120E-12 Series / regional version OWA-120E; European plug version. Output code 12 identifies the nominal 12 V DC output. Intended applications General electronic devices, household equipment, robot lawn mowers and compatible charging-system applications. For battery-powered equipment, use a charging system compatible with this output. Battery chemistry, charging stages and charge termination must be provided by the equipment's charging control. Output performance Rated output voltage 12 V DC Rated output current 9.6 A Rated output power 115.2 W Ripple and noise 150 mVp-p maximum; measured with the test arrangement stated below. Voltage tolerance ±4.0% Line / load regulation ±0.5% / ±2.0% Set-up / rise time 500 / 80 ms at 95% load, 230 VAC. Hold-up time 16 ms typical at full load, 230 VAC. Typical efficiency 87.5% at 230 VAC. No-load consumption Less than 0.15 W; efficiency Level VI. Input and efficiency AC / DC input range 180–264 VAC / 254–370 VDC. AC frequency 47–63 Hz Power factor Active PFC; typical PF >0.96 at 230 VAC, full load. Typical AC current 0.65 A at 230 VAC. Typical inrush current Cold start: 60 A at 230 VAC; pulse width 520 µs measured at 50% of peak current. Leakage current <0.25 mA at 240 VAC. Protection Overload protection 105–115%; hiccup mode, automatic recovery after the fault is removed. Short-circuit protection Hiccup mode; automatic recovery after the fault is removed. Over-voltage protection 15–17 V; output shuts down. Re-power the supply to recover. Over-temperature protection Output shuts down. Re-power the supply to recover. Environment and derating Operating temperature / cooling −40 to +70°C, subject to derating; free-air convection with horizontal mounting. Ambient-temperature derating At horizontal mounting, the curve permits 100% load from −40 to 40°C, falling to 40% at 70°C. Input-voltage derating At 60 Hz: the static characteristic shows 100% load from 180 to 264 VAC. Apply temperature derating as well. Working humidity 20–95% RH, non-condensing. Storage −40 to +80°C; 10–95% RH. Temperature coefficient ±0.03%/°C over 0–40°C. Vibration 10–500 Hz, 5G, 12 minutes per cycle; 72 minutes on each X, Y and Z axis. Insulation, protection and compliance Electrical construction Class II, with no FG connection; fully potted silicone in a plastic enclosure. Body protection IP67 applies to the power body, excluding DC connectors. Use a connection assembly suitable for the installation environment. Withstand voltage Input to output: 3.75 kVAC. Insulation resistance Input to output: 100 MΩ at 500 VDC, 25°C and 70% RH. Catalogue-listed safety DEKRA EN61558-1 and EN61558-2-16; EAC TP TC 004. DEKRA EN60335-1 is also listed for this voltage version. EMC emissions EN55032 (CISPR32) Class B; EN55014-1; EN61000-3-2 and EN61000-3-3; EAC TP TC 020. EMC immunity EN61000-4-2, -3, -4, -5, -6, -8 and -11; EN55014-2; EN55035; light-industry level, including 2 kV line-to-neutral surge; EAC TP TC 020. Energy-efficiency references Level VI and EU ErP requirements are listed for this series. Dimensions, leads and installation Body dimensions 191 × 63 × 37.5 mm (L × W × H); case PWM-120, general drawing tolerance ±1 mm. Mounting Horizontal mounting; two Ø4.5 mm mounting holes. Use the complete drawing for positions and clearances. AC connection European CEE 7/7 plug; H05RN-F 1.0 mm² × 2C; 1500±20 mm. DC lead H07RN-F 1.5 mm² × 2C; 300±20 mm. Standard DC connector XLR 4 pins; NEUTRIK NC4MX or equivalent. DC polarity / pin assignment Pins 1 and 2: +V; pins 3 and 4: −V. Catalogue packing reference per unit 1.15 kg (1150 g), as the per-unit PACKING reference; not a measured net weight or shipment weight. Check the connector view and pin numbering in the mechanical drawing before wiring. The marked Tcase point identifies the case-temperature measurement location. Keep the connection and installation conditions within the complete system's requirements. Optional factory DC connectors Lumberg 3611 03 or equivalent Pin 1: +V; pin 2: floating; pin 3: −V. XLR 3-pin NEUTRIK NC3MX or equivalent Pin 1: +V; pins 2 and 3: −V. CHOGORI 22002411-01 or equivalent Pin 1: +V; pin 2: −V. CHOGORI 23002411-01 or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D170F4-2P or equivalent Pin 1: +V; pin 2: −V. Unicable UT-D224-2P or equivalent Pin 1: +V; pin 2: −V. Tuning-fork barrel connector 2.1 mm inside diameter × 5.5 mm outside diameter × 11 mm length; centre positive, outer sleeve negative. These are alternative factory output configurations, not additional connectors supplied with the standard model. For this 12 V, 9.6 A supply, confirm that the selected complete connector and cable assembly supports the intended load voltage and current; connector shape or matching polarity alone does not establish full-load compatibility. Specify the connector, pin numbering and cable requirements when ordering. The optional barrel connector dimensions do not by themselves establish its current rating. The IP67 power-body rating does not extend to the DC connector. Reliability and measurement notes MTBF reference 2902.2 thousand hours minimum, Telcordia SR-332 (Bellcore); 294.4 thousand hours minimum, MIL-HDBK-217F at 25°C. Catalogue warranty The manufacturer's series datasheet lists a 5-year warranty; its terms and applicability govern. Catalogue version 2024-10-16 Unless otherwise specified, parameters are measured at 230 VAC input, rated load and 25°C ambient. Ripple and noise are measured at 20 MHz bandwidth using a 12-inch twisted-pair wire terminated with 0.1 µF and 47 µF capacitors in parallel. Voltage tolerance includes set-up tolerance, line regulation and load regulation. Set-up time is measured at a cold first start; repeated ON/OFF operation may increase set-up time. Apply all temperature, input-voltage, output and connector limits together. Integration, wiring and the final equipment's compliance must be checked for the intended installation.

  Read more less

  $130.11

  View options

Show more products
