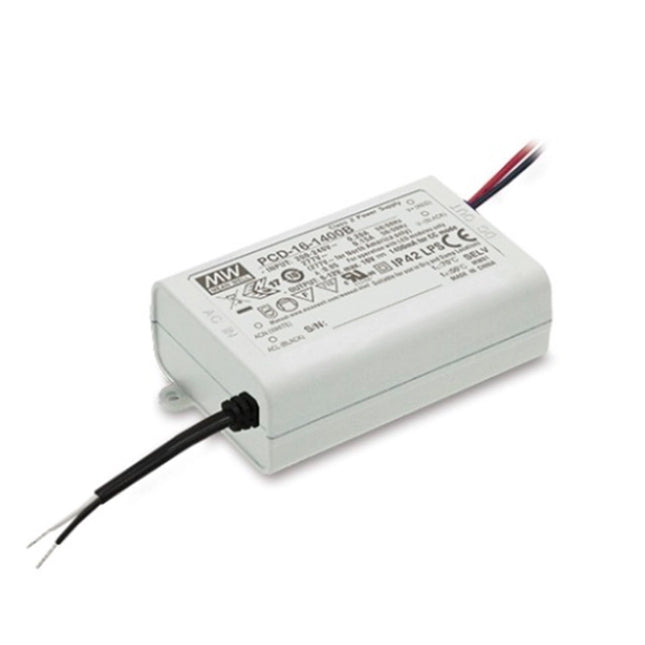

MEAN WELL PCD-16-350B
MEAN WELL PCD-16-350B is a phase-cut dimmable constant-current LED driver rated at 350 mA, 24–48 VDC and 16.8 W, with 180–295 VAC input. Select the LED string by its operating forward voltage and the driver’s thermal limits.
Download MEAN WELL PCD-16 Datasheet (PDF)Download MEAN WELL LED Installation Manual (PDF)Combined catalog: PDF pages 10–13; specification edition 2024-09-25.
Output and selection
Parameter
Specification
Model and code
PCD-16-350B — PCD-16; 350 denotes the rated output current in mA. B input version: 180–295 VAC.
Output mode
Constant-current LED driver with built-in active power factor correction (PFC). Leading-edge and trailing-edge AC phase-cut (TRIAC) dimming.
Rated output current
350 mA; current accuracy ±5.0%
Constant-current voltage range
24–48 VDC. Select a directly connected LED string whose total forward voltage stays inside this working window.
Rated output power
16.8 W
Maximum no-load voltage
60 V; this is not a rated LED operating voltage.
Maximum ripple and noise
4.6 Vp-p; 20 MHz bandwidth, measured with a 12-inch twisted pair terminated with parallel 0.1 μF and 47 μF capacitors.
Input and electrical performance
Parameter
Specification
Input voltage
180–295 VAC; this is the B input version.
Input frequency
47–63 Hz
Typical efficiency
82%; model-specific specification-table value, dependent on actual load and input conditions.
Typical power factor
>0.9 at 230 or 277 VAC at full load; see the catalog load curves.
THD
<20% at ≥70% load / 230 VAC, or ≥80% / 277 VAC.
Typical AC input current
0.2 A at 230 VAC; 0.15 A at 277 VAC
Setup time
500 ms at 230 VAC at full load.
Inrush current
Cold start: 10 A maximum at 230 VAC; 90 μs width at 50% peak.
Circuit-breaker reference
128 / 128 units on type B / type C 16 A breakers at 230 VAC, respectively. These are breaker types, not product suffixes; verify the actual breaker and installation.
Leakage current
<0.5 mA at 240 VAC
AC phase-cut dimming
Use a compatible leading-edge or trailing-edge AC phase-cut dimmer on the mains input before the driver. The catalog specifies a conduction-angle range of 30° minimum to 180° maximum; these angles are not a guaranteed output-current or brightness percentage. The drawing provides AC/L and AC/N input leads and V+/V− LED output leads, with no separate dimming-control wires.
The following third-party dimmers are catalog compatibility examples at the stated supply voltage and frequency. Confirm the actual dimmer revision, load limits and permitted driver count with the dimmer manufacturer; listing does not mean the dimmer is supplied with this driver.
Parameter
Specification
277 VAC / 60 Hz
LUTRON SKYLARK SF-12P-277; DVF-103P-277
230 VAC / 50 Hz
JUNG Licht-Management 225TDE; 225NVDE; Bodo Ehmann LICHTREGLER T39.01
230–240 VAC / 50 Hz
BERKER Tronic-Drehdimmer 286710
220–240 VAC / 50 Hz
CLIPSAL 32E450UDM; NO 32E450TM
Protection and operating conditions
Parameter
Specification
Short-circuit protection
Hiccup mode with automatic recovery after the fault is removed.
Overtemperature protection
Output shuts down; remove the overtemperature condition and re-power to recover.
Ambient temperature
−30 to +60°C, subject to the load curve.
Cooling and load derating
Free-air convection; horizontal mounting as specified by the catalog curve. 100% load through +50°C, falling to 50% at +60°C. Derate for nonstandard mounting and apply all input and thermal limits together.
Input/load curve
At 50 Hz: 100% load across 180–295 VAC within the applicable thermal limits.
Humidity and storage
Working: 20–95% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH.
Temperature coefficient
±0.03%/°C over 0–50°C
Altitude derating
Above 2000 m, reduce allowable ambient temperature by 3.5°C per additional 1000 m for this fanless design.
Vibration
10–500 Hz, 2 G, 12 minutes per cycle, 72 minutes along each X/Y/Z axis.
Safety and EMC
Parameter
Specification
Safety and enclosure
Class II fully isolated plastic housing without an FG connection; IP42 enclosure. Class 2 power unit. UL8750; CSA C22.2 No. 250.0-08; EAC TP TC 004. This B version has ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 independent-control-gear approval and BS EN/EN62384. UL60950-1 and BS EN/EN61347-1/-2-13 are listed as design references. BIS IS15885 (Part 2/Sec 13) applies to this listed model. CCC is shown as optional; verify the supplied unit’s markings for the intended market.
Withstand voltage
Input-to-output: 3.75 kVAC
Insulation resistance
Input-to-output: 100 MΩ at 500 VDC, 25°C and 70% RH
EMC emissions
BS EN/EN55015; BS EN/EN61000-3-2 Class C; BS EN/EN61000-3-3; EAC TP TC 020.
EMC immunity
BS EN/EN61000-4-2, -3, -4, -5, -6, -8 and -11; BS EN/EN55024; BS EN/EN61547 for the light-industry level; EAC TP TC 020. Recheck EMC in the complete installation.
Dimensions, wiring and installation
Parameter
Specification
Body dimensions
84 × 57 × 29.5 mm (L × W × H)
Mounting
Two Ø3.6 mm mounting holes; follow case PCD16A drawing. Drawing tolerance ±1 mm. Recommended assembly/mounting-screw torque: 3.2–4.8 kgf·cm per the LED installation manual; this is not a wire-terminal torque.
AC input leads
NISPT-1 18 AWG; brown AC/L and blue AC/N. Lead length 75 ±5 mm.
LED output leads
UL1430 18 AWG; red V+ and black V−. Lead length 150 ±10 mm. Check polarity before connection.
Installation
Disconnect the supply before installation or maintenance and prevent accidental reconnection. Keep ventilation clear and do not stack objects on the driver. Leave 10–15 cm clearance when an adjacent device is a heat source. Insulate all system interconnections and cover single-insulated wiring with the system enclosure. Use suitable cable current ratings; route and secure the leads without strain. Do not immerse the unit or expose it to excessive heat or fire. Do not open the case; damaged external wiring must be replaced by the manufacturer, its service agent or an equally qualified person.
LED connection and mains switching
Connect LEDs directly to the output; this driver is not suitable for use with additional drivers. The LED string’s total forward voltage determines the operating output voltage within the specified constant-current range. Keep current and power within the rating. For the stated ErP application, install the driver behind a switch rather than permanently connected to the mains.
Catalog mass
190 g per unit, from PACKING 0.19 kg. Catalog packing reference, not a measured net or shipping weight.
Reliability reference
Catalog minimum MTBF estimates: 6624.6 / 906.5 thousand hours for Telcordia SR-332 / MIL-HDBK-217F (25°C), respectively; not a service-life guarantee.
Manufacturer warranty
Catalog states a 3-year warranty, subject to the manufacturer’s warranty statement and applicable conditions.
Typical figures and performance curves depend on the specified input, load and operating conditions. Apply the model’s published ratings and installation instructions to the complete luminaire.
