MEAN WELL XLC-25 series: constant-power LED driver - XLC-25-H-SN
MEAN WELL XLC-25-H-SN XLC-25-H-SN is a 25 W multiple-stage constant-power LED driver. Its 0.3–1.05 A output is configured by NFC, with a 700 mA factory setting. Independent type with strain-relief caps (S). Non-dimming. Download MEAN WELL XLC-25 Datasheet (PDF)Download MEAN WELL NFC User Manual Output specifications Parameter Specification Model and configuration XLC-25-H-SN; Independent type with strain-relief caps (S). Non-dimming. Output mode Multiple-stage constant-power H type with selectable constant-current operating points. Rated output power 25 W (catalog rating) Output current 0.3–1.05 A adjustable Default current 700 mA Constant-current region 9–54 V overall envelope. The usable LED-string voltage depends on the selected current; use the corresponding operating window below and the 25 W power limit. Open-circuit voltage 60 V; the output hiccups under no-load conditions. Current ripple <4%. Current tolerance ±5% (main output specification). Current setting NFC setting, selected by this model suffix. Typical efficiency 88%; measured at 500 mA / 50 V output set by DIP switch or NFC. Measurement basis Unless stated otherwise: 230 VAC input, rated current and 25°C ambient. Output-current configuration Match the LED-string forward voltage to the selected current and the catalog I–V operating area. The rounded operating-window endpoints do not increase the 25 W product rating. Parameter Specification 300 mA 9–54 V recommended operating window. 350 mA 9–54 V recommended operating window. 400 mA 9–54 V recommended operating window. 500 mA 9–50 V recommended operating window. 600 mA 9–42 V recommended operating window. 700 mA (default) 9–36 V recommended operating window. 900 mA 9–28 V recommended operating window. 1050 mA 9–24 V recommended operating window. N suffix: program current using an NFC-capable phone and the MEAN WELL app / PowerNFC; Android 4.1 or later, or iOS 12 or later. Read and write only with input AC power disconnected. Enable NFC and hold the phone antenna less than 5 cm from the driver’s NFC mark; read the driver, adjust its permitted current, write the setting and confirm “Success”. Read again to verify the stored value. The catalog NFC note specifies set-current versus actual-current error within 2%; the main output current tolerance remains ±5%. NFC password: the factory default is no password. A user password may contain up to 8 case-sensitive English letters or digits, without special characters, and is required for subsequent writes. The password cannot be reset by external means. The app’s “Default” function restores output current to its factory value; it is not a password reset. Control and dimming Parameter Specification Control function Non-dimming Blank function. Output current is configured by NFC. Input and protection Parameter Specification AC and DC input 100–305 VAC; 141–400 VDC. AC frequency 47–63 Hz. Verify the manufacturer’s DC wiring instructions before connecting a DC source. Power factor Active PFC. Full-load PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC. Total harmonic distortion <10% at load ≥50% / 230 VAC or ≥75% / 277 VAC; <15% at load ≥50% / 115 VAC. AC input current 0.35 A / 115 VAC; 0.18 A / 230 VAC; 0.15 A / 277 VAC. Cold-start inrush 10 A typical; width 100 μs measured at 50% Ipeak, 230 VAC; per NEMA 410. 16 A circuit breaker loading 71 / 71 units on type B / type C respectively at 230 VAC, as catalog reference conditions. Verify the actual breaker and installation. Leakage current <0.75 mA at 277 VAC. Setup and rise time 500 ms / 100 ms at 230 VAC; 1000 ms / 100 ms at 115 VAC. Setup time is measured at the first cold start; switching the driver ON/OFF may increase setup time. Short circuit Hiccup mode; automatically recovers after the fault is removed. Overtemperature protection Derates to the lowest output level. Automatically recovers after the fault is removed. Thermal and environmental limits Parameter Specification Cooling and ambient limits Free-air convection; horizontal mounting for the published load curves. At 110 VAC: 100% load from −25°C to +40°C ambient. At 230 VAC: 100% load from −25°C to +50°C ambient. The corresponding curves stop at these limits; do not infer operation beyond them. Case temperature Tcase −25 to +85°C; maximum +85°C at the designated tc point. This case-temperature limit is not an ambient-temperature rating. Input/load derating At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply the temperature and voltage limits together. Altitude derating Above 2000 m, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Humidity and storage Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis. Lifetime and warranty >50,000 hours typical life when Tcase at the tc point is about 70°C or lower. Manufacturer catalog states a 5-year warranty, subject to its terms; life expectancy is not a warranty duration. MTBF 3949.8 / 338.5 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively. Safety and compliance conditions Parameter Specification Construction Class II plastic housing with active PFC; catalog identifies UL8750 Class 2 / Class P and SELV. Safety standards ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL), Appendix J; BS EN/EN62384; BIS IS15885 Part 2/Sec 13; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; UL8750 Class P; CSA C22.2 No. 250.13-12. AS/NZS61347-1 and -2-13 are design references. Emergency-lighting condition The EL / Appendix J emergency-installation condition is 176–280 VDC input; this is distinct from the normal DC input range. RCM and regional marks Catalog RCM note: voluntary RCM; the S independent control gear is Non-IC classified and is not suitable for residential installations. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos. Products sourced from China and some India models may lack the BIS logo; confirm the actual certificate and region. Insulation Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C / 70% RH. EMC emissions BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥50%; voltage flicker BS EN/EN61000-3-3. EMC immunity BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Light flicker PstLM ≤1 and SVM ≤0.4, measured at full load using the light source supplied by MEAN WELL. ErP and final equipment For the stated ErP application, install behind a switch; do not permanently connect the driver to the mains. The final equipment manufacturer must requalify EMC for the complete installation. Mechanical and installation details Parameter Specification Dimensions 147 × 40 × 32 mm (L × W × H); drawing tolerance ±1 mm. Unit weight 160 g, catalog individual-unit PACKING value. Mounting and case Case XLC-25-S; two Ø3.6 mm mounting holes, 99 mm longitudinal spacing. Follow the full drawing for mounting orientation and clearances. Terminal assignment TB1: pin 1 AC/N; pin 2 AC/L. TB2: pin 1 +V; pin 2 −V. Wiring size TB1 input: 0.75–1.5 mm²; TB2 output: 0.5–1.5 mm². Strip 8–9 mm; follow the terminal drawing. Strain relief S configuration includes strain-relief caps. Use the drawing for this casing and control option. Match the LED load to the specified output, observe terminal polarity and conductor size, and provide the free-air-convection conditions used by the load curves. Check the tc point in the completed installation and requalify final-equipment EMC. Catalog reference: XLC-25, pages 31–41 of the combined XLN/XLC PDF. Use the exact model, suffix and applicable wiring drawing when designing the installation.
$36.96
-
MEAN WELL XLC-25 series: constant-power LED driver with DALI-2 and PUSH dimming - XLC-25-H-DA2N
MEAN WELL XLC-25-H-DA2N XLC-25-H-DA2N is a 25 W multiple-stage constant-power LED driver. Its 0.3–1.05 A output is configured by NFC, with a 700 mA factory setting. Built-in type without strain-relief caps. DALI-2 DT6 and primary-side PUSH dimming. Download MEAN WELL XLC-25 Datasheet (PDF)Download MEAN WELL NFC User Manual Output specifications Parameter Specification Model and configuration XLC-25-H-DA2N; Built-in type without strain-relief caps. DALI-2 DT6 and primary-side PUSH dimming. Output mode Multiple-stage constant-power H type with selectable constant-current operating points. Rated output power 25 W (catalog rating) Output current 0.3–1.05 A adjustable Default current 700 mA Constant-current region 9–54 V overall envelope. The usable LED-string voltage depends on the selected current; use the corresponding operating window below and the 25 W power limit. Open-circuit voltage 60 V; the output hiccups under no-load conditions. Current ripple <4%. Current tolerance ±5% (main output specification). Current setting NFC setting, selected by this model suffix. Typical efficiency 88%; measured at 500 mA / 50 V output set by DIP switch or NFC. Measurement basis Unless stated otherwise: 230 VAC input, rated current and 25°C ambient. Output-current configuration Match the LED-string forward voltage to the selected current and the catalog I–V operating area. The rounded operating-window endpoints do not increase the 25 W product rating. Parameter Specification 300 mA 9–54 V recommended operating window. 350 mA 9–54 V recommended operating window. 400 mA 9–54 V recommended operating window. 500 mA 9–50 V recommended operating window. 600 mA 9–42 V recommended operating window. 700 mA (default) 9–36 V recommended operating window. 900 mA 9–28 V recommended operating window. 1050 mA 9–24 V recommended operating window. N suffix: program current using an NFC-capable phone and the MEAN WELL app / PowerNFC; Android 4.1 or later, or iOS 12 or later. Read and write only with input AC power disconnected. Enable NFC and hold the phone antenna less than 5 cm from the driver’s NFC mark; read the driver, adjust its permitted current, write the setting and confirm “Success”. Read again to verify the stored value. The catalog NFC note specifies set-current versus actual-current error within 2%; the main output current tolerance remains ±5%. NFC password: the factory default is no password. A user password may contain up to 8 case-sensitive English letters or digits, without special characters, and is required for subsequent writes. The password cannot be reset by external means. The app’s “Default” function restores output current to its factory value; it is not a password reset. Control and dimming Parameter Specification DALI-2 interface DALI-2 DT6; IEC62386-101, -102 and -207. Minimum dimming level 0.1%; dimming range to 100% with off control. Use TB1 DA+/PUSH and DA−/N for the DALI bus as shown in the DALI wiring diagram. Primary-side PUSH wiring For the separate PUSH wiring arrangement: connect the push button between AC/L and DA+/PUSH; connect DA−/N to AC/N. Follow the correct DALI or PUSH diagram for the installation; do not apply mains to a DALI bus. PUSH operation Factory dimming level 100%. A press shorter than 0.05 s causes no change. Short press 0.1–1 s: on/off; double click twice within 1.5 s: 100%; long press 1.5–10 s: alternates dim-up and dim-down direction. PUSH limits At most 10 drivers on one common push button; maximum cable length from the button to the last driver is 20 m. Input and protection Parameter Specification AC and DC input 100–305 VAC; 141–400 VDC. AC frequency 47–63 Hz. Verify the manufacturer’s DC wiring instructions before connecting a DC source. Power factor Active PFC. Full-load PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC. Total harmonic distortion <10% at load ≥50% / 230 VAC or ≥75% / 277 VAC; <15% at load ≥50% / 115 VAC. AC input current 0.35 A / 115 VAC; 0.18 A / 230 VAC; 0.15 A / 277 VAC. Cold-start inrush 10 A typical; width 100 μs measured at 50% Ipeak, 230 VAC; per NEMA 410. 16 A circuit breaker loading 71 / 71 units on type B / type C respectively at 230 VAC, as catalog reference conditions. Verify the actual breaker and installation. Leakage current <0.75 mA at 277 VAC. Setup and rise time 500 ms / 100 ms at 230 VAC; 1000 ms / 100 ms at 115 VAC. Setup time is measured at the first cold start; switching the driver ON/OFF may increase setup time. For the IEC 62386-101/102 timing test, use a DALI controller supporting the DALI power-on function; otherwise startup may exceed 0.5 seconds. Standby consumption <0.5 W at 230 VAC with dimming off. Short circuit Hiccup mode; automatically recovers after the fault is removed. Overtemperature protection Stage 1 reduces loading to 75%; stage 2 to 50%. Automatically recovers after the fault is removed. Thermal and environmental limits Parameter Specification Cooling and ambient limits Free-air convection; horizontal mounting for the published load curves. At 110 VAC: 100% load from −25°C to +40°C ambient. At 230 VAC: 100% load from −25°C to +50°C ambient. The corresponding curves stop at these limits; do not infer operation beyond them. Case temperature Tcase −25 to +85°C; maximum +85°C at the designated tc point. This case-temperature limit is not an ambient-temperature rating. Input/load derating At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply the temperature and voltage limits together. Altitude derating Above 2000 m, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Humidity and storage Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis. Lifetime and warranty >50,000 hours typical life when Tcase at the tc point is about 70°C or lower. Manufacturer catalog states a 5-year warranty, subject to its terms; life expectancy is not a warranty duration. MTBF 3949.8 / 338.5 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively. Safety and compliance conditions Parameter Specification Construction Class II plastic housing with active PFC; catalog identifies UL8750 Class 2 / Class P and SELV. Safety standards ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL), Appendix J; BS EN/EN62384; BIS IS15885 Part 2/Sec 13; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; UL8750 Class P; CSA C22.2 No. 250.13-12. AS/NZS61347-1 and -2-13 are design references. Emergency-lighting condition The EL / Appendix J emergency-installation condition is 176–280 VDC input; this is distinct from the normal DC input range. RCM and regional marks Catalog RCM note: voluntary RCM; relevant IEC or AS/NZS standards with AS/NZS4417.1. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos. Products sourced from China and some India models may lack the BIS logo; confirm the actual certificate and region. Insulation Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C / 70% RH. EMC emissions BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥50%; voltage flicker BS EN/EN61000-3-3. EMC immunity BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Light flicker PstLM ≤1 and SVM ≤0.4, measured at full load using the light source supplied by MEAN WELL. ErP and final equipment For the stated ErP application, install behind a switch; do not permanently connect the driver to the mains. The final equipment manufacturer must requalify EMC for the complete installation. Mechanical and installation details Parameter Specification Dimensions 107 × 40 × 32 mm (L × W × H); drawing tolerance ±1 mm. Unit weight 141.6 g, catalog individual-unit PACKING value. Mounting and case Case XLC-25; two Ø3.6 mm mounting holes, 99 mm longitudinal spacing. Follow the full drawing for mounting orientation and clearances. Terminal assignment TB1: pin 1 AC/N; pin 2 AC/L. Pin 3 DA+/PUSH; pin 4 DA−/N. TB2: pin 1 +V; pin 2 −V. Wiring size TB1 input: 0.5–1.5 mm²; TB2 output: 0.5–1.5 mm². Strip 8–9 mm; follow the terminal drawing. Strain relief Built-in configuration has no strain-relief caps. The catalog lists an optional strain-relief cap set with printed order reference 1**3XLC-SET; one bag contains 50 pieces, two pieces per set. Confirm the complete ordering reference and fit with MEAN WELL; the printed asterisks must not be expanded by guesswork. Use the drawing for this casing and control option. Match the LED load to the specified output, observe terminal polarity and conductor size, and provide the free-air-convection conditions used by the load curves. Check the tc point in the completed installation and requalify final-equipment EMC. Catalog reference: XLC-25, pages 31–41 of the combined XLN/XLC PDF. Use the exact model, suffix and applicable wiring drawing when designing the installation.
$36.96
-
MEAN WELL XLC-25 series: constant-power LED driver with 3-in-1 dimming - XLC-25-H-BN
MEAN WELL XLC-25-H-BN XLC-25-H-BN is a 25 W multiple-stage constant-power LED driver. Its 0.3–1.05 A output is configured by NFC, with a 700 mA factory setting. Built-in type without strain-relief caps. 3-in-1 dimming. Download MEAN WELL XLC-25 Datasheet (PDF)Download MEAN WELL NFC User Manual Output specifications Parameter Specification Model and configuration XLC-25-H-BN; Built-in type without strain-relief caps. 3-in-1 dimming. Output mode Multiple-stage constant-power H type with selectable constant-current operating points. Rated output power 25 W (catalog rating) Output current 0.3–1.05 A adjustable Default current 700 mA Constant-current region 9–54 V overall envelope. The usable LED-string voltage depends on the selected current; use the corresponding operating window below and the 25 W power limit. Open-circuit voltage 60 V; the output hiccups under no-load conditions. Current ripple <4%. Current tolerance ±5% (main output specification). Current setting NFC setting, selected by this model suffix. Typical efficiency 88%; measured at 500 mA / 50 V output set by DIP switch or NFC. Measurement basis Unless stated otherwise: 230 VAC input, rated current and 25°C ambient. Output-current configuration Match the LED-string forward voltage to the selected current and the catalog I–V operating area. The rounded operating-window endpoints do not increase the 25 W product rating. Parameter Specification 300 mA 9–54 V recommended operating window. 350 mA 9–54 V recommended operating window. 400 mA 9–54 V recommended operating window. 500 mA 9–50 V recommended operating window. 600 mA 9–42 V recommended operating window. 700 mA (default) 9–36 V recommended operating window. 900 mA 9–28 V recommended operating window. 1050 mA 9–24 V recommended operating window. N suffix: program current using an NFC-capable phone and the MEAN WELL app / PowerNFC; Android 4.1 or later, or iOS 12 or later. Read and write only with input AC power disconnected. Enable NFC and hold the phone antenna less than 5 cm from the driver’s NFC mark; read the driver, adjust its permitted current, write the setting and confirm “Success”. Read again to verify the stored value. The catalog NFC note specifies set-current versus actual-current error within 2%; the main output current tolerance remains ±5%. NFC password: the factory default is no password. A user password may contain up to 8 case-sensitive English letters or digits, without special characters, and is required for subsequent writes. The password cannot be reset by external means. The app’s “Default” function restores output current to its factory value; it is not a password reset. Control and dimming Parameter Specification Dimming interface 3-in-1 control between DIM+ and DIM−: 0–10 VDC, external 10 V PWM at 300 Hz–3 kHz, or resistance 0–100 kΩ. For N synchronized drivers, the resistance scale is 100 kΩ/N. Dimming source current: 100 μA typical. Dimming limits Minimum dimming level is about 8%; output below 8% and above 0% is undefined. Dim-to-off is available with approximately 0 VDC, 0 kΩ or a 10 V PWM control signal at 0% duty cycle. Dimming connection Do not connect DIM− to output −V. Direct LED connection is recommended; the driver is not intended for use with additional drivers. Input and protection Parameter Specification AC and DC input 100–305 VAC; 141–400 VDC. AC frequency 47–63 Hz. Verify the manufacturer’s DC wiring instructions before connecting a DC source. Power factor Active PFC. Full-load PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC. Total harmonic distortion <10% at load ≥50% / 230 VAC or ≥75% / 277 VAC; <15% at load ≥50% / 115 VAC. AC input current 0.35 A / 115 VAC; 0.18 A / 230 VAC; 0.15 A / 277 VAC. Cold-start inrush 10 A typical; width 100 μs measured at 50% Ipeak, 230 VAC; per NEMA 410. 16 A circuit breaker loading 71 / 71 units on type B / type C respectively at 230 VAC, as catalog reference conditions. Verify the actual breaker and installation. Leakage current <0.75 mA at 277 VAC. Setup and rise time 500 ms / 100 ms at 230 VAC; 1000 ms / 100 ms at 115 VAC. Setup time is measured at the first cold start; switching the driver ON/OFF may increase setup time. Standby consumption <0.5 W at 230 VAC with dimming off. Short circuit Hiccup mode; automatically recovers after the fault is removed. Overtemperature protection Derates to the lowest output level. Automatically recovers after the fault is removed. Thermal and environmental limits Parameter Specification Cooling and ambient limits Free-air convection; horizontal mounting for the published load curves. At 110 VAC: 100% load from −25°C to +40°C ambient. At 230 VAC: 100% load from −25°C to +50°C ambient. The corresponding curves stop at these limits; do not infer operation beyond them. Case temperature Tcase −25 to +85°C; maximum +85°C at the designated tc point. This case-temperature limit is not an ambient-temperature rating. Input/load derating At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply the temperature and voltage limits together. Altitude derating Above 2000 m, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Humidity and storage Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis. Lifetime and warranty >50,000 hours typical life when Tcase at the tc point is about 70°C or lower. Manufacturer catalog states a 5-year warranty, subject to its terms; life expectancy is not a warranty duration. MTBF 3949.8 / 338.5 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively. Safety and compliance conditions Parameter Specification Construction Class II plastic housing with active PFC; catalog identifies UL8750 Class 2 / Class P and SELV. Safety standards ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL), Appendix J; BS EN/EN62384; BIS IS15885 Part 2/Sec 13; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; UL8750 Class P; CSA C22.2 No. 250.13-12. AS/NZS61347-1 and -2-13 are design references. Emergency-lighting condition The EL / Appendix J emergency-installation condition is 176–280 VDC input; this is distinct from the normal DC input range. RCM and regional marks Catalog RCM note: voluntary RCM; relevant IEC or AS/NZS standards with AS/NZS4417.1. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos. Products sourced from China and some India models may lack the BIS logo; confirm the actual certificate and region. Insulation Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C / 70% RH. EMC emissions BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥50%; voltage flicker BS EN/EN61000-3-3. EMC immunity BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Light flicker PstLM ≤1 and SVM ≤0.4, measured at full load using the light source supplied by MEAN WELL. ErP and final equipment For the stated ErP application, install behind a switch; do not permanently connect the driver to the mains. The final equipment manufacturer must requalify EMC for the complete installation. Mechanical and installation details Parameter Specification Dimensions 107 × 40 × 32 mm (L × W × H); drawing tolerance ±1 mm. Unit weight 141.6 g, catalog individual-unit PACKING value. Mounting and case Case XLC-25; two Ø3.6 mm mounting holes, 99 mm longitudinal spacing. Follow the full drawing for mounting orientation and clearances. Terminal assignment TB1: pin 1 AC/N; pin 2 AC/L. TB2: pin 1 +V; pin 2 −V. Pin 3 DIM+; pin 4 DIM−. Wiring size TB1 input: 0.5–1.5 mm²; TB2 output: 0.5–1.5 mm². Strip 8–9 mm; follow the terminal drawing. Strain relief Built-in configuration has no strain-relief caps. The catalog lists an optional strain-relief cap set with printed order reference 1**3XLC-SET; one bag contains 50 pieces, two pieces per set. Confirm the complete ordering reference and fit with MEAN WELL; the printed asterisks must not be expanded by guesswork. Use the drawing for this casing and control option. Match the LED load to the specified output, observe terminal polarity and conductor size, and provide the free-air-convection conditions used by the load curves. Check the tc point in the completed installation and requalify final-equipment EMC. Catalog reference: XLC-25, pages 31–41 of the combined XLN/XLC PDF. Use the exact model, suffix and applicable wiring drawing when designing the installation.
$36.96
-
MEAN WELL XLC-25 series: constant-power LED driver - XLC-25-H-N
MEAN WELL XLC-25-H-N XLC-25-H-N is a 25 W multiple-stage constant-power LED driver. Its 0.3–1.05 A output is configured by NFC, with a 700 mA factory setting. Built-in type without strain-relief caps. Non-dimming. Download MEAN WELL XLC-25 Datasheet (PDF)Download MEAN WELL NFC User Manual Output specifications Parameter Specification Model and configuration XLC-25-H-N; Built-in type without strain-relief caps. Non-dimming. Output mode Multiple-stage constant-power H type with selectable constant-current operating points. Rated output power 25 W (catalog rating) Output current 0.3–1.05 A adjustable Default current 700 mA Constant-current region 9–54 V overall envelope. The usable LED-string voltage depends on the selected current; use the corresponding operating window below and the 25 W power limit. Open-circuit voltage 60 V; the output hiccups under no-load conditions. Current ripple <4%. Current tolerance ±5% (main output specification). Current setting NFC setting, selected by this model suffix. Typical efficiency 88%; measured at 500 mA / 50 V output set by DIP switch or NFC. Measurement basis Unless stated otherwise: 230 VAC input, rated current and 25°C ambient. Output-current configuration Match the LED-string forward voltage to the selected current and the catalog I–V operating area. The rounded operating-window endpoints do not increase the 25 W product rating. Parameter Specification 300 mA 9–54 V recommended operating window. 350 mA 9–54 V recommended operating window. 400 mA 9–54 V recommended operating window. 500 mA 9–50 V recommended operating window. 600 mA 9–42 V recommended operating window. 700 mA (default) 9–36 V recommended operating window. 900 mA 9–28 V recommended operating window. 1050 mA 9–24 V recommended operating window. N suffix: program current using an NFC-capable phone and the MEAN WELL app / PowerNFC; Android 4.1 or later, or iOS 12 or later. Read and write only with input AC power disconnected. Enable NFC and hold the phone antenna less than 5 cm from the driver’s NFC mark; read the driver, adjust its permitted current, write the setting and confirm “Success”. Read again to verify the stored value. The catalog NFC note specifies set-current versus actual-current error within 2%; the main output current tolerance remains ±5%. NFC password: the factory default is no password. A user password may contain up to 8 case-sensitive English letters or digits, without special characters, and is required for subsequent writes. The password cannot be reset by external means. The app’s “Default” function restores output current to its factory value; it is not a password reset. Control and dimming Parameter Specification Control function Non-dimming Blank function. Output current is configured by NFC. Input and protection Parameter Specification AC and DC input 100–305 VAC; 141–400 VDC. AC frequency 47–63 Hz. Verify the manufacturer’s DC wiring instructions before connecting a DC source. Power factor Active PFC. Full-load PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC. Total harmonic distortion <10% at load ≥50% / 230 VAC or ≥75% / 277 VAC; <15% at load ≥50% / 115 VAC. AC input current 0.35 A / 115 VAC; 0.18 A / 230 VAC; 0.15 A / 277 VAC. Cold-start inrush 10 A typical; width 100 μs measured at 50% Ipeak, 230 VAC; per NEMA 410. 16 A circuit breaker loading 71 / 71 units on type B / type C respectively at 230 VAC, as catalog reference conditions. Verify the actual breaker and installation. Leakage current <0.75 mA at 277 VAC. Setup and rise time 500 ms / 100 ms at 230 VAC; 1000 ms / 100 ms at 115 VAC. Setup time is measured at the first cold start; switching the driver ON/OFF may increase setup time. Short circuit Hiccup mode; automatically recovers after the fault is removed. Overtemperature protection Derates to the lowest output level. Automatically recovers after the fault is removed. Thermal and environmental limits Parameter Specification Cooling and ambient limits Free-air convection; horizontal mounting for the published load curves. At 110 VAC: 100% load from −25°C to +40°C ambient. At 230 VAC: 100% load from −25°C to +50°C ambient. The corresponding curves stop at these limits; do not infer operation beyond them. Case temperature Tcase −25 to +85°C; maximum +85°C at the designated tc point. This case-temperature limit is not an ambient-temperature rating. Input/load derating At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply the temperature and voltage limits together. Altitude derating Above 2000 m, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Humidity and storage Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis. Lifetime and warranty >50,000 hours typical life when Tcase at the tc point is about 70°C or lower. Manufacturer catalog states a 5-year warranty, subject to its terms; life expectancy is not a warranty duration. MTBF 3949.8 / 338.5 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively. Safety and compliance conditions Parameter Specification Construction Class II plastic housing with active PFC; catalog identifies UL8750 Class 2 / Class P and SELV. Safety standards ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL), Appendix J; BS EN/EN62384; BIS IS15885 Part 2/Sec 13; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; UL8750 Class P; CSA C22.2 No. 250.13-12. AS/NZS61347-1 and -2-13 are design references. Emergency-lighting condition The EL / Appendix J emergency-installation condition is 176–280 VDC input; this is distinct from the normal DC input range. RCM and regional marks Catalog RCM note: voluntary RCM; relevant IEC or AS/NZS standards with AS/NZS4417.1. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos. Products sourced from China and some India models may lack the BIS logo; confirm the actual certificate and region. Insulation Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C / 70% RH. EMC emissions BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥50%; voltage flicker BS EN/EN61000-3-3. EMC immunity BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Light flicker PstLM ≤1 and SVM ≤0.4, measured at full load using the light source supplied by MEAN WELL. ErP and final equipment For the stated ErP application, install behind a switch; do not permanently connect the driver to the mains. The final equipment manufacturer must requalify EMC for the complete installation. Mechanical and installation details Parameter Specification Dimensions 107 × 40 × 32 mm (L × W × H); drawing tolerance ±1 mm. Unit weight 141.6 g, catalog individual-unit PACKING value. Mounting and case Case XLC-25; two Ø3.6 mm mounting holes, 99 mm longitudinal spacing. Follow the full drawing for mounting orientation and clearances. Terminal assignment TB1: pin 1 AC/N; pin 2 AC/L. TB2: pin 1 +V; pin 2 −V. Wiring size TB1 input: 0.5–1.5 mm²; TB2 output: 0.5–1.5 mm². Strip 8–9 mm; follow the terminal drawing. Strain relief Built-in configuration has no strain-relief caps. The catalog lists an optional strain-relief cap set with printed order reference 1**3XLC-SET; one bag contains 50 pieces, two pieces per set. Confirm the complete ordering reference and fit with MEAN WELL; the printed asterisks must not be expanded by guesswork. Use the drawing for this casing and control option. Match the LED load to the specified output, observe terminal polarity and conductor size, and provide the free-air-convection conditions used by the load curves. Check the tc point in the completed installation and requalify final-equipment EMC. Catalog reference: XLC-25, pages 31–41 of the combined XLN/XLC PDF. Use the exact model, suffix and applicable wiring drawing when designing the installation.
$36.96
-
MEAN WELL XLC-25 series: constant-power LED driver with DALI-2 and PUSH dimming - XLC-25-H-DA2S
MEAN WELL XLC-25-H-DA2S XLC-25-H-DA2S is a 25 W multiple-stage constant-power LED driver. Its 0.3–1.05 A output is configured by DIP switch, with a 700 mA factory setting. Independent type with strain-relief caps (S). DALI-2 DT6 and primary-side PUSH dimming. Download MEAN WELL XLC-25 Datasheet (PDF) Output specifications Parameter Specification Model and configuration XLC-25-H-DA2S; Independent type with strain-relief caps (S). DALI-2 DT6 and primary-side PUSH dimming. Output mode Multiple-stage constant-power H type with selectable constant-current operating points. Rated output power 25 W (catalog rating) Output current 0.3–1.05 A adjustable Default current 700 mA Constant-current region 9–54 V overall envelope. The usable LED-string voltage depends on the selected current; use the corresponding operating window below and the 25 W power limit. Open-circuit voltage 60 V; the output hiccups under no-load conditions. Current ripple <4%. Current tolerance ±5% (main output specification). Current setting DIP switch setting, selected by this model suffix. Typical efficiency 88%; measured at 500 mA / 50 V output set by DIP switch or NFC. Measurement basis Unless stated otherwise: 230 VAC input, rated current and 25°C ambient. Output-current configuration Match the LED-string forward voltage to the selected current and the catalog I–V operating area. The rounded operating-window endpoints do not increase the 25 W product rating. Parameter Specification 300 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / OFF / OFF. 350 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / OFF / ON. 400 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / ON / OFF. 500 mA 9–50 V recommended operating window. DIP 1/2/3: OFF / ON / ON. 600 mA 9–42 V recommended operating window. DIP 1/2/3: ON / OFF / OFF. 700 mA (default) 9–36 V recommended operating window. DIP 1/2/3: ON / OFF / ON. 900 mA 9–28 V recommended operating window. DIP 1/2/3: ON / ON / OFF. 1050 mA 9–24 V recommended operating window. DIP 1/2/3: ON / ON / ON. Control and dimming Parameter Specification DALI-2 interface DALI-2 DT6; IEC62386-101, -102 and -207. Minimum dimming level 0.1%; dimming range to 100% with off control. Use TB1 DA+/PUSH and DA−/N for the DALI bus as shown in the DALI wiring diagram. Primary-side PUSH wiring For the separate PUSH wiring arrangement: connect the push button between AC/L and DA+/PUSH; connect DA−/N to AC/N. Follow the correct DALI or PUSH diagram for the installation; do not apply mains to a DALI bus. PUSH operation Factory dimming level 100%. A press shorter than 0.05 s causes no change. Short press 0.1–1 s: on/off; double click twice within 1.5 s: 100%; long press 1.5–10 s: alternates dim-up and dim-down direction. PUSH limits At most 10 drivers on one common push button; maximum cable length from the button to the last driver is 20 m. Input and protection Parameter Specification AC and DC input 100–305 VAC; 141–400 VDC. AC frequency 47–63 Hz. Verify the manufacturer’s DC wiring instructions before connecting a DC source. Power factor Active PFC. Full-load PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC. Total harmonic distortion <10% at load ≥50% / 230 VAC or ≥75% / 277 VAC; <15% at load ≥50% / 115 VAC. AC input current 0.35 A / 115 VAC; 0.18 A / 230 VAC; 0.15 A / 277 VAC. Cold-start inrush 10 A typical; width 100 μs measured at 50% Ipeak, 230 VAC; per NEMA 410. 16 A circuit breaker loading 71 / 71 units on type B / type C respectively at 230 VAC, as catalog reference conditions. Verify the actual breaker and installation. Leakage current <0.75 mA at 277 VAC. Setup and rise time 500 ms / 100 ms at 230 VAC; 1000 ms / 100 ms at 115 VAC. Setup time is measured at the first cold start; switching the driver ON/OFF may increase setup time. For the IEC 62386-101/102 timing test, use a DALI controller supporting the DALI power-on function; otherwise startup may exceed 0.5 seconds. Standby consumption <0.5 W at 230 VAC with dimming off. Short circuit Hiccup mode; automatically recovers after the fault is removed. Overtemperature protection Stage 1 reduces loading to 75%; stage 2 to 50%. Automatically recovers after the fault is removed. Thermal and environmental limits Parameter Specification Cooling and ambient limits Free-air convection; horizontal mounting for the published load curves. At 110 VAC: 100% load from −25°C to +40°C ambient. At 230 VAC: 100% load from −25°C to +50°C ambient. The corresponding curves stop at these limits; do not infer operation beyond them. Case temperature Tcase −25 to +85°C; maximum +85°C at the designated tc point. This case-temperature limit is not an ambient-temperature rating. Input/load derating At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply the temperature and voltage limits together. Altitude derating Above 2000 m, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Humidity and storage Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis. Lifetime and warranty >50,000 hours typical life when Tcase at the tc point is about 70°C or lower. Manufacturer catalog states a 5-year warranty, subject to its terms; life expectancy is not a warranty duration. MTBF 3949.8 / 338.5 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively. Safety and compliance conditions Parameter Specification Construction Class II plastic housing with active PFC; catalog identifies UL8750 Class 2 / Class P and SELV. Safety standards ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL), Appendix J; BS EN/EN62384; BIS IS15885 Part 2/Sec 13; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; UL8750 Class P; CSA C22.2 No. 250.13-12. AS/NZS61347-1 and -2-13 are design references. Emergency-lighting condition The EL / Appendix J emergency-installation condition is 176–280 VDC input; this is distinct from the normal DC input range. RCM and regional marks Catalog RCM note: voluntary RCM; the S independent control gear is Non-IC classified and is not suitable for residential installations. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos. Products sourced from China and some India models may lack the BIS logo; confirm the actual certificate and region. Insulation Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C / 70% RH. EMC emissions BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥50%; voltage flicker BS EN/EN61000-3-3. EMC immunity BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Light flicker PstLM ≤1 and SVM ≤0.4, measured at full load using the light source supplied by MEAN WELL. ErP and final equipment For the stated ErP application, install behind a switch; do not permanently connect the driver to the mains. The final equipment manufacturer must requalify EMC for the complete installation. Mechanical and installation details Parameter Specification Dimensions 147 × 40 × 32 mm (L × W × H); drawing tolerance ±1 mm. Unit weight 160 g, catalog individual-unit PACKING value. Mounting and case Case XLC-25-S; two Ø3.6 mm mounting holes, 99 mm longitudinal spacing. Follow the full drawing for mounting orientation and clearances. Terminal assignment TB1: pin 1 AC/N; pin 2 AC/L. Pin 3 DA+/PUSH; pin 4 DA−/N. TB2: pin 1 +V; pin 2 −V. Wiring size TB1 input: 0.75–1.5 mm²; TB2 output: 0.5–1.5 mm². Strip 8–9 mm; follow the terminal drawing. Strain relief S configuration includes strain-relief caps. Use the drawing for this casing and control option. Match the LED load to the specified output, observe terminal polarity and conductor size, and provide the free-air-convection conditions used by the load curves. Check the tc point in the completed installation and requalify final-equipment EMC. Catalog reference: XLC-25, pages 31–41 of the combined XLN/XLC PDF. Use the exact model, suffix and applicable wiring drawing when designing the installation.
$36.96
-
MEAN WELL XLC-25 series: constant-power LED driver with 3-in-1 dimming - XLC-25-H-BS
MEAN WELL XLC-25-H-BS XLC-25-H-BS is a 25 W multiple-stage constant-power LED driver. Its 0.3–1.05 A output is configured by DIP switch, with a 700 mA factory setting. Independent type with strain-relief caps (S). 3-in-1 dimming. Download MEAN WELL XLC-25 Datasheet (PDF) Output specifications Parameter Specification Model and configuration XLC-25-H-BS; Independent type with strain-relief caps (S). 3-in-1 dimming. Output mode Multiple-stage constant-power H type with selectable constant-current operating points. Rated output power 25 W (catalog rating) Output current 0.3–1.05 A adjustable Default current 700 mA Constant-current region 9–54 V overall envelope. The usable LED-string voltage depends on the selected current; use the corresponding operating window below and the 25 W power limit. Open-circuit voltage 60 V; the output hiccups under no-load conditions. Current ripple <4%. Current tolerance ±5% (main output specification). Current setting DIP switch setting, selected by this model suffix. Typical efficiency 88%; measured at 500 mA / 50 V output set by DIP switch or NFC. Measurement basis Unless stated otherwise: 230 VAC input, rated current and 25°C ambient. Output-current configuration Match the LED-string forward voltage to the selected current and the catalog I–V operating area. The rounded operating-window endpoints do not increase the 25 W product rating. Parameter Specification 300 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / OFF / OFF. 350 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / OFF / ON. 400 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / ON / OFF. 500 mA 9–50 V recommended operating window. DIP 1/2/3: OFF / ON / ON. 600 mA 9–42 V recommended operating window. DIP 1/2/3: ON / OFF / OFF. 700 mA (default) 9–36 V recommended operating window. DIP 1/2/3: ON / OFF / ON. 900 mA 9–28 V recommended operating window. DIP 1/2/3: ON / ON / OFF. 1050 mA 9–24 V recommended operating window. DIP 1/2/3: ON / ON / ON. Control and dimming Parameter Specification Dimming interface 3-in-1 control between DIM+ and DIM−: 0–10 VDC, external 10 V PWM at 300 Hz–3 kHz, or resistance 0–100 kΩ. For N synchronized drivers, the resistance scale is 100 kΩ/N. Dimming source current: 100 μA typical. Dimming limits Minimum dimming level is about 8%; output below 8% and above 0% is undefined. Dim-to-off is available with approximately 0 VDC, 0 kΩ or a 10 V PWM control signal at 0% duty cycle. Dimming connection Do not connect DIM− to output −V. Direct LED connection is recommended; the driver is not intended for use with additional drivers. Input and protection Parameter Specification AC and DC input 100–305 VAC; 141–400 VDC. AC frequency 47–63 Hz. Verify the manufacturer’s DC wiring instructions before connecting a DC source. Power factor Active PFC. Full-load PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC. Total harmonic distortion <10% at load ≥50% / 230 VAC or ≥75% / 277 VAC; <15% at load ≥50% / 115 VAC. AC input current 0.35 A / 115 VAC; 0.18 A / 230 VAC; 0.15 A / 277 VAC. Cold-start inrush 10 A typical; width 100 μs measured at 50% Ipeak, 230 VAC; per NEMA 410. 16 A circuit breaker loading 71 / 71 units on type B / type C respectively at 230 VAC, as catalog reference conditions. Verify the actual breaker and installation. Leakage current <0.75 mA at 277 VAC. Setup and rise time 500 ms / 100 ms at 230 VAC; 1000 ms / 100 ms at 115 VAC. Setup time is measured at the first cold start; switching the driver ON/OFF may increase setup time. Standby consumption <0.5 W at 230 VAC with dimming off. Short circuit Hiccup mode; automatically recovers after the fault is removed. Overtemperature protection Derates to the lowest output level. Automatically recovers after the fault is removed. Thermal and environmental limits Parameter Specification Cooling and ambient limits Free-air convection; horizontal mounting for the published load curves. At 110 VAC: 100% load from −25°C to +40°C ambient. At 230 VAC: 100% load from −25°C to +50°C ambient. The corresponding curves stop at these limits; do not infer operation beyond them. Case temperature Tcase −25 to +85°C; maximum +85°C at the designated tc point. This case-temperature limit is not an ambient-temperature rating. Input/load derating At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply the temperature and voltage limits together. Altitude derating Above 2000 m, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Humidity and storage Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis. Lifetime and warranty >50,000 hours typical life when Tcase at the tc point is about 70°C or lower. Manufacturer catalog states a 5-year warranty, subject to its terms; life expectancy is not a warranty duration. MTBF 3949.8 / 338.5 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively. Safety and compliance conditions Parameter Specification Construction Class II plastic housing with active PFC; catalog identifies UL8750 Class 2 / Class P and SELV. Safety standards ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL), Appendix J; BS EN/EN62384; BIS IS15885 Part 2/Sec 13; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; UL8750 Class P; CSA C22.2 No. 250.13-12. AS/NZS61347-1 and -2-13 are design references. Emergency-lighting condition The EL / Appendix J emergency-installation condition is 176–280 VDC input; this is distinct from the normal DC input range. RCM and regional marks Catalog RCM note: voluntary RCM; the S independent control gear is Non-IC classified and is not suitable for residential installations. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos. Products sourced from China and some India models may lack the BIS logo; confirm the actual certificate and region. Insulation Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C / 70% RH. EMC emissions BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥50%; voltage flicker BS EN/EN61000-3-3. EMC immunity BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Light flicker PstLM ≤1 and SVM ≤0.4, measured at full load using the light source supplied by MEAN WELL. ErP and final equipment For the stated ErP application, install behind a switch; do not permanently connect the driver to the mains. The final equipment manufacturer must requalify EMC for the complete installation. Mechanical and installation details Parameter Specification Dimensions 147 × 40 × 32 mm (L × W × H); drawing tolerance ±1 mm. Unit weight 160 g, catalog individual-unit PACKING value. Mounting and case Case XLC-25-S; two Ø3.6 mm mounting holes, 99 mm longitudinal spacing. Follow the full drawing for mounting orientation and clearances. Terminal assignment TB1: pin 1 AC/N; pin 2 AC/L. TB2: pin 1 +V; pin 2 −V. Pin 3 DIM+; pin 4 DIM−. Wiring size TB1 input: 0.75–1.5 mm²; TB2 output: 0.5–1.5 mm². Strip 8–9 mm; follow the terminal drawing. Strain relief S configuration includes strain-relief caps. Use the drawing for this casing and control option. Match the LED load to the specified output, observe terminal polarity and conductor size, and provide the free-air-convection conditions used by the load curves. Check the tc point in the completed installation and requalify final-equipment EMC. Catalog reference: XLC-25, pages 31–41 of the combined XLN/XLC PDF. Use the exact model, suffix and applicable wiring drawing when designing the installation.
$36.96
-
MEAN WELL XLC-25 series: constant-power LED driver - XLC-25-H-S
MEAN WELL XLC-25-H-S XLC-25-H-S is a 25 W multiple-stage constant-power LED driver. Its 0.3–1.05 A output is configured by DIP switch, with a 700 mA factory setting. Independent type with strain-relief caps (S). Non-dimming. Download MEAN WELL XLC-25 Datasheet (PDF) Output specifications Parameter Specification Model and configuration XLC-25-H-S; Independent type with strain-relief caps (S). Non-dimming. Output mode Multiple-stage constant-power H type with selectable constant-current operating points. Rated output power 25 W (catalog rating) Output current 0.3–1.05 A adjustable Default current 700 mA Constant-current region 9–54 V overall envelope. The usable LED-string voltage depends on the selected current; use the corresponding operating window below and the 25 W power limit. Open-circuit voltage 60 V; the output hiccups under no-load conditions. Current ripple <4%. Current tolerance ±5% (main output specification). Current setting DIP switch setting, selected by this model suffix. Typical efficiency 88%; measured at 500 mA / 50 V output set by DIP switch or NFC. Measurement basis Unless stated otherwise: 230 VAC input, rated current and 25°C ambient. Output-current configuration Match the LED-string forward voltage to the selected current and the catalog I–V operating area. The rounded operating-window endpoints do not increase the 25 W product rating. Parameter Specification 300 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / OFF / OFF. 350 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / OFF / ON. 400 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / ON / OFF. 500 mA 9–50 V recommended operating window. DIP 1/2/3: OFF / ON / ON. 600 mA 9–42 V recommended operating window. DIP 1/2/3: ON / OFF / OFF. 700 mA (default) 9–36 V recommended operating window. DIP 1/2/3: ON / OFF / ON. 900 mA 9–28 V recommended operating window. DIP 1/2/3: ON / ON / OFF. 1050 mA 9–24 V recommended operating window. DIP 1/2/3: ON / ON / ON. Control and dimming Parameter Specification Control function Non-dimming Blank function. Output current is configured by DIP switch. Input and protection Parameter Specification AC and DC input 100–305 VAC; 141–400 VDC. AC frequency 47–63 Hz. Verify the manufacturer’s DC wiring instructions before connecting a DC source. Power factor Active PFC. Full-load PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC. Total harmonic distortion <10% at load ≥50% / 230 VAC or ≥75% / 277 VAC; <15% at load ≥50% / 115 VAC. AC input current 0.35 A / 115 VAC; 0.18 A / 230 VAC; 0.15 A / 277 VAC. Cold-start inrush 10 A typical; width 100 μs measured at 50% Ipeak, 230 VAC; per NEMA 410. 16 A circuit breaker loading 71 / 71 units on type B / type C respectively at 230 VAC, as catalog reference conditions. Verify the actual breaker and installation. Leakage current <0.75 mA at 277 VAC. Setup and rise time 500 ms / 100 ms at 230 VAC; 1000 ms / 100 ms at 115 VAC. Setup time is measured at the first cold start; switching the driver ON/OFF may increase setup time. Short circuit Hiccup mode; automatically recovers after the fault is removed. Overtemperature protection Derates to the lowest output level. Automatically recovers after the fault is removed. Thermal and environmental limits Parameter Specification Cooling and ambient limits Free-air convection; horizontal mounting for the published load curves. At 110 VAC: 100% load from −25°C to +40°C ambient. At 230 VAC: 100% load from −25°C to +50°C ambient. The corresponding curves stop at these limits; do not infer operation beyond them. Case temperature Tcase −25 to +85°C; maximum +85°C at the designated tc point. This case-temperature limit is not an ambient-temperature rating. Input/load derating At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply the temperature and voltage limits together. Altitude derating Above 2000 m, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Humidity and storage Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis. Lifetime and warranty >50,000 hours typical life when Tcase at the tc point is about 70°C or lower. Manufacturer catalog states a 5-year warranty, subject to its terms; life expectancy is not a warranty duration. MTBF 3949.8 / 338.5 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively. Safety and compliance conditions Parameter Specification Construction Class II plastic housing with active PFC; catalog identifies UL8750 Class 2 / Class P and SELV. Safety standards ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL), Appendix J; BS EN/EN62384; BIS IS15885 Part 2/Sec 13; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; UL8750 Class P; CSA C22.2 No. 250.13-12. AS/NZS61347-1 and -2-13 are design references. Emergency-lighting condition The EL / Appendix J emergency-installation condition is 176–280 VDC input; this is distinct from the normal DC input range. RCM and regional marks Catalog RCM note: voluntary RCM; the S independent control gear is Non-IC classified and is not suitable for residential installations. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos. Products sourced from China and some India models may lack the BIS logo; confirm the actual certificate and region. Insulation Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C / 70% RH. EMC emissions BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥50%; voltage flicker BS EN/EN61000-3-3. EMC immunity BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Light flicker PstLM ≤1 and SVM ≤0.4, measured at full load using the light source supplied by MEAN WELL. ErP and final equipment For the stated ErP application, install behind a switch; do not permanently connect the driver to the mains. The final equipment manufacturer must requalify EMC for the complete installation. Mechanical and installation details Parameter Specification Dimensions 147 × 40 × 32 mm (L × W × H); drawing tolerance ±1 mm. Unit weight 160 g, catalog individual-unit PACKING value. Mounting and case Case XLC-25-S; two Ø3.6 mm mounting holes, 99 mm longitudinal spacing. Follow the full drawing for mounting orientation and clearances. Terminal assignment TB1: pin 1 AC/N; pin 2 AC/L. TB2: pin 1 +V; pin 2 −V. Wiring size TB1 input: 0.75–1.5 mm²; TB2 output: 0.5–1.5 mm². Strip 8–9 mm; follow the terminal drawing. Strain relief S configuration includes strain-relief caps. Use the drawing for this casing and control option. Match the LED load to the specified output, observe terminal polarity and conductor size, and provide the free-air-convection conditions used by the load curves. Check the tc point in the completed installation and requalify final-equipment EMC. Catalog reference: XLC-25, pages 31–41 of the combined XLN/XLC PDF. Use the exact model, suffix and applicable wiring drawing when designing the installation.
$36.96
-
MEAN WELL XLC-25 series: constant-power LED driver with DALI-2 and PUSH dimming - XLC-25-H-DA2
MEAN WELL XLC-25-H-DA2 XLC-25-H-DA2 is a 25 W multiple-stage constant-power LED driver. Its 0.3–1.05 A output is configured by DIP switch, with a 700 mA factory setting. Built-in type without strain-relief caps. DALI-2 DT6 and primary-side PUSH dimming. Download MEAN WELL XLC-25 Datasheet (PDF) Output specifications Parameter Specification Model and configuration XLC-25-H-DA2; Built-in type without strain-relief caps. DALI-2 DT6 and primary-side PUSH dimming. Output mode Multiple-stage constant-power H type with selectable constant-current operating points. Rated output power 25 W (catalog rating) Output current 0.3–1.05 A adjustable Default current 700 mA Constant-current region 9–54 V overall envelope. The usable LED-string voltage depends on the selected current; use the corresponding operating window below and the 25 W power limit. Open-circuit voltage 60 V; the output hiccups under no-load conditions. Current ripple <4%. Current tolerance ±5% (main output specification). Current setting DIP switch setting, selected by this model suffix. Typical efficiency 88%; measured at 500 mA / 50 V output set by DIP switch or NFC. Measurement basis Unless stated otherwise: 230 VAC input, rated current and 25°C ambient. Output-current configuration Match the LED-string forward voltage to the selected current and the catalog I–V operating area. The rounded operating-window endpoints do not increase the 25 W product rating. Parameter Specification 300 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / OFF / OFF. 350 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / OFF / ON. 400 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / ON / OFF. 500 mA 9–50 V recommended operating window. DIP 1/2/3: OFF / ON / ON. 600 mA 9–42 V recommended operating window. DIP 1/2/3: ON / OFF / OFF. 700 mA (default) 9–36 V recommended operating window. DIP 1/2/3: ON / OFF / ON. 900 mA 9–28 V recommended operating window. DIP 1/2/3: ON / ON / OFF. 1050 mA 9–24 V recommended operating window. DIP 1/2/3: ON / ON / ON. Control and dimming Parameter Specification DALI-2 interface DALI-2 DT6; IEC62386-101, -102 and -207. Minimum dimming level 0.1%; dimming range to 100% with off control. Use TB1 DA+/PUSH and DA−/N for the DALI bus as shown in the DALI wiring diagram. Primary-side PUSH wiring For the separate PUSH wiring arrangement: connect the push button between AC/L and DA+/PUSH; connect DA−/N to AC/N. Follow the correct DALI or PUSH diagram for the installation; do not apply mains to a DALI bus. PUSH operation Factory dimming level 100%. A press shorter than 0.05 s causes no change. Short press 0.1–1 s: on/off; double click twice within 1.5 s: 100%; long press 1.5–10 s: alternates dim-up and dim-down direction. PUSH limits At most 10 drivers on one common push button; maximum cable length from the button to the last driver is 20 m. Input and protection Parameter Specification AC and DC input 100–305 VAC; 141–400 VDC. AC frequency 47–63 Hz. Verify the manufacturer’s DC wiring instructions before connecting a DC source. Power factor Active PFC. Full-load PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC. Total harmonic distortion <10% at load ≥50% / 230 VAC or ≥75% / 277 VAC; <15% at load ≥50% / 115 VAC. AC input current 0.35 A / 115 VAC; 0.18 A / 230 VAC; 0.15 A / 277 VAC. Cold-start inrush 10 A typical; width 100 μs measured at 50% Ipeak, 230 VAC; per NEMA 410. 16 A circuit breaker loading 71 / 71 units on type B / type C respectively at 230 VAC, as catalog reference conditions. Verify the actual breaker and installation. Leakage current <0.75 mA at 277 VAC. Setup and rise time 500 ms / 100 ms at 230 VAC; 1000 ms / 100 ms at 115 VAC. Setup time is measured at the first cold start; switching the driver ON/OFF may increase setup time. For the IEC 62386-101/102 timing test, use a DALI controller supporting the DALI power-on function; otherwise startup may exceed 0.5 seconds. Standby consumption <0.5 W at 230 VAC with dimming off. Short circuit Hiccup mode; automatically recovers after the fault is removed. Overtemperature protection Stage 1 reduces loading to 75%; stage 2 to 50%. Automatically recovers after the fault is removed. Thermal and environmental limits Parameter Specification Cooling and ambient limits Free-air convection; horizontal mounting for the published load curves. At 110 VAC: 100% load from −25°C to +40°C ambient. At 230 VAC: 100% load from −25°C to +50°C ambient. The corresponding curves stop at these limits; do not infer operation beyond them. Case temperature Tcase −25 to +85°C; maximum +85°C at the designated tc point. This case-temperature limit is not an ambient-temperature rating. Input/load derating At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply the temperature and voltage limits together. Altitude derating Above 2000 m, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Humidity and storage Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis. Lifetime and warranty >50,000 hours typical life when Tcase at the tc point is about 70°C or lower. Manufacturer catalog states a 5-year warranty, subject to its terms; life expectancy is not a warranty duration. MTBF 3949.8 / 338.5 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively. Safety and compliance conditions Parameter Specification Construction Class II plastic housing with active PFC; catalog identifies UL8750 Class 2 / Class P and SELV. Safety standards ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL), Appendix J; BS EN/EN62384; BIS IS15885 Part 2/Sec 13; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; UL8750 Class P; CSA C22.2 No. 250.13-12. AS/NZS61347-1 and -2-13 are design references. Emergency-lighting condition The EL / Appendix J emergency-installation condition is 176–280 VDC input; this is distinct from the normal DC input range. RCM and regional marks Catalog RCM note: voluntary RCM; relevant IEC or AS/NZS standards with AS/NZS4417.1. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos. Products sourced from China and some India models may lack the BIS logo; confirm the actual certificate and region. Insulation Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C / 70% RH. EMC emissions BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥50%; voltage flicker BS EN/EN61000-3-3. EMC immunity BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Light flicker PstLM ≤1 and SVM ≤0.4, measured at full load using the light source supplied by MEAN WELL. ErP and final equipment For the stated ErP application, install behind a switch; do not permanently connect the driver to the mains. The final equipment manufacturer must requalify EMC for the complete installation. Mechanical and installation details Parameter Specification Dimensions 107 × 40 × 32 mm (L × W × H); drawing tolerance ±1 mm. Unit weight 141.6 g, catalog individual-unit PACKING value. Mounting and case Case XLC-25; two Ø3.6 mm mounting holes, 99 mm longitudinal spacing. Follow the full drawing for mounting orientation and clearances. Terminal assignment TB1: pin 1 AC/N; pin 2 AC/L. Pin 3 DA+/PUSH; pin 4 DA−/N. TB2: pin 1 +V; pin 2 −V. Wiring size TB1 input: 0.5–1.5 mm²; TB2 output: 0.5–1.5 mm². Strip 8–9 mm; follow the terminal drawing. Strain relief Built-in configuration has no strain-relief caps. The catalog lists an optional strain-relief cap set with printed order reference 1**3XLC-SET; one bag contains 50 pieces, two pieces per set. Confirm the complete ordering reference and fit with MEAN WELL; the printed asterisks must not be expanded by guesswork. Use the drawing for this casing and control option. Match the LED load to the specified output, observe terminal polarity and conductor size, and provide the free-air-convection conditions used by the load curves. Check the tc point in the completed installation and requalify final-equipment EMC. Catalog reference: XLC-25, pages 31–41 of the combined XLN/XLC PDF. Use the exact model, suffix and applicable wiring drawing when designing the installation.
$36.96
-

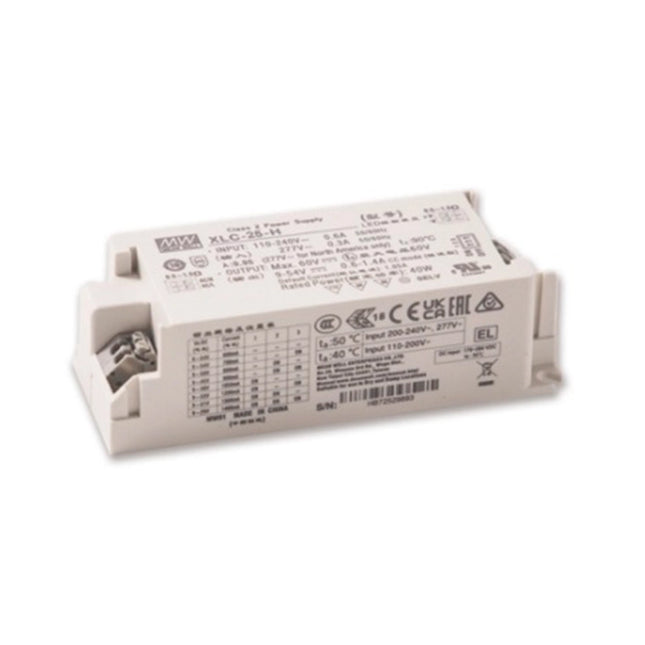

MEAN WELL XLC-25 series: constant-power LED driver with 3-in-1 dimming - XLC-25-H-B
MEAN WELL XLC-25-H-B XLC-25-H-B is a 25 W multiple-stage constant-power LED driver. Its 0.3–1.05 A output is configured by DIP switch, with a 700 mA factory setting. Built-in type without strain-relief caps. 3-in-1 dimming. Download MEAN WELL XLC-25 Datasheet (PDF) Output specifications Parameter Specification Model and configuration XLC-25-H-B; Built-in type without strain-relief caps. 3-in-1 dimming. Output mode Multiple-stage constant-power H type with selectable constant-current operating points. Rated output power 25 W (catalog rating) Output current 0.3–1.05 A adjustable Default current 700 mA Constant-current region 9–54 V overall envelope. The usable LED-string voltage depends on the selected current; use the corresponding operating window below and the 25 W power limit. Open-circuit voltage 60 V; the output hiccups under no-load conditions. Current ripple <4%. Current tolerance ±5% (main output specification). Current setting DIP switch setting, selected by this model suffix. Typical efficiency 88%; measured at 500 mA / 50 V output set by DIP switch or NFC. Measurement basis Unless stated otherwise: 230 VAC input, rated current and 25°C ambient. Output-current configuration Match the LED-string forward voltage to the selected current and the catalog I–V operating area. The rounded operating-window endpoints do not increase the 25 W product rating. Parameter Specification 300 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / OFF / OFF. 350 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / OFF / ON. 400 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / ON / OFF. 500 mA 9–50 V recommended operating window. DIP 1/2/3: OFF / ON / ON. 600 mA 9–42 V recommended operating window. DIP 1/2/3: ON / OFF / OFF. 700 mA (default) 9–36 V recommended operating window. DIP 1/2/3: ON / OFF / ON. 900 mA 9–28 V recommended operating window. DIP 1/2/3: ON / ON / OFF. 1050 mA 9–24 V recommended operating window. DIP 1/2/3: ON / ON / ON. Control and dimming Parameter Specification Dimming interface 3-in-1 control between DIM+ and DIM−: 0–10 VDC, external 10 V PWM at 300 Hz–3 kHz, or resistance 0–100 kΩ. For N synchronized drivers, the resistance scale is 100 kΩ/N. Dimming source current: 100 μA typical. Dimming limits Minimum dimming level is about 8%; output below 8% and above 0% is undefined. Dim-to-off is available with approximately 0 VDC, 0 kΩ or a 10 V PWM control signal at 0% duty cycle. Dimming connection Do not connect DIM− to output −V. Direct LED connection is recommended; the driver is not intended for use with additional drivers. Input and protection Parameter Specification AC and DC input 100–305 VAC; 141–400 VDC. AC frequency 47–63 Hz. Verify the manufacturer’s DC wiring instructions before connecting a DC source. Power factor Active PFC. Full-load PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC. Total harmonic distortion <10% at load ≥50% / 230 VAC or ≥75% / 277 VAC; <15% at load ≥50% / 115 VAC. AC input current 0.35 A / 115 VAC; 0.18 A / 230 VAC; 0.15 A / 277 VAC. Cold-start inrush 10 A typical; width 100 μs measured at 50% Ipeak, 230 VAC; per NEMA 410. 16 A circuit breaker loading 71 / 71 units on type B / type C respectively at 230 VAC, as catalog reference conditions. Verify the actual breaker and installation. Leakage current <0.75 mA at 277 VAC. Setup and rise time 500 ms / 100 ms at 230 VAC; 1000 ms / 100 ms at 115 VAC. Setup time is measured at the first cold start; switching the driver ON/OFF may increase setup time. Standby consumption <0.5 W at 230 VAC with dimming off. Short circuit Hiccup mode; automatically recovers after the fault is removed. Overtemperature protection Derates to the lowest output level. Automatically recovers after the fault is removed. Thermal and environmental limits Parameter Specification Cooling and ambient limits Free-air convection; horizontal mounting for the published load curves. At 110 VAC: 100% load from −25°C to +40°C ambient. At 230 VAC: 100% load from −25°C to +50°C ambient. The corresponding curves stop at these limits; do not infer operation beyond them. Case temperature Tcase −25 to +85°C; maximum +85°C at the designated tc point. This case-temperature limit is not an ambient-temperature rating. Input/load derating At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply the temperature and voltage limits together. Altitude derating Above 2000 m, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Humidity and storage Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis. Lifetime and warranty >50,000 hours typical life when Tcase at the tc point is about 70°C or lower. Manufacturer catalog states a 5-year warranty, subject to its terms; life expectancy is not a warranty duration. MTBF 3949.8 / 338.5 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively. Safety and compliance conditions Parameter Specification Construction Class II plastic housing with active PFC; catalog identifies UL8750 Class 2 / Class P and SELV. Safety standards ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL), Appendix J; BS EN/EN62384; BIS IS15885 Part 2/Sec 13; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; UL8750 Class P; CSA C22.2 No. 250.13-12. AS/NZS61347-1 and -2-13 are design references. Emergency-lighting condition The EL / Appendix J emergency-installation condition is 176–280 VDC input; this is distinct from the normal DC input range. RCM and regional marks Catalog RCM note: voluntary RCM; relevant IEC or AS/NZS standards with AS/NZS4417.1. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos. Products sourced from China and some India models may lack the BIS logo; confirm the actual certificate and region. Insulation Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C / 70% RH. EMC emissions BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥50%; voltage flicker BS EN/EN61000-3-3. EMC immunity BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Light flicker PstLM ≤1 and SVM ≤0.4, measured at full load using the light source supplied by MEAN WELL. ErP and final equipment For the stated ErP application, install behind a switch; do not permanently connect the driver to the mains. The final equipment manufacturer must requalify EMC for the complete installation. Mechanical and installation details Parameter Specification Dimensions 107 × 40 × 32 mm (L × W × H); drawing tolerance ±1 mm. Unit weight 141.6 g, catalog individual-unit PACKING value. Mounting and case Case XLC-25; two Ø3.6 mm mounting holes, 99 mm longitudinal spacing. Follow the full drawing for mounting orientation and clearances. Terminal assignment TB1: pin 1 AC/N; pin 2 AC/L. TB2: pin 1 +V; pin 2 −V. Pin 3 DIM+; pin 4 DIM−. Wiring size TB1 input: 0.5–1.5 mm²; TB2 output: 0.5–1.5 mm². Strip 8–9 mm; follow the terminal drawing. Strain relief Built-in configuration has no strain-relief caps. The catalog lists an optional strain-relief cap set with printed order reference 1**3XLC-SET; one bag contains 50 pieces, two pieces per set. Confirm the complete ordering reference and fit with MEAN WELL; the printed asterisks must not be expanded by guesswork. Use the drawing for this casing and control option. Match the LED load to the specified output, observe terminal polarity and conductor size, and provide the free-air-convection conditions used by the load curves. Check the tc point in the completed installation and requalify final-equipment EMC. Catalog reference: XLC-25, pages 31–41 of the combined XLN/XLC PDF. Use the exact model, suffix and applicable wiring drawing when designing the installation.
$36.96
-
MEAN WELL XLC-25 series: constant-power LED driver - XLC-25-H
MEAN WELL XLC-25-H XLC-25-H is a 25 W multiple-stage constant-power LED driver. Its 0.3–1.05 A output is configured by DIP switch, with a 700 mA factory setting. Built-in type without strain-relief caps. Non-dimming. Download MEAN WELL XLC-25 Datasheet (PDF) Output specifications Parameter Specification Model and configuration XLC-25-H; Built-in type without strain-relief caps. Non-dimming. Output mode Multiple-stage constant-power H type with selectable constant-current operating points. Rated output power 25 W (catalog rating) Output current 0.3–1.05 A adjustable Default current 700 mA Constant-current region 9–54 V overall envelope. The usable LED-string voltage depends on the selected current; use the corresponding operating window below and the 25 W power limit. Open-circuit voltage 60 V; the output hiccups under no-load conditions. Current ripple <4%. Current tolerance ±5% (main output specification). Current setting DIP switch setting, selected by this model suffix. Typical efficiency 88%; measured at 500 mA / 50 V output set by DIP switch or NFC. Measurement basis Unless stated otherwise: 230 VAC input, rated current and 25°C ambient. Output-current configuration Match the LED-string forward voltage to the selected current and the catalog I–V operating area. The rounded operating-window endpoints do not increase the 25 W product rating. Parameter Specification 300 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / OFF / OFF. 350 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / OFF / ON. 400 mA 9–54 V recommended operating window. DIP 1/2/3: OFF / ON / OFF. 500 mA 9–50 V recommended operating window. DIP 1/2/3: OFF / ON / ON. 600 mA 9–42 V recommended operating window. DIP 1/2/3: ON / OFF / OFF. 700 mA (default) 9–36 V recommended operating window. DIP 1/2/3: ON / OFF / ON. 900 mA 9–28 V recommended operating window. DIP 1/2/3: ON / ON / OFF. 1050 mA 9–24 V recommended operating window. DIP 1/2/3: ON / ON / ON. Control and dimming Parameter Specification Control function Non-dimming Blank function. Output current is configured by DIP switch. Input and protection Parameter Specification AC and DC input 100–305 VAC; 141–400 VDC. AC frequency 47–63 Hz. Verify the manufacturer’s DC wiring instructions before connecting a DC source. Power factor Active PFC. Full-load PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC. Total harmonic distortion <10% at load ≥50% / 230 VAC or ≥75% / 277 VAC; <15% at load ≥50% / 115 VAC. AC input current 0.35 A / 115 VAC; 0.18 A / 230 VAC; 0.15 A / 277 VAC. Cold-start inrush 10 A typical; width 100 μs measured at 50% Ipeak, 230 VAC; per NEMA 410. 16 A circuit breaker loading 71 / 71 units on type B / type C respectively at 230 VAC, as catalog reference conditions. Verify the actual breaker and installation. Leakage current <0.75 mA at 277 VAC. Setup and rise time 500 ms / 100 ms at 230 VAC; 1000 ms / 100 ms at 115 VAC. Setup time is measured at the first cold start; switching the driver ON/OFF may increase setup time. Short circuit Hiccup mode; automatically recovers after the fault is removed. Overtemperature protection Derates to the lowest output level. Automatically recovers after the fault is removed. Thermal and environmental limits Parameter Specification Cooling and ambient limits Free-air convection; horizontal mounting for the published load curves. At 110 VAC: 100% load from −25°C to +40°C ambient. At 230 VAC: 100% load from −25°C to +50°C ambient. The corresponding curves stop at these limits; do not infer operation beyond them. Case temperature Tcase −25 to +85°C; maximum +85°C at the designated tc point. This case-temperature limit is not an ambient-temperature rating. Input/load derating At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply the temperature and voltage limits together. Altitude derating Above 2000 m, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Humidity and storage Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis. Lifetime and warranty >50,000 hours typical life when Tcase at the tc point is about 70°C or lower. Manufacturer catalog states a 5-year warranty, subject to its terms; life expectancy is not a warranty duration. MTBF 3949.8 / 338.5 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively. Safety and compliance conditions Parameter Specification Construction Class II plastic housing with active PFC; catalog identifies UL8750 Class 2 / Class P and SELV. Safety standards ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL), Appendix J; BS EN/EN62384; BIS IS15885 Part 2/Sec 13; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; UL8750 Class P; CSA C22.2 No. 250.13-12. AS/NZS61347-1 and -2-13 are design references. Emergency-lighting condition The EL / Appendix J emergency-installation condition is 176–280 VDC input; this is distinct from the normal DC input range. RCM and regional marks Catalog RCM note: voluntary RCM; relevant IEC or AS/NZS standards with AS/NZS4417.1. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos. Products sourced from China and some India models may lack the BIS logo; confirm the actual certificate and region. Insulation Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C / 70% RH. EMC emissions BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥50%; voltage flicker BS EN/EN61000-3-3. EMC immunity BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Light flicker PstLM ≤1 and SVM ≤0.4, measured at full load using the light source supplied by MEAN WELL. ErP and final equipment For the stated ErP application, install behind a switch; do not permanently connect the driver to the mains. The final equipment manufacturer must requalify EMC for the complete installation. Mechanical and installation details Parameter Specification Dimensions 107 × 40 × 32 mm (L × W × H); drawing tolerance ±1 mm. Unit weight 141.6 g, catalog individual-unit PACKING value. Mounting and case Case XLC-25; two Ø3.6 mm mounting holes, 99 mm longitudinal spacing. Follow the full drawing for mounting orientation and clearances. Terminal assignment TB1: pin 1 AC/N; pin 2 AC/L. TB2: pin 1 +V; pin 2 −V. Wiring size TB1 input: 0.5–1.5 mm²; TB2 output: 0.5–1.5 mm². Strip 8–9 mm; follow the terminal drawing. Strain relief Built-in configuration has no strain-relief caps. The catalog lists an optional strain-relief cap set with printed order reference 1**3XLC-SET; one bag contains 50 pieces, two pieces per set. Confirm the complete ordering reference and fit with MEAN WELL; the printed asterisks must not be expanded by guesswork. Use the drawing for this casing and control option. Match the LED load to the specified output, observe terminal polarity and conductor size, and provide the free-air-convection conditions used by the load curves. Check the tc point in the completed installation and requalify final-equipment EMC. Catalog reference: XLC-25, pages 31–41 of the combined XLN/XLC PDF. Use the exact model, suffix and applicable wiring drawing when designing the installation.
$36.96
-
MEAN WELL XLC-25 series: constant-voltage LED driver - XLC-25-24-S
MEAN WELL XLC-25-24-S XLC-25-24-S is a 25.2 W constant-voltage LED driver. It supplies 24 VDC at 1.05 A. Independent type with strain-relief caps (S). Non-dimming. Download MEAN WELL XLC-25 Datasheet (PDF) Output specifications Parameter Specification Model and configuration XLC-25-24-S; Independent type with strain-relief caps (S). Non-dimming. Output mode Fixed 24 VDC constant-voltage output. Rated output power 25.2 W (catalog rating) Output current 1.05 A Maximum ripple and noise 240 mVp-p; 20 MHz bandwidth, 12-inch twisted pair, parallel 0.1 μF and 47 μF capacitors. Voltage tolerance ±4%; includes initial setup tolerance, line regulation and load regulation. Line and load regulation Line ±0.5%; load ±2%. Typical efficiency 88%. Measurement basis Unless stated otherwise: 230 VAC input, rated current and 25°C ambient. Control and dimming Parameter Specification Control function Non-dimming Blank function. Fixed-voltage output; no adjustable-current H function. Input and protection Parameter Specification AC and DC input 100–305 VAC; 141–400 VDC. AC frequency 47–63 Hz. Verify the manufacturer’s DC wiring instructions before connecting a DC source. Power factor Active PFC. Full-load PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC. Total harmonic distortion <10% at load ≥50% / 230 VAC or ≥75% / 277 VAC; <15% at load ≥50% / 115 VAC. AC input current 0.35 A / 115 VAC; 0.18 A / 230 VAC; 0.15 A / 277 VAC. Cold-start inrush 10 A typical; width 100 μs measured at 50% Ipeak, 230 VAC; per NEMA 410. 16 A circuit breaker loading 71 / 71 units on type B / type C respectively at 230 VAC, as catalog reference conditions. Verify the actual breaker and installation. Leakage current <0.75 mA at 277 VAC. Setup and rise time 500 ms / 100 ms at 230 VAC; 1000 ms / 100 ms at 115 VAC. Setup time is measured at the first cold start; switching the driver ON/OFF may increase setup time. Short circuit Hiccup mode; automatically recovers after the fault is removed. Overload protection 105–220% of rated output power; hiccup mode with automatic recovery after fault removal. Overvoltage protection 26–32 V; output shuts down and latches off; reapply power to recover. Overtemperature protection Output shuts down; automatically recovers after the fault is removed. Thermal and environmental limits Parameter Specification Cooling and ambient limits Free-air convection; horizontal mounting for the published load curves. At 110 VAC: 100% load from −25°C to +40°C ambient. At 230 VAC: 100% load from −25°C to +50°C ambient. The corresponding curves stop at these limits; do not infer operation beyond them. Case temperature Tcase −25 to +85°C; maximum +85°C at the designated tc point. This case-temperature limit is not an ambient-temperature rating. Input/load derating At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply the temperature and voltage limits together. Altitude derating Above 2000 m, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Humidity and storage Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis. Lifetime and warranty >50,000 hours typical life when Tcase at the tc point is about 70°C or lower. Manufacturer catalog states a 5-year warranty, subject to its terms; life expectancy is not a warranty duration. MTBF 3949.8 / 338.5 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively. Safety and compliance conditions Parameter Specification Construction Class II plastic housing with active PFC; catalog identifies UL8750 Class 2 / Class P and SELV. Safety standards ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL), Appendix J; BS EN/EN62384; BIS IS15885 Part 2/Sec 13; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; UL8750 Class P; CSA C22.2 No. 250.13-12. AS/NZS61347-1 and -2-13 are design references. Emergency-lighting condition The EL / Appendix J emergency-installation condition is 176–280 VDC input; this is distinct from the normal DC input range. RCM and regional marks Catalog RCM note: voluntary RCM; the S independent control gear is Non-IC classified and is not suitable for residential installations. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos. Products sourced from China and some India models may lack the BIS logo; confirm the actual certificate and region. Insulation Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C / 70% RH. EMC emissions BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥50%; voltage flicker BS EN/EN61000-3-3. EMC immunity BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Light flicker PstLM ≤1 and SVM ≤0.4, measured at full load using the light source supplied by MEAN WELL. ErP and final equipment For the stated ErP application, install behind a switch; do not permanently connect the driver to the mains. The final equipment manufacturer must requalify EMC for the complete installation. Mechanical and installation details Parameter Specification Dimensions 147 × 40 × 32 mm (L × W × H); drawing tolerance ±1 mm. Unit weight 160 g, catalog individual-unit PACKING value. Mounting and case Case XLC-25-S; two Ø3.6 mm mounting holes, 99 mm longitudinal spacing. Follow the full drawing for mounting orientation and clearances. Terminal assignment TB1: pin 1 AC/N; pin 2 AC/L. TB2: pin 1 +V; pin 2 −V. Wiring size TB1 input: 0.75–1.5 mm²; TB2 output: 0.5–1.5 mm². Strip 8–9 mm; follow the terminal drawing. Strain relief S configuration includes strain-relief caps. Use the drawing for this casing and control option. Match the LED load to the specified output, observe terminal polarity and conductor size, and provide the free-air-convection conditions used by the load curves. Check the tc point in the completed installation and requalify final-equipment EMC. Catalog reference: XLC-25, pages 31–41 of the combined XLN/XLC PDF. Use the exact model, suffix and applicable wiring drawing when designing the installation.
$36.96
-

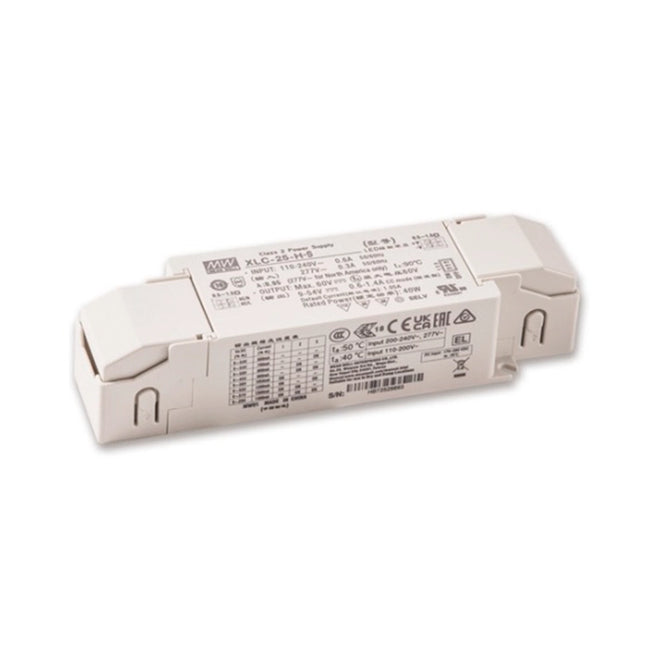

MEAN WELL XLC-25 series: constant-voltage LED driver - XLC-25-12-S
MEAN WELL XLC-25-12-S XLC-25-12-S is a 25.2 W constant-voltage LED driver. It supplies 12 VDC at 2.1 A. Independent type with strain-relief caps (S). Non-dimming. Download MEAN WELL XLC-25 Datasheet (PDF) Output specifications Parameter Specification Model and configuration XLC-25-12-S; Independent type with strain-relief caps (S). Non-dimming. Output mode Fixed 12 VDC constant-voltage output. Rated output power 25.2 W (catalog rating) Output current 2.1 A Maximum ripple and noise 120 mVp-p; 20 MHz bandwidth, 12-inch twisted pair, parallel 0.1 μF and 47 μF capacitors. Voltage tolerance ±4%; includes initial setup tolerance, line regulation and load regulation. Line and load regulation Line ±0.5%; load ±2%. Typical efficiency 86%. Measurement basis Unless stated otherwise: 230 VAC input, rated current and 25°C ambient. Control and dimming Parameter Specification Control function Non-dimming Blank function. Fixed-voltage output; no adjustable-current H function. Input and protection Parameter Specification AC and DC input 100–305 VAC; 141–400 VDC. AC frequency 47–63 Hz. Verify the manufacturer’s DC wiring instructions before connecting a DC source. Power factor Active PFC. Full-load PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC. Total harmonic distortion <10% at load ≥50% / 230 VAC or ≥75% / 277 VAC; <15% at load ≥50% / 115 VAC. AC input current 0.35 A / 115 VAC; 0.18 A / 230 VAC; 0.15 A / 277 VAC. Cold-start inrush 10 A typical; width 100 μs measured at 50% Ipeak, 230 VAC; per NEMA 410. 16 A circuit breaker loading 71 / 71 units on type B / type C respectively at 230 VAC, as catalog reference conditions. Verify the actual breaker and installation. Leakage current <0.75 mA at 277 VAC. Setup and rise time 500 ms / 100 ms at 230 VAC; 1000 ms / 100 ms at 115 VAC. Setup time is measured at the first cold start; switching the driver ON/OFF may increase setup time. Short circuit Hiccup mode; automatically recovers after the fault is removed. Overload protection 105–220% of rated output power; hiccup mode with automatic recovery after fault removal. Overvoltage protection 13–16 V; output shuts down and latches off; reapply power to recover. Overtemperature protection Output shuts down; automatically recovers after the fault is removed. Thermal and environmental limits Parameter Specification Cooling and ambient limits Free-air convection; horizontal mounting for the published load curves. At 110 VAC: 100% load from −25°C to +40°C ambient. At 230 VAC: 100% load from −25°C to +50°C ambient. The corresponding curves stop at these limits; do not infer operation beyond them. Case temperature Tcase −25 to +85°C; maximum +85°C at the designated tc point. This case-temperature limit is not an ambient-temperature rating. Input/load derating At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply the temperature and voltage limits together. Altitude derating Above 2000 m, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Humidity and storage Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis. Lifetime and warranty >50,000 hours typical life when Tcase at the tc point is about 70°C or lower. Manufacturer catalog states a 5-year warranty, subject to its terms; life expectancy is not a warranty duration. MTBF 3949.8 / 338.5 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively. Safety and compliance conditions Parameter Specification Construction Class II plastic housing with active PFC; catalog identifies UL8750 Class 2 / Class P and SELV. Safety standards ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL), Appendix J; BS EN/EN62384; BIS IS15885 Part 2/Sec 13; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; UL8750 Class P; CSA C22.2 No. 250.13-12. AS/NZS61347-1 and -2-13 are design references. Emergency-lighting condition The EL / Appendix J emergency-installation condition is 176–280 VDC input; this is distinct from the normal DC input range. RCM and regional marks Catalog RCM note: voluntary RCM; the S independent control gear is Non-IC classified and is not suitable for residential installations. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos. Products sourced from China and some India models may lack the BIS logo; confirm the actual certificate and region. Insulation Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C / 70% RH. EMC emissions BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥50%; voltage flicker BS EN/EN61000-3-3. EMC immunity BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Light flicker PstLM ≤1 and SVM ≤0.4, measured at full load using the light source supplied by MEAN WELL. ErP and final equipment For the stated ErP application, install behind a switch; do not permanently connect the driver to the mains. The final equipment manufacturer must requalify EMC for the complete installation. Mechanical and installation details Parameter Specification Dimensions 147 × 40 × 32 mm (L × W × H); drawing tolerance ±1 mm. Unit weight 160 g, catalog individual-unit PACKING value. Mounting and case Case XLC-25-S; two Ø3.6 mm mounting holes, 99 mm longitudinal spacing. Follow the full drawing for mounting orientation and clearances. Terminal assignment TB1: pin 1 AC/N; pin 2 AC/L. TB2: pin 1 +V; pin 2 −V. Wiring size TB1 input: 0.75–1.5 mm²; TB2 output: 0.5–1.5 mm². Strip 8–9 mm; follow the terminal drawing. Strain relief S configuration includes strain-relief caps. Use the drawing for this casing and control option. Match the LED load to the specified output, observe terminal polarity and conductor size, and provide the free-air-convection conditions used by the load curves. Check the tc point in the completed installation and requalify final-equipment EMC. Catalog reference: XLC-25, pages 31–41 of the combined XLN/XLC PDF. Use the exact model, suffix and applicable wiring drawing when designing the installation.
$36.96
-
MEAN WELL XLC-25 series: constant-voltage LED driver - XLC-25-24
MEAN WELL XLC-25-24 XLC-25-24 is a 25.2 W constant-voltage LED driver. It supplies 24 VDC at 1.05 A. Built-in type without strain-relief caps. Non-dimming. Download MEAN WELL XLC-25 Datasheet (PDF) Output specifications Parameter Specification Model and configuration XLC-25-24; Built-in type without strain-relief caps. Non-dimming. Output mode Fixed 24 VDC constant-voltage output. Rated output power 25.2 W (catalog rating) Output current 1.05 A Maximum ripple and noise 240 mVp-p; 20 MHz bandwidth, 12-inch twisted pair, parallel 0.1 μF and 47 μF capacitors. Voltage tolerance ±4%; includes initial setup tolerance, line regulation and load regulation. Line and load regulation Line ±0.5%; load ±2%. Typical efficiency 88%. Measurement basis Unless stated otherwise: 230 VAC input, rated current and 25°C ambient. Control and dimming Parameter Specification Control function Non-dimming Blank function. Fixed-voltage output; no adjustable-current H function. Input and protection Parameter Specification AC and DC input 100–305 VAC; 141–400 VDC. AC frequency 47–63 Hz. Verify the manufacturer’s DC wiring instructions before connecting a DC source. Power factor Active PFC. Full-load PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC. Total harmonic distortion <10% at load ≥50% / 230 VAC or ≥75% / 277 VAC; <15% at load ≥50% / 115 VAC. AC input current 0.35 A / 115 VAC; 0.18 A / 230 VAC; 0.15 A / 277 VAC. Cold-start inrush 10 A typical; width 100 μs measured at 50% Ipeak, 230 VAC; per NEMA 410. 16 A circuit breaker loading 71 / 71 units on type B / type C respectively at 230 VAC, as catalog reference conditions. Verify the actual breaker and installation. Leakage current <0.75 mA at 277 VAC. Setup and rise time 500 ms / 100 ms at 230 VAC; 1000 ms / 100 ms at 115 VAC. Setup time is measured at the first cold start; switching the driver ON/OFF may increase setup time. Short circuit Hiccup mode; automatically recovers after the fault is removed. Overload protection 105–220% of rated output power; hiccup mode with automatic recovery after fault removal. Overvoltage protection 26–32 V; output shuts down and latches off; reapply power to recover. Overtemperature protection Output shuts down; automatically recovers after the fault is removed. Thermal and environmental limits Parameter Specification Cooling and ambient limits Free-air convection; horizontal mounting for the published load curves. At 110 VAC: 100% load from −25°C to +40°C ambient. At 230 VAC: 100% load from −25°C to +50°C ambient. The corresponding curves stop at these limits; do not infer operation beyond them. Case temperature Tcase −25 to +85°C; maximum +85°C at the designated tc point. This case-temperature limit is not an ambient-temperature rating. Input/load derating At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply the temperature and voltage limits together. Altitude derating Above 2000 m, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Humidity and storage Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis. Lifetime and warranty >50,000 hours typical life when Tcase at the tc point is about 70°C or lower. Manufacturer catalog states a 5-year warranty, subject to its terms; life expectancy is not a warranty duration. MTBF 3949.8 / 338.5 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively. Safety and compliance conditions Parameter Specification Construction Class II plastic housing with active PFC; catalog identifies UL8750 Class 2 / Class P and SELV. Safety standards ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL), Appendix J; BS EN/EN62384; BIS IS15885 Part 2/Sec 13; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; UL8750 Class P; CSA C22.2 No. 250.13-12. AS/NZS61347-1 and -2-13 are design references. Emergency-lighting condition The EL / Appendix J emergency-installation condition is 176–280 VDC input; this is distinct from the normal DC input range. RCM and regional marks Catalog RCM note: voluntary RCM; relevant IEC or AS/NZS standards with AS/NZS4417.1. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos. Products sourced from China and some India models may lack the BIS logo; confirm the actual certificate and region. Insulation Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C / 70% RH. EMC emissions BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥50%; voltage flicker BS EN/EN61000-3-3. EMC immunity BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Light flicker PstLM ≤1 and SVM ≤0.4, measured at full load using the light source supplied by MEAN WELL. ErP and final equipment For the stated ErP application, install behind a switch; do not permanently connect the driver to the mains. The final equipment manufacturer must requalify EMC for the complete installation. Mechanical and installation details Parameter Specification Dimensions 107 × 40 × 32 mm (L × W × H); drawing tolerance ±1 mm. Unit weight 141.6 g, catalog individual-unit PACKING value. Mounting and case Case XLC-25; two Ø3.6 mm mounting holes, 99 mm longitudinal spacing. Follow the full drawing for mounting orientation and clearances. Terminal assignment TB1: pin 1 AC/N; pin 2 AC/L. TB2: pin 1 +V; pin 2 −V. Wiring size TB1 input: 0.5–1.5 mm²; TB2 output: 0.5–1.5 mm². Strip 8–9 mm; follow the terminal drawing. Strain relief Built-in configuration has no strain-relief caps. The catalog lists an optional strain-relief cap set with printed order reference 1**3XLC-SET; one bag contains 50 pieces, two pieces per set. Confirm the complete ordering reference and fit with MEAN WELL; the printed asterisks must not be expanded by guesswork. Use the drawing for this casing and control option. Match the LED load to the specified output, observe terminal polarity and conductor size, and provide the free-air-convection conditions used by the load curves. Check the tc point in the completed installation and requalify final-equipment EMC. Catalog reference: XLC-25, pages 31–41 of the combined XLN/XLC PDF. Use the exact model, suffix and applicable wiring drawing when designing the installation.
$36.96
-
MEAN WELL XLC-25 series: constant-voltage LED driver - XLC-25-12
MEAN WELL XLC-25-12 XLC-25-12 is a 25.2 W constant-voltage LED driver. It supplies 12 VDC at 2.1 A. Built-in type without strain-relief caps. Non-dimming. Download MEAN WELL XLC-25 Datasheet (PDF) Output specifications Parameter Specification Model and configuration XLC-25-12; Built-in type without strain-relief caps. Non-dimming. Output mode Fixed 12 VDC constant-voltage output. Rated output power 25.2 W (catalog rating) Output current 2.1 A Maximum ripple and noise 120 mVp-p; 20 MHz bandwidth, 12-inch twisted pair, parallel 0.1 μF and 47 μF capacitors. Voltage tolerance ±4%; includes initial setup tolerance, line regulation and load regulation. Line and load regulation Line ±0.5%; load ±2%. Typical efficiency 86%. Measurement basis Unless stated otherwise: 230 VAC input, rated current and 25°C ambient. Control and dimming Parameter Specification Control function Non-dimming Blank function. Fixed-voltage output; no adjustable-current H function. Input and protection Parameter Specification AC and DC input 100–305 VAC; 141–400 VDC. AC frequency 47–63 Hz. Verify the manufacturer’s DC wiring instructions before connecting a DC source. Power factor Active PFC. Full-load PF ≥0.97 at 115 VAC, ≥0.95 at 230 VAC and ≥0.92 at 277 VAC. Total harmonic distortion <10% at load ≥50% / 230 VAC or ≥75% / 277 VAC; <15% at load ≥50% / 115 VAC. AC input current 0.35 A / 115 VAC; 0.18 A / 230 VAC; 0.15 A / 277 VAC. Cold-start inrush 10 A typical; width 100 μs measured at 50% Ipeak, 230 VAC; per NEMA 410. 16 A circuit breaker loading 71 / 71 units on type B / type C respectively at 230 VAC, as catalog reference conditions. Verify the actual breaker and installation. Leakage current <0.75 mA at 277 VAC. Setup and rise time 500 ms / 100 ms at 230 VAC; 1000 ms / 100 ms at 115 VAC. Setup time is measured at the first cold start; switching the driver ON/OFF may increase setup time. Short circuit Hiccup mode; automatically recovers after the fault is removed. Overload protection 105–220% of rated output power; hiccup mode with automatic recovery after fault removal. Overvoltage protection 13–16 V; output shuts down and latches off; reapply power to recover. Overtemperature protection Output shuts down; automatically recovers after the fault is removed. Thermal and environmental limits Parameter Specification Cooling and ambient limits Free-air convection; horizontal mounting for the published load curves. At 110 VAC: 100% load from −25°C to +40°C ambient. At 230 VAC: 100% load from −25°C to +50°C ambient. The corresponding curves stop at these limits; do not infer operation beyond them. Case temperature Tcase −25 to +85°C; maximum +85°C at the designated tc point. This case-temperature limit is not an ambient-temperature rating. Input/load derating At 60 Hz: 80% load at 100 VAC, rising to 100% at 110 VAC; 100% through 305 VAC. Apply the temperature and voltage limits together. Altitude derating Above 2000 m, reduce permitted ambient temperature by 3.5°C per additional 1000 m for this fanless driver. Humidity and storage Operating: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2 G; 10 minutes per cycle, 60 minutes along each X/Y/Z axis. Lifetime and warranty >50,000 hours typical life when Tcase at the tc point is about 70°C or lower. Manufacturer catalog states a 5-year warranty, subject to its terms; life expectancy is not a warranty duration. MTBF 3949.8 / 338.5 thousand hours minimum: Telcordia SR-332 / MIL-HDBK-217F at 25°C, respectively. Safety and compliance conditions Parameter Specification Construction Class II plastic housing with active PFC; catalog identifies UL8750 Class 2 / Class P and SELV. Safety standards ENEC BS EN/EN61347-1 and BS EN/EN61347-2-13 (EL), Appendix J; BS EN/EN62384; BIS IS15885 Part 2/Sec 13; GB/T19510.1 and GB/T19510.213; EAC TP TC 004; UL8750 Class P; CSA C22.2 No. 250.13-12. AS/NZS61347-1 and -2-13 are design references. Emergency-lighting condition The EL / Appendix J emergency-installation condition is 176–280 VDC input; this is distinct from the normal DC input range. RCM and regional marks Catalog RCM note: voluntary RCM; relevant IEC or AS/NZS standards with AS/NZS4417.1. Products sourced from the Americas may lack CCC/PSE/BIS/KC logos. Products sourced from China and some India models may lack the BIS logo; confirm the actual certificate and region. Insulation Input–output withstand 3.75 kVAC; insulation resistance >100 MΩ at 500 VDC, 25°C / 70% RH. EMC emissions BS EN/EN55015 (CISPR15), GB/T17743; BS EN/EN61000-3-2 and GB17625.1 Class C at load ≥50%; voltage flicker BS EN/EN61000-3-3. EMC immunity BS EN/EN61547; EN61000-4-2: level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8: level 2; -4-5: level 3, 1 kV line-to-line; -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Light flicker PstLM ≤1 and SVM ≤0.4, measured at full load using the light source supplied by MEAN WELL. ErP and final equipment For the stated ErP application, install behind a switch; do not permanently connect the driver to the mains. The final equipment manufacturer must requalify EMC for the complete installation. Mechanical and installation details Parameter Specification Dimensions 107 × 40 × 32 mm (L × W × H); drawing tolerance ±1 mm. Unit weight 141.6 g, catalog individual-unit PACKING value. Mounting and case Case XLC-25; two Ø3.6 mm mounting holes, 99 mm longitudinal spacing. Follow the full drawing for mounting orientation and clearances. Terminal assignment TB1: pin 1 AC/N; pin 2 AC/L. TB2: pin 1 +V; pin 2 −V. Wiring size TB1 input: 0.5–1.5 mm²; TB2 output: 0.5–1.5 mm². Strip 8–9 mm; follow the terminal drawing. Strain relief Built-in configuration has no strain-relief caps. The catalog lists an optional strain-relief cap set with printed order reference 1**3XLC-SET; one bag contains 50 pieces, two pieces per set. Confirm the complete ordering reference and fit with MEAN WELL; the printed asterisks must not be expanded by guesswork. Use the drawing for this casing and control option. Match the LED load to the specified output, observe terminal polarity and conductor size, and provide the free-air-convection conditions used by the load curves. Check the tc point in the completed installation and requalify final-equipment EMC. Catalog reference: XLC-25, pages 31–41 of the combined XLN/XLC PDF. Use the exact model, suffix and applicable wiring drawing when designing the installation.
$36.96
-
MEAN WELL XLN-60 series: NFC Constant-Power LED Driver - XLN-60-H-DA2
XLN-60-H-DA2 — NFC Constant-Power LED Driver MEAN WELL XLN-60-H-DA2 is an independent LED driver with 60 W rated constant-power envelope, 1400 mA default current and 900–1700 mA NFC adjustment. Its fully encapsulated IP67 plastic enclosure combines Class II double insulation, active PFC and free-air convection cooling. Built-in DALI-2 DT6 digital dimming and primary-side PUSH dimming; minimum DALI dimming level 0.1%. Select a compatible LED module and observe the output envelope, input and thermal limits below. Download MEAN WELL XLN-60 Datasheet (PDF)The combined catalog covers XLN-60 on PDF pages 21–30. Output specifications Parameter Specification Full model XLN-60-H-DA2 Model code XLN-60 identifies the series; H identifies NFC-adjustable constant-current operation within a constant-power envelope. DA2 identifies DALI-2 and PUSH dimming. Output mode Multiple-stage constant power with selectable constant current. Rated power 60 W, subject to input and temperature limits. Default output current 1400 mA NFC current adjustment 900–1700 mA; disconnect input power before NFC programming. Constant-current operating region 9–54 V overall. The maximum permissible LED voltage depends on the selected current; 54 V is not available at every current setting. Recommended current / voltage settings 900 mA: 9–54 V; 1050 mA: 9–54 V; 1200 mA: 9–50 V; 1300 mA: 9–46 V; 1400 mA: 9–43 V (default); 1500 mA: 9–40 V; 1600 mA: 9–38 V; 1700 mA: 9–36 V. These are the catalog’s rounded recommended windows; observe the rated 60 W power envelope and I–V plot together. Open-circuit voltage 60 V; the output hiccups under no-load conditions. Current ripple <4%; measured over 50%–100% of maximum voltage under rated-power delivery. Current tolerance ±5% in the specification table. The NFC procedure separately states a set-current versus actual-current numerical error within 2%; it does not replace the overall tolerance. Control and current setting Parameter Specification Fitted control function Built-in DALI-2 DT6 digital dimming and primary-side PUSH dimming; minimum DALI dimming level 0.1%. NFC app and device Use an NFC-capable phone and the MEAN WELL app. The catalog specifies Android 4.1 or iOS 12 updates. Locate the phone antenna and driver NFC sensing mark. NFC programming sequence Turn off the driver input supply. Enable phone NFC; open MEAN WELL → Installation Manual/APP → PowerNFC, approach the sensing position and read the model and settings. Enter the required output current, tap Write, bring the phone antenna close to the sensing mark, and confirm the app displays Success. The interface also provides Read, Default and password controls. DALI protocol DALI-2 DT6; IEC 62386-101, -102 and -207. Connect the DALI controller to the DA+ / DA− pair according to the catalog diagram. PUSH control wiring Primary-side PUSH uses the DA+/PUSH lead through a momentary push button to AC/L, and DA−/N to AC/N. This is a mains-side connection; follow the manufacturer’s wiring diagram. PUSH timing Factory dimming level: 100%. Short push 0.1–1 s toggles on/off; double click within 1.5 s sets 100%; long push 1.5–10 s changes brightness and reverses direction on each long push. Pulses shorter than 0.05 s do not change status. PUSH system limits Up to 10 drivers on one common push button; maximum cable length from the button to the last driver is 20 m. DALI startup condition The specified startup timing requires a DALI controller supporting the DALI power-on function; otherwise startup can exceed 0.5 s. Dimming-off standby <0.5 W, measured at 230 VAC with dimming off; standard B/DA2 version. NFC commissioning Use an NFC-enabled phone or tablet and the MEAN WELL app (Power NFC). Read and write parameters only with AC power off; otherwise internal magnetic interference can prevent normal current setting. NFC reading and verification Keep the phone antenna less than 5 cm from the NFC tag. Read the current, edit the setting, then hold the antenna near the tag and select Setting. After Success, read the driver again to confirm that the intended current was saved. NFC password The factory default has no password. A user password may contain up to 8 case-sensitive English letters or digits, with no special characters, and must be entered for subsequent writes. The password cannot be reset externally; retain it safely. Default restores the output current to its factory value. Input and electrical performance Parameter Specification Input voltage 100–305 VAC or 155–400 VDC; low-line derating applies. Input frequency 47–63 Hz Power factor ≥0.95 at 115 VAC; ≥0.95 at 230 VAC; ≥0.90 at 277 VAC, all at full load. Total harmonic distortion <20% at ≥60% load / 230 VAC or ≥75% load / 277 VAC; <10% at 100% load / 230 VAC. Typical efficiency 90%; measured at 1050 mA / 54 V. AC input current 0.75 A / 115 VAC; 0.35 A / 230 VAC; 0.3 A / 277 VAC. Setup and rise time 800 ms setup / 100 ms rise at 230 VAC; 1000 ms setup / 100 ms rise at 115 VAC. Setup is measured at first cold start; repeated switching can increase it. Cold-start inrush 15 A; width 310 μs measured at 50% peak current, 230 VAC; per NEMA 410. 16 A circuit-breaker loading 25 units on type B / 36 on type C at 230 VAC, as specified in the catalog. Leakage current <0.75 mA at 277 VAC Measurement conditions Unless otherwise stated: 230 VAC input, rated current and 25°C ambient. Typical efficiency and performance curves are not guarantees at every load. Protection functions Parameter Specification Short-circuit protection Hiccup mode; automatic recovery after the fault condition is removed. Overtemperature protection Stage 1 derates to 75% load; stage 2 to 50% load. Automatic recovery after the fault condition is removed. Environment and derating Parameter Specification Working case temperature Tcase −25 to +90°C; maximum case temperature 90°C. This is a case limit, not the ambient operating limit. Ambient temperature / load Horizontal mounting: the 100% load boundary runs from −25°C to +40°C at 110 VAC and to +50°C at 230 VAC for this output type. The plotted boundaries end vertically; they do not authorize operation beyond those limits. Case-temperature / load The horizontal-mounting plot shows 100% load up to Tcase 90°C. Apply case, ambient, input and output limits together. Low-input derating Static characteristic at 60 Hz: approximately 80% load at 100 VAC, rising to 100% at 110 VAC; 100% from 110 to 305 VAC within thermal limits. Cooling and altitude Free-air convection. Above 2000 m, derate the allowed ambient temperature by 3.5°C per additional 1000 m for this fanless model. Working and storage humidity Working: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z axes. Life expectancy 50,000 hours typical when the marked Tc point is about 75°C or less; a temperature-dependent expectation, not a guaranteed service-life duration. Performance curves THD, PF and efficiency plots use the H model at Tcase 75°C, with 1400 mA and 1700 mA settings. Do not apply these curves as fixed-voltage-model guarantees. Dimensions and wiring Parameter Specification Housing and protection Fully encapsulated IP67 plastic housing; independent type; Class II double insulation. Housing dimensions 141.5 × 49 × 32 mm (L × W × H); mechanical drawing tolerance ±1 mm. Mounting drawing Two Ø3.6 mm mounting holes; 110 mm longitudinal dimension and 4 mm corner offsets shown on the drawing. Tc measurement point The drawing locates Tc at 70.8 mm longitudinally and 24.5 mm from the lower case edge. AC input wiring Brown: AC/L; blue: AC/N. Input cable: SJOW 17 AWG × 2C and H05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. DC output wiring Red: +V; black: −V. Output cable: SJOW 17 AWG × 2C and 05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. Single-unit catalog weight 490 g, catalog packing reference per unit (0.49 kg × 1000). Not a carton-weight division or a measured shipping-package mass. Control leads Purple: DA+/PUSH; pink: DA−/N, on the input side. UL2517, 18 AWG × 2, 180 mm nominal length. Safety, EMC and reliability Parameter Specification Construction and safety Class II, SELV, UL 8750 Class 2 / Class P; Type HL as listed in the catalog. Listed safety standards ENEC BS EN/EN 61347-1 and 61347-2-13 (EL); BS EN/EN 62384; BIS IS 15885 (Part 2/Sec 13); GB/T 19510.1 and 19510.213; EAC TP TC 004; UL 8750 and CSA C22.2 No. 250.13-12. AS/NZS 61347-1 and 61347-2-13 are design references, not stated approvals. Emergency-lighting input EN 61347-2-13 appendix J emergency installations: 176–280 VDC. This emergency-use range is narrower than the general DC input range. Withstand voltage / isolation Input to output: 3.75 kVAC. Isolation resistance >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015 (CISPR 15) and GB/T 17743 conducted/radiated emissions; BS EN/EN 61000-3-2 and GB 17625.1 Class C at ≥60% load; BS EN/EN 61000-3-3 voltage flicker. EMC immunity BS EN/EN 61547; 61000-4-2 ESD level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8 level 2; -4-5 surge level 3 / 1 kV line-to-line. -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Flicker performance PstLM ≤1 and SVM ≤0.4, measured at full load using the MEAN WELL test light source; final luminaire performance depends on the actual load. MTBF 4053.7 K hours minimum, Telcordia SR-332 (Bellcore); 329.4 K hours minimum, MIL-HDBK-217F at 25°C. Reliability estimates are not guaranteed service life. Regional markings Products sourced from China and some models sourced from India may lack the BIS logo; check the applicable certificate and supplied product. Catalog warranty 5 years, subject to the manufacturer’s warranty terms. Selection and installation Parameter Specification LED-load selection Match the LED voltage and chosen current to the recommended operating envelope and rated power. Applications Recessed, down, panel, commercial and decorative lighting. ErP installation requirement Install behind a switch; this driver must not remain permanently connected to mains for the stated lighting-fixture ErP requirement. System EMC The driver is a component of the final equipment. The final-equipment manufacturer must re-qualify EMC on the complete installation. Options and accessories This full model fixes the output and dimming configuration. Use the specified compatible controller or push button where applicable; the catalog does not assign a dedicated accessory ordering code for those external controls. RCM installation limitation RCM is voluntary. The catalog states that non-IC-classification independent LED control gear is not suitable for residential installations. Related manufacturer instructions Download MEAN WELL NFC User ManualConfirm the full model, LED-load compatibility, control wiring and actual Tc temperature before installation.
$61.61
-
MEAN WELL XLN-60 series: NFC Constant-Power LED Driver - XLN-60-H-B
XLN-60-H-B — NFC Constant-Power LED Driver MEAN WELL XLN-60-H-B is an independent LED driver with 60 W rated constant-power envelope, 1400 mA default current and 900–1700 mA NFC adjustment. Its fully encapsulated IP67 plastic enclosure combines Class II double insulation, active PFC and free-air convection cooling. Built-in 3-in-1 dimming with dim-to-off. Select a compatible LED module and observe the output envelope, input and thermal limits below. Download MEAN WELL XLN-60 Datasheet (PDF)The combined catalog covers XLN-60 on PDF pages 21–30. Output specifications Parameter Specification Full model XLN-60-H-B Model code XLN-60 identifies the series; H identifies NFC-adjustable constant-current operation within a constant-power envelope. B identifies 3-in-1 dimming. Output mode Multiple-stage constant power with selectable constant current. Rated power 60 W, subject to input and temperature limits. Default output current 1400 mA NFC current adjustment 900–1700 mA; disconnect input power before NFC programming. Constant-current operating region 9–54 V overall. The maximum permissible LED voltage depends on the selected current; 54 V is not available at every current setting. Recommended current / voltage settings 900 mA: 9–54 V; 1050 mA: 9–54 V; 1200 mA: 9–50 V; 1300 mA: 9–46 V; 1400 mA: 9–43 V (default); 1500 mA: 9–40 V; 1600 mA: 9–38 V; 1700 mA: 9–36 V. These are the catalog’s rounded recommended windows; observe the rated 60 W power envelope and I–V plot together. Open-circuit voltage 60 V; the output hiccups under no-load conditions. Current ripple <4%; measured over 50%–100% of maximum voltage under rated-power delivery. Current tolerance ±5% in the specification table. The NFC procedure separately states a set-current versus actual-current numerical error within 2%; it does not replace the overall tolerance. Control and current setting Parameter Specification Fitted control function Built-in 3-in-1 dimming with dim-to-off. NFC app and device Use an NFC-capable phone and the MEAN WELL app. The catalog specifies Android 4.1 or iOS 12 updates. Locate the phone antenna and driver NFC sensing mark. NFC programming sequence Turn off the driver input supply. Enable phone NFC; open MEAN WELL → Installation Manual/APP → PowerNFC, approach the sensing position and read the model and settings. Enter the required output current, tap Write, bring the phone antenna close to the sensing mark, and confirm the app displays Success. The interface also provides Read, Default and password controls. 3-in-1 control inputs Apply 0–10 VDC, a 10 V PWM signal at 300 Hz–3 kHz, or 0–100 kΩ resistance between DIM+ and DIM−. Typical dimming-source current: 100 μA. Dimming floor and off Minimum dimming is about 8%; output current is undefined between 0% and 8%. Output can fall to 0% at approximately 0 VDC, 0 kΩ, or 0% duty of the 10 V PWM control signal. Synchronized resistance control The chart scales full-level resistance as 100 kΩ / N, where N is the number of drivers under synchronized dimming. Control wiring restriction Do not connect DIM− to the negative LED output (−V). Direct connection to compatible LEDs is suggested; do not cascade an additional LED driver. Dimming-off standby <0.5 W, measured at 230 VAC with dimming off; standard B/DA2 version. NFC commissioning Use an NFC-enabled phone or tablet and the MEAN WELL app (Power NFC). Read and write parameters only with AC power off; otherwise internal magnetic interference can prevent normal current setting. NFC reading and verification Keep the phone antenna less than 5 cm from the NFC tag. Read the current, edit the setting, then hold the antenna near the tag and select Setting. After Success, read the driver again to confirm that the intended current was saved. NFC password The factory default has no password. A user password may contain up to 8 case-sensitive English letters or digits, with no special characters, and must be entered for subsequent writes. The password cannot be reset externally; retain it safely. Default restores the output current to its factory value. Input and electrical performance Parameter Specification Input voltage 100–305 VAC or 155–400 VDC; low-line derating applies. Input frequency 47–63 Hz Power factor ≥0.95 at 115 VAC; ≥0.95 at 230 VAC; ≥0.90 at 277 VAC, all at full load. Total harmonic distortion <20% at ≥60% load / 230 VAC or ≥75% load / 277 VAC; <10% at 100% load / 230 VAC. Typical efficiency 90%; measured at 1050 mA / 54 V. AC input current 0.75 A / 115 VAC; 0.35 A / 230 VAC; 0.3 A / 277 VAC. Setup and rise time 800 ms setup / 100 ms rise at 230 VAC; 1000 ms setup / 100 ms rise at 115 VAC. Setup is measured at first cold start; repeated switching can increase it. Cold-start inrush 15 A; width 310 μs measured at 50% peak current, 230 VAC; per NEMA 410. 16 A circuit-breaker loading 25 units on type B / 36 on type C at 230 VAC, as specified in the catalog. Leakage current <0.75 mA at 277 VAC Measurement conditions Unless otherwise stated: 230 VAC input, rated current and 25°C ambient. Typical efficiency and performance curves are not guarantees at every load. Protection functions Parameter Specification Short-circuit protection Hiccup mode; automatic recovery after the fault condition is removed. Overtemperature protection Derates to the lowest output level. Automatic recovery after the fault condition is removed. Environment and derating Parameter Specification Working case temperature Tcase −25 to +90°C; maximum case temperature 90°C. This is a case limit, not the ambient operating limit. Ambient temperature / load Horizontal mounting: the 100% load boundary runs from −25°C to +40°C at 110 VAC and to +50°C at 230 VAC for this output type. The plotted boundaries end vertically; they do not authorize operation beyond those limits. Case-temperature / load The horizontal-mounting plot shows 100% load up to Tcase 90°C. Apply case, ambient, input and output limits together. Low-input derating Static characteristic at 60 Hz: approximately 80% load at 100 VAC, rising to 100% at 110 VAC; 100% from 110 to 305 VAC within thermal limits. Cooling and altitude Free-air convection. Above 2000 m, derate the allowed ambient temperature by 3.5°C per additional 1000 m for this fanless model. Working and storage humidity Working: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z axes. Life expectancy 50,000 hours typical when the marked Tc point is about 75°C or less; a temperature-dependent expectation, not a guaranteed service-life duration. Performance curves THD, PF and efficiency plots use the H model at Tcase 75°C, with 1400 mA and 1700 mA settings. Do not apply these curves as fixed-voltage-model guarantees. Dimensions and wiring Parameter Specification Housing and protection Fully encapsulated IP67 plastic housing; independent type; Class II double insulation. Housing dimensions 141.5 × 49 × 32 mm (L × W × H); mechanical drawing tolerance ±1 mm. Mounting drawing Two Ø3.6 mm mounting holes; 110 mm longitudinal dimension and 4 mm corner offsets shown on the drawing. Tc measurement point The drawing locates Tc at 70.8 mm longitudinally and 24.5 mm from the lower case edge. AC input wiring Brown: AC/L; blue: AC/N. Input cable: SJOW 17 AWG × 2C and H05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. DC output wiring Red: +V; black: −V. Output cable: SJOW 17 AWG × 2C and 05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. Single-unit catalog weight 490 g, catalog packing reference per unit (0.49 kg × 1000). Not a carton-weight division or a measured shipping-package mass. Control leads Purple: DIM+; pink: DIM−, on the output side. UL2517, 18 AWG × 2, 180 mm nominal length. Safety, EMC and reliability Parameter Specification Construction and safety Class II, SELV, UL 8750 Class 2 / Class P; Type HL as listed in the catalog. Listed safety standards ENEC BS EN/EN 61347-1 and 61347-2-13 (EL); BS EN/EN 62384; BIS IS 15885 (Part 2/Sec 13); GB/T 19510.1 and 19510.213; EAC TP TC 004; UL 8750 and CSA C22.2 No. 250.13-12. AS/NZS 61347-1 and 61347-2-13 are design references, not stated approvals. Emergency-lighting input EN 61347-2-13 appendix J emergency installations: 176–280 VDC. This emergency-use range is narrower than the general DC input range. Withstand voltage / isolation Input to output: 3.75 kVAC. Isolation resistance >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015 (CISPR 15) and GB/T 17743 conducted/radiated emissions; BS EN/EN 61000-3-2 and GB 17625.1 Class C at ≥60% load; BS EN/EN 61000-3-3 voltage flicker. EMC immunity BS EN/EN 61547; 61000-4-2 ESD level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8 level 2; -4-5 surge level 3 / 1 kV line-to-line. -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Flicker performance PstLM ≤1 and SVM ≤0.4, measured at full load using the MEAN WELL test light source; final luminaire performance depends on the actual load. MTBF 4053.7 K hours minimum, Telcordia SR-332 (Bellcore); 329.4 K hours minimum, MIL-HDBK-217F at 25°C. Reliability estimates are not guaranteed service life. Regional markings Products sourced from China and some models sourced from India may lack the BIS logo; check the applicable certificate and supplied product. Catalog warranty 5 years, subject to the manufacturer’s warranty terms. Selection and installation Parameter Specification LED-load selection Match the LED voltage and chosen current to the recommended operating envelope and rated power. Applications Recessed, down, panel, commercial and decorative lighting. ErP installation requirement Install behind a switch; this driver must not remain permanently connected to mains for the stated lighting-fixture ErP requirement. System EMC The driver is a component of the final equipment. The final-equipment manufacturer must re-qualify EMC on the complete installation. Options and accessories This full model fixes the output and dimming configuration. Use the specified compatible controller or push button where applicable; the catalog does not assign a dedicated accessory ordering code for those external controls. RCM installation limitation RCM is voluntary. The catalog states that non-IC-classification independent LED control gear is not suitable for residential installations. Related manufacturer instructions Download MEAN WELL NFC User ManualConfirm the full model, LED-load compatibility, control wiring and actual Tc temperature before installation.
$61.61
-
MEAN WELL XLN-60 series: NFC Constant-Power LED Driver - XLN-60-H
XLN-60-H — NFC Constant-Power LED Driver MEAN WELL XLN-60-H is an independent LED driver with 60 W rated constant-power envelope, 1400 mA default current and 900–1700 mA NFC adjustment. Its fully encapsulated IP67 plastic enclosure combines Class II double insulation, active PFC and free-air convection cooling. No built-in external dimming; NFC sets the output current. Select a compatible LED module and observe the output envelope, input and thermal limits below. Download MEAN WELL XLN-60 Datasheet (PDF)The combined catalog covers XLN-60 on PDF pages 21–30. Output specifications Parameter Specification Full model XLN-60-H Model code XLN-60 identifies the series; H identifies NFC-adjustable constant-current operation within a constant-power envelope. No function suffix identifies the standard version. Output mode Multiple-stage constant power with selectable constant current. Rated power 60 W, subject to input and temperature limits. Default output current 1400 mA NFC current adjustment 900–1700 mA; disconnect input power before NFC programming. Constant-current operating region 9–54 V overall. The maximum permissible LED voltage depends on the selected current; 54 V is not available at every current setting. Recommended current / voltage settings 900 mA: 9–54 V; 1050 mA: 9–54 V; 1200 mA: 9–50 V; 1300 mA: 9–46 V; 1400 mA: 9–43 V (default); 1500 mA: 9–40 V; 1600 mA: 9–38 V; 1700 mA: 9–36 V. These are the catalog’s rounded recommended windows; observe the rated 60 W power envelope and I–V plot together. Open-circuit voltage 60 V; the output hiccups under no-load conditions. Current ripple <4%; measured over 50%–100% of maximum voltage under rated-power delivery. Current tolerance ±5% in the specification table. The NFC procedure separately states a set-current versus actual-current numerical error within 2%; it does not replace the overall tolerance. Control and current setting Parameter Specification Fitted control function No built-in external dimming; NFC sets the output current. NFC app and device Use an NFC-capable phone and the MEAN WELL app. The catalog specifies Android 4.1 or iOS 12 updates. Locate the phone antenna and driver NFC sensing mark. NFC programming sequence Turn off the driver input supply. Enable phone NFC; open MEAN WELL → Installation Manual/APP → PowerNFC, approach the sensing position and read the model and settings. Enter the required output current, tap Write, bring the phone antenna close to the sensing mark, and confirm the app displays Success. The interface also provides Read, Default and password controls. NFC commissioning Use an NFC-enabled phone or tablet and the MEAN WELL app (Power NFC). Read and write parameters only with AC power off; otherwise internal magnetic interference can prevent normal current setting. NFC reading and verification Keep the phone antenna less than 5 cm from the NFC tag. Read the current, edit the setting, then hold the antenna near the tag and select Setting. After Success, read the driver again to confirm that the intended current was saved. NFC password The factory default has no password. A user password may contain up to 8 case-sensitive English letters or digits, with no special characters, and must be entered for subsequent writes. The password cannot be reset externally; retain it safely. Default restores the output current to its factory value. Input and electrical performance Parameter Specification Input voltage 100–305 VAC or 155–400 VDC; low-line derating applies. Input frequency 47–63 Hz Power factor ≥0.95 at 115 VAC; ≥0.95 at 230 VAC; ≥0.90 at 277 VAC, all at full load. Total harmonic distortion <20% at ≥60% load / 230 VAC or ≥75% load / 277 VAC; <10% at 100% load / 230 VAC. Typical efficiency 90%; measured at 1050 mA / 54 V. AC input current 0.75 A / 115 VAC; 0.35 A / 230 VAC; 0.3 A / 277 VAC. Setup and rise time 800 ms setup / 100 ms rise at 230 VAC; 1000 ms setup / 100 ms rise at 115 VAC. Setup is measured at first cold start; repeated switching can increase it. Cold-start inrush 15 A; width 310 μs measured at 50% peak current, 230 VAC; per NEMA 410. 16 A circuit-breaker loading 25 units on type B / 36 on type C at 230 VAC, as specified in the catalog. Leakage current <0.75 mA at 277 VAC Measurement conditions Unless otherwise stated: 230 VAC input, rated current and 25°C ambient. Typical efficiency and performance curves are not guarantees at every load. Protection functions Parameter Specification Short-circuit protection Hiccup mode; automatic recovery after the fault condition is removed. Overtemperature protection Derates to the lowest output level. Automatic recovery after the fault condition is removed. Environment and derating Parameter Specification Working case temperature Tcase −25 to +90°C; maximum case temperature 90°C. This is a case limit, not the ambient operating limit. Ambient temperature / load Horizontal mounting: the 100% load boundary runs from −25°C to +40°C at 110 VAC and to +50°C at 230 VAC for this output type. The plotted boundaries end vertically; they do not authorize operation beyond those limits. Case-temperature / load The horizontal-mounting plot shows 100% load up to Tcase 90°C. Apply case, ambient, input and output limits together. Low-input derating Static characteristic at 60 Hz: approximately 80% load at 100 VAC, rising to 100% at 110 VAC; 100% from 110 to 305 VAC within thermal limits. Cooling and altitude Free-air convection. Above 2000 m, derate the allowed ambient temperature by 3.5°C per additional 1000 m for this fanless model. Working and storage humidity Working: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z axes. Life expectancy 50,000 hours typical when the marked Tc point is about 75°C or less; a temperature-dependent expectation, not a guaranteed service-life duration. Performance curves THD, PF and efficiency plots use the H model at Tcase 75°C, with 1400 mA and 1700 mA settings. Do not apply these curves as fixed-voltage-model guarantees. Dimensions and wiring Parameter Specification Housing and protection Fully encapsulated IP67 plastic housing; independent type; Class II double insulation. Housing dimensions 141.5 × 49 × 32 mm (L × W × H); mechanical drawing tolerance ±1 mm. Mounting drawing Two Ø3.6 mm mounting holes; 110 mm longitudinal dimension and 4 mm corner offsets shown on the drawing. Tc measurement point The drawing locates Tc at 70.8 mm longitudinally and 24.5 mm from the lower case edge. AC input wiring Brown: AC/L; blue: AC/N. Input cable: SJOW 17 AWG × 2C and H05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. DC output wiring Red: +V; black: −V. Output cable: SJOW 17 AWG × 2C and 05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. Single-unit catalog weight 490 g, catalog packing reference per unit (0.49 kg × 1000). Not a carton-weight division or a measured shipping-package mass. Safety, EMC and reliability Parameter Specification Construction and safety Class II, SELV, UL 8750 Class 2 / Class P; Type HL as listed in the catalog. Listed safety standards ENEC BS EN/EN 61347-1 and 61347-2-13 (EL); BS EN/EN 62384; BIS IS 15885 (Part 2/Sec 13); GB/T 19510.1 and 19510.213; EAC TP TC 004; UL 8750 and CSA C22.2 No. 250.13-12. AS/NZS 61347-1 and 61347-2-13 are design references, not stated approvals. Emergency-lighting input EN 61347-2-13 appendix J emergency installations: 176–280 VDC. This emergency-use range is narrower than the general DC input range. Withstand voltage / isolation Input to output: 3.75 kVAC. Isolation resistance >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015 (CISPR 15) and GB/T 17743 conducted/radiated emissions; BS EN/EN 61000-3-2 and GB 17625.1 Class C at ≥60% load; BS EN/EN 61000-3-3 voltage flicker. EMC immunity BS EN/EN 61547; 61000-4-2 ESD level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8 level 2; -4-5 surge level 3 / 1 kV line-to-line. -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Flicker performance PstLM ≤1 and SVM ≤0.4, measured at full load using the MEAN WELL test light source; final luminaire performance depends on the actual load. MTBF 4053.7 K hours minimum, Telcordia SR-332 (Bellcore); 329.4 K hours minimum, MIL-HDBK-217F at 25°C. Reliability estimates are not guaranteed service life. Regional markings Products sourced from China and some models sourced from India may lack the BIS logo; check the applicable certificate and supplied product. Catalog warranty 5 years, subject to the manufacturer’s warranty terms. Selection and installation Parameter Specification LED-load selection Match the LED voltage and chosen current to the recommended operating envelope and rated power. Applications Recessed, down, panel, commercial and decorative lighting. ErP installation requirement Install behind a switch; this driver must not remain permanently connected to mains for the stated lighting-fixture ErP requirement. System EMC The driver is a component of the final equipment. The final-equipment manufacturer must re-qualify EMC on the complete installation. Options and accessories This full model fixes the output and dimming configuration. Use the specified compatible controller or push button where applicable; the catalog does not assign a dedicated accessory ordering code for those external controls. RCM installation limitation RCM is voluntary. The catalog states that non-IC-classification independent LED control gear is not suitable for residential installations. Related manufacturer instructions Download MEAN WELL NFC User ManualConfirm the full model, LED-load compatibility, control wiring and actual Tc temperature before installation.
$61.61
-
MEAN WELL XLN-60 series: Constant-Voltage LED Driver - XLN-60-48-DA2
XLN-60-48-DA2 — Constant-Voltage LED Driver MEAN WELL XLN-60-48-DA2 is an independent LED driver with 48 VDC at 1.25 A, 60 W rated output. Its fully encapsulated IP67 plastic enclosure combines Class II double insulation, active PFC and free-air convection cooling. Built-in DALI-2 DT6 digital dimming and primary-side PUSH dimming; minimum DALI dimming level 0.1%. Select a compatible LED module and observe the output envelope, input and thermal limits below. Download MEAN WELL XLN-60 Datasheet (PDF)The combined catalog covers XLN-60 on PDF pages 21–30. Output specifications Parameter Specification Full model XLN-60-48-DA2 Model code XLN-60 identifies the series; 48 identifies the fixed output voltage. DA2 identifies DALI-2 and PUSH dimming. Output mode Constant voltage; PWM-style output dimming. Rated power 60 W, subject to input and temperature limits. Rated output voltage 48 VDC Rated output current 1.25 A NFC setting The voltage output is fixed; this SKU does not provide NFC current programming. Control and current setting Parameter Specification Fitted control function Built-in DALI-2 DT6 digital dimming and primary-side PUSH dimming; minimum DALI dimming level 0.1%. DALI protocol DALI-2 DT6; IEC 62386-101, -102 and -207. Connect the DALI controller to the DA+ / DA− pair according to the catalog diagram. PUSH control wiring Primary-side PUSH uses the DA+/PUSH lead through a momentary push button to AC/L, and DA−/N to AC/N. This is a mains-side connection; follow the manufacturer’s wiring diagram. PUSH timing Factory dimming level: 100%. Short push 0.1–1 s toggles on/off; double click within 1.5 s sets 100%; long push 1.5–10 s changes brightness and reverses direction on each long push. Pulses shorter than 0.05 s do not change status. PUSH system limits Up to 10 drivers on one common push button; maximum cable length from the button to the last driver is 20 m. Output PWM frequency 3.2 kHz fixed, typical. Dimming changes output-current duty cycle; this is the LED-output frequency, distinct from an external PWM control signal. Dimming-off standby <0.5 W, measured at 230 VAC with dimming off; standard B/DA2 version. Input and electrical performance Parameter Specification Input voltage 100–305 VAC or 155–400 VDC; low-line derating applies. Input frequency 47–63 Hz Power factor ≥0.95 at 115 VAC; ≥0.95 at 230 VAC; ≥0.90 at 277 VAC, all at full load. Total harmonic distortion <20% at ≥60% load / 230 VAC or ≥75% load / 277 VAC; <10% at 100% load / 230 VAC. Typical efficiency 88% at the catalog measurement conditions. AC input current 0.75 A / 115 VAC; 0.35 A / 230 VAC; 0.3 A / 277 VAC. Setup and rise time 800 ms setup / 180 ms rise at 230 VAC; 1000 ms setup / 180 ms rise at 115 VAC. Setup is measured at first cold start; repeated switching can increase it. Cold-start inrush 15 A; width 310 μs measured at 50% peak current, 230 VAC; per NEMA 410. 16 A circuit-breaker loading 25 units on type B / 36 on type C at 230 VAC, as specified in the catalog. Leakage current <0.75 mA at 277 VAC Measurement conditions Unless otherwise stated: 230 VAC input, rated current and 25°C ambient. Typical efficiency and performance curves are not guarantees at every load. Protection functions Parameter Specification Short-circuit protection Hiccup mode; automatic recovery after the fault condition is removed. Overload protection 105–200% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage protection 52–63 V; output shutdown, re-power on to recover. Overtemperature protection Shuts down output voltage; automatic recovery after the fault condition is removed. Environment and derating Parameter Specification Working case temperature Tcase −25 to +90°C; maximum case temperature 90°C. This is a case limit, not the ambient operating limit. Ambient temperature / load Horizontal mounting: the 100% load boundary runs from −25°C to +40°C at 110 VAC and to +50°C at 230 VAC for this output type. The plotted boundaries end vertically; they do not authorize operation beyond those limits. Case-temperature / load The horizontal-mounting plot shows 100% load up to Tcase 90°C. Apply case, ambient, input and output limits together. Low-input derating Static characteristic at 60 Hz: approximately 80% load at 100 VAC, rising to 100% at 110 VAC; 100% from 110 to 305 VAC within thermal limits. Cooling and altitude Free-air convection. Above 2000 m, derate the allowed ambient temperature by 3.5°C per additional 1000 m for this fanless model. Working and storage humidity Working: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z axes. Life expectancy 50,000 hours typical when the marked Tc point is about 75°C or less; a temperature-dependent expectation, not a guaranteed service-life duration. Performance curves THD, PF and efficiency plots use the H model at Tcase 75°C, with 1400 mA and 1700 mA settings. Do not apply these curves as fixed-voltage-model guarantees. Dimensions and wiring Parameter Specification Housing and protection Fully encapsulated IP67 plastic housing; independent type; Class II double insulation. Housing dimensions 141.5 × 49 × 32 mm (L × W × H); mechanical drawing tolerance ±1 mm. Mounting drawing Two Ø3.6 mm mounting holes; 110 mm longitudinal dimension and 4 mm corner offsets shown on the drawing. Tc measurement point The drawing locates Tc at 70.8 mm longitudinally and 24.5 mm from the lower case edge. AC input wiring Brown: AC/L; blue: AC/N. Input cable: SJOW 17 AWG × 2C and H05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. DC output wiring Red: +V; black: −V. Output cable: SJOW 17 AWG × 2C and 05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. Single-unit catalog weight 490 g, catalog packing reference per unit (0.49 kg × 1000). Not a carton-weight division or a measured shipping-package mass. Control leads Purple: DA+/PUSH; pink: DA−/N, on the input side. UL2517, 18 AWG × 2, 180 mm nominal length. Safety, EMC and reliability Parameter Specification Construction and safety Class II, SELV, UL 8750 Class 2 / Class P; Type HL as listed in the catalog. Listed safety standards ENEC BS EN/EN 61347-1 and 61347-2-13 (EL); BS EN/EN 62384; BIS IS 15885 (Part 2/Sec 13); GB/T 19510.1 and 19510.213; EAC TP TC 004; UL 8750 and CSA C22.2 No. 250.13-12. AS/NZS 61347-1 and 61347-2-13 are design references, not stated approvals. Emergency-lighting input EN 61347-2-13 appendix J emergency installations: 176–280 VDC. This emergency-use range is narrower than the general DC input range. Withstand voltage / isolation Input to output: 3.75 kVAC. Isolation resistance >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015 (CISPR 15) and GB/T 17743 conducted/radiated emissions; BS EN/EN 61000-3-2 and GB 17625.1 Class C at ≥60% load; BS EN/EN 61000-3-3 voltage flicker. EMC immunity BS EN/EN 61547; 61000-4-2 ESD level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8 level 2; -4-5 surge level 3 / 1 kV line-to-line. -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Flicker performance PstLM ≤1 and SVM ≤0.4, measured at full load using the MEAN WELL test light source; final luminaire performance depends on the actual load. MTBF 4053.7 K hours minimum, Telcordia SR-332 (Bellcore); 329.4 K hours minimum, MIL-HDBK-217F at 25°C. Reliability estimates are not guaranteed service life. Regional markings Products sourced from China and some models sourced from India may lack the BIS logo; check the applicable certificate and supplied product. Catalog warranty 5 years, subject to the manufacturer’s warranty terms. Selection and installation Parameter Specification LED-load selection Use a compatible 48 V constant-voltage LED load within 1.25 A and 60 W after derating. Applications Recessed, down, panel, commercial and decorative lighting; compatible constant-voltage LED strip lighting. ErP installation requirement Install behind a switch; this driver must not remain permanently connected to mains for the stated lighting-fixture ErP requirement. System EMC The driver is a component of the final equipment. The final-equipment manufacturer must re-qualify EMC on the complete installation. Options and accessories This full model fixes the output and dimming configuration. Use the specified compatible controller or push button where applicable; the catalog does not assign a dedicated accessory ordering code for those external controls. RCM installation limitation RCM is voluntary. The catalog states that non-IC-classification independent LED control gear is not suitable for residential installations. Confirm the full model, LED-load compatibility, control wiring and actual Tc temperature before installation.
$61.61
-
MEAN WELL XLN-60 series: Constant-Voltage LED Driver - XLN-60-24-DA2
XLN-60-24-DA2 — Constant-Voltage LED Driver MEAN WELL XLN-60-24-DA2 is an independent LED driver with 24 VDC at 2.5 A, 60 W rated output. Its fully encapsulated IP67 plastic enclosure combines Class II double insulation, active PFC and free-air convection cooling. Built-in DALI-2 DT6 digital dimming and primary-side PUSH dimming; minimum DALI dimming level 0.1%. Select a compatible LED module and observe the output envelope, input and thermal limits below. Download MEAN WELL XLN-60 Datasheet (PDF)The combined catalog covers XLN-60 on PDF pages 21–30. Output specifications Parameter Specification Full model XLN-60-24-DA2 Model code XLN-60 identifies the series; 24 identifies the fixed output voltage. DA2 identifies DALI-2 and PUSH dimming. Output mode Constant voltage; PWM-style output dimming. Rated power 60 W, subject to input and temperature limits. Rated output voltage 24 VDC Rated output current 2.5 A NFC setting The voltage output is fixed; this SKU does not provide NFC current programming. Control and current setting Parameter Specification Fitted control function Built-in DALI-2 DT6 digital dimming and primary-side PUSH dimming; minimum DALI dimming level 0.1%. DALI protocol DALI-2 DT6; IEC 62386-101, -102 and -207. Connect the DALI controller to the DA+ / DA− pair according to the catalog diagram. PUSH control wiring Primary-side PUSH uses the DA+/PUSH lead through a momentary push button to AC/L, and DA−/N to AC/N. This is a mains-side connection; follow the manufacturer’s wiring diagram. PUSH timing Factory dimming level: 100%. Short push 0.1–1 s toggles on/off; double click within 1.5 s sets 100%; long push 1.5–10 s changes brightness and reverses direction on each long push. Pulses shorter than 0.05 s do not change status. PUSH system limits Up to 10 drivers on one common push button; maximum cable length from the button to the last driver is 20 m. Output PWM frequency 3.2 kHz fixed, typical. Dimming changes output-current duty cycle; this is the LED-output frequency, distinct from an external PWM control signal. Dimming-off standby <0.5 W, measured at 230 VAC with dimming off; standard B/DA2 version. Input and electrical performance Parameter Specification Input voltage 100–305 VAC or 155–400 VDC; low-line derating applies. Input frequency 47–63 Hz Power factor ≥0.95 at 115 VAC; ≥0.95 at 230 VAC; ≥0.90 at 277 VAC, all at full load. Total harmonic distortion <20% at ≥60% load / 230 VAC or ≥75% load / 277 VAC; <10% at 100% load / 230 VAC. Typical efficiency 87% at the catalog measurement conditions. AC input current 0.75 A / 115 VAC; 0.35 A / 230 VAC; 0.3 A / 277 VAC. Setup and rise time 800 ms setup / 180 ms rise at 230 VAC; 1000 ms setup / 180 ms rise at 115 VAC. Setup is measured at first cold start; repeated switching can increase it. Cold-start inrush 15 A; width 310 μs measured at 50% peak current, 230 VAC; per NEMA 410. 16 A circuit-breaker loading 25 units on type B / 36 on type C at 230 VAC, as specified in the catalog. Leakage current <0.75 mA at 277 VAC Measurement conditions Unless otherwise stated: 230 VAC input, rated current and 25°C ambient. Typical efficiency and performance curves are not guarantees at every load. Protection functions Parameter Specification Short-circuit protection Hiccup mode; automatic recovery after the fault condition is removed. Overload protection 105–200% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage protection 26–35 V; output shutdown, re-power on to recover. Overtemperature protection Shuts down output voltage; automatic recovery after the fault condition is removed. Environment and derating Parameter Specification Working case temperature Tcase −25 to +90°C; maximum case temperature 90°C. This is a case limit, not the ambient operating limit. Ambient temperature / load Horizontal mounting: the 100% load boundary runs from −25°C to +40°C at 110 VAC and to +45°C at 230 VAC for this output type. The plotted boundaries end vertically; they do not authorize operation beyond those limits. Case-temperature / load The horizontal-mounting plot shows 100% load up to Tcase 90°C. Apply case, ambient, input and output limits together. Low-input derating Static characteristic at 60 Hz: approximately 80% load at 100 VAC, rising to 100% at 110 VAC; 100% from 110 to 305 VAC within thermal limits. Cooling and altitude Free-air convection. Above 2000 m, derate the allowed ambient temperature by 3.5°C per additional 1000 m for this fanless model. Working and storage humidity Working: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z axes. Life expectancy 50,000 hours typical when the marked Tc point is about 75°C or less; a temperature-dependent expectation, not a guaranteed service-life duration. Performance curves THD, PF and efficiency plots use the H model at Tcase 75°C, with 1400 mA and 1700 mA settings. Do not apply these curves as fixed-voltage-model guarantees. Dimensions and wiring Parameter Specification Housing and protection Fully encapsulated IP67 plastic housing; independent type; Class II double insulation. Housing dimensions 141.5 × 49 × 32 mm (L × W × H); mechanical drawing tolerance ±1 mm. Mounting drawing Two Ø3.6 mm mounting holes; 110 mm longitudinal dimension and 4 mm corner offsets shown on the drawing. Tc measurement point The drawing locates Tc at 70.8 mm longitudinally and 24.5 mm from the lower case edge. AC input wiring Brown: AC/L; blue: AC/N. Input cable: SJOW 17 AWG × 2C and H05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. DC output wiring Red: +V; black: −V. Output cable: SJOW 17 AWG × 2C and 05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. Single-unit catalog weight 490 g, catalog packing reference per unit (0.49 kg × 1000). Not a carton-weight division or a measured shipping-package mass. Control leads Purple: DA+/PUSH; pink: DA−/N, on the input side. UL2517, 18 AWG × 2, 180 mm nominal length. Safety, EMC and reliability Parameter Specification Construction and safety Class II, SELV, UL 8750 Class 2 / Class P; Type HL as listed in the catalog. Listed safety standards ENEC BS EN/EN 61347-1 and 61347-2-13 (EL); BS EN/EN 62384; BIS IS 15885 (Part 2/Sec 13); GB/T 19510.1 and 19510.213; EAC TP TC 004; UL 8750 and CSA C22.2 No. 250.13-12. AS/NZS 61347-1 and 61347-2-13 are design references, not stated approvals. Emergency-lighting input EN 61347-2-13 appendix J emergency installations: 176–280 VDC. This emergency-use range is narrower than the general DC input range. Withstand voltage / isolation Input to output: 3.75 kVAC. Isolation resistance >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015 (CISPR 15) and GB/T 17743 conducted/radiated emissions; BS EN/EN 61000-3-2 and GB 17625.1 Class C at ≥60% load; BS EN/EN 61000-3-3 voltage flicker. EMC immunity BS EN/EN 61547; 61000-4-2 ESD level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8 level 2; -4-5 surge level 3 / 1 kV line-to-line. -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Flicker performance PstLM ≤1 and SVM ≤0.4, measured at full load using the MEAN WELL test light source; final luminaire performance depends on the actual load. MTBF 4053.7 K hours minimum, Telcordia SR-332 (Bellcore); 329.4 K hours minimum, MIL-HDBK-217F at 25°C. Reliability estimates are not guaranteed service life. Regional markings Products sourced from China and some models sourced from India may lack the BIS logo; check the applicable certificate and supplied product. Catalog warranty 5 years, subject to the manufacturer’s warranty terms. Selection and installation Parameter Specification LED-load selection Use a compatible 24 V constant-voltage LED load within 2.5 A and 60 W after derating. Applications Recessed, down, panel, commercial and decorative lighting; compatible constant-voltage LED strip lighting. ErP installation requirement Install behind a switch; this driver must not remain permanently connected to mains for the stated lighting-fixture ErP requirement. System EMC The driver is a component of the final equipment. The final-equipment manufacturer must re-qualify EMC on the complete installation. Options and accessories This full model fixes the output and dimming configuration. Use the specified compatible controller or push button where applicable; the catalog does not assign a dedicated accessory ordering code for those external controls. RCM installation limitation RCM is voluntary. The catalog states that non-IC-classification independent LED control gear is not suitable for residential installations. Confirm the full model, LED-load compatibility, control wiring and actual Tc temperature before installation.
$61.61
-
MEAN WELL XLN-60 series: Constant-Voltage LED Driver - XLN-60-12-DA2
XLN-60-12-DA2 — Constant-Voltage LED Driver MEAN WELL XLN-60-12-DA2 is an independent LED driver with 12 VDC at 5 A, 60 W rated output. Its fully encapsulated IP67 plastic enclosure combines Class II double insulation, active PFC and free-air convection cooling. Built-in DALI-2 DT6 digital dimming and primary-side PUSH dimming; minimum DALI dimming level 0.1%. Select a compatible LED module and observe the output envelope, input and thermal limits below. Download MEAN WELL XLN-60 Datasheet (PDF)The combined catalog covers XLN-60 on PDF pages 21–30. Output specifications Parameter Specification Full model XLN-60-12-DA2 Model code XLN-60 identifies the series; 12 identifies the fixed output voltage. DA2 identifies DALI-2 and PUSH dimming. Output mode Constant voltage; PWM-style output dimming. Rated power 60 W, subject to input and temperature limits. Rated output voltage 12 VDC Rated output current 5 A NFC setting The voltage output is fixed; this SKU does not provide NFC current programming. Control and current setting Parameter Specification Fitted control function Built-in DALI-2 DT6 digital dimming and primary-side PUSH dimming; minimum DALI dimming level 0.1%. DALI protocol DALI-2 DT6; IEC 62386-101, -102 and -207. Connect the DALI controller to the DA+ / DA− pair according to the catalog diagram. PUSH control wiring Primary-side PUSH uses the DA+/PUSH lead through a momentary push button to AC/L, and DA−/N to AC/N. This is a mains-side connection; follow the manufacturer’s wiring diagram. PUSH timing Factory dimming level: 100%. Short push 0.1–1 s toggles on/off; double click within 1.5 s sets 100%; long push 1.5–10 s changes brightness and reverses direction on each long push. Pulses shorter than 0.05 s do not change status. PUSH system limits Up to 10 drivers on one common push button; maximum cable length from the button to the last driver is 20 m. Output PWM frequency 3.2 kHz fixed, typical. Dimming changes output-current duty cycle; this is the LED-output frequency, distinct from an external PWM control signal. Dimming-off standby <0.5 W, measured at 230 VAC with dimming off; standard B/DA2 version. Input and electrical performance Parameter Specification Input voltage 100–305 VAC or 155–400 VDC; low-line derating applies. Input frequency 47–63 Hz Power factor ≥0.95 at 115 VAC; ≥0.95 at 230 VAC; ≥0.90 at 277 VAC, all at full load. Total harmonic distortion <20% at ≥60% load / 230 VAC or ≥75% load / 277 VAC; <10% at 100% load / 230 VAC. Typical efficiency 86% at the catalog measurement conditions. AC input current 0.75 A / 115 VAC; 0.35 A / 230 VAC; 0.3 A / 277 VAC. Setup and rise time 800 ms setup / 180 ms rise at 230 VAC; 1000 ms setup / 180 ms rise at 115 VAC. Setup is measured at first cold start; repeated switching can increase it. Cold-start inrush 15 A; width 310 μs measured at 50% peak current, 230 VAC; per NEMA 410. 16 A circuit-breaker loading 25 units on type B / 36 on type C at 230 VAC, as specified in the catalog. Leakage current <0.75 mA at 277 VAC Measurement conditions Unless otherwise stated: 230 VAC input, rated current and 25°C ambient. Typical efficiency and performance curves are not guarantees at every load. Protection functions Parameter Specification Short-circuit protection Hiccup mode; automatic recovery after the fault condition is removed. Overload protection 105–200% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage protection 14–17 V; output shutdown, re-power on to recover. Overtemperature protection Shuts down output voltage; automatic recovery after the fault condition is removed. Environment and derating Parameter Specification Working case temperature Tcase −25 to +90°C; maximum case temperature 90°C. This is a case limit, not the ambient operating limit. Ambient temperature / load Horizontal mounting: the 100% load boundary runs from −25°C to +40°C at 110 VAC and to +45°C at 230 VAC for this output type. The plotted boundaries end vertically; they do not authorize operation beyond those limits. Case-temperature / load The horizontal-mounting plot shows 100% load up to Tcase 90°C. Apply case, ambient, input and output limits together. Low-input derating Static characteristic at 60 Hz: approximately 80% load at 100 VAC, rising to 100% at 110 VAC; 100% from 110 to 305 VAC within thermal limits. Cooling and altitude Free-air convection. Above 2000 m, derate the allowed ambient temperature by 3.5°C per additional 1000 m for this fanless model. Working and storage humidity Working: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z axes. Life expectancy 50,000 hours typical when the marked Tc point is about 75°C or less; a temperature-dependent expectation, not a guaranteed service-life duration. Performance curves THD, PF and efficiency plots use the H model at Tcase 75°C, with 1400 mA and 1700 mA settings. Do not apply these curves as fixed-voltage-model guarantees. Dimensions and wiring Parameter Specification Housing and protection Fully encapsulated IP67 plastic housing; independent type; Class II double insulation. Housing dimensions 141.5 × 49 × 32 mm (L × W × H); mechanical drawing tolerance ±1 mm. Mounting drawing Two Ø3.6 mm mounting holes; 110 mm longitudinal dimension and 4 mm corner offsets shown on the drawing. Tc measurement point The drawing locates Tc at 70.8 mm longitudinally and 24.5 mm from the lower case edge. AC input wiring Brown: AC/L; blue: AC/N. Input cable: SJOW 17 AWG × 2C and H05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. DC output wiring Red: +V; black: −V. Output cable: SJOW 17 AWG × 2C and 05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. Single-unit catalog weight 490 g, catalog packing reference per unit (0.49 kg × 1000). Not a carton-weight division or a measured shipping-package mass. Control leads Purple: DA+/PUSH; pink: DA−/N, on the input side. UL2517, 18 AWG × 2, 180 mm nominal length. Safety, EMC and reliability Parameter Specification Construction and safety Class II, SELV, UL 8750 Class 2 / Class P; Type HL as listed in the catalog. Listed safety standards ENEC BS EN/EN 61347-1 and 61347-2-13 (EL); BS EN/EN 62384; BIS IS 15885 (Part 2/Sec 13); GB/T 19510.1 and 19510.213; EAC TP TC 004; UL 8750 and CSA C22.2 No. 250.13-12. AS/NZS 61347-1 and 61347-2-13 are design references, not stated approvals. Emergency-lighting input EN 61347-2-13 appendix J emergency installations: 176–280 VDC. This emergency-use range is narrower than the general DC input range. Withstand voltage / isolation Input to output: 3.75 kVAC. Isolation resistance >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015 (CISPR 15) and GB/T 17743 conducted/radiated emissions; BS EN/EN 61000-3-2 and GB 17625.1 Class C at ≥60% load; BS EN/EN 61000-3-3 voltage flicker. EMC immunity BS EN/EN 61547; 61000-4-2 ESD level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8 level 2; -4-5 surge level 3 / 1 kV line-to-line. -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Flicker performance PstLM ≤1 and SVM ≤0.4, measured at full load using the MEAN WELL test light source; final luminaire performance depends on the actual load. MTBF 4053.7 K hours minimum, Telcordia SR-332 (Bellcore); 329.4 K hours minimum, MIL-HDBK-217F at 25°C. Reliability estimates are not guaranteed service life. Regional markings Products sourced from China and some models sourced from India may lack the BIS logo; check the applicable certificate and supplied product. Catalog warranty 5 years, subject to the manufacturer’s warranty terms. Selection and installation Parameter Specification LED-load selection Use a compatible 12 V constant-voltage LED load within 5 A and 60 W after derating. Applications Recessed, down, panel, commercial and decorative lighting; compatible constant-voltage LED strip lighting. ErP installation requirement Install behind a switch; this driver must not remain permanently connected to mains for the stated lighting-fixture ErP requirement. System EMC The driver is a component of the final equipment. The final-equipment manufacturer must re-qualify EMC on the complete installation. Options and accessories This full model fixes the output and dimming configuration. Use the specified compatible controller or push button where applicable; the catalog does not assign a dedicated accessory ordering code for those external controls. RCM installation limitation RCM is voluntary. The catalog states that non-IC-classification independent LED control gear is not suitable for residential installations. Confirm the full model, LED-load compatibility, control wiring and actual Tc temperature before installation.
$61.61
-
MEAN WELL XLN-60 series: Constant-Voltage LED Driver - XLN-60-48-B
XLN-60-48-B — Constant-Voltage LED Driver MEAN WELL XLN-60-48-B is an independent LED driver with 48 VDC at 1.25 A, 60 W rated output. Its fully encapsulated IP67 plastic enclosure combines Class II double insulation, active PFC and free-air convection cooling. Built-in 3-in-1 dimming with dim-to-off. Select a compatible LED module and observe the output envelope, input and thermal limits below. Download MEAN WELL XLN-60 Datasheet (PDF)The combined catalog covers XLN-60 on PDF pages 21–30. Output specifications Parameter Specification Full model XLN-60-48-B Model code XLN-60 identifies the series; 48 identifies the fixed output voltage. B identifies 3-in-1 dimming. Output mode Constant voltage; PWM-style output dimming. Rated power 60 W, subject to input and temperature limits. Rated output voltage 48 VDC Rated output current 1.25 A NFC setting The voltage output is fixed; this SKU does not provide NFC current programming. Control and current setting Parameter Specification Fitted control function Built-in 3-in-1 dimming with dim-to-off. 3-in-1 control inputs Apply 0–10 VDC, a 10 V PWM signal at 300 Hz–3 kHz, or 0–100 kΩ resistance between DIM+ and DIM−. Typical dimming-source current: 100 μA. Dimming floor and off Minimum dimming is about 8%; output current is undefined between 0% and 8%. Output can fall to 0% at approximately 0 VDC, 0 kΩ, or 0% duty of the 10 V PWM control signal. Synchronized resistance control The chart scales full-level resistance as 100 kΩ / N, where N is the number of drivers under synchronized dimming. Control wiring restriction Do not connect DIM− to the negative LED output (−V). Direct connection to compatible LEDs is suggested; do not cascade an additional LED driver. Output PWM frequency 4 kHz fixed, typical. Dimming changes output-current duty cycle; this is the LED-output frequency, distinct from an external PWM control signal. Dimming-off standby <0.5 W, measured at 230 VAC with dimming off; standard B/DA2 version. Input and electrical performance Parameter Specification Input voltage 100–305 VAC or 155–400 VDC; low-line derating applies. Input frequency 47–63 Hz Power factor ≥0.95 at 115 VAC; ≥0.95 at 230 VAC; ≥0.90 at 277 VAC, all at full load. Total harmonic distortion <20% at ≥60% load / 230 VAC or ≥75% load / 277 VAC; <10% at 100% load / 230 VAC. Typical efficiency 88% at the catalog measurement conditions. AC input current 0.75 A / 115 VAC; 0.35 A / 230 VAC; 0.3 A / 277 VAC. Setup and rise time 800 ms setup / 180 ms rise at 230 VAC; 1000 ms setup / 180 ms rise at 115 VAC. Setup is measured at first cold start; repeated switching can increase it. Cold-start inrush 15 A; width 310 μs measured at 50% peak current, 230 VAC; per NEMA 410. 16 A circuit-breaker loading 25 units on type B / 36 on type C at 230 VAC, as specified in the catalog. Leakage current <0.75 mA at 277 VAC Measurement conditions Unless otherwise stated: 230 VAC input, rated current and 25°C ambient. Typical efficiency and performance curves are not guarantees at every load. Protection functions Parameter Specification Short-circuit protection Hiccup mode; automatic recovery after the fault condition is removed. Overload protection 105–200% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage protection 52–63 V; output shutdown, re-power on to recover. Overtemperature protection Shuts down output voltage; automatic recovery after the fault condition is removed. Environment and derating Parameter Specification Working case temperature Tcase −25 to +90°C; maximum case temperature 90°C. This is a case limit, not the ambient operating limit. Ambient temperature / load Horizontal mounting: the 100% load boundary runs from −25°C to +40°C at 110 VAC and to +50°C at 230 VAC for this output type. The plotted boundaries end vertically; they do not authorize operation beyond those limits. Case-temperature / load The horizontal-mounting plot shows 100% load up to Tcase 90°C. Apply case, ambient, input and output limits together. Low-input derating Static characteristic at 60 Hz: approximately 80% load at 100 VAC, rising to 100% at 110 VAC; 100% from 110 to 305 VAC within thermal limits. Cooling and altitude Free-air convection. Above 2000 m, derate the allowed ambient temperature by 3.5°C per additional 1000 m for this fanless model. Working and storage humidity Working: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z axes. Life expectancy 50,000 hours typical when the marked Tc point is about 75°C or less; a temperature-dependent expectation, not a guaranteed service-life duration. Performance curves THD, PF and efficiency plots use the H model at Tcase 75°C, with 1400 mA and 1700 mA settings. Do not apply these curves as fixed-voltage-model guarantees. Dimensions and wiring Parameter Specification Housing and protection Fully encapsulated IP67 plastic housing; independent type; Class II double insulation. Housing dimensions 141.5 × 49 × 32 mm (L × W × H); mechanical drawing tolerance ±1 mm. Mounting drawing Two Ø3.6 mm mounting holes; 110 mm longitudinal dimension and 4 mm corner offsets shown on the drawing. Tc measurement point The drawing locates Tc at 70.8 mm longitudinally and 24.5 mm from the lower case edge. AC input wiring Brown: AC/L; blue: AC/N. Input cable: SJOW 17 AWG × 2C and H05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. DC output wiring Red: +V; black: −V. Output cable: SJOW 17 AWG × 2C and 05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. Single-unit catalog weight 490 g, catalog packing reference per unit (0.49 kg × 1000). Not a carton-weight division or a measured shipping-package mass. Control leads Purple: DIM+; pink: DIM−, on the output side. UL2517, 18 AWG × 2, 180 mm nominal length. Safety, EMC and reliability Parameter Specification Construction and safety Class II, SELV, UL 8750 Class 2 / Class P; Type HL as listed in the catalog. Listed safety standards ENEC BS EN/EN 61347-1 and 61347-2-13 (EL); BS EN/EN 62384; BIS IS 15885 (Part 2/Sec 13); GB/T 19510.1 and 19510.213; EAC TP TC 004; UL 8750 and CSA C22.2 No. 250.13-12. AS/NZS 61347-1 and 61347-2-13 are design references, not stated approvals. Emergency-lighting input EN 61347-2-13 appendix J emergency installations: 176–280 VDC. This emergency-use range is narrower than the general DC input range. Withstand voltage / isolation Input to output: 3.75 kVAC. Isolation resistance >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015 (CISPR 15) and GB/T 17743 conducted/radiated emissions; BS EN/EN 61000-3-2 and GB 17625.1 Class C at ≥60% load; BS EN/EN 61000-3-3 voltage flicker. EMC immunity BS EN/EN 61547; 61000-4-2 ESD level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8 level 2; -4-5 surge level 3 / 1 kV line-to-line. -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Flicker performance PstLM ≤1 and SVM ≤0.4, measured at full load using the MEAN WELL test light source; final luminaire performance depends on the actual load. MTBF 4053.7 K hours minimum, Telcordia SR-332 (Bellcore); 329.4 K hours minimum, MIL-HDBK-217F at 25°C. Reliability estimates are not guaranteed service life. Regional markings Products sourced from China and some models sourced from India may lack the BIS logo; check the applicable certificate and supplied product. Catalog warranty 5 years, subject to the manufacturer’s warranty terms. Selection and installation Parameter Specification LED-load selection Use a compatible 48 V constant-voltage LED load within 1.25 A and 60 W after derating. Applications Recessed, down, panel, commercial and decorative lighting; compatible constant-voltage LED strip lighting. ErP installation requirement Install behind a switch; this driver must not remain permanently connected to mains for the stated lighting-fixture ErP requirement. System EMC The driver is a component of the final equipment. The final-equipment manufacturer must re-qualify EMC on the complete installation. Options and accessories This full model fixes the output and dimming configuration. Use the specified compatible controller or push button where applicable; the catalog does not assign a dedicated accessory ordering code for those external controls. RCM installation limitation RCM is voluntary. The catalog states that non-IC-classification independent LED control gear is not suitable for residential installations. Confirm the full model, LED-load compatibility, control wiring and actual Tc temperature before installation.
$61.61
-
MEAN WELL XLN-60 series: Constant-Voltage LED Driver - XLN-60-24-B
XLN-60-24-B — Constant-Voltage LED Driver MEAN WELL XLN-60-24-B is an independent LED driver with 24 VDC at 2.5 A, 60 W rated output. Its fully encapsulated IP67 plastic enclosure combines Class II double insulation, active PFC and free-air convection cooling. Built-in 3-in-1 dimming with dim-to-off. Select a compatible LED module and observe the output envelope, input and thermal limits below. Download MEAN WELL XLN-60 Datasheet (PDF)The combined catalog covers XLN-60 on PDF pages 21–30. Output specifications Parameter Specification Full model XLN-60-24-B Model code XLN-60 identifies the series; 24 identifies the fixed output voltage. B identifies 3-in-1 dimming. Output mode Constant voltage; PWM-style output dimming. Rated power 60 W, subject to input and temperature limits. Rated output voltage 24 VDC Rated output current 2.5 A NFC setting The voltage output is fixed; this SKU does not provide NFC current programming. Control and current setting Parameter Specification Fitted control function Built-in 3-in-1 dimming with dim-to-off. 3-in-1 control inputs Apply 0–10 VDC, a 10 V PWM signal at 300 Hz–3 kHz, or 0–100 kΩ resistance between DIM+ and DIM−. Typical dimming-source current: 100 μA. Dimming floor and off Minimum dimming is about 8%; output current is undefined between 0% and 8%. Output can fall to 0% at approximately 0 VDC, 0 kΩ, or 0% duty of the 10 V PWM control signal. Synchronized resistance control The chart scales full-level resistance as 100 kΩ / N, where N is the number of drivers under synchronized dimming. Control wiring restriction Do not connect DIM− to the negative LED output (−V). Direct connection to compatible LEDs is suggested; do not cascade an additional LED driver. Output PWM frequency 4 kHz fixed, typical. Dimming changes output-current duty cycle; this is the LED-output frequency, distinct from an external PWM control signal. Dimming-off standby <0.5 W, measured at 230 VAC with dimming off; standard B/DA2 version. Input and electrical performance Parameter Specification Input voltage 100–305 VAC or 155–400 VDC; low-line derating applies. Input frequency 47–63 Hz Power factor ≥0.95 at 115 VAC; ≥0.95 at 230 VAC; ≥0.90 at 277 VAC, all at full load. Total harmonic distortion <20% at ≥60% load / 230 VAC or ≥75% load / 277 VAC; <10% at 100% load / 230 VAC. Typical efficiency 87% at the catalog measurement conditions. AC input current 0.75 A / 115 VAC; 0.35 A / 230 VAC; 0.3 A / 277 VAC. Setup and rise time 800 ms setup / 180 ms rise at 230 VAC; 1000 ms setup / 180 ms rise at 115 VAC. Setup is measured at first cold start; repeated switching can increase it. Cold-start inrush 15 A; width 310 μs measured at 50% peak current, 230 VAC; per NEMA 410. 16 A circuit-breaker loading 25 units on type B / 36 on type C at 230 VAC, as specified in the catalog. Leakage current <0.75 mA at 277 VAC Measurement conditions Unless otherwise stated: 230 VAC input, rated current and 25°C ambient. Typical efficiency and performance curves are not guarantees at every load. Protection functions Parameter Specification Short-circuit protection Hiccup mode; automatic recovery after the fault condition is removed. Overload protection 105–200% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage protection 26–35 V; output shutdown, re-power on to recover. Overtemperature protection Shuts down output voltage; automatic recovery after the fault condition is removed. Environment and derating Parameter Specification Working case temperature Tcase −25 to +90°C; maximum case temperature 90°C. This is a case limit, not the ambient operating limit. Ambient temperature / load Horizontal mounting: the 100% load boundary runs from −25°C to +40°C at 110 VAC and to +45°C at 230 VAC for this output type. The plotted boundaries end vertically; they do not authorize operation beyond those limits. Case-temperature / load The horizontal-mounting plot shows 100% load up to Tcase 90°C. Apply case, ambient, input and output limits together. Low-input derating Static characteristic at 60 Hz: approximately 80% load at 100 VAC, rising to 100% at 110 VAC; 100% from 110 to 305 VAC within thermal limits. Cooling and altitude Free-air convection. Above 2000 m, derate the allowed ambient temperature by 3.5°C per additional 1000 m for this fanless model. Working and storage humidity Working: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z axes. Life expectancy 50,000 hours typical when the marked Tc point is about 75°C or less; a temperature-dependent expectation, not a guaranteed service-life duration. Performance curves THD, PF and efficiency plots use the H model at Tcase 75°C, with 1400 mA and 1700 mA settings. Do not apply these curves as fixed-voltage-model guarantees. Dimensions and wiring Parameter Specification Housing and protection Fully encapsulated IP67 plastic housing; independent type; Class II double insulation. Housing dimensions 141.5 × 49 × 32 mm (L × W × H); mechanical drawing tolerance ±1 mm. Mounting drawing Two Ø3.6 mm mounting holes; 110 mm longitudinal dimension and 4 mm corner offsets shown on the drawing. Tc measurement point The drawing locates Tc at 70.8 mm longitudinally and 24.5 mm from the lower case edge. AC input wiring Brown: AC/L; blue: AC/N. Input cable: SJOW 17 AWG × 2C and H05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. DC output wiring Red: +V; black: −V. Output cable: SJOW 17 AWG × 2C and 05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. Single-unit catalog weight 490 g, catalog packing reference per unit (0.49 kg × 1000). Not a carton-weight division or a measured shipping-package mass. Control leads Purple: DIM+; pink: DIM−, on the output side. UL2517, 18 AWG × 2, 180 mm nominal length. Safety, EMC and reliability Parameter Specification Construction and safety Class II, SELV, UL 8750 Class 2 / Class P; Type HL as listed in the catalog. Listed safety standards ENEC BS EN/EN 61347-1 and 61347-2-13 (EL); BS EN/EN 62384; BIS IS 15885 (Part 2/Sec 13); GB/T 19510.1 and 19510.213; EAC TP TC 004; UL 8750 and CSA C22.2 No. 250.13-12. AS/NZS 61347-1 and 61347-2-13 are design references, not stated approvals. Emergency-lighting input EN 61347-2-13 appendix J emergency installations: 176–280 VDC. This emergency-use range is narrower than the general DC input range. Withstand voltage / isolation Input to output: 3.75 kVAC. Isolation resistance >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015 (CISPR 15) and GB/T 17743 conducted/radiated emissions; BS EN/EN 61000-3-2 and GB 17625.1 Class C at ≥60% load; BS EN/EN 61000-3-3 voltage flicker. EMC immunity BS EN/EN 61547; 61000-4-2 ESD level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8 level 2; -4-5 surge level 3 / 1 kV line-to-line. -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Flicker performance PstLM ≤1 and SVM ≤0.4, measured at full load using the MEAN WELL test light source; final luminaire performance depends on the actual load. MTBF 4053.7 K hours minimum, Telcordia SR-332 (Bellcore); 329.4 K hours minimum, MIL-HDBK-217F at 25°C. Reliability estimates are not guaranteed service life. Regional markings Products sourced from China and some models sourced from India may lack the BIS logo; check the applicable certificate and supplied product. Catalog warranty 5 years, subject to the manufacturer’s warranty terms. Selection and installation Parameter Specification LED-load selection Use a compatible 24 V constant-voltage LED load within 2.5 A and 60 W after derating. Applications Recessed, down, panel, commercial and decorative lighting; compatible constant-voltage LED strip lighting. ErP installation requirement Install behind a switch; this driver must not remain permanently connected to mains for the stated lighting-fixture ErP requirement. System EMC The driver is a component of the final equipment. The final-equipment manufacturer must re-qualify EMC on the complete installation. Options and accessories This full model fixes the output and dimming configuration. Use the specified compatible controller or push button where applicable; the catalog does not assign a dedicated accessory ordering code for those external controls. RCM installation limitation RCM is voluntary. The catalog states that non-IC-classification independent LED control gear is not suitable for residential installations. Confirm the full model, LED-load compatibility, control wiring and actual Tc temperature before installation.
$61.61
-
MEAN WELL XLN-60 series: Constant-Voltage LED Driver - XLN-60-12-B
XLN-60-12-B — Constant-Voltage LED Driver MEAN WELL XLN-60-12-B is an independent LED driver with 12 VDC at 5 A, 60 W rated output. Its fully encapsulated IP67 plastic enclosure combines Class II double insulation, active PFC and free-air convection cooling. Built-in 3-in-1 dimming with dim-to-off. Select a compatible LED module and observe the output envelope, input and thermal limits below. Download MEAN WELL XLN-60 Datasheet (PDF)The combined catalog covers XLN-60 on PDF pages 21–30. Output specifications Parameter Specification Full model XLN-60-12-B Model code XLN-60 identifies the series; 12 identifies the fixed output voltage. B identifies 3-in-1 dimming. Output mode Constant voltage; PWM-style output dimming. Rated power 60 W, subject to input and temperature limits. Rated output voltage 12 VDC Rated output current 5 A NFC setting The voltage output is fixed; this SKU does not provide NFC current programming. Control and current setting Parameter Specification Fitted control function Built-in 3-in-1 dimming with dim-to-off. 3-in-1 control inputs Apply 0–10 VDC, a 10 V PWM signal at 300 Hz–3 kHz, or 0–100 kΩ resistance between DIM+ and DIM−. Typical dimming-source current: 100 μA. Dimming floor and off Minimum dimming is about 8%; output current is undefined between 0% and 8%. Output can fall to 0% at approximately 0 VDC, 0 kΩ, or 0% duty of the 10 V PWM control signal. Synchronized resistance control The chart scales full-level resistance as 100 kΩ / N, where N is the number of drivers under synchronized dimming. Control wiring restriction Do not connect DIM− to the negative LED output (−V). Direct connection to compatible LEDs is suggested; do not cascade an additional LED driver. Output PWM frequency 4 kHz fixed, typical. Dimming changes output-current duty cycle; this is the LED-output frequency, distinct from an external PWM control signal. Dimming-off standby <0.5 W, measured at 230 VAC with dimming off; standard B/DA2 version. Input and electrical performance Parameter Specification Input voltage 100–305 VAC or 155–400 VDC; low-line derating applies. Input frequency 47–63 Hz Power factor ≥0.95 at 115 VAC; ≥0.95 at 230 VAC; ≥0.90 at 277 VAC, all at full load. Total harmonic distortion <20% at ≥60% load / 230 VAC or ≥75% load / 277 VAC; <10% at 100% load / 230 VAC. Typical efficiency 86% at the catalog measurement conditions. AC input current 0.75 A / 115 VAC; 0.35 A / 230 VAC; 0.3 A / 277 VAC. Setup and rise time 800 ms setup / 180 ms rise at 230 VAC; 1000 ms setup / 180 ms rise at 115 VAC. Setup is measured at first cold start; repeated switching can increase it. Cold-start inrush 15 A; width 310 μs measured at 50% peak current, 230 VAC; per NEMA 410. 16 A circuit-breaker loading 25 units on type B / 36 on type C at 230 VAC, as specified in the catalog. Leakage current <0.75 mA at 277 VAC Measurement conditions Unless otherwise stated: 230 VAC input, rated current and 25°C ambient. Typical efficiency and performance curves are not guarantees at every load. Protection functions Parameter Specification Short-circuit protection Hiccup mode; automatic recovery after the fault condition is removed. Overload protection 105–200% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage protection 14–17 V; output shutdown, re-power on to recover. Overtemperature protection Shuts down output voltage; automatic recovery after the fault condition is removed. Environment and derating Parameter Specification Working case temperature Tcase −25 to +90°C; maximum case temperature 90°C. This is a case limit, not the ambient operating limit. Ambient temperature / load Horizontal mounting: the 100% load boundary runs from −25°C to +40°C at 110 VAC and to +45°C at 230 VAC for this output type. The plotted boundaries end vertically; they do not authorize operation beyond those limits. Case-temperature / load The horizontal-mounting plot shows 100% load up to Tcase 90°C. Apply case, ambient, input and output limits together. Low-input derating Static characteristic at 60 Hz: approximately 80% load at 100 VAC, rising to 100% at 110 VAC; 100% from 110 to 305 VAC within thermal limits. Cooling and altitude Free-air convection. Above 2000 m, derate the allowed ambient temperature by 3.5°C per additional 1000 m for this fanless model. Working and storage humidity Working: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z axes. Life expectancy 50,000 hours typical when the marked Tc point is about 75°C or less; a temperature-dependent expectation, not a guaranteed service-life duration. Performance curves THD, PF and efficiency plots use the H model at Tcase 75°C, with 1400 mA and 1700 mA settings. Do not apply these curves as fixed-voltage-model guarantees. Dimensions and wiring Parameter Specification Housing and protection Fully encapsulated IP67 plastic housing; independent type; Class II double insulation. Housing dimensions 141.5 × 49 × 32 mm (L × W × H); mechanical drawing tolerance ±1 mm. Mounting drawing Two Ø3.6 mm mounting holes; 110 mm longitudinal dimension and 4 mm corner offsets shown on the drawing. Tc measurement point The drawing locates Tc at 70.8 mm longitudinally and 24.5 mm from the lower case edge. AC input wiring Brown: AC/L; blue: AC/N. Input cable: SJOW 17 AWG × 2C and H05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. DC output wiring Red: +V; black: −V. Output cable: SJOW 17 AWG × 2C and 05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. Single-unit catalog weight 490 g, catalog packing reference per unit (0.49 kg × 1000). Not a carton-weight division or a measured shipping-package mass. Control leads Purple: DIM+; pink: DIM−, on the output side. UL2517, 18 AWG × 2, 180 mm nominal length. Safety, EMC and reliability Parameter Specification Construction and safety Class II, SELV, UL 8750 Class 2 / Class P; Type HL as listed in the catalog. Listed safety standards ENEC BS EN/EN 61347-1 and 61347-2-13 (EL); BS EN/EN 62384; BIS IS 15885 (Part 2/Sec 13); GB/T 19510.1 and 19510.213; EAC TP TC 004; UL 8750 and CSA C22.2 No. 250.13-12. AS/NZS 61347-1 and 61347-2-13 are design references, not stated approvals. Emergency-lighting input EN 61347-2-13 appendix J emergency installations: 176–280 VDC. This emergency-use range is narrower than the general DC input range. Withstand voltage / isolation Input to output: 3.75 kVAC. Isolation resistance >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015 (CISPR 15) and GB/T 17743 conducted/radiated emissions; BS EN/EN 61000-3-2 and GB 17625.1 Class C at ≥60% load; BS EN/EN 61000-3-3 voltage flicker. EMC immunity BS EN/EN 61547; 61000-4-2 ESD level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8 level 2; -4-5 surge level 3 / 1 kV line-to-line. -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Flicker performance PstLM ≤1 and SVM ≤0.4, measured at full load using the MEAN WELL test light source; final luminaire performance depends on the actual load. MTBF 4053.7 K hours minimum, Telcordia SR-332 (Bellcore); 329.4 K hours minimum, MIL-HDBK-217F at 25°C. Reliability estimates are not guaranteed service life. Regional markings Products sourced from China and some models sourced from India may lack the BIS logo; check the applicable certificate and supplied product. Catalog warranty 5 years, subject to the manufacturer’s warranty terms. Selection and installation Parameter Specification LED-load selection Use a compatible 12 V constant-voltage LED load within 5 A and 60 W after derating. Applications Recessed, down, panel, commercial and decorative lighting; compatible constant-voltage LED strip lighting. ErP installation requirement Install behind a switch; this driver must not remain permanently connected to mains for the stated lighting-fixture ErP requirement. System EMC The driver is a component of the final equipment. The final-equipment manufacturer must re-qualify EMC on the complete installation. Options and accessories This full model fixes the output and dimming configuration. Use the specified compatible controller or push button where applicable; the catalog does not assign a dedicated accessory ordering code for those external controls. RCM installation limitation RCM is voluntary. The catalog states that non-IC-classification independent LED control gear is not suitable for residential installations. Confirm the full model, LED-load compatibility, control wiring and actual Tc temperature before installation.
$61.61
-
MEAN WELL XLN-60 series: Constant-Voltage LED Driver - XLN-60-48
XLN-60-48 — Constant-Voltage LED Driver MEAN WELL XLN-60-48 is an independent LED driver with 48 VDC at 1.25 A, 60 W rated output. Its fully encapsulated IP67 plastic enclosure combines Class II double insulation, active PFC and free-air convection cooling. Fixed-voltage output without NFC or built-in dimming. Select a compatible LED module and observe the output envelope, input and thermal limits below. Download MEAN WELL XLN-60 Datasheet (PDF)The combined catalog covers XLN-60 on PDF pages 21–30. Output specifications Parameter Specification Full model XLN-60-48 Model code XLN-60 identifies the series; 48 identifies the fixed output voltage. No function suffix identifies the standard version. Output mode Constant voltage. Rated power 60 W, subject to input and temperature limits. Rated output voltage 48 VDC Rated output current 1.25 A NFC setting The voltage output is fixed; this SKU does not provide NFC current programming. Control and current setting Parameter Specification Fitted control function Fixed-voltage output without NFC or built-in dimming. Input and electrical performance Parameter Specification Input voltage 100–305 VAC or 155–400 VDC; low-line derating applies. Input frequency 47–63 Hz Power factor ≥0.95 at 115 VAC; ≥0.95 at 230 VAC; ≥0.90 at 277 VAC, all at full load. Total harmonic distortion <20% at ≥60% load / 230 VAC or ≥75% load / 277 VAC; <10% at 100% load / 230 VAC. Typical efficiency 88% at the catalog measurement conditions. AC input current 0.75 A / 115 VAC; 0.35 A / 230 VAC; 0.3 A / 277 VAC. Setup and rise time 800 ms setup / 180 ms rise at 230 VAC; 1000 ms setup / 180 ms rise at 115 VAC. Setup is measured at first cold start; repeated switching can increase it. Cold-start inrush 15 A; width 310 μs measured at 50% peak current, 230 VAC; per NEMA 410. 16 A circuit-breaker loading 25 units on type B / 36 on type C at 230 VAC, as specified in the catalog. Leakage current <0.75 mA at 277 VAC Measurement conditions Unless otherwise stated: 230 VAC input, rated current and 25°C ambient. Typical efficiency and performance curves are not guarantees at every load. Protection functions Parameter Specification Short-circuit protection Hiccup mode; automatic recovery after the fault condition is removed. Overload protection 105–200% of rated output power; hiccup mode with automatic recovery after the fault is removed. Overvoltage protection 52–63 V; output shutdown, re-power on to recover. Overtemperature protection Shuts down output voltage; automatic recovery after the fault condition is removed. Environment and derating Parameter Specification Working case temperature Tcase −25 to +90°C; maximum case temperature 90°C. This is a case limit, not the ambient operating limit. Ambient temperature / load Horizontal mounting: the 100% load boundary runs from −25°C to +40°C at 110 VAC and to +50°C at 230 VAC for this output type. The plotted boundaries end vertically; they do not authorize operation beyond those limits. Case-temperature / load The horizontal-mounting plot shows 100% load up to Tcase 90°C. Apply case, ambient, input and output limits together. Low-input derating Static characteristic at 60 Hz: approximately 80% load at 100 VAC, rising to 100% at 110 VAC; 100% from 110 to 305 VAC within thermal limits. Cooling and altitude Free-air convection. Above 2000 m, derate the allowed ambient temperature by 3.5°C per additional 1000 m for this fanless model. Working and storage humidity Working: 20–90% RH, non-condensing. Storage: −40 to +80°C, 10–95% RH. Temperature coefficient ±0.03%/°C over 0–50°C. Vibration 10–500 Hz, 2G; 10 minutes per cycle, 60 minutes each along X, Y and Z axes. Life expectancy 50,000 hours typical when the marked Tc point is about 75°C or less; a temperature-dependent expectation, not a guaranteed service-life duration. Performance curves THD, PF and efficiency plots use the H model at Tcase 75°C, with 1400 mA and 1700 mA settings. Do not apply these curves as fixed-voltage-model guarantees. Dimensions and wiring Parameter Specification Housing and protection Fully encapsulated IP67 plastic housing; independent type; Class II double insulation. Housing dimensions 141.5 × 49 × 32 mm (L × W × H); mechanical drawing tolerance ±1 mm. Mounting drawing Two Ø3.6 mm mounting holes; 110 mm longitudinal dimension and 4 mm corner offsets shown on the drawing. Tc measurement point The drawing locates Tc at 70.8 mm longitudinally and 24.5 mm from the lower case edge. AC input wiring Brown: AC/L; blue: AC/N. Input cable: SJOW 17 AWG × 2C and H05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. DC output wiring Red: +V; black: −V. Output cable: SJOW 17 AWG × 2C and 05RN-F 2 × 1.0 mm² designation; 150 mm nominal lead length. Single-unit catalog weight 490 g, catalog packing reference per unit (0.49 kg × 1000). Not a carton-weight division or a measured shipping-package mass. Safety, EMC and reliability Parameter Specification Construction and safety Class II, SELV, UL 8750 Class 2 / Class P; Type HL as listed in the catalog. Listed safety standards ENEC BS EN/EN 61347-1 and 61347-2-13 (EL); BS EN/EN 62384; BIS IS 15885 (Part 2/Sec 13); GB/T 19510.1 and 19510.213; EAC TP TC 004; UL 8750 and CSA C22.2 No. 250.13-12. AS/NZS 61347-1 and 61347-2-13 are design references, not stated approvals. Emergency-lighting input EN 61347-2-13 appendix J emergency installations: 176–280 VDC. This emergency-use range is narrower than the general DC input range. Withstand voltage / isolation Input to output: 3.75 kVAC. Isolation resistance >100 MΩ at 500 VDC, 25°C and 70% RH. EMC emissions BS EN/EN 55015 (CISPR 15) and GB/T 17743 conducted/radiated emissions; BS EN/EN 61000-3-2 and GB 17625.1 Class C at ≥60% load; BS EN/EN 61000-3-3 voltage flicker. EMC immunity BS EN/EN 61547; 61000-4-2 ESD level 3 / 8 kV air and level 2 / 4 kV contact; -4-3, -4-4, -4-6 and -4-8 level 2; -4-5 surge level 3 / 1 kV line-to-line. -4-11: 70% residual voltage for 10 periods and 0% for 0.5 periods. Flicker performance PstLM ≤1 and SVM ≤0.4, measured at full load using the MEAN WELL test light source; final luminaire performance depends on the actual load. MTBF 4053.7 K hours minimum, Telcordia SR-332 (Bellcore); 329.4 K hours minimum, MIL-HDBK-217F at 25°C. Reliability estimates are not guaranteed service life. Regional markings Products sourced from China and some models sourced from India may lack the BIS logo; check the applicable certificate and supplied product. Catalog warranty 5 years, subject to the manufacturer’s warranty terms. Selection and installation Parameter Specification LED-load selection Use a compatible 48 V constant-voltage LED load within 1.25 A and 60 W after derating. Applications Recessed, down, panel, commercial and decorative lighting; compatible constant-voltage LED strip lighting. ErP installation requirement Install behind a switch; this driver must not remain permanently connected to mains for the stated lighting-fixture ErP requirement. System EMC The driver is a component of the final equipment. The final-equipment manufacturer must re-qualify EMC on the complete installation. Options and accessories This full model fixes the output and dimming configuration. Use the specified compatible controller or push button where applicable; the catalog does not assign a dedicated accessory ordering code for those external controls. RCM installation limitation RCM is voluntary. The catalog states that non-IC-classification independent LED control gear is not suitable for residential installations. Confirm the full model, LED-load compatibility, control wiring and actual Tc temperature before installation.
$61.61
