MEAN WELL DKMW20 Series: Regulated Voltage Converter - DKMW20F-15
Series: Double group output Rated power: 20W Input voltage (range):24V(9~36V) Input current no-load: 10mA, full load: 936mA Output voltage: ± 15V Output current: ± 0 ~ 660mA Efficiency (TYP.):87% Capacitive load (max):* 650μF Size (mm):25.4X25.4X10.2 Click to download Airtac product catalog Product Features 1. The DIP 1 "X1" package has industry standard pins. 2.4:1 ultra-wide input range, operating temperature range -40~85 ℃, no minimum load required. 3. Comply with BS EN/EN55032 radiation level A, no additional components are required, and the efficiency is as high as 89%. 4. Protection: short circuit (continuous)/overload/overvoltage/input undervoltage, 1.5KVDC input/output isolation, remote on/off, fine adjustment output (± 10%),3-year warranty.
$69.42
-
MEAN WELL DKMW20 Series: Regulated Voltage Converter - DKMW20G-12
Series: Double group output Rated power: 20W Input voltage (range):48V(18~75V) Input current no-load: 8mA, full load: 473mA Output voltage: ± 12V Output current: ± 0 ~ 830mA Efficiency (TYP.):87% Capacitive load (max):* 800μF Size (mm):25.4X25.4X10.2 Click to download Airtac product catalog Product Features 1. The DIP 1 "X1" package has industry standard pins. 2.4:1 ultra-wide input range, operating temperature range -40~85 ℃, no minimum load required. 3. Comply with BS EN/EN55032 radiation level A, no additional components are required, and the efficiency is as high as 89%. 4. Protection: short circuit (continuous)/overload/overvoltage/input undervoltage, 1.5KVDC input/output isolation, remote on/off, fine adjustment output (± 10%),3-year warranty.
$69.42
-
MEAN WELL DKMW20 Series: Regulated Voltage Converter - DKMW20G-15
Series: Double group output Rated power: 20W Input voltage (range):48V(18~75V) Input current no-load: 8mA, full load: 468mA Output voltage: ± 15V Output current: ± 0 ~ 660mA Efficiency (TYP.):88% Capacitive load (max):* 650μF Size (mm):25.4X25.4X10.2 Click to download Airtac product catalog Product Features 1. The DIP 1 "X1" package has industry standard pins. 2.4:1 ultra-wide input range, operating temperature range -40~85 ℃, no minimum load required. 3. Comply with BS EN/EN55032 radiation level A, no additional components are required, and the efficiency is as high as 89%. 4. Protection: short circuit (continuous)/overload/overvoltage/input undervoltage, 1.5KVDC input/output isolation, remote on/off, fine adjustment output (± 10%),3-year warranty.
$69.42
-

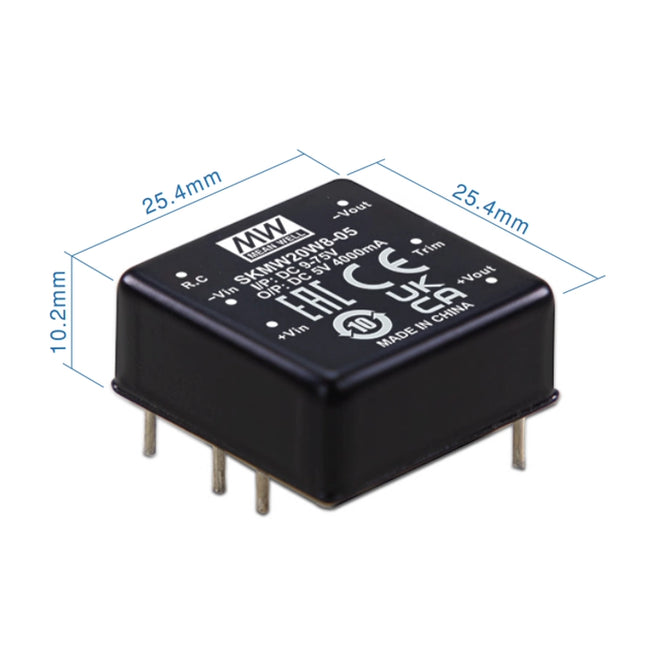

MEAN WELL DKMW20W8 series: voltage regulator converter - DKMW20W8-12
Series: Double group output Rated power: 20W Input voltage (range):Nominal 12V,24V,36V,48V,72V(9~75V) Input current no-load: 10mA, full load: 485mA Output voltage: ± 12V Output current: ± 0 ~ 830mA Efficiency (TYP.):87% Capacitive load (max):* 800μF Size (mm):25.4X25.4X10.2 Click to download Airtac product catalog Product Features 1. The DIP 1 "X1" package has industry standard pins. 2.8:1(9 ~ 75Vdc) ultra-wide input range, operating temperature range -40 ~ +90 ℃, no minimum load required. 3. Comply with BS EN/EN55032 Radiation Class A, no additional parts are required, and the efficiency is as high as 88%. 4. Protection function: short circuit (continuous)/overload/overvoltage/undervoltage lockout, 1.5KVdc input/output isolation, remote on/off control, output adjustable range (± 10%),3-year warranty.
$52.29
-
MEAN WELL DKMW20W8 series: voltage regulator converter - DKMW20W8-15
Series: Double group output Rated power: 20W Input voltage (range):Nominal 12V,24V,36V,48V,72V(9~75V) Input current no-load: 10mA, full load: 480mA Output voltage: ± 15V Output current: ± 0 ~ 660mA Efficiency (TYP.):88% Capacitive load (max):* 650μF Size (mm):25.4X25.4X10.2 Click to download Airtac product catalog Product Features 1. The DIP 1 "X1" package has industry standard pins. 2.8:1(9 ~ 75Vdc) ultra-wide input range, operating temperature range -40 ~ +90 ℃, no minimum load required. 3. Comply with BS EN/EN55032 Radiation Class A, no additional parts are required, and the efficiency is as high as 88%. 4. Protection function: short circuit (continuous)/overload/overvoltage/undervoltage lockout, 1.5KVdc input/output isolation, remote on/off control, output adjustable range (± 10%),3-year warranty.
$52.29
-
MEAN WELL DKMW30 Series: Regulated Voltage Converter - DKMW30F-12
Series: Double group output Rated power: 30W Input voltage (range):24V(9~36V) Input current no-load: 10mA, full load: 1425mA Output voltage: ± 12V Output current: ± 0 ~ 1250mA Efficiency (TYP.):87% Capacitive load (max):* 1250μF Size (mm):25.4X25.4X10.2 Click to download Airtac product catalog Product Features 1. The DIP 1 "X1" package has industry standard pins. 2.4:1 ultra-wide input range, operating temperature range -40~85 ℃, no minimum load required. 3. Comply with BS EN/EN55032 radiation level A, no additional components are required, and the efficiency is as high as 90%. 4. Protection: short circuit (continuous)/overload/overvoltage/over temperature/input undervoltage, 1.5KVDC input/output isolation, remote on/off, fine adjustment output (± 10%),3-year warranty.
$77.32
-
MEAN WELL DKMW30 Series: Regulated Voltage Converter - DKMW30F-15
Series: Double group output Rated power: 30W Input voltage (range):24V(9~36V) Input current no-load: 10mA, full load: 1425mA Output voltage: ± 15V Output current: ± 0 ~ 1000mA Efficiency (TYP.):88% Capacitive load (max):* 1000μF Size (mm):25.4X25.4X10.2 Click to download Airtac product catalog Product Features 1. The DIP 1 "X1" package has industry standard pins. 2.4:1 ultra-wide input range, operating temperature range -40~85 ℃, no minimum load required. 3. Comply with BS EN/EN55032 radiation level A, no additional components are required, and the efficiency is as high as 90%. 4. Protection: short circuit (continuous)/overload/overvoltage/over temperature/input undervoltage, 1.5KVDC input/output isolation, remote on/off, fine adjustment output (± 10%),3-year warranty.
$77.32
-

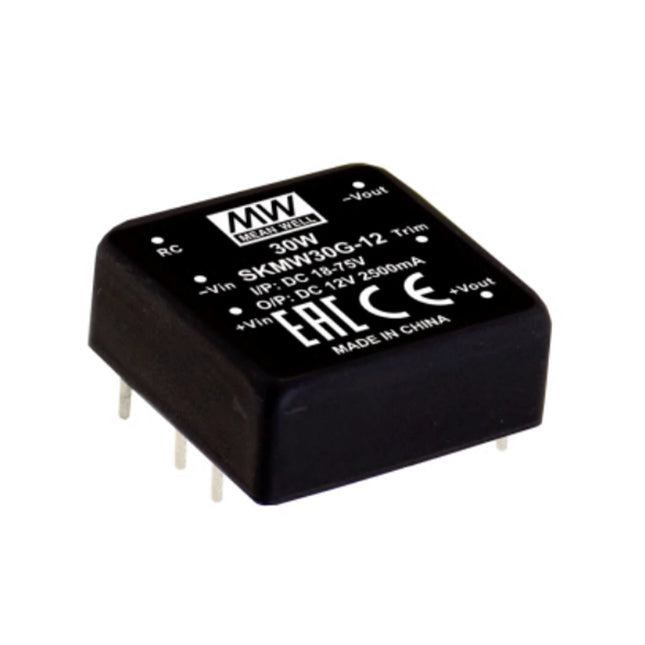

MEAN WELL DKMW30 Series: Regulated Voltage Converter - DKMW30G-12
Series: Double group output Rated power: 30W Input voltage (range):48V(18~75V) Input current no-load: 8mA, full load: 710mA Output voltage: ± 12V Output current: ± 0 ~ 1250mA Efficiency (TYP.):88% Capacitive load (max):* 1250μF Size (mm):25.4X25.4X10.2 Click to download Airtac product catalog Product Features 1. The DIP 1 "X1" package has industry standard pins. 2.4:1 ultra-wide input range, operating temperature range -40~85 ℃, no minimum load required. 3. Comply with BS EN/EN55032 radiation level A, no additional components are required, and the efficiency is as high as 90%. 4. Protection: short circuit (continuous)/overload/overvoltage/over temperature/input undervoltage, 1.5KVDC input/output isolation, remote on/off, fine adjustment output (± 10%),3-year warranty.
$77.32
-
MEAN WELL DKMW30 Series: Regulated Voltage Converter - DKMW30G-15
Series: Double group output Rated power: 30W Input voltage (range):48V(18~75V) Input current no-load: 8mA, full load: 702mA Output voltage: ± 15V Output current: ± 0 ~ 1000mA Efficiency (TYP.):89% Capacitive load (max):* 1000μF Size (mm):25.4X25.4X10.2 Click to download Airtac product catalog Product Features 1. The DIP 1 "X1" package has industry standard pins. 2.4:1 ultra-wide input range, operating temperature range -40~85 ℃, no minimum load required. 3. Comply with BS EN/EN55032 radiation level A, no additional components are required, and the efficiency is as high as 90%. 4. Protection: short circuit (continuous)/overload/overvoltage/over temperature/input undervoltage, 1.5KVDC input/output isolation, remote on/off, fine adjustment output (± 10%),3-year warranty.
$77.32
-

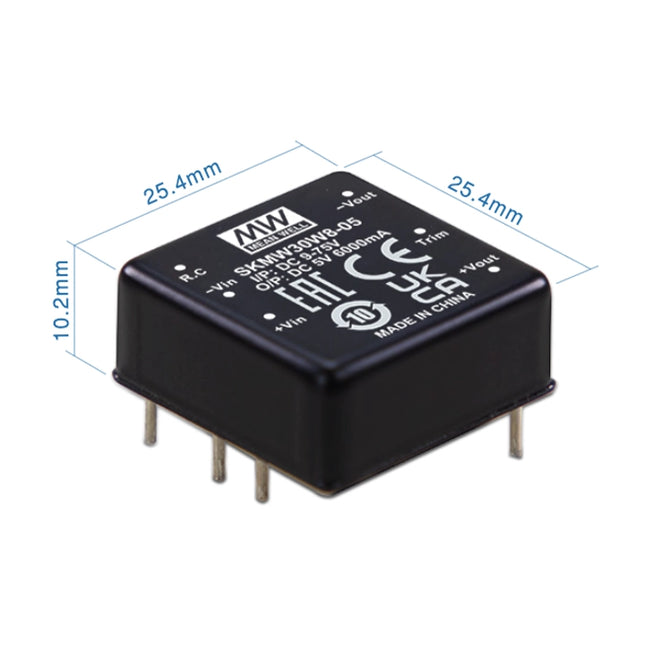

MEAN WELL DKMW30W8 series: voltage regulator converter - DKMW30W8-12
Series: Double group output Rated power: 30W Input voltage (range):Nominal 12V,24V,36V,48V,72V(9~75V) Input current no-load: 10mA, full load: 707mA Output voltage: ± 12V Output current: ± 0 ~ 1250mA Efficiency (TYP.):89% Capacitive load (max):* 1250μF Size (mm):25.4X25.4X10.2 Click to download Airtac product catalog Product Features 1. The DIP 1 "X1" package has industry standard pins. 2, 8:1(9 ~ 75Vdc) ultra-wide input range, operating temperature range -40 ~ +90 ℃, no minimum load required, efficiency as high as 90%. 3. Protection function: short circuit (continuous)/over load/over voltage/over temperature/under voltage lockout, 1.5KVdc input/output isolation. 4. Remote on/off control, adjustable output range (± 10%),3-year warranty.
$66.43
-
MEAN WELL DKMW30W8 series: voltage regulator converter - DKMW30W8-15
Series: Double group output Rated power: 30W Input voltage (range):Nominal 12V,24V,36V,48V,72V(9~75V) Input current no-load: 10mA, full load: 707mA Output voltage: ± 15V Output current: ± 0 ~ 1000mA Efficiency (TYP.):88.5% Capacitive load (max):* 1000μF Size (mm):25.4X25.4X10.2 Click to download Airtac product catalog Product Features 1. The DIP 1 "X1" package has industry standard pins. 2, 8:1(9 ~ 75Vdc) ultra-wide input range, operating temperature range -40 ~ +90 ℃, no minimum load required, efficiency as high as 90%. 3. Protection function: short circuit (continuous)/over load/over voltage/over temperature/under voltage lockout, 1.5KVdc input/output isolation. 4. Remote on/off control, adjustable output range (± 10%),3-year warranty.
$66.43
-
MEAN WELL DKMW40 Series: Regulated Voltage Converter - DKMW40F-12
Series: Double group output Rated power: 40W Input voltage (range):Nominal 24V(9~36V) Input current no-load: 12mA, full load: 1870mA Output voltage: ± 12V Output current: ± 0 ~ 1667mA Efficiency (TYP.):88% Capacitive load (max):* 1500μF Size (mm):25.4X25.4X10 Click to download Airtac product catalog Product Features 1. The DIP 1 "X1" package has industry standard pins. 2.4:1 ultra-wide input range, operating temperature range -40~80 ℃, no minimum load required. 3. Comply with BS EN/EN55032A/B standard, and equipped with additional components, the efficiency is as high as 91%. 4. Protection: short circuit (continuous)/overload/overvoltage/over temperature/input undervoltage, 2KVDC input/output isolation, remote on/off, fine adjustment output (± 10%),3-year warranty.
$119.31
-
MEAN WELL DKMW40 Series: Regulated Voltage Converter - DKMW40F-15
Series: Double group output Rated power: 40W Input voltage (range):Nominal 24V(9~36V) Input current no-load: 12mA, full load: 1870mA Output voltage: ± 15V Output current: ± 0 ~ 1333mA Efficiency (TYP.):88% Capacitive load (max):* 1000μF Size (mm):25.4X25.4X10 Click to download Airtac product catalog Product Features 1. The DIP 1 "X1" package has industry standard pins. 2.4:1 ultra-wide input range, operating temperature range -40~80 ℃, no minimum load required. 3. Comply with BS EN/EN55032A/B standard, and equipped with additional components, the efficiency is as high as 91%. 4. Protection: short circuit (continuous)/overload/overvoltage/over temperature/input undervoltage, 2KVDC input/output isolation, remote on/off, fine adjustment output (± 10%),3-year warranty.
$119.31
-

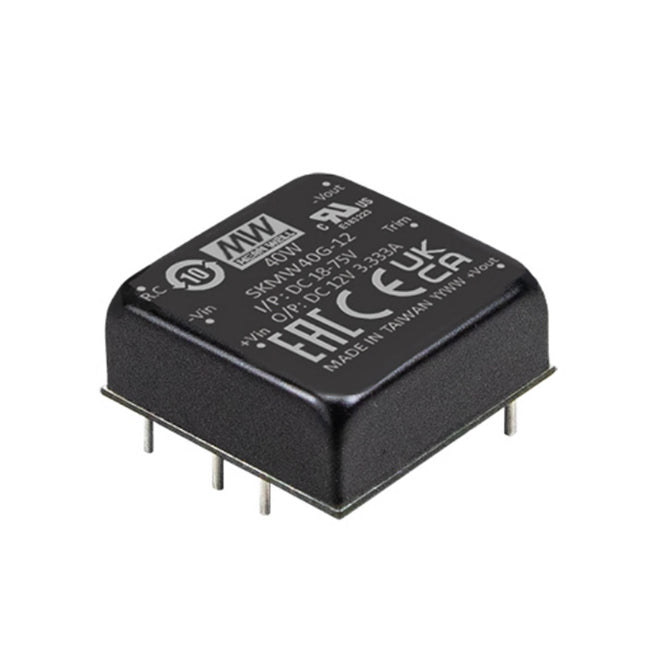

MEAN WELL DKMW40 Series: Regulated Voltage Converter - DKMW40G-12
Series: Double group output Rated power: 40W Input voltage (range):Nominal 48V(18~75V) Input current no-load: 10mA, full load: 925mA Output voltage: ± 12V Output current: ± 0 ~ 1667mA Efficiency (TYP.):89% Capacitive load (max):* 1500μF Size (mm):25.4X25.4X10 Click to download Airtac product catalog Product Features 1. The DIP 1 "X1" package has industry standard pins. 2.4:1 ultra-wide input range, operating temperature range -40~80 ℃, no minimum load required. 3. Comply with BS EN/EN55032A/B standard, and equipped with additional components, the efficiency is as high as 91%. 4. Protection: short circuit (continuous)/overload/overvoltage/over temperature/input undervoltage, 2KVDC input/output isolation, remote on/off, fine adjustment output (± 10%),3-year warranty.
$119.31
-
MEAN WELL DKMW40 Series: Regulated Voltage Converter - DKMW40G-15
Series: Double group output Rated power: 40W Input voltage (range):Nominal 48V(18~75V) Input current no-load: 10mA, full load: 940mA Output voltage: ± 15V Output current: ± 0 ~ 1333mA Efficiency (TYP.):88% Capacitive load (max):* 1000μF Size (mm):25.4X25.4X10 Click to download Airtac product catalog Product Features 1. The DIP 1 "X1" package has industry standard pins. 2.4:1 ultra-wide input range, operating temperature range -40~80 ℃, no minimum load required. 3. Comply with BS EN/EN55032A/B standard, and equipped with additional components, the efficiency is as high as 91%. 4. Protection: short circuit (continuous)/overload/overvoltage/over temperature/input undervoltage, 2KVDC input/output isolation, remote on/off, fine adjustment output (± 10%),3-year warranty.
$119.31
-
MEAN WELL DLC Series: DALI Digital Lighting Controller - DLC-02
Number of output channels: 02 Output bus voltage: built-in DALI power supply; Voltage range: 2X16V Output guaranteed supply current: 2X240mA Output maximum supply current: 2X250mA Output power rating: 7.68W Input voltage: 100 ~ 305VAC,140 ~ 430VDC,(class II) Size (mm):144X90X58.3 Click to download Airtac product catalog Product Features 1. DALI-2 digital lighting controller. 2. AC input: 100 ~ 277VAC,50~60Hz. 3. Built-in DALI power supply, two independent DALI bus channels. Up to 2x 64 DALI drivers and 2x 12 DALI input devices can be connected. 5. OLED display, LED indicator and buttons can be used by users. 6. Built-in 250V/5A(x4) relay. 7. Easy installation and configuration through PC software and web browser. 8. KNX to DALI gateway (DLC-02KN),5-year warranty.
$615.00
-
MEAN WELL DLC Series: KNX-DALI Gateway - DLC-02-KN
Number of output channels: 02 Output bus voltage: built-in DALI power supply; Voltage range: 2X16V Output guaranteed supply current: 2X240mA Output maximum supply current: 2X250mA Output power rating: 7.68W Input voltage: 100 ~ 305VAC,140 ~ 430VDC,(class II) KNX to DALI Gateway Size (mm):144X90X58.3 Click to download Airtac product catalog Product Features 1. DALI-2 digital lighting controller. 2. AC input: 100 ~ 277VAC,50~60Hz. 3. Built-in DALI power supply, two independent DALI bus channels. Up to 2x 64 DALI drivers and 2x 12 DALI input devices can be connected. 5. OLED display, LED indicator and buttons can be used by users. 6. Built-in 250V/5A(x4) relay. 7. Easy installation and configuration through PC software and web browser. 8. KNX to DALI gateway (DLC-02KN),5-year warranty.
$744.86
-
MEAN WELL DLC03 Series: DC-DC Regulated Converter - DLC03A-05
Series: Double group output Rated power: 3W Input voltage (range):12V(9~18V) Input current no-load: 30mA, full load: 325mA Output voltage: ± 5V Output current: ± 0 ~ 300mA Efficiency (TYP.):79% Capacitive load (max):* 220μF Size (mm):22.1X13.8X8.55 Click to download Airtac product catalog Product Features 1. The DIP16 package has industry standard pins. 2, 2:1 wide input range, working temperature range -40~85 ℃, no minimum load. 3. Comply with BS EN/EN55032 radiation level B, no additional components are required, and the efficiency is as high as 82%. 4. Protection: short circuit (continuous)/overload/input undervoltage, 1.5KVDC input/output isolation, 3 years warranty.
$39.00
-
MEAN WELL DLC03 Series: DC-DC Regulated Converter - DLC03A-12
Series: Double group output Rated power: 3W Input voltage (range):12V(9~18V) Input current no-load: 32mA, full load: 305mA Output voltage: ± 12V Output current: ± 0 ~ 125mA Efficiency (TYP.):82% Capacitive load (max):* 220μF Size (mm):22.1X13.8X8.55 Click to download Airtac product catalog Product Features 1. The DIP16 package has industry standard pins. 2, 2:1 wide input range, working temperature range -40~85 ℃, no minimum load. 3. Comply with BS EN/EN55032 radiation level B, no additional components are required, and the efficiency is as high as 82%. 4. Protection: short circuit (continuous)/overload/input undervoltage, 1.5KVDC input/output isolation, 3 years warranty.
$41.14
-

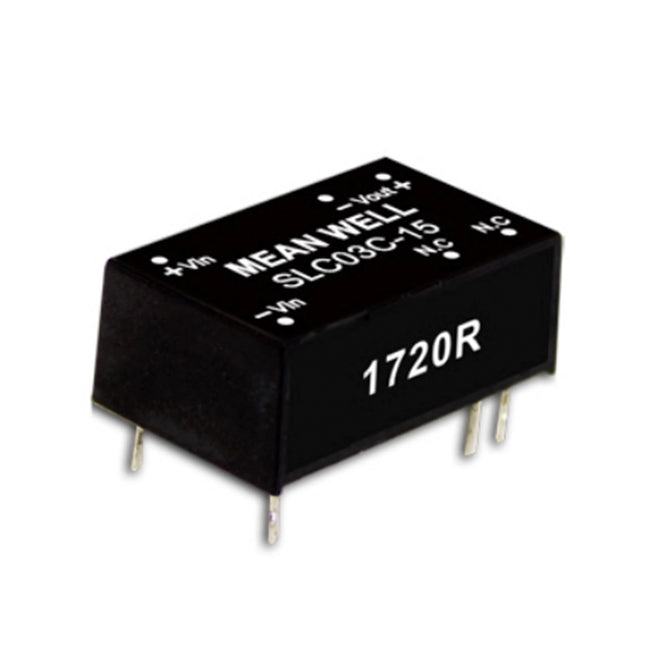

MEAN WELL DLC03 Series: DC-DC Regulated Converter - DLC03A-15
Series: Double group output Rated power: 3W Input voltage (range):12V(9~18V) Input current no-load: 32mA, full load: 313mA Output voltage: ± 15V Output current: ± 0 ~ 100mA Efficiency (TYP.):81% Capacitive load (max):* 220μF Size (mm):22.1X13.8X8.55 Click to download Airtac product catalog Product Features 1. The DIP16 package has industry standard pins. 2, 2:1 wide input range, working temperature range -40~85 ℃, no minimum load. 3. Comply with BS EN/EN55032 radiation level B, no additional components are required, and the efficiency is as high as 82%. 4. Protection: short circuit (continuous)/overload/input undervoltage, 1.5KVDC input/output isolation, 3 years warranty.
$41.14
-
MEAN WELL DLC03 Series: DC-DC Regulated Converter - DLC03B-05
Series: Double group output Rated power: 3W Input voltage (range):24V(18~36V) Input current no-load: 20mA, full load: 158mA Output voltage: ± 5V Output current: ± 0 ~ 300mA Efficiency (TYP.):79% Capacitive load (max):* 220μF Size (mm):22.1X13.8X8.55 Click to download Airtac product catalog Product Features 1. The DIP16 package has industry standard pins. 2, 2:1 wide input range, working temperature range -40~85 ℃, no minimum load. 3. Comply with BS EN/EN55032 radiation level B, no additional components are required, and the efficiency is as high as 82%. 4. Protection: short circuit (continuous)/overload/input undervoltage, 1.5KVDC input/output isolation, 3 years warranty.
$39.00
-
MEAN WELL DLC03 Series: DC-DC Regulated Converter - DLC03B-12
Series: Double group output Rated power: 3W Input voltage (range):24V(18~36V) Input current no-load: 20mA, full load: 156mA Output voltage: ± 12V Output current: ± 0 ~ 125mA Efficiency (TYP.):81% Capacitive load (max):* 220μF Size (mm):22.1X13.8X8.55 Click to download Airtac product catalog Product Features 1. The DIP16 package has industry standard pins. 2, 2:1 wide input range, working temperature range -40~85 ℃, no minimum load. 3. Comply with BS EN/EN55032 radiation level B, no additional components are required, and the efficiency is as high as 82%. 4. Protection: short circuit (continuous)/overload/input undervoltage, 1.5KVDC input/output isolation, 3 years warranty.
$41.14
-
MEAN WELL DLC03 Series: DC-DC Regulated Converter - DLC03B-15
Series: Double group output Rated power: 3W Input voltage (range):24V(18~36V) Input current no-load: 20mA, full load: 156mA Output voltage: ± 15V Output current: ± 0 ~ 100mA Efficiency (TYP.):80% Capacitive load (max):* 220μF Size (mm):22.1X13.8X8.55 Click to download Airtac product catalog Product Features 1. The DIP16 package has industry standard pins. 2, 2:1 wide input range, working temperature range -40~85 ℃, no minimum load. 3. Comply with BS EN/EN55032 radiation level B, no additional components are required, and the efficiency is as high as 82%. 4. Protection: short circuit (continuous)/overload/input undervoltage, 1.5KVDC input/output isolation, 3 years warranty.
$41.14
-
MEAN WELL DLC03 Series: DC-DC Regulated Converter - DLC03C-05
Series: Double group output Rated power: 3W Input voltage (range):48V(36~75V) Input current no-load: 10mA, full load: 79mA Output voltage: ± 5V Output current: ± 0 ~ 300mA Efficiency (TYP.):80% Capacitive load (max):* 220μF Size (mm):22.1X13.8X8.55 Click to download Airtac product catalog Product Features 1. The DIP16 package has industry standard pins. 2, 2:1 wide input range, working temperature range -40~85 ℃, no minimum load. 3. Comply with BS EN/EN55032 radiation level B, no additional components are required, and the efficiency is as high as 82%. 4. Protection: short circuit (continuous)/overload/input undervoltage, 1.5KVDC input/output isolation, 3 years warranty.
$39.00
