MEAN WELL SD series: DC-DC conversion switching power supply - SD-100B-24
Output voltage: 24V Output current: 0 ~ 4.2A Output power rating: 100.8W Output voltage adjustment range: 23 ~ 30VDC Input voltage: 19 ~ 36VDC Input efficiency (Typ.):78% Input DC current (Typ.):4.8A/24V Size (mm):199X98X38 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$80.14
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-100B-12
Output voltage: 12V Output current: 0 ~ 8.5A Output power rating: 102W Output voltage adjustment range: 11 ~ 16VDC Input voltage: 19 ~ 36VDC Input efficiency (Typ.):75% Input DC current (Typ.):4.8A/24V Size (mm):199X98X38 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$80.14
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-100B-5
Output voltage: 5V Output current: 0 ~ 20A Output power rating: 100W Output voltage adjustment range: 4.5 ~ 5.5VDC Input voltage: 19 ~ 36VDC Input efficiency (Typ.):74% Input DC current (Typ.):4.8A/24V Size (mm):199X98X38 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$80.14
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-100A-24
Output voltage: 24V Output current: 0 ~ 4.2A Output power rating: 100.8W Output voltage adjustment range: 23 ~ 30VDC Input voltage: 9.5 ~ 18VDC Input efficiency (Typ.):84% Input DC current (Typ.):10A/12V Size (mm):199X98X38 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$80.14
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-100A-12
Output voltage: 12V Output current: 0 ~ 8.5A Output power rating: 102W Output voltage adjustment range: 11 ~ 16VDC Input voltage: 9.5 ~ 18VDC Input efficiency (Typ.):82% Input DC current (Typ.):10.4A/12V Size (mm):199X98X38 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$80.14
-

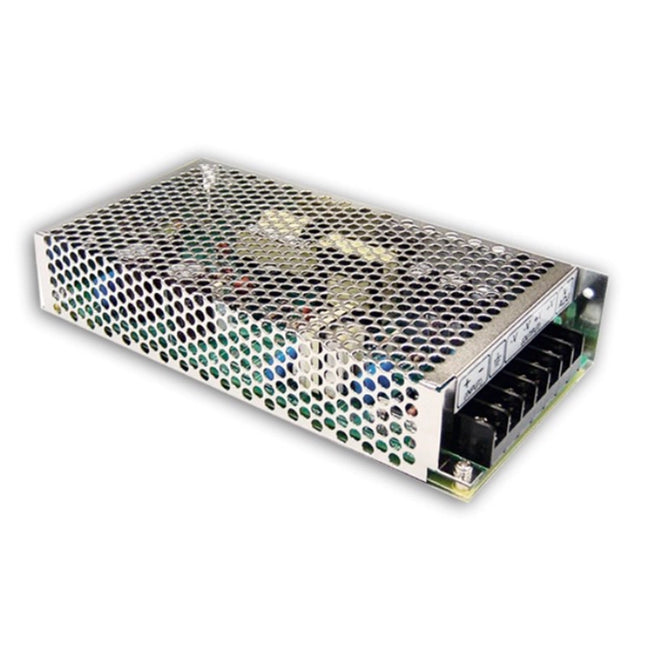

MEAN WELL SD series: DC-DC conversion switching power supply - SD-100A-5
Output voltage: 5V Output current: 0 ~ 18A Output power rating: 90W Output voltage adjustment range: 4.5 ~ 5.5VDC Input voltage: 9.5 ~ 18VDC Input efficiency (Typ.):78% Input DC current (Typ.):9.7A/12V Size (mm):199X98X38 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$80.14
-

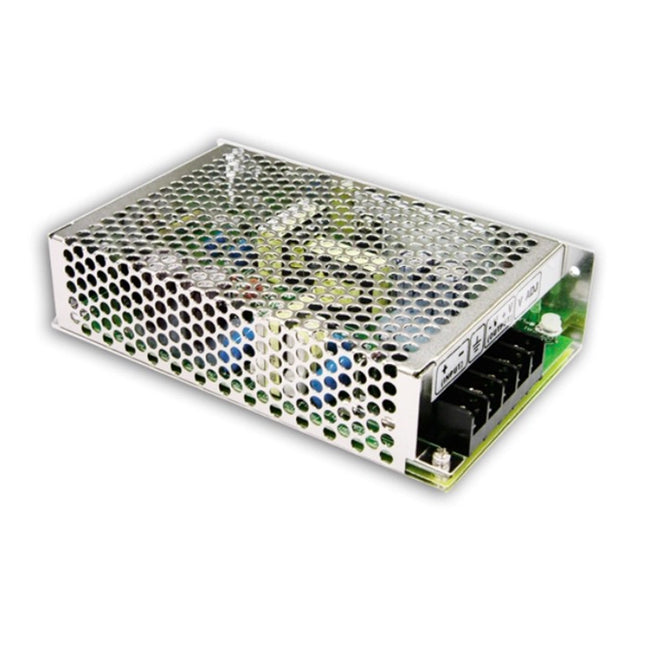

MEAN WELL SD series: DC-DC conversion switching power supply - SD-50C-24
Output voltage: 24V Output current: 0 ~ 2.1A Output power rating: 50.4W Output voltage adjustment range: 23 ~ 30VDC Input voltage: 36 ~ 72VDC Input efficiency (Typ.):83% Input DC current: 1.5A/48V Size (mm):159X97X38 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$63.86
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-50C-12
Output voltage: 12V Output current: 0 ~ 4.2A Output power rating: 50.4W Output voltage adjustment range: 11 ~ 16VDC Input voltage: 36 ~ 72VDC Input efficiency (Typ.):78% Input DC current: 1.5A/48V Size (mm):159X97X38 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$63.86
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-50C-5
Output voltage: 5V Output current: 0 ~ 10A Output power rating: 50W Output voltage adjustment range: 4.5 ~ 5.5VDC Input voltage: 36 ~ 72VDC Input efficiency (Typ.):76% Input DC current: 1.5A/48V Size (mm):159X97X38 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$63.86
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-50B-24
Output voltage: 24V Output current: 0 ~ 2.1A Output power rating: 50.4W Output voltage adjustment range: 23 ~ 30VDC Input voltage: 19 ~ 36VDC Input efficiency (Typ.):80% Input DC current: 3A/24V Size (mm):159X97X38 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$63.86
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-50B-12
Output voltage: 12V Output current: 0 ~ 4.2A Output power rating: 50.4W Output voltage adjustment range: 11 ~ 16VDC Input voltage: 19 ~ 36VDC Input efficiency (Typ.):75% Input DC current: 3A/24V Size (mm):159X97X38 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$63.86
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-50B-5
Output voltage: 5V Output current: 0 ~ 10A Output power rating: 50W Output voltage adjustment range: 4.5 ~ 5.5VDC Input voltage: 19 ~ 36VDC Input efficiency (Typ.):73% Input DC current: 3A/24V Size (mm):159X97X38 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$63.86
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-50A-24
Output voltage: 24V Output current: 0 ~ 2.1A Output power rating: 50.4W Output voltage adjustment range: 23 ~ 30VDC Input voltage: 9.2 ~ 18VDC Input efficiency (Typ.):74% Input DC current: 7A/12V Size (mm):159X97X38 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$63.86
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-50A-12
Output voltage: 12V Output current: 0 ~ 4.2A Output power rating: 50.4W Output voltage adjustment range: 11 ~ 16VDC Input voltage: 9.2 ~ 18VDC Input efficiency (Typ.):72% Input DC current: 7A/12V Size (mm):159X97X38 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$63.86
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-50A-5
Output voltage: 5V Output current: 0 ~ 10A Output power rating: 50W Output voltage adjustment range: 4.5 ~ 5.5VDC Input voltage: 9.2 ~ 18VDC Input efficiency (Typ.):70% Input DC current: 7A/12V Size (mm):159X97X38 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$63.86
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-25C-24
Output voltage: 24V Output current: 0 ~ 1.1A Output power rating: 26.4W Output voltage adjustment range: 23 ~ 30VDC Input voltage: 36 ~ 72VDC Input efficiency (Typ.):81% Input DC current: 0.8A/48V Size (mm):99X97X36 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$51.43
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-25C-12
Output voltage: 12V Output current: 0 ~ 2.1A Output power rating: 25.2W Output voltage adjustment range: 11 ~ 16VDC Input voltage: 36 ~ 72VDC Input efficiency (Typ.):78% Input DC current: 0.8A/48V Size (mm):99X97X36 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$51.43
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-25C-5
Output voltage: 5V Output current: 0 ~ 5A Output power rating: 25W Output voltage adjustment range: 4.5 ~ 5.5VDC Input voltage: 36 ~ 72VDC Input efficiency (Typ.):74% Input DC current: 0.8A/48V Size (mm):99X97X36 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$51.43
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-25B-24
Output voltage: 24V Output current: 0 ~ 1.1A Output power rating: 26.4W Output voltage adjustment range: 23 ~ 30VDC Input voltage: 19 ~ 36VDC Input efficiency (Typ.):78% Input DC current: 1.6A/24V Size (mm):99X97X36 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$51.43
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-25B-12
Output voltage: 12V Output current: 0 ~ 2.1A Output power rating: 25.2W Output voltage adjustment range: 11 ~ 16VDC Input voltage: 19 ~ 36VDC Input efficiency (Typ.):75% Input DC current: 1.6A/24V Size (mm):99X97X36 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$51.43
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-25B-5
Output voltage: 5V Output current: 0 ~ 5A Output power rating: 25W Output voltage adjustment range: 4.5 ~ 5.5VDC Input voltage: 19 ~ 36VDC Input efficiency (Typ.):72% Input DC current: 1.6A/24V Size (mm):99X97X36 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$51.43
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-25A-24
Output voltage: 24V Output current: 0 ~ 1.1A Output power rating: 26.4W Output voltage adjustment range: 23 ~ 30VDC Input voltage: 9.2 ~ 18VDC Input efficiency (Typ.):75% Input DC current: 3.2A/12V Size (mm):99X97X36 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$51.43
-
MEAN WELL SD series: DC-DC conversion switching power supply - SD-25A-12
Output voltage: 12V Output current: 0 ~ 2.1A Output power rating: 25.2W Output voltage adjustment range: 11 ~ 16VDC Input voltage: 9.2 ~ 18VDC Input efficiency (Typ.):72% Input DC current: 3.2A/12V Size (mm):99X97X36 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$51.43
-

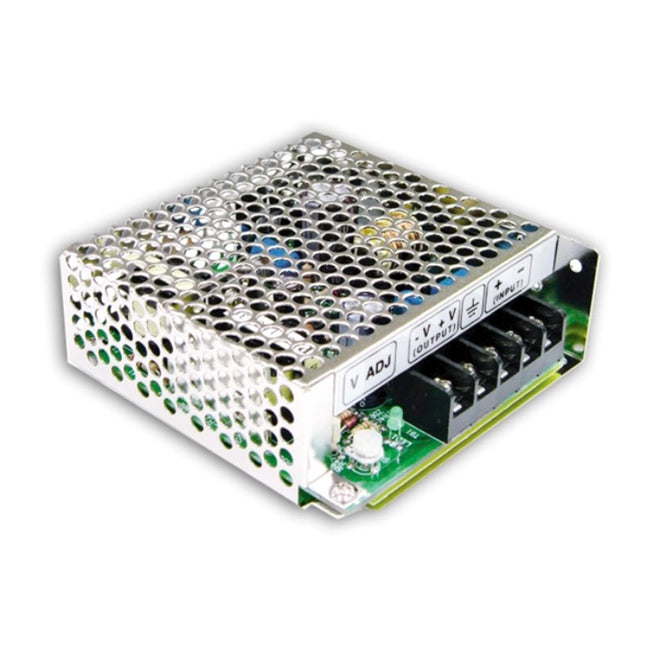

MEAN WELL SD series: DC-DC conversion switching power supply - SD-25A-5
Output voltage: 5V Output current: 0 ~ 5A Output power rating: 25W Output voltage adjustment range: 4.5 ~ 5.5VDC Input voltage: 9.2 ~ 18VDC Input efficiency (Typ.):71% Input DC current: 3.2A/12V Size (mm):99X97X36 Product Features 1, 2:1 wide range input (SD-15 ~ 350);4:1 wide range input (SD-500/1000). 2. I/O isolation: 1.5KVAC(SD-15 ~ 350),2KVAC(SD-500/1000). 3. Protection type: short circuit/overload/overvoltage; Over temperature (200~1000W). 4. Input polarity protection through fuse (only 500W), fanless design, natural air cooling (SD-15 ~ 200). 5. Built-in DC fan forced heat dissipation (SD-350 ~ 1000), DC inrush current suppression circuit (SD-500 only). 6. Output OK signal (SD-500/1000) and 12V0.25A auxiliary output (SD-500/1000). 7. Built-in remote control on/off and remote sensing function (SD-500/1000). 8.2-year warranty (SD-15 ~ 350) and 3-year warranty (SD-500/1000).
$51.43
You have seen 72 out of 81 products
