MEAN WELL DETN02 Series: DC-DC Unregulated Converter - DETN02L-15
Rated power: 2W Input voltage (range):Normal 5V(4.5~5.5V) Input current no-load: 60mA, full load: 494mA Output voltage: ± 15V Output current: ± 6 ~ 67mA Efficiency (TYP.):81% Capacitive load (maximum):220μF Performance difference:-40 ~ +100 ℃ working temperature, up to 0.5 seconds short circuit protection, standard product Size (mm):15.24X10.9X7.1 Click to download Airtac product catalog Product Features 1. SMD package has industry standard pins, operating temperature range -40 ~ +100 ℃, conforming to BS EN/EN55032 radiation Class A, no additional components, and efficiency as high as 83%. 2. Protection: short circuit, 3KVDC input/output isolation, low cost, optional reel packaging, 3 years warranty.
$17.25
-
MEAN WELL DETN02 Series: DC-DC Unregulated Converter - DETN02L-15SC
Rated power: 2W Input voltage (range):Normal 5V(4.5~5.5V) Input current no-load: 60mA, full load: 494mA Output voltage: ± 15V Output current: ± 6 ~ 67mA Efficiency (TYP.):81% Capacitive load (maximum):220μF Performance difference:-40 ~ +105 ℃ working temperature, continuous short circuit protection, optional Size (mm):15.24X10.9X7.1 Click to download Airtac product catalog Product Features 1. SMD package has industry standard pins, operating temperature range -40 ~ +100 ℃, conforming to BS EN/EN55032 radiation Class A, no additional components, and efficiency as high as 83%. 2. Protection: short circuit, 3KVDC input/output isolation, low cost, optional reel packaging, 3 years warranty.
$17.25
-
MEAN WELL DETN02 Series: DC-DC Unregulated Converter - DETN02M-05
Rated power: 2W Input voltage (range):Normal 12V(10.8~13.2V) Input current no-load: 30mA, full load: 208mA Output voltage: ± 5V Output current: ± 20 ~ 200mA Efficiency (TYP.):80% Capacitive load (maximum):220μF Performance difference:-40 ~ +100 ℃ working temperature, up to 0.5 seconds short circuit protection, standard product Size (mm):15.24X10.9X7.1 Click to download Airtac product catalog Product Features 1. SMD package has industry standard pins, operating temperature range -40 ~ +100 ℃, conforming to BS EN/EN55032 radiation Class A, no additional components, and efficiency as high as 83%. 2. Protection: short circuit, 3KVDC input/output isolation, low cost, optional reel packaging, 3 years warranty.
$17.25
-
MEAN WELL DETN02 Series: DC-DC Unregulated Converter - DETN02M-05SC
Rated power: 2W Input voltage (range):Normal 12V(10.8~13.2V) Input current no-load: 30mA, full load: 208mA Output voltage: ± 5V Output current: ± 20 ~ 200mA Efficiency (TYP.):80% Capacitive load (maximum):220μF Performance difference:-40 ~ +105 ℃ working temperature, continuous short circuit protection, optional Size (mm):15.24X10.9X7.1 Click to download Airtac product catalog Product Features 1. SMD package has industry standard pins, operating temperature range -40 ~ +100 ℃, conforming to BS EN/EN55032 radiation Class A, no additional components, and efficiency as high as 83%. 2. Protection: short circuit, 3KVDC input/output isolation, low cost, optional reel packaging, 3 years warranty.
$17.25
-
MEAN WELL DETN02 Series: DC-DC Unregulated Converter - DETN02M-12
Rated power: 2W Input voltage (range):Normal 12V(10.8~13.2V) Input current no-load: 30mA, full load: 203mA Output voltage: ± 12V Output current: ± 8 ~ 84mA Efficiency (TYP.):82% Capacitive load (maximum):220μF Performance difference:-40 ~ +100 ℃ working temperature, up to 0.5 seconds short circuit protection, standard product Size (mm):15.24X10.9X7.1 Click to download Airtac product catalog Product Features 1. SMD package has industry standard pins, operating temperature range -40 ~ +100 ℃, conforming to BS EN/EN55032 radiation Class A, no additional components, and efficiency as high as 83%. 2. Protection: short circuit, 3KVDC input/output isolation, low cost, optional reel packaging, 3 years warranty.
$17.25
-
MEAN WELL DETN02 Series: DC-DC Unregulated Converter - DETN02M-12SC
Rated power: 2W Input voltage (range):Normal 12V(10.8~13.2V) Input current no-load: 30mA, full load: 203mA Output voltage: ± 12V Output current: ± 8 ~ 84mA Efficiency (TYP.):82% Capacitive load (maximum):220μF Performance difference:-40 ~ +105 ℃ working temperature, continuous short circuit protection, optional Size (mm):15.24X10.9X7.1 Click to download Airtac product catalog Product Features 1. SMD package has industry standard pins, operating temperature range -40 ~ +100 ℃, conforming to BS EN/EN55032 radiation Class A, no additional components, and efficiency as high as 83%. 2. Protection: short circuit, 3KVDC input/output isolation, low cost, optional reel packaging, 3 years warranty.
$17.25
-

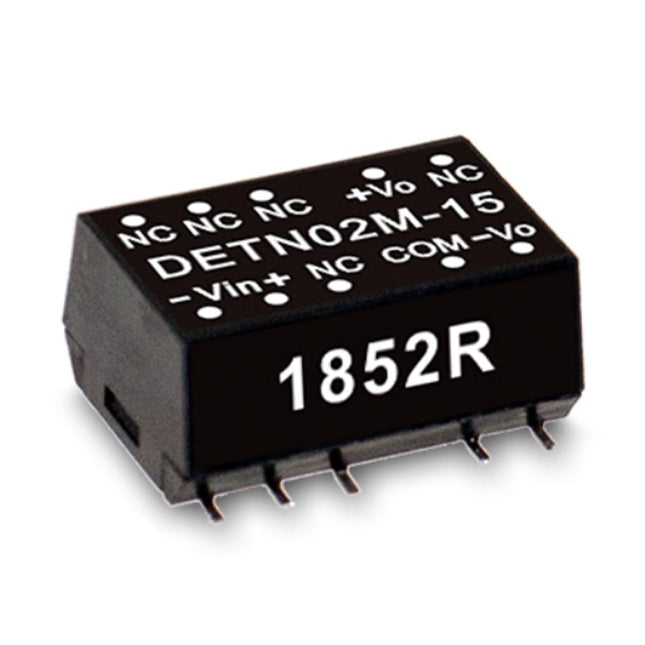

MEAN WELL DETN02 Series: DC-DC Unregulated Converter - DETN02M-15
Rated power: 2W Input voltage (range):Normal 12V(10.8~13.2V) Input current no-load: 30mA, full load: 200mA Output voltage: ± 15V Output current: ± 6 ~ 67mA Efficiency (TYP.):83% Capacitive load (maximum):220μF Performance difference:-40 ~ +100 ℃ working temperature, up to 0.5 seconds short circuit protection, standard product Size (mm):15.24X10.9X7.1 Click to download Airtac product catalog Product Features 1. SMD package has industry standard pins, operating temperature range -40 ~ +100 ℃, conforming to BS EN/EN55032 radiation Class A, no additional components, and efficiency as high as 83%. 2. Protection: short circuit, 3KVDC input/output isolation, low cost, optional reel packaging, 3 years warranty.
$17.25
-
MEAN WELL DETN02 Series: DC-DC Unregulated Converter - DETN02M-15SC
Rated power: 2W Input voltage (range):Normal 12V(10.8~13.2V) Input current no-load: 30mA, full load: 200mA Output voltage: ± 15V Output current: ± 6 ~ 67mA Efficiency (TYP.):83% Capacitive load (maximum):220μF Performance difference:-40 ~ +105 ℃ working temperature, continuous short circuit protection, optional Size (mm):15.24X10.9X7.1 Click to download Airtac product catalog Product Features 1. SMD package has industry standard pins, operating temperature range -40 ~ +100 ℃, conforming to BS EN/EN55032 radiation Class A, no additional components, and efficiency as high as 83%. 2. Protection: short circuit, 3KVDC input/output isolation, low cost, optional reel packaging, 3 years warranty.
$17.25
-
MEAN WELL DETN02 Series: DC-DC Unregulated Converter - DETN02N-05
Rated power: 2W Input voltage (range):Normal 24V(21.6~26.4V) Input current no-load: 15mA, full load: 107mA Output voltage: ± 5V Output current: ± 20 ~ 200mA Efficiency (TYP.):78% Capacitive load (maximum):220μF Performance difference:-40 ~ +100 ℃ working temperature, up to 0.5 seconds short circuit protection, standard product Size (mm):15.24X10.9X7.1 Click to download Airtac product catalog Product Features 1. SMD package has industry standard pins, operating temperature range -40 ~ +100 ℃, conforming to BS EN/EN55032 radiation Class A, no additional components, and efficiency as high as 83%. 2. Protection: short circuit, 3KVDC input/output isolation, low cost, optional reel packaging, 3 years warranty.
$17.25
-
MEAN WELL DETN02 Series: DC-DC Unregulated Converter - DETN02N-05SC
Rated power: 2W Input voltage (range):Normal 24V(21.6~26.4V) Input current no-load: 15mA, full load: 107mA Output voltage: ± 5V Output current: ± 20 ~ 200mA Efficiency (TYP.):78% Capacitive load (maximum):220μF Performance difference:-40 ~ +105 ℃ working temperature, continuous short circuit protection, optional Size (mm):15.24X10.9X7.1 Click to download Airtac product catalog Product Features 1. SMD package has industry standard pins, operating temperature range -40 ~ +100 ℃, conforming to BS EN/EN55032 radiation Class A, no additional components, and efficiency as high as 83%. 2. Protection: short circuit, 3KVDC input/output isolation, low cost, optional reel packaging, 3 years warranty.
$17.25
-
MEAN WELL DETN02 Series: DC-DC Unregulated Converter - DETN02N-12
Rated power: 2W Input voltage (range):Normal 24V(21.6~26.4V) Input current no-load: 15mA, full load: 104mA Output voltage: ± 12V Output current: ± 8 ~ 84mA Efficiency (TYP.):80% Capacitive load (maximum):220μF Performance difference:-40 ~ +100 ℃ working temperature, up to 0.5 seconds short circuit protection, standard product Size (mm):15.24X10.9X7.1 Click to download Airtac product catalog Product Features 1. SMD package has industry standard pins, operating temperature range -40 ~ +100 ℃, conforming to BS EN/EN55032 radiation Class A, no additional components, and efficiency as high as 83%. 2. Protection: short circuit, 3KVDC input/output isolation, low cost, optional reel packaging, 3 years warranty.
$17.25
-
MEAN WELL DETN02 Series: DC-DC Unregulated Converter - DETN02N-12SC
Rated power: 2W Input voltage (range):Normal 24V(21.6~26.4V) Input current no-load: 15mA, full load: 104mA Output voltage: ± 12V Output current: ± 8 ~ 84mA Efficiency (TYP.):80% Capacitive load (maximum):220μF Performance difference:-40 ~ +105 ℃ working temperature, continuous short circuit protection, optional Size (mm):15.24X10.9X7.1 Click to download Airtac product catalog Product Features 1. SMD package has industry standard pins, operating temperature range -40 ~ +100 ℃, conforming to BS EN/EN55032 radiation Class A, no additional components, and efficiency as high as 83%. 2. Protection: short circuit, 3KVDC input/output isolation, low cost, optional reel packaging, 3 years warranty.
$17.25
-
MEAN WELL DETN02 Series: DC-DC Unregulated Converter - DETN02N-15
Rated power: 2W Input voltage (range):Normal 24V(21.6~26.4V) Input current no-load: 15mA, full load: 104mA Output voltage: ± 15V Output current: ± 6 ~ 67mA Efficiency (TYP.):80% Capacitive load (maximum):220μF Performance difference:-40 ~ +100 ℃ working temperature, up to 0.5 seconds short circuit protection, standard product Size (mm):15.24X10.9X7.1 Click to download Airtac product catalog Product Features 1. SMD package has industry standard pins, operating temperature range -40 ~ +100 ℃, conforming to BS EN/EN55032 radiation Class A, no additional components, and efficiency as high as 83%. 2. Protection: short circuit, 3KVDC input/output isolation, low cost, optional reel packaging, 3 years warranty.
$17.25
-
MEAN WELL DETN02 Series: DC-DC Unregulated Converter - DETN02N-15SC
Rated power: 2W Input voltage (range):Normal 24V(21.6~26.4V) Input current no-load: 15mA, full load: 104mA Output voltage: ± 15V Output current: ± 6 ~ 67mA Efficiency (TYP.):80% Capacitive load (maximum):220μF Performance difference:-40 ~ +105 ℃ working temperature, continuous short circuit protection, optional Size (mm):15.24X10.9X7.1 Click to download Airtac product catalog Product Features 1. SMD package has industry standard pins, operating temperature range -40 ~ +100 ℃, conforming to BS EN/EN55032 radiation Class A, no additional components, and efficiency as high as 83%. 2. Protection: short circuit, 3KVDC input/output isolation, low cost, optional reel packaging, 3 years warranty.
$17.25
-
MEAN WELL DETN02-N series: DC-DC unregulated converter - DETN02L-05N
New series Rated power: 2W Input voltage (range):Normal 5V(4.5~5.5V) Input current no-load: 60mA, full load: 513mA Output voltage: ± 5V Output current: ± 20 ~ 200mA Efficiency (TYP.):81% Capacitive load (maximum):± 680 μF Size (mm):15.24X10.9X9.1 Click to download Airtac product catalog Product Features 1. The SMD package has industry standard pins, the operating temperature range is -40 ~ +85 ℃, and the efficiency is as high as 83%. 2.3KVDC input/output isolation, low cost, 3 years warranty.
$17.25
-
MEAN WELL DETN02-N series: DC-DC unregulated converter - DETN02L-12N
New series Rated power: 2W Input voltage (range):Normal 5V(4.5~5.5V) Input current no-load: 60mA, full load: 500mA Output voltage: ± 12V Output current: ± 8 ~ 83mA Efficiency (TYP.):81% Capacitive load (max):± 220μF Size (mm):15.24X10.9X9.1 Click to download Airtac product catalog Product Features 1. The SMD package has industry standard pins, the operating temperature range is -40 ~ +85 ℃, and the efficiency is as high as 83%. 2.3KVDC input/output isolation, low cost, 3 years warranty.
$17.25
-
MEAN WELL DETN02-N series: DC-DC unregulated converter - DETN02L-15N
New series Rated power: 2W Input voltage (range):Normal 5V(4.5~5.5V) Input current no-load: 60mA, full load: 494mA Output voltage: ± 15V Output current: ± 6 ~ 66mA Efficiency (TYP.):83% Capacitive load (max):± 220μF Size (mm):15.24X10.9X9.1 Click to download Airtac product catalog Product Features 1. The SMD package has industry standard pins, the operating temperature range is -40 ~ +85 ℃, and the efficiency is as high as 83%. 2.3KVDC input/output isolation, low cost, 3 years warranty.
$17.25
-
MEAN WELL DETN02-N series: DC-DC unregulated converter - DETN02M-05N
New series Rated power: 2W Input voltage (range):Normal 12V(10.8~13.2V) Input current no-load: 30mA, full load: 208mA Output voltage: ± 5V Output current: ± 20 ~ 200mA Efficiency (TYP.):82% Capacitive load (maximum):± 680 μF Size (mm):15.24X10.9X9.1 Click to download Airtac product catalog Product Features 1. The SMD package has industry standard pins, the operating temperature range is -40 ~ +85 ℃, and the efficiency is as high as 83%. 2.3KVDC input/output isolation, low cost, 3 years warranty.
$17.25
-
MEAN WELL DETN02-N series: DC-DC unregulated converter - DETN02M-12N
New series Rated power: 2W Input voltage (range):Normal 12V(10.8~13.2V) Input current no-load: 30mA, full load: 203mA Output voltage: ± 12V Output current: ± 8 ~ 83mA Efficiency (TYP.):80% Capacitive load (max):± 220μF Size (mm):15.24X10.9X9.1 Click to download Airtac product catalog Product Features 1. The SMD package has industry standard pins, the operating temperature range is -40 ~ +85 ℃, and the efficiency is as high as 83%. 2.3KVDC input/output isolation, low cost, 3 years warranty.
$17.25
-
MEAN WELL DETN02-N series: DC-DC unregulated converter - DETN02M-15N
New series Rated power: 2W Input voltage (range):Normal 12V(10.8~13.2V) Input current no-load: 30mA, full load: 200mA Output voltage: ± 15V Output current: ± 6 ~ 66mA Efficiency (TYP.):81% Capacitive load (max):± 220μF Size (mm):15.24X10.9X9.1 Click to download Airtac product catalog Product Features 1. The SMD package has industry standard pins, the operating temperature range is -40 ~ +85 ℃, and the efficiency is as high as 83%. 2.3KVDC input/output isolation, low cost, 3 years warranty.
$17.25
-
MEAN WELL DETN02-N series: DC-DC unregulated converter - DETN02N-05N
New series Rated power: 2W Input voltage (range):Normal 24V(21.6~26.4V) Input current no-load: 15mA, full load: 107mA Output voltage: ± 5V Output current: ± 20 ~ 200mA Efficiency (TYP.):81% Capacitive load (maximum):± 680 μF Size (mm):15.24X10.9X9.1 Click to download Airtac product catalog Product Features 1. The SMD package has industry standard pins, the operating temperature range is -40 ~ +85 ℃, and the efficiency is as high as 83%. 2.3KVDC input/output isolation, low cost, 3 years warranty.
$17.25
-
MEAN WELL DETN02-N series: DC-DC unregulated converter - DETN02N-12N
New series Rated power: 2W Input voltage (range):Normal 24V(21.6~26.4V) Input current no-load: 15mA, full load: 104mA Output voltage: ± 12V Output current: ± 8 ~ 83mA Efficiency (TYP.):82% Capacitive load (max):± 220μF Size (mm):15.24X10.9X9.1 Click to download Airtac product catalog Product Features 1. The SMD package has industry standard pins, the operating temperature range is -40 ~ +85 ℃, and the efficiency is as high as 83%. 2.3KVDC input/output isolation, low cost, 3 years warranty.
$17.25
-
MEAN WELL DETN02-N series: DC-DC unregulated converter - DETN02N-15N
New series Rated power: 2W Input voltage (range):Normal 24V(21.6~26.4V) Input current no-load: 15mA, full load: 104mA Output voltage: ± 15V Output current: ± 6 ~ 66mA Efficiency (TYP.):82% Capacitive load (max):± 220μF Size (mm):15.24X10.9X9.1 Click to download Airtac product catalog Product Features 1. The SMD package has industry standard pins, the operating temperature range is -40 ~ +85 ℃, and the efficiency is as high as 83%. 2.3KVDC input/output isolation, low cost, 3 years warranty.
$17.25
-
MEAN WELL DHP Series: Distributed Power/Charging System - DHP-1UT-B
Electrical Specifications-Power Supply System (default) Terminal block 3200W stand-alone bracket 19 ° Rack: DHP-1UT-B Power supply module: NCP-3200-24 * 4 Output voltage: 24V Maximum output current: 532A Maximum output power: 12768W Input voltage: 90 ~ 264VAC,127 ~ 400VDC Dimensions (mm):400X482.6X44 (with mounting bracket),400X440X44 (without mounting bracket) Click to download Airtac product catalog Product Features 1. International universal full-range exchange input. 2. 1U height 19 inch rack, suitable for installing 4 3200W modules for current averaging, with a total power of 12800W. 3. Up to 10 racks in parallel. 4. The output voltage and output current are adjustable. 5. Support hot plug. 6. PMBus/CANBus serial communication. 7 and 5 years warranty.
$1,260.73
